DESIGN, ANALYSIS & FABRICATION OF AIR PURIFIER AND HUMIDIFIER USING WATER AS A FILTER Chandrasen Lawhale 1, Saurabh Late 2, Sohan Jadhav3, Puneet Kumar Gupta4 1,2,3Bachelor of Engineering, Mechanical Department, Datta Meghe College of Engineering, Airoli 4Professor, Mechanical Department, Datta Meghe College of Engineering, Airoli

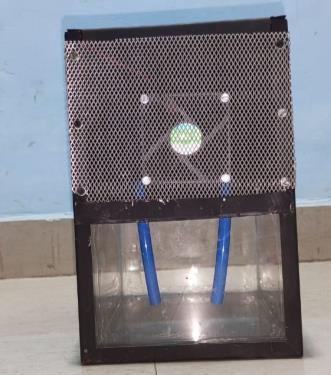

---------------------------------------------------------------------***--------------------------------------------------------------------Abstract : We have developed a small air purifier that 2.SYSTEM COMPONENTS employs water as an air filter instead of pricy filters. It also functions as an oil diffuser and air humidifier, which helps you unwind and eliminates some bacteria and viruses in the atmosphere. Two high-power, low-noise centrifugal fans are employed by the system to draw air through a protective mesh. After that, the air is drawn in and run through a water tank at the purifier's base. Water collects dust, fungi, germs, and other particles, which causes the air it passes through to become naturally cleaned. Cool air with a high humidity level rises through the water as a result. Additionally, the system's additional essential oils enable the area or room to be humidified with essential oils, which have been shown in studies to help people relax and kill specific types of germs and fungi in the air. Additionally, studies have shown that inhaling some essential oils might have a variety of health benefits
This system consists of various components which are as follows: 1. Air Blower Pump or centrifugal pump. 2. Air Suction pump. 3. Pipe, Pipe Fitting. 4. Protective three mess filter. 5. Mounts and Joints. 6. Base Frame. 7. UV light. 8. Water Tank. 9. Pipe Fittings. 10. Nozzle. 11. Pipe Connector. 12. Transformer/Adapter.
Key words: Low-Cost Purifier, No Expensive Filters, Quiet Operation, Easy Maintenance, Also acts as a Humidifier, Low Power Consumption, Easy To Use, Can be used as an Oil Diffuser
3. METHODOLOGY Fabrication is a significant industry that creates structures by cutting, forming, and assembling materials. Although many fabrication businesses employ diverse methodologies, the majority depend on three fundamental procedures: chopping, shaping, and assembly.
1.INTRODUCTION Extreme air pollution is a problem that many nations and major cities face nowadays. The air around cities is polluted by vehicles, factories, and the usage of non-renewable energy sources. This is a serious issue in China and India, where over a billion people live in contaminated cities. Air purifiers are the answer that people use to filter the indoor air in polluted locations. Most people who live in areas with bad air quality have this gadget in their homes and offices. Usually, the purpose of an air purifier is to draw air into the house through a fan located inside the appliance. Clean air is released when the air is passed through a filter medium of some kind that captures the particles causing pollution. Nevertheless, the majority of air purifiers available today use so-called HEPA filters, which need to be changed frequently and use a lot of energy. Given that pricing is one of the most significant considerations for clients when purchasing an air purifier, this solution is somewhat expensive and may not be appropriate for everyone.
© 2024, IRJET
|
Impact Factor value: 8.226
Slicing Cutting is the first step in the fabrication process. In order to create a new metal structure or product, the metal fabrication firm will cut one or more pieces of raw metal during this process. But cutting any kind of metal, be it iron, steel, aluminum, or any other common metal, calls for specialized equipment. While some metal production businesses employ numerical control (CNC) equipment with lasers or water jets, others use torches. When it's done, the business will have neat, precisely proportioned metal sheets or parts to operate with. Bending Metal fabrication companies must bend raw metal after cutting it. Once more, there are various methods for bending metal after it has been cut. Certain enterprises that fabricate metal sheets or sections use hammers to shape them into the required shape. Hammering can be performed manually or mechanically (power hammering). However, a lot of
|
