Implementation of Precast Pervious Concrete for Design a Smart Pavement Aniket P. Dhawale 1, Pranav S. Pathrabe 2, Rohan I. Thawkar 3 Tejas R. Wasnik 4, Pankaj I. Chavhan 5, Abhay A. Kathane 6 Guide: Professor, Sanjay Bhadke Department of civil engineering TGPCET [RTMNU], Nagpur, India 1 Student, Aniket P. Dhawale, Department of civil engineering TGPCET [RTMNU], Nagpur, India 2 Student, Pranav S. Pathrabe, Department of civil engineering TGPCET [RTMNU], Nagpur, India 3 Student, Rohan I. Thawkar, Department of civil engineering TGPCET [RTMNU], Nagpur, India 4 Student, Tejas R. Wasnik, Department of civil engineering TGPCET [RTMNU], Nagpur, India 5 Student, Pankaj I. Chavhan, Department of civil engineering TGPCET [RTMNU], Nagpur, India 6 Student, Abhay A. Kathane, Department of civil engineering TGPCET [RTMNU], Nagpur, India ---------------------------------------------------------------------***--------------------------------------------------------------------Abstract - Pervious concrete is one of the type of concrete it’s have a property to allow a water flow through concrete. Pervious concrete is a lightweight concrete which mainly comprised by cement, water, coarse aggregate and glass fiber threads. Size of aggregate near about 9mm < 12.5mm ≤ or minimum 9.6mm. Size of glass fibre threads 70-80mm and the size of sample cube of testing is 150*150*150mm. The pervious concrete has a ratio of mix proportion 1:2.25:0.45, 1 part of cement, 2.25 part of coarse aggregate and 0.45 part of water. The problem that society going to face unwanted surface water or storm water collected on road so the pervious concrete have the ability to pass directly through the drainage system.
Key Words:
Pervious concrete, glass fibre threads, porosity, drainage system, cost.
1.INTRODUCTION Pervious concrete is also called as “porous concrete”, “permeable concrete”, “no fines concrete” and it’s made up by using the cement, coarse aggregate and water, with addition of glass fibre threads. Pervious concrete is traditionally used in parking areas, areas with light traffic, residential street, pedestrian walkway, and greenhouses.
2. LITERATURE REVIEW B. Radha Kiranmaye, D. Tarangini, K. V. Ramana Reddy
It is an important application for sustainable construction property application for sustainable construction. Property of the pervious concrete is to allow water thought itself because it’s a porous concrete and adding a drainage system and collecting tank below the previous pavement. Collecting the storm water for domestic usage. Pervious concrete functions like a storm water and can reduce pollutant load entering into stream, pond and rivers. The ratio of mix proportion 1:2.25:0.45 and the ratio of glass fibre threads 0.50% of concrete. Increase strength of pervious concrete pavement by using a glass fibre threads.
© 2024, IRJET
|
Impact Factor value: 8.226

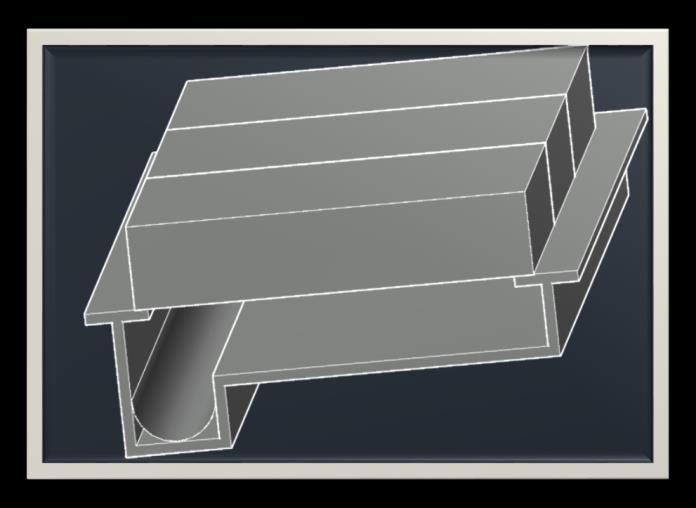

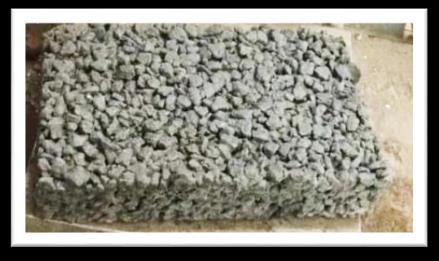

Pervious pavement block. Ply base. Drainage pipe.

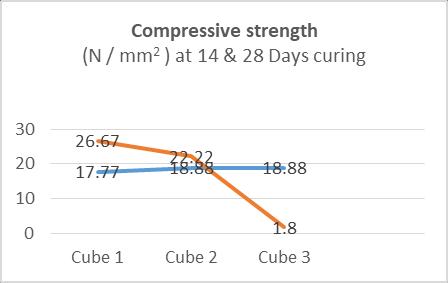

Length of Glass Fibre used is 12mm. Compressive Strength of M20 grade of concrete for 28 days – 25-30 MPa
Megha N Belagal, Ramya B V
Pervious Concrete Specimens with 0.50% Glass fibre allow the water to pass quickly as compared to that of specimens of mix containing 2% glass fibres.
Paul D Tennis, Michael L Leming, David J Akers
|
Pervious Concrete as a paving material has seen renewed interest due to its ability to allow water to
