THERMOGLOW: TEMPERATURE GAUGE WITH LM35 Tusharkant Panda1, Tejaswini Behera2, Swati Saswati Biswal2, Swati Swagatika Nanda2, Apurba Kumar Swain2 1Assistant Professor, ECE department, GIETU, Gunupur, Odisha, India 2UG Scholar, ECE department, GIETU, Gunupur, Odisha, India
---------------------------------------------------------------------***---------------------------------------------------------------------
Abstract-This
temperature information. Thermoglow is an innovative temperature indicator leveraging LED technology to provide a visual representation of temperature changes [5,6,7]. This intelligent device offers a user-friendly way to monitor temperature variations in various settings. By employing a range of LED colours and patterns, ThermoGlow offers an intuitive and convenient method for users to assess temperature changes, making it an ideal tool for diverse applications, from home use to industrial settings. Its sleek design and functionality make it a versatile and reliable temperature indicator, catering to the needs of users across different environments The LM35 is a precision integratedcircuit temperature sensor that provides an accurate and linear output directly proportional to the Celsius temperature. It's a popular choice for temperature measurement due to its simplicity, accuracy, and ease of use. The LM35 sensor doesn't require external calibration or trimming and provides temperature readings in the range of -55°C to 150°C. Its straightforward analogue output makes it compatible with most microcontrollers and digital systems, making it widely utilized in various applications such as environmental control systems, industrial automation, medical devices, and automotive applications. Its small form factor, low power consumption, and reliability have made the LM35 a staple in temperature sensing technology [8,9,10]. The significance of LED Temperature indicator lies in its ability to address various practical needs and applications such as:

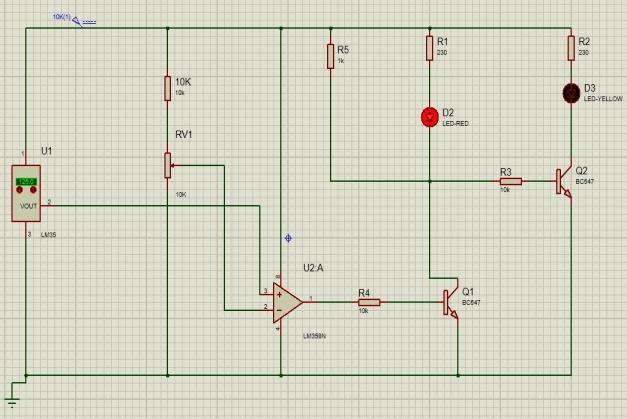

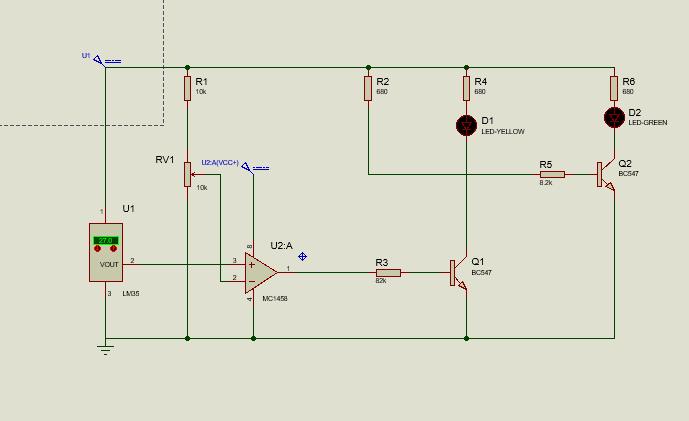

paper outlines the design and implementation of a temperature indicator using LM35 temperature sensor and LED without the use of Arduino. The LM35 sensor provides an accurate temperature reading, and the LED visually represents the temperature level. This paper covers the paper’s objectives, components, circuit design, and working principle. The paper provides a captivating blend of temperature monitoring, creating an engaging and informative visual display of changing environmental conditions. This innovative circuit employs a thermistor (LM35), to capture real time temperature data. The sensor’s output is then meticulously processed by an integrated circuit (IC) that intricately controls a series of vibrant LEDs. What makes this paper truly enticing is its ability to transform mundane data into a mesmerizing visual spectacle. As temperatures rise or fall, the LEDs gracefully light up or dim, creating a dynamic and eye-catching display. It can be used as a learning tool, or simply a decorative temperature indicator. The “Temperature indicator LED circuit” paper serves as an excellent example of data visualization in a way that is both accessible and visually captivating.
KeyWords:Temperature;LM35;Measurement; Resistor; IC; LED.
1.INTRODUCTION The "Thermoglow: Temperature Guage with LM358" paper presents a novel and user-centric solution for real-time temperature monitoring [1,2]. The LM35 temperature sensor has gained popularity for its accuracy and ease of integration. This paper presents a detailed exploration of a temperature indicator using the LM35 eliminating the need of Arduino or microcontroller [3,4].
i. Enhanced Temperature Monitoring ii. Energy Efficiency iii. Safety and Comfort iv. Automation and Control v. Educational Tool vi. Research and Development vii. Versatility
The scope of this is wide ranging, with potential applications in diverse fields, offering versatility and adaptability for various temperature monitoring needs. In this increasingly interconnected and technology-driven world, we often need to keep an eye on temperature, whether it’s for our comfort at home, in a factory, or even for our health, but understanding temperature can be risky sometimes. The ability to interpret and visualize this data in a comprehensible and instinctive manner is essential for making informed decisions and ensuing safety and comfort. LEDs are renowned on their energy efficiency, brightness and versatility, making them an ideal choice for creating a visual representation of
© 2024, IRJET
|
Impact Factor value: 8.226
1.2 LITRATURE REVIEW In February 2017, Shekhar Mishra et al in their paper “Temperature Control Based LED indication system” have done an Industrial Temperature Controller using LED, LM35 Temperature Indicator, and ATS952 Microcontroller [11]. They have also used a 89S52 microcontroller brain, temperature sensor LM35 which senses the actual temperature of the system, to convert the temperature recorded by the sensor into a digital quantity, LCD for display and to turn the LED’s on or off. In 2017, Fahimeh Dehkhoda
|
