Smart Cart using RFID (Radio Frequency Identification) Jyoti Vaggu1, Utkarsha Patil2, Ajmal Shaikh3 Prof. Mrs. S. D. Sapate 1Jyoti Vaggu (Student) 2Utkarsha Patil (Student) 3Ajmal Shaikh (Student)

1,2,3Mrs. S. D. Sapate, Department of Computer Technology, Bharati Vidyapeeth’s Jawaharlal Nehru Institute of

Technology, Pune 43, Maharashtra, India ---------------------------------------------------------------------***---------------------------------------------------------------------

Abstract - In terms of simplifying shopping and reducing

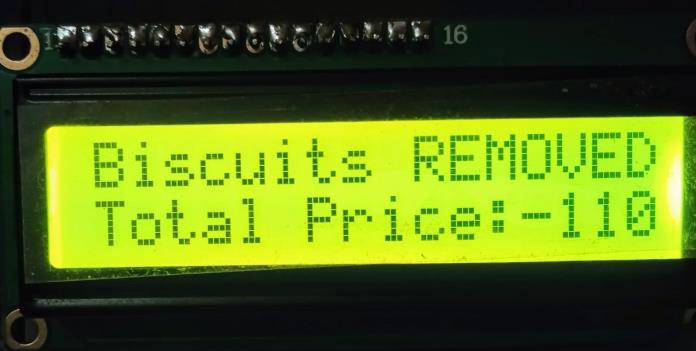

shopping is done by customer as per his/her requirement, they can pay bill at the billing counter as the total price is displayed on the LCD screen display.

crowd at supermarkets, there is need for the advanced technology that simplifies the shopping and reduces queue at billing counter. By automatically identifying the products being added to the cart and providing the information on the user interface, the smart cart can make the shopping experience easier. This project presents a simplified basic version of shopping cart that can recognize products by RFID Cards. The primary objective of this project is to reduce waiting times at long queue in markets and other shopping centers using an basic innovative cart system that makes use of RFID technology to provide an intelligent approach to the billing process. The project's primary focus is the smart cart . It consists of NODEMCU, LCD Display, RFID Reader Module, RFID Cards, Buzzer, Arduino UNO etc. Every item that is put into the cart will be able to have a total bill generated by the system. It will be simpler to skip billing counters in shopping malls. This project will able to simplify the shopping experience by reducing human interference with accuracy.

As Cashier at the billing counter has to scan each and every products purchased by the customer, it becomes more time consuming in terms of customer and as well as customer point of view. By this reason human error is also reduced.

2. LITERATURE SURVEY In Literature Survey here, the number of research and implementation papers of existing projects are included. All of these projects features, and other parameters are taken into consideration and after this we have designed our project. [1] Tanmay Shukla, Poorvi Shrivastava, Prachi Takke, Prof. Madhuri Ghuge “RFID based Smart Trolley” March 2019: This paper emphasizes on the avoidance of the hustle like pushing trolley, waiting in billing queue. They developed IoT based Trolley which is totally automatic.Customer will be purchasing products and they are kept in trolley by them. RFID will automatically scan them by detecting it from local database. LCD display is there for showing product shopping details.

Key Words: RFID, Smart Cart, NODEMCU, LCD Display, RFID Cards, Arduino

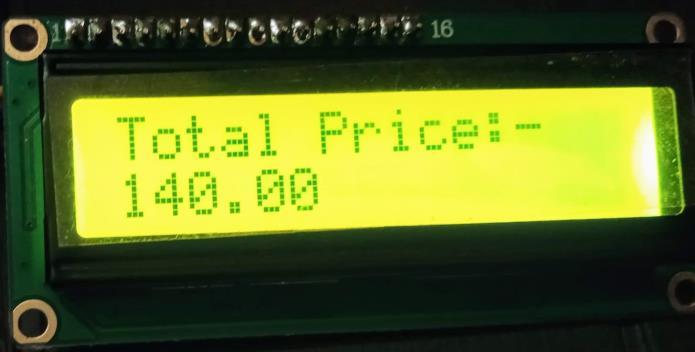

1. INTRODUCTION The main aim of the project is to satisfy the customer requirements and to reduce the time spent on the Billing counter which is to complete the billing process in the cart rather than waiting in a queue even for one or two products. The customers must add the products after a short RFID scan in cart and when the shopping is done the finalized amount will be displayed on the LCD screen. Finally customers can pay their total bill at the counter.

[2] Udita Gangwal, Sanchita Roy, Jyotsana Bapat “Smart Shopping Cart for Automated Billing Purpose using Wireless Sensor Networks” 2013: In this paper, the proposed project uses Wireless Sensor Networks (WSN) technology. It reduces manpower and avoid crowd at billing counter. It ensures detection of unauthorized customers which increases smart system fair attractive for both buyers and sellers.

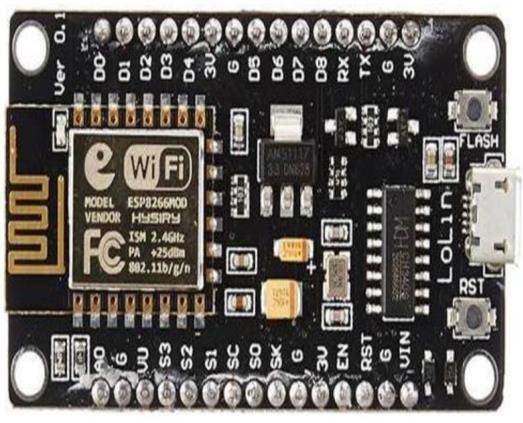

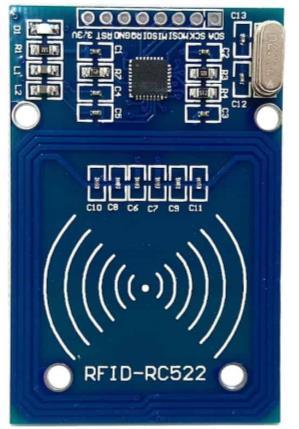

Mainly this proposed system includes hardware resources such as NODEMCU, RFID Reader Module, RFID cards, Buzzer, Connecting wires and Software resources such as Arduino IDE which uses Embedded C programming language.

[3] Bhumika R., Harshitha G. Bhat, Chandana K., Meghashree R. T., Dr. Sangappa S. B. “Automated Shopping Trolley for Billing System” 2019: This paper emphasizes on the quick and easy shopping experience. It reduces the long waiting line at Billing counter and as well as reduces the efforts of the cashier to scan each and every product as it will reduce time also.

The Customer has to scan the products by RFID reader and after scanning they can place it in the Smart Cart . After
