Experimental Analysis Of High Performance Concrete With Different Case Of Silica Fume Rishav Mourya1, Prof. Kuldeep Pathak2, Prof. Gaurav Shrivastava3 1M.Tech. Student - Department of Civil Engineering, Vikrant Institute of Technology &
Management, Gwalior (M.P.), India 2Professor, 3Professor, - Department of Civil Engineering, Vikrant Institute of Technology &

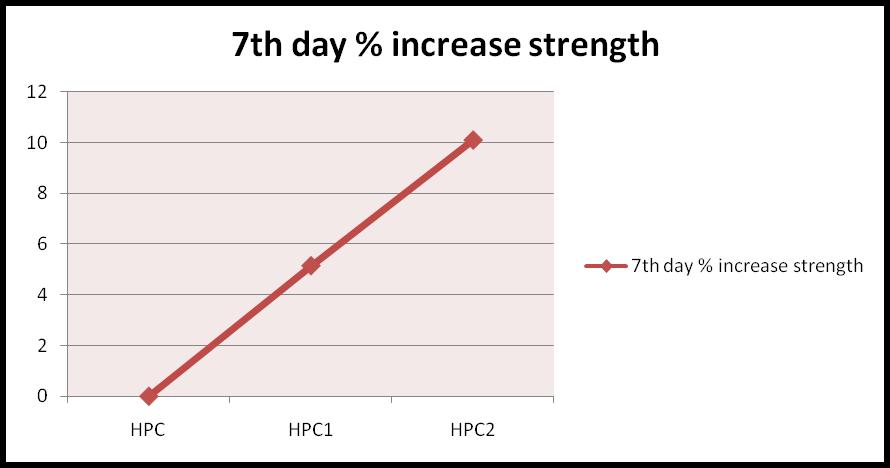

Management, Gwalior (M.P.), India ----------------------------------------------------------------------***------------------------------------------------------------------------Abstract: The modern concept of HPC has been broadened to include strength and durability. Applications for highperformance concrete (HPC) in civil engineering are quite diverse and include everything from thin pavements to large constructions like bridges and high-rise skyscrapers. When better mechanical and/or durability qualities are required, HPC is frequently selected. In this research, three cases taken, one is normal case without any change in concrete design, which named HPC and remaining two cases the steel fiber percentage taken 0.7% and percentage of silica fume are added 10 and 20 percentage which named HPC1 and HPC2 respectively. then compare their results in term of compressive strength for 7th day, 14th day and 28th day for M45 grade.
Keywords :- Steel fiber, silica fume, concrete design and compressive strength etc. I.
INTRODUCTION
The use of High Strength concrete is used in the construction of Earth-quake resistant structures, long-span bridges, offshore structures and other mega structures will result in lighter sections, leading to cost effectiveness of structures. The above benefits of HSC has been used more widely in the recent years for the construction of important structures like tall buildings, bridges , viaducts, etc. "High Performance Concrete is concrete that has been specifically chosen to meet its intended use." It's not mysterious, doesn't require strange substances, and doesn't require the usage of specialized equipment. To create a concrete mix within strictly regulated tolerances, all we need is an awareness of the behavior of the concrete.

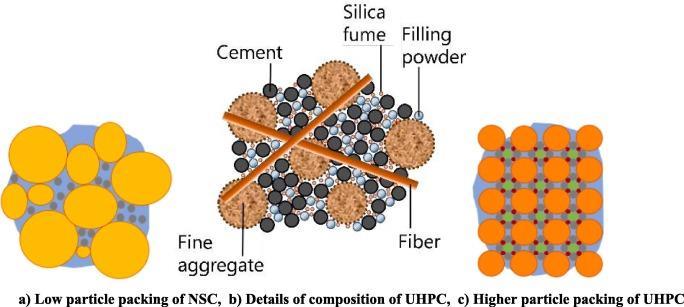

Figure 1 Composition
