Delivery of Basic Commodities using Drone

Delivery of Basic Commodities using Drone

1,2,3,4 Students, Dept. of Electronics & Communication Engineering, R.V.R. & J.C. College of Engineering, Guntur, Andhra Pradesh, India

Abstract - This article presents the delivery of basic commodities by using flying drone. First there was bandied construction of the drone, which the most important rudiments are frame, propellers, machine, systemofpowerthe electronic control and communication system. The rapid-fire increase in operation of online ordering has increased the demand of force to deliver in multiplecrowds. Drone grounded technology is being used to meet this demand for delivering medical appliances. A Hexacopter can achieve perpendicular flight in a stable manner and be used to cover or collect data, delivery in a specific region. With advancing Drown. Healthcare professionals can use drones to transport crucial information such as laboratory reports and medications, as well as conduct routine safety check-ups and to transfer basic commodities. Public frequently needtotransport commodities in a timely manner, making traditional options like aero planes and buses impracticable.

The main objective of this study is to design and manufacture the low cost and low weighthexacopterplatformprototype for the delivering commodities to the customers.

Key Words: Hexacopter, Commodities, Medications, Lab repots, Prototype.

1. INTRODUCTION

Drone delivery operations have gained wide attention recently given their potential to save time and cost while reducingenvironmentalimpact,deliveryisoneofthemost prominent,becausedronedeliverycouldpotentiallyimprove the delivery speed of perishable medical appliances. Initiallyshroudedinmysteryduetoitspredominantusein the military, unmanned aerial vehicles or drones are now ubiquitous in various aspects of life, including civilian, recreational,andmilitaryuse.Theycanlandandtakeoffona variety of surfaces, ranging from grassy fields to sandy beaches and asphalted runways. The utilization of drones, whichareunmannedaerialvehicles,forcivilianpurposeshas seenariseintermsoftheirquantity,dimensions,andweight, aswellasthescopeoftheiruse.

Droneshavethecapabilitytotransfermedicalsuppliessuch as pharmaceuticals, vaccines, blood products, and medical samples. Unlike motorcycles or trucks, medical deliveries usingdronescanreachremoteorhard-to-reachareas.The utilization of drones for medical delivery has been acknowledgedforitslife-savingimpactduringurgentblood deliveries.

***

The operation of drones can be carried out through remotecontrolusingradiowavesorautonomously,following apre-programmedroute.Dronesoftenhaveoptoelectronic headsinstalledonthemforthepurposeofsurveillanceand monitoring.Thekeybenefitofdronesisthattheycanrapidly observe and monitor a specific area or object without requiring any supplementary infrastructure. One major advantageistheirabilitytoreactquicklyduetotheirshort responsetime.

2. Drone construction:

Droneiscomposedoftwomajorsystems:

1. Movementsystem

2. Controlsystem.

2.1 Movement system frame:

Thefundamentalcomponentofadroneisitsframe,which must be as lightweight as possible. The primary factor for categorizing frame construction is the quantity of arms utilized. Figure 1 displays the potential options for constructing frames. The categorization of drones is determined by the numberof armsand motors employed, resultingin:

a) Bicopters–twoengines,

b) Tricopters–threeengines,

c) Quadrocopters–fourengines,

d) Hexacopter–sixengines,

e) Octocopters–eightengines.

Itisgenerallyrecognizedthattheconstructionwithmore armsallowsforamorestableflight.Theframeismade of carbon cloth 3K. Carbon cloth high stiffness, high tensile strength, high strength to weight ratio, high chemical resistance, high-temperature tolerance, and low thermal expansion.Hexacopterwiths550frameisshowninFigure 2(a)and2(b).Theframehasthewheelbaseof550mmand wholeframekitweighsaround760gm.Someaspectstotake into consideration when constructing a drone are the following:

a) Lift capacity: Itisimportanttoknowtheweightof allcomponentssothatthetotalweightisnotheavier thanthetotalthrustfromthemotors.

b) Energy: Theamountofenergyonadroneislimited tothecapacityofthebattery.Increasingthecapacity of the battery means adding more weight, more weight means more thrust is needed, more thrust means a higher energy consumption, therefor conservation of energy is important. Each componentonthedronerequirespower,anditis necessarytomaintainabalancebetweentheoverall powerconsumptionandthetotalcapacity.

a) Made by advanced engineering material, super strong&smooth.

b) Easytoassembleanddisassemble.

c) Theframeistoughanddurable.

d) Themainglassfiberframehasgoodstrength.

e) Thesupportridgesattachedtothearmenhancethe forward flight by providing improved speed and efficiency.

f) Featurespre-threadedbrasssleeves.

g) Largemountingtabsforcameramounting.

h) PCBforeasyandneatwiring.

i) Easyassembly

2.1.1 Propellers and engine:

Followingthedrone'sbody,thesubsequentcrucialparts arethepropellersandtheengine.Thepropellersserveasthe primarypropulsionmechanismofadroneandaresubjected to significant stress, highlighting the significance of their durability.Thepropellersconvertthetorquegeneratedby theengineintotheliftingforcethatraisesthedroneintothe air. The categorization of drone types is based on the propeller system concerning the direction of flight, which resultsinthefollowingclassifications:

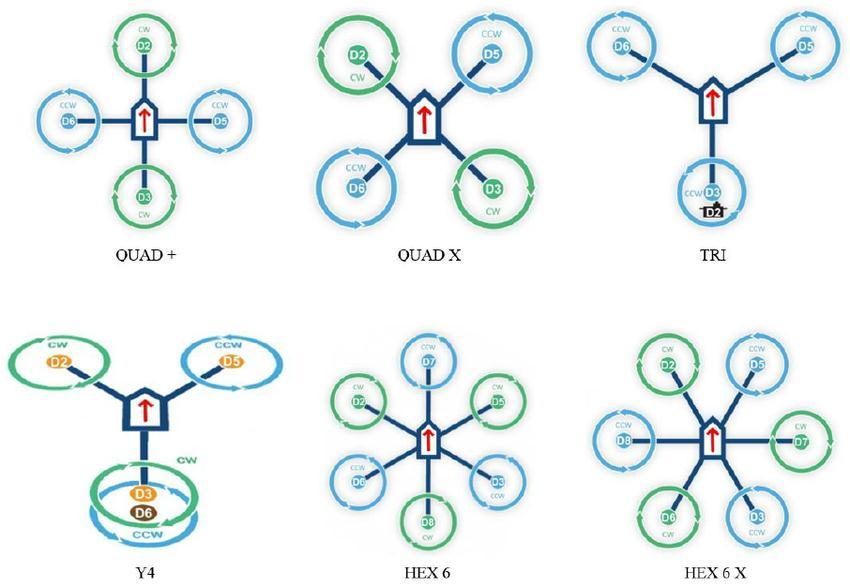

1. + – One is the leading propeller (at least four propellers),

2. X – The most common construction, in which two propellers are leading (with an even number of propellers),

3. Y–ThreearmsstackedintheY,whereoneortwo armscanbeleading,

4. V – An uncommon configuration involves outstretchedarmswithtwopropellerspositionedat thefront,

5. H–Averyrarearrangementwheretheconstruction is based on the H-shaped with two propellers leading.

OneofthemainbenefitsofutilizingHexacopteristhatif oneormoremotorsfail,thedroneisstillabletolandsafely, unlikequadcopterswhichwillcrash TheS550Hexacopter framekitisahigh-grade,lightweightstructurethatincludes landinggearmadeofcarbonfiberandaprintedcircuitboard (PCB)integratedintoit,makingwiringeasyandorganized TheintegratedPCBsimplifiesthewiringprocessandensures acleanappearance.Thefollowingarethemainfeaturesof S550hexacopter:

Propellersareinstrumentsthatconvertrotationalmotion intolinearthrust.Indrones,thesepropellersgenerateliftby rotatingandcreatinganairflow,whichcreatesadifferencein pressure between the top and bottom surfaces of the propeller. This results in a force that propels the drone upwards,counteringtheeffectofgravity.Electronic Speed Controllers(ESCs)areresponsibleforvaryingthepropeller speedsbyregulatingthevoltagesuppliedtothemotor.The drone'sflightcontrollerreceivesinputsfromthehumanpilot or autopilot, and may also use data from an Inertial MeasurementSystem(IMU),GPS,andothersensorstosend theappropriatesignaltotheESC.Itiscriticalforpropellersto

operateoptimallyastheybearthehighestloadsandserveas theprimarypropulsionsystemofadrone.

Bymountingdoublepropellersontofewerarms,adrone's strengthisenhanced,resultinginincreasedliftcapacityand redundancyintheeventofenginefailure.Thisdesignalso reducestheoverallweightofthemulticopter,lowersmaterial costs, and allows for heavier payloads. The opposing rotationsofthedoublepropellersbalanceeachother'sinertia forces.Additionally,dronewingscanbeclassifiedaccording totheiradaptabilityforrotation:

1. Clockwise(CW),

2. CounterClockWise(CCW).

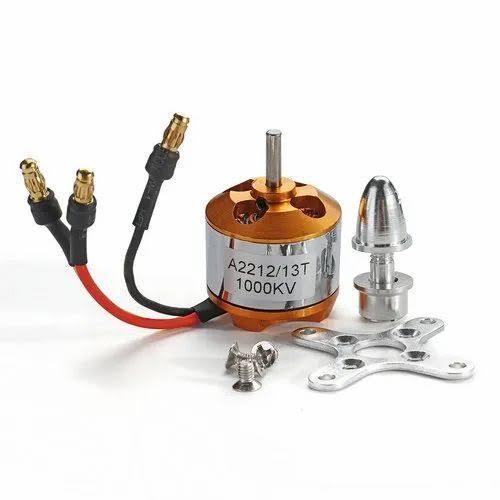

TheA2212BLDCmotorhasthefollowingspecifications:

a) Akvof930RPMpervolt,whichresultsinano-load speed of 10320 RPM with a maximum recommendedvoltageof11.1volts.

b) ESC specifications that recommend a minimum of 18Aandamaximumof30A.

c) At10V,theno-loadcurrentis500mA.

d) Thenominalcurrentis12A/60s.

e) Themotorcanbepoweredbyeithera2Sor3SLi-Po battery.

Thethrustgeneratedbythemotorwitha1045propellerand 3Spoweris800gm

Fig-3: Propellers

Thesizeofthewingsisa critical factorasitaffectsthe drone'sspeedandstability.Alargerwingdiameterreduces the speed and enhances thedrone's stability.Additionally, largerwingbladesgenerategreateraerodynamiclift,which resultsinhigherpressureexertedonthepropellerhuband increasedforcesthatcancausedeformationofthepropellers. Furthermore, larger propeller blades require a more powerfulenginetohandlethetorquerequiredtopropelthe propellers.Itiscrucialtobalanceeachpropellerbeforeusing ittominimizevibrationscausedbytheunevenoperationof thesystem.Selectingtheengineandpropellersappropriately is vital to enable the drone to lift the given load for an extendedperiod.

Our drone is equipped with six A2212 BLDC Motors, whicharecommonlyused in dronesandothermultirotor applications.Thistypeofmotorisanoutrunnerbrushless DC motor with a 3-phase configuration, as illustrated in Figure 4. It has a 1000KV rating and an 80% efficiency, making it a highly effective motor. An Electronic Speed Controller(ESC)isnecessarytoregulatethemotor'sspeed. TheA22121000KVBLDCBrushlessDCMotorforDronesis engineered specifically for multirotor and provides exceptionalperformance,power,andefficiency.Itisidealfor medium-sizedquadcopterswith8to10-inchpropellers.

Brush engines have been commonly utilized in the constructionofdrones,butresearchhasdemonstratedthat the use of brushless motors enhances durability and efficiencywhilealsodecreasingthewearandtearonmoving parts. As a result, the engines can operate for extended periods without complications or the need for immediate maintenance.

2.2 The electronic control and communication system:

Theflightcontrolsystemisaccountableformanagingthe drone'sascent,descent,rotation,stability, andresponseto externalforces.Althoughtheremaybedifferencesinspeed andalgorithmsused,mostcontrolsystemsareequippedwith the same sensors. The control system is comprised of the followingcomponents:

a) Flight controller, responsible for machine control capabilities,

b) ESC(ElectronicSpeedControl)–theunitresponsible forenginerpm,

c) AurdoplotAMP2.8controller

2.2.1 Flight controller:

Airtrafficcontrollersplayavitalroleincontrollingthe movementofplanesinandoutofairportairspace,guiding dronesduringtake-offandlanding,andmonitoringdrones throughouttheirflight.

These controllers utilize radio equipment to communicate with drones. For controlling options, we are utilizing the FSCT6BFlySkytransmitterandreceiver,asshowninfigure5.

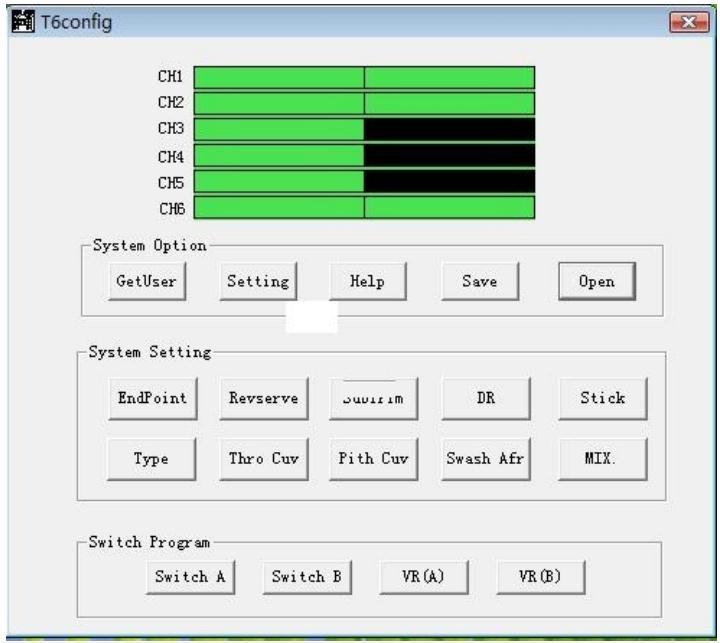

Figure6showstheapplicationinterfaceoftheT6Configure software.

Toinitiatetheprogrammingprocess,followthesesteps:

Step1: To begin, connect the programming line of the transmittertoaPCandturnonboththetransmitterandthe applicationsoftware.

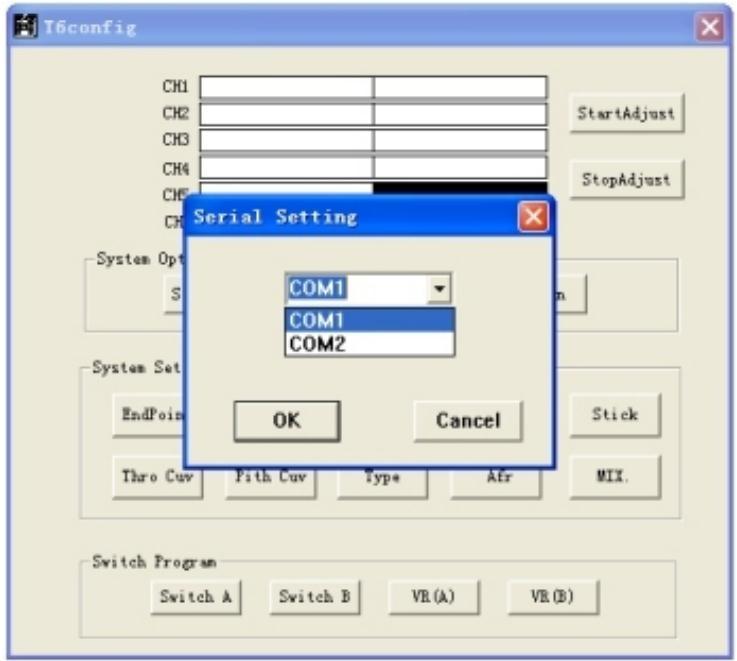

Step2: Next,clickthe'SETTING'buttonandanewscreenwill appear.Thisfunctionisdesignedtoenabletheselectionof theUSBportfortheprogrammingline,whichenhancesthe communicationbetweenthetransmitterandPC.Itiscrucial toensurethecorrectportisselected;otherwise,thechannel outputdisplaywillnotshowanydatachanges,andanyother settingsmadewillbeinvalid.

Step3: Oncethecorrectporthasbeenselected,Clickthe'OK' buttontoconfirmtheselection.

Fig-5: FSCT6BFlightController

Inordertoconfigurethetransmitterandreceiverweuse software application called T6Config. In this way we configure the transmitter. The following are the steps to configurethetransmitterandreceiver:

Fig-7: SettingvaluesusingT6config

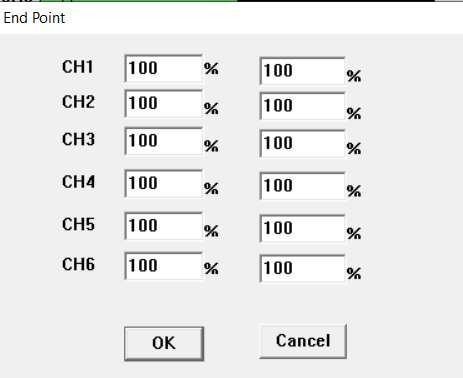

Step3: Modifytheserver'smovementtoanappropriateangle foroptimalcontrol,asdepictedinFigure8.Eachservercan be adjusted individually and has two components: the left halfandtherighthalf.

Thevalueofeachcomponentcanbealteredbetween0%to 100%.

Fig-6: ApplicationInterface

Electronic Speed Controls (ESCs) have the ability to perform active or regenerative braking, a technique that convertsamotor'smechanicalenergyintoelectricalenergy that can recharge the drone's battery. When the drone decelerates,themotorcanactasagenerator,andtheESC manages the surplus current, which can be directed back intothebattery.

ArduPilot is a software package that includes navigationsoftware,alsoknownasfirmwarewhencompiled formicrocontrollerhardwaretargets,whichoperatesonthe vehicle, such as Copter, Plane, Rover, Antenna Tracker, or Sub. It also includes software for controlling the ground station, such as Mission Planner, APM Planner, QGround, Control,MAProxy,Tower,andotherapplications.

2.2.2. ESC (Electronic Speed Control):

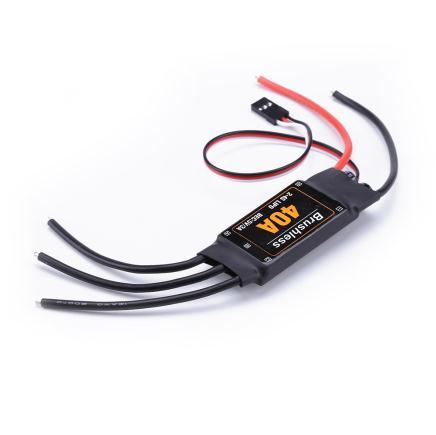

ESCorElectronicSpeedControlisacomponentthat enablesthedrone'sflightcontrollertoregulateandadjustthe electricmotor'svelocity.Whentheflightcontrollersendsa signal,theESCadjuststhemotor'svoltageupordowntovary thepropeller'sspeedaccordingly.

The maximum current rating is a common specificationforESCs,astheyareresponsibleforhandling thehighestcurrentload.ESCswithalargercurrent-handling capacity are typically bigger and heavier, which may be a crucialfactorforsmallerunmannedaerialvehicles(UAVs). Furthermore, ESCs have a refresh rate measured in Hertz, which indicates how frequently the motor speed can be modified. To maintain stability and manoeuvrability, multirotor drones like quadcopters rely entirely on rotor speedbalanceandrequireprecisecontrolovermotorRPM, resulting in higher refresh rates for ESCs in these types of drones.

Thistechnologyprovidesuserswiththeabilityto convertanyfixedorrotary-wingvehicleintoacompletely autonomous mode of transportation, including multirotor vehicles, cars, and boats. Additionally, it is equipped to executeprogrammedGPSmissionsthatinvolvenavigating throughvariouswaypoints.

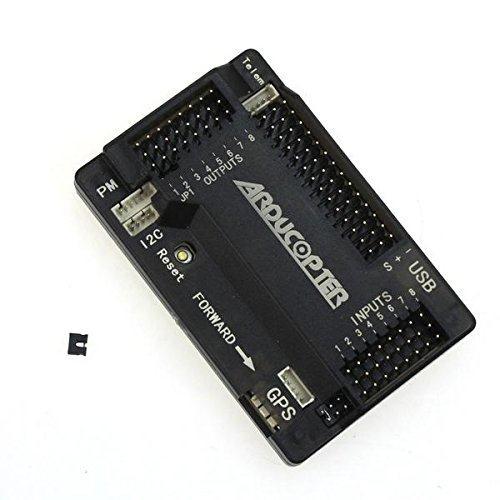

TheFlightControllerdisplayedinFigure10,namelythe ArdupilotAPM2.8,isanexceptionaldevicethatenablesthe conversion of any fixed-wing, rotary-wing, or multi-rotor vehicle into a fully autonomous one. This remarkable controller facilitates numerous tasks, including GPSprogrammed missions with waypoints, thanks to its integratedcompass.

4.

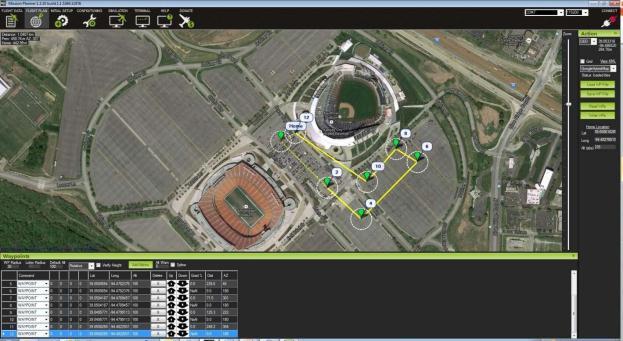

Mission Planner is a ground station program that enablestheuserto:

1. Plandronemissions

2. Monitorflightsinreal-time

3. Adjustautopilotsettings

4. Troubleshootautopilotissues

4.1. Take Off:

Thisfunctioninitiatesthefollowingactions:

 Directsthedronetotakeofffromtheground

 Specifiesthepitchangleforfixed-wingdrones

 Establishesadesiredaltitudeforascent.

5. Power Module:

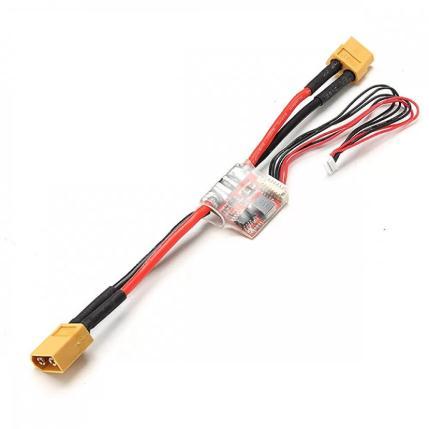

ThePowerModuleisastraightforwardmethodof supplyingyourAPMwithcleanpowerfromaLiPobattery while also measuring current consumption and battery voltagethrougha6-positioncable.

4.2. Landing:

 Sendsacommandtothedronetolandataspecific location.

 ArduCopterwilldescendto10mabovegroundlevel and then gradually descend until it reaches the ground

 ArduPlane will maintain its current heading and shut off the throttle when the drone is within 2 secondsofthelandingpointorwithin3metersof thelandingpoint.

6. Battery:

4.2.

• The most fundamental instruction in a drone mission

• Guides the drone to a specific location in three dimensions

Drone operation requires the use of on-board batteries.Lithium polymer(LiPo)batteriesarecommonly employedduetotheirhighenergydensityrelativetotheir size and weight, providing a higher voltage per cell and powering the drone's on-board systems with fewer cells thanotherrechargeablebatteries,asillustratedinFigure14. LiPobatteriesaresimilartootherbatteriesintermsoftheir basicprincipleofoperation andchemical reactionstaking place in the cell. In Li-ion cells, one electrode is made of porouscarbon,andtheotheriscomposedofmetaloxides, with the role of the electrolyte being played by complex lithiumsaltsdissolvedinamixtureoforganicsolvents.LiCo2 isthemostcommonlyusedcathodematerial.

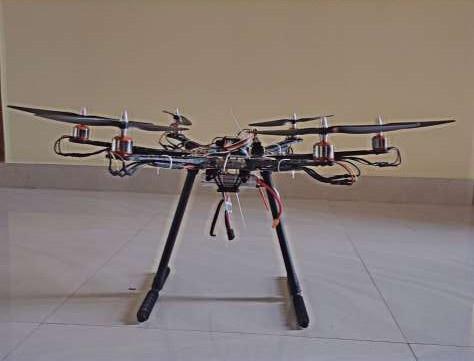

7. DEVELOPED PROJECT:

8. SUMMARY

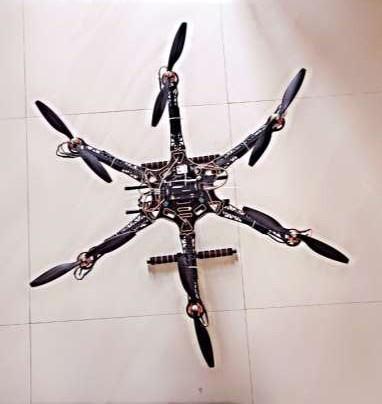

Thisundertakingfocusesonamethodicalapproach to online delivery utilizing an automated Hexacopter that employs an interfaced android device as its primary processingunit.TheHexacopterwillutilizeGoogleMapsto deliver packages to clients, thus saving time and labour. Eventually,solarenergy will replace battery powerasthe mainsourceofenergy.Thegoalistocontinueoptimizingthe costofutilizingHexacopterforproductdeliverysothatlowincomeindividualscanusethemmorereadily.

9. CONCLUSION

In conclusion, the Hexacopter project has been a challenging and rewarding experience that has demonstratedthepowerandpotentialofUAVtechnology. Through the use of a range of technical skills and tools, includingT6ConfigureandMissionPlanner,wehavebeen abletodesign,build,andoperateasophisticatedhexacopter

systemthatcanachievearangeofapplications,fromaerial photography and videography to search and rescue operations.Throughouttheproject,wehaveencountereda range of technical and engineering challenges, such as selecting the appropriate components, designing and assembling the drone, and testing and optimizing its performance. However, through careful planning, design, andtesting,wehavebeenabletoovercomethesechallenges andachieveoptimalperformanceandfunctionalityfromthe hexacoptersystem.
