SOLAR AND IOT BASED HEALTH MONITORING AND POSITION TRACKING FOR SOLDIERS
1Assistant Professor, Dept. of Electrical and Electronics Engineering, SRIT college, Andhra Pradesh, India
2,3,4,5,6Student, Final year B. Tech EEE, SRIT College, Andhra Pradesh, India
Abstract - This paper presents a solar and IoT-based health monitoring and position tracking system for soldiers, which utilizes solar energy to power the system and IoT technology to monitor and track the soldier’s health and position in realtime. The proposed system comprises a wearable device, a solar panel, and an IoT-based platform.Thewearable deviceis equipped with sensors to monitor the soldier’s health parameters, including heart rate, blood oxygen and body temperature. The solar panel provides a sustainable and reliable power source for the wearable device, ensuring continuous operation in the field. The IoT-based platform receives data from the wearable device. Additionally, the platform provides real-time tracking of soldier’s positions using GPS technology, enabling commanders to monitor the soldier’s movements and make informed decisions based on their current location. The proposed system has the potential to enhance soldier’s safety and well-being, as well as improve their overall performance in the field.
Key Words: Solar Power, Internet of Things (IOT), Health Monitoring, Position Tracking, Biometric sensors, GPS Tracking
1. INTRODUCTION
Soldiersplayavitalroleinsafeguardingacountry'ssecurity. However,theyoperateunderchallengingconditionsthatcan have detrimental effects on their health and well being. Hence, it is essential to ensure that soldiers' health is continuously monitored, and their positions tracked to ensuretheirsafety.Withtheadvancementsintechnology, the integration of the Internet of Things (IoT) and solar powercanprovideanefficient,cost-effectiveandsustainable solutiontothischallenge.Thispaperdiscussestheconcept of a solar and IoT-based health monitoring and position trackingsystemforsoldiers.
This project has associate implementation of tracking the soldierandtonavigatebetweensoldierslikeobtainingtheir rapidity,distance,theirhealthstatusthroughoutthefighting thatpermitsthemilitarydecisionmakerstosetupthewar strategies. Base unit acquires location of soldier with the helpofGPS.Theresponsibilityofbasestationoperatorsisto helpthesoldiersinchoosingrightpath,ifthereisathreatof missingofsoldiers.Thebaseunitwillcontactthisstanding
ofthesoldierthatisexhibitedonthecomputer.Hence,they canyieldinstantactionbydirectingassistanceforthesoldier requested by soldiers having soldier unit. By the use of numberofbiometricsensors,healthconstraintsofsoldiers are monitored, the location and placement of soldier is confinedbytheuseofGPSmodule.
2. OBJECTIVE
Themainobjectiveofthisprojectistoimprovetheoverall health,safety,andeffectivenessofsoldiersinthefield.The system would use solar power to operate, making it selfsufficientandsustainable,whileIoTsensorswouldprovide real-timedataonthesoldier’shealthandlocation.
Specifically, the system would aim to achieve the followingobjectives:
1. Monitor soldier’s vital signs: The IoT sensors would monitor soldier’ s vital signs, such as heart rate,bloodoxygen,andbodytemperature,todetect any health issues early on and provide timely medicalassistance.
2. Track soldier’s location: Thesystemwouldtrack thelocationofsoldiers,ensuringthatcommanders have a real-time view of where their troops are located. This information would be valuable in emergency situations, such as combat or natural disasters.
3. Enhancesituationalawareness:Thesystemwould providecommanderswithabetterunderstandingof thehealthandlocationoftheirtroops,whichwould help them make informed decisions during operations.
4. Improve response times: By providing real-time data, the system would help medical personnel respondquicklytohealthemergencies.
3. PROPOSED SYSTEM
The proposed method consists of Hardware Section & SoftwareSectioninwhichhardwaresectionisdividedinto sensors,interfacing,display,powersupplyandArduinoUNO
© 2023, IRJET | Impact Factor value: 8.226 | ISO 9001:2008 Certified Journal | Page21
microcontroller whereas software section consists of internet, web server, hardware programming, and serversidescripting&databaseforstorageinformationofSoldier’s Health. In this project, the solar array of rating 8V mono crystallinetypesolarpanelisusedtogenerateelectricityor bestoredinbatteries.
When the soldier carriesthedevice, thenGPS module, IoT module,heartbeatandtemperaturesensorsgetactivatedand monitorsthelocation,heartrateandbodytemperatureofthe respective soldier. If the heart rate increases or decreases thanthenormalheartrateofthehumanbeingorifthebody temperature increases or decreases than the normal body temperature of the human beings or if the heart rate and bodytemperatureisinnormalconditionbutthesoldierisin abnormalconditioni.e;ifthesoldierhasbeencapturedbythe enemiesorhedislocatedintheenemiesbasecampthenhe willpressthedangerswitchthentheindicationgoestothe basecampviaalarmoranyindicatorthentheofficialstake necessaryactiontosafeguardthem.
4. SENSORS USED
4.1 HEART RATE SENSOR
Fig -1: HeartRateSensor
TheMAX30100isacompact,integratedpulseoximetryand heart-ratesensormodule.ItusestwoLEDs(oneredandone infrared)andaphotodetectortononinvasivelymeasurethe oxygensaturationlevel(SpO2)andheartrateofaperson's blood.TheMAX30100sensormoduleisdesignedtobelow power,makingitsuitableforwearablefitnessandmedical devices. The sensor module communicates with a microcontrolleroveranI2Cinterfaceandcanbeconfigured tooperateinvariousmodes,includingsingleLED,dualLED, and sample averaging modes. It also includes an ambient light cancellation feature to help eliminate external lightinterference.TheMAX30100sensormoduleiswidely used in a variety of applications, such as fitness trackers, smartwatches,andmedicaldevicesformonitoringoxygen saturationandheartrate.
4.2 TEMPERATURE SENSOR
Fig
TemperatureSensor
LM35 is a temperature sensor that can measure temperatures in the range of -55°C to 150°C with an accuracyof+/-0.5°Catroomtemperature.Itisasmalland inexpensive device that can be easily interfaced with microcontrollers,suchasArduino,RaspberryPi,andother embedded systems. The LM35 sensor outputs an analog voltageproportionaltothetemperature,withasensitivityof 10mV/°C.Forexample,ifthetemperatureis25°C,theoutput voltage of the sensor will be 250mV. The LM35 has a low output impedance, which makes it easy to use in manyapplications.
4.3 GPS MODULE
A GPS(Global Positioning System) moduleisan electronic devicethatreceivessignalsfromGPSsatellitesandprovides precise location and time information. The GPS system consists of a network of satellites that orbit the Earth and transmitsignalscontaininglocationandtimeinformation.A GPSreceivermodulereceivesthesesignalsandusesthemto determine its own position and time. GPS modules are commonlyusedinnavigationsystems,trackingdevices,and otherapplicationsthatrequireaccuratelocationinformation.
Theyareavailableinvariousformfactors,includingmodules thatcanbeintegratedintootherdevicesandstandaloneunits withbuilt-indisplays.ThemostcommontypeofGPSmodule isaUART(UniversalAsynchronousReceiver/Transmitter) modulethatcommunicateswithamicrocontrollerorother host device through a serial interface. UART GPS modules usuallyhaveasmallformfactorandlowpowerconsumption, making them ideal for use in portable or batterypowereddevices.

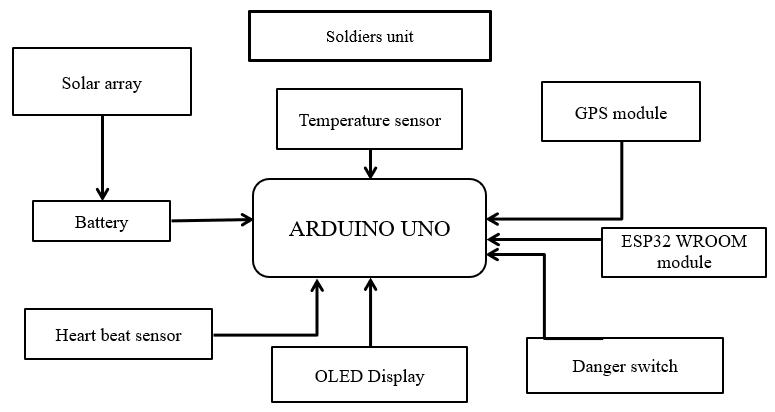

5. BLOCK DIAGRAM
Theblockdiagramrepresentsthecomponentsusedinthe device. The battery is charged with the solar array that supplythepowerfortheworkingofthedevice.Theheart beatandtemperaturesensorsareusedtomonitortheheart beat and body temperature of the respective soldiers. IoT moduleisusedforthedata transferbetweensoldiersand thebaseunit.GPSmoduleisusedtoidentifythelocationof the respective soldier. Danger switch is used in case of emergency situations, if any abnormal situation happens around the war field then danger switch can be used manually for the soldier. Battery, heart beat sensor, temperature sensor, IoT module, GPS module and danger switchareconnectedtoArduinoUNOmicrocontroller.
6. METHODOLOGY
ThemethodologyofSolarandIoTbasedhealthmonitoring and position tracking system for soldiers involves several stages, starting with requirements gathering, where the parameters to be monitored, sensors required, location tracking mechanism, power source, and communication protocol are identified. This is followed by system design, wherethehardwareandsoftwarecomponentsofthesystem aredesigned,andaprototypeisdeveloped.Theprototypeis then tested and evaluated to ensure that it meets the requirements and performs as expected. After testing, the system is deployed in the field, and its performance is monitoredusingcloud-baseddashboards.Themethodology ensures that the system provides real-time health monitoring and position tracking of soldiers, thereby ensuring their well-being and safety during militaryoperations.

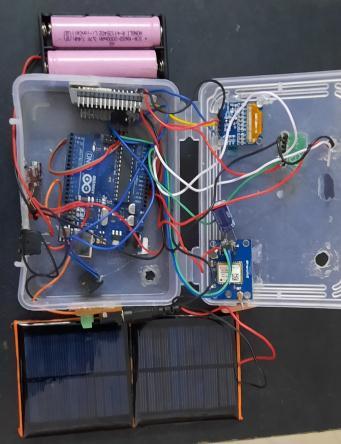

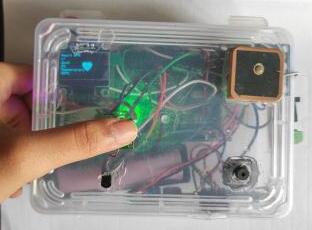

7. WORKING MODEL
The working model of this project is for soldiers involves severalinterconnectedcomponents.Thesystemcomprises biometricsensorsthatcollecthealthdatasuchasheartrate, blood pressure, and temperature from soldiers. The GPS module collects location data, which is transmitted along with the health data to a microcontroller. The
microcontroller processes this data and transmits it wirelessly to a cloud-based platform using wireless communication devices. The cloud-based platform stores and analyzes the data, and provides real-time monitoring and alerts to military personnel. The power management unitensuresthatthesystemrunscontinuouslybycharging thebatteryusingsolarpanels.Theentiresystemisdesigned tobecompact,rugged,andlightweighttoensureeaseofuse andminimalintrusiontosoldiersduringmilitaryoperations. Overall, the working model of Solar and IoT based health monitoring and position tracking system for soldiers is a sophisticatedand reliablesystemthat canprovidecritical healthandlocationdatainreal-time,enablingpromptaction andensuringthesafetyofsoldiersinthefield.

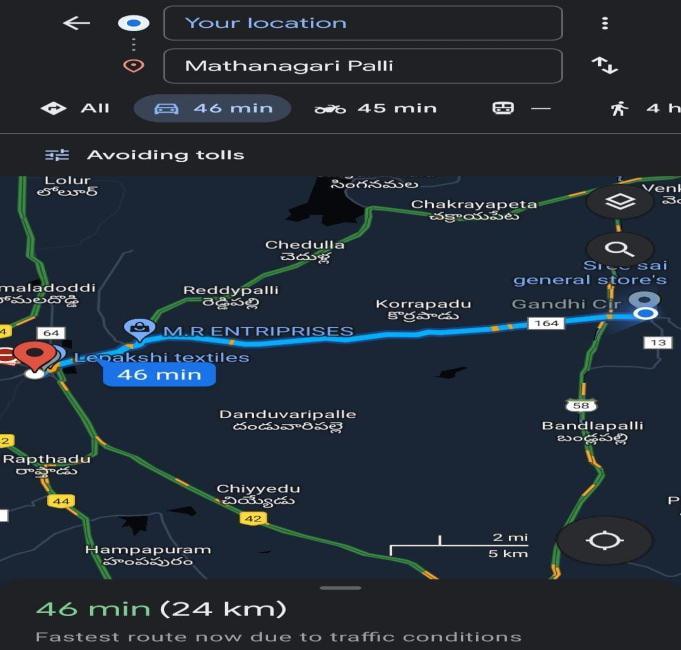

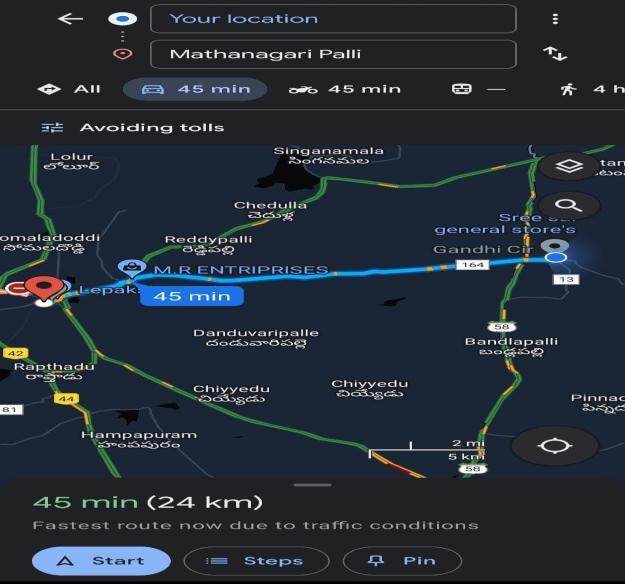

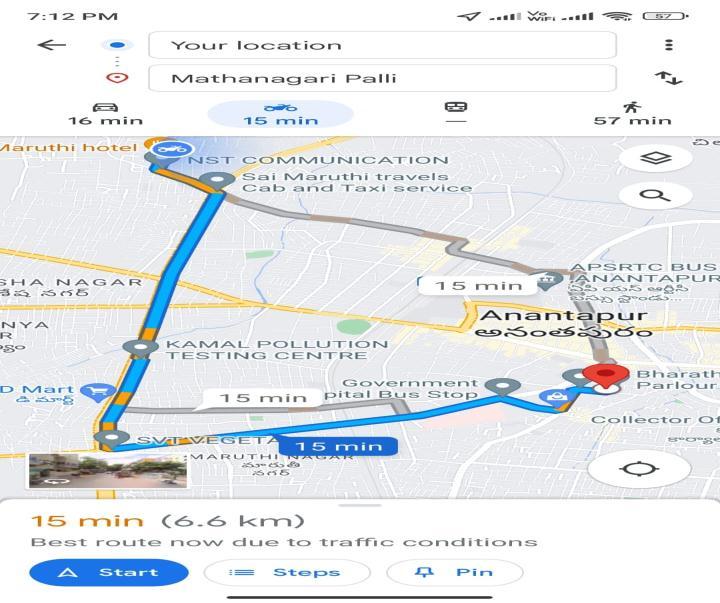

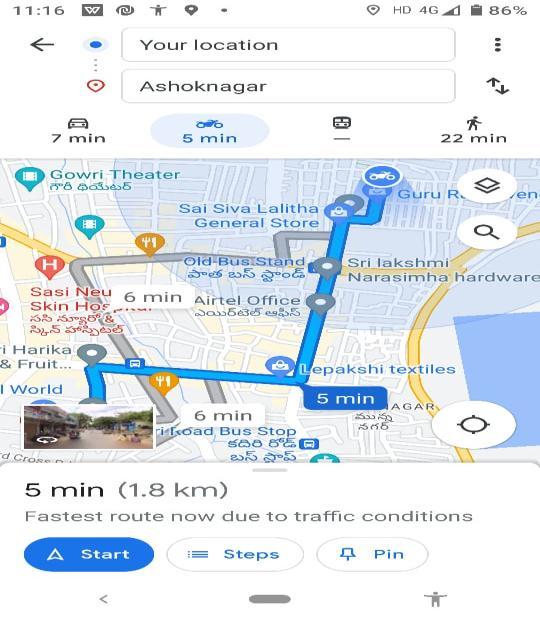

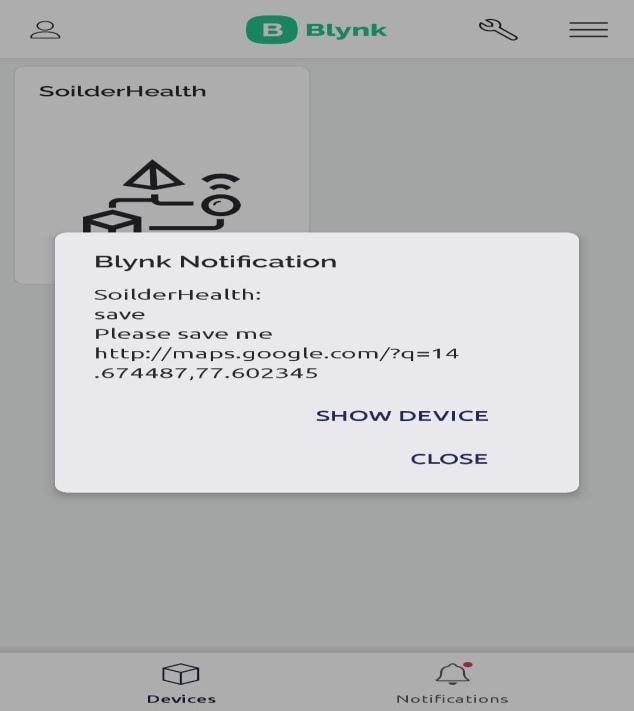

The device is provided with a 3.7V battery that can be boostedupto5Vwiththeboostregulatorprovidedthatis requiredfortheworkingofsensorsandothercomponentsin the device. The battery can be rechargeable by using the solar panels provided. The device would be switched ON when the soldier is present in the field, then the device monitorstheheartrateandtemperaturecontinuouslyand thedatashouldtransferthroughcloudtothebasestation. There would be a panic button on the device. When the soldier presses the button then the location of the soldier couldbedetected.ThiswouldbedonebytheGPSmodule.

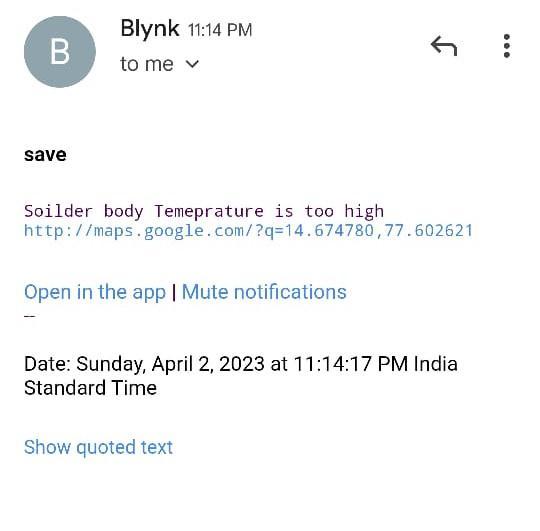

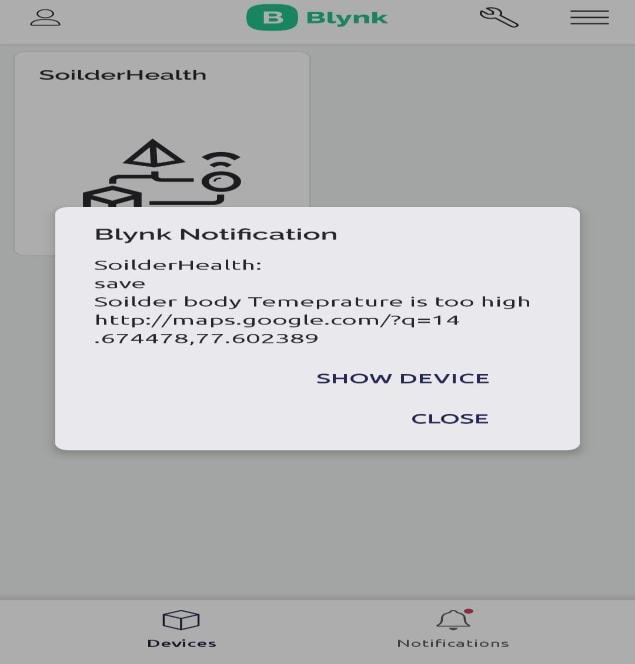

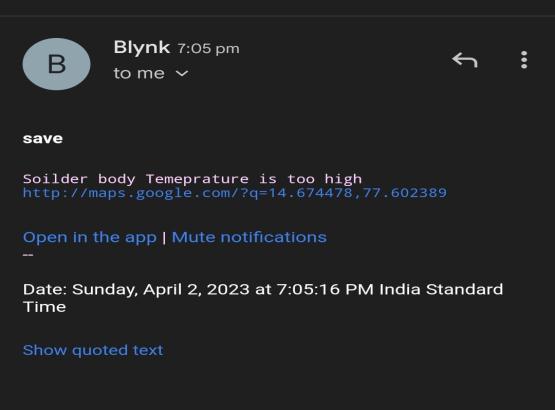

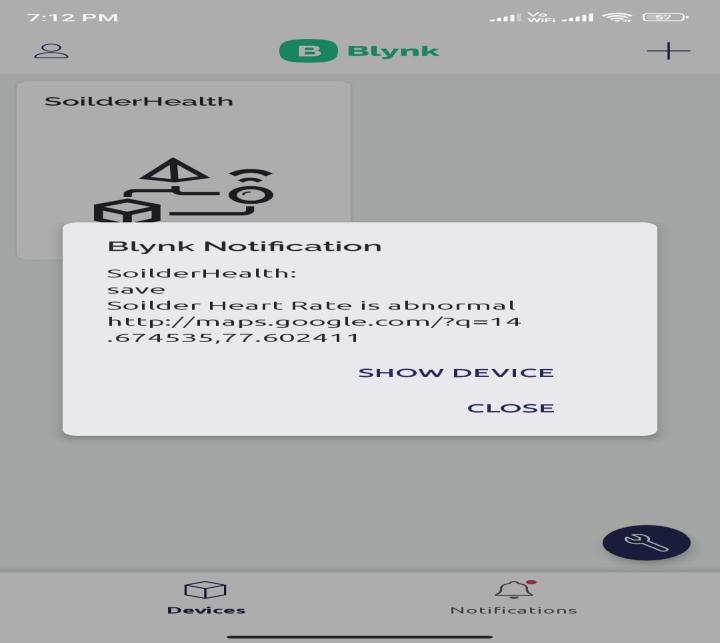

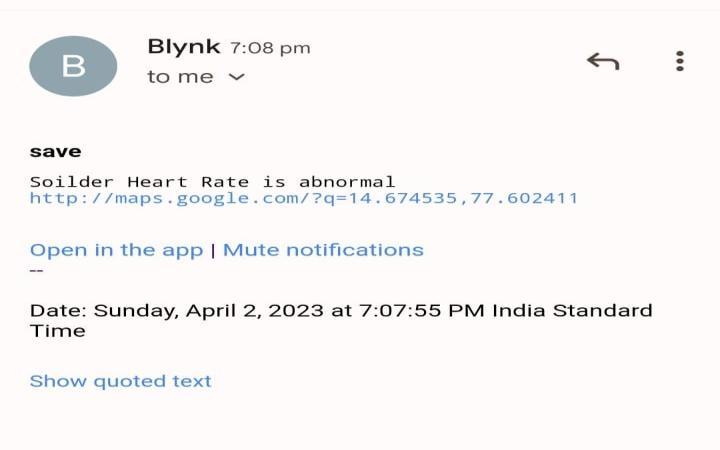

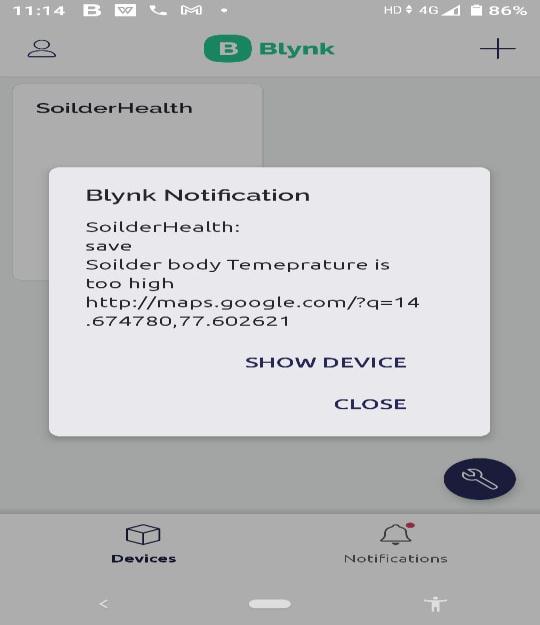

Whentheheartrateorbodytemperaturefluctuatesthanthe normalvaluesthenthemessagewouldbetransferredtothe base station. Then officials will take certain measures for protectingthesoldiers.
9. CONCLUSION
The integration of solar power and IoT technology can providearobustsolutiontohealthmonitoringandposition trackingforsoldiers.Thesystemcanenhancesoldier’ssafety and well being, and provide medical personnel with realtime information to the base station. The use of wearable devices and GPS tracking technology can ensure that soldier’s health and location are monitored continuously, eveninremoteareaswithoutaccesstomedicalfacilitiesor electricity. This device can also help to provide proper medicalassistancewhenthesoldier’shealthisabnormaland helpsbysendingadditionalforcewhentheyareindanger conditioninthefield.Astechnologycontinuestoevolve,the implementationofinnovativesolutionssuchasmonitoring health parameters and tracking position can help address thechallengesthatsoldiersfaceintheirlineofduty.
REFERENCES
[1].CHINAMEERABI,G.NAVYA,K.PRIYANKA,SAIPRIYA, “SoldierHealthandPositionTrackingSystemby”;[2020].
[2].DKUMARandS.REPAL,“RealtimeTrackingandHealth MonitoringofSoldiersusingZigbeeTechnology”;[2015]
[3]. H. KEDAR, KOHLE, PARAG, PATIL, S. BHARTI and V.S. TAKTE.“SoldierTrackingandHealthMonitoringSystem”; [2015].
[4]. Health Monitoring and Tracking System for Soldiers UsingInternetofThingsbyIEEE;[2017].
[5].N.PATILandB.IYER,“HealthmonitoringandTracking SystemforSoldiersusingInternetofThings(IoT)”;[2017]
[6].DR.PARAMESHACHARIBD,SHARANYARAJ,RANJINI, DEEPAJ,“SoldierHealthandPositionTrackingSystemusing GPSandGSMmodem”;[2018].
[7].SHWETASHELAR,NIKHILPATIL,MANISHJAIN,SAYALI CHAUDHARI and SMITA HANDE, “Soldier Tracking and HealthMonitoringSystems”;[2015]
[8].SSHARMA,S.KUMAR,A.KESHARI,S.AHMED,S.GUPTA and A. SURI. “A Real Time Autonomous Soldier Health Monitoring and Reporting System using COT Available Entities”;[2015]
[9].SWATIUMATE,ROHINIWANJARI,SUWARNAKHADAKE, “SoldiershealthtrackingsystemusingIoT”;[2019].
[10]. SHWETHA SHELKAR, NIKHIL PATIL, MANISH JAIN, “Soldiertrackingandhealthmonitoringsystems”;[2016].
