Railway Inspection System Using IoT
1,2,3,4Department of Computer Science and Engineering, PES University, Bengaluru, India.
5Assistant Professor, Department of Computer Science and Engineering, PES University, Bengaluru, India.
Abstract - There has been an upsurge in railway accidents, which are mostly caused by track quandaries. That might be a misalignment, an obstacle, a crack in one of the track's sides, or some other fault with the track. So, keeping track of all these difficulties is a time-consuming chore for a person. So, we engendered an IoT-predicated Railway Inspection System that includes a sensor-equipped robot car that can identify quandaries on the track which have potential for causing railway accidents, and the sensors utilized to detect this were tilt, ultrasonic, infrared, water, and fire sensors and the movement is controlled using the Relay. Whereas live data is monitored in the mobile application using Blynk, and sensor data is sent to the database using XAMPP.
Keywords: Railway Accidents, Blynk, Cloud, Mobile Application,database,XAMPP
1.INTRODUCTION
Railways are astronomically paramount in people's lives. Millionsofpeopleperegrinate byrail every day.India has one of the top five rail networks in the world. China has the world's fourth most immensely colossal rail network. Peregrinating by train is generally inexpensive in India, yet several train accidents occur each year. Several trains deraileachyearbecauseoftrackquandaries.Thehealthof railpassengersiscompromisedbyfailuressuchascracks. Aside from cracks, which are the most common cause of trainderailment,railwayoperationsarealsovulnerableto rail collisions, crossing rates, fire, and other causes of rail accidents.Railwayaccidentsareextremelydestructive.
This has a negative influence on culture. Road accidents also result in the death of animals, which is the most severe and irreversible loss. This is due to a shortage of train services as well. To avoid all these issues, we came upwiththesolutionwhereaIoTbasedRailwayInspection System, here cracks in the track, misalignment and the other several other issues such as fire and water on the trackisdetectedandimmediatelyreported.
2. LITERATURE REVIEW
Inthesubsistingcondition,cracksandotherrailfaultsare typically neglected because of inadequate maintenance and infrequent manual line control. There have additionally been imperfections in the system, such as
when a bridge or track is eradicated and information is giventorailwayofficials,whonotifyandalertthetrainsin issuethatittakeslongertotellthem.Typically,ultrasonic, or current eddy-predicated approaches are prevalent for railcrackdetectionprogrammedinperegrinenations,and they have excellent precision in many circumstances, according to the literature study. The only thing that the approaches have in prevalence is that they are both extravagant, making them unsuitable for the Indian market. The ultrasonic will additionally only test the core materials, omitting surface and near-surface cracking, whichiswheremanyofthedefectsarefound.Someofthe most solemn imperfections in the railway head might be arduoustodetectwithcurrentinspectiontechnology[1].
The primary goal of this application is to detect faults in rails and avert accidents with no manual intervention. This focuses not just on detecting broken track, but additionally on locating and locating the derailment. Several firms utilize this technical technique to provide frequent repairs and infrequently monitoring in the revelationoftrackfractures,oftenmonthlyorwithinaset timeframe.
The primary advantage of robotics is that it sanctions for the quotidian tracking of tracks at night when mundane conveyance is halted. However, because of the simplicity of the concept and the facileness of access to the components, immensely colossal-scale deployment with relativelyminimalinitialexpenditureispossible[2].
The simplicity of this work ascertains robust operation, andthedesignhasadditionallybeenpunctiliouslyrevised to sanction for robust operation. The traditional, commercially disposable testing equipment has a supplemental quandary in that it is too cumbersomely heftytobepractical.
This paramount disadvantage has been addressed in the robot’s project since the design is simple and adaptable, makingitfacilelyportable.Duringthedesignoftherobot's mechanical elements, the transmuting presence of the routes and the special obstacles provided by fluctuations intheIndiancircumstanceswereconsidered. [3].
3. PROBLEM STATEMENT
Therehasbeenanincreaseinrailwayaccidents,whichare primarilytheresultoftrackissues.Thismightbeduetoa misalignment, a crack in one of the track's sides, or
anotherissuewiththetrack.So,keepingtrackofallthese difficulties, as well as some external concerns such as water in the track or the fire danger issue, inefficient, time-consuming task, wehave proposed a solution in this paperbyusingIoTbasedsystemforinspectingthetracks for faults and alerting the necessary authorities at the earliest.
4. PROPOSED SYSTEM
Individuals profit from railways in a variety of ways, including quick access to locations, low-cost ticket peregrination, and so on. Because of its numerous advantages, this is one of the most extensively utilized modesofpublictransportation.Inrecentyears,therehave been several incidents on Indian railways, including fractures and other flaws. Railways are thus a dangerous mode of transportation. It has proven ineffective for the current control system used on Indian railroads. So, we have planned to monitor all these parameters so that the nexttrainthatpassesbywillbeabletoavoidtheaccidents anddrivesafely.
As we all know, railway accidents have a devastating impact on both the economy and human life. The IoTbased technique of monitoring the factors that cause railway accidents is the simplest and best approach to mitigating railway accidents as well as the impact of the accidents.
SOFTWAREREQUIREMENTS:
● ArduinoIDE
● WAMPP(WindowsApacheMySQLPearlPHP)
● Cloudflared

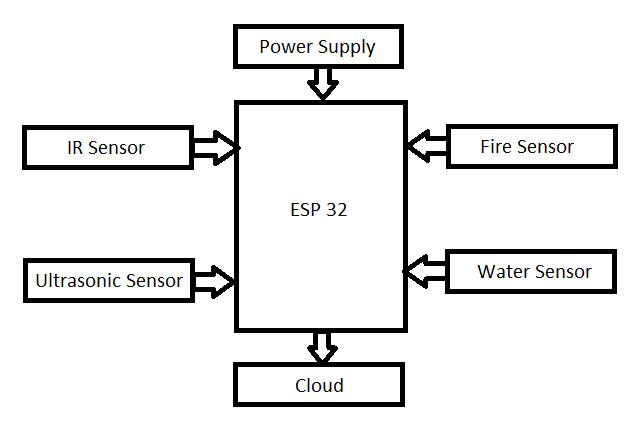

HARDWAREREQUIREMENTS:
● ESP32
● UltrasonicSensor
● IRSensor
● FireSensor
● TiltSensor
● WaterSensor
● Relay
● DCMotor

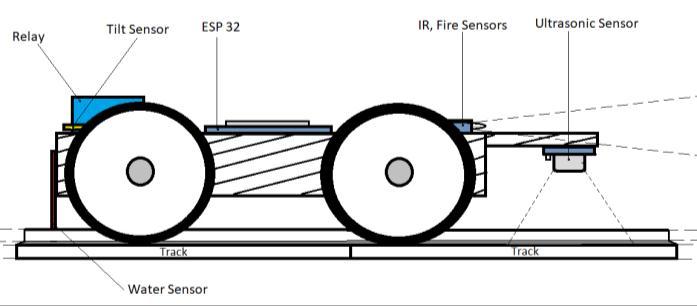

Theultrasonicsensorgivesustheheightofthetrackfrom thefixedmeasuringpositionandthevaluewascalculated before, and it has to maintain the same if there is any violationinthevaluethatmeansthesensorcandetectthe objectatevengreaterdepththatconfirmsthecrackinthe track.Inaddition, the tiltsensorisutilized to detecttrack misalignment.Ifthetrackismisaligned/crooked,itwillbe bent toward the precise side where the tilt was detected by the tilt sensor. The IR sensor detects any object presence on the track and if any detected the notification willbesenttotherespectedpersonal,andthenthewater orthefireonthetrackwillbesensedusingthewaterand thefiresensor,whichwillalsorisethenotificationalertto theuser.
All sensor data will be transferred to the WAMPP server (Windows Apache MySQL Pearl PHP), where the Apache andMySQLserviceswillbeoperatingcontinually.

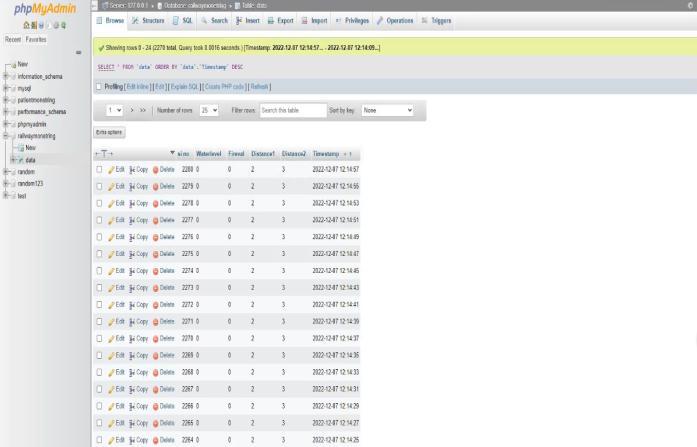

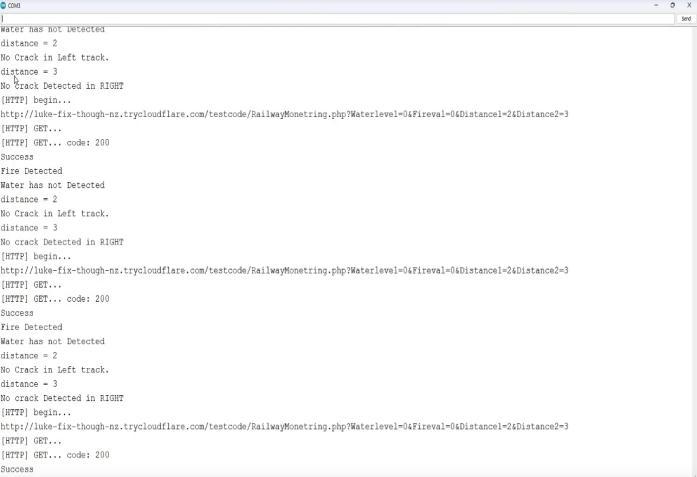

The Cloudflared software is used to construct a data tunnel between the ESP32 and the server, and the endpointoftheserveris passedto theESP32 in thecode. Thedataparameterswillthenbeupdatedevery2seconds totheMYSQLdatabasewherethedatawillbereceivedby the server, and the PHP file uploaded in the server's backend will assisttheserverinstoringthe data received into the MySQL database. Finally, using the ESP32 and its built-in Wi-Fi capability, all data from the sensor will be senttoadatabase.
5. RESULT

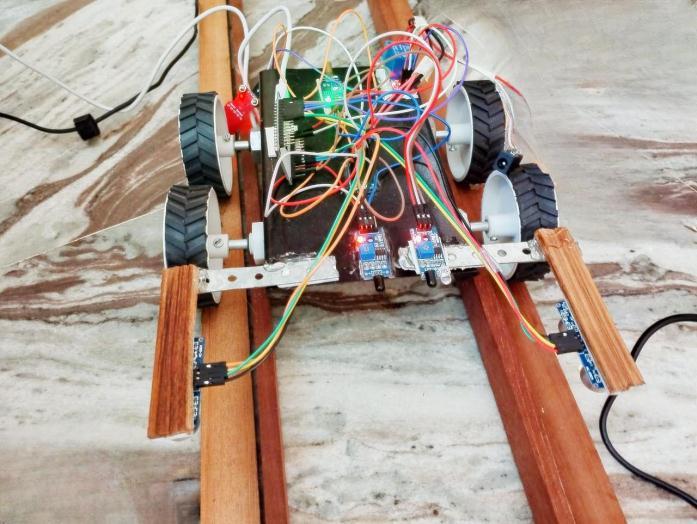

Theoutputafterconnectingallthesensorsandconnection that was established between the database, ESP32 Controllerand the mobile application was establishedthe data logging and live parameters are appeared on the mobileapplication.

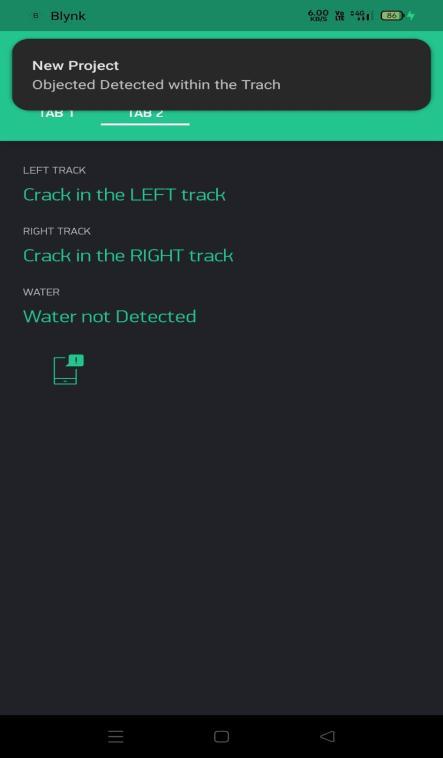

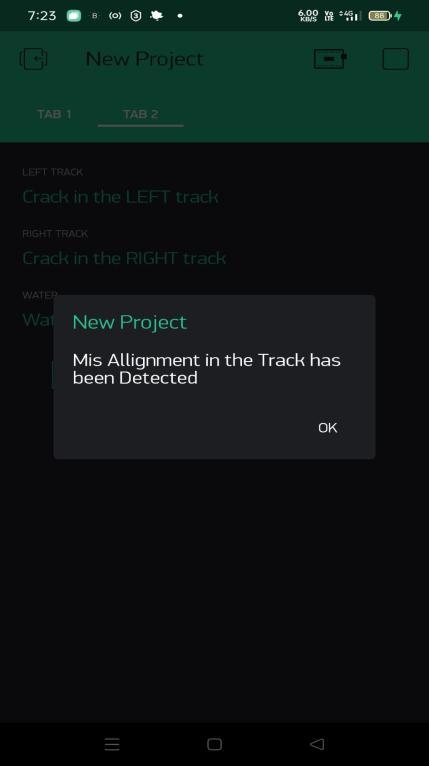

Using MQTT protocol, the data was Monitoring in the Mobile application. Then, using the HTTP protocol, the datawassenttothedatabase(XAMPP).So,byusingthe2 different communication medium and protocol for data monitoring and logging there will be no dependency, hencethedatalosseswillbeminimal.
6. CONCLUSION
More paramount than invention is the exhaustive deployment of an engendered technology. This paper is one such endeavor to leverage IoT to forfend humans. Because of its cutting-edge technology-predicated approach to distributing rail safety and passenger delectation, the solution will perpetuate to give better results in the field of railroad conveyance, including standard and bullet trains. We researched astute railway safetysystemsandtheiradvantagesinthisstudyinorder to design a better railway safety system that can monitor misalignment and cracks in railway tracks, as well as events involving rail conveyances and animals. A perspicacious safety monitoring system can significantly amend railway network safety and significantly minimize railroad accidents. The alerts will withal notify you of quandariessuchaswateronthetracksandfires.
REFERENCES
[1] Shashi Deshetti, " Indian Railway accident statisticsPercentageofaccidentsbytype2009-2014" FACTLYData journalismportal,22March,2015,[Online]
[2] Abhisekh Jain S, Arvind S, Balaji B.S, Ram Viyas N.P, "On board rail track safety monitoring system", International Conference on Advanced Communication Systems,Jan.2021,GCT,Coimbatore.
[3] Satish Kumar, Dr. Narayanan.R, "Solar powered crack detector applicable for tracks", international Journal of ScientificResearch,Vol.3(2),Nov.2019.
