AUTOMATIC HYPODERMIC INFUSION REGULATOR

AUTOMATIC HYPODERMIC INFUSION REGULATOR

Abstract -IntheClinicalfield,numerousgadgetspresent a radical change for checking the patient and are considerably more programmed like our proposed technique for the Brilliant Intravenous Framework. Intravenous(IV)organizationofmedsisquitepossiblythe most widely recognized process in the treatment of hospitalizedpatients.Ivtreatmentisregularlyutilizedfor rehydration and to give patients prescriptions or supplements in the event that they can't eat when an individual is in the emergency unit, likewise, during disease treatment and agony the board utilizing specific drugslikewiseispivotaltoassistapersonwithmakinga rapid recuperation. While controlling IV liquids to a patient,themedicalcaretakershouldconsistentlyscreen the patient's liquid and electrolyte status to assess the imbuement's viability and keep away from likely difficulties of liquid over-burden and electrolyte lopsidedness.ThemostregularlyutilizedessentialIVliquid pack contains 1,000 ml. Albeit intravenous liquid organizationisoneofthemostoftenperformednursing errands.Unfortunately,duetotheirhecticschedules,the observer may forget to change the bottle at the proper time, and nurses may not be able to manually check the dripconditionsanddriplevelofeachpatientonaregular basis. This puts patients at risk for health problems and canevenworsentheircondition;manypatientshaveeven passed away as a result. Our IoT-based Automatic Hypodermic Regulator prototype, which is a process of measuringandsolvingtheissuesofbubbleformationin drips and gives a notification for some levels of IV bag throughLED,buzzer,andalsostopsthefluidflowinthe critical stageusinga solenoidvalvethenutilizetheGSM Moduletosendthealertmessage.

KEYWORDS: load cell Amplifier, weight sensor, Arduino, Solenoid valve

INTRODUCTION

While a person is undergoing surgery, both during and aftertheprocedure,whilereceivingcancertreatment,or whentheyareunabletoeat,IVtherapyisfrequentlyused to rehydrate patients. It is also important to employ specificmedicationsforpainmanagementinordertoaid inaquickrecovery.Fluidsgiventoapatientintravenously orthroughtheveinswhilereceivingintravenoustherapy

arestoredinanIVbag.Fluidsincludethingslikebloodfor blood transfusions, medicine mixes, and saline for hydration. The delivery of medications or fluids intravenouslyensuresthattheyaretransportedasquickly as possible through the bloodstream to all areas of the patient'sbody.IVtherapyutilizinganintravenousbagis frequentlyreferredtoasanIV"drip"todistinguishitfrom anIVbolus,alsoknownasanIV"push,"whichisasyringe injectiondirectlyintoaveinviaanIVcannula,orthrough aninjectionportonthebag.Nonetheless,IVdripsrequire routine inspection and replacement. Depending on the patient and their condition, the fluid flow must also be measured.Togivethefluidastresscausedbygravityforce electricalthatsurpassesthecirculatorypressure,abottle full with the appropriate fluid cure is hung at a height higherthanthepatient'sbody.Thecurrentdriptracking mechanismismanualandrequiresanurseoradoctorto monitorthepatient'sinfusionsetup.Theywanttoestimate howlongabottlewilltaketodrainhistorically,andregular roundsareneededtocontroltheflowrateandpreventany bubbleformationthatmakesthemanualdripmonitoring systemsusceptibletohumanerror.Thebottleistypically changed while being entirely empty. Unfortunately, becauseoftheirschedule,theobservercanforgettoadjust orstopthedripbottleatthepropertime.Thiscouldcause thesuffererstohaveseveralissues.Regularmonitoringis essentialsinceevenasmallhumanerrorcouldendangera patient's health, making IV therapy monitoring crucial. Nursesareunabletoproperlycheckeachpatient'sIVbag level.Becauseofthis,ourproposeddesignforasmartthe intravenousdevicerepresentsthefutureofthehealthcare sector. This research offers a method for hospitals to effectively handle this circumstance; our suggested solution is to create an IV fluid monitoring system that measurestheweightoftheIVbagandalertsthefluidlevel with the use of LED and critically low ways. The IV system'ssolenoidvalvesautomaticallyshutdowntheflow of a liquid in response to a buzzer alert. uses GSM technologytosendamessagetothenurse.

II LITERATURE SURVEY

ThesystemusesanArduino Uno,a loadcell amplifier,a loadcellsensor,sg90servo motor,anLED,anda buzzer. The Load Cell and Amplifier will both be linked to the Arduino Uno. An amplifier and solenoid valve will be

positionedatthebottomoftheinfusiontube,andaload cellsensorwillbefastenedtothetopoftheglucosebottle. Data from sensors is retrieved and calculated using an Arduino UNO. The android application will be provided withtheestimatedsensordatatoalertthenursestofluid levelsandthedevelopmentofbubblesinthedrip.[1].

Atthestartofthecase,theFIVATMdevicewasfastenedto a 100 mL saline bag. Data were gathered from 93 vitrectomycasesthatwereeachrandomlyassignedtothe device ONorOFF groups. TheFIVATM device'sON/OFF statuswasconcealedfromtheanesthesiologist,whoalso received usage instructions. Each group's frequency of activatedalarmsandmisseddryIVbagswasrecorded.At the conclusion of each case, the participant answered a questionnaire about the device's usability. Due to false alarms being discovered as a result of the unanticipated movement of the IV bag or IV pole, two cases had to be excluded. The average (standard deviation) time for the procedure was 58.5 (16.9) minutes. Overall, the anesthesiologistsmissedthe50percentofthe91IVbags thatrandry.ZeroIVbagsrandryintheONgroupwithout being noticed; instead, 21 (47%) bags sent off an alarm whentheydid,and24 (53%) bags were changed bythe participatinganesthesiologistsbeforetheydid.IntheOFF group, 25 (54%) bags ran dry undetected, while the participating anesthesiologists refilled 21 (46%) bags beforetheyranout.[2].

The ESP8266 wireless module transmitter, 16*2 LCD, powersupply,buzzer,IRsensor,keypad,andArduinoUNO (based on Microchip ATmega328P) make up the dependable,reasonablypricedsalinemonitoringsystem transmitterportion.Thenursereceivesallreal-timedata from the transmitter part into an application on their smartphone, which serves as the reception part. The smartphone receives data from the server in real-time oncethetransmitterbroadcastsit.[3].

The ESP8266, ARM, Load Cell, Solenoid Valve, Keypad, Relay, and ESP8266 make up the glucose monitoring system.Theweightofthedripbottleiscalculatedusingan electronicloadcell,andinformationaboutitisrelayedto thedoctorviaaWIFImodule.Wearesendinginformation toabasicAndroidmobileappforpresentationpurposes. As the bottle reaches the threshold level, it becomes intimate for medical professionals and hospital staff. By issuing commands from a mobile device, specialists can regulate the stream rate. When the container weight becomescompletelyempty[4].

Thesystemmakesuseoftemporalandgeographicposition data from the Global Positioning Satellites. Most bag tracking devices rely on GPS and GSM technology. All mobile phones have a feature called Short Messaging Service (SMS) that enables users to send brief text messagestooneanother.Atleastfiveofthe24satellitesin

theGPSconstellationarevisiblefromanylocationonEarth thankstotheirplacementinsixdifferent12-hourorbital paths. Currently, GPS is used for a variety of other purposes,suchasbagtracking.[5].

Aflowmeter,microprocessor,actuator,Wi-Fimodule,and buzzer are all parts of the proposed gadget. At first, the flowmetercontinuouslymonitorsthefluidlevelinsidethe tube,andonceitexceedsthethreshold,itsendsawarning signalthroughWi-FiandtheNODEMCUboardtothenurse stationandbystander.Italsoactivatesanactuatortostop the flow at the same moment. The nursing station's microcontroller recognizes the signal and displays the patient'sbednumberbyLEDindicationasaresult.[6]

Thepresentmethodusesdeeplearningcomputervision techniques to monitor the flow rate of IV infusions. In essence, a camera records the drip chamber, and object detection is utilized to count the drips. So, compared to othertechniquescreatedforthisaim,thesuggestedoneis lessinvasive.Theresultsoftheexperimentsdemonstrate itsabilitytogeneratea precisereal-time estimateofthe drip's instantaneous flow rate. These factors make the suggested approach a useful one to use in the implementation of monitoring and control systems for healthcareinstitutions.[7]

III METHODOLOGY

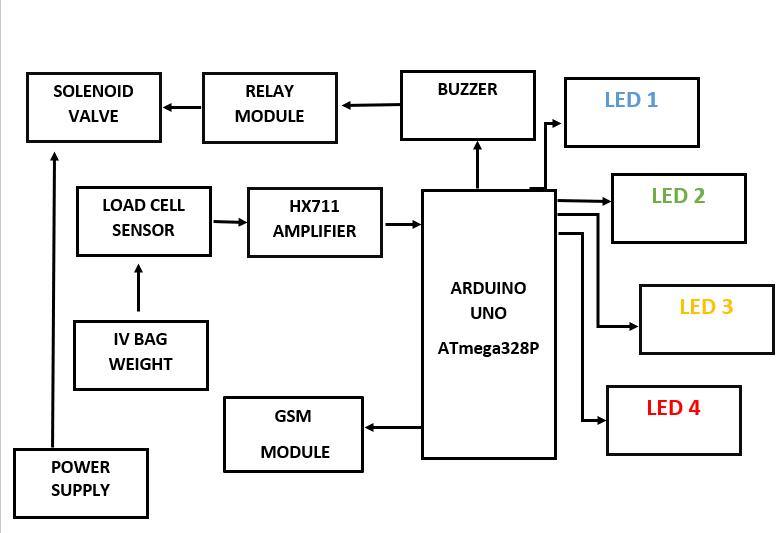

The system is made up of an Arduino Uno, a Load cell sensor, a Load cell Amplifier, a Solenoid valve, a GSM module,aBuzzer,andfourdifferentcolorsofLED.TheIV bagweightismeasuredbytheloadcellsensorswhichare fastenedtothedripbottle'stop,andthedataisamplified byaloadcellamplifier.BotharemanagedbyanArduino Uno, which allows for quick programming division and warningsviaanLEDandbuzzer.Basedonthefluidlevelin theIVbag,ifitislessthan10%,thebuzzerwillactivate.

TheIVsettubeisattachedtothesolenoidvalve.Whilethe buzzer is on simultaneously relay switches on and automaticallysolenoidvalveturnsoffandstopsthefluid flow, with the help of GSM module to send an alert notification.

A) Design

Thetwogoalsforthedesignofthissystemare:

 Monitoringthelevelofthefluidinthebottle.To measurethelevelofthefluid,aloadcellsensor ismountedtothetopoftheglucosebottle.

 The value sends to the amplifier and amplify signal send to Arduino. Based on the fluid level indicationsthroughLED.Theindicationscategory below

signalingliquidlevelsinanIVbottleandLEDindicationfor monitoring the state of IV infusions in real-time The RESETbuttonmustbepressedafterthedevicehasstarted inordertoresetthesystemtoitsfactorydefaultsettings. UsingtheWheatstonebridgeprinciple,asensorwillwork Fourtypesofresistanceexist.Eachresistanceispositioned betweentwonodes;threeoftheresistancesareconstant, whileoneisvariable.Avariableresistancewilloutputan exact weight to the amplifier when external pressure is appliedtoit.Aslightstrainorforcecanalsobeusedtoget an accurate weight. Millivolts will be the output format. Theweakwaveformswillbestrengthenedbytheloadcell amplifier.Accordingtoitsownprinciples,ittransformsthe loadcell'soutputintoavoltagethatitthenprovidesasan inputtotheArduino.BecausetheArduinolacksafeature for calculating the current. The Load cell calculates the weight of Glucose Bottle and the load cell Amplifier amplifies the signals and send to the Arduino Uno. LED showstheIvBagFluidlevel.OncetheIVbagrunningdry itsstarttheindication.IntheinitialstagegreenLedglows itmeansthebottlelevelisfull.Blueledglowsitmeansthe bottle level is maximum. Yellow led glows it means the bottlelevelishalf.Redledglowsitmeansthebottlelevelis minimumandoncebuzzeronitindicatesglucoselevelis critically low. After that Relay module will turns on and Solenoidvalvewill turnoff andstopthefluidflow.Send the alert message to nurse/assist through GSM Module. ResetthesystemusingRESETBUTTON.

WhentheleveliscriticallylowthentheArduinosendsa trigger to the Buzzer. Then Relay module turns on and solenoid turns off, gives the alert message for the nurse/AssistthroughGSMModule.

B) Working

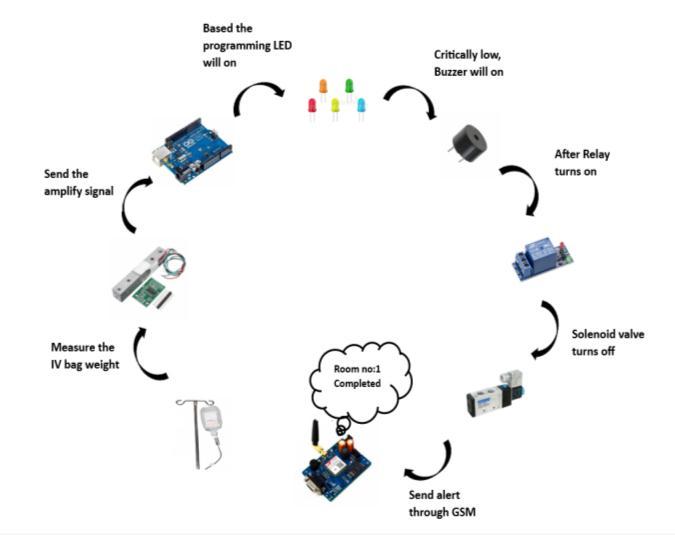

The algorithm of the Automatic Hypodermic Regulator, which is a combination of a system for detecting and

RESULT

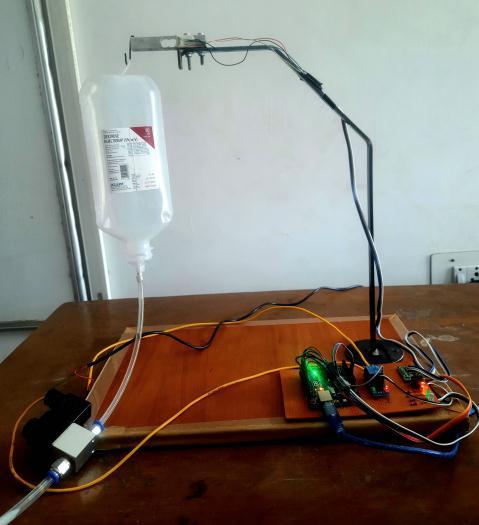

Wehavealsobroughtourideaintoreality.Therearesome attachedimagesofhowanIVbagrefillsystemwillwork andlookinreal life,whenusedbynurseson patientsin hospitals.Figure3,4showstheoutputofourdesign.

CONCLUSION

Hence this proposed project helps the hospital staff by sending alerts about the glucose bottle and stop that waiting for replace the new bottle. The suggested work decreases the amount of time and effect required to monitoring the intravenous bag. It is not necessary to physicallychecktheglucoselevelonaregularbasis.The patientswillbenefitgreatlyfromthis,especiallyatnight. Additionally,becauseairbubblesinbloodcaninstantlykill a patient, thistechnique eliminatesthedeadlychance of them getting into their bloodstream. enhance patient health outcomes, assist nurses in carrying out their responsibilities,andkeepaneyeontheIVbag.Itcanalso be used for drainage bags during postoperative care or

urinebagsinimmobilepatients.Itcanalsobefittedinany ambulance,mobilehospital,orhospitalroom.Literally,the Automatic Hypodermic infusion regulator is replaced nurse.Basically,atechnologymadeforreducetheneedof human,andthisdeviceachievethat.
