DomAdapt: Graph Driven Domain Adapted Chatbots for Enterprises
Piyush Kumar1, Shuchi Sharma2
1Student, Dept. of AIML, ADGIPS, FC-26 Shastri Park, Shahdara, New delhi -110053
2Assistant Professor, Dept. of AIML, ADGIPS, FC-26, Shastri Park, Shahdara, New Delhi -110053 ***
Abstract -This paper presents DomAdapt, a chatbot frameworkthat produces domain-specific responses entirely through knowledge graph retrieval rather than language model generation. The system accepts domain content in two forms: raw text, which is automatically decomposed into subject-verb-object triples and stored as directed graph edges, and structured JSON graphs supplied directly by administrators. At query time, user input is processed by a spaCy-based semantic parser that separates the query into an object set and an action set. A PageRank- weighted graph walk scores every node against the object set and retrieves the highest-scoring node description as the response. A logistic regression classifier trained on accumulated query logs decides in real time whether the graph is likely to hold an answer or whether the query should be redirected to an admin-configured fallback path containing a message and an optional URL. The system produces two response types: a plain text answer and an answer accompanied by redirect links derived from the site map graph. Deployment confirms that the graph retrieval pipeline returns relevant responses for domain queries without any generative training, while the fallback classifier correctly redirects out-of-domain queries after as few as around ten training samples. Administrator access is secured via password login combined with face-based twofactor authentication using OpenCV Haar cascade detection and a ratio-encoded face representation that is invariant to camera distance, with a bypass key option for fallback access.
Key Words: Knowledge graph, domain-specific chatbot, semantic parsing, PageRank retrieval, fallback classification, TF-IDF, logistic regression, face authentication,Django,spaCy
1. INTRODUCTION
Businesses deploying conversational assistants face a recurring tension between generality and accuracy. General-purpose language models produce fluent text but frequentlyhallucinatedomain-specificfactssuchasprices, operating hours, and policy details. Fine-tuned models reduce hallucination but require substantial labelled data and GPU resources that most small organisations cannot provide. Rule-based systems are accurate but require engineerstomaintainanever-growingsetofhand-written patterns.DomAdaptoccupiesadifferentposition.Ittreats every piece of domain knowledge as a node in a directed graph,everyrelationbetweenconceptsasalabellededge,
and every user query as a set of terms to match against thosenodes.Theresponseisretrieved,notgenerated.This means the system is immediately accurate for any knowledge explicitly entered, and transparently honest abouttheboundariesofwhatitknowsthroughitsfallback routing mechanism. The contributions of this paper are three. First, a pipeline that converts unstructured domain text into a queryable knowledge graph at ingestion time using only dependency parsing, with no manual annotation required. Second, a unified graph scoring function that treats admin-defined question and answer pairs, parsed domain documents, and scraped website pages as equivalent node types within a single retrieval mechanism. Third, a two-class fallback classifier that trains in under thirty seconds on CPU from query logs alone and routes unanswerable queries to admin-defined pathswithmessagesandredirectURLs.
Fig-1:DomAdaptfullpipelinefromqueryinputto responseoutput.
2. BACKGROUND
Knowledge graphs have been used in question answering sincetheintroductionoflarge-scaleknowledgebasessuch asFreebase¹andWikidata.Thecoreinsight thatfactual questionscanbeansweredbygraphtraversalratherthan text generation motivates the DomAdapt design. However, those systems assume a pre-built, manually
Volume: 13 Issue: 04 | Apr 2026 www.irjet.net p-ISSN: 2395-0072
curated graph. DomAdapt instead builds its graph automatically from whatever text the administrator provides, making curation an optional rather than mandatorystep.Dependency-basedtripleextractionreads subject-verb-object triples directly from parsed sentence structure. spaCy's⁴ English dependency parser produces reliable nsubj and dobj labels on general domain text, which DomAdapt uses without any additional model training or labelled corpus. PageRank,³ originally formulated for web page ranking, has been applied to knowledge graph node importance in several retrieval systems. Its use here reflects the observation that a concept connected to many other concepts in the domain graph is likely to be a central topic and therefore a more reliable answer source than a peripheral node. TF-IDF with logistic regression remains a strong baseline for short-textbinaryclassification.⁵Giventrainingsetsizesof tens to low hundreds of examples in early deployment, a deep classifier would overfit. Logistic regression with balanced class weights handles imbalanced log data reliablyatthisscale.
3. SYSTEM DESIGN
3.1 Knowledge Ingestion
Threeingestionpathsfeedtheknowledgegraph.Thefirst acceptsplaintext,splitsitintosentences,andpasseseach sentence through spaCy's dependency parser. For each sentence, tokens carrying the nsubj or nsubjpass dependency label are identified as subject candidates, the head verb of those tokens becomes the relation, and tokens carrying dobj, pobj, or attr labels become object candidates. Each extracted triple becomes two nodes and one directed edge in the graph. The subject node's description field is populated with the full sentence, providing context for retrieval. The second ingestion path accepts a JSON object with explicit node and edge definitions,bypassingtheparserentirely.Thispathisused whentheadministratorhasalreadystructuredthedomain knowledge, for example as a concept map or an existing ontology. Thethirdingestionpathacceptsa rootURL and performs a bounded breadth-first crawl of the target website, restricted to the same domain. Each visited page becomes a node whose label is the page title and whose description is the first paragraph of visible text. Named entities from page titles and headings are extracted using spaCy NER and added as additional concept nodes. Hyperlinksbetweenpagesbecomedirectededgeswiththe relation label links_to. This site map graph is used to generateTypeBresponseswithredirectlinks.
3.2 Semantic Query Parsing
User queries are parsed by extracting two term sets. The object set contains lemmatised nouns, proper nouns, and named entity spans. The action set contains lemmatised verbs. These are merged with raw query tokens to form thequerysetQ:
Q=objects∪named_entities∪{w∈tokens:|w|>2}
Pronouns are resolved to canonical forms before extraction. Second person pronouns resolve to the organisation node. First person pronouns resolve to the user node. This resolution is trained at the superadmin level so that queries like "what do you offer" correctly walk the organisation node rather than treating "you" as an unknown term. Matching against Q is purely lexical no embeddings or vector representations are used makingtheoperationfastanddeterministic.
Fig-2:Travelagencyknowledgegraphshowinguniversal classnodes,domainconceptnodes,namedentitynodes, andrelationedgesincludingself-loopsonprimaryentities.
3.3 Graph Walk and Node Scoring
The knowledge graph uses a two-tier structure. Universal class nodes object, place, person, action, property, event, concept, and organisation serve as root anchors seeded at deployment time. Domain-specific terms attach totheirparentclassviahas_subclassedges.Thisstructure ensuresthataqueryaboutaspecifictermcanalwayswalk up to its class for broader context and walk down to related instances. Every node n is scored against Q as follows.LetT(n)bethesetofwhitespace-splittokensfrom the concatenation of n's label and description fields, both lowercased. The overlap score is: overlap(n, Q) = |Q ∩ T(n)|/max(|Q|,1)
The PageRank score pr(n) is computed once per graph build using networkx⁶ with damping factor 0.85. Named entity nodes receive a small boost of 0.15 since they represent specific high-value facts. Universal class nodes receive a penalty of 0.10 since they serve as traversal anchors rather than answer sources. The final node score is: score(n) = 0.60 × overlap(n, Q) + 0.25 × pr(n) + entity_boost(n) + class_penalty(n) Nodes with score zero are excluded. The top-k nodes are returned as candidates withtheirneighbourlistsforcontextconstruction.
Volume: 13 Issue: 04 | Apr 2026 www.irjet.net p-ISSN: 2395-0072
3.4 Response Resolution Priority
Resolution follows a strict priority chain. Structured adminresponsesarecheckedfirst.Theseareloadedintoa temporary in-memory graph at request time, with each triggertextasanodelabelandeachwordinthetriggeras a connected keyword node. The same walk algorithm scores them, so a single-word query such as "accommodation" correctly activates the relevant response by matching its keyword node. This minimum score threshold is 0.05. If no structured response scores abovethreshold,thesitemapgraphiswalkedsecond.Top results are returned as Type B responses with page URLs as redirect links, allowing users to navigate directly to relevantpages.Theminimumscorethresholdforsitemap results is 0.05. If the site map also yields nothing, the domainknowledgegraphiswalkedthirdwithaminimum thresholdof0.08.Ifall threesourcesfall belowthreshold, thefallbackclassifierisconsulted.
3.5 Fallback Classification and Routing
Thefallbackclassifierisascikit-learnPipelinecombininga TF-IDF vectoriser with bigram support and a logistic regression estimator with balanced class weights. It is trained on two label classes: label 0 for queries that were successfullyresolvedbythegraph,andlabel1forqueries that were not. Training data accumulates automatically fromtheQueryLogtable,wheretheresolvedbooleanfield records the outcome of every query. When no fallback examples exist, nearly five synthetic out-of-domain sentences seed the negative class. As real query logs accumulate, synthetic examples are outweighed by genuine usage data, improving boundary precision passively without any manual intervention. The fallback routeroperatesatthreelevels.Levelonereturnsapartial answer when the graph found something related but belowtheconfidencethreshold,withsitemapsuggestions attached. Level two matches the query against admindefined fallback paths using TF-IDF cosine similarity with a threshold of 0.25, returning the admin's message and optional redirect URL. Level three is triggered when nothing matches, and returns a message suggesting the top three concepts by PageRank score so the user knows whatthesystemactuallycovers.
3.6 Face Authentication
Administrator access requires two factors. After standard Django password authentication, the system presents a face verification gate implemented as a standalone page served before admin panel access is granted. The middleware layer intercepts all requests to the admin prefix and redirects unauthenticated sessions to the face gate. OpenCV⁷ Haar cascade classifiers detect the face bounding box and eye regions within the captured webcamframe.Theaveragewidthofdetectedeyesserves as a scale-invariant reference unit. Five ratios are computed, all normalised by eye length so they remain invarianttocameradistance:
r1=faceheight/eyelengthr2=facewidth/eyelengthr3 = estimated nose length / eye length r4 = estimated lip width/eyelengthr5=eyeseparation/eyelength
The stored ratio vector is compared element-wise against thelivevector.Allfiveratiosmustfallwithinaper-profile tolerance of 0.18 for verification to pass. This tolerance absorbs variation from lighting, angle, and minor expression changes. A bypass key a second password set per user in the admin panel allows administrators toskipfaceverificationwhencameraaccessisunavailable or when remote access is required. The bypass key is storedperfaceprofileandcheckedserver-sideagainstthe submittedvalue.

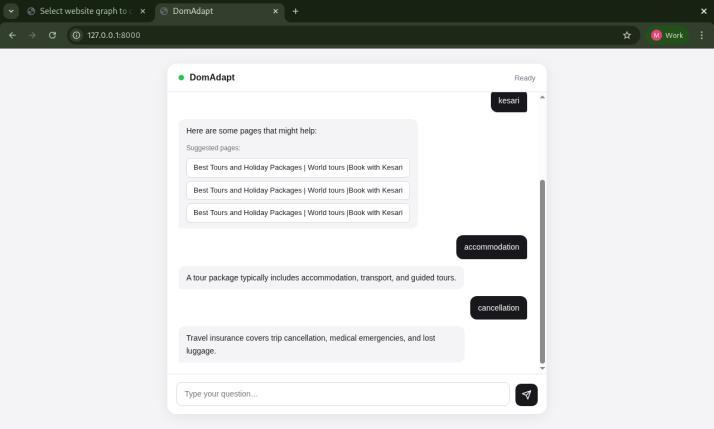

Fig-3:ChatinterfaceshowingaTypeAplaintextresponse toadomainqueryandTypeBresponsewithredirectlinks fromthesitemapgraph.
4. IMPLEMENTATION
DomAdapt is built on Django 6.0 with a REST chat endpoint, a scraping endpoint, and a domain upload endpoint.TheknowledgegraphisstoredasaJSONfieldin SQLiteandloadedintoanetworkxDiGraphatquerytime. The semantic parser, lemmatiser, classifier, and fallback router are module-level singletons to avoid repeated initialisation overhead across requests. The frontend is a single HTML file with no JavaScript framework. It maintains a session identifier in sessionStorage, sends POST requests to the chat API, and renders Type B responsesbyappendinganchorelementsforeachredirect link belowtheanswertext. Theknowledge basefollowsa two-tier architecture. A superadmin layer seeds universal class nodes and cross-domain concepts that apply to all deployments. This base graph is exported to a JSON file and imported into each new deployment. Domain administrators build on top of this base layer by feeding their specific documents and structured responses through the admin panel, which triggers an automatic graph build and background classifier retrain. A Socratic confirmation step in the admin panel shows administrators exactly how their input was interpreted beforeitissaved whichtermswereextracted,howthey were classified, and which edges were created. This
International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056
Volume: 13 Issue: 04 | Apr 2026 www.irjet.net p-ISSN: 2395-0072
transparency allows administrators to catch misclassificationsbeforetheyaffectretrieval.
Fig-4: Adminpanelshowingstructuredresponseentries anddomainknowledgerecordsforthetravelagency deployment.

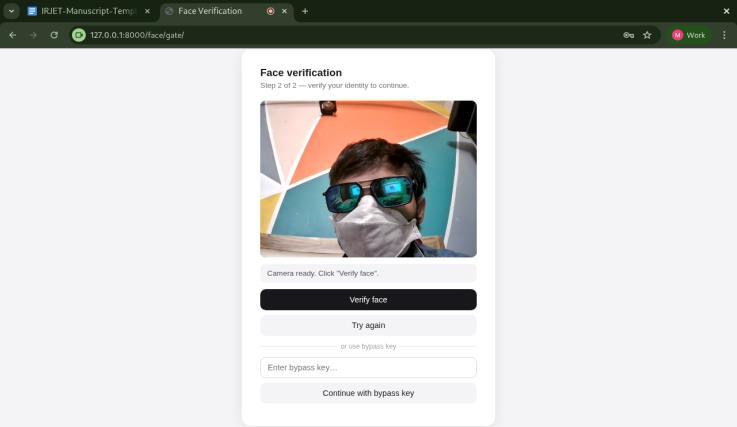

Fig-5: Faceverificationgateshowingcamerafeed,and bypasskeyinputfield.
5. EVALUATION
The travel agency deployment was loaded with eight structured responses covering destinations, cancellation policy,visa requirements,pricing,accommodation,flights, travel insurance, and airport transfers, plus a domain document of nineteen sentences and a live scrape of touropia.com. The deployment operates independently. Deleting the database and importing the base graph producesacleaninstancereadyforanewdomainwithout affectinganyotherdeployment.Thenamevisibletousers ischangedbyeditingasinglelineinthechattemplate.
6. CONCLUSION
DomAdapt demonstrates that a domain-specific chatbot can be built and deployed without generative language models, external AI APIs, or GPU hardware. The graph retrieval approach gives administrators full transparency and control over what the system knows and says. The fallback classificationmechanism ensures thatgapsinthe knowledgebasearehandledgracefullyratherthansilently
2026, IRJET | Impact Factor value: 8.315 |
producing incorrect answers. Face-based two-factor authentication with bypass key fallback secures administrator access without requiring cloud identity services. The system is immediately usable after knowledge entry and improves its fallback decisions passively as query logs grow. Future work will explore richer intent classification beyond the binary fallback decision, multi-language support through languageagnostic lemmatisation, and a visual knowledge graph editor in the admin panel that allows administrators to add nodes and edges directly by drawing rather than feedingtext.
REFERENCES
[1] Bollacker, K., Evans, C., Paritosh, P., Sturge, T., and Taylor, J. (2008). Freebase: A collaboratively created graph database for structuring human knowledge. ProceedingsofSIGMOD,1247–1250.
[2] Weizenbaum, J. (1966). ELIZA A computer program for the study of natural language communication between man and machine. CommunicationsoftheACM,9(1),36–45.
[3] Page,L.,Brin,S.,Motwani,R.,andWinograd,T.(1999). The PageRank citation ranking: Bringing order to the web.StanfordInfoLabTechnicalReport.
[4] Honnibal, M. and Montani, I. (2017). spaCy 2: Natural language understanding with Bloom embeddings, convolutional neural networks and incremental parsing.Toappear.
[5] Pedregosa, F., Varoquaux, G., Gramfort, A., Michel, V., Thirion, B., Grisel, O., Blondel, M., Prettenhofer, P., Weiss, R., Dubourg, V., Vanderplas, J., Passos, A., Cournapeau, D., Brucher, M., Perrot, M., and Duchesnay, E. (2011). Scikit-learn: Machine learning in Python. Journal of Machine Learning Research, 12, 2825–2830.
[6] Hagberg, A., Swart, P., and Chult, D. (2008). Exploring network structure, dynamics, and function using NetworkX.ProceedingsofSciPy,11–15.
[7] Bradski, G. (2000). The OpenCV library. Dr. Dobb's JournalofSoftwareTools.
