Technical Specifications
A Versatile Coach
MULTIPURPOSE COACH FOR REGULAR AND DISCRETIONARY SERVICES

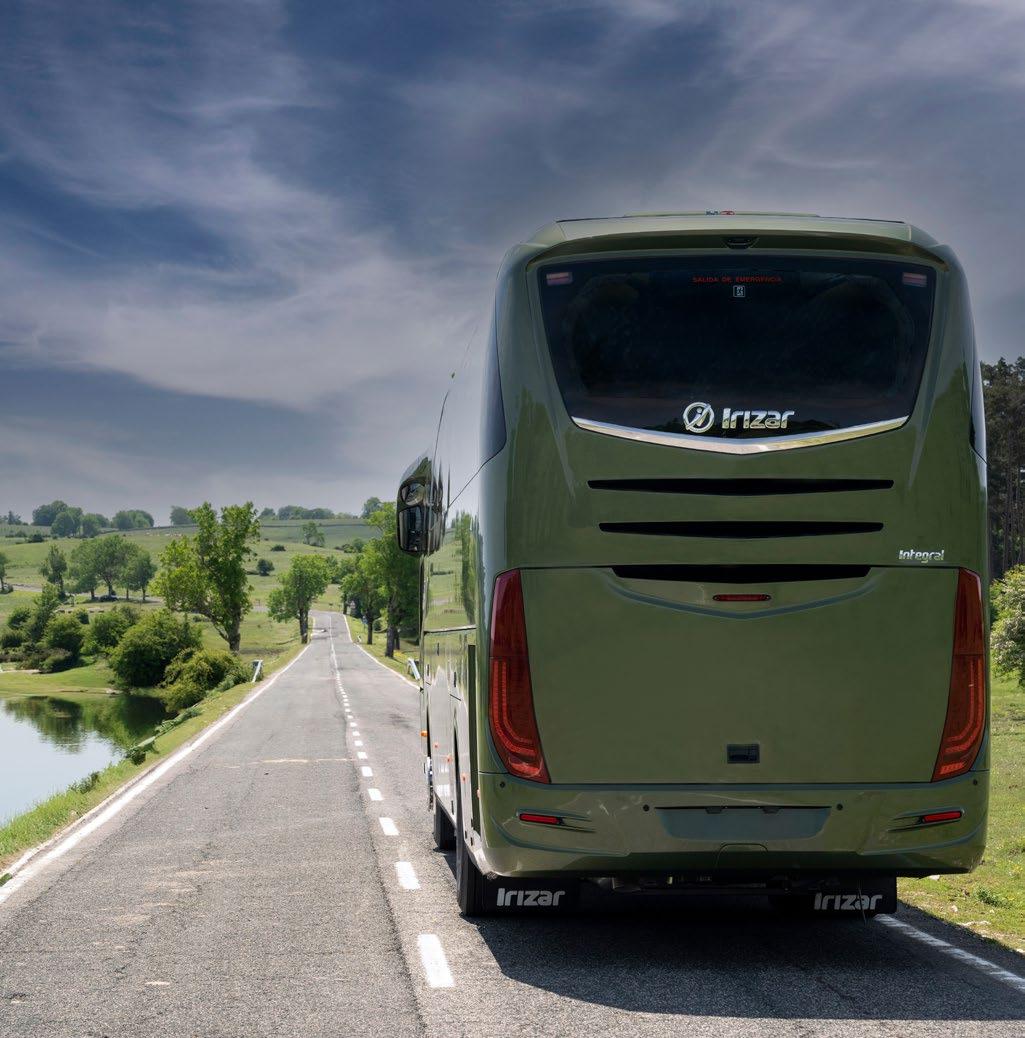

The Irizar i6 is a versatile vehicle, ideal for both regular and occasional services, with an attractive modern design for clients who are seeking maximum profitability. There is attention to detail and maximum comfort in a vehicle that stands out for its capacity for adaptation.
In addition to the integral vehicle, it’s available in combination with all the chassis available on the market. Diesel, biodiesel, HVO and gas engines can be used.
Configure the Irizar i6 to your needs:
10.78 metres With two axles
12.20 metres With two axles
12.92 metres With two axles
14.07 metres With three axles
14.98 metres With three axles
* Configurations may vary depending on the country and chassis manufacturer.
Dimensions
DRIVER FOCUSED

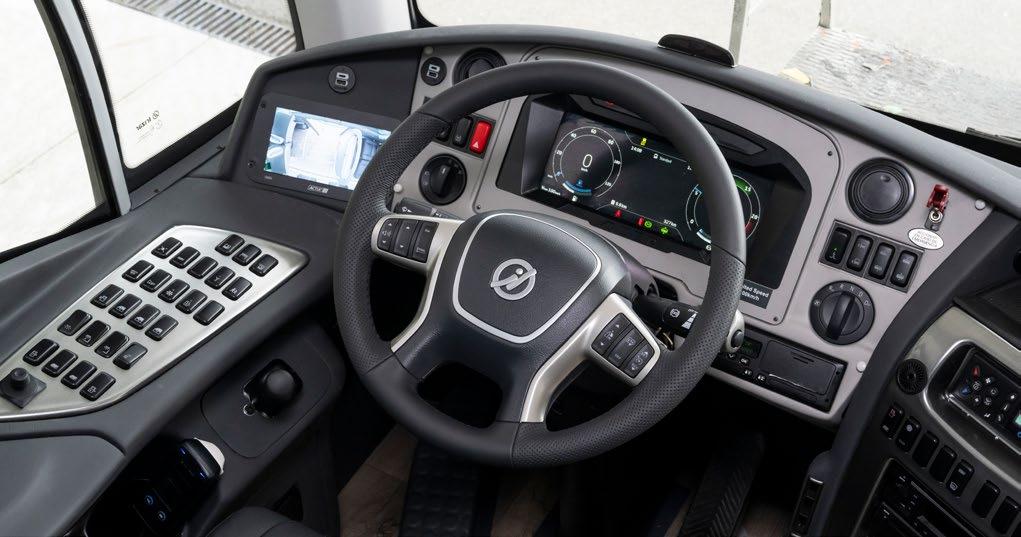

New Cockpit

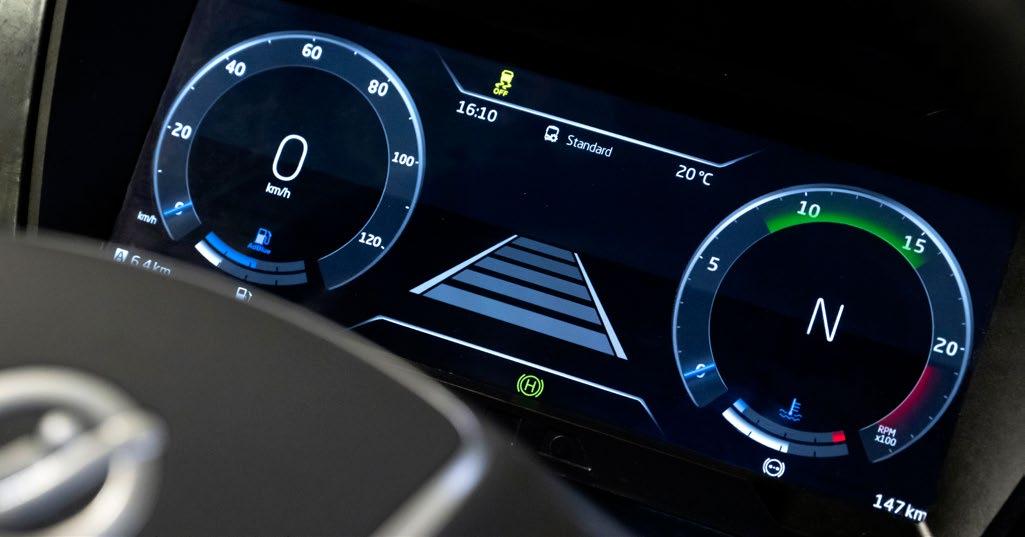

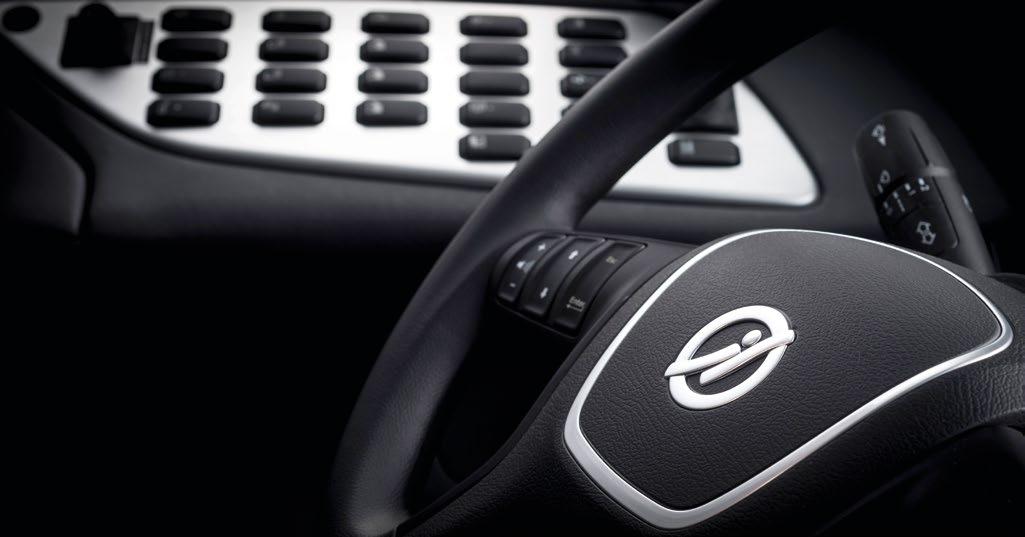

The new generation of vehicles has an improved cockpit that has a new steering wheel, updated keys and a new version of the dashboard with an updated design and the option to choose night driving mode.
The cockpit and its functionalities have been designed to maximise comfort and ergonomics for the driver. The instruments and navigation screens have been laid out to facilitate their visibility and intuitive use to the maximum.
DRIVER AND GUIDE
Black leather driver and guide seat optional
Driver's seat armrest optional
Heated driver seat optional
Multifunction leather steering wheel optional
Third windscreen wiper optional
Driver's seat microphone
Guide microphone
Wireless microphone for guide optional
Driver flex-lamp optional
Guide flex-lamp optional
Compartment for the driver and guide on the baggage trays
Heated windscreen optional
Heated mirror
Safe for driver
Refrigerator in dashboard
Driver and guide compartments
Predictive cruise control optional
AND A UNIQUE EXPERIENCE FOR
PASSENGERS
The spaciousness and optimal layout of the passenger cabin, the carefully designed ergonomics of the seats, the reduced levels of noise emission and vibrations mean passengers can be given the best travel experience.

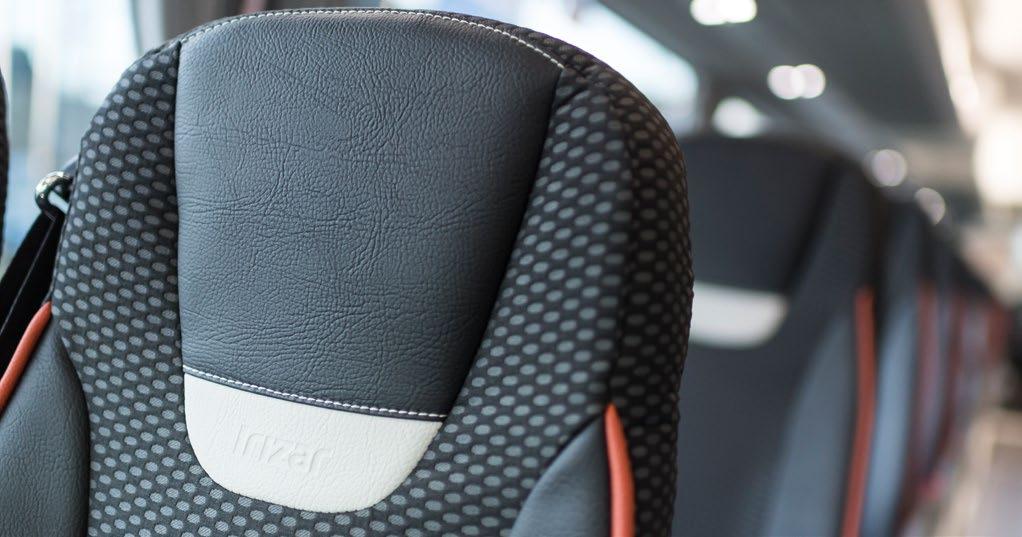

PASSENGER AREA
I6 seats with carpet
i6 seats with synthetic leather headrests
i6 seats with leather inserts
Extra padded seats
Clothing rack

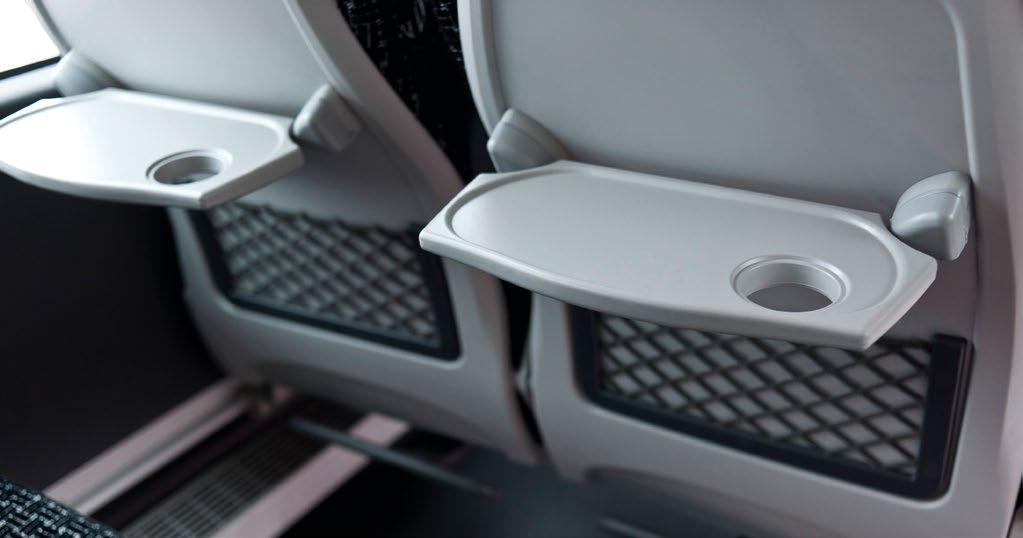

Small table
Magazine rack
Central arm rest
Foot rest
2-point safety belt
3-point safety belt
Individual air conditioning and LED lighting
Luggage compartment covers
Carpeting in the aisle, driver's area and foot rest
Wood effect floor
Waste bin at entrance and central door
WC in central footboard / rear WC on floor (includes smoke detector)
USB / 220V in every pair of seats
Individual entertainment system
EQUIPMENT
ELECTRICITY AND ELECTRONICS
22” front monitor optional
HMI that integrates: climate, audio, video, communication media, cameras, Sat Nav, bluetooth, settings, etc.
Rain sensor for automatic windscreen wipers
Bluetooth
BOSCH Smart Series audio equipment optional
15” second and third monitor optional
18.5” second and third monitor optional
19“ folding Bosch monitor optional
TV Tuner optional
Central camera optional
Roadway camera optional
Digital clock
Parking sensors optional

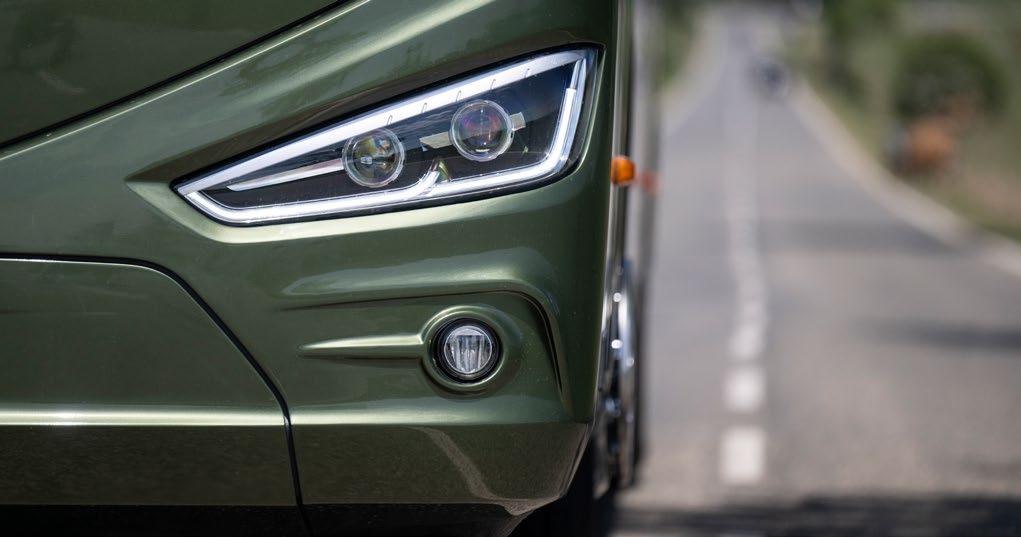

Inside and outside LED lighting
GPS connected to screens optional
Front, side and rear destination signs optional
Wi-Fi optional
PRM elevators optional
Electric key for opening + button on front door optional
Remote control opening and alarm optional
Contact sensors of covers optional
HEATING AND VENTILATION SYSTEM
Air conditioning: Dual zone air conditioning unit
Heating system
Artica climate control unit optional
Programmable Pre-heater optional
Convector in WC optional
OTHERS
Driver's bed (includes smoke detector) optional
Vacuum cleaner optional
Galley close to the central entrance optional
Stainless steel structure optional
Double glazing
Extra-stained side windows optional
Tinted side windows optional
Air purifier optional
Additional fuel tanks optional
Pre-fitting for trailer hook optional
Aluminium wheels
Alcoa Durabright aluminium wheels optional
Ski rack attachment system optional
Pneumatic luggage compartment covers
PROPULSION SYSTEMS
New generation of integral Irizar chassis
Weight reduction of up to 200 kg and 5% of additional consumption
Compatible with diesel, biodiesel and HVO
ZF Ecolife Coachline
Automatic six gear change with torque converter.
Capable of transmitting torques of up to 2,800 Nm.
Built-in ZF retarder with three braking points.
Electronic with advanced software for optimal fuel consumption.

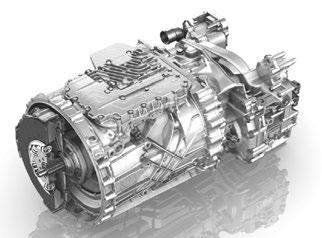

ZF TraXon 2
Fully automated 12-speed manual transmission.
Capable of transmitting torques of up to 2,800 Nm.
Inbuilt ZF Power Intarder with 3 brake points.
Electronics with advanced software for optimal fuel consumption.
ZF Axles
RL82EC front axle and A133 rear axle. In case of three axles, RL82EC third steering axle. Independent front and third axle suspension
Electronically-controlled air suspension (ECAS) to achieve optimum stability and comfort
Braking system equipped with ABS, ASR, ESC and BFD...
electronically controlled by EBS.
Let’s talk about cybersecurity
We work day in day out to keep ahead of the cybersecurity challenges of our vehicles. We comply with the R155 and R156 European regulations for cybersecurity management systems and vehicle software updates. We can thus guarantee that the systems work as expected, and we can mitigate the security risks that arise.
We are firmly committed to protecting and guaranteeing information confidentiality and integrity and the safety of everyone.
+
Front collision warning
Warns of an impending forward collision, giving the driver enough time to react.
+ Safety distance monitoring
Safety distance monitoring warns the driver if they are driving at an unsafe distance from the previous vehicle.
+ Pedestrian collision warning
Daytime warning with visual alerts of an impending collision with a cyclist or pedestrian.
LEADING THE WAY IN SAFETY
MOIS
System that detects the presence of pedestrians and cyclists in the vehicle’s front blind spot and alerts the driver.
BSIS
System that detects other vehicles beside and behind the coach on the side opposite the driver.
We meet the highest safety standards within the new GSR2 regulatory framework by integrating advanced components, like cameras, radar, etc. for your and your passenger’s safety.
ReIS
Camera and sensor technology that shows the driver if there are objects or people behind the vehicle when it’s backing up.
TPMS
System for monitoring tyre pressure and temperature.
DDAW
Driver fatigue detection system
ISA
System that uses a speed limit sign recognition camera and speed limit data linked to the GPS to notify the driver about the current speed limit and warn them if they are speeding.
Alcohol Interlock
Installation
Facilitation
Alcohol start-up interlock.
Emergency Braking Signal
System for activating the emergency lights when emergency braking is detected
AEBS
Advanced emergency braking system that helps minimize the risk of a collision or limit its consequences.
LDWS
Lane departure warning system.
More safety systems
+ EBS (ABS, ASR, ESC, BFD)
+ AHBC
+ ECAS
+ ACC
LOWER CONSUMPTION AND EMISSIONS
At Irizar we want to be a key actor in the sustainable mobility of the future. To achieve that, we’re focusing all our efforts on decarbonisation, electrifying cities and reducing the consumption and emissions of our vehicles. We’re sure the future will be multi-technological and we’re ready for it.
Our new Efficient line puts focus on maximum efficiency based on reducing weight and improved aerodynamics. Furthermore, the power on demand technology also contributes to the reduction.
Minimum R&M cost
Thanks to smart technology we have increased the life of the components and we have extended the service intervals as much as possible. Easy access to the engine compartment and components also reduces repair and maintenance costs.
We provide original Irizar spares that keep the same level of quality, so your vehicles are still as safe as ever. Only with an optimum selection of parts can you keep the same levels of quality and performance of the engine and fuel consumption. And, all of that comes with fast delivery times, total availability and the Irizar guarantee.
ALWAYS BY YOUR SIDE OUR SERVICES
Guarantee of vehicle reliability and availability
Our coaches undergo rigorous reliability tests before they are marketed. They are currently operating on5 continents in extreme conditions. They use robust, reliable tried and tested technology and components to reduce downtime and increase availability and use. They are also designed to facilitate maintenance and make diagnostic capability.
Close, customised attention and advice.
Integral vehicle
Turnkey projects and services that meet customer needs.
Repair and maintenance contracts.
We provide a complete range of services that makes it possible to keep the coaches in optimal condition, improve performance, minimise emissions and lower operating costs.
- Wide service network and mobile units with trusted technicians.
- Training courses to ensure that their safety and repair and maintenance performance is always of the highest quality.
- iService platform (catalogue, e-shop Help Desk, order tracking ...) for service management. Information about the repair and maintenance status
- 24/7, 365 days a year. Integral vehicle
- Warranty period extension
- Immediate availability of quality original spare parts at very competitive prices.
- Fleet manager with advanced technology for each client’s specific processes This enables comprehensive monitoring of cost and driving efficiency, resulting in constant improvement in safety, performance and profitability.
- Comprehensive electronic management and monitoring solutions for predictive maintenance. The collected operational data is analysed to predict and schedule vehicle maintenance and ensure maximum uptime.
- Eco-driving courses to teach drivers to drive more efficiently and safely, providing significant benefits in terms of increased activity time, improved safety and reduced operating costs.
THE GOAL ENJOY THE TRIP
