Dungs Product
Gas Regulator

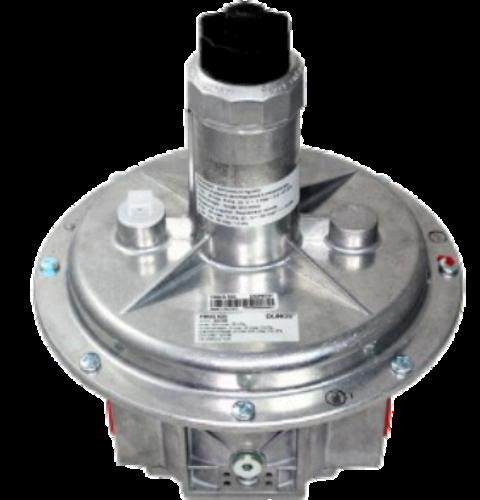

Type : FRNG 520
The DUNGS pressure regulator, type FRNG, has an adjustable setpoint spring and defined counterspring. The pressure regulator complies with EN 88-1 and DIN 3380. The DUNGS pressure regulator, type FRNG, is suitable for gases of families 1, 2, 3 and other neutral gaseous media. Does not contain any non-ferrous metals, suitable for gases of up to max. 0.1 vol.% H2 S, dry.:
Input pressures up to 200 mbar (20 kPa) for zero pressure applications
Input pressures up to 200 mbar (20 kPa) for proportional pressure applications
Bypass prepared, Rp 3/8 to Rp 2
Sturdy, precise and sensitive regulation of regulator output pressure
Inlet pressure compensation diaphragms
Safety diaphragms
Internal pulse for regulator output pressure as standard, external pulse connection prepared
Other Product :

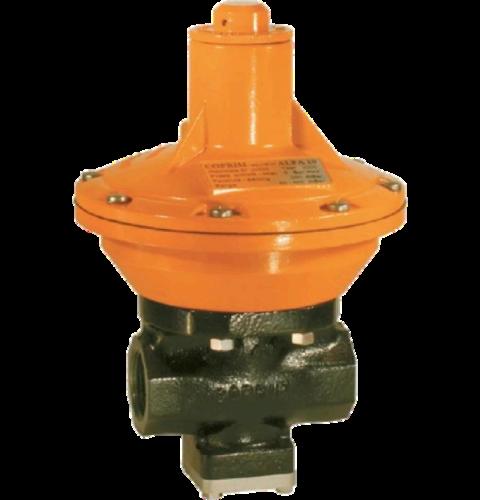

Coprim Gas Regulator

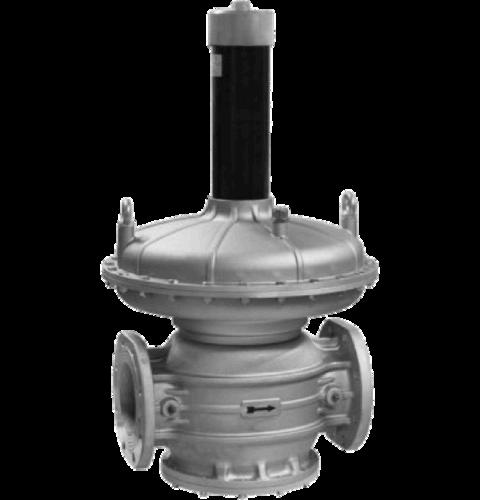

Madas Gas Regulator
