Excelon® Plus ½” 84 Series with Integrated Electronic Pressure Sensor
Breakthrough engineering for a better world
Breakthrough engineering for a better world
We create solutions for our customers which enable smarter, safer, more productive and sustainable factories, production lines and warehouse operations. Our pneumatic and electric motion systems help machine builders and end users around the world automate and optimise manufacturing and warehousing processes.
We have partnered with customers in industrial automation for over a century, applying our experience and innovation to create lasting value for their businesses. Our solutions support critical industries such as automotive, food and beverage, pharmaceuticals and even the space industry. We support the automation of precision manufacturing, product assembly, testing and packaging.
We use the latest digital technologies in our automation products and constantly innovate in close partnership with our customers. By applying our deep expertise, we can solve their toughest automation challenges, today and tomorrow. Through increased productivity, efficiency and safety, our customers can serve their own customers better, creating sustainable competitive advantage and delivering growth.
Our world-class product portfolio includes IMI Norgren, IMI Bimba, IMI Bahr and IMI Buschjost.
A Complete Air Preparation Solution with IO-Link
I = Integrated
E = Electronic
P = Pressure
S = Sensor
Excelon® Plus Air Preparation has been designed with flexibility and safety in mind, offering built in, tamper proof features and a unique double lock mechanism on the bowls. Maintenance of the unit is simplified with the new system where the element assembly is removed together with the bowl. The flexible design also allows in-line installation, or modular installation with other Excelon® Plus products.
Excelon® Plus ½” 84 Series is IO-Link enabled, offering the perfect solution for remote diagnosis, simplified installation and automated parameter setting.

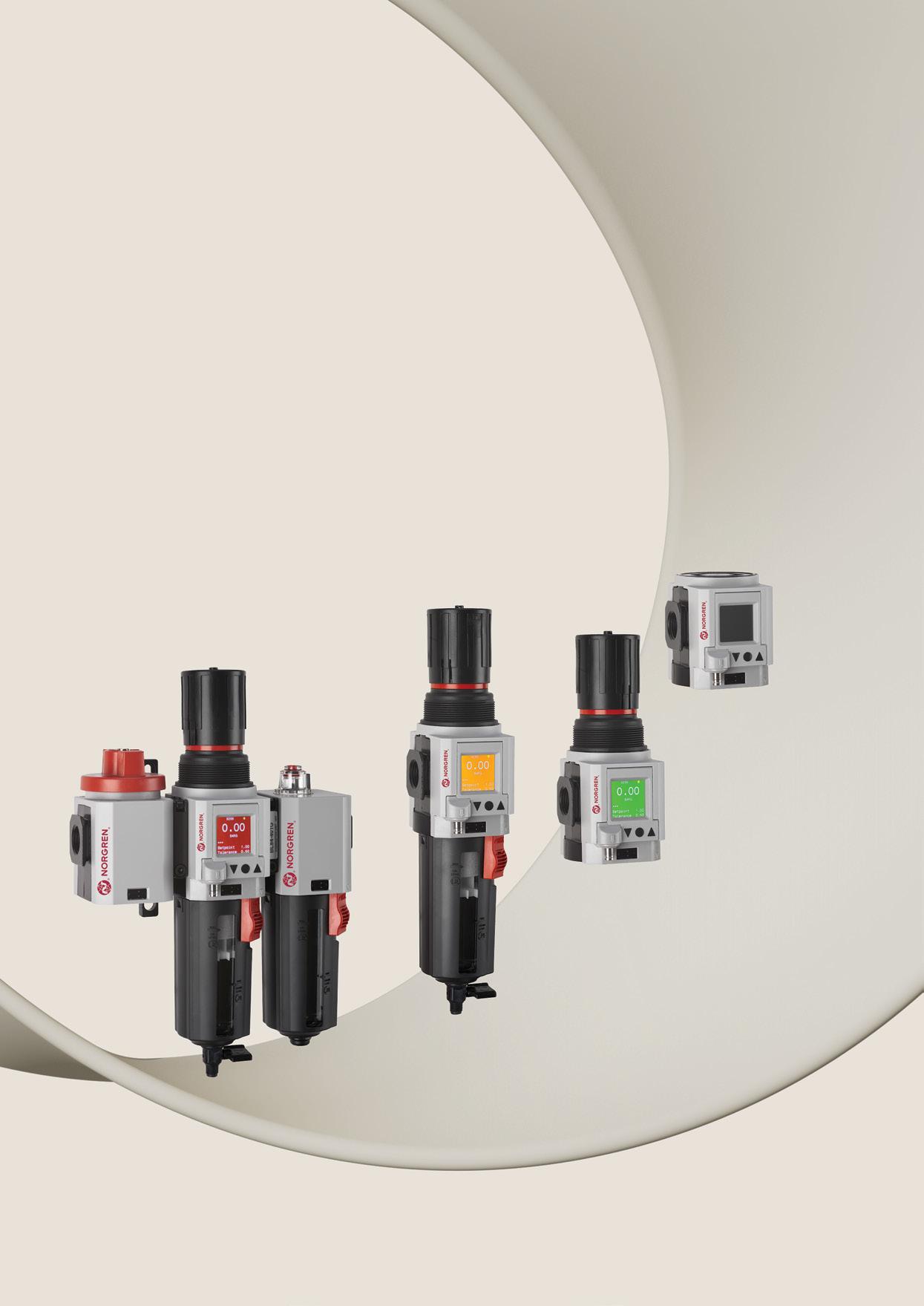

A complete Air Preparation Solution
• Three thread sizes (3/8”, 1/2”, 3/4”) and two thread forms (ISO G, NPT)
• Three filter variants
• Two regulator variants with three spring choices
• Filter/regulators
• Two lubricator variants
• Combination units - standard & IO-Link connected
• Several valve options (Manual, dump, soft start dump)
• IO-Link enabled

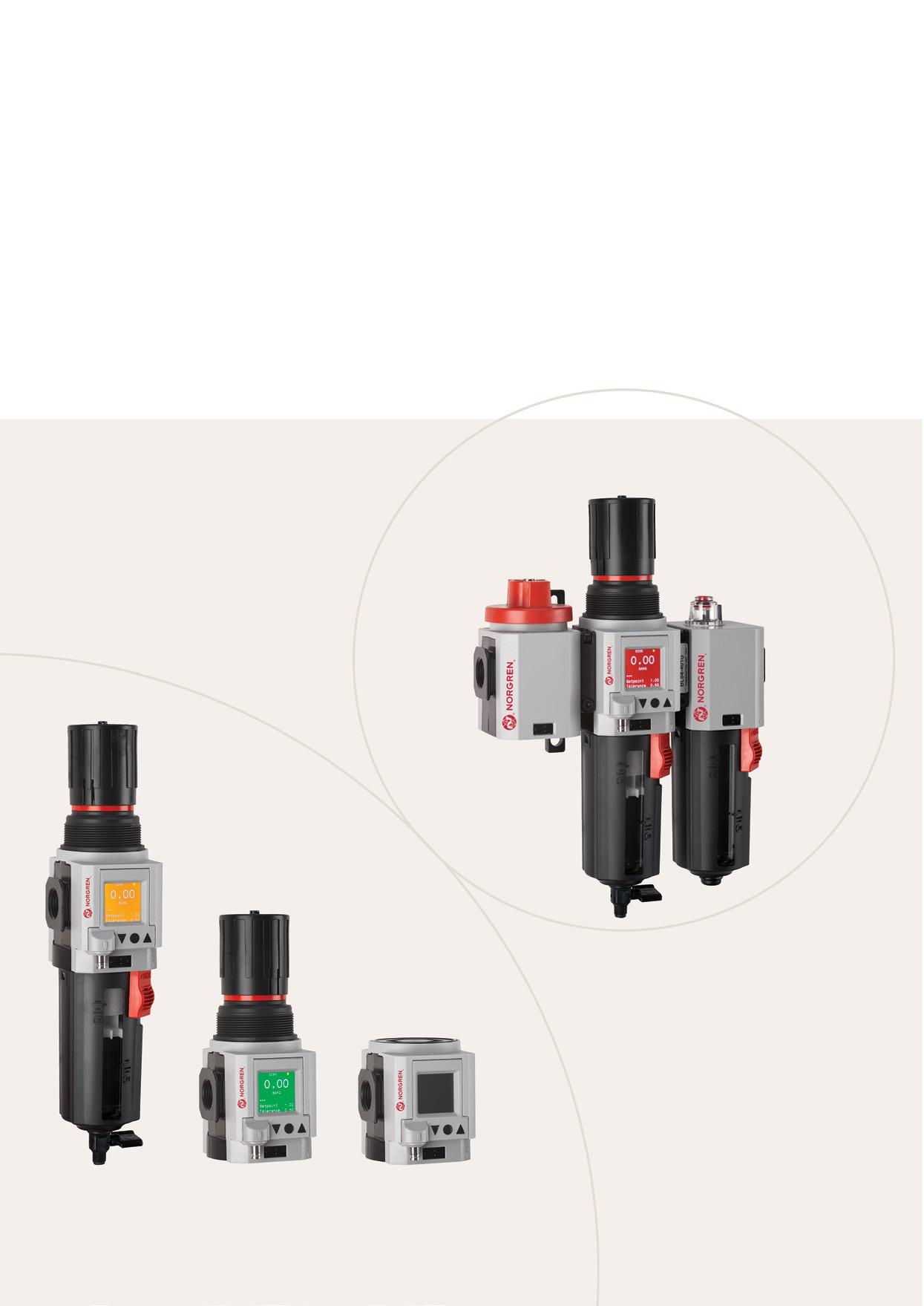

Pressure Regulators and Filter-regulators with Integrated Electronic Pressure Sensor (IEPS)
Product Highlights
• Simple Set-up
• Fully Integrated Design
• IO-Link
• Robust
• Programmable colour display
• Standard M8 connection
Programmable colour display
Fully Integrated Design
Plus ½” 84 Series
Parameterisation
Adding IO-Link connectivity to the renowned Excelon® Plus, the integrated electronic pressure sensor is available as a standalone unit, regulator, filter-regulator or as part of a box-set combination unit.
Supporting process & productivity analytics and optimisation; predictive maintenance; machine learning and lifecycle management, Excelon® Plus with IO-Link integrated electronic pressure sensor is the ideal solution for faster, more efficient and reliable production.
O-Link capability allows remote set-up and application performance data for improved monitoring.
• Pressure sensor calibration can be adjusted via IO-Link for offset and span correction.
• Built-in diagnostics, self-testing and fault reporting of sensor and gauge status offers intelligence for monitoring and measurement.
• Pressure transducer output.
• Operating temperature and supply voltage are transmitted as ‘process variables’ once per second.
Three output options.
• Digital Output Type: NPN, PNP, Push-Pull
• Digital Output State: Normally High (NC) Normally Low (NO)
• Transducer via IO-Link
Adjustable settings including setpoint, tolerance, hysteresis, pressure units, temperature units and screen orientation.
• Select & program using a choice of pressure units, either 0 to 10 bar, 0 to 145 psi or 0 to 1 Mpa.
• 3 variants - Integrated Regulator unit, Integrated Filter-Regulator unit or Standalone unit.
• Graphical status indicators for IO-Link connectivity and digital output.
• Backlight can be turned on / off via IO-Link.
• Programmable.
• 1.44” Colour TFT display for easy identification of correct pressure setting. Green (pressure is within limits), Red (pressure is outside limits) or Amber (fault).
• Field installable connector system with M8 x 4 male electrical connections, as per IO-Link specification (v 1.1.2).
• Fully integrated design.
• Easy parameterisation and set-up via 3 push-buttons and intuitive menu.
• Buttons lockable via IO-Link with PIN protection and tamper detection.
• Conforms to environmental tests for temperature, humidity (ETSI 300 019-2-3), shock & vibration (BS EN 60068-2-6).
• The silicon sensor can withstand 1.5 times overpressure without compromising accuracy.
• Built in protection against overvoltage, reverse polarity and short circuit on signal lines.
• The on board sensor is coated which protects it from water in the airline.

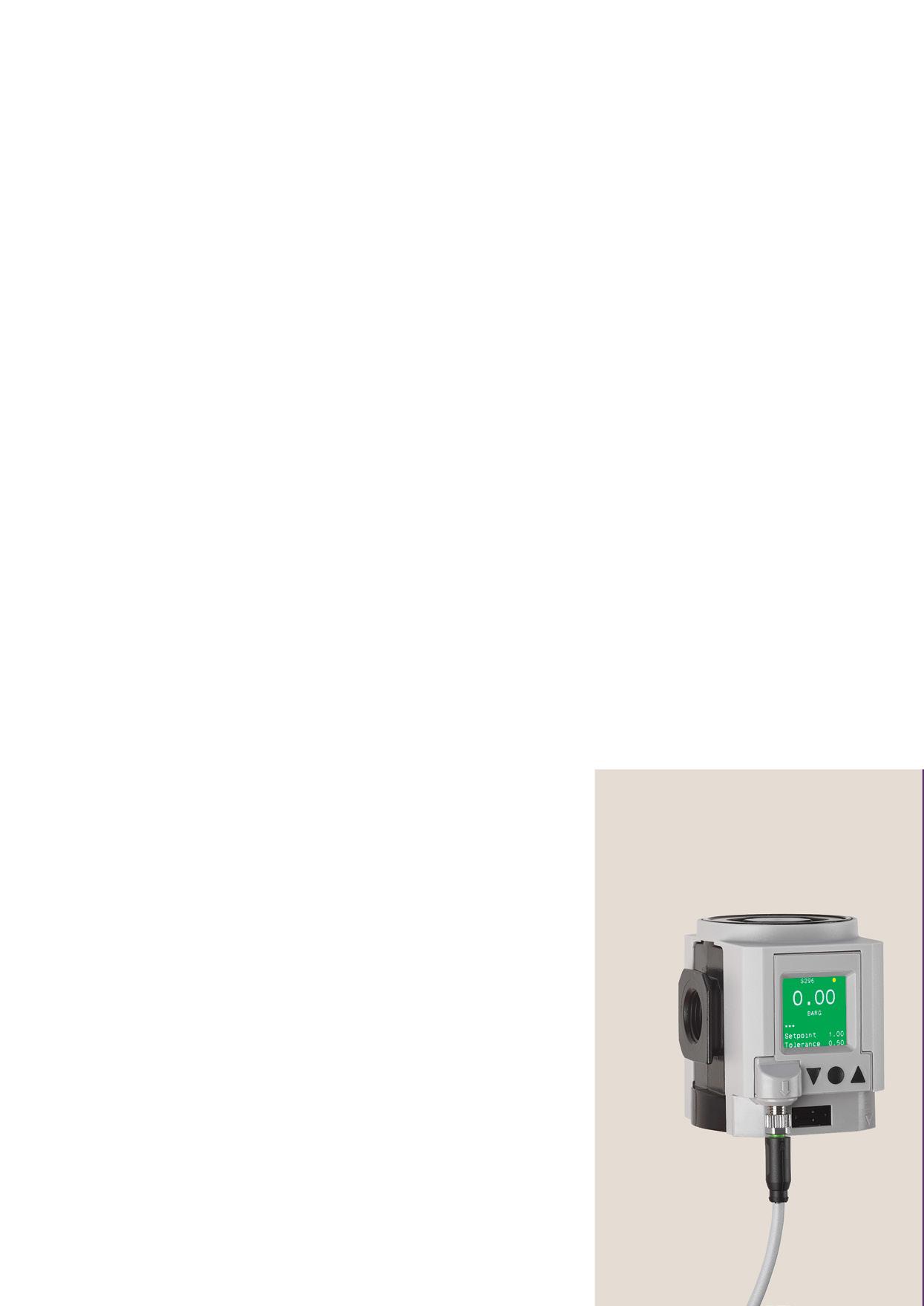

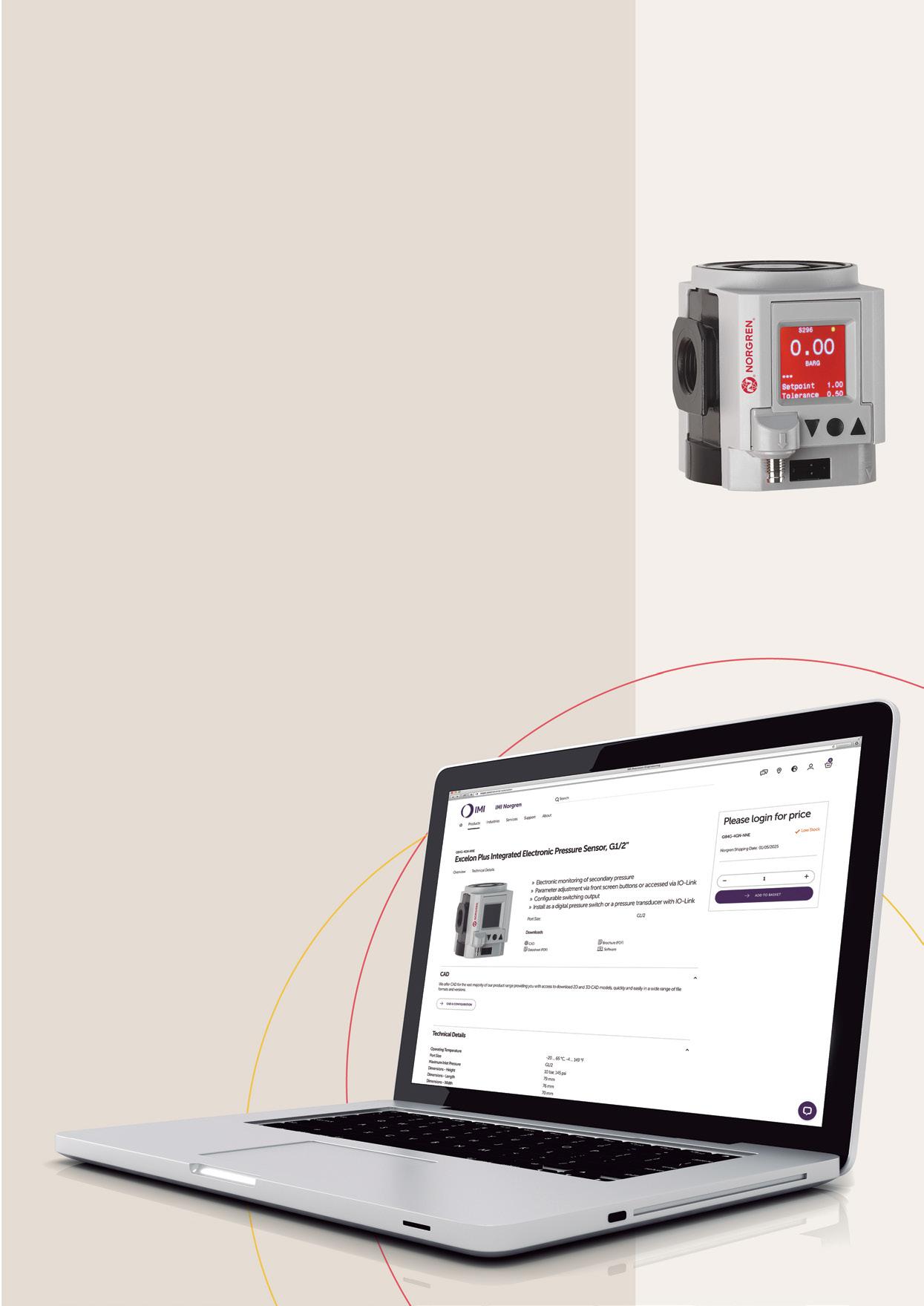

Q84G - Stand alone Electronic Pressure Sensor Module
Plus Modular
• Electronic monitoring of secondary pressure
• 1.44” full colour graphic display Excellent Visual Management.
• Parameter Adjustment via front screen Buttons or Accessed Via IO Link
• Configurable switching output
• Adjustable settings: Setpoint, Tolerance, Hysteresis, Pressure Units, Temperature Units, Screen Orientation, Digital Output Type (NPN, PNP, Push-Pull), Digital Output State (Normally High, Normally Low)
• Install as a standard digital pressure switch or a pressure transducer with IO Lin
System
Technical features
Medium: Compressed air only
Maximum supply pressure: 10 bar (145 psi)
Pressure measurement range: 0 … 10 bar (0 … 145 psi, 0 … 1.0 MPa)
Port size:
G3/8, G1/2, G3/4, 3/8 PTF, 1/2 PTF, 3/4 PTF
Ambient/Media temperature: -20 ... +65°C (-4 ... +149°F)
Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F).
Repeatability:
≤ 0.1% of full scale (FS) at stable temperature
Accuracy: ≤ 1.5% of full scale (FS) of detected pressure (0 … +50°C, +32 … +122°F)
Units:
Pressure: bar, psi, MPa
Temperature: °C, °F
Voltage: V
Display:
1.44” full colour TFT LCD
Text / background colours: white/green: pressure in range white/red: pressure out of range white/amber: error black white: setting mode
Display fields:
User configurable identifier, pressure value, pressure units, user configurable message, menu
IO-Link function:
Pressure information
Pressure out of range warnings
Temperature diagnostic
Supply voltage diagnostic
Operating time diagnostic
Min. cycle time: 20ms
Accessories
Wall mounting bracket
840024-50KIT
Pressure sensing block 1/4 PTF
840016-50KIT
Full flow porting block 3/4” PTF
840028-50KIT
IO-Link cables
Quikclamp 840014-51KIT
Pressure sensing block G1/4
840016-51KIT
Full flow porting block G3/4
840028-53KIT

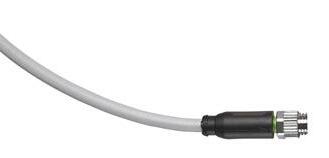

Connection cable M8x1 for intergated digital pressure switch
M8 female to M12 male 0,6
Quikclamp with bracket assembled
840014-52KIT
Port Adaptors
3/8 PTF
1/2 PTF
3/4 PTF
G3/8
G1/2
G3/4
Hybrid Quikclamp *1 840014-61
840015-02KIT
840015-03KIT
840015-04KIT
840015-10KIT
840015-11KIT
840015-12KIT
Full flow porting block 3/4” PTF
840028-68KIT
Full flow porting block G3/4
840028-69KIT
Hybrid Quikclamp with bracket assembled *1
840014-62
*1) To connect new Excelon® Plus to old Excelon® 74/73 units. Having the same hole centres as 74 series mounting bracket. A Quikclamp adds 13.6 mm to the overall width of a combination unit
NC-084FS-124MS-A 1
NC-084FS-124MS-1 2
5
NC-084FS-124MS-2
NC-084FS-124MS-5
M8 female to free end 5 NC-084FS-00000-5
