Fog App: how to use the fog module with your smartphone

Fog App: what does this fog module do?

Customized refreshing solutions

All the systems Vento Kit and Linea Kit nebulize sterilized water, meaning without viruses and bacteria.

Linea Kit Vento Kit

Optimal solution for:

• outdoor gazebos

• verandas

• outdoor walkways

• refreshing systems for outdoor umbrellas

• beach volleyball, futsal/tennis pitches/courts

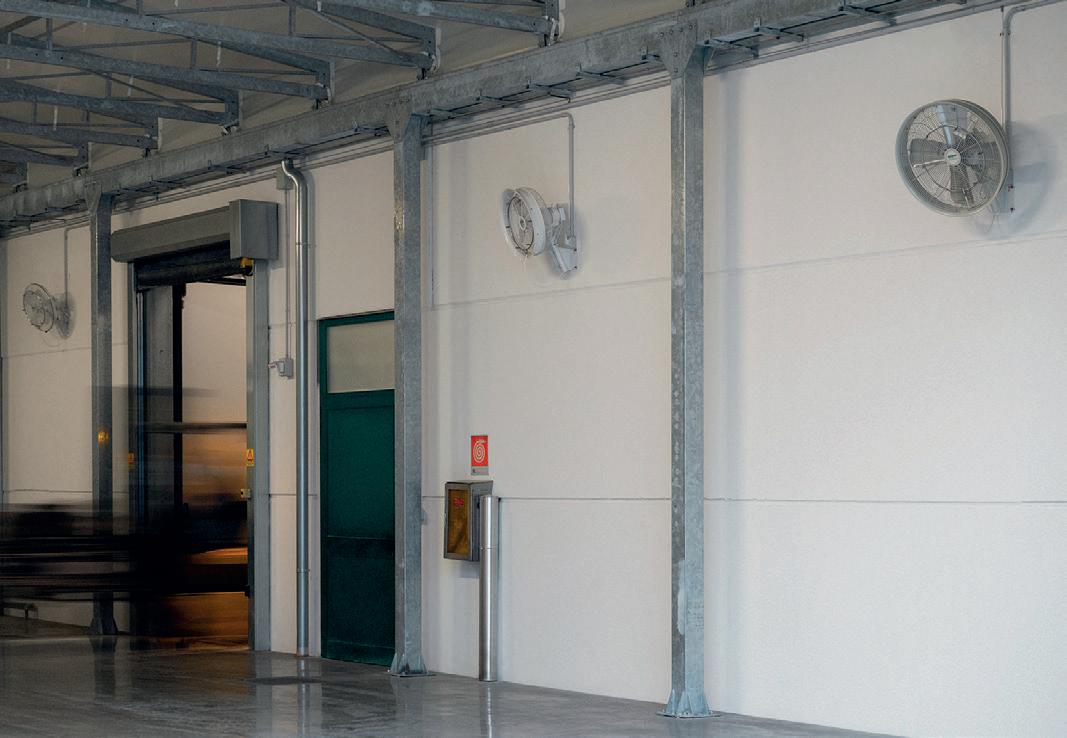

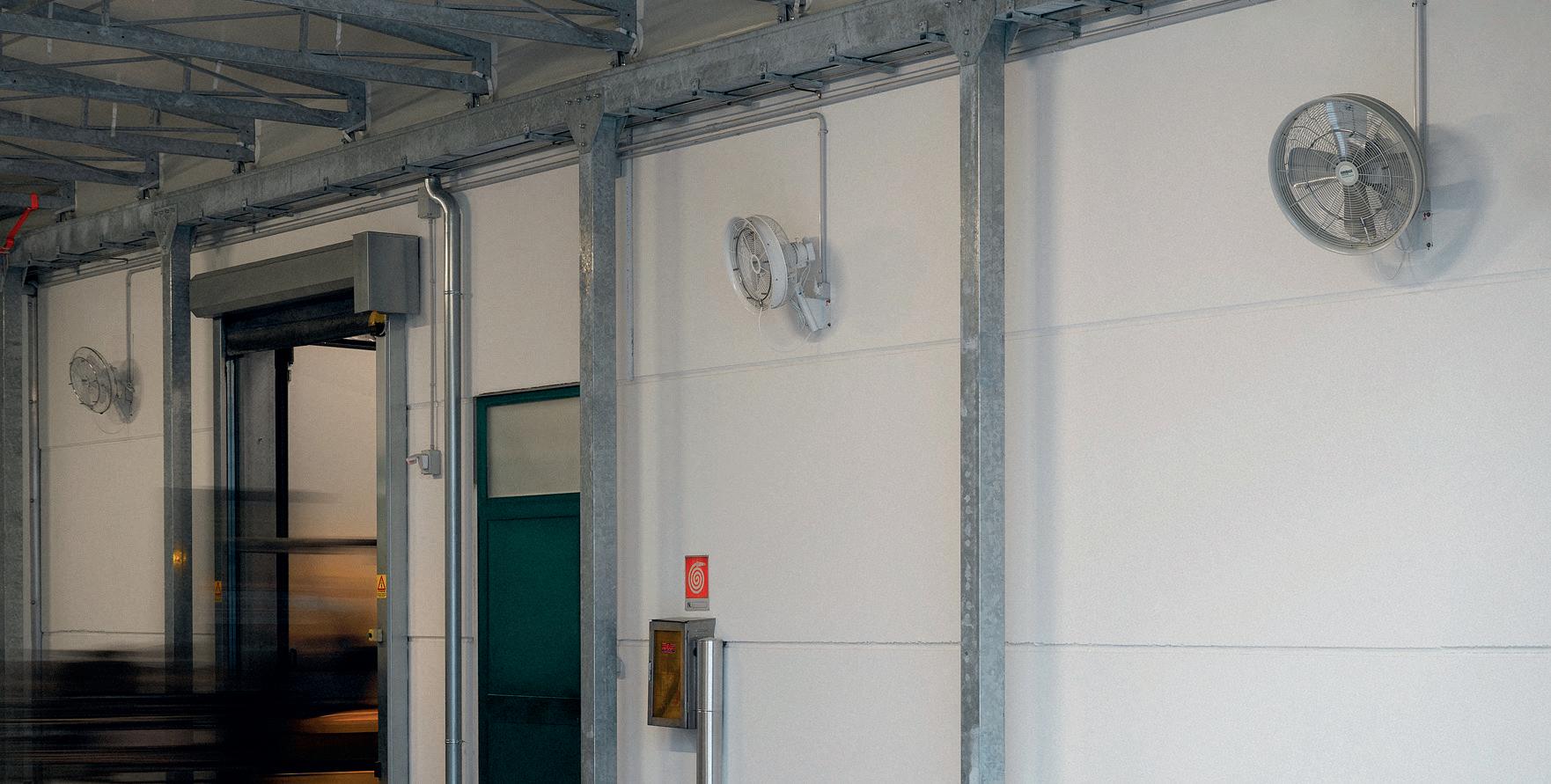

Optimal solution for:

• industrial workshops

• covered outdoor areas of restaurants, bars and bakeries

• parks and gardens

• gyms

• fishmongers' & greengrocers'

Linea Kit

Choose your line kit Code

ZX.KL40

Equipped with water inlet Kit

Linea Kit 10 nozzles 6,75m

Linea Kit 20 nozzles 14,25m

Linea Kit 30 nozzles 21,75m

Linea Kit 40 nozzles 29,25m

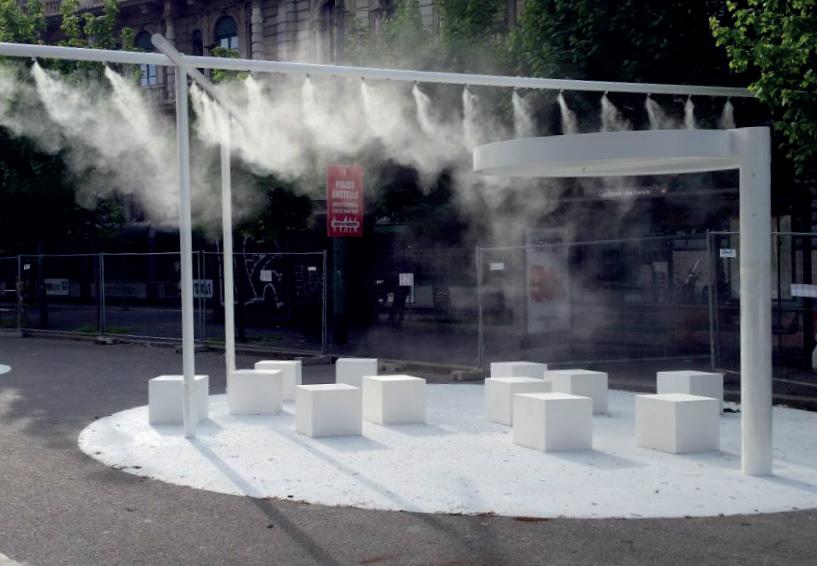

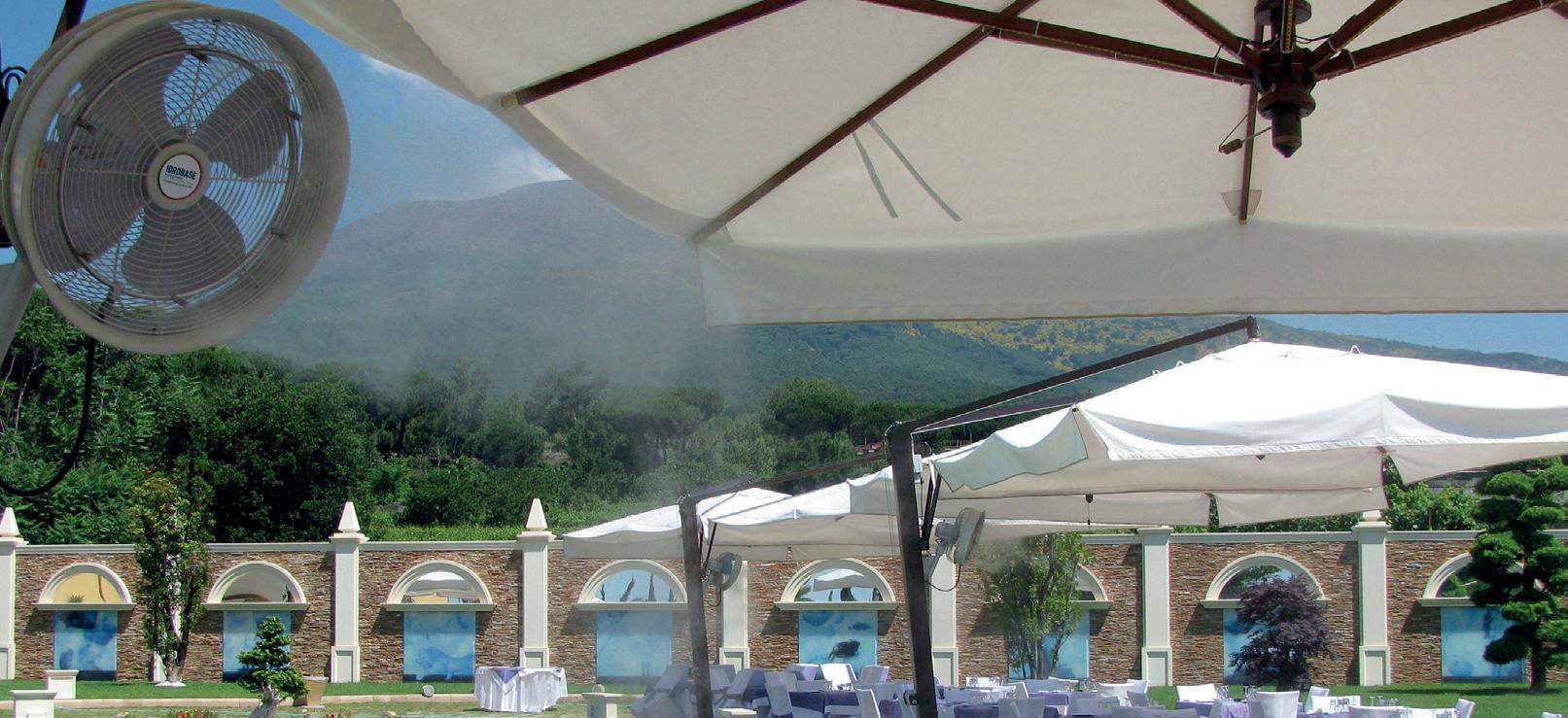

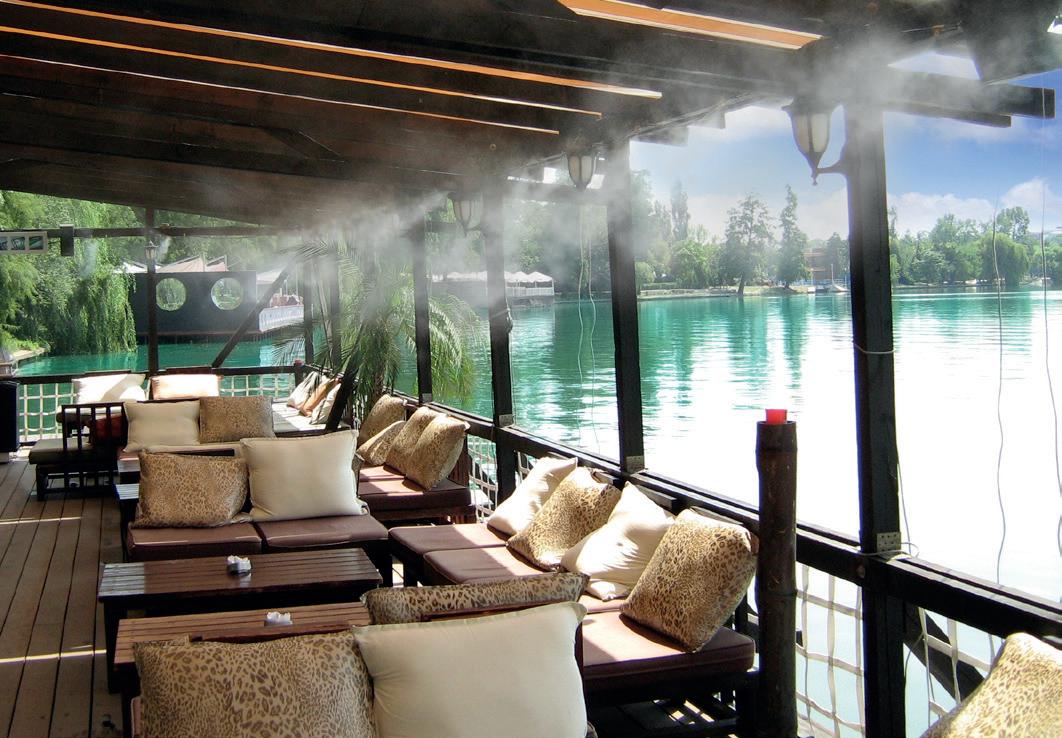

Cooling systemRepelling mosquitoes, Tenuta Primero Resort

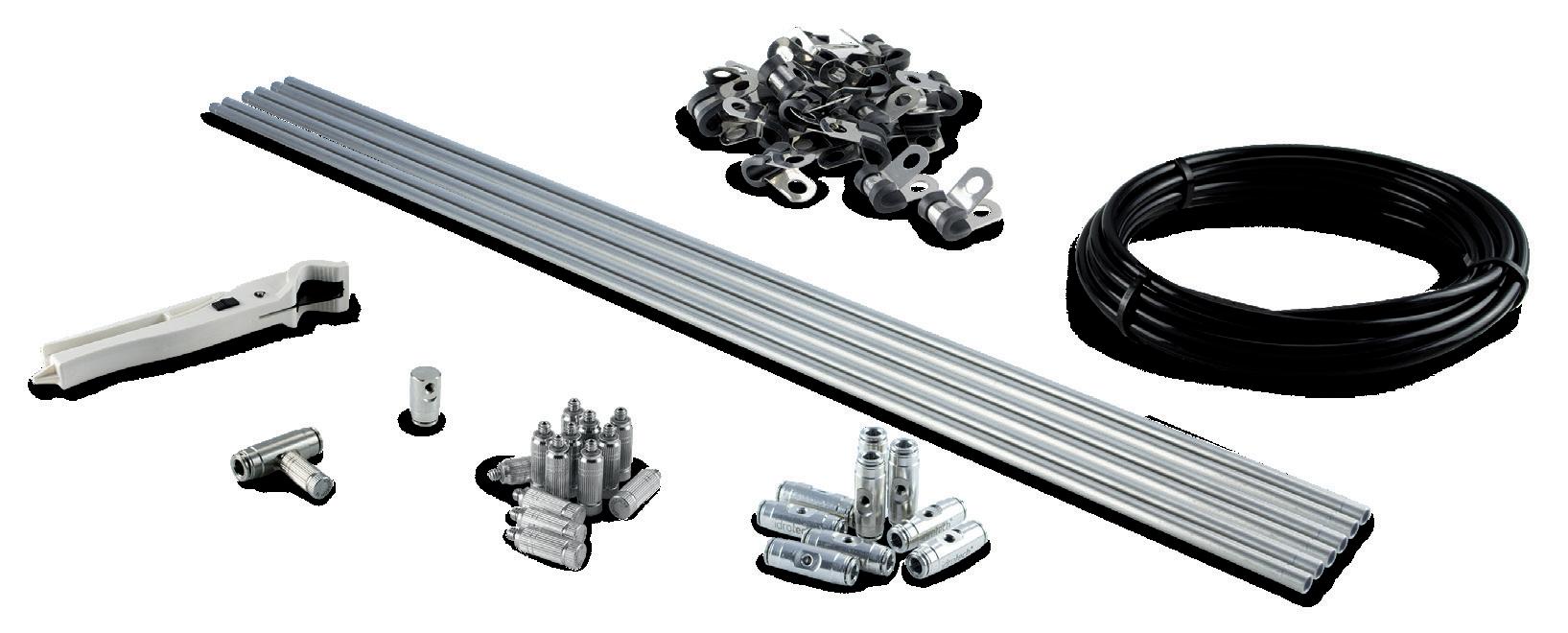

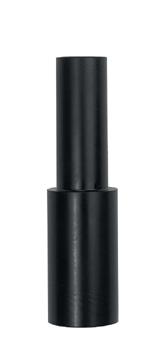

Example Linea Kit composition

Linea kit

Straight nozzle holder Slip-Lock quick coupling, in nickel-plated brass, ø6.35mm

End of line nozzle holder Slip-Lock quick coupling, in nickel-plated brass, ø6.35mm

End of line for high pressures, with automatic discharge valve, 10/24UNC/2A

Rubberised SS pipe clamp, for polyamide pipe and AISI 304 SS pipe fixing ø6.35mm

Tube cutter for polyamide pipe ø2-12mm

Recommended accessory

ZX.KPI

ZX.0519

Emergency kit: 2 cleanable fog nozzles in nickel-plated brass, 1 pipe "tee" junction Slip-Lock quick coupling, 1 Slip-Lock line end cap, 2 rubberised stainless steel pipe caps, 1 cap with 10/24UNC/2A thread

End of Line Kit: hp + autom.disch.10/24UNC/2A

ZX.KV2-24

ZX.KV4-24

ZX.KV4-20

ZX.KV6-20

ZX.KV8-20

ZX.KV2-18

ZX.KV4-18

ZX.KV6-18

ZX.KV8-18

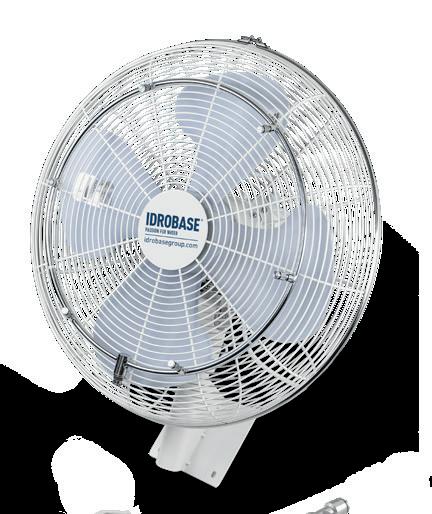

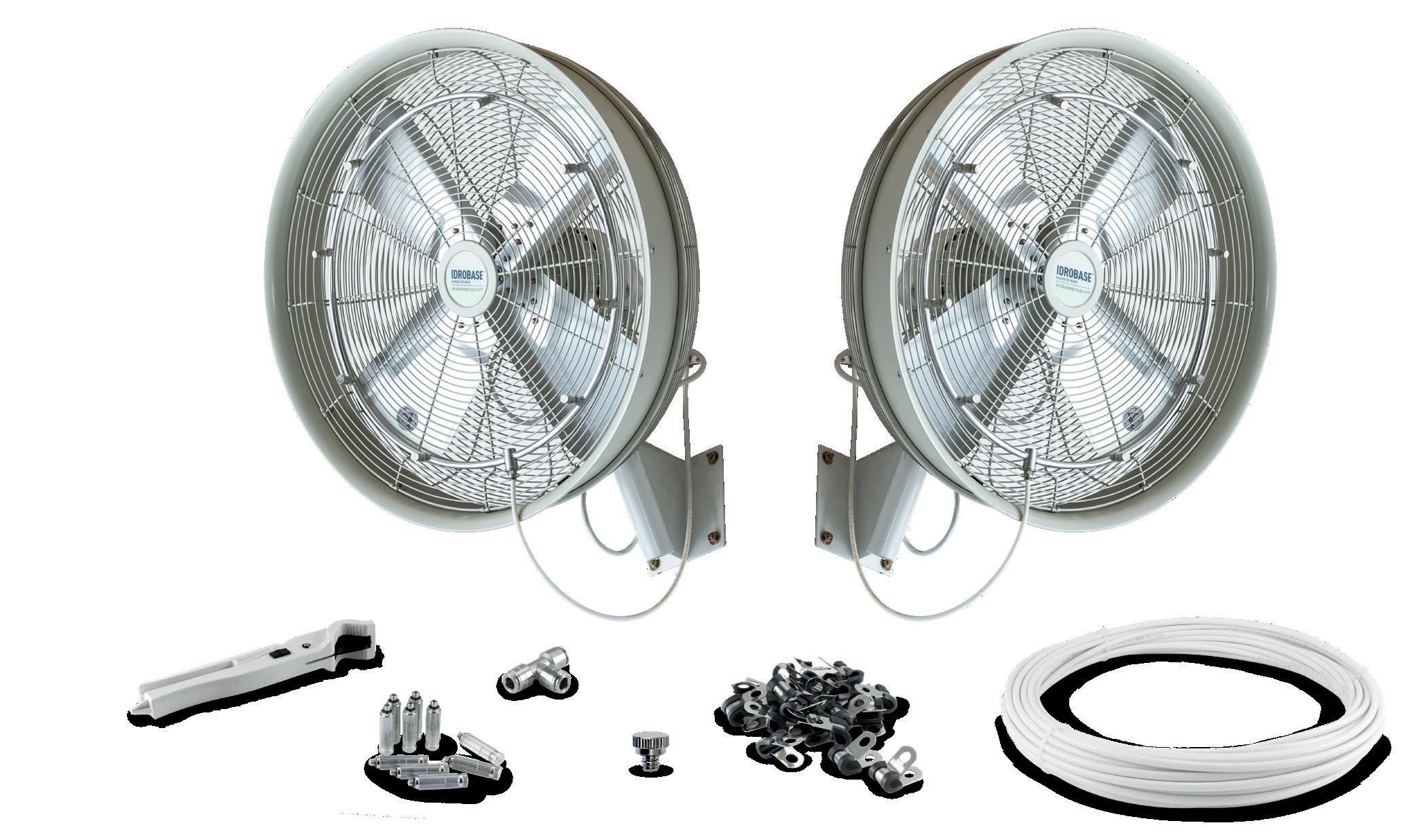

KIT MIST FAN 24"

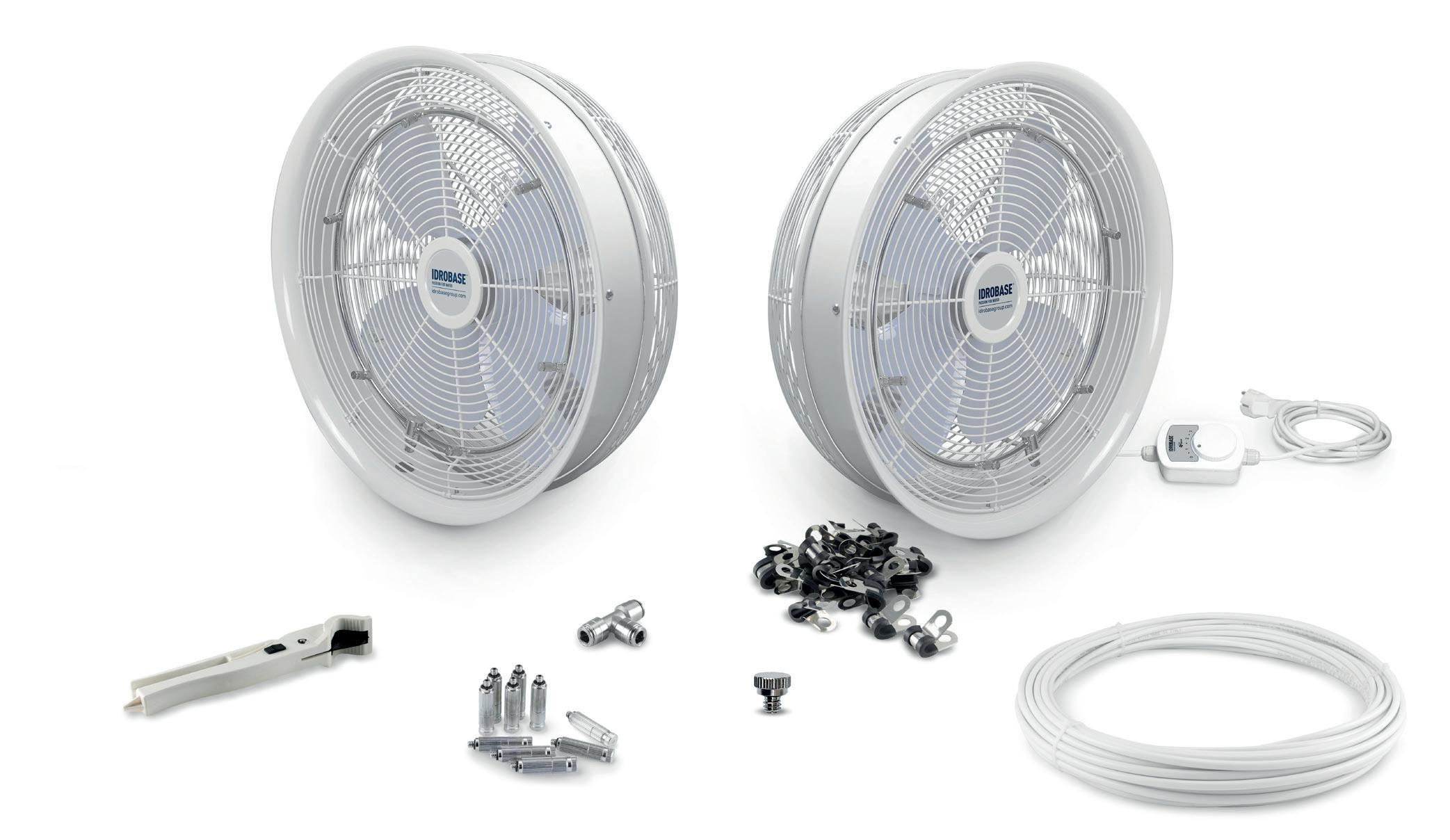

Vento Kit Composition

Vento Kit Description

Mist Fan 24”- 58cm 3 speeds, 90° swinging, complete with a wall mounting bracket, white colour, AISI 304 stainless steel nozzle holder ring, 8 holes, power cable length 2.2m. Air flow rate 10.280m3/h, 142W, 230V-50Hz. Coverage 60m2

brass cap 10/24UNC/2A thread

pipe junction Slip-Lock quick coupling, in

Recommended accessory Emergency kit: 2 cleanable fog nozzles in AISI 303 stainless steel, 1 pipe "tee" junction Slip-Lock quick coupling, 1 Slip-Lock line end cap, 2 rubberised stainless steel pipe caps, 1 cap with 10/24UNC/2A thread

Vento Kit Compatibility

KIT MIST FAN 20"

For covered areas

Example Vento Kit Composition

Vento Kit Description

Mist Fan 20”- 51.5cm 3 speeds, 90° swinging, complete with a wall mounting bracket, white colour, AISI 304 stainless steel nozzle holder ring, 6 holes, power cable length 2.2m. Air flow rate 2940m3/h, 74W, 230V-50Hz. Coverage 40m2

Cleanable fog nozzle in AISI 303 stainless steel, complete with anti-drop valve, 10/24UNC/2A thread, flow factor 015

Nickel-plated brass cap 10/24UNC/2A thread

"Tee" pipe junction Slip-Lock quick coupling, in nickel-plated brass, ø6.35mm

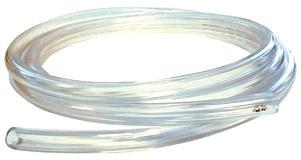

H.p. polyamide pipe ø6.35mm, rolls of 25m, white

Tube cutter for polyamide pipe ø2-12mm

Rubberised stainless steel pipe clamp, for polyamide pipe fixing ø6.35mm

Recommended accessory

Emergency kit: 2 cleanable fog nozzles in AISI 303 stainless steel, 1 pipe "tee" junction Slip-Lock quick coupling, 1 Slip-Lock line end cap, 2 rubberised stainless steel pipe caps, 1 cap with 10/24UNC/2A thread

KIT MIST FAN 18"

Example Vento Kit Composition

Vento Kit Description

For covered areas

Mist Fan 18”- 46cm, 3 speeds, complete with wall mounting bracket, AISI 304 stainless steel nozzle holder ring, 6 holes, pre-set for mounting on wall, swinging 90°, colour white, length of power cable 2.2m. Air flow rate 9000m3/h, 125W, 230V-50Hz. Coverage 50m2

Cleanable fog nozzle in AISI 303 stainless steel, complete with anti-drop valve, 10/24UNC/2A thread, flow factor 015

Nickel-plated brass cap 10/24UNC/2A thread

"Tee" pipe junction Slip-Lock quick coupling, in nickel-plated brass, ø6.35mm

H.p. polyamide pipe ø6.35mm, rolls of 25m, white

Tube cutter for polyamide pipe ø2-12mm

Rubberised stainless steel pipe clamp, for polyamide pipe fixing ø6.35mm

Recommended accessory

Emergency kit: 2 cleanable fog nozzles in AISI 303 stainless steel, 1 pipe "tee" junction Slip-Lock quick coupling, 1 Slip-Lock line end cap, 2 rubberised stainless steel pipe caps, 1 cap with 10/24UNC/2A thread

KIT FAN 360° PANORAMA LED

For covered areas

Example Vento Kit Composition

Vento Kit Description

Fan 360° Panorama Led. Single speed, pre-set for ceiling mounting, complete with holder ring for 8 nozzles, colour white, air flow rate 600m3/h, 100W, 230V-50Hz.

accessory

FAN 360° PANORAMA LED

4 seasons

Continuous use

Silent working

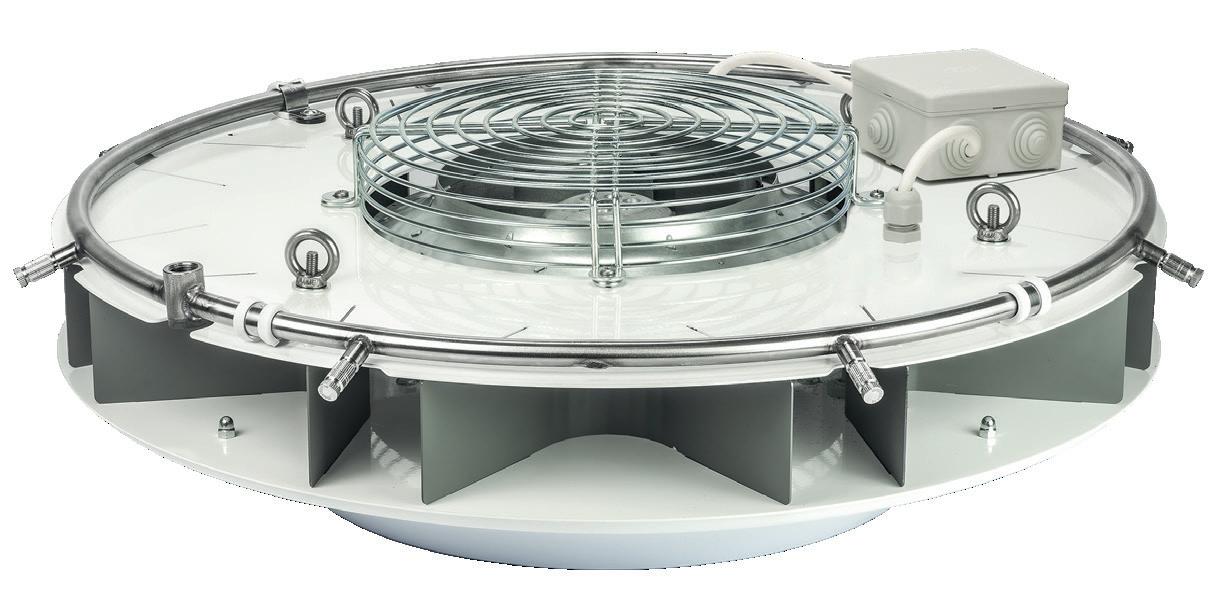

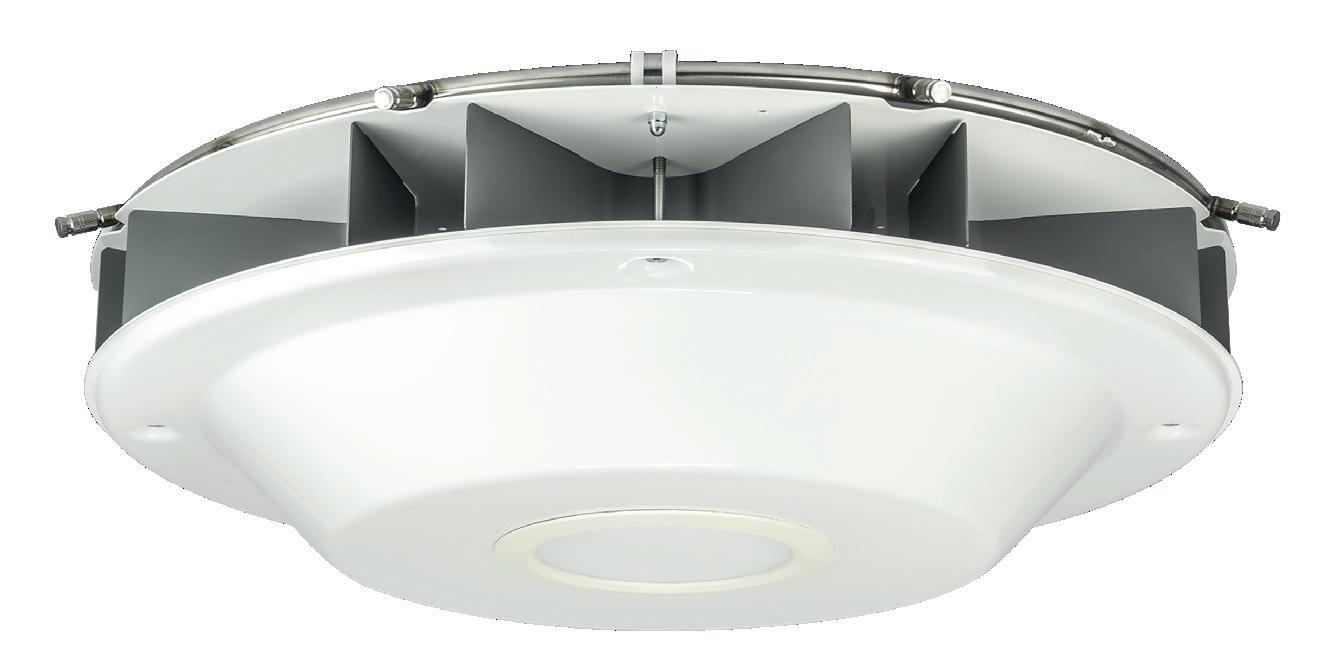

Fan 360° Panorama Led

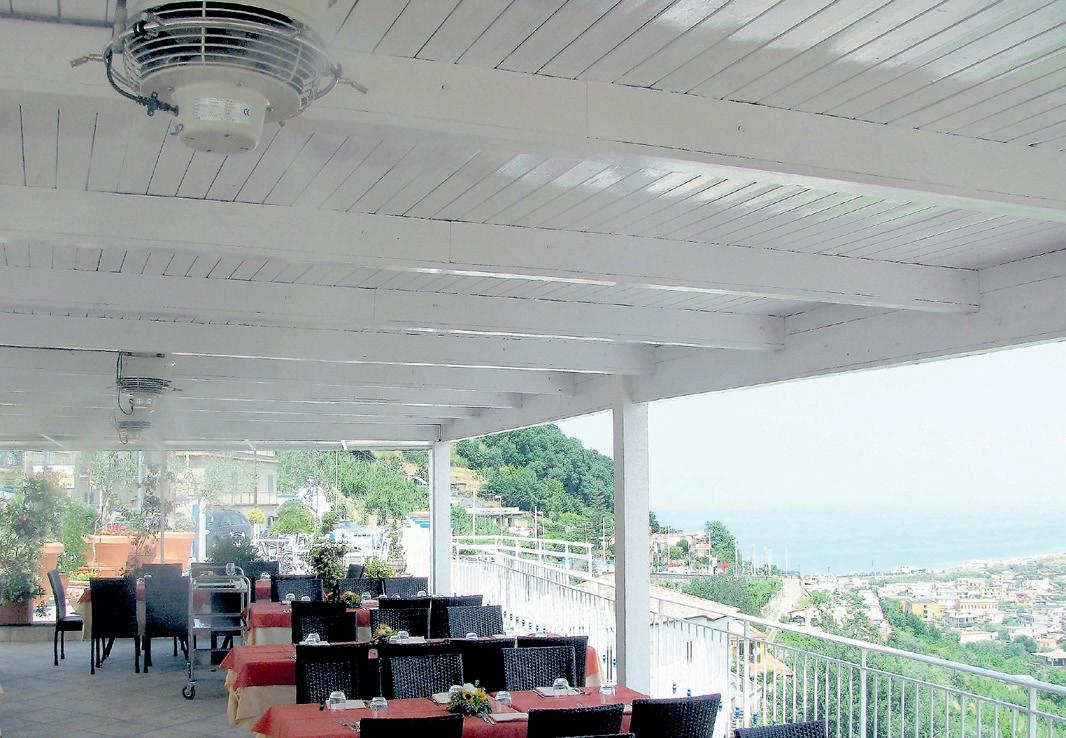

Fan 360° Panorama Led has been designed to nebulize high pressure water combined with 360° radial ventilation; equipped with LEDs for lighting.

Ideal for cooling, humidification and dust suppression.

• Illuminates

• Nebulizes

• Changes the air

• The quietest on the market

• Ideal for continuous use

Technical features

Technical features

Ideal for:

Cools

Terraces/patios, gazebos, bars/restaurants

Regulates humidity

Paper mills, printing, weaving

Dust suppression

Cement plants, construction sites

Technical features

• Epoxy powder: coated steel

• Protection rating: IP54

• Ring max. operating pressure: 70bar

• Operating temperature: 5-40°C

• Nebulizing ring: AISI 304 stainless steel ring

• Nozzles set-up: 8x10/24 UNDC

• Nozzles: 8x2 - 0,5 l/min

• Fan diameter: 580 mm

• Air flow rate: 600 m3/h

• Maximum coverage: 95 m2

• Fan jet: 5,5 m

Illumination

• Type: Led

• Power: 12W

• Brightness: 1020lm

• Power supply: 220V

• Lighting angle: 120°

Silent working

Considerably reduces the temperature Keeps mosquitoes away

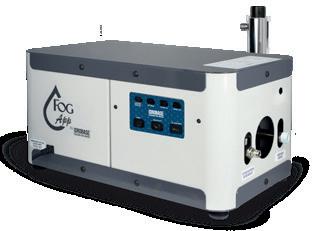

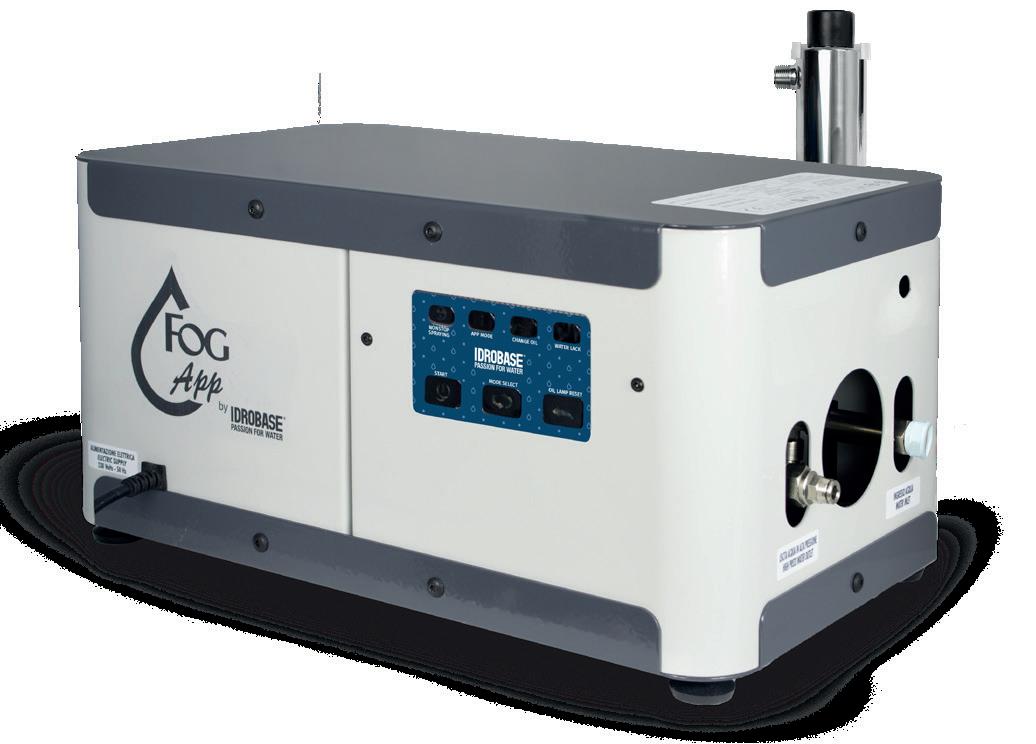

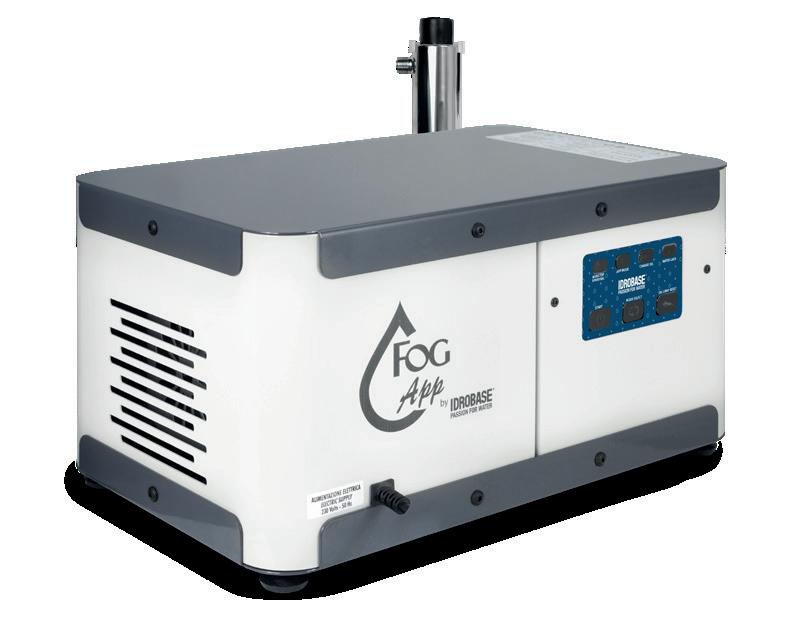

Fog module 60bar 230V-50/60Hz

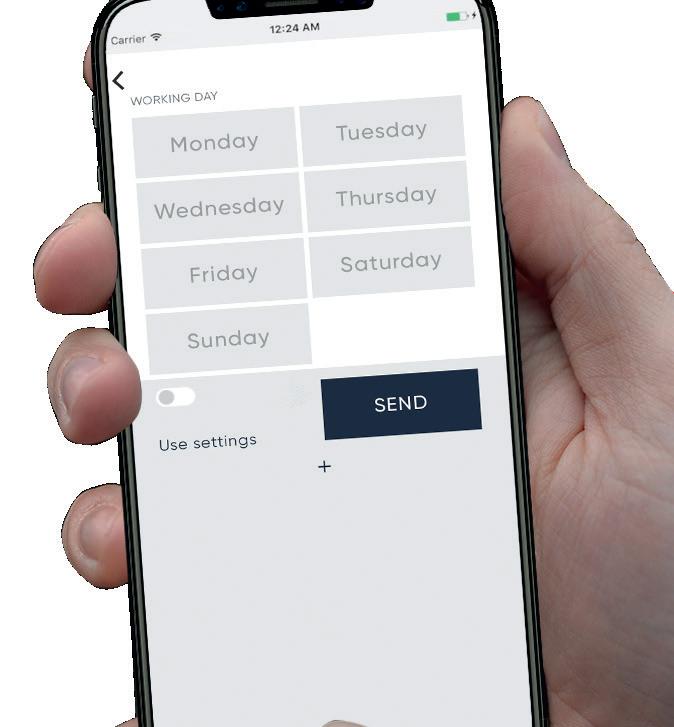

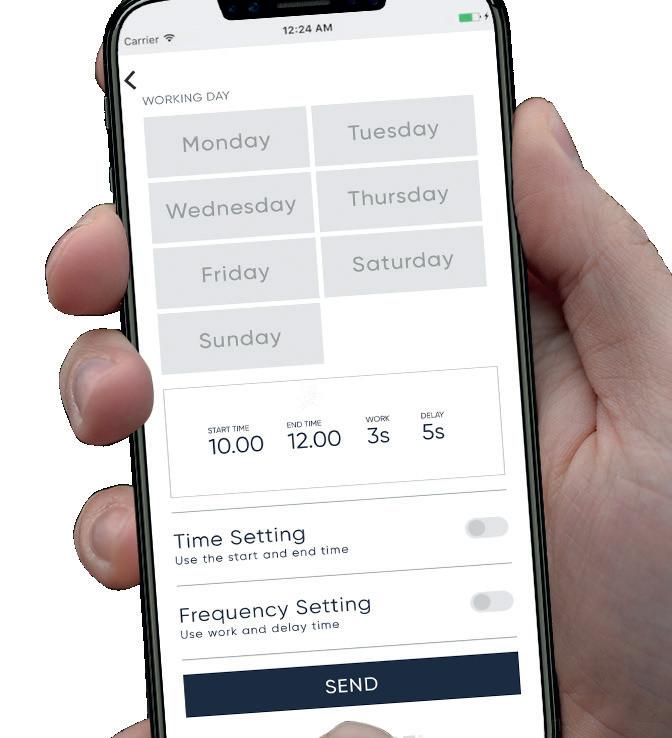

Fog App: the new solution for refreshing outdoor areas via smartphones

Fog App: what does this fog module do?

Simple and effective

Fog App is the smartest solution to refresh bars/restaurants, patios and gazebos in small and medium-sized areas. The system can be connected to both ventilation and in-line cooling systems and can be controlled conveniently from the application via a smartphone.

Simple mode to select: - operation time: - up to max 4 time slots - work/pause time: with min work time of 3s and min pause time of 15s

Advanced mode to select: - operation time: time slots as required - work/pause time: customised for each time slot with min work time of 3s and min pause time of 15s

Technical features

ZX.FA1.5

ZX.FA2.0

APP 2.0

*The max number of nozzles has been calculated by using a nozzle with flow rate factor 015 (0.047l/min) at 60bar

FOG APP is compatible with:

Linea kit ZX.KL30 e ZX.KL40 Kit Vento ZX.KV6-20, ZX.KV8-20, ZX.KV6-18, ZX.KV8-18, ZX.KV6-360, and ZX.KV4-P

Accessories page 128

Fog App control panel

Mode activation light Manual/Non Stop

System ON/OFF

Selector of work mode (manual/via app)

Technical features

Frame made of galvanised painted plate

• Electric pump 3 pistons, axial, with brass head

• Thermal protection against current surge

• Unloader valve

LP pressure switch due to lack of water

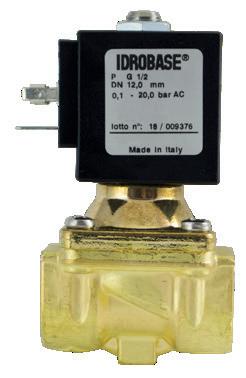

• Solenoid valve l.p. water inlet

• Solenoid valve h.p. for pressure discharge

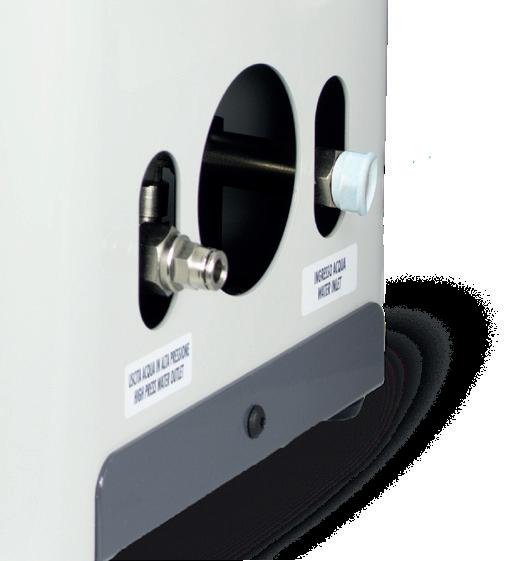

• Inlet, Slip-Lock ø9.6mm Outlet, Slip-Lock ø6.35mm

• Instrument panel with 3 touch buttons for:

- machine ON/OFF

- Manual mode selection or Bluetooth activation for smartphone control

- Alarms reset for maintenance

• Possibility to manage 3 different modes via the app:

- Nonstop: the Fog module works in continuous mode

- Simple mode: selection of days of the week, selection of max 4 time slots, work/pause time selection with min 3s work time and min 15s pause time

- Advanced mode: selection of the days of the week, selection of max 20 time slots, selection of work/pause times customised for each time slot with min 3s work time and min 15s pause time Dimensions

Nebulizes sterilized water

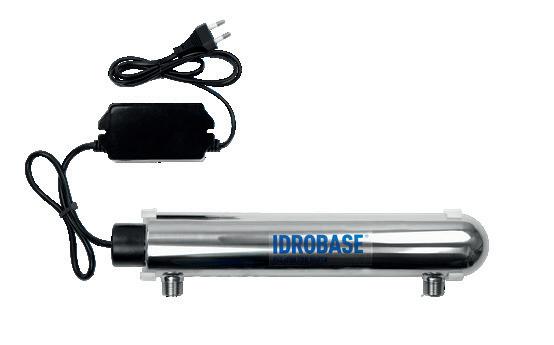

UV water sterilizer lamp (included)

5” water inlet kit complete with pressure stabiliser - 3/8”

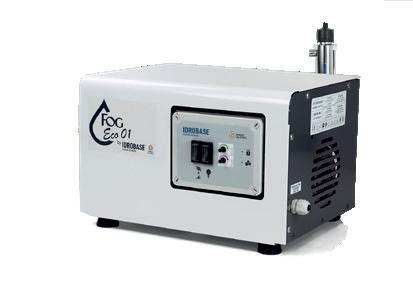

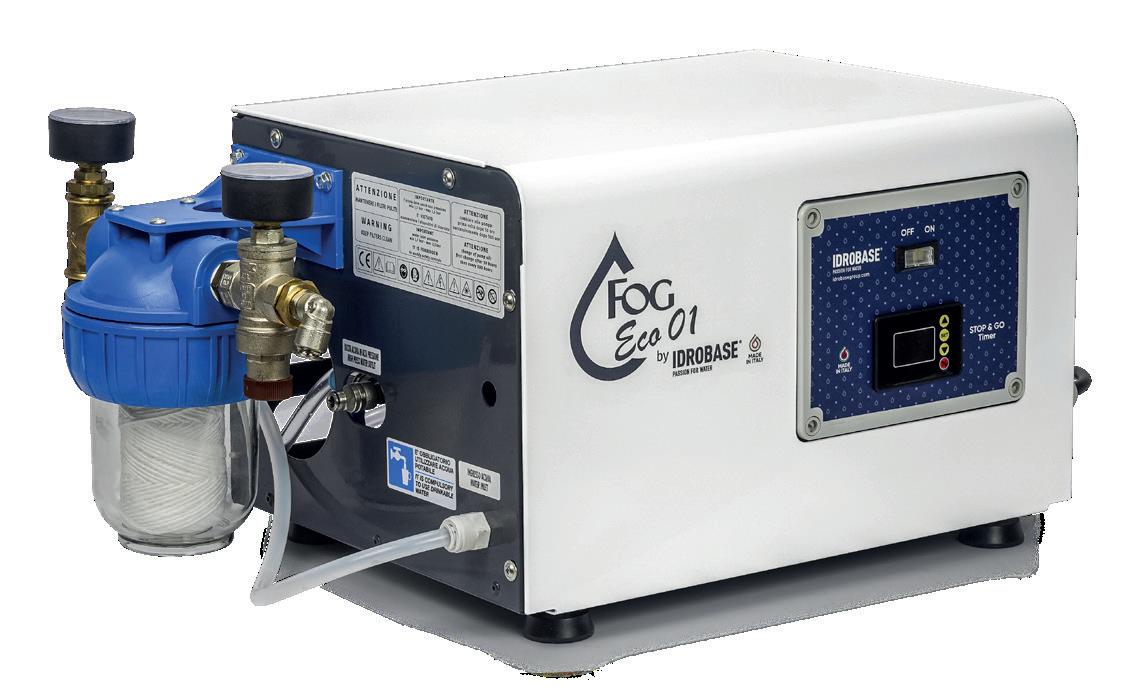

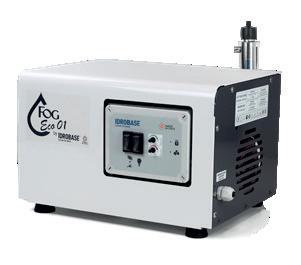

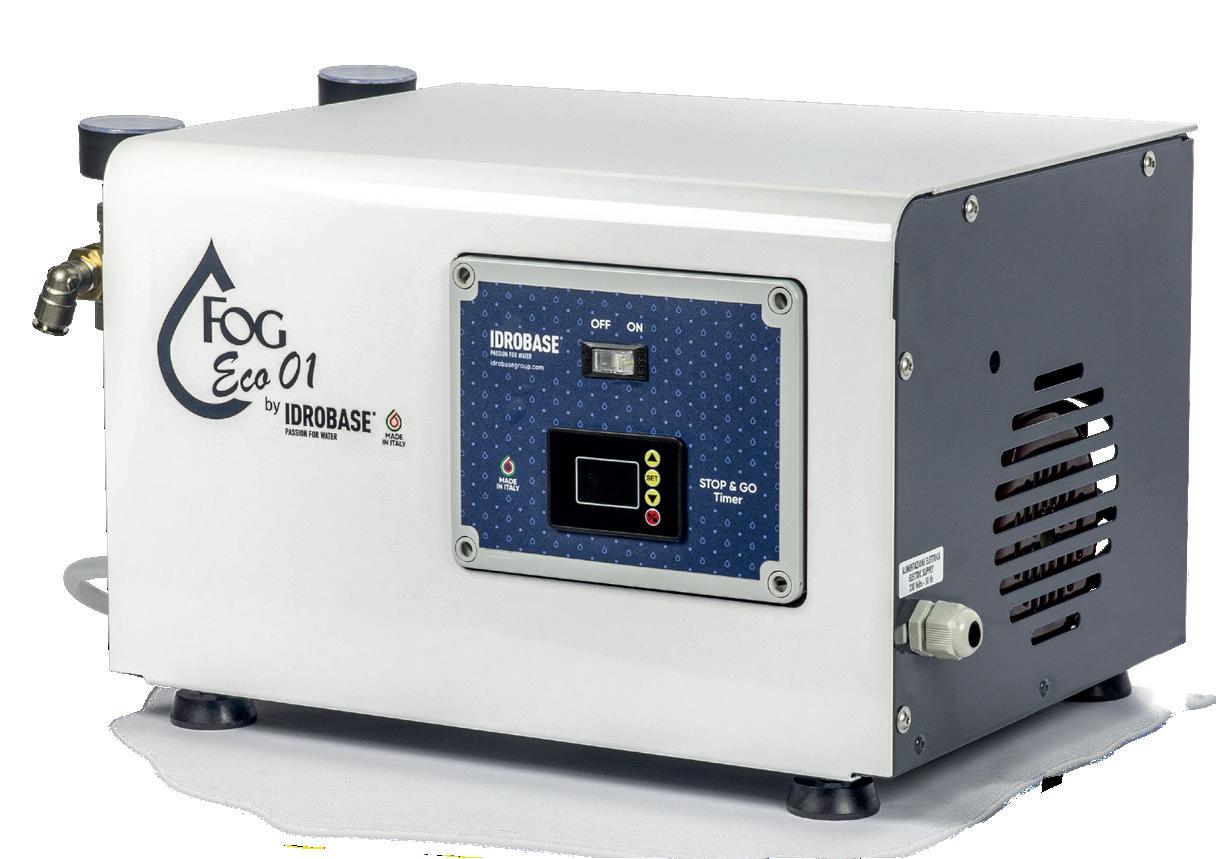

Fog module 60bar 230V-50Hz

Compact and versatile

Equipped with an integrated analog timer, it allows to optimize system performance even in adverse environmental conditions. Considerably reduces the temperature No wet Keeps mosquitoes away

The most compact and versatile solution for cooling, creating fog effects and humidifying small and medium sized areas.

ZX.5095-D

ZX.5090-D

FOG ECO 0.5 DIGITAL 10

FOG ECO 1 DIGITAL 20

*The max number of nozzles has been calculated by using a nozzle with flow rate factor 15 (0.047l/min) at 60bar **230V/60Hz and 110V/60Hz versions available upon request

FOG ECO is compatible with:

Linea Kit

Vento Kit

ZX.KL10 and ZX.KL20

ZX.KV2-20, ZX.KV4-20, ZX.KV2-18, ZX.KV4-18 and ZX.KV2-P

Optional Accessories page 128

WiFi socket for ON/OFF control by smartphone

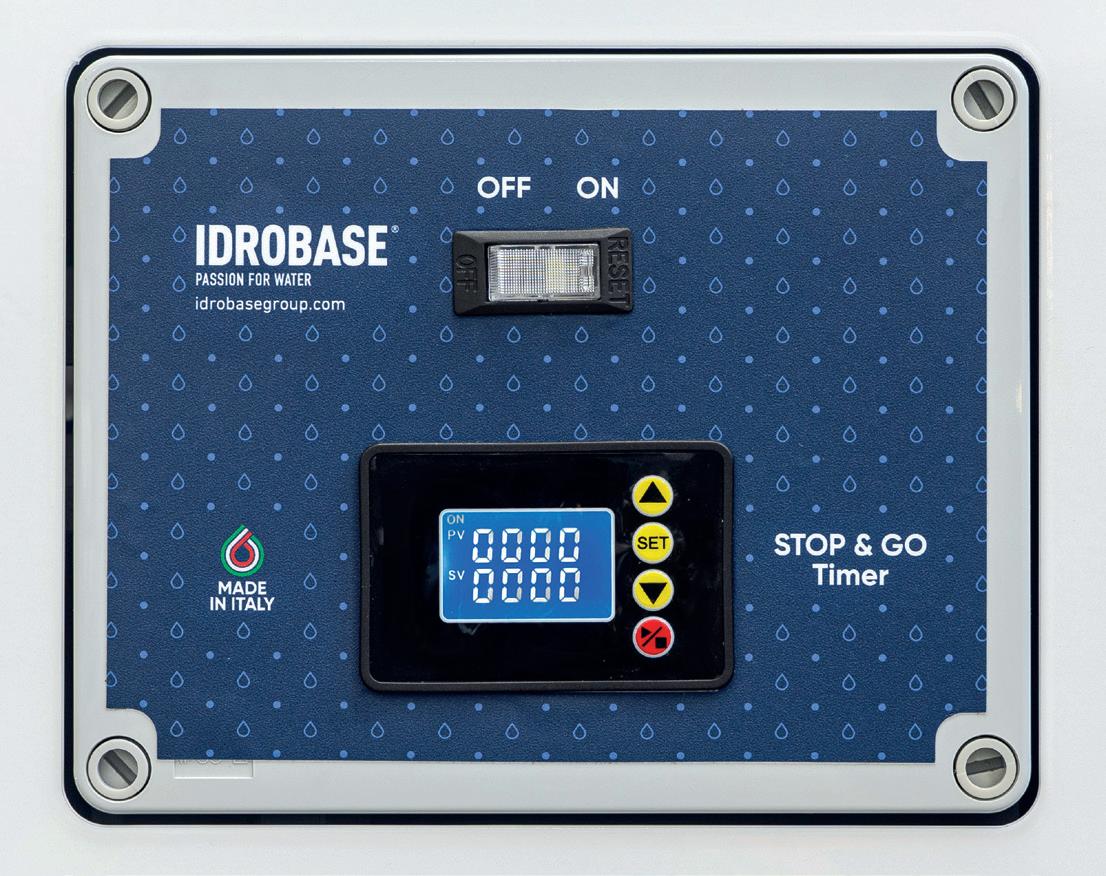

Fog Eco controls

Technical features ON-OFF thermal switch Programmable digital work-pause timer

Technical features

• Frame made of painted steel

Axial motor pump with two ceramic pistons 0.5 and 1l/min complete with by-pass valve

• Electric control panel - with pre-settings ON-OFF 0-60”

• Solenoid valve high pressure for pressure discharge

• Pressure switch- low pressure no water supply Slip-lock inlet ø9.6mm

• Outlet, Slip-Lock ø6.35mm

• Dimensions LxDxH: 450 x 300 x 280mm

Nebulizes sterilized water

UV water sterilizer lamp (included)

Water inlet kit complete with pressure stabilizer (included)

• Simple and compact

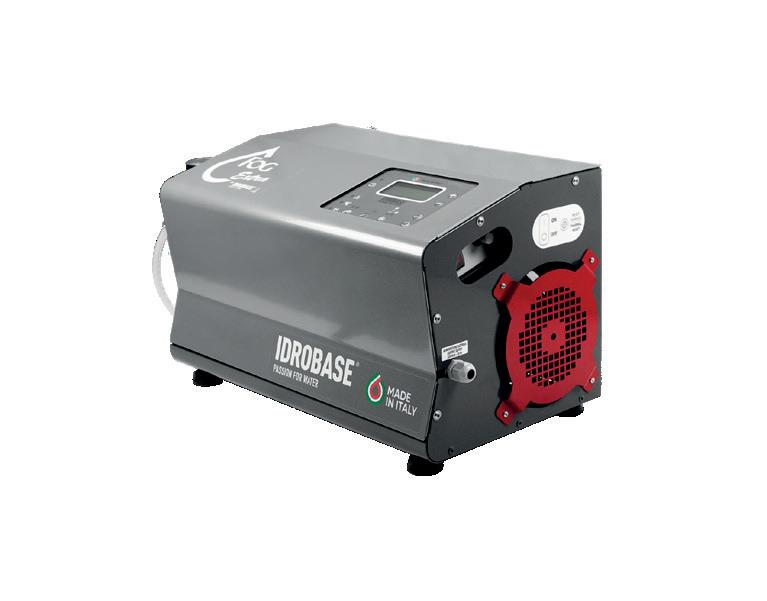

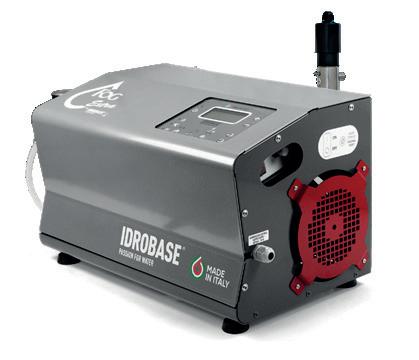

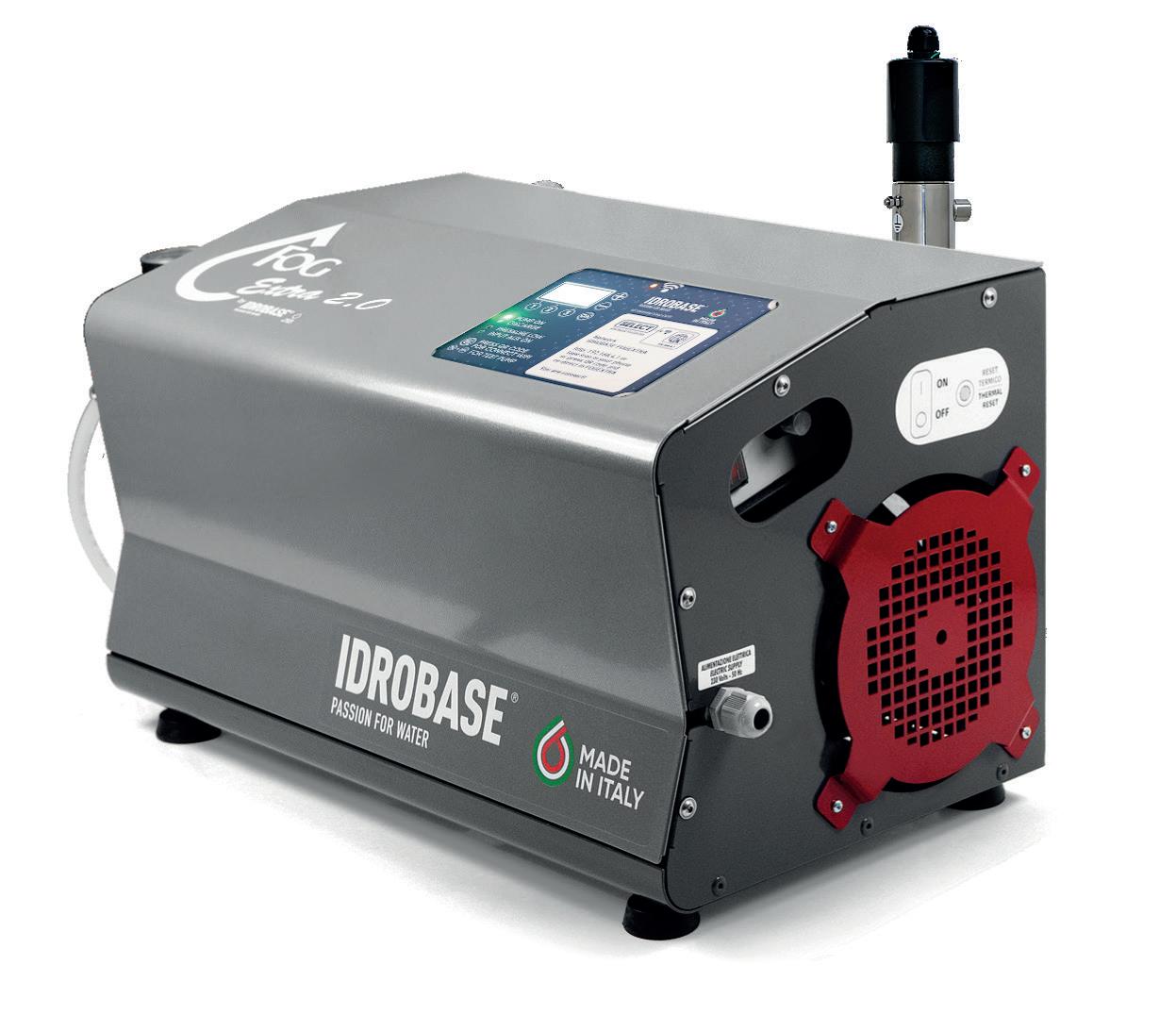

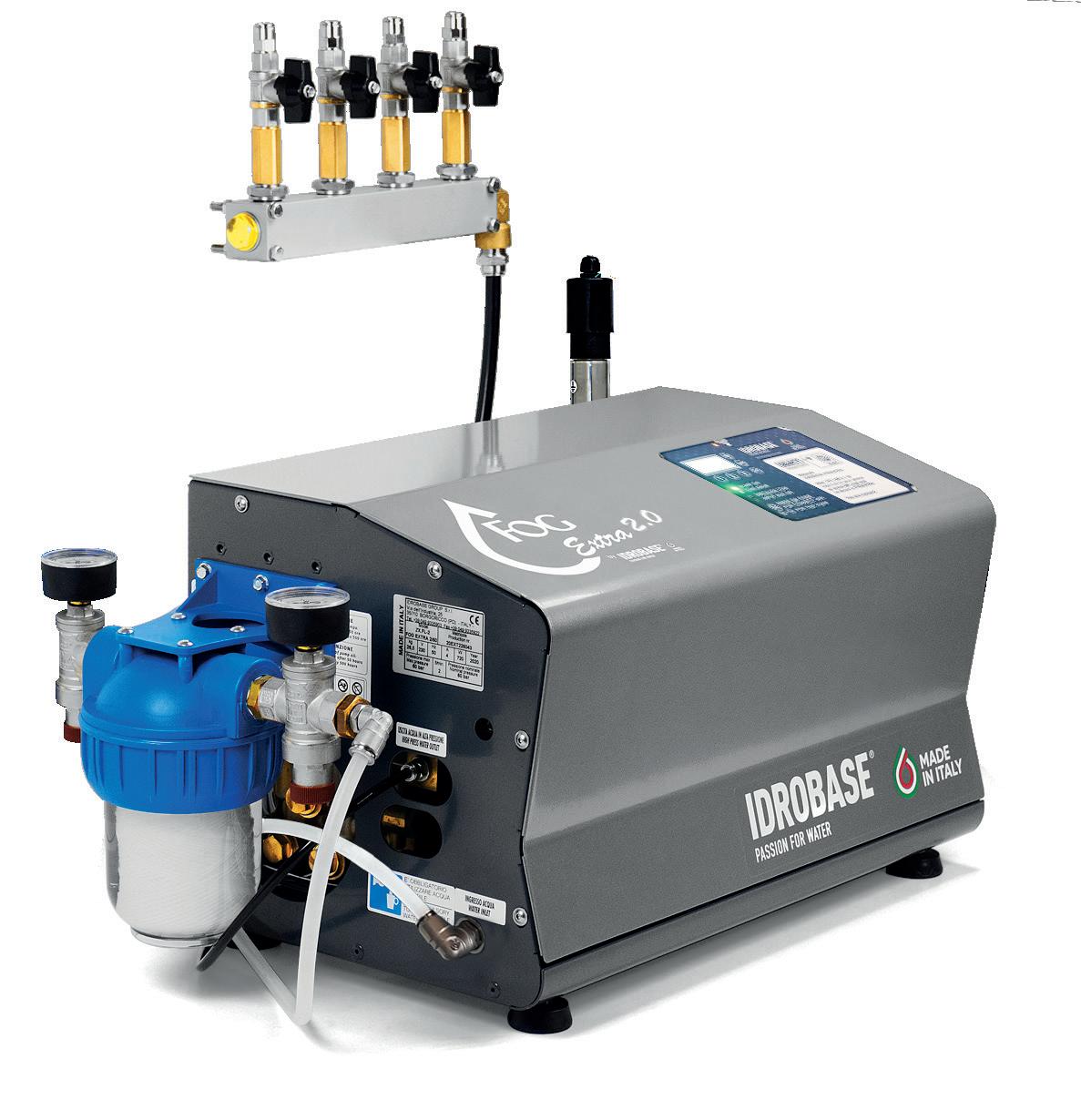

Fog module 70bar from 10 to 96 nozzles 230V-50Hz

• Electronic control panel with built-in thermostat and humidstat

• Pre-setting for humidity and temperature probes

• System can be activated remotely

Fog Extra to cool, humidify, suppress dust and odours and many more Fog Extra

How does it work?

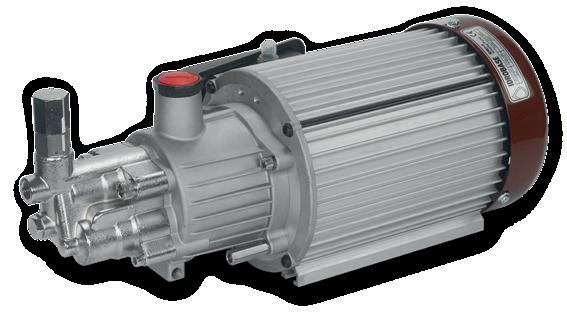

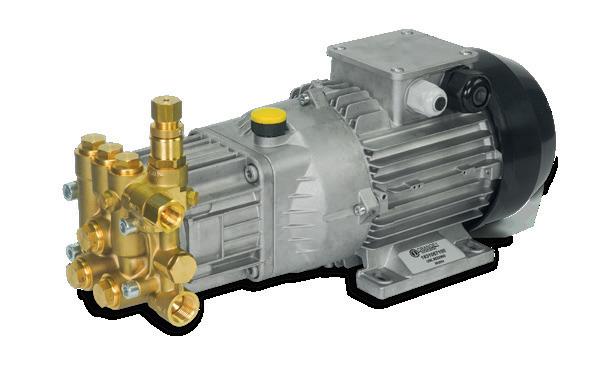

Axial pump with 2 pistons

ZX.FL-05

ZX.FL-1

Axial pump with 2 ceramic pistons, head in nickel-plated brass, integrated bypass valve.

* The max number of nozzles has been calculated by using a nozzle IT.154C with flow rate 015 (0,047l/min) at 70bar

Axial pump with 3 pistons

ZX.FL-2.2

ZX.FL-3.6

ZX.FL-4.8

Axial motor pump with three ceramic pistons, nickel-plated brass head, integrated by-pass valve

* The max number of nozzles has been calculated by using a nozzle IT.154C with flow rate 015 (0,047l/min) at 70bar

Pump maintenance set 750hours INCLUDED Accessories page 84 Maintenance set page 91 ** 230V/60Hz and 110V/60Hz versions available upon request

Fog Extra Controls

• Humidstat standard

• Thermostat standard Display interface

ON/OFF general

Water failure alarm

Hose breakage / water leak alarm

• Cyclical ON/OFF timer

• Weekly time slot programmer Hour counter and Maintenance schedule

• Pre-setting for connection of 230V ventilation systems

Automatic mode activation switch

ON/OFF misting (continuous operation)

Technical features

Frame made of painted steel

• Built-in unloader valve

• L.p. solenoid valve 230V-50Hz, inlet water

H.p. solenoid valve 230V-50Hz, to discharge line pressure

• Electrical panel complete with:ON/OFF thermal cutout, electronic

• Pre-setting for remote connection

Setting buttons

Combined misting+ventilation system ON/OFF control

board for management of anti-drip and timer system

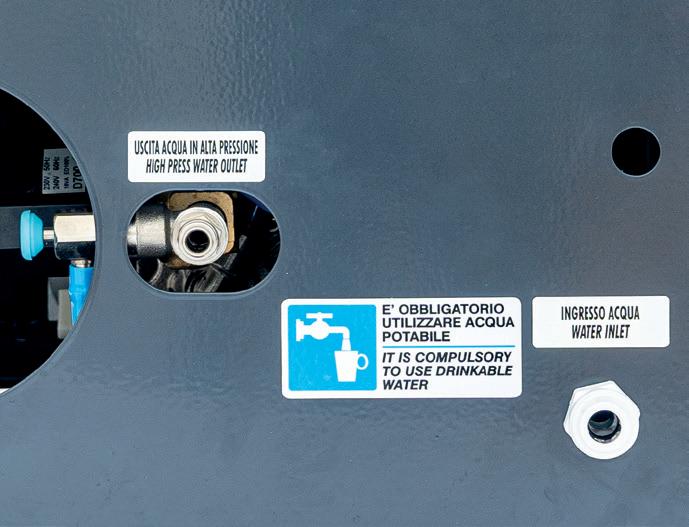

• Slip-lock inlet ø9,6mm

• Outlet Slip-Lock ø6,35mm (for versions 0,5, 1 and 2,2l/min), ø9,6mm (for versions 3,6 and 4,8l/min)

• H.p. switch for no water supply and pipe breaks

• Dimensions WxLxH: 600 x 300 x 300mm

COOLING ACCESSORIES

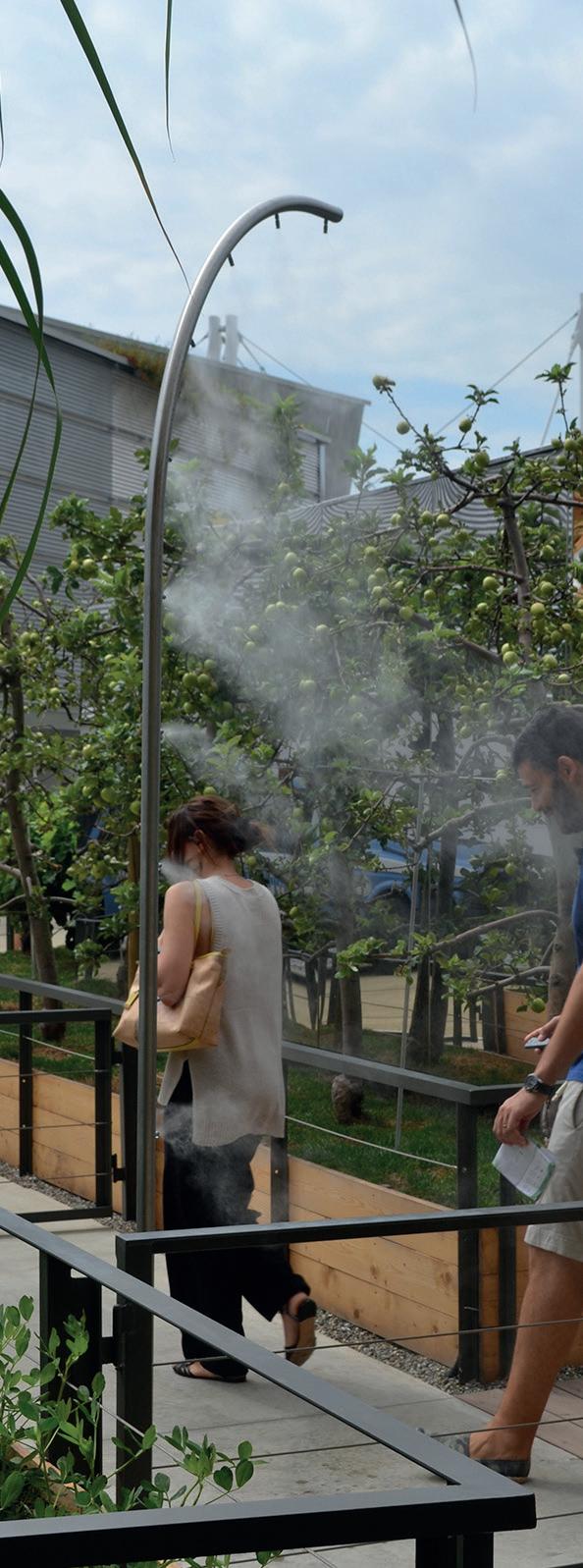

Stelo Rinfrescante

Refreshing accessory with pre-drilled AISI 304 stainless steel structure, complete with 8 fog nozzles with 0.15mm holes with anti-drip system. With underground connections and ground fixing of the structure.

Straightforward, quick installation, no special tools required.

The pipe junction connectors are made of AISI 304 SS and are equipped with compression fitting and a Slip-Lock connector to accommodate a high pressure polyamide pipe (max 60bar) ø9.6x5mm. They must be connected to a nebulisation system

STELO RINFRESCANTE 60bar

89cm

Number of accessories for each module Pumping modules

Code Description

QR-Code Picture Code Description

Water supply kit

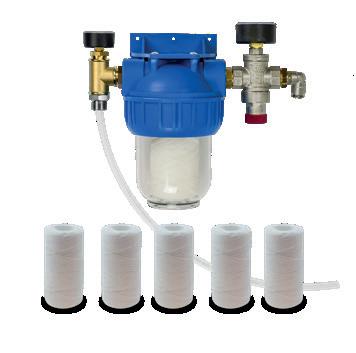

5” water inlet kit complete with pressure stabiliser,

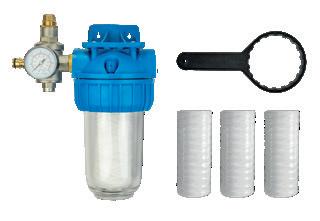

7” water inlet kit complete with pressure stabilizer for hard water SaniFog Fisso

Humidity probe 4:20 mA (for standard humidstat), with 20m cable

Humidity probe (for standard thermostat), with 20m cable

Manifold 4 outlet kit complete with ball valves

WiFi socket for ON/OFF control by smartphone

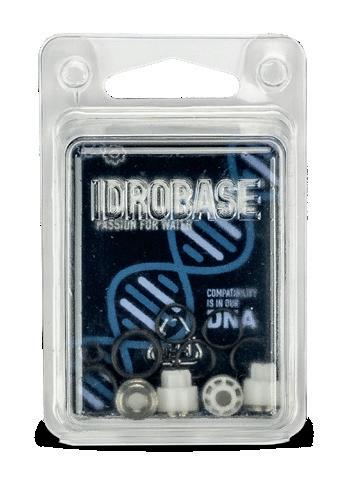

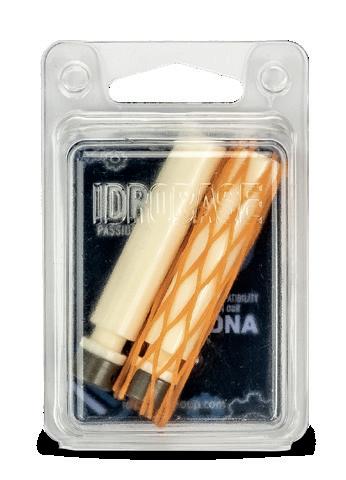

Set A - pump maintenance 500 hours consisting of:

500hrs - h.p. industrial pumps maintenance

Set C - pump maintenance 1000 hours consisting of:

1000hrs - h.p. industrial pumps maintenance

0,5L

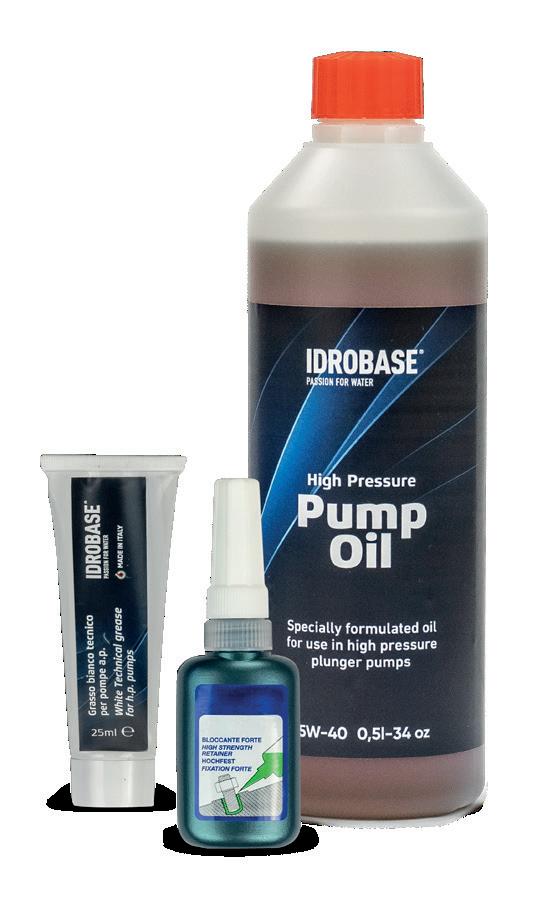

10ml Threadlocker medium 25ml Technical grease

Set E - machine maintenance 500 hours consisting of:

By-pass valve

Set F - machine maintenance 3000 hours consisting of:

MAINTENANCE SET PUMP AND MACHINE MAINTENANCES

AND MACHINE MAINTENANCE

A Set A

Pump manintenance at: 500 hours, 1.500 hours, 2.500 hours, ecc

C Set C

Pump manintenance at: 1.000 hours, 2.000 hours, 3.000 hours, ecc

E Set E

Machine manintenance at: 500 hours, 1.000 hours, 1.500 hours, ecc

F Set F

Machine manintenance at: 3.000 hours, 6.000 hours, 9.000 hours, ecc

PUMP AND MACHINE MAINTENANCE A

FOG ECO 0.5

FOG ECO

ZX.5090 FOG ECO 1

FOG APP ZX.FA1.5 FOG APP 1.5

ZX.FA2.0 FOG APP 2.0

FOG EXTRA-05

ZX.FL-1 FOG EXTRA-1

FOG EXTRA

ZX.FL-2 FOG EXTRA-2

ZX.FL-4 FOG EXTRA-4

FOG EXTRA-6

Code Description

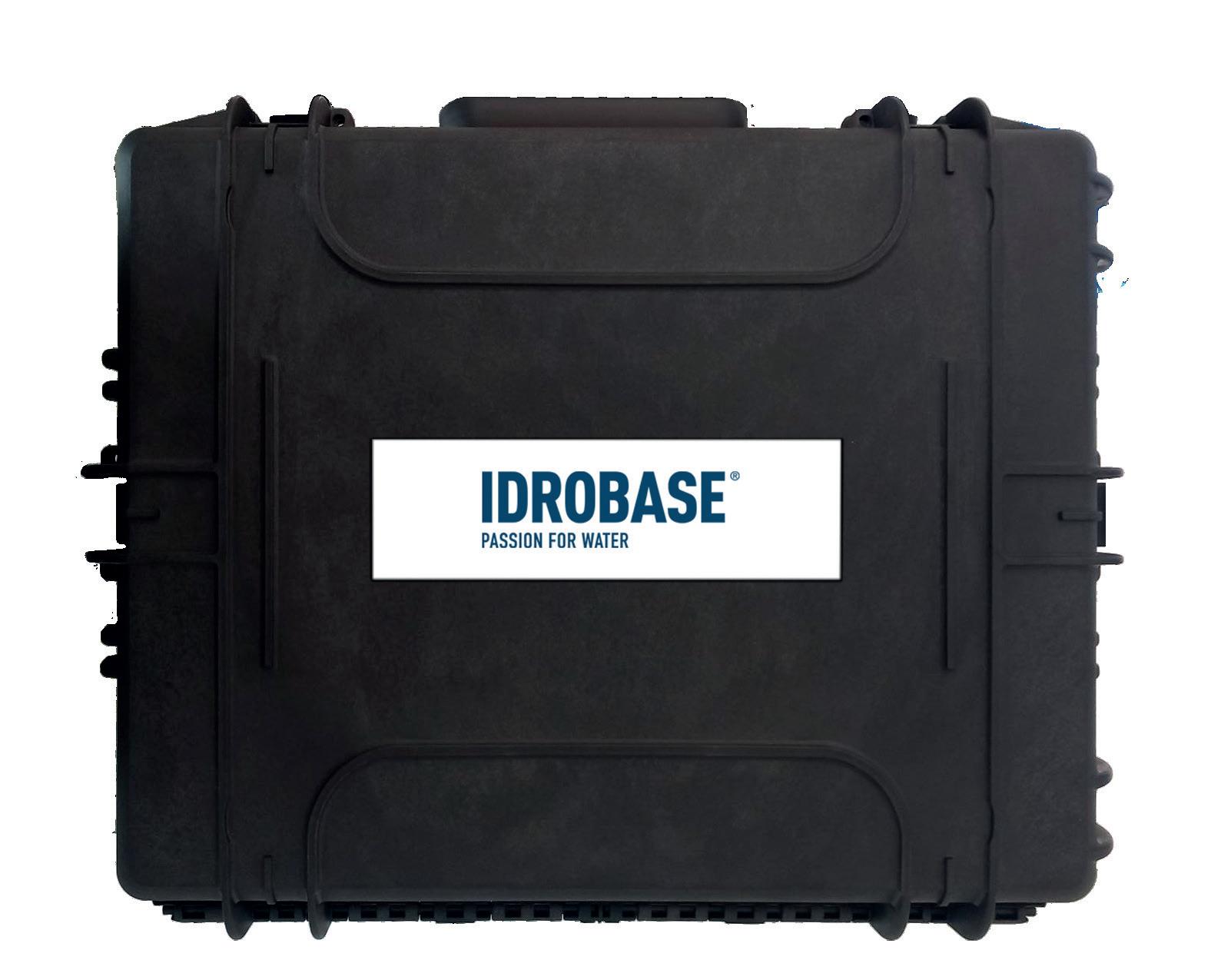

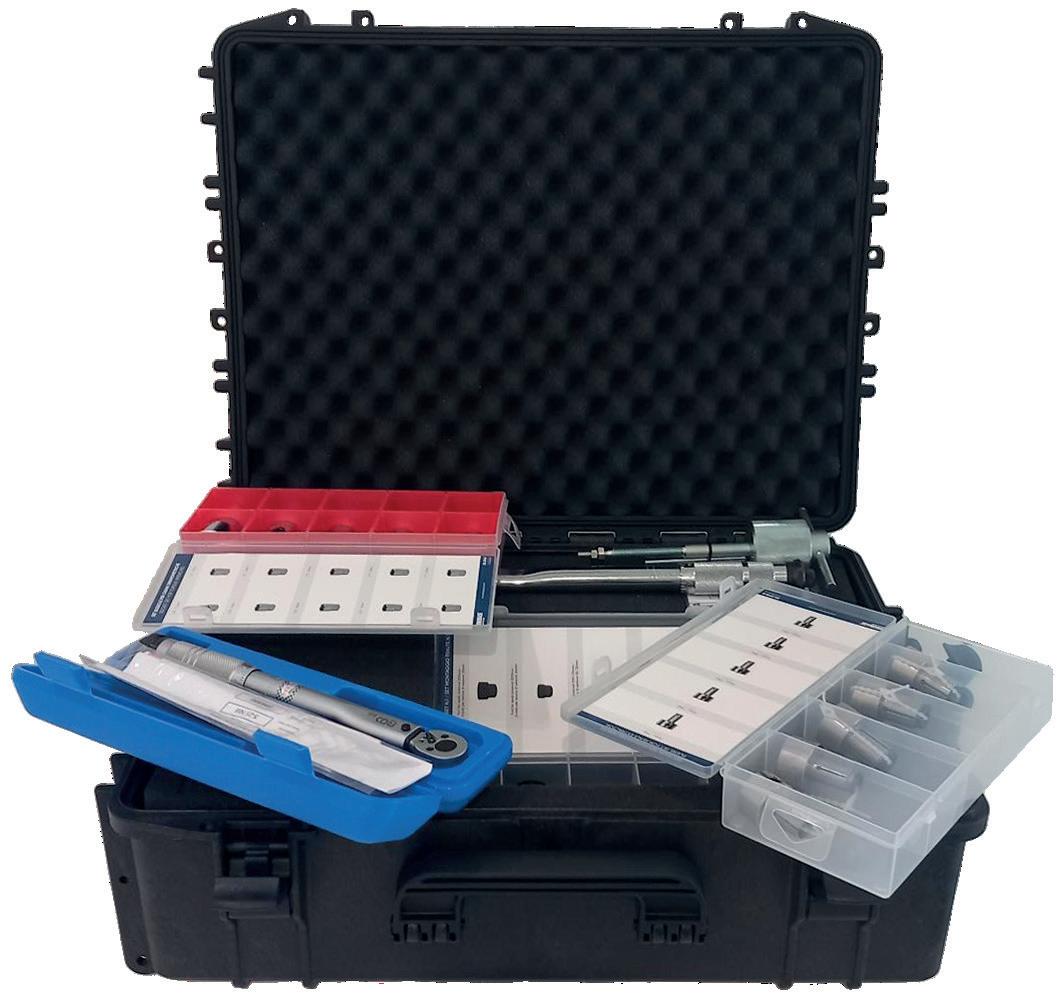

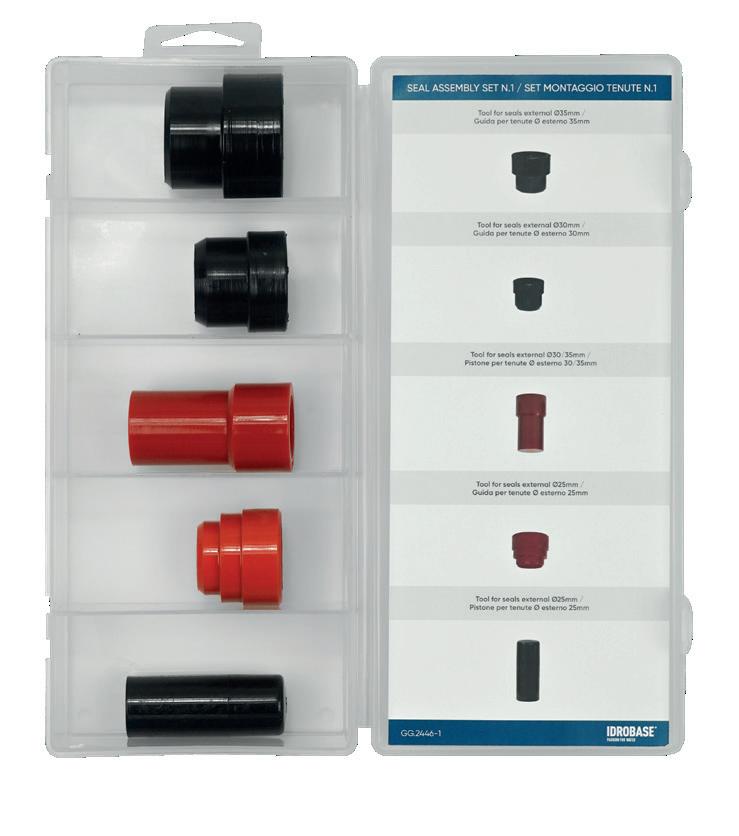

Complete set of special tools for h.p. pump maintenance Code Description

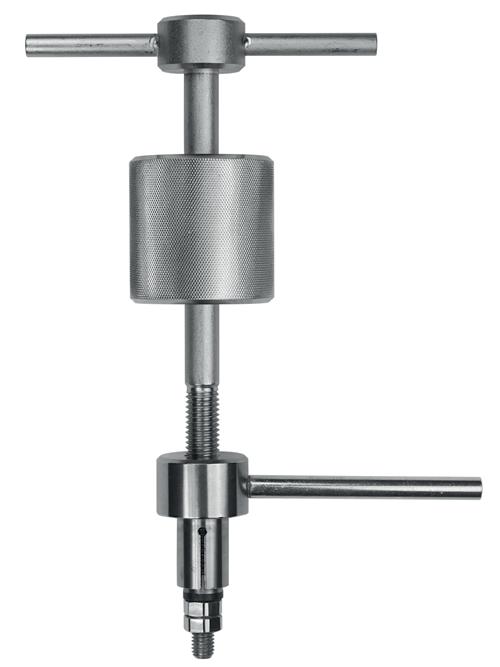

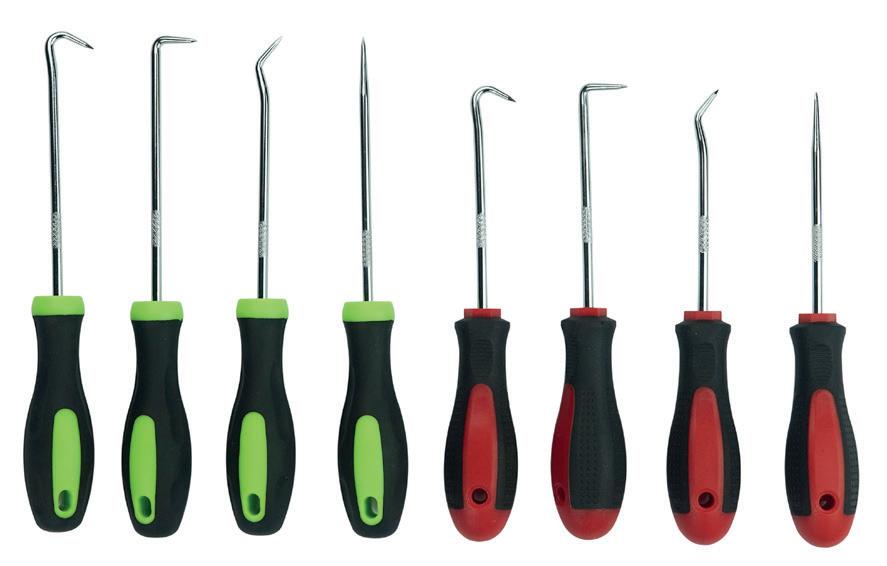

Code Description Extractor with pliers

Video special tools

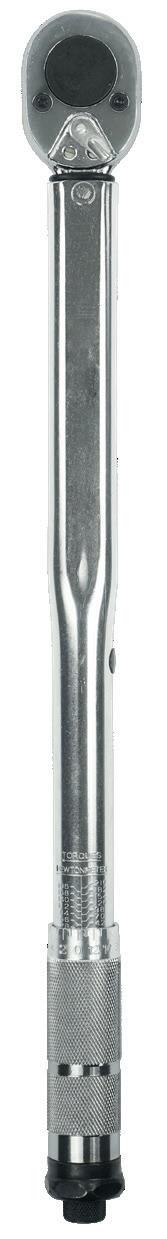

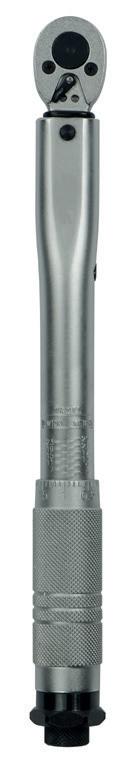

1/2” - 30/210 Nm 3/8” - 5/25 Nm

Code Description

CDR.CD12

3/8” - 5/6mm 3/8” - 13mm 3/8” - 15mm 3/8” - 17mm 3/8” - 19mm

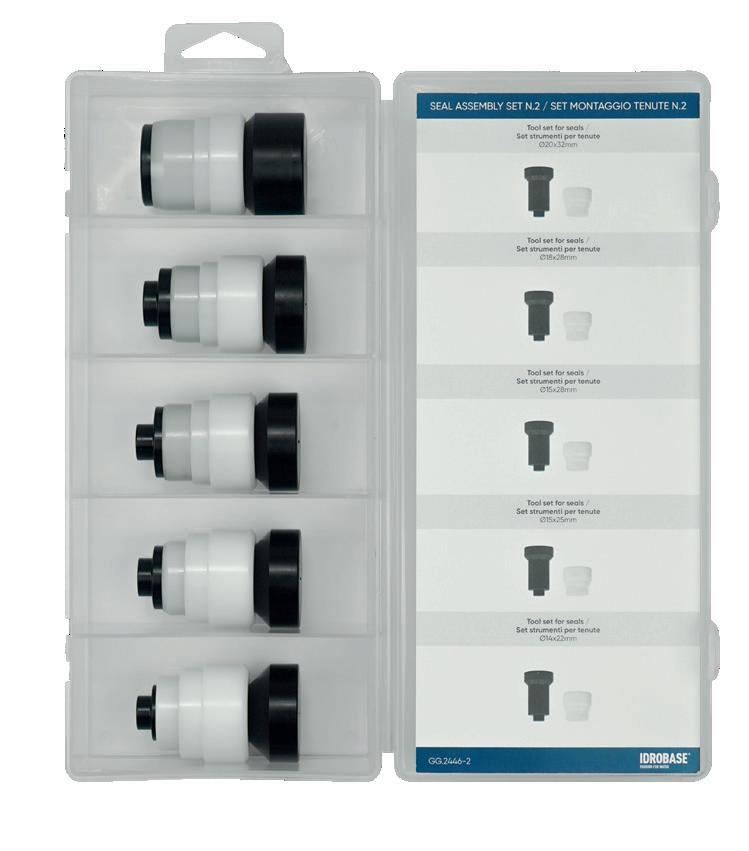

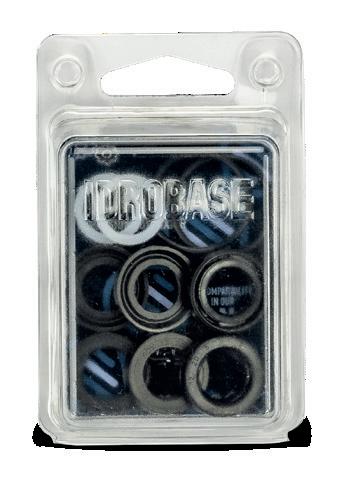

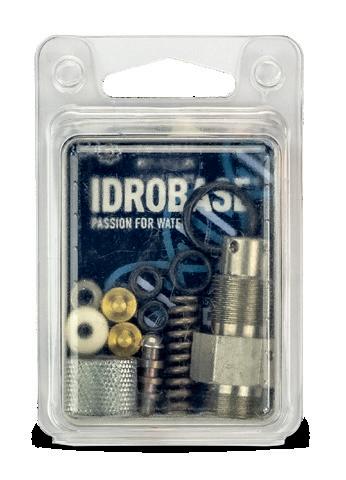

Code Description Oil seal maintenance kit Code Description Sockets for torque wrenche Code Description

CDR.CD38

- 21mm

- 22mm

- 24mm

- 27mm

- 30mm ∅18,0/21,5mm ∅25,0/29,5mm

ENGLISH

Copyrights© to this catalogue belong to IDROBASE GROUP® Srl. Reading, reference and dissemination in paper or electronic formats for personal use are permitted. Use for commercial purposes is not permitted, nor is any type of alteration except with the written consent of IDROBASE GROUP® Srl.

This catalogue cancels and supersedes the earlier version.

This catalogue provides general information on the products supplied by IDROBASE GROUP® Srl.

It is intended for retailers, system engineers, designers and more generally, all those who are already adequately familiar with said products, the materials from which they are made, their characteristics, efficiency and operation; it is therefore not intended for consumers who, in order to handle, install or perform any operation with the goods described here, must necessarily contact qualified and skilled personnel.

Also, with regard to skilled personnel, this catalogue should be considered a mere commercial tool, not containing the necessary technical specifications - which may be obtained free of charge from Idrobase, and as such, not suitable for use as a single go-to reference tool for the design, construction or installation of any kind of system.

The illustrations, technical characteristics, functions and other information given here about individual products, systems, installations and the like are based on the current state of the art: however, only the most immediately applicable information can be reproduced here, without any consideration for the global data necessary to design, implement and install any system, which must therefore be carefully assessed by designers, system engineers and installers.

Therefore, for specific indications on all products in the catalogue, please contact our main office, where competent staff are always on hand to answer any additional queries.

All the illustrations reproduced here may be slightly different from actual products and therefore, they should simply be intended as closely representing real items.

We reserve the right to introduce changes in all the products. For this reason, too, it is advisable to directly contact our main office.

In case of doubts regarding interpretation, the original Italian text will prevail. When a new reprint is published, the present edition will no longer be valid.

Idrobase Group Srl Via dell’Industria, N. 25 35010 Borgoricco (PD) Italia

T: +39 049 9335903 r.a.

www.idrobasegroup.com info@idrobasegroup.com

Recognition of maximum commercial reliability
