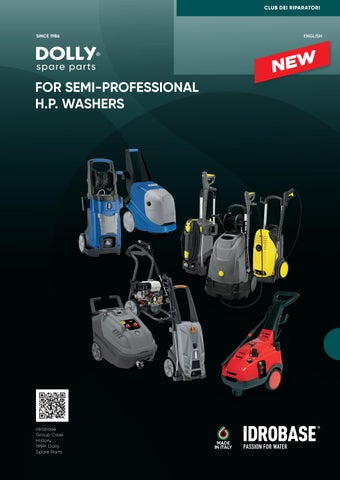

FOR SEMI-PROFESSIONAL H.P. WASHERS
DOLLY SPARE PARTS FOR PUMPS FITTING COMET

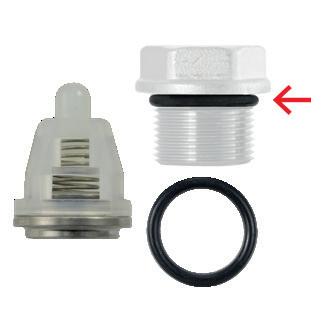

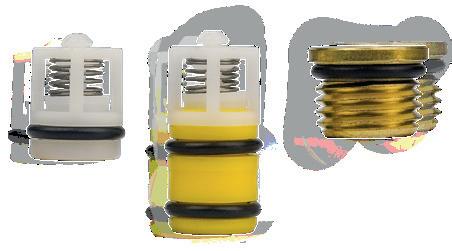

Kit Dolly Com287, valves and caps with O-rings

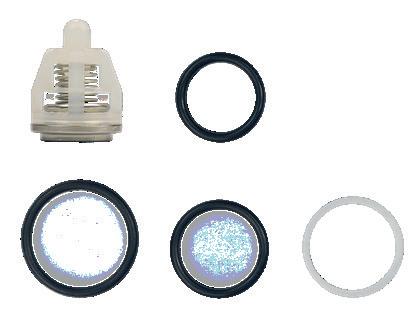

1x3 Kit Dolly Com61, valves + O-rings
Kit Dolly Com288, seal packing ø12
3x6 Kit Dolly Com62, seal packing ø14

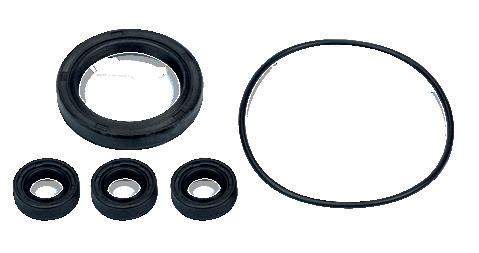

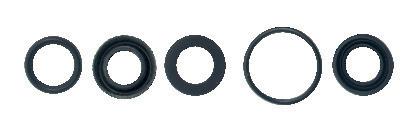

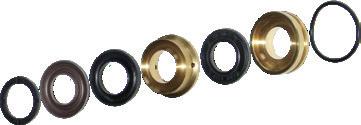

Set Dolly Com67, complete seal packing ø14

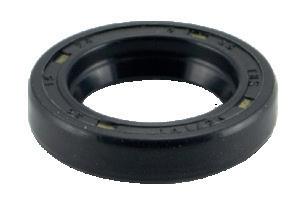

Set Dolly Com63, plunger oil seals ø14x22 quantity 1x3
DOLLY SPARE PARTS FOR PUMPS FITTING COMET

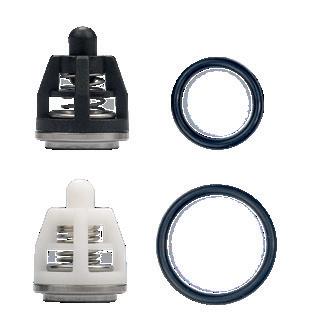

Kit Dolly Com76, valves + O-rings quantity 2x3 + 2x6
Kit Dolly Com77, valves + O-rings quantity 2x6 + 3x3
Kit Dolly Com83, seal packing ø14 quantity 5x3
Kit Dolly Com85, seal packing ø14 quantity 5x3

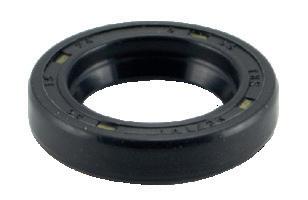

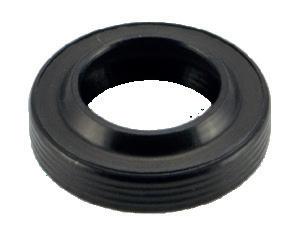

Kit Dolly Com36, plunger oil seals ø15x24x5 quantity 1x3
Kit Dolly Com75, valves + O-rings quantity 3x6
Kit Dolly Com12, seal packing ø18 quantity 4x3
Set Dolly Com63, plunger oil seals ø14x22 quantity 1x3

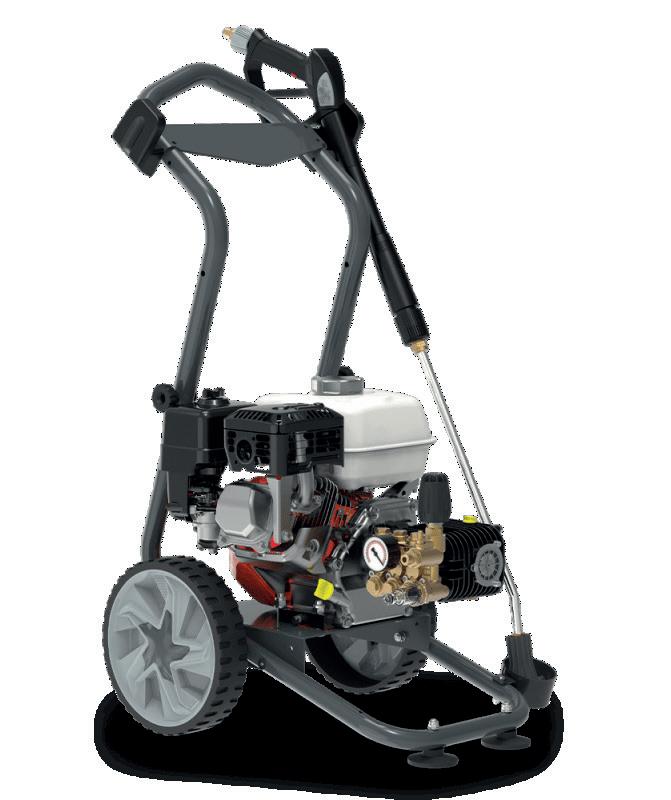

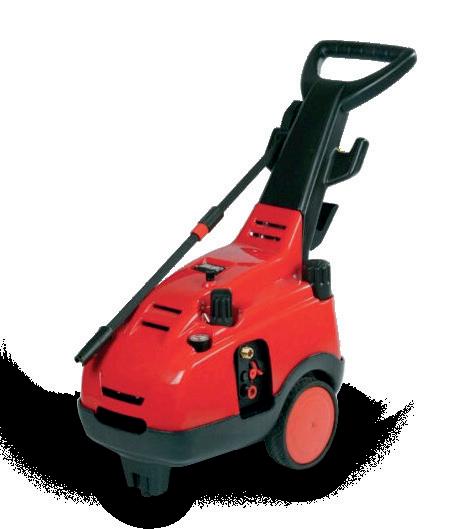

BLADE S 6.13 13/180G G200F+BWD
FDX BLADE S 6.13 13/180G GX200+BWD

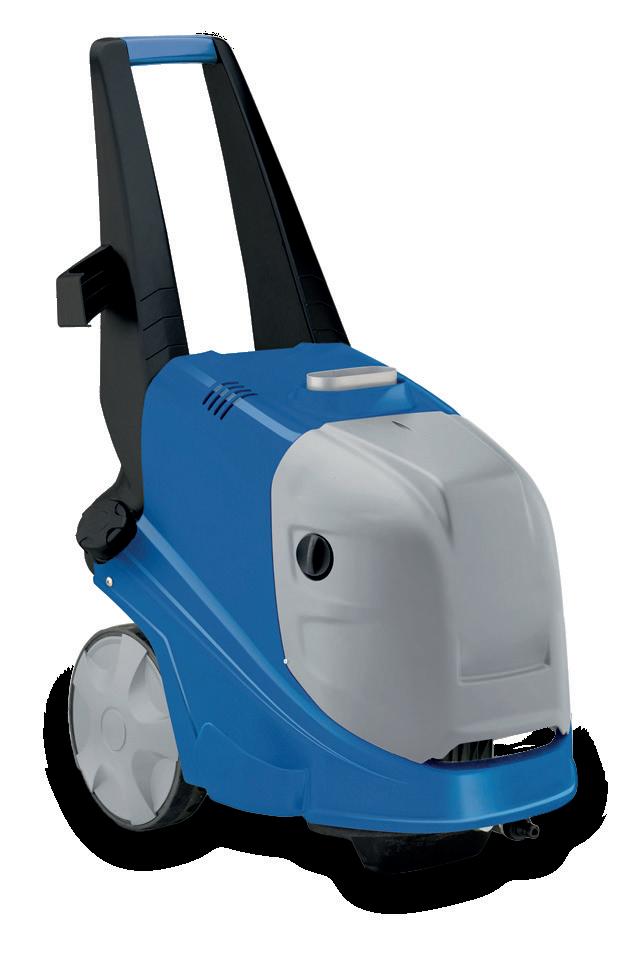

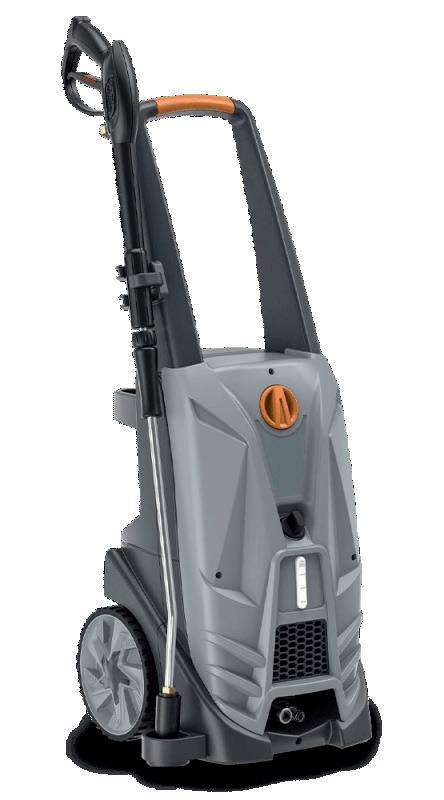

Pro Classic 3.10 10/150 M
Pro Classic 5.12 12/200 T
Pro Extra 3.10 10/150 M
Pro Extra 5.12 12/200 T

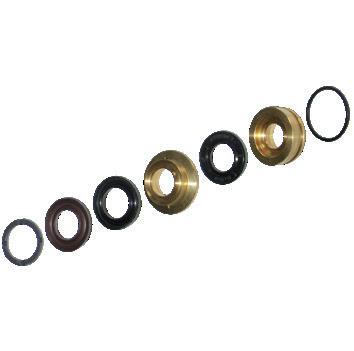

Kit Dolly Com16, complete seal packing ø18 quantity 5x1
Set Dolly Com79, plunger oil seals ø14x22 quantity 1x3
DOLLY SPARE PARTS FOR PUMPS
Kit Dolly 123, valves + O-rings
Set Dolly I28 connecting rod, for pumps fitting Interpump “44” series quantity 1x3
ZX.SP997
Set Dolly X997, fitting Kärcher pumps, plunger ø12
ZX.916-3
Kit Dolly X916, valves with O-ring quantity 1x3

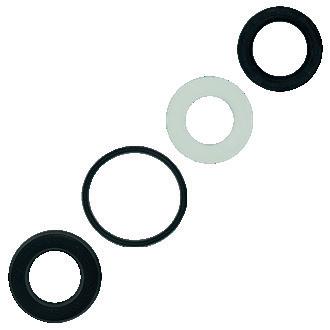

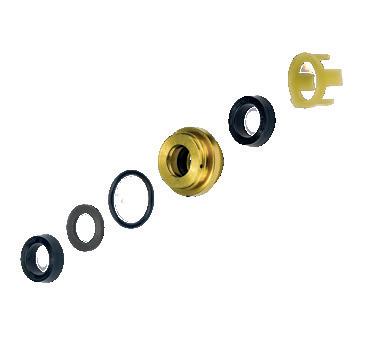

Set Dolly X997-HL, seal packing ø12 quantity 1x6 + 2x3
ZX.DB997-60
ZX.916-60
Set Dolly X916-60, valves with O-ring quantity 1x60
ZX.0682
Set Dolly X48, h.p. seals ø12x20 quantity 1x60
ZX.2541

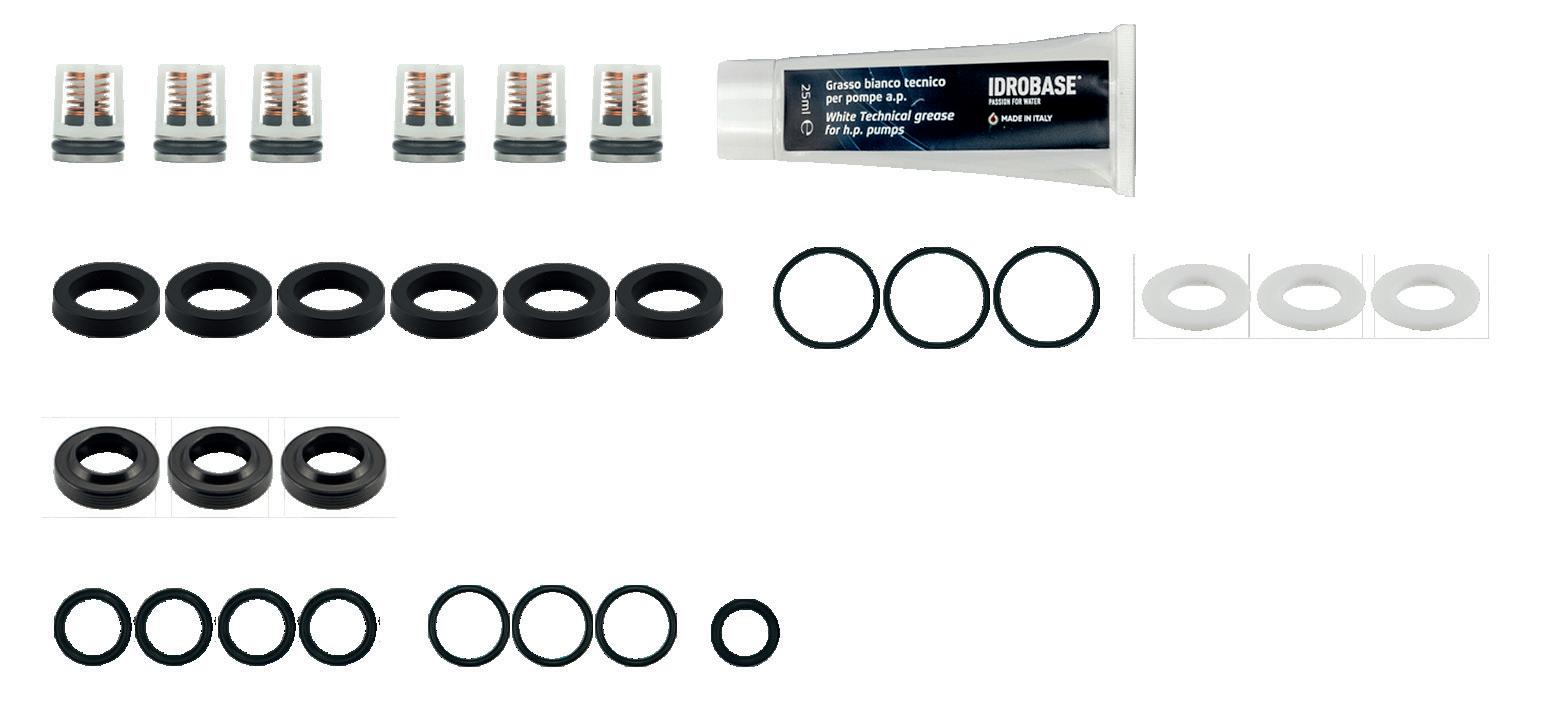

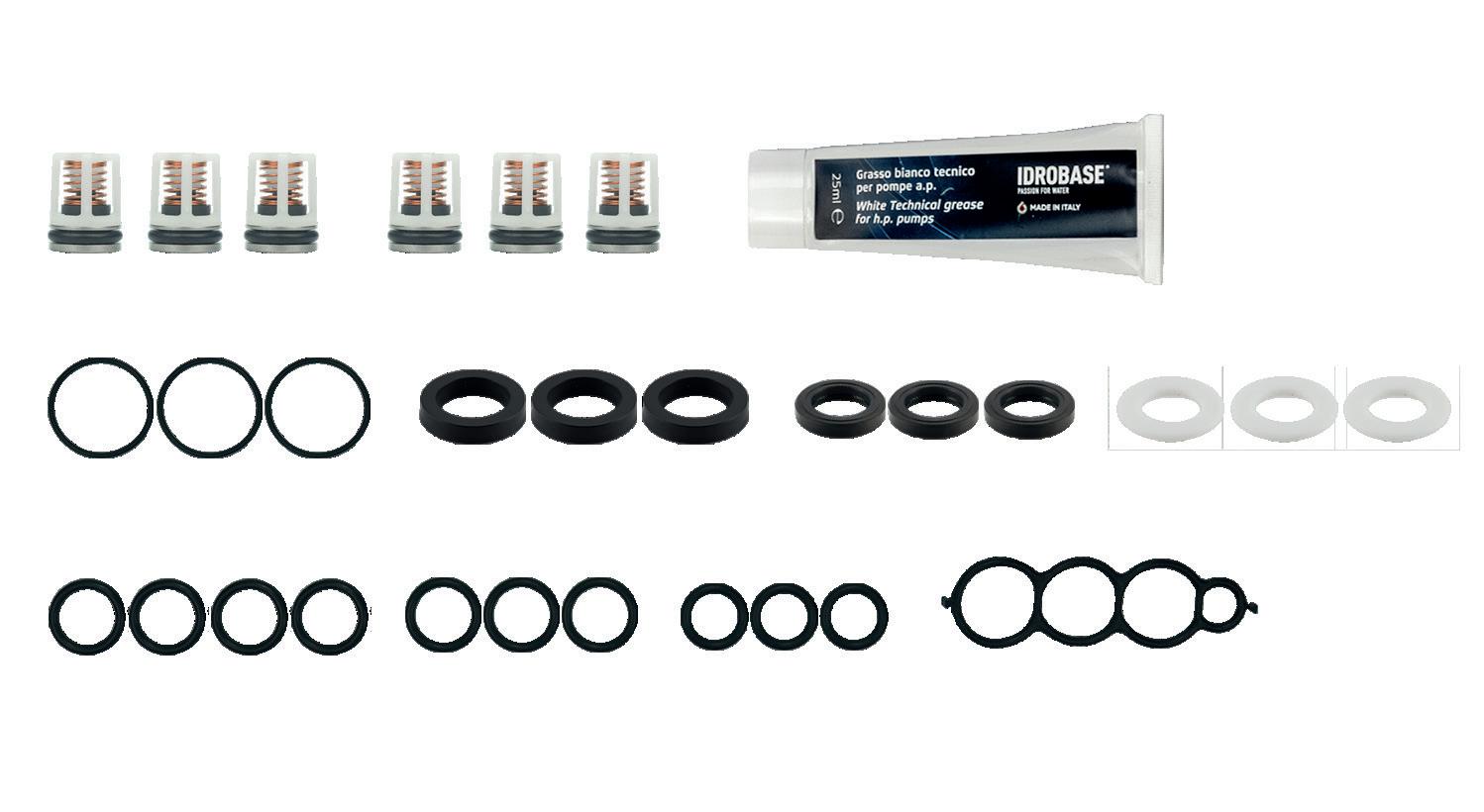

THE SET CONTAINS:
• ZX.916-3 - 2 pcs
- 1 pc ZX.2541 - 1 pc • ZX.997-OR - 1pc • ZX.2444-025 - 1 pc

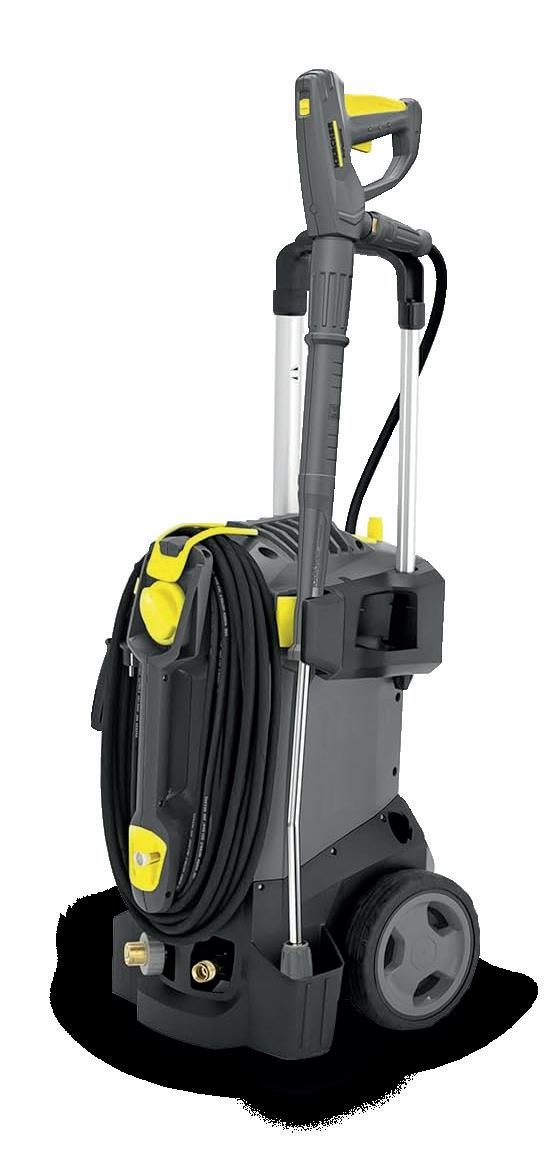

Fitting h.p. washers pumps
HDS 5/15 UX Plus *EU HD 6/13 CX
HD 1.8/13 C Ed HD 6/13 CX Plus
HD 2.3/14 C Ed Food HD 6/15
HD 5/12 C Plus
HD 5/12 CX
HD 5/12 CX Plus
HD 5/14 C
6/15C PLUS
7/10 CXF
7/15 C 200V 50HZ
7/15 C 200V 60HZ
HD 5/14 C PLUS HD 7/15 CX 200V 50Hz
HD 5/14 C PLUS+FR30 HD 7/15 CX 200V 60Hz
HD 5/14 C+FR30 HD 7/16 C
HD 5/14 CX HD 7/18 C
HD 5/14 CX PLUS HD 7/18 C PLUS
HD 5/15 C HD 7/18 CX
HD 5/15 C + FR HD 7/18CX-PLUS
HD 5/15 C Plus HDS 5/15 U
HD 5/15 C Plus +FR HDS 5/15 U Plus
HD 5/15 CX Plus HDS 5/15 UX
ZX.997-OR

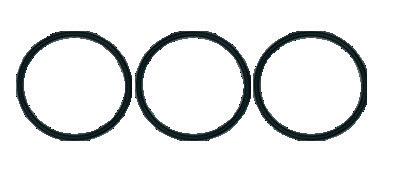

Set Dolly X997-OR, O-rings for caps and manifold quantity
8 pz
Set Dolly X58, plunger oil seals ø12x20 quantity 1x3
ZX.2444-025
Set Dolly X60, discs ø12x22 quantity 1x60 Technical grease, for the maintenance of
HD 5/15 CX Plus + FR HDS 5/15 UX Plus
HD 5/17 C XpertHD 7125
HD 5/17 C Plus XpertHD 7125 Plus
HD 5/17 CX XpertHD 7125 X
HD 5/17C PLUS XpertHD 7125 X Plus
HD 5/17C PLUS+FR30 XpertHD 7140
HD 6/13 C XpertHD 7140 Plus
HD 6/13 C Plus XpertHD 7140 X
HD 6/13 C Plus + FR XpertHD 7170
HD 6/13 C Plus Boels XpertHD 7170 X
Before ordering, check that the diameter of the plunger matches that of the pump to be repaired.

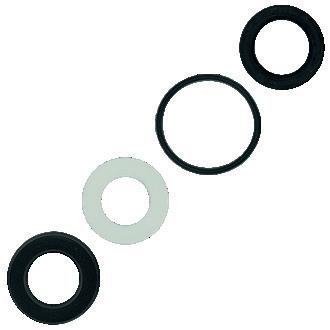

Set Dolly X017, fitting Kärcher pumps, plunger ø14
ZX.916-3
Kit Dolly X916, valves with O-ring quantity 1x3
ZX.869-HL

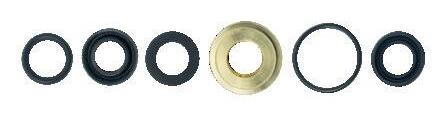

Set Dolly X869-HL, seal packing ø14 quantity 4x3
ZX.0649
Set Dolly X26, l.p. seals ø14x20 quantity 1x60
ZX.017-OR

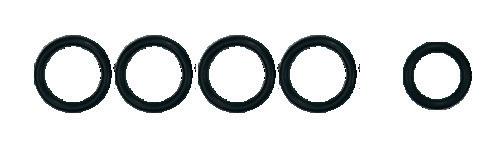

Set Dolly X017-OR, O-rings for caps and manifold quantity 1x4 + 1x1
ZX.916-60
Set Dolly X916-60, valves with O-ring quantity 1x60
ZX.0641
Set Dolly X21, h.p. seals ø14x22 (black) quantity 1x60
ZX.1458
Set Dolly X23, discs ø14x24 quantity 1x60
ZX.2444-025
Technical grease, for the maintenance of high pressure pumps, 25ml

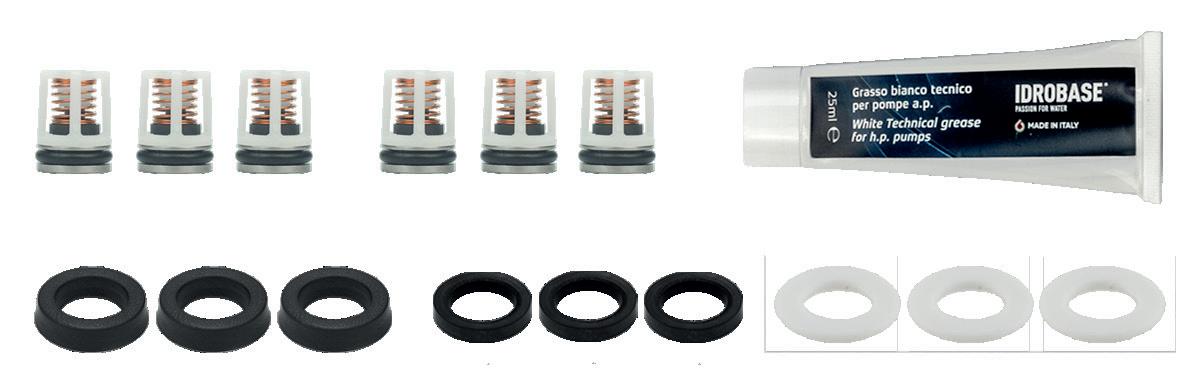

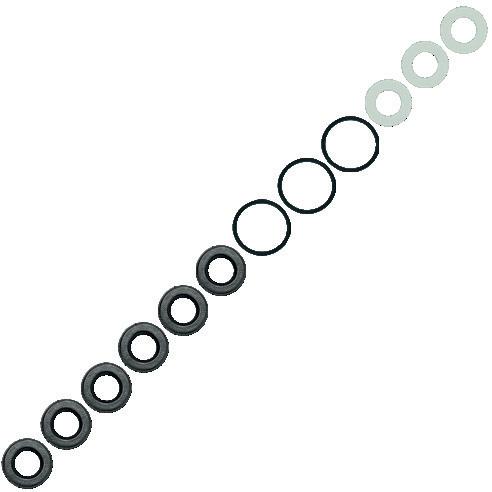

THE SET CONTAINS:
• ZX.916-3 - 2 pcs
ZX.869-HL - 1 pc
ZX.2550-3 - 1 pc
• ZX.017-OR - 1 pc
• ZX.2444-025 - 1 pc
Fitting h.p. washers pumps
HD 7/18C
HD 5/17 C
HD 5/17 C Plus
HD 5/17 C Plus+FR30
HD 5/17 CX
HD 6/15 C
Before ordering, check that the diameter of the plunger matches that of the pump to be repaired.
ZX.2550-3

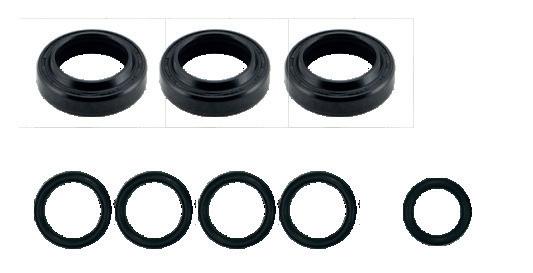

Set Dolly X59, plunger oil seals ø14x22 quantity 1x3
DOLLY SPARE PARTS FOR PUMPS FITTING KÄRCHER PLUNGERS Ø14
ZX.SP869
Set Dolly X869, fitting Kärcher pumps, plunger ø14
ZX.916-3
Kit Dolly X916, valves with O-ring quantity 1x3
ZX.869-HL
Set Dolly X869-HL, seal packing ø14 quantity 4x3
ZX.0649
Set Dolly X26, l.p. seals ø14x20 quantity 1x60
ZX.869-OR
Set Dolly X869-OR, O-rings for caps and manifold quantity 11 pcs
ZX.916-60
Set Dolly X916-60, valves with O-ring quantity 1x60
ZX.0641
Set Dolly X21, h.p. seals ø14x22 (black) quantity 1x60
ZX.1458
Set Dolly X23, discs ø14x24 quantity 1x60
ZX.2444-025
Technical grease, for the maintenance of high pressure pumps, 25ml
• ZX.916-3 - 2 pcs
ZX.869-HL - 1 pc ZX.869-OR - 1 pc ZX.2444-025 - 1 pc
Fitting h.p. washers pumps
HD 600
HD 645
HD 645 Plus
HD 650
HD 650 Plus
HD 650 SX
HD 650 SX Plus
HD 650 SXL
HD 651
HD 658
HD 675 Plus
HD 690
HD 690 Plus
HD 690 SX
HD 690 SX Plus
HD 715
HD 715 ST K 7.35M
Before ordering, check that the diameter of the plunger matches that of the pump to be repaired.
Competitor code Idrobase Group code Page
Competitor code Idrobase Group code Page
Comet
00003-00053 0019.0058 (1pc)
00003-00081 0019.0095 (1pc)
00003-00108 0019.0123 (1pc)
00003-00166 0019.0182 (1pc)
00003-00169 0019.0185 (1pc)
10001-01078
5019.0037
10001-01117
5019.0078
10001-01382
5019.0667
10001-01397
5019.0682
10001-01401
5019.0686
10001-01610
5025.0014
10001-01626
5025.0030
10001-01651
5025.0057
10001-01665
5025.0071 ZX.2554
10001-09131
5019.0776 (3pcs)
10001-08918
3604.0073
10001-08919
5034.0004
10001-09130
(3pcs)
(3pcs)
(3pcs)
(3pcs)
(1pc)
Competitor code Idrobase Group code Page
Kärcher
(60pcs)
(1pc) ZX.DB997-60 (60pcs) 139
(1pc) ZX.0651 (60pcs) 109 6.365-340.0 (1pc) ZX.2550-3 (3pcs) 140
(1pc) ZX.2541 (3pcs) 139
(1pc) ZX.0641 (60pcs) 140 6.365-438.0 (1pc) ZX.0649 (60pcs) 140 6.365-477.0 (1pc) ZX.0682 (60pcs) 139
