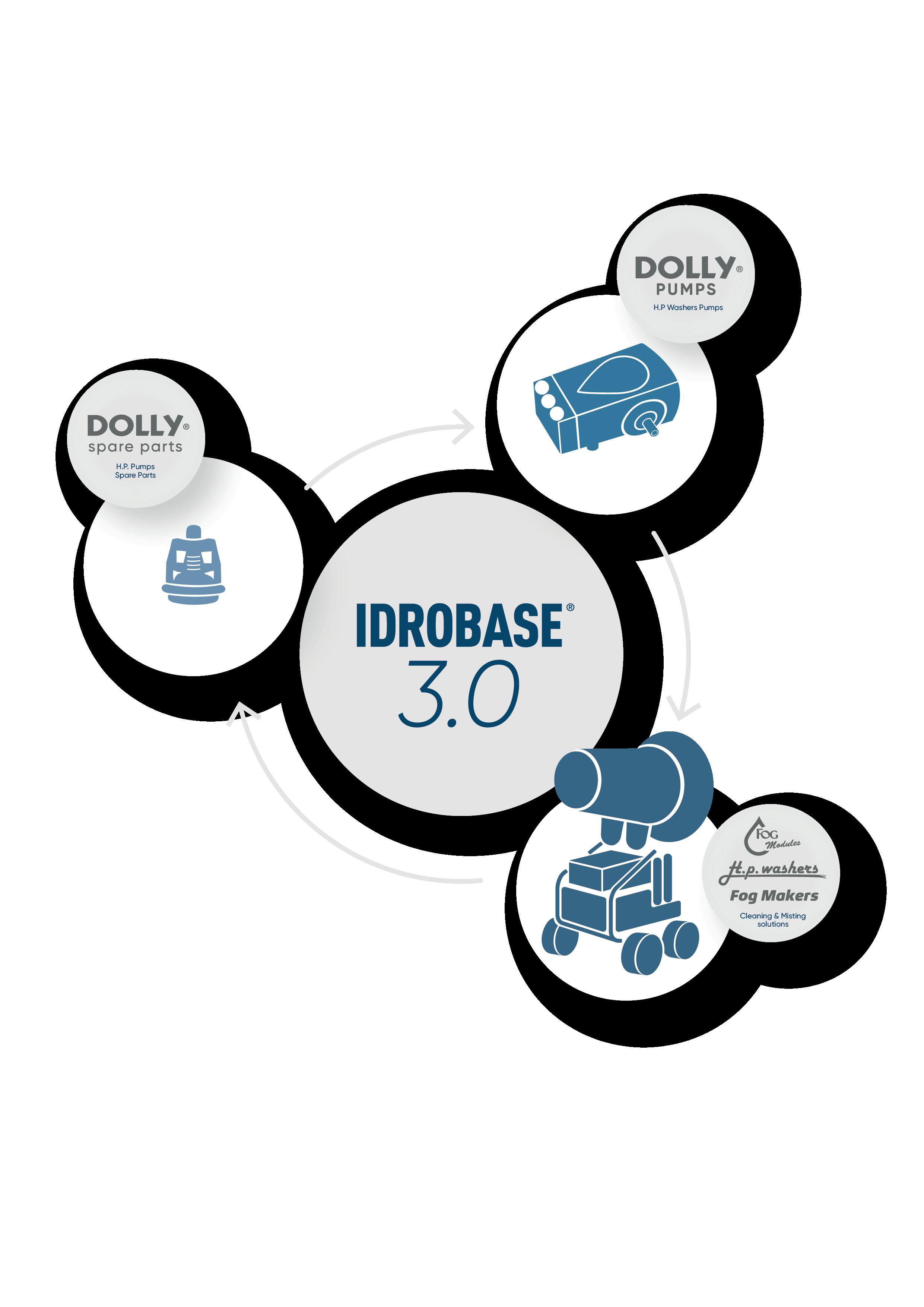

IDROBASE 3.0: THE ECOSYSTEM THAT ENHANCES EVERY ELEMENT.

IDROBASE 3.0 is a comprehensive solution that brings together:

• the reliability of Dolly Spare Parts®

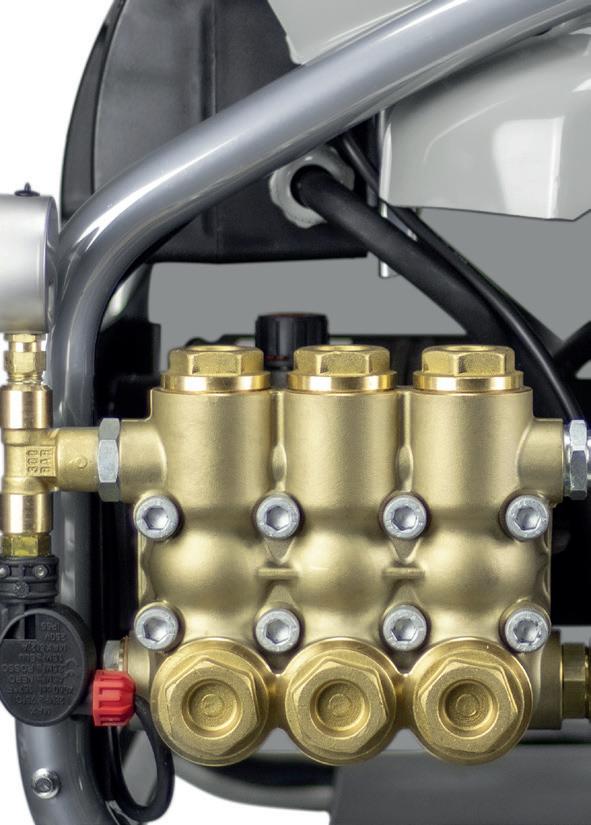

• the patented and guaranteed quality of Dolly Pumps®

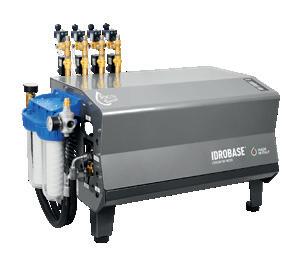

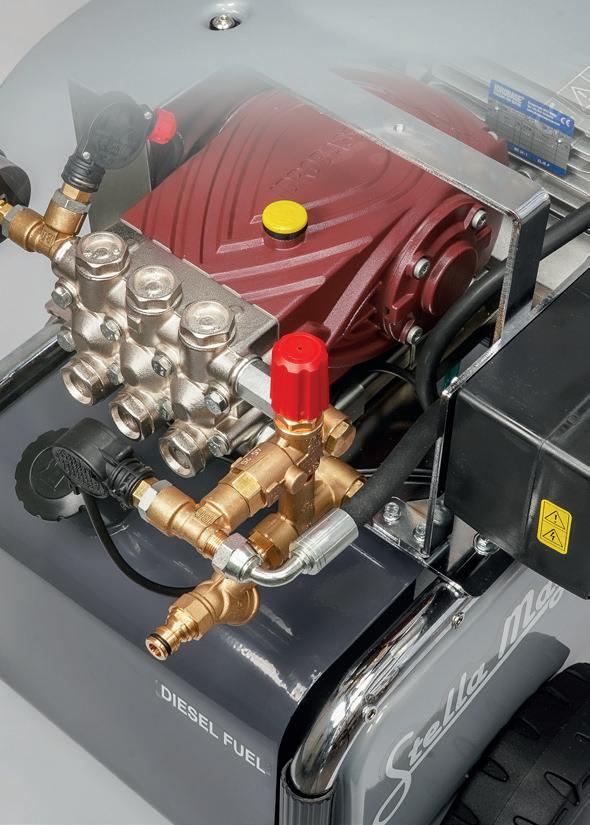

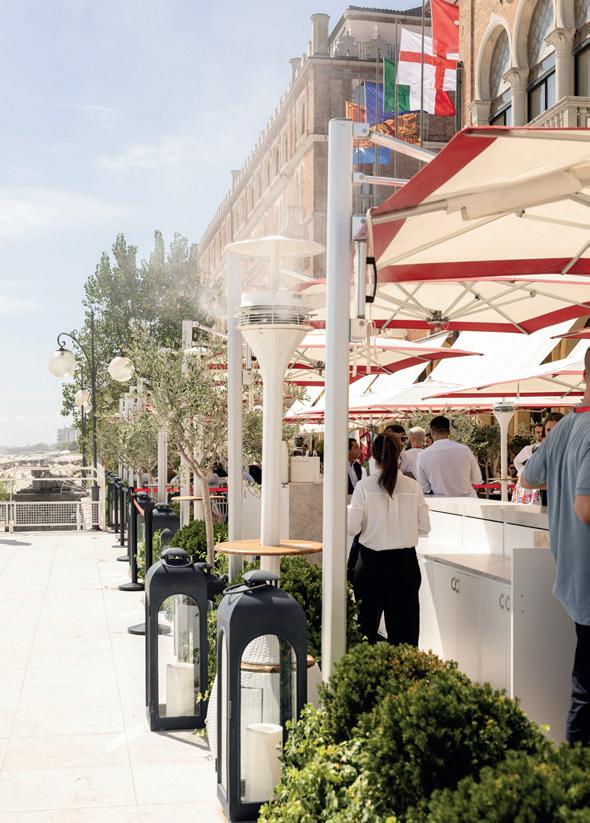

• the high performance of h.p. washers , fog makers and misting systems

You can now move from simply repairing your pump, thanks to the world’s N.1 Dolly Spare Parts catalogue, to replacing it with a Dolly Pump featuring Idrobase-branded internal components, up to selecting a complete Made in Italy solution for the cleaning and misting sectors.

Three elements within one integrated system, connected and aligned by a coherent industrial vision focused on performance and long-term durability.

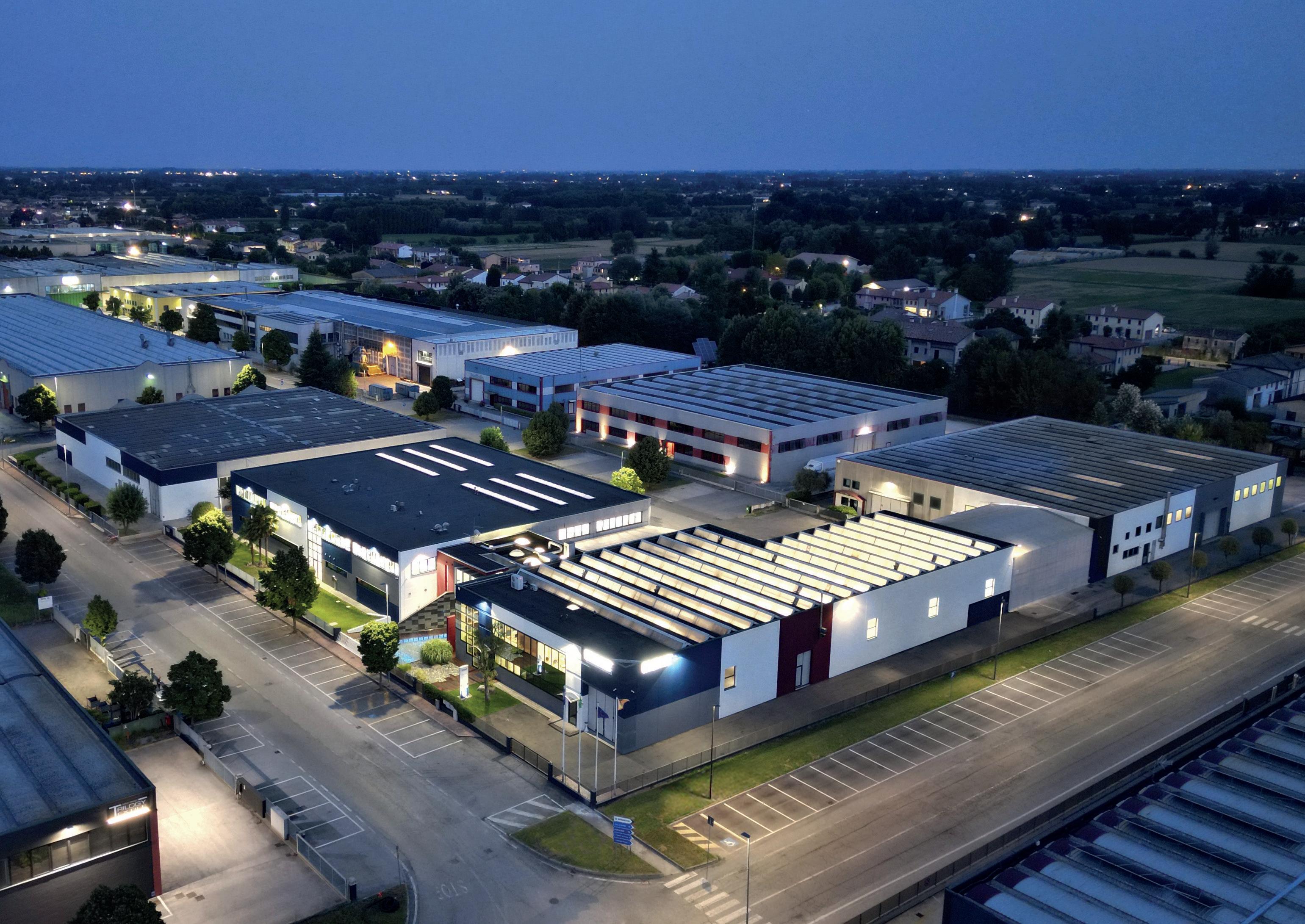

HEADQUARTERS OFSOLUTIONS

Dolly Spare Parts ® for pumps

HP Washers Accessories & Spare Components

BKM ® , Disinfection & Sanitization

We are world n. 1 on spare parts

Autobella ® & Car Wash Accessories

Cleaning Machines

Cleaning & Misting

OUR SALES TEAM

PAMELA CALLEGARO

Commercial manager

pamela.c@idrobasegroup.com

+39 049 9336724

+39 346 2894708

Idrobase_CDR

ITA/ENG/FRA

area of expertise

FEDERICA MAZZONETTO

Commercial department

federica.m@idrobasegroup.com

+39 049 9336787

+39 351 9491766

ITA/ENG/FRA

area of expertise

TOMMASO GAZZIGNATO

Idrobase Ningbo manager

tommaso.g@idrobasegroup.com

+39 049 9336756

+39 349 0080257 tommy_italy

ITA/ENG

area of expertise

MARCO FERRARESE

Strategic market development & Idrobase Ningbo sales manager

marco.f@idrobasegroup.com

+39 349 7784775

marcof-ibg

ITA/ENG/RUS

area of expertise

SILVIA VANZO

Commercial department

silvia.v@idrobasegroup.com

+39 049 9336726

+39 351 5970267

Silvia_CdR

ITA/ENG/ESP/DEU

area of expertise

OUR TECHNICAL TEAM

BRUNO BAESSO

Product research & Purchasing department

bruno.b@idrobasegroup.com

+39 049 9336736

+39 347 9277664

ITA/ENG

LUCA SARTOR

Technical department manager

luca.s@idrobasegroup.com

+39 049 9336755

+39 348 7004172

ITA/ENG

DANIEL GASPARINI

Quality & Technical department

daniel.g@idrobasegroup.com

+39 049 9336768

+39 329 1297086

ITA/ENG

MAURO ARICI

Product development & Idrobase Ningbo technical manager

mauro.a@allforclean.com

+86 574 87910891

+86 139 67863486

maoleo80

ITA/ENG/CHN

AREA OF EXPERTISE

FEDERICA MAZZONETTO (Italy, Romania)

MARCO FERRARESE (USA, Canada, Russia, Ukraine, India, Kazakhstan, Uzbekistan)

PAMELA CALLEGARO (Europe, North Africa, Japan, Australia, South Africa)

SILVIA VANZO (Central and South America, Germany, Austria, Czech Republic, Slovenia, Croatia, Bosnia, Serbia, Poland, Hungary, Estonia, Vietnam, Thailand, Taiwan )

TOMMASO GAZZIGNATO (Saudi Arabia, Egypt, China, United Arab Emirates, Oman, Qatar)

CLICK CLOCK & DOUBLE LIFE THE NEBULIZERS FOR DETERGENTS WITH PLASTIC-COATED TANK

Club dei Riparatori presents a worldwide exclusive Double Life, the detergent Nebulizer with a tank painted inside with epoxy plastic-coating, the real pride and joy of the line. The difference compared to a normal tank lies in the epoxy plastic-coating on the internal surface of the Nebulizer tank.

This means that the tank is isolated from the chemical product and is not affected by the chemical agents in the detergent, thus prevent oxidation and the formation of rust. What are the benefits?

First of all the life of the tank, which is double that of a normal tank. The composition of the detergent does not undergo any alterations resulting from oxidation and/or rust.

Especially recommended for professional use in car washes thanks to the product’s guaranteed longevity.

How to use the Double Life nebulizer for car wash applications

The great advantages of the Double Life that lasts twice as much

Discover each single detail of Double Life nebulizer: the convenience for the customer and its operating procedures

Idrobase Group s.r.l. nebulizers have been produced and have to be used according to Ped directive 2014/68/UE class 1 and 2 for fluid group II.

For more technical, functional and safety details regarding the product and its use, request technical documention or in case of occured purchase consult the use and maintenance manual. Always consult the safety data sheet of the chemical product for a correct mix with water.

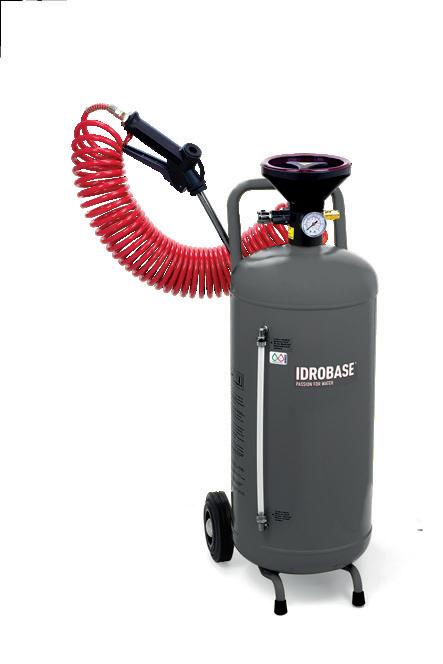

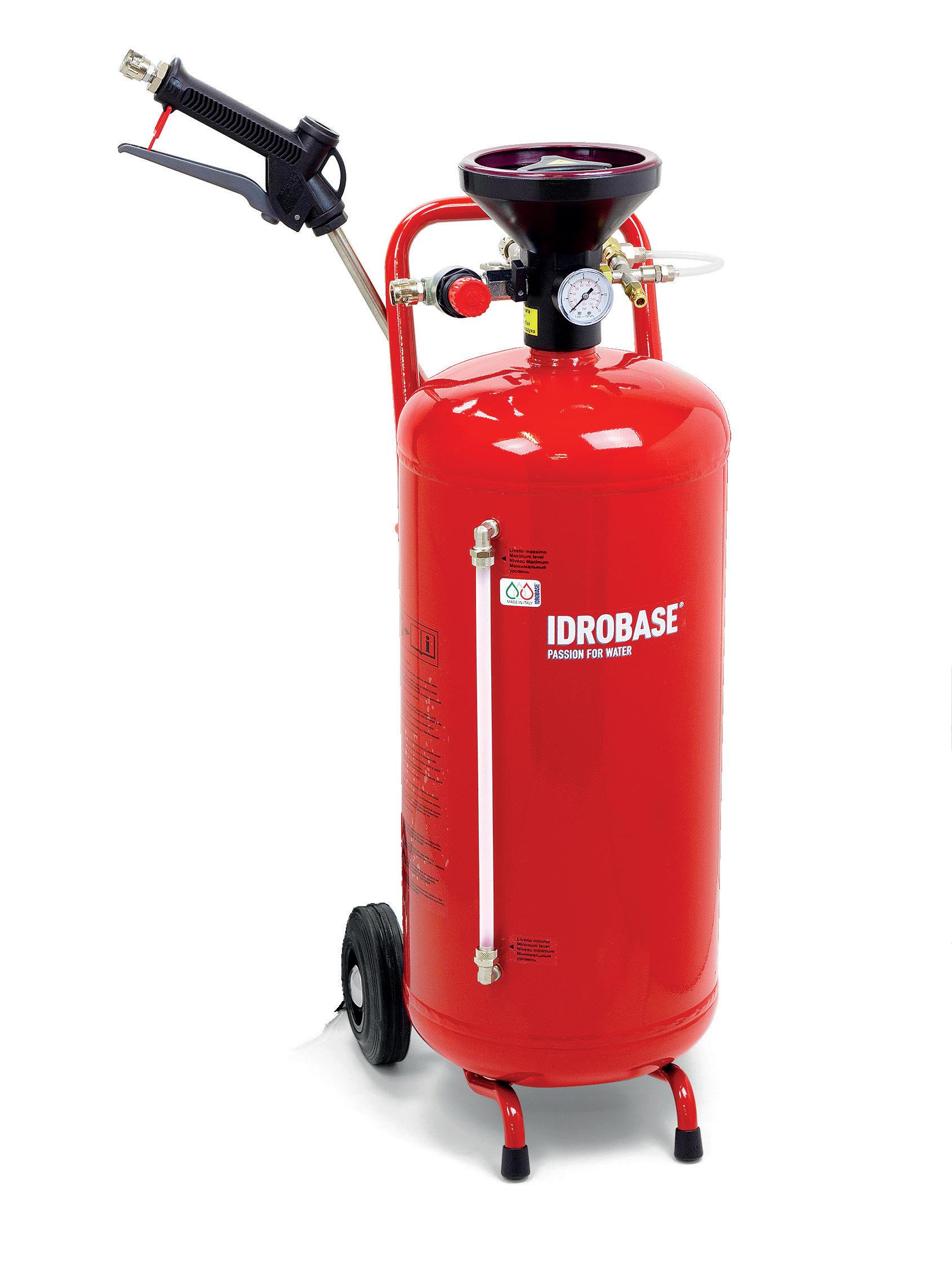

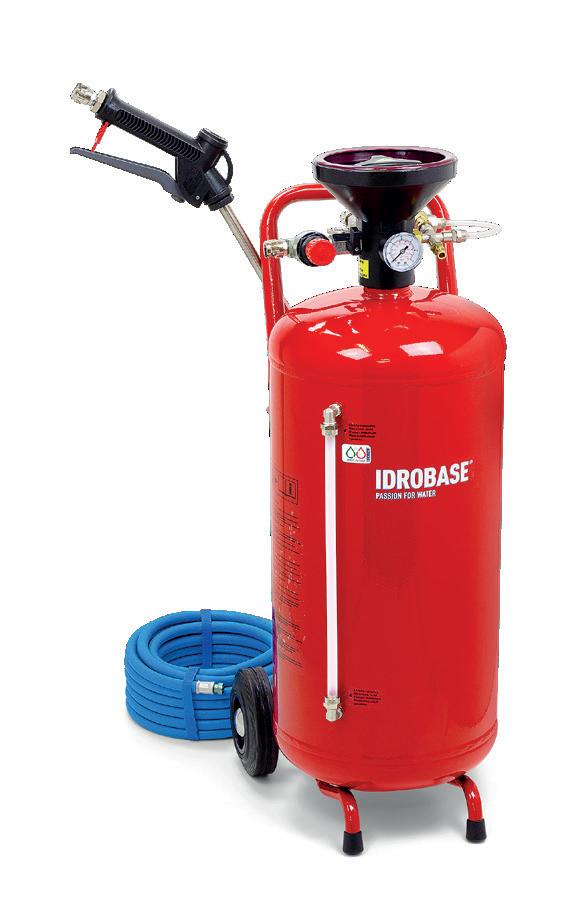

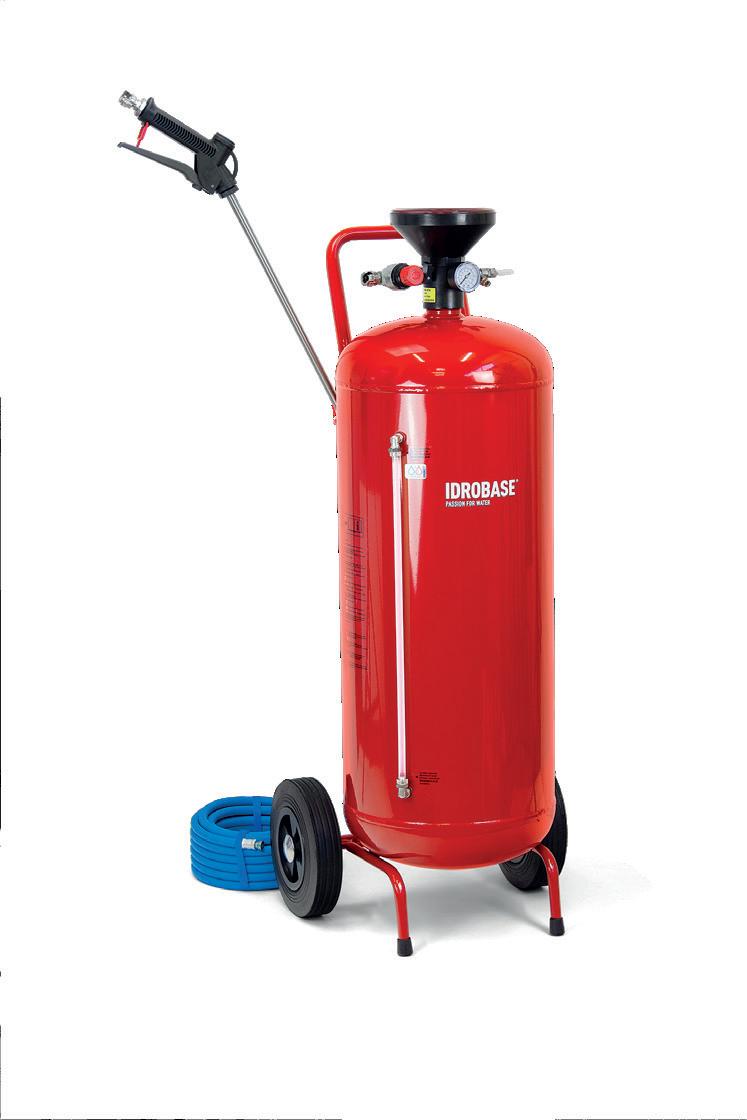

Click Clock nebulizer for detergent solutions

The new spray and foam detergent nebulizer with removable funnel, 24L and 50L capacity, in painted steel with internal epoxy coating, presents the smallest size in the world for the category.

Click Clock nebulizer video

Zinced steel cap with heavy-strong thread

Optional CDR.1456

Safety valve in accordance with European Directive 97/23/CE

Metal manifold: +15% resistant

Red indicator for detergent level

Does not break during transport

Removable Click Clock funnel with sealing coupling

Click Clock innovative funnel loading method. Increased water filling, enabling easy filling even using a common water hose

Impact resistance increased by 70%

Precision air pressure regulator with protective galvanization

External tank:

• in painted steel (Double Life) • in AISI 304 stainless steel

Tank with internal plastic-coating for 24 and 50 litre painted versions - 40% maintenance time

CLICK CLOCK - SPRAY AND FOAM NEBULIZER

8.4002-GRS

8.4003-GRS

Airspray equipment:

Spray gun (internal parts *Viton® + SS), 600mm (for 24L tank) and 900 mm (for 50L tank), lance with brass fan spray nozzle, pressure gauge, safety valve, ball valve, 10m Rilsan spiral hose with anti-twist connection. Max pressure 8bar

Airfoam equipment:

Spray gun (internal parts *Viton® + SS), 600mm (for 24L tank) and 900 mm (for 50L tank), SS lance with 1 foam fan spray nozzle, pressure gauge, safety valve, manual release valve and air pressure regulator, air suction valve, detergent suction valve, ball valve, 10m PVC hose. Max pressure 8bar

*VITON® is a registered trademark of Dupont

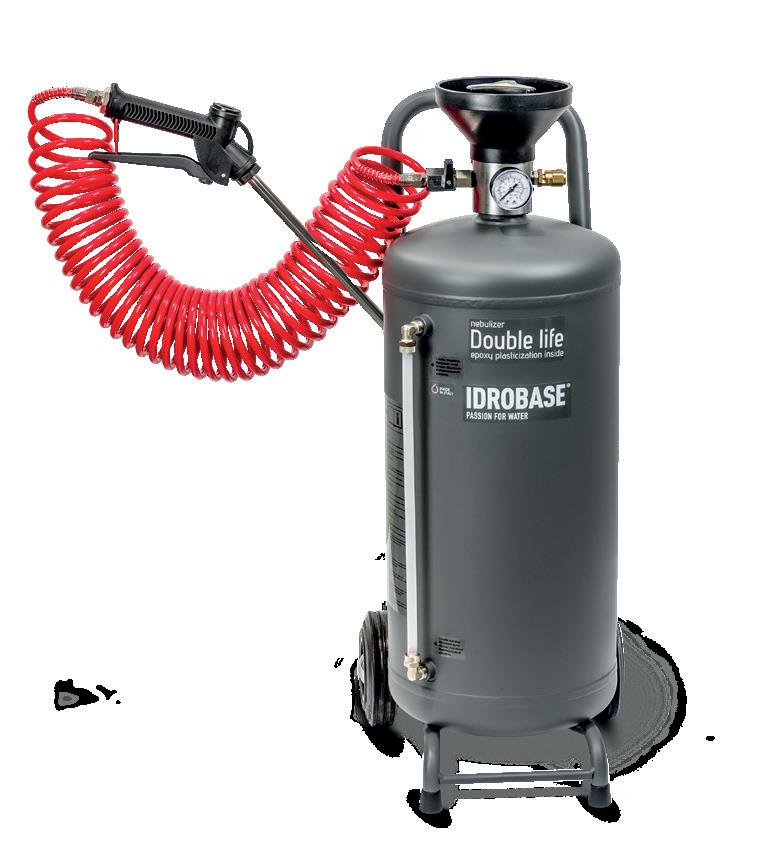

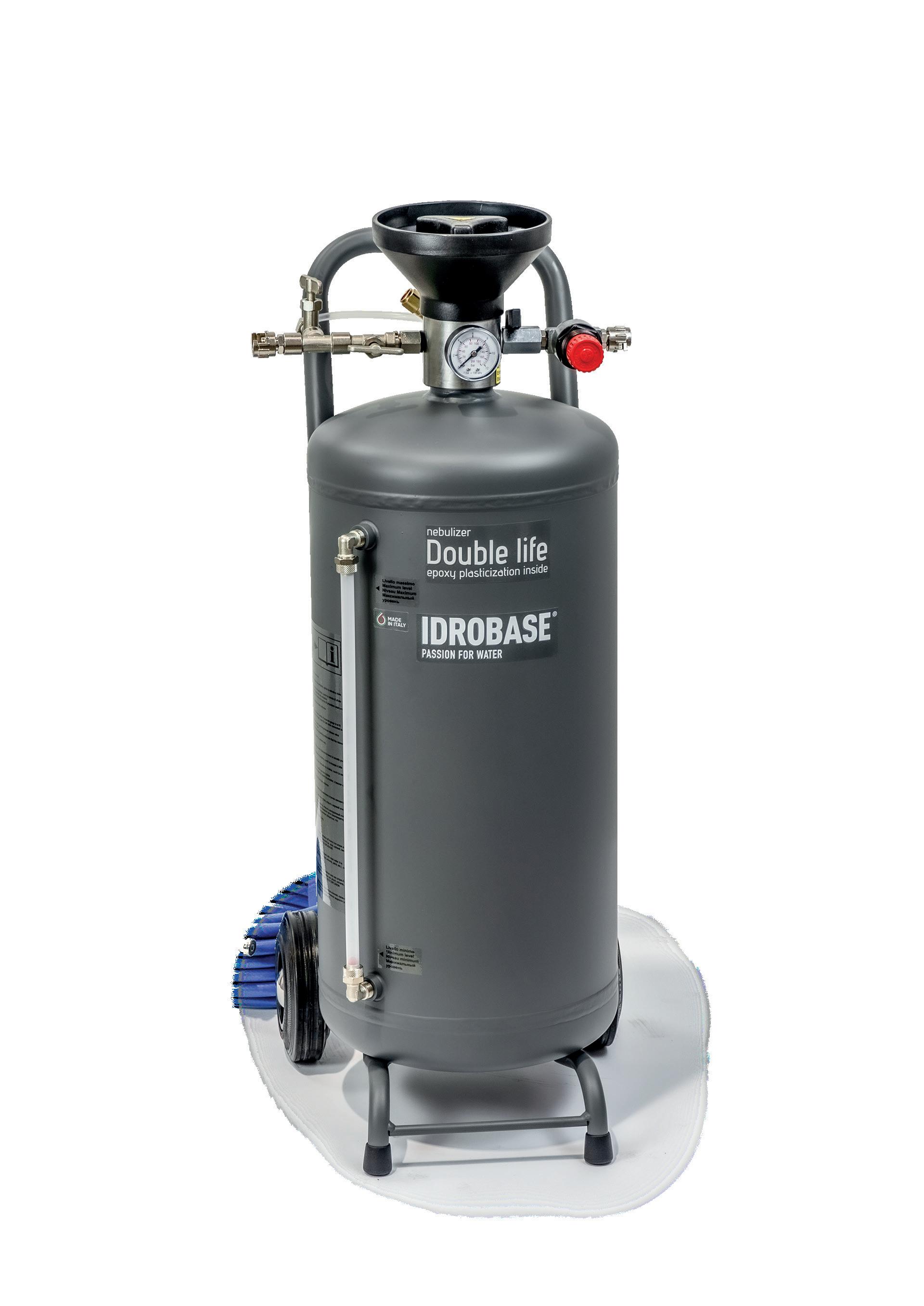

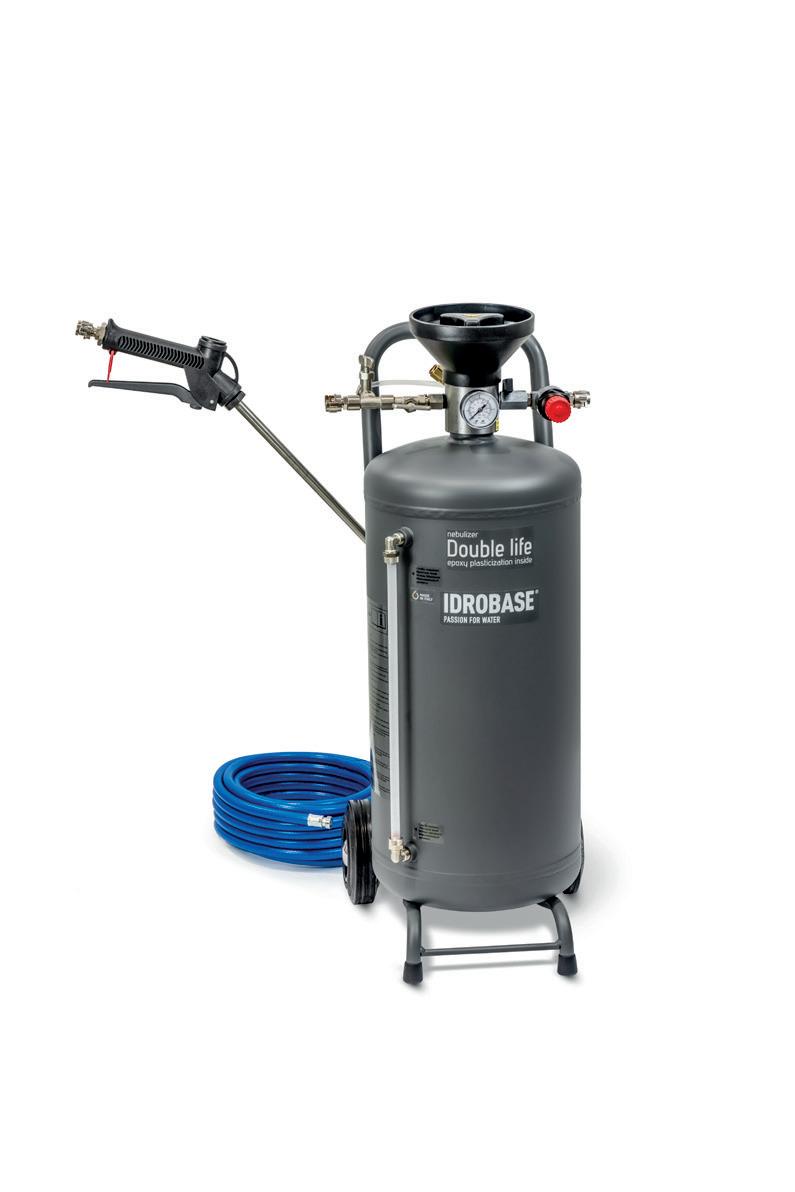

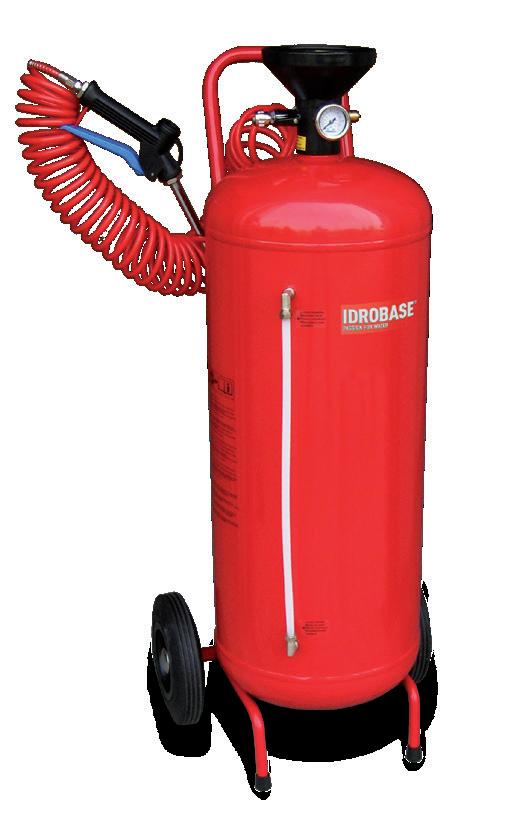

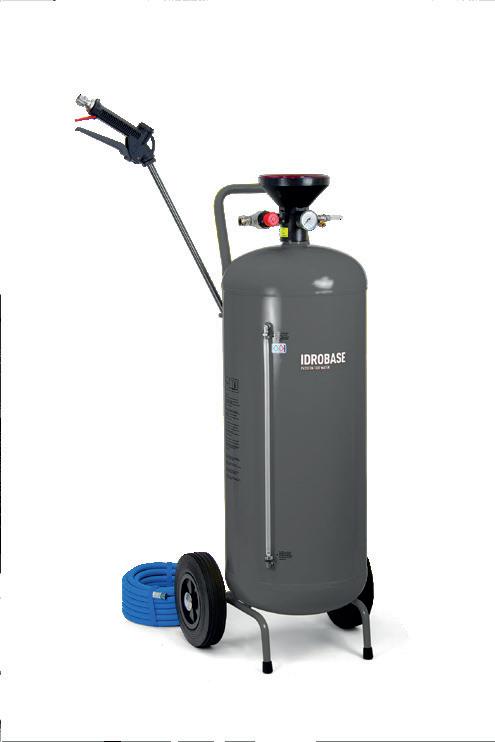

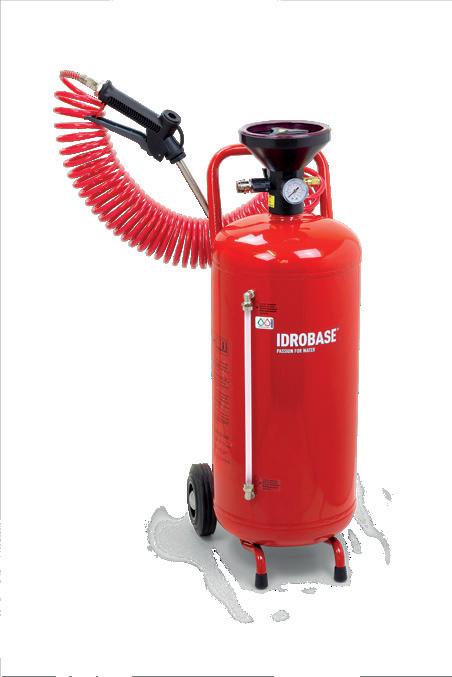

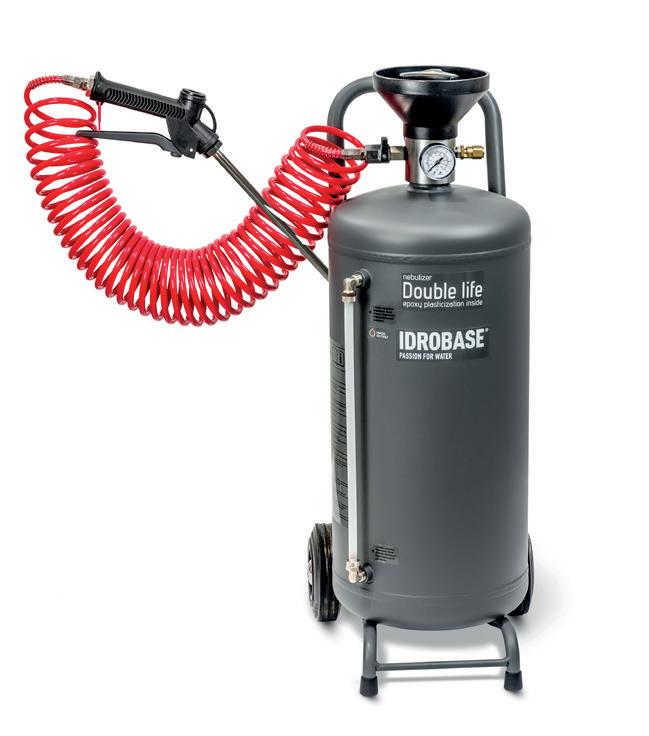

Double Life nebulizers for detergent solutions

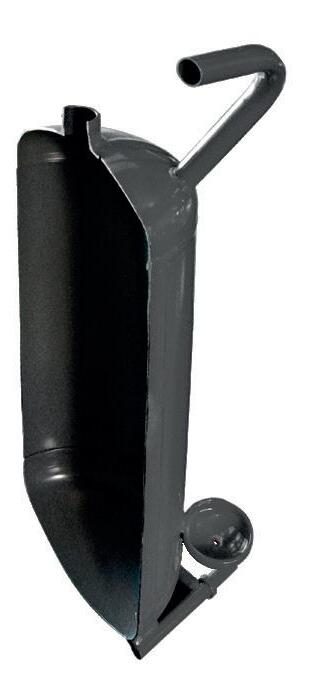

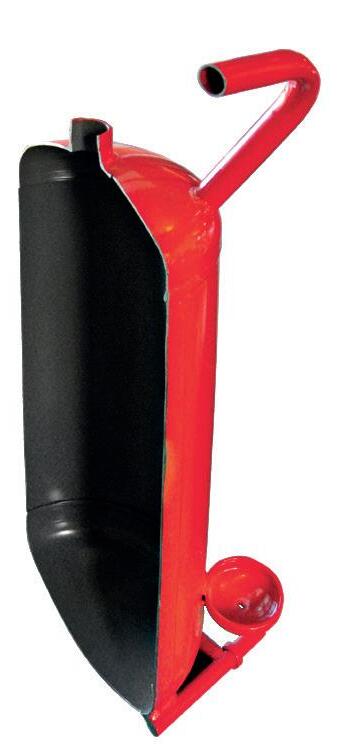

24 and 50 litre detergent nebulizer with tank painted inside with epoxy plastic-coating. The tank is isolated from the chemical product and is not affected by the chemical agents in the detergent.

Cap made of POM, detergent resistant (optional cap made in chromed steel)

What are the advantages?

• The life of the tank is double compared to a standard tank

• The detergent does not undergo any change in its composition caused by oxidation and/or rust

• The nozzle doesn't clog

Anti-overflow ring

Precision air pressure regulator (foam version) with protective galvanisation

AISI 304 stainless steel thread where the cap is screwed on

Safety valve in accordance with European Directive 2014/68/CE

Red indicator light for detergent level

Nebulizer in accordance with Directive Ped 2014/68/UE

Tank with internal plastic-coating for 24 and 50 litre painted versions

Dimensions designed for savings

The sizing of our nebulizers has been specially designed to optimise the bulk, thus ensuring a considerable savings in transport

NEBULIZERS FOR DETERGENT SOLUTIONS

24L painted inside with epoxy plastic-coating

Code Model Colour

8.2002S 8.2002-GRS

Airspray 24L Double life Red

Airspray 24L Double life Grey

Airspray 24 equipment:

Spray gun (internal parts *Viton® + SS), 600mm, lance with brass fan spray nozzle, pressure gauge, safety valve, ball valve, 10m Rilsan spiral hose with anti-twist connection. Max pressure 8bar

Code Model Colour

8.2004S 8.2004-GRS

Airfoam 24L Double life Red

Airfoam 24L Double life Grey

Airfoam 24 equipment:

Spray gun (internal parts *Viton® + SS), 600mm, SS lance with 1 foam fan spray nozzle, pressure gauge, safety valve, manual release valve and air pressure regulator, air suction valve, detergent suction valve, ball valve, 10m nylon hose. Max pressure 8bar

50L in painted steel with epoxy plastic-coating

Code Model Colour

8.2003S

8.2003-GRS

Airspray 50L Double life Red

Airspray 50L Double life Grey

Airspray 50 equipment:

Spray gun (internal parts *Viton® + SS), 900mm with brass fan spray nozzle, pressure gauge, safety valve, ball valve, 10m Rilsan spiral hose with anti-twist connection. Max pressure 8bar

Code Model Colour

8.2009S 8.2009-GRS

Airfoam 50L Double life Red

Airfoam 50L Double life Grey

Airfoam 50 equipment:

Spray gun (internal parts *Viton® + SS), 900mm, SS lance with 1 foam fan spray nozzle, pressure gauge, safety valve, manual release valve and air pressure regulator, air suction valve, detergent suction valve, ball valve, 10m nylon hose. Max pressure 8bar

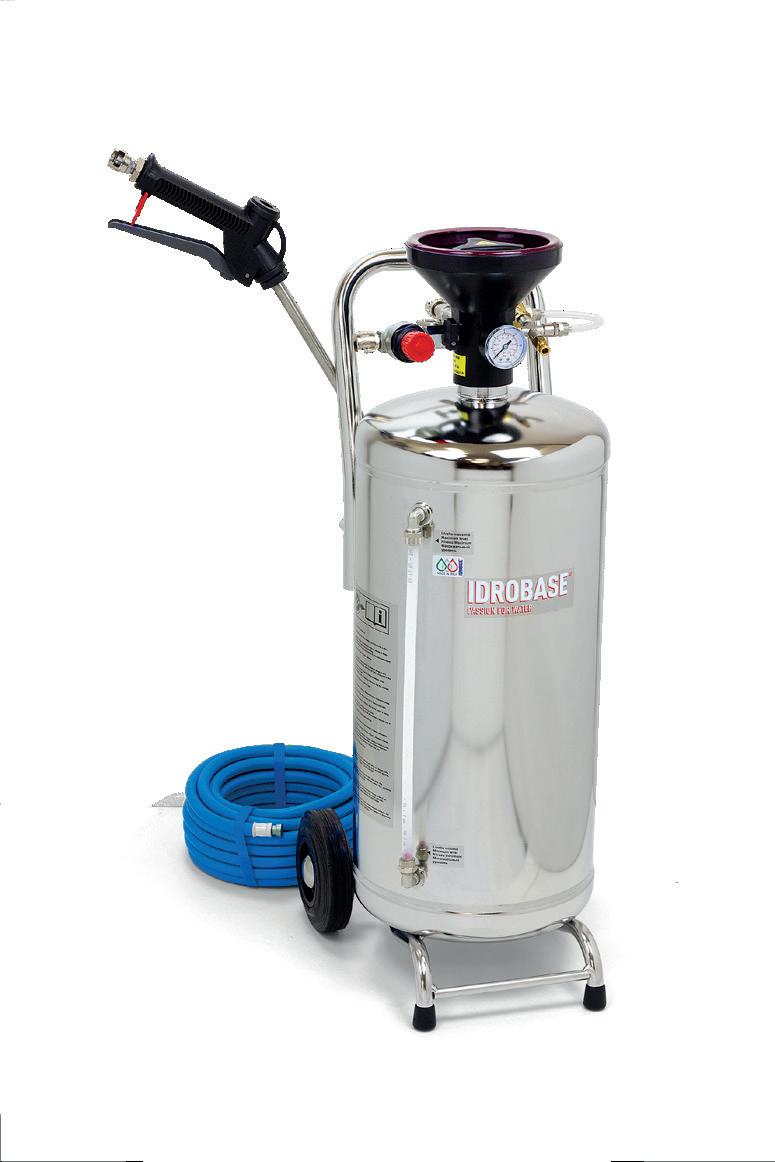

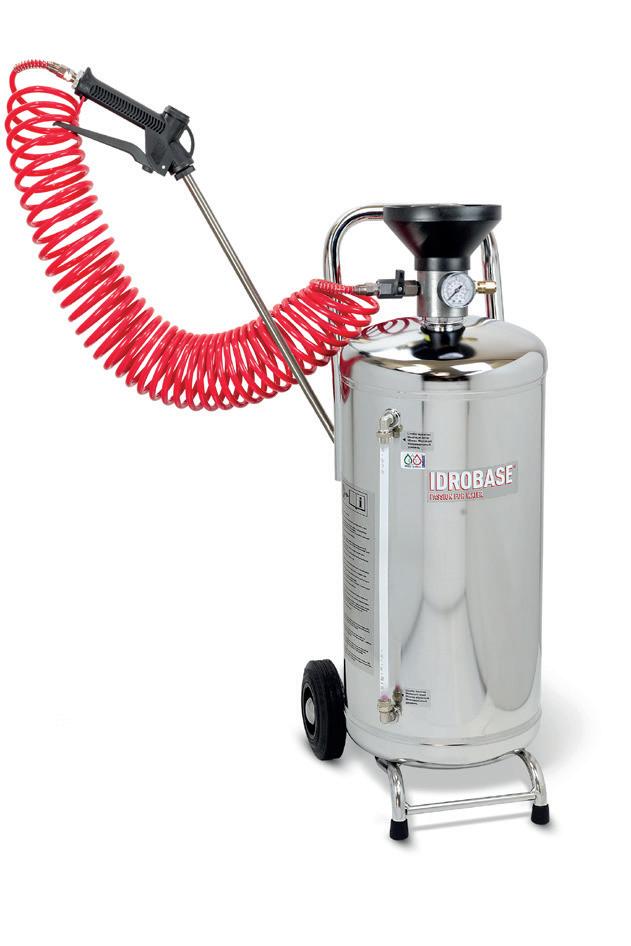

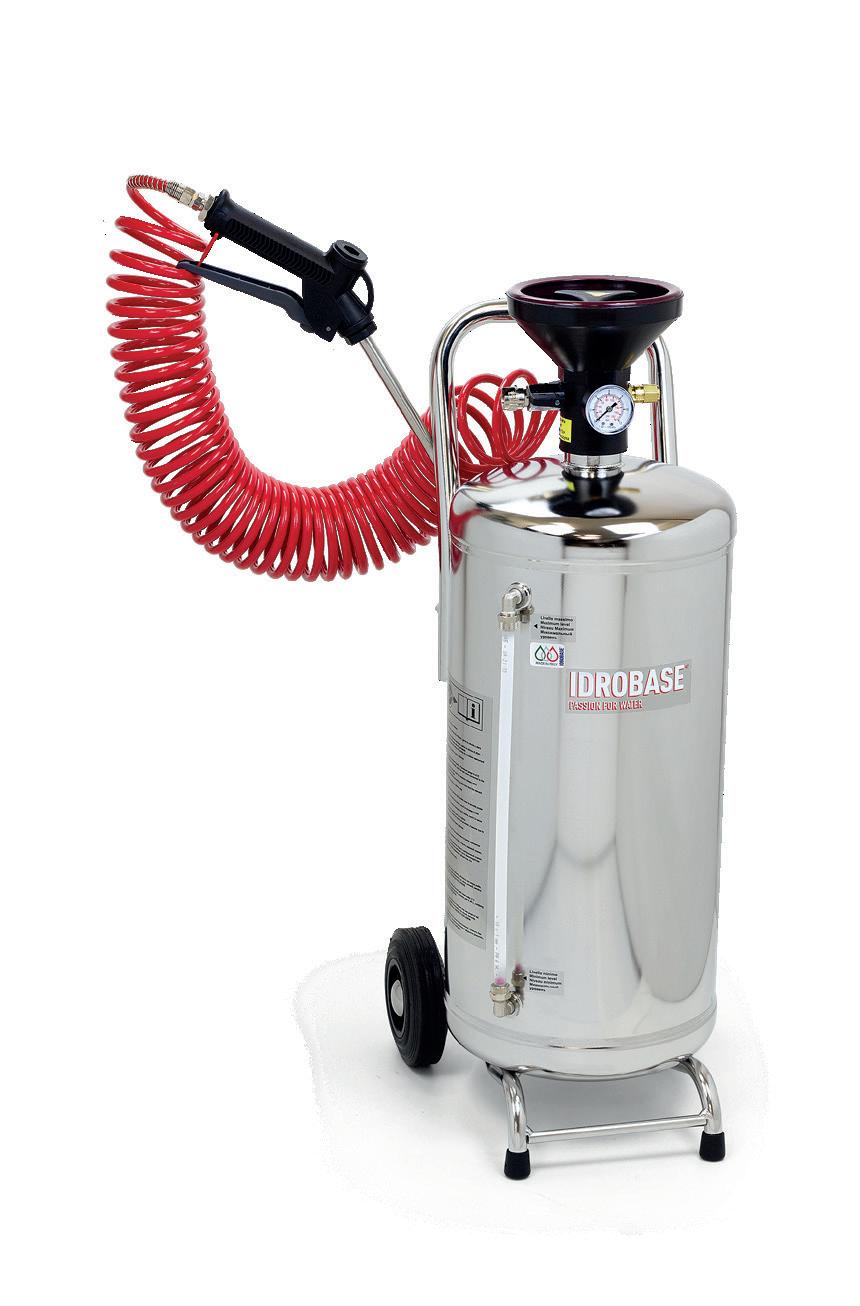

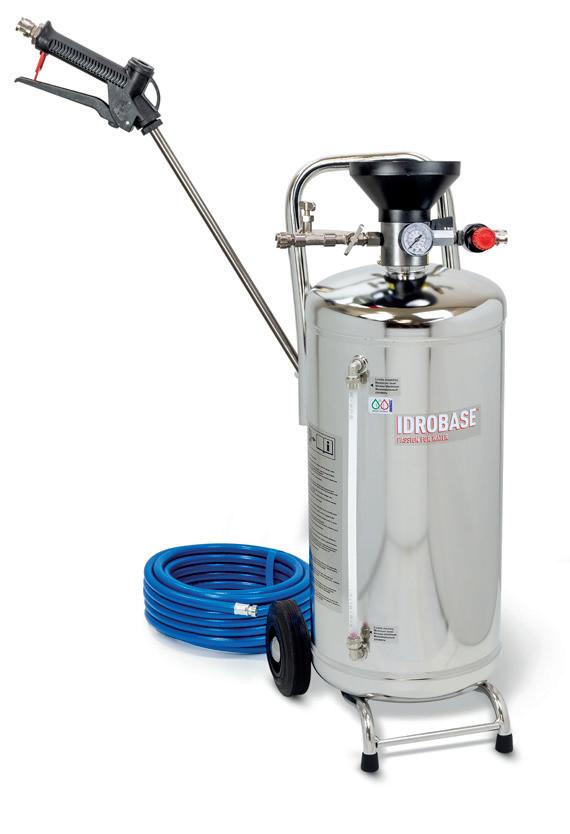

24L AISI 304 stainless steel

Code Model

for professional use.

50L AISI 304 stainless steel

Spray

Airspray SS 24

Airspray SS 24 equipment:

Spray gun (internal parts *Viton® + SS AISI 316), 600mm SS lance with brass fan spray nozzle, pressure gauge, safety valve, ball valve, 10m Rilsan spiral hose with anti-twist connection. Max pressure 8bar

Airfoam SS 24

Airfoam SS 24 equipment:

Spray gun (internal parts *Viton® + INOX AISI 316), 600mm SS lance with 1 foam fan spray nozzle, pressure gauge, safety valve, manual release valve and air pressure regulator, air suction valve, detergent suction valve, ball valve, 10m nylon hose. Max pressure 8bar

Code Model

Spray

Airspray SS 50

Airspray SS 50 equipment:

Spray gun (internal parts *Viton® + SS AISI 316), 900mm SS lance with brass fan spray nozzle, pressure gauge, safety valve, ball valve, 10m Rilsan spiral hose with anti-twist connection. Max pressure 8bar

Airfoam SS 50

Airfoam SS 50 equipment:

Spray gun (internal parts *Viton® + INOX AISI 316), 900mm SS lance with 1 foam fan spray nozzle, pressure gauge, safety valve, manual release valve and air pressure regulator, air suction valve, detergent suction valve, ball valve, 10m nylon hose. Max pressure 8bar

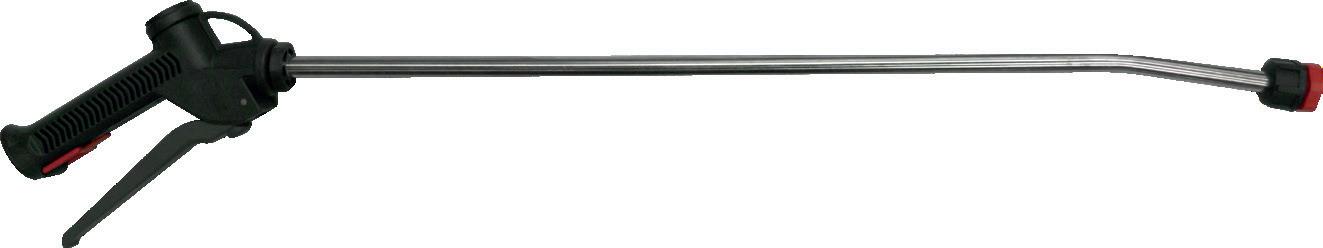

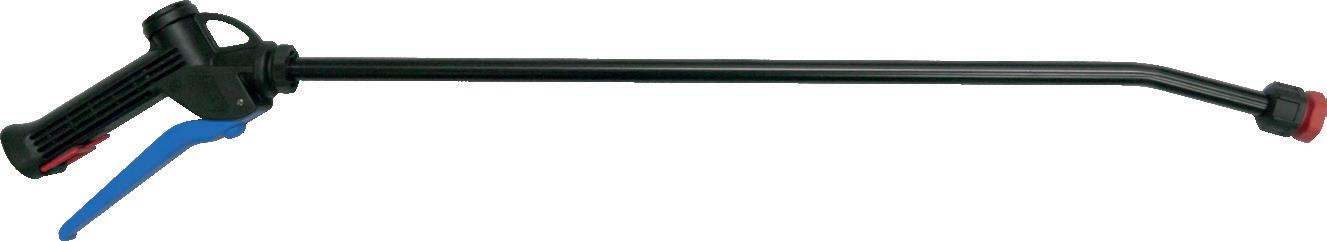

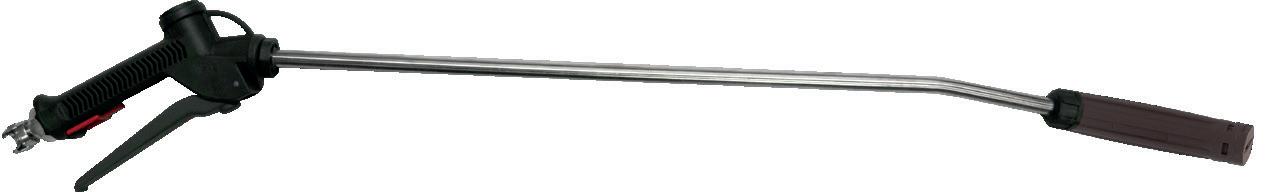

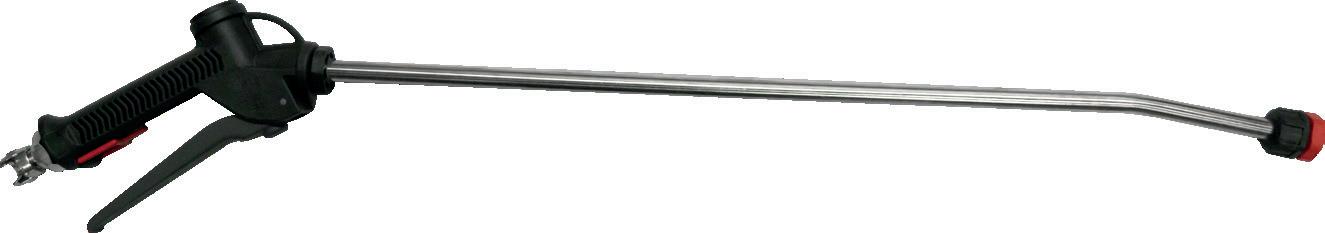

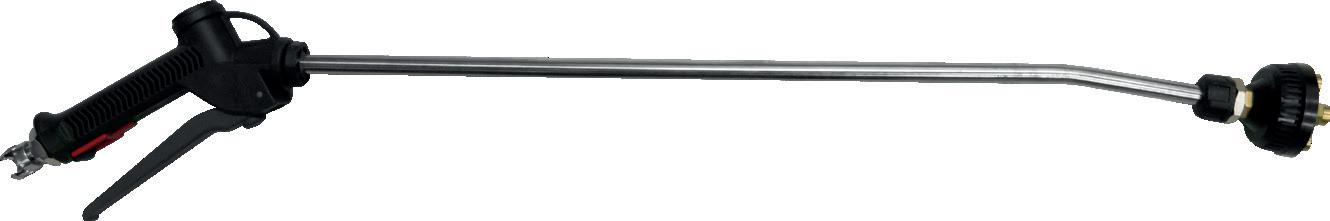

SPRAY GUN + LANCE

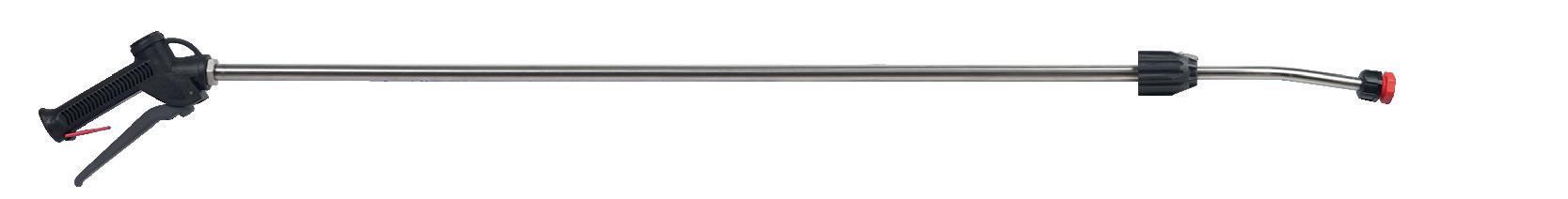

Spray gun + SS lance without nozzle

CDR.7670

CDR.7674

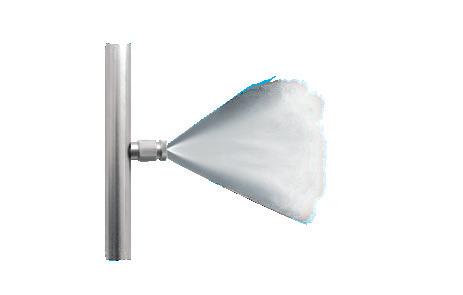

SS spray Nebulizers

ZH.0000

ZH.0100

SS spray Nebulizers

ZH.20013

ZH.21013

PVC spray Nebulizers

CDR.0758

CDR.0759

Stainless steel foam Nebulizers

ZH.1012

ZH.1112

Stainless steel foam Nebulizers Code

ZH.1001

ZH.1101

NEBULIZERS

Stainless steel foam Nebulizers

Stainless steel telescopic nebulizers

SS spray Nebulizers

ACCESSORIES

CDR.PX-11003

CDR.7569

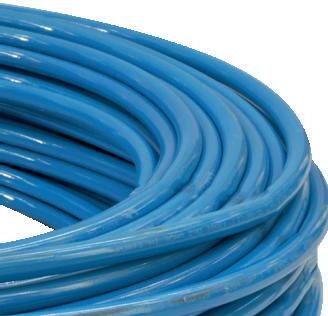

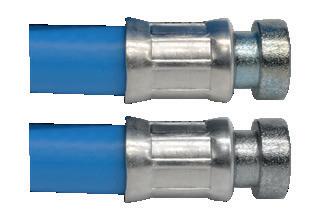

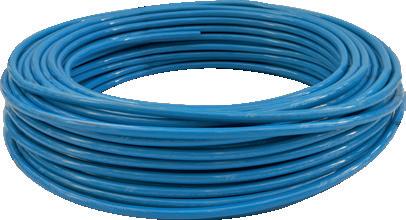

20bar, ø8x13mm - Hose in BLUE PVC

Ideal for producing hoses used for nebulizers (spray and foam) and compressed air devices. Flexible hose made of PVC with double polyester thread reinforcement. Resistant to atmospheric agents.

CDR.7549

CDR.7549-15

CDR.7549-20

NEBULIZERS ACCESSORIES

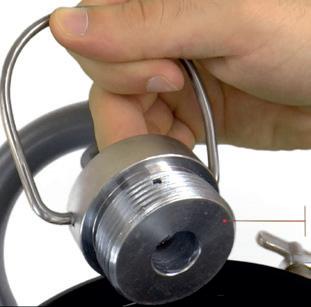

Nebulizer funnel cap made of galvanised steel and O-ring, funnel connection G1” M With safety discharge hole

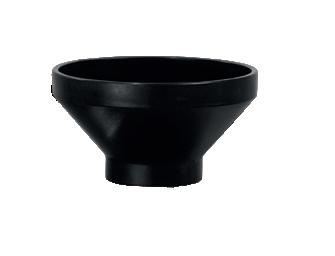

Funnel with O-ring, for Click Clock, not threaded

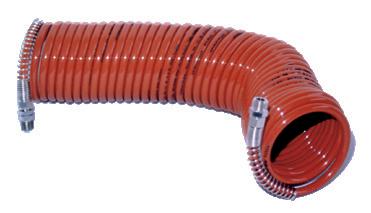

Rilsan spiral hose, ø8x6mm, G1/4” M-G1/4” M swivel, 10m

Nebulizer spray gun inlet connection with O-ring, G1/2” M - G1/4” F

Nebulizer spray gun inlet connection with O-ring, G1/2” M

Complete funnel for Spray Nebulizer

Code Description Complete spray funnel for 24L tank

Complete spray funnel for 50L tank

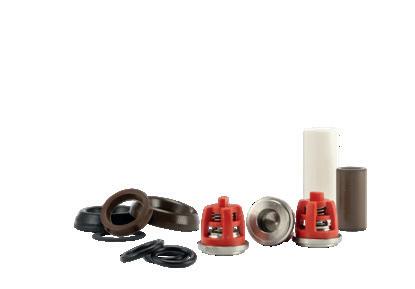

SEALING KIT FOR TRADITIONAL NEBULIZER

Wheel for 24L Nebulizer, black rubber, hub ø15mm with stop disc, made of stainless steel

Spray gun-hose connection, G1/4” M-bayonet, for Nebulizer

Wheel for 50L Nebulizer, black rubber, hub ø20mm with stop disc, made of stainless steel

CDR.1415

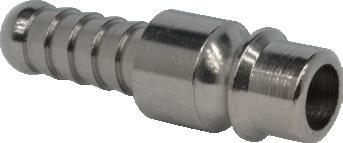

Bayonet hose connection, for foam Nebulizer

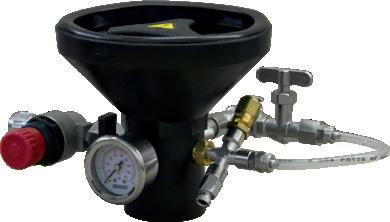

Complete funnel for Foam Nebulizer

Code Description Complete foam funnel for 24L tank

Complete foam funnel for 50L tank

Sealing kit to replace the traditional nebulizer funnel. Consiting of CDR.0857 (1x), CDR.1318 (1x), CDR.2086 (1x): ideal for the maintenance of n. 20 funnels.

Threadsealing 85-86, high strength adhesive For sealing threaded joints. 50ml

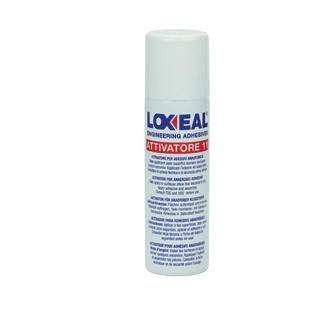

Activator sprat 11, simplifies and quickens the action of the sealant CDR.0857 200ml

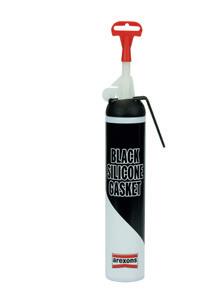

Black silicone seal Arexons 200ml
