Lakeside Community Hub Team 6
Isabella Mearns, Jason Crummie, Georgia Winter, Josh Kantor
1 00 C LEAN C o py 1 1 : 50
The redevelopment of a former car wash site near Lakeside Shopping Centre reimagines an overlooked space as a lively and flexible hub for community use. The project is centred around the idea of renewal, transforming a once purely functional, vehicleoriented site into a place designed for people, interaction, and creativity.

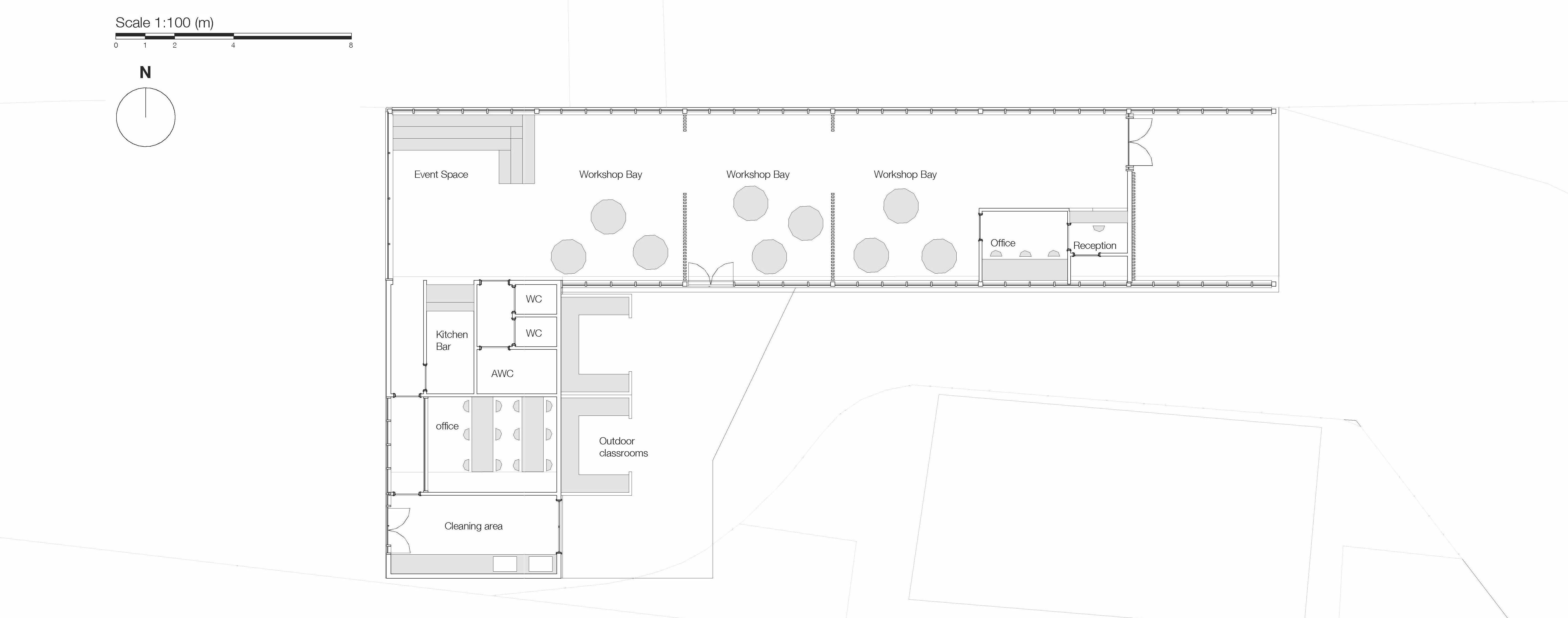

1 : 100
2 00 C LEAN
A key driver of the design is the efficient utilisation of space, ensuring that every area serves a clear purpose while remaining adaptable. The layout is organised around a central event space, supported by a series of flexible breakout rooms that can accommodate workshops, group learning, creative sessions, and informal meetings. This approach allows multiple activities to take place simultaneously, maximising the usability of the site and creating a dynamic, multifunctional environment.
Material There is an emphasis on natural, calming materials and a soft colour palette to create a relaxing and welcoming atmosphere within the community centre
Padestrian Crossing
The use of this data by the recipient acts as an agreement of the following statements. Do not use this data if you do not agree with any of the following statements:Ryder Architecture has co-ordinated relevant information received from third parties, but are not responsible for the content of the information received from others. The controlled version of this drawing should be viewed in DWF or PDF format not DWG or other formats. All prints of this drawing must be made in full colour. Where this drawing has been based upon Ordnance Survey data. Reproduction of this drawing in whole or in part is prohibited without the prior permission of Ordnance Survey. Do not scale the drawing. Use figured dimensions in all cases. Check all dimensions on site. Report any discrepancies in writing to Ryder before proceeding.
4

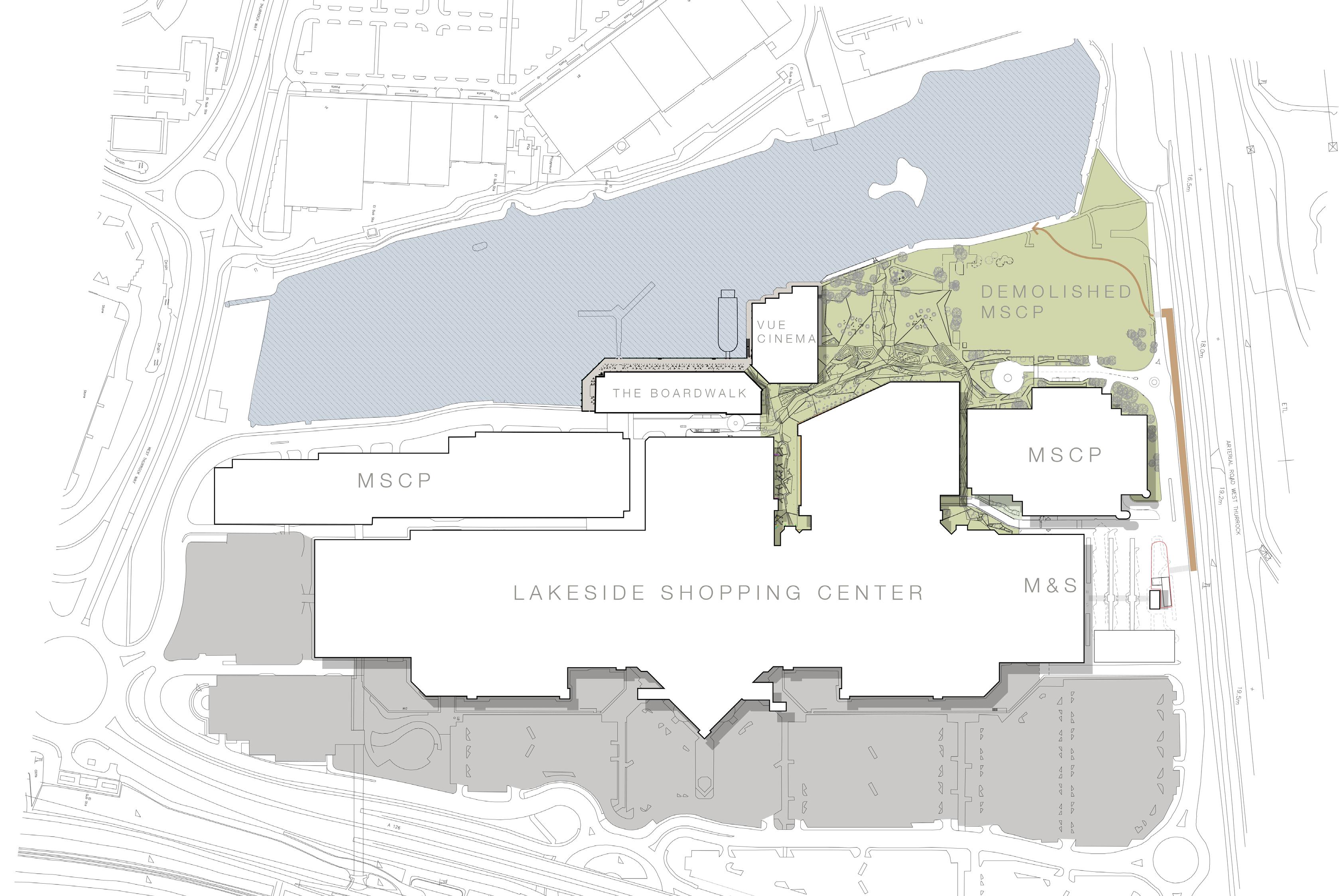

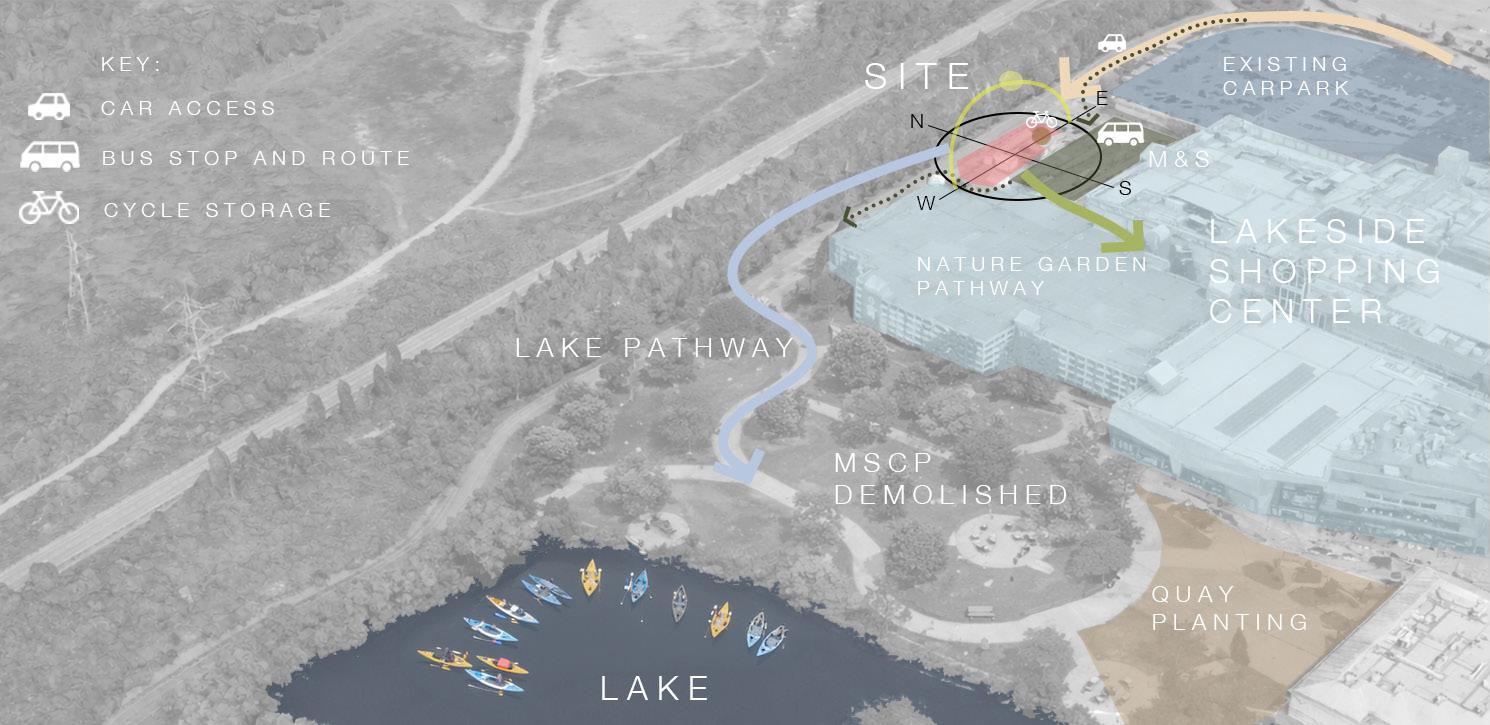

Master plan
8
Access is provided via a proposed pedestrian crossing.
The connection to the lake is a fundamental component of the scheme.
This links the community centre to the new nature area replaced the Multi story car park.
A new woodland walk is proposed along the quarry’s tree line which creates a safe route for groups, separated from the main road and ensures connection with nature.
Case Study
The connection enables access to water-based activities which includes water sports, a floating cinema, and community events.
P01
First Issue
DRAWN CHECKED DD/MM/YY BY BY
Rev
Description
Drawn
Checked
Date
Suitability

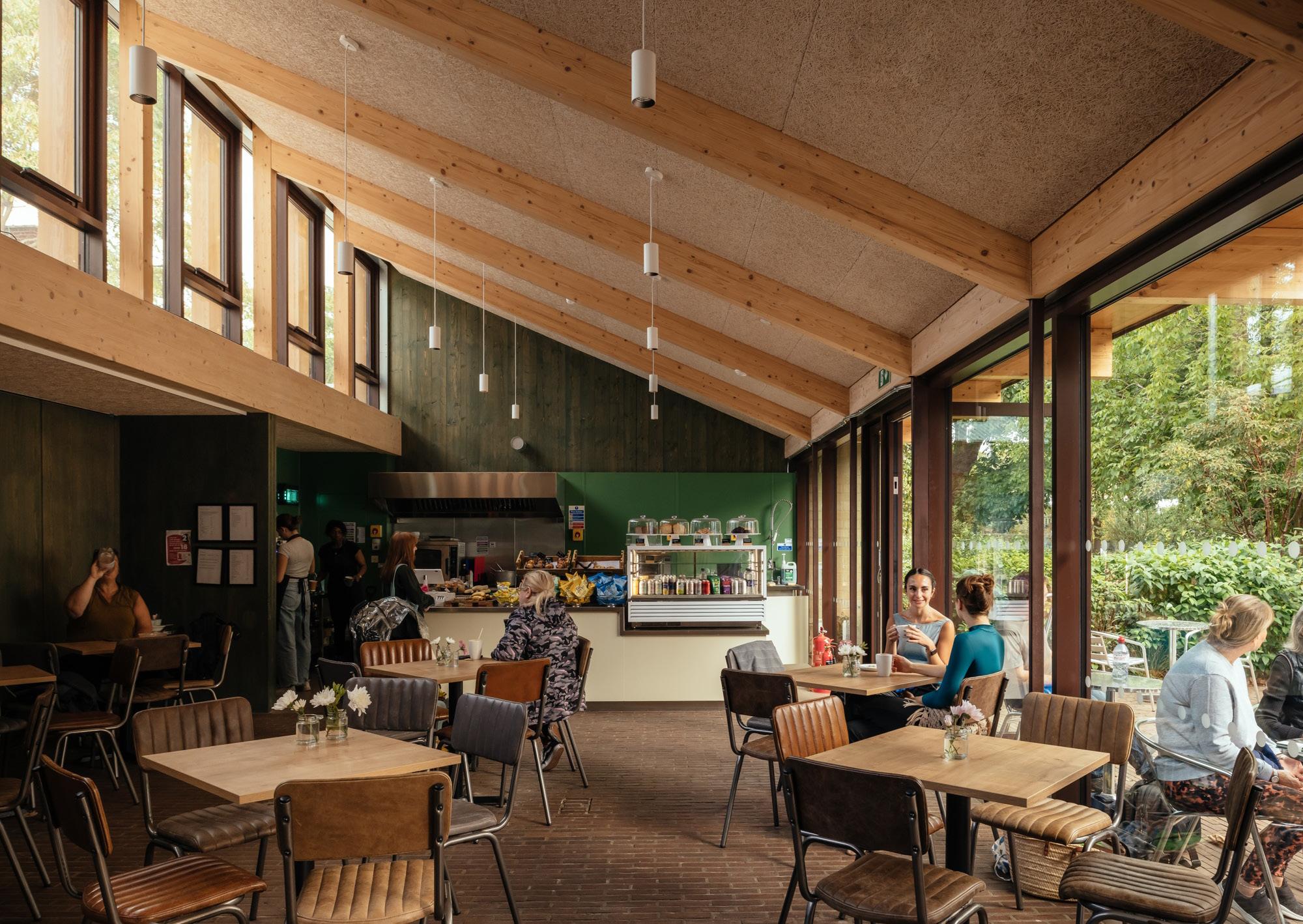

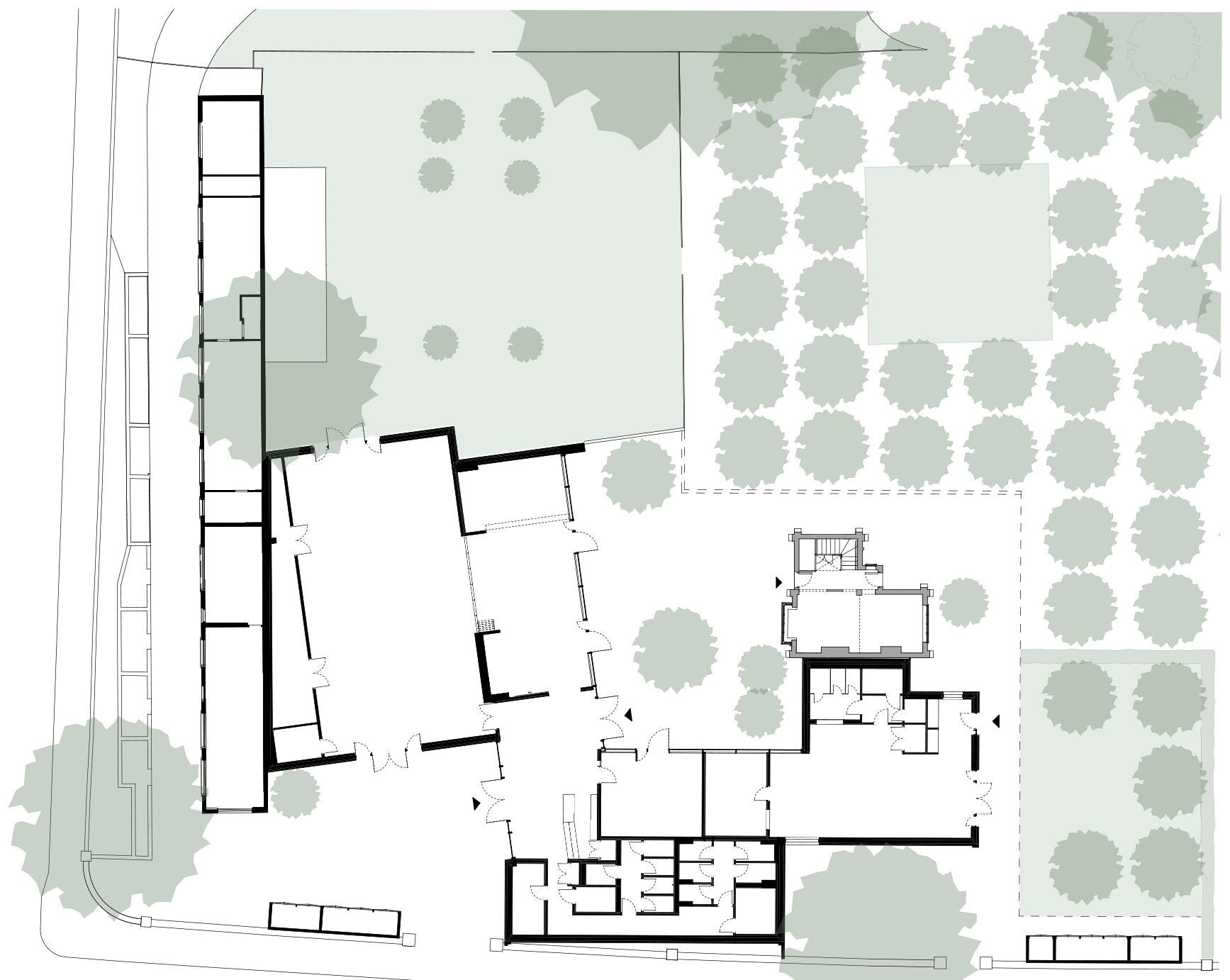

Sands End Arts Centre Sands End Arts Centre is a flexible, multi-use space designed to accommodate events, dance classes, and a variety of community activities. Positioned alongside a café, the space incorporates an abundance of natural materials and framed views into the surrounding landscape, strengthening the connection to nature.
