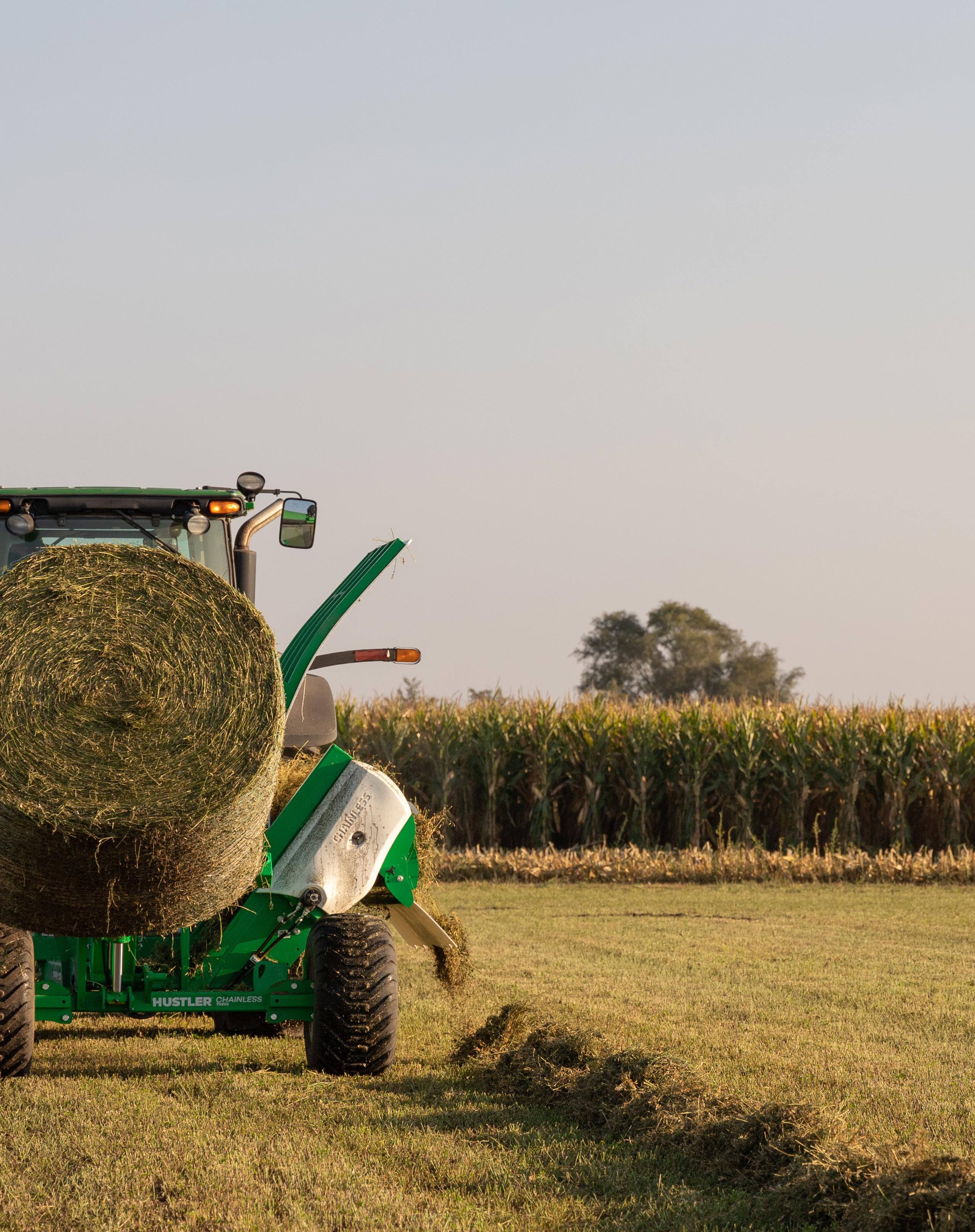

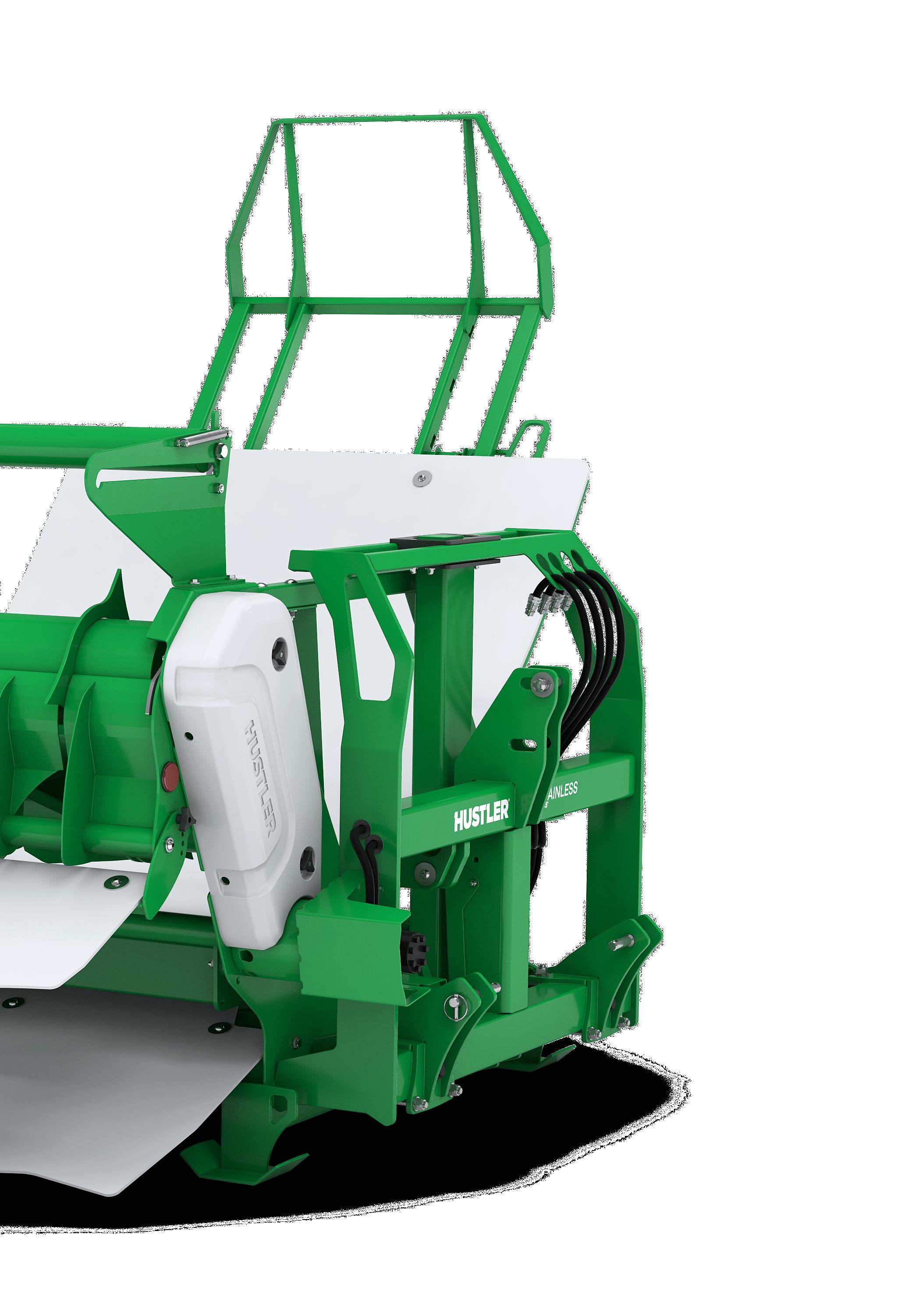

Chainless LX1052
The world’s most versatile round and square bale feeder can be mounted on a skid-steer loader, front loader, telehandler or 3-point hitch. At the core is our patented Chainless feeding system which processes every type of round or square bale with ease, minimizing feed waste. Hustler ‘s patented hands-free automatic connection system Snaplox simplifies operation eliminating the need to pull a rope to disconnect the loading spears.

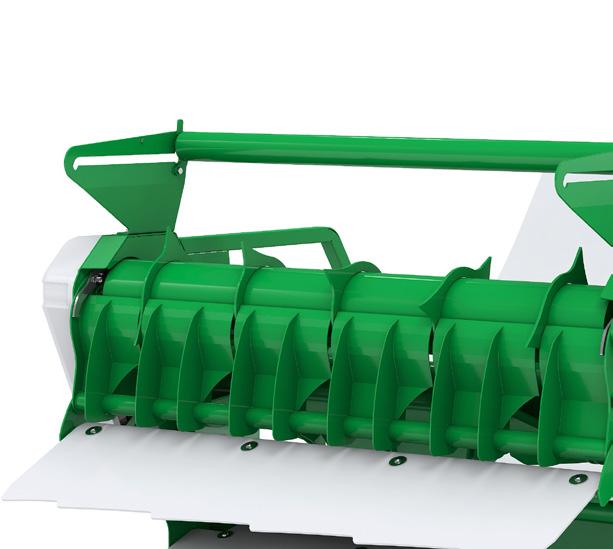

ROTOR TEETH
New rotor teeth shape give better penetration of tight bales and improved cleaning as they pass through Hypaflo wiper panel.
HYPAFLO™ WIPER

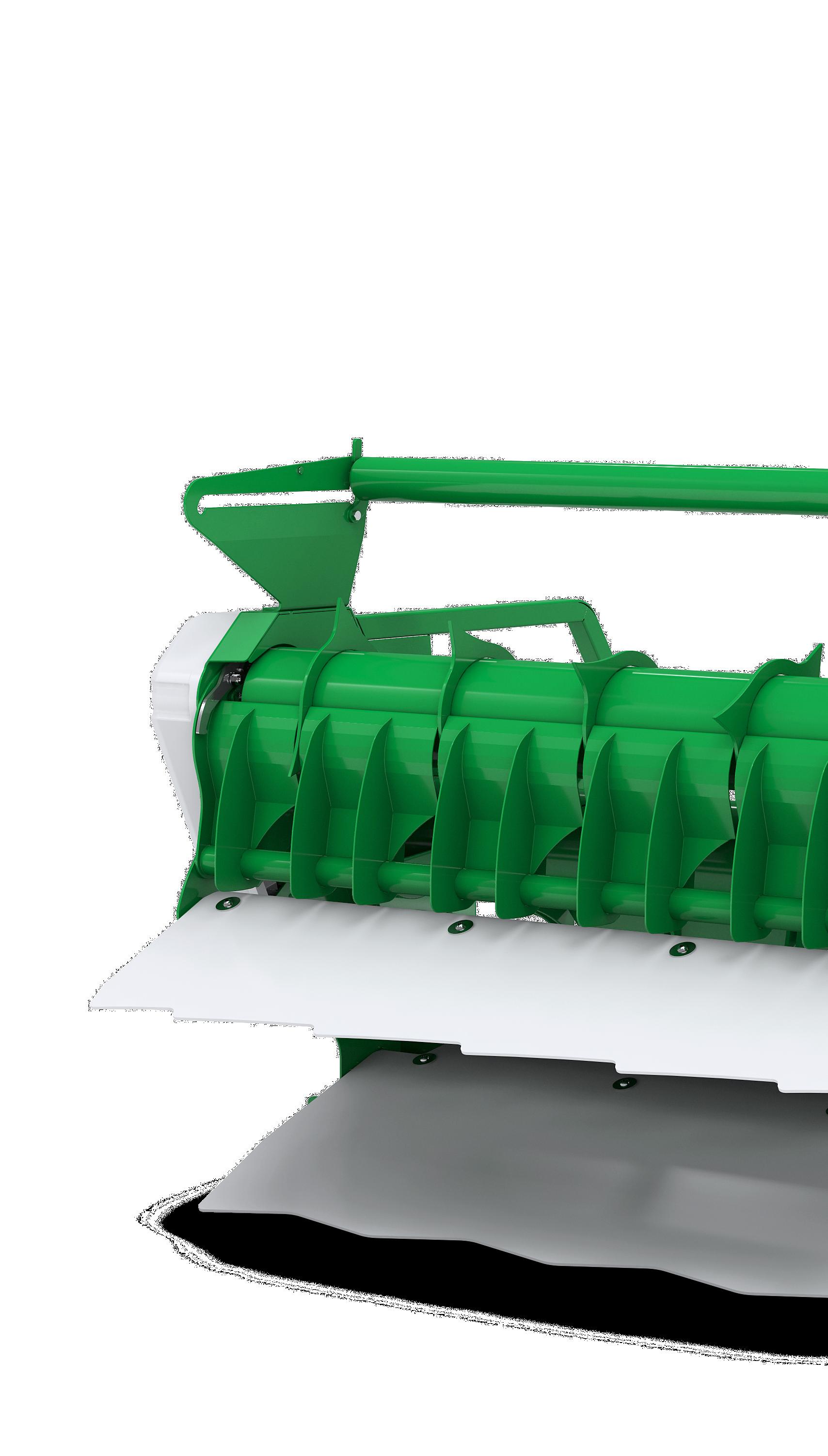

Quick release Hypaflo™ wiper panel makes for easy cleaning and eliminates blockages.
CHASSIS STRUCTURE
Huge monoque main chassis structure provide massive strength and long service life.
PLATFORM ADJUSTMENT
2 Position lower platform adjustment to handle the tightest frozen square bales.
OPTIONAL SIDE CHUTE | UPPER OR LOWER
The chainless side chute catches fines and deflects the hay into a trough or bunk.
DRIVE SYSTEM
New heavy duty drive system runs on 2 double sealed bearings instead of troublesome bushes.
SPECIFICATIONS
BALE SIZES ROUND: 4’ X 4’ – 6’ X 5’
BALE SIZES SQUARE: All sizes (over 6’ long requires optional platform extension)
WEIGHT CAPACITY: 2,755 lb
CAPACITY: 1 bale
LENGTH: 94 in
MIN/MAX WIDTH: 104 in
MIN/MAX HEIGHT: 50 in

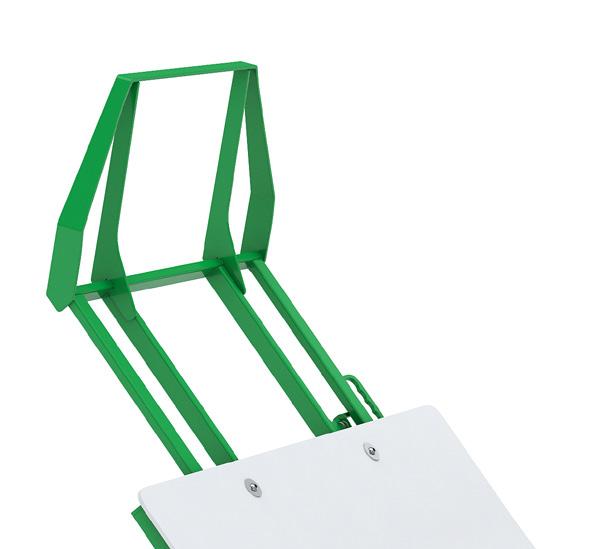

OPTIONAL TELESCOPIC BALE EXTENSION
New optional telescopic square bale extension can accomodate square bales or all lengths
ULTIMATE MOUNTING OPTIONS
Operate easily on the 3-point linkage, front end loader or telehandler thanks to the unique Snaplox auto connection system and TouchFeed hydraulic diverter system. Mount on the front for great visibility and forward reach or mount on the rear for practicality and stability in hilly terrain plus carry a second bale on the front loader.
HYDRAULICS REQUIRED: 2 x double-acting, 8-16 gal/min, 2250-3000 psi
LOADING: Patented Snaplox™ self-loading system
TYNES: 2 x forged high-tensile
UNIT WEIGHT: 1873 lb 2

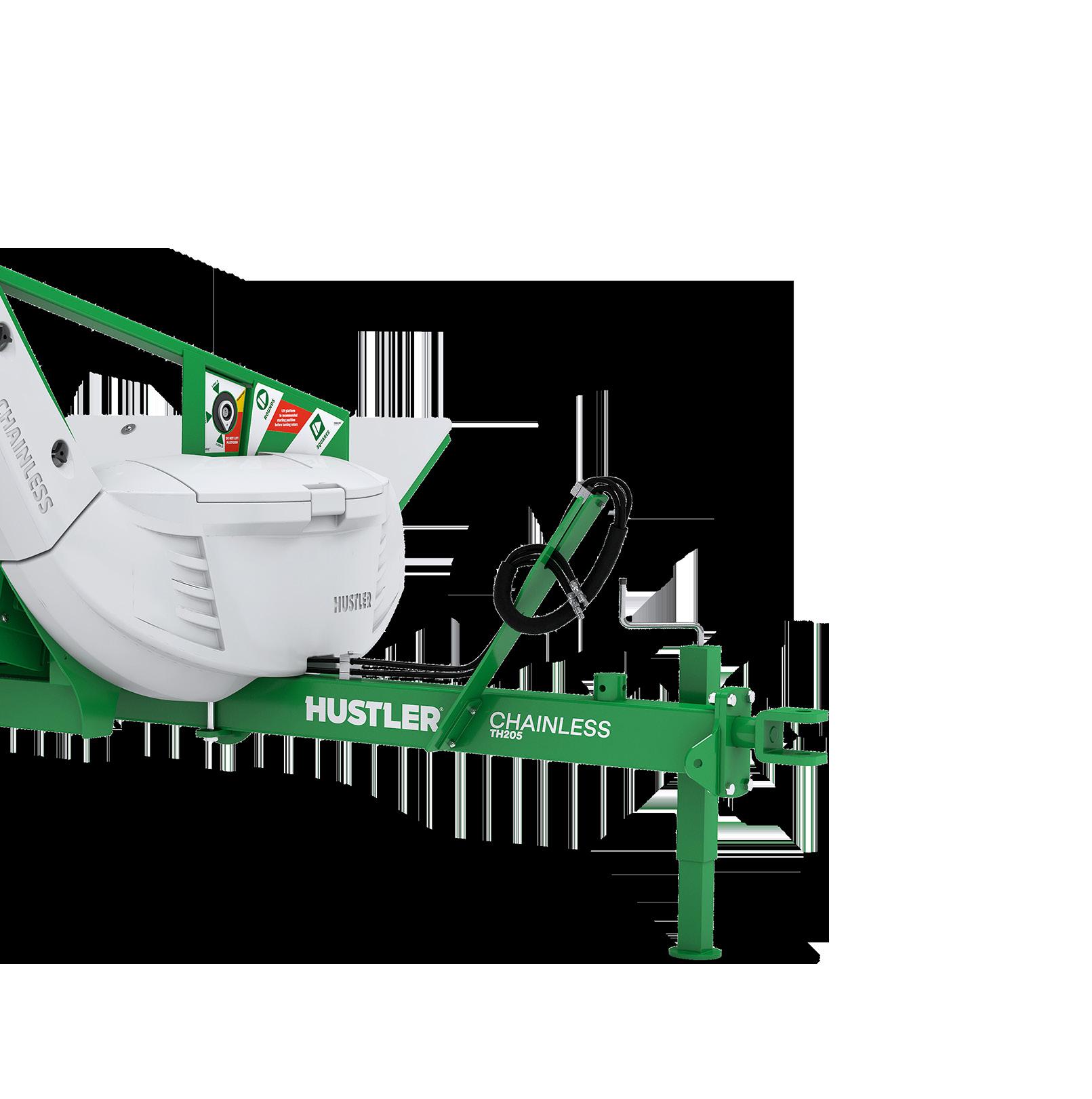

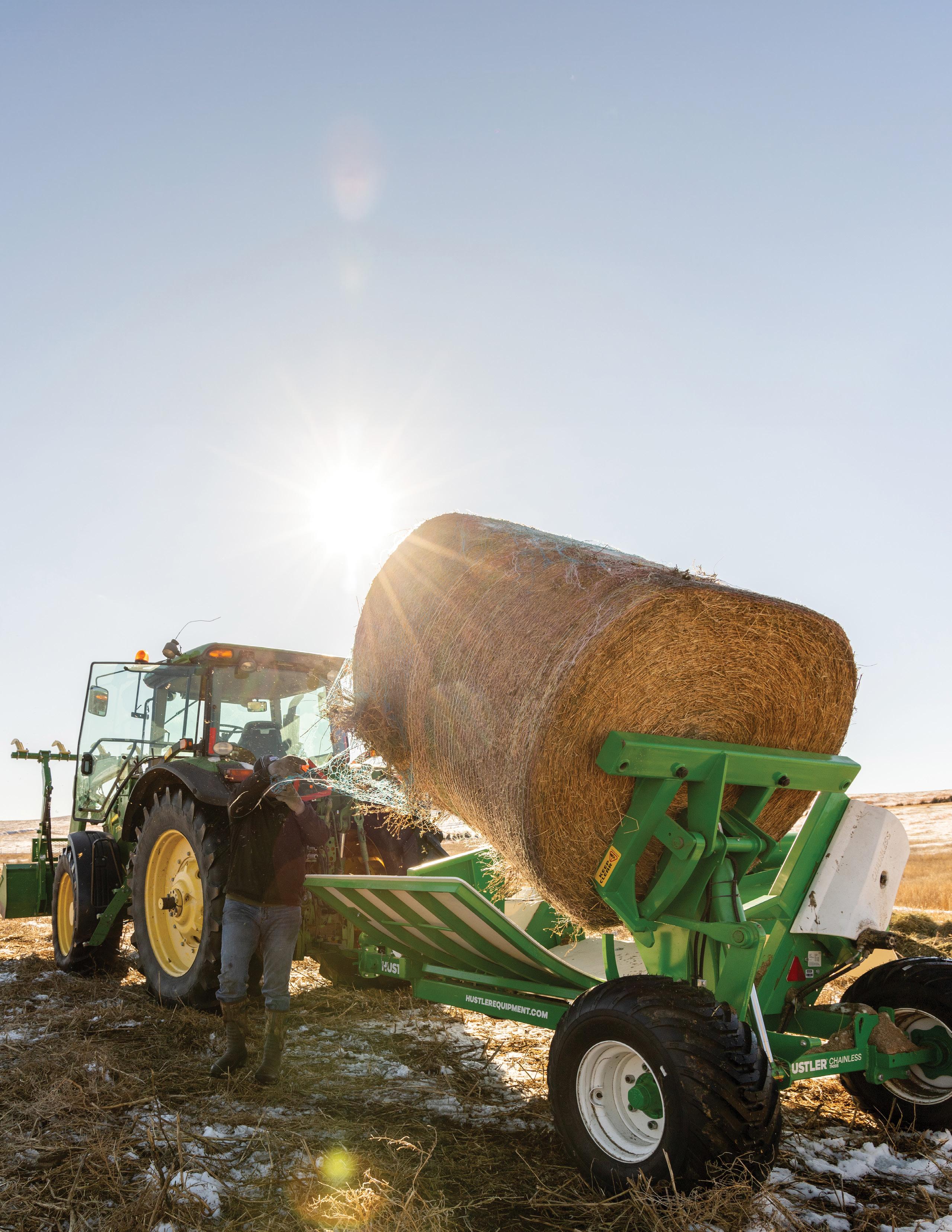

Chainless TH205
TOUGHER LOADING SYSTEM
A new forged link arm, larger bushings and more leverage allows the loading system to handle larger 3,307 lbs bales with ease.

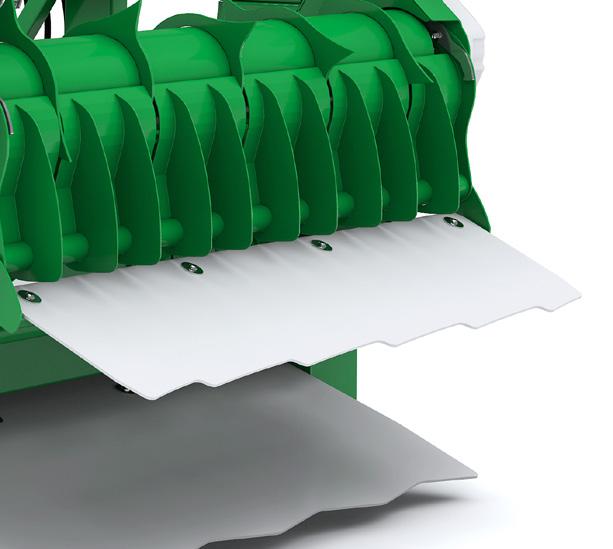

HYPAFLO™ WIPER
Designed to clean the rotors more efficiently the Hypaflo™ Wiper Panel minimizes blockages and ensures that hay drops outside the wheel tracks to avoid being flattened into the mud. An Easy Clean function quickly releases the wiper panel for easy cleaning.
LARGER WHEELS

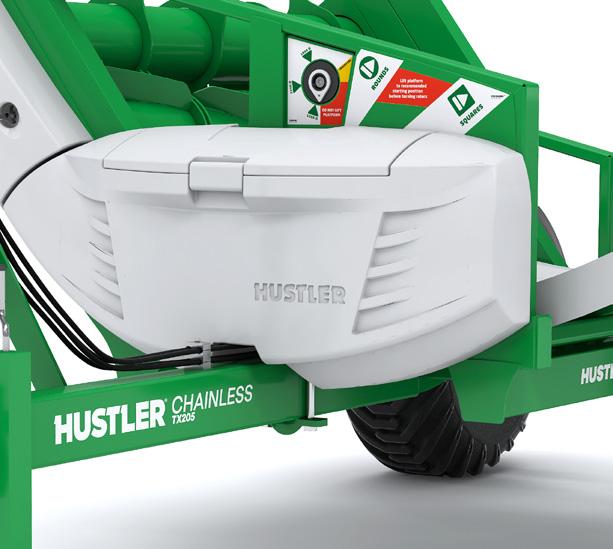

TOUGHER DRIVE SYSTEM
PATENTED AXIAL
Provide more cushion and flotation.
The rear mounted drive system is out of harms way and allows sharper turning and better manoeuvrability. With larger shafts, bearings and keys the Chainless can handle bigger, heavier bales.
No bale is a match for Rotor with centralizing which keeps the bale positioned the centre of the feeding minimize wastage and grip for feeding out soft rotor cut bales.
ROTOR
the new Axial centralizing paddles, positioned in feeding chamber to provides better soft centre and
SPECIFICATIONS
BIGGER CHAMBER
The feeding chamber itself is wider and deeper which prevents bale rub, wastage and the need for continuous adjustment of the platform making it simple and easy for any operator to feed out like a pro.
STRING BOX
Our massive new string-box keeps your wrap and string out of harms way and your tractor cab clean and odor-free. Big enough to hold fencing standards, knives and anything else you need on the job.
COUPLING GRIPS
New hand grips make plugging the hydraulic hoses in much easier, saving your knuckles. And the drawbar needle keeps the hoses out of harms way when operating, and has a built in holder to store hoses out of the dirt when not in use.
CHASSIS DESIGN
The clean underside of the Chainless allows you to drive across hot wires without getting snagged, and all the workings are out of harms way. Chassis members are larger to enable handling heavier bales.
BALE SIZES ROUND: Up to 5’ x 6’
BALE SIZES SQUARE: All sizes (over 6’ long requires optional platform extension)
BALE WEIGHT: Up to 3300lbs ea.
UNIT WEIGHT: 3,100lbs
CAPACITY: 2 bales (round or square)
AXLES: 6 stud, 2.25” square
WHEELS: 400/60-R15.5
GROUND CLEARANCE: 19.5”
LENGTH: 76”
MIN/MAX WIDTH: 77”/106”
MIN/MAX HEIGHT: 50”/106”
TINES: 2 x forged high-tensile HYDRAULICS REQUIRED: 2 x double-acting, 8-16gal/min, 2250-3000 psi
LOADING: Patented Total Control self-loading system
Customize your Chainless.
Adjustable 153/4” wide wiper panel extension, ideal for feeding into bunks giving extra reach.
Huge storage compartment takes care of twine and wrap, and keeps smelly waste out of your cab.
Extend the platform length to handle larger 8’ long square bales.
Allows any Chainless bale processor to break up the tightest of High-Density Square bales.
Allows the machine to be connected to the front loader or 3-point linkage in minutes without any tools.
SUITS: all models
SUITS: all models
Side Chute
Platform Extension
SUITS: Chainless LX105²
Multihitch
SUITS: all trailed models
SUITS: all models
String Box Even Feed Roller
With the Hustler, I can put out 19 bales in a day where before it would have been 30 or more” “
Stephen Gaskins - North Carolina (USA)
Rancher and owner of a Hustler Chainless TX205

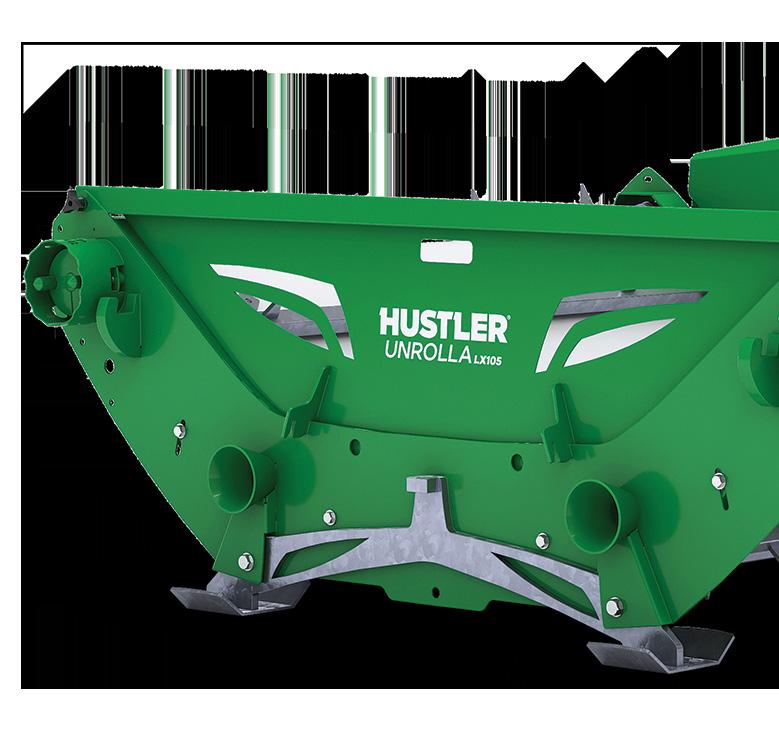

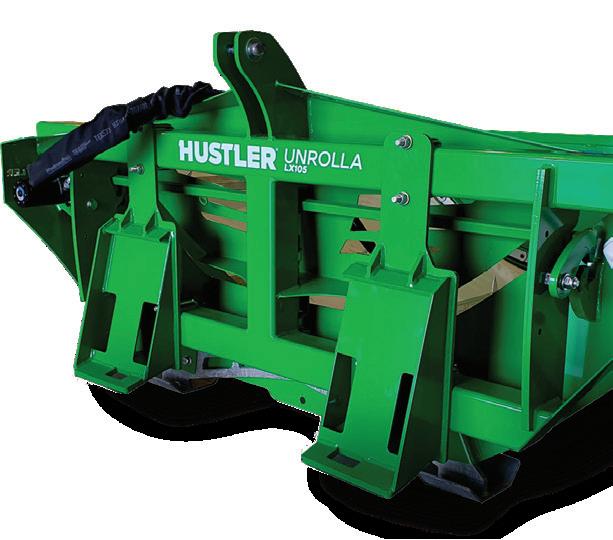

Unrolla LX105
Easier to use than any other type of chain feeder on the market today – nothing comes close to the LX105. Loaded with unique features that give more versatility and time savings, including the ability to mount on 3-point linkage, front loader, skid-steer or telehandler to give greater flexibility of use. Suitable for feeding out all but the tightest of round bales and baled silage, loose silage, maize/corn silage, fodder-beet and more.
COVERED DRIVE SHAFTS
ENCLOSED FENCE
Ideal for loose feeds and working on steep terrain.
DUAL SIDE FEED
A single lever control enables feeding out to either side & precise rate of feed.
Prevents long chop hay or balage from wrapping around drive shafts.
BEARINGS
Self-aligning, low maintenance bearings will easily outlast any type of bush system.
CONNECT EITHER END
Easily connecting from either end makes operation quicker and simpler in tight situations.
SPECIFICATIONS
BALE SIZES ROUND: Up to 5’ x 6’
BALE SIZES SQUARE: Up to 3’ x 4’ x 7’ (requires optional rail/roller kit)
BALE WEIGHT: Up to 2200lbs
UNIT WEIGHT: 1265lbs
CAPACITY: 1 bale
LENGTH: 81”
WIDTH: 81”
HEIGHT: 42”
LOADING: Patented Snaplox self-loading system
TINES: 2 x forged high-tensile
HYDRAULICS REQUIRED: 1 x double-acting, (8-16gal/min), 2250-3000 psi
STRONG FLOOR BARS
Toughest feed bars in the game.
See the 60 Seconds of MiNT video about why we chose bearings.
hustlerequipment.com/ bearings
OPTIONAL BUILT IN ROPE
Built in rope for thoses who prefer pulling rope
BALE CHAMBER
TEETH
Unique, extra-strong shark teeth designed to prevent feed from being dragged under the machine.
Steeper and deeper, it can hold and retain a variety of types of feed.
SNAPLOX ™ AUTO-LATCH
This patented system lets you connect & disconnect without tugging a rope.
TOUGHEST CHAIN
Zinc-plated 12,000 lbs chains with heavy duty rollers and pins are almost twice as strong as others.
Customize your Unrolla.
Side Chute
Extends the feed drop point and helps feeding into troughs, bunks or along hot-wires or against head-bails.

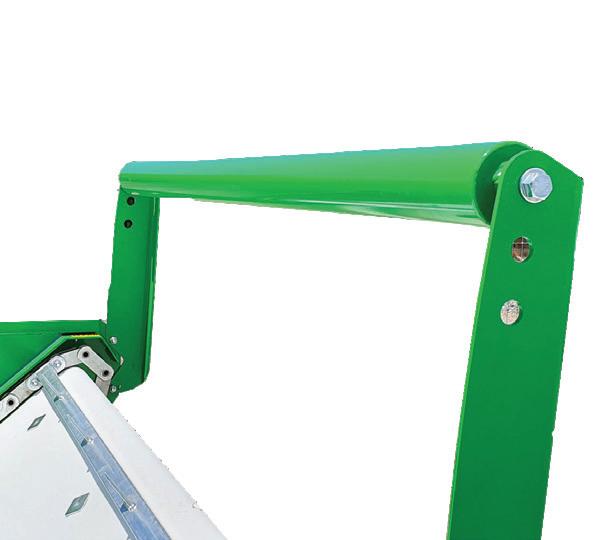

Side Rollers
Prevents your bale from falling out of the cradle when operating in hilly country & allows you to feed square bales.
Telehandler mounts
Allows the machine to be connected to a telehandler.

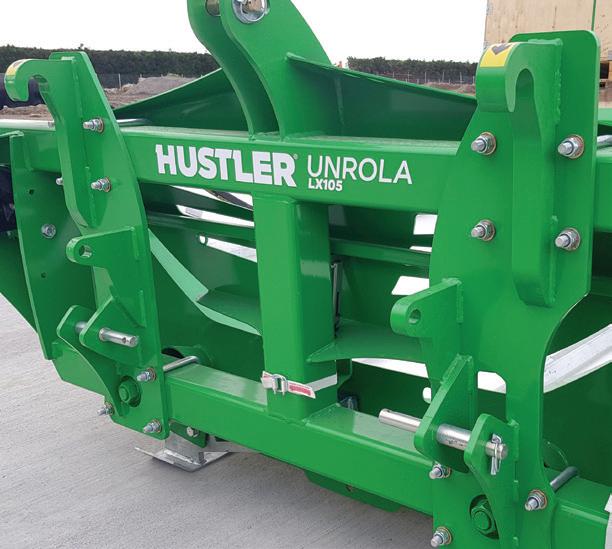

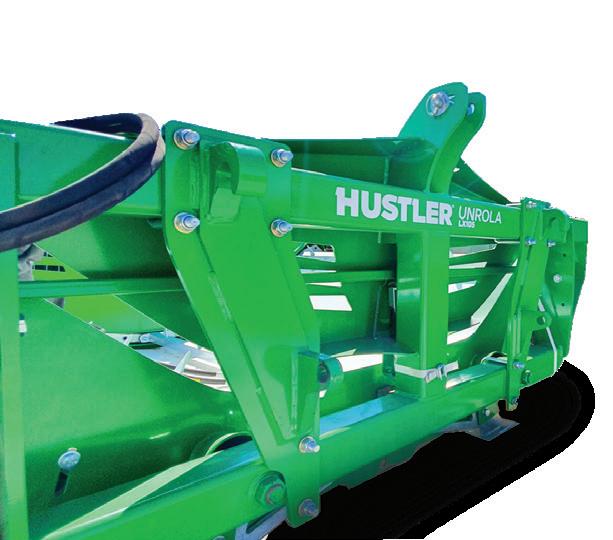

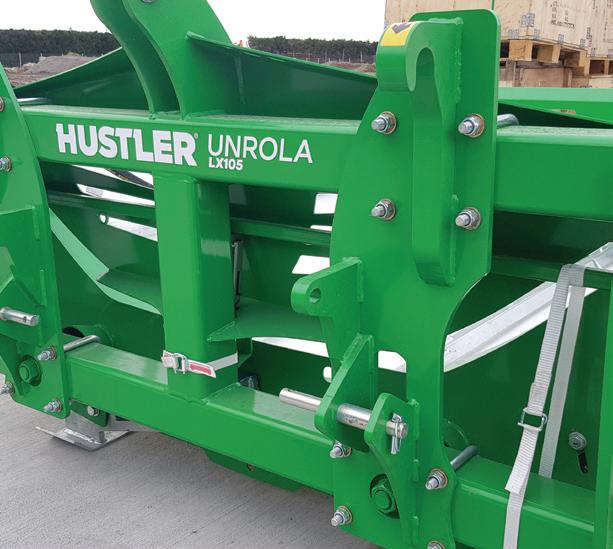

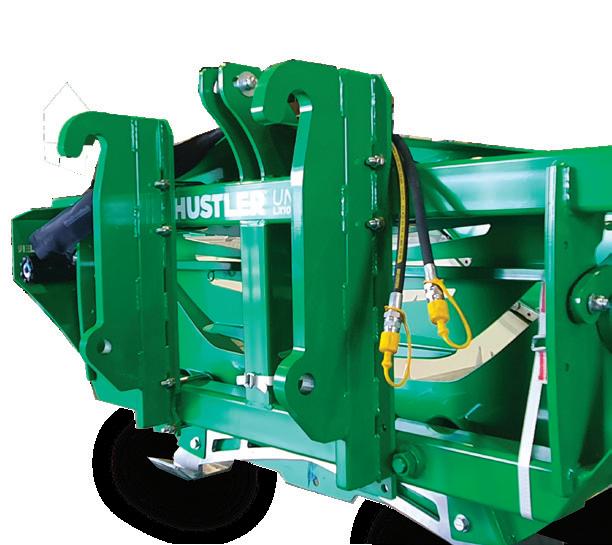

Multihitch mounts
Allows the machine to be connected to the front loader or 3-point linkage in minutes without any tools.
Euro Hitch front mounts
Allows the machine to be connected to a tractor’s front loader.

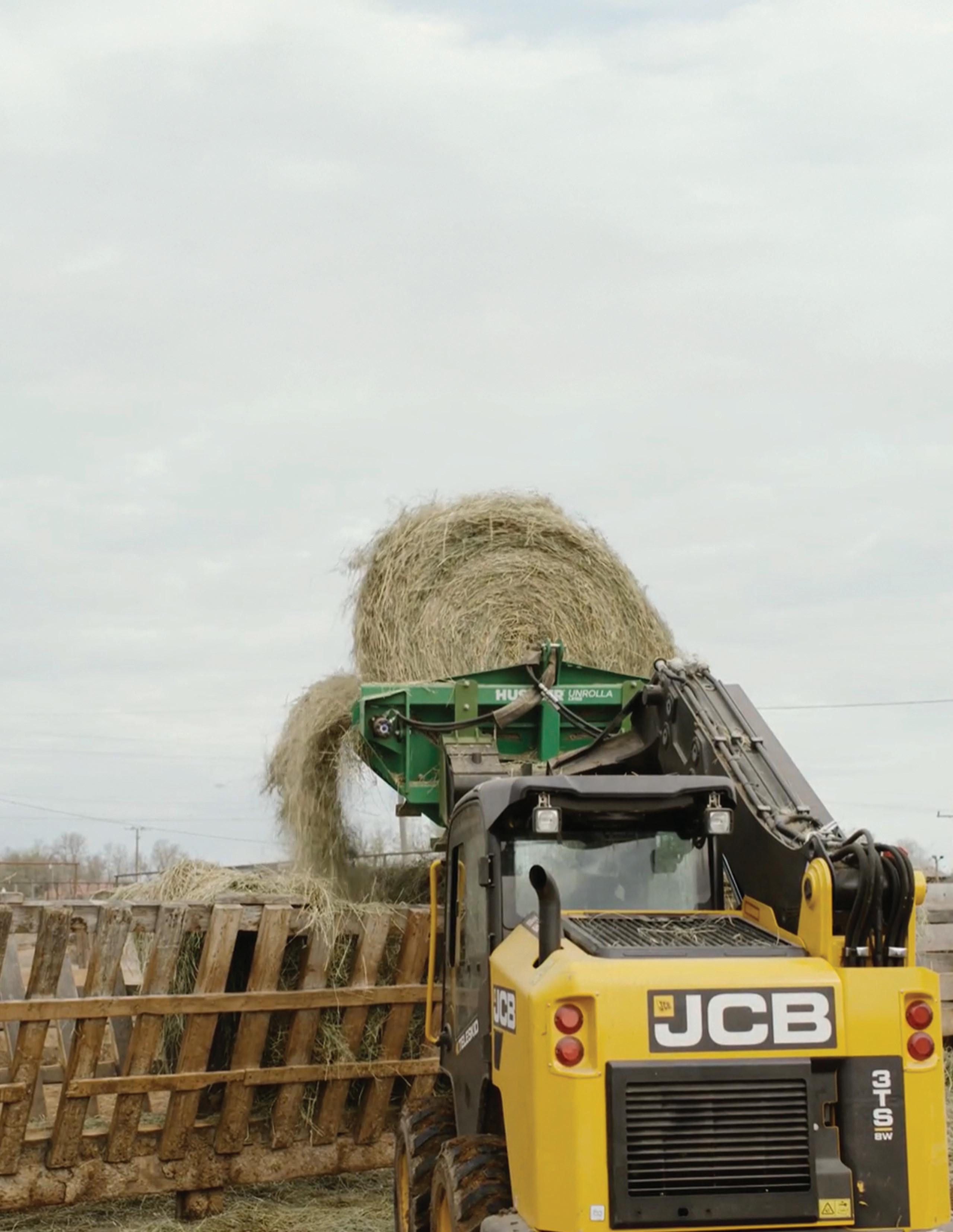

steer loader mounts
Allows the machine to be connected to a skid-steer loader.
Other available hitches
• CB 526 tool carrier CB Brackets
• Euro/3-PTL combo Brackets
• Manitou/NH Brackets
• JCB 530 Q-Fit Brackets
• Matbro Loader Brackets
• Merlo Brackets
• Manitou/NH Q-Fit Brackets
• Weidemann Brackets
• MX Brackets
• Kramer Brackets
• Plain Backing Plates (Narrow - JCB Fitment)
• Plain Backing Plates (Wide - Skidsteer Fitment)
• JCB
Skid
www.hustlerequipment.com/bale-feeders/mounted-bale-unrollers

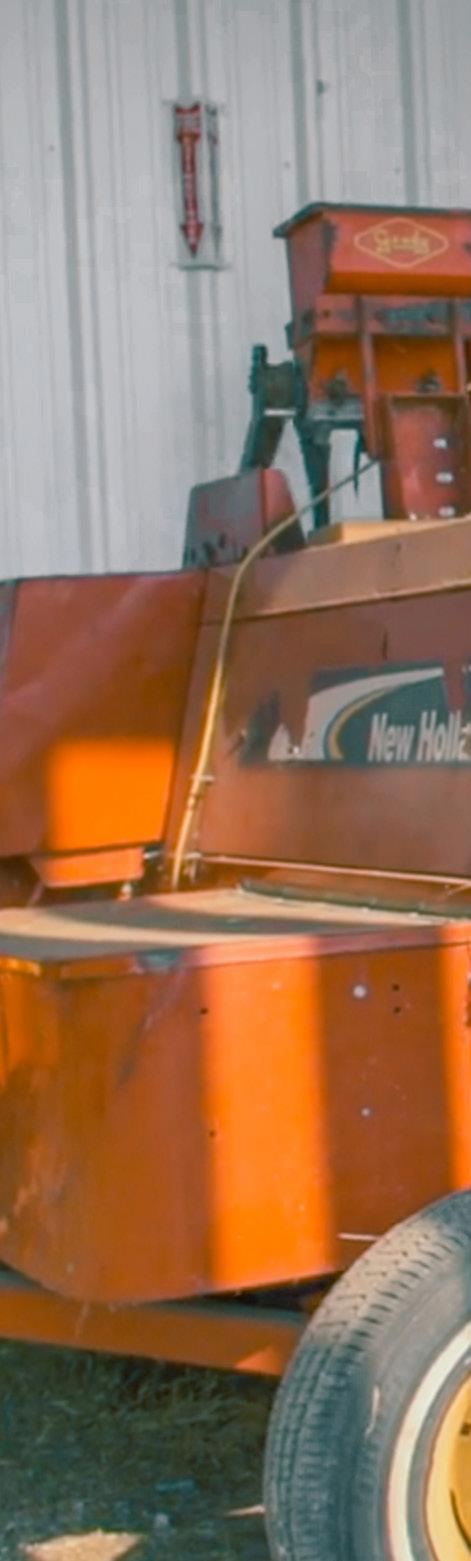

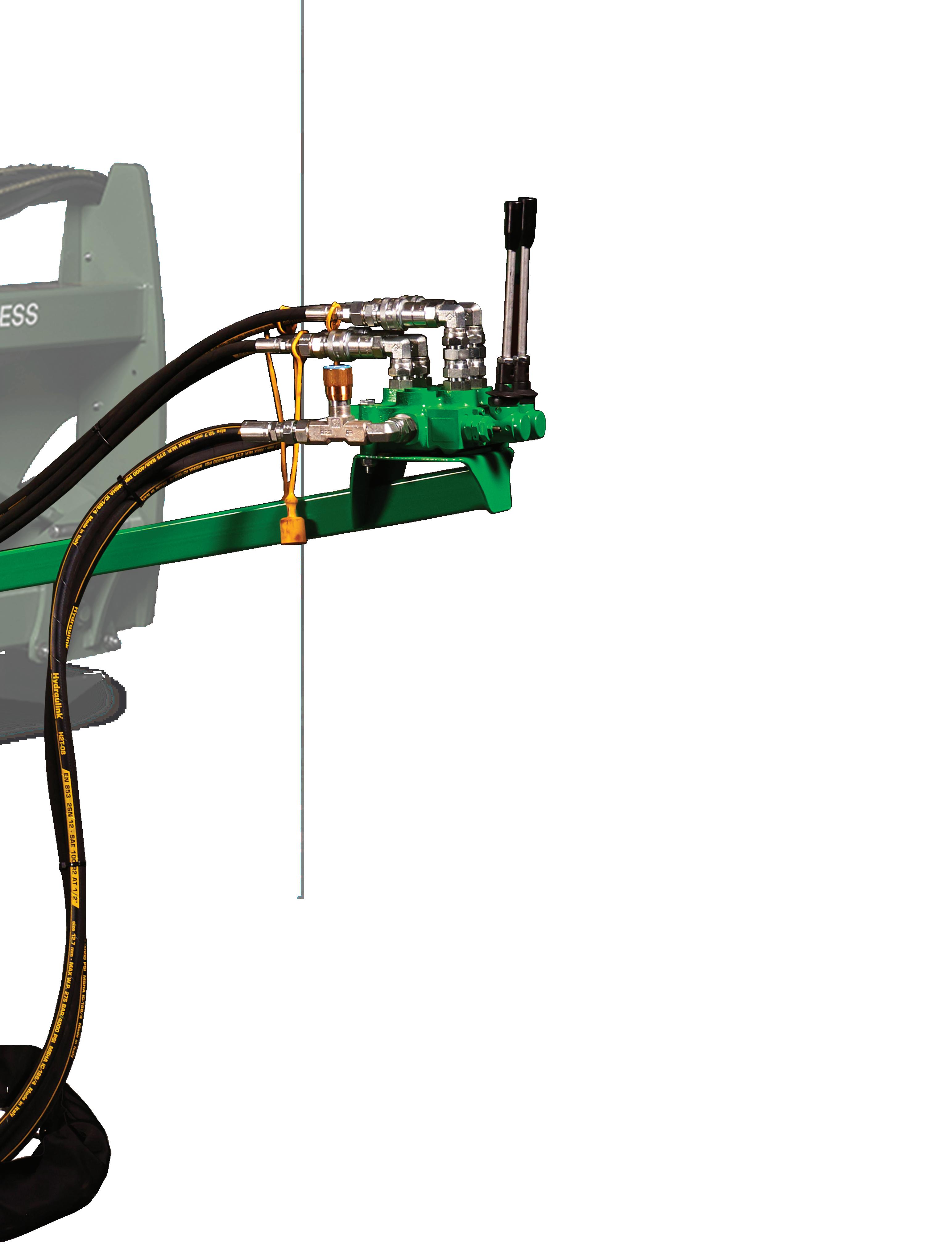

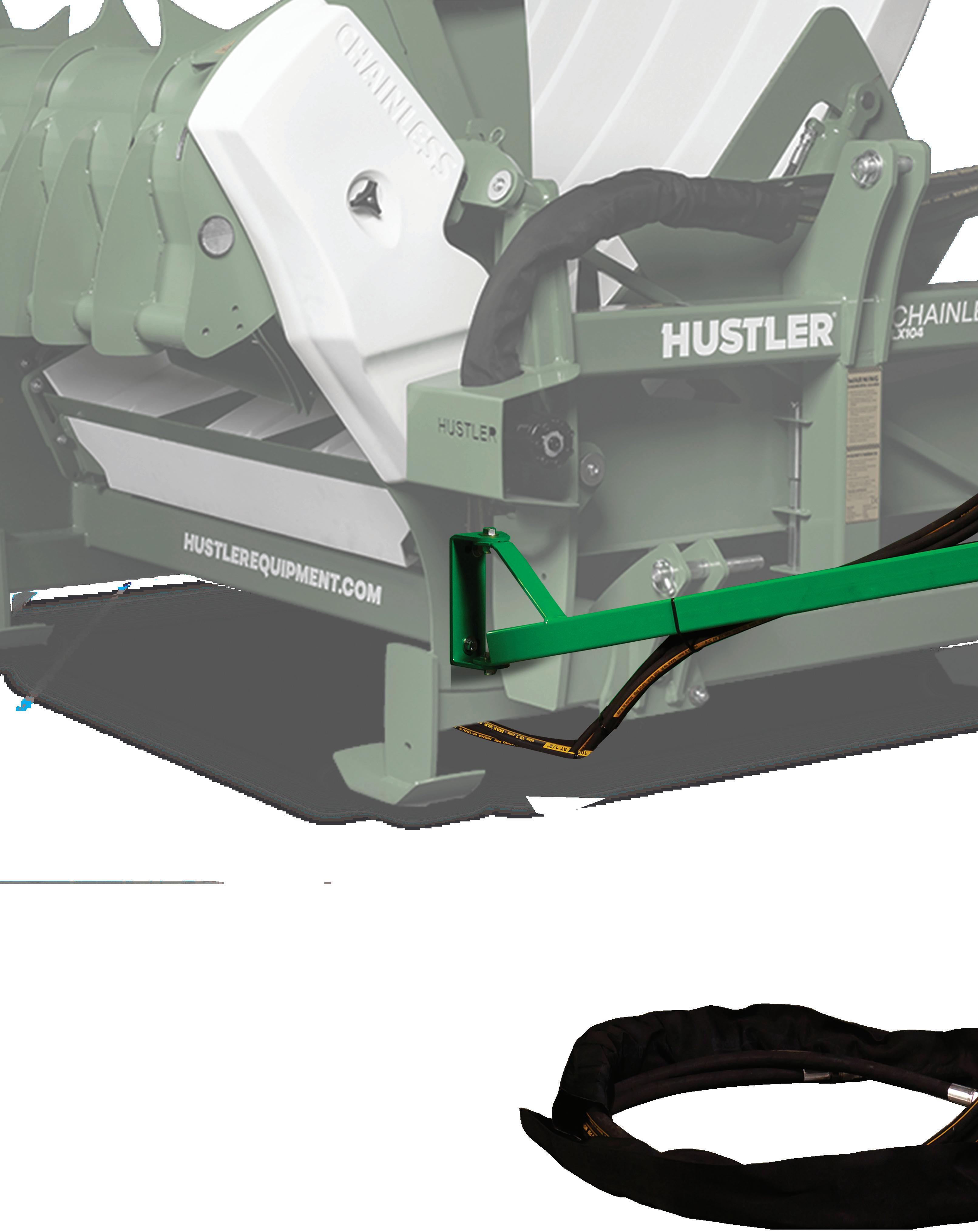

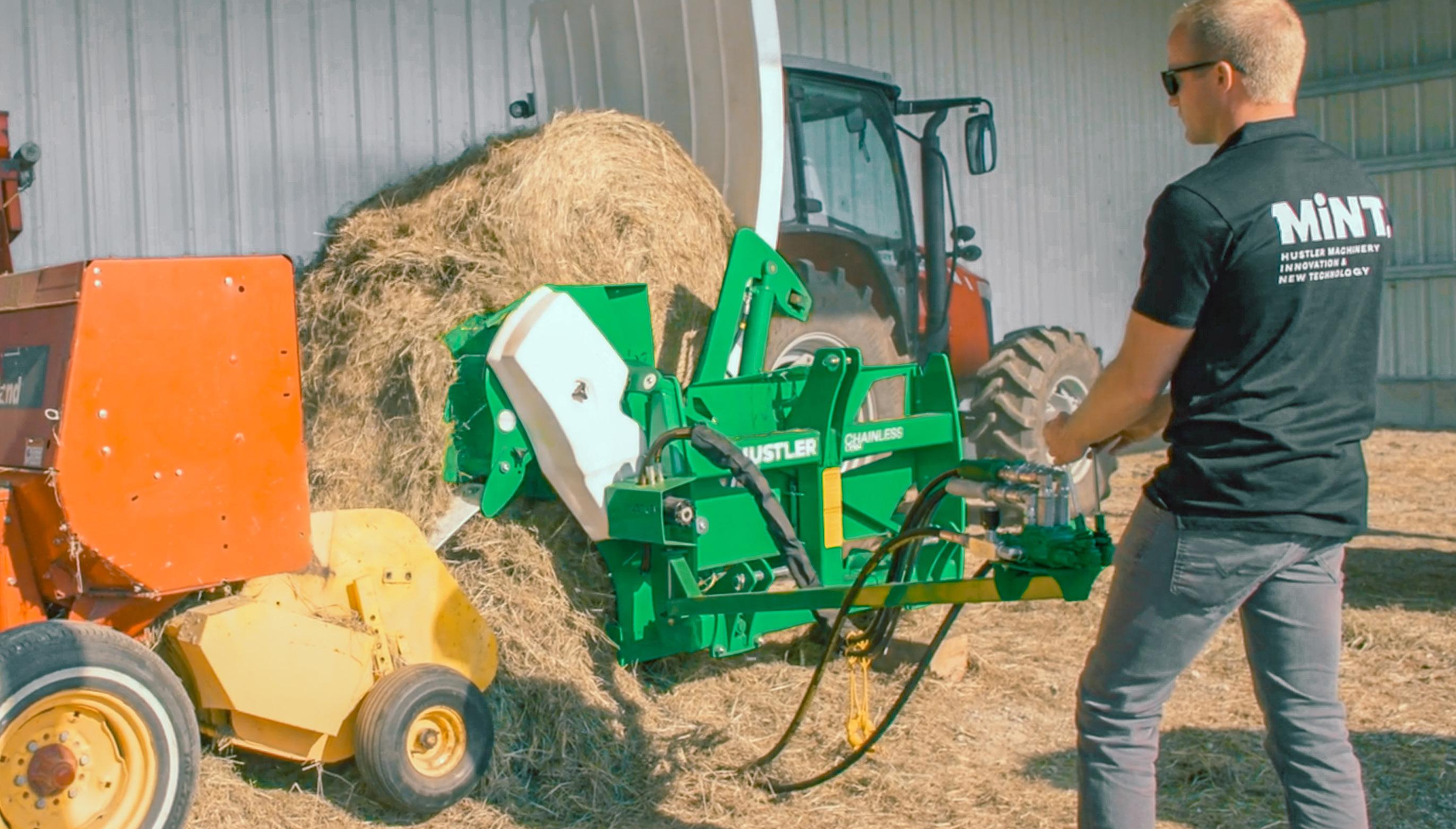

Ez Remote for Rebaling
Tease apart your large round bales in less than 2 minutes to convert them into small square bales! Make your rebaling operation more efficient and more profitable with huge time, labor cost and fuel savings.
160-DEGREE ANGLE
The Ez Remote for Rebaling control valve can be positioned within a 160º arc to suit indivicual operator preferences.
QUICK COUPLING HOSES
Quick coupling hoses are supplied within the Ez remote attachment kit for a quick and easy fit.
RETROFITTABLE
If you already own a Hustler bale feeder, it is possible to convert it into a rebaler since the Ez Remote for Rebaling is retrofittable with almost all models. Talk to your Hustler sales rep for further information.
SANDBLASTED AND ARMACOTE FINISH
All Hustler products are made to last, and a sandblasted finish combined with an impressively durable power-coat means your machine will look new for years to come.
EASY TO USE
The simple hydraulic design makes it very easy for any operator to master quickly.
CONTROL LEVERS
Easy levers give you control of the amount of hay that is processed, and allows you to control the speed of the rotors and the height of the platform.
IMPROVED VISIBILITY
The remote, adjustable placement allows the operator to stand wherever they can best see the processor at work, allow you to quickly and accurately process your bales.
ONE SET OF DOUBLE ACTING HYDRAULICS
A single set of double acting hydraulics means a single tractor can run both the square baler and the bale processor.
Benefits of Rebaling.
+ Preserve feed quality for longer
+ Substantially reduce handling time and cost
+ Eliminate hours of back-breaking labor or expensive equipment to collect small bales
+ Increase the value of your feed
+ Store the large bales and re-bale the small squares on demand or during winter
+ One tractor can run both the square baler and the bale feeder

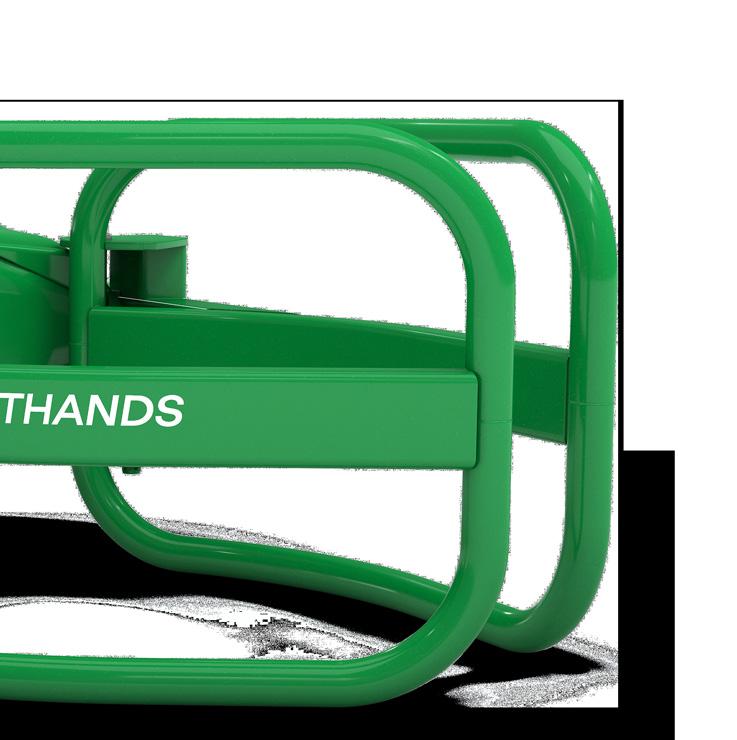

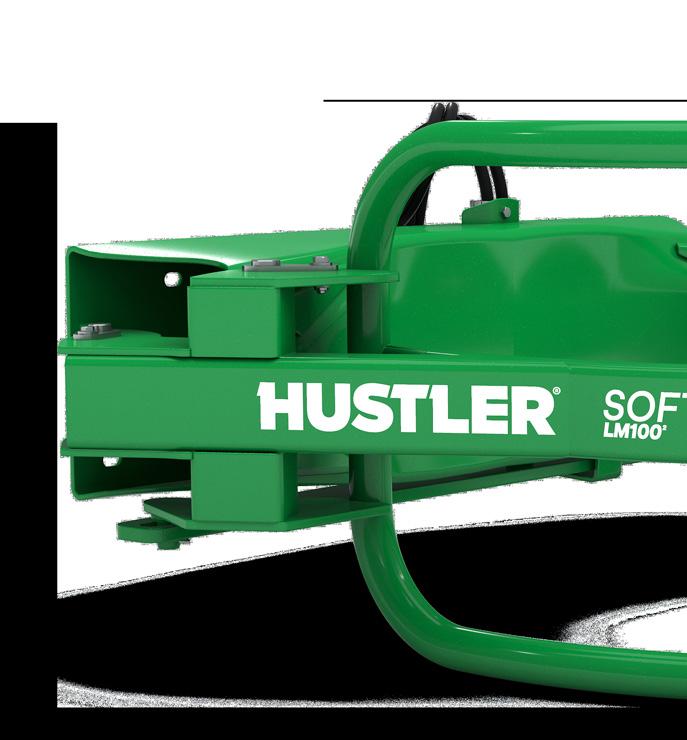

Softhands LM1002
The most recent addition to the Hustler bale handler family, the LM1002 was designed for ranchers on a budget. It is designed tough, predominately for handling round bales, and the compact design is suitable for any sized tractor.
TOP EXIT HOSES
The hydraulic cylinder is fully protected inside the main structure and the top exit hoses are out of harms way when connecting to the loader.
HEAVY DUTY PIVOTS
Large 1.25” pivot pins, with massive surface area provides years of trouble-free use. Greasable pivots also provide easy maintenance.
MONOQUE MAIN FRAME
Uniquely formed main frame, that is both strong, lightweight and smooth to reduce bale damage.
PATENTED FLOATING EQUALISER BAR
The ultimate in precision bale handling, the Equaliser® keeps both hands moving simultaneously for accurate bale placement. The 2” of float makes loading and stacking easier.
LOADER BRACKETS
Standard with integrated Euro-Hitch, skid steer brackets or plain (no brackets). The LM100 has many other bracket options to suit other loaders e.g. Plain Euro, Manitou JCB Q-FIT, Matbro (Pin and Cone), Merlo, Kramer, Wiedemann, MX, Skidsteer
“
They last for a long time so in that respect they’re saving us a lot of money because we’re not having to go and replace them all the time.”
John Vallance Owner of Hustler Softhands
UNIQUE HAND SHAPE
The unique hand shape follows the radius of the bale for a perfect grip and the straight ends extend past the center point of the bale which allows the hands to easily slip between bales and eliminates damage to wrapping.
BALE SUPPORT
The RHS center bars provide unparalleled bale support to reduce bale deformation during handling, and provide
SLIM HAND DESIGN
The slim hand design slides between bales easier and simplifies stacking, loading
COMPACT MAIN FRAME
Keeps load as close to tractor as possible to minimize load centre
SPECIFICATIONS
BALE SIZES ROUND: Up to 68”
BALE SIZES SQUARE: Will clamp 35” x 63”
OPENING/CLOSING: 68”/5”
BALE WEIGHT: Up to 2,200 lbs
UNIT WEIGHT: 450 lbs
HYDRAULICS REQUIRED: 1 x double-acting, (3-16gal/min), 2250-3000 psi

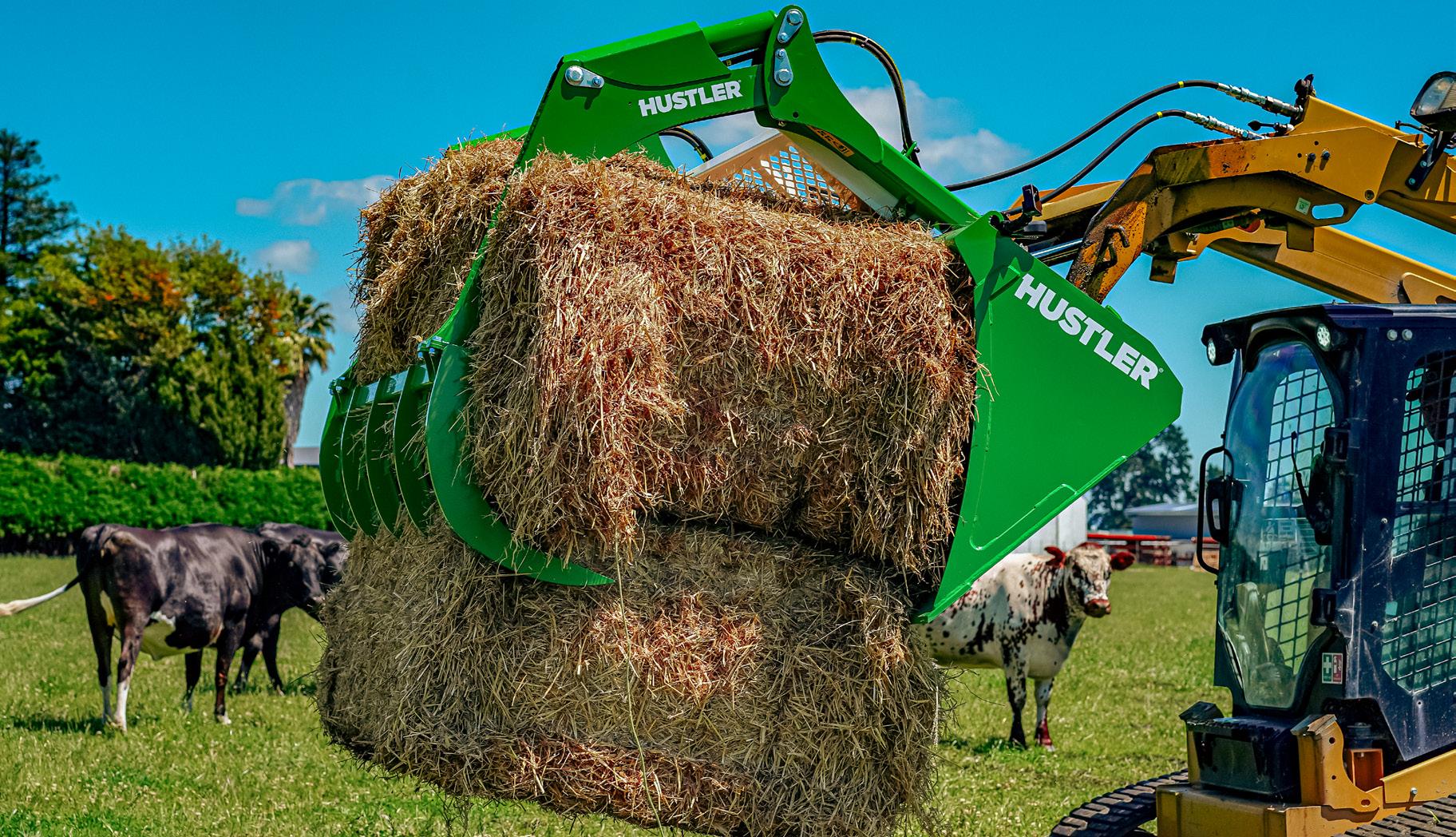

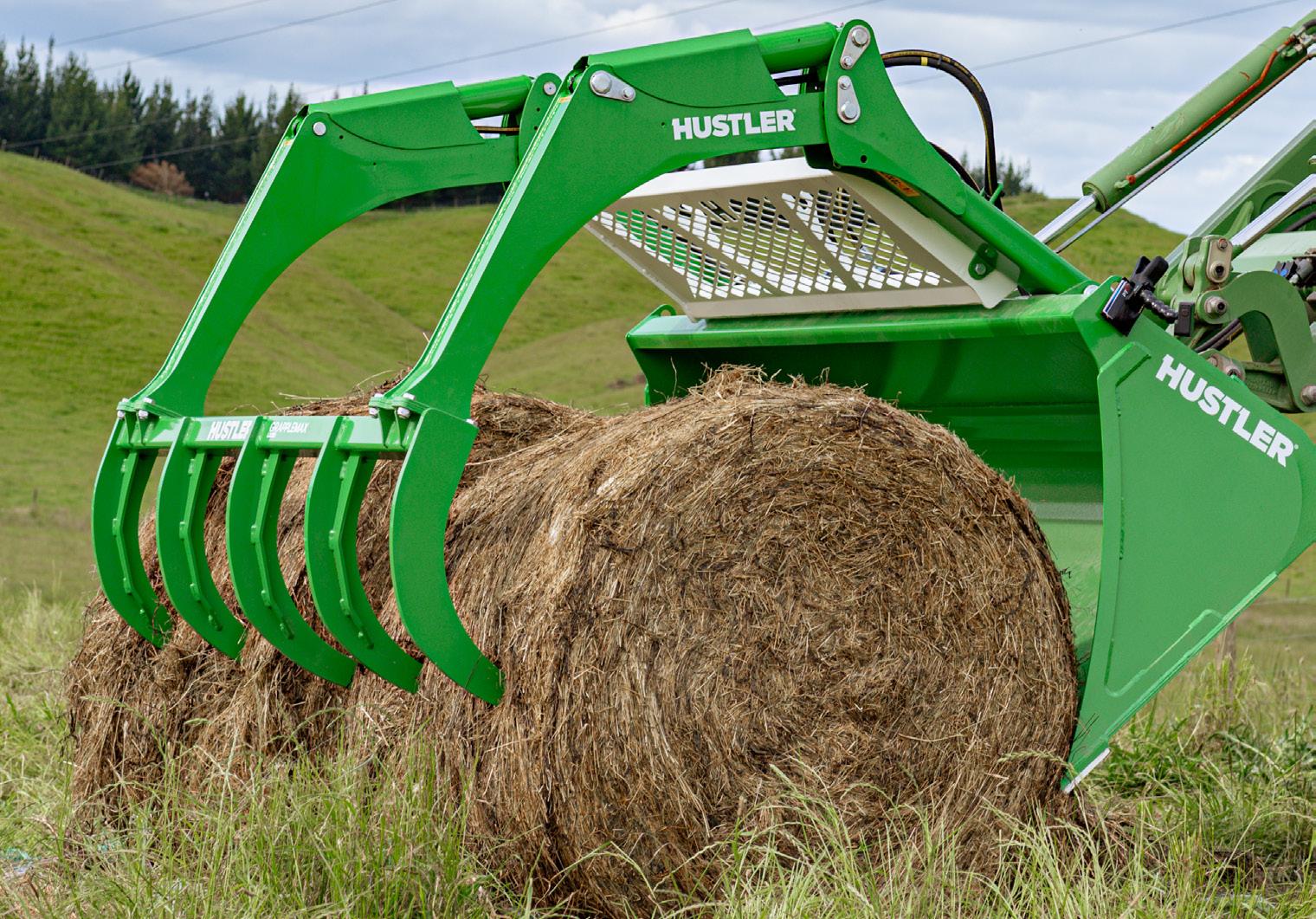

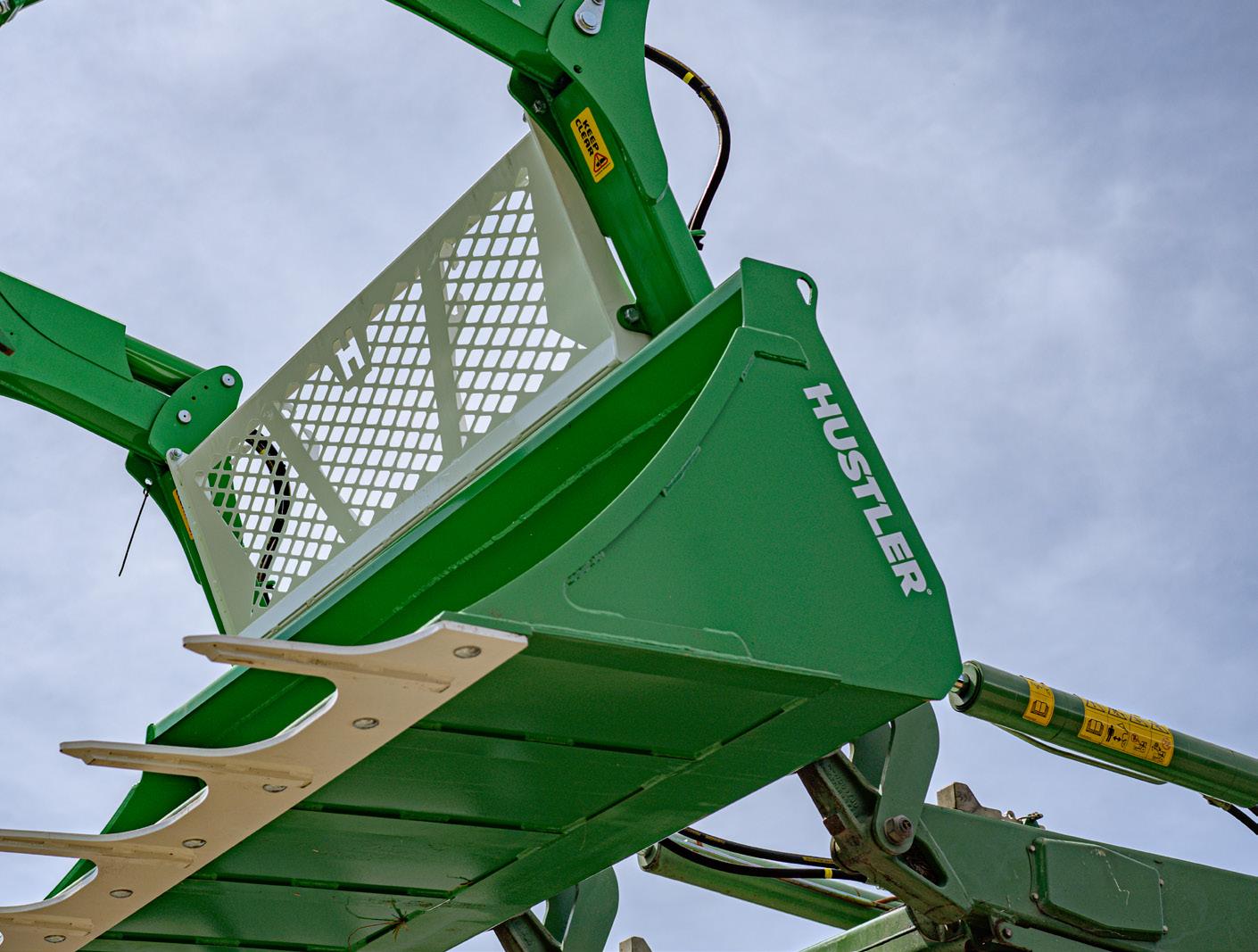

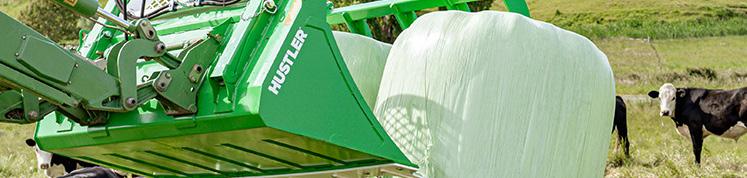

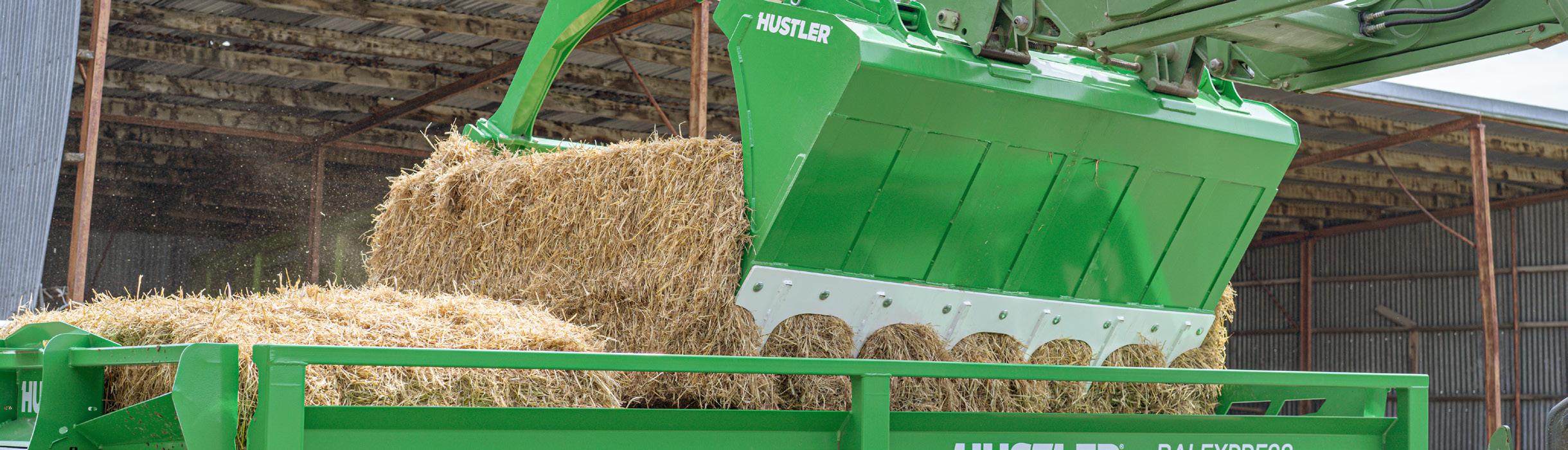

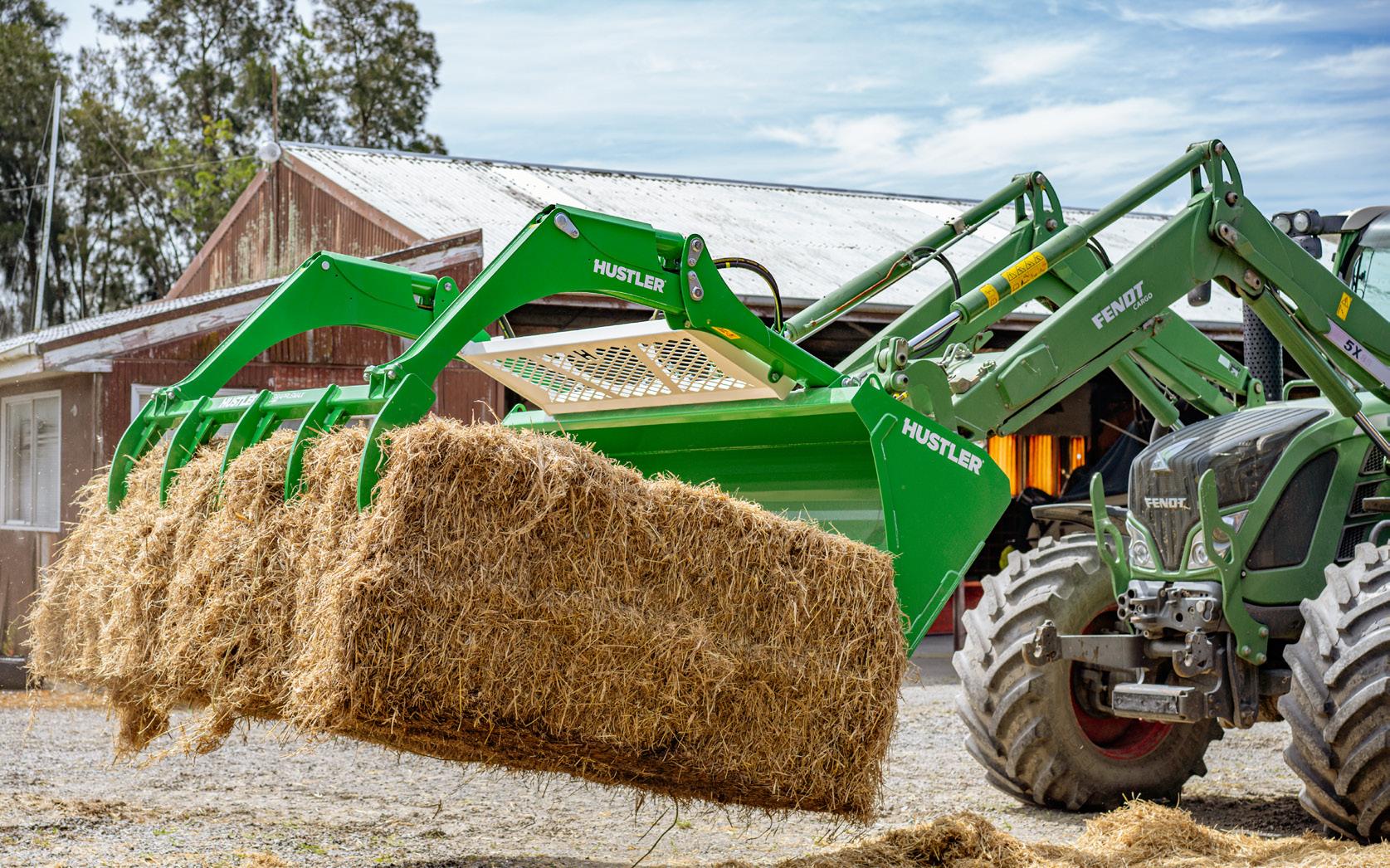

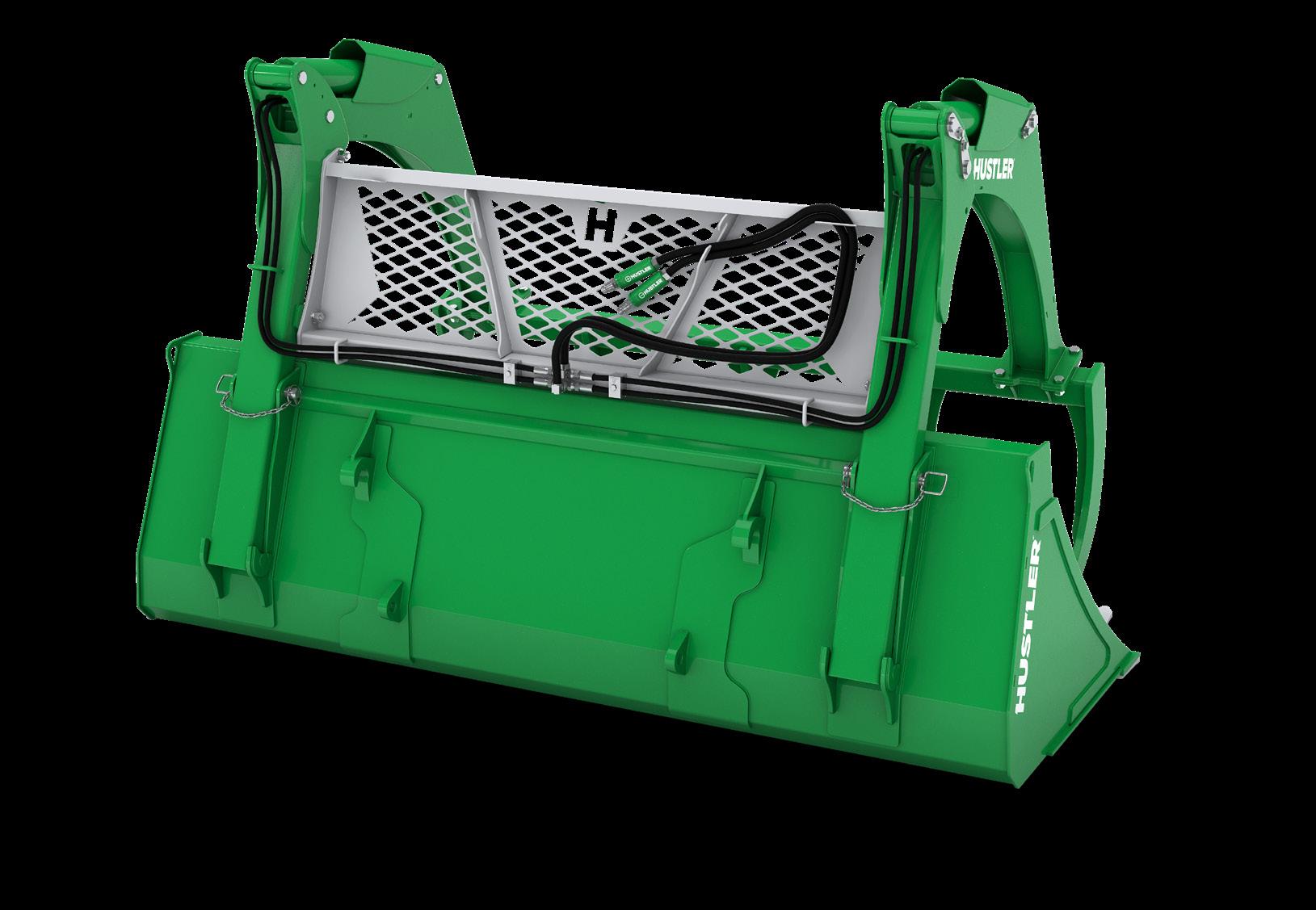

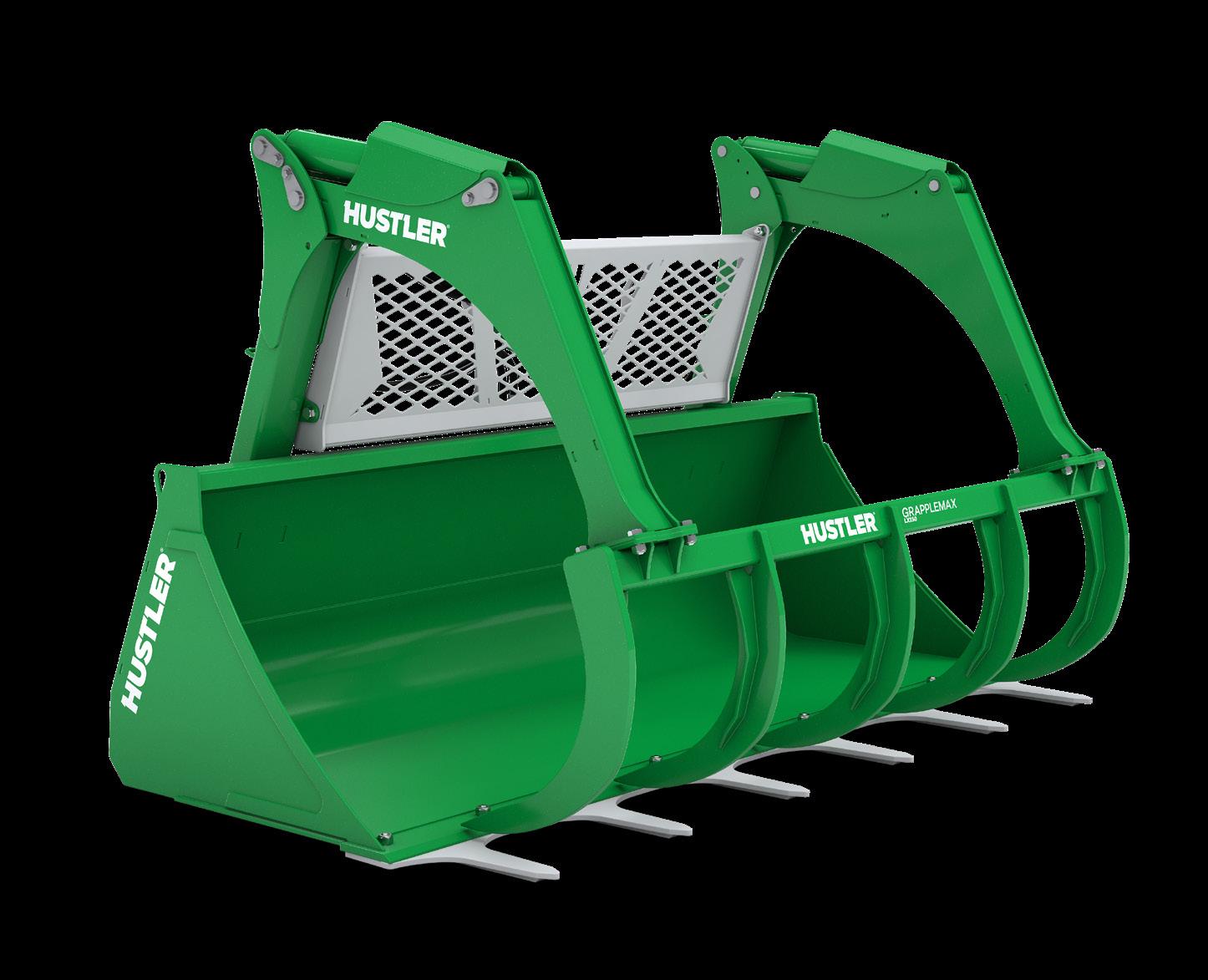

GRAPPLEMAX LX250
LOADER MOUNTED GRAPPLE BUCKET FOR HANDLING ROUND AND SQUARE BALES, BUT ALSO SCOOPING, MOVING OR LOADING LOOSE FEEDS, SOIL, ROCKS, BRUSH, POSTS, LOGS AND MUCH MORE!
The ultimate grapple bucket for livestock ranchers who demand nothing but the very best and want a versatile attachment for handling, loading and feeding round or square bales and other commodities. Get the job done, whatever it may be, with GrappleMax grapple bucket. The super tough design, combined with clever use of the highest-grade materials and built-in protection for the vital parts could be the last grapple bucket you ever buy!
TRIPLE-SECTION REINFORCED BUCKET DESIGN
Unlike other buckets, GrappleMax has three hollow sections, providing unparalleled torsional strength, unbeatable durability, and a long life.
CENTRAL
VERTICAL HOSES WITH HOOKS
Hoses are kept out of harm’s way on the loader carrier frame, preventing damage during hookup. Hose-holding hooks are also available for storage when not in use.
QUICK-RELEASE GRAPPLE
JUST TWO LOOSE-FITTING PINS REMOVE THE COMPLETE GRAPPLE, INCLUDING THE GRILL AND HOSES. NO NEED TO DETACH HOSES, ALLOWING THE BUCKET FOR OTHER TASKS.
PROTECTED CYLINDER SPEARS
Large steel shields protect the ram’s spears to prevent damage from falling materials.
TAPERED BUCKET DESIGN
The top of the bucket is narrower than the bottom floor, and the back of the bucket is narrower than the bucket opening. This design enables easier material emptying and reduces corner clogging when handling sticky materials.
WEAR PLATES BUILT-IN
Cutting edge made from RockGuard™ 500 wear plate, and bucket floor and side wear plates built from RockGuard™ 400 wear plate ensure GrappleMax is the longest-lasting grapple bucket in the game.
OPTIONAL REMOVABLE TEETH
STRONG SPILL GUARD GRILL
WE ADDRESSED A COMMON FAILURE IN OTHER GRAPPLE BUCKETS WITH A TOUGH RHS-REINFORCED GRILL FEATURING A LARGE MESH DESIGN FOR EXCELLENT VISIBILITY.
Crafted from RockGuard™ 500 wear plate and reinforced for strength and durability with RockGuard™ 500 stiffeners, these optional teeth are excellent for spearing bales or breaking up ice or other hard surfaces.

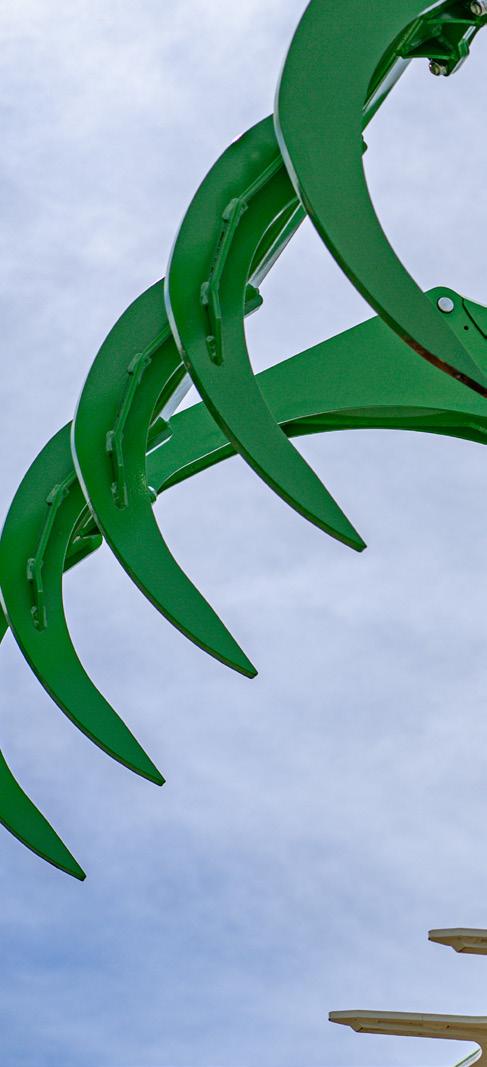

REINFORCED TINES THAT DON’T COME LOOSE
GrappleMax has five large tines made from RockGuard™ 400 wear plate, reinforced and welded to prevent loosening or bending.
SPECIFICATIONS
UNIT WEIGHT: 1278 lb
DEPTH: 57.2 in
WIDTH: 96 in
HEIGHT: 56 in (28.3 in bucket only)
BUCKET CAPACITY: 1.56 yd³
FULL GRAPPLE CAPACITY: 3.23 yd³
GRAPPLE TINES: Replaceable 5x RockGuard™ 400 reinforced tines
CLAMP: Twin-ram
JAW OPENING: 84 in

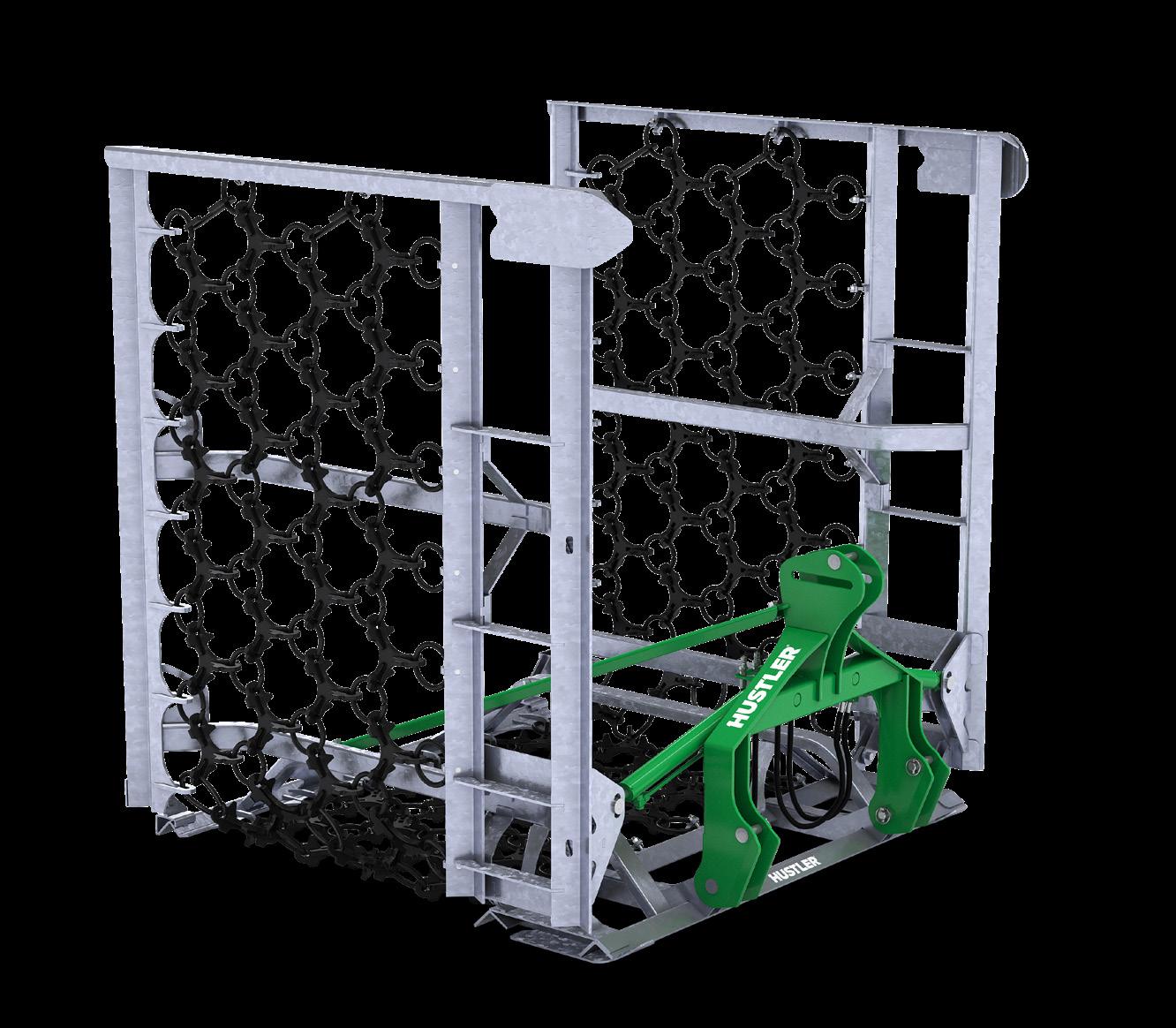

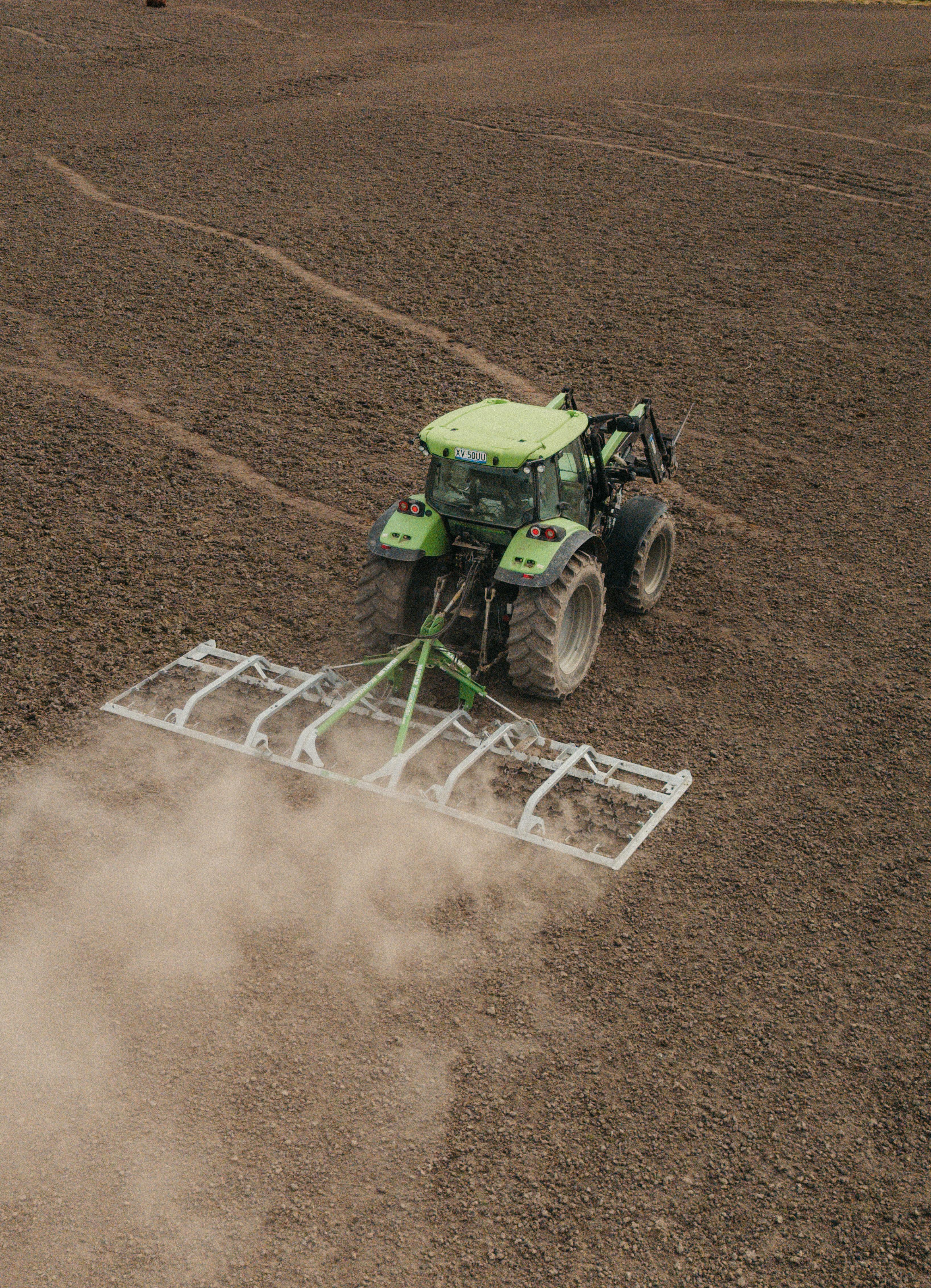

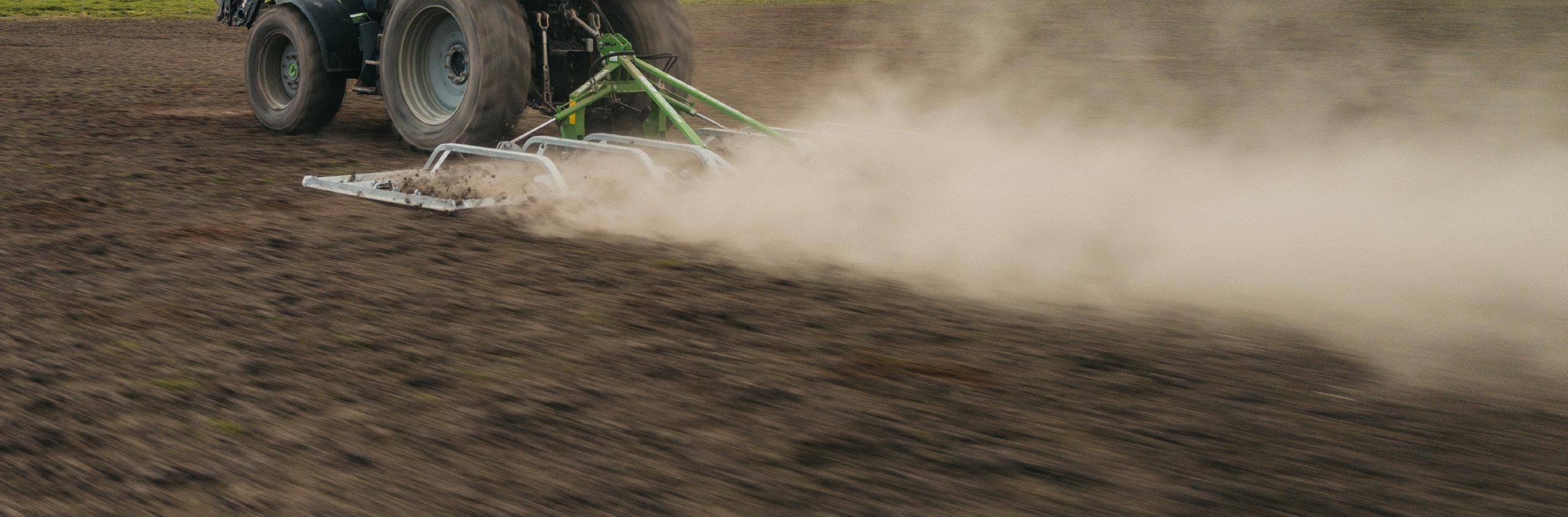

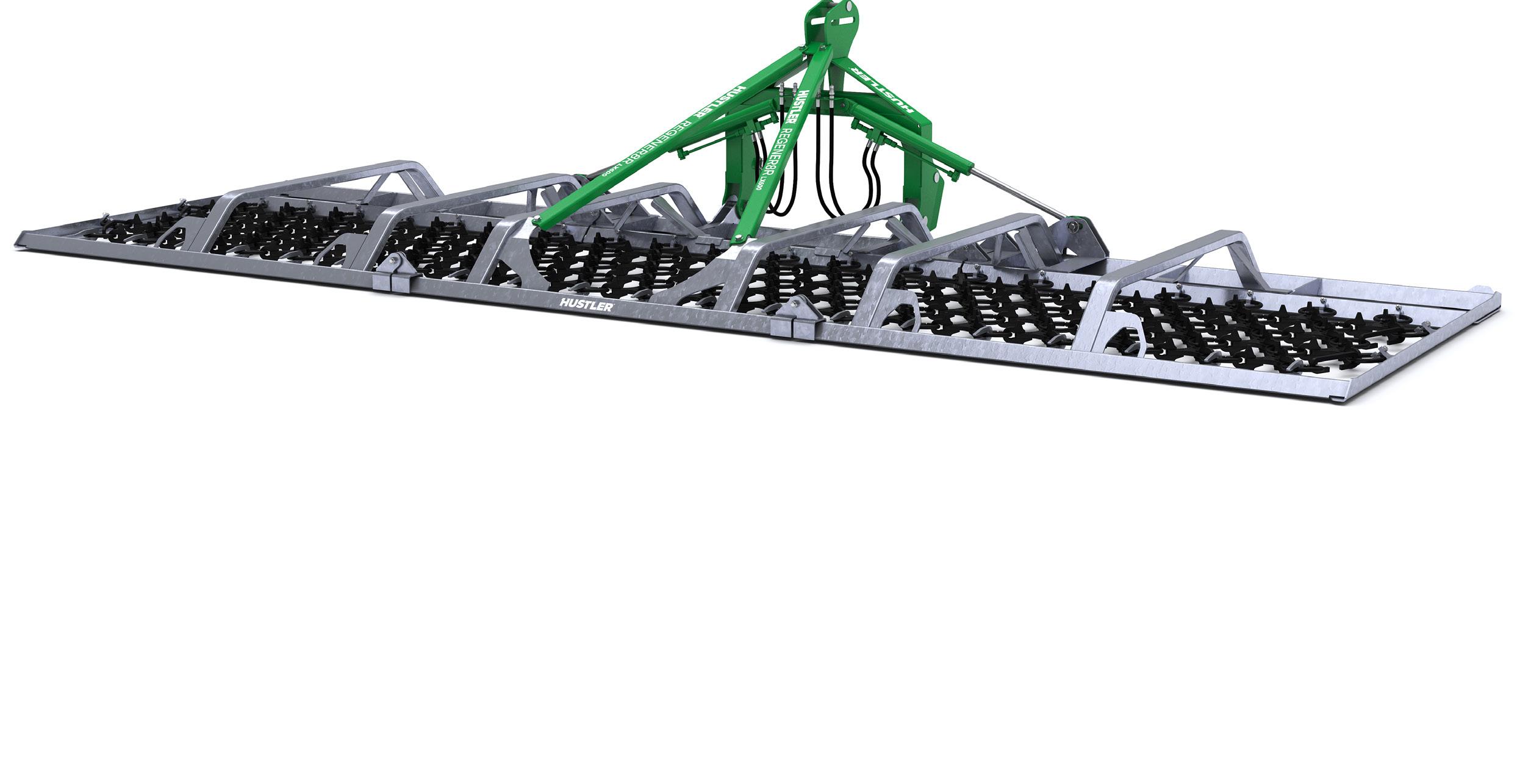

REGENER8R LX600
THE LAST CHAIN HARROW & LEVELLER YOU’LL EVER NEED TO BUY
The NEW Hustler Regener8r Chain Harrow will improve your pasture productivity, manure uptake and your bottom-line. The 4 rows of double side fabricated steel agitators (that don’t shatter at the sight of the first pebble) provide a superior bite and more consistent spread with thorough pasture harrowing / aeration and the triple levelling bars leave an amazing finish! Can also be used for covering seed and cultivation finishing.

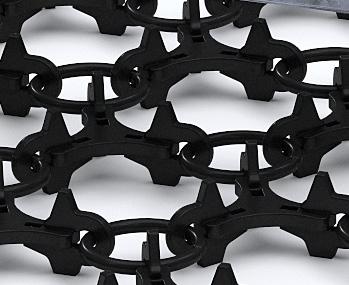

LARGER CHAIN RINGS
14% stronger rings than others and our unique design allows for changing out teeth without needing to cut, bend and reweld rings.
SPECIFICATIONS
UNIT WEIGHT: 1653.5 lb
DIMENSIONS OPEN (W x D x H): 82.6” x 236.2” x 41.7”
DIMENSIONS FOLDED (W x D x H): 82.6” x 78.7” x 87.4”
WORKING WIDTH: 236.2”
TRANSPORT WIDTH: 78.7”
HYDRAULIC REQUIRED: 3.96 gal/min, 2x double-acting
8MM LEVELLING BAR
OVERSIZED TOUGH FRAMES
We switched from round tubes, to RHS sections and went oversize (80x40x4mm!) to save you from wasting time back to the shop for welding or replacement.
Achieve More Everday! The Integrated Bended 8mm Levelling bar means you can achieve 2 applications in one pass.
UNIQUE INDIVIDUAL FOLDING
Left and right folding is individual, so that you can operate with one or both sides up giving more versatility.
BUSHED PIVOTS
We’ve designed Regener8r with bushed pivots that can easily be replaced if ever needed so you’re not needing to replace a whole wing after a few years work.
DUAL SIDED TEETH
One side is more aggressive than the other - flip the matt over depending on your preference. And get twice the lifespan, flip the matt when worn out!
NEW STRENGTHED 3PH HEADSTOCK DESIGN
Prevent breakages, plus faster and easier hitching thanks to our unique lower hitch guides, and extra-long slot for more floatation and better contour following.
FOLDABLE FRAME
Foldable 3PL frame and harrow for efficient space utilisation in storage and transport. With built in hydraulic Lock-valves for added safety when travelling on the road.
LARGE SKIDS
Our extra-large skids protects the centre and wing sections of the harrow from sinking or digging in, in soft ground for a better finish.
5 YEAR WARRANTY
5 YEAR WARRANTY
Backed by Hustler’s legendary 5 year warranty and customer support.
GALVANIZED GE FRAMES
For longevity in corrosive applications, we have galvanised the ground engaging frames for peace of mind and wear resistance.
4 TOOTH ROWS
The 4 Tooth Row Harrow results in higher agitation and a more efficient harrow operation.
INDESTRUCTIBLE TEETH
Unique fabricated steel teeth (which don’t shatter) made from RockGuard TM 400 (AR400) wear plate teeth for extreme wear resistance to ensure you’re not wasting time in the workshop replacing teeth.
