EZFEED
MASTERFEEDING SILAGE YOUR SILAGE. SORTED. The most simple, reliable silage wagon on the market designed for farmers who simply cannot afford downtime and rely solely on silage as the supplementary feed of choice.
1
3
3
2
5 REASONS WHY EZFEED IS BEST-IN-CLASS INDUSTRY
1st
5
conveyor belts which require constant adjustment, fine-tuning and are often slipping or breaking disrupting your feeding programme. EzFeed is the first wagon on the market to run a 100% roller-chain design to overcome this.
INDUSTRY
1st

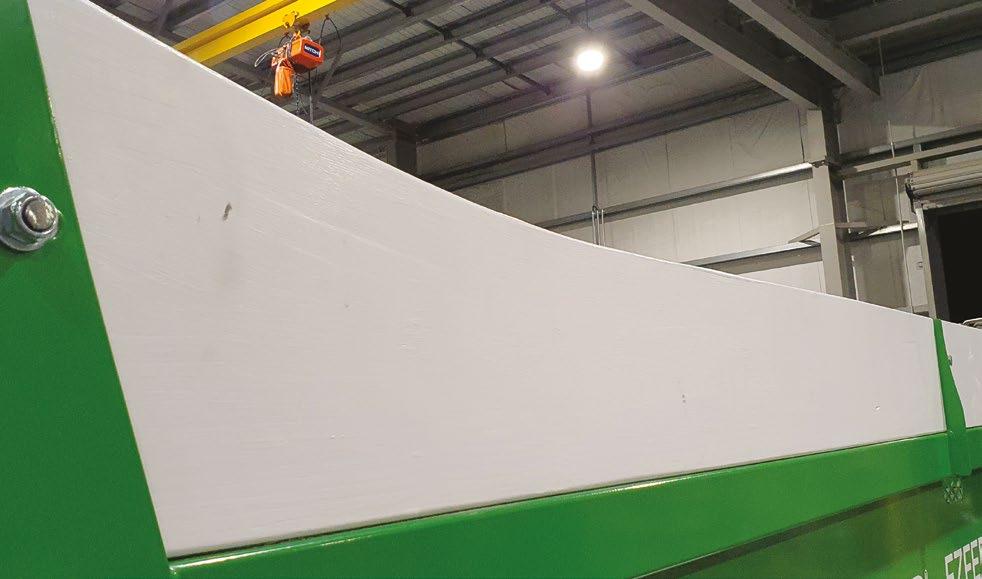

2 Hungry Boards >> Virtually indestructable, our replaceable roto-moulded hungry boards
can take a beating from your front-loader without turning to splinters or dinging up your nice new EzFeed silage wagon. Another industry first from Hustler.
INDUSTRY
1st

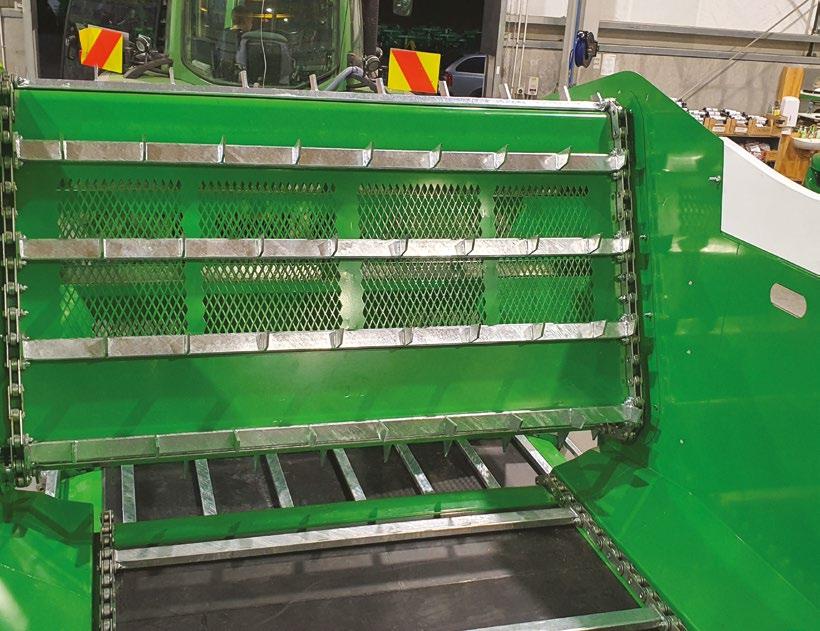

1 100% Roller Chains >> With EzFeed gone are the days of trouble-some link chains and
1
4 5

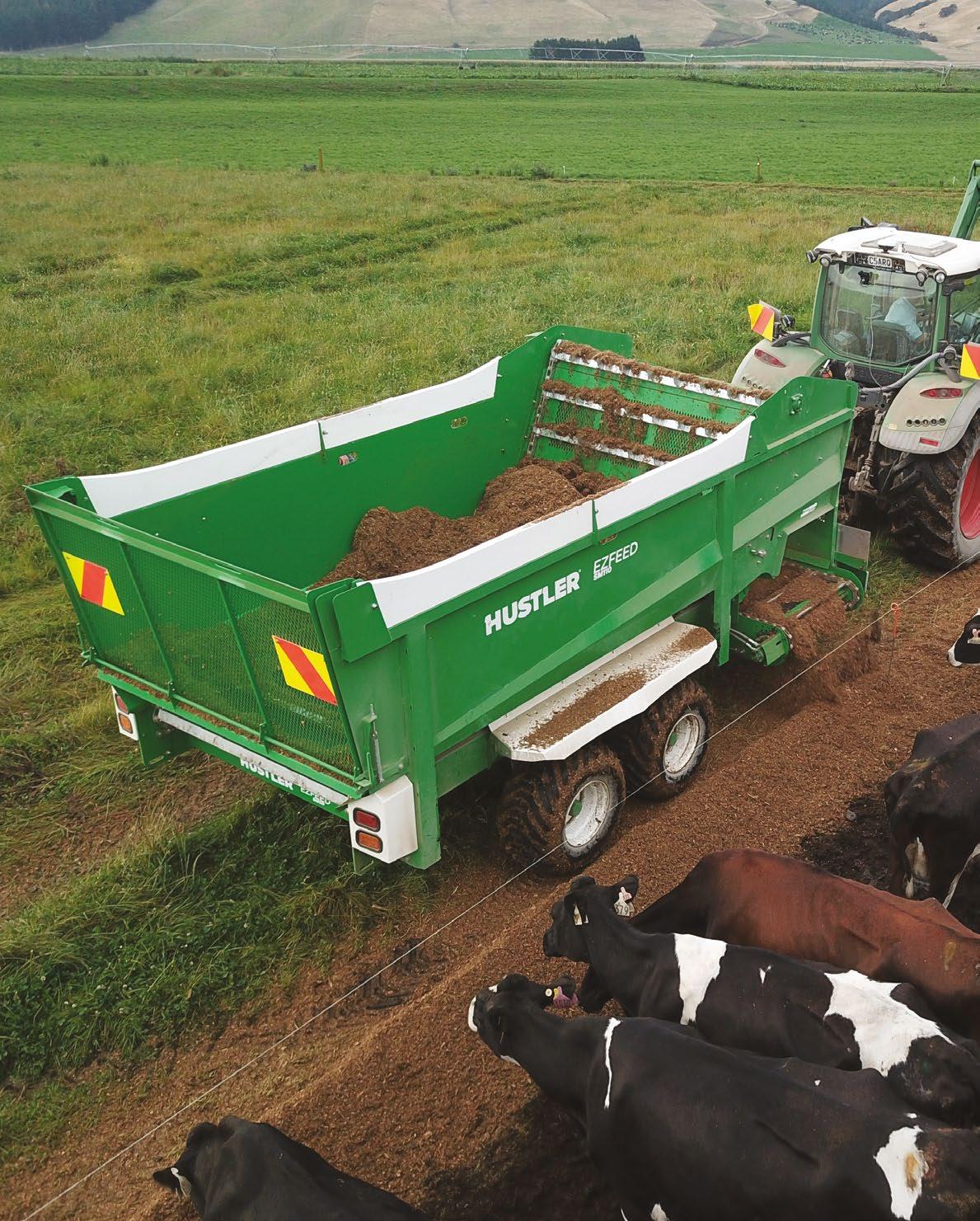

3 TwinFeed™ >> EzFeed is the first silage wagon to feature left or right hand feed discharge
for more feeding versatility. Five positions for the discharge floor allows easy setup when feeding into troughs. Choose our Hydraulic Shideshift feature which allows you to change the direction of the discharge while on the move
8
4 Simple operation >> As the name suggests EzFeed makes feeding silage easier than ever
before. As standard only one set of hydraulics is all it takes to connect and power the whole machine and our clever adjustable load-sensing hydraulics takes care of the rest making EzFeed the ideal wagon for any level of staff
5 Proven Platform >> Built utilising our proven Combi wagon platform EzFeed has the
toughest axle design on the market by a country mile, large suspension travel, comes scale ready for our industry first FeedLink feed management system which weighs on both the jack/skid and drawbar, impact resistant puck-board floors, toughest bars and more!
9
4
6

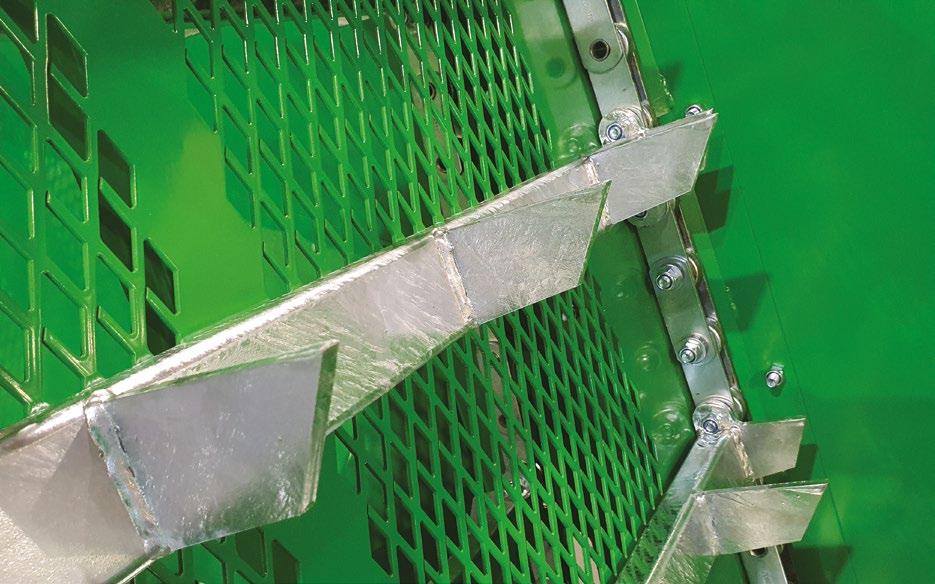

+ Twin 12,000 lb roller chains and strong box section bars on bed floor, elevator and conveyor + Covered chains prevent material building up in chains & sprockets increasing service life + Strongest 65x35x4 box section bolt on replacable bars on elevator and conveyor
4
5
23

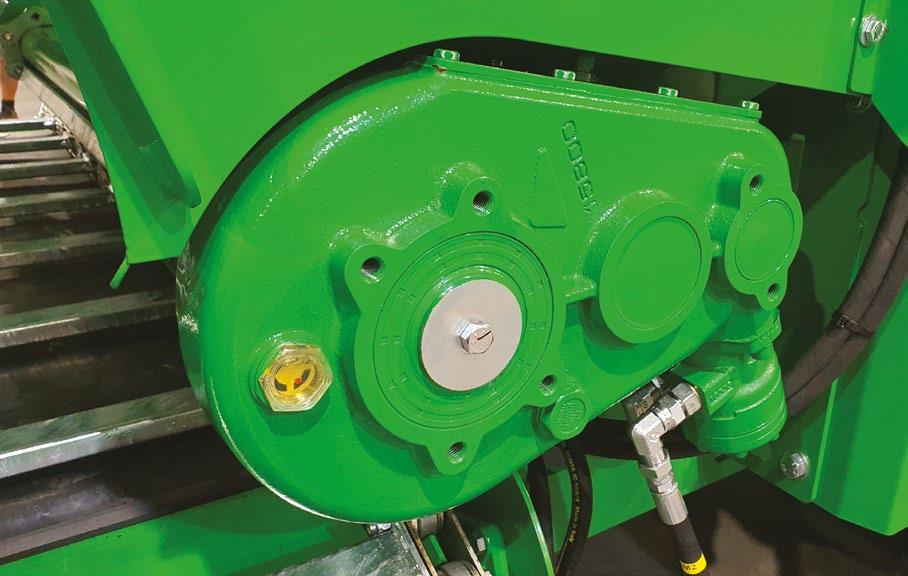

+ Oversized sealed reduction gearbox on bed-floor and elevator (largest in industry), and direct drive conveyor + Heavy-duty oversized covered drive shafts for strength and to eliminate wrapping + All drives running on sealed bearings with trash-shields for long life and reduced greasing + Scale ready which weighs when on the jack/skid-foot and attached to the tractor + Bolt on replaceable heavy-duty steel mudguards for strength + Central greasing on axle and difficult-to-reach bearings (except for suspension axle design)
Models in Range
Options Options + Feedlink™ wireless scale and feed

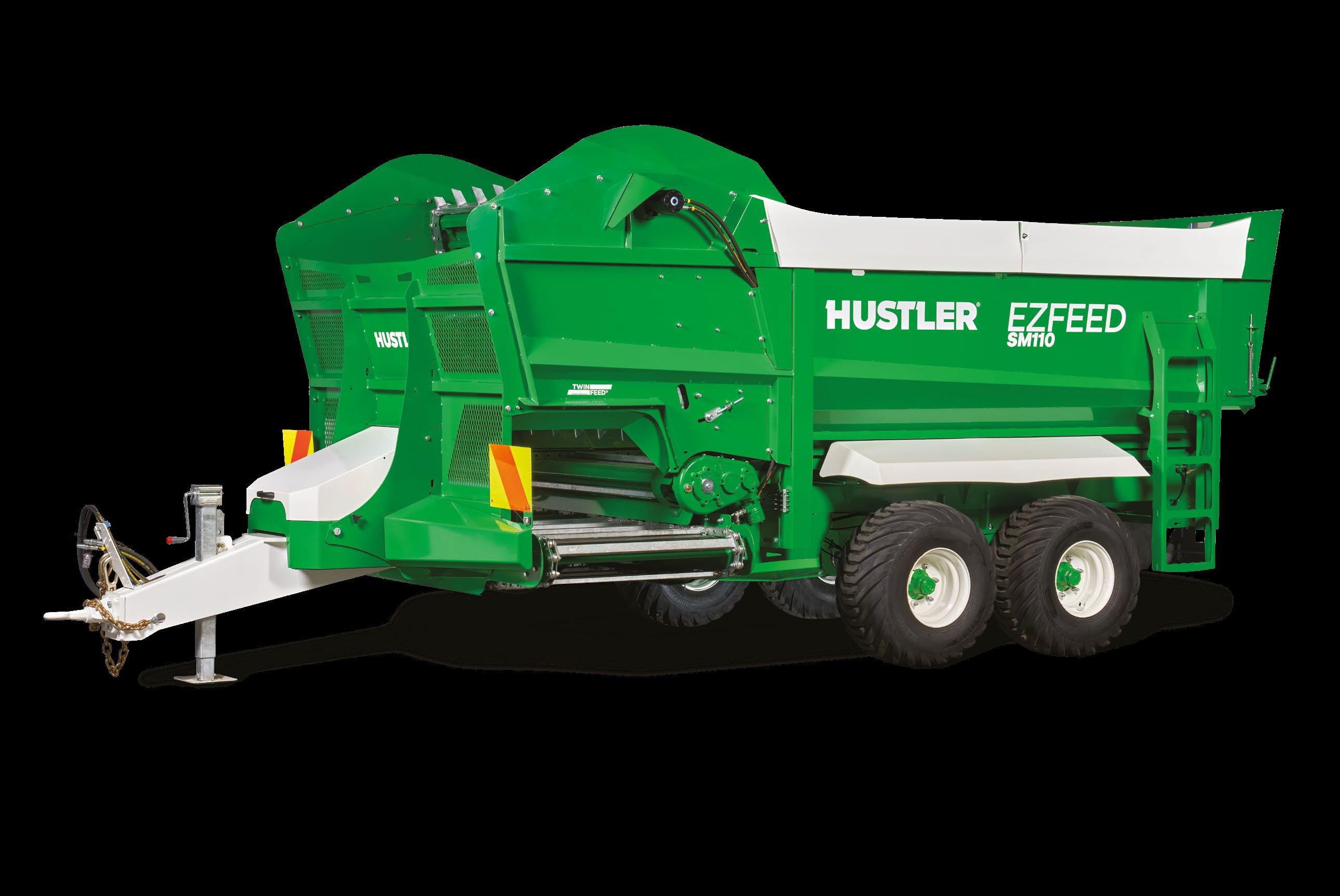

+ EzFeed SM110 11m3 silage wagon,
+ Access ladder
management system + Feedlink wireless scale and feed management system on SX range) + Hydraulic brakes (Standard
+ Heavy-duty crash bumper bars to protect side discharge
Hydraulickit 2 wheel brakes + Visibility (includes safety chains, LED lights,
+ Protective guarding and covers for hydraulic valves
+ Massive 1000mm roller chain/bar discharge for a reliable and even unobstructed flow of material + Auto-release, removable tailgate to prevent damage if floor is reversed + Massive drawbar clearance and swivelling eye as standard for tighter turning and safer operation

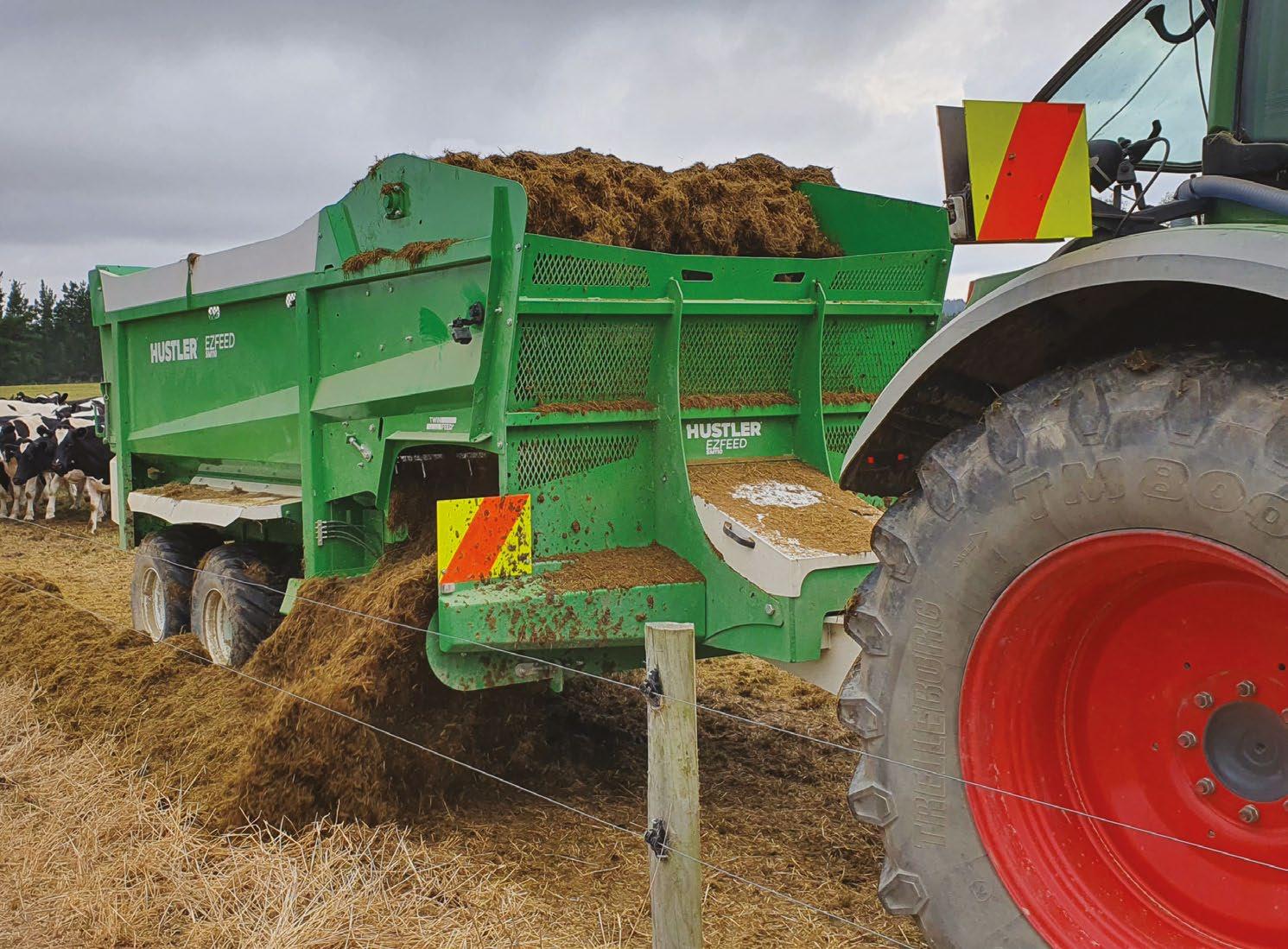

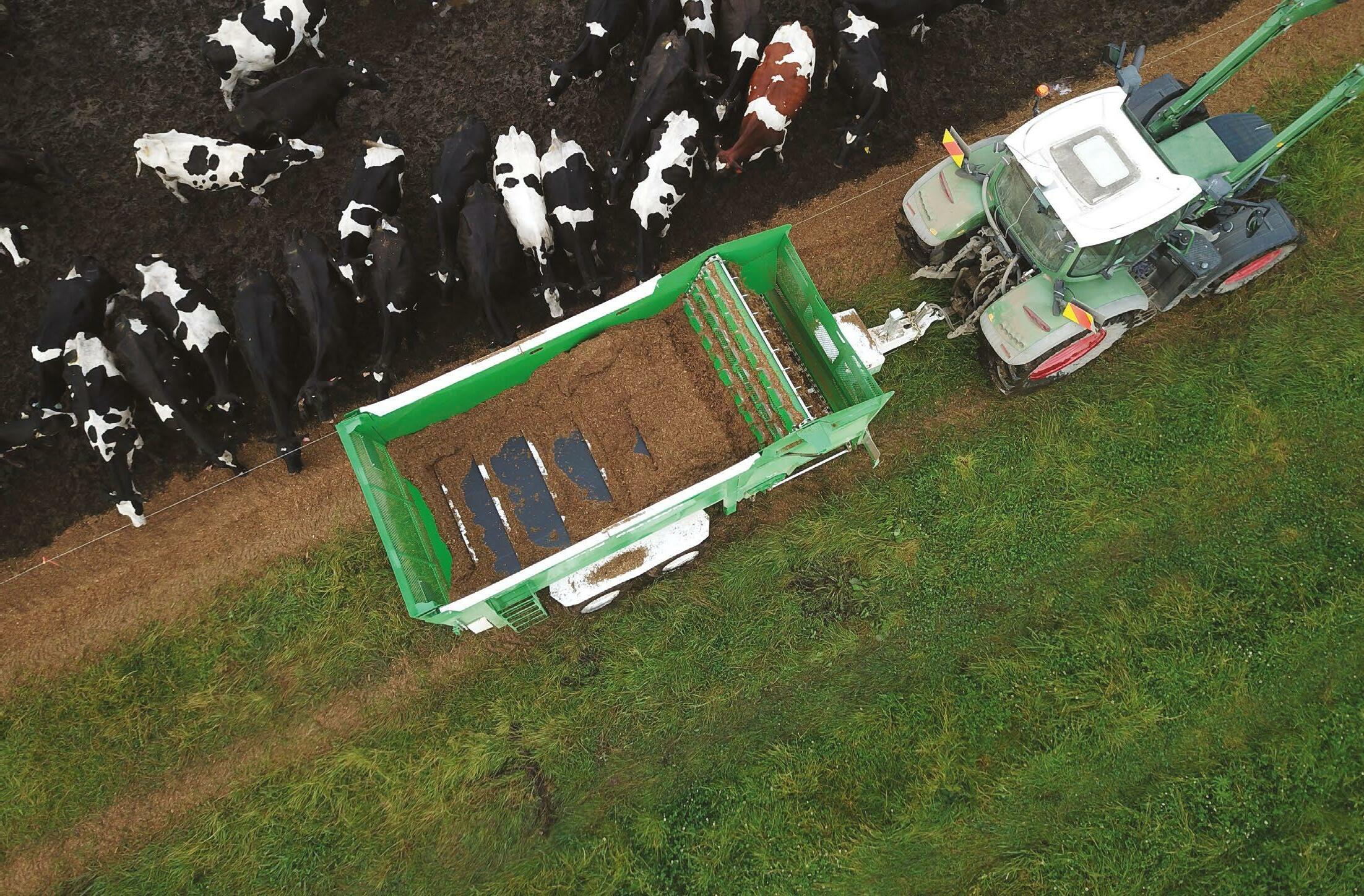

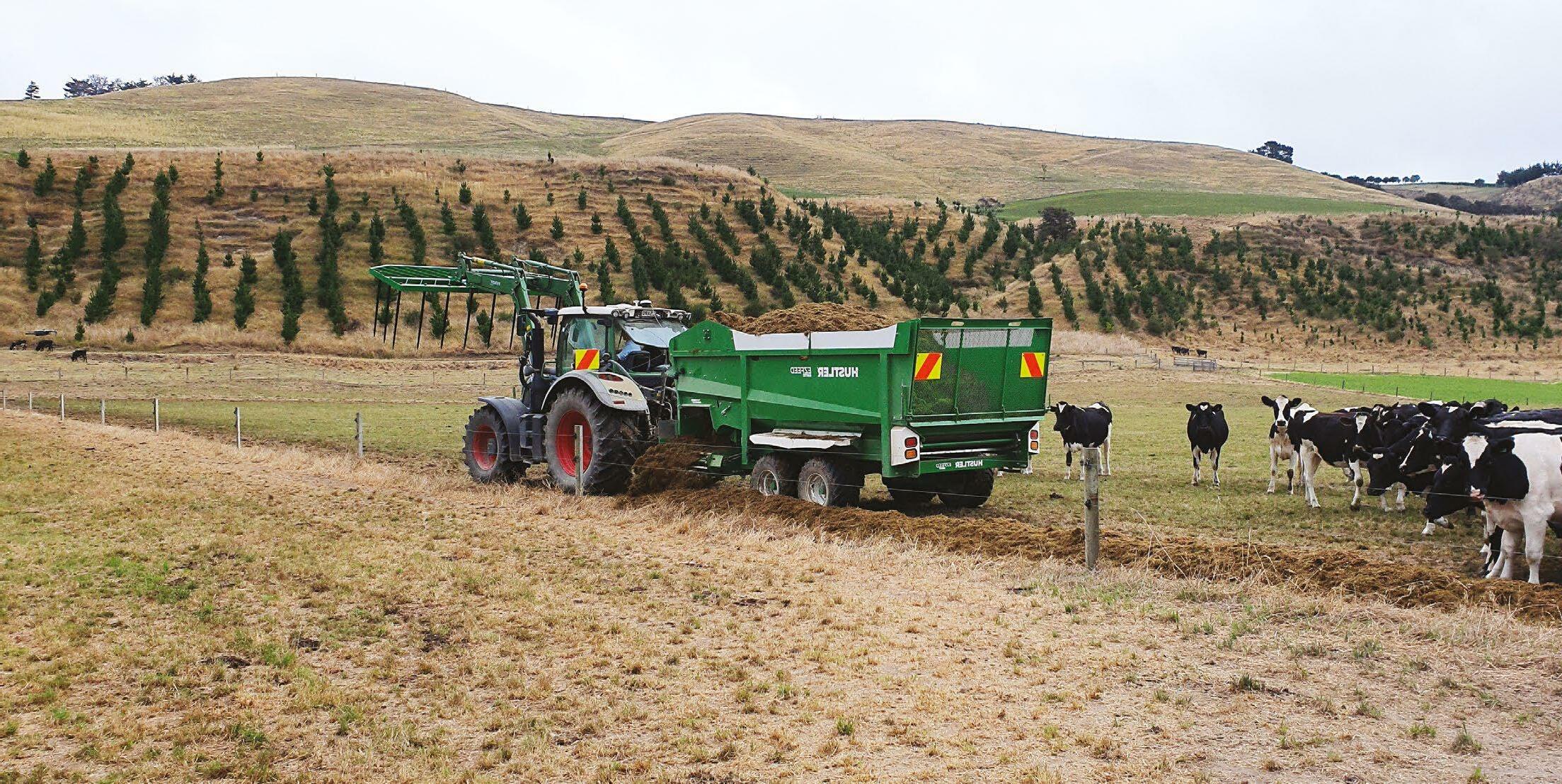

Pro tip Ideal for trough feeding, feeding under a wire, feeding along a fence line to avoid trampling and general pasture feeding.
and hazard panels) + and Roadfront ready kitrear (includes safety chains, LED lights, + Hydraulic sideshift, with automatic floor
7 tonne load rating, 400/60R15.5 wheels
+ EzFeed SM130 13m3 silage wagon,
10 tonne load rating, 400/60R15.5 wheels
+ EzFeed SX180 18m3 silage wagon,
15 tonne load rating, 500/50R22.5 wheels
and front change and rear(extra Hhzard direction remote required) panels) + Larger 500/45R22.5 flotation wheel upgrade + Access ladder (available on SM models)
+ EzFeed SX210 21m3 silage wagon,
17 tonne rating, 500/50R22.5 wheels
0800 487 853 | hustlerequipment.com
