Hustler Equipment Full Product Catalogue

2025 - 2026

FULL PRODUCT GUIDE

Helping farmers achieve more, every day since 1961.

HUSTLER’S HERITAGE

SLX bale feeders launched Duraboom, NZ’s toughest introduced Large capacity linkage sprayers introduced

INDUSTRY 1st

SL-450X folding extension trough feeder introduced

Robertsons Manufacturing Acquisition - Combi Range Chainless bale feeders introduced

TE205 Series re-developed Chainless bale feeders introduced SL360X bale feeder launched

INDUSTRY 1st World First proofof-placement, feed management and weighing system released - FeedLink

SL300X workhorse round bale feeder released

INDUSTRY 1st Patented SnaploxTM auto connection system introduced

INDUSTRY 1st Revolutionary Katipo sprayer range introduced

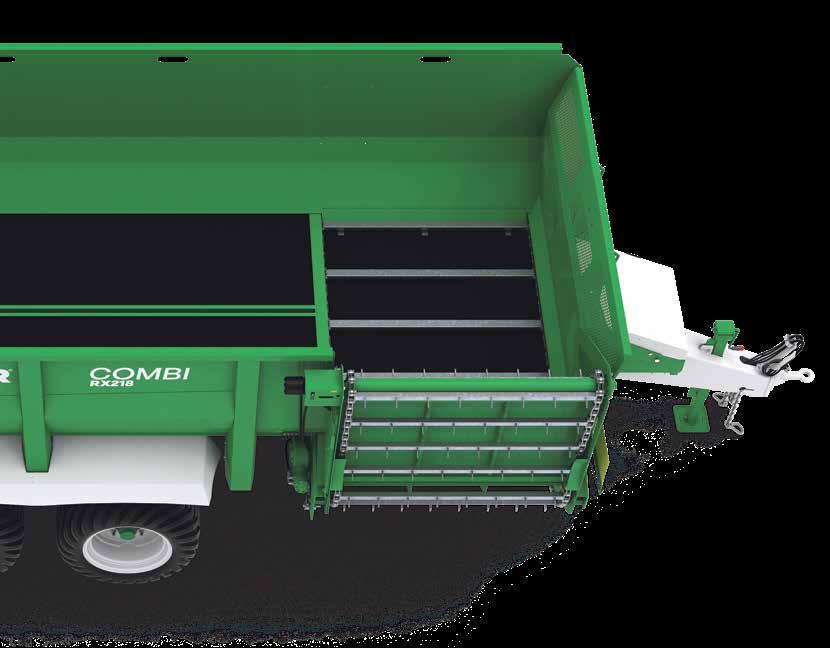

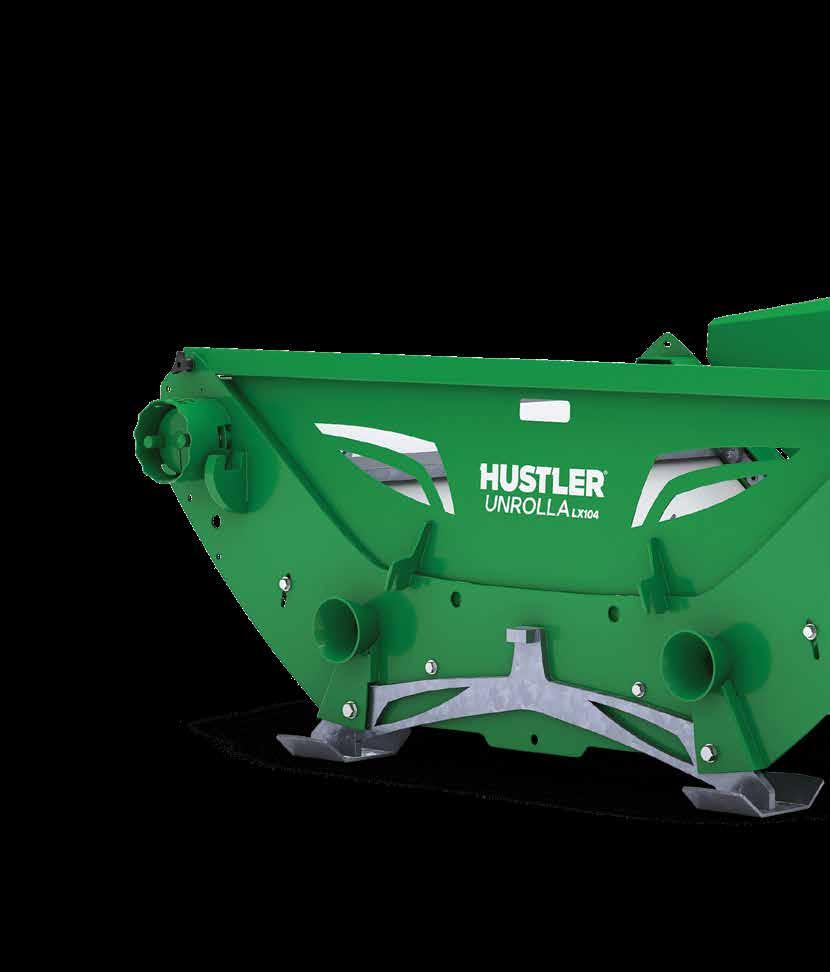

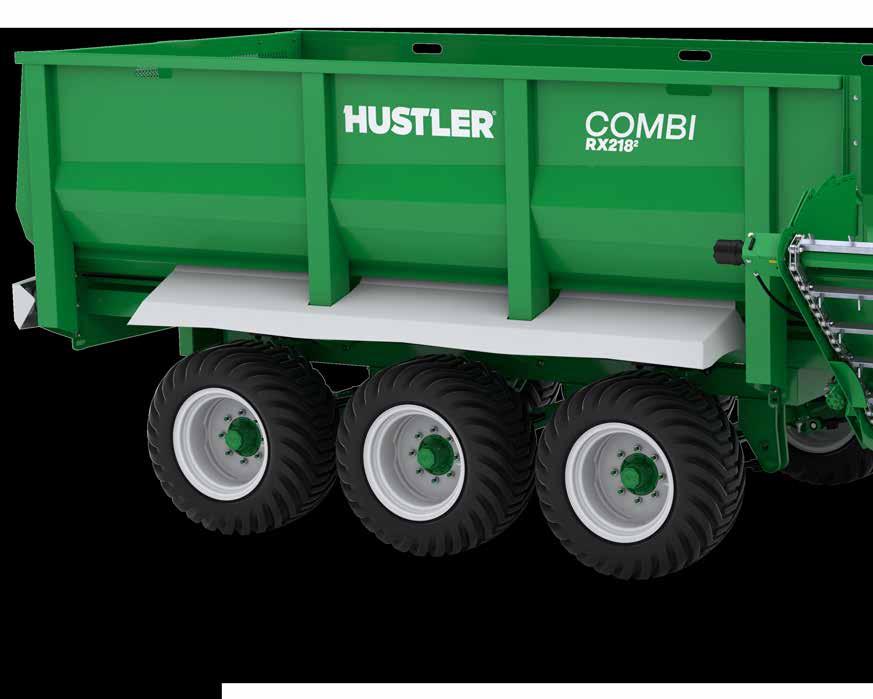

Chainless LM104 & LX104 bale feeders released All NEW Combi RX & CM Feedout wagons introduced. A five model range, Hustler’s biggest launch to date

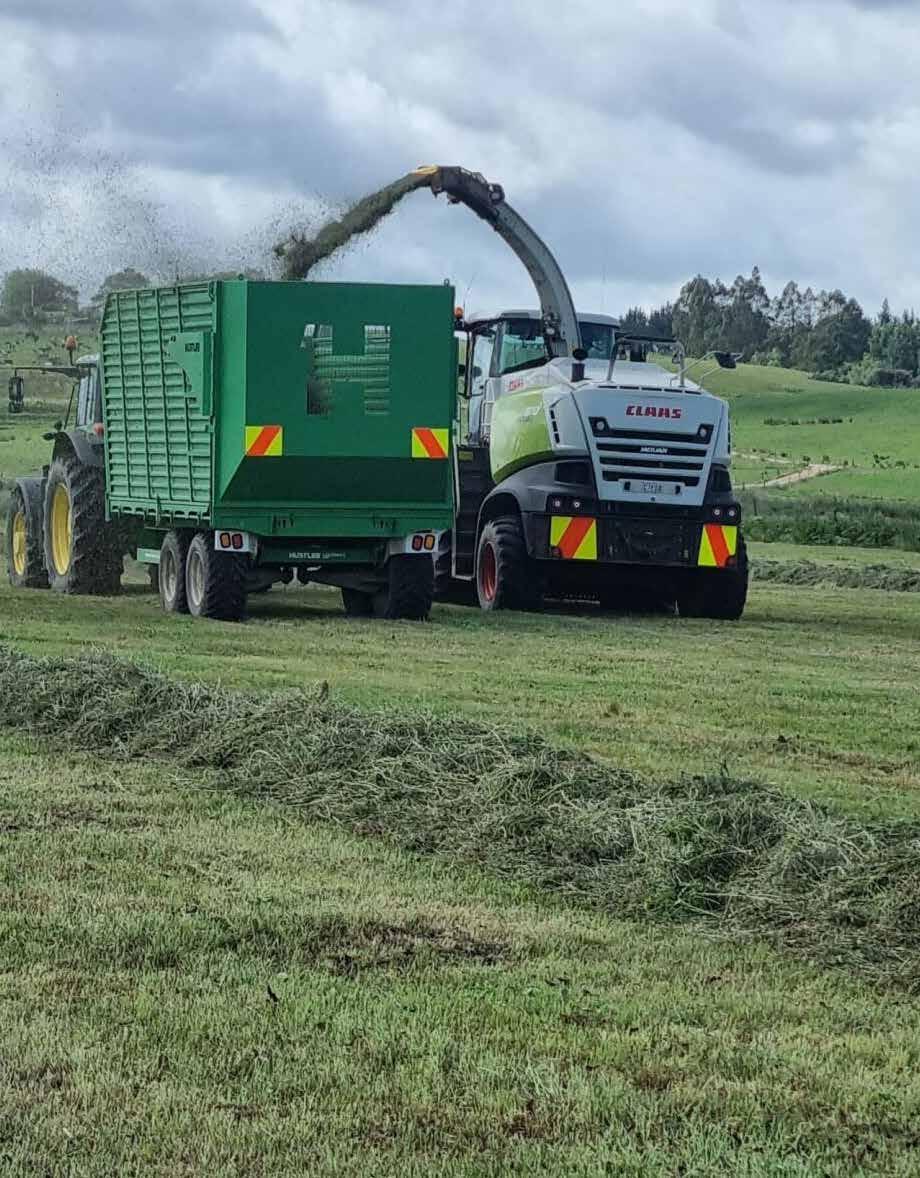

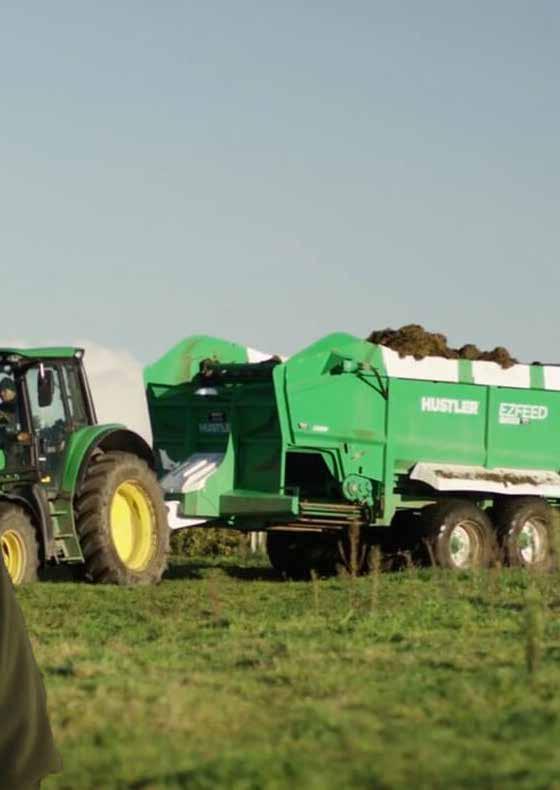

EzFeed SM110 & SM130 silage wagons released

Hustler 60th Anniversary

WORLD RECORD: Hustler sets the world record for the highest number of bales fed by a single machine in 8 hours non-stop in real-life grassfed farming conditions with the Combi RX218 14M hydraulic folding EagleTech boom released

Hustler’s UK branch moves to a new facility - office, warehouse & assembly plant - in Scotland

Hustler acquires McLaren Stainless double production capabilities

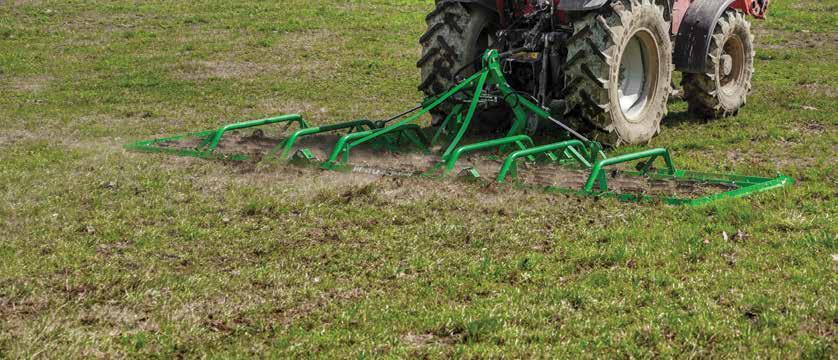

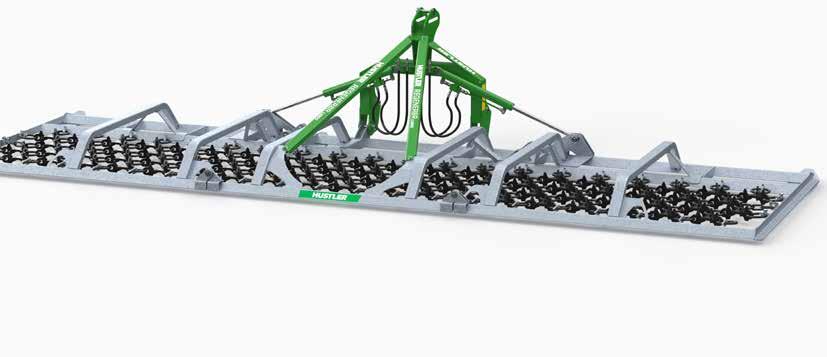

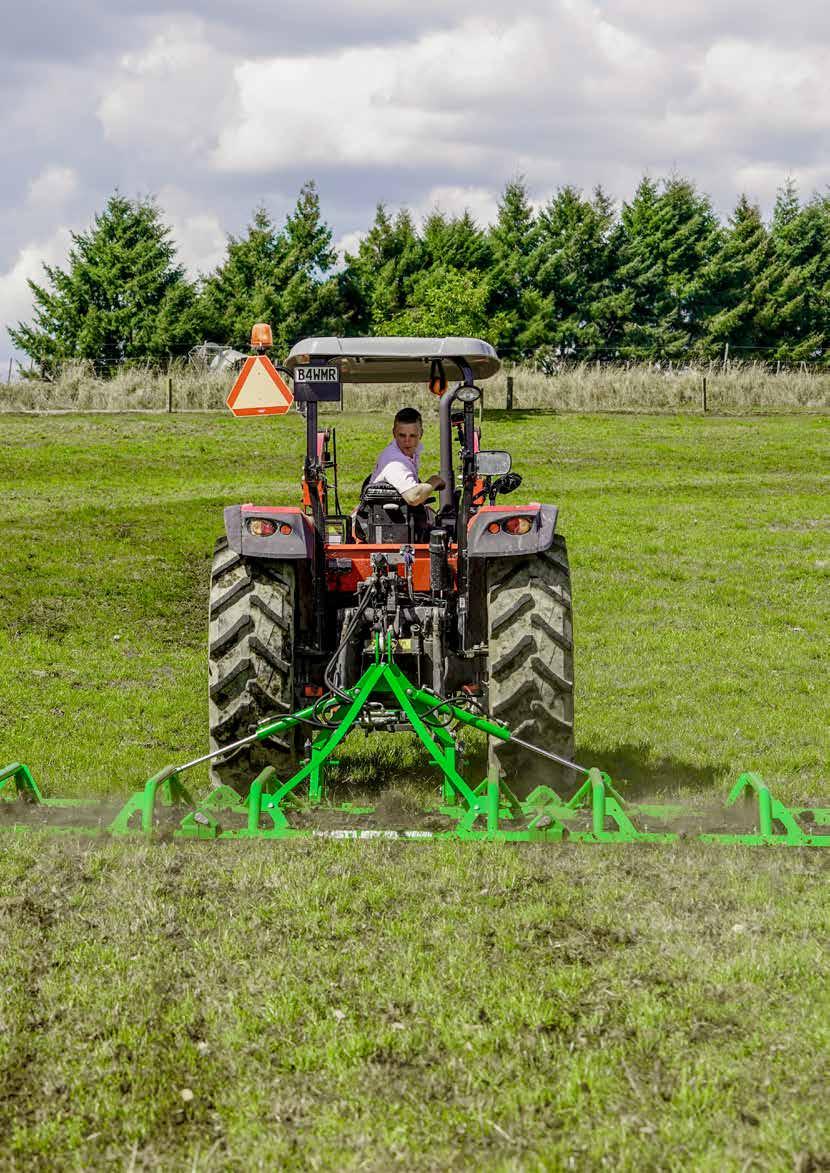

New range of attachments & pasture care gear released

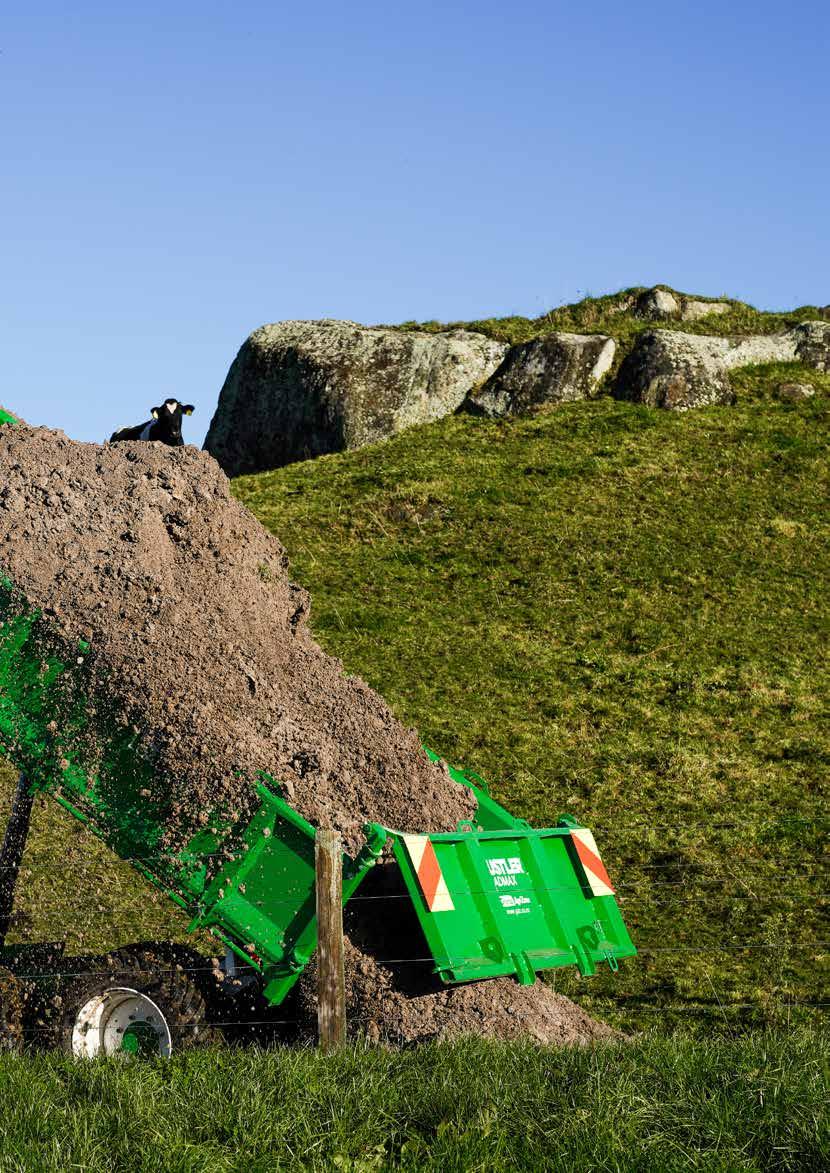

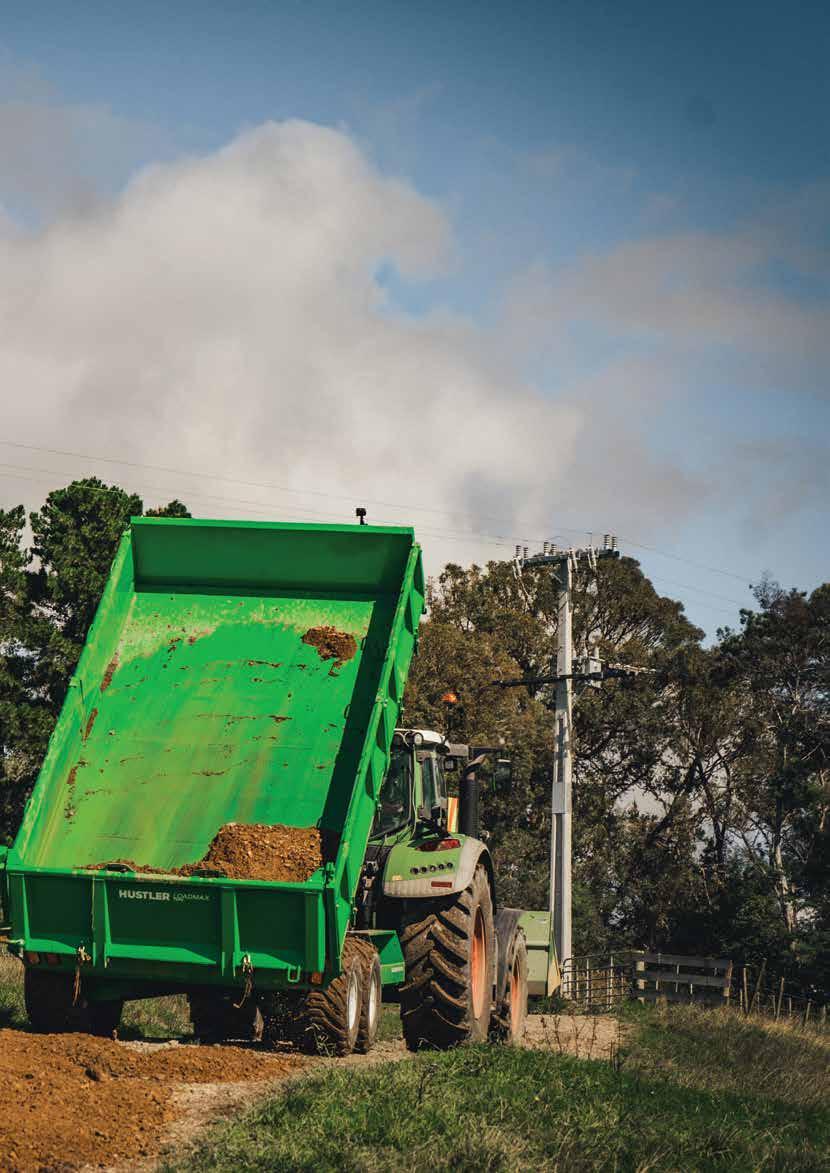

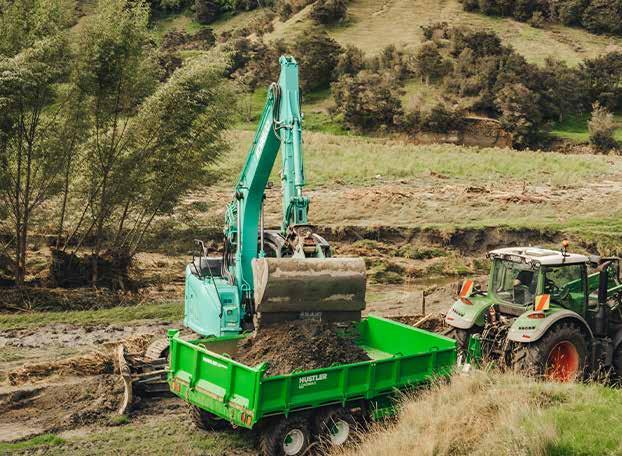

LoadMax tip trailer released

Hurricane 2-in-1 bale feeder and straw spreader released

Hustler North America moves into a new building.

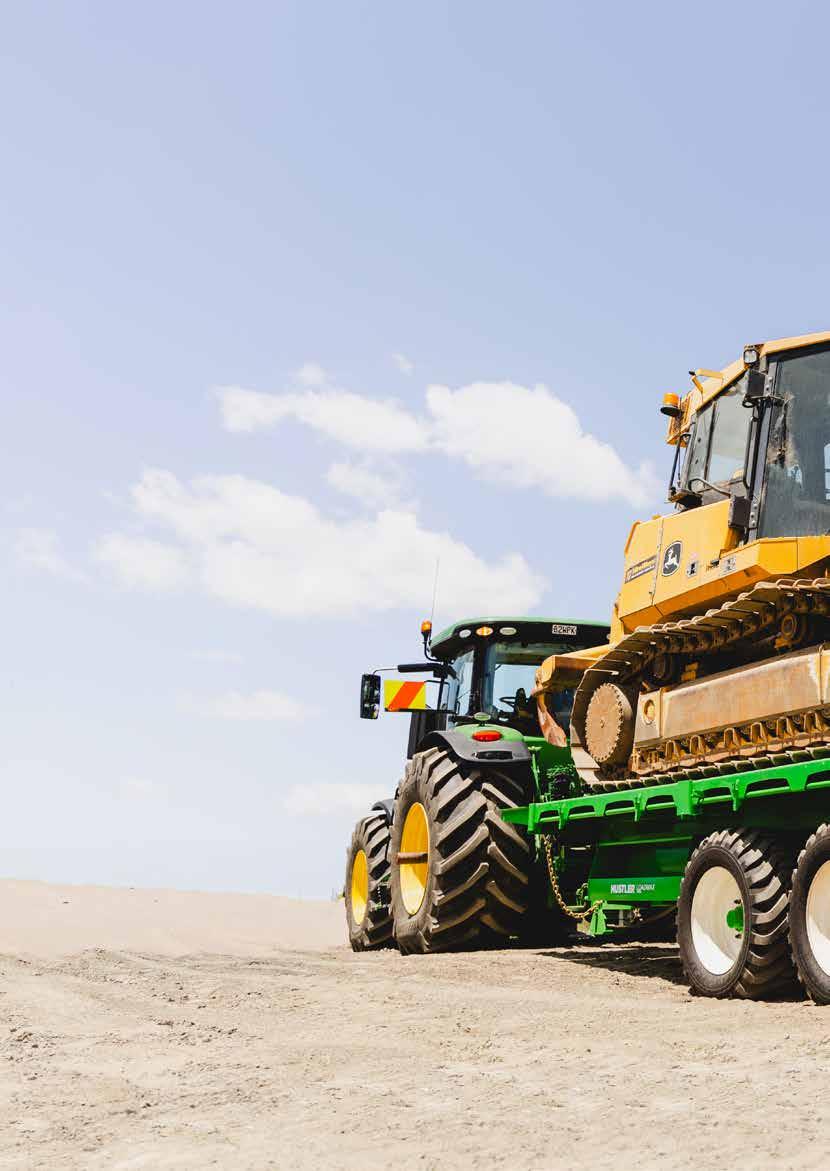

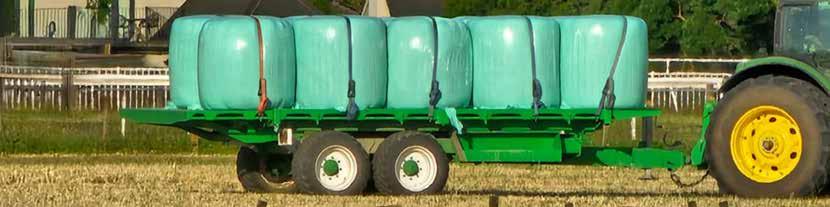

New LoadMax flatbed trailers released

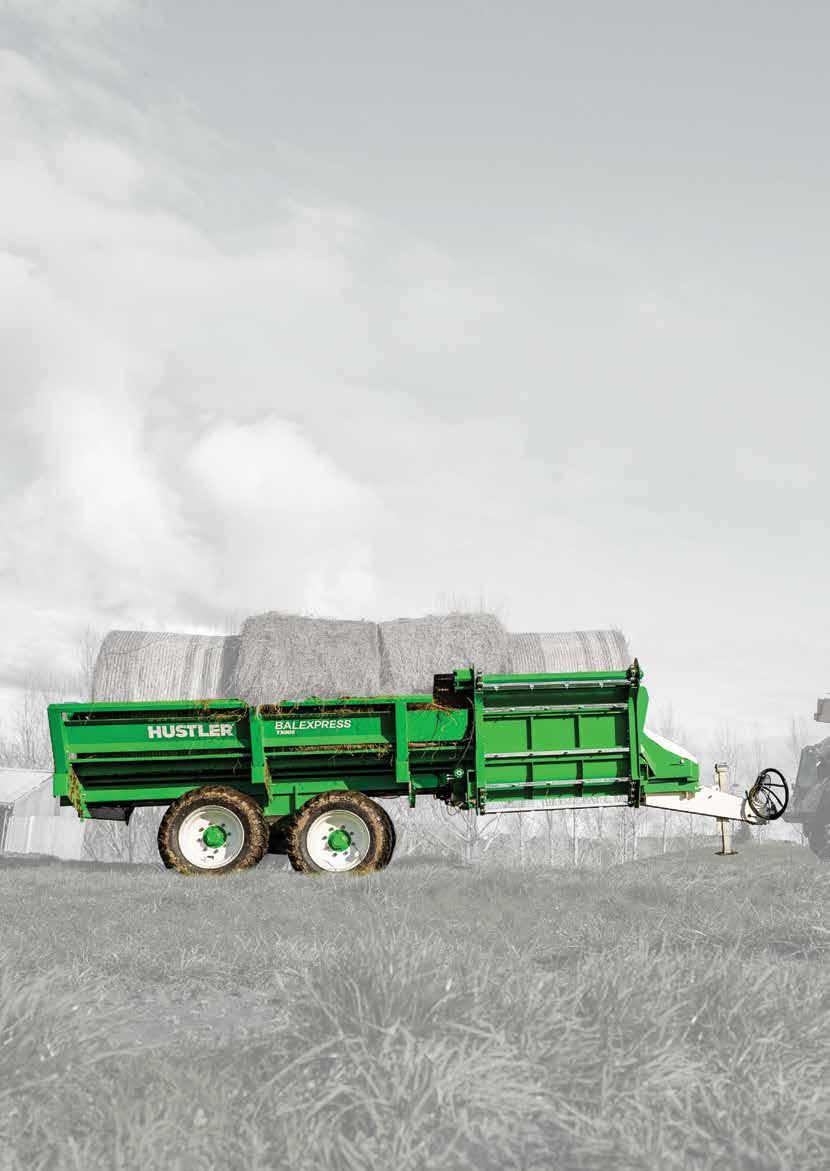

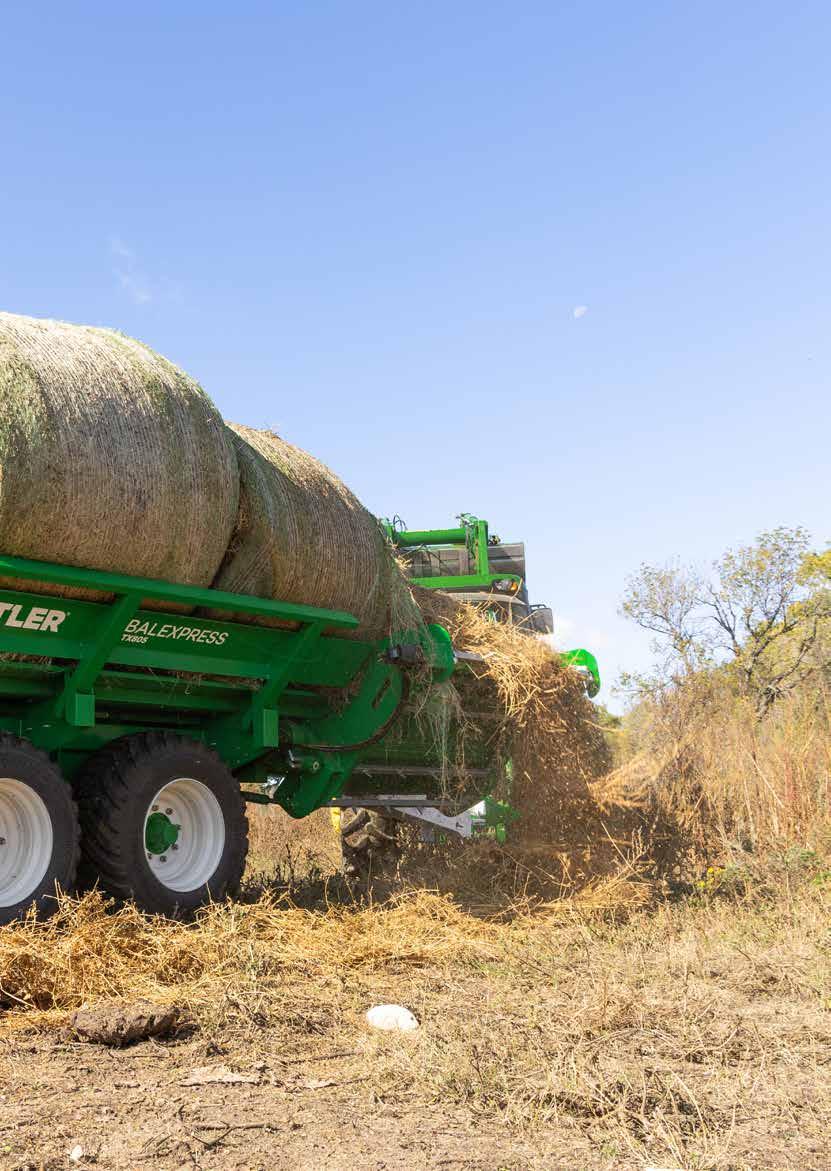

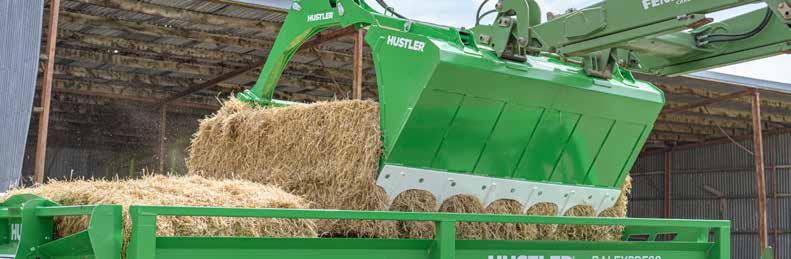

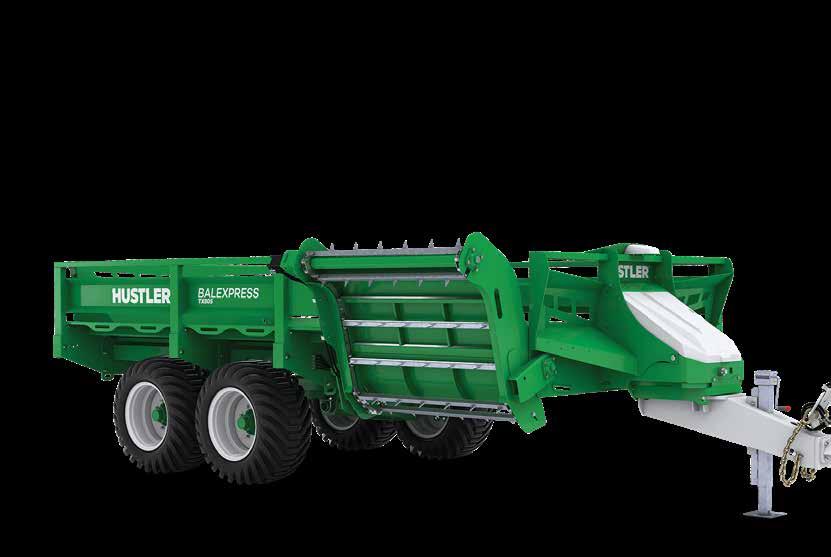

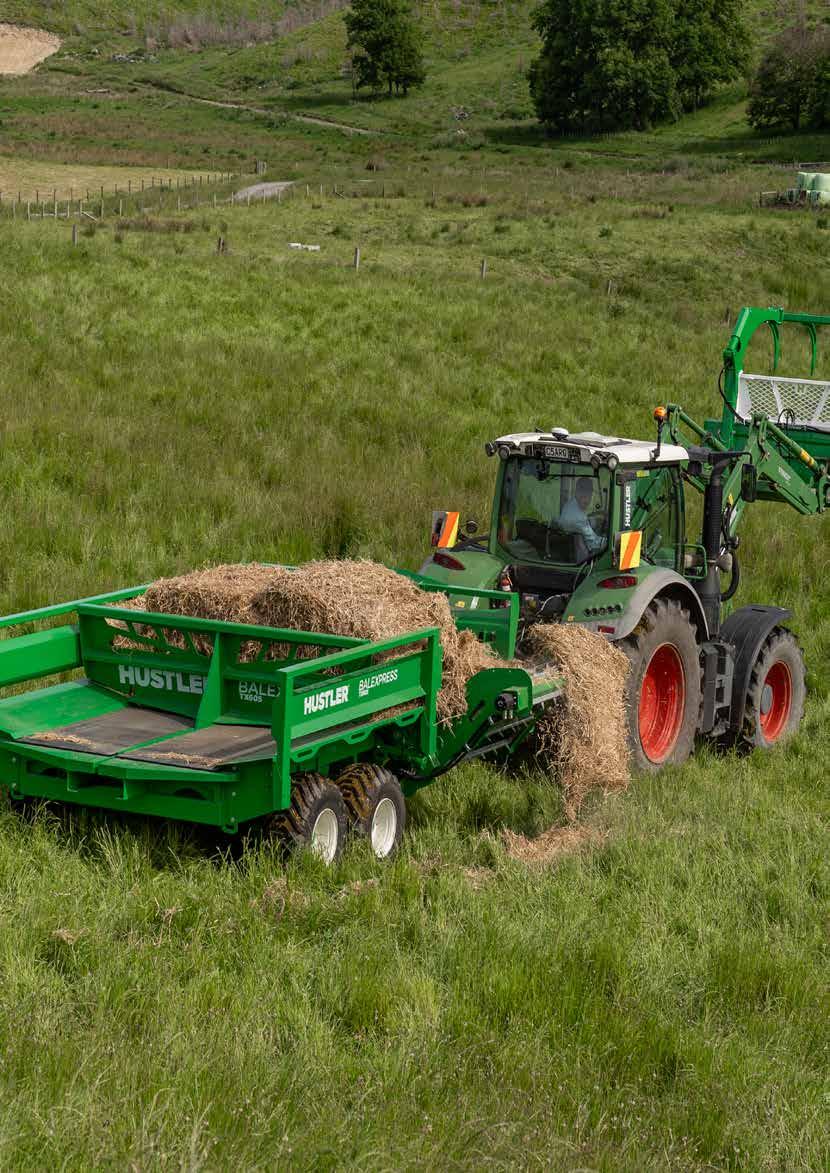

New BaleXpress multi-bale feeder released

Release of the new versions of the chainless LX1042 & Chainless LX1052

5 year warranty introduced

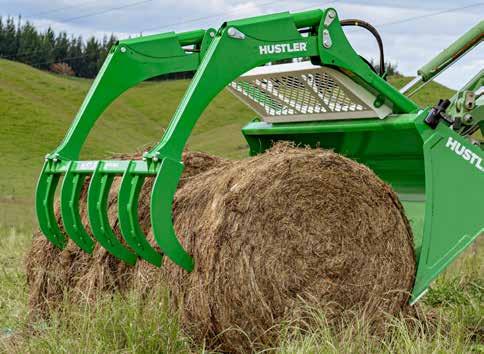

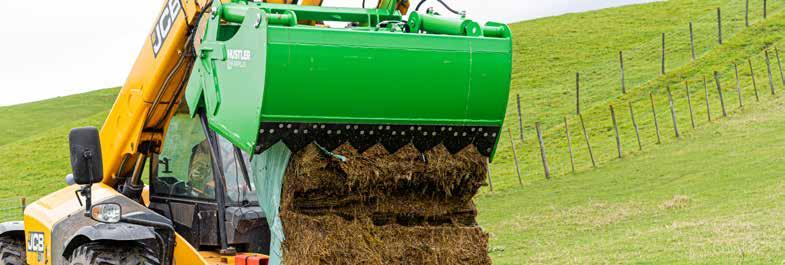

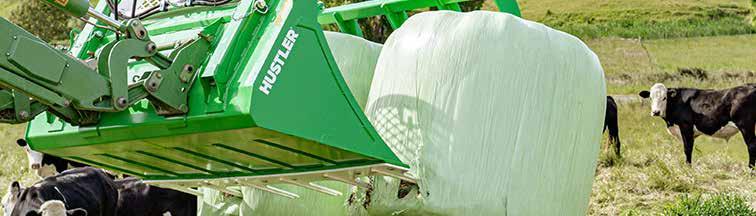

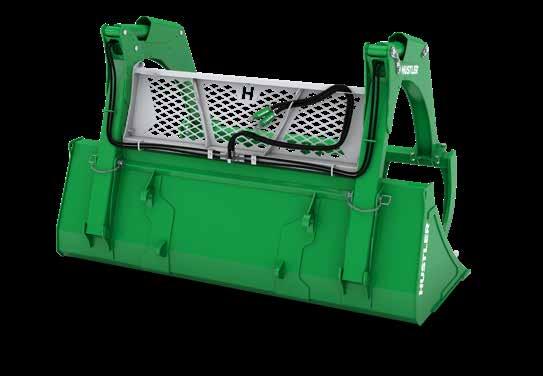

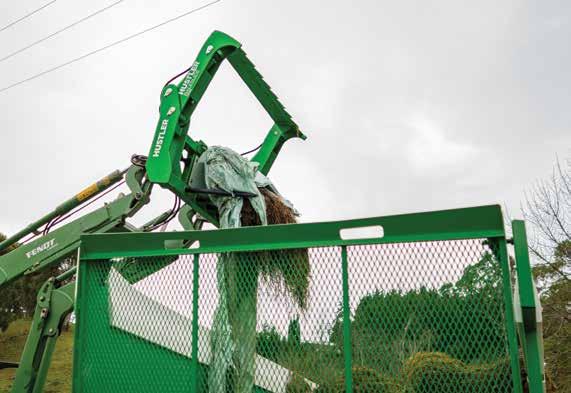

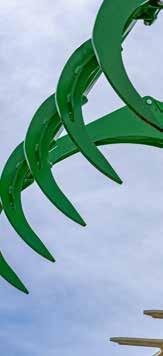

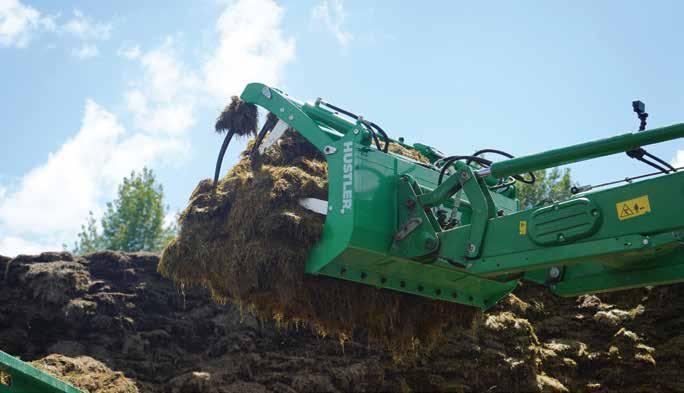

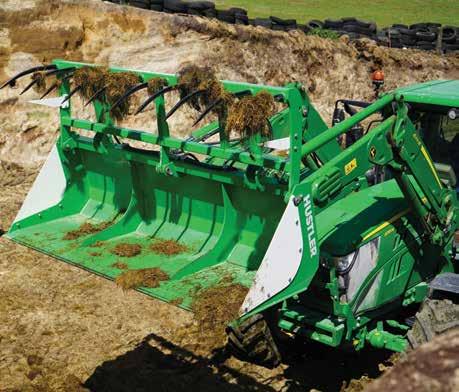

New Grapplemax grapple buckets released

of the

The world’s best farming equipment.

We know your scarcest commodity is time and that feed is one of the biggest numbers on your balance sheet, so that’s why Hustler’s machines are specifically designed to save you time and feed ... as well as a few other precious resources.

Hustler’s dedication to farmers and to using innovation to constantly improve the lives of farmers have made them a favorite for farmers around the world.

Chainless TH205

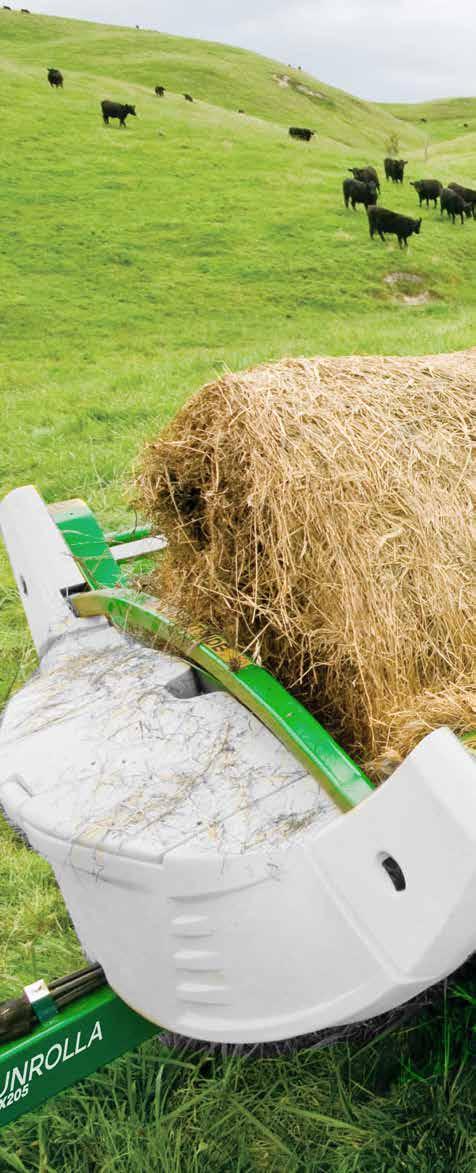

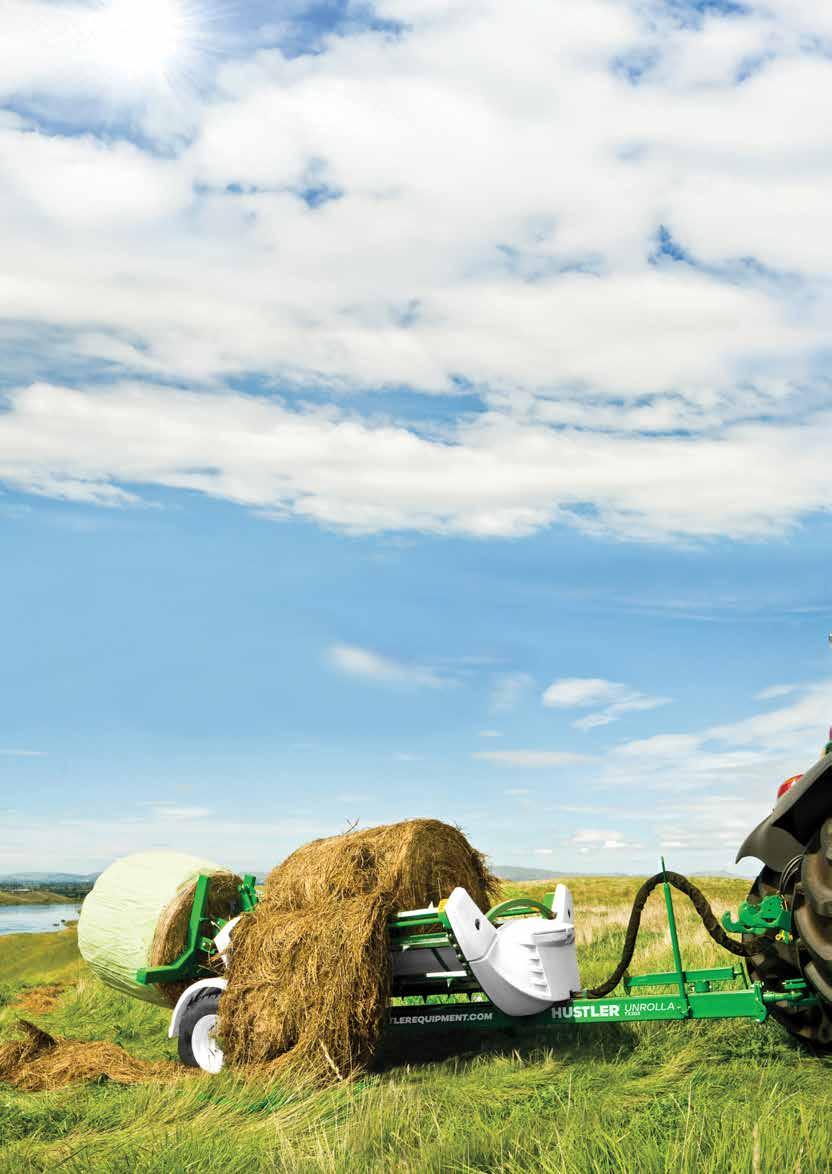

Unrolla TX205

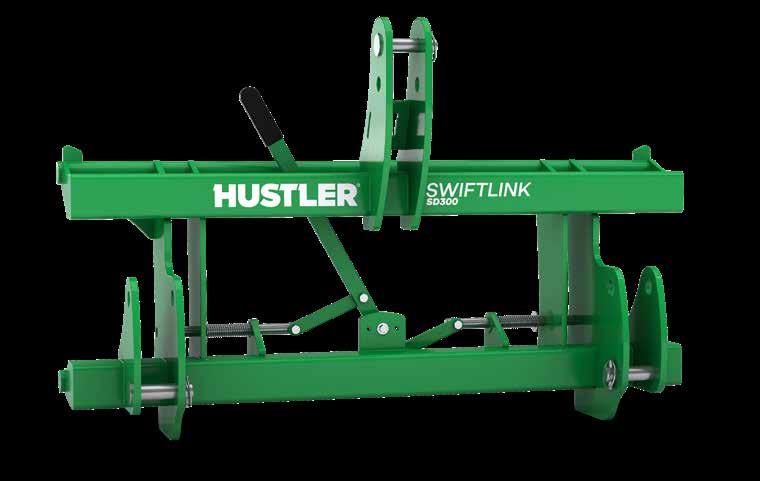

SwiftLink 3pt/euro adapter 81 EzFeed Silage Wagon Range

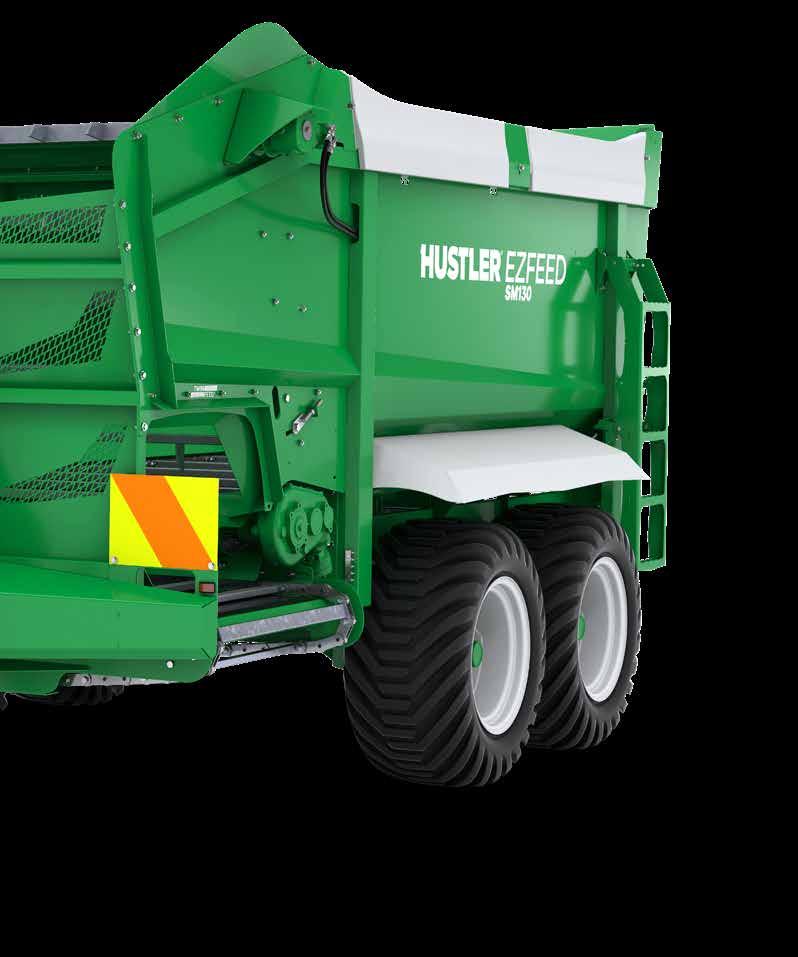

Swifthitch quick hitches 83 EzFeed SM130 / SM150

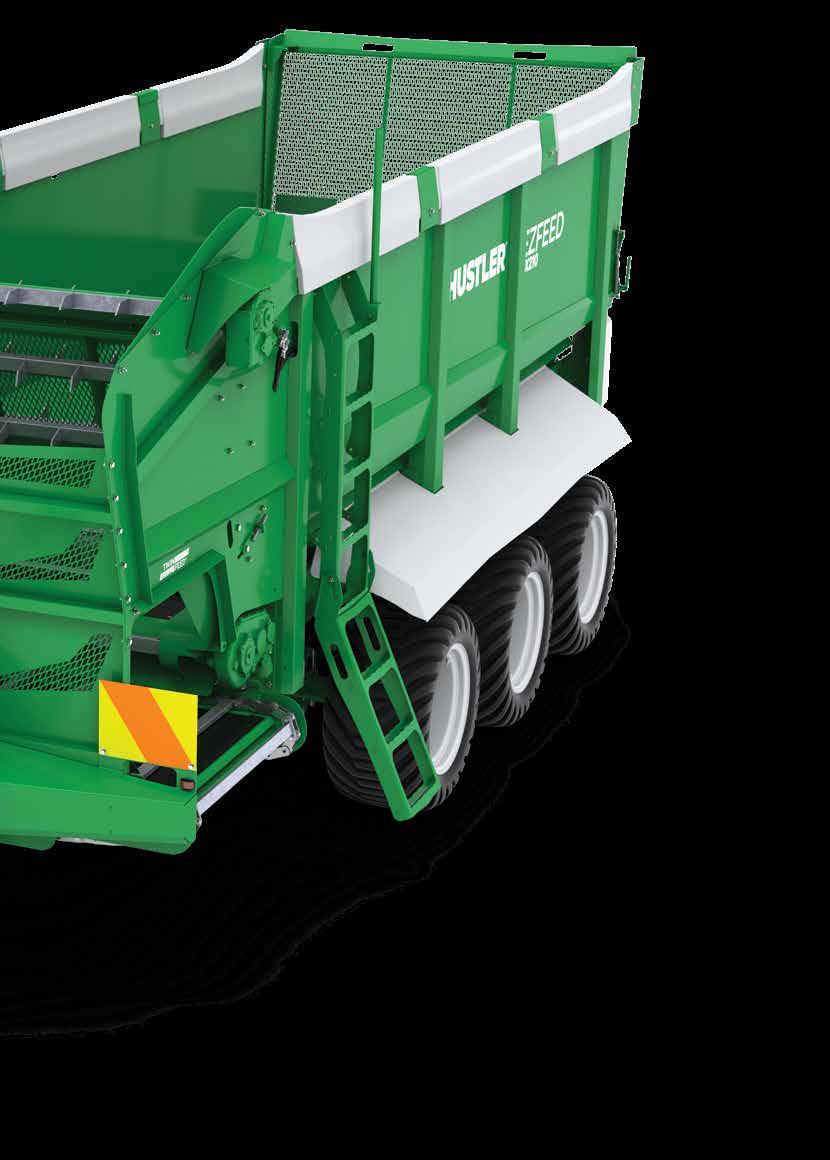

EzFeed SX180 / SX210

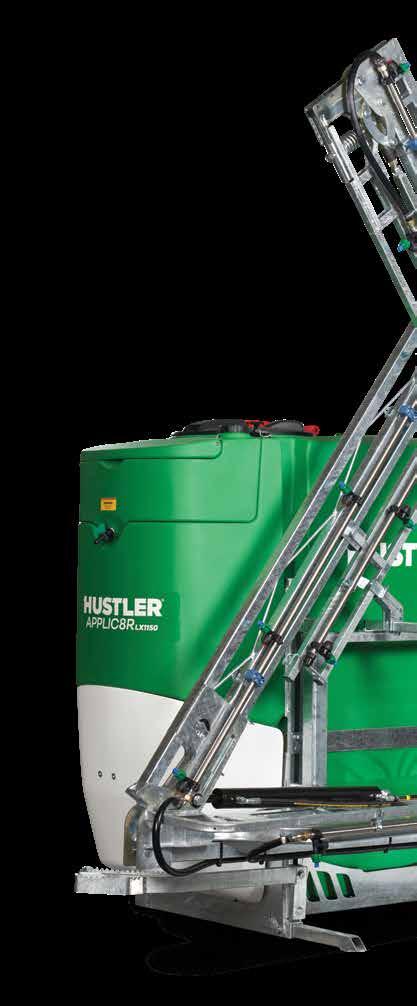

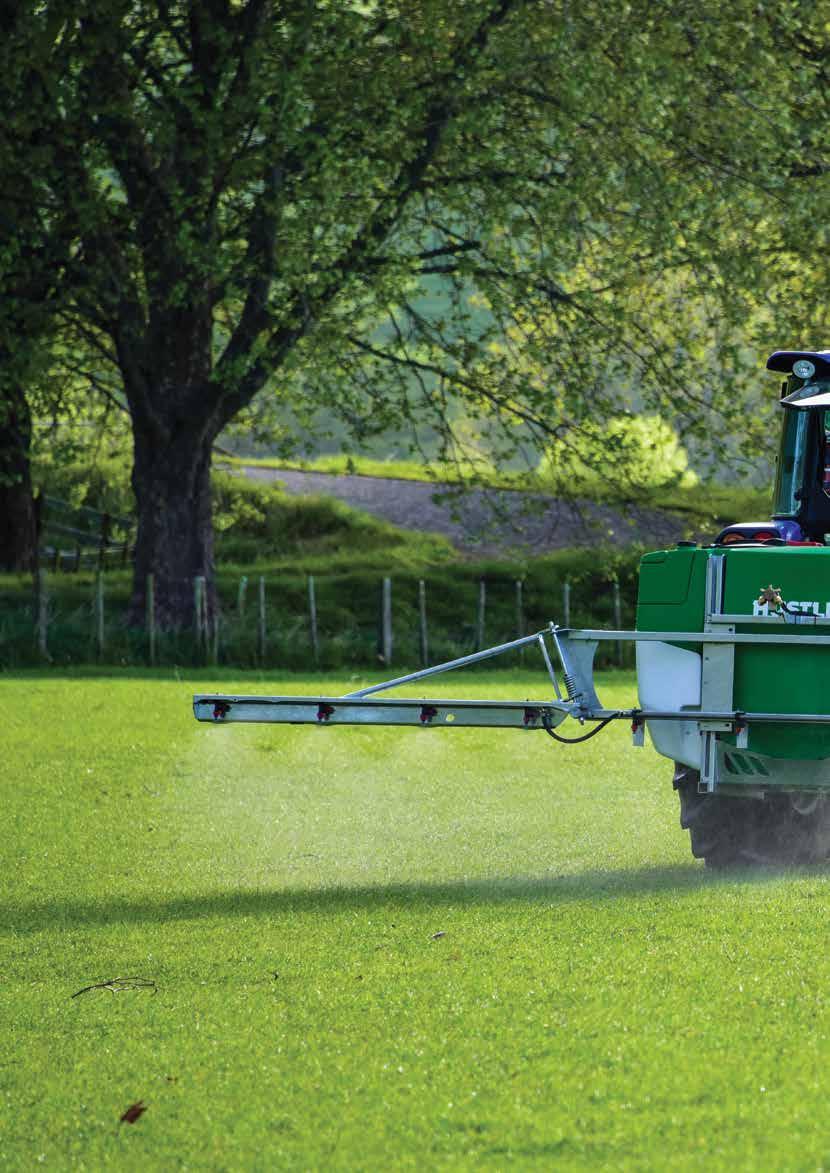

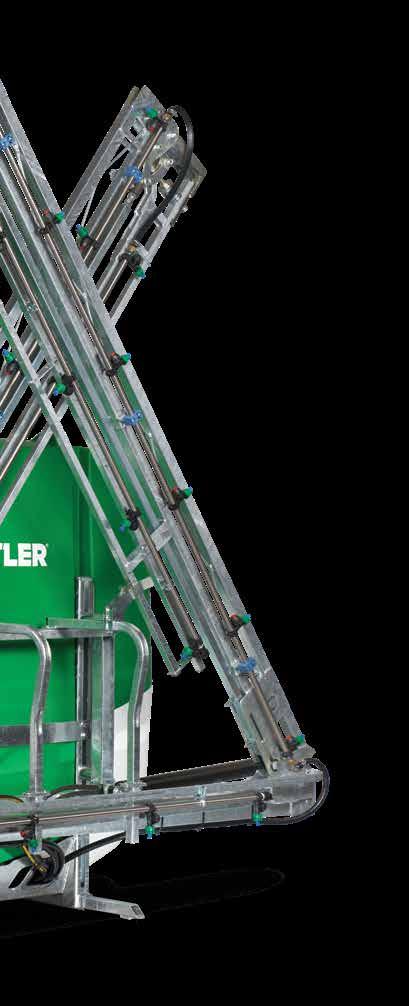

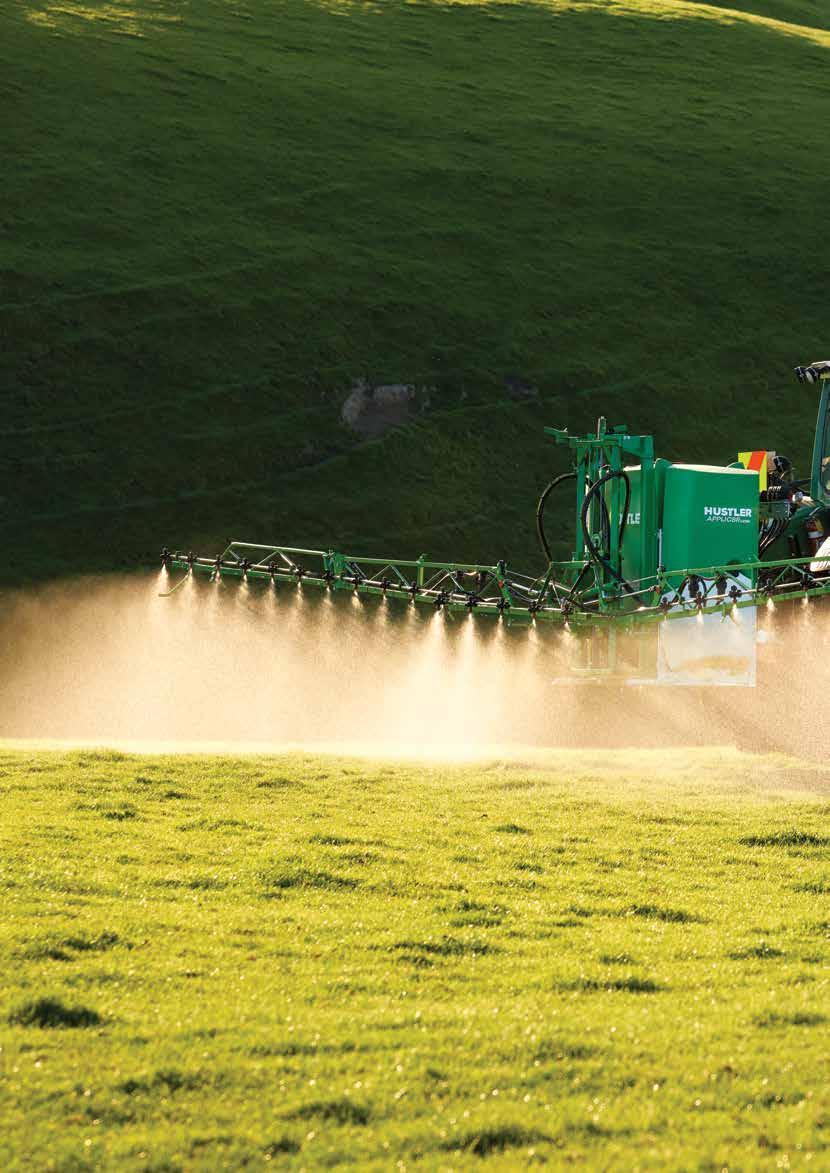

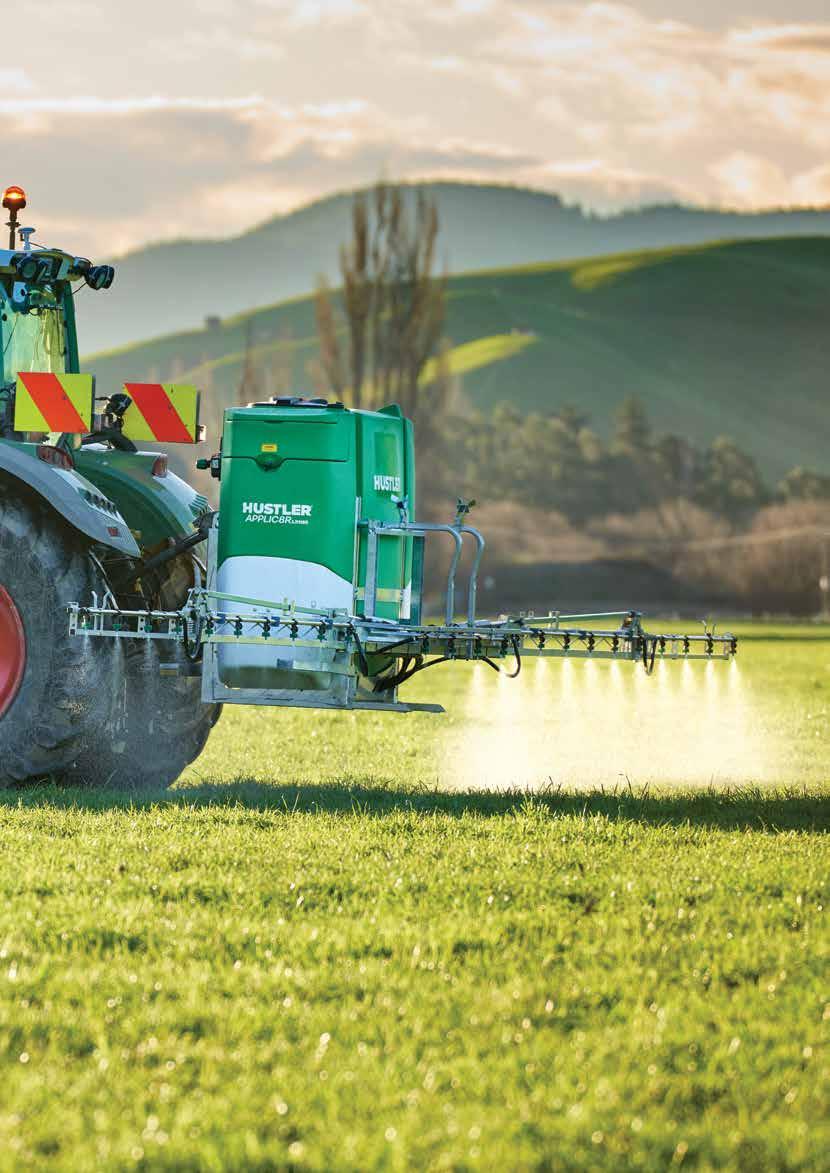

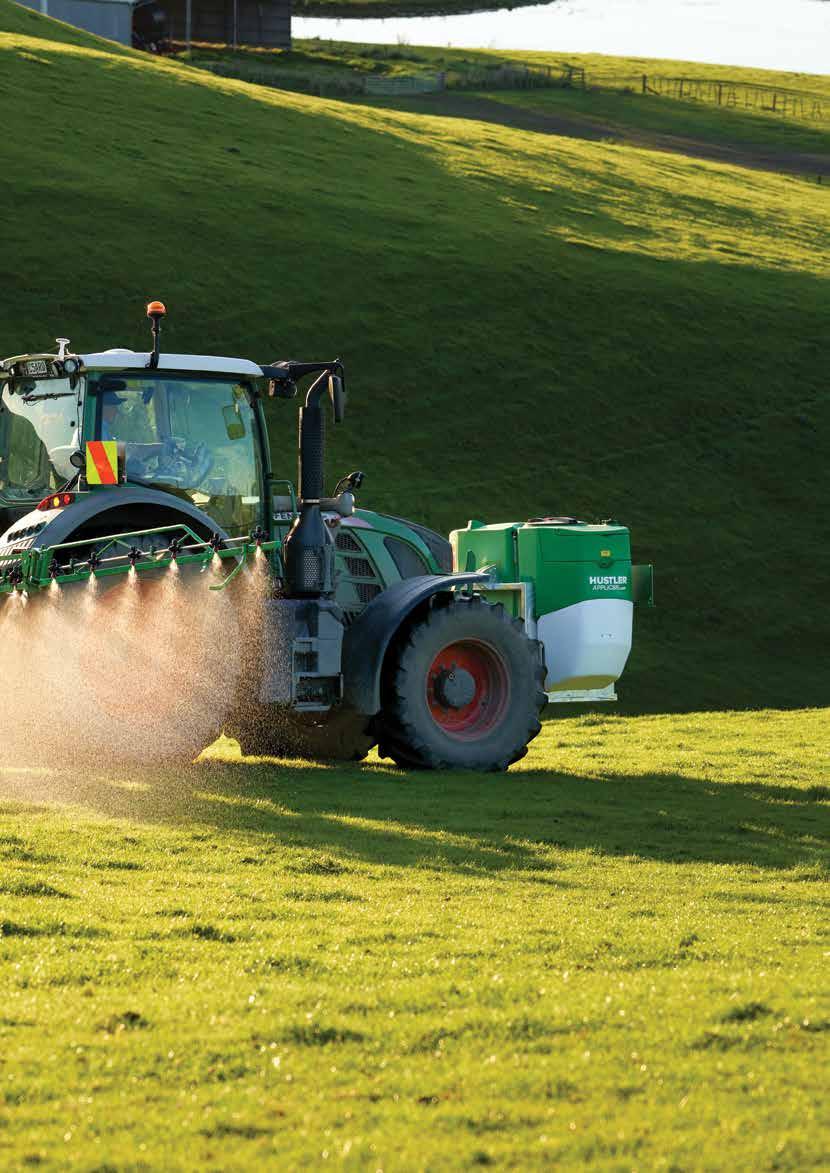

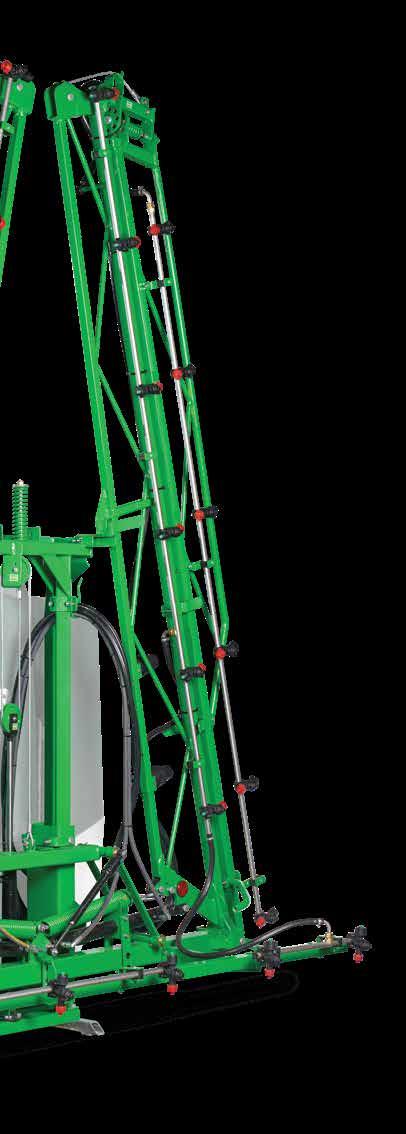

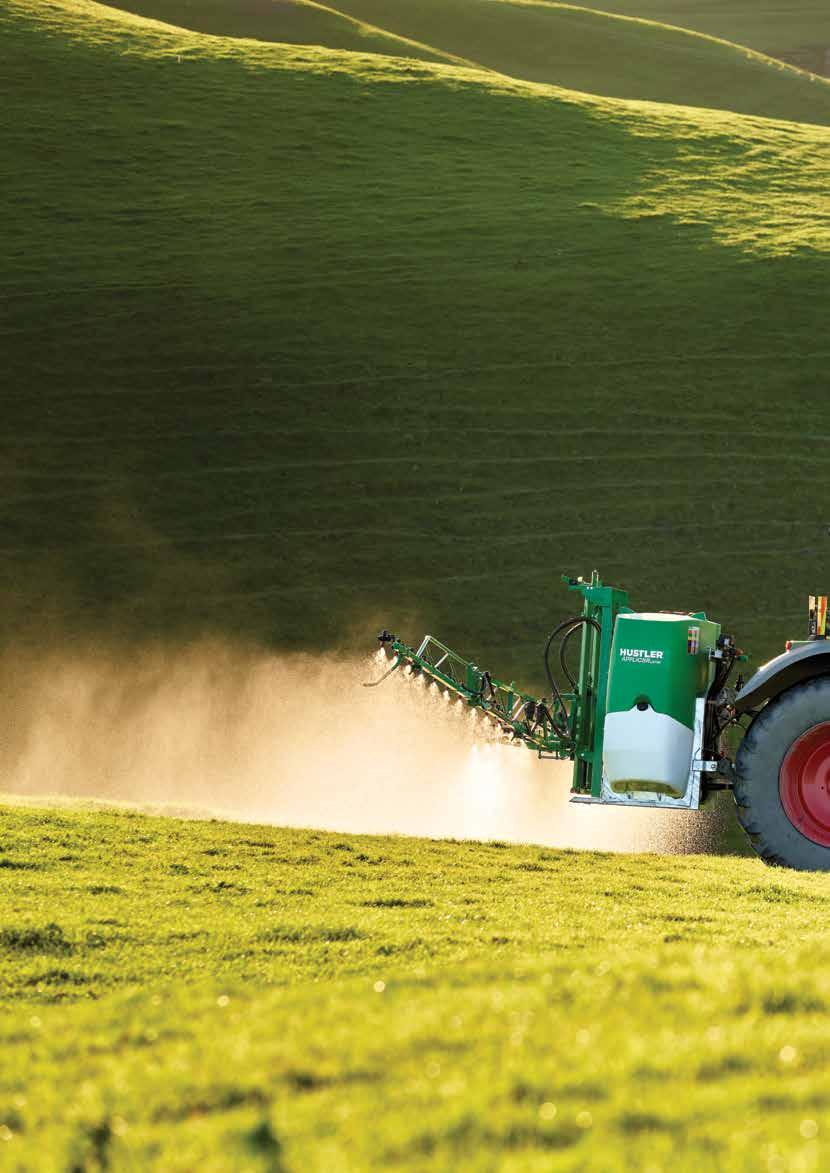

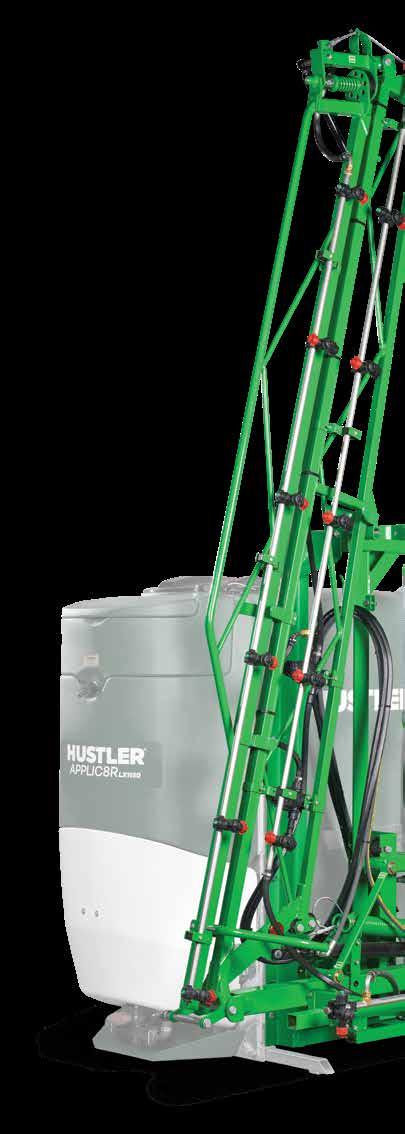

Applic8r Sprayer range

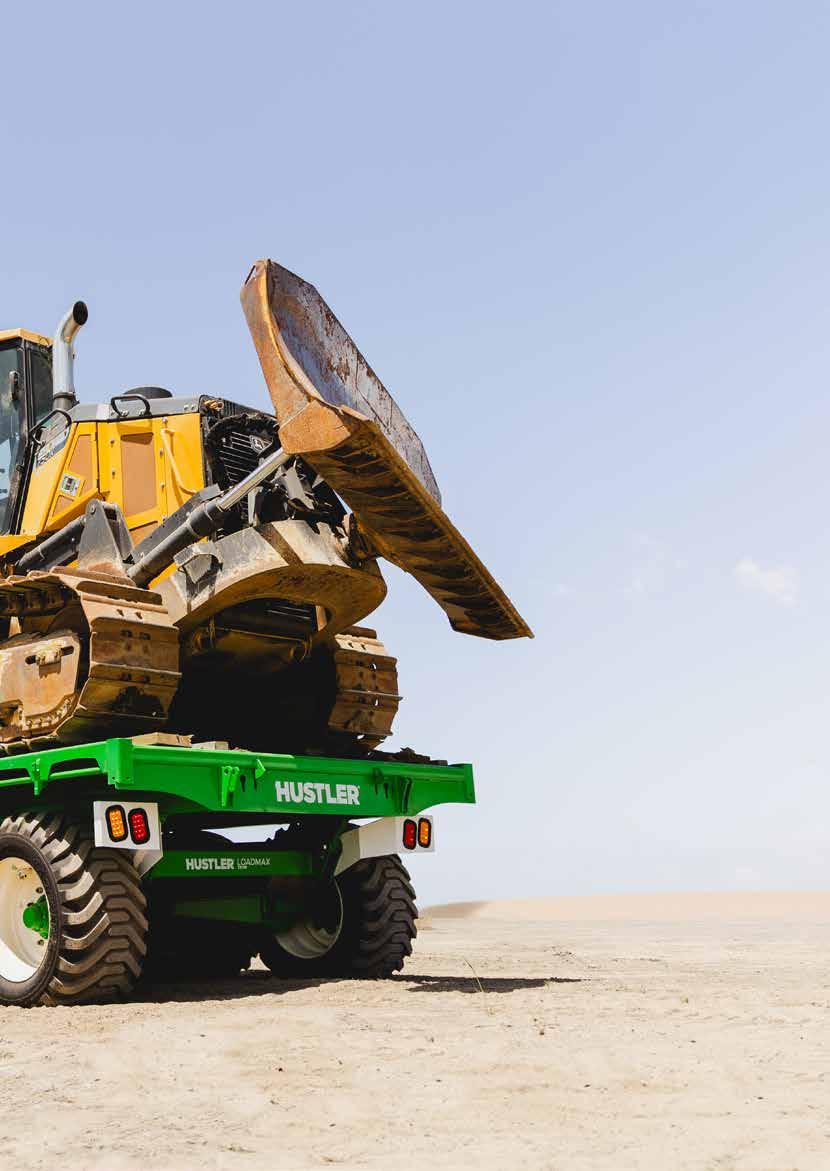

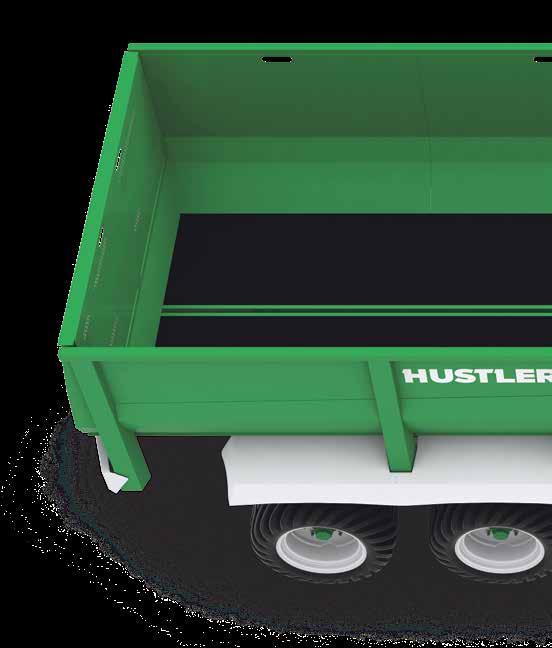

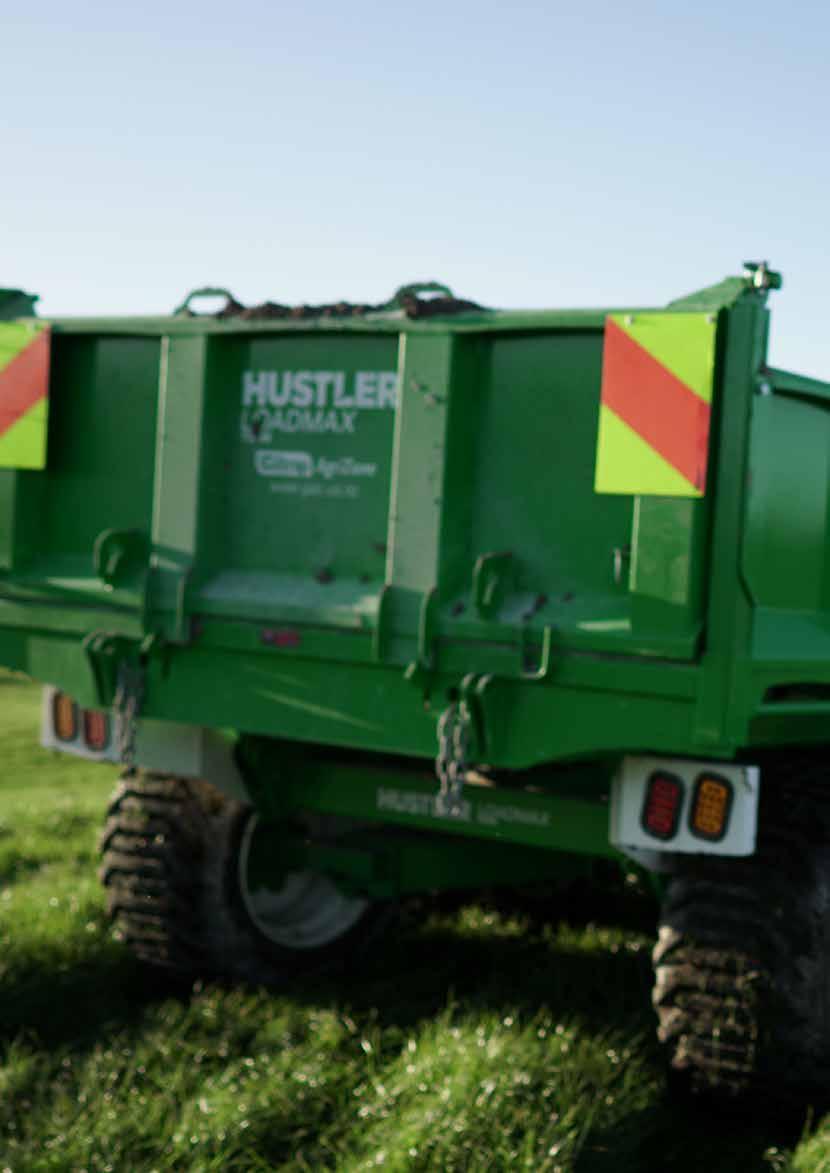

LoadMax Range

Money back guarantee.

We’re so confident about our equipment that we offer a 100% satisfaction guarantee. If you’re not completely happy (within 30 days of purchase) we’ll give your money back.

Warranty & after sales support.

Our commitment doesn’t stop when you leave the dealer. When you buy a Hustler, you’re buying into our legendary product support to help you keep going in the unlikely event that you have a problem with your bale feeder. Hustler machinery, built in 2023 or later, includes a No Bull 5-year warranty for the original buyer from authorized dealers. Protecting your investment, ensuring peace of mind and confidence in our quality.

Livestock feeding experts.

We offer helpful advice, expert product knowledge, training and onfarm demonstrations, visit our website to find your nearest Hustler Livestock Feeding Expert.

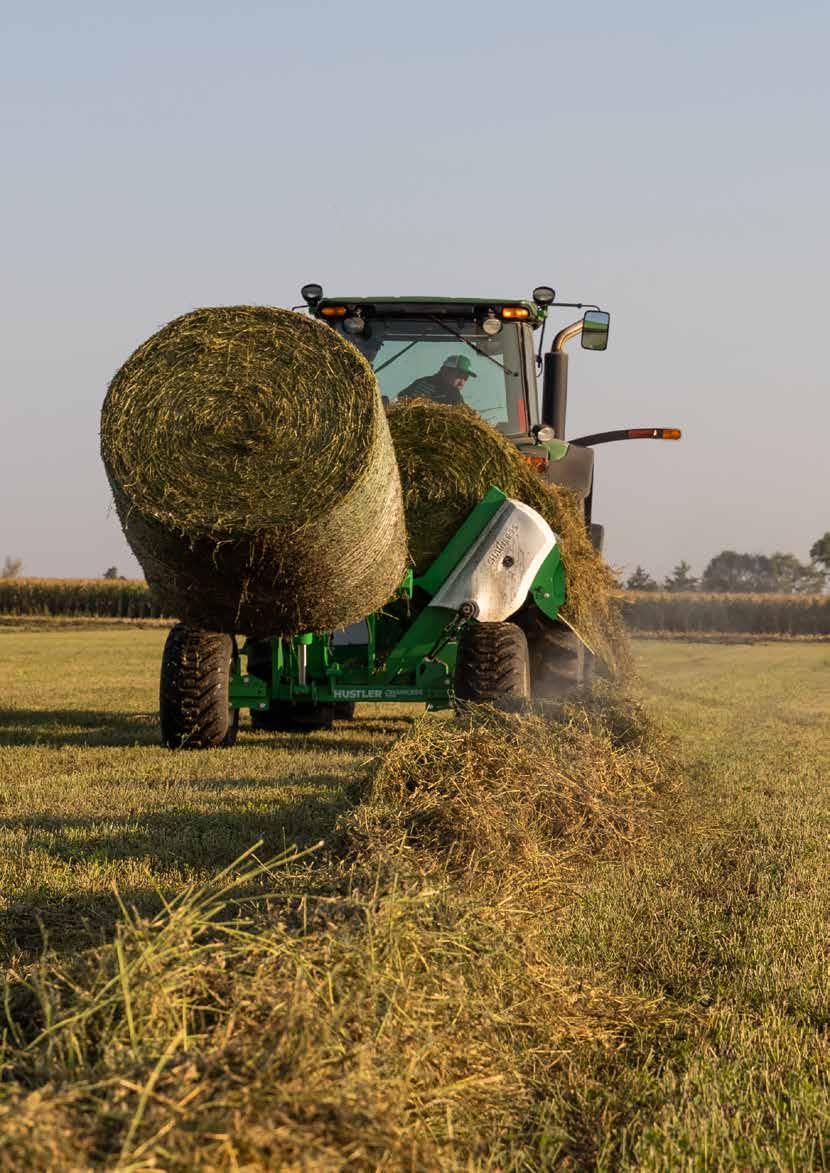

How Hustler Chainless helps farmers achieve more.

SAFE AND EASY TO USE

The hydraulically driven low speed rotors tease out bales in less than two minutes. Proven farmer-friendly bale self-loading system allows one operator to easily load and feed from the comfort of the tractor.

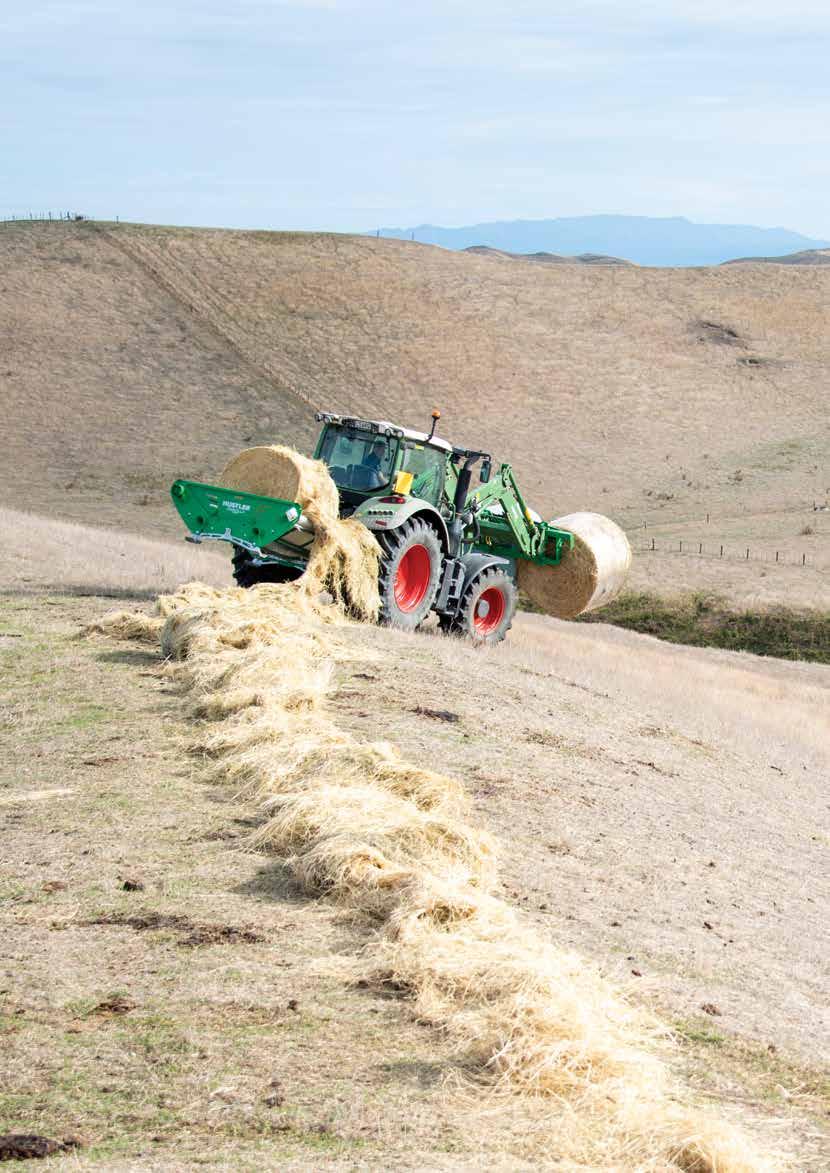

LESS HAY WASTE

The bale feeder lays down a fluffedup windrow which stock can easily eat, reducing wasted feed being trampled into the ground.

Feed out only as much or as little as you need.

VERSATILE

Feed out round or square bales of any size or type of bale - balage, hay, straw, corn fodder, alfalfa, lucerne, you name it. Hustler works in most stocking environments - indoors, outdoors into bunks, troughs or other feedlot systems or open fields.

LESS PASTURE DAMAGE

By allowing one bale to be fed to 50+ groups of any size livestock over a larger area, the need for sacrificing paddocks where concentrated feeding damages pasture is eliminated.

LOW MAINTENANCE

Easy to maintain hydraulic drive system eliminates the need for a PTO and high-speed flails with fewer moving parts.

FREE FERTILISER

Because bales are fed out over a large area, cattle spread their own manure for you, which makes better use of this valuable natural resource.

I couldn’t believe it, but it saves a lot of hay. Not sure why, but it absolutely is a fact.”

Bill

Fales - Colorado (USA) Farmer and owner of a Hustler Chainless TX205

Hustler’s patented chainless bale-feeding technology gives farmers a giant step-up in the way they feed stock.

Today, more than ever, the two main concerns facing farmers are feed waste and fuel useage. Both of these inputs can make a significant improvement to your balance sheet if managed well.

Slashing feed waste.

Hustler Chainless bale feeders minimise feed waste by feeding out into narrow windrows making feed more accessible to animals and all but eliminate damage from hoof trampling, manure spoilage, and animals laying down on the feed.

Easily feed sloppy or loose bales with no feed loss from the sides of the bale feeder. And because Chainless will handle partly used bales, you only need to feed out what’s needed on the day.

Unlike other systems, Chainless teases feed apart making it easily chewable and more palatable, so more feed gets eaten.

Cut diesel consumption.

The comparison figures shown are based on industry standard calculations for diesel consumption per horsepower per hour.

More efficient use of power, savings on machinery investment and faster bale feeding all add up to impressive fuel economy, made possible by the hydraulic drive system at the heart of every Hustler Chainless bale feeder.

Most pto driven bale-feeding systems chew up a minimum 50 horsepower to drive their chopping action, unlike Hustler Chainless’s low-speed teasing action that needs only 3-4 horsepower.

This means Chainless is compatible with smaller tractors, leading to further savings in fuel consumption and equipment costs.

An ultra efficient feed-out time of just 2-4 minutes per bale, compares with up to 45 minutes with other.

Hustler Chainless offers the lowest diesel consumption per bale of any mechanical feeder.

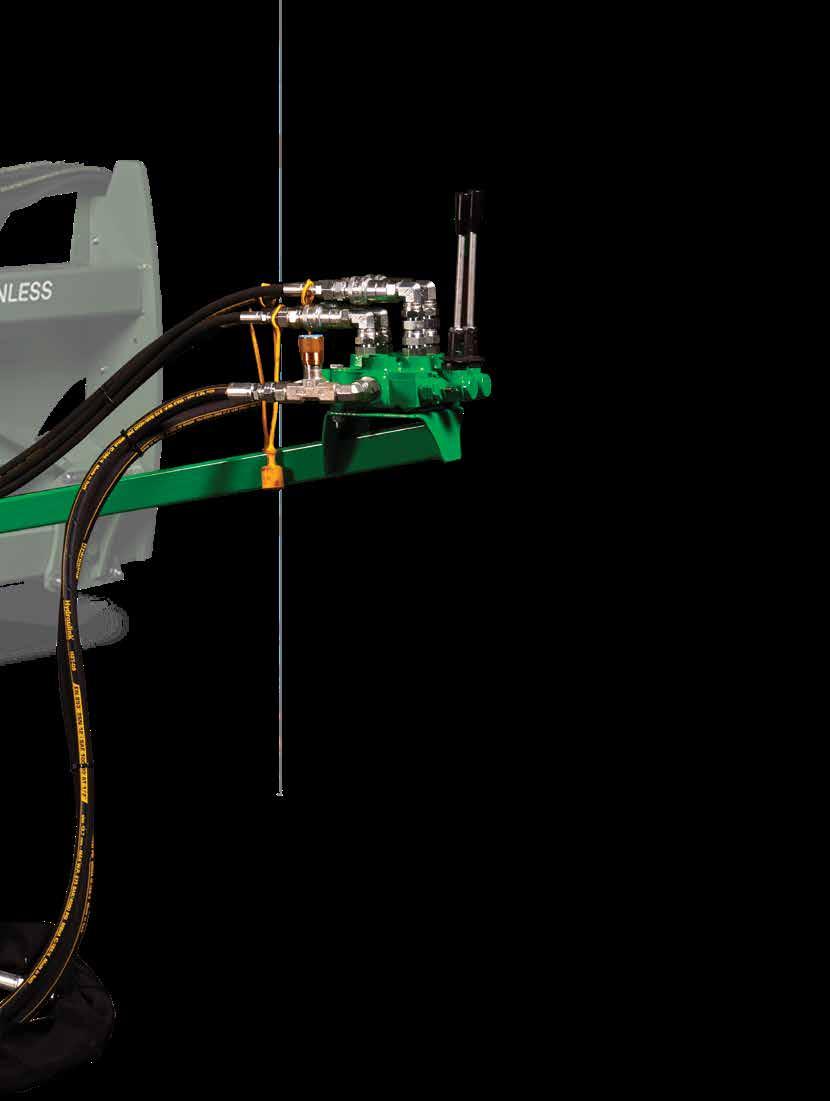

Hustler bale feeder hydraulics requirements:

2 x double-acting, 30-60 litres/min (7-13 gallons/min), 2250-3000 psi.

TO LEARN MORE ABOUT ALL OF THE ISSUES WITH FEEDING OUT BALES, AND HOW EACH TYPE OF FEED OUT EQUIPMENT COMPARES, REQUEST A COPY OF THE 24 PAGE COMPARISON GUIDE OR FOR ADVICE, DISCUSS YOUR NEEDS WITH YOUR NEAREST FIELD CONSULTANT.

Typical amount of feed wasted.

Feed wastage is affected by a range of factors, including application, type, shape, and condition of bales.

For feed saving advice specific to your application, talk to your local Hustler Feed Expert.

Typical diesel consumption.

(Average per bale)

Diesel consumption is affected by a range of factors including distance travelled, type and shape of bales.

CHAINLESS BALEFEEDER

0.048L (0.01 gallon)

For fuel saving advice specific to your application, talk to your local Hustler Feed Expert. BALE PROCESSOR/ CHOPPER 1.259L (0.277 gallon)

CHAIN/ SLAT BALE FEEDER

0.068L (0.015 gallon)

Consumption

TMR/FEED MIXER 11.625L (2.557 gallon)

UNROLLER 0.194L (0.043 gallon)

SPLITTER 0.155L (0.034 gallon)

*To distribute and load bales RING FEEDER 0.01L* (0.022 gallon)

Achieving X Factor.

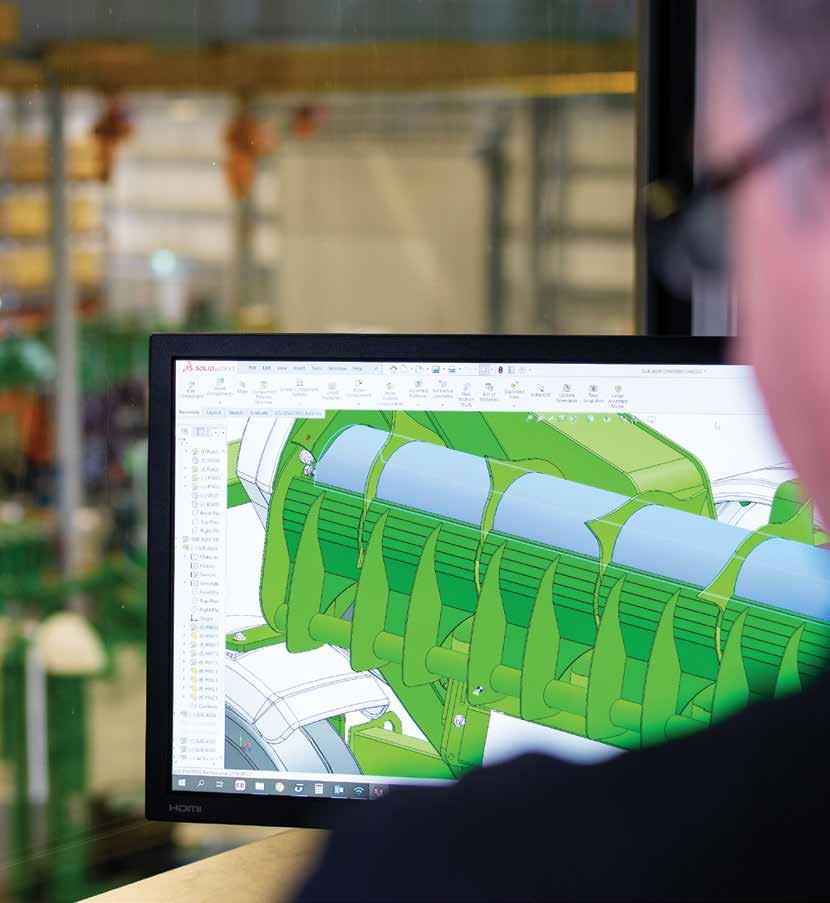

Exhaustive, close collaboration between Hustler’s design and manufacturing teams plus extensive field testing by farmers globally has produced the most efficient, reliable and simple livestock feeding system ever.

The addition of a new patented axial rotor with centralising paddles keeps the bale positioned in the centre of the feeding chamber to minimise wastage and provide better grip on soft bales.

A wider, deeper feeding chamber prevents bale rub and wastage even more. Feeding out is made easier by reducing the need for adjustment of the platform.

The easy clean Hypaflo™ wiper panel minimises blockages and ensures that feed drops outside the wheel tracks to avoid being flattened into the mud. A quick release latch releases the wiper panel for easy cleaning.

A capacity of up to 1.5 tonne (3,300 lbs) per bale will substantially increase on-farm profitability via efficiencies in bale handling.

We

have three Chainless TX205s we bought last year. We can’t fault them.”

4 reasons to invest in a Hustler Chainless bale feeder.

1.

QUIET AND RELIABLE OPERATION

With the Chainless system, say goodbye to troublesome feed chains! This key advantage ensures a dependable, low-maintenance, and noise-free feeding process by keeping things simple. Instead of conventional feed chains or flails, this system employs a robust hydraulically driven polyethylene platform that gently feeds bales through two low-speed rotors. The rotors tease the hay, resulting in virtually silent and dust-free feeding, preventing air filter clogs, keeping grease points clean and prioritising the comfort of your livestock. With a complete drive and shaft system operating on bearings rather than bushings, it reduces wear and moving parts, offering minimal maintenance, less downtime, and an extended service life. This ultra-low power requirement can save up to 60% on fuel compared to PTO-powered machines and enables it to be used with even small tractors.

2.

VERSATILITY ACROSS ALL BALE TYPES

The Chainless system has been developed to future-proof your operation, being able to handle all bale types and shapes, round or square dry hay to wrapped bales.

The shape of the two 3:1 low-speed ratio rotors, coupled with an innovative wiper panel preventing materials building up, and the curved bale platform design improve penetration, making it efficient even with dense, sticky, rotor-cut or frozen bales whether they are round or square. The bottom axial rotor ensures an excellent grip on both tight and loose bales, simplifying the feeding process by keeping the bale centralised while feeding it out. The large bale chamber broadens the range of bales it can handle, minimising the need for constant platform adjustments, making it easy to use by all-skilled operators.

3.

MINIMISE WASTE AND MAXIMISE QUALITY

Chainless also preserves the forage by gently teasing it apart with its unique 3:1 low-speed ratio rotors. This process avoids chopping or grinding the bale, leading to several benefits. This system ensures total control over the size and length of the feed windrow, whether you’d like it thick for bigger animals or narrower for young heifers or sheep. The nutritional leaves are not separated from the stems, and the hay is not pulverised or lost as dust, making it more palatable for your livestock, easier to consume without competition, ensuring even access to the feed for the whole herd. Potential mould in a bale is separated without mixing, ensuring cattle consume fresh, clean hay. Our customers report remarkable reductions in mineral supplement consumption, up to 80%, and up to 20% less hay consumption for the same live weight gains, all with the same bales. As you get more control on where and how much you’re feeding, you can save up to 40% of your hay over the season!

4. FULLY ENCLOSED CRADLE

The Hustler’s patented Snaplox™ system automates connecting and disconnecting the headstock integrated bale tines to and from the bale feeder, guaranteeing an easy and hassle-free operation. Instantly disconnect the headstock from the bale feeder, use the integrated tines to load the bale onto the feeder, and instantly reconnect the machine for feeding, without the need to get out of the cab or to tug on a rope to make the latching system work, reducing strain on your back. As the hydraulic system sits on the headstock, you don’t need to touch the hydraulic hoses during the loading/ feeding process. Snaplox™ also allows you to mount your Chainless bale feeder at the rear on a three-point linkage or at the front on a front loader, telescopic loader, skid steer loader for added versatility.

When stems are attached to the leaves, livestock consume a balanced diet including roughage, reducing health problems and ‘slowing down the good stuff’. And because the amount of nutrition falling into the ground or blown away in the wind is greatly reduced, your livestock won’t be licking the nutrition off the ground in the snow.

Very little nutrition retained with the conventional PTO powered flail type bale processor.

High nutritional value retained in the leaf with Hustler’s gentle hydraulic low speed rotor system.

The

fact that it’s a one-man show, the fact that it runs off the hydraulics on your tractor, the safety alone is worth its weight in gold.” “

Self-loading systems.

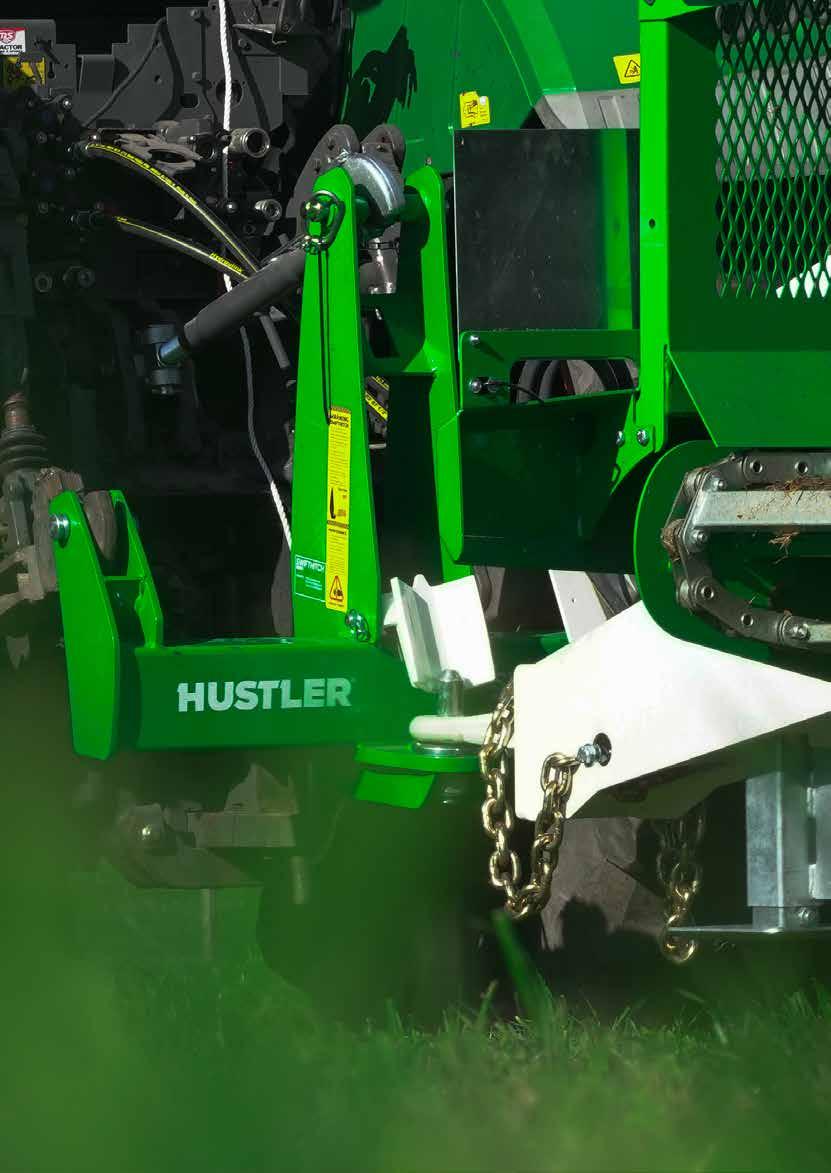

Patented Snaplox Auto Connection System.

Hustler’s clever Snaplox auto connect/disconnect hands-free system saves you time, saves you having to tug on a rope to disconnect, and saves you from twisting your back. It’s fail-safe, fast and operates naturally. Unequal length bale spears make connecting the headstock to the feeding cradle quick and easy.

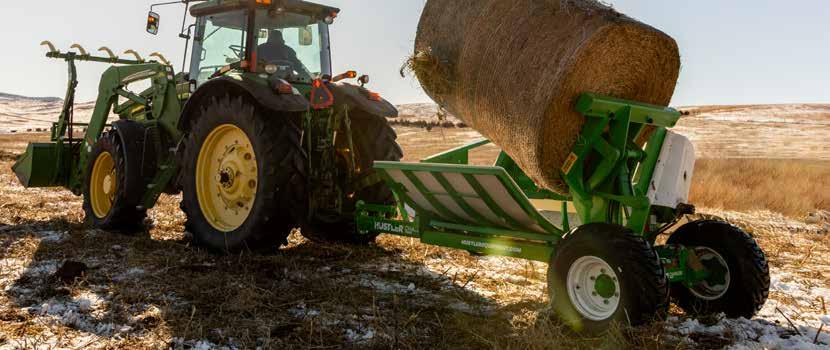

Patented Total Control Loading System.

Enjoy total control over bale loading thanks to a single hydraulic cylinder and simple patented mechanical engineering. Hustler Chainless is safer and more reliable compared to imitation dual cylinder systems with their troublesome sequence valves that require frequent adjustment.

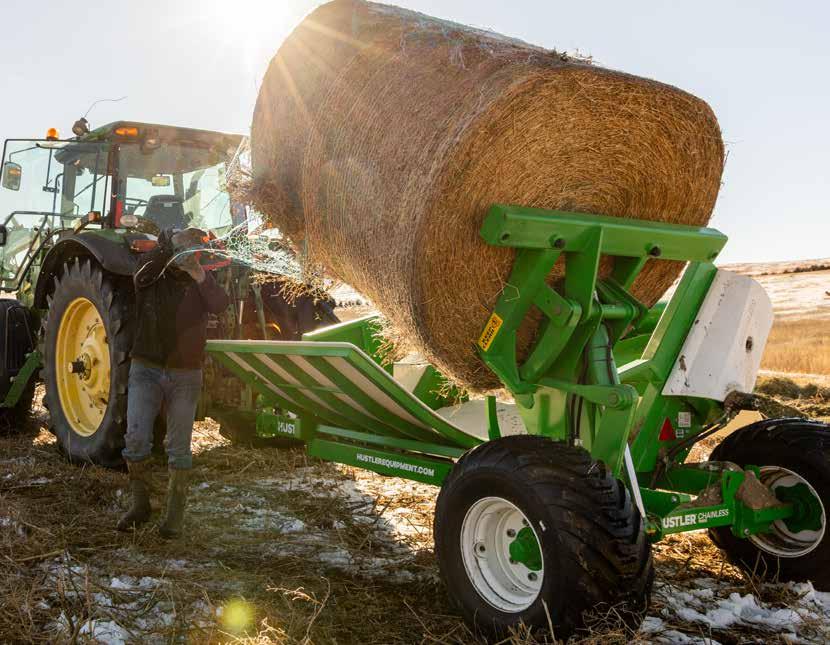

Total Control Loading System: CHAINLESS TH205

The total control loading advantage.

+ Easy bale pickup means no digging up of paddocks or dirt mixing with feed.

+ Gentle and accurate placement of the bale in the bale chamber.

+ Easy to line up the bale.

+ Minimal feed wastage because the net wrap can be removed above the bale chamber.

+ Bale is secure during transport, even on steep inclines.

+ Handles round and square bales.

+ Second bale can be positioned low to the ground for added ballast.

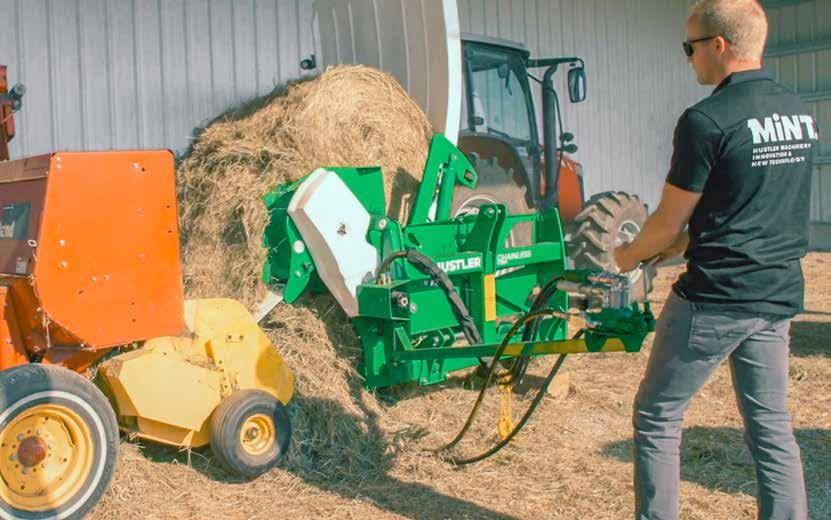

Snaplox Auto Connection System: CHAINLESS LX104², LX105²

“

We feed a fair bit of green feed, oats, and triticale. We’re in western Canada, and we feed some hay as well – square bales, round bales. Our idea was to keep that feed intact so we weren’t thrashing it, like through a normal bale processor. The results here are a lot different, it’s a lot gentler so feed stays intact. That’s one of our big reasons for purchasing this machine.”

Chainless LX1042 / LX1052

Both models are loaded with all the Chainless feeding benefits and time saving loading benefits. The LX105² has a wider bale chamber and can can handle bales up to 5 feet wide.

Versatility.

When it comes to feeding and bedding livestock, no other machine is as versatile as the all new Chainless LX104 and LX105. Livestock farmers can achieve more from one machine, saving on capital expenditure, maintenance and operator training.

Selective Bedding.

Selective bedding is a feeding technique being embraced in developed markets. Bedding straw lasts longer, straw consumption is reduced, and dust is all but eliminated. By improving the conditions livestock live in farmers are reducing health complications such as frozen udders, pneumonia, and other illness caused by conventional bedding methods.

Feed into TMR

Accurately measure in as much hay as you need and eliminate having to wait for the mixer wagon to grind bales to bits.

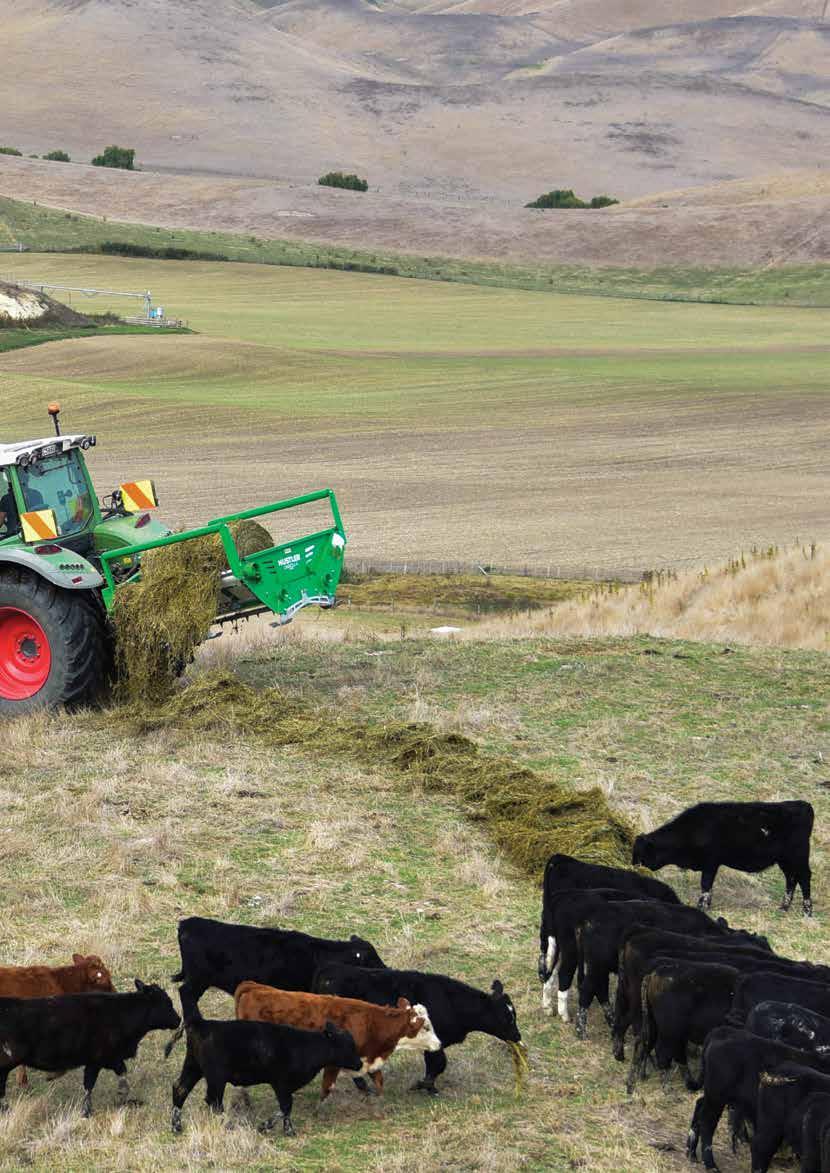

Feed onto pasture

Chainless X Series is equally at home feeding the traditional way on open fields and pastures

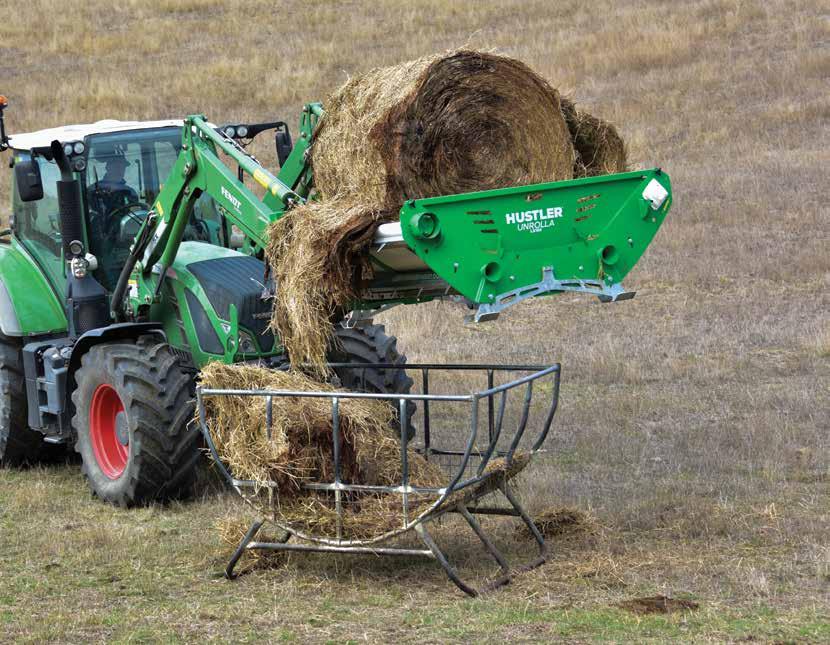

Feed into rings

Feeding each bale into multiple hay rings, can substantially reduce waste, and spoiling of silage bales.

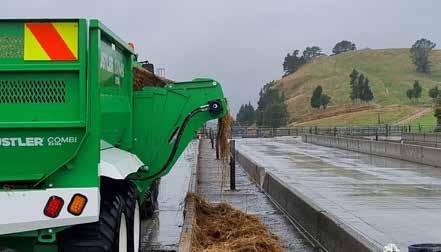

Feed into troughs or bunks

The new design with a higher and wider discharge, is now the best feeder on the market for trough & bunk feeding.

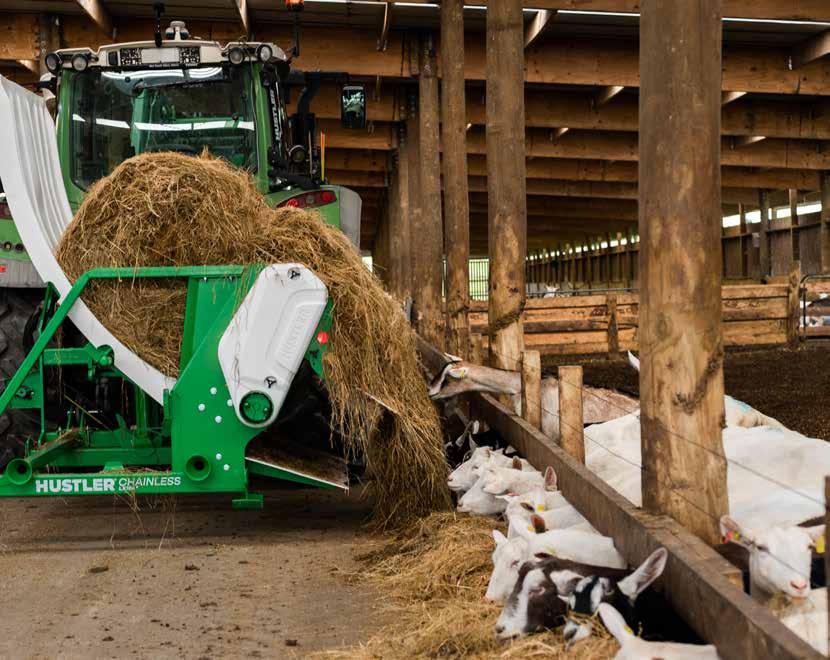

Feed in barns

Indoor feeding made easy with the new compact design, which allows the Chainless to be operated on loaders or 3-point hitch.

Feed over fences

Eliminate the time it takes to enter each paddock to feed in and eliminate trampled feed, by feeding along a fence line.

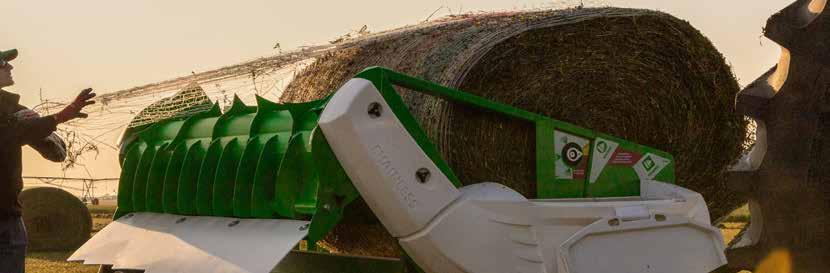

Chainless LX1042 / LX1052

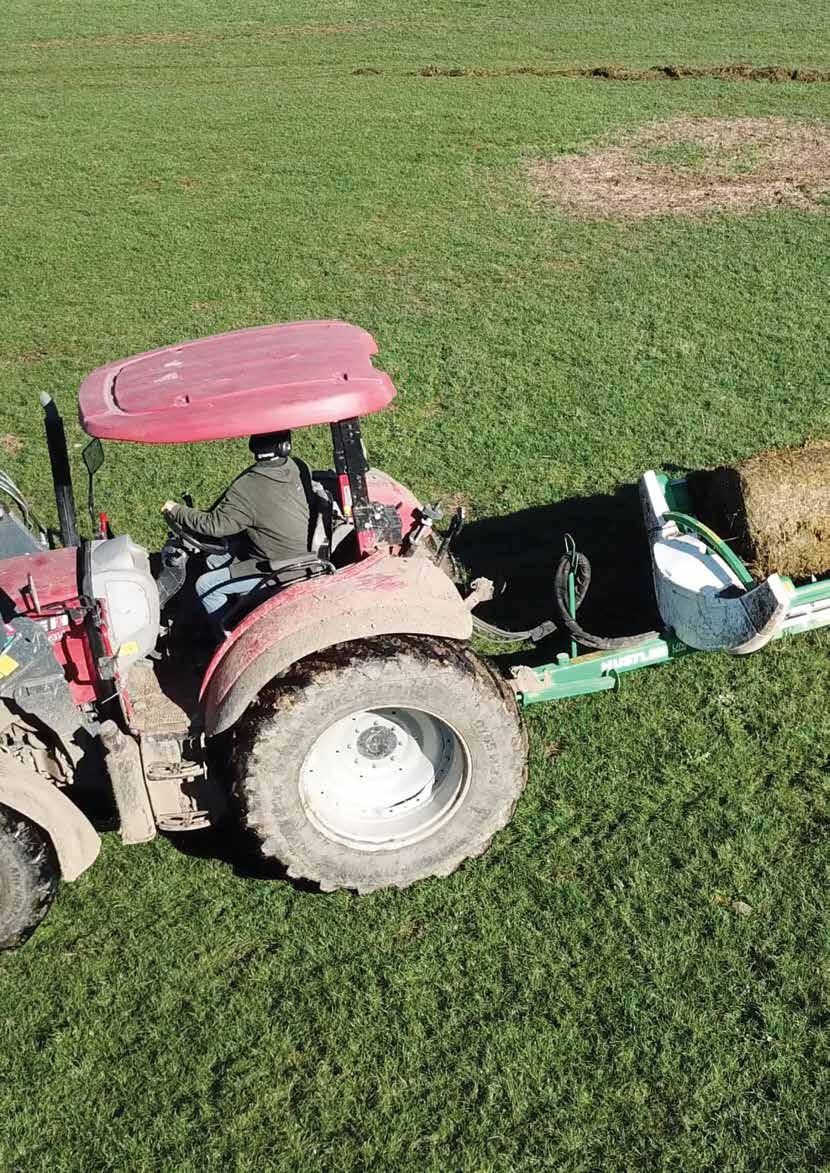

The world’s most versatile round and square bale feeder can be mounted on a skid-steer loader, front loader, telehandler or 3-point hitch. At the core is our patented Chainless feeding system which processes every type of round or square bale with ease, minimising feed waste. Hustler ‘s patented hands-free automatic connection system Snaplox simplifies operation eliminating the need to pull a rope to disconnect the loading spears.

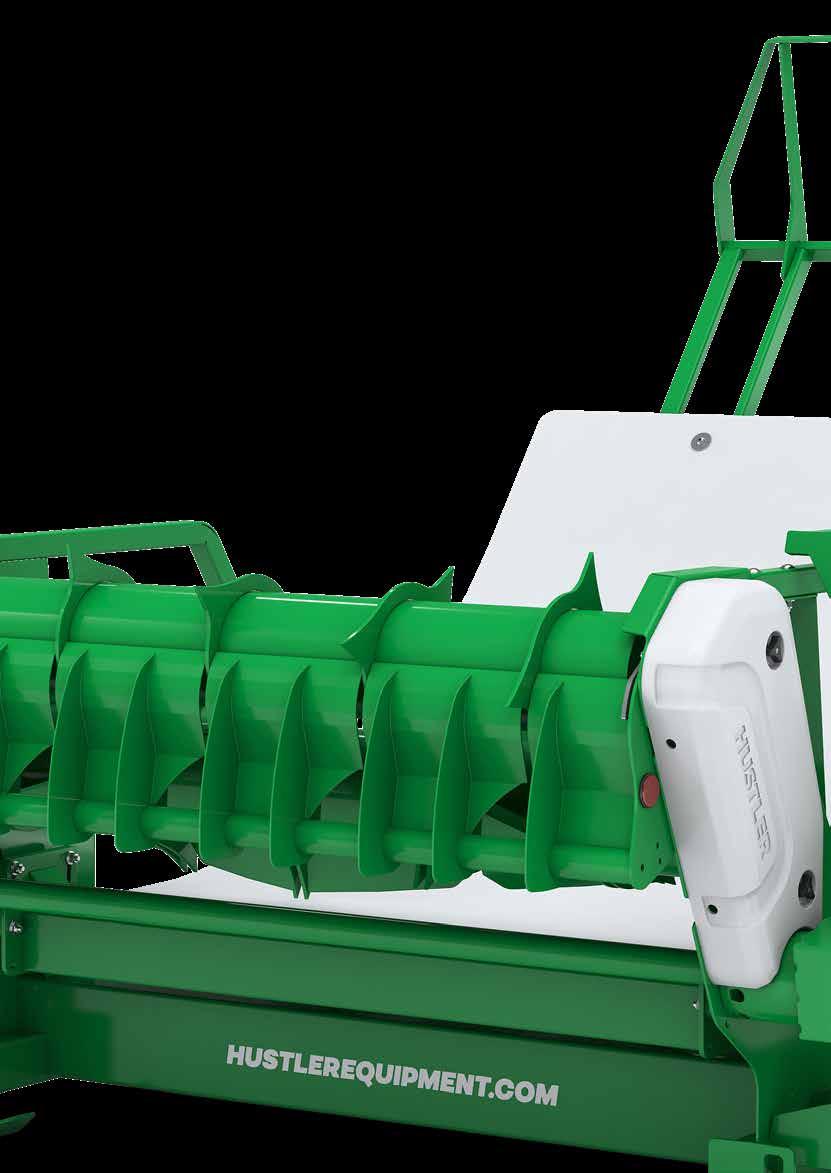

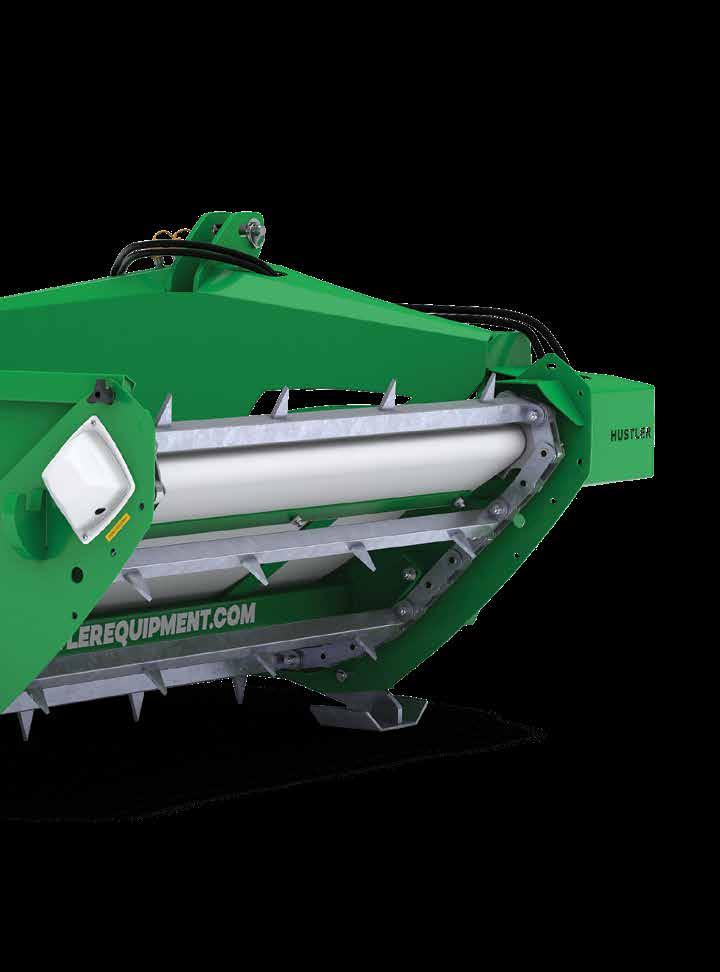

ROTOR TEETH

New rotor teeth shape give better penetration of tight bales and improved cleaning as they pass through Hypaflo wiper panel.

HYPAFLO™ WIPER

Quick release Hypaflo™ wiper panel makes for easy cleaning and eliminates blockages.

CHASSIS STRUCTURE

Huge monoque main chassis structure provide massive strength and long service life.

PLATFORM ADJUSTMENT

2 Position lower platform adjustment to handle the tightest frozen square bales.

OPTIONAL SIDE CHUTE | UPPER OR LOWER

The chainless side chute catches fines and deflects the hay into a trough or bunk.

DRIVE SYSTEM

New heavy duty drive system runs on 2 double sealed bearings instead of troublesome bushes.

What’s the difference?

The LX1042 feeds 4’ wide bales, while the LX1052 feeds 5’ wide bales. That’s basically it.

OPTIONAL TELESCOPIC BALE EXTENSION

New optional telescopic square bale extension can accomodate square bales or all lengths

RIBBED DESIGN

Slippery, ribbed design keeps bales tracking straight. We use highperformance polyethylene material to reduce drag, also meaning that the platform will never corrode.

ULTIMATE MOUNTING OPTIONS

Operate easily on the 3-point linkage, front end loader or telehandler thanks to the unique Snaplox auto connection system and TouchFeed hydraulic diverter system. Mount on the front for great visibility and forward reach or mount on the rear for practicality and stability in hilly terrain plus carry a second bale on the front loader.

DOUBLE-ENDED CONNECTION SYSTEM

Patented Snaplox connection system each end for hands-free connection and disconnection of feeding cradle. No rope to tug on.

PROVEN CURVED PLATFORM

Market tested for the stickiest of alfalfa bales, the polyethylene platform is slippery and the new shape helps to break apart flakes better.

NEW PLATFORM MOUNT

Using bearings instead of wear pads for increased durability and reliability.

BUILT TOUGHER

The new model is rated to handle 1,000kg bales with ease.

PROVEN ROTOR DESIGN

Same proven rotor shape, and paddle design as the original Chainless 2000.

OPTIONAL EXTENSION

Optional platform extension available for 8’ long square bales.

PROVEN FREE-FLO WIPER PANEL

The same Free-Flow wiper panel design as the original Chainless 2000. Show with optional side chute.

Want more? Visit our website and check out our videos. hustlerequipment.com

BOLTED HITCH MOUNTS

Gives you more flexibility, replace them with skidloader brackets for front mounted loader flexibility, reach and visibility.

STRONGER DRIVE SYSTEM

The new Drive Dog system utilises two heavy-duty bearings instead of bushes, which lasts longer can provides more rigidity.

After feeding out more than 23,000 bales, with minimal maintenance carried out over the last 13 years and with no major breakdowns, the decision was easy. We purchased our second Chainless without hesitation.”

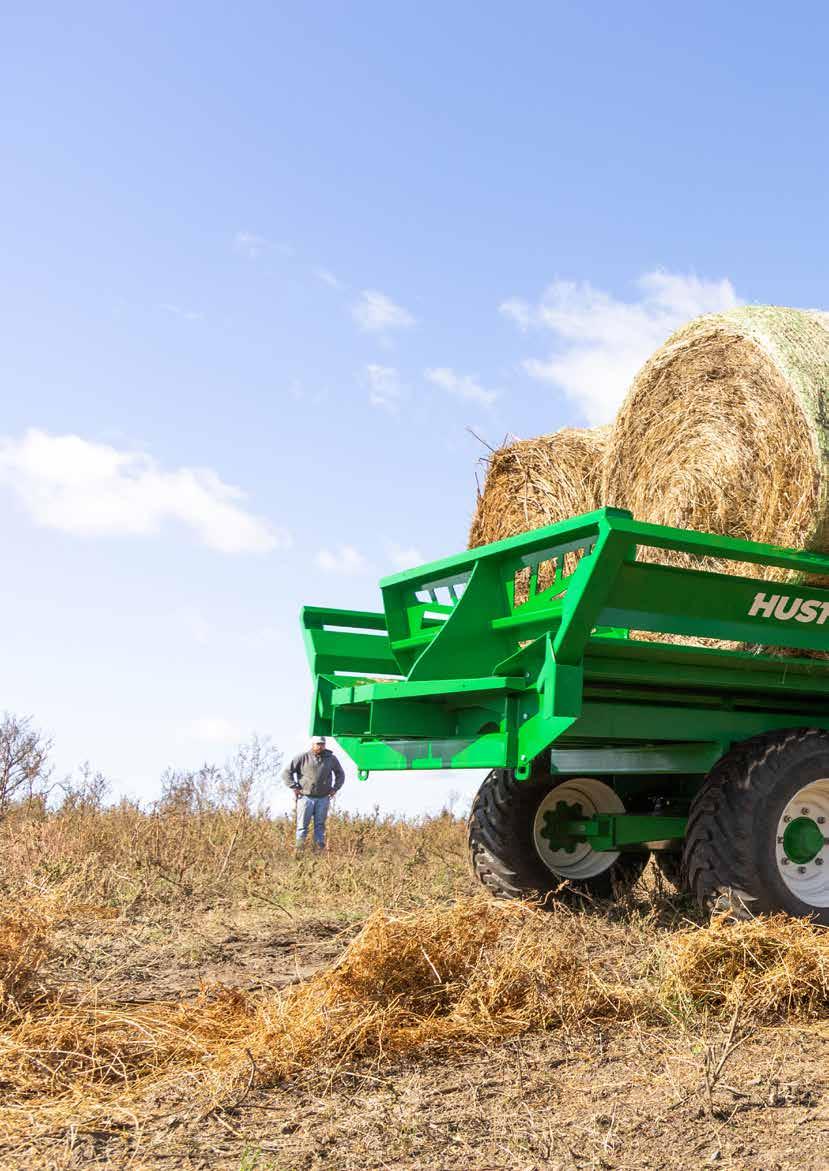

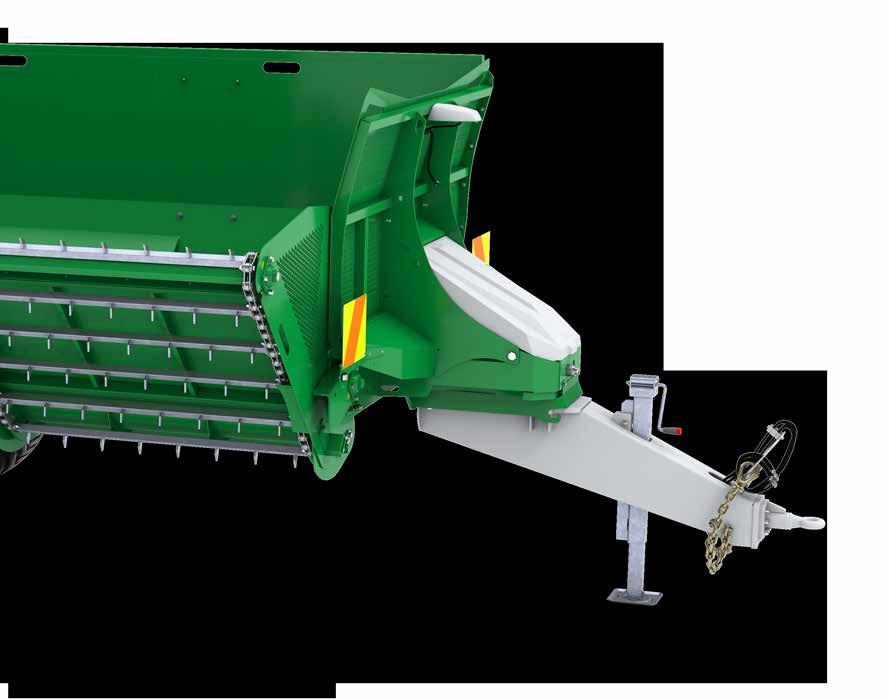

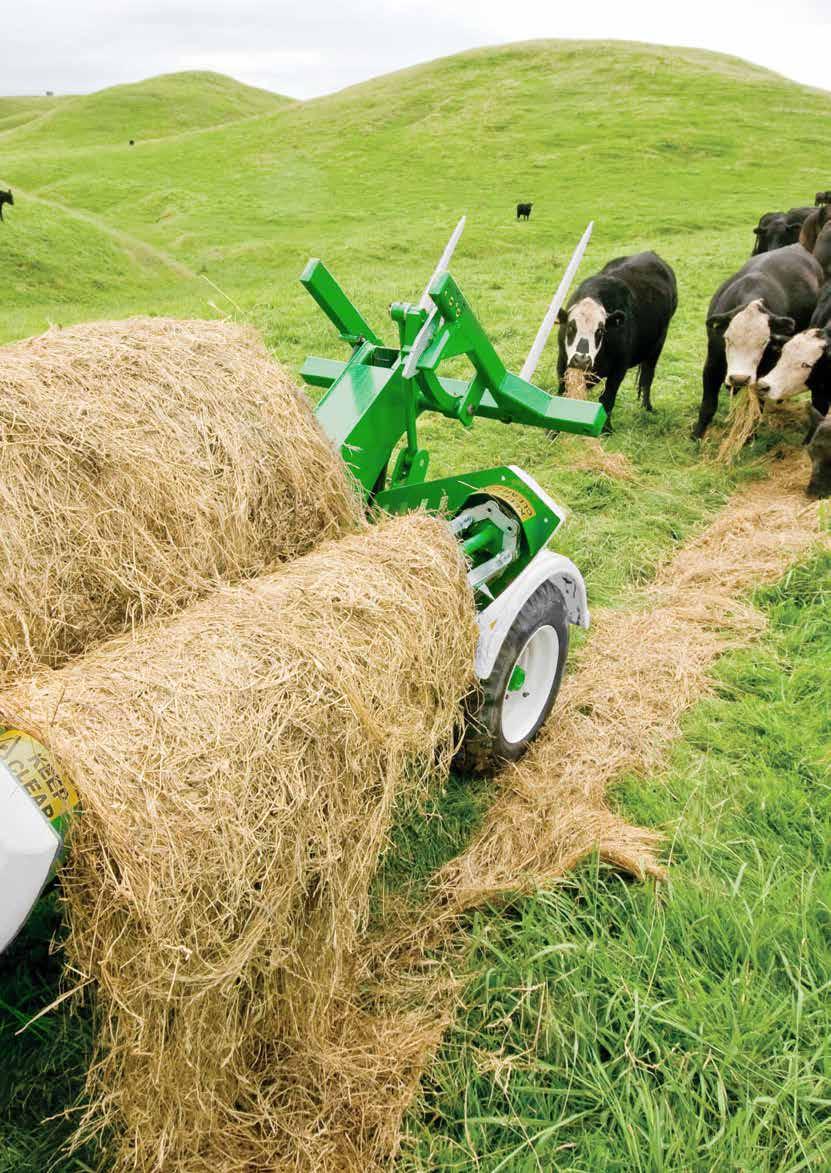

Top of the range Trailed Chainless double bale feeders.

The Chainless Trailed square and round bale feeders are self-loading, suitable for feeding out any bale, round or square, and designed to maximise feed use on medium to large operations.

New advanced features.

A stronger, more powerful drive system, located at the rear of the feeder is out of the way of tractor tyres during sharp turns and allows the machine to handle bigger, heavier bales.

The single hydraulic ram of Hustler’s Total Control 2 loading system makes loading faster and prevents bales falling on the operator during unwrapping. A bigger spear frame provides extra support for soft or square bales.

Setting the spears at the correct loading height has been simplified with our new easy-to-read and conveniently positioned Loadial

Extras & Upgrades Include

+ Larger 400/60/15.5 floatation wheels/tires standard

+ New Puckboard floor – almost indestructible with 10 year warranty!

+ More powerful bale loading system for heavier bales even 5’ wide x 6’ diameter bales load with ease

+ Induction hardened pin and line-bored and press fit hardened steel bush system that don’t flog out. Same system as used in excavator booms which is superior to any bronze bushing system

+ Beefed up chassis, platform frame, drawbar and entire Total Control Loadings System

+ New 5 position wiper chute extension – ideal for feeding into bunks, troughs or to prevent machine running over feed

+ Alloy hydraulic hose grips with markings for easy connection to tractor

+ Loading spear position indicator for easy loading

+ Quick release wiper for easy maintenance

+ Large string box with improved lid design for net and wrap waste

+ Bolt on axles for more flexibility and easier maintenance

+ Fenders (Standard in NZ. Optional in other markets)

+ Square bale platform extension (Standard in North America & Australia. Optional in other markets)

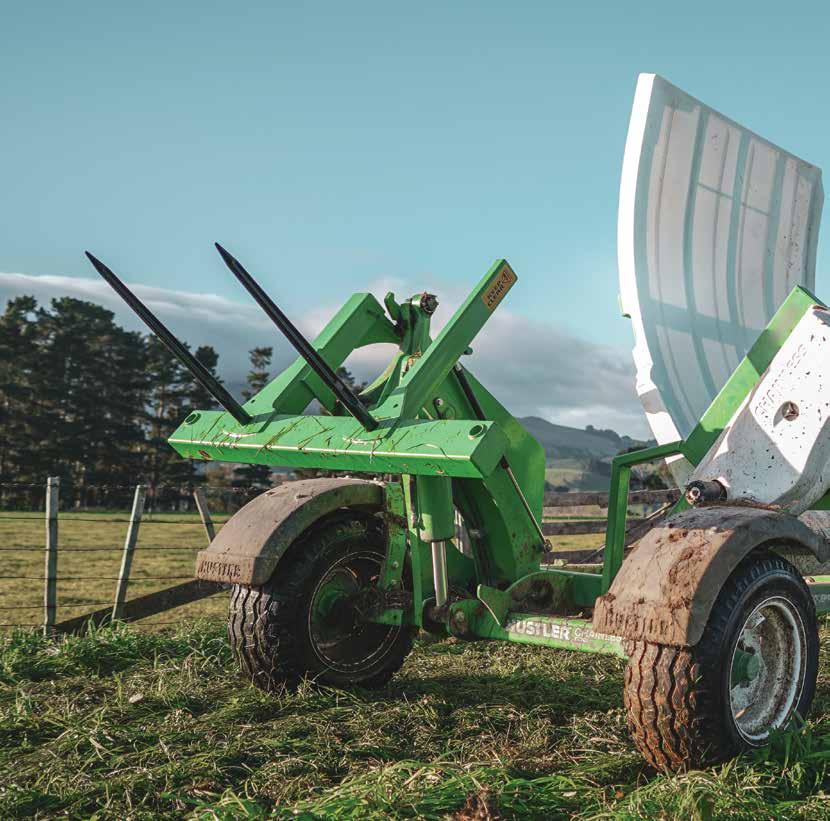

Chainless TH205

INDUCTION HARDENED STEEL PIN & BUSHING SYSTEM

New Bushing system for extra strength, just like the Excavtors have!

TOUGHER LOADING SYSTEM

A new forged link arm, larger bushings and more leverage allows the loading system to handle larger 1.5 tonne (3,307 lbs) bales with ease.

MUDGUARDS

Keep feed clean from contaminants when feeding in muddy conditions.

HYPAFLO™ WIPER

Designed to clean the rotors more efficiently the Hypaflo™ Wiper Panel minimises blockages and ensures that hay drops outside the wheel tracks to avoid being flattened into the mud. An Easy Clean function quickly releases the wiper panel for easy cleaning.

LARGER WHEELS

Provide more cushion and flotation.

TOUGHER DRIVE SYSTEM

The rear mounted drive system is out of harms way and allows sharper turning and better manoeuvrability. With larger shafts, bearings and keys the Chainless can handle bigger, heavier bales.

BIGGER CHAMBER

The feeding chamber itself is wider and deeper which prevents bale rub, wastage and the need for continuous adjustment of the platform making it simple and easy for any operator to feed out like a pro.

STRING BOX

Our massive new string-box keeps your wrap and string out of harms way and your tractor cab clean and odor-free. Big enough to hold fencing standards, knives and anything else you need on the job.

COUPLING GRIPS

New hand grips make plugging the hydraulic hoses in much easier, saving your knuckles. And the drawbar needle keeps the hoses out of harms way when operating, and has a built in holder to store hoses out of the dirt when not in use.

PATENTED AXIAL ROTOR

No bale is a match for the new Axial Rotor with centralising paddles, which keeps the bale positioned in the centre of the feeding chamber to minimise wastage and provides better grip for feeding out soft centre and rotor cut bales.

CHASSIS DESIGN

The clean underside of the Chainless allows you to drive across hot wires without getting snagged, and all the workings are out of harms way. Chassis members are larger to enable handling heavier bales.

Customise your Chainless.

Even Feed Roller

Allows any Chainless bale processor to break up the tightest of High-Density Square bales.

SUITS: all models - two sizes available: 4’ & 5’

Platform Extension

Extend the platform length to handle larger 8’ long square bales.

SUITS: all models, Telescopic Extension on Chainless LX104 2 & LX1052 only

Quick Hitch Stand

Add a quick hitch foot to the drawbar to make it easier for connected when using a quick hitch.

SUITS: Chainless TH205

Add 1 or 2 extra tynes for additional support when transporting 8’ wide square bales.

SUITS: Chainless TH205

SUITS: Chainless TH205 Mudguards/Fenders

These stylish mudguards keep feed clean from contaminants when operation in muddy conditions.

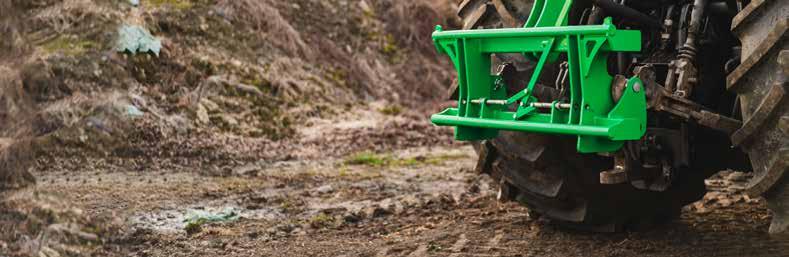

Allows the machine to be connected to the front loader or 3-point linkage in minutes without any tools.

SUITS: Chainless LX104², LX105²

Available hitches

• CB 526 tool carrier CB Brackets

• Euro Brackets

• Euro/3-PTL combo Brackets

• Manitou/NH Brackets

• JCB 530 Q-Fit Brackets

• Matbro Loader Brackets

• Merlo Brackets

• Manitou/NH Q-Fit Brackets

• Weidemann Brackets

• MX Brackets

• Skid steer Brackets

• Kramer Brackets

• Plain Backing Plates (Narrow - JCB Fitment)

• Plain Backing Plates (Wide - Skidsteer Fitment)

• JCB

Unrolla Round Bale Feeder Range.

The toughest, simplest and most versatile round bale feeding solution in the industry.

Easier to use than any other type chain bale unroller on the market today is also the most innovative, with 6 unique features you won’t find on any other bale feeder that makes it easier to use, more versatile, and saves your precious time. The unique self-loading 3-point linkage or loader mounted or trailed Unrolla range of feeders are suitable for feeding out round bales and baled silage, loose silage, maize, fodder-beet and more.

5 reasons to invest in a Hustler Unrolla bale unroller

1. 2.

FLEXIBLE AND COMPACT DESIGN

Do you operate in barns, outdoors, on steep country, with a tractor, a front-loader, a telehandler or even a skid steer? Do you feed out round bales of hay or silage, supplement with loose feed, grains, cattle cakes or fodder beet? With the flexible configuration of the Unrolla round bale feeder range, your machine will suit all the above. The mounted Unrolla can also be connected from either end, which makes it manoeuvrable in tight spaces. No other mounted unroller allows this level of versatility in such compact and lightweight machine, which gives you peace of mind, should you want to change the way you operate.

HANDS-FREE SELF-LOADING

Do you operate in barns, outdoors, on steep country, with a tractor, a front-loader, a telehandler or even a skid steer? Do you feed out round bales of hay or silage, supplement with loose feed, grains, cattle cakes or fodder beet? With the flexible configuration of the Unrolla round bale feeder range, your machine will suit all the above. The mounted Unrolla can also be connected from either end, which makes it manoeuvrable in tight spaces. No other mounted unroller allows this level of versatility in such compact and lightweight machine, which gives you peace of mind, should you want to change the way you operate.

3.

TOUGHEST SLAT SYSTEM

The toughest chains and floor bars on the market are bullet-proof and lasts the entire lifespan of the Unrolla. Super strong roller chains with a combined strength of 24,000lbs and rugged 40mm x 40mm (1.5 in x 1.5 in) galvanized bars which are the strongest on the market with thicker wall section and stronger teeth. The 15 floor bars are bolted to the chain which results in a resilient, solid and easily replaceable system.

4.

FULLY ENCLOSED CRADLE

The Unrolla feeding cradle is made from a tough thermoform fully enclosed polyethylene floor with covered drive shafts which eliminate wrapping. It’s non-corrosive, impervious to UV, slippery, and extremely shock resistant. And it’s fully enclosed, meaning no more wastage of expensive high-quality feed and added versatility as you can feed out loose materials. The mounted Unrolla takes 4’ long bales (Unrolla LX104) and a longer bed can take up to 5’ long bales (Unrolla LX105*).

*This model is available in North America only

5.

LOW AND EASY MAINTENANCE.

Just greasing 4 nipples is all it takes to maintain the Unrolla round bale feeder. That’s because instead of bushes we use long-lasting, fully sealed self-aligning block bearings, mounted outboard to keep them clean and free of damage from acidic silage juices. We’ve also added bearing covers that prevent debris from causing damage.

Self-loading systems.

Patented Snaplox Auto Connection System.

Hustler’s clever Snaplox auto connect/disconnect hands-free system saves you time, saves you having to tug on a rope to disconnect, and saves you from twisting your back. It’s fail-safe, fast and operates naturally. Unequal length bale spears make connecting the headstock to the feeding cradle quick and easy.

Patented Total Control Loading System.

Enjoy total control over bale loading thanks to a single hydraulic cylinder and simple patented mechanical engineering. Hustler Chainless is safer and more reliable compared to imitation dual cylinder systems with their troublesome sequence valves that require frequent adjustment.

Total Control Loading System: UNROLLA TX205

The total control loading advantage.

+ Easy bale pickup means no digging up of paddocks or dirt mixing with feed.

+ Gentle and accurate placement of the bale in the bale chamber.

+ Easy to line up the bale.

+ Minimal feed wastage because the net wrap can be removed above the bale chamber.

+ Bale is secure during transport, even on steep inclines.

+ Handles round and square bales.

+ Second bale can be positioned low to the ground for added ballast.

We use Hustler because of its reliability, its ease of use, the maintenance free and its longevity in our operation. Overall, a pleasure to use!” “

Paul

LIghtoller - Mount Taranaki (New Zealand) Farmer and owner of a Hustler Unrolla LX105

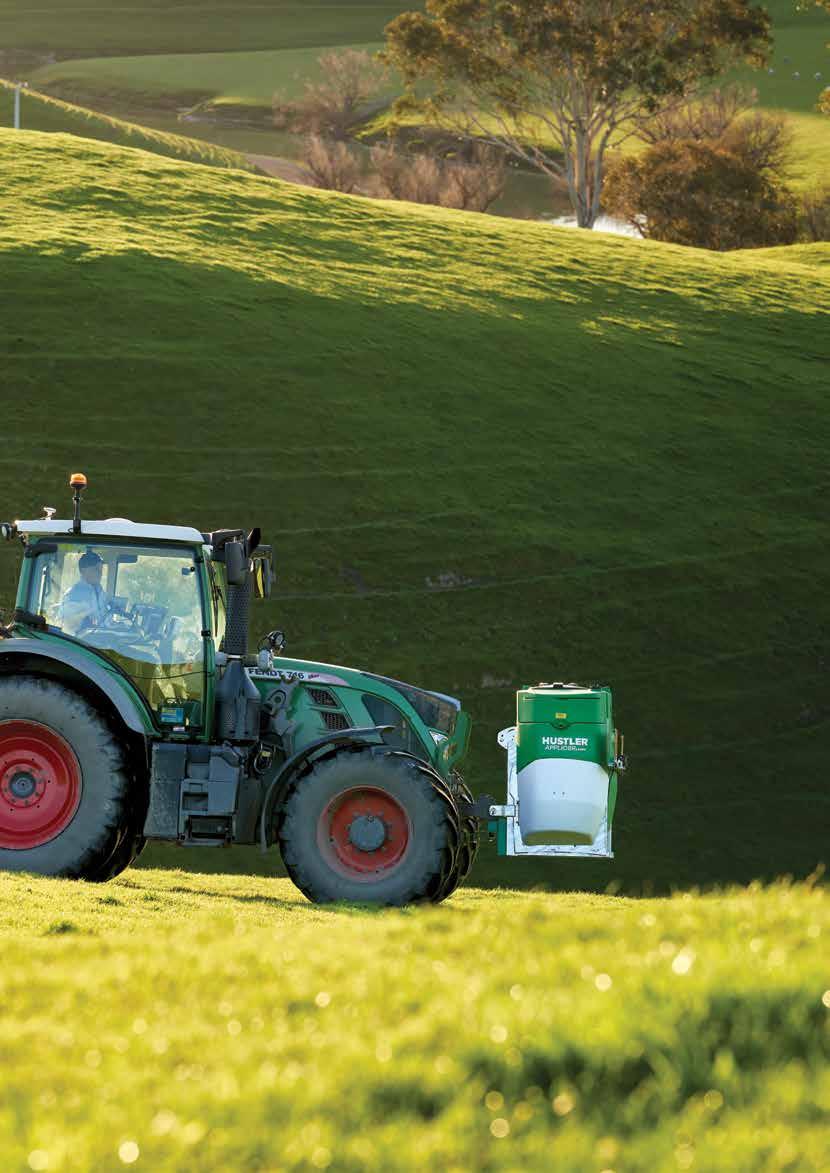

Unrolla LX104 / LX105

Easier to use than any other type of chain feeder on the market today – nothing comes close to the LX104 and LX105. Loaded with unique features that give more versatility and time savings, including the ability to mount on 3-point linkage, front loader, skid-steer or telehandler to give greater flexibility of use. Suitable for feeding out all but the tightest of round bales and baled silage, loose silage, maize/corn silage, fodder-beet and more.

ENCLOSED FENCE

Ideal for loose feeds and working on steep terrain.

DUAL SIDE FEED

A single lever control enables feeding out to either side & precise rate of feed.

CONNECT EITHER END

Easily connecting from either end makes operation quicker and simpler in tight situations.

COVERED DRIVE SHAFTS

Prevents long chop hay or balage from wrapping around drive shafts.

BEARINGS

Self-aligning, low maintenance bearings will easily outlast any type of bush system.

STRONG FLOOR BARS

Toughest feed bars in the game.

See the 60 Seconds of MiNT video about why we chose bearings.

hustlerequipment.com/bearings

TEETH

Unique, extra-strong shark teeth designed to prevent feed from being dragged under the machine.

OPTIONAL BUILT IN ROPE

Built in rope for thoses who prefer pulling rope

BALE CHAMBER

Steeper and deeper, it can hold and retain a variety of types of feed.

SNAPLOX AUTOLATCH

This patented system lets you connect & disconnect without tugging a rope.

TOUGHEST CHAIN

Zinc-plated 5,443 kg (12,000 lbs) chains with heavy duty rollers and pins are almost twice as strong as others.

Want more? Visit our website and check out our videos.

hustlerequipment.com

“

It is very balanced on hill sides, great how it has a swivel eye and very manoeuvrable. Easy peasy to put on and take off.”

Cecilia Simmonds - Rerewhakaaitu (New Zealand) Farmer and owner of a Hustler Unrolla TX205

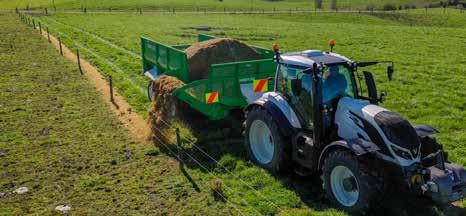

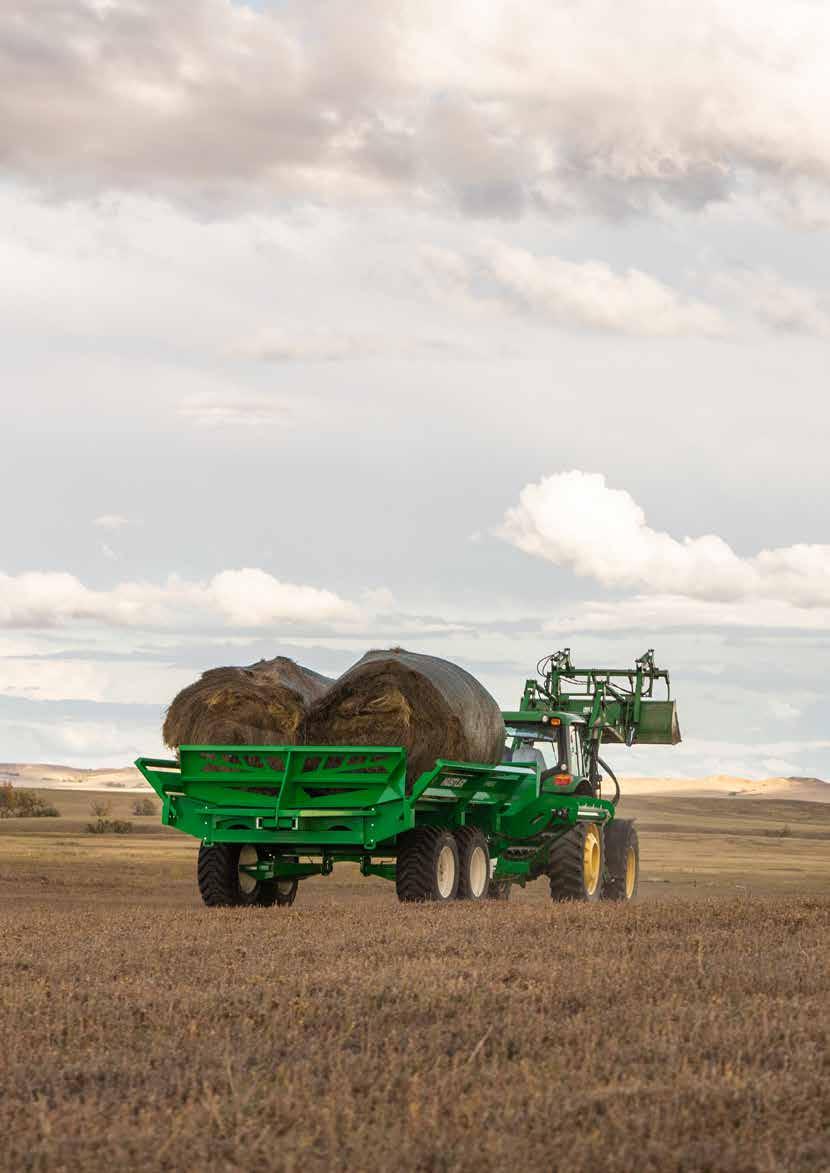

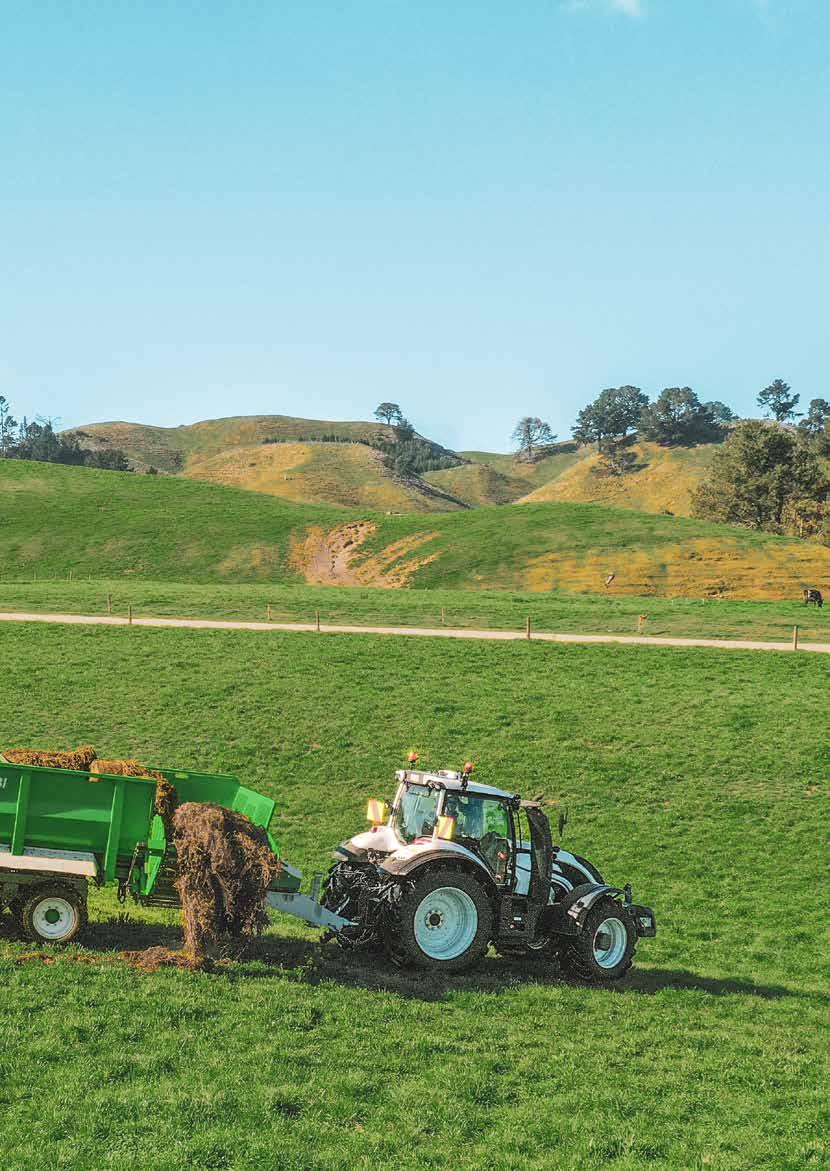

Top of the range Trailed Unrolla double bale unrollers.

The Unrolla Trailed round bale feeders are sturdy, simple-to-use and built to last. Designed for medium to large operations who feed out thousands of bales each year.

+ A stronger, more powerful drive system, located at the rear of the feeder is out of the way of tractor tyres during sharp turns and allows the machine to handle bigger, heavier bales.

+ The single hydraulic ram of Hustler’s Total Control 2 loading system makes loading faster and prevents bales falling on the operator during unwrapping. A bigger spear frame provides extra support for soft or square bales.

+ Chassis protects chains and bars from damage.

+ Single post drawbar for tightest turning circle.

+ Larger flotation wheels.

New advanced features. 5 YEAR WARRANTY

Now we spend only half of the day feeding the animals. Before it took us the full day feeding 20 bales in winter.” “

Mauricio

Martinez, Puerto Octay, Chile Farmer and owner of a Hustler Unrolla TE205

TOUGHER DRIVE SYSTEM

The rear mounted drive system is out of harms way and allows sharper turning and better manoeuvrability. With larger shafts, bearings and keys the TX205 can handle bigger, heavier bales.

TOUGHER LOADING SYSTEM

A new forged link arm, larger bushings and more leverage allows the loading system to handle heavy bales with ease.

OPTIONAL MUDGUARDS

Keep feed clean from contaminants when feeding in muddy conditions.

LARGER WHEELS

Wheels provide more cushion and flotation in any terrain.

DUAL SIDE FEED

A single lever control enables the Unrolla TE205 & TX205 to feed bales out to the left or right and gives precise control of the rate of feed.

STRING BOX

Our massive new twine box keeps your wrap and string out of harms way and your tractor cab clean and odor-free. Big enough to old fencing standards, knives and anything else you need on the job.

TOUGHEST CHAIN ON THE MARKET

Super strong roller chains with the combined strength of 10,886 kg (24,000 lbs), with tough 40 mm x 40 mm (1.57”x1.57”) zinc-plated bars. Bars stronger and more easily replaceable system.

CHASSIS DESIGN

Our fully enclosed chassis prevents rust by stopping water from getting in. We’ve built the Unrolla TX205 with plenty of ground clearance to minimise bellying out and to avoid damage to chains and feeds bars when it does touch the ground. We’ve also made the underside of the chassis smooth, so it slides until the wheels gain traction again. Impressive srength to weight ratio has been achieved by constructing the Unrolla TX205 from high tensile steel, which is 50% stronger than mild steel.

REPLACEABLE TOWING EYE

The heavy-duty 45 mm (13/4”) towing eye is bolted and easily replaceable in case of wear and tear from intensive use.

TOUGH POLYETHYLENE FLOOR

Non-corrosive, impervious to UV, slippery, easily repairable and very shock resistant. Fully enclosed – no wastage of expensive feed. The long bed can take 5’ long bales.

TEETH

Our unique, extra-strong 5 cm (1.969”) shark teeth are designed to prevent feed being dragged under the feeder by releasing it at precisely the right moment. Teeth can be angled for more aggression, or the whole bar can be unbolted or removed without breaking the chain or using a grinder.

Customise your Unrolla.

Side Chute Quick Hitch Skid/Foot

Extends the feed drop point and helps feeding into troughs, bunks or along hot-wires or against head-bails.

SUITS: Unrolla LX104, LX105

Allows the machine to be connected to the front loader or 3-point linkage in minutes without any tools.

Add a quick hitch foot to the drawbar to make it easier for connected when using a quick hitch.

SUITS: Unrolla TX205

Allows the machine to be connected to a tractor’s front loader.

Prevents your bale from falling out of the cradle when operating in hilly country & allows you to feed square bales.

Telehandler mounts

Allows the machine to be connected to a telehandler.

SUITS: Unrolla LX105

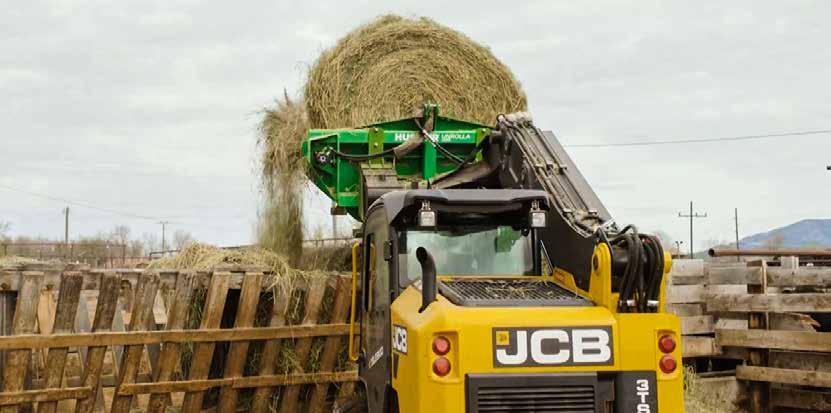

Allows the machine to be connected to a skid-steer loader.

Other available hitches

• CB 526 tool carrier CB Brackets

• Euro/3-PTL combo Brackets

• Manitou/NH Brackets

• JCB 530 Q-Fit Brackets

• Matbro Loader Brackets

• Merlo Brackets

• Manitou/NH Q-Fit Brackets

• Weidemann Brackets

• MX Brackets

• Kramer Brackets

• Plain Backing Plates (Narrow - JCB Fitment)

• Plain Backing Plates (Wide - Skidsteer Fitment)

• JCB

www.hustlerequipment.com/bale-feeders/mounted-bale-unrollers

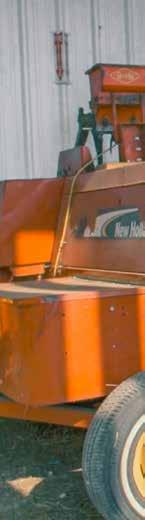

Ez Remote for Rebaling

Tease apart your large round bales in less than 2 minutes to convert them into small square bales! Make your rebaling operation more efficient and more profitable with huge time, labour cost and fuel savings.

160-DEGREE ANGLE

The Ez Remote for Rebaling control valve can be positioned within a 160º arc to suit indivicual operator preferences.

QUICK COUPLING HOSES

Quick coupling hoses are supplied within the Ez remote attachment kit for a quick and easy fit.

RETROFITTABLE

If you already own a Hustler bale feeder, it is possible to convert it into a rebaler since the Ez Remote for Rebaling is retrofittable with almost all models. Talk to your Hustler sales rep for further information.

SANDBLASTED AND ARMACOTE FINISH

All Hustler products are made to last, and a sandblasted finish combined with an impressively durable power-coat means your machine will look new for years to come.

EASY TO USE

The simple hydraulic design makes it very easy for any operator to master quickly.

CONTROL LEVERS

Easy levers give you control of the amount of hay that is processed, and allows you to control the speed of the rotors and the height of the platform.

IMPROVED VISIBILITY

The remote, adjustable placement allows the operator to stand wherever they can best see the processor at work, allow you to quickly and accurately process your bales.

ONE SET OF DOUBLE ACTING HYDRAULICS

A single set of double acting hydraulics means a single tractor can run both the square baler and the bale processor.

Benefits of Rebaling.

+ Preserve feed quality for longer

+ Substantially reduce handling time and cost

+ Eliminate hours of back-breaking labour or expensive equipment to collect small bales

+ Increase the value of your feed

+ Store the large bales and re-bale the small squares on demand or during winter

+ One tractor can run both the square baler and the bale feeder

Hustler bale feeding routine revolution

For Round & Square Bales

Feeding a large number of bales per day can be a time-consuming and labour-intensive task for operators. That’s why we developed the BaleXpress Multi-Bale Feeder, designed specifically to increase efficiency and convenience – for those who are feeding more than half a dozen bales a day. With its impressive features and exceptional performance, BaleXpress is set to transform the way operators handle bales.

4 Reasons to choose BaleXpress

1. 2. 3. 4.

NEXT-LEVEL VERSATILITY

BaleXpress is capable of feeding round or square bales of any size and any feed type. Whether you’re working with tight dry hay bales, straw, or loose fine chopped baleage, this feeder handles it all efficiently without blocking or waste. The adjustable sides allow for accommodating current and future bale sizes, ensuring maximum flexibility.

EASIER, FASTER & MORE CONVENIENT LOADING

We understand the frustrations associated with multiple tractor and operator movements when loading bales using. With BaleXpress, we’ve minimized these inconveniences. You only need to leave the cab once per load to undress, load up and feed out all the bales, and there are fewer tractor movements required per load. Say goodbye to unnecessary trips in and out of the cab, saving you time and effort.

COMPACT DESIGN

The BaleXpress boasts the most compact multi-bale feeder design on the market per bale count. This compactness allows for easier negotiation of gateways and maneuvering, making your job a breeze compared to other machines. No more worrying about cutting corners or damaging gate posts. Additionally, the design of the sides enables effortless loading from either the side or the rear, while providing impressive visibility over the feeder.

SIMPLICITY & RELIABILITY

We believe in keeping things simple without compromising on reliability. BaleXpress features a hydraulic cylinder design for the rear floor, eliminating the need for rear floor chains. This not only simplifies maintenance but also reduces the chances of breakdowns. Our simple control system gives you maximum control over the feeding windrow, while the tilting elevator ensures accurate feed placement, preventing unnecessary waste

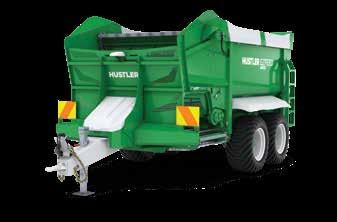

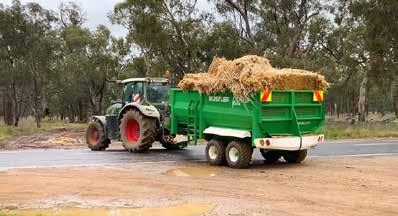

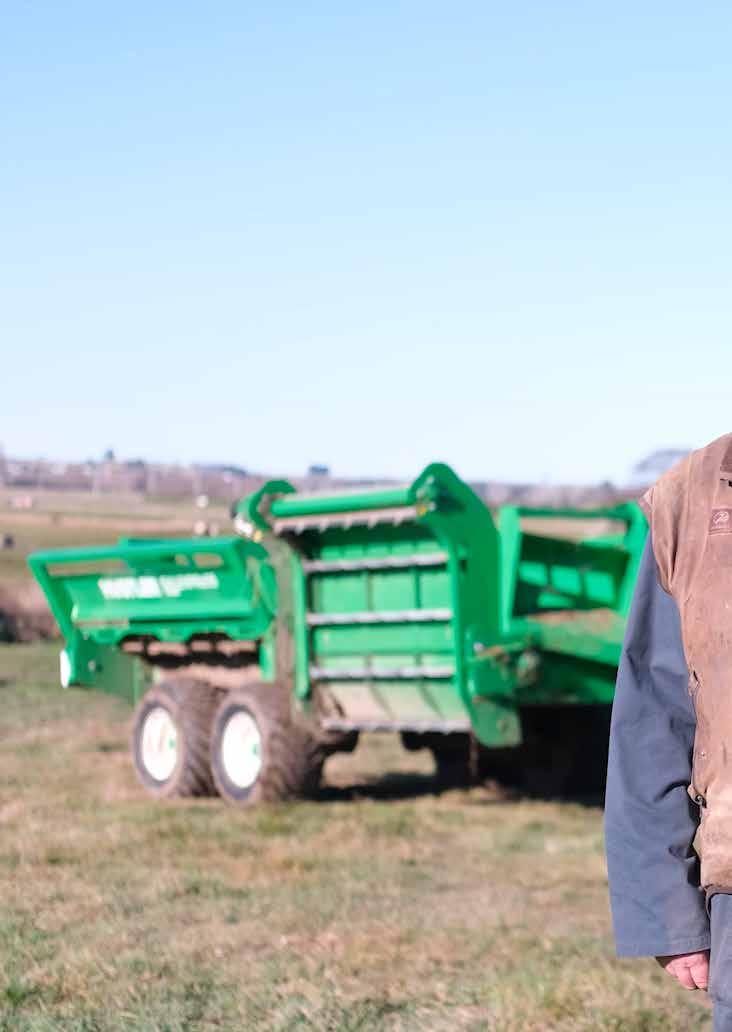

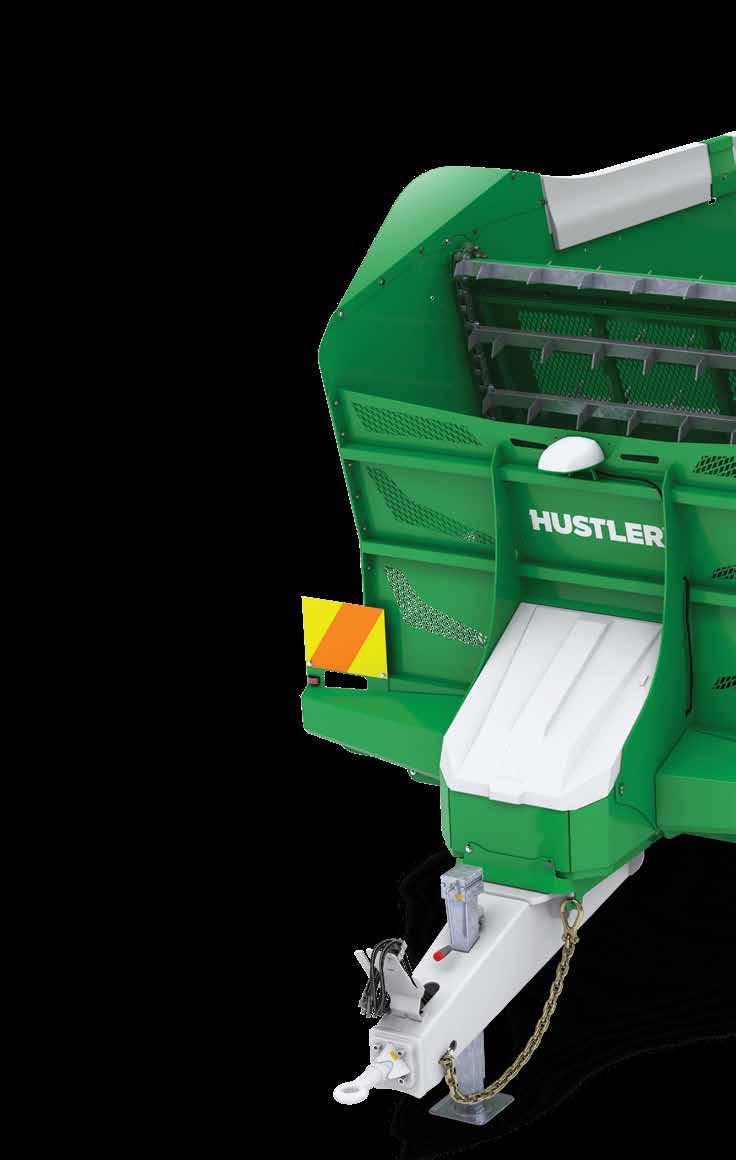

BALEXPRESS TX605 | TX805

LESS STRESS WITH BALEXPRESS

Feeding a large number of bales per day can be a time-consuming and labour-intensive task for operators. That’s why we developed the BaleXpress Multi-Bale Feeder, designed specifically to increase efficiency and convenience – for those who are feeding more than half a dozen bales a day. With its impressive features and exceptional performance, BaleXpress is set to transform the way you feed your cattle with bales.

Adjustable sides

The BaleXpress sets itself apart with its unique adjustable sides, allowing it to accommodate bales of all sizes and shapes. From round to square and even out-of-shape bales, including those up to 6’ in diameter or 5’ long, the BaleXpress

Toughest axles

Our BaleXpress boasts the toughest axle design on the market, featuring large pins and ample pin surface area. This design ensures longevity and prevents premature tire wear, even when dealing with the

Scale ready

Elevate your feed management with the BaleXpress and its compatibility with our innovative FeedLink™ feed weighing and management system. Whether you opt for factory-fitted scales or choose to have them installed by our authorised dealers later on, the BaleXpress empowers you to optimise feed management, unlock valuable insights, and realise cost savings.

Protected motor drives

Protected for enhanced safety and reliability, the hydraulic motors are securely shielded.

Ground clearance

With the largest ground clearance on the market, the BaleXpress elevator ensures optimal safety by keeping the working parts of the machine out of harm’s way, even in undulating terrain, eliminating the risk of damage.

Self-aligning bearings

Heavy-duty drive shafts

We prioritise reliability and reduced maintenance, which is why our double-sealed heavyduty 4-bolt bearings with trash shields are preferred by farmers over bushes. By mounting them outboard of the feeding chamber, we prevent silage from wrapping or damaging the seals.

Chainless rear floor

Say goodbye to chain-related issues. The Hustler pusher design, powered by a hydraulic cylinder, eliminates the need for chains, sprockets, bearings, or shafts that can break or require constant maintenance. The bales are always efficiently pushed forward into the feeding chamber, regardless of how they are loaded.

Extra tough floors

Experience the durability of our puckboard floors, designed to be both slippery for easy bale movement and exceptionally tough for long-lasting use. We are so confident in their durability that we offer a 10-year warranty on floors.

HardLine sprockets

Our 6-tooth sprockets, made from HardLine (the same robust material used in bulldozer blades), deliver unmatched durability for demanding conditions. With exceptional strength and longevity, they provide reliable performance. Featuring smaller diameters, these sprockets reduce torque, oil flow, revs, and heat in your hydraulic system, ensuring efficient and powerful operation. Experience smooth and reliable operations with

Load dividing design

BaleXpress’ load-dividing design reduces the strain on all drives, resulting in a longer-lasting machine. Additionally, the reduced travel distance of the floors per load prevents wear and tear.

Visibility

Safety and ease of operation are paramount, which is why we focused on improving visibility during both feeding and loading operations. With BaleXpress, you can enjoy excellent visibility, reducing the risk of accidents and making your job

Covered shafts

Enhance the efficiency and reliability of your bale handling with the BaleXpress and its innovative covered shaft design. No more feed wrapping around the shafts or jamming, as the covered shaft design minimizes such issues. This smart feature ensures smooth operation, reduces downtime, and optimizes the overall performance of the machine.

Chain tensioners

BaleXpress embarks built-in chain tensioners. These convenient features enable easy adjustment of the pre-set chain tension, ensuring that your machine operates at its best and maintains reliable performance. With hassle-free chain tension adjustment, you can have peace of mind and focus on maximizing productivity.

Protected hydraulics and electrics

The hydraulic and electric components of the BaleXpress feature a simple and reliable design. The valves are securely protected from the elements under an easily accessible cover, ensuring their longevity and uninterrupted performance.

Internally ported rams

Hustler uses another clever innovation with internally ported rams, eliminating hose failures and reducing downtime.

Central Greasing

The BaleXpress models come equipped with a standard central greasing station for the axle, making it convenient to lubricate even the difficult-to-access grease points.

Gearbox drives

Hydraulic gearbox drives are coming as standard equipment, eliminating moving parts, improving reliability, and increasing drive power for enhanced performance.

+ Round Bales (single

+ Square Bales up to 8’

+

+

+

+

+ Axle:

+ Brakes:

+ Weigh Scales:

+ Floors (Bed floor / Cross Floor):

BALEXPRESS TX605

TX805

Feedlink weighing and feed management system

+ Chains (Bed / X floor / Elevator): Chainless / Twin 12,000 lb Roller Chains / Twin 12,000 lb Roller Chains Chainless / Twin 12,000 lb Roller Chains / Twin 12,000 lb Roller Chains

+ Feed Bars (Bed / X Floor / Elevator): Hydraulic Ram / 65 x 35 RHS / 40 x 40 RHS Twin Hydraulic Rams / 65 x 35 RHS / 40 x 40 RHS

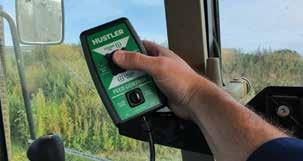

+ Joystick: In-cab Electric Control In-cab Electric Control

+ Hydraulics Required: 2 x double-acting 2 x double-acting

+ Hydraulic Flow: 50-70 L/min (80 L/min maximum) | 13.2-18.5 gal/min (21.1 gal/min maximum) 50-70 L/min (80 L/min maximum) | 13.2-18.5 gal/min (21.1 gal/min maximum)

+ Hydraulic Pressure: 2050-2500 psi | 140-170 bar 2050-2500 psi | 140-170 bar

+ Elevator Width: 1645 mm | 64.7 in wide chain/slat 1645 mm | 64.7 in wide chain/slat

+ Jack:

80 mm | 3.1 in 2-speed screw, with quick adjustment. Designed strong enough for use as quick hitch stand

80 mm | 3.1 in 2-speed screw, with quick adjustment. Designed strong enough for use as quick hitch stand

Feedlink™ . Simple. Smart.

Optional on-board wireless scales and feed management system. Simply the most advanced wireless scale system on the market, FeedLink can be used simply – by weighing in and out live weight, like a conventional wagon scale system – or as a sophisticated feed management tool, utilising such features as a pre-programmed daily feeding routine and reports that track feed proof-of-placement, operator performance and insights into over- or underfeeding.

It’s ultra-simple to operate just like any other app on your phone or tablet, with straight forward seamless bluetooth connectivity allowing you to take feed management control to the next level

FeedLink™ can fit to any Hustler feed out wagon (can also be retro-fitted to some other brands of feed out equipment).

To date we’ve fed out probably around close on 2,500 bales. It’s met all our expectations.” “

Ray Simpson - Otago (New Zealand) Farmer and owner of a Hustler

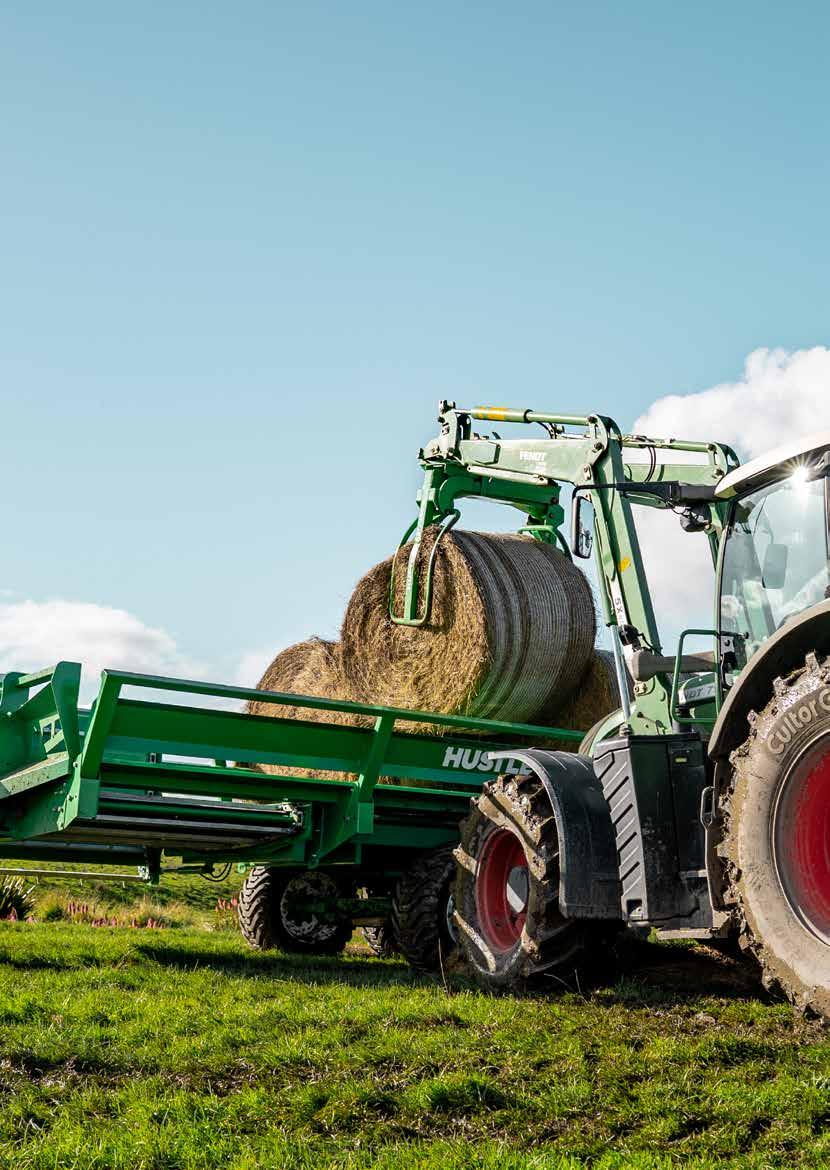

BaleXpress

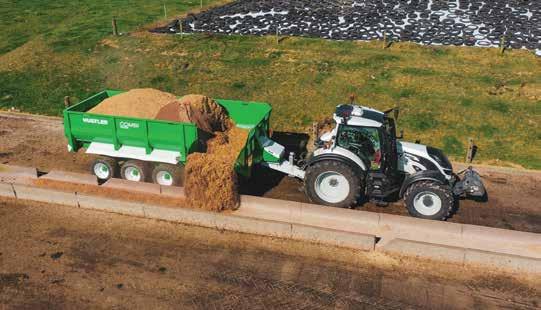

NEW COMBI RX² THE LEGEND REBUILT

The biggest innovation in feeders. Ever.

As a result of listening and acting on feedback from hundreds of farmers all over the globe using Combi RX day in and day out, we’ve implemented numerous improvements and upgrades to keep Combi RX² as the world leader in feedout wagons, for reliability, durability, versatility , efficiency, ease of use and feeding power.

+ Wider X-Floor design makes it easy for first time operators, and prevents sticky forages from bridging – meaning it feeds any feed type, even the tightest pack loads.

+ Our proven pusher with cylinders eliminates trouble-some chains, sprockets, gearboxes, and forage binding up in them – just reliable simple action, and now with up to 34% more power!

+ More drawbar clearance, even for duals so you can turn even sharper without worry

+ Our loadcells for the FeedLinkTM scale system are protected from debris of the tractor tires and the weather with heavy duty shields to prevent unwanted downtime and have built in hooks for the safety chains

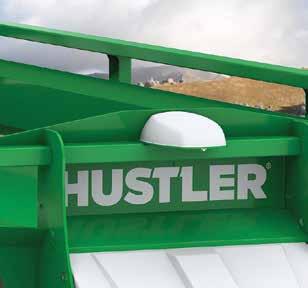

+ The FeedLinkTM wireless module is raised and protected for better connectivity and protected from damage whilst loading

+ Improved Chain guide on cross floor prevents side loading the chains when pushing loads for whilst simultaneously feeding

+ Improved motor drive coupling design with fail safe back up built in to prevent unwanted downtime

+ Improved elevator fan design for even lower maintenance, and eliminate downtime

+ Taller sprocket teeth on our new HardLineTM Sprockets ensure no derailed chains

+ Beefed up elevator design, and gearbox mounts for extra strength

+ Our newly developed bearing block made from solid steel in critical locations for ultimate reliability

+ Improved hose routing to prevent chaffing and provide better clearance on electric fences

+ Our new Generation 2 Armacote Powder System developed over many years, is even more durable and prevents rusting

+ New pusher blade design for greater strength to weight, easier pushing and what’s more, the slides are kept entirely out of the silage to ensure no premature wear or jamming

+ A new slide block with a bolt-less floating design and the introduction of a new material for longer life, easier sliding and less pressure

+ Biggest wheels, with more floatation and a greater load rating for extra redundancy and more uptime

Hustler’s unique Combi load dividing system

The unique load dividing system found on the Combi RX Feeder Wagon Range is a proven concept that splits the load into 2 areas which move on demand, rather than continuously – reducing the load on all the drives, reducing the number of revolutions required per load, and substantially extending the working life of the feed chains, motors and drive system.

The full body is able to be loaded including the front section where the cross conveyor is, providing more capacity with a smaller, more manoeuvrable machine, when compared to the contentional silage wagon. This design also gives the operator better visibility and control of the load, because there is no elevator blocking the view into the feed storage chamber.

Because there are no blockage points with the load dividing system, bales of any type are handled with ease, as with any other type of feed crops.

1 LESS PRESSURE ON DRIVES

2 LESS WEAR AND TEAR

3 FASTER LOADING/UNLOADING

4 ABILITY TO CALIBRATE LOAD FROM TRACTOR SEAT

5 TOTAL MACHINE CAPACITY

6 NO BLOCKAGE POINTS

BLADE & CHAINLESS REAR LOAD BIN

CONTINUOUS ELEVATOR

FEEDING SECTION STORAGE MOVES ON DEMAND

SPILL RETAINERS FOR FEEDPAD FEEDING

Simple Operation

Hustler’s Multi-Feeder Combi wagons have a simple joystick control feeding system that allows the operator to easily manipulate each of the three floors independently. The elevator floor is controlled from the tractor hydraulics and can be stopped and started on demand, delivering feed out of the side of the machine and can be varied from light for sheep and deer to the heavier row for feeding cattle.

After passing through the elevator floor, the hydraulic flow goes to a joystick controlled valved system providing total control of the main rear floor which brings feed into the chamber, and of the cross floor which pushes material to the elevator. All three floors can go forward or reverse.

1 LOW LOADING HEIGHT MAKES LOADING EASY

2 SIMPLE JOYSTICK CONTROL

3 LOWER POWER REQUIRMENT HYDRAULIC DRIVE

4 FORWARD AND REVERSE ALL FLOORS

5 UNMATCHED VISIBILITY

UNIQUE FEED CONTROL ADVANTAGE:

The new FeedControl ™ system is a game changer in simplicity & versatiliy of operation, allowing the operator at the flick of a switch to go between Auto (Silage wagon mode) and Manual (Conventional Combi mode) for unlimited flexibility.

Feeding Versatility

The hydraulically controlled elevator provides a huge advantage in feed placement, allowing the operator to place feed in troughs, bunks, onto feed pads, under or over electric fences (hotwires). When the fields get really wet, feed can also be placed well clear of the wheels even on the tightest turns to eliminate it from being run over or squashed into the mud.

1 FEED INTO TROUGHS OR BUNKS

2 FEED UNDER OR OVER FENCES

3

You can throw the big squares, long with other straw and hay and then throw your supplement on top. It just works brilliantly with not blockages, no time wasting swapping implements over.”

NEW CURVED ELEVATOR

Introducing the Trough Feeding Kit option for the Hustler Combi RX² multi-feeder range! This brand-new Hustler innovation showcases a redesigned elevator, compatible with new and previous Combi RX wagons through a retrofit option. Feeding into troughs, bunks, over fences and in barns has never been this simple! The kit features unique feedbars and a curved-style hooked elevator, improving the release process of feed materials such as hay, silage, baleage. Upgrade your feeding experience with this cutting-edge solution, now available to elevate the performance of your Combi RX² multi-feeder wagon.

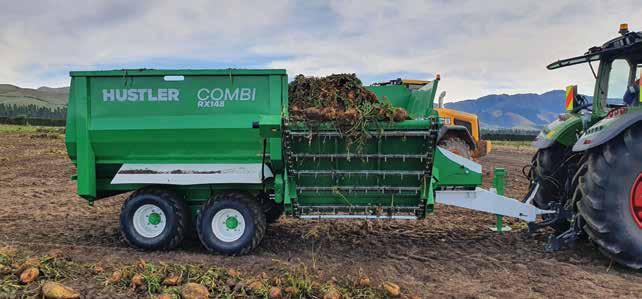

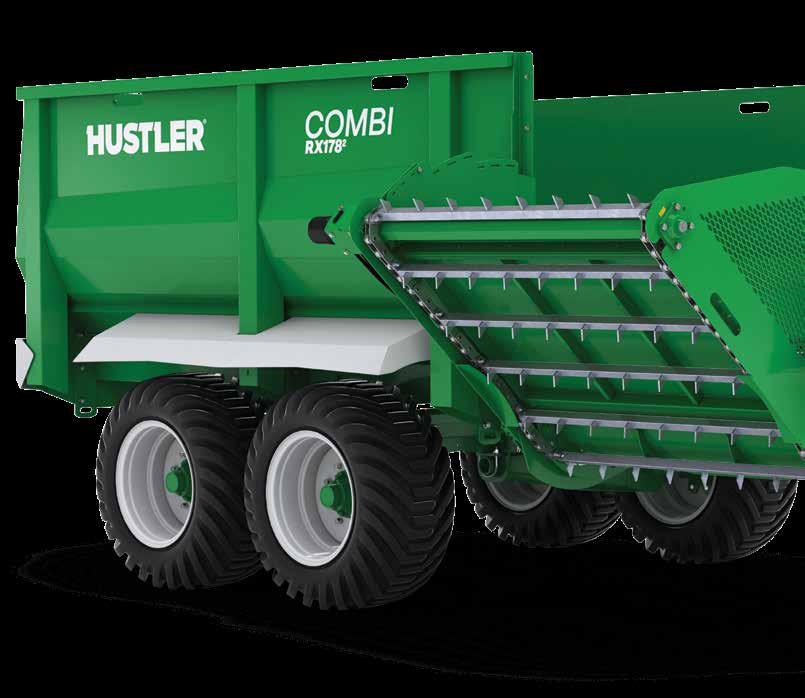

Combi RX² Range

Arguably the biggest quantum leap in Feed Out Wagons ever! Loaded with innovation that eliminates moving parts, downtime and fatigue; simplifies operation and user control flexibility; and massively increases versatility of use and feed types, the new RX² Range provides more practical capability with a smaller foot-print which saves you time and money.

PUSHER BLADE

Twin speed (178, 218) rear pusher blade provides longevity and low maintenance.

REAR MOUNTED MOTOR

Now safely out of the way of the tractor tyre when turning.

ROPE TIE EYES

Tie off strings on square bales.

ELEVATOR SPILL FANS

TOUGHEST AXLE

Massive 2,200cm2 (340 in2) pivot surface area and 100 mm diameter pivot pins retain more grease for longer service intervals and never slop out.

SLOPING MUDGUARDS

Minimize build up of material and spilling on roadways.

PUCKBOARD FLOORS

15 mm (0.59”) thick rear and 12 mm (0.47”) cross floor are slippery and durable.

LADDER AS STANDARD For ease of access.

VISIBILITY

ADJUSTABLE TENSIONERS

Provides all chains with easy access, long life and simple servicing.

MASSIVE GROUND CLEARANCE

Unbeatable ground clearance provides improved manouverability in undulating terrain.

See right through to the rear of the machine with no obstructions.

TOUGHEST CHAINS

12,000 lb roller chains and bis-alloy sprockets are built for the heaviest loads.

PROTECTED HYDRAULICS

Steep sloped hood to minimize build up of material.

LARGER FEED BAR

Larger RHS feed bar gives maximum torsional strength with low profile.

MASSIVE DRAWBAR CLEARANCE

UNIQUE DRAWBAR

Provides superior maneoverability with no need for a parking stand.

HEAVY-DUTY JACK Can be used as a skid foot.

(2”)

(2”)

(2”)

Combi RX218²

With the innovation of the RX² Range pushed to the max, the Combi RX218² is the most efficient multi-feeder on the market, and holds the World Record for most bales fed out on a single farm in 8 consecutive hours.

TWIN SPEED REAR PUSHER BLADE

Powered by hydraulic cylinders and greaseless slides provides longevity with low maintenance.

TOUGHEST ROLLER CHAINS AND SPROCKETS

With 12,000 lbs roller chains and hardened sprockets, the RX218 is built to handly the heaviest loads with ease.

THICK PUCKBOARD FLOORS

Our unique heavy-duty Puckboard floors are slippery, durable and extremely tough. 15mm (0.59”) thick rear floor and 12mm (0.47”) thick cross floor for longevity.

STEERING REAR AXLE

Provides superior manoeuvrability, less tyre wear, less pasture/ground damage and has a hydraulic lockout for reversing.

TRIDEM LOAD-SHARING AXLE

Provides more stability in undulating terrain, more flotation in wet soggy pastures and a higher road legal payload than all tandem axle designs.

LARGER FEED BAR

The larger feed bar, gives maximum torsional strength with a lower profile for the best of both worlds.

UNOBSTRUCTED VIEW

When it comes to visibility no other wagon beats an RX. See right through to the rear of the machine and into the cross floor with no obstructions blocking your view.

SEE HOW THE COMBI RX218 SET THE WORLD RECORD FOR NUMBER OF BALES FED OUT IN 8 CONSECUTIVE HOURS

ADJUSTABLE TENSIONERS

All chains have adjustable tensioners with easy access for long life and simple servicing.

SCALE READY

Designed to allow scales to be fitted at any time, our unique and extremely tough design utilises 6 loadcells that are rated to withstand up to 120 tons!

TOUGH, MANOEUVRABLE DRAWBAR

Unique drawbar provides superior manoeuvrability and weighs the load both when on the jack and attached to the tractor without the need to fold and unfold a parking stand.

Customise your Combi.

Feedlink Simple. Smart. Both.

On-board wireless scales and feed management system

Simply the most advanced wireless scale system on the market, FeedLink can be used simply – by weighing in and out live weight, like a conventional wagon scale system – or as a sophisticated feed management tool, utilising such features as a pre-programmed daily feeding routine and reports that track feed proof-of-placement, operator performance and insights into over- or under-feeding.

It’s ultra-simple to operate just like any other app on your phone or tablet, with straight forward seamless bluetooth connectivity allowing you to take feed management control to the next level

FeedLink can fit to any Hustler feed out wagon (can also be retro-fitted to most other brands of feed out equipment).

Choose how you’d like to use your Feedlink scale system:

SUITS: All Combi,EzFeed and Balexpress models

WHICH STYLE DO YOU NEED?

SIMPLE SCALE SYSTEM.

Current live weight is always displayed on the home screen.

> Weigh-in at loading

> Weigh-out at feeding location/field

> Have an extra display in loading tractor reading the same live weight

COMPREHENSIVE FEED MANAGEMENT TOOL

Feedlink is loaded with feed management features and capabilities. Use as much or few as you like:

> Pre-program your daily feeding routine by herd or location

> Track and send reports on actual vs target feeding amount

> GPS proof-of-placement allows you to see that the right herd got fed (device dependant)

> Operator performance and insights into over- or under-feeding

> Run multiple devices reading same live weigh in feeding tractor and loader

> Connect to multiple feed out wagons

In-cab Mount & Display

In-cab mounting and display for wireless scales includes iPad & Ram mounting system. Requires FeedlinkTM

Includes safety chains, LED stop, tail and front marker lights, and front and rear hazard panels.

Hydraulic 2-wheel or 4-wheel brakes

Hydraulically operated on two or four wheels for added safety on and offroad and on sloped terrain.

The Next-Level in feed control simplicity. Swap between Silage and Bale feed out modes with the flick of a switch.

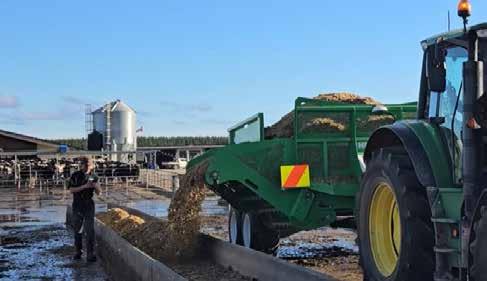

Designed to allow easy loading of feeding troughs with minimal spillage.

single truck tyres are available when using in heavy road work or highspeed operations for increased life.

EzFeed Silage Wagon.

Feeding silage made Ez.

The most simple, reliable silage wagon on the market designed for farmers who simply cannot afford downtime and rely solely on silage as the supplementary feed of choice.

EZFEED SM130 / SM150

Simple operation >> As the name suggests EzFeed makes feeding silage easier than ever before. As standard only one set of hydraulics is all it takes to connect and power the whole machine and our clever adjustable load-sensing hydraulics takes care of the rest making EzFeed the ideal wagon for low-skilled staff.

100% ROLLER CHAINS

With EzFeed gone are the days of trouble-some link chains and conveyor belts which require constant adjustment, fine-tuning and are often slipping or breaking disrupting your feeding program. EzFeed is the first wagon on the market to run a 100% roller-chain design to overcome this.

SIMPLE OPERATION

As the name suggests EzFeed makes feeding silage easier than ever before. As standard only one set of hydraulics is all it takes to connect and power the whole machine and our clever adjustable load-sensing hydraulics takes care of the rest making EzFeed the ideal wagon for low-skilled staff.

HEAVY DUTY JACK STAND

Built to take the place of a quick hitch foot and jack stand.

TWINFEED

The first silage wagon to feature left or right hand feed discharge for more feeding versatility. And with 5 positions for the discharge floor allows for easy setup when feeding into troughs. Optional electric in-cab controller option for on the fly feed direction change and hydraulic side-shift.

SUPER STRONG BARS

Strongest 65x35x4mm (2.5”x1.5”x0.15”) box section bolt on replacable bars on elevator and conveyor.

COVERED CHAINS

Prevents material from building up in chains & sprockets, increasing service life.

HUNGRY BOARDS

Virtually indestructable our replacable roto-moulded hungry boards can take a beating from your front-loader without turning to splinters or dinging up your nice new EzFeed silage wagon. Another industry first from Hustler.

VISIBILITY KIT

Optional safety kit includes safety chains, LED lights and front and rear hazard panels.

CENTRAL GREASING

Remote greasing as standard, saves time and maintenance.

MASSIVE ROLLER CHAIN

1000mm (40”) roller chain/bar discharge for reliable and even unobstructed flow of material.

PROVEN PLATFORM

TAILGATE AUTO-RELEASE

For quick ejection of material out the back, and protects from accidental damage due to control mishaps.

Built utilising our proven Combi wagon platform EzFeed has the toughest axle design on the market by a country mile, large suspension travel, comes scale ready for our industry first FeedLink feed management system which weighs on both the jack/skid and drawbar, impact resistant puck-board floors, toughest bars and more.

EZFEED SX180 / SX210

Large and in charge, the two SX models of the EzFeed silage wagons take the simplicity and sturdiness of the range and add massive capacity to limit trips back to the silage pit that will shorten your feedout routine by hours a day.

100% ROLLER CHAINS

With EzFeed gone are the days of trouble-some link chains and conveyor belts which require constant adjustment, fine-tuning and are often slipping or breaking disrupting your feeding program. EzFeed is the first wagon on the market to run a 100% roller-chain design to overcome this.

SIMPLE OPERATION

As the name suggests EzFeed makes feeding silage easier than ever before. As standard only one set of hydraulics is all it takes to connect and power the whole machine and our clever adjustable load-sensing hydraulics takes care of the rest making EzFeed the ideal wagon for low-skilled staff.

VISIBILITY KIT

Optional safety kit includes safety chains, LED lights and front and rear hazard panels.

CRASH BUMPER

Heavy duty crash bumper to protect side discharge.

HEAVY DUTY JACK STAND

Built to take the place of a quick hitch foot and jack stand.

HUNGRY BOARDS

Virtually indestructable our replacable roto-moulded hungry boards can take a beating from your front-loader without turning to splinters or dinging up your nice new EzFeed silage wagon. Another industry first from Hustler.

TWINFEED

The first silage wagon to feature left or right hand feed discharge for more feeding versatility. And with 5 positions for the discharge floor allows for easy setup when feeding into troughs. Optional electric in-cab controller option for on the fly feed direction change and hydraulic side-shift.

TAILGATE AUTO-RELEASE

For quick ejection of material out the back, and protects from accidental damage due to control mishaps.

ACCESS LADDER

Premium foldable ladder for quick, easy access in to the feed container

PROVEN PLATFORM

Built utilising our proven Combi wagon platform EzFeed has the toughest axle design on the market by a country mile, large suspension travel, comes scale ready for our industry first FeedLink feed management system which weighs on both the jack/skid and drawbar, impact resistant puck-board floors, toughest bars and more.

COVERED CHAINS

Prevents material from building up in chains & sprockets, increasing service life.

SUPER STRONG BARS

Strongest 65x35x4mm (2.5”x1.5”x0.15”) box section bolt on replacable bars on elevator and conveyor.

CENTRAL GREASING

Remote greasing as standard, saves time and maintenance.

MASSIVE ROLLER CHAIN

1000mm (40”) roller chain/bar discharge for reliable and even unobstructed flow of material.

EzFeed Range

With a slew of innovative features, the EzFeed silage wagons have the stats to make you hungry for more. Strength, reliability and simplicity combine to make these the best silage wagons money can buy, and now there are three larger versions to serve bigger and bigger operations: the SM150, SX180 and SX210.

+ Length

+ Width

+ Height

+ Loading height

+ Loose Silage (load-level) 13 m3

+ Loose Silage (heaped load) 14 m3

mm

mm

mm

mm

mm

mm

mm

mm

m3

m3

+ Maximum Load 10,000 kg 13,000 kg

+ Standard Tyres 400/60 x 15.5 Flotation Grip Tread 500/50 22.5 Flotation Grip Tread

+ Axle

+ Brakes

+ Guards

Tandem Walking Beam

Optional 2 or 4 wheel braking

Standard removable HD guards

Tandem Walking Beam

Optional 2 or 4 wheel braking

Standard removable HD guards

+ Mudguards Sloping mudguards to reduce material build-up Sloping mudguards to reduce material build-up

+ Remote greasing

+ Ladder

+ Weigh Scales

+ Floors (Bed Floor/Cross Floor)

+ Chains (Bed / Elevator / Conveyor)

+ Feed bars (Bed / Elevator / Conveyor)

+ Drive system (Bed / Elevator / Conveyor)

+ Drive Sprockets

+ Hydraulics required

+ Hydraulic Flow

+ Hydraulic Pressure:

+ Conveyor

+ Jack

+ Towing Eye Size:

Standard

Standard

Optional Feedlink™ weighing and feed management system

15 mm HD Puckboard

Twin 12,000 lb Roller Chains / Twin 12,000 lb Roller Chains / Twin 12,000 lb Roller Chains

65 x 35 RHS / 65 x 35 RHS / 50 x 25 RHS

Sealed Reduction Gearbox / Sealed Reduction Gearbox Drive / Direct Drive

High-tensile (Bisalloy®) drive sprockets welded on the shaft (without bushes)

1 x double acting.

(1x extra set of remotes required when adding Hydraulic side-shift)

50-70 L/min (80 L/min maximum)

2610-2900 psi

TwinFeed LH & RH side discharge, 1000 mm wide chain/slat

80mm 2 speed screw, with quick adjustment. Designed strong enough for use as quick hitch stand

50 mm

+ Tare wieght 3800 kg (8377 lb)

+ Tailgate:

Auto-release, removable (without tools)

Standard

Standard

Optional Feedlink™ weighing and feed management system

15 mm HD Puckboard

Twin 12,000 lb Roller Chains / Twin 12,000 lb Roller Chains / Twin 12,000 lb Roller Chains

65 x 35 RHS / 65 x 35 RHS / 50 x 25 RHS

Sealed Reduction Gearbox / Sealed Reduction Gearbox Drive / Direct Drive

High-tensile (Bisalloy®) drive sprockets welded on the shaft (without bushes)

1 x double acting.

(1x extra set of remotes required when adding Hydraulic side-shift)

50-70 L/min (80 L/min maximum)

2610-2900 psi

TwinFeed™ LH & RH side discharge, 1000 mm wide chain/slat

80mm 2 speed screw, with quick adjustment. Designed strong enough for use as quick hitch stand

50 mm

kg (8752 lb)

Auto-release, removable (without tools)

EzFeed SX210

EzFeed SX180

+ Length 8555 mm 8968 mm

+ Width 2982 mm 2987 mm

+ Height 3055 mm 3171 mm

+ Loading height

+ Loose Silage (load-level)

2759 mm 2981 mm

18 m3 21 m3

+ Loose Silage (heaped load) 21 m3 25 m3

+ Maximum Load 15,000 kg 17,000 kg

+ Standard Tyres

+ Axle

+ Brakes

500/50 x 22.5 Flotation Grip Tread

Tandem Load Sharing Suspension Axle

All-wheel braking

+ Guards Standard removable HD guards

+ Mudguards

+ Remote greasing

+ Ladder

+ Weigh Scales

500/50 x 22.5 Flotation Grip Tread

Tridem Load Sharing Suspension Axle, with steering rear axle

All-wheel braking

Standard removable HD guards

Sloping mudguards to reduce material build-up Sloping mudguards to reduce material build-up

Standard

Folding Premium Ladder

Optional Feedlink™ weighing and feed management system

Standard

Folding Premium Ladder

Optional Feedlink™ weighing and feed management system

+ Floors (Bed Floor/Cross Floor) 15 mm HD Puckboard 15 mm HD Puckboard

+ Chains (Bed / Elevator / Conveyor)

+ Feed bars (Bed / Elevator / Conveyor)

+ Drive system (Bed / Elevator / Conveyor)

+ Drive Sprockets

+ Hydraulics required

+ Hydraulic Flow

+ Hydraulic Pressure:

+ Conveyor

+ Jack

+ Towing Eye Size:

+ Tare wieght

+ Tailgate:

Twin 12,000 lb Roller Chains / Twin 12,000 lb Roller Chains / Twin 12,000 lb Roller Chains

65 x 35 RHS / 65 x 35 RHS / 50 x 25 RHS

Sealed Reduction Gearbox / Sealed Reduction Gearbox Drive / Direct Drive / Hydraulic sideshift (optional)

High-tensile (Bisalloy®) drive sprockets welded on the shaft (without bushes)

1 x double acting.

(1x extra set of remotes required when adding Hydraulic side-shift)

50-70 L/min (80 L/min maximum)

2610-2900 psi

TwinFeed™ LH & RH side discharge, 1000 mm wide chain/slat

80 mm 2-speed screw, with quick adjustment. Designed strong enough for use as quick hitch stand

50 mm

4600 kg (10141 lb)

Auto-release, removable (without tools)

Twin 12,000 lb Roller Chains / Twin 12,000 lb Roller Chains / Twin 12,000 lb Roller Chains

65 x 35 RHS / 65 x 35 RHS / 50 x 25 RHS

Sealed Reduction Gearbox / Sealed Reduction Gearbox Drive / Direct Drive / Hydraulic sideshift (optional)

High-tensile (Bisalloy®) drive sprockets welded on the shaft (without bushes)

2 x double acting (machine + rear steer axle)

(1x extra set of remotes required when adding Hydraulic side-shift)

50-70 L/min (80 L/min maximum)

2610-2900 psi

TwinFeed™ LH & RH side discharge, 1000 mm wide chain/slat

80 mm 2-speed screw, with quick adjustment. Designed strong enough for use as quick hitch stand

50 mm

6000 kg (13228 lb)

Auto-release, removable (without tools)

“

We did look into other brands, but found that this one was what we really required now. It is a very strong built design. And I believe that Hustlers got the best gear out, for dairy farmers, sheep farmers, cattle farmers to do this bulk feeding, that they require a good machine to actually do the hard work.”

Boyd Houghton - Tirau (New Zealand) Farmer and owner of a Hustler EzFeed

Applic8r Boom Sprayer Range.

Meet our most innovative linkage boom sprayers. Built by Hustler. Tested and proven by farmers around the world just like you.

With the toughest design on the market, unique best-in-class agitation and mixing, user-friendly low profile tanks and an innovative modular design that allows you to customize your sprayer to get exactly what you need and make the most of your budget, Hustler’s Applic8r boom sprayers have got you covered.

If any farmer asked me what I thought of the Hustler boom sprayer, I’d say it’s brilliant and recommend them to anyone,” “

Steve Watson, Simpson (Australia) Farmer and owner of a Hustler Applic8r LX1150

How Hustler Boom Sprayers help farmers achieve more.

FUNCTIONAL

Applic8r is loaded with practical features that help you get the job done quicker. It’s got quicker tank emptying, a deep sump that lets you spray on steep terrain, a ViziGauge™ that is visible from both the tractor seat and the ground, an optional QuickFlush™ kit that lets you clean the sprayer in less than a minute, and a handy toolbox with plenty of room for spare nozzles, filters and the controller.

BOOM!

When it comes to booms, you’re spoiled for choice! From 6 to 14m, manual and hydraulic folding, from our proven DuraBoom and SonicBoom range to our all-new EagleTech Boom to choose from. Optional bidirectional hose reels and spray guns can complete the customisation of your very own Applic8r. Need to go boomless in some of your paddocks, just add an optional nozzle kit up to 14-metre swath width.

COMPACT AND BUILT TO LAST

Careful attention to detail, smart chassis/ tank/pump integration has allowed Hustler to produce the toughest and most compact sprayer available today that no longer needs to be parked on a pallet. And has a built-in SkidPlate™ protecting the vital parts from common obstacles faced when spraying.

EASY TO USE

Applic8r utilises space wisely with an ultra-low profile design. Filling from the ground is quick, safe and easy and with the spill catcher no longer do you have chemical down your front. A unique CoupleUp™ system makes connecting to filling stations or filling out of a creek with the Applic8r pump a snap. And everything you need is handy at the left hand side.

ULTIMATE AGITATION

Utilising the lastest computer generated flow simulation we’ve created the perfect flow of liquid within the tank and combined with our MixMax™ technology and ErgoMax™ induction hopper, you can be assured that your solution is mixed and stays mixed.

MODULAR DESIGN

Applic8r is modular and can have optional time savers fitted as and when you like or your budget fits. The SlickFit™ spray valving system, lets you choose how you’d prefer to control your new Applic8r.

“

This sprayer system is very easy to use. It’s very user-friendly”

Kent Smith, Missouri (USA) Farmer and owner of a Hustler Applic8r LX1150

Why Hustler boom sprayers are the world’s best.

With the industries best warranty, unique best in class agitation and mixing, Toughest design on the market, user-friendly low profile tanks with a Hustler boom sprayer, you’re covered.

VIZIGAUGE

Our unique ViziGauge is visible from 120 degrees, so whether in your tractor seat or on the ground you can easily see your tank level and how much fluid you have left. A floating ball tube gauge makes it easy to read the calibrated ViziGauge™ which now features both Gallons and Litres and provides more tank filling accuracy with our unique mould-in permanent graphics.

LARGEST LID WITH SPILL RING

The largest 455 mm (17.91”) lid to the tank with larger sieve, has a built-in hinge so that you can’t lose the lid during transport and filling. We’ve also added a spill ring around the lid to catch any accidental spillages to save them getting on the operator.

DEEP SUMP

A generous sump size is all part of the design. You can spray on steep terrain without sucking air or leaving missed patches, and you’ll empty the entire tank, even when operating on the steepest of terrain.

REAR MOUNTED PUMP

The unique design of a rear-mounted, offset pump allows for the longest PTO shaft in its class. There is less angle of the joints, making for a longer-lasting shaft, which enables the sprayer to run whilst on the ground. You can fit the Applic8r to any tractor size without needing to cut or lengthen the PTO shaft.

INTEGRATED TOOLBOX

Integrated into the design is a handy toolbox that’s quick and easy to open, and has plenty of space for spare nozzles, filters and the controllers when the sprayer’s not in use.

HANDWASH TANK

Built-in 18-litre (4.755 gallon) tank for clean water so that you can wash your hands once finished. Makes spraying with an Applic8r enjoyable.

SLICKFIT CONTROLS

The Applic8r range comes standard with a 3-section control system and thanks to our unique SlickFit™ system, you can swap controls in a flash from the most basic of manual controls right through to a full ISO GPS control system with automatic section controls. The choice is yours!

ADJUSTABLE VALVE MOUNT

Ideal for manual options, this makes the controls easier to reach, and when the sprayer is parked in the shed the valve can be adjusted out of harm’s way.

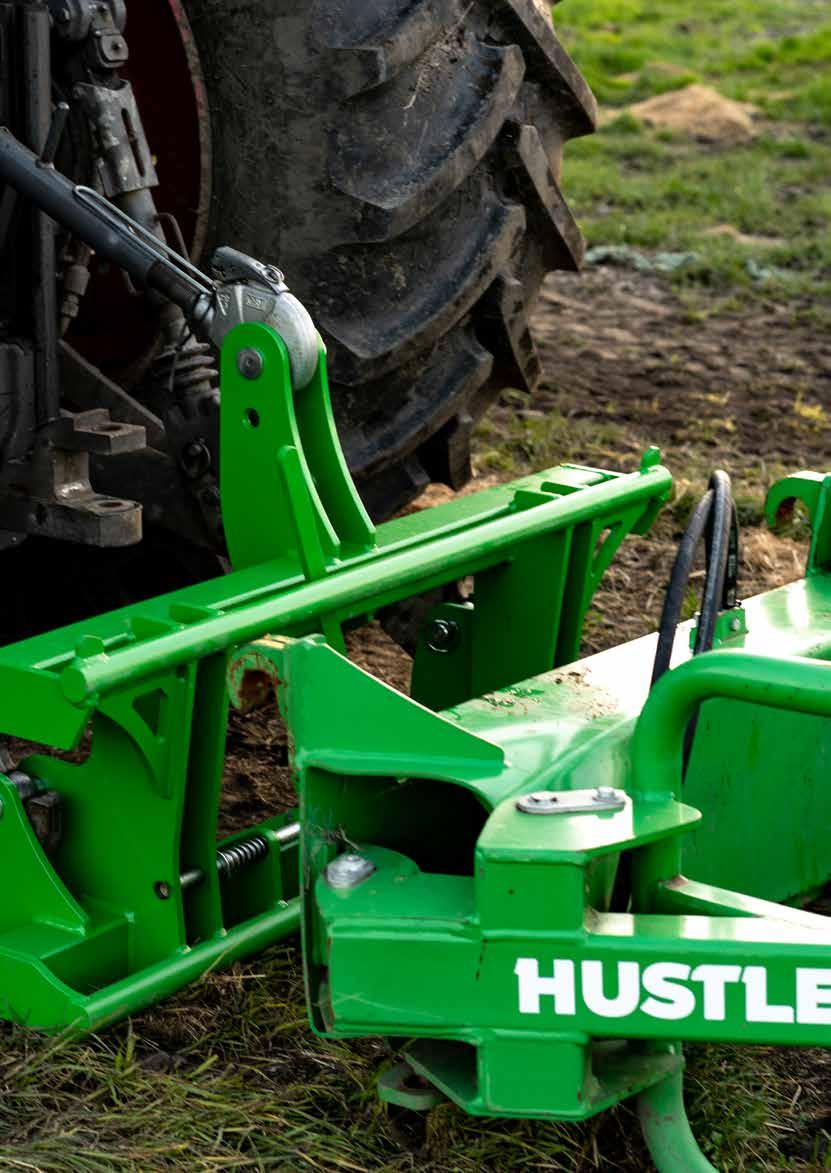

ISO LINKAGE MOUNTS

The Applic8r’s 3-point mounts are built to ISO standard, unlike most other sprayers. This means you no longer need to park your sprayer on a stack of pallets for the 3-point linkage to reach it, and it fits both fixed and floating 3-point linkage arms making it quicker and safer to hook up.

Hustler Applic8r Boom Sprayers

Watch the boom testing

are the sturdiest, most versatile boom sprayers on the market.

FRONT TANK

A front tank can double your tank capacity and add balance to your spray rig.

Available in two sizes: 1150 or 890 Litre (303.8 or 235 gallon) capacity.

Can be used as an alternative to a front weight block, adding versatility of easily adjustable weight, allowing you to reduce weight as and when needed, while also providing the convenience of having a spare water reservoir on-board.

NOZZLE CHART

Now showing L/Ha and G/Ac our unique nozzle chart is permanently moulded into the polymer of the tank, so you’ll never need to go searching for a nozzle chart again, and helps the operator get set up and spraying quicker every time.

UNIQUE CHASSIS DESIGN

Compact and built to last, it has the biggest section in its class! The unique straightthrough chassis design and careful attention chassis/tank/pump integration has allowed Hustler to produce the toughest and most compact sprayer available today. The Applic8r’s chassis has been CAD tested for stress and real-life tested for fatigue on our destroyer, where it lasted longer than 4 times the required benchmark.

LARGER PUMPS

Applica8r is spec’d with a larger than normal pump, to ensure your sprayer is future-proofed. Standard with 110l/min Comet diaphragm pumps for longer service intervals and the ability to handing liquid fertilizers. Any fluid is only in contact with either plastic or stainless-steel parts which eliminates any chance of corrosion.

BUILT-IN SKIDPLATE ™

A tough built-in SkidPlate protects the vital parts – including the pump, tank, filters and drain – from damage, should you misjudge a hump or hollow.

“ Roger Cornish - Gippsland (Australia)

It’s durable, it’s common sense engineering and I think value for money. It’s very well built, very user-friendly. You can’t do any better when looking at competitor sprayer brands.”

Agriculture

contractor and owner of an Applic8r LX680 (formerly Katipo 680)

EagleTech Boom

When it comes to boom stability and application accuracy, EagleTech is a clear class winner! Featuring yaw, vertical and individual sectional suspension, in-line sectional filters, transport boom-locks, hydraulic boom dampeners and the most userfriendly wing-lift, the EagleTech Boom covers more ground –no matter how rough – with the smooth glide of an eagle!

UNIQUE WING-LIFT

The unique folding design provide full wing-lift from the hip of the boom, making for easier contour following and faster fold/unfold times - and it makes operation a breeze.

VERTICAL SUSPENSION

The unique roller design (rather than slides) provides more supple verticle suspension to soak up the impact when encountering a hole in your path.

SELF-LEVELLING

Quad link self-levelling centralises the boom to the angle of the tractor, not to gravity, and the incorporated hydraulic boom dampener prevents the boom from whipping around uncontrollably, like other self-levellers.

IN-LINE SECTIONAL FILTERS

Allows you to change just one filter for five nozzle bodies at once, saving you tons of time.

HYDRAULIC BOOM DAMPENERS

Dampeners take all the whip and bounce, and create a real stable ride with next level durability.

UNIQUE END-SECTION SUSPENSION

The end sections are suspended separately from the intermediate section, reducing the weight from the boom and increasing stability and longevity.

TRIPLE NOZZLE BODIES

Allows you to flick between three different nozzles sizes and water rates instantly.

RUBBER SAFETY HOLDERS

Secures the boom and redirects the weight and jostling during transport, providing longevity.

YAW DAMPENERS

Provides both fore and aft suspension, reducing fatigue and providing an incredibly supple ride, even when turning on headlands or working in undulating terrain.

Customise your Applic8r.

Manual booms

Hydraulic booms

SonicBoom 10 metre (32.8ft) hydraulic fold boom

With protected nozzles, and individual left and right folding.

SUITS: all models

DuraBoom 6 metre (19.7ft)

Manual fold boom with protected quick fitting anti-drip nozzle bodies and nozzles, breakaway boom protection.

all models

SonicBoom 12 metre (39.4ft) hydraulic fold boom

With protected nozzles, and individual left and right folding.

SUITS: all models

Boom options / alternatives

for fertilizer products.

SUITS: all models

DuraBoom 8 metre (26.2ft)

Manual fold boom with protected quick fitting anti-drip nozzle bodies and nozzles, breakaway boom protection.

all models

EagleTech 14 metre (46ft) hydraulic fold boom

With protected triple nozzles, individual left and right folding and wing-lift, hydraulic height adjust and suspension.

SUITS: all models

Includes nozzles and caps for quicker nozzle changes for SonicBoom range.

SUITS: SonicBooms

AutoLevel self-levelling kit

Add self-levelling on SonicBooms for improved contour following.

SonicBooms

Boom options

HydraLift boom height adjust

1000mm (39.37”) of lift adjustment and suspension.

Front tanks & options

Comes with Tank Selector valve, hose & Quick couplings. Shown with optional Road visibility kit, storage box and flush tank.

Hose reels

Bi-Directional 50m (54.68yd)

Single side manual.

Comes with Tank Selector valve, hose & Quick couplings. Shown with optional Road visibility kit, storage box and flush tank.

Single side.

SUITS: all models except EagleTech boom

Bi-Directional 100m (109.36yd)

pressure

SUITS: all models except EagleTech boom

Road visibility kit - Rear

LED Stop, Tail lights and Hazard for a quick integrated setup.

Pumps

Hydraulic drive option

Remove the need for a PTO shaft and the hassle of connecting it.

SUITS: all models

Customise your Applic8r.

Controls

Upgrade from the standard 3 section.

SUITS: electric controlled models

Electric master

With in-cab control (manual section valves).

SUITS: all models

Automatic spray rate controlling. Automatic spray rate controlling.

SUITS: all models

SUITS: all models

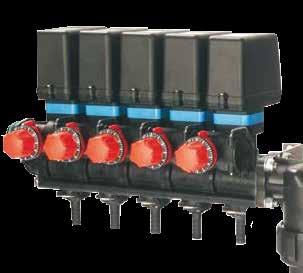

5 section valves Radar cable fitted Add extra sections ISO

Improve the savings from your Auto boom section control.

SUITS: ISOBus controlled models

Speed input options

Connects Auto Rate controller to tractors factory radar connection.

SUITS: Bravo 180 rate controller

Comes with pressure adjust.

SUITS: all models

ISOBUS auto rate control

5 section, GPS swath compatible.

SUITS: all models

speed antenna 3 section electric controls

Factory fitted to sprayer, eliminates the need to run a wheel sensor on each tractor.

SUITS: Bravo 180 rate controller

Guidance

Factory fitted with protective cover, 20 litre tank, in-cab control & storage box.

SUITS: all models

Time savers

ErgoMax™ Induction Hopper

Easy fill chemical induction system.

SUITS: all models

Filler probe

Suck chemicals direct from container.

SUITS: all models

Full GPS Guidance linked to spray controller.

SUITS: all models

100L flush tank kit

Comes standard on the LX1150.

SUITS: Applic8r LX680 & LX890

MixMax™ agitation system

Comes standard on LX890 & LX1150.

SUITS: Applic8r LX680

Inspection Step

For improved tank access.

Raven CR7 ISO ready

Full GPS Guidance TC unlocks for Swath control and ISO implement control.

SUITS: all models

5m remote filling hose

Comes with suction filter.

SUITS: all models

StorageBox™

Convenient chemical container locker.

SUITS: all models

SUITS: all models

Extendable parking feet

Ideal when fitting larger booms to provide more stable parking of the Applic8r.

SUITS: all models

Giving a helping hand.

Every farm has its own individual needs - special requirements or tasks that set it apart from its neighbors. Our attachment and bale handler ranges help fill in those gaps.

Hustler offers a large range of versatile and innovative feeding and handling attachments for tractors, front-end loaders, compact loaders and telehandlers: bale forks, silage grabs, loader buckets, cake buckets, manure scraper, bale slicer and more, and not forgetting the famous Hustler Softhands bale handlers that have forged Hustler’s reputation for durability, ingenuity and ease of use around the world.

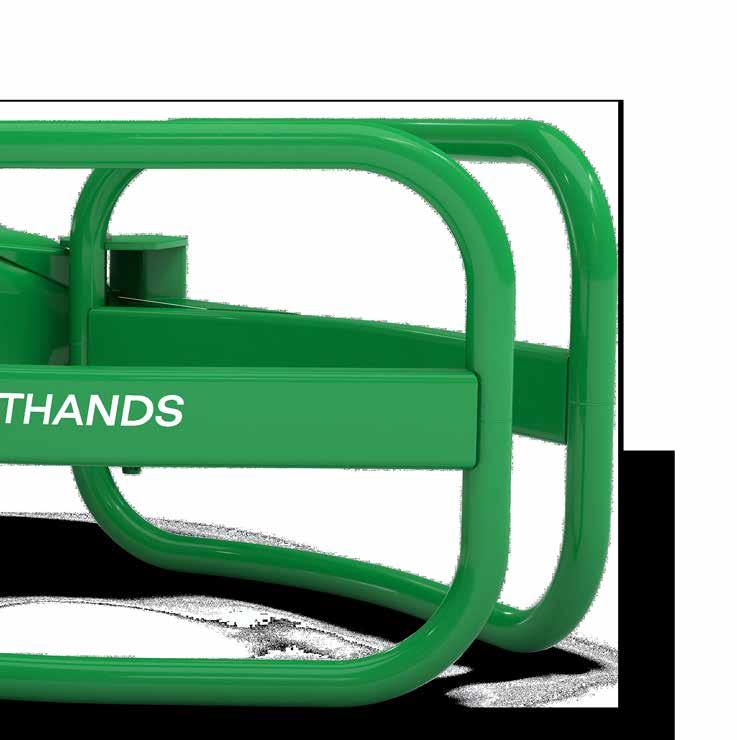

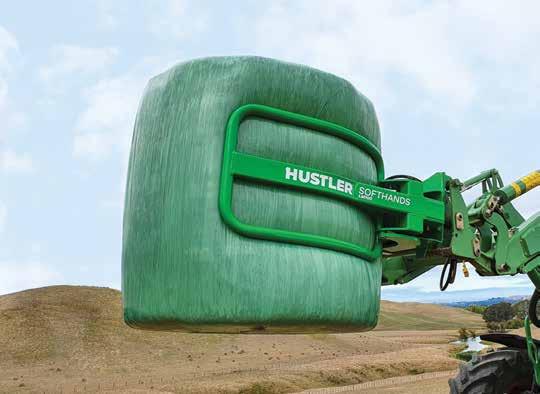

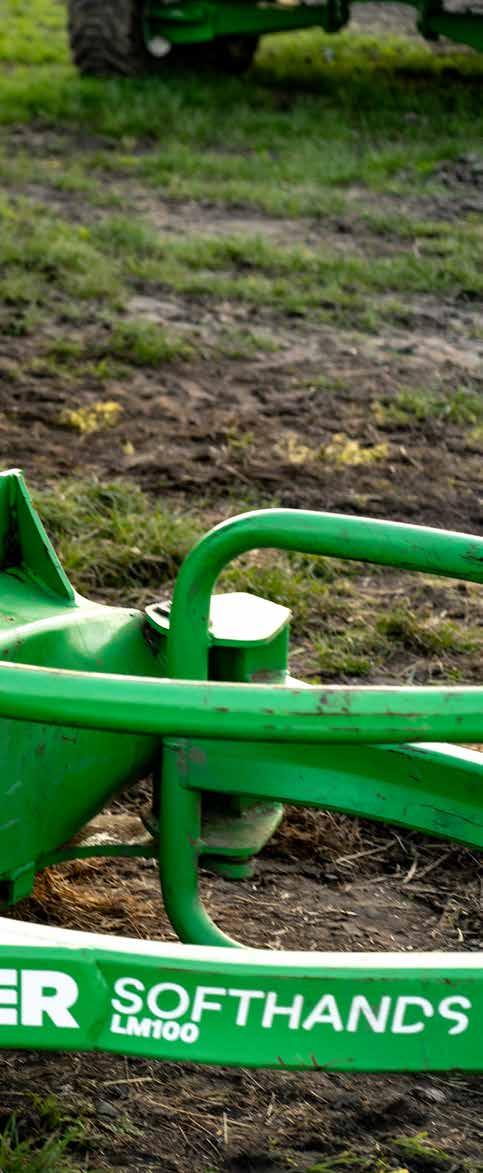

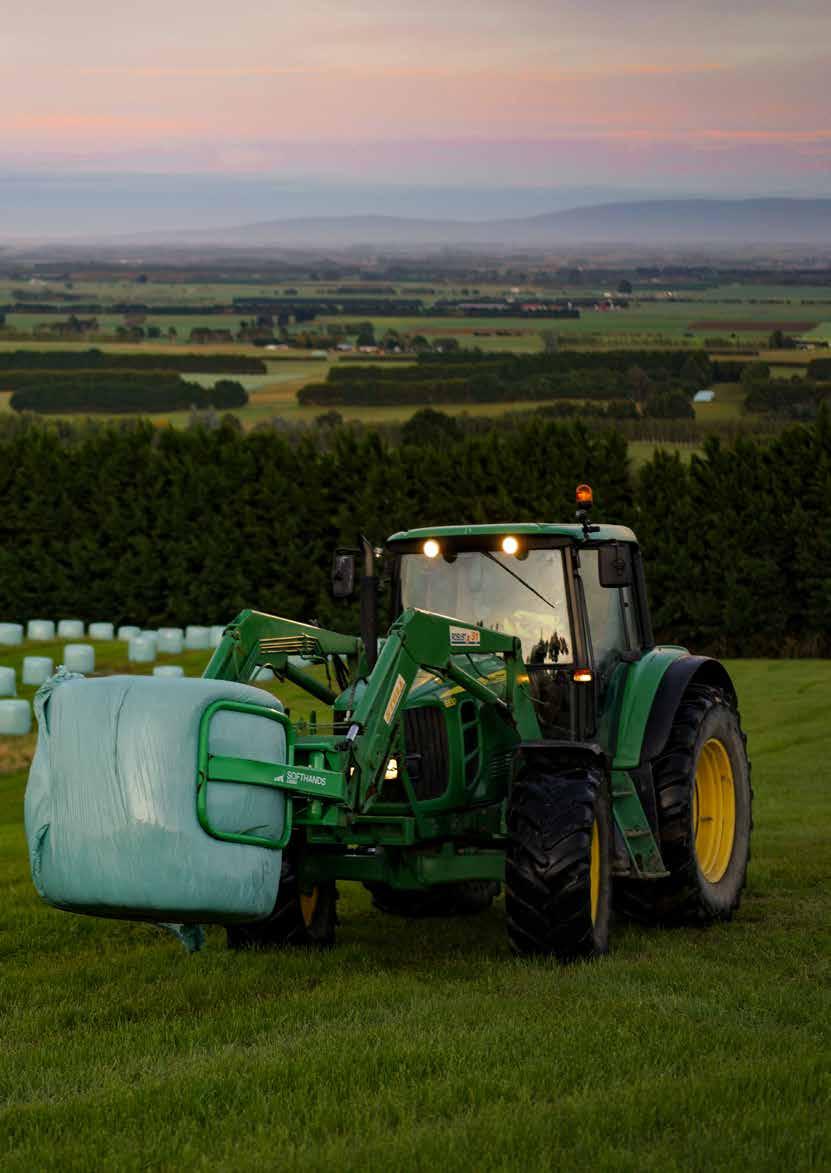

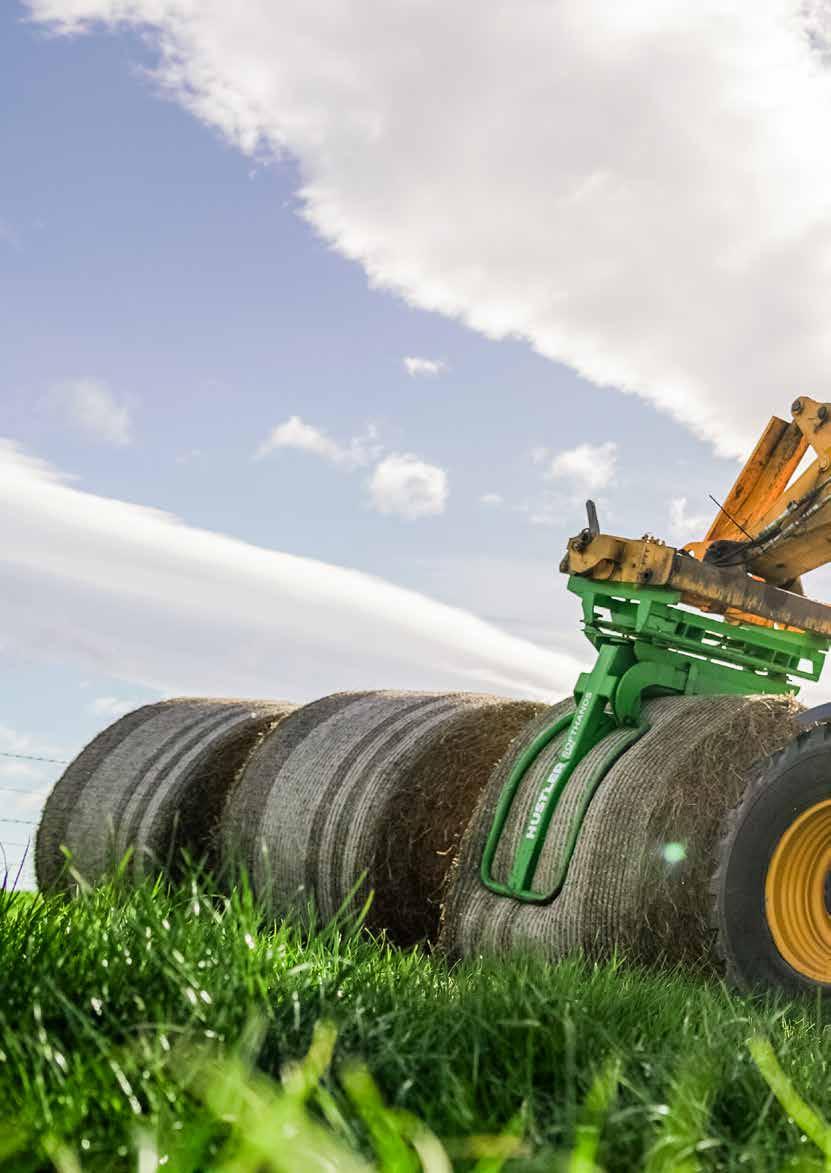

Care for your bales with Softhands®

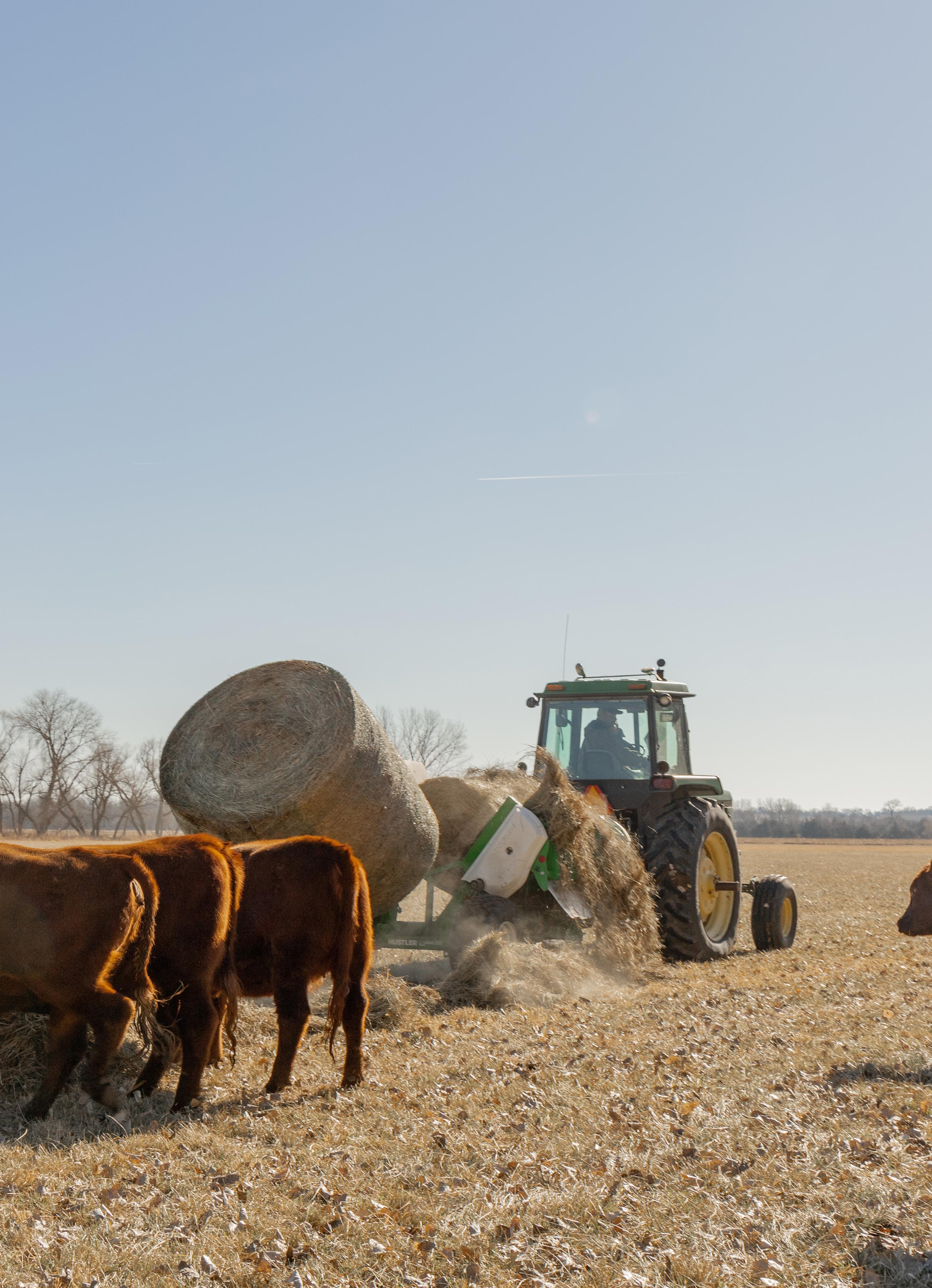

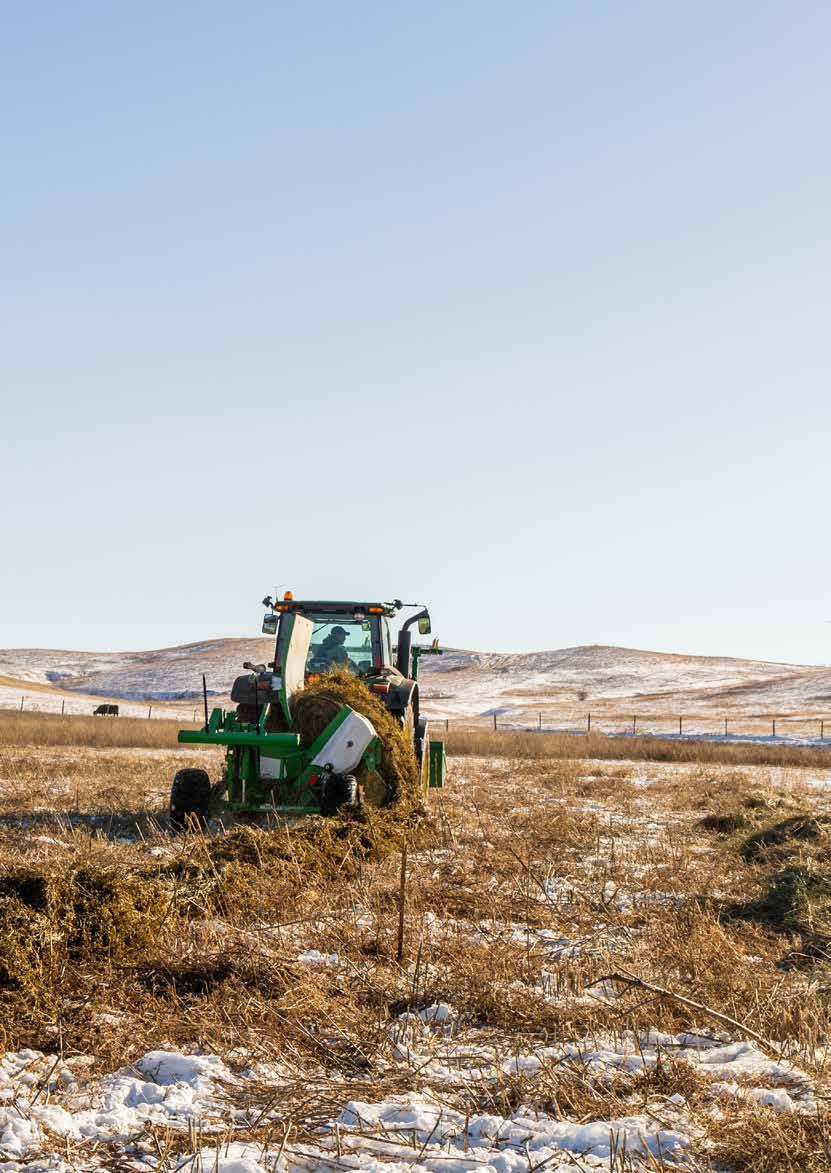

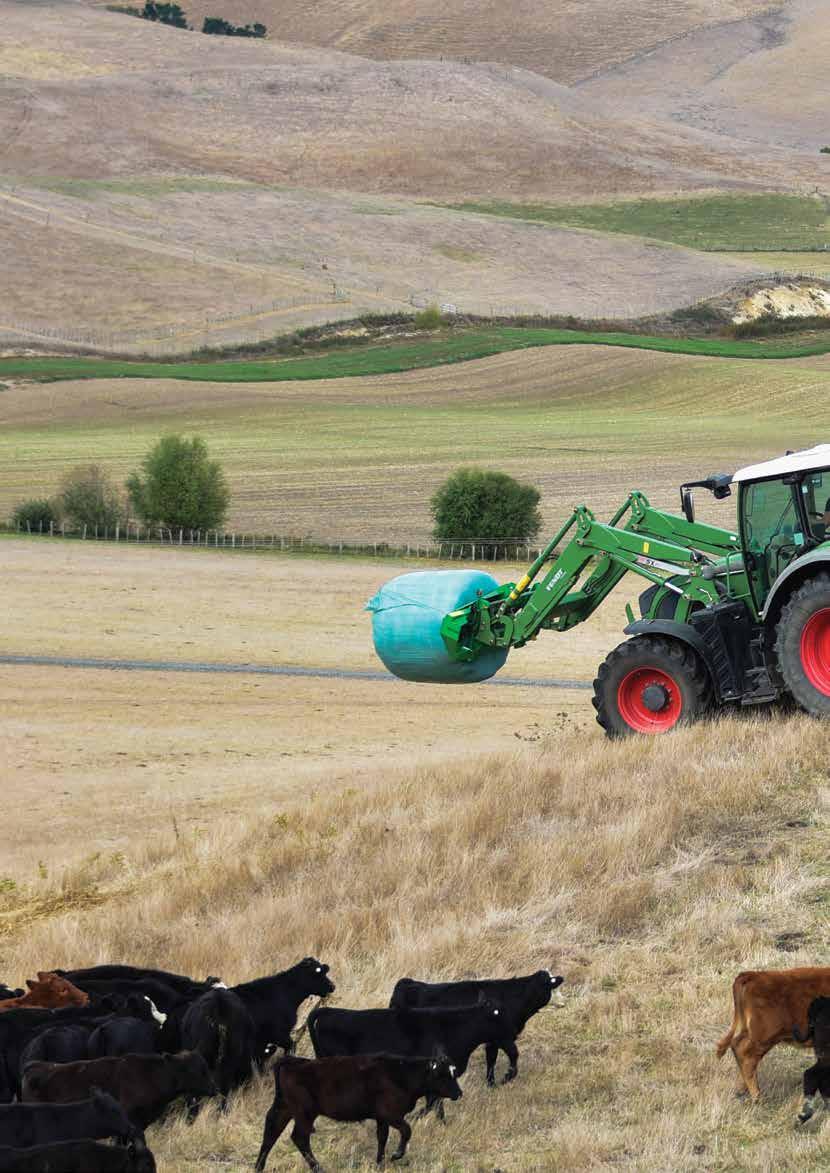

To complement our Chainless livestock feeders, Hustler-proven Softhands® bale handlers are ready to fit your skid steer loader, tele-handler, or front end loader.

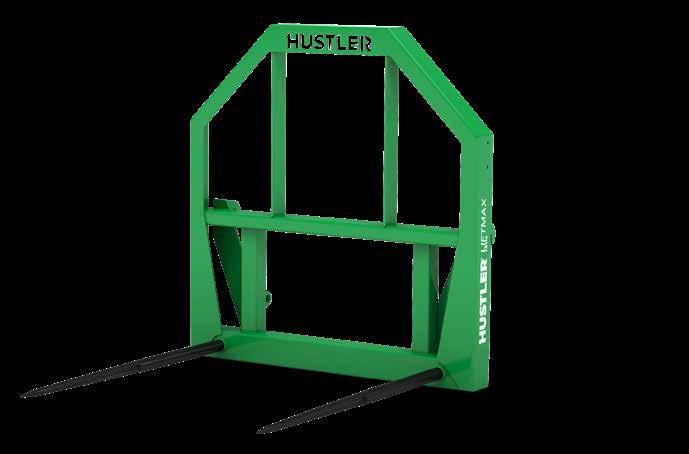

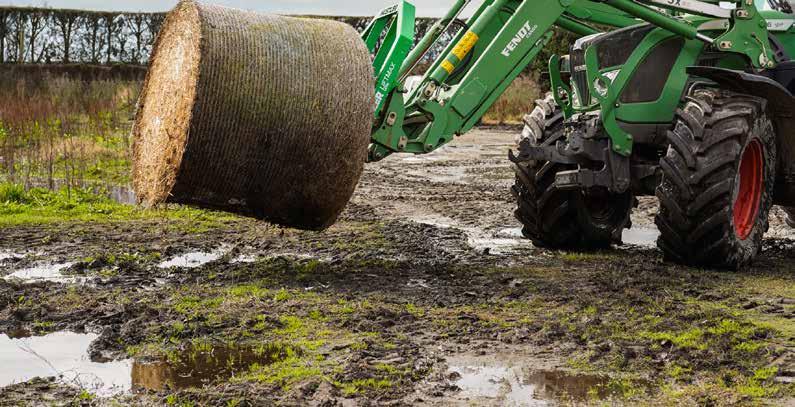

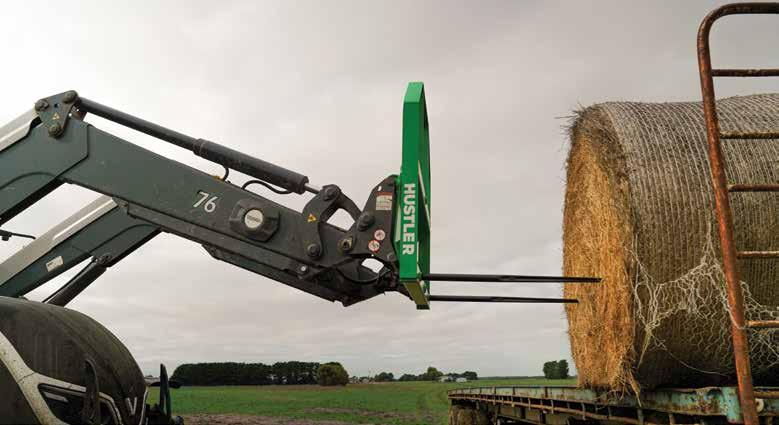

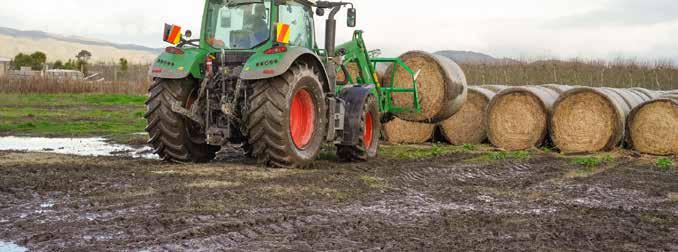

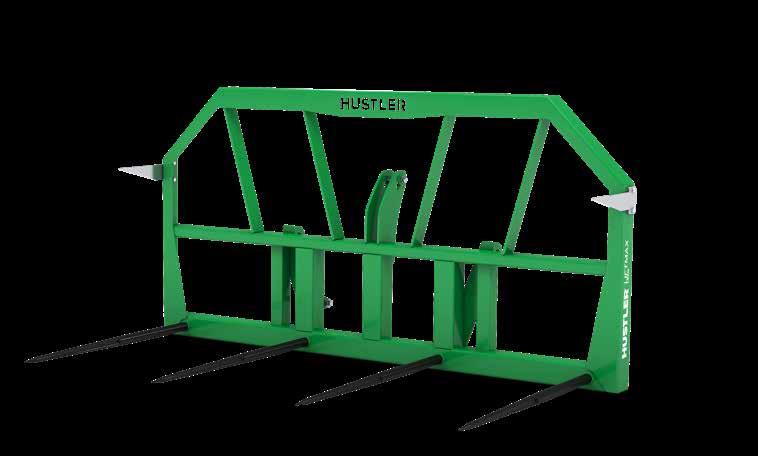

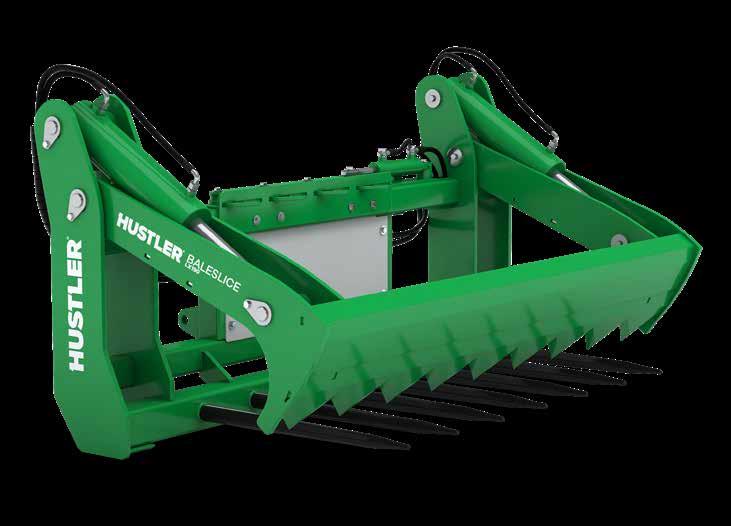

Whether handling round or square, small or big bales, Hustler bale handlers, with their world-first design features will handle more bales with less deformation or damage than any other bale grab, bale clamp or bale handler on the market.

How Hustler bale handlers help farmers achieve more.

REDUCE BALE DAMAGE

Designed with no tear-points so you can handle bales without damaging the bale wrap of either the bale you’re handling or the adjacent bales.

BETTER ENSILING

The unique hand shape reduces deformation and inclusion of air pockets in the fermentation process.

UNRIVALLED CONTROL

Our patented floating Equaliser™ bar keeps the hands moving simultaneously, which makes handling bales safer and easier, whilst giving the operator more control. It also allows the operator to compress bales in either direction without leaving the cab when loading trailers, making for safer loads.

Softhands® LM1002

The most recent addition to the Hustler bale handler family, the LM1002 was designed for ranchers on a budget. It is the perfect bale handler for ranchers who don’t need to move many bales. It is designed tough, predominately for handling round bales, and the compact design is suitable for any sized tractor.

TOP EXIT HOSES

The hydraulic cylinder is fully protected inside the main structure and the top exit hoses are out of harms way when connecting to the loader.

HEAVY DUTY PIVOTS

Large 1.25” pivot pins, with massive surface area provides years of trouble-free use. Greasable pivots also provide easy maintenance.

MONOQUE MAIN FRAME

Uniquely formed main frame, that is both strong, lightweight and smooth to reduce bale damage.

PATENTED

FLOATING EQUALISER BAR

The ultimate in precision bale handling, the Equaliser® keeps both hands moving simultaneously for accurate bale placement. The 2” of float makes loading and stacking easier.

LOADER BRACKETS

Standard with integrated Euro-Hitch, skid steer brackets or plain (no brackets). The LM100² has many other bracket options to suit other loaders e.g. Plain Euro, Manitou JCB Q-FIT, Matbro (Pin and Cone), Merlo, Kramer, Wiedemann, MX, Skidsteer

They last for a long time so in that respect they’re saving us a lot of money because we’re not having to go and replace them all the time.” “

John Vallance, Tangiteroria (New Zealand) Farmer and owner of Hustler Softhands®

UNIQUE HAND SHAPE

The unique hand shape follows the radius of the bale for a perfect grip and the straight ends extend past the center point of the bale which allows the hands to easily slip between bales and eliminates damage to wrapping.

BALE SUPPORT

The RHS center bars provide unparalleled bale support to reduce bale deformation during handling, and provide a better grip of the bale.

SLIM HAND DESIGN

The slim hand design slides between bales easier and simplifies stacking, loading and unloading.

COMPACT MAIN FRAME

Keeps load as close to tractor as possible to minimize load centre and provides great visibility.

“

20 years ago we bought our first Hustler Equipment gear. The brand has always been good quality and minimal maintenance.”

Bryan Tucker - Greytown (New Zealand) Farmer and owner of a Hustler Softhands® LM100

LIFTMAX Bale Forks

VERSATILE BALE FORKS FOR FRONT-END LOADERS, THREE-POINT LINKAGES, AND SKID-STEERS, DESIGNED FOR EFFICIENT HANDLING, STACKING AND LOADING OF ROUND & SQUARE BALES, AS WELL AS OTHER FARM MATERIALS.

Hustler’s versatile LiftMax bale forks are engineered for safe, efficient handling of both round and square bales. Backed by our industryleading NO BULL 5-year warranty, LiftMax delivers unmatched reliability and peace of mind for years of hassle-free operation.

REMOVABLE SIDE CONTAINMENT TEETH

Easily adjust the forks for different bale types and sizes by adding or removing side containment teeth as needed.

3PTL HITCH INCLUDED AS

ROBUST FRAME CONSTRUCTION

Overbuilt 100 x 100 mm (4 in x 4 in) RHS box section frame, reinforced collars and sockets ensure longlasting durability even in demanding conditions.

STANDARD EURO RACKET WITH INTEGRATED 3PTL HITCH*

Compatible with a wide range of tractors, can be fitted at the rear or on the front-end loader as desired, providing flexibility for various applications.

*Also available with skid steer brackets only

SUPERIOR VISIBILITY

Strategically placed vertical support bars ensure optimal visibility from the tractor cab, improving ease of use and safety.

REINFORCED TINES WITH TAPERED BUSHINGS

Conus-2 forged steel tines with tapered bushings deliver exceptional strength, durability and resistance to bending or breakage under heavy loads.

VERSATILE

TINE SPACING

Optimized 2.1-meter outside width and four-tine configuration accommodate both round and square bales of all sizes, including the ability to carry two round bales (4, 5, or 6 feet in diameter) simultaneously for enhanced efficiency.

ENHANCED BALE SUPPORT

The smooth front design and superior support minimize damage to bales while ensuring safe and efficient handling.

ENHANCED BALE SUPPORT

The large, tall yet compact back frame provides excellent support and stability for safe and efficient bale handling.

SPECIFICATIONS

SUPERIOR VISIBILITY

Strategically placed vertical support bars ensure optimal visibility from the tractor cab, improving ease of use and safety.

ROBUST FRAME CONSTRUCTION

Overbuilt 100 x 100 mm (4 in x 4 in) RHS box section frame, reinforced collars and sockets ensure longlasting durability even in demanding conditions.

OPTIONAL SIDE CONTAINMENT TEETH

Additional holes on the sides allow for the attachment of extra teeth, providing enhanced stability for larger or more challenging loads.

REINFORCED TINES WITH TAPERED BUSHINGS

Conus-2 forged steel tines with tapered bushings deliver exceptional strength, durability and resistance to bending or breakage under heavy loads.

LIFTMAX LE110

VERSATILE TINE SPACING

Optimised spacing accommodates both round and square bales of various sizes, offering greater flexibility for different applications.

VERSATILE BALE FORKS FOR FRONT-END LOADERS, THREE-POINT LINKAGES, AND SKID-STEERS, DESIGNED FOR EFFICIENT HANDLING, STACKING AND LOADING OF ROUND & SQUARE BALES, AS WELL AS OTHER FARM MATERIALS.

Hustler’s versatile LiftMax bale forks are engineered for safe, efficient handling of both round and square bales. Backed by our industryleading NO BULL 5-year warranty, LiftMax delivers unmatched reliability and peace of mind for years of hassle-free operation.

SCOOPMAX LM180 | LM240 | LX260

LOADER MOUNTED BUCKET GRAB FOR SCOOPING, HANDLING AND LOADING LOOSE FEEDS, SILAGE, SOIL, ROCK AND MORE

The ScoopMax range of bucket grabs are one of the most versatile attachments you’ll ever own! ScoopMax allows you to preform all duties you’d normally use a bucket for, thanks to the wide grapple opening with the added benefit of being able to clamp your load. ScoopMax reduces spillage when handling mazie corn or other fine products for improved efficiency. The LM series for everyday farmers, and ultra heavy duty LX series has you covered with for loaders, skid-steers, telehandlers, and shovel loaders.

Extremely versatile

Handle anything from grains to logs, and everything in between. ScoopMax has the benefits of general purpose bucket, with the advantages of a grapple or silage

Unique clamp radius

Our unique clamping radius makes for a near perfect clamp curve keeping a very clean face on your silage pit.

Tough design

From the reinforced and greasable pivots and pins to the hardox cutting edge ScoopMax is built for the

Hose Exit

Central Hose Exit to remove risk of hydraulic hose snagging.

Hydraulic Hose Holders

Smart Hydraulic hose holder to keep your couplings out of the elements to preserve them for longer.

Smart Hydraulic Ram positioning

Due to smart opening design and tine length, the GrabMax has efficient volume utilisation from 0.88m³ - 2.25m³.

Removable Bucket Sides

Removable Bucket Sides which increases the versatility allowing you to handle posts, logs and other general farm duties helping you to Achieve More Everyday.

Side Containment Tines

Side Containment tines come standard on the ScoopMax reducing spillage and minimise waste. Keep you pit face looking clean and decrease movements of loading created by spillage.

Reinforced Pivots & Pins

Reinforced and greasable pivots and pins.

Efficient space utilisation

Large capacity with a compact design for improved visibility and loading.

Reduced Spillage

Spilling is minimised to reduce waste when handling or loading fine products such as grains or corn.

Toughest Cutting Edge

110x16mm Hardox HB500 Abrasion

Resistant cutting edge. Used in mining & earthmoving machinery, this gives the toughest cutting edge.

SPECIFICATIONS

Hook wrap holder

Positive & secure smart hook style wrap holder to ensure no wrap gets in your wagon. The location of the hooks (being at the back and top of the grab) means that minimal feed is held back and wasted. This speeds up your feeding operation saving you valuable time.

Smart Hydraulic Ram positioning

Location of hydraulic rams means more efficient use of the stroke as it is a more natural movement of opening and closing of hand to avoid hose snagging.

No Hose Snagging

Top of ram hose exit means no loose snagging while in objector.

Top Down Natural Cut

Let gravity help you slice your bales, the BaleSlice slices from top to bottom, helping you slice your bale faster and more efficiently, meaning you can achieve more everyday with less waste and increased bottom line.

Optimum Cutting Radius

Cleverly designed and tested cutting radius to suit a wide range of bale sizes!

BALESLICE Bale Cutters

Cutting Edge

Most durable cutting edge on the bale slicer, made from HB500 Steel ensures a clean cut for years to come.

Hustler BaleSlice bale cutters will make removing net wrap and film a breeze! Achieve More Everyday by speeding up your feeding operation with the strength of a durable design. Quickly load your feedout or mixer wagon without leaving the cab.

GRAPPLEMAX LX250

LOADER MOUNTED GRAPPLE BUCKET FOR HANDLING ROUND AND SQUARE BALES, BUT ALSO SCOOPING, MOVING OR LOADING LOOSE FEEDS, SOIL, ROCKS, BRUSH, POSTS, LOGS AND MUCH MORE!

The ultimate grapple bucket for livestock farmers and ranchers who demand nothing but the very best and want a versatile attachment for handling, loading and feeding round or square bales and other commodities. Get the job done, whatever it may be, with GrappleMax grapple bucket. The super tough design, combined with clever use of the highest-grade materials and built-in protection for the vital parts could be the last grapple bucket you ever buy!

Hoses are kept out of harm’s way on the loader carrier frame, preventing damage during hookup. Hose-holding hooks are also available for storage when not in use.

Quick-release grapple

Just two loose-fitting pins remove the complete grapple, including the grill and hoses. No need to detach hoses, allowing the bucket for other tasks.

Protected cylinder spears

Large steel shields protect the ram’s spears to prevent damage from falling materials.

Tapered bucket design

The top of the bucket is narrower than the bottom floor, and the back of the bucket is narrower than the bucket opening. This design enables easier material emptying and reduces corner clogging when handling sticky materials.

Wear plates built-in

Cutting edge made from RockGuard™ 500 wear plate, and bucket floor and side wear plates built from RockGuard™ 400 wear plate ensure GrappleMax is the longest-lasting grapple bucket in the game.

Optional removable teeth

Triple-section reinforced bucket design

Unlike other buckets, GrappleMax has three hollow sections, providing unparalleled torsional strength, unbeatable durability, and a long life.

Strong spill guard grill

We addressed a common failure in other grapple buckets with a tough RHS-reinforced grill featuring a large mesh design for excellent visibility.

Crafted from RockGuard™ 500 wear plate and reinforced for strength and durability with RockGuard™ 500 stiffeners, these optional teeth are excellent for spearing bales or breaking up ice or other hard surfaces.

Reinforced tines that don’t come loose

GrappleMax has five large tines made from RockGuard™ 400 wear plate, reinforced and welded to prevent loosening or bending.

SPECIFICATIONS

CAPACITY: 1500 kg

TYNE SOCKETS: 4 tyne placement sockets

UNIT WEIGHT: 110 kg

BALE TYPE: Round up to 6’ or Square Bales up to 8’

DIMENSIONS: 1140 mm wide x 1100 mm wide x 1200 mm high

TYNES: 2x 1000 mm long conus 2 forged tines

SWIFTBLADE LM260

LOADER MOUNTED RUBBER MANURE SCRAPER, FOR DAIRY SHEDS AND FEEDPADS

Clean up the manure on your feedpad or dairy shed in minutes, without breaking your back with our simple, practical SwiftBlade.

Save Time

Make light work of scraping out feedpads or dairy sheds. Simply connect and go.

Support Foot

Support Foot comes standard for parking and easy hitching on and off.

Blade Height Adjustment

Blade Height Adjustment to suit any size tractor and wide varied operations.

Clean Environment for Herd

SwiftBlade makes it quick and easy to maintain a clean health environment for your herd.

Simple & Hassle free

SwiftBlade is an ultra practical Manure Scraper without unnecessary bells n whistles to keep hassle out of your life.

Reversible Rubber Blade

Large reversable rubber blade is use for longer sevice life. Wear out one side, flip over the rubber and voila!

Heavy Duty Blade

The SwiftBlade’s tough 40mm thick blade is built from High Tensile SBR Rubber giving it excellent abrasion and impact resistance for it to handle the knocks give you a clean sweep.

Maximise Manure Value

By sweeping up manure quicky and easily you can unlock the fertiliser value of your manure.

Slim Profile

Slim Profile of blade and headstock keeps weight near the tractor and results in increased control.

SPECIFICATIONS

UNIT WEIGHT: 702kg

DIMENSIONS: 1600mm x 805mm x 1130mm

CAPACITY: 0.83m3

HYDRAULIC REQUIRED: Approx 40L/min

One Machine - 3 Operations!

Achieve more Everyday, Slice Bales, handle Silage and use as a general scoop bucket, all in one machine! No need to constantly change loader implements.

Net wrap hooks

Actuated hooks for grabbing the net and plastic when using as bale slice so you don’t have to leave the tractor seat.

High Quality Tines

High quality tensile foraged tines, for the highest of operations.

SHEARPLUS LX160

FOR PIT SILAGE AND ROUND BALES

Screwed on cutting teeth

Replaceable screwed on cutting teeth made from tool steel

Removable Bucket

Removable bulk bucket for versitility and best silage or bale penetration when needed, remove the bucket from your tractor seat using the third service release button!

The Hustler ShearPlus ShearGrab 3in1 is designed as a bale slicer, shear grab and scoop bucket all in one machine! One machine. Three operations. No need to constantly change loader implements.

REGENER8R LM630

CHAIN HARROW & LEVELLER

The Hustler Regener8r Chain Harrow will improve your pasture productivity. The 4 row chain harrow, promises consistent and thorough pature harrowing / aeration, levelling and manure spreading! Also can be used for covering seed and cultivation finishing.

SPECIFICATIONS

UNIT WEIGHT: 630kg

DIMENSIONS: 6.3m x 1.915m x 1.03m

CAPACITY: 13m² coverage

HYDRAULIC REQUIRED: 30L/min

5 YEAR WARRANTY

8mm Levelling Bar

5 Year warranty

Backed by Hustler’s legendary 5 year warranty and customer support.

Achieve More Everday! The Integrated Bended 8mm Levelling bar means you can achieve 2 applications in one pass.

Strengthened 3P Hitch

Strengthened 3-point hitch frame.

Foldable Frame

Foldable 3PL frame and harrow for efficient space utilisation in storage and transport.

Interchangeable Skids

Protects harrow from rocks and other aggressive protruding objects.

Fabricated Agitator Pieces

Fully fabricated steel harrow agitators resulting in a stronger and more durable harrow and wear parts.

Heavy Duty Frame

Strongest frame made from S355 Carbon Steel, 30% stronger than standard and with 6 strengthening struts.

4 Tooth Rows

The 4 Tooth Row Harrow results in higher agitation and a more efficient harrow operation.

SWIFTLINK 3PTL/Euro adapter

SWIFTLINK ATTACHMENT ADAPTORS

Unlock the versatility of your tractor’s 3-point linkage with the Hustler SwiftLink 3PTL/Euro Adaptor.

SWIFTLINK SD300 SPECIFICATIONS:

UNIT WEIGHT: 94kg

DIMENSIONS: 285 x 1200 x 745 mm

CAPACITY: 3000kg

LINKAGE: CAT 2

Central release handle

The central release handle enables a broader range of attachments to fit, surpassing the limitations of side handle designs.

Large Euro hook clearance

SwiftLink is designed to provide ample Euro hook clearance, ensuring an easy attachment connection and disconnection.

Super Duty

Industry-leading supe duty with a 3-ton load rating, the largest in its class.

Compact design

The compact design offers a lightweight implement, close to the gravity centre of the tractor, mitigating any cantilevered effects as well as enabling an excellent visibility on the load from the cab.

Full-width back

A full-width back provides the flexibility to weld on a set of telehandler or skid-steer brackets, allowing you to utilize Euro Hitch attachments on another type of tractor.

5 YEAR WARRANTY

5 Year warranty

Backed by Hustler’s legendary 5 year warranty and customer support.

Sprung release

Incorporating a sprung release for secure and safe positive locking.

Free standing

The built-in feet of the SwitfLink adaptor allows free standing, facilitating an easier connection to the tractor and offering convenient storage when stew away when not in use

2-position mounts

SwiftLink features 2-position mounts, offering versatility with options for high or low settings, allowing greater flexibility of use and the potential for a higher lift height if needed.

SwiftHitch² Range

Hustler’s New SwiftHitch² provides the operator with better visibility, more manoeuvrability and easier connecting than any towbar quick hitch on the market which makes it easier to use and saves your precious time.

And it doesn’t stop there… it also has the strongest latching system providing more safety and you’ll never need to get the grinder and welder out to replace a wear pad again!

SwiftHitch2 comes standard with a 40mm and 32mm pin, you choose which one you use and keep the other for a spare!

INDUSTRY BEST VISIBILITY

Cleanest and widest seethrough tower on the market, and a clear view to the top of the pin.

STANDS BY ITSELF

Stands up on its own, making it easy to store, and connect to the tractor with huge lower linkage arm clearance. ISO standard hitch mounts ensure linkage arms go low enough to connect.

SELF-ALIGNING LATCH

Unique ‘V’ shape latch design that guides the pin under the towing eye making it easier to connect when slightly off centre.

TIGHTER TURNING

Allows full 90 degree turning when used with single post drawbar trailers - tightest turning angle of any hitch on the market, providing better manoeuvrability.

STRONGER RHS BASE

The stronger RHS base with a diamond gusset is able to handle the heaviest loads. Our Series 2 is as strong as our SuperDuty model, but CAT 2 for versatility..

REPLACEABLE WEAR PAD & PIN

Most other Quick Hitches on the market have wear pads that need to be cut off and re-welded on once worn out - this can be as frequent as once a year. Our replaceable Bis-alloy wear pad is simple to replace and saves you time and hassle.

NEW UNIQUE PIN SHAPE

The new unique pin shape provides more articulation

CLEVIS HITCH MOUNTS

New stronger clevis plates, reinforced with gussest for ultimate strength and durability.

SAFEST LATCHING MECHANISM

Largest latching pin 3/4” to provide more reliability and loading. Latch covers more of the eye than others. Latch locks against the pin, making it impossible to accidentally disconnect, or a forced disconnection. Latching mechanism/ lever is protected inside the main uprights for protection from damage and to eliminate accidental disconnection.

Heavy-duty trailers to help you move mountains.

Discover the unrivaled strength and versatility of the Hustler Multipurpose Trailer LoadMax range, Crafted to excel in both farm and construction tasks, these trailers are your trusted companions for all your needs. Choose LoadMax for rugged reliability and superior performance in every job.

How Hustler LoadMax Trailers help farmers achieve more.

VERSATILITY

Designed for construction, dairy or cropping, Hustler’s farm trailers are ideal for contractors and large-scale farming operations. Easily removable sides and folding headboard allow easy loading, and the advantages of a flat deck let you move any type of bulky goods, such as bales or light machinery.

READY FOR ALL CONDITIONS

Hustler’s farm trailers are ready for all terrains and weather conditions. In situations where trucks would probably give up, a tractor-towed tip trailer can power through, thanks to wide flotation tyres and the toughest axle assembly with excellent oscillation.

DURABLE AND LOW-MAINTENANCE

A robust steel design and few moving parts means the trailers are virtually maintenance-free and most importantly, they maintain their value. Hustler’s farm trailers offer the longest lifespan in its class.

MORE POWER

No need to purchase extra farm equipment or modifications to accommodate a truck. LoadMax integrates with your existing tractor. On our tipping models, we use powerful single multi-stage cylinder on most of the Hustler’s tip trailer models because they provide more long-term reliability and you’ll always have enough grunt to tip off the load. (or telehandler) lineup. Maximise efficiency without breaking the bank.

INCREASED MANOEUVRABILITY

Its compact design provides maximum manoeuvrability, and can operation flawlessly on sites or farms were access is tight or limited.

LoadMax Tip Trailer Range

Farmers have been asking for a strong trailer, with a long-lasting steel deck, reinforced sides that handle a beating from rocks, and a twist-resistant structure to prevent roll-over when tipping. We delivered all that in our 8, 10 and 14 tonne models.

2-PIECE, REMOVABLE SIDES

2-piece removable sides with centre post for strength and lifting eyes make them easier to handle.

TOUGH REINFORCED SIDES

Tough reinforced sides, headboard and tailgate with quickly removable hinges handle the impact of heavy rocks.

DUAL SWING TAIL DOOR

Standard LoadMax comes with a dual-hinged tail door for normal emptying and spreading or side folding for logs, rocks or machinery transport.

HYDRAULIC TAILDOOR RELEASE

Gone are the days of wire-ropes or chains and frequent adjustment that comes with it. LoadMax features as standard a hydraulic tailgate trip and now you can control from the cab when to release the tailgate. This is also a safety feature for our dual-hinged design.

TOUGHEST AXLE

Our proven tandem axle with 4” diameter pins are indestructable. Never again will you need to replace bushes!

MASSIVE TOOL-BOXES

The huge optional tool-boxes are a game changer for LoadMax with loads of room for straps or anything else you need to take with you.

OPTIONAL HAY EXTENSION

HYRDRAULIC DRAWBAR SUSPENSION

Now standard on the TX114, this advanced suspension system minimises wear and tear, ensuring better protection for your gear and it’s ready to handle the toughest jobs with ease.

OVERBUILT CHASSIS

We recieved feedback farmers wanted a tough no nonsense trailer... so we over engineered every part of it! Nothing compares.

ANGLED TOP OF SIDES

LoadMax’s angled top of sides not only gives more strength but also prevents dirt building up and dropping off as you drive down the road.

FOLDING HEADBOARD

As standard LoadMax comes with a folding headboard so you can carry more.

STEEP TIPPING ANGLE

Less dirt hung-up in the LoadMax thanks to a steeper tipping angle.

CLEVER RAM PLACEMENT

Our centre mounted vertical pushing ram provides more pushing power, and less stress for a more robust design, and the bottom is protected by the chassis.

2 SPEED JACK

Massive 2 speed jack, and forged towing eye, leaves no stones unturned in the LoadMax design.

SAFETY STAND

As standard LoadMax has a built in folding safety bar for maintenance.

I never had to use customer service or a parts number, because it doesn’t break.” “

Colin Mathis - Tokoroa (New Zealand) Farmer and owner of a Hustler Loadmax TX114

Add a silage crate to your tip trailer... Ask our Hustler experts ASK

LoadMax Range

TX108 (TIP) TX110 (TIP) TX114 (TIP)

+ Deck size 4000 x 2400 mm (157.48” x 94.5”)

+ Side height

mm (19.7”)

x 2400 mm (177.17” x 94.5”)

mm (19.7”)

x 2660 mm (188.98” x 104.72”)

mm (25.5”)

+ Tare Wieght 2970 kg | 6548 lb 3330 kg | 7341 lb 4180 kg | 9215 lb

+ Capacity (load-level) 4.8m3 (169.5ft3) 5.4m3 (190.7ft3) 8.3m3 (293.11ft3)

+ Lift capacity 8 Tonne (8.8 Ton) 10 Tonne (11 Ton) 14 Tonne (15.4 Ton)

+ Wheels

400/60R15.5

400/60R15.5

500/50R22.5

+ Axle size (tandem) 70x6 Stud walker 70x6 Stud walker 80x8 Stud walker

+ Eye type 2” Swivel 2” Swivel 2” Swivel

+ Sides Single piece Two piece Two piece

+ Tailgate Dual swing Dual swing Dual swing

+ Tailgate trip Hydraulic Hydraulic Hydraulic

+ Tipping angle 58º

+ Folding headboard (TX110 and TX114 only), Toolboxes, Road ready kit, Remote greasing & Safety stand all come standard

You’re in Country.

Join more than 21,000 farmers around the world achieving more every day. To locate your nearest Hustler Dealer or to get in touch with your local Hustler Expert, please visit our website. hustlerequipment.com

NEW ZEALAND - GLOBAL HQ

Phone: 0800 487 853

Email: sales@hustlerequipment.com

After sales: 06 873 9520 1287 Omahu Road Hastings, 4120 New Zealand

AUSTRALIA HQ

Phone: 1800 750 428 6 Ravenhall Way, Ravenhall VIC 3023 Australia

NORTH AMERICA HQ

Phone: (855) 430 0010 14311 Ewing Avenue South Burnsville, MN 55306 USA

EUROPE HQ

Phone: 0805 10 12 02

ZA, Le Fieu 43190 TENCE

hustlerequipment.com
