More Space. More Stock. More Metpro. Dedicated to supporting our industry.
OVER 30 YEARS
Of supporting our customers

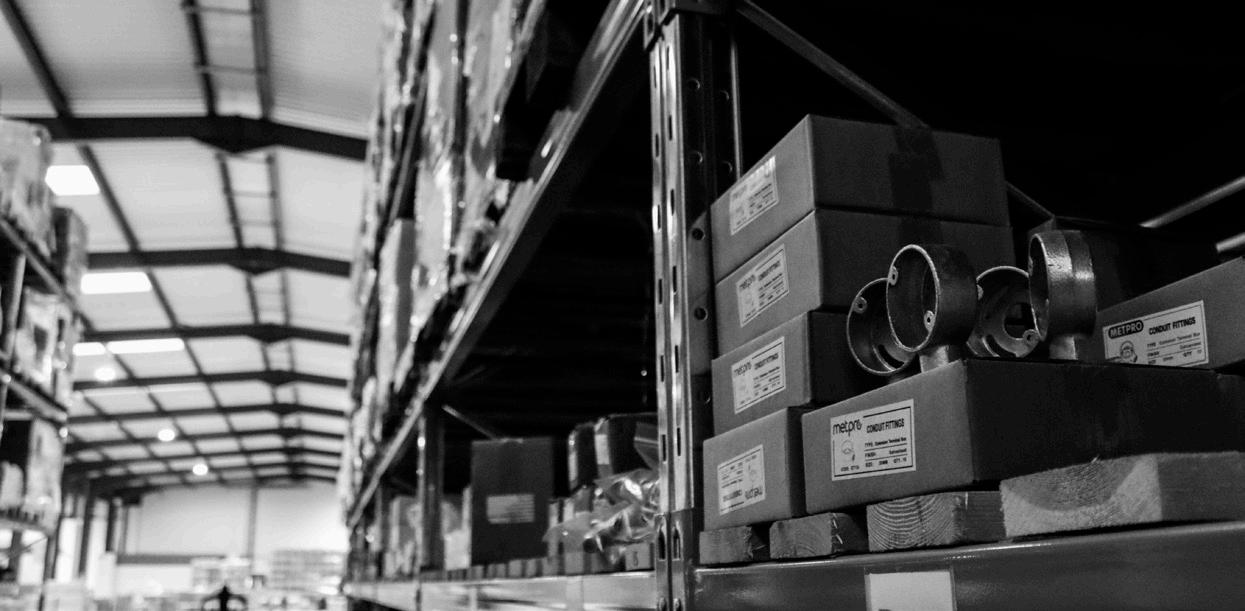

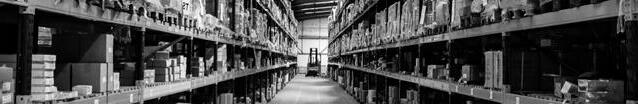

OVER 1200 SKUS
Readily available & stocked in-depth

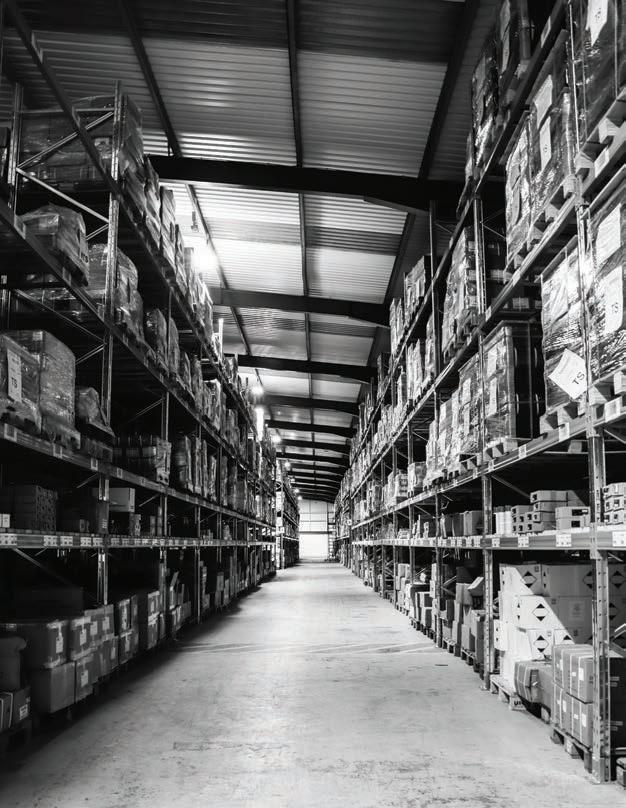

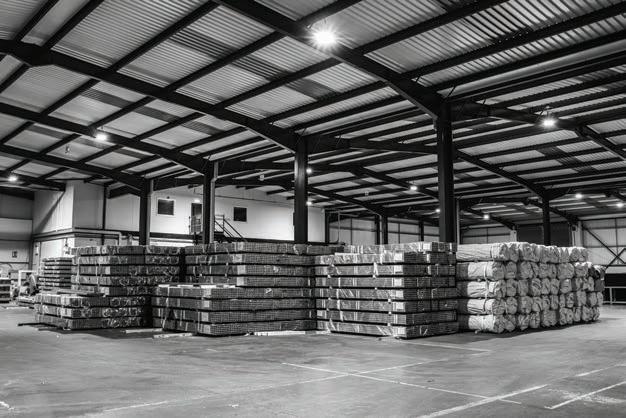

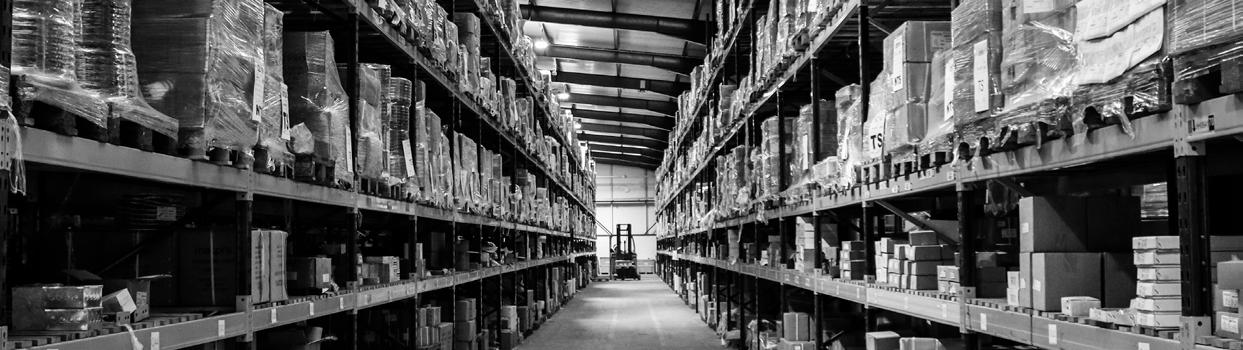

OVER £5M
Stockholding capability

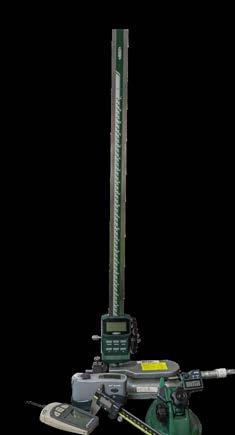

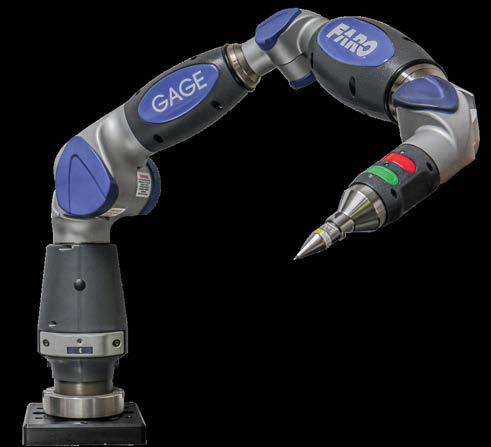

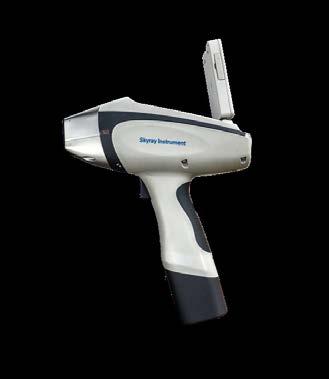

IN-HOUSE QC
Ensuring only quality products, always
No minimum order value required!
Conlok® 8-12, 21
Rapid
14-15, 30
Rollatray® 16-17
Trunklip® & Trayklip® 18-19
Easyfit
20-21, 42
A domestically carbon-neutral business, at Metpro Group we are actively committed to reducing our carbon footprint. Working with Smart Carbon, our customers and the wider supply chain, our goal is to play our part for the betterment and protection of our environment.
Images below: Metpro Group Hybrid Vehicles Fleet
Metpro have also achieved a Silver Rating by EcoVadis
Conlok Steel Conduit System
Page 8-12
Rapid Saddle
Pages 14-15
Rollatray
Pages 16-17
Trunklip & Trayklip
Pages 18-19
Easyfit Channel Nuts
Pages 20-21
A unique new product designed to dramatically increase installation speeds and reduce downtime in a wide variety of installations.
Key features & benefits

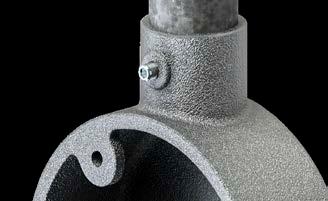

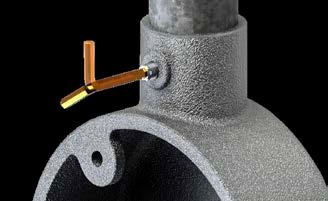

No need to thread tube With Conlok®’s unique built-in grub screw
Fast-fix solution Ideal for major projects where cost & safety are critical
Fully galvanised system Offering greater corrosion resistance
Where you can find Conlok®
7-year warranty When used as part of a complete system
How it works
Tottenham Hotspur FC Stadium, London
Sir Chris Hoy Velodrome, Glasgow
Midland Metropolitan Hospital, West Midlands
Tees Rep Biomass Power Station, Glasgow
UP TO 75% LABOUR SAVINGS
Traditional. Upgraded.
Where can Conlok be installed?

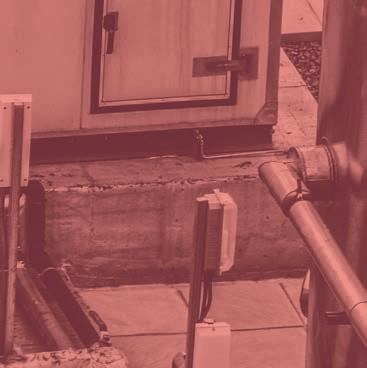

Internal & External Installations
Corrosion resistance is an incredibly important part of any installation.
If components with the wrong finish are installed, this effectively places the entire system at risk of failure.
Featuring a more traditional Class 4 Hot Dip Galvanised (HDG) surface coating, this highly corrosion-resistant finish is designed to protect cables from damage and the elements.
External applications are where the self-sacrificing properties of this finish are of significant benefit, ensuring wires and cables are always kept safe from wind, rain, harsh sunlight, sand and other extremes of nature.
Internally, an HDG finish offers all these same benefits, particularly when installed within challenging environments such as the London Underground where cables are subject to potential ingress of dust and water caused by the frequent winds in excess of 200mph.
Clean Rooms
With more and more computer-chip manufacturers being established and data centre construction seeing significant growth, cable management systems must be prepared to cater for these specialised environments.
A particular concern within these applications is zinc whiskers, the presence of which can cause a wide variety of issues, from short circuits to total equipment failure.
Featuring a highly-specialised protective coating, the Conlok® Clean Room system is purposefully designed to offer the expected levels of cable protection, whilst also preventing the dissipation of zinc whiskers and providing an aesthetically-pleasing and hygienic finish.
We recommend the use of this finish in the following environments; data centres, laboratories, microelectronics processing plants, biotechnology plants, pharmaceutical manufacturing plants, hospitals, and food processing plants.
Key technical information

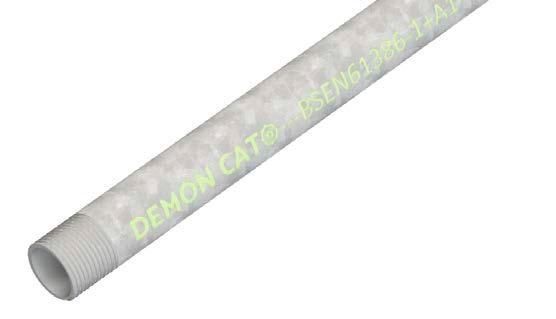

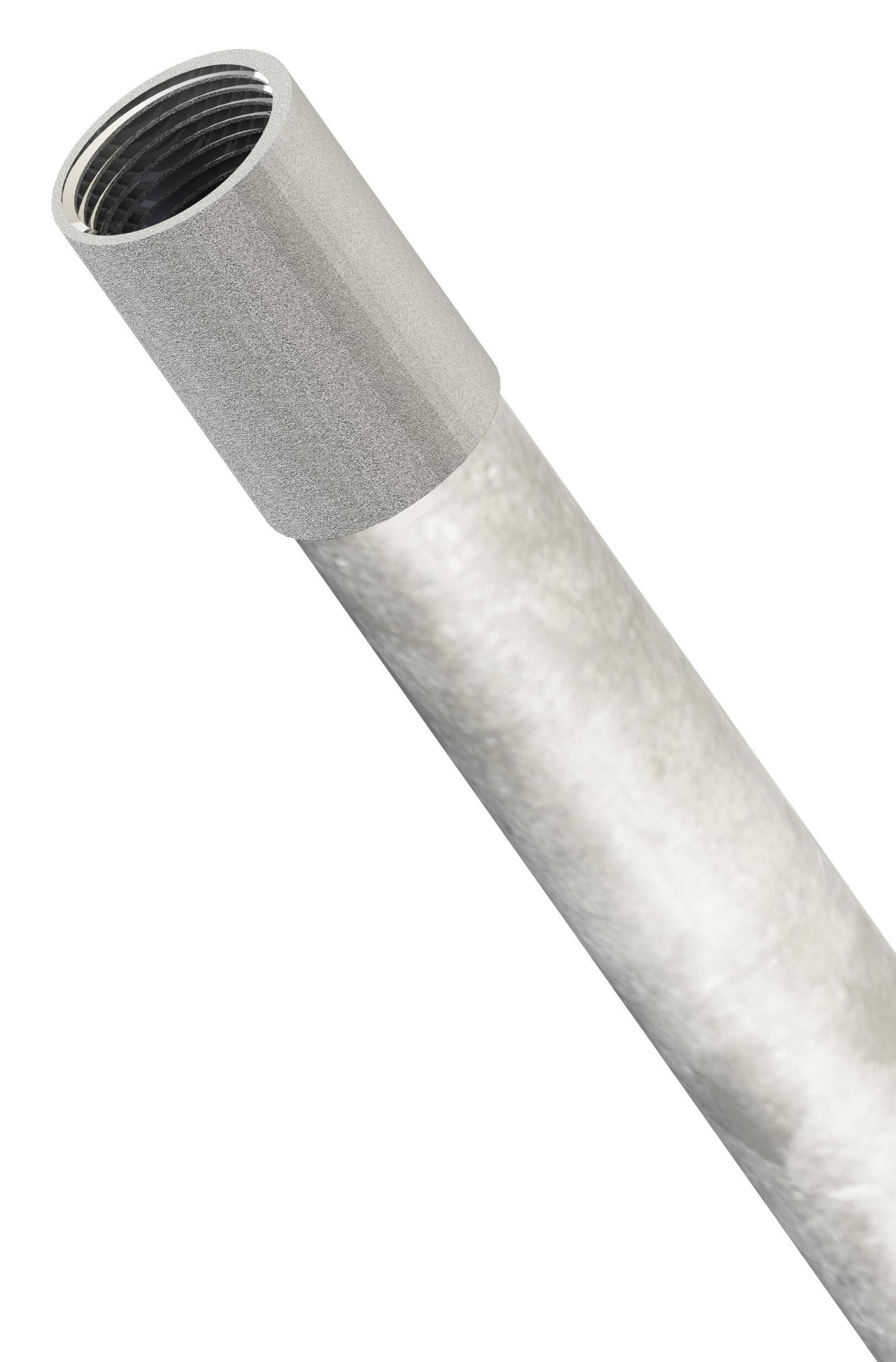

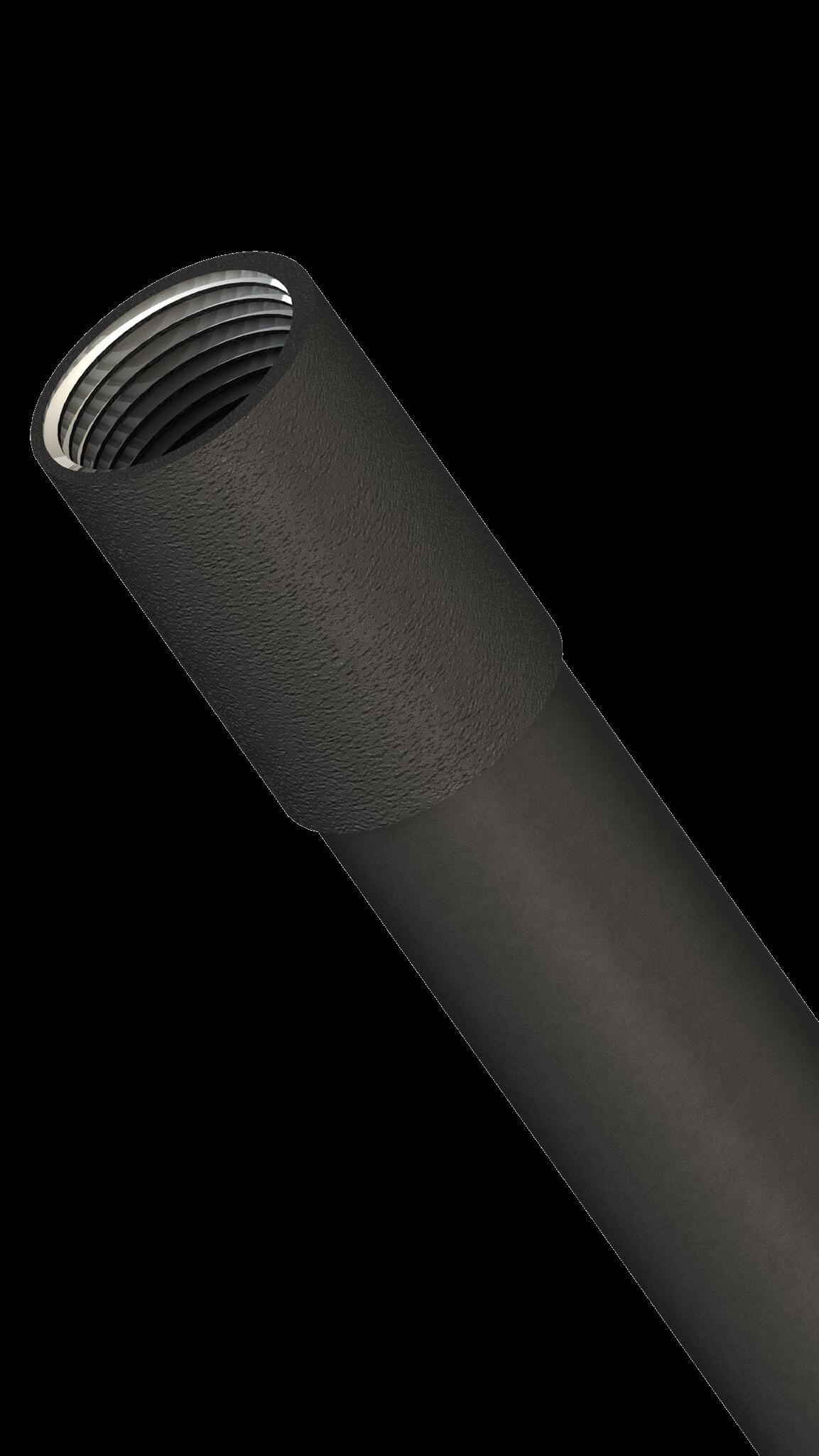

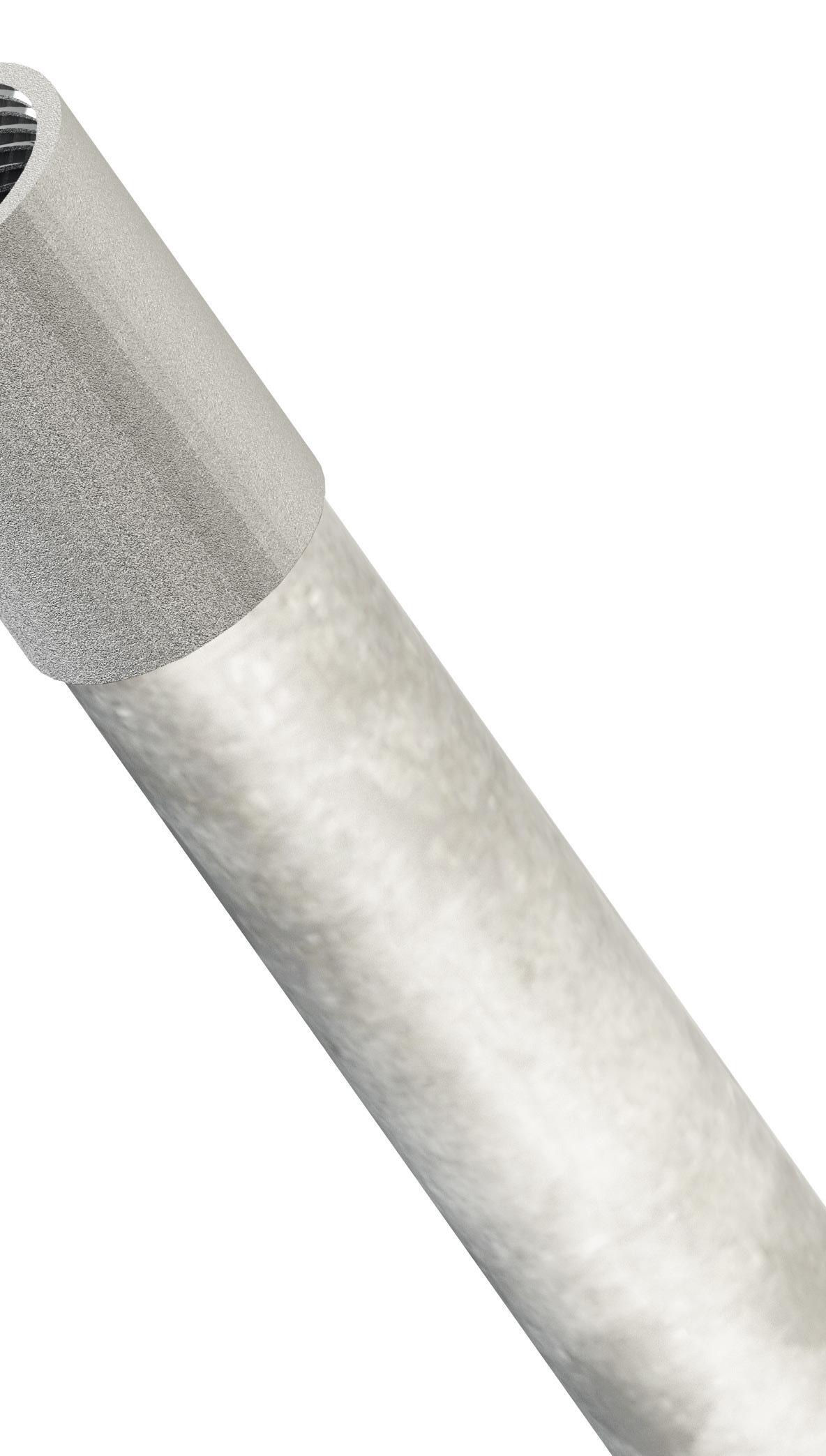

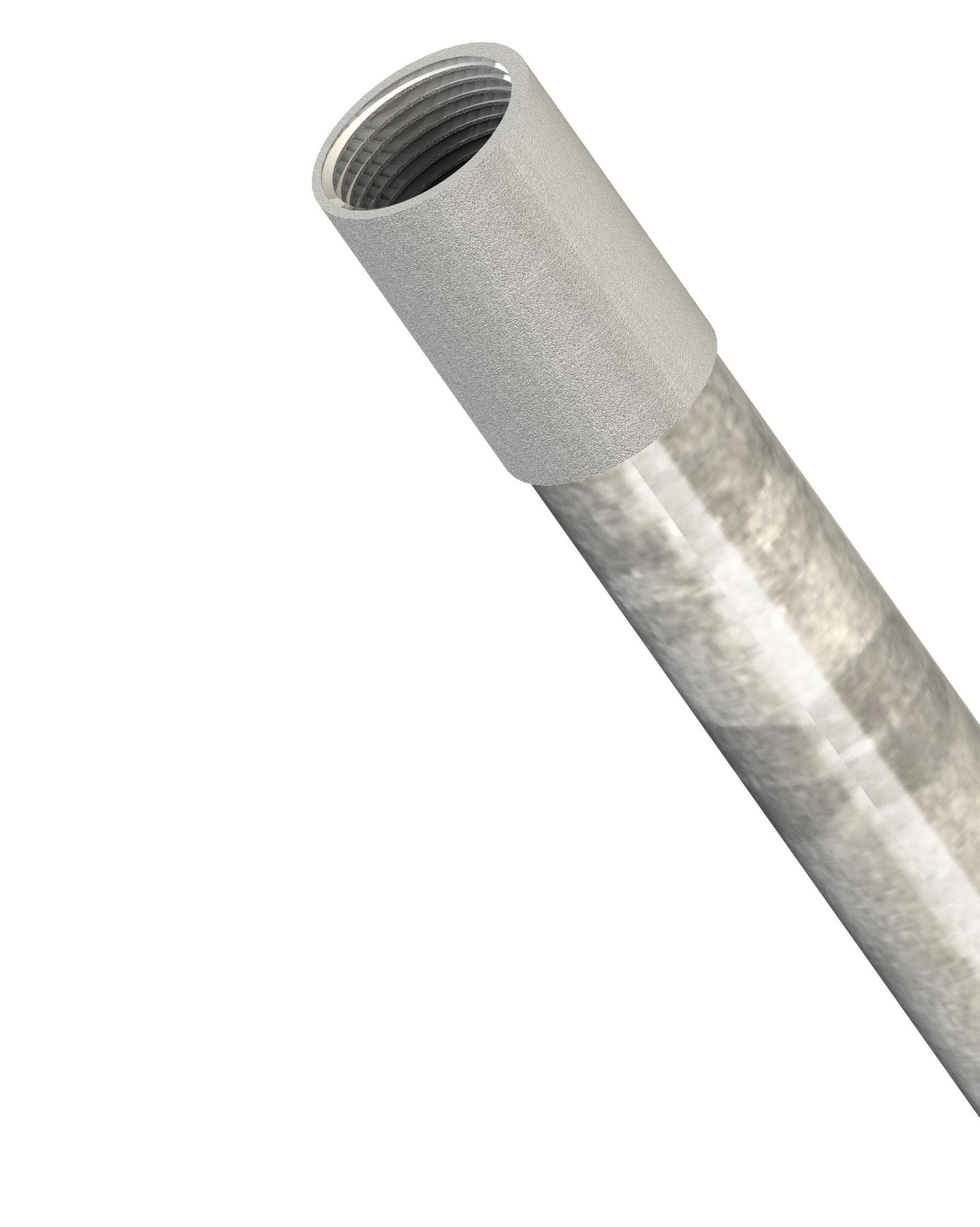

Conlok Class 4 HDG Steel Conduit Tube
Conforms to BS EN 613861:2008+A1:2019 (Conduit Systems for Cable Management)
All lengths are ink jet marked:
Demon CatoBSEN61386+A1 - 5557 - Class 4 -(20 or 25mm as required)
BSEN61386-1: 2008+A1:2019
Achieved the highest Class in all tests as specified
Conlok Class 4 HDG Conduit Boxes & Accessories
Manufactured from malleable iron with a hot dip galvanised finish to Class 4 BS EN 613861:2008+A1:2019
Conforms to BSEN61386-21: 2004 (Conduit Systems for Cable ManagementRigid Systems)
Conlok® grub screws are manufactured from Grade 12.9 Steel
Conforms to BS EN 613861:2008+A1:2019 (Conduit Systems for Cable Management)
All lengths are ink jet marked: Demon CatoBSEN61386+A1 - 5557 - Class 4 -(20 or 25mm as required) Highly specialised clean room finish applied to both internal & external walls of each length
Conlok Clean Room Conduit Boxes & Accessories
Conforms to BS EN 613861:2008+A1:2019 (Conduit Systems for Cable Management)
Conforms to BSEN61386-21: 2004 (Conduit Systems for Cable ManagementRigid Systems) Highly specialised finish applied to both internal & external walls of each box and accessory
The Conlok System meets the latest standards for Earth Continuity across both Class 4 HDG and Clean Room finishes

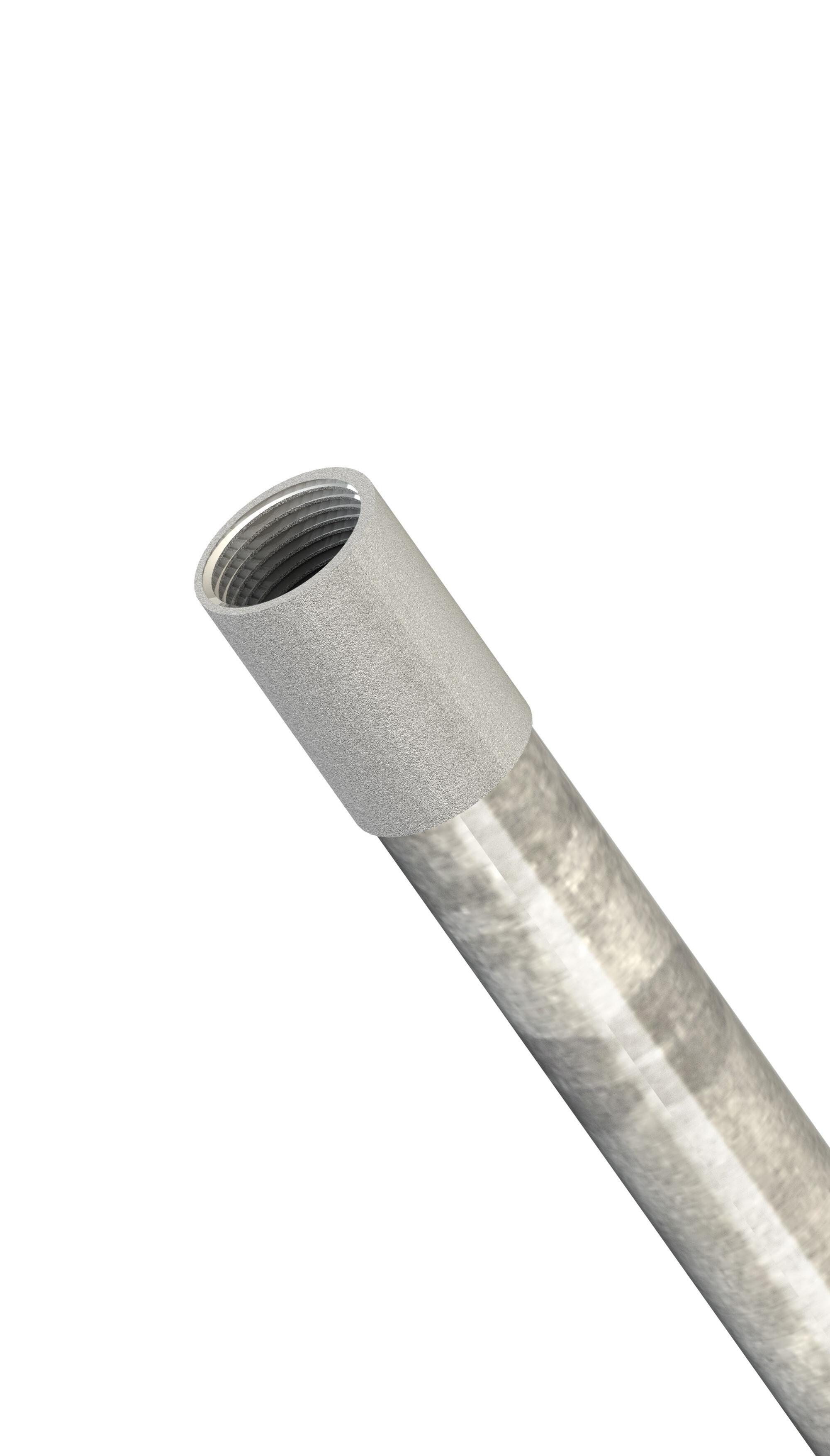

Conlok Clean Room Steel Conduit Tube
What is Clean Room Conlok?
ISO accredited: Certified to Class 3 as part of ISO14464-14
Conduit tube: Manufactured from Clean Room ready material
Boxes & accessories: Features a highly specialised Clean Room coating
No need for Stainless Steel: Conlok offers a best-in-class finish at a fraction of the price, all with up to 75% labour savings
Where you can install Clean Room Conlok

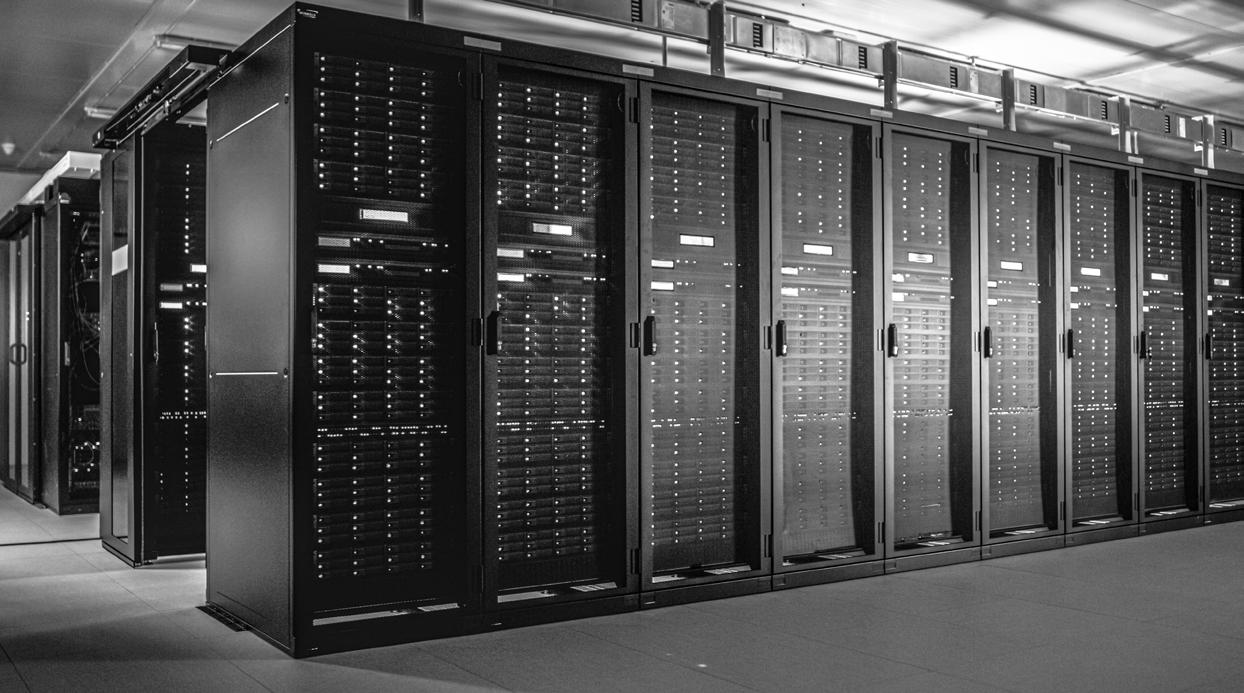

Data Centres
Microelectronics Processing Plants
Food Processing Plants
Laboratories
Biotechnology Plants
Healthcare Environments
Scan below to discover more.
Hot Dip Galvanised
Conlok Steel Conduit Tube
Conlok Conduit Boxes
Clean Room
Conlok Steel Conduit Tube
Conlok Conduit Boxes
Conlok Couplers, Adaptors & Bends
Clean Room Saddles
We’re able to further enhance our innovations to suit your requirements.

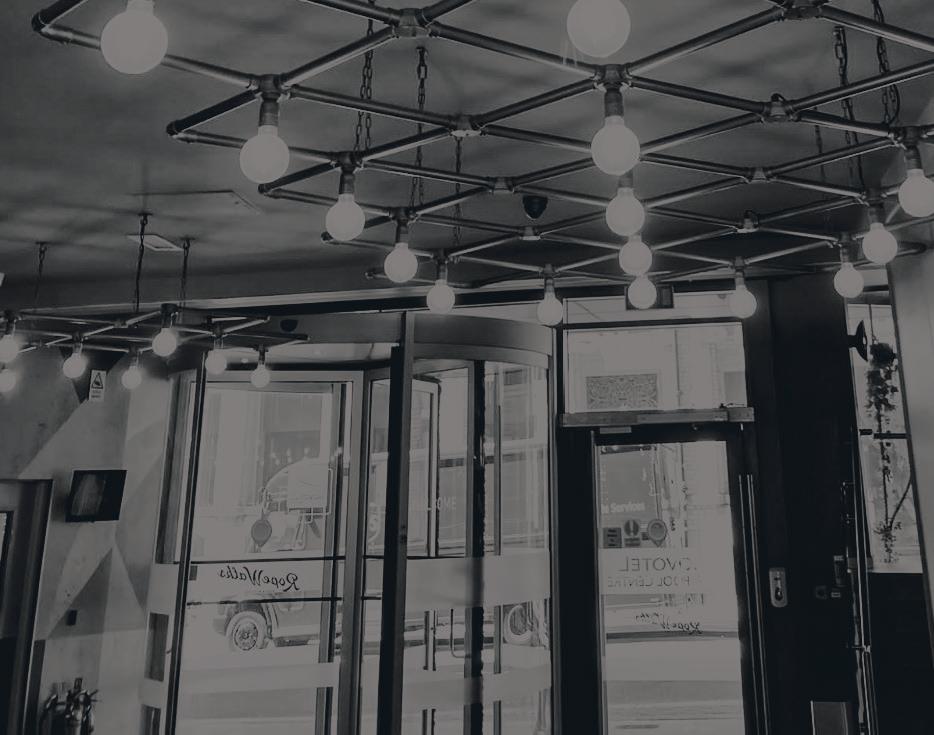

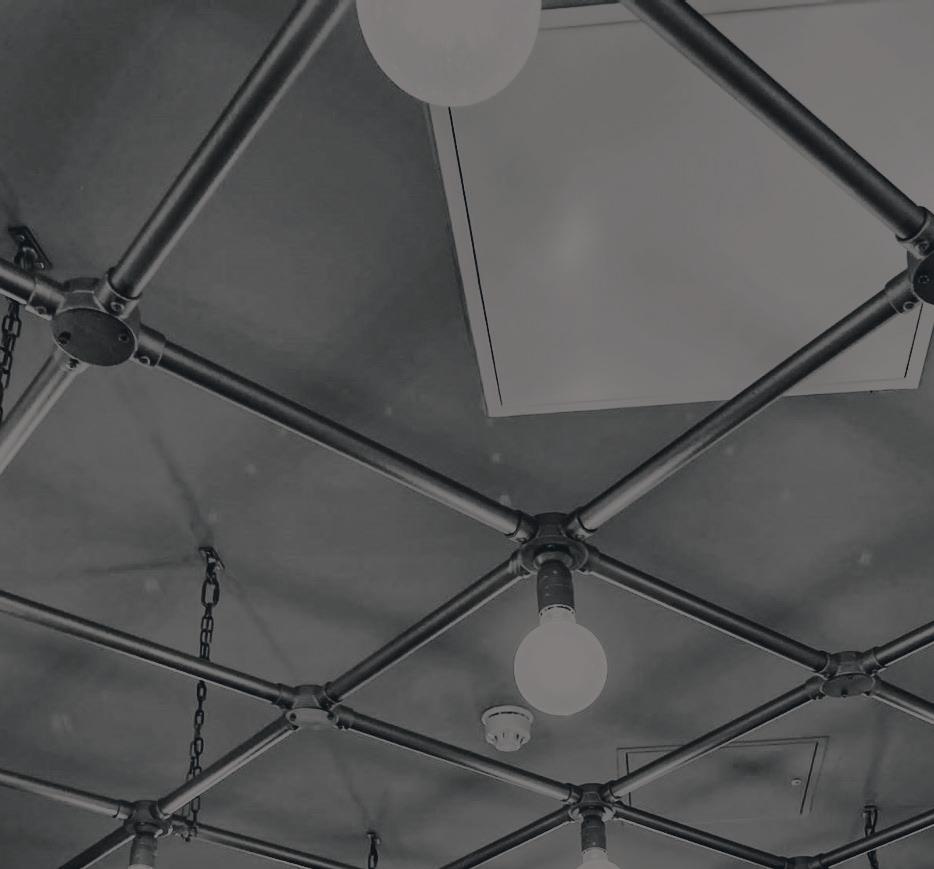

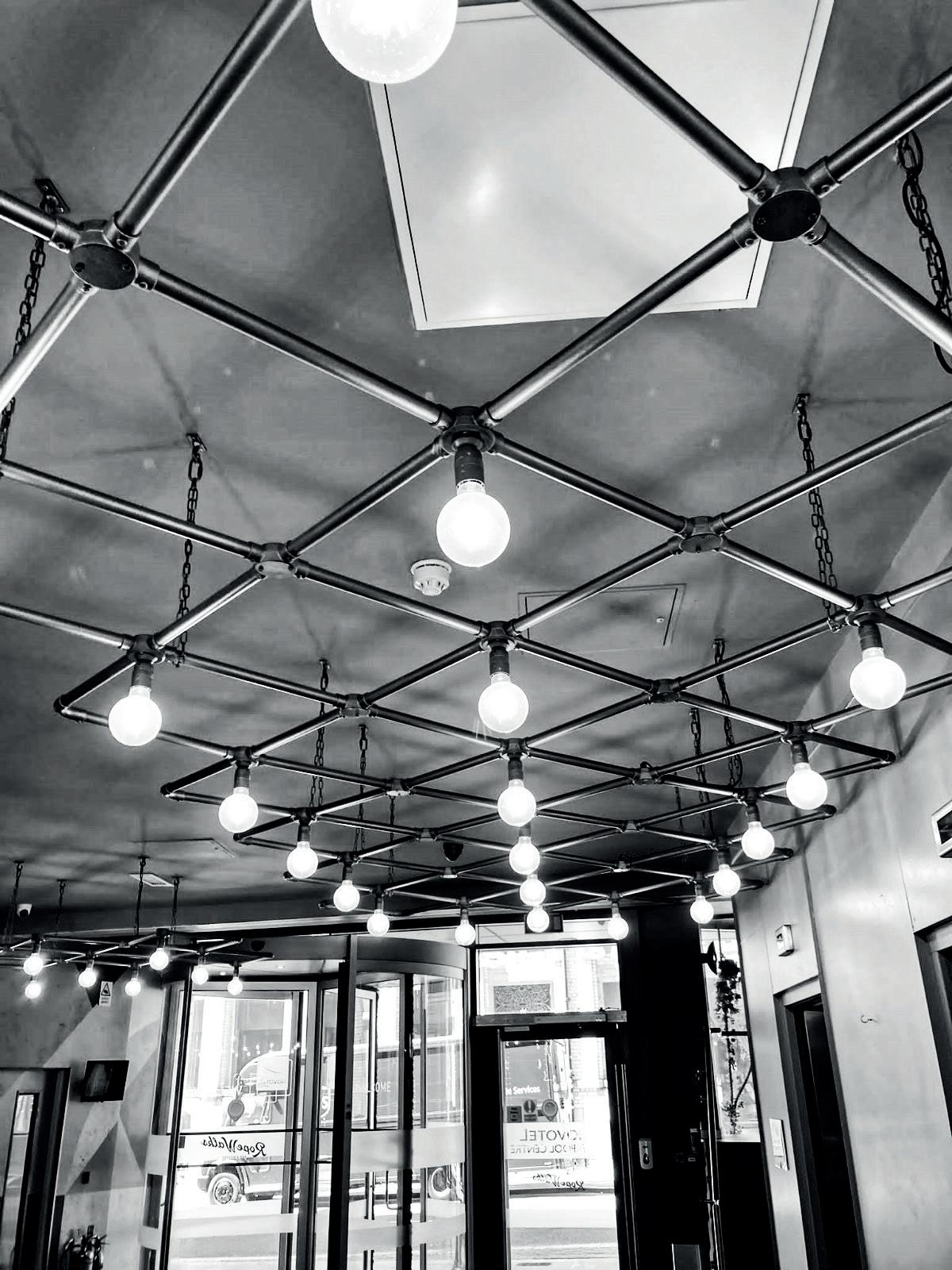

Image: Powder-coated Conlok installationNovotel, Liverpool

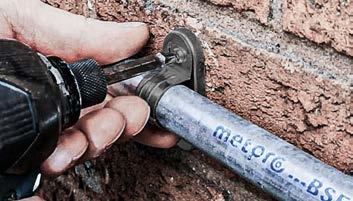

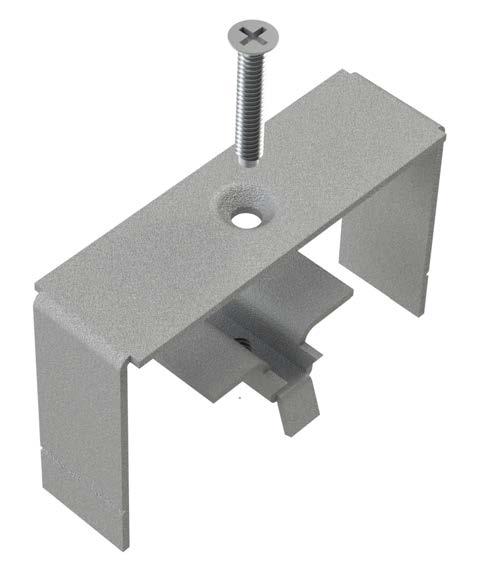

An innovative new saddle designed to increase installation speeds and increase safety when working at height.
Key features & benefits
Finishes for all environments
Delta Protekt® | BZP | Clean Room
Greater on-site safety No dropped screws or straps, ideal for working at height
Holds conduit tube in situ. Making installations simple, even for a single installer
Single screw fixing Locate the saddle strap & quarter turn to secure
Where you can find Rapid Saddle®
Major Regeneration Project, Bristol
Beacon College, Hereford

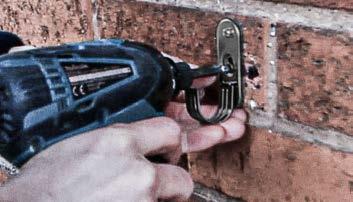

How it works
Rapid Saddle: Internal
Rapid Saddle: External
OVER 40% LABOUR SAVINGS
Where can Rapid Saddle be installed?
Internal & External Installations
As stated within our Conlok® range, corrosion resistance is of paramount importance to the contractor when it comes to external installations.
Our external use Rapid Saddle® features a brand-new coating for the industry; Delta Protekt® 120. Initially designed for offshore wind turbines before finding popularity within the automotive sector, the Delta Protekt finish offers all the benefits of Hot Dip Galvanising, all within a thinner surface coating.
Due to the unique hinge design of Rapid Saddle, the more traditional HDG finish was too thick and rendered the product unusable. Delta Protekt therefore was the perfect solution and has been salt spray tested to 500+ hours for very high longevity of life.
Clean Rooms
When it comes to internal installations, the requirement for high corrosion-resistance is often much reduced if present at all.
Our internal use Rapid Saddles are designed to offer users all of the same benefits as the external version, however feature a more familiar Bright Zinc Plated (BZP) finish.
With a clean aesthetic and the same deep 5mm base, internal Rapid Saddles are an ideal fast-fix solution for uneven internal walls and when working at heights.
Key technical information
Conforms to BS EN 613861:2008+A1:2019 (Conduit Systems for Cable Management)
Manufactured to comply with BS EN 6138625:2011 (Conduit Systems for Cable Management)
Deep 5mm base designed to offer the same stand off as traditional distance saddles
Each unit is supplied requiring only a quarter turn to secure
Manufactured from pressed steel

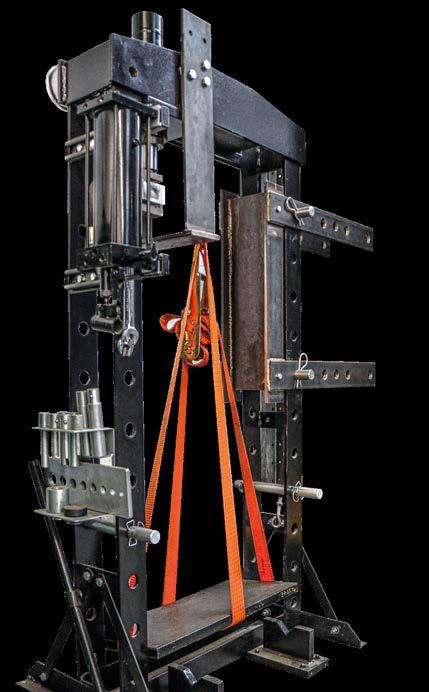

Lateral Load Test
A length of steel conduit tube was secured using two Rapid Saddle®s and weight applied in increments as detailed within BSEN613861:2008+A1:2019 to Class 4.
Clean Room option also available
Load test results
Vertical test 20mm / 25mm
Test requirements: 4kg / 8kg
Slight deformation: 28kg / 28kg
Load when test was stopped: 133.6kg / 133.6kg
Note:Testwasstopped beforeproductfailed
Axial (Slip) Load Test
A length of steel conduit tube was secured using a single Rapid Saddle and weight applied in increments as detailed within BSEN 61386-1:2008+A1:2019 to Class 4.
Horizontal test 20mm / 25mm
Test requirements: 4kg / 8kg
Slight deformation: 38kg / 28kg
Load when test was stopped: 101.5kg / 90kg
Results for both tests = PASS
Vertical test 20mm / 25mm
Test requirements: No weight limit advised Slippage began at: 7kg / 10.25kg
Result = N/A (manufacturer specified)

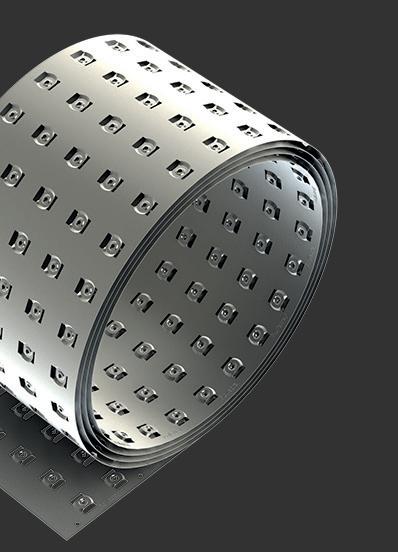

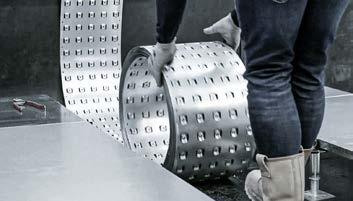

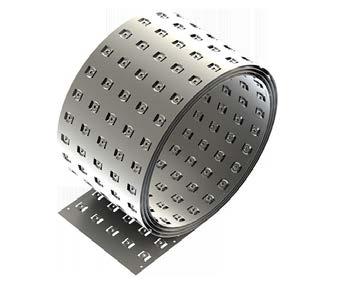

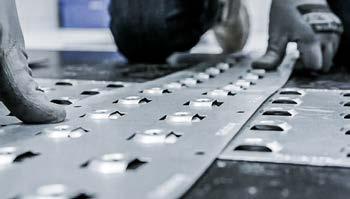

A unique new product designed to dramatically increase installation speeds and reduce downtime in underfloor applications.
Major Data Centre, Dublin Skypark Fit Out, Glasgow
Simple bends, tees & 4-ways Crossover Rollatray units & secure with an M6 screw
How it works
Rollatray
Rollatray Cutter
UP TO 90% LABOUR SAVINGS
Where can Rollatray be installed?
Internal & Installations
Manufactured from pre-galvanised sheet steel, Rollatray® is perfectly suited to internal applications where large cable runs are required.
Featuring a dry to touch oil applied to cut areas of the material, Rollatray® features suitable corrosion resistant properties for installations within commercial buildings, riser mains, multi-storey buildings and factory/automation lines to name some examples.
Clean Rooms
Manufactured from the same material as our internal finish option, Clean Room Rollatray® features our purpose-designed specialist coating for high hygiene and clean room environments
Designed to offer the same protective benefits as Clean Room Conlok® and Rapid Saddle®, this finish ensures the prevention of potentially harmful zinc whiskers making Clean Room Rollatray® an ideal solution for data centres, hospitals and other similar applications.
Key technical information
Manufactured to BSEN10346 :2009 in line with standard cable tray
Meets the earthing requirements of BSEN61537:2007
Manufactured from 0.8mm medium duty pre-galvanised steel
Easily cut to size using a guillotine with no hot works permits required
Fixed to a structure simply using tapcon screws or a Pulsa nail gun
Rollatray® weights & handling recommendations
No material memory means Rollatray® lies flat once uncoiled, ready for installation
Trunklip® & Trayklip® offer a brand new and much quicker solution for securing steel channel to trunking and cable tray.
Key features & benefits
Secures trunking & tray Quickly & efficiently every time
Greater on-site safety No need for drills or spring nuts, just locate & klip
Innovative H-frame design Product sits within channel for easy positioning
&
How it works
Clean
tidy finish Trunklip allows for trunking lids to be fixed securely

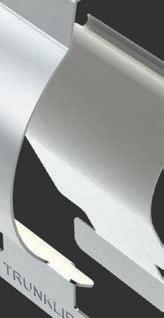

Trunklip

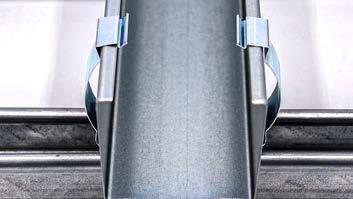

Trayklip
Trunklip
Where can Trunklip & Trayklip be installed?
Manufactured from spring steel and featuring a BZP finish, Trunklip® is suited to interior applications only.
With trunking almost exclusively installed within buildings, the risk of Trunklip® being exposed to the elements and potential rusting or failure is therefore extremely minimal.
Manunfactured from 65mm spring steel Designed to ensure functionality with most UK brands
Trayklip
Manufactured from spring steel, Trayklip® features a Delta RoHS zinc flake finish, designed for both internal and external applications.
Our Delta RoHS Trayklip®’s are manufactured for all weather, minimising the risk of failure and ensuring the product is fitfor-purpose for many years to come.
Trayklip: Available in sizes to suit both medium tray returns and heavy tray returns

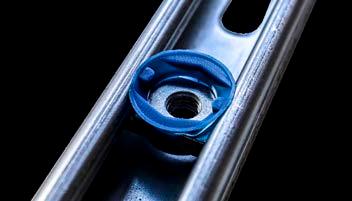

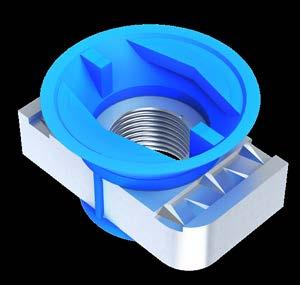

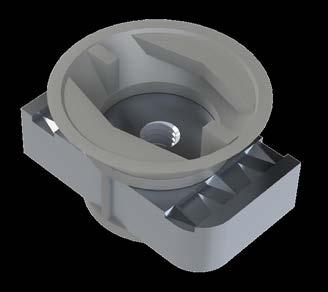

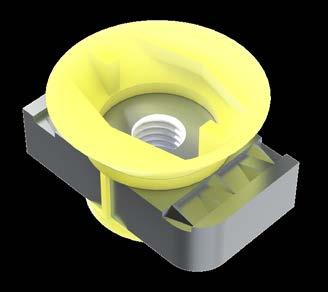

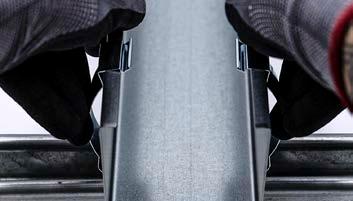

A unique steel channel nut designed to offer faster, safer installations.
Key features & benefits
One-handed installations
Built-in finger grips designed for simple installations
Slide & hold design
Easyfit’s nylon jacket allows for easy positioning
No springs to untangle Enhancing on-site safety, especially when at height
How it works
Compliant to BS6946:1988 In line with standard channel nuts
OVER 30% LABOUR SAVINGS
Where can Easyfit Channel Nuts be installed?
Internal Installations
Featuring a Bright Zinc Plated (BZP) finish across the range, Easyfit Channel Nuts are designed for internal use.
External installations solution
Should there be a requirement however for this product in an external application, we can supply a Hot Dip Galvanised version on request which will be subject to slightly longer leadtimes.
Key technical information
Manufactured to comply with BS6946:1988
Manufactured from: Steel (Nut) Nylon 6 (jacket)
Requires only a 90o turn to secure within channel lengths
Steel nut features a BZP finish
Load test results

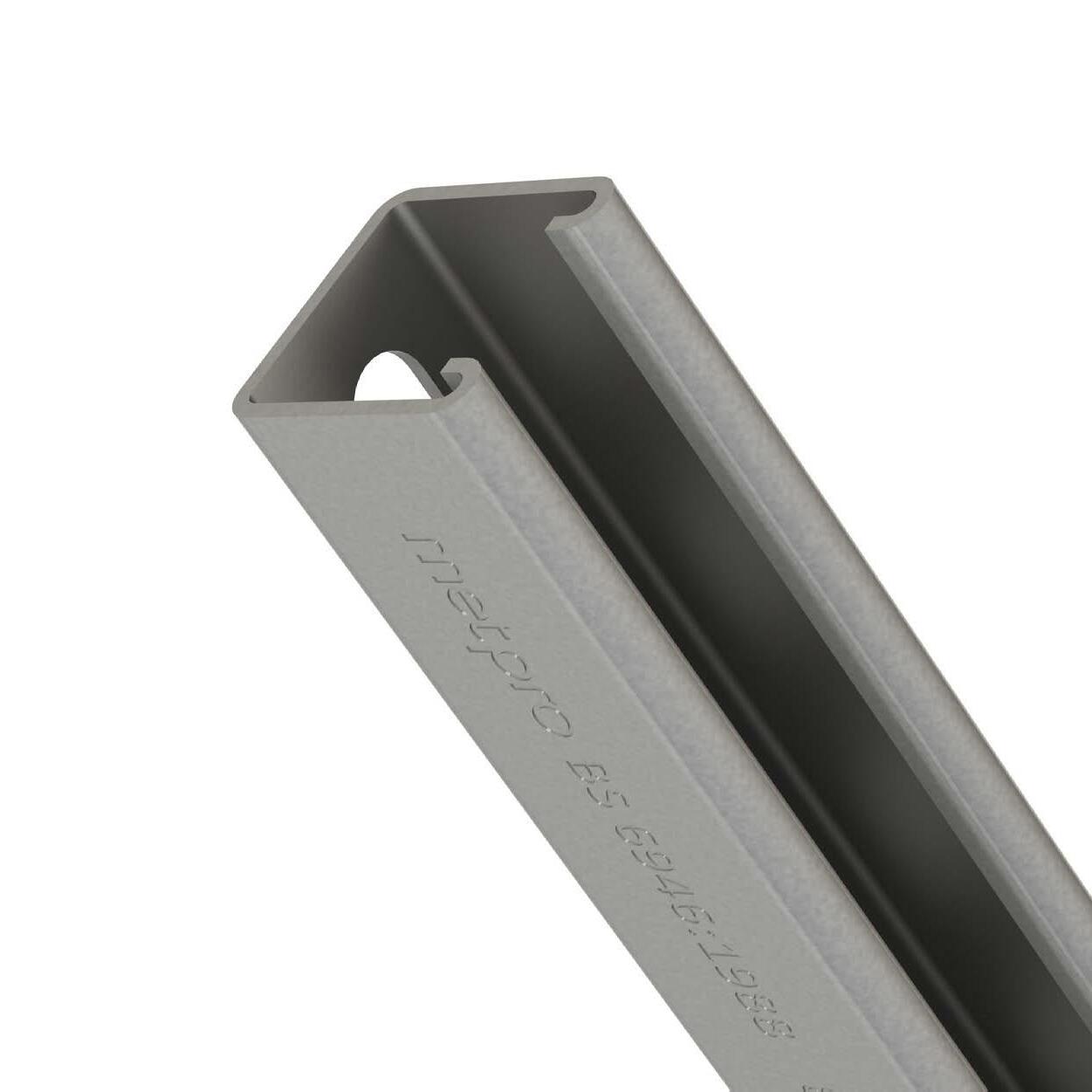

All loading data is based on using Metpro 2.5mm heavy gauge steel channel, and applying a Safe Working Load factor of 3.
Offering up to 75% labour savings and with finishes for internal, external, and clean room environnments, Conlok is the only fastfix rigid conduit system on the market
Conlok Conduit Boxes
Conlok Couplers, Adaptors & Bends
Conlok Couplers, Adaptors & Bends
Conlok Conduit Boxes

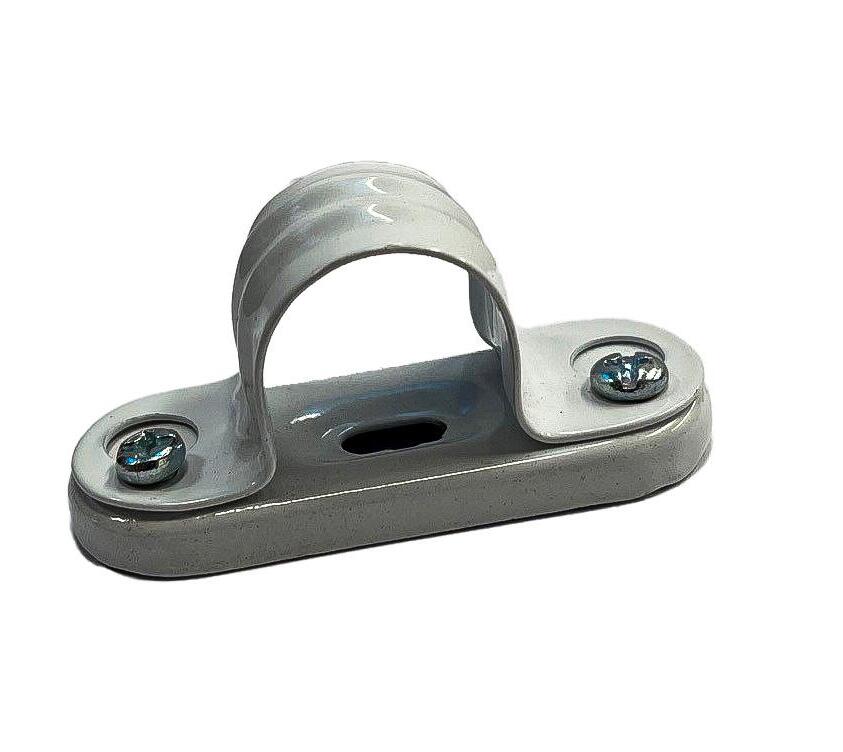

Conlok Saddles
Steel
Steel Conduit Tube, Accessories & Consumables
Steel Conduit Tube:
Class 4 Hot Dip Galvanised
Eligible for use on London Underground
For more information on this update introduced in Q4 of 2024, please see page 75
Compliant to BSEN61386-1:2008+A1:2019 & BS31 (where applicable)
Each length of our Class 4 steel conduit tube is ink jet marked: Metpro - (relevant standard) - Class 4 - 5557
BSEN61386-1:2008+A1:2019
Class 4 Conduit Tube:
Class 4 Conduit Tube (BS31)
Steel Conduit Tube, Accessories & Consumables
Steel Conduit Tube:
Pre-Galvanised & Black
Steel Conduit Tube, Accessories &

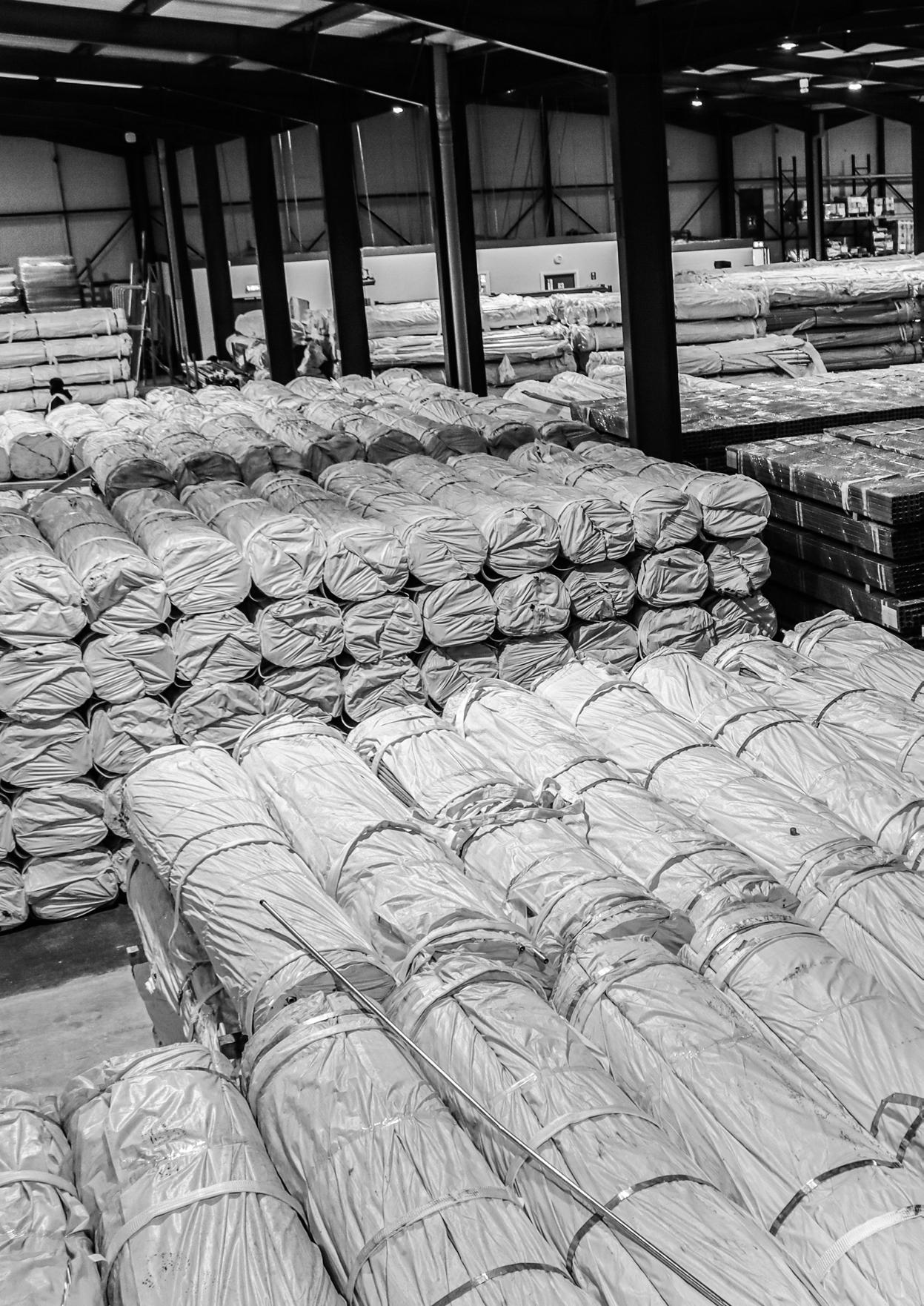

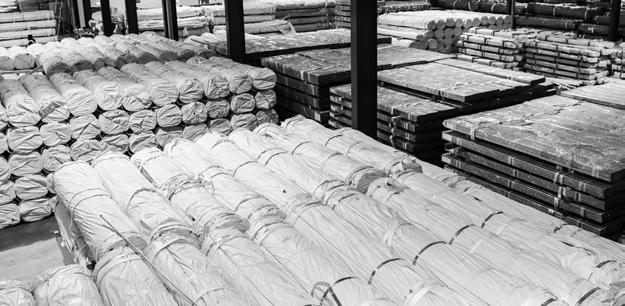

Our steel conduit tube is packed and shipped in inner and master bundles with all lengths supplied c/w one steel coupler and one plastic thread protection cap
Pre-Galvanised Conduit Tube
Black Conduit Tube
Eligible for use on London Underground*
For more information on this update introduced in Q4 of 2024, please see page 75
Compliant to BSEN61386-1:2008+A1:2019*
Each length of our conduit tube is ink jet marked: Metpro - (relevant standard) - Class 4 - 5557
*pre-galvanised steel conduit tube only
Mixed Master Bundle:
Quality products, half the quantity
20mm tube x 200 lengths
Each size individually wrapped & colour coded
Qualifying SKUs
25mm tube x 160 lengths
Commit to only half a master bundle of each size
Half the stock at the same competitive price

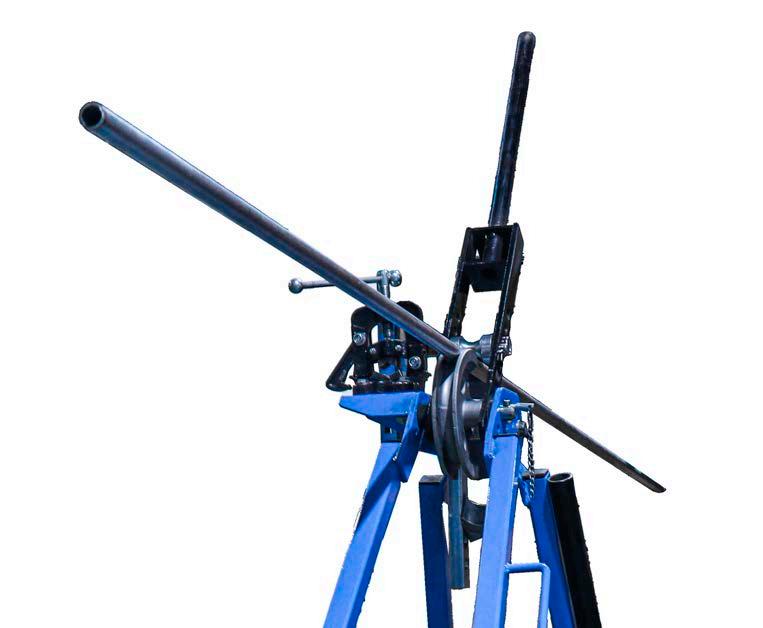

Our steel conduit tube lengths are all manufactured with a minimum wall thickness of 1.37mm on both 20mm and 25mm, and this increases into 32mm, 1.5” and 2” options.
This ensures our tube will not ripple or tear during bending, meaning no on-site delays and no damaged cables during installation.
Meeting the British Standards:

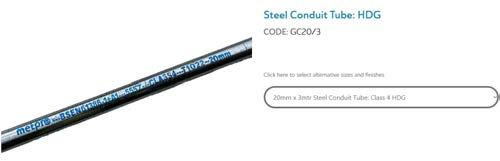

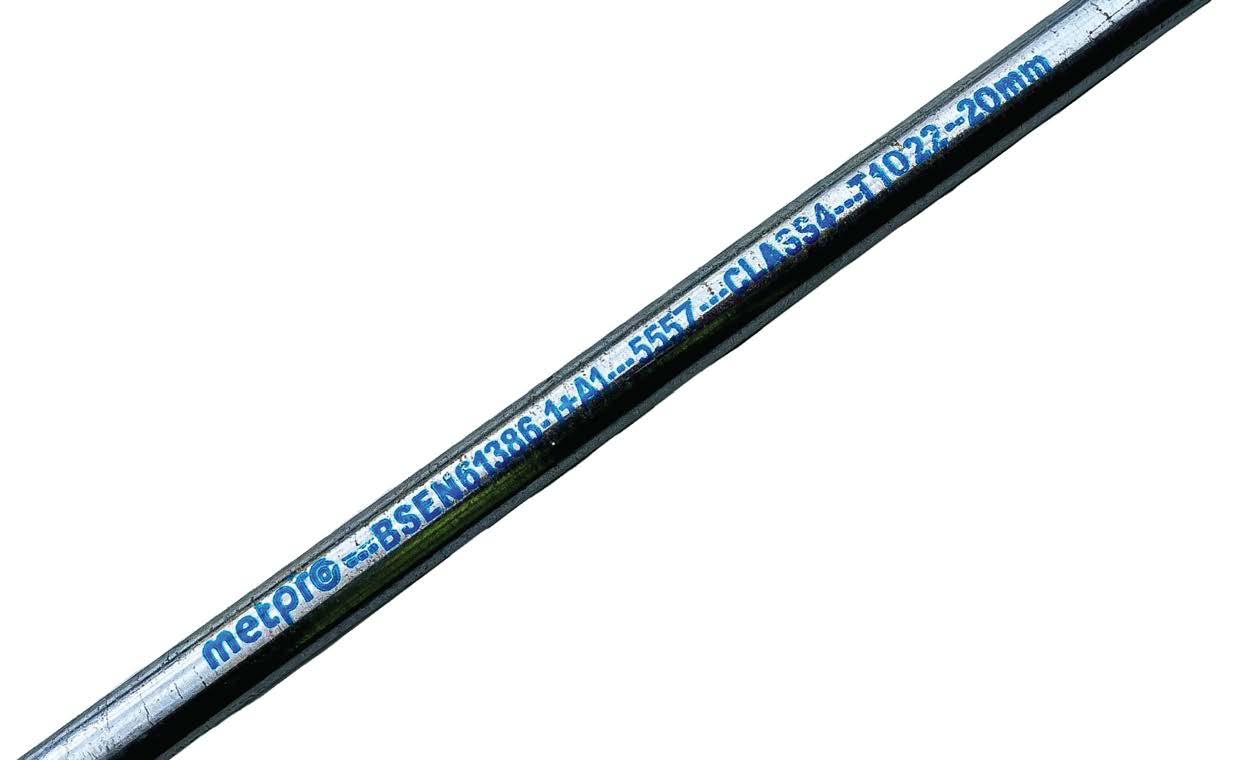

How our steel conduit tube lengths are marked
In order to meet the latest British Standard (BSEN61386-1:2008+A1:2019), each length of steel conduit tube must be marked with the information noted below with the exception of ‘Batch Number’.
We include batch numbers for full traceability, not only strengtheing our in-house quality inspections, but also offering maximum confidence to our customers and the end-user installer.
Identifying mark/logo
British Standard
BSEN61386=1:2008+A1:2015 Class Grades
Tube diameter Batch number
Steel Conduit Tube, Accessories & Consumables
Steel Conduit Tube, Accessories & Consumables

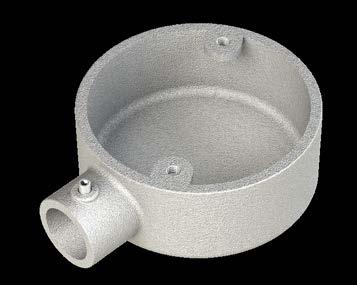

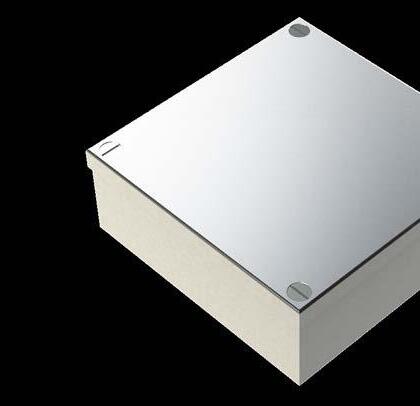

Malleable Boxes (Standard)
All Metpro malleable standard boxes, back outlet boxes and extension boxes are compliant to BSEN61386-1:2008+A1:2019, available in galvanised or black enamel finishes and supplied c/w M4 tapped hole in base for an earthing screw
Tangent Tee
Tangent Angle
Steel Conduit Tube, Accessories & Consumables

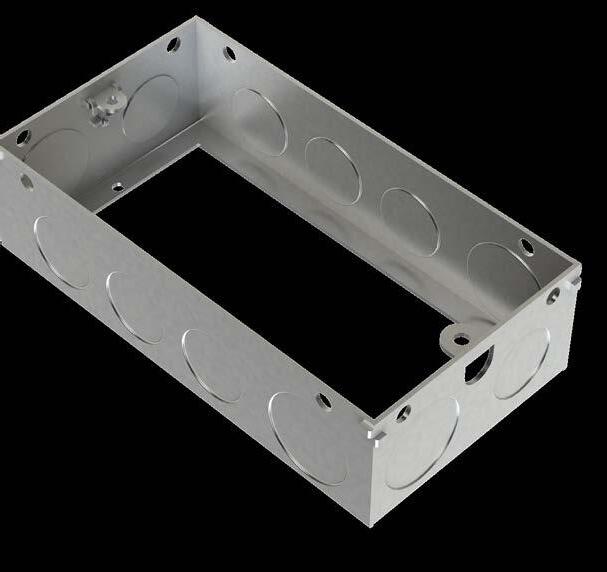

Malleable Back Outlet & Extension Boxes
Back Outlet
Offering enhanced corrosion resistance and a more aesthetically pleasing and shiny finish, our malleable boxes receive an additional zinc coating following the hot dip galvanising process. All boxes are Metpro branded for easy identification and confidence of a quality product
Steel Conduit Tube, Accessories & Consumables
Steel Conduit Tube, Accessories & Consumables
Saddles; Rapid, Spacer Bar, Plain, Distance, Hospital & Half
All Metpro steel saddles have been manufactured in accordance with BSEN61386-1:2008+A1:2019 & BS 31 where applicable, and are eligible for use on London Underground projects.
on pages 16-17
How Rapid Saddle’s work
Spacer Bar Saddles
Lay conduit tube
Steel Conduit Tube, Accessories & Consumables
Bends, Elbows & Tees
All Metpro bends, elbows & tees have been manufactured in accordance with BSEN61386-1:2008+A1:2019 & BS 31 where applicable, and are eligible for use on London Underground.
Inspection Tee
Solid Bend
Solid Tee
Solid Elbow
Steel Conduit Tube, Accessories & Consumables
Steel Conduit Tube, Accessories & Consumables

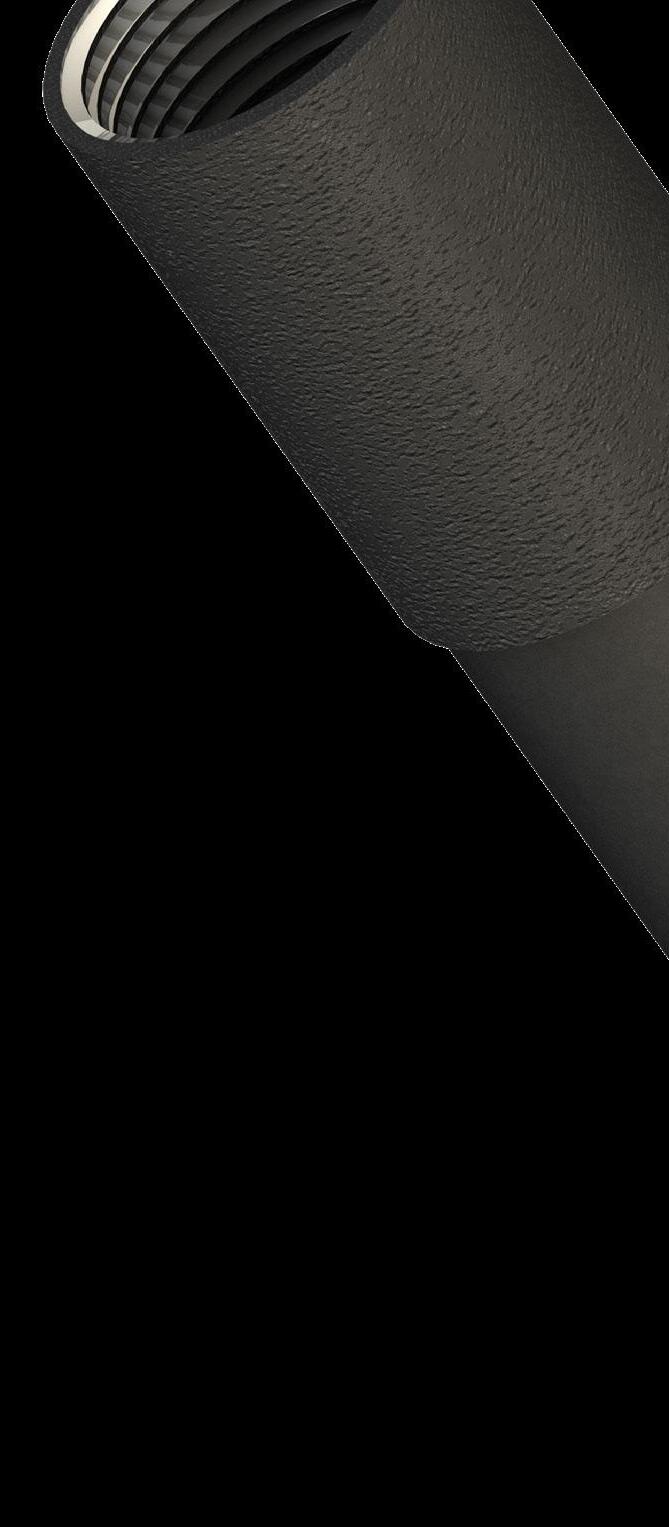

Couplers & Adaptors, Reducers, Stopping Plugs and Nipples
All Metpro steel couplers & adaptors, reducers, stopping plugs and nipples have been manufactured in accordance with BSEN61386-1:2008+A1:2019 & BS 31 where applicable, and are eligible for use on London Underground projects.
Imperial to Metric Adaptor
Flanged Couplers
Solid Couplers Earth Couplers
Hexagon Reducers
Hexagon Stopping Plugs
Metric to Imperial Adaptor
Screwed Nipples
Size Galv Black Pack
3/4” (M) to 20mm (F) FA2G FA2B 100
1” (M) to 25mm (F) FA4G FA4B 10
Steel Conduit Tube, Accessories &
Steel Conduit Tube, Accessories & Consumables
Miscellaneous Accessories
All Metpro steel miscellaneous conduit accessories are manufactured in accordance with BSEN61386-1:2008+A1:2019 and are eligible for use on London Underground projects. (excludes rubber gaskets)
Extension Rings
Loop-in Boxes
Dome Covers: Female
Crampets
Ball & Socket Cover
Male Hooks
Steel Conduit Tube, Accessories & Consumables
Steel Conduit Tube, Accessories & Consumables
Steel & Brass
We offer the full range of steel & brass fixings for use with steel conduit tube, all manufactured in accordance with BSEN61386-1:2008+A1:2019 & BS 31 where applicable
All brass lock rings are manufactured with a milled edge
All box lid screws are pan head
Male Brass Bushes: Short Brass Lock Rings
Male Brass Bushes: Long
Box Lid Screws
Female Brass Bushes
Brass Slotted Plugs
Steel Conduit Tube, Accessories & Consumables
Steel & Brass
Metpro steel fixings are eligible for use on London Underground projects, and manufactured in accordance with BSEN61386-1:2008+A1:2019 & BS 31 where applicable
One of my installer customers contacted Metpro directly for some urgent technical advice on loadings of specific products. Metpro contacted me and advised of the request, then sent the information by email within minutes.
Metpro stockist, North East England
Lock Rings
Locknuts
Steel Conduit Tube, Accessories & Consumables
Steel Conduit Tube, Accessories & Consumables
Specialist Tools & Consumables

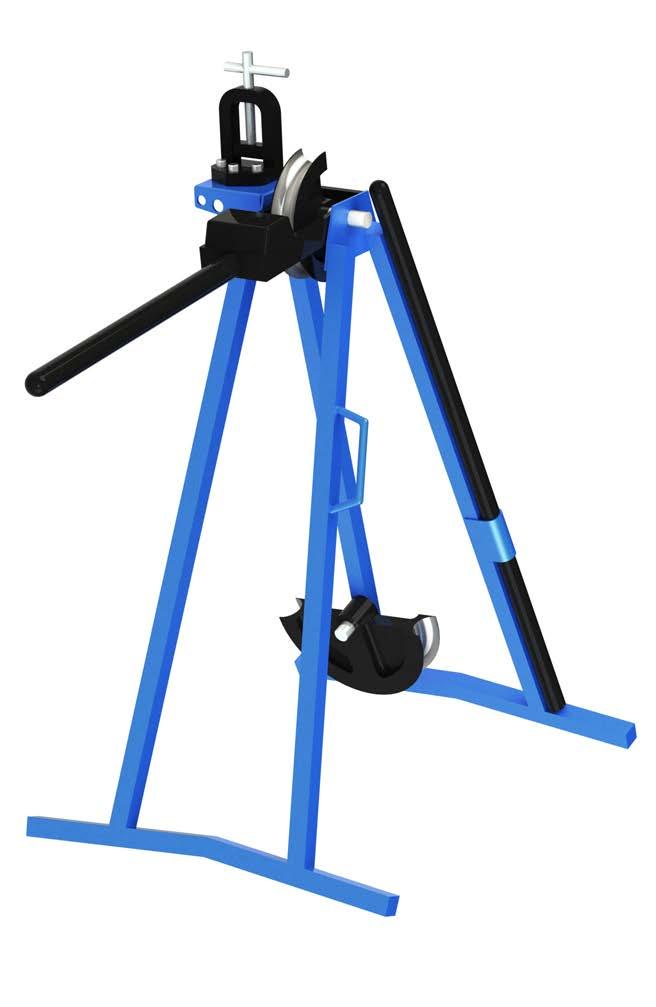

Conduit Tube Bending Machine
Portable
Creates accurate bends every time by a simple adjustment to the former
Can produce complex, multiple bends quickly Comes c/w 20 & 25mm formers as standard
Conduit Tube Bending Machine
We offer a range of specialist products for use in conjunction with our steel conduit tube and accessories range
BMSPV
BENROL
BENSB
Steel Conduit Tube, Accessories & Consumables
Specialist Tools & Consumables
For threading conduit on-site
Supplied c/w high quality steel dies and guides
SAD1 contains;
1 x die stock, 1 x 20mm die, 1 x 25mm die, 1 x 20mm guide, 1 x 25mm guide, carry case
SAD2 contains; 1 x die stock, 1 x 32mm die, 1 x 32mm guide
Stock & Die Set: Spares
20mm die SAD1/20SD 1
25mm die SAD1/25SD 1
20mm guide SAD1/20SG 1
25mm guide SAD1/25SG 1 Die stock SAD1/DS 1
brass bushes
Saves time on installation Suits 20 & 25mm bushes and fits inside body bore to prevent slippage
Offering only the highest quality product, our steel channel options are all fully compliant to BS6946:1988.
The Metpro brand is stamped frequently along each length for full traceability, right back to the raw material certification.
Meets the mechanical strength of BS6946
Our raw material is controlled to ensure a 250MPa minimum yield strength
Compliant to BSEN10346
Our steel channel lengths feature a pre-galvanised Z275 finish (275g galv per Mtr2)
Comprising both heavy gauge and light gauge, all our lengths are marked ‘Metpro’ and comply with BS6946.
Channel Nuts, Bracketry & Accessories

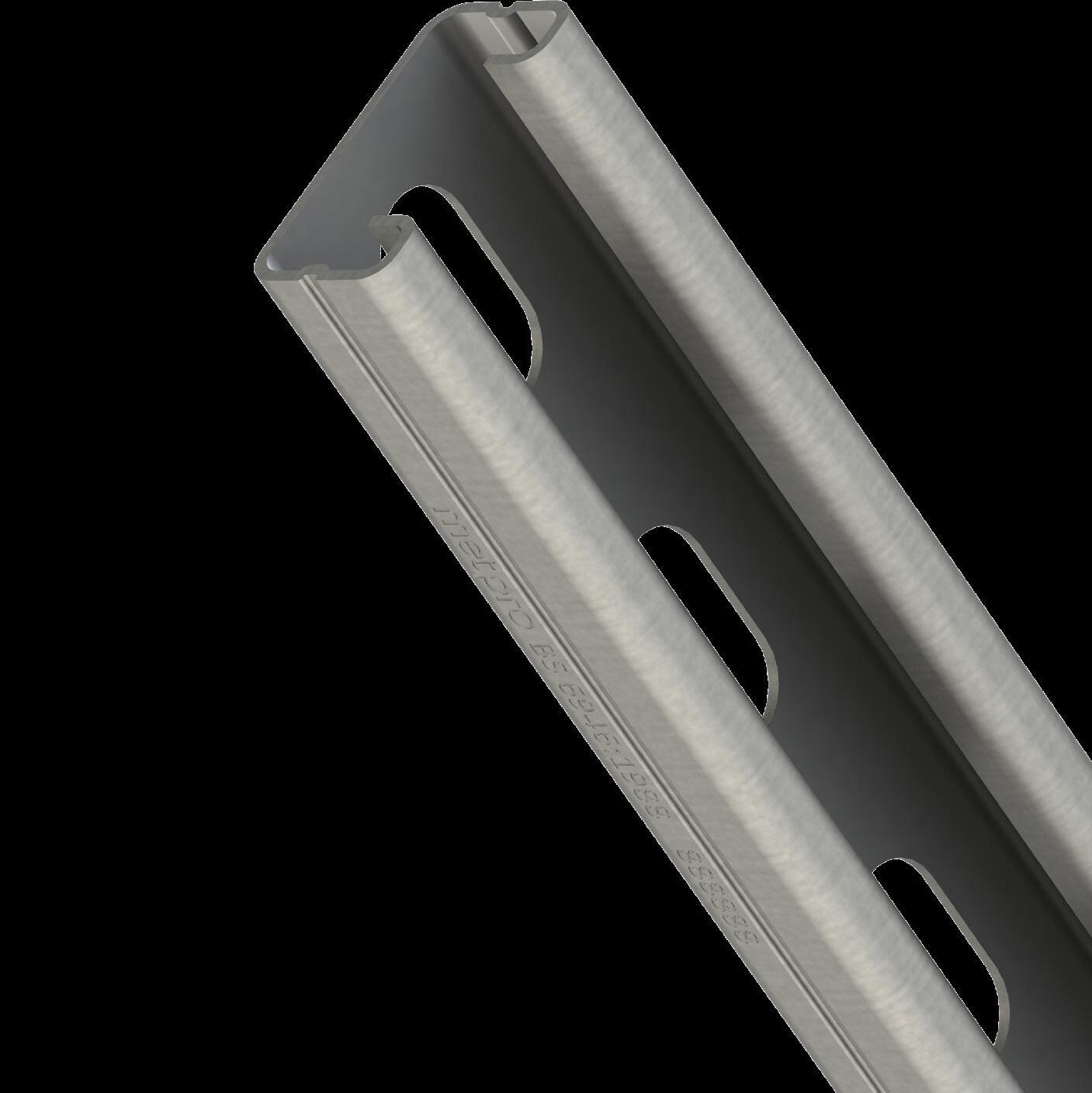

Channel
Nuts, Bracketry & Accessories
Steel
Channel: Standard, Back-to-Back, PVC Cover Strips
Standard Steel Channel: Heavy Gauge
Comprising heavy gauge and light gauge options, as well as HDG and pre-galvanised finishes, all our lengths are marked ‘Metpro’ as required to comply with BS6946.
Standard Steel Channel: Light Gauge
Channel Cover Strips
Channel Nuts, Bracketry & Accessories
Channel Nuts, Bracketry & Accessories

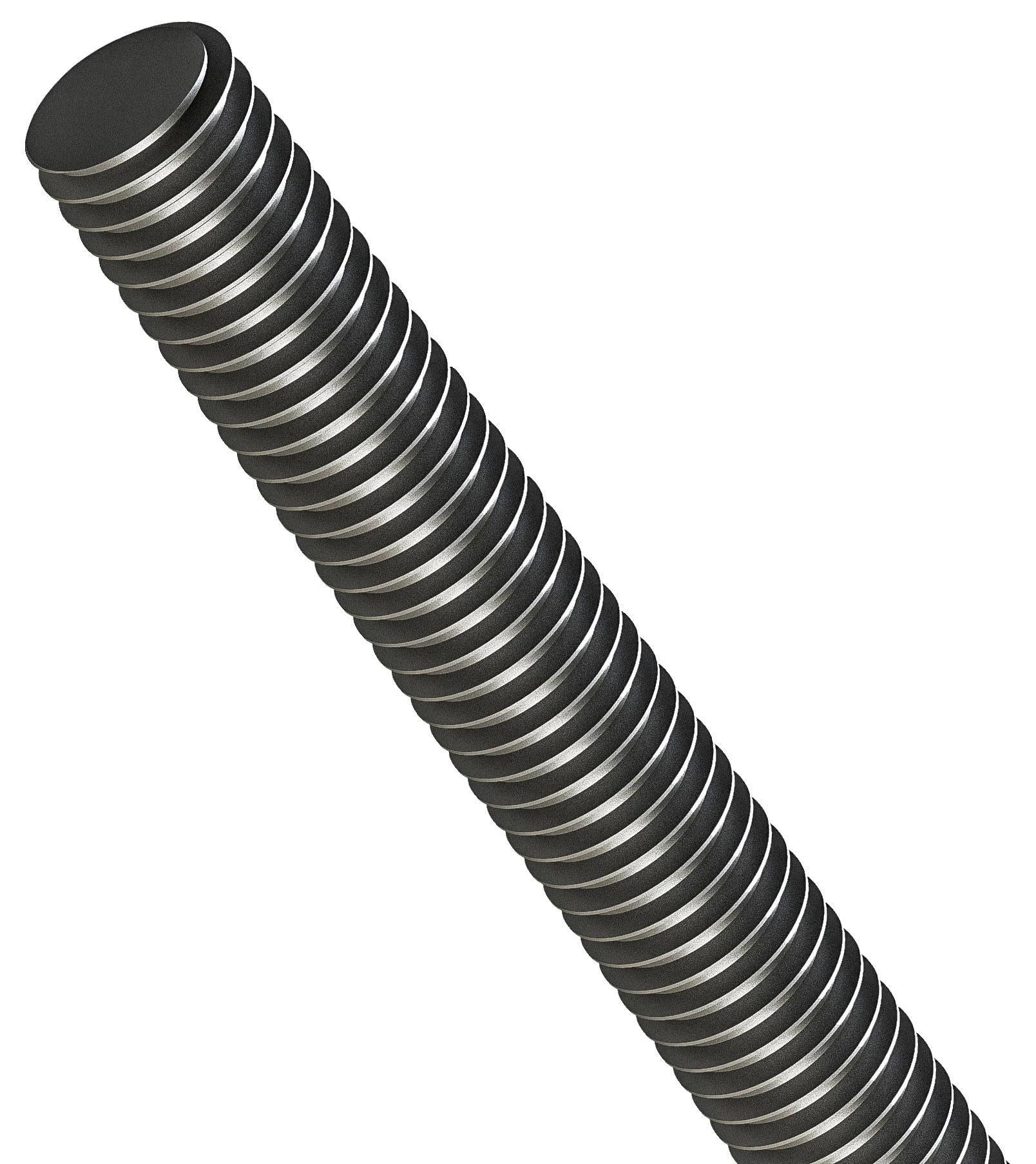

Threaded Rod & Connectors
In line with DIN6334, our threaded rod connectors also feature a 60o thread, enhancing the strength and reliability of our product when used together.
60 degrees of perfection
Manufactured with a consistent 60o angle thread on each length, etpro threaded rod is fully compliant DIN 976 (superceding DIN975).
Ensuring optimum contact between the rod and mating nut, this 60o pitch not only provides a solid and strong load bearing connection, but also features thicker material on the threads, further reinforcing the strength of our product and a fully
Manufactured from 4.8 grade steel
Ensuring the required mechanical strength of DIN Standard 976
Fully RoHS2 compliant
Offering a clean, safe product for the industry

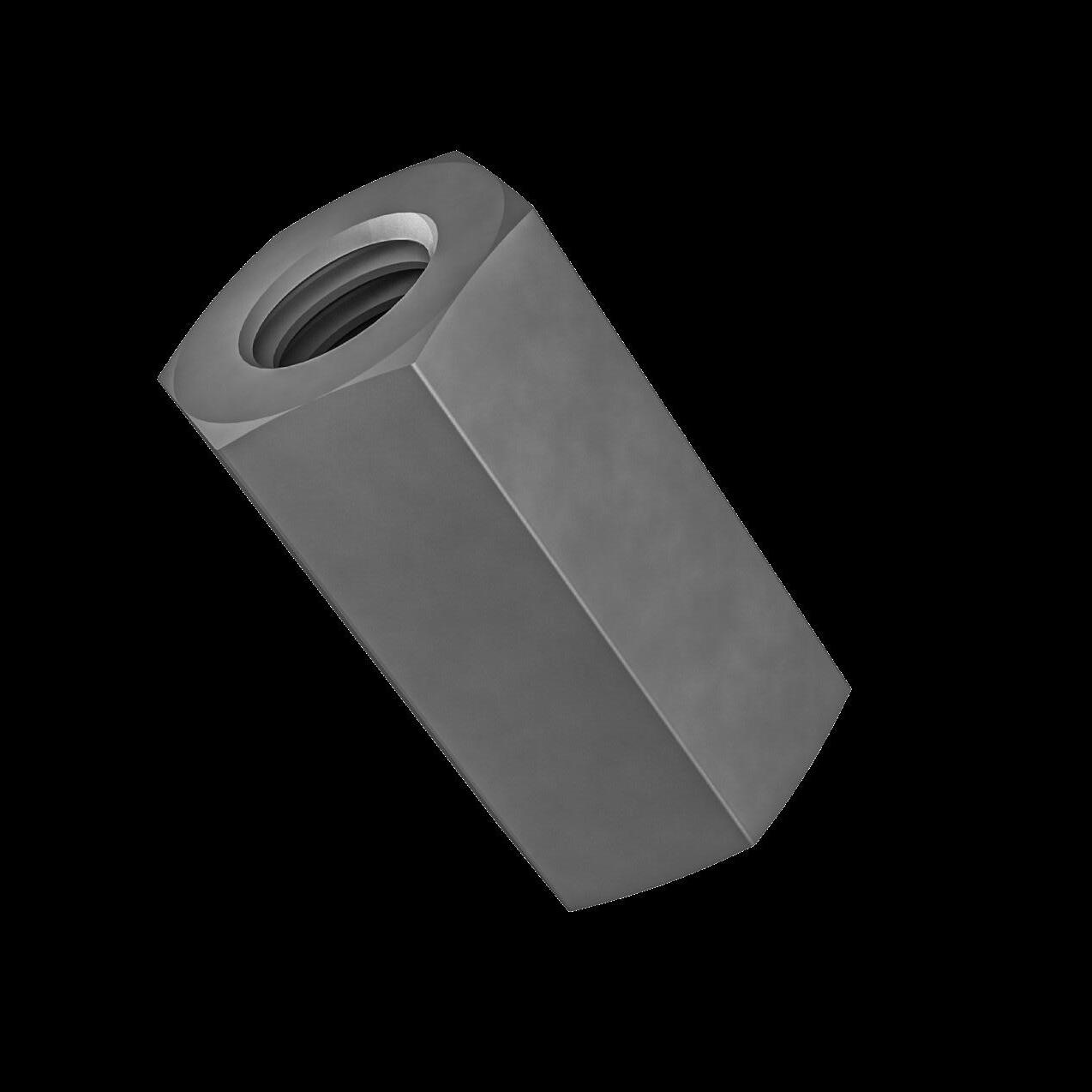

Threaded Rod Connectors
Nuts, Bracketry & Accessories
Easyfit Channel Nuts, Channel Spring Nuts
Channel Nut More information on pages 16-17
How Easyfit Channel Nuts work
Up to 60% labour savings
Installation time when compared with traditional spring nuts and fits all standard strut depths
Only 4 sizes to stock
One size fits all standard strut depths + Easyfit Channel Nuts are designed to work in both slotted & plain channel
One-handed installations
Designed for the contractor, Easyfit’s feature built-in finger grips making installations quick & simple
Slide & hold
No springs allow for smooth positioning within both standard & slotted strut with the easyfit’s non-slip cone holding the nut in place, even on vertical channel
The Easyfit Channel Nut and our channel spring nuts range are compliant to BS6946 (nut only) and UK tested for complete confidence. Our plain channel nuts, short spring nuts and long spring nuts are also eligible for use on London Underground projects.
Channel Nuts
*Hot Dip Galvanised
Spring Nuts
Plain
Short Spring Nuts
Long
Channel Nuts, Bracketry &
Channel Nuts, Bracketry & Accessories

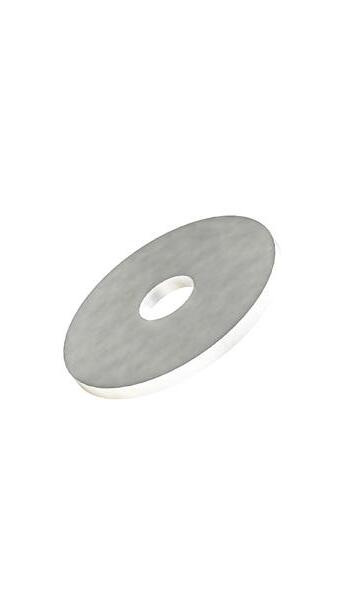

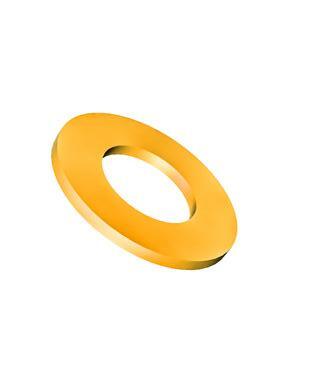

Square Plate Washers, Flat Brackets
Our square plate washers and flat brackets are compliant to BS6946 and eligible for use on London Underground projects.
Square Plate Washers Flat Brackets
MP2
MP3
MP4
MP5
MP6
MP7
MP55
Channel Nuts, Bracketry & Accessories
90o Angle Brackets
90o Angle Brackets
1
1
1
2
2
4
Our 90° angle brackets are compliant to BS6946 and eligible for use on London Underground projects.
MP8
MP9
MP10
MP11
MP12
MP13
MP14
MP15
MP17
MP18
MP19
Channel Nuts, Bracketry & Accessories
Offset
Angle Brackets, Z & U Profile Brackets
Our offset angle brackets and Z & U profile brackets are compliant to BS6946 and eligible for use on London Underground projects.
Centralised Hinge
Our 2+2 hole hinged angle bracket offers unlimited flexibility through its central hinge allowing for any angle to be set
Channel Nuts, Bracketry & Accessories
Every time we won a major tender to supply cable management products I would look for ways to source my accessories quickly, in full, and on time. Fortunately, now I have found Metpro I no longer worry as they hold comprehensive stock and are able to be flexible in their delivery.
Metpro stockist, Berkshire
MP33
Channel Nuts, Bracketry & Accessories
Channel Nuts, Bracketry & Accessories
Channel Nuts, Bracketry & Accessories
Beam Clamps
Our beam clamps are compliant to BS6946 and eligible for use on London Underground projects.
Captive nut dramatically reduces installation time & slides along bracket length allowing easy adjustment of fixing point location
Standard M6 roofing bolt used for direct installation into captive nut
Suitable for the installation of light, medium or heavy duty cable tray and basket BZP finish

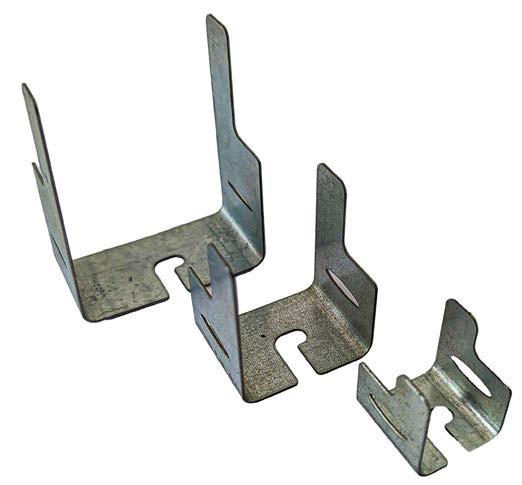

Tray & Trunking Hangers
Accepts both tray & trunking on same hanger -
or
Pre-galvanised finish

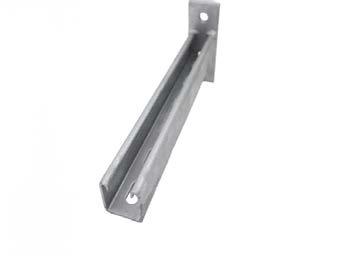

Our stand off brackets, tray & trunking and channel support accessories are eligible for use on London Underground projects. (with the exception of end caps)
All Metpro adaptable boxes are manufactured from pre-galvanised steel and comprise of body, flanged cover and 4 x steel lid fixing screws
Eligible for use on London Underground

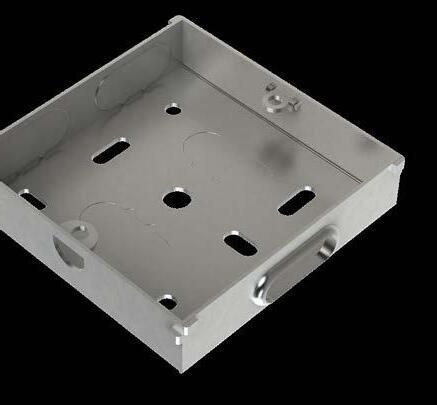

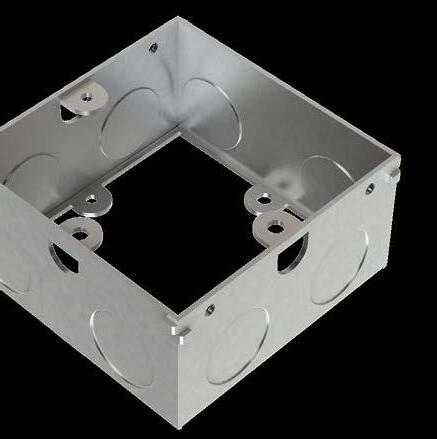

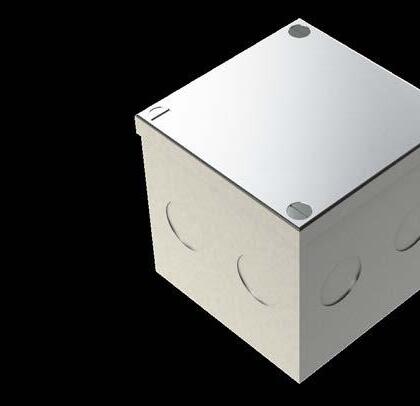

Adaptable Boxes
75 x 75 x 37.5 (3 x 3 x 1.5”) AB01G AB01G/K
75 x 75 x 50 (3 x 3 x 2”) AB02G AB02G/K
75 x 75 x 75 (3 x 3 x 3”) AB03G AB03G/K
100 x 100 x 37.5 (4 x 4 x 1.5”) AB04G AB04G/K 5
100 x 100 x 50 (4 x 4 x 2”) AB05G AB05G/K 5
100 x 100 x 75 (4 x 4 x 3”) AB06G AB06G/K
100 x 100 x 100 (4 x 4 x 4”) AB07G AB07G/K
150 x 75 x 50 (6 x 3 x 2”) AB08G AB08G/K
150 x 75 x 75 (6 x 3 x 3”) AB09G AB09G/K 5
150 x 100 x 50 (6 x 4 x 2”) AB10G AB10G/K 5
150 x 100 x 75 (6 x 4 x 3”) AB11G AB11G/K 5
150 x 150 x 37.5 (6 x 6 x 1.5”) AB12G AB12G/K 5
150 x 150 x 50 (6 x 6 x 2”) AB13G AB13G/K 6
150 x 150 x 75 (6 x 6 x 3”) AB14G AB14G/K 5
150 x 150 x 100 (6 x 6 x 4”) AB15G AB15G/K 3
225 x 150 x 50 (9 x 6 x 2”) AB16G AB16G/K 5
225 x 150 x 75 (9 x 6 x 3”) AB17G AB17G/K
225 x 150 x 100 (9 x 6 x 4”) AB18G AB18G/K
225 x 225 x 50 (9 x 9 x 2”) AB19G AB19G/K 2
225 x 225 x 75 (9 x 9 x 3”) AB20G AB20G/K
225 x 225 x 100 (9 x 9 x 4”) AB21G AB21G/K
300 x 300 x 50 (12 x 12 x 2”) AB22G AB22G/K
300 x 300 x 75 (12 x 12 x 3”) AB23G AB23G/K 1
300 x 300 x 100 (12 x 12 x 4”) AB24G AB24G/K 1
300 x 300 x 150 (12 x 12 x 6”) AB25G AB25G/K 1
IP54 rated (when used in conjunction with rubber gaskets)
Boxes can be supplied plain or with 20mm conduit knockouts on all sides (please see codes above)
*Available in singles
IP54 Rated
Our adaptable boxes are certified to IP54 when used in conjunction with Metpro rubber gaskets as detailed on the next page (please refer to our IP chart on page 82 for full details)
All boxes have tube and mini-trunking knockouts All surface mounted boxes have square corners
Rubber Gaskets
Our dry lining boxes and surface mounted boxes are compliant to BS 4607-1:1984 and manufactured in accordance with BSEN61386-1:2008+A1:2019.
We also offer a selection of key accessories for switch & socket, adaptable box and PVC box installations which can be used with the full category range

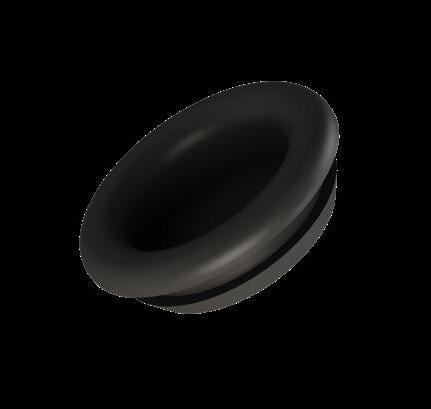

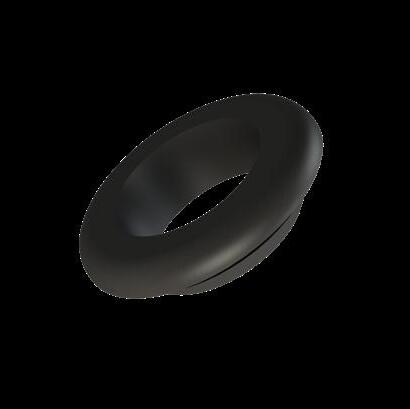

PVC Grommets
Designed to prevent cable chafing through trunking and electrical boxes
Ideal for use with switch & socket boxes, adaptable boxes and trunking
PVC Super Grommets
Offer an IP54 rating for adaptable
Chamfered edge offers fast fix installations
Ideal for use with switch & socket boxes, adaptable boxes and trunking
Brass Extension Stud
Raised Countersunk Screws
Surface Mounted Boxes
We’re proud to support the next generation of electricians preparing to enter the UK industry.
Photos taken during a visit from Walsall College students & Metpro on-site at Loughborough College
1 x 10mtr coil of PVC flexible conduit | 10 x PVC swivel adaptors
Manufactured from self-extinguishing PVC with black finish
IP40 Rated (please see chart on page 82)
Temp. range -15oC to +60oC
Compression Class 2 (320N)
Our flexible conduit range is completed with all the essential items such as IP54 glands and PVC contractor packs for use in a variety of installations
Our flexible conduit tube offering includes all of the essential products with fire-resistant and self-extinguishing functionality as standard where applicable
Manufactured from pre-galvanised steel with a black PVC coating finish
IP65 rated (please see chart on page 80 for details)
Fire resistant to UL94 V0 Temperature range -20oC to +80oC
Manufactured from pre-galvanised steel
IP40 rated (please see chart on page 80 for details)
range -50oC to +300oC
Manufactured from self-extinguishing PVC
IP40 rated (please see chart on page 80 for details)
Temperature range -15oC to +60o
Compression Class 2 (320N)

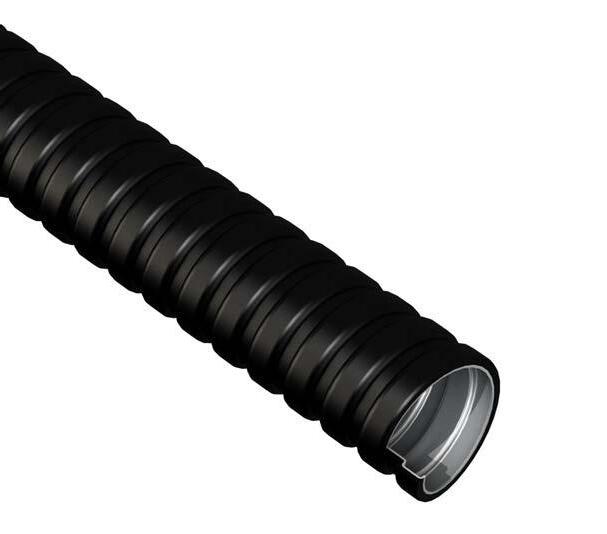

PVC Coated Steel Flexible Conduit

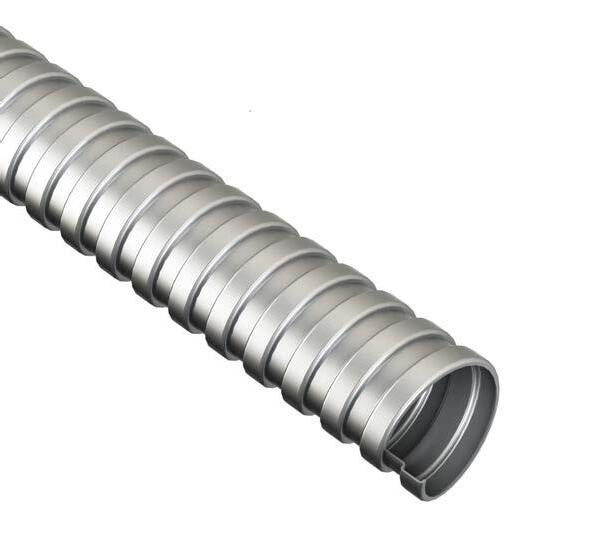

Plain Steel Flexible Conduit

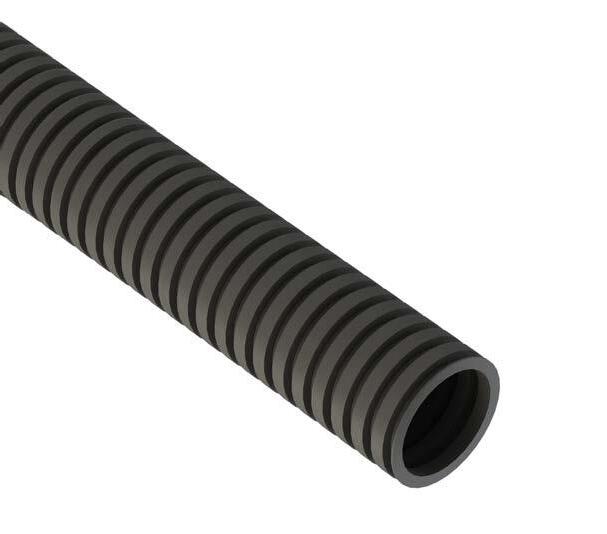

PVC Flexible Conduit
Quality control is at the very top of our agenda at Metpro Group, with every stock delivery batch tested in our fully equipped UK laboratory, and in accordance with BS6001-1:1999 to an AQL of 1.5%
Image: Ainis Izkalns, Quality Control Supervisor, taking guests through our conduit tube quality process

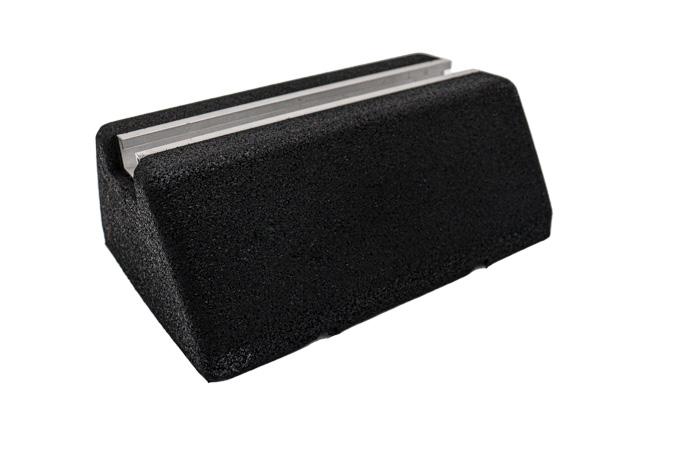

Flat Foot
Range accreditations
Shock-proof UV Resistant
H Frame Kits & Solo Feet
Page 61

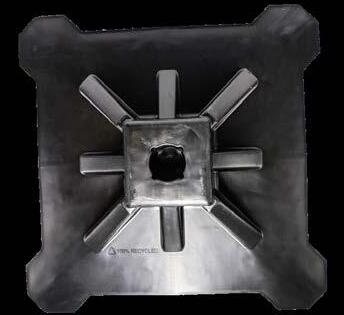

Eco-Friendly Rubber Feet
Page 61
H Frame Kits & Solo Feet
Offers a quick fix solution for cable management
Ideal for ducting & pipework

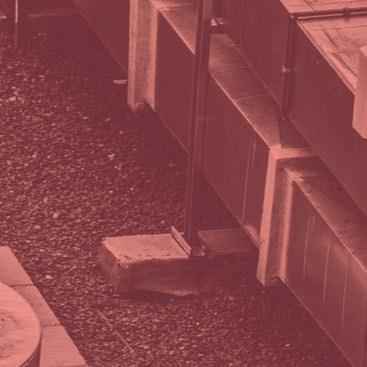

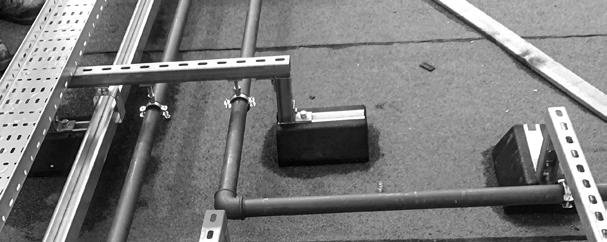

Our Flat Foot range offers ideal mounting solutions for ducting, pipeworks, cable trays and HVAC installations including our environmentally-friendly Eco Range
Practical & versatile solution for pipework & cable trays
Features 41x21mm ‘bonded’ built-in channel
Flat Foot
Flat Foot
PVC Conduit
Accessories
Range accreditations LSF0H
Conduit Boxes
Pages 63
Saddles, Bends, Elbows & Tees Page 64
Couplers & Adaptors
Page 64
Miscellaneous Accessories
Page 65
Conduit Boxes
20mm PB1W PB1B 20
25mm PB11W PB11B 20
Our PVC conduit boxes are compliant to BS4607-1:1984 and manufactured in accordance with BSEN61386-1:2008+A1:2019, with each box supplied c/w 2 x M4 brass inserts
Our PVC conduit accessories range is compliant to BS4607-1:1984 and manufactured in accordance with BSEN61386-1:2008+A1:2019
Spring Clip Saddles: Round
Inspection Elbow
Inspection Tee
Couplers
Solid Bend
Adaptor: Male
Inspection Bend
Adaptor: Female
Miscellaneous Accessories
Lock Rings PVC Conduit Accessories
Our miscellaneous PVC accessories range offers white, black and red finishes where applicable with products compliant to BS4607-1:1984 and manufactured in accordance with BSEN61386-1:2008+A1:2019 (with the exception of adhesive)
Boxes
Male Bushes: Screwed
LS0H rating applies to red finish only Locknuts
If all our suppliers were as good as Metpro, my job would be a lot easier.
Metpro stockist, London North
Cable Accessories, Earthing & Wiring Products
Range accreditations
Cable Cleats Page 67
All Round Band Page 67
Earth Clamps Page 67
Brass Earth Studs Page 67
Cable Gland Kits Page 68
Brass TRS Glands Page 68
PVC Dome Top Glands Pages 69
PVC Stuffing Glands Page 69
12-Way Strip Connectors Page 69
Earth Blocks Page 69
Chapter 52 Range: Fire Resistant Cable Clips Pages 70
Our miscellaneous cable / earthing & wiring accessories offering includes a number of essential products for
Cable Cleats
PVC Insulation Tape
All Round Band
Used
Heavy
Pre-punched fixing holes for bolts or screws
10mtr lengths supplied in a PVC cartridge pack for easy use & waste reduction
Packed in quantities of 1
All options are 19mm x 33mtr
Manufactured from self-extinguishing, flame retardant PVC and compliant to BSEN60454 & BS3924
Earth Stud
Brass
Earth Clamps
Cable Accessories, Earthing & Wiring Products
Cable Gland Kits, Brass TRS Glands
Our cable gland kits offering includes options for both interior and exterior applications in a variety of sizes with all options compliant to BS6121-1:2005 We
Cable Accessories, Earthing & Wiring Products
PVC Glands, Strip Connectors, Earth Blocks
PVC Dome Top Glands
16mm (5-10mm) - PCG16B/510 - 100
20mm (6-12mm)
PCG20W/612 PCG20B/612 PCG20R/612 100
IP68 rated (please see chart on page 82 for details)
LS0H rating applies to red finish only
PVC Stuffing Glands
16mm (4-7mm)
16mm (7-11mm)
20mm (4-7mm)
20mm (7-11mm)
20mm (8-13mm)
25mm (8-13mm)
25mm (12-18mm)
PSG16W/248
PSG16B/248
PSG16R/248 100
PSG16W/250 PSG16B/250 - 100
PSG20W/249 PSG20B/249 PSG20R/249 100
PSG20W/251
PSG20W/252
PSG20B/251 PSG20R/251 100
PSG20B/252 PSG20R/252 100
PSG25W/253 PSG25B/253 PSG25R/253 100
PSG25W/254 PSG25B/254 PSG25R/254 100
32mm (18-24mm) PSG32W/255 PSG32B/255 - 100
IP54 rated (please see chart on page 82 for details)
Our PVC glands are designed for use with PVC conduit systems and manufactured in accordance with BSEN61386-1:2008+A1:2019
We also offer polyethylene connector strips and brass earth blocks, ideal for a variety of installations
12-Way Strip Connectors
Cable Accessories, Earthing & Wiring Products
Chapter 52 Range: Fire Resistant Cable Clips
Designed for use in PVC trunking, our Chapter 52® Fire Resistant cable clips are compliant to BS7671 and fire rated to BS8434-2
Our cable clips also ensure compliance to BS5839-1: fire detection and fire alarm systems for buildings
Unique offcentre fixing
Purposefully designed for uneven surfaces, our innovative off-centre fixing slot also allows for easy retrofitting
Easy fold tabs
Designed to retain cables in the event of a fire, our larger sizes, FRC40 & FRC50, also allow for doubling-up of cables offering even greater flexibility
All trunking sizes catered for Our fire-resistant cable clips range covers all trunking sizes from mini 25 x 16mm to maxi 50 x 50mm
UK laboratory tested for complete for 100% confidence
Fire rated to 930oC for 120 minutes, our cable clips exceeded the stringent test requirements of BS8434-2
(full certification available on request)
Fire Resistant Cable Clips
Cable Accessories, Earthing & Wiring Products
Chapter 52 Range: Fire Resistant Spacer Bar Saddles
Prevents cable collapse Cables are retained within the saddle strap ensuring safer environments for fire teams and civilians in fire situations
Colour matched to offer a seamless installation
Our white and black fire-resistant spacer bar saddles receive a surface coating that is colour matched to suit most UK systems, with our range catering for both 20mm & 25mm PVC conduit tube and accessories
UK laboratory tested for complete for 100% confidence
Fire rated to 930oC for 120 minutes, our spacer bar saddles exceeded the stringent test requirements of BS8434-2 (full certification available on request)
Metpro Chapter 52® Fire Resistant spacer bar saddles are manufactured for use with PVC conduit and are compliant to BS7671 and BS8434-2
BS7671, Chapter 52
Amendment: What does it mean?
Amendment 3 of BS 7671 Wiring Regulations stipulates that “a suitable fire resistant means of support/ retention must be provided to prevent cables falling out in the event of a fire”.
Fire Resistant Spacer Bar Saddles
Fixings & Fasteners
Range accreditations
Hexagon Head Set
Screws
Page 73
Steel Hexagon Nuts
Page 73
Hexagon Nut Caps
Page 73
Top Hat Rod Caps
Page 73
Steel Wedge Nuts
Page 73
Brass Nuts Page 73
Brass Washers
Page 73
Penny Washers Page 74
Shakeproof Washers Page 74
Red Fibre Washers Page 74
Single Coil Spring Washers Page 74
Non-Drill Anchors & Setting Tools Page 74
Roofing Bolts & Square Nuts Page 74
Fixings & Fasteners
General Fixings & Fasteners
Hexagon Head Set Screws: HT8.8
Manufactured from high tensile steel Grade 8.8
Packed in quantities of 100
M16 and M20 available on request
BZP finish
Steel Hexagon Nuts: Grade 8
& M20
Steel Wedge Nuts
Hexagon Nut Caps
Brass Nuts
Top Hat Rod Caps
Fixings & Fasteners
Fixings & Fasteners
General Fixings & Fasteners (continued)

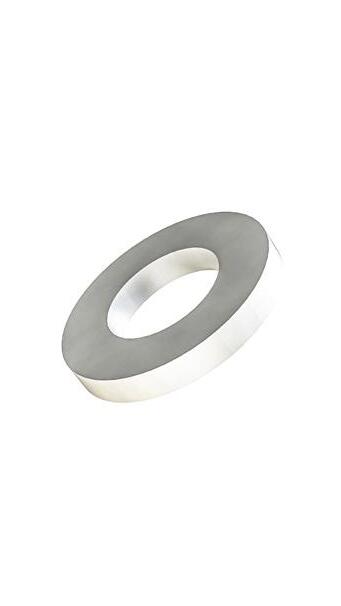

Washers: Flat
Washers: Penny

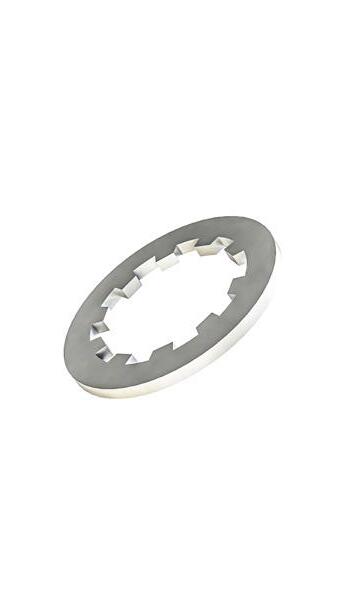

Washers: Shakeproof
Washers: Red Fibre
We stock a variety of washer options to offer the most appropriate solution for the job. Our roofing bolts offering covers all
sizes with each bolt supplied c/w M6 flat nut
Washers: Single Coil Spring
Produced to DIN 127B
Non-Drill Anchors & Setting Tools
Roofing Bolts & Square Nuts
In addition to our manufacturing capabilities, we also offer a powder coating service, all carried out in line with your exact requirements, with product coated to meet the desired RAL colour
Discover Metpro
London Underground (LUL) Eligibility
We’re proud to be LUL eligible across our core product ranges (where applicable), for use on existing and future London Underground projects
Building Information Modelling (BIM)
We offer the necessary Revit® files for use in Building Information Modelling across our full standard products portfolio
In-house Quality Control
Manufactured to the relevant British Standards where applicable, all Metpro stock is inspected in accordance with BS6001-1:1999 to an AQL of 1.5%
100+ years in-house knowledge
How we deliver
Get in touch
We’re available from 8:30am to 5pm Monday to Friday using the following information: Call 0121 552 2100 Email sales@metpro.co.uk Live chat metpro.co.uk
Customer Commitment
We supply exclusively through Metpro stockists and electrical wholesalers as part of our ongoing support of the industry

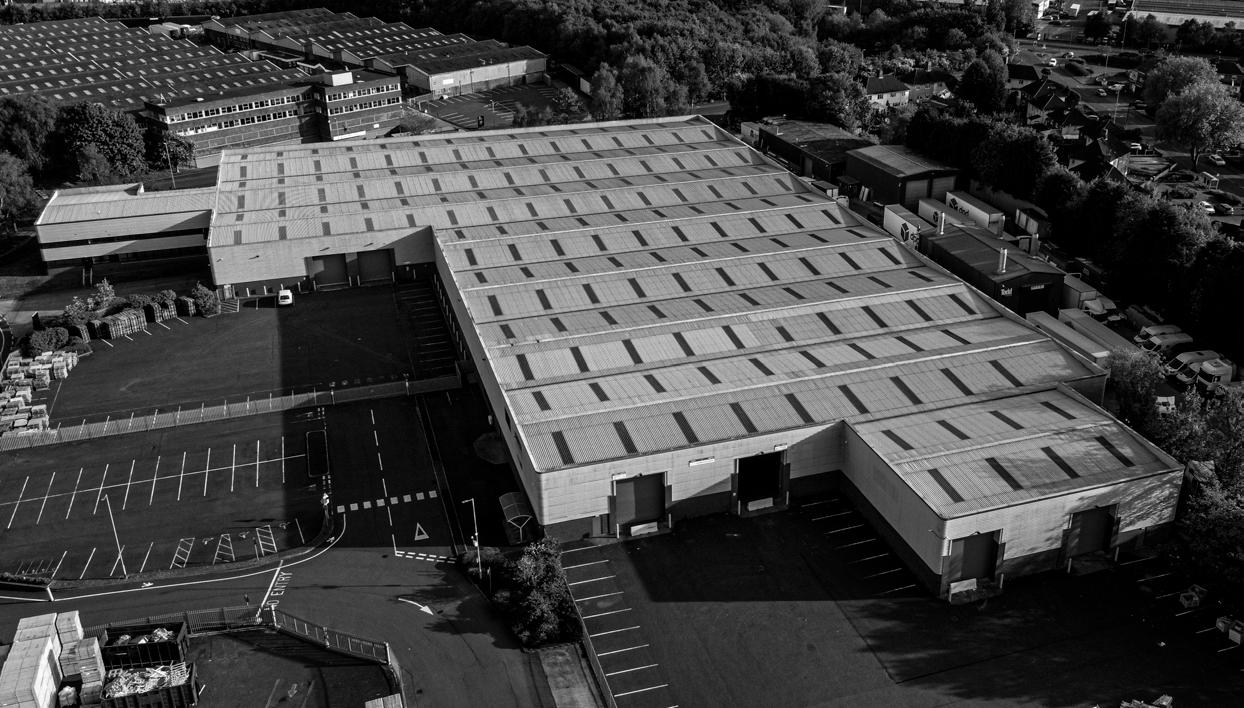

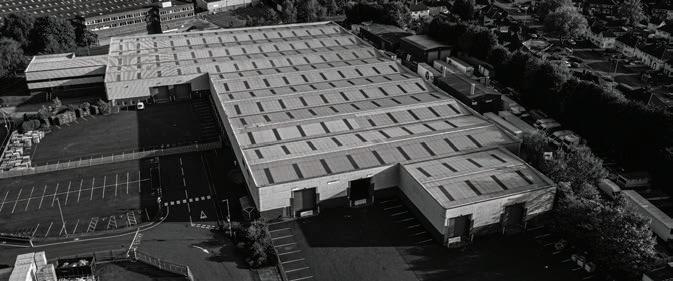

Central Location

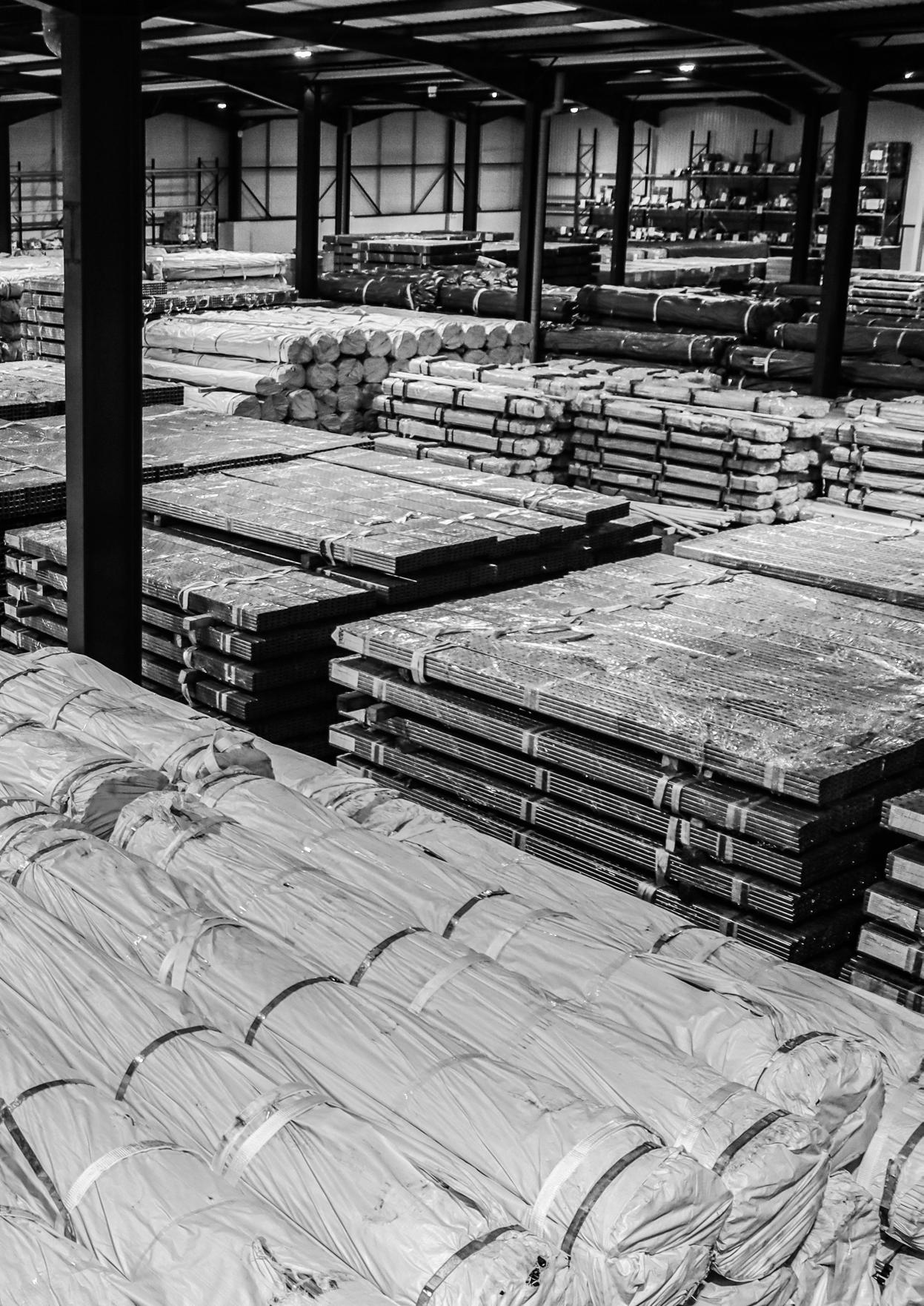

We operate from our 50,000sq/ft distribution centre in the West Midlands, just off junction one of the M5
Accurate & Prompt Delivery*
Standard delivery: orders despatched for arrival within 2-3 business days (up to 5 days for conduit tube).
*min. order value applies
Next day delivery** is available if required and please specify this on your Purchase Order or to one of our team.
**next day carriage charges may apply
Collection from our distribution centre is also available within 1 hour of order placement.
Global supplier base
We work to fit your needs
Technical product support Rapid prototyping capabilities Our team are always here to help
Quality, at every stage
Quality inspection in country
We directly employ qualified engineers overseas who carry out ongoing inspections during batch production of all Metpro stock. Our on-site employees also ensure that all Metpro partner factories are operating ethically and in accordance with the latest global standards.
First UK quality inspection
Following the production of bulk stock, our on-site engineers produce a quality report with their recommendation on whether product should be shipped. Our UK quality team review this report and it is their final decision as to whether product is suitable for shipment.
Final UK quality inspection
Upon receipt of stock to our UK distribution centre, all products receive a batch inspection in accordance with BS6001-1:1999 to an AQL of 1.5%. Our aim at Metpro across the full product portfolio is to ensure all stock maintains the quality standards our national & international customers expect.
Our Quality Equipment
We are committed to ensuring our customers and the industry do not play a part in our quality control processes.
As we work to continually improve our service offering, investing in the latest and best equipment for our quality operation has been paramount to our continued success. Detailed below are the key pieces our team use on a daily basis, with only products that meet our specifications and standars making it to the shelves for sale. All Metpro quality equipment is UKAS calibrated where applicable.
Load Testing Facility
Our bespoke load testing apparatus allows us to carry out ongoing tests on all load-bearing products
6-Axis Faro Gauge Arm
3D coordinate measurement system with a working range of 1.2m and measurement accuracy of 0.018mm
XRF Analyser
Designed to confirm material specifications & RoHS compliance
Designed for large and small components alike, this piece of equipment allows for fast & highly accurate measurements
Major Projects
Since 1995, we are proud to have been involved with a number of high profile major projects.
Metpro product is currently in use across a variety of sectors, including infrastructure, aerospace, retail and higher education.
We have provided a small selection of key projects we have been involved with here and would welcome any request for further information.
Aerospace
• Heathrow Airport
• Gatwick Airport
• Edinburgh Airport
• Bristol Airport
Higher Education
• Manchester University
Kings College (London)
• Birmingham University
• Cardiff University
• Beacon College (Hereford)
Healthcare
• Midland Metropolitan Hospital
• Alder Hey National Hospital for Children
Rail (LUL & Crossrail)
• Farringdon
• Bond Street
• Tottenham Court Road
• Liverpool Street Station
• King’s Cross
• Euston & many more
Commercial & Retail
• Envision Gigafactory (North East England) Harrod’s (London)
• Deloitte Refurbishment (London)
• Major Data Centre (Dublin)
• Rolls Royce (multiple locations)
Government
• Catterick Barracks (Yorkshire)
• Ministry of Defence Bicester (Oxfordshire)
• Kendrew Barracks (Oakham)
• Multiple HMP sites including; Aberdeen, Bedford, and Addiewell
Discover more about Metpro
EDA | Affiliate Members
We are proud to further our support of the electro-mechanical industry through our affiliate membership with the Electrical Distributors Association (EDA).
Enabling Metpro to play a part in key discussions as well as gain a greater understanding of the industry’s needs, we look forward to working with colleagues at all stages of construction as we seek to find better, safer and more efficient products & working practices to enhance both the present and future of this pivotal UK sector.
ECA | Commercial Associate
Established in 1901 and designed to bring the electrical and electro-technical contracting sector together, the Electrical Contractors Association today boasts over 2,500 members and partners, all working together for the betterment of our industry.
Metpro are delighted to be involved with this highly respected trade association, enabling us to become more involved with the subjects that matter and continuing to improve our support for our industry.
EcoVadis & Our Carbon Footprint
At Metpro, we recognise the importance of our environment and our responsibility to play a part in the protection of this.
Since 2021, we have been reporting on our Scope 1 & 2 emmissions, as well as a wide variety of Scope 3 outputs also. Our focus is on understanding the impact our business has on the environment, and working to reduce these wherever possible.
We are also an EcoVadis member with our most recent survey resulting in a Silver rating, an achievement we are all very proud of indeed.
Operating Transparently
Ensuring Metpro quality is not limited to our products, we are certified to ISO9001:2015, the leading UK Quality Management System.
Designed to streamline internal processes and improve internal communications amongst other benefits, operating with this system means we are always running as efficiently as possible and that Metpro’s goals are clear for all staff.
Ingress Protection (IP) Chart
Ingress Protection or IP classifies varying degrees of protection for products with an IP rating provided following testing as detailed below
First digit: Protection against
solids
Protected against solids greater than 50mm
Example: a hand
Protected against solids greater than 12.5mm
Example: a finger
Protected against solids greater than 2.5mm
Example: a screwdriver
Protected against solids greater than 1mm
Example: a wire
Protected against dust with limited, non-harmful ingress permitted
Completely protected against dust with no ingress permitted
Second digit: Protection against liquids
Protected against vertically falling water drops with limited ingress permitted
Protected against vertically falling water drops with limited ingress permitted
Protected against vertically falling water drops with enclosure tilted up to 15°, limited ingress permitted
Protected against water sprays up to 60° from the vertical, limited ingress permitted
Protected against water sprays up to 60o from the vertical, limited ingress permitted
Protected against water splash from all directions with limited ingress permitted
Protected against water splash from all directions, limited ingress permitted
Protected against water jets with limited ingress permitted
Protected against water jets, limited ingress permitted
Protected against powerful water jets with limited ingress permitted
Protected against powerful water jets, limited ingress permitted
Protected against water jets with limited ingress permitted
Completely watertight against immersion effects in water between 15cm and 1m for 30 minutes
Protected against powerful water jets with limited ingress permitted
Completely watertight against immersion effects in water under pressure for long time periods
Technical Section
British
Standards, RoHS Statement, CE & UKCA Markings
RoHS Statement
We confirm that all Metpro products are responsibly manufactured and where applicable comply to the requirements of RoHS 2 as detailed in the Restriction of Hazardous Substances (RoHS) Directive 2015.
If you would like any further information regarding RoHS 2 please contact our sales team on 0121 552 2100 or email sales@metpro.co.uk
Where applicable, our products are manufactured to comply with British Standards and in accordance with RoHS 2 to provide our customers with full confidence in Metpro products
CE & UKCA Markings
Where possible and required, Metpro products are CE and UKCA marked or we are able to supply Certificates of Conformity to confirm this. If you require any such documentation, please do not hesitate to contact our team who would be happy to help.
London Underground Eligibility | What Does It Mean?
During Q4 of 2024, the existing system for London Underground authorised products was updated by Transport for London (Tfl).
Moving forward, each site will have product approval powers, meaning products will be authorised on a project-by-project basis.
As the new system is introduced and both existing and future projects build up their product files, all old authorisations have been archived but will remain available for reference to all LUL personnel only.
If you would like any further information on this new system or to find out more about Metpro & Demon Cato products, please contact our team at any time.
Terms & Conditions
The customer’s attention is drawn in particular to the provisions of clause 9
Interpretation
Definitions. In these conditions, the following definitions apply:-
“Business Day” a day (other than a Saturday, Sunday or public holiday) when banks in London are open for business.
“Conditions” the terms and conditions set out in this document as amended from time to time in accordance with clause 11.6.
“Contract” the contract between the Supplier and the Customer for the sale and purchase of the Goods in accordance with these Conditions.
“Customer” the person or firm who purchases the Goods from the Supplier
“Force Majeure Event” has the meaning given in clause 10.
“Goods” the goods (or any part of them) set out in the Order.
“Order” the Customer’s order for the Goods, as set out in the Customer’s purchase order form, the Customer’s written acceptance of the Supplier’s quotation, or overleaf, as the case may be.
“Specification” any specification for the Goods, including any related plans and drawings, that is supplied to the Supplier by the Customer, or produced by the Supplier and agreed in writing by the Customer.
“Supplier” Metpro Limited (registered in England and Wales with company number 2849037). Construction. In these Conditions, the following rules apply:
1.2.1. A person includes a natural person, corporate or unincorporated body (whether or not having separate legal personality).
1.2.2. A reference to a party includes its personal representatives, successors or permitted assigns.
1.2.3. A reference to a statute or statutory provision is a reference to such statute or provision as amended or re-enacted. A reference to a statute or statutory provision includes any subordinate legislation made under that statute or statutory provision, as amended or re-enacted.
1.2.4. Any phrase introduced by the terms; including, include, in particular, or any similar expression shall be construed as illustrative and shall not limit the sense of the words preceding those terms.
1.2.5. A reference to writing or written includes faxes.
Basis of contract
These Conditions apply to the Contract to the exclusion of any other terms that the Customer seeks to impose or incorporate, or which are implied by trade, custom, practice or course of dealing.
The Order constitutes an offer by the Customer to purchase the Goods in accordance with these Conditions.
The Customer shall ensure that the terms of the Order and any relevant Specification are complete and accurate.
The Order shall only be deemed to be accepted when the Supplier issues a written acceptance of the Order or if earlier, when the Supplier delivers the Goods, at which point the Contract shall come into existence.
The Contract constitutes the entire agreement between the parties. The Customer acknowledges that it has not relied on any statement, promise or representation made or given by or on behalf of the Supplier which is not set out in the Contract. Any samples, drawings, descriptive matter, or advertising issued by the Supplier and any descriptions or illustrations contained in the Supplier’s catalogues or brochures are issued or published for the sole purpose of giving an approximate idea of the Goods described in them. They shall not form part of the Contract or any other contract between the Supplier and the Customer for the sale of the Goods. A quotation for the Goods given by the Supplier shall not constitute an offer. A quotation shall only be valid for a period of 20 Business Days from its date of issue (unless an alternative has been agreed in writing).
Delivery
The Supplier shall ensure that:
3.1.1. each delivery of the Goods is accompanied by a delivery note which shows the date of the Order, all relevant Customer and Supplier reference numbers, the type and quantity of the Goods (including the code number of the Goods, where applicable), special storage instructions (if any) and, if the Order is being delivered by instalments, the outstanding balance of Goods remaining to be delivered; and
3.1.2. if the Supplier requires the Customer to return any packaging materials to the Supplier, that fact is clearly stated on the delivery note. The Customer shall make any such packaging materials available for collection at such times as the Supplier shall reasonably request. Returns of packaging materials shall be at the Supplier’s expense.
The Supplier shall deliver the Goods to the location set out in the Order or such other location as the parties may agree (Delivery Location) at any time after the Supplier notifies the Customer that the Goods are ready. Delivery of the Goods shall be completed on the completion of loading of the Goods at the Delivery Location. Any dates quoted for delivery are approximate only, and the time of delivery is not of the essence. The Supplier shall not be liable for any delay in delivery of the Goods that is caused by a Force Majeure event or the Customer’s failure to provide the Supplier with adequate delivery instructions or any other instructions that are relevant to the supply of the Goods.
If the Supplier fails to deliver the Goods, its liability shall be limited to the costs and expenses incurred by the Customer in obtaining replacement goods of similar description and quality in the cheapest market available, less the price of the Goods. The Supplier shall have no liability for any failure to deliver the Goods to the extent that such failure is caused by a Force Majeure Event or the Customer’s failure to provide the Supplier with adequate delivery instructions or any other instructions that are relevant to the supply of the Goods.
If the Delivery Location is anywhere other than the Supplier’s premises and any of the Goods become lost damaged during the delivery to the Delivery Location, the Supplier’s total liability to the Customer in respect of such lost of damaged Goods shall not exceed the higher of the price of the Goods or the amount actually recovered from the third party that delivered the Goods to the Delivery Location on behalf of the Supplier.
If the Customer fails to accept delivery of the Goods within 3 Business Days of the Supplier notifying the Customer that the Goods are ready, then, except where such failure or delay is caused by a Force Majeure Event or the Supplier’s failure to comply with its obligations under the Contract:
3.7.1. delivery of the Goods shall be deemed to have been completed at 9.00 am on the third Business Day following the day on which the Supplier notified the Customer that the Goods were ready; and 3.7.2. the Supplier shall store the Goods until delivery takes place, and charge the Customer for all related costs and expenses (including insurance).
If 10 Business Days after the Supplier notified the Customer that the Goods were ready for delivery the Customer has not accepted delivery of them, the Supplier may resell or otherwise dispose of part or all of the Goods and, after deducting reasonable storage and selling costs, account to the Customer for any excess over the price of the Goods or charge the Customer for any shortfall below the price of the Goods.
The Customer shall not be entitled to reject the Goods if the Supplier delivers up to and including 5% more or less than the quantity of Goods ordered, but a pro rata adjustment shall be made to the Order invoice on receipt of notice from the Customer that the wrong quantity of Goods was delivered.
The Supplier may deliver the Goods by instalments, which shall be invoiced and paid for separately. Each instalment shall constitute a separate Contract. Any delay in delivery or defect in an instalment shall not entitle the Customer to cancel any other instalment.
Any claims for shortage, non-delivery or Goods damaged during transit must be notified to the Supplier within 3 Business Days of the date of delivery (in the case of shortage or Goods damaged in transit) or the anticipated date of delivery (in the case of non-delivery).
Quality
The Supplier warrants that on delivery, and for a period of 12 months (or more where specified) from the date of delivery (warranty period), the Goods shall:
4.1.1. conform in all material respects with their description and any applicable Specification; and 4.1.2. be free from material defects in design, material and workmanship.
Subject to clause 4.3, if:
4.2.1. the Customer gives notice in writing to the Supplier during the warranty period within a reasonable time of discovery that some or all of the Goods do not comply with the warranty set out in clause 4.1; and 4.2.2. the Supplier is given a reasonable opportunity of examining such Goods; and
4.2.3. the Customer (if asked to do so by the Supplier) returns such Goods to the Supplier’s place of business at the Customer’s cost, the Supplier shall, at its option, repair or replace the defective Goods, or refund the price of the defective Goods and the cost of their return in full.
The Supplier shall not be liable for Goods’ failure to comply with the warranty set out in clause 4.1 if:
4.3.1. the Customer makes any further use of such Goods after giving notice in accordance with clause 4.2; or
4.3.2. the defect arises because the Customer failed to follow the Supplier’s oral or written instructions as to the storage, commissioning, installation, use and maintenance of the Goods or (if there are none) good trade practice; or
4.3.3. the defect arises as a result of the Supplier following any drawing, design or specification supplied by the Customer; or
4.3.4. the Customer alters or repairs such Goods without the written consent of the Supplier; or 4.3.5. the defect arises as a result of fair wear and tear, wilful damage, negligence, or abnormal storage or working conditions.
Except as provided in this clause 4, the Supplier shall have no liability to the Customer in respect of the Goods’ failure to comply with the warranty set out in clause 4.1.
Except as set out in these Conditions, all warranties, conditions and other terms implied by statute or common law are, to the fullest extent permitted by law, excluded from the Contract.
These Conditions shall apply to any repaired or replacement Goods supplied by the Supplier.
Title and risk
The risk in the Goods shall pass to the Customer on completion of delivery.
Title to the Goods shall not pass to the Customer until the Supplier has received payment in full (in cash or cleared funds) for:
5.2.1. the Goods; and
5.2.2. all other sums which are or which become due to the Supplier for sales of the Goods or any other products to the Customer.
Until title to the Goods has passed to the Customer, the Customer shall:
5.3.1. hold the Goods on a fiduciary basis as the Supplier’s bailee;
5.3.2. store the Goods separately from all other goods held by the Customer so that they remain readily identifiable as the Supplier’s property;
5.3.3. not remove, deface or obscure any identifying mark or packaging on or relating to the Goods;
5.3.4. maintain the Goods in satisfactory condition and keep them insured against all risks for their full price from the date of delivery;
5.3.5. notify the Supplier immediately if it becomes subject to any of the events listed in clause 8.2; and
5.3.6. give the Supplier such information relating to the Goods as the Supplier may require from time to time, but the Customer may resell or use the Goods in the ordinary course of its business.
If before title to the Goods passes to the Customer the Customer becomes subject to any of the events listed in clause 8.2, or the Supplier reasonably believes that any such event is about to happen and notifies the Customer accordingly, then, provided that the Goods have not been resold, or irrevocably incorporated into another product, and without limiting any other right or remedy the Supplier may have, the Supplier may at any time require the Customer to deliver up the Goods and, if the Customer fails to do so promptly, enter any premises of the Customer or of any third party where the Goods are stored in order to recover them.
Terms & Conditions
7.1 7.2 8. 8.1 8.2
Price and payment
The price of the Goods shall be the price set out in the Order, or, if no price is quoted, the price set out in the Supplier’s published price list in force as at the date of delivery.
The Supplier may, by giving notice to the Customer at any time up to 20 Business Days before delivery, increase the price of the Goods to reflect any increase in the cost of the Goods that is due to:
6.2.1. any factor beyond the Supplier’s control (including foreign exchange fluctuations, increases in taxes and duties, and increases in labour, materials and other manufacturing costs);
6.2.2. any request by the Customer to change the delivery date(s), quantities or types of Goods ordered, or the Specification; or
6.2.3. any delay caused by any instructions of the Customer or failure of the Customer to give the Supplier adequate or accurate information or instructions.
The price of the Goods is exclusive of the costs and charges of packaging, insurance and transport of the Goods, which shall be paid by the Customer when it pays for the Goods.
The price of the Goods is exclusive of amounts in respect of value added tax (VAT). The Customer shall, on receipt of a valid VAT invoice from the Supplier, pay to the Supplier such additional amounts in respect of VAT as are chargeable on the supply of the Goods.
The Supplier may invoice the Customer for the Goods on or at any time after the completion of delivery.
Unless otherwise agreed by the Supplier in writing, the Customer shall pay the invoice in full and in cleared funds by the end of the month following the month the invoice was dated. Payment shall be made to the bank account nominated in writing by the Supplier. Time of payment is of the essence.
If the Customer fails to make any payment due to the Supplier under the Contract by the due date for payment (due date), then the Customer shall pay interest on the overdue amount at the rate of 4% per annum above The Royal Bank of Scotland Plc’s base lending rate from time to time. Such interest shall accrue on a daily basis from the due date until the date of actual payment of the overdue amount, whether before or after judgment. The Customer shall pay the interest together with the overdue amount.
The Customer shall pay all amounts due under the Contract in full without any deduction or withholding except as required by law and the Customer shall not be entitled to assert any credit, set-off or counterclaim against the Supplier in order to justify withholding payment of any such amount in whole or in part. The Supplier may at any time, without limiting any other rights or remedies it may have, set off any amount owing to it by the Customer against any amount payable by the Supplier to the Customer.
Cancellation
The Customer shall not cancel an Order without the prior consent of the Supplier. Upon cancellation, the Customer shall pay to the Supplier all of the Supplier’s outstanding unpaid invoices and interest together with a reasonable sum (determined by the Supplier) in respect of the Supplier’s work in progress.
Customer’s insolvency or incapacity
If the Customer becomes subject to any of the events listed in clause 8.2, or the Supplier reasonably believes that the Customer is about to become subject to any of them and notifies the Customer accordingly, then, without limiting any other right or remedy available to the Supplier, the Supplier may cancel or suspend all further deliveries under the Contract or under any other contract between the Customer and the Supplier without incurring any liability to the Customer, and all outstanding sums in respect of Goods delivered to the Customer shall become immediately due.
For the purposes of clause 8.1, the relevant events are:
8.2.1. the Customer suspends, or threatens to suspend, payment of its debts or is unable to pay its debts as they fall due or admits inability to pay its debts or (being a company) is deemed unable to pay its debts within the meaning of section 123 of the Insolvency Act 1986, or (being an individual) is deemed either unable to pay its debts or as having no reasonable prospect of so doing, in either case, within the meaning of section 268 of the Insolvency Act 1986, or (being a partnership) has any partner to whom any of the foregoing apply; or
8.2.2. the Customer commences negotiations with all or any class of its creditors with a view to rescheduling any of its debts, or makes a proposal for or enters into any compromise or arrangement with its creditors; or
8.2.3. (being an individual) the Customer is the subject of a bankruptcy petition or order; or
8.2.4. a creditor or encumbrancer of the Customer attaches or takes possession of, or a distress, execution, sequestration or other such process is levied or enforced on or sued against, the whole or any part of its assets and such attachment or process is not discharged within 14 days; or
8.2.5. (being a company) an application is made to court, or an order is made, for the appointment of an administrator or if a notice of intention to appoint an administrator is given or if an administrator is appointed over the Customer; or
8.2.6. (being a company) a floating charge holder over the assets of the Customer has become entitled to appoint or has appointed an administrative receiver; or
8.2.7. a person becomes entitled to appoint a receiver over the assets of the Customer or a receiver is appointed over the assets of the Customer; or
8.2.8. any event occurs, or proceeding is taken, with respect to the Customer in any jurisdiction to which it is subject that has an effect equivalent or similar to any of the events mentioned in clause 8.2.1to clause 8.2.7 (inclusive); or
8.2.9. the Customer suspends, threatens to suspends, ceases or threatens to cease to carry on all or substantially the whole of its business; or
8.2.10. the financial position of the Supplier deteriorates to such an extent that in the opinion of the Customer the capability of the Seller adequately to fulfil its obligations under the Contract has been placed in jeopardy.
8.2.11. (being an individual) the Customer dies or, by reason of illness or incapacity (whether mental or physical), is incapable of managing his or her own affairs or becomes a patient under any mental health legislation.
Limitation of liability
Nothing in these Conditions shall limit or exclude the Supplier’s liability for:
9.1.1. death or personal injury caused by its negligence, or the negligence of its employees, agents or subcontractors (as applicable);
9.1.2. fraud or fraudulent misrepresentation; or
9.1.3. breach of the terms implied by section 12 of the Sale of Goods Act 1979; or
9.1.4. defective products under the Consumer Protection Act 1987; or
9.1.5. any matter in respect of which it would be unlawful for the Supplier to exclude or restrict liability. Subject to clause 9.1:
9.2.1. the Supplier shall not be liable to the Customer, whether in contract, tort (including negligence), breach of statutory duty, or otherwise, for any loss of profit or indirect or consequential loss arising under or in connection with the Contract (including any losses that may result from a deliberate breach of the Contract by the Supplier, its employees, agents or subcontractors); and
9.2.2. subject to clause 3.6, the Supplier’s total liability to the Customer in respect of all other losses arising under or in connection with the Contract, whether in contract, tort (including negligence), breach of statutory duty, or otherwise, including losses caused by a deliberate personal a deliberate breach of the Contract by the Supplier, its employees, agents or subcontractors shall not exceed the higher of the price of the Goods or the amount actually recovered from the Supplier’s insurance company.
Subject to clause 9.1, the Supplier shall have no liability to the Customer for shortage, non-delivery or Goods damaged during transit unless the Customer has notified the Supplier of the claim in accordance with clause 3.11.
Force majeure
Neither party shall be liable for any failure or delay in performing its obligations under the Contract to the extent that such failure or delay is caused by a Force Majeure Event. A Force Majeure Event means any event beyond a party’s reasonable control, which by its nature could not have been foreseen, or, if it could have been foreseen, was unavoidable, including strikes, lock-outs or other industrial disputes (whether involving its own workforce or a third party’s), failure of energy sources or transport network, acts of God, war, terrorism, riot, civil commotion, interference by civil or military authorities, national or international calamity, armed conflict, malicious damage, breakdown of plant or machinery, nuclear, chemical or biological contamination, sonic boom, explosions, collapse of building structures, fires, floods, storms, earthquakes, loss at sea, epidemics or similar events, natural disasters or extreme adverse weather conditions, or default of suppliers or subcontractors.
General Assignment and subcontracting
11.1.1. The Supplier may at any time assign, transfer, charge, subcontract or deal in any other manner with all or any of its rights or obligations under the Contract.
11.1.2. The Customer may not assign, transfer, charge, subcontract or deal in any other manner with all or any of its rights or obligations under the Contract without the prior written consent of the Supplier.
Notices
11.2.1. Any notice or other communication given to a party under or in connection with the Contract shall be in writing, addressed to that party at its registered office (if it is a company) or its principal place of business (in any other case) or such other address as that party may have specified to the other party in writing in accordance with this clause, and shall be; delivered personally, sent by email, pre-paid first-class post, recorded delivery, commercial courier, or fax.
11.2.2. A notice or other communication shall be deemed to have been received: if received by email, if delivered personally, when left at the address referred to in clause 11.2.1; if sent by pre-paid first-class post or recorded delivery, at 9.00 am on the second Business Day after posting; if delivered by commercial courier, on the date and at the time that the courier’s delivery receipt is signed; or, if sent by fax, one Business Day after transmission.
11.2.3. The provisions of this clause shall not apply to the service of any proceedings or other documents in any legal action.
Severance
11.3.1. If any court or competent authority finds that any provision of the Contract (or part of any provision) is invalid, illegal or unenforceable, that provision or part-provision shall, to the extent required, be deemed to be deleted, and the validity and enforceability of the other provisions of the Contract shall not be affected.
11.3.2. If any invalid, unenforceable or illegal provision of the Contract would be valid, enforceable and legal if some part of it were deleted, the provision shall apply with the minimum modification necessary to make it legal, valid and enforceable.
Waiver. A waiver of any right or remedy under the Contract is only effective if given in writing and shall not be deemed a waiver of any subsequent breach or default. No failure or delay by a party to exercise any right or remedy provided under the Contract or by law shall constitute a waiver of that or any other right or remedy, nor shall it preclude or restrict the further exercise of that or any other right or remedy. No single or partial exercise of such right or remedy shall preclude or restrict the further exercise of that or any other right or remedy.
Third party rights. A person who is not a party to the Contract shall not have any rights under or in connection with it.
Any variation to the Contract, including the introduction of any additional terms and conditions, shall only be binding when agreed in writing and signed by the Customer.
Governing law and jurisdiction. The Contract, and any dispute or claim arising out of or in connection with it or its subject matter or formation (including non-contractual disputes or claims), shall be governed by, and construed in accordance with, English law, and the parties irrevocably submit to the exclusive jurisdiction of the courts of England and Wales.
In-depth stockholding has always been and remains a core focus for Metpro Group. Our aim is to always have the products our customers need, readily available for when they need them.
