Welcome
To the 13th issue of the Hugh Crane Hire catalogue. Our hire fleet continues to provide our customers with reliable and effective equipment when they need it. Either for periodic cleaning tasks or specialist one-off jobs.
We hope you make Hugh Crane (Cleaning Equipment) Ltd your first choice hire provider when tackling those important cleaning tasks for your business. Thank you for your continued custom.
Useful Information
Opening Hours
The hire department is open at each location at the following times:
Norwich
Monday-Friday 7:30am – 5:00pm
Saturday 7:30am – Noon
Peterborough
Monday-Friday 8:00am – 5:00pm
Stamford
Monday-Friday 8:00am – 4:45pm
Booking Equipment
To ensure that the hire equipment you want is available for hire, please try to allow at least 48 hours notice prior to your hire start date and time.
It is important to remember to order not only the main piece of equipment but also any ancillary items which you may need to complete the job, such as special lances, extension hoses or chemicals.
Please don’t hesitate to ask one of our advisors any questions regarding
equipment or the application that you want to use it for. It may very well increase effectiveness and therefore reduce downtime.
The catalogue can also help with reference to specific questions that you may want to ask yourself before booking equipment. These can be found on the title page of each individual section.
To place your order simply ring or e-mail us with your requirements. We will advise immediately the availability and cost of the equipment. On accepting the booking, we will issue you with a hire number. This number will relate to all other documentation from the initial booking, to the final invoice. Please quote this number for any queries during the hire, or when off-hiring the equipment.
When booking equipment every effort will be made to supply the model shown however occasionally alternative manufacturers equipment may be supplied. When this occurs the machine
specification will always reflect the model chosen.
Delivery & Collection
Customers are welcome to collect their hire equipment. This catalogue provides a guide for the type of vehicle required to transport the equipment (please refer to the symbols on the contents page and against each item throughout the catalogue) so please ensure that you have checked this before you travel. Where the customer’s transport is not suitable, or it is not convenient to collect we are able to provide properly equipped vehicles for the safe delivery and collection of the equipment. The benefit is we can install and demonstrate on-site, the proper use and maintenance of the equipment, to ensure that you achieve the best results. A separate charge will be made for this service.
Off-Hiring
On completion of your job, contact our offices to obtain your off-hire number. The hire charge will continue in all cases, until this number is issued, without exception. Once this number is obtained the hirer is still responsible for the care, security and insurance of the equipment until it is either returned to us or collected.
Cleaning Charge
Where machines are returned in a dirty state, a cleaning charge will be applied. Charges will be calculated on timed labour and materials cost at our standard rates.
Fuel Charge
Machines should also be returned full of fuel where applicable otherwise a fuel charge will be made.
General Points
When machines are hired, they will be ready for instant service. Operator instruction and health and safety information is provided with each piece of equipment, which must be read before the client uses the equipment and this instruction must be followed to ensure safe and efficient use of the equipment.
Machines will be clean and where necessary full of fuel. Each machine will have been tested for correct function
and any statutory electrical or pressure tests carried out. Hirers must notify us immediately should any defect occur. Minor problems will be rectified promptly on-site. Where this is not practical a replacement unit will be delivered, and the faulty unit removed. Hugh Crane (Cleaning Equipment) Ltd will not accept any consequential loss, damage or injury, if a fault with the hire equipment is not properly reported.
Insurance
Risk in the hire of our equipment will pass immediately to the customer when it leaves the physical possession or control of Hugh Crane (Cleaning Equipment) Ltd or any of its employees.
Risk in the equipment will not pass back to Hugh Crane (Cleaning Equipment) Ltd from the customer until the machine/s are back in our physical possession. This shall apply even if the machine has been taken off hire. You may re-hire the equipment to a third party with prior written consent from Hugh Crane (Cleaning Equipment) Ltd. We may in some circumstances require you, the customer, to insure the equipment for reasonable risks as we may specify. The proceeds of any such insurance that relate directly to the equipment shall be held by the customer in trust for Hugh Crane (Cleaning Equipment) Ltd and be paid to
ourselves on demand. The customer must not compromise any claim in respect of the equipment and/or any associated insurance without Hugh Crane (Cleaning Equipment) Ltd’s written consent.
Payment Methods
For approved account holders, the hire will be charged on a normal thirty-day account. An official order number will be required. Where the duration of the hire is longer than one month, a monthly bill will be issued. The maximum hire contract is three months. If equipment is required for a longer period, a new contract will be issued and will need to be signed by the customer. For hire customers without an account a minimum deposit of two weeks hire and two forms of identification will be required together with a vehicle registration when collecting.
Payment by non-account customers can be made by cash, debit/credit card or cleared bank transfer.
Deposits will be refunded at the end of the hire, once the equipment has been successfully checked in and tested, subject to any cleaning or fuel charge.
Full terms & conditions of hire are available on request.
Contract Hire
Hugh Crane can also provide longer term contract hire agreements with customers that want to pay for use, not ownership, within a lease agreement, these are generally 2-5 years in duration.
This would mean:
• New equipment, with the latest technology
• Significantly better rates of hire
• Conserves capital within the business
• Hedges against inflation
• Manages within capital budget constraints
• Tax beneficial
• Service contracts priced in For information, advice and quotations on longer term contract hire agreements contact the Hugh Crane Sales Team at sales@hughcrane.co.uk
Two Contract Hire Examples
Example 1:

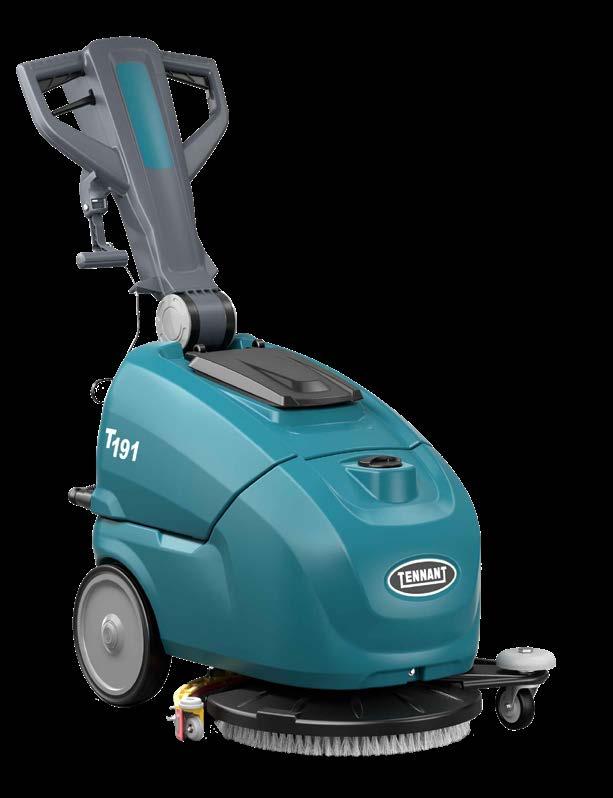

Tennant T191 B
Scrubber Dryer
See HE302 on page 25 for more information on the machine itself.
Term: 36 months
Weekly rental: £26.50
Deposit: £114.82*

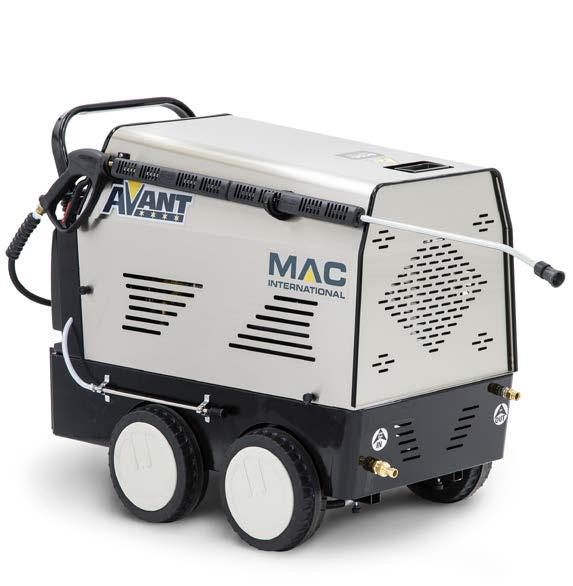

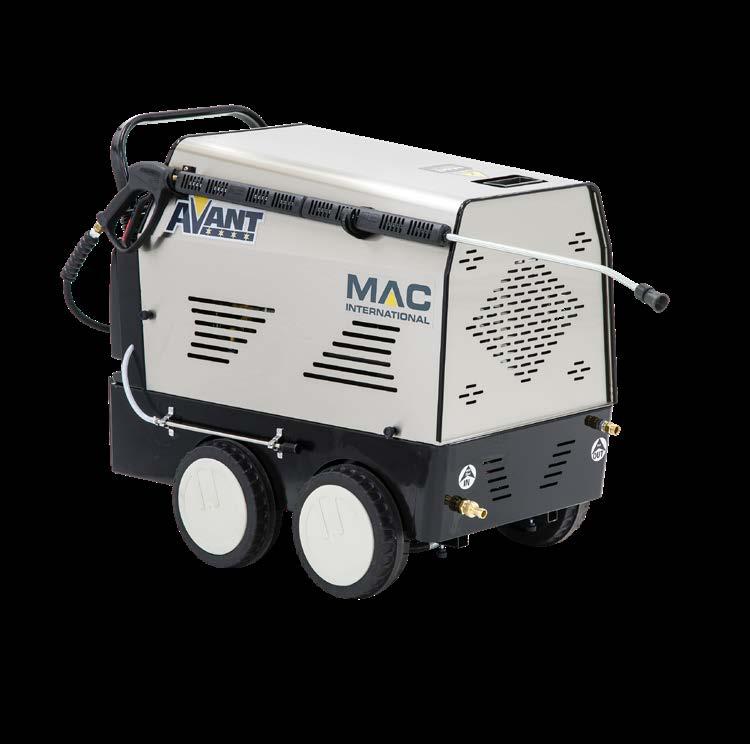

Example 2: MAC Avant 12/100 Hot Water
Pressure Washer
Please contact our hire department for more information on this machine.
Term: 36 months
Weekly rental: £24.87
Deposit: £107.81*
Contract hire agreements are subject to finance checks and a £195 admin fee. All prices are exclusive of VAT.
*The stated prices are examples and will vary according to circumstances and duration.
For full terms and conditions please get in contact via sales@hughcrane.co.uk
How to use this book
Equipment overview
This section is an overview of the equipment for hire. It also contains helpful questions to consider before choosing the equipment for the task in hand.
Useful Information
Introduces in brief which tasks the equipment is ideal for. A specification list follows that should give you a general idea of the capability and power type of the equipment. Hugh Crane staff are always available to help you choose or give more information on our vast range of products and accessories.
Key to symbols: Personal protection

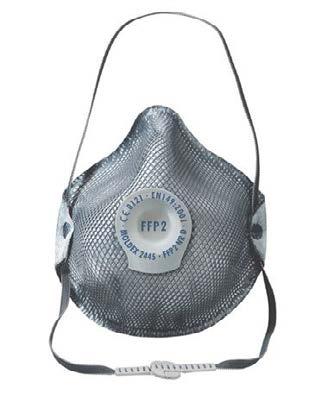

Wear respiratory protection
Eye protection must be worn
Face visor must be worn

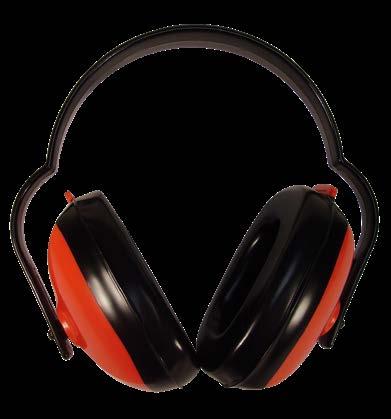

Ear protection must be worn
Wear gloves
Wear overalls
Wear safety boots
Residual current device (RCD) Flammable gas
ATEX Zone 22
Transporting equipment
Estate car
Truck or van with ramps
50mm tow bar
Forklift required

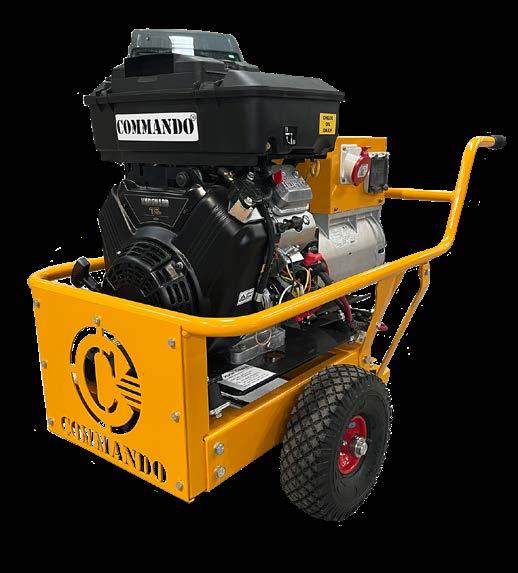

The Commando Range has been developed to deal with arduous duty cycles, and provides reliability and low running costs in a variety of industries including agriculture and construction. Questions to Consider
• Is water readily available?
• How far is the job from the water supply?
• Is chemical required?
• Is specialist PPE required?
• Are any accessories required?
• Is clean fuel available?
• Therefore is fuel required?
• Can I transport the equipment safely?

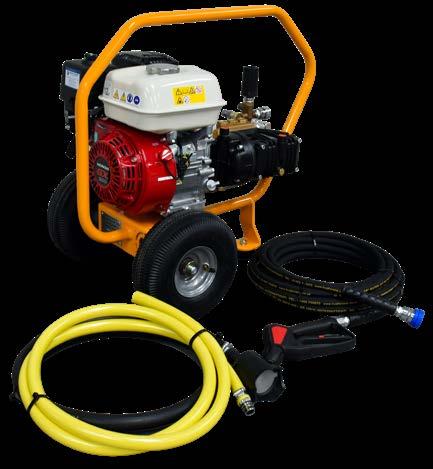

HE101

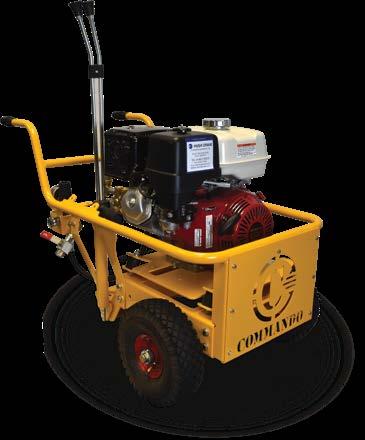

Commando 250P & 350P
Our smallest cold-water petrol pressure washer provides a competitive performance in places where getting electricity is a problem such as boatyards.
Engine: Honda GX160 Honda GX200
Power: 4.4HP 5.5HP
Weight: 36.5kg 37kg
Dimensions: 700 x 470 x 665mm 700 x 470 x 665mm
Pressure: 120bar/1750psi 130bar/1900psi
Water Flow: 13L/2.86gal min 15L/3.3gal min

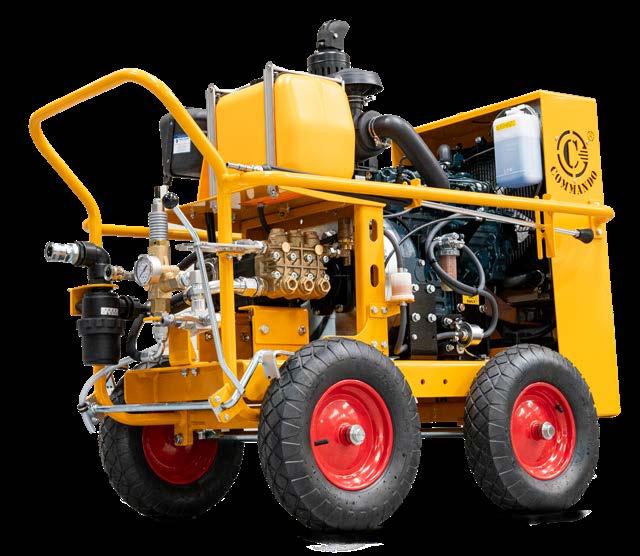

HE102 & HE103

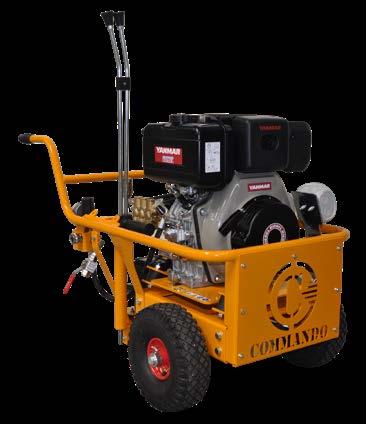

Commando 500D & 500P
The Commando 500 range provides a powerful, compact and versatile answer to your cleaning problems without complication. Available in both petrol and diesel models.
Water pick-up: Suction only Suction only
Fuel type: Diesel Petrol
Weight: 120kg 100kg
Dimensions: 1070x650x750mm 1070x650x750mm
Pressure: 200bar/2900psi 200bar/2900psi
Water Flow: 17L/2.75gal min 20L/4gal min
Standard equipment: Wash gun; 15m HP hose; 1m twin lance; suction hose (with filter)
Standard Equipment: Wash gun; 10m HP hose; 1m single lance; 6m inlet hose 500D 500P
* Please refer to page 7
HE104
Commando 1000
The 1000 Series Commando feels right at home in the harshest conditions providing performance and reliability went its needed most.
Water pick-up: Suction only
Fuel type: Diesel
Weight: 260kg
Dimensions: 1300x750x900mm
Pressure: 155bar/2250psi
Water Flow: 22.75L/5gal/min
Standard equipment:
Wash gun; 15m HP hose; 1m twin lance; suction hose (with filter)
* Please refer back to page 7

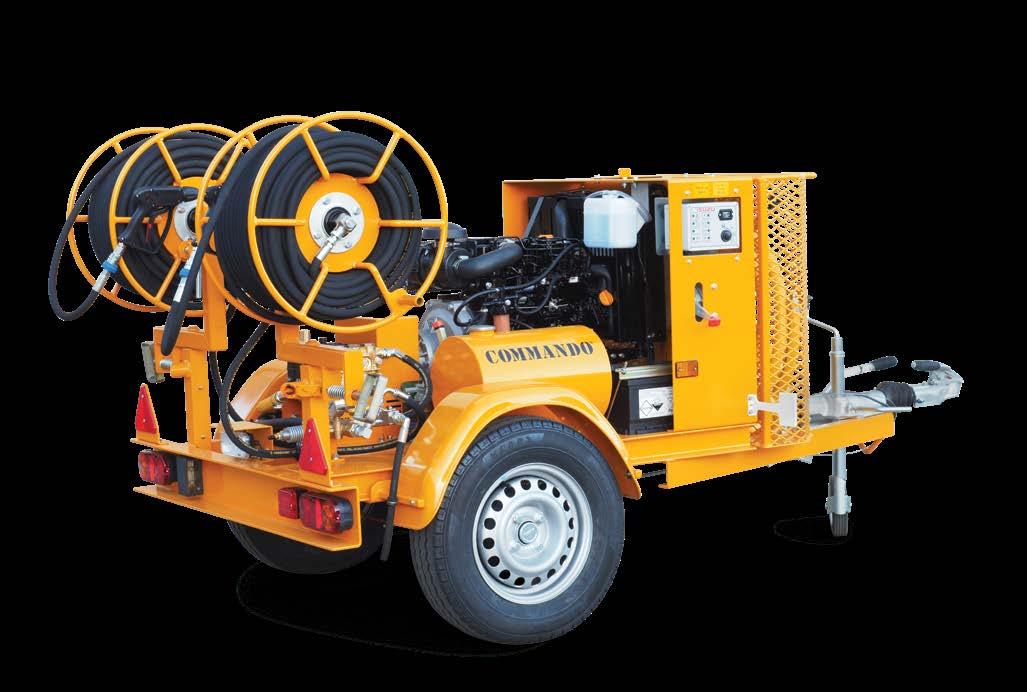

HE105
Commando 3000
Commando 3000 Series trailer-mounted, highperformance pressure washer with twin hose reels, specifically designed for efficient pig and poultry shed cleaning in demanding agricultural environments.
Water pick-up: Suction only
Fuel type: Diesel
Weight: 680kg
Dimensions: 2650x1450x1300mm
Pressure: 155bar/2250psi
Water Flow: 37L/8.24gal/min
Standard equipment:
2 x Wash gun; 75m HP hose; 2 x 1m twin lance; suction hose (with filter)
* Please refer back to page 7

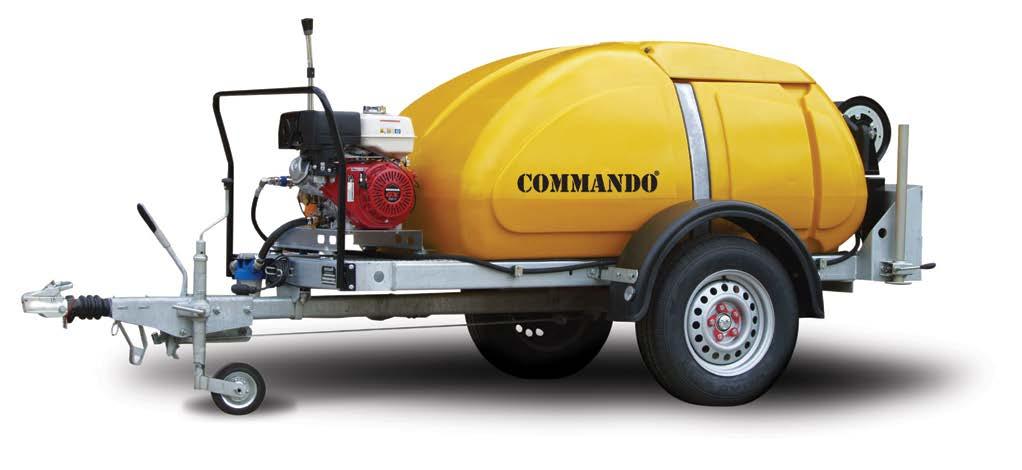

HE106 Commando 4000P
A bowser-mounted pressure washer with a 1,100 L water capacity, integrated hose reel, and petrol engine–driven pump, delivering reliable cleaning performance where mains water is unavailable.
Water pick-up: Suction from tank
Fuel type: Petrol
Weight: 500kg
Dimensions: 3500x1700x1340mm
Pressure: 200bar/2900psi
Water Flow: 20L/4.39gal/min
Water Tank Capacity: 1100L/240gal
Standard equipment: Wash gun; 15m HP hose; 1m twin lance

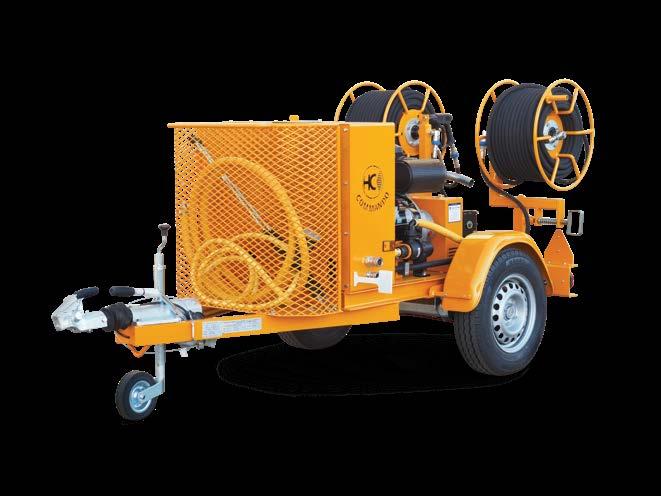

HE107

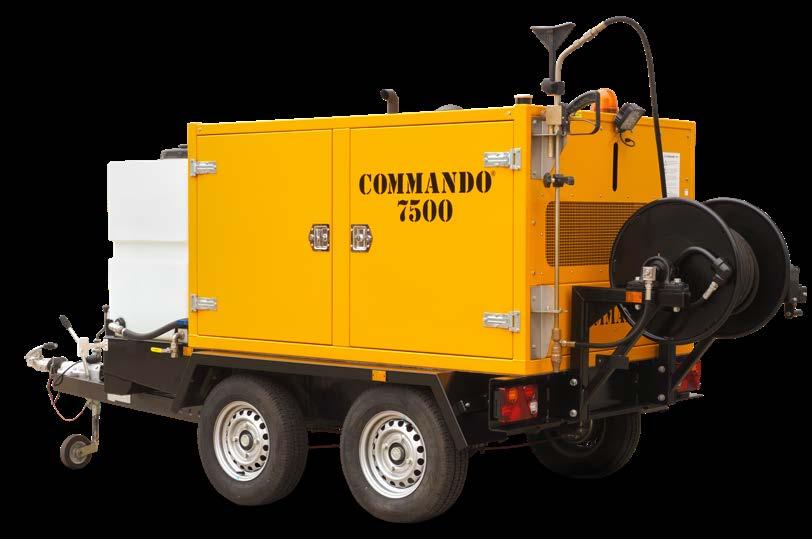

Commando 7500 Jetter
The Commando 7500 Jetter is a 500-bar, trailermounted jetting unit equipped with a hose reel, integrated water tank, and jetting gun, for high-pressure drain and pipeline cleaning applications. Relevant training, competence and experience is required to operate this equipment.
Water pick-up: Suction from tank
Fuel type: Diesel
Weight: 1600kg
Dimensions: 4770x1600x1840mm
Pressure: 500bar/7250psi
Water Flow: 27L/5.9gal/min
Standard equipment:
Wash gun; 50m HP hose; specialist jetting lance
* Please refer back to page 7

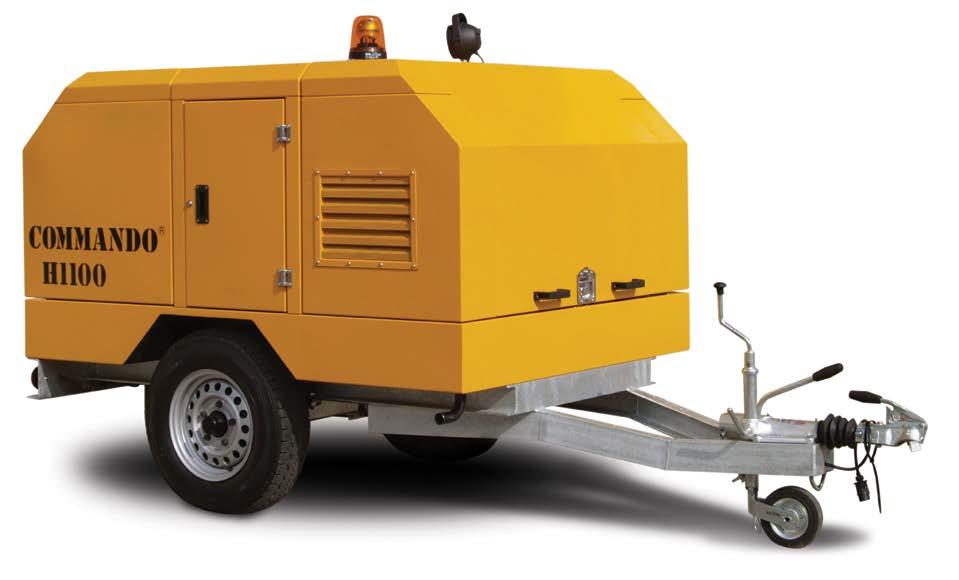

HE108
Commando H1100 Hot Water
The Commando H1100 is a trailer mounted hot water pressure washer. It is built on an easily manoeuvrable single axle chassis designed for heavy-duty use and is especially suited to graffiti removal and pavement cleaning.
Water pick-up: Suction from tank
Fuel type: Diesel
Weight tanks empty: 1420kg
Weight tanks full: 1765kg
Dimensions: 3300x1500x1700mm
Pressure: 200bar/2900psi
Water Flow: 21L/4.6gal/min
Standard equipment:
Wash gun; 75m HP hose; 1m twin lance; 50m 3/4” inlet hose

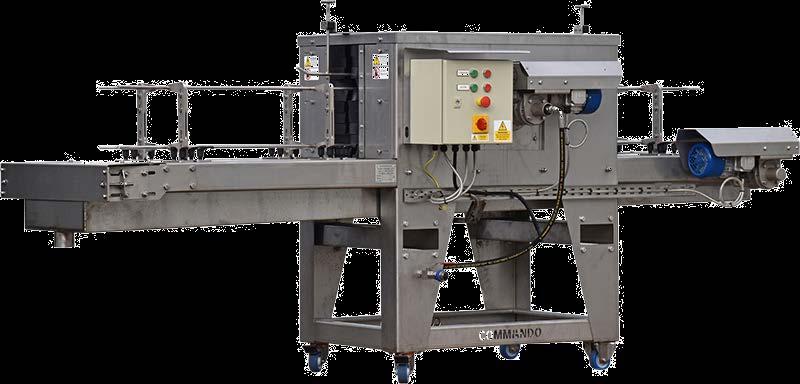

HE109
Commando TrayWash
Effectively cleans small, regularly shaped items such as slats and trays with consistent results in minimal time, making it ideal for high-volume, repetitive cleaning tasks in horticulture, agriculture, and related industries.
*Requires a separate high-pressure pump system to operate.
Power: 240V 16A
Max Pressure: 180 Bar/2600 PSI
Water flow: 33 L/min
Max Inlet Temp: 85˚C
Weight: 385kg
Dimensions: 2800x1030x1130mm

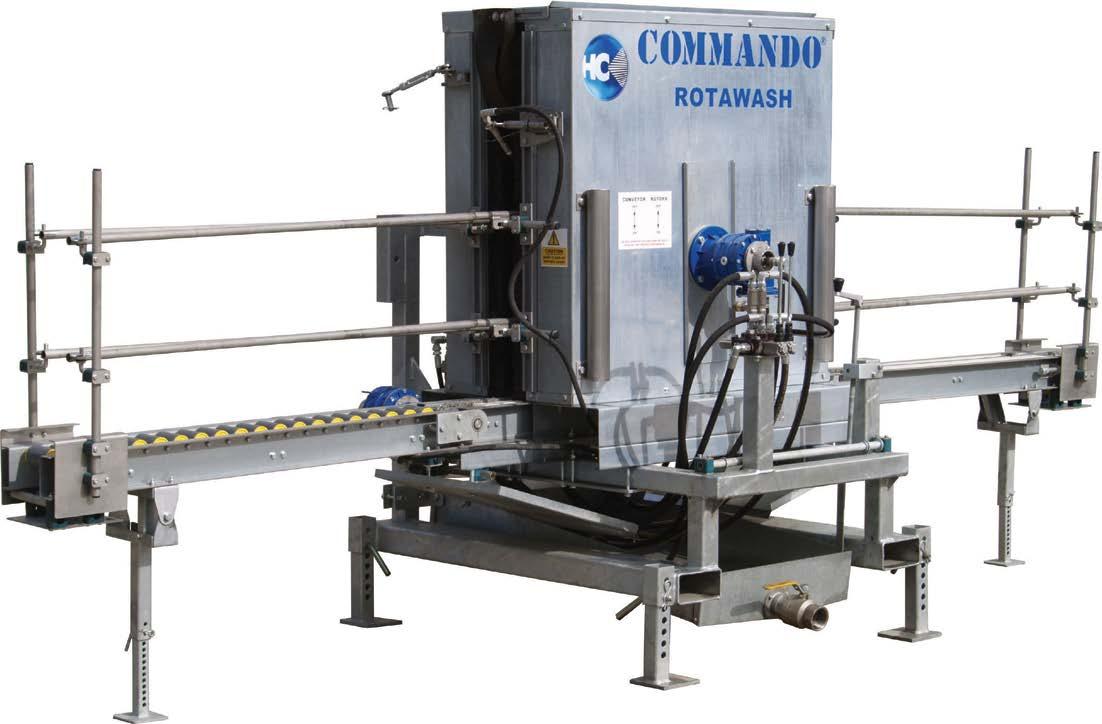

HE112
Commando Rotawash
The Rotawash is a universal tray and slat washing machine that combines a quick and easy to use conveyor system with a consistent high standard of cleaning.
The Rotawash Series is designed to provide a cost effective cleaning system, widely used in the event management, agricultural and food industries. The machine effectively cleans temporary flooring, poultry slats, pallets and trays at speed, consistently and in the minimum possible time.
Power: Hydraulically Driven
Weight: 480kg
Dimensions: 4055x1500x1750mm
Pressure (max): 250bar/3600psi
Pressure (min): 25bar/350psi
Water Flow: Dependent on pump system
Max inlet temp: 85˚C
Standard equipment: 6m inlet hose
Week
£559
Contract Hire*
£883 pcm
Please be aware when hiring this machine set-up is required from a Hugh Crane engineer. An addition set up charge will be applied depending on location.
Running these machines requires a high-pressure pump system. We recommend a Commando 3000 which you can find on P12.
Commando 3000
Pressure Washers
2

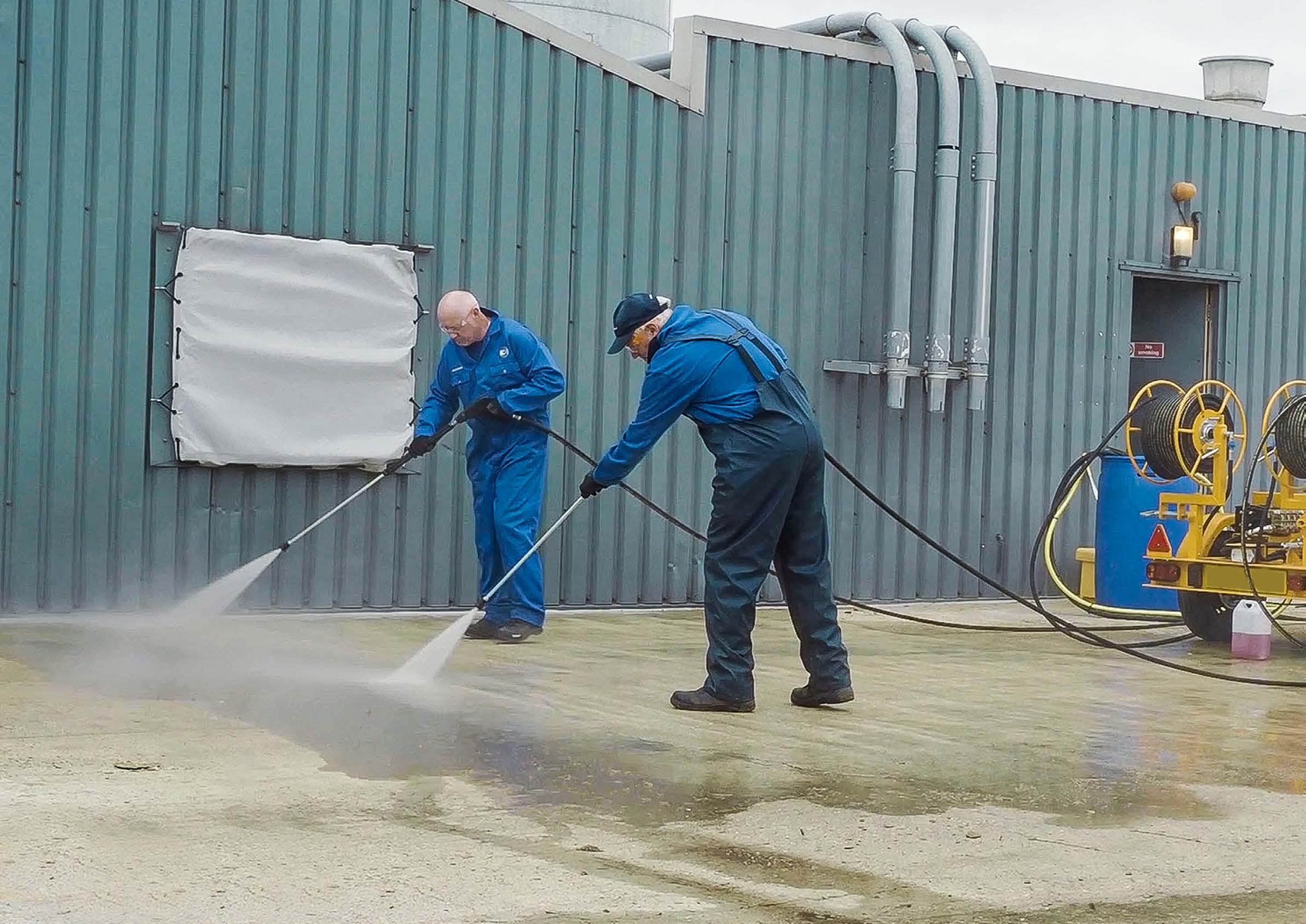

Our range of cold and hot water pressure washers provide a machine for every conceivable cleaning task in any industry from commercial to the heavy industrial end of the market.
Questions to Consider
• Is there adequate electrical supply?
• Is there adequate water supply?
• How far is the water and electricity from the task?
• Do I need specialist accessories?
• Is chemical required?
• Can I transport the equipment safely?
Pressure Washers
- 240V
Pressure Washer 240V -
Standard Performance

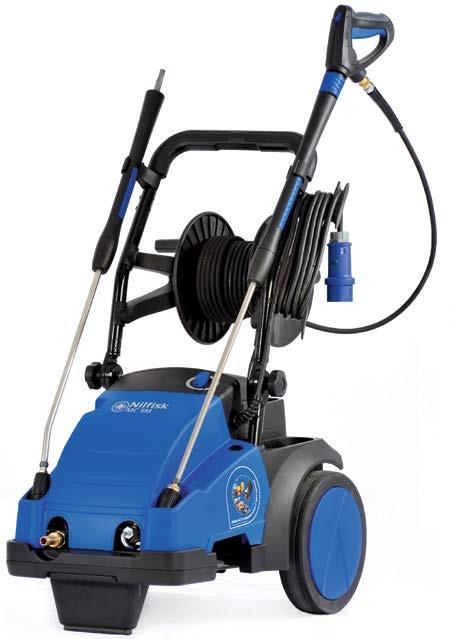

A cold water portable pressure washer for exterior cleaning & vehicle cleaning tasks.
Power: 240V
Weight: 70kg
Dimensions: 940x500x940mm
Pressure: 120bar
Water Flow: 11L/min
Max inlet temp: 60˚C
Standard equipment: Wash gun; 15m caps HP hose; 1m lance; 6m inlet hose
Cold/Hot: Cold
HE202
Pressure Washer 240V -
High Performance
A high flow cold water pressure washer for more demanding cleaning tasks such a construction sites.
Power: 240V
Weight: 68kg
Dimensions: 735x570x1020mm
Pressure: 100bar
Water Flow: 12L/min
Max inlet temp: 40˚C
Standard Equipment: Wash gun; 15m HP hose (with reel); 1m lance; 6m inlet hose
* Please refer back to page 7
* Please refer back to page 7
Cold/Hot: Cold
Pressure Washers
Cold - 415V
HE203
Pressure Washer 415V -
High Performance
Our biggest, electric cold water pressure washer provides a competitive performance in a variety of environments including agriculture, transport and food industry.
Power: 415V
Weight: 89kg
Dimensions: 775x570x1020mm
Pressure: 195bar
Water Flow: 21L/min
Max inlet temp: 40°C
* Please refer back to page 7
Standard Equipment: Wash gun; 15m HP
hose (with reel); 1m lance; 6m inlet hose
Cold/Hot: Cold
Pressure Washers Hot - 240V
HE204
Pressure Washer 240V -
Standard Performance
A portable hot water pressure washer designed for general cleaning tasks across construction, agriculture, and other demanding environments.
Power: 240V
Weight: 120kg
Dimensions: 805x620x1000mm
Pressure: 100bar
Water Flow: 12L/min
Max inlet temp: 40°C
Cold/Hot: Hot
* Please refer back to page 7
Pressure Washers
Hot - 415V
HE205
Pressure Washer 415V -
Standard Performance
A portable hot water pressure washer for industrial applications with 415V power. Powerful, efficient & reliable.
Power: 415V 16A
Weight: 140kg
Dimensions: 850x630x1000mm
Pressure: 200bar
Water Flow: 15L/min
Max inlet temp: 40°C
Cold/Hot: Hot
HE206
Pressure Washer 415V -
High Performance
A high performance portable hot water pressure washer. High flow rates and pressure maximums cleaning efficiency in demanding environments.
Power: 415V 16A
Weight: 140kg
Dimensions: 850x620x1000mm
Pressure: 200bar
Water Flow: 21L/min
Max inlet temp: 40°C
Cold/Hot: Hot
* Please refer back to page 7
* Please refer back to page 7
Pressure Washers Hot Electric - 415V
HE207

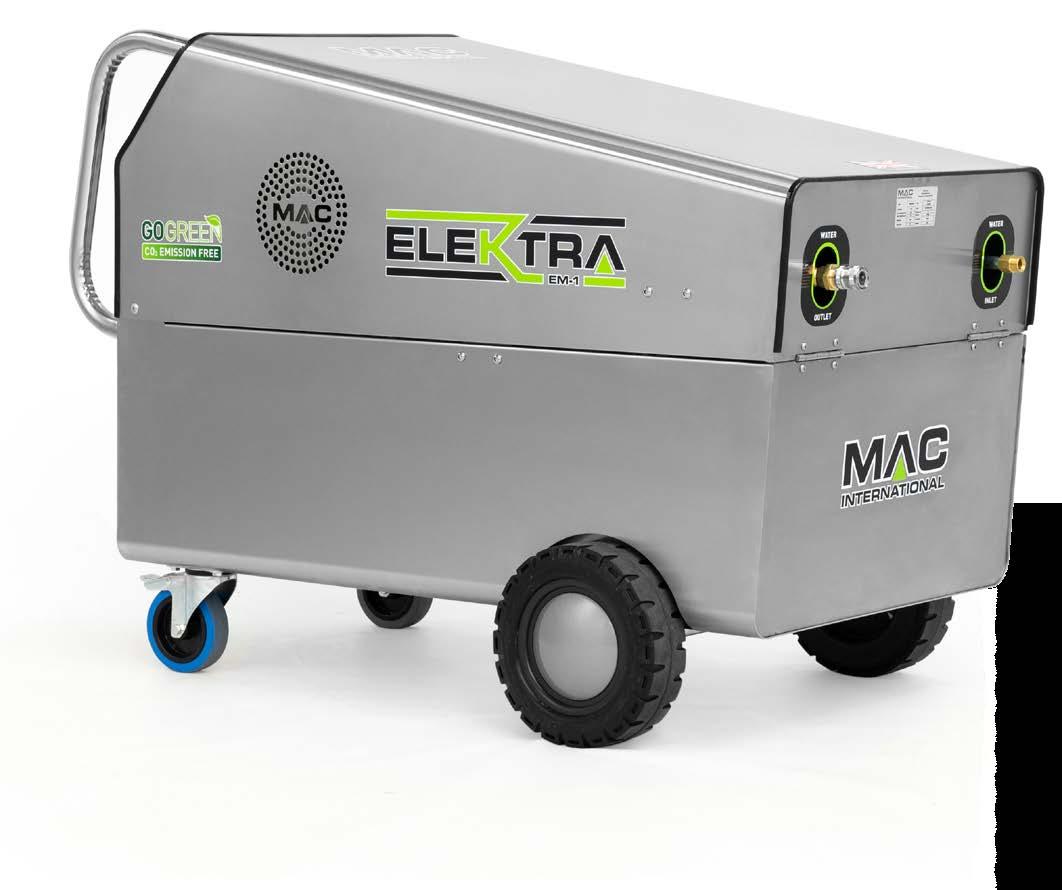

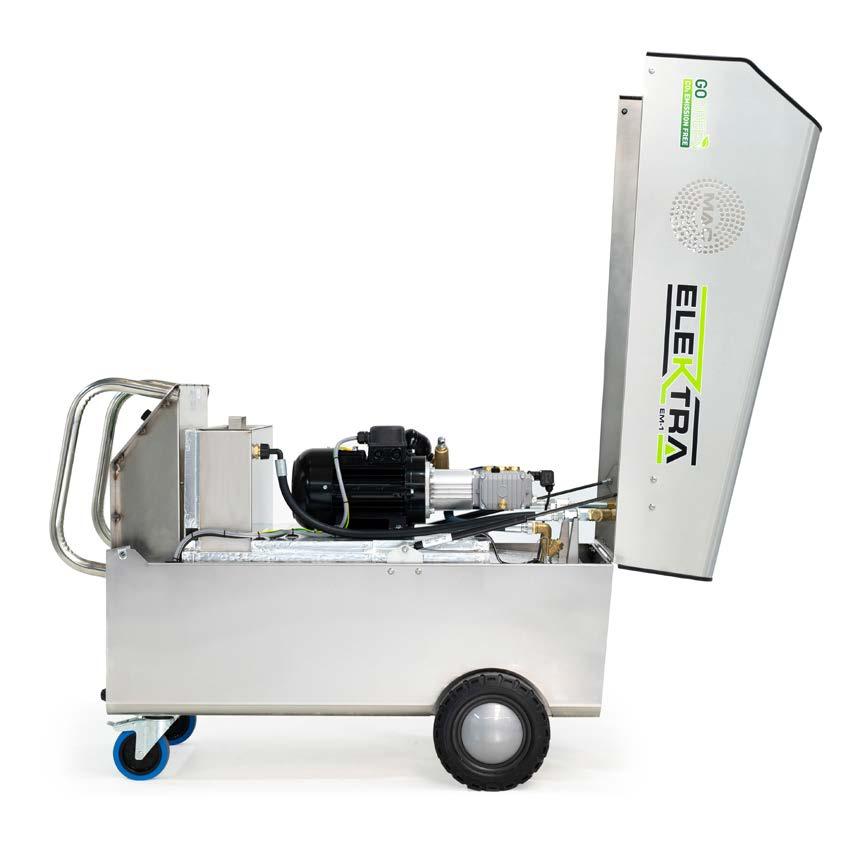

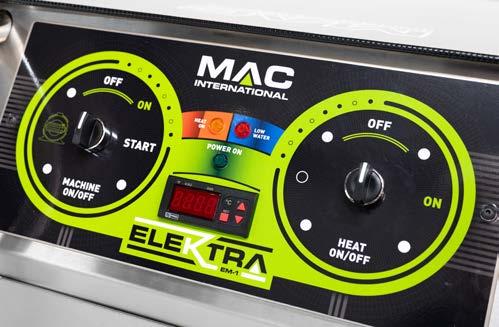

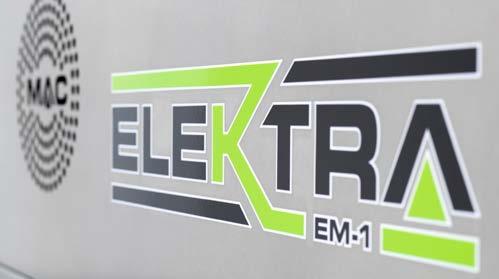

MAC Elektra 415V Hot - High Performance
A highly efficient electrically heated mobile hot water pressure washer. Eliminate the need for diesel fuel and fumes with a 120L insulated tank.
Power: 240V / 415V
Weight: 140kg
Dimensions: 1300x600x900mm
Pressure: 150bar
* Please refer back to page 7
Water Flow: 10L/min
Max inlet temp: 40˚C
Cold/Hot: Hot
Pressure Washer Accessories

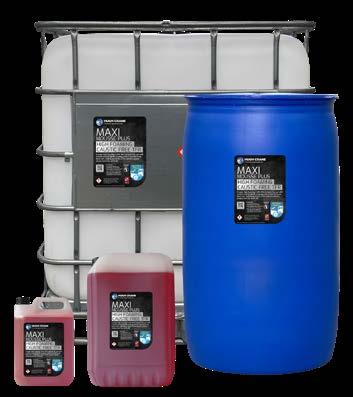

Maxi Mousse
Plus TFR
03PCMMPGP
A caustic-free, high-foaming traffic film remover that delivers powerful cleaning at low dilution rates.

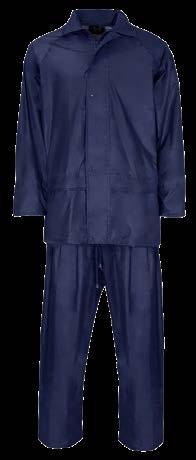

Two Piece
Wet Suit
HC97270
Lightweight Polyester/ PVC rain-wear suit offers great water resistance without bulky layering.

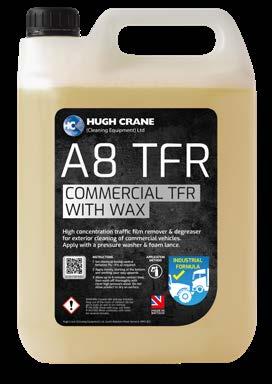

A8 TFR with Wax
03PCA8TFRGP
A powerful traffic film remover and degreaser with rinse aid for a glossy, waxed finish — ideal for commercial vehicle cleaning.

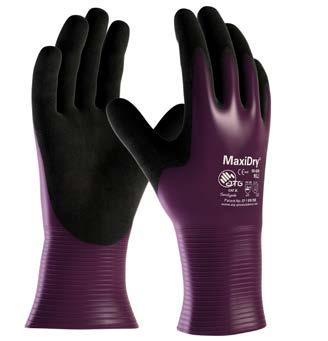

ATG MaxiDry
Gauntlet Gloves
HC98302 & HC98303
The MaxiDry general purpose drivers coated gloves are oil repellent gloves.

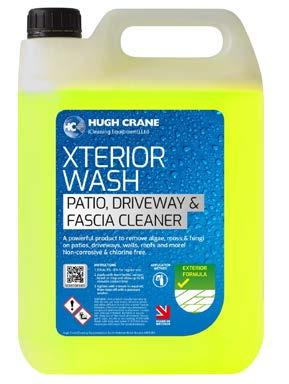

Xterior Wash
03PCXW5LGP
A non-corrosive, chlorine-free hard surface cleaner for removing algae, moss, and fungi from patios, driveways, walls, roofs, and more.

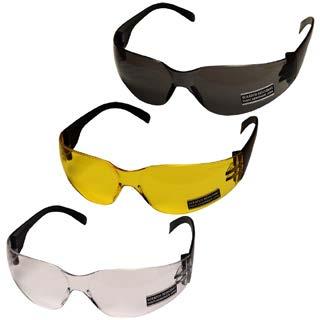

Safety Glasses
HC97252
A single pair of CAT II safety glasses which comply with EN 166:2001 personal eye protection standards.
Pressure Washer Accessories
High Pressure Hose
A selection of four lengths of 3/8” twin wire black steam hose with all the necessary fittings. Hoses can be joined to acquire the desired length.

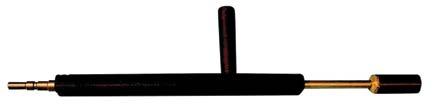

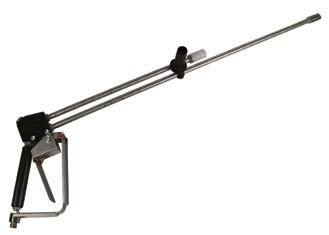

Lances
A wide selection of lances are available for a variety of tasks. Please consider your requirements and don’t hesitate to ask our advisors for more details.

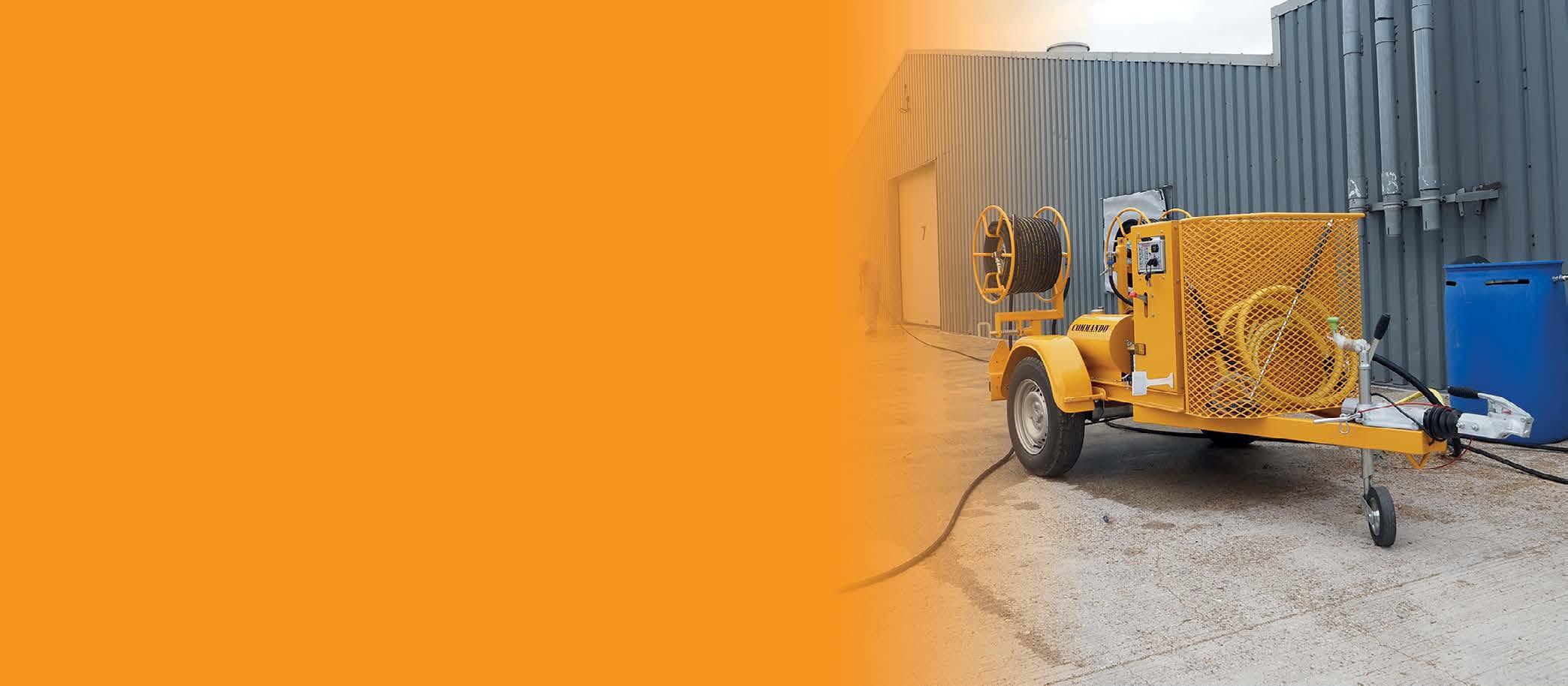

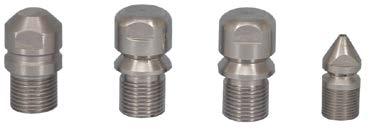

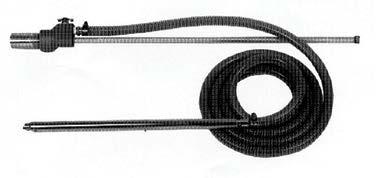

Drain Jetting
Our Commando high pressure jetters are the perfect tool for drain jetting and all the necessary associated items to get the job done are available directly from us.

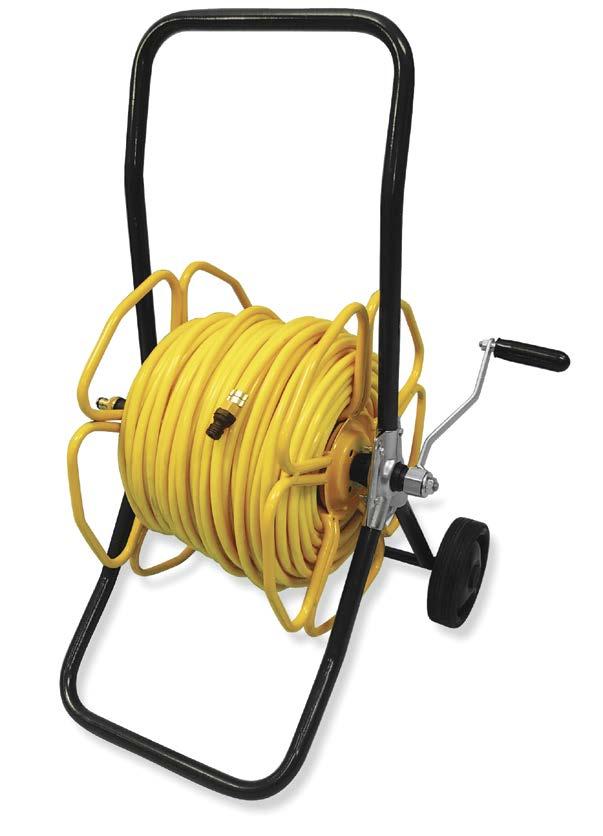

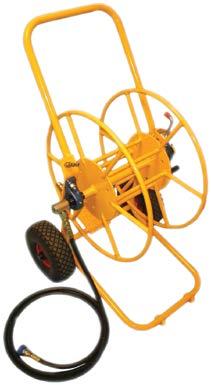

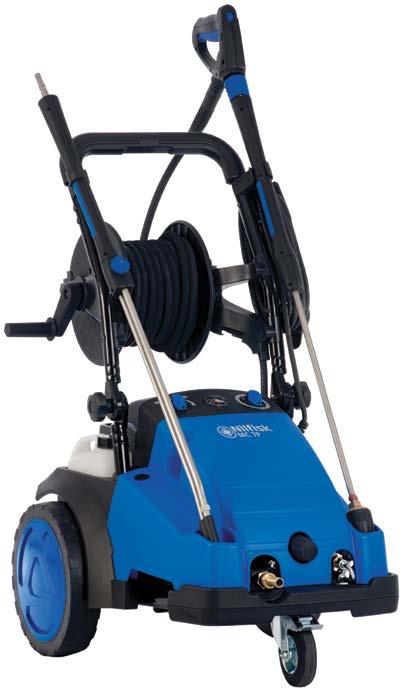

Pressure Washer Accessories

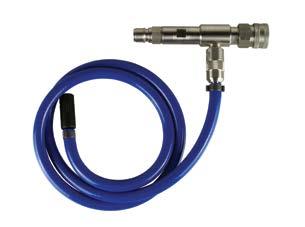

Chemical Application
Chemicals play an important part in almost all aspects of cleaning and the associated environment and it’s important to apply this valuable resource when and where it’s required to ensure maximum effectiveness and efficiency. Please ask for details with regard to chemicals and detergents.

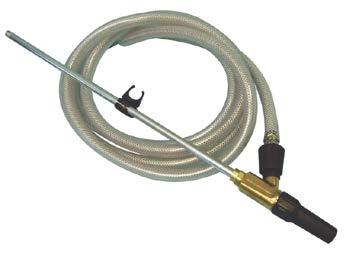

Sandblasting
Due to the versatility of the Commando Range sandblasting is another task that can be undertaken and due to Hugh Crane’s culture of serving the customer all the necessary accessories are available from us.
Please ask for details with regard to olivine grit.
Specialist Equipment
Sometimes the work environment dictates the only way a pressure washer can be used. Below are four items which help maintain a washer’s effectiveness.
Scrubber Dryers
3
Our hire range of scrubber dryers, include both battery and mains powered models. These provide a cost effective alternative to purchase for specialist one-off jobs whilst providing a consistently high standard of cleaning.
Questions to Consider
• What type of floor surface requires cleaning?
• Is chemical required as part of the process?
• What size is the area that requires cleaning?
• Does the area need sweeping first?
• Is access adequate for the desired machine?

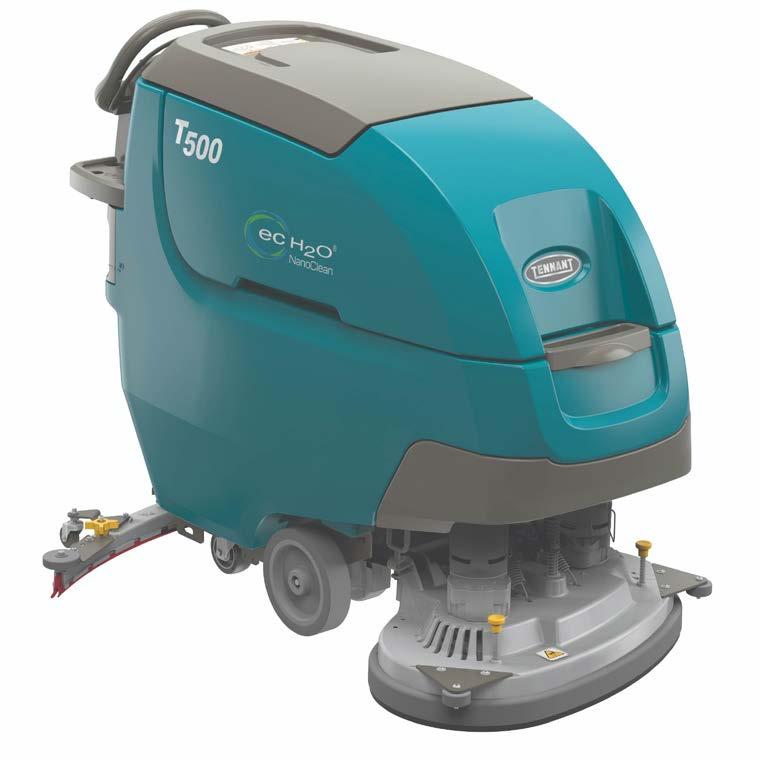

Scrubber Dryers

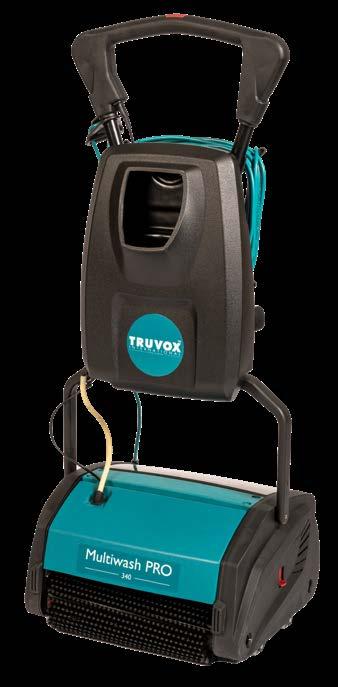

Walk-behind - Cable
HE301
Walk-Behind Cable Scrubber Dryer
Ideal for deep cleaning hard floors including tiles, nonslip, laminate & wood. Cleans in a single pass.
Scrubbing Width:
Scrubber Dryers
Walk-behind - Battery

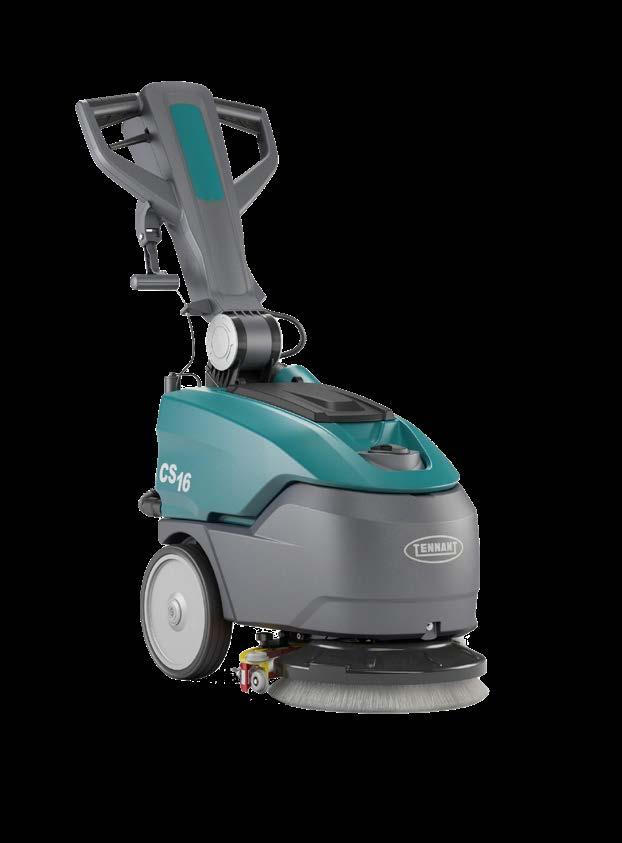

HE302
Compact Srubber Dryer
Our compact scrubber dryer is ideal for small area cleaning on hard floor surfaces. Simple operator controls make training and self-maintenance easy.
HE303
Medium Scrubber Dryer
Our medium scrubber dryer is ideal for small to medium area cleaning on hard floor surfaces. Simple operator controls make training and self-maintenance easy.
Cable Length: 12m
Dimensions: 390x450x1110mm
Weight: 26.5kg
Power: 24V
Scrubbing Width: 350mm
Solution Tank Capacity: 15L
Dimensions: 950x450x1200mm 36kg
Power: 24V (2x12V)
Scrubbing Width: 55-70cm
Run Time (approx): 150min
Solution Tank Capacity: 50-70L
Dimensions:
960x550x1200mm
Weight: 93kg
* Please refer back to page 7
* Please refer back to page 7
Scrubber Dryers
Walk-behind - Battery
HE304
Large Scrubber Dryer
Our large pedestrian, battery scrubber dryer is ideal for a range of situations including schools, factories and hospitals.
Power: 24V
Scrubbing Width: 70-100cm
Run Time (approx): 180min
Solution Tank Capacity: 70-90L
Dimensions: 1290x650x1030mm
Weight: 183kg
Scrubber Dryers
Ride-on - Battery

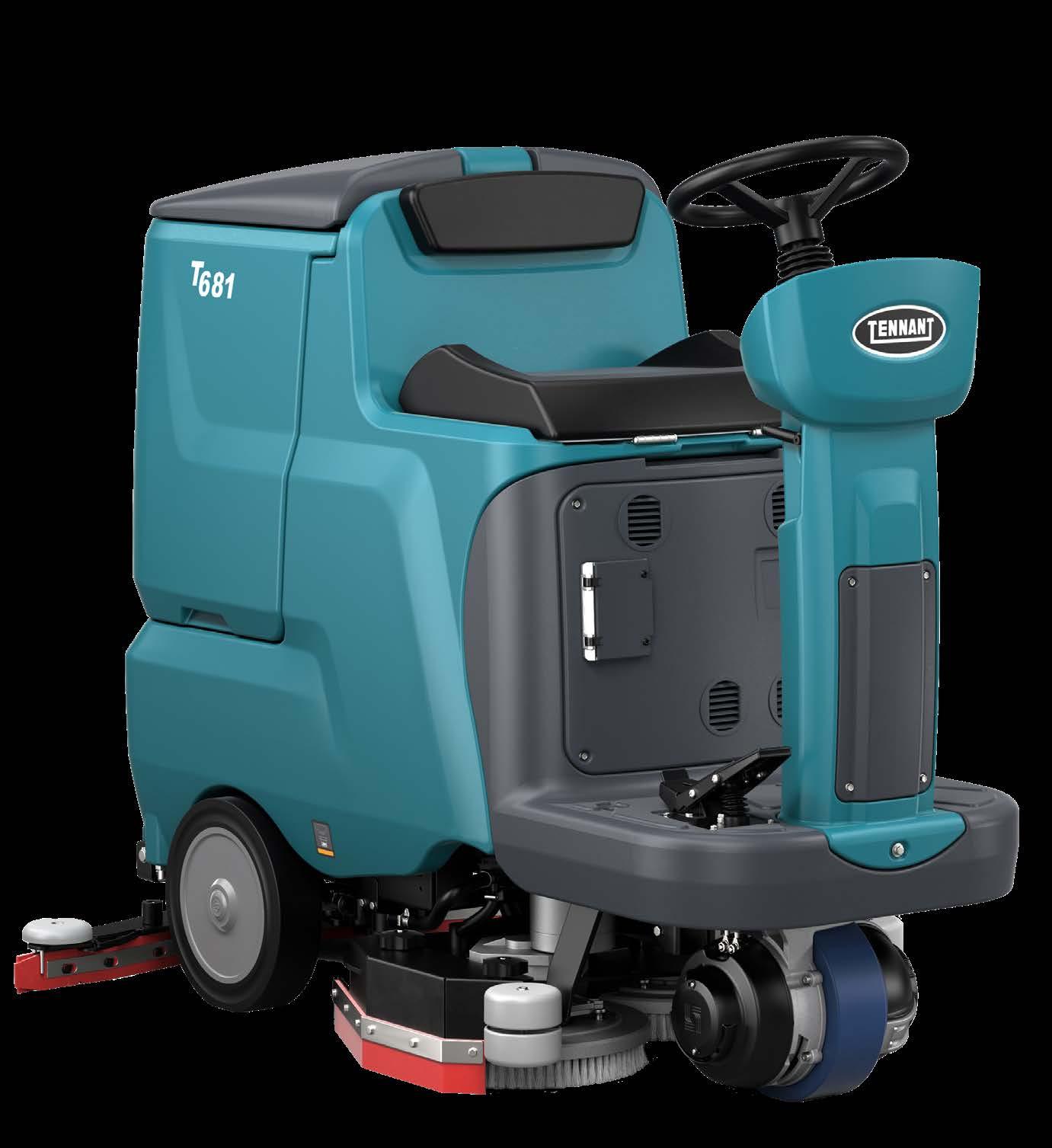

HE305 Medium Scrubber Dryer
Ideal for medium to large areas of hard floor cleaning with large tanks and long run times.
Power: 36V
Scrubbing Width: 70-90cm
Run Time (approx): 300min
Solution Tank Capacity: 120-160L
Dimensions: 1720x1010x1360mm
Weight: 705kg
* Please refer back to page 7
* Please refer back to page 7
Scrubber Dryers
Ride-on - Battery

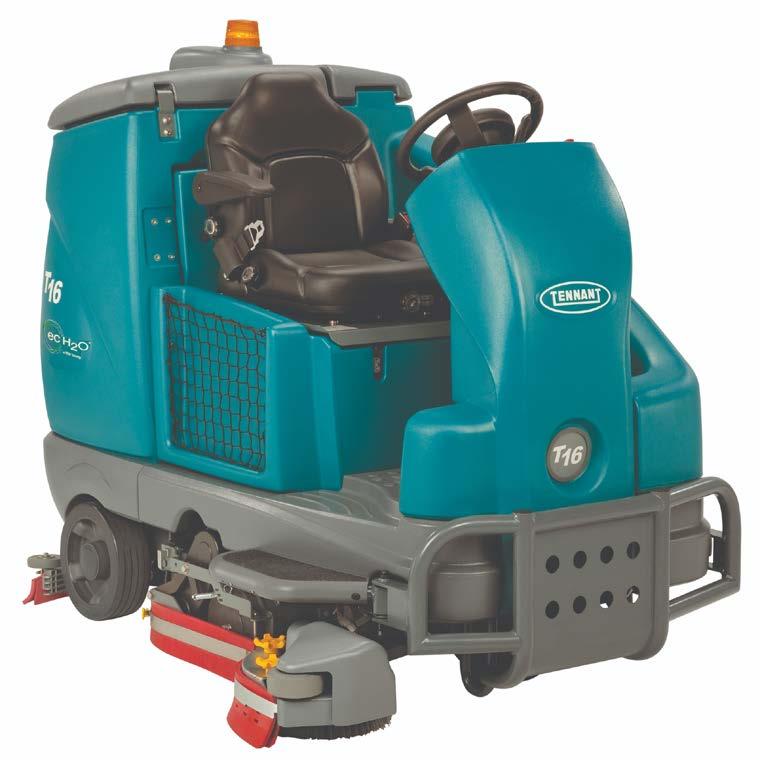

HE306
Large Scrubber Dryer
A high capacity ride on scrubber dryer for large areas of floor cleaning. Maximum tank size and run times.
Power: 36V
Scrubbing Width: 80-90cm
Run Time (approx): 300min
Solution Tank Capacity: 190L+
Dimensions: 1880x1040x1475mm
Weight: 860kg
* Please refer back to page 7
Scrubber Dryer Accessories

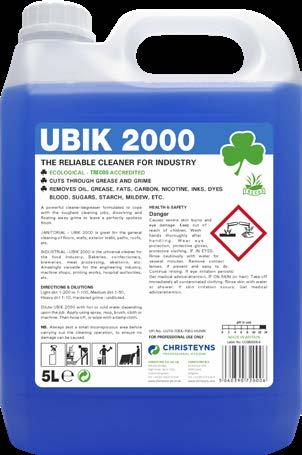

UBIK 2000 Low Foam Detergent
03XXUBIK20005L
A detergent with a blend of emulsifiers for the removal of dirt, oil and grease from non-permeable surfaces.

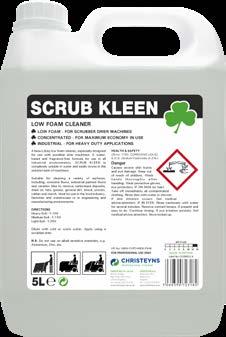

Scrubkleen Low Foam Detergent
03XXB-KLEEN
A heavy duty low foam cleaner, especially designed for use with scrubber drier machines.

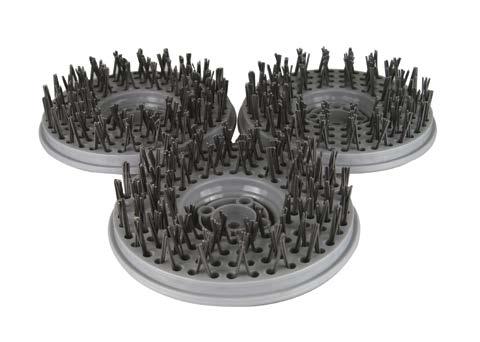

Scrubber Dryer Pads
All sizes available
Our floor cleaning pads are colour coded for easy identification and give superior performance on both conventional or high speed machines.
Scrubber
Sweepers
Our range of sweepers are selected to provide you, the customer with the greatest amount of scope for tackling your needs. From grain stores to car parks our team can provide you with the equipment and information to get the job done.
Questions to Consider
• What are you sweeping up?
• What is the size of the area to be swept?
• Is the work internal or external?

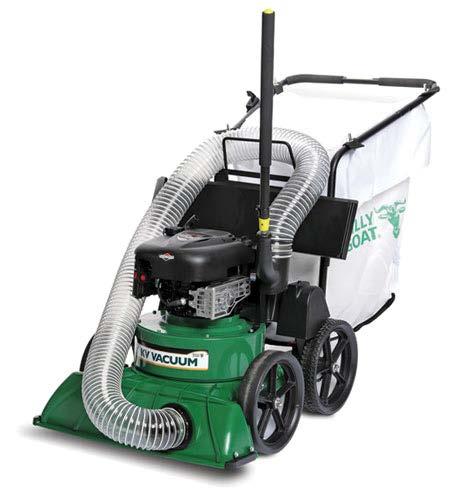

HE401
Billy Goat Leaf Vacuum
The Billy Goat is perfect to hire short term for the removal of autumn leaves it’s a self-propelled leaf & litter vacuum and offers powerful suction and easy operation for the cleanup of leaves, grass, seeds, mulch, blooms, branches, litter and debris.
Suction width: 26.7”
Engine power: 6.5HP
Bag capacity: 180L
Air Flow: 1700cfm
Noise Level: 89dB(A)
Weight: 58.9kg
Dimension: 1500x700x1100mm
Sweepers Walk-behind

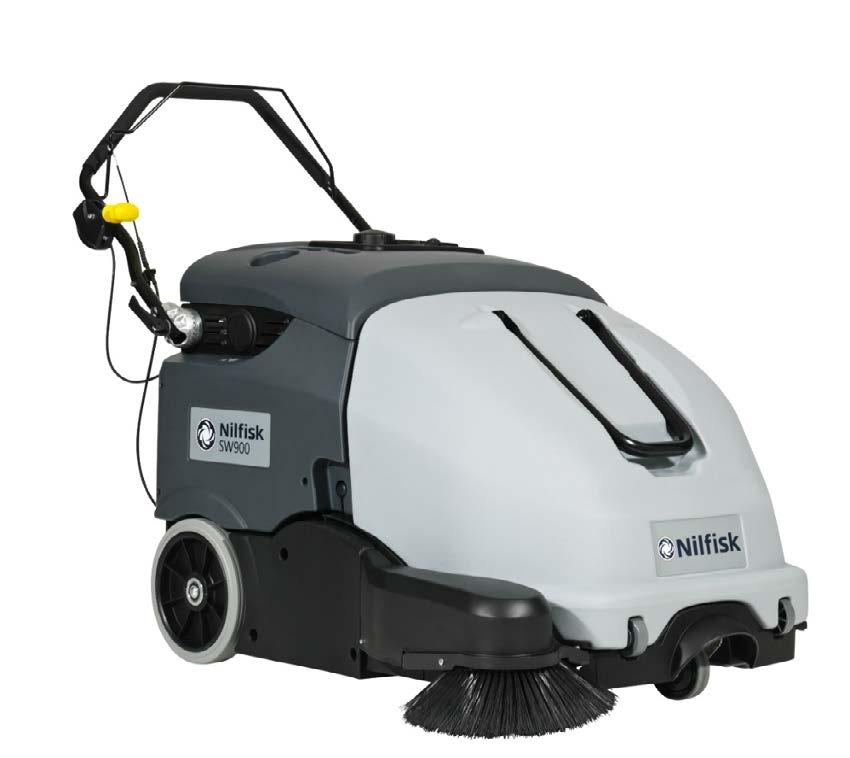

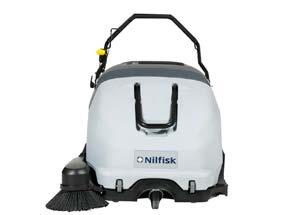

HE402
Battery Walk-Behind Sweeper
A battery powered walk-behind, self-propelled sweeper. With side brush & dust suppression.
Power: 24V Battery
Cleaning Width: 825mm
Productivity: 4900m²/h
Bin Capacity: 60L
Dimensions: 1390x870x1100mm
Weight: 143kg
£99
£50
£145
£198
Hire*
£50 pcm
£117
£58 Weekend
£232 Contract Hire*
£161 pcm
* Please refer back to page 7
Compact Ride-on Sweeper
A productive, compact, batterypowered sweeper that is easy to operate and maintain. Effectively clean a variety of light- to medium-duty indoor and outdoor environments.
Sweeping
Hopper Capacity:
Dimensions: 1610x900x1210mm
Weight: 258kg (without batteries)
* Please refer back to page 7

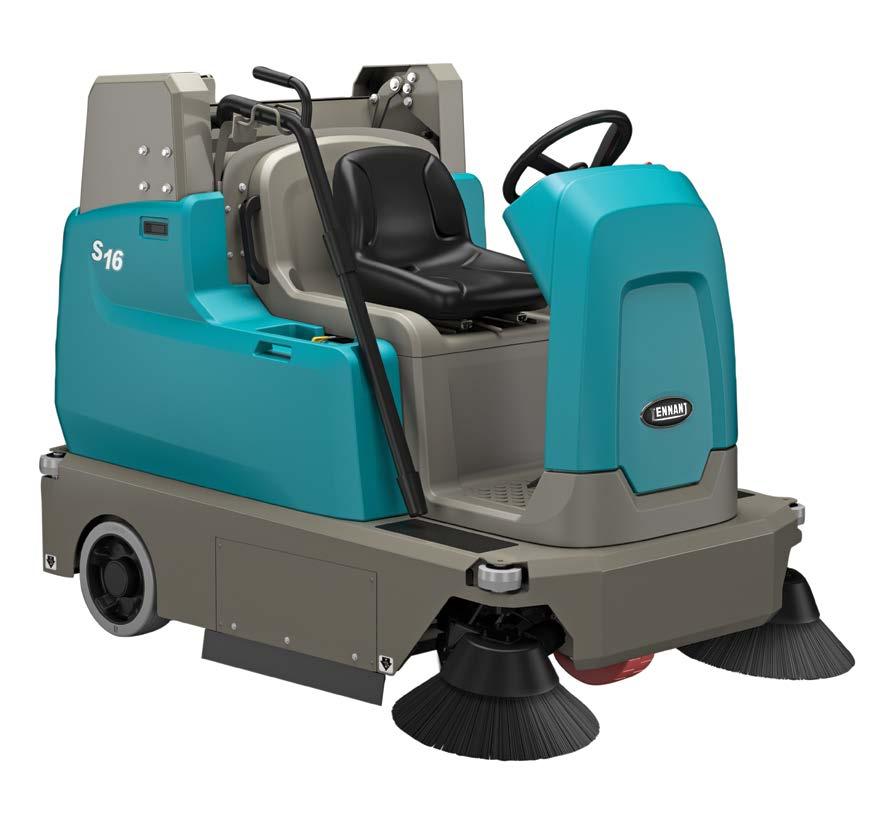

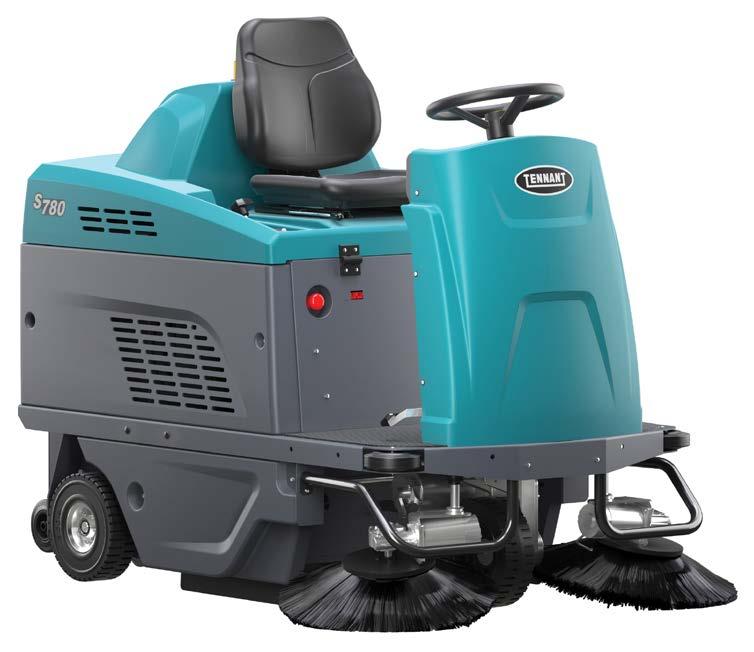

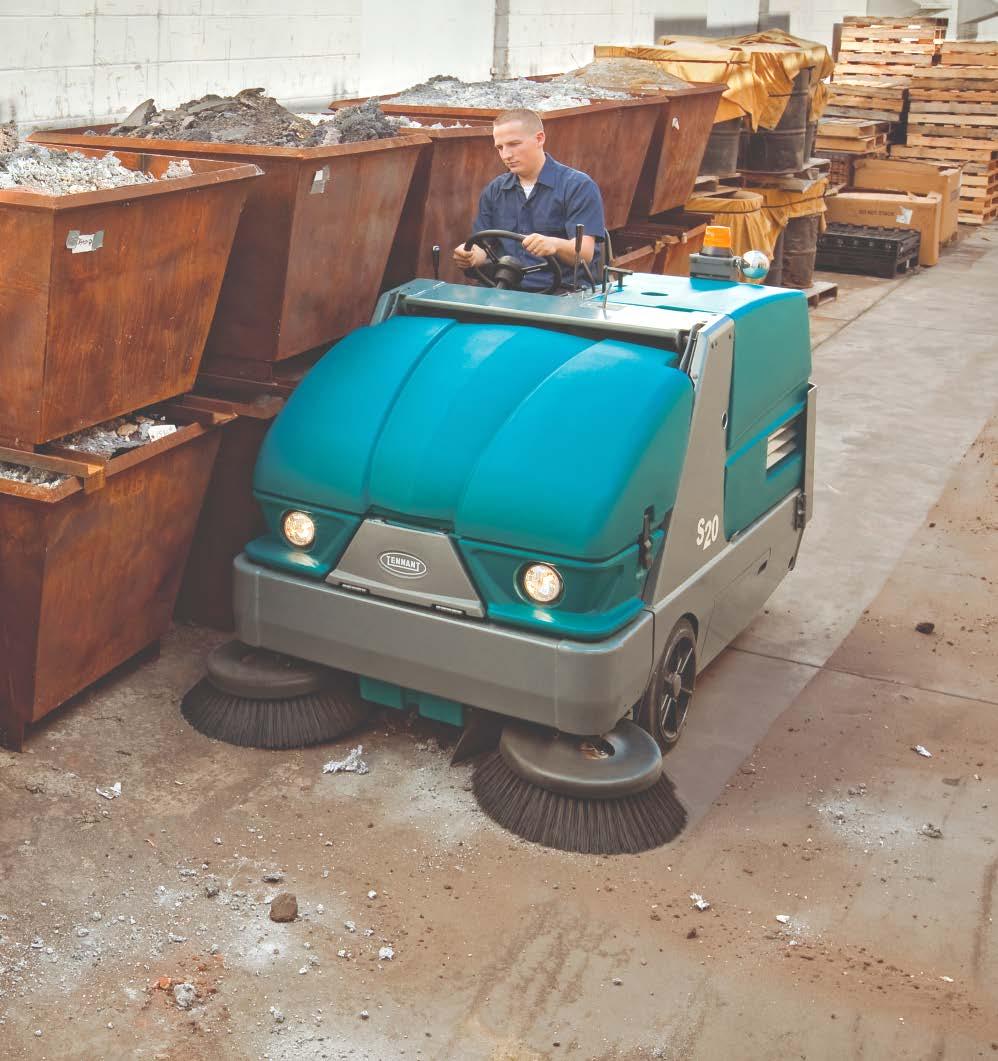

Medium Ride-on Sweeper
Providing big productivity and versatility in a compact, batterypowered ride-on sweeper, the sweeper delivers exceptional sweeping performance across a variety of surfaces and debris types.
Power: Battery 36v
Sweeping Width: 110-120cm
Hopper Capacity: 70-100L
Dimension: 1810x1650x1500mm
Weight: 880kg
Please refer back to page 7

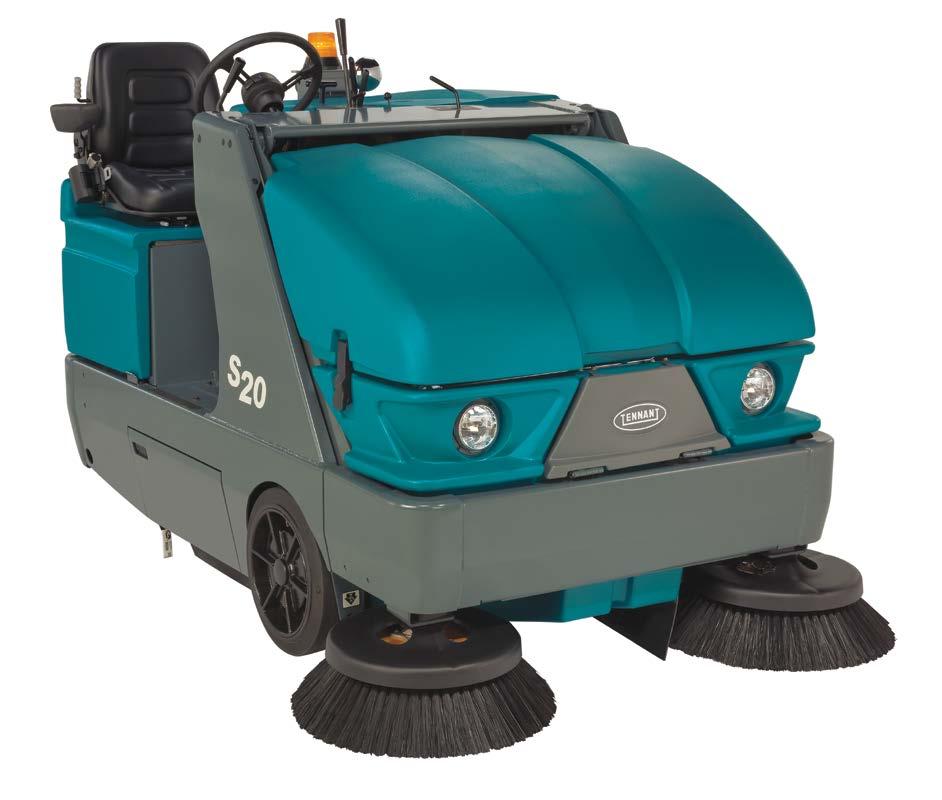

Large Ride-on Sweeper
High performance, large capacity sweeper with 300L + hopper, 150cm + sweeping width and rear steer for tight radius turns. The ideal machine for warehouses, car parks & factories.
Power: Battery
Cleaning Width: 1575mm
Bin Capacity: 310L
Dimensions: 2090x1230x1260mm
Weight: 1500kg
Please refer back to page 7
collection, delivery by Hugh Crane only.
Carpet Cleaners
Our range of carpet cleaners allows comprehensive deep cleaning of carpets and fabric flooring for total coverage or stain spotting.
Questions to Consider
• What type of carpet requires cleaning?
• What is the size of area that needs cleaning?
• Is there adequate electrical supply for the whole area?
• Is chemical required?
• Do I need specialist accessories?
• Do I need a room dryer?

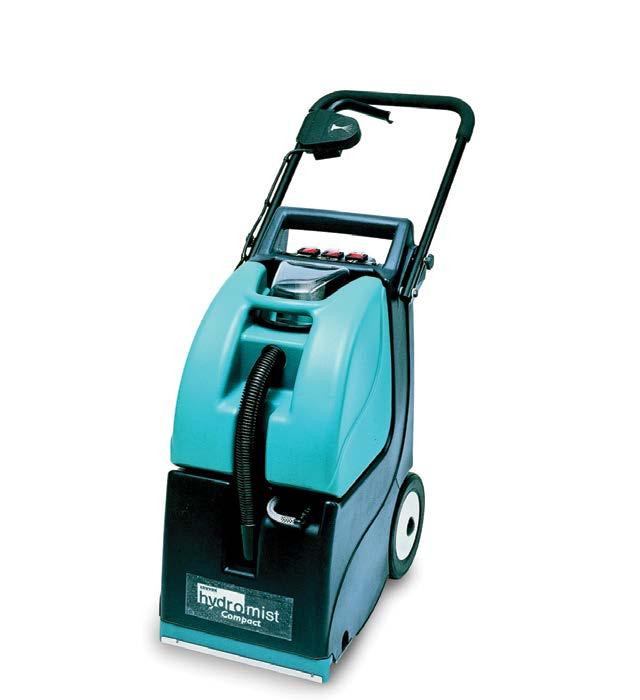

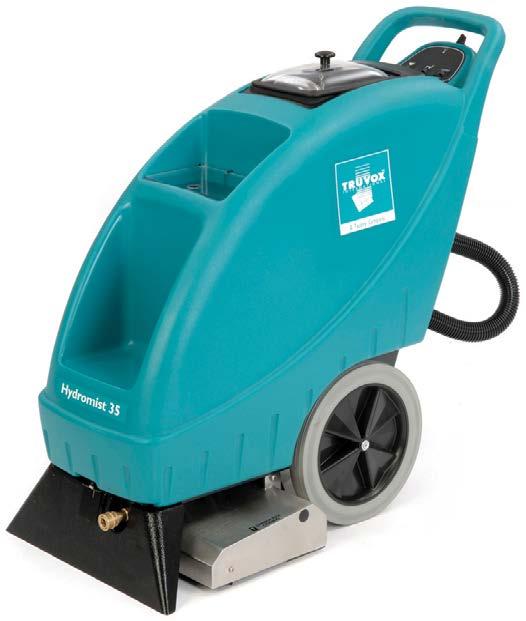

HE502
Large Walk-Behind Carpet Cleaner HE501 Compact Walk-Behind Carpet Cleaner
An all in one spray, brush and extraction machine for deep cleaning of carpets and upholstery, small, compact and easy to use in domestic and light commercial situations.
Power: 240V mains supply
Weight: 22.5kg
Dimensions: 540x360x870mm
Brush Width: 245mm
Solution Tank Capacity: 14L
Recovery Tank Capacity: 11.5L
Cable Length: 12m
Standard Equipment: Hand-held hose and tool kit (available on request)
An ideal machine for cleaning medium sized carpeted areas in places such as offices, schools, shopping centres and other high traffic areas.
Power: 240V mains supply
Weight: 47kg
Dimension: 930x470x880mm
Brush Width: 450mm
Air Flow: 42.5L/sec
Solution Tank Capacity: 35L
Recovery Tank Capacity: 35L
Standard Equipment: (As seen)
* Please refer back to page 7

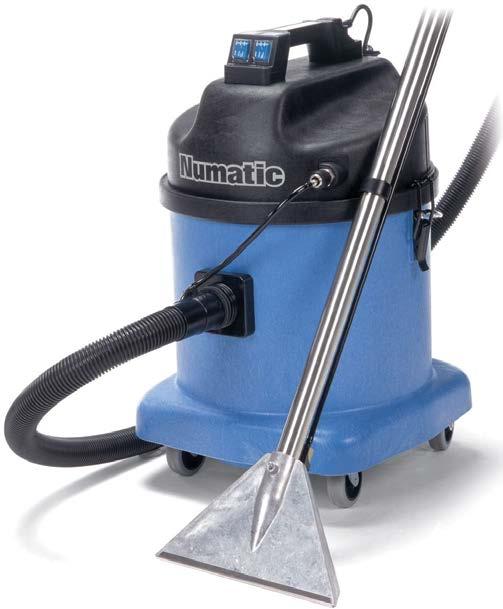

Professional Hose & Wand
Carpet Cleaner
One of the industry’s most popular extraction machines. Its compact, simple but tough design allows for hours of arduous use.
Power: 240V mains supply
Weight: 18kg
Dimensions: 415x415x630mm
Air Flow: 80L/sec
Suction Length: 2500mm
Tank Capacity (dry): 23L
Tank Capacity (wet): 15L
Standard Equipment: Carpet and upholstery kit
HE504

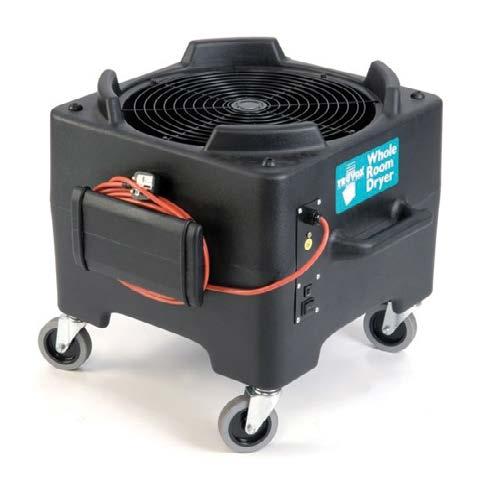

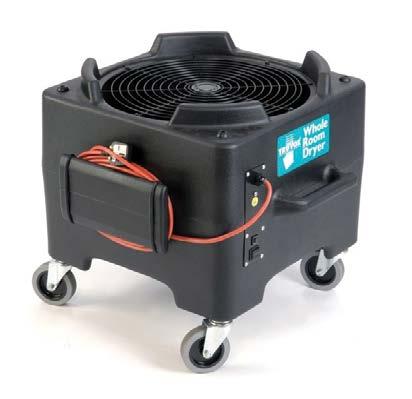

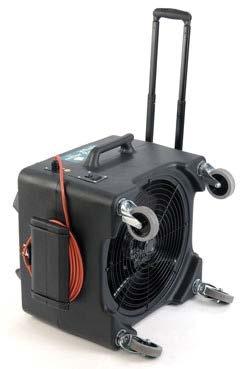

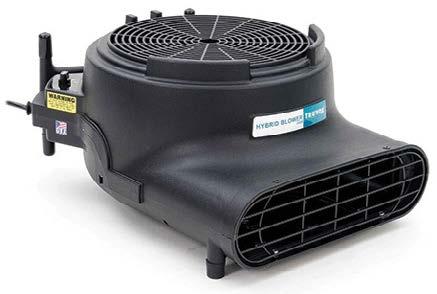

Room Dryers
Our carpet blowers and whole room dryers provide powerful air movement for fast, complete and controlled drying of carpets, fine rugs, hard wood floors, upholstery, use after fire, flood, water damage, or just general air circulation.
Power: 240V mains supply
Weight: 8kg
Dimensions: 495x444x495mm
Air Flow: 3500 FPM
Standard Equipment:
3 speed switch, carrying handle & wheels; 25m electrical cable.
Carpet Cleaner Accessories

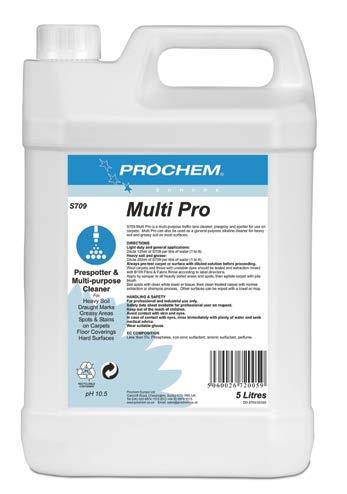

Multi Pro
Pre-Spray
03PRMULTIPRO5L
A general purpose pre-spotter and traffic lane prespray for carpets.

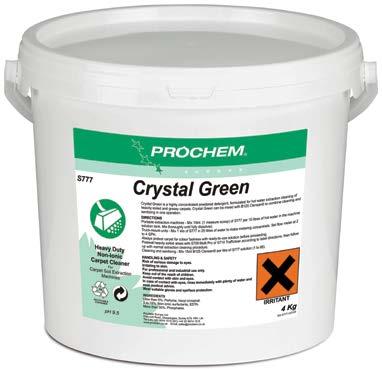

Crystal Green Powdered Detergent
03PRS777-04
A concentrated powdered detergent, formulated for water extraction cleaning of soiled and greasy carpets.

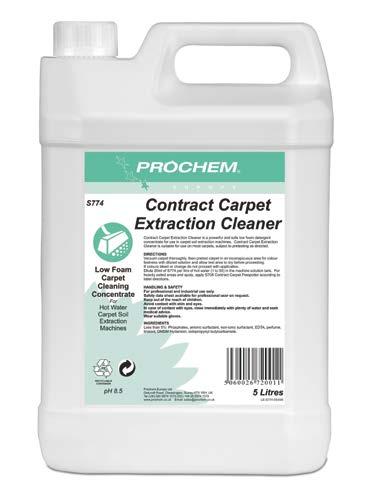

Contract Carpet Extraction
Cleaner
03PRS77405
A powerful, safe and economical low foam detergent concentrate for use in carpet soil extraction machines.

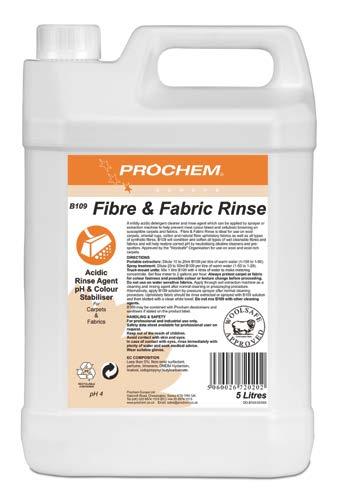

Fibre & Fabric Rinse
03PRFABRICR5L
Acidic extraction rinse agent or post spray for neutralising alkaline pre-sprays, stabilising colours and preventing browning.

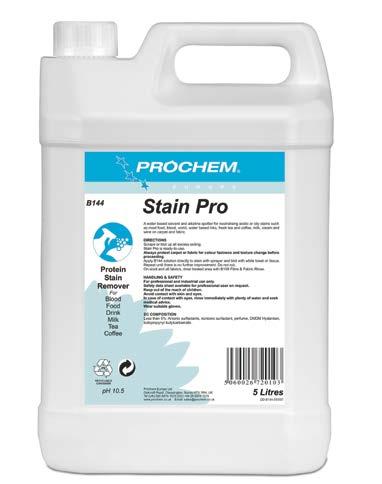

Stain Pro
03PRSTAINPROGP
Heavy duty water and solvent based alkaline protein spotter for blood, vomit, wine and ink.

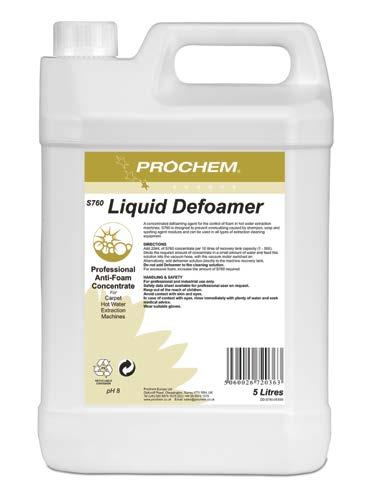

Liquid Defoamer
03PRDEFOAMER5L
Anti-foam concentrate for extraction machine recovery tanks, powerful silicone emulsion to counteracts foam from previous shampoo.

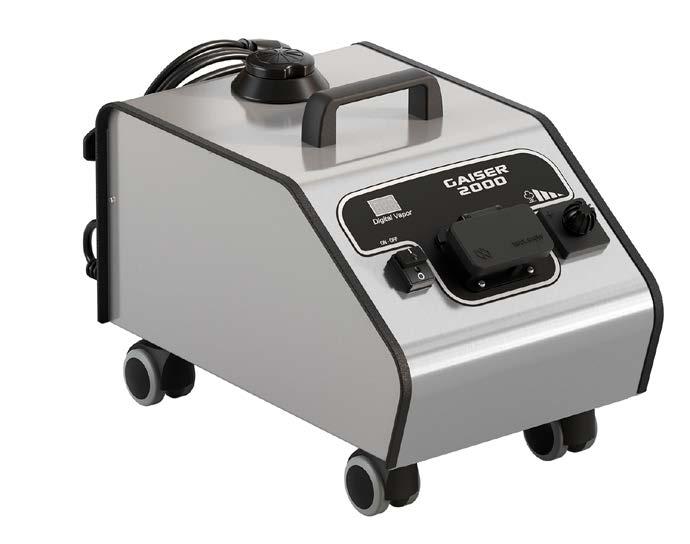

240V - Steam Only
HE601
Portable Dry Steam Cleaner
The best commercial compact dry steam cleaner in the range. Incorporating a hot water injection system to flush out dirt from hard to reach areas at the push of a button.
This dry steam cleaner cleans, sanitises and reduces contamination and bacteria on a wide variety of surfaces and is particularly useful in the healthcare, hospitality, food manufacturing and processing industries.
Power: 230V
Boiler Max Power: 3200W
Boiler Capacity: 1.5L
Cold Water Tank: 2L
Max operating pressure: 6bar
Empty Weight: 7.5kg
Dimensions: 460x350x310mm
Standard Equipment:
Connection hose with steam control; 3 x nozzles; ring brush; corner brush; steam lance; insulated extension pipe
HE602
High Performance Dry Steam Cleaner
The most powerful single phase dry steam unit in the range, producing steam at 180°C at 8bar working pressure, this sturdy steam cleaning machine runs continuously via the use of its refill tank which is very useful for lighter commercial cleaning tasks.
Power: 240V
Pressure: 8bar/116psi
Max Temperature: 180°C
Tank Capacity: 5L
Weight: 18kg
Dimension: 460x380x460mm
Standard Equipment:
Connection hose with steam control; 2 x extension tubes; steam lance; rectangular tool; corner tool; glass cleaner tool
* Please refer back to page 7
Dry Steam Cleaners
240V - Steam & Vac

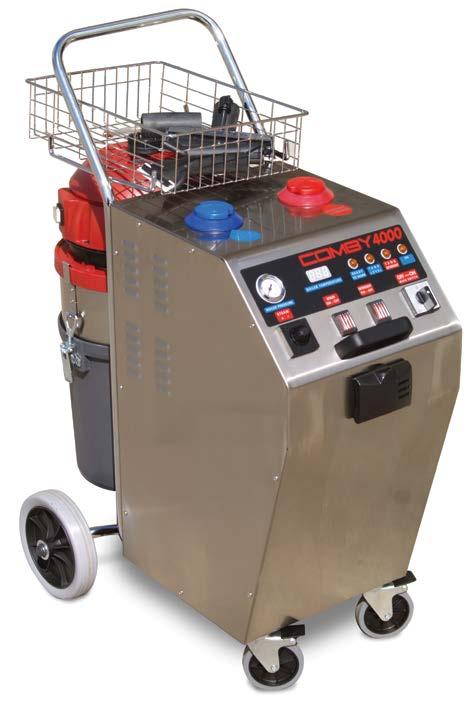

High Performance Dry Steam & Vac Cleaner
The most powerful single phase, all-in-one steam cleaner in the range, with an attached wet/dry vacuum. This machine is ideal for cleaning indoors and vehicle interiors. Vacuums, cleans, sterilises and deodorizes all at the same time.
Power: 240V
Pressure: 8bar/116psi
Max Temperature: 180°C
Tank Capacity: 5L
Weight: 38kg
Dimension: 750x380x700mm
Standard Equipment: Connection hose with steam control; 2 x extension tubes; steam lance; floor tool; 3 x brushes
Dry Steam Cleaners
415V - Steam Only

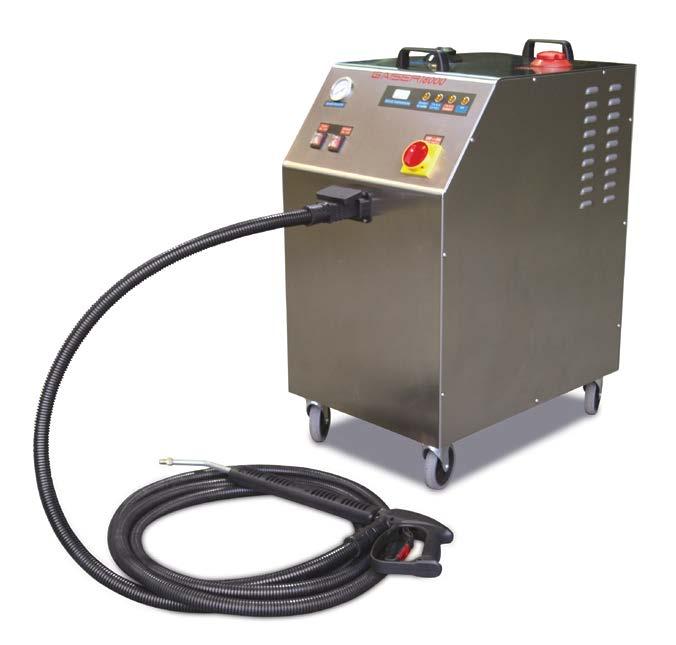

HE604
High Performance Dry Steam Cleaner
* Please refer back to page 7
The largest heavy duty industrial 3 phase model in the range. With a twin boiler design running on 18000w producing steam at 180°C and 8bar pressure. This steam cleaner is used in many applications including food sectors, engineering, healthcare and the leisure industry.
Power: 415V
Operating Pressure: 8bar/116psi
Max Temperature: 180°C
Boiler Capacity: 4.8L
Weight: 60kg
Refill Tank: 20L
Detergent Tank: 5L
* Please refer back to page 7
Dimension: 650x450x700mm
Dry Steam Cleaner Consumables

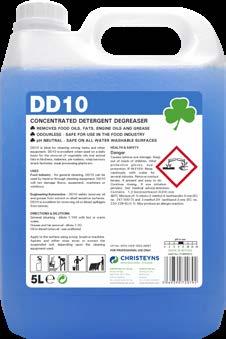

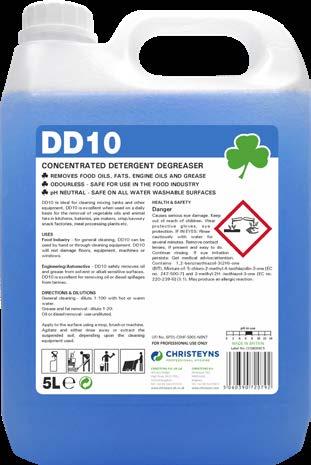

DD10 Low Foam
Detergent
03XXDD10
A detergent with a blend of emulsifiers for the removal of dirt, oil and grease from nonpermeable surfaces.
Ubik 2000 Degreaser Concentrate
03XX/UBIK2000/5L
A universal cleaner and degreaser concentrate, designed to dissolve and float away the toughest grime and leave a spotless finish.

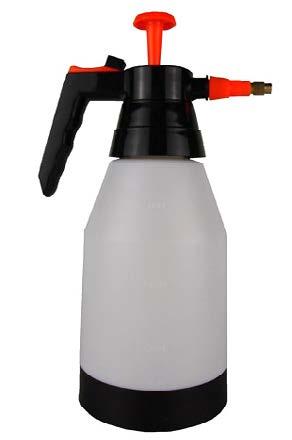

1.5L Eco Sprayer
HC90076
This trade approved compression sprayer is a technically advanced device for spraying large quantities of liquid.
Box of Nitrile Gloves
HC97160GP
These gloves are powder and latex free and are the ideal choice from food handling to engineering. Box of 100.

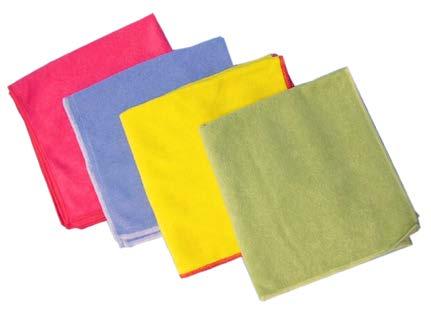

Microfibre Cloths
HC99944GP
Microfibre cloth for heavy duty jobs made from high-quality material. Resistant against frequent commercial wash cycles.

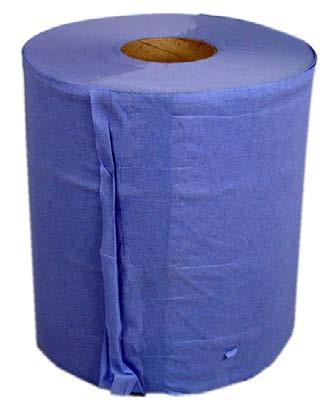

Blue Towel Roll
HC98014
This paper is used due to its versatility in a large number of environments. It is strong and absorbent

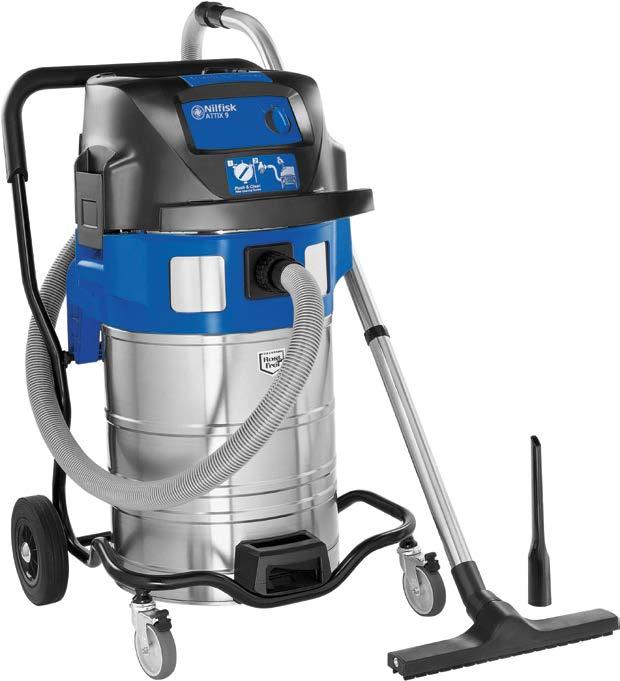

Vacuum Cleaners
The Hugh Crane (Cleaning Equipment) Ltd’s fleet of vacuum cleaners collectively have the versatility to undertake a wide spectrum of cleaning tasks. From commercial wet and dry vacuums to the largest triple motor vacuums, there’s something here to help get the job done.
Questions to Consider
• What material is being vacuumed up?
• Is it hazardous?
• Are bags required?
• Is electrical supply available and adequate?
HE701
Standard Wet & Dry Vacuum Cleaner
A vacuum cleaner excellent for continuous use applications with its filter cleaning system and large capacity bag.
Power: 2500W
Voltage: 240V
Wet/Dry: Both
Weight: 28kg
HE702

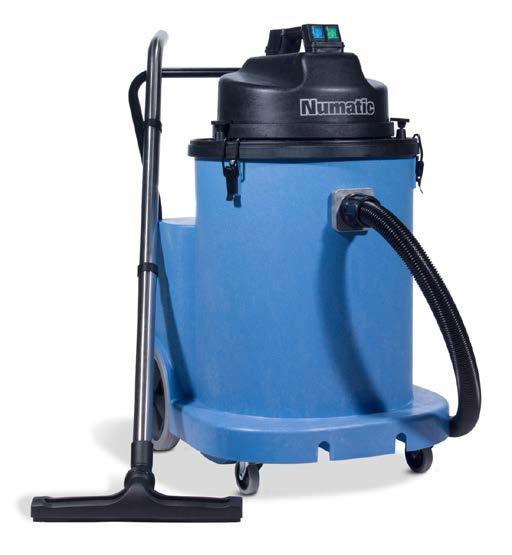

Heavy Duty Wet & Dry Vacuum Cleaner
The twin-motor driven vacuum cleaner is designed to withstand demanding industrial wet and dry applications for daily cleaning of heavy debris, liquids or fine dust.
Air
Bin
2880L/min
75L Class: L
Power: 2 x 1500W
Voltage: 240V
Wet/Dry: Both
Weight: 30kg
Dimensions: 580x600x970mm
Air Flow: 2 x 3600L/min
Bin Capacity: 70L
Class: L

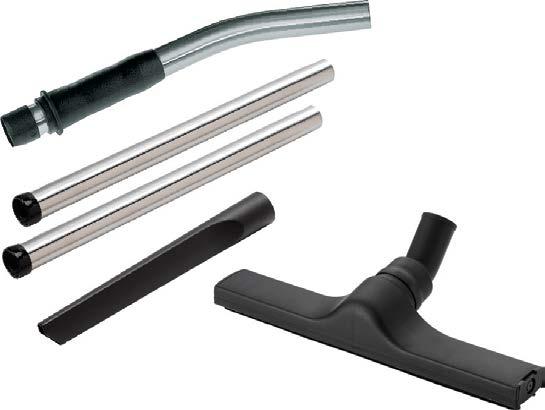

Standard Equipment: Machine tool kit
Industrial Wet & Dry 240V Vacuum
A heavy duty wet and dry vacuum cleaner and the largest machine in our vacuum cleaner range. The robust design makes it suitable for heavier duty tasks.
Power: 3000W
Voltage: 240V
Wet/Dry: Both
Weight: 71kg
Dimensions: 800x600x1580mm
Air Flow: 135L/sec
Bin Capacity: 100L
Class: L
Standard Equipment: Machine tool kit
HE704

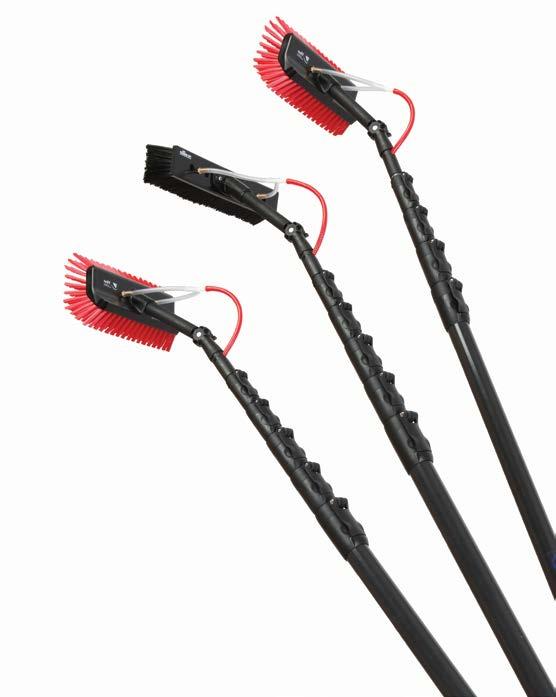

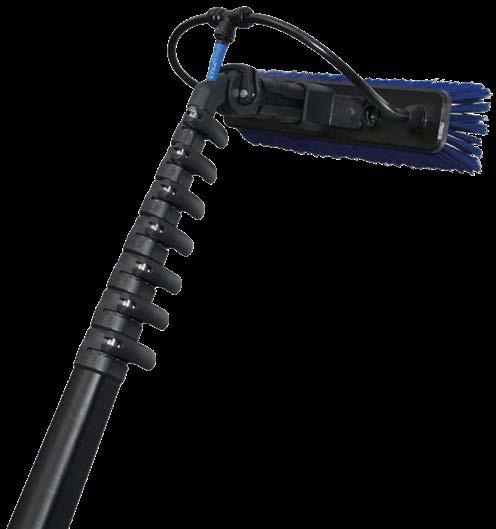

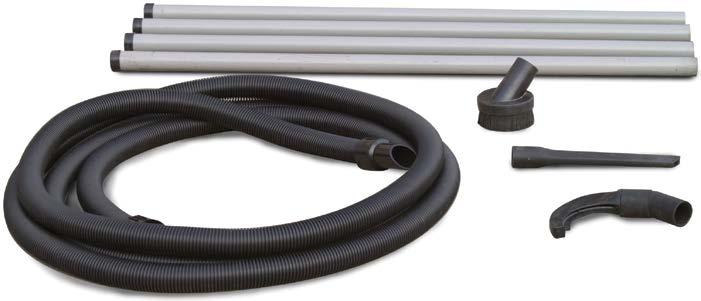

Gutter Vacuum Kit
This includes a vacuum and an 8 pole carbon fibre high reach kit with attachments to reach a height of 13.5m.
Motor: 2400W
Power: 230V
Airflow: 80l/s
Capacity: 40L
Weight: 25kgs
Dimensions: 800x490x880mm * Please refer back to page 7
ATEX Vacuum Cleaners

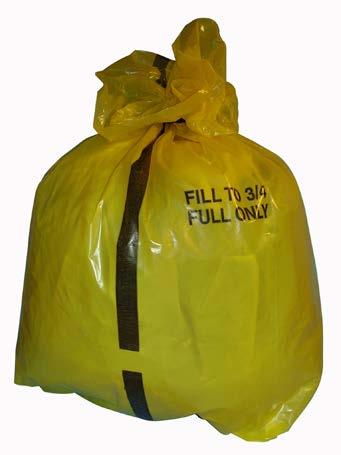

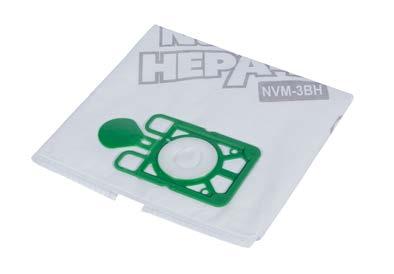

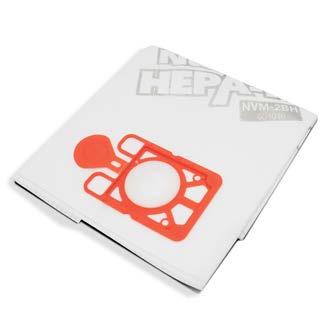

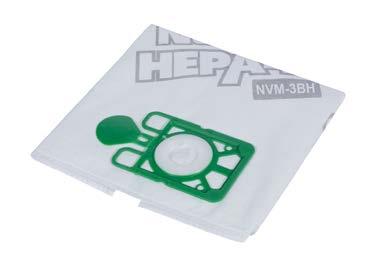

Vacuum bags must be used and are charged at an additional cost. A decontamination charge will also apply if used to clean up particular wastes. Please ask before hiring.
HE705

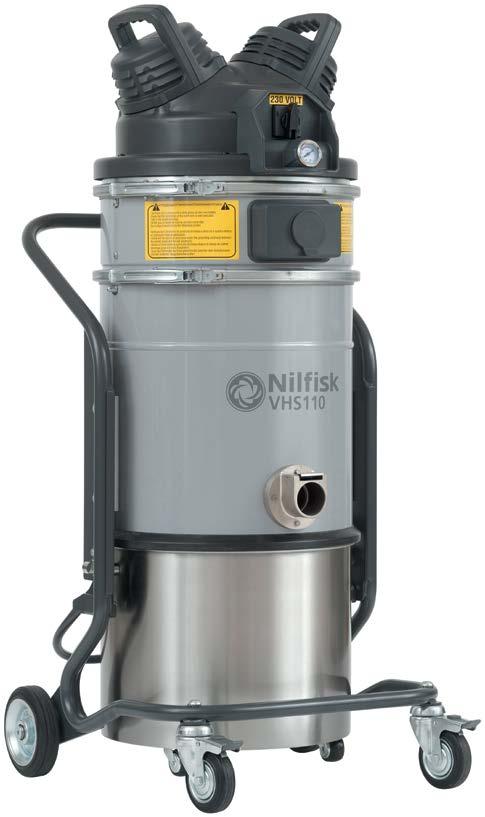

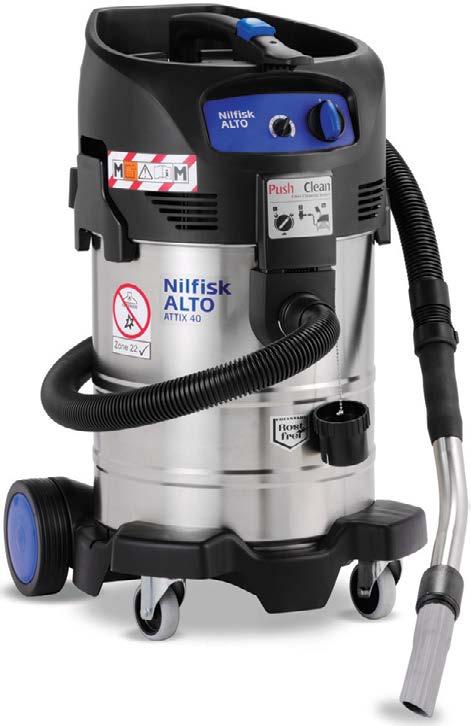

Portable ATEX Vacuum 240V
Designed and certified for use in Zone 22 ATEX environments and at only 13kg is ideal for facilities looking for a mobile ATEX vacuum for use in confined areas and over multiple floor levels.
Zone Rating: 22
Power: 1400W
No. of Motors: 1
Voltage: 240V
Air Flow: 3200L/min
Tank Capacity: 37L
Noise Level: 60dB(A)
Dimensions:
450x440x735mm
HE706
Large Capacity ATEX Vacuum
110/240V
An innovative single phase industrial vacuum cleaner suitable for ATEX Z22 locations.
Zone Rating: 22
Power: 1000W
No. of Motors: 1
Voltage: 110V
Air Flow: 3400L/min
Tank Capacity: 37L
£95
£48
£137
£191 Contract Hire*
£67 pcm
* Please refer back to page 7
Weight: 13kg
* Please refer back to page 7
Noise Level: 76dB(A)
Dimensions:
560x570x1240mm
Weight: 42kg
Vacuum Cleaners Accessories
Accessories
Each vacuum hired will have a choice of kit with it, the standard will be determined by the vacuum itself but you must specify if you are doing wet or specialist work. There is an additional charge stated below for extension or specialist kits.
Standard Kit
HA701
Equipment that comes as standard with the vacuum (free of charge).
Wet Kit
HA702
Equipment that comes as standard changed for wet applications (usually the filter and floor tool).

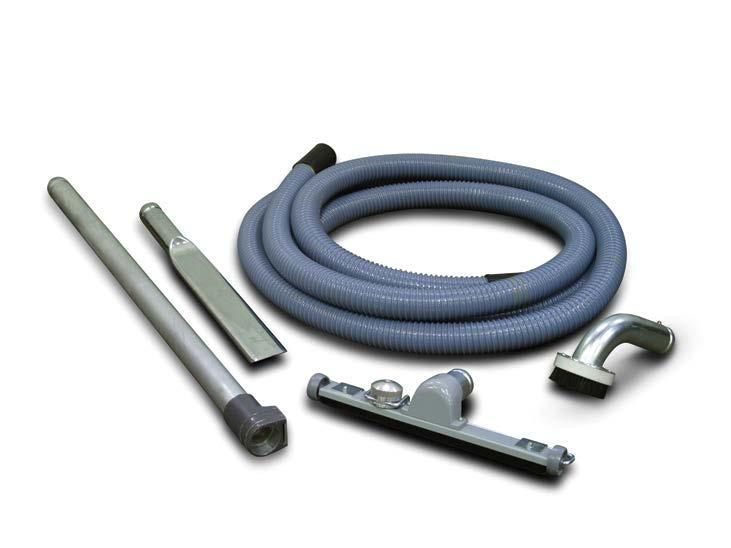

Extension/Specialist 38mm Kit
HA703
Used for inaccessible high areas such as grain stores or church ceilings. It comes with:
• Extension hose
• Four extension tubes
• Crevice tool
• Round brush
• Pipe brush
Extension/Specialist 50mm Kit
HA704
For vacuuming various objects such as high beams; pipes and inaccessible areas, tools include:
• Extension hose
• Upholstery nozzle
• Crevice tool
• Round brush
• Rubber gulper
• Stainless steel scraper tool
Vacuum Bags
Need bags? We stock a wide range for all our hire equipment.
Box of Nitrile Gloves
HC97160GP
Waste Bags
Ear Protection
Defend your ears from excessive noise pollution with our quality ear protection range.
These gloves are powder and latex free and are the ideal choice from food handling to engineering. Box of 100.
Our refuse sacks come in various gauges, sizes, amounts and colours.
Respiratory Masks
Protect against the inhalation of dusts, chemicals and substances by using products from our respiratory range.
Breathable Disposable Coveralls
Coveralls, for particle and splash protection, protection head to toe, without bulky, thick layers.
Pure Water Window Cleaning Systems
Our range of pure water high access window cleaning equipment provides the complete solution from water production to extension poles and brushes.
Questions to Consider
• Internal or external window cleaning?
• How high are the windows that require cleaning?
• How much water is required?
• How close are the furthest windows to the nearest access point?

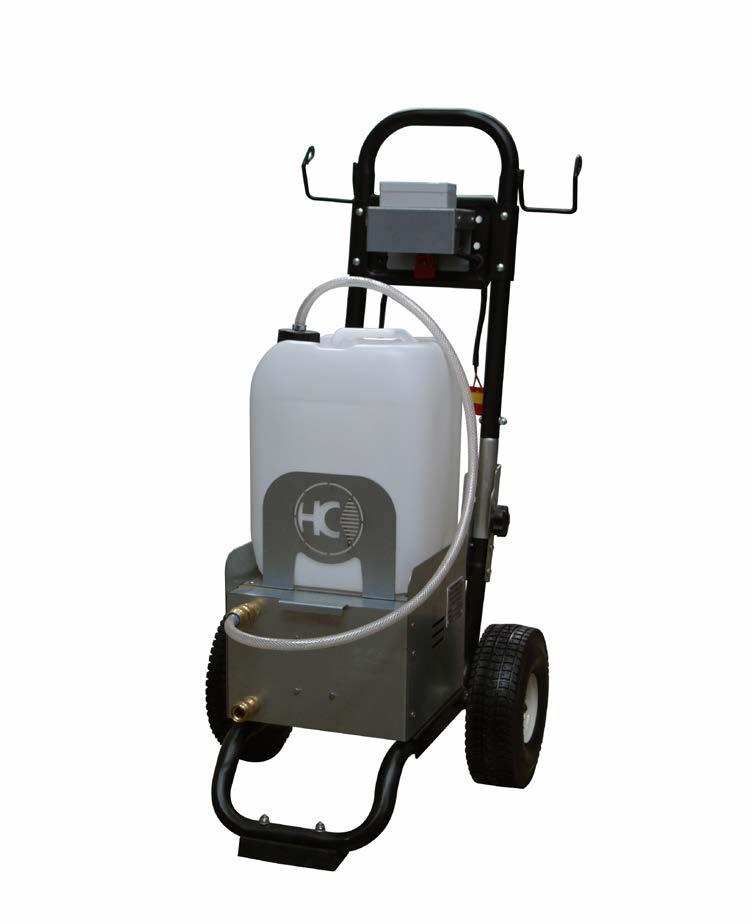

HC Pure Water Trolley & Pole Kit
A battery powered portable 25L pump trolley with integrated battery and flow controller. Complete with pole & brush.
Power: Battery
Weight: 20kg
Dimensions: 600x530x1000mm
Pump Pressure: 6.8bar/100psi max
Hose Length: 30m max
Standard Equipment: Pneumatic tyres; Fold down handle 03HC1004, 03HC1005,

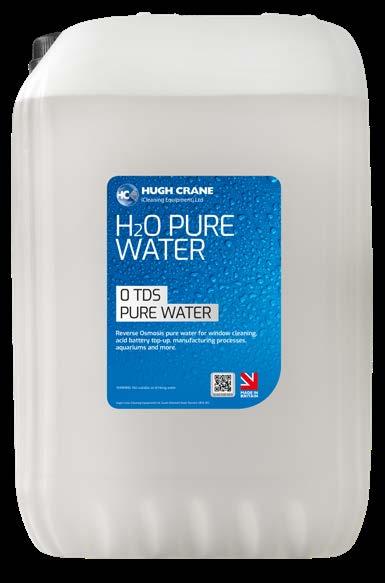

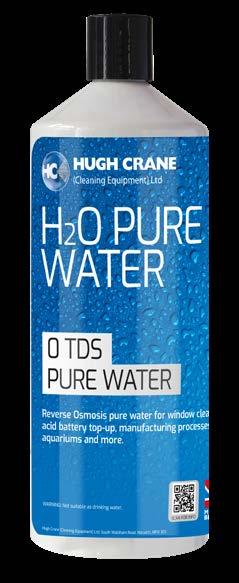

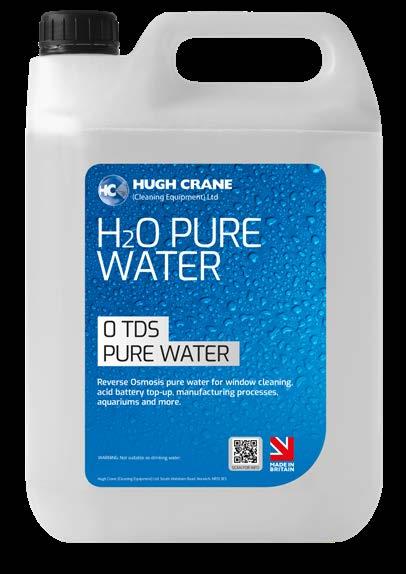

Pure Water
Buy your pure water for window cleaning in 1L, 5L, 25L and by the litre.
03HC1004
Pure Water Window Cleaning Systems

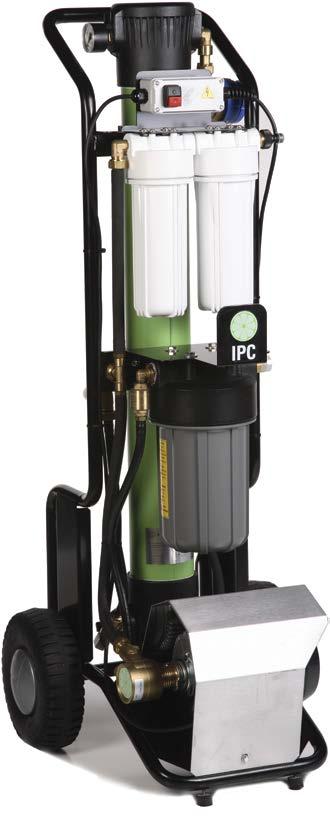

High Pure HPE
An electrically powered pure water trolley is a complete pure water making system it contains four different processes meaning 100% pure water is capable of being produced.
Power: 240V
Weight: 45kg Dimensions:
HE803

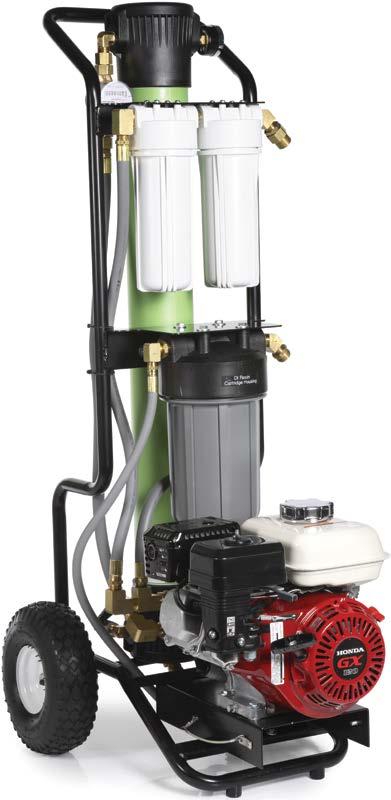

High Pure HPG
A petrol powered pure water trolley is a complete pure water making system it contains four different processes meaning 100% pure water is capable of being produced.
Power: Petrol
Weight: 49kg
Dimensions: 530x670x1270mm Pump Flow: 3-7 L/min Pump Pressure: 7-8bar/100-116psi
* Please refer back to page 7
* Please refer back to page 7
HE804

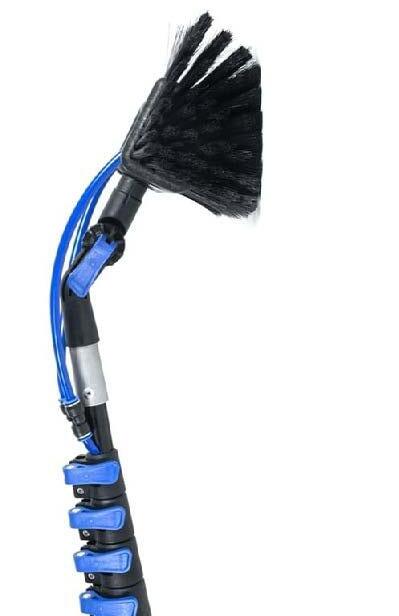

Carbon Fibre
Telescopic Poles
Our range of poles provide the answer when users need an additional pole for higher access work or for an additional user. This 34ft pole provides an extra 10ft over the standard 24ft poles.
3kg
HE806
100m x 8mm Microbore
Yellow Hose & Trolley
This 100m length of 8mm Microbore hose is perfect for extending the reach of your equipment to areas when a pump set cannot reach with the trolley making transport easy and hassle free.
Weight: 30kg
Dimensions: 600x530x800mm
HE805
10m Reach Solar Panel Cleaning
Brush & Water Filter
Ideal for domestic and small commercial arrays.
Weight: 5.3kg
Dimensions: 32ft (fully extended)
Rotary Cleaners
Our range of single disc rotary cleaners offers the user the opportunity to get the best possible equipment for the cleaning task in hand, on almost any floor surface.
Questions to Consider
• What type of hard surface floor requires cleaning?
• Is chemical required?
• What type of brushes and/or pads are needed?
• Is electrical supply readily available?
• Is any on the job training or instruction required?

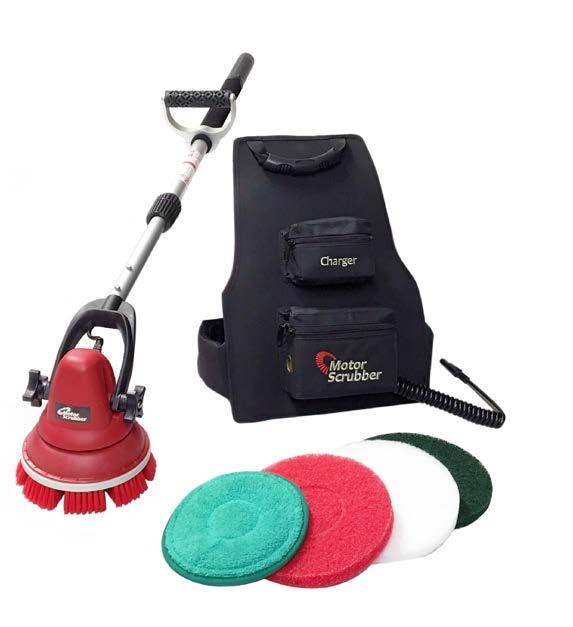

Motor Scrubber
The Motor Scrubber is an effective machine that offers exceptional handling and productivity for cleaning and polishing all kinds of hard surface floors, walls and stairs.
Power:
12V Battery Pack (240V charger)
Operating Time: 4 Hours
Weight: 1.6kg
Length: 1250mm (medium handle)
Cleaning Width: 200mm
Standard Equipment: Backpack, battery pack, motorhead and brushes
HE902

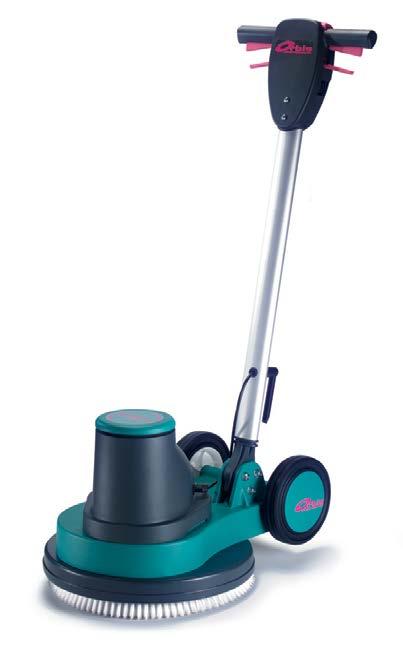

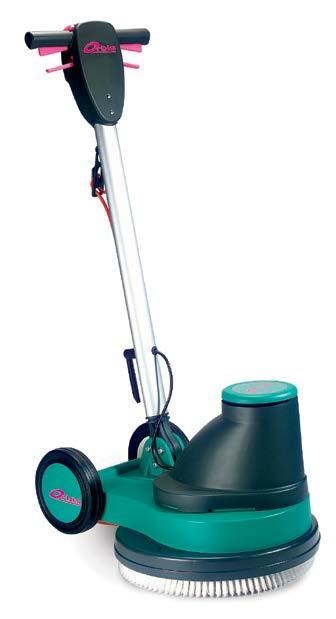

Single Disk Scrubber
The Orbis 200 series provides a general all-round single disc machine, providing excellent scrubbing performance.
Power: 240V mains supply
Weight: 32kg
Dimensions: 1210mm (long)
Cleaning Width: 430mm
Motor Speed: 190rpm
Operating Downforce: 28.8kg
Standard Equipment: 1 x Pad Holder
HE903
Single Disk Polisher
The Orbis 400 series provides a general all-round single disc machine providing excellent buffing performance.
Power: 240V mains supply
Weight: 32.4kg
Dimensions: 1210mm (long)
Cleaning Width: 430mm
Motor Speed: 380rpm
Operating Downforce: 28.8kg
Standard Equipment: 1 x Pad Holder

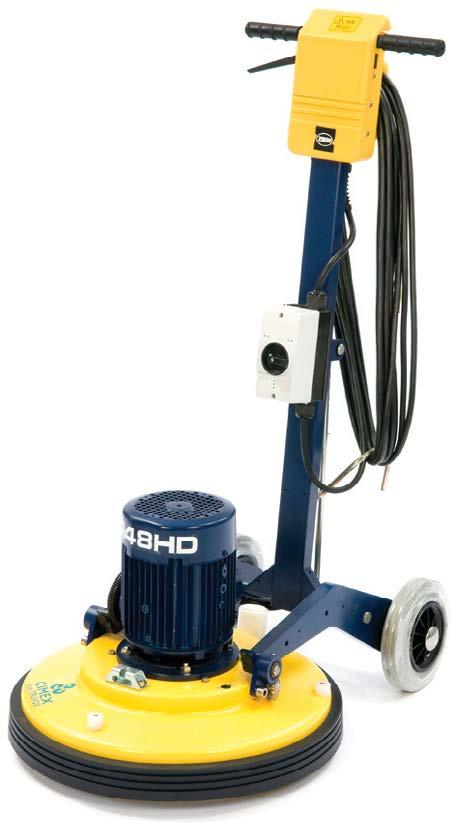

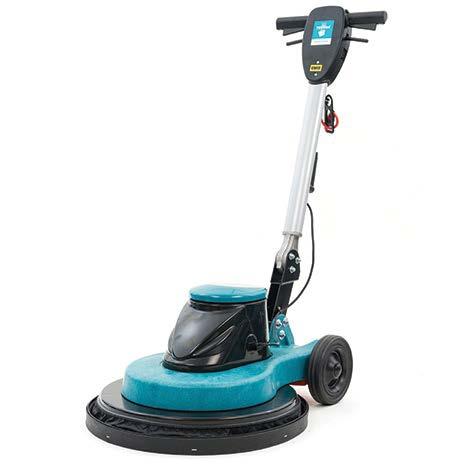

High Speed Burnisher
This ultra-high speed single disc burnisher delivers high productivity and high quality polishing results. It can be hired from us on a daily, weekend or weekly basis and is excellent for the restoration of a variety of hard floor surfaces including polished concrete, terrazzo, marble and epoxy.
A range of cleaning and polishing floor pads are available please call us for more information regarding this.
Power: 240V mains supply
Weight: 35kg
Dimensions: 650x470x1250mm
Cleaning Width: 500mm
Motor Speed: 1500rpm
Operating Downforce: 4g/cm²
Standard Equipment: 1 x Pad Holder
HE905

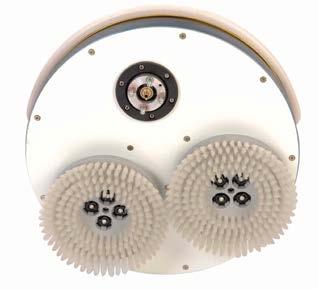

Multi Surface Cleaner
Scrubber/polishers are multipurpose machines suitable for scrubbing, cleaning and polishing virtually every type of floor in a commercial or industrial environment. Ideal for scrubbing hard floors, polishing and spray cleaning of vinyl and ceramic floors and cleaning uneven surfaces.
Power: 240V mains supply
Weight: 47kg
Dimensions: 800x500x1120mm
Cleaning Width: 480mm
Motor Speed: 400rpm
Operating Downforce: 38g/cm²
Please refer back to
Standard Equipment: 3 x unique brushes
Floor Preparation

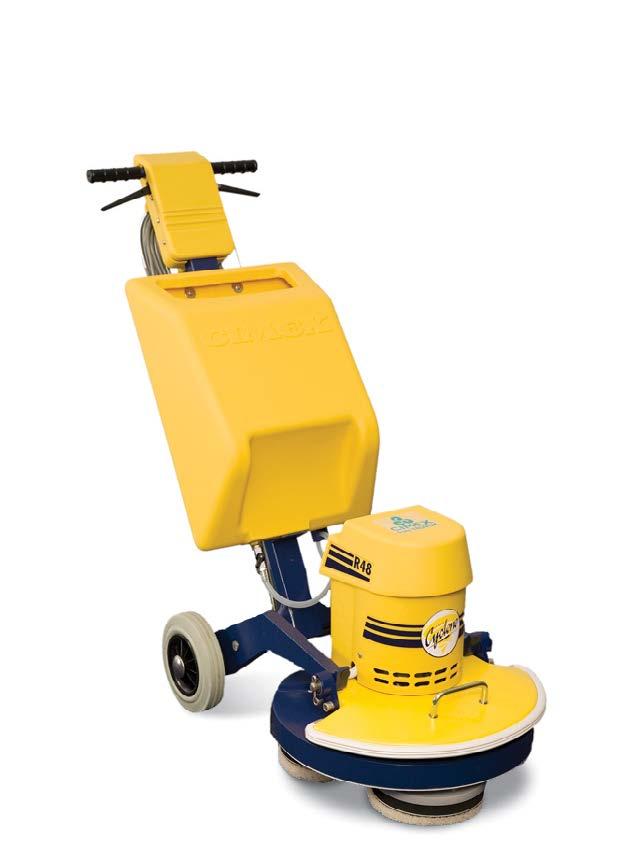

Heavy Duty Floor Scarifier
A heavy duty three brush machine for scarifying, industrial cleaning and floor preparation. Triple brushes ensure maximum effectiveness. Floating brushes are effective on uneven surfaces, an additional ballast weights are available for more aggressive scarifying.
Weights come as an extra to increase brush pressure on tougher jobs.
* Please refer back to page 7
Motor Power: 2200W
Brush Speed: 400-880rpm
Working Width: 48-76cm
Weight: 60-68kg
Cable Length: 15m
HA901

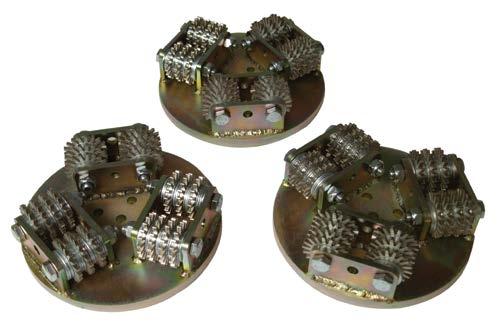

General Scarifying Brush Set
General scarifying brushes are charged as a consumable item.
HA902
Ice Breaker Disk Set
Ice Breaker discs are charged per set per hire. Star wheels are charged as a consumable item priced below.
Flood Clean-up
Often when equipment is needed it’s in an emergency! Here at Hugh Crane we have established a fleet of equipment to help get your business or property up and running as soon as possible after flooding has occurred.
Questions to Consider
• Is the situation safe?
• Is access available to the affected area?
• What volume of waste am I dealing with?
• What type of waste am I dealing with?
• Is power still available?
HE1002

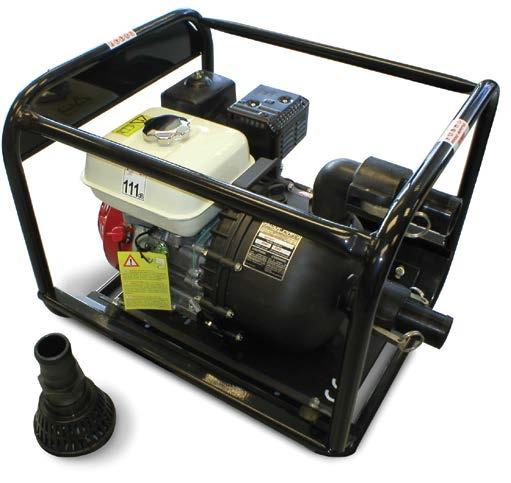

Centrifugal Pump HE1003
A robust, durable and high performing skid mounted engine driven centrifugal pump. Suitable for pumping large amounts of water.
Power:
Honda 5.5HP petrol engine
Weight: 25kg
Dimensions: 560x520x476mm
Standard Equipment:
3m 2” suction hose; 10m 2” discharge hose; skip/roll frame; inlet filter cage
Pump Out Vacuum Cleaner
Big in performance with twin vacuum motors and a 70L wet capacity. Excellent for tank and bilge pump out tasks as well as flooding.
Power: 2000W
Voltage: 240V
Wet/Dry: Liquid
Weight: 40kg
Dimensions: 684x785x935mm
Air Flow: 5880L/min
Bin Capacity: 70L
Standard Equipment: Machine tool kit
Room Dryers
These dryers provide powerful air movement for fast, complete and controlled drying of carpets, fine rugs, hard wood floors, upholstery. Use after flood, water damage, or just general air circulation.
Power:
240V mains supply
Weight: 8kg
Dimensions:
495x444x495mm
Air Flow: 3500
Standard Equipment:
3 speed switch, carrying handle & wheels; 25m electrical cable.

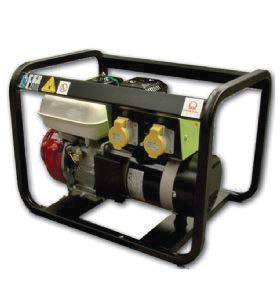

Generators & Electrical Accessories
Our commitment to a complete service means we can provide the necessary electrical resources to get power to where it’s needed.
• What task am I trying to achieve?
• Is PPE required?
• How far is the cleaning task from the power source?
• Do I have the necessary adaptors, extension leads or transformers?

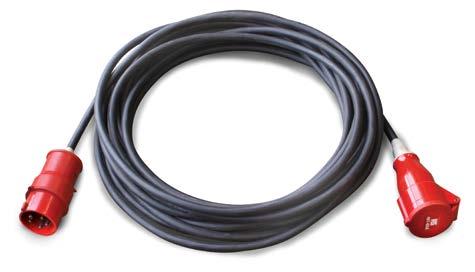

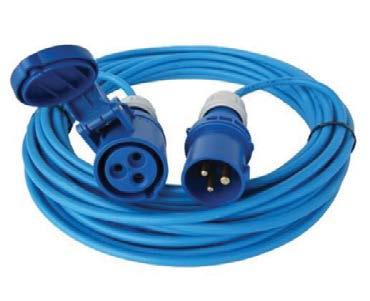

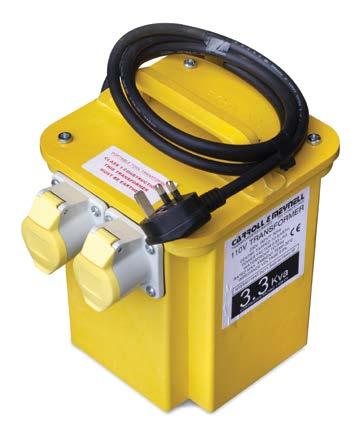

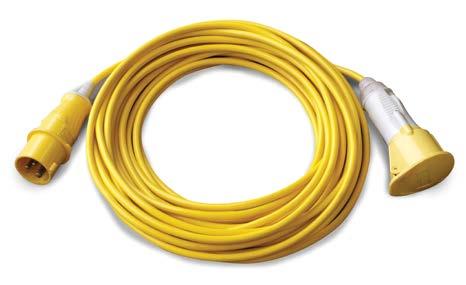

Electrical Accessories

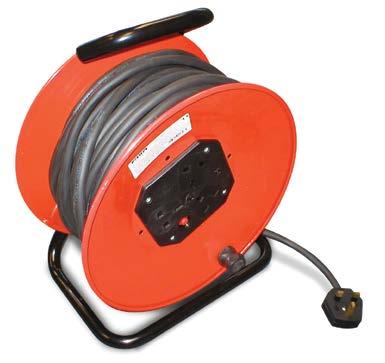

HA1101
240V 13A 25m
Extension
HA1107 (16A)
HA1108 (32A)
HA1105 (16A) HA1106 (32A)
HA1109

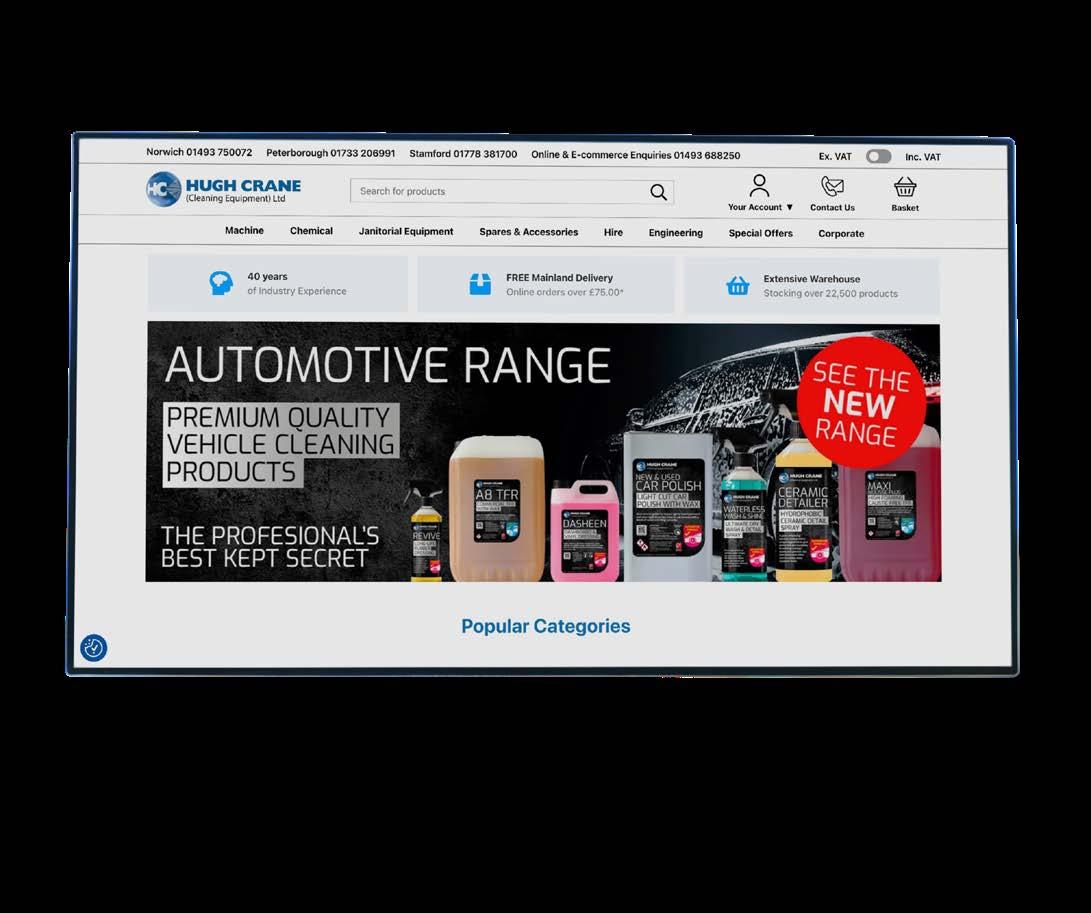

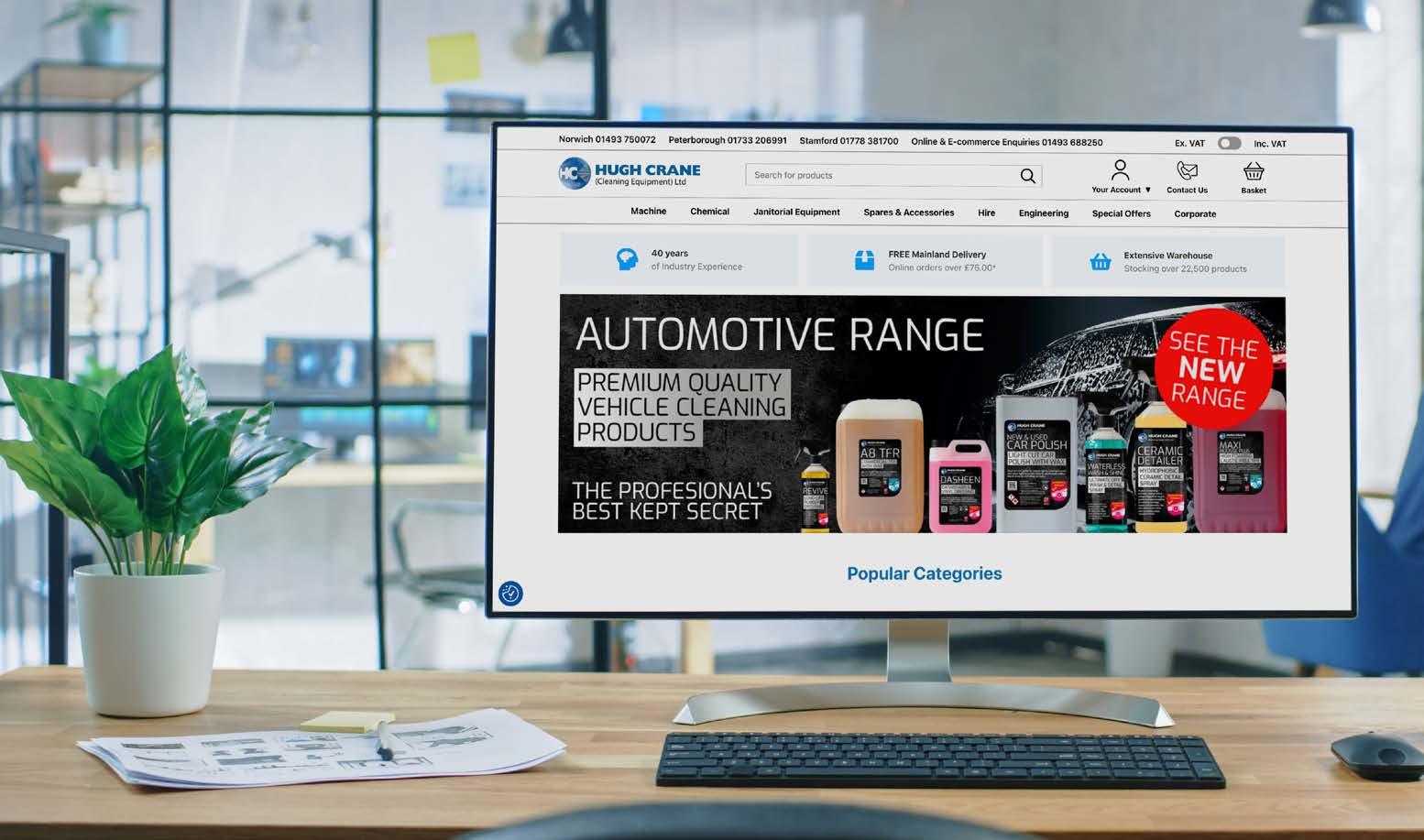

See thousands more products on our website...
All the latest special offers
One, easy to browse section packed full of our current special offers saving you £££’s.
See new products first
Why wait for the next catalogue? We are adding new products to the website all the time - see them online first.
Quick, secure and easy to use
Search for the products you require and for nonaccount customers you can purchase online. The registration process is easy and the checkout is quick and straight forward.
Quick & Easy Ordering
Place orders when it’s convenient to you, 24/7, 365 days a year, using a quick and easy interface.
Discounts & Favourites
Add products to your favourites for simple re-ordering, and access bulk discounts.
Delivery
Delivery will be made by either our own delivery fleet or nationally via our carrier network. It’s that simple!
Norwich, Norfolk South Walsham Road, Acle, Norfolk, NR13 3ES t: 01493 750072
MON - FRI: 7.30am - 5.00pm SAT: 7.30am - 12.00pm
Peterborough, Cambridgeshire 148 Station Road, Whittlesey, Cambridgeshire, PE7 2HA t: 01733 206991
MON - FRI: 8.00am - 5.00pm
MON - FRI: 8.00am - 4.45pm Stamford, Lincolnshire Unit 4 Tallington Service Station, Tallington, Lincolnshire, PE9 4RN t: 01778 381700
