We at Maranco Water Techniques specialize in planning, designing developing and maintaining private and commercial water fountain constructions all over Cyprus.

With a strong focus on research and development, and a culture of continuous improvement, Maranco Water Techniques are Pioneers and are the leaders in Cyprus in design and developing water fountain constructions.

We also provide wholesale and retail professional water components for more than a decade. Our products includes Water Pumps, Fountain Pumps, Fountain Nozzles, Plastic Fountain Nozzles, Dry Deck Nozzles, Cascade Nozzles, Geyser Nozzles, Aerating Nozzles, UV-Bio Filters, Mist Makers, Sphere Fountains, Blade Fountains, Floating Fountains and many more.

No matter what your requirements a simple indoor/outdoor water fountains or a large scale Fountain with complex mechanical installations, we are to the right place.

We pride ourselves in our unwavering ability to provide YOU, the customer with a very affordable service and products. Whether it be your desire for the smallest indoor/outdoor water fountain to the largest, each of our creations and products are unique. Crafted and designed with the knowledge, that not only will we continue to satisfy our existing customers, but we have opened the door for you to a cost effective, modern concept that blends perfectly with any season, setting or background. We also do exports to more than 32 Countries e.g.: Australia, Bulgaria, Canada, Dubia, Estonia, Greece, Guam, Ireland, Israel, Malta, Netherlands, Nigeria, South Africa, Spain, Sweden, Switzerland, UAE, USA and many more.

History

Maranco Water Techniques has been designing and constructing water fountain features since 1985 with a focus on outdoor/indoor water fountain feature development, such as waterfalls, artificial lakes, garden Fish ponds and large scale projects.

PRODUCT CATALOG.

1.FOUNTAIN

2.FOUNTAIN

Page 5

Pages 6-9

Pages 10-11

Pages 12-13

Pages 14-18

Page 19

Page 20-38

Page 39

Pages 40-44

Page 41

Pages 45-84

Page 85

Page 86

Page 87

Pages 88-91

Pages 92-97

Pages 98

Pages 99-112

Page 113

Pages 114-116

Page 117

Page 118

Page 119

Page 120

Page 121

Pages 123-125

Page 126

Page 127-128

Pages 129-131

Page 132

Page 133

Fountain Pumps.

With 32 years experience in the Fountains area and after thorough study, we have come to cooperate with the most Reliable Pumps Manufacturers in the World.

We chose from the various factories, the convenient Pumps types that meet our requirements and with our support, we give our customers the best choice in Quality and Price.

Some of the features that make Fountain Pumps stand out

•To be durable and not corrosive to chemicals.

•To be able to operate continuously for long periods of time.

•To operate horizontally and vertically.

•To have efficient and reliable performance.

•To have Pre-filters built in to protect themselves, as well as the Nozzles we use to prevent them clogging from the impurities .

From the Smallest to the Biggest Pump, we have the solution.

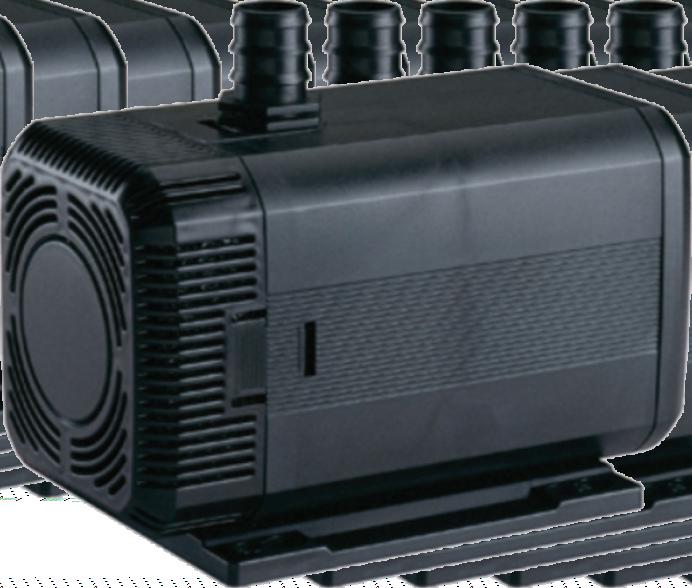

Small to Medium Submersible

Pumps

AP 333 A

Flow Rate : 200-300L/h

Hmax : 50-65CM

Voltage : 220-240V

Hz : 50Hz

Watt : 2.5W

Dimensions (mm):48*44*29

Approvals : UL/CUL/SAA/GS/CE

AP 900 A

Flow Rate : 600L/h

Hmax : 110CM

Voltage : 220-240V

Hz : 50Hz

Watt : 8W

Dimensions (mm)69*50*57

Approvals : UL/CUL/SAA/GS/CE

WP 1500F

Flow Rate : 1500L/h

Hmax : 2.5M

Voltage : 220-240V

Hz : 50Hz

Watt : 25W

Dimensions(mm):95(F152)*69*90

Approvals : UL/CUL/SAA/GS/CE

AP 500 A

Flow Rate : 350-450L/h

Hmax : 50-70CM

Voltage : 220-240V

Hz : 50Hz

Watt : 5W

Dimensions (mm):59*46*52

Approvals : UL/CUL/SAA/GS/CE

AP 399F

Flow Rate : 1000L/h

Hmax : 1.9M

Voltage : 220-240V

Hz : 50Hz

Watt : 16W

Dimensions(mm):90(F131)*72*81

Approvals : UL/CUL/SAA/GS/CE

WP 2000F

Flow Rate : 2000L/h

Hmax : 3.2M

Voltage : 220-240V

Hz : 50Hz

Watt : 45W

Dimension (mm):106(F150)*75*107

Approvals : UL/CUL/SAA/GS/CE

WP 3000F

Flow Rate : 3000L/h

Hmax : 3.7M

Voltage : 220-240V

Hz : 50Hz

Watt : 70W

Dimensions (mm):132(F196)*96*132

Approvals : UL/CUL/SAA/GS/CE

WP 5000

POND & FOUNTAIN PUMP

CE APPROVED

PondandFountainPumpforFountainsandPondslong-life. DuetoitsdesignitcanbeusedinSmalltoMediumsizeFountainsandPonds.Thispumpcan workfor24Hrsnonstopsoitisidealforpondfiltration,whichneedstoworkcontinuously.Alsofor FountainsandWaterFalls.

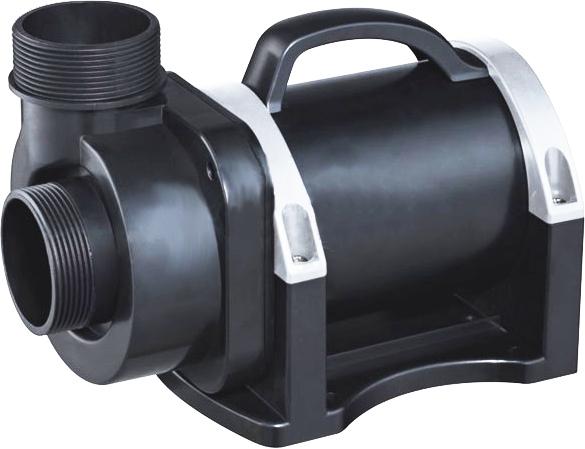

FETX/ETX Series

CE APPROVED POND & FOUNTAIN PUMP

Details:

Energy saving up to 50% with new efficient asynchronous motor

Higher pump head and larger water flow.

Size of particles pumped up to 6mm.

Adopting wear-proof ceramic shaft to prolong service life.

Application:

1. Fountain displays

2.Waterfalls

3. Fish Ponds

4.Water circulations

5. Filter operations

6 This Pump can be used bothas a submersiblepump or non submersible

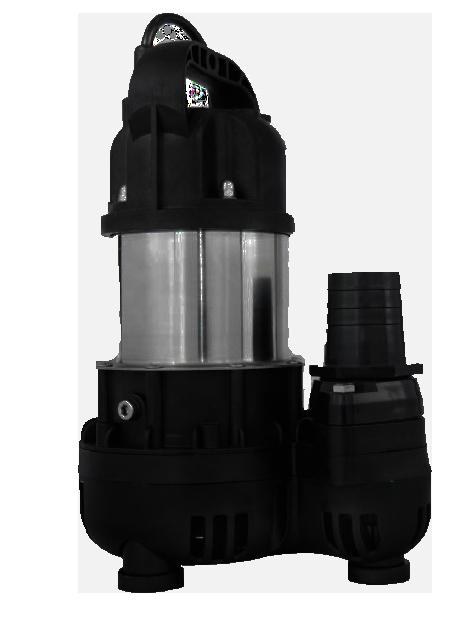

MH Series

FMH/MH Series

Horizontal & Vertical Multi-Purpose Application

Continuous Running Large Flow Fountain and Pond Pumps

Non-clogging Vortex Impeller.

Protection class : IP68

Solid pass : 6mm

FMH Series

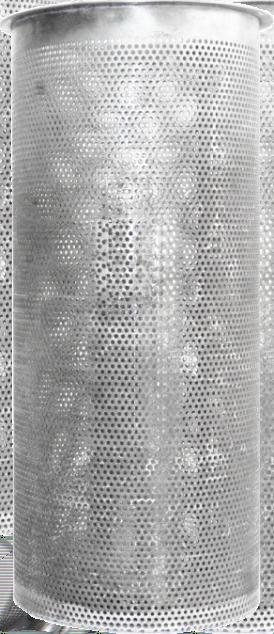

This pump can be adapted for use in Fountains by adding a St/St Strainer.

MH Series

FSPPumpSeries

FSP Completely Stainless Steel Submersible Pumps are the most widely used pumps in the market especially designed for medium to large water fountains ,with many,

ADVANTAGES

- High efficiency.

- Continuous use .

- Has the ability to work with temperatures of up to 35 C.

- Vertical and horizontal function .

- Securing adjustable basis .

- Including large volume filter strainer.

- With cooling Jacket.

6"/8" STAINLESS STEEL SUB/FOUNTAIN PUMPS50Hz 2850rpm

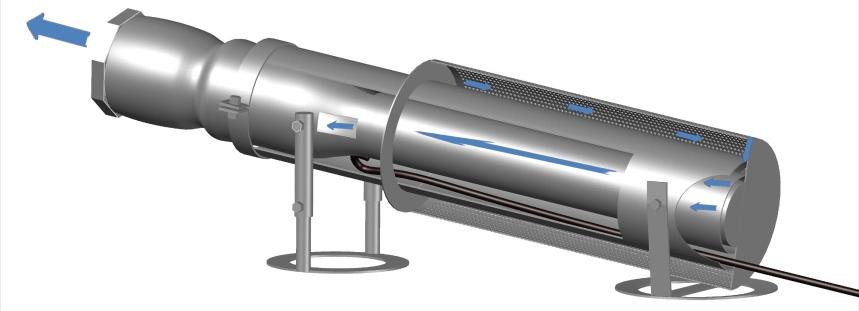

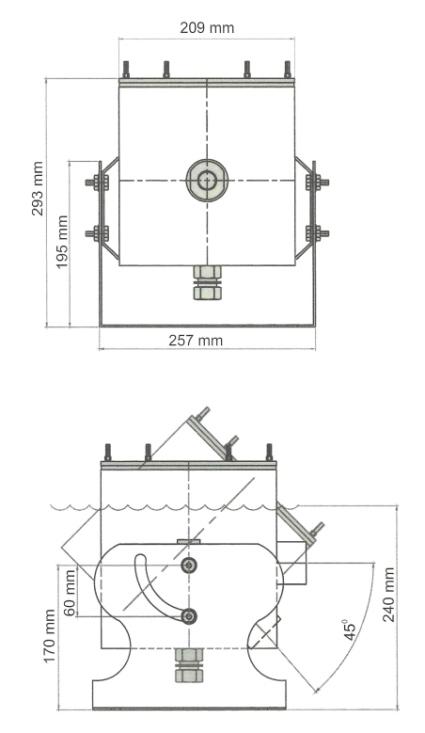

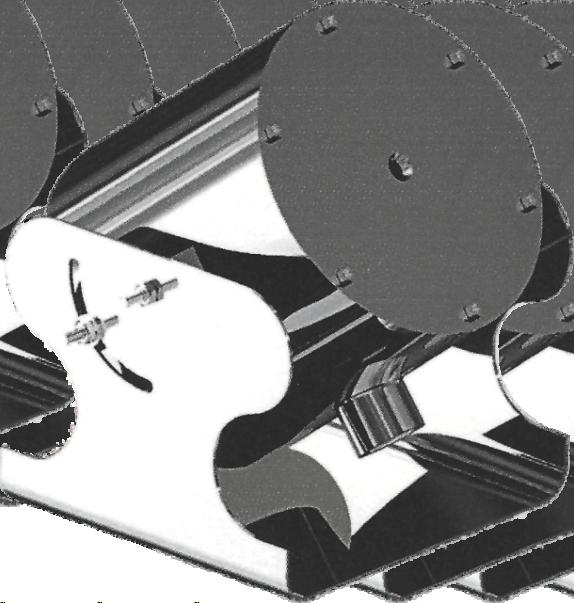

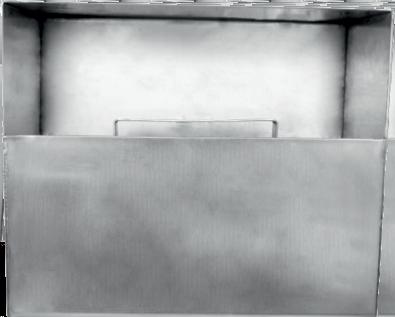

St-St MH PUMP CHAMBER

Protection, Esthetic appearance and Increased Pump Life.

Pumpchambersaredesignedforcomplete protectionofthepumpandofferaprofessional SolutionforFountainprojectsastheyare Flushmountedintheconcrete.Offersastylish StainlessSteelcoverwithholestoprevent leavesandotherdebrisfromenteringthe Chamber.Minimizingcleaningandmaintenance. ThePumpChamberisconstructedentirely fromAISI StainlessSteel304. Thischambersalsoofferasolutiontohide thePumpintheFountainformopticview. ThisPumpchamberalsooffersa WaterStopfeaturewhichpreventswaterfrom seepingintotheconcrete.

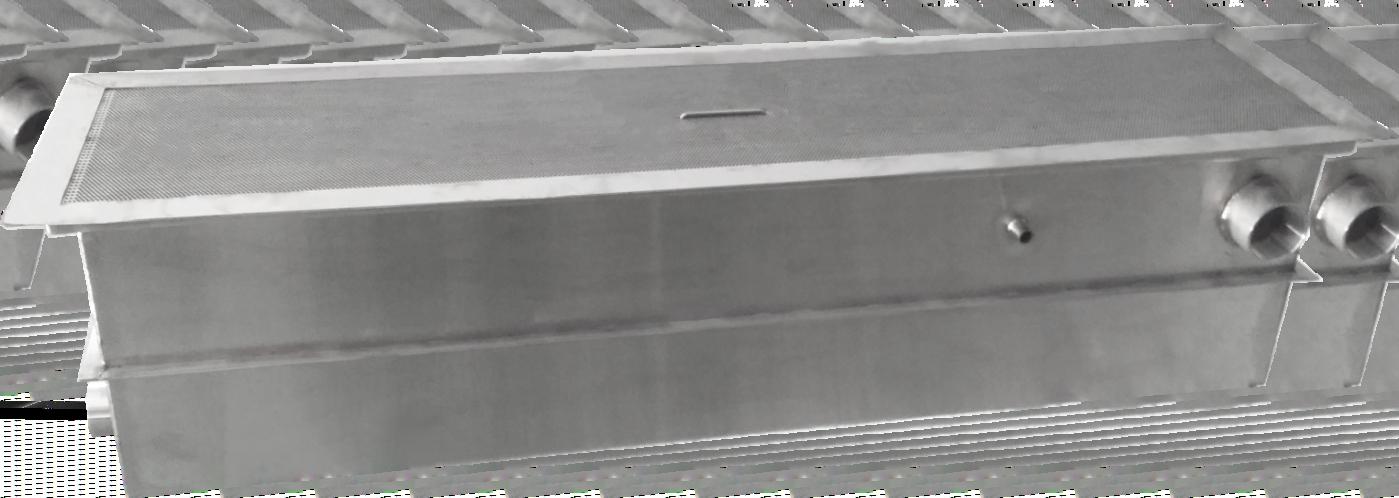

St-St FSPPUMPCHAMBER

Protection, Esthetic appearance and Increased Pump Life.

Pump chambers are designed for complete protection of the pump and offer a professional Solution for Fountain projects as they are Flush mounted in the concrete. Offers a stylish Stainless Steel cover with holes to prevent leaves and other debris from entering the Chamber. Minimizing cleaning and maintenance. The Pump Chamber is constructed entirely fromAISI Stainless Steel 304. This chambers also offer a solution to hide the Pump in the Fountain form optic view This Pump chamber also offers a Water Stop feature which prevents water from

MASPUMPSSERIES

pH : 6 to 8

Protection class : IP68

Large flow & Low consumption 24 hours operation

Non-rusty

Liquid temperature : 0 °C to 40 °C / +32 °F to +104 °F

HP range : 1/5 to 1HP / 150 W to 750 W

pH : 6 to 8

Protection class : IP68

Maximum immersion depth : 8M

Large flow & Low consumption 24 hours operation

Solid pass : 25/8mm (without/with strainer)

Optional for float switch or vertical one

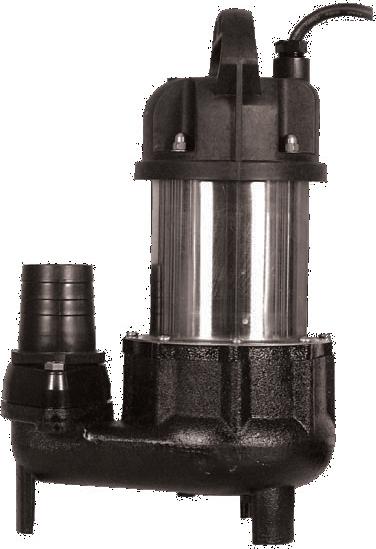

BAVPUMPS

SERIES

BAV Series

Solids Passage 10~35mm

Non-clogging vortex impeller design

With non-clogging vortex impeller. Built-in thermal overload protector. Optional with or without strainer for dewatering and sewage discharge. Pass solid diameter up to 35 mm

Remarks: Model No. ends with "S" is included with stainless steel strainer for dirty water discharge.

Remarks: Model No. ends with "A" is equipped with float switch.

AQUA LINE PUMPS

are designed and manufactured according to all the requirements by CE/GS/SAA/VDE And the pumps are thru cover for quick inspect of the strainer.

cleaning systems, solar heating systems, water features) In-ground spas or in-ground pool / spa combinations

These pumps can also be used in Waterfalls, Ponds ●

and Fountain Installations.

Features

Self-priming (suction lift up to 6' above water level)

Easy thread design makes strainer cover removal easy SSee-thru strainer cover for you quick check when basket needs cleaning.

Special PVC connector for quick connect and less time using.As following picture shows "optional connectors" All components molded of corrosion-proof reinforced thermoplastic for extra durability and long life

Service-easy designed drain plug for easy maintenance in winter

Using of the mechanical seals to lengthen the life and lower the noise.

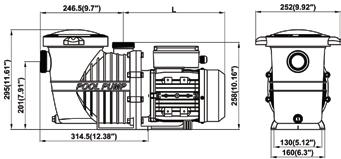

SELF PRIMING PUMP

• Self-priming electric pump for swimming pools and fountain with built-in pre-filter of great capacity.

• Pre-filter with transparent lid in polycarbonate which allows easy observa tion of the pre-filter basket. The pre-filter is closed with a knob system of easy accessibility

• Pump body made in polypropylene reinforced with fibreglass, resistant to the chemical products in the swimming pool, guaranteed to last a long time.

• Pump body lid and diffuser in Noryl. Impeller in Noryl with shaft in stainless steel.

• Mechanical seal in graphite and ceramics.

• Motor shaft manufactured in stainless steel AISI 316L.

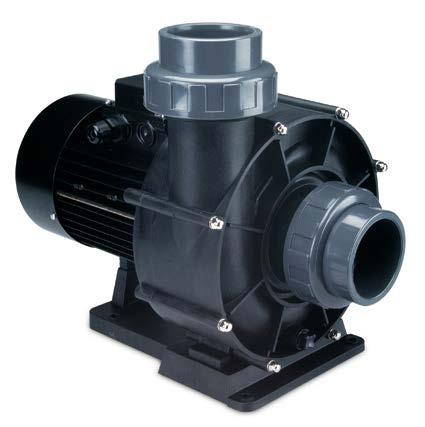

SELF PRIMING PUMP

• High Flow Plastic pumps.

• Centrifugal electric pumps for swimming pools and fountain with built-in pre-filter, ideals for high flow at low pressure.

• Pre-filter with transparent lid in polycarbonate which allows easy observation of the pre-filter basket. The pre-filter is closed with a knob system of easy accessibility.

• Pump body and pre-filter made in polypropylene reinforced with fibreglass, resistant to the chemical products in the swimming pool, guaranteed to last a long time.

• Bronze, plastic or stainless steel impeller, according to model.

• Motor shaft manufactured in stainless steel AISI 316L.

• Pre-filter basket in stainless steel too.

• Motors with IP-55 protection, at 2.850 r.p.m. Tension of mains feed at 230/400V-50Hz or 400/690V-50Hz (7,5, 10 and 12,5 HP) three-phase.

• Versions from 4HP to 12,5HP.

• Possibility of AISI 316L stainless steel impellers upon request.

COUNTERCURRENT FOUNTAIN PUMP

• High-flow centrifugal pump

• Pump body made in polypropylene reinforced with fibreglass, resistant to the chemical products in the swimming pool and fountain guaranteed to last a long time.

• Impeller in Noryl.

• Mechanical seal in graphite and ceramics.

• Motor shaft manufactured in stainless steel AISI 316L.

• 3CV single-phase motors at 230V-50Hz, or three-phase 3HP, 4HP or 5,5HP at 230/400V-50Hz motors, all at 2.850 r.p.m. and IP-55 protection.

• Possibility of 60Hz upon request.

• Connections of suction and return at 3 ½” for Ø 75 mm bush connections.

• Bush connections included with the pump

COUNTERCURRENT FOUNTAIN PUMP

• High Flow Plastic pumps.

• Centrifugal electric pumps for swimming pools and fountain without pre-filter, ideals for high flow at low pressure.

• Pump body made in polypropylene reinforced with fibreglass, resistant to the chemical products in the swimming pool, guaranteed to last a long time.

• Bronze, plastic or stainless steel impeller, according to model.

• Motor shaft manufactured in stainless steel AISI 316L.

• Motors with IP-55 protection, at 2.850 r.p.m. Tension of mains feed at 230/400V-50Hz or 400/690V-50Hz (7,5, 10 and 12,5 HP) three-phase.

• Versions from 4HP to 12,5HP.

• Possibility of AISI 316L stainless steel impellers upon request.

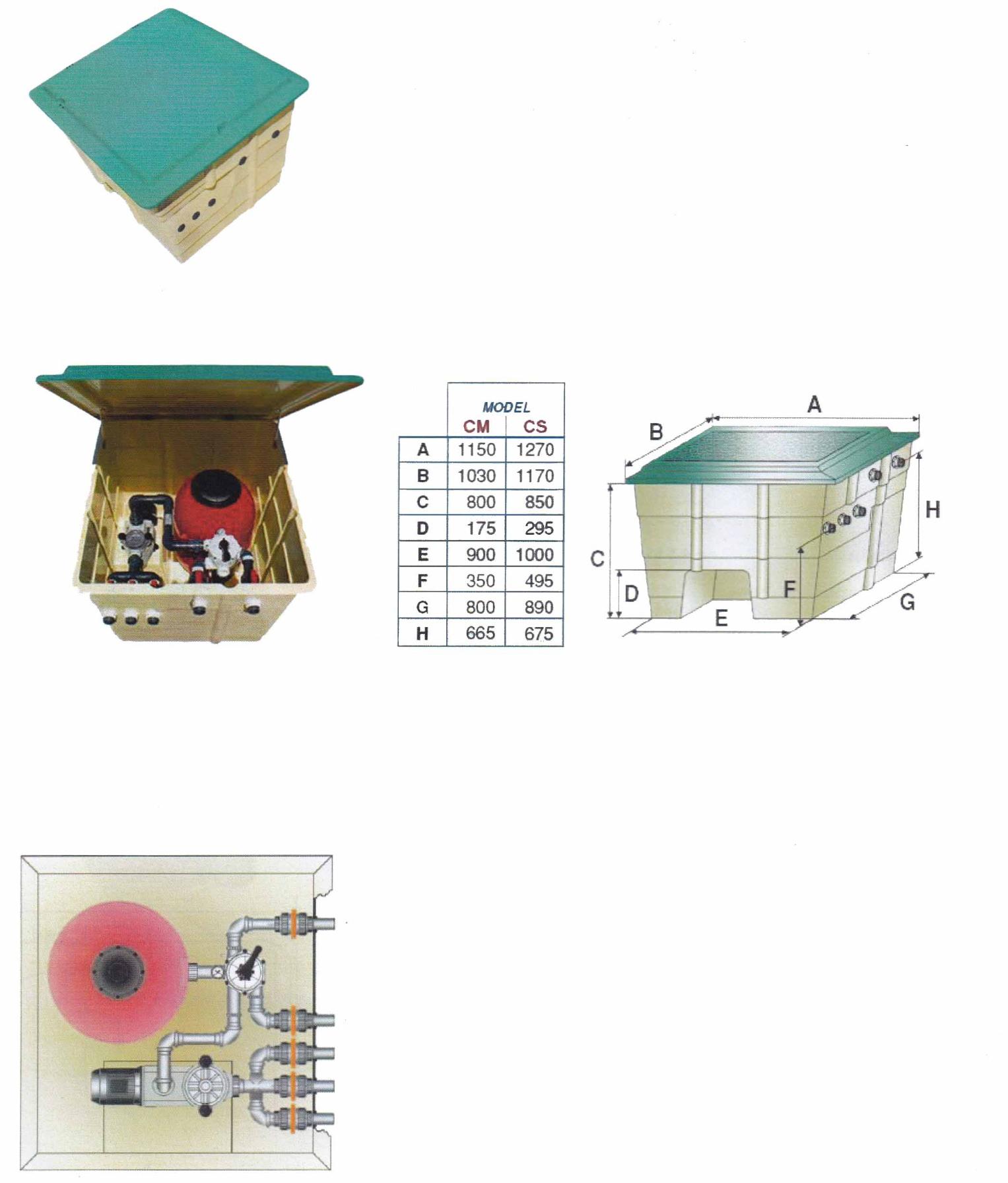

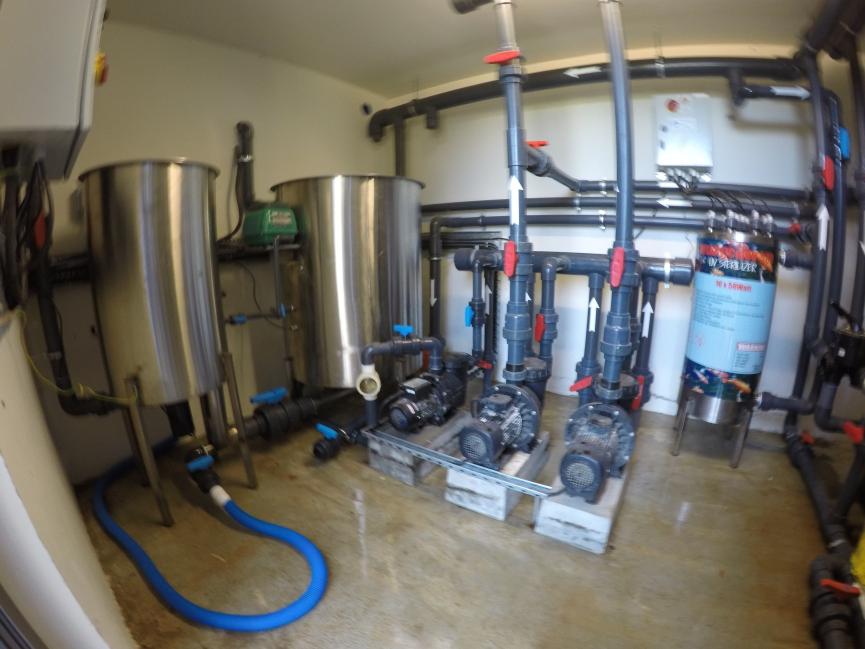

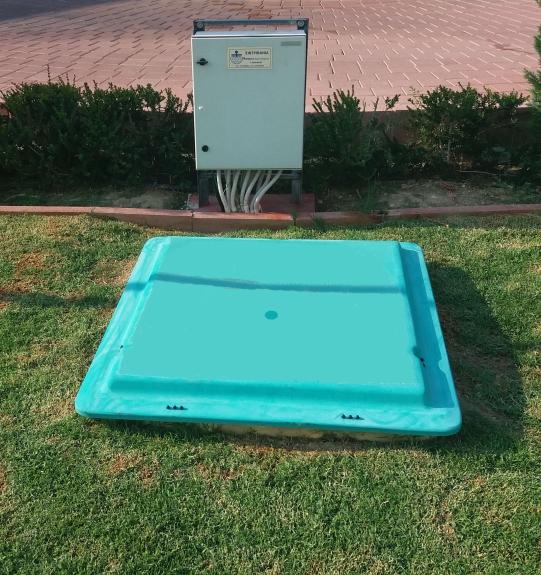

PREFABRICATED FIBREGLASS PLANT ROOM

COMPLETE PREFABRICATED FIBREGLASS PLANT ROOM

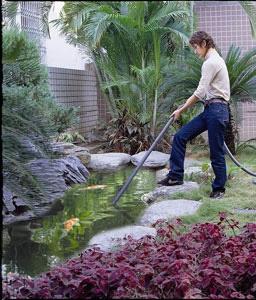

VACUME CLEANER

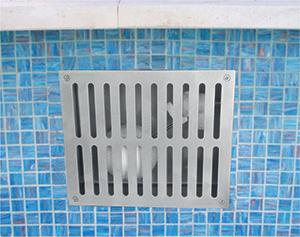

DRAIN SKIMMER

DESCRIPTION

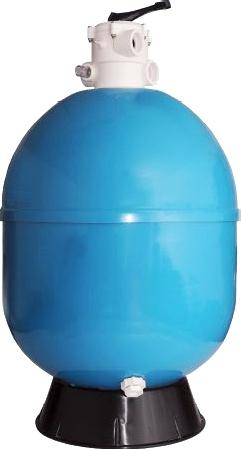

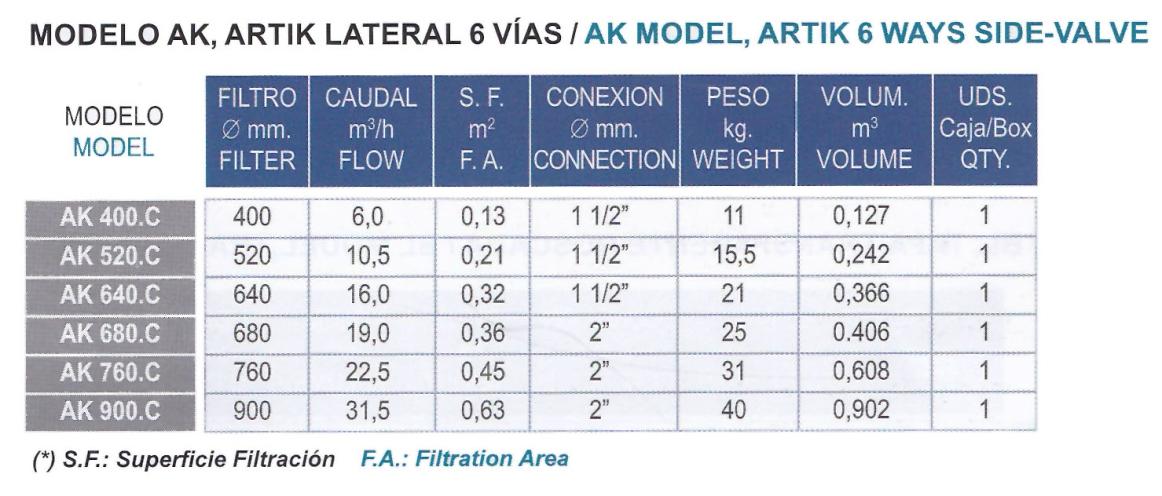

TECHNICAL FILTRATION HOUSINGS

Complete technical filtration housing, manufactured in polyester and fiber glass with reinforced green colour lid, including: Filter, pump, selectrovalve, pressure gauge, five ball valves for: skimmer, bottom, bottom cleaners, drainage and return.

Assembled and tested for1,5Kg/cm

Filtration speed:50m /h/m

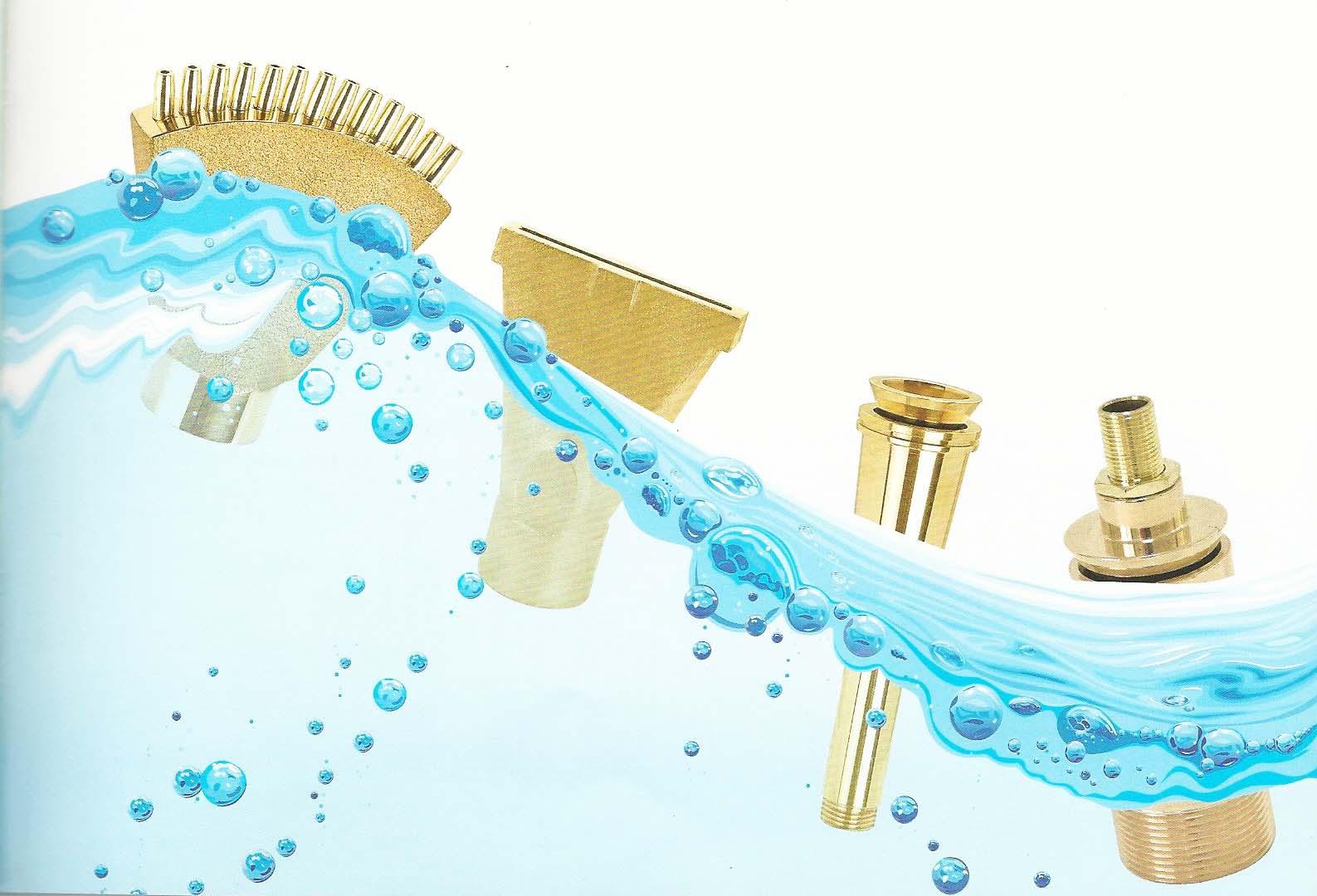

MC Line Fountain Nozzles

Plastic Nozzles

FT - 02

Includes:

1 Small Jet Spray Nozzle/1 Small Bell Jet Nozzle

1 Regulator/ /1 Extendable Riser Pipe

Includes:

1Medium 3 Way Jet Spray / 1Medium Foam Jet Nozzle

1 Medium Bell Jet Nozzle / 1 (T) connector / 2 Regulators

1 Extendable Riser Pipe

3

Includes:

1 Large 3 Way Jet Spray Nozzle / 1 Large Foam Jet Nozzle

1 Large Bell Jet Nozzle / 1(T) Piece With Swivel Union

2 Regulators / 1 Extendable Riser Pipe

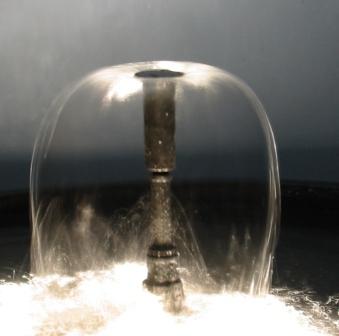

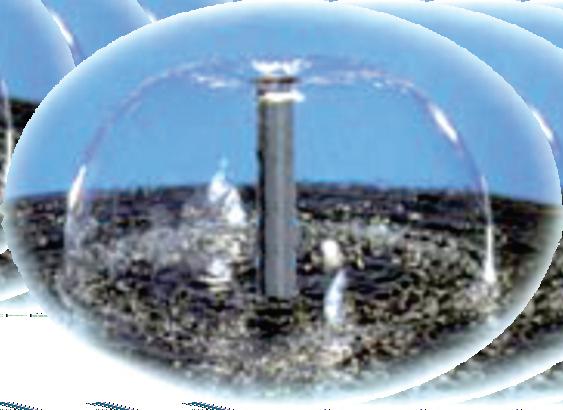

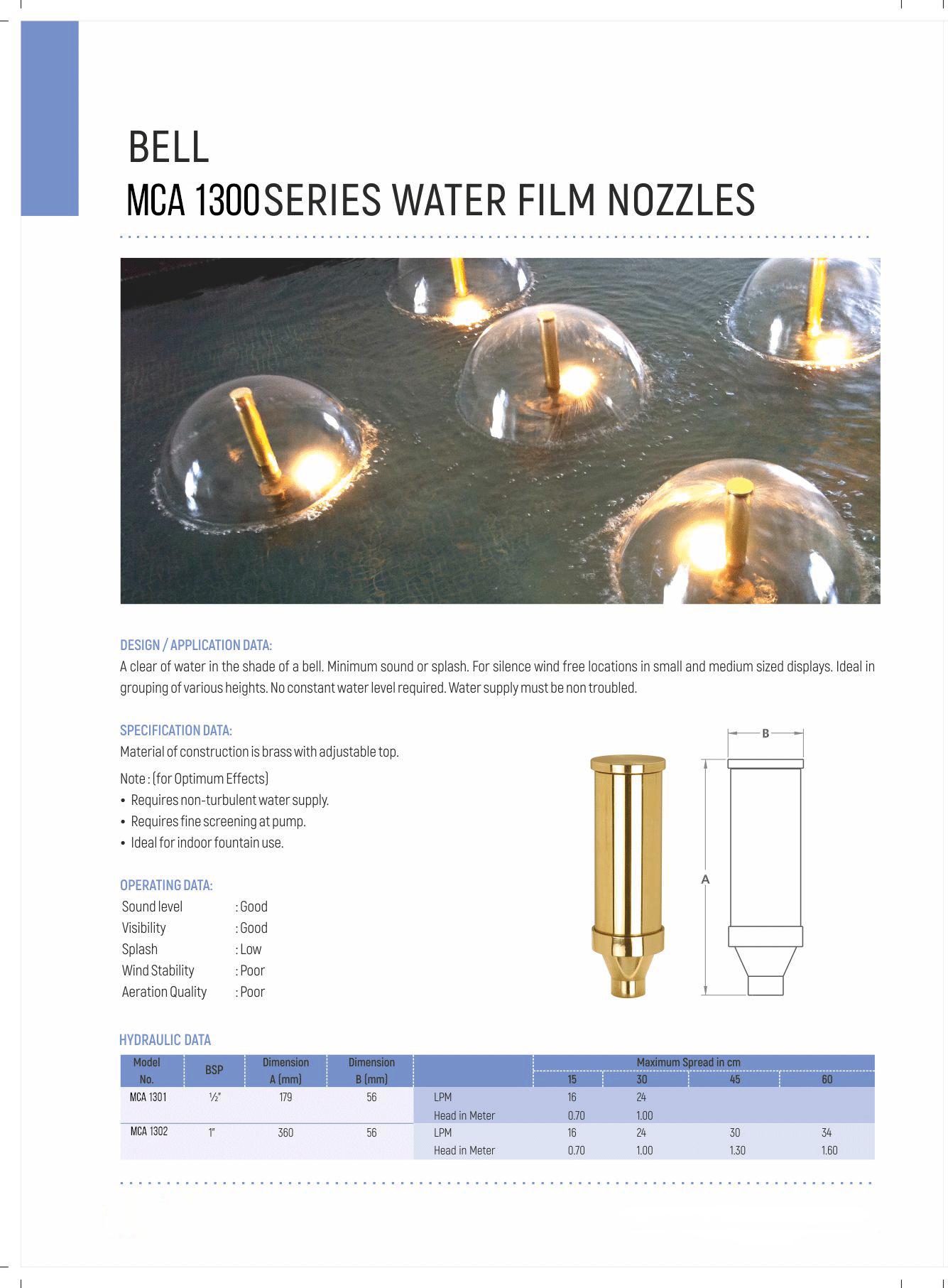

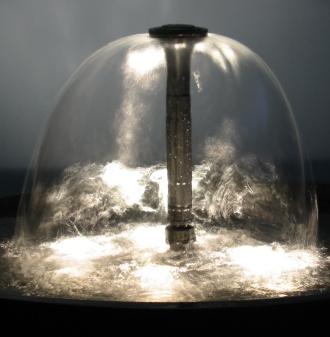

BELL NOZZLE

This Elegant perfectly formed bell made by the BELL NOZZLE is Stainless Steel and Bronze Nickle Plated. This silent nozzle is ideal for indoor Fountains in HOTEL FOYERS ,RECEPTION AREAS or any sheltered area or garden where there is no heavy wind.It has a built in ajustment which regulates the diameter of the bell.An extra advantage of this nozzle is that the flow adjustment regulator valve is also built in ,therefor no extra connections needed.

3WayJet

Water level Independant

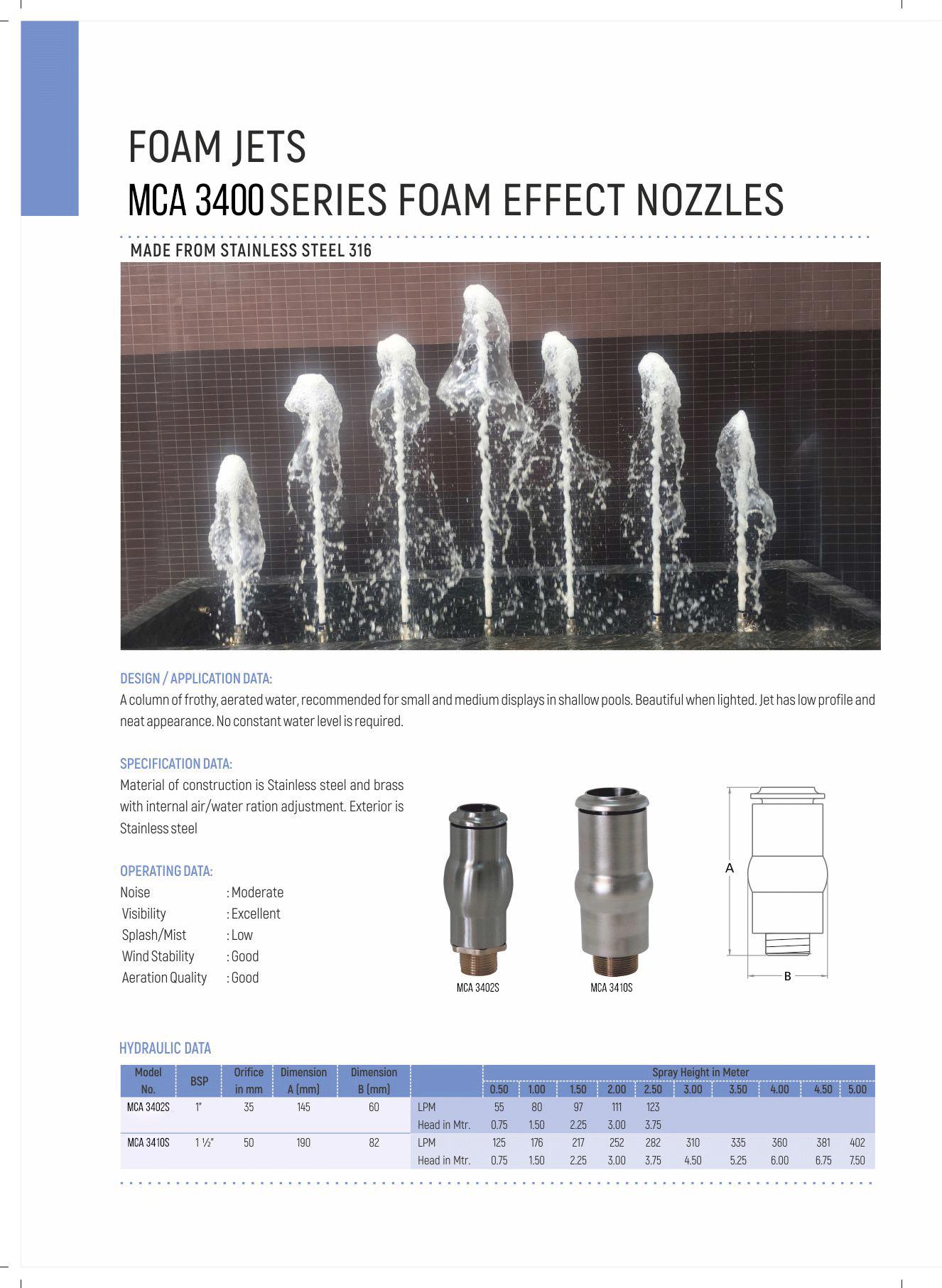

Foam Effect Nozzles

Design/Application Data:

Nozzle

The 3 Way Jet nozzles produces multi directional spray of water using connection rows of clear stream jet giving the appearance of a large diameter water columns. Due to therefractive quality of the individual streams, jet cluster nozzles offer good visibility at thelong range distance. Nozzle is further enhanced when combined with submersible lighting. Applications include indoor or shielded out door use in commercial, institutional and municipalbuilding and landscape projects, as primary display features, or as peripheral accents to primarydisplay features they are also used effectively in series or groupedclusters.

Specifcation Data:

Produced from Bronze and Nickle plated femalethreaded connection.

Operating Data :

•

Noise : High to moderate

• Visibility : Good

• Splash/Mist : Low to moderate

• Wind Stability : Good

•Aeration Quality : Good

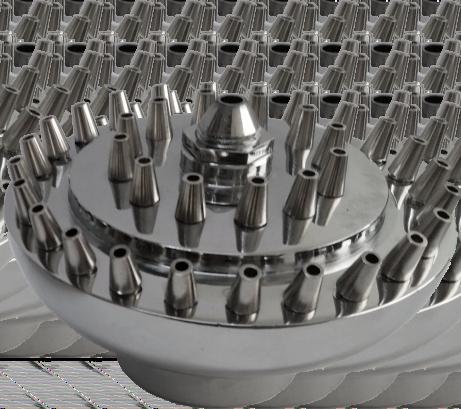

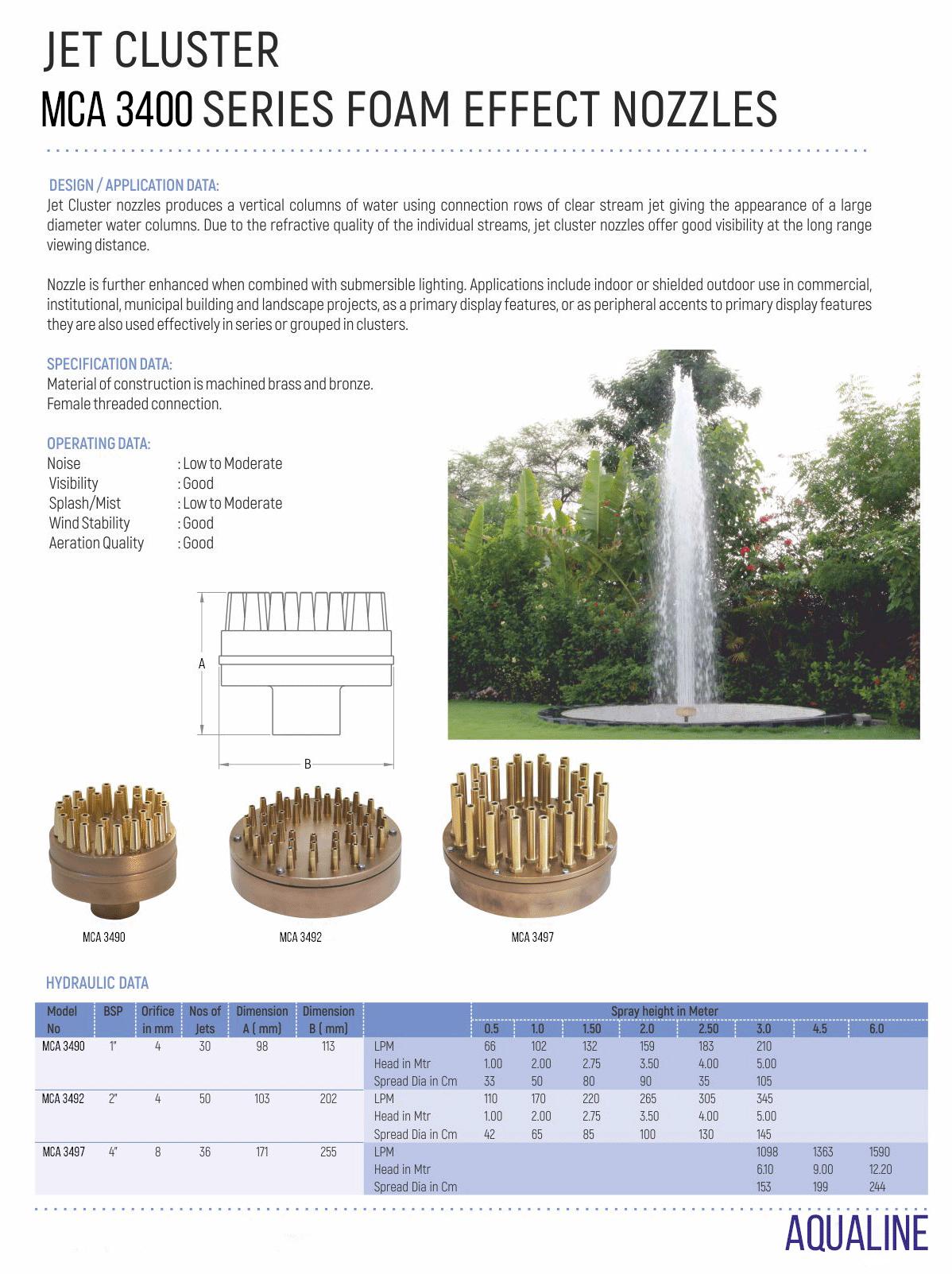

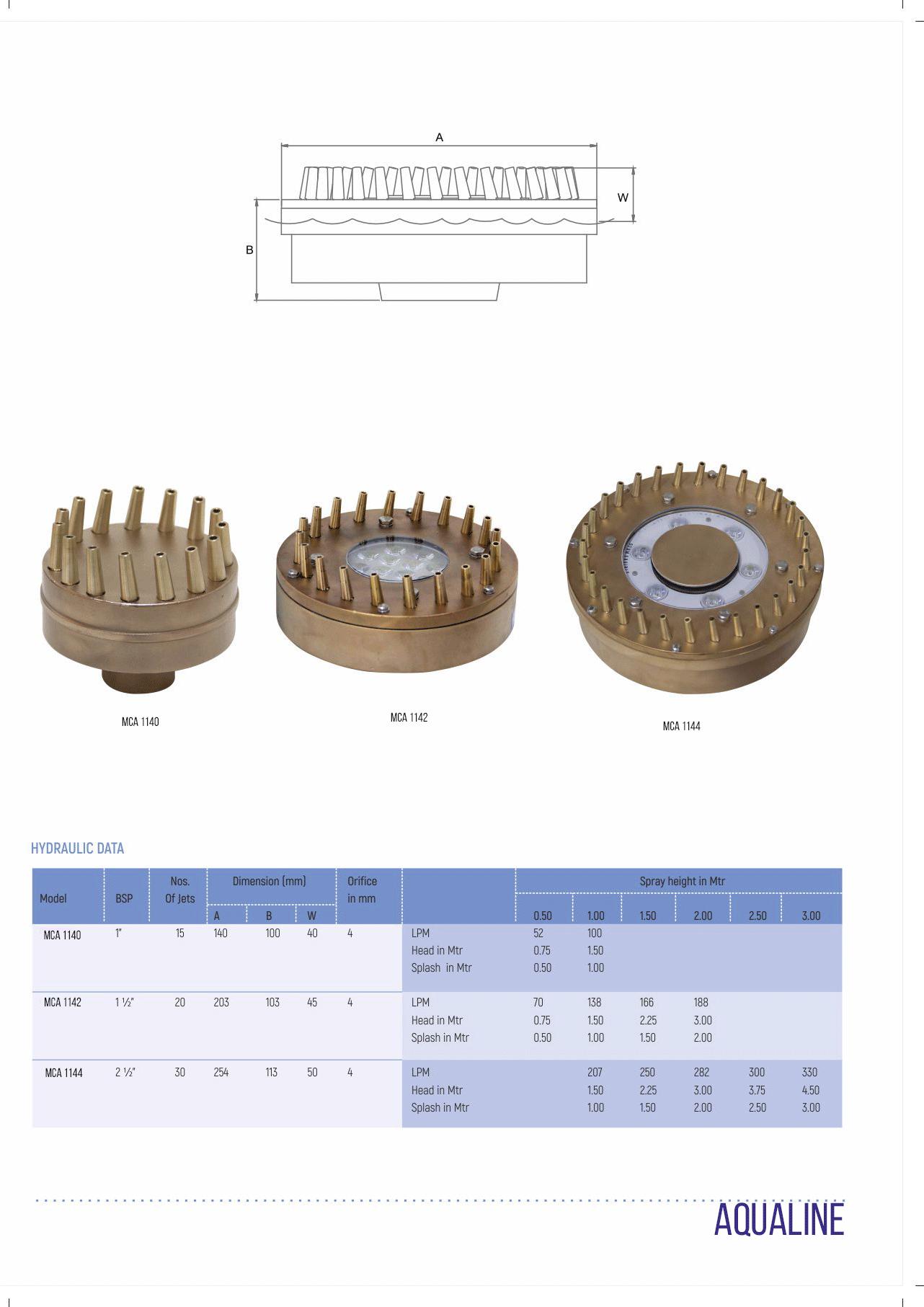

ClusterJet

Water level Independant

Foam Effect Nozzles

Design/Application Data:

Nozzle

Jet Cluster nozzles produces a Vertical columns of water using connection rows of clear stream jet giving the appearance of a large diameter water columns. Due to therefractive quality of the individual streams, jet cluster nozzles offer good visibility at thelong range distance. Nozzle is further enhanced when combined with submersible lighting. Applications include indoor or shielded out door use in commercial, institutional and municipalbuilding and landscape projects, as primary display features, or as peripheral accents to primarydisplay features they are also used effectively in series or groupedclusters.

Specifcation Data:

Produced fromAISI Stainless Steel 304 femalethreaded connection.

Operating Data :

•

Noise : Low to moderate

• Visibility : Good

• Splash/Mist : Low to moderate

• Wind Stability : Good

•Aeration Quality : Good

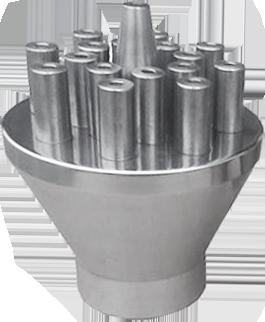

CLUSTER JETS

AERATING JETS

AERATING JET nozzles function with a combination of air and water, producing a thick compact column of foam water.

These nozzles are water level independent and should always be above water level.

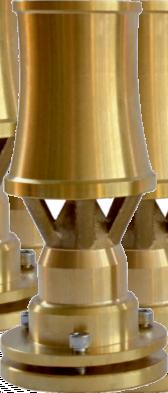

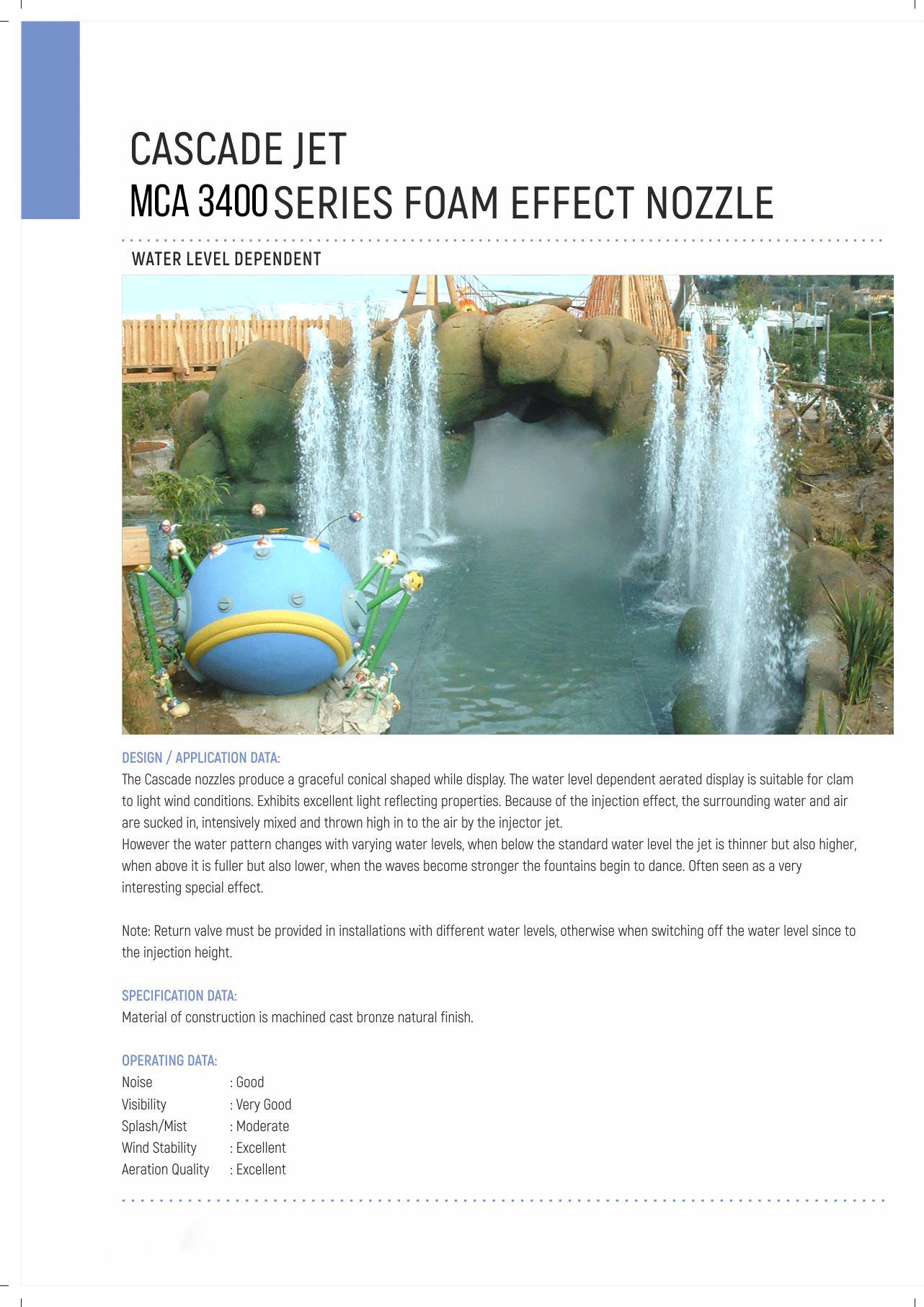

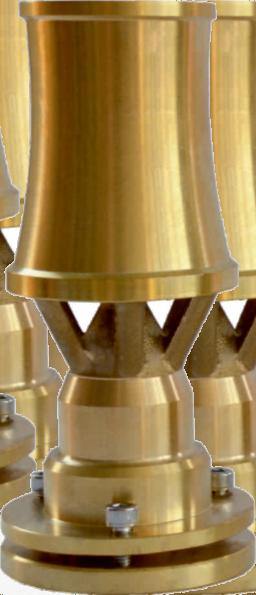

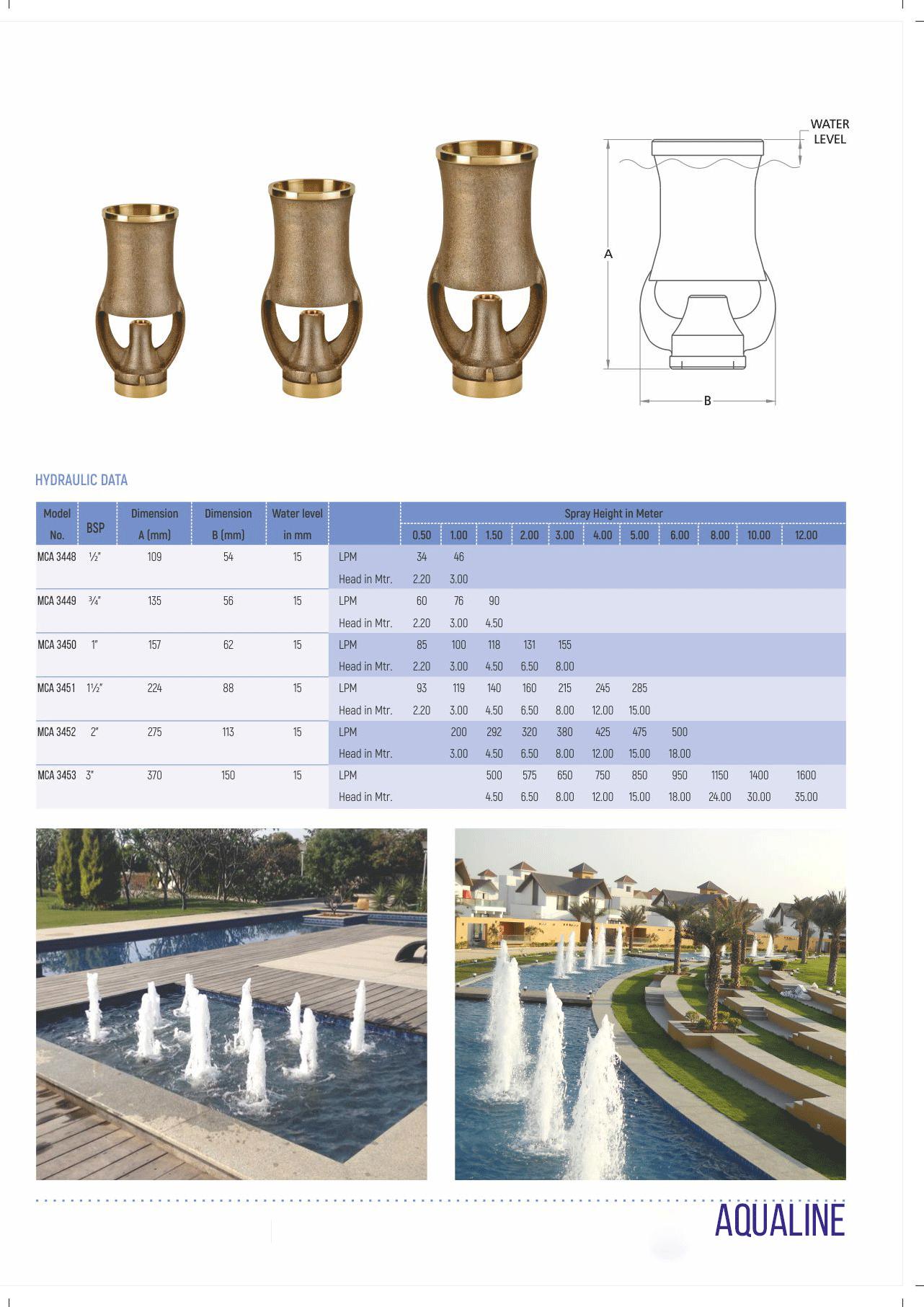

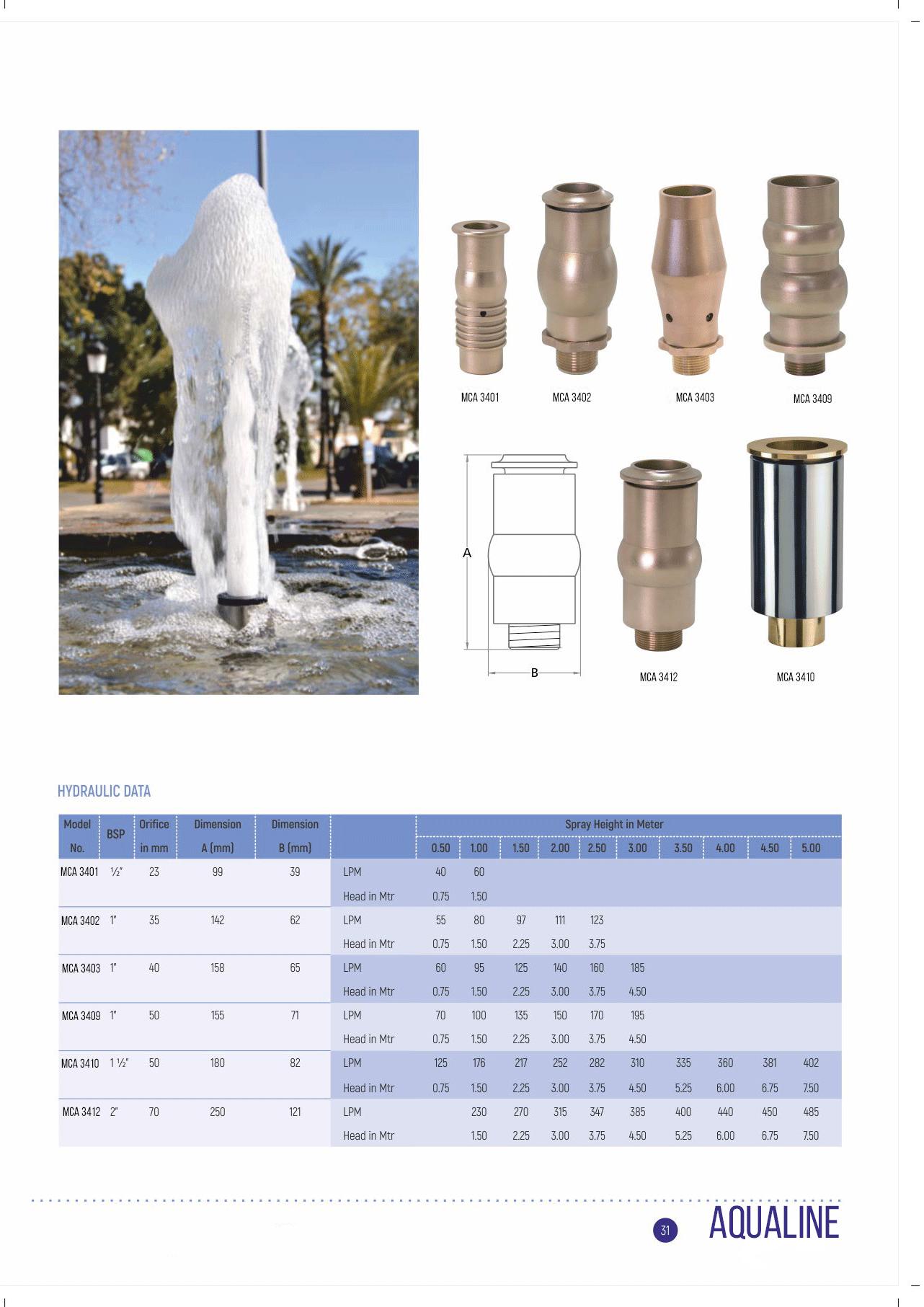

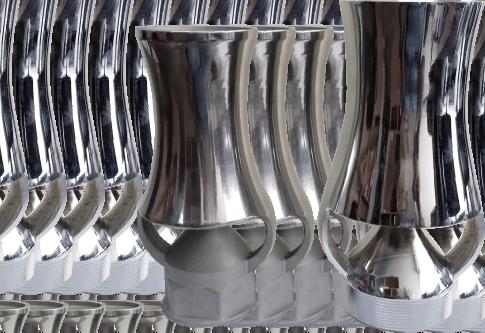

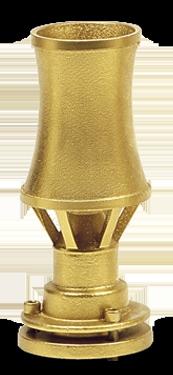

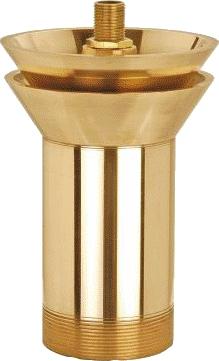

CASCADE

TheCASCADE isabronzenozzlewhichproduces athick frothywhitejetofwater.Veryimpressive andallowsvisibilityfromadistancemaking spectacularvisionwhereeverused.Thisnozzleis waterleveldependantandneedsstillwaters. Returnvalvesmustbeprovidedwhenusingthe CASCADEinpoolswithdifferentwaterlevels. AllNozzleshaveanadjustingflange.

ST/ST CASCADE

ThisNozzleismadefrom304StainlessSteel. TheStStCASCADE Nozzlewhichproduces athick frothywhitejetofwater.Veryimpressive andallowsvisibilityfromadistancemaking spectacularvisionwhereeverused.Thisnozzleis waterleveldependantandneedsstillwaters. Returnvalvesmustbeprovidedwhenusingthe CASCADEinpoolswithdifferentwaterlevels. AllNozzleshaveaSwivelUnionwhichisoptional .

ST/ST Swivel Union

STSU803 Directional Swivel Union (Ball Joint)Are used to align nozzles that do no have swivel bases and require directional adjustment. These are made of St/St 304 for longer endurance in hard water

GEISER GEISER

Nozzle

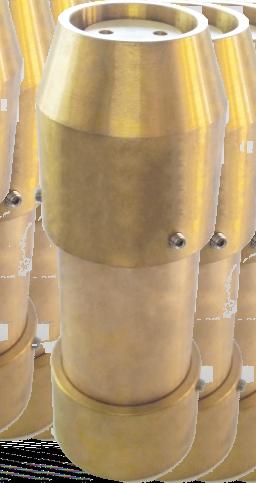

The GEISER is a bronze injector nozzle which produces a foam effect jet of water. This nozzle has injector action sucking up water and air pushing a white slender jet of water high into the air. When this nozzle is used at different level you have different effects .The GEISER has anadjustable flange.

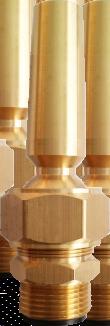

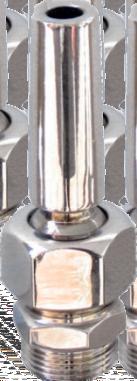

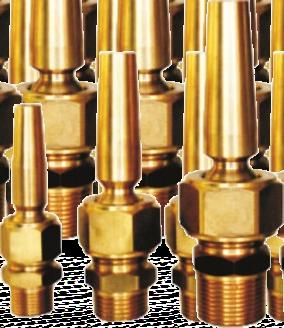

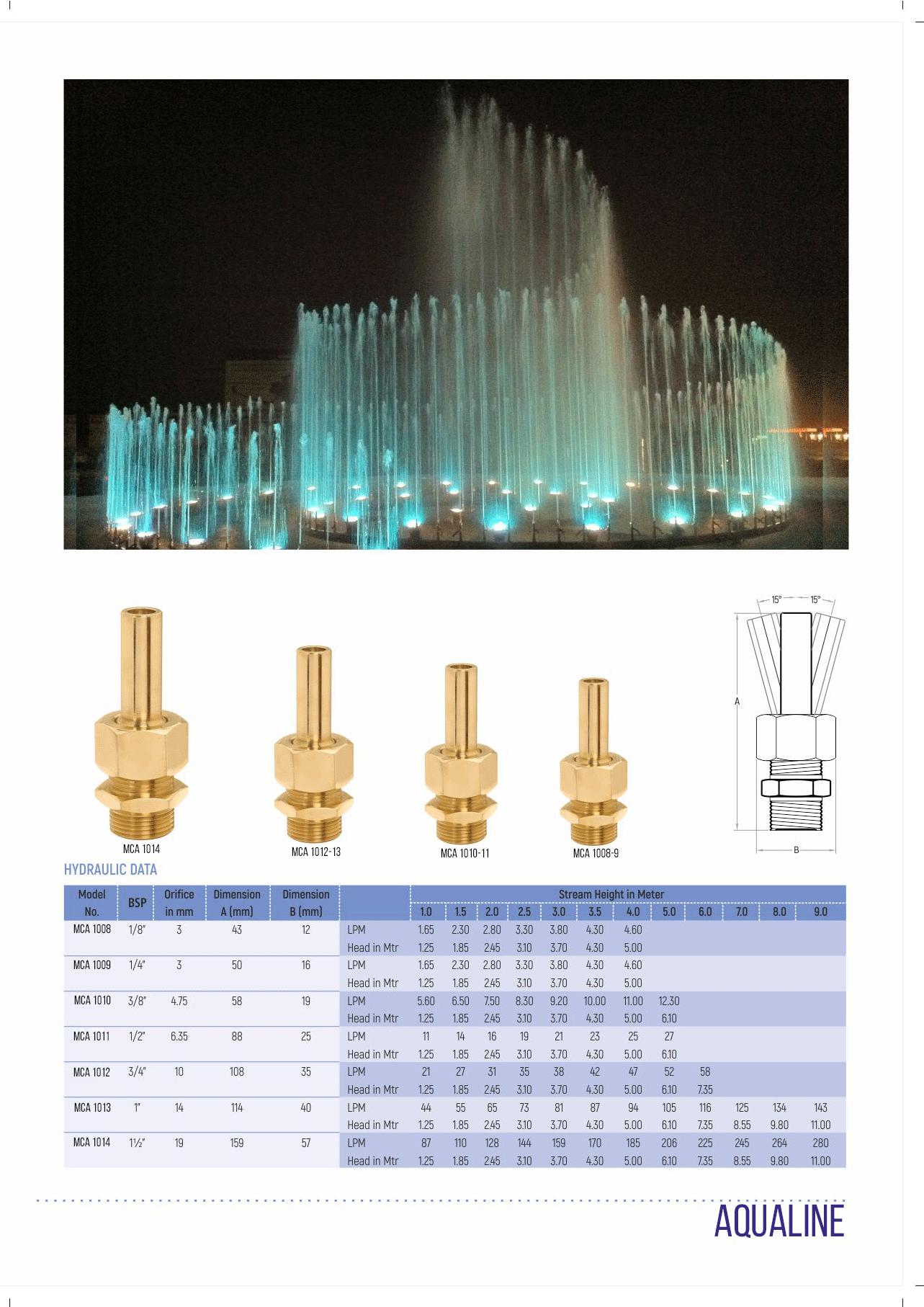

CLEAR WATER JET S/M

The small to medium size CLEAR WATER JET is a brass vertical Jet nozzle which produces long thin spear jet of water. This nozzle has a swivel connection , with a 15 degree angle in all directions.This nozzle is used on rings and in groups creating a wide range of designs. It is the most frequently used nozzle ,and can be used in combination with other nozzles as well.

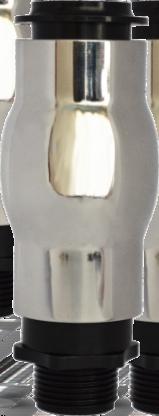

CLEARWATERJETM/L

The medium to large size CLEAR WATER JET is a brass vertical Jet nozzle which produces long thin spear jet of water. This nozzle has a swivel connection , with a 15 degree angle in all directions.This nozzle is used on rings and in groups creating a wide range of designs. It is the most frequently used nozzle ,and can be used in combination with other nozzles as well. These are heavy duty nozzles.

Nozzle

Clear Water Jets can be offered with an internal flow straightener. This enables elimination of pump’s turbulence and offers a clear strait stream of water. Giving it height and a smoother crystalclear stream. The is firmly placed inside the nozzle without affecting its dimensions.

Applies for nozzles ranging

Internal Flow Straightener

DeckJet MC-178

Function for applications that require flat deck level mounting for This directionally adjustableclear stream nozzle is designed swimming pool decks.

Construction bronze . nozzle cleaning by using a security key. Water inlet Face plate removable for nozzle alignment or Specification

connection 1 inch.

Nozzle

10

60 1”BSP

Not water level dependent. 25° 50

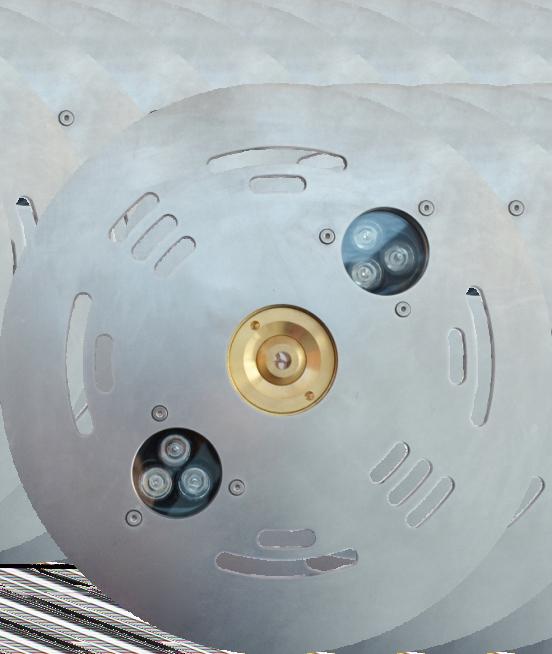

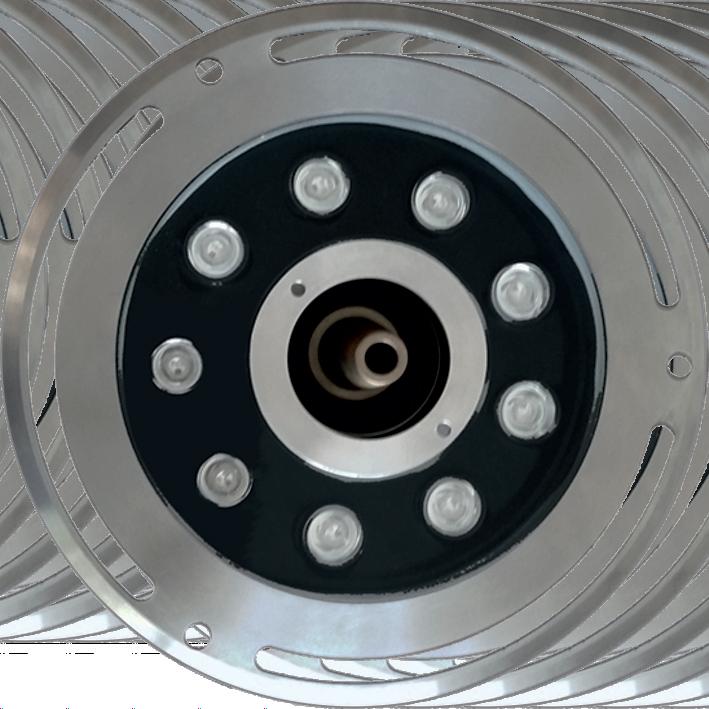

Deck Jet MC -182 Nozzle

Function

for applications that require flat deck level mounting for This directionally adjustableclear stream nozzle is designed nozzle cleaning by using a security key.

Face plate removable for nozzle alignment or decks, walls and water play areas. It is mounted on a

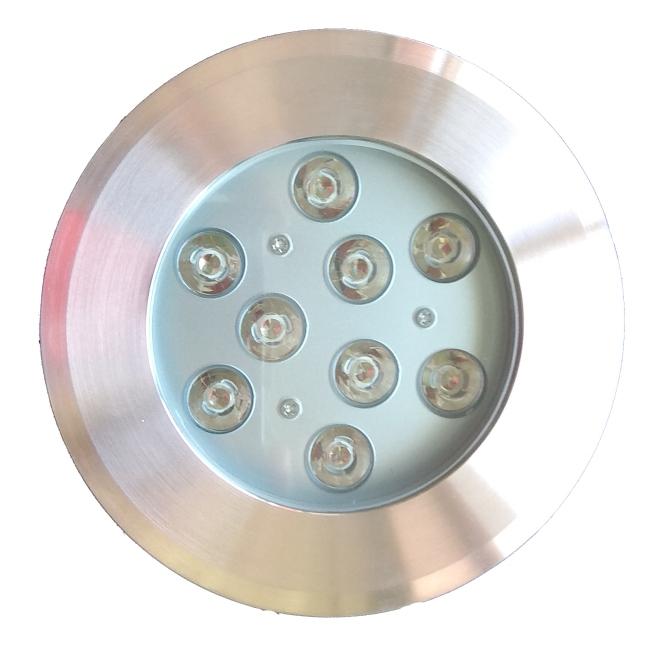

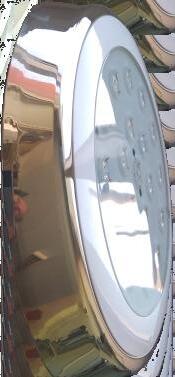

St/St AISI 316 plate together with a St/St light KL- 09B

Not water level dependent.

MODEL KL - 09B

RainCurtain

Nozzle

Detailed Product Description

Designed to create a water droplets effect from a very high distance, used mainly for indoor purposes working quietly and without any splashing. This is created using specialized lace strips and can regulated by several adjustable water outlets.This creates a glittering rain curtain.

MC 115

For this type of Water feature it is recommended that should be utilized with a filter installation. Water supply should come via a water softener.

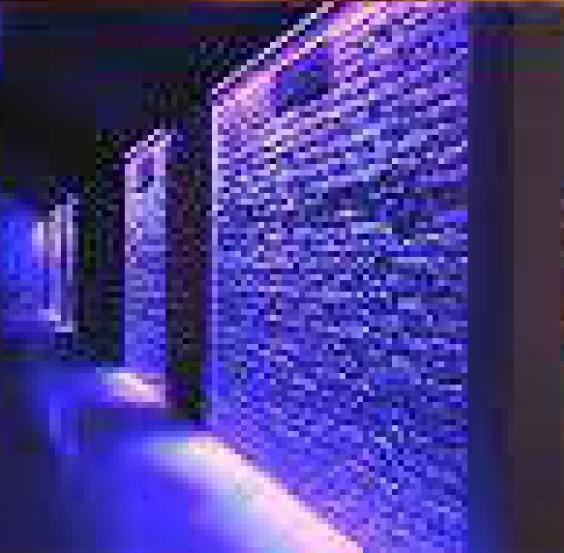

WaterCurtain

Nozzle

Detailed Product Description

Designed to create a continuous sliding sheet off water on Stone or Glass.This nozzle has a high flow efficiency due to this wide projection angle that allows it to cover an extensive surface with a small number of Nozzles. Made from brass and it includes a laminar flow and orientation ability for easy positioning and leveling.

The normal distance between the nozzles should be 200mm, and the normal capacity is 6 liters per minute.

BURSTJET Nozzle

The MC 117 BURST JET can offer an impressive single very high shot of up to 27.5MThe jet allows for adjustment of the spray pattern and volume of the water This Jet creates a thin stream that shoots up very rapidly and falls back very elegantly with a very controlled manner and not so much splash as you would expect .This jet is made of cast bronze

Spray HeightAdjustment Key available.

HEMISPHERE NOZZLEHEMISPHERE

The Sphere Nozzle is an Extremely Impressive nozzle giving elegant status wherever used.It is also practical in that it has a high wind resistance and can be used almost anywhere.Available in different sizes, made of St/steel making it resistant to corrosion.Offers years of use and reliability

SPHERE NOZZLE SPHERE

The Sphere Nozzle is an Extremely Impressive nozzle giving elegant status wherever used.It is also practical in that it has a high wind resistance and can be used almost anywhere.Available in different sizes, made of St/steel making it resistant to corrosion.Offers years of use and

Nozzle

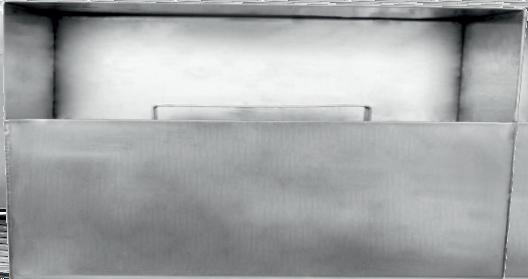

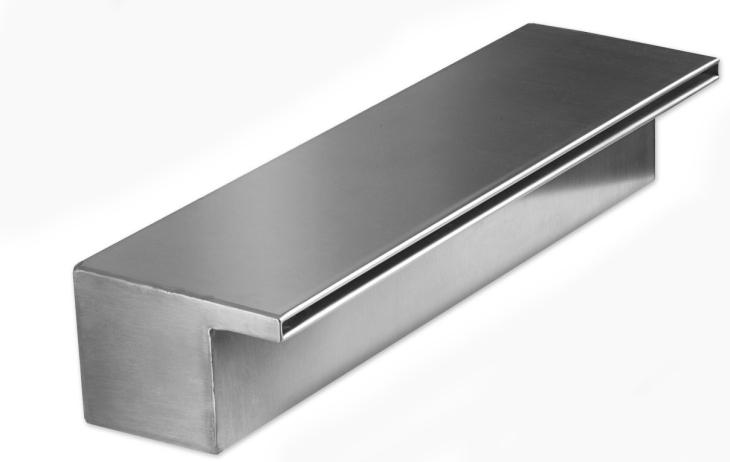

WATER BLADE

Straightblade....!!

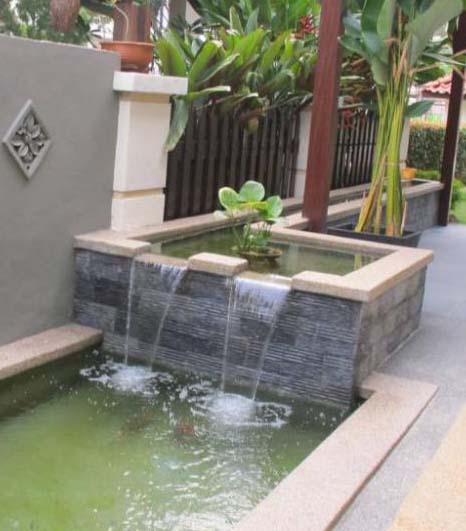

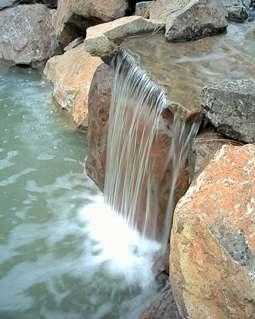

For Water Blade larger than 200cm contact manufacturer for details.

ThesePrefabricatedBladesconstructedcompletelyfromStainlessSteelAISI304, requestforspecialorderAISI316canvaryinsizeaccordingtoyourneeds. Incombinationwiththecorrectpumpitcreatesanimpressiveanduniformcurtain ofwaterwhichreturnsbacktopoolorwaterbasin.

Usuallyappliedtowallseitherbuiltintothewallorattachedexternallycombinedwith thecorrectarchitectureandlightingyoucancreateaveryimpressiveresult. TypeofPumpusedisaccordingtosizeandheightofblade, consultthemanufactureraccordingly.

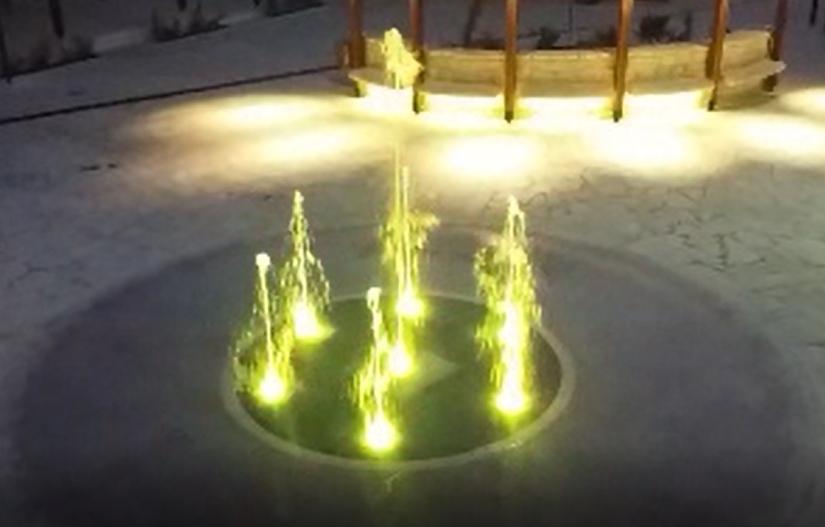

DRY DECK NOZZLE

DRY DECK NOZZLE

The Dry deck Nozzle is use interactive water features creating an Interactive and Exciting Environment. It has a multi purpose use.

ꞏ Multi-purpose

ꞏ Flush mounted nozzles mean no tripping hazards on deck for interactive play

ꞏ 3/8" opening on grate meets safety codes for toe entrapment

ꞏ Deck surrounds have no water accumulation as water is drained off

These can be made by special order St/StAISI 316

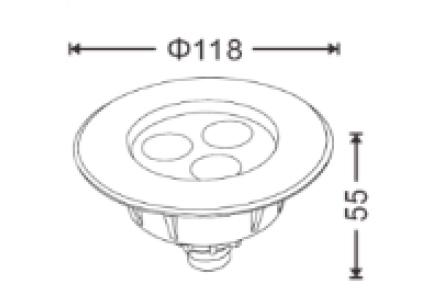

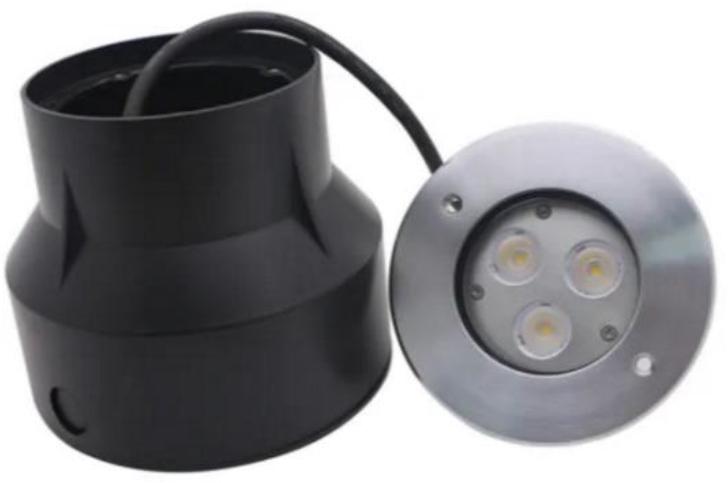

LED power: 3pcs HP 3W 3 in1 leds RGB

Watt Output: 2 x 7W =14W

Voltage:24V/DC or 12V/AC

Luminous flux:1200-1440lm

Beam angle:

Ip68.

Material: 304# stainless steel.

Cable: 5m rubber cable HO7RN-F 4*1.5

choose color and program from a distance of 20 meters. This also comes inAuto Change that works without the *L/min BAR DRY DECK SPRAY HEIGHT 0.25m 0.50m 0.75m 1.00m 1.25m 1.50m 2.00m 2.50m 3.00m 4.00m 5.00m 6.00m S-OUTLET

0,06 0,08 0,11 0,15 0,19 0,21 0,28 0,35 0,43 0,51 0,61 0,77 10mm

280mm 10mm 82mm 62mm 50mm 50mm 40

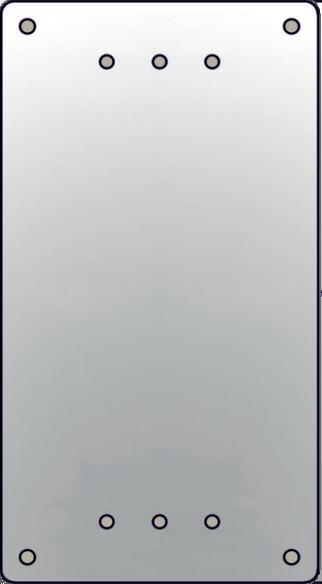

St/St Plate can be made to any size and design client needs by order.

DRY DECK NOZZLE

The Dry deck Nozzle is use interactive water features creating an Interactive and Exciting Environment. It has a multi purpose use.

ꞏ Flush mounted nozzles mean no tripping hazards on deck for interactive play

ꞏ Deck surrounds have no water accumulation as water is drained off

ꞏ Water velocity is controlled and 100% safe

These can be made by special order St/StAISI 316

MC 186

These Lights are pre programed, they make various color changes every 10 seconds. This means you do not need a controller.

LED power: 12pcs HP 1W leds RGB

Watt Output:12W

Voltage:12V/AC

ꞏ Lights are low voltage wet/dry fixtures and are covered with Lexan covers to remain cool to the touch. 35°

Luminous flux:1200-1440lm

Beam angle:

Ip68.

Material: 304# stainless steel.

Cable: 5m rubber cable HO7RN-F 2*1.5

THIS NOZZLE ISAVAILABLE IN 2 VERSIONS 12mm AND 14mm S- OUTLET JET

St/St Plate can be made to any size and design client needs by order.

DRY DECK NOZZLE

The Dry deck Nozzle is use interactive water features creating an Interactive and Exciting Environment. It has a multi purpose use.

ꞏ Multi-purpose

ꞏ Flush mounted nozzles mean no tripping hazards on deck for interactive play

ꞏ Deck surrounds have no water accumulation as water is drained off

ꞏ Water velocity is controlled and 100% safe

ꞏ Lights are low voltage wet/dry fixtures and are covered with Lexan covers to remain cool to the touch.

These can be made by special order St/StAISI 316

MC 188

These Lights can be connected to the RF Touch Controller allowing you to choose color and program from a distance of 20 meters.

LED power: 9pcs HP 3W 3 in 1 led RGB

Watt Output:18W

Voltage:24V/DC

Luminous flux:1200-1440lm

Beam angle:

Ip68.

35°

Material: 304# stainless steel.

Cable: 5m rubber cable HO7RN-F 4*1.5

THIS NOZZLE ISAVAILABLE IN 2 VERSIONS

St/St Plate can be made to any size and design client needs by order.

DRY DECK NOZZLE

The Dry deck Nozzle is use interactive water features creating an Interactive and Exciting Environment. It has a multi purpose use.

ꞏ Multi-purpose

ꞏ Flush mounted nozzles mean no tripping hazards on deck for interactive play

ꞏ Deck surrounds have no water accumulation as water is drained off

ꞏ Water velocity is controlled and 100% safe

ꞏ Lights are low voltage wet/dry fixtures and are covered with Lexan covers to remain cool to the touch.

These can be made by special order St/StAISI 316

LED power: 9pcs HP 3W 3 in 1 led RGB

Watt Output:18W

Voltage:24V/DC

Luminous flux:1200-1440lm

Beam angle:

Ip68.

35°

Material: 304# stainless steel.

Cable: 5m rubber cable HO7RN-F 4*1.5

MC 192

These Lights can be connected to the RF Touch Controller allowing you to choose color and program from a distance of 20 meters.

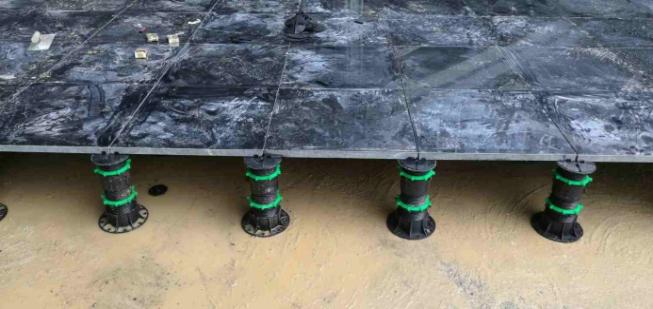

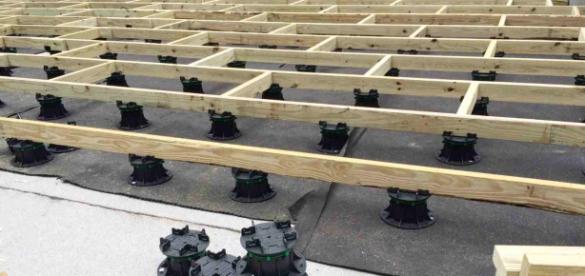

MBT Adjustable Plastic Bases

MBT Adjustable Plastic Bases

Practical adjustable plastic bases are made of PP, anti - UV , talc etc.

AQUA Line Fountain Nozzles

TULIP JET

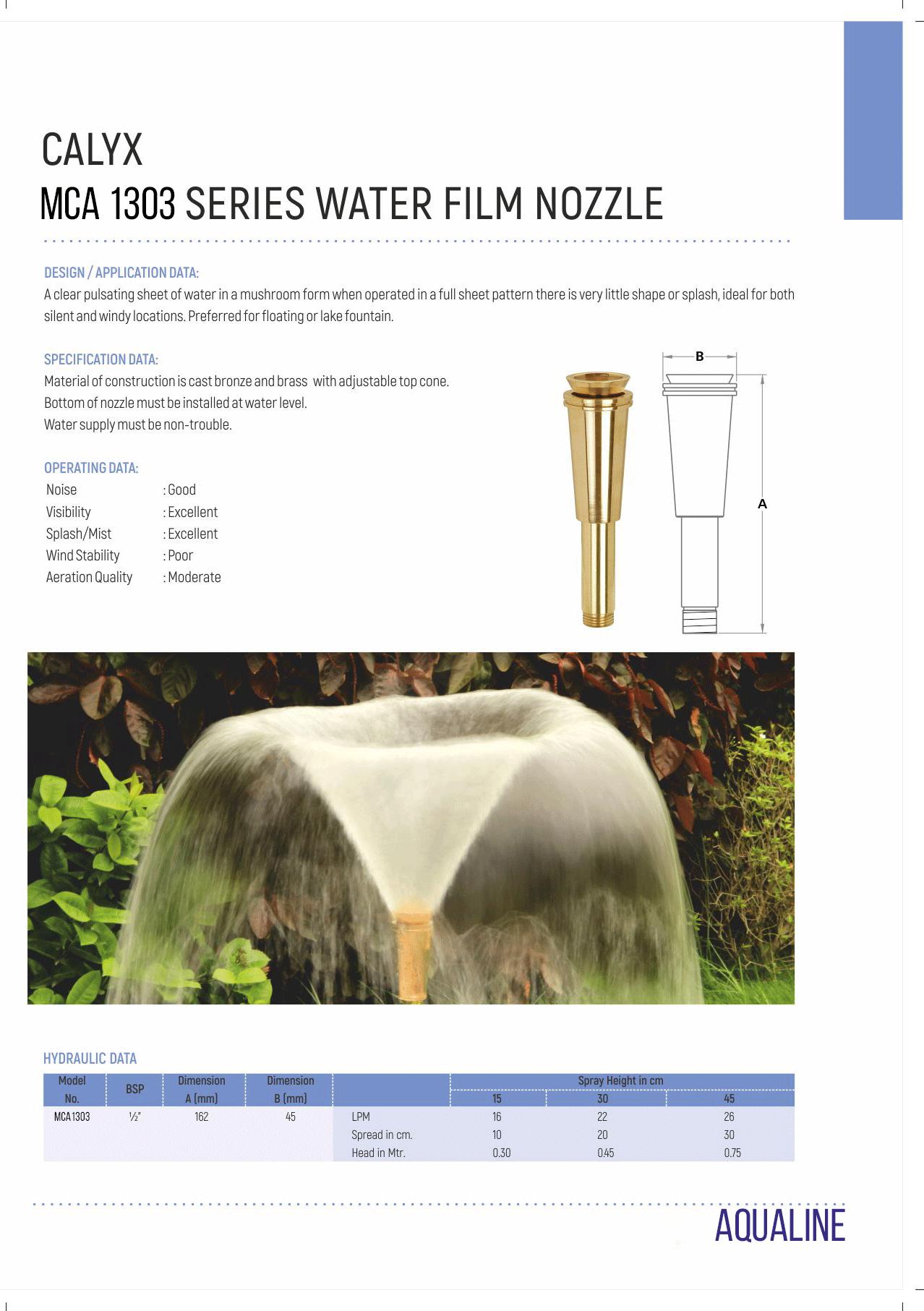

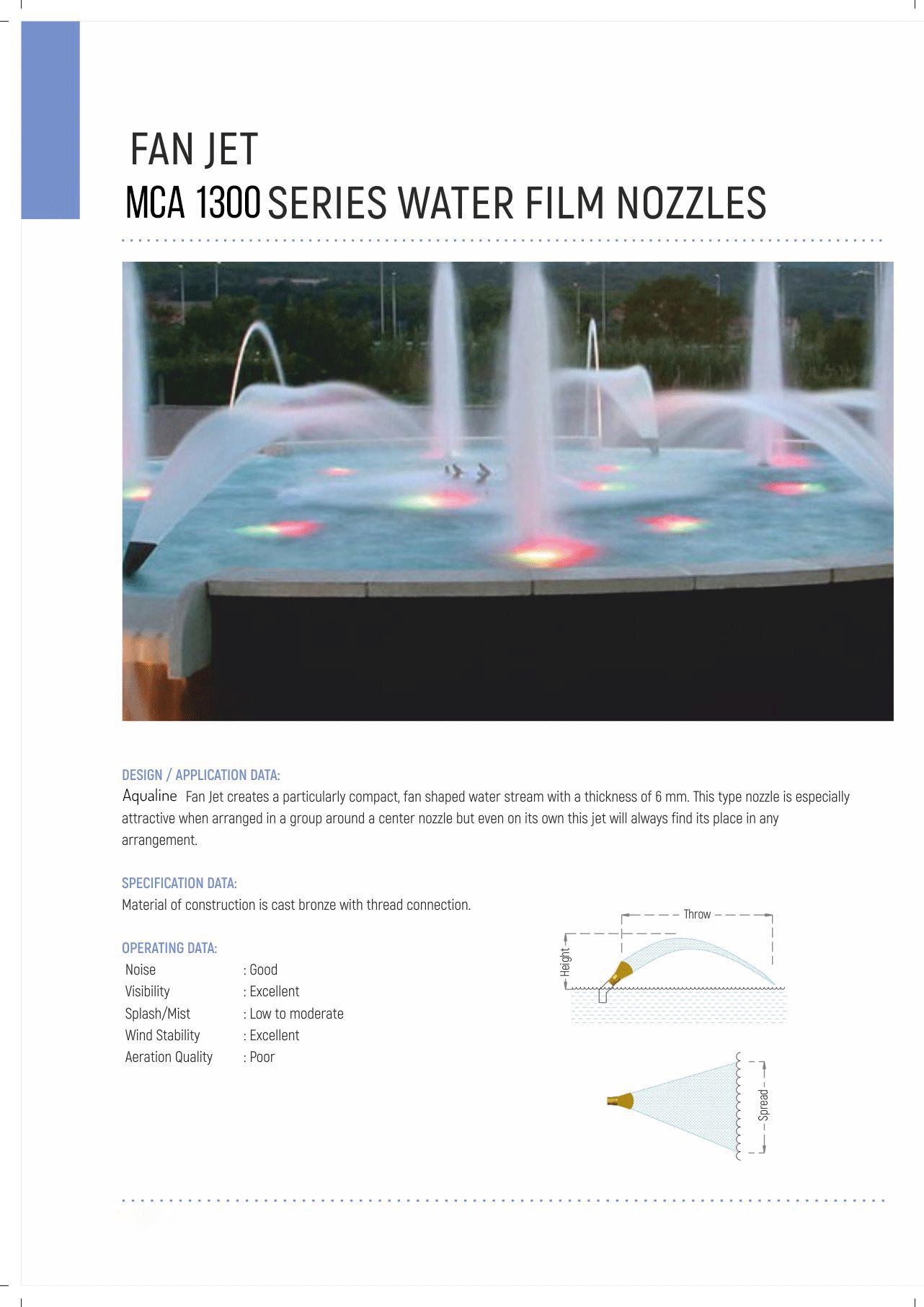

MCA1300 SERIES WATER FILM NOZZLE

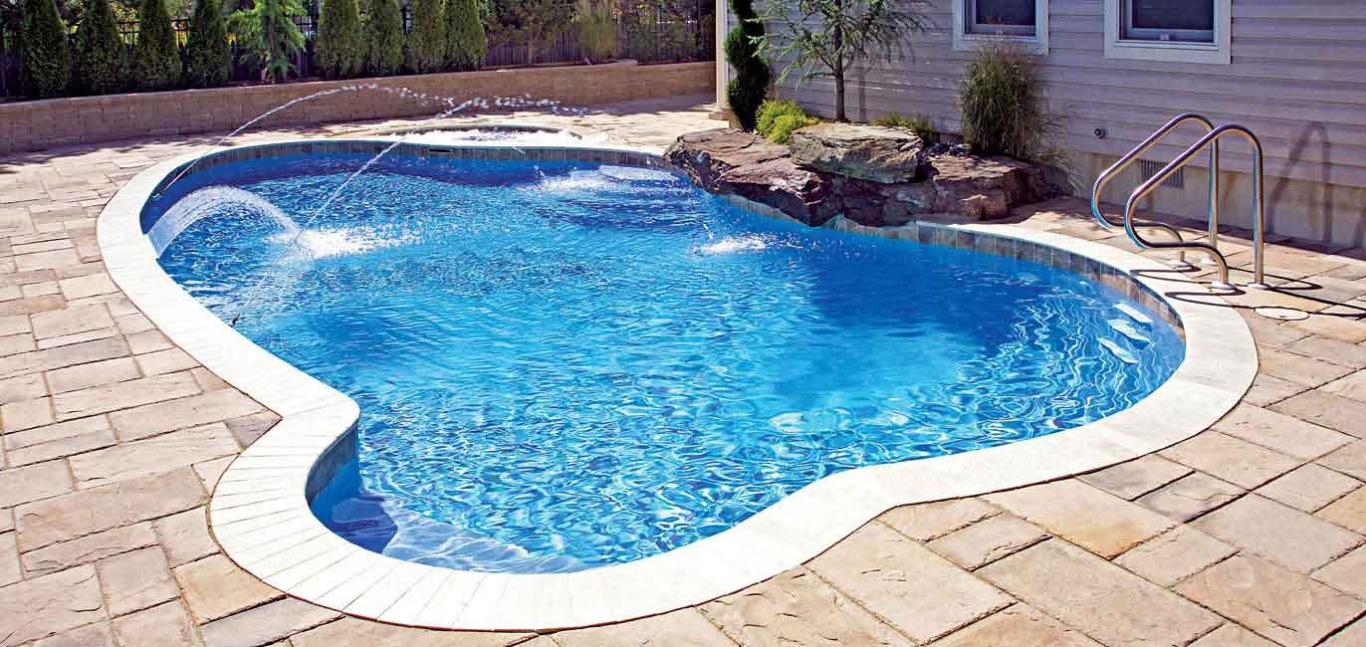

Laminar Jet Nozzles

Laminar Jet

Clear Stream Nozzles

Design/Application Data :

Laminar jets clear or lighted arcs of water as they silently enter your pool or spa.

Laminar Jets create spectacular backyard water entertainment with dazzling lighting effects.

Laminar Jets create a glass like rod of water that is perfectly clear and still. With lighting the jet appears to glow.

SPECIFICATION DATA:

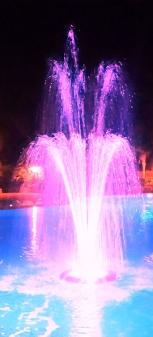

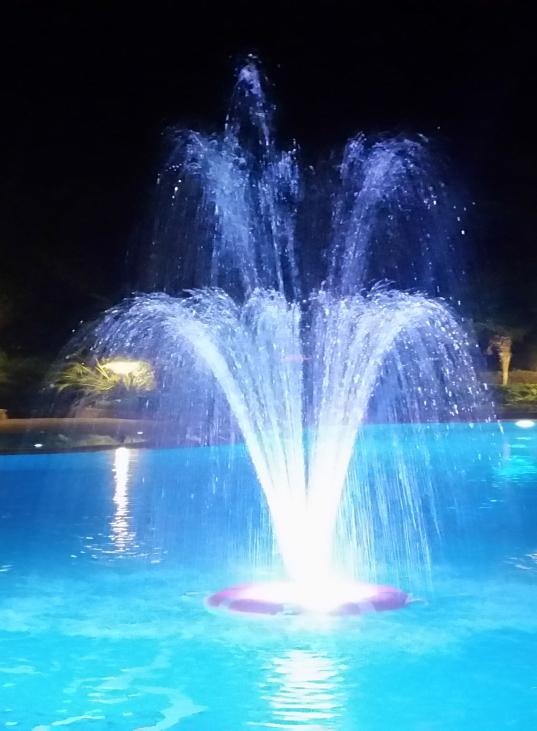

POOL FOUNTAIN FOUNTAINFloating Floating

MPF - 4000

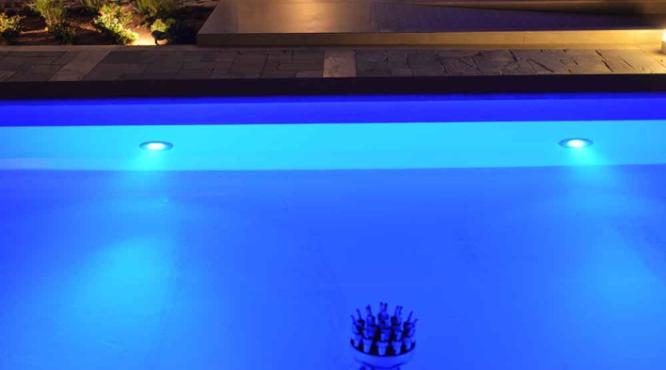

This very interesting product can instantly transform your pool to a magnificent Fountain.

The frame and lights are St/St 304.

This Floating Fountain is easily installed all you need is a plug and it will function, it comes with 10 meters cable to reach any plug.

The lights are low Voltage and the pump is controlled by a RCD 30MA,which is according to Electrical Regulations.

This fountain can be with White or Color Changing RGB light.

The Height of the Spray which can be regulated reaches up to 2.5 Meters.

MPF - 4000

This Floating Fountain consists of:

1 Pump WP 5000.

2 Lights KL - 072Β.

1 Nozzle FT-05.

POOL FOUNTAIN FOUNTAINFloating Floating

MPF - 5000/1

This very interesting product can instantly transform your pool to a magnificent Fountain.

The frame and lights are St/St 304.

This Floating Fountain is easily installed all you need is a plug and it will function, it comes with 10 meters cable to reach any plug.

The lights are low Voltage and the pump is controlled by a RCD 30MA,which is according to Electrical Regulations.

This fountain can be with White or Color Changing RGB light.

The Height of the Spray which can be regulated reaches up to 2.5 Meters.

MPF - 5000/1

This Floating Fountain consists of:

1 Pump ETX 20000.

4 Lights KL- 072B.

1 Nozzle MCA1332.

cm

NOMINAL

VOLTAGE For Lights

Power(WAconsumption TT) CABLE LENGTH (m) WEIGHT(Kg)

POOL FOUNTAIN FOUNTAINFloating Floating

MPF - 5000/2

This very interesting product can instantly transform your pool to a magnificent Fountain.

The frame and lights are St/St 304.

This Floating Fountain is easily installed all you need is a plug and it will function, it comes with 10 meters cable to reach any plug.

The lights are low Voltage and the pump is controlled by a RCD 30MA,which is according to Electrical Regulations.

This fountain can be with White or Color Changing RGB light.

The Height of the Spray which can be regulated reaches up to 2.5 Meters.

MPF - 5000/2

This Floating Fountain consists of:

1 Pump ETX 20000.

4 Lights KL- 072B.

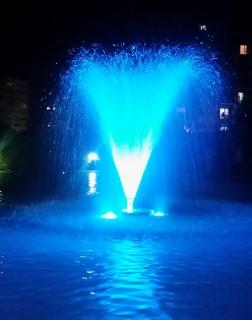

FLOATING FOUNTAIN

MPF - 7000

This very interesting product can instantly transform your pool or lake to a magnificent Fountain.

The frame and lights are St/St 304.

This Floating Fountain is easily installed all you need is a plug and it will function

The lights are low Voltage and the pump is controlled by a RCD 30MA,which is according to Electrical Regulations.

This fountain can be with White or Color Changing RGB light.

The Height of the Spray which can be regulated reaches up to 3.5 Meters.

This Floating Fountain is for large pools, lakes or ponds.

PLEASE NOTE:This fountain can be produced in St/St 316 for Sea Water only by special order

This Floating Fountain consists of:

1 Pump MH 750.

3 Lights DAZ 8001C.

1 Light DAZ 8007C.

1 Control Panel.

1 Nozzle MCA-1333Adjustable (Low/High Spray).

Super SuperFloat Float

MODEL PF-7000

NOMINAL

For Lights

FUT20 Touch RF Controller

● Remote distance: 30m

● Working temperature: -30℃~55℃

● Dimension: L141×W50×H17.5mm

● Weight: 164g

Touch color wheel.

Short press play 10 built-in mode, long press run mode-cycle. Adjust brightness, short press 10 levels long press for continuous adjustment.

For dynamic mode, adjust speed, short press 10 levels long press the default speed. For static color, adjust saturation, short press 11 levels, long press for continuous adjustment

Short press get red, green or blue color directly, long press adjust R/G/B brightness continuously

Short press turn on/off white color long press adjust white brightness continuously

Turn on/off 1/2/3/4/5/6/7/8 zone light.

Short press select and turn on zone light, long press turn off zone light. short press multiple zone key fastly, will select multiple zone synchronously

Turn on/off all 8 zone light.

2 scene memory short press recall the scene, long press 2s save current color into S1/S2. 8 zone recall or save synchronously

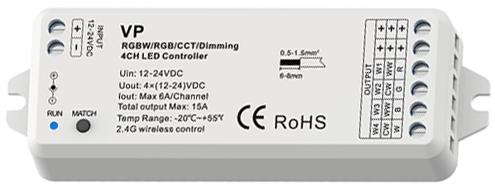

FUT30 RF Receiver

User Guide

RGBW/RGB/CCT/Dimming 4 Channel LED RF Controller

The LED controller is a mini size constant voltage RF receiver with 4 channel output, which can be compatible with a variety of remotes to switch and dim RGBW, RGB, dual color or single color LEDs. Multiple zones can be controlled separately or synchronously with endless receivers in each zone. Smooth dimming from 0.1% to 100% without any flickering can be very comfortable for human's eyes. Built-in 10 dynamic mode can create fancy lighting effects.

Feature

● Mini style LED controller with DC power socket input and 4 channel constant voltage output.

● Default as RGB/RGBW controller, need match RGB/RGBW remote, create colorful static or dynamic effect.

● Can also be used as color temperature or dimming controller, good compatibility

● Full compatibility with a variety of single color, dual color and RGB/RGBW remote.

● Smooth dimming and switch without any flickering.

● When control RGB/RGBW light, built in 10 dynamic mode, include jump or gradual change style.

● Adopt 2.4GHz wireless technology, can accept up to 10 remote control.

● Auto-transmitting function, one receiver can transmit the signal from the remote to another receiver within 15m, so the remote control distance can be beyond 100m.

● Auto-synchronization function, different receivers can work synchronously when they are controlled by the same remote, under same dynamic mode and same speed.

● Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller

● Can connect with unlimited number of 4CH CV or CC power repeaters in series or in parallel to expand output power, achieve synchronous control effect

Technical

● : - Inputvoltage 12 24VDC

● : PWM constant voltage Output type

● : max 6A/CH,Total max 15A Output current

● Grey levels: 4096/CH

● Dimming range: 0-100%

● Remote distance: 30m

● Working temperature: -30℃~55℃

● : L114×W38×H20mm Product size

● Net weight: 53g

Interface specification

Match guide

VP receiver match with all kinds of single or

times on the remote quickly within 5s after power on, the link is done once the light blinks 3 times.

2. Delete: Switch off the power, then switch on power again, short press on/off key or zone key 5 times on the remote quickly within 5s after power on, the unlink is done once the light blinks 5 times.

3. Multiple zone remote only use zone key to match each zone receiver

FUT31 RF Receiver

UserGuide

RGBW/RGB/CCT/Dimming

4ChannelLEDRFController

TheLEDcontrollerisaconstantvoltageRFreceiverwith4channeloutput,whichcanbecompatiblewithavariety ofRFremotestoswitchanddimRGBW,RGB,dualcolororsinglecolorLEDs.Multiplezonescanbecontrolled separatelyorsynchronouslywithendlessreceiversineachzone.Smoothdimmingfrom0.1%to100%without anyflickeringcanbeverycomfortableforhuman'seyes.Built-in10dynamicmodecancreatefancylightingeffects.

Feature

● 4channelRF2.4Gcontroller,defaultasRGB/RGBWtype,needmatchRGB/RGBWremote, createcolorfulstaticordynamiceffect.

● Can also be used as dual color temperature or dimming controller, good compatibility

● Full compatibility with a variety of single color, dual color and RGB/RGBW remote.

● Smooth dimming and switch without any flickering.

● When control RGB/RGBW lamp, built in 10 dynamic mode, include jump or gradual change style.

● Adopt 2.4GHz wireless technology, remote distance up to 30m, can accept up to 10 remote control.

● Auto-transmitting function, one receiver can transmit the signal from the remote to another receiver within15m,sotheremotecontroldistancecanbebeyond100m.

● Auto-synchronizationfunction,differentreceiverscanworksynchronouslywhentheyarecontrolledby thesameremote,undersamedynamicmodeandsamespeed.

● Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller

● 4CH CV RF controller can connect unlimited number of 4CH CV or CC power repeaters in series orinparalleltoexpandoutputpower Match

Technicalparameter

● : Inputvoltage 12-36VDC

● : PWMconstantvoltage Outputtype

● : 4CH,5A/CH Outputcurrent

● : 4x(60-180)W Outputpower

● Remotedistance:30m

● Workingtemperature:-30℃~55℃

● : L175×W45×H27mm Productsize

● Netweight:110g

Powerinput

V4receivermatchwithallkindsofsingleormultiplezone2.4GRFremotecontroller AftermatchdifferentcolorRFremote, thereceiverbecomethesamecolorcontroller

●

1.Match: Shortpressmatchkey,within5s,presson/offkeyorzonekeyoftheremote.

2.Delete: Longpressmatchkeyfor5s,deleteallmatchedremote.

3.Multiplezoneremoteonlyusezonekeytomatcheachzonereceiver

●

1.Match: Switchoffthepower,thenswitchonpoweragain, shortpresson/offkeyorzonekey3timesontheremotequicklywithin5safterpoweron, thelinkisdoneoncethelightblinks3times.

2.Delete: Switchoffthepower,thenswitchonpoweragain, shortpresson/offkeyorzonekey5timesontheremotequicklywithin5safterpoweron, theunlinkisdoneoncethelightblinks5times.

3.Multiplezoneremoteonlyusezonekeytomatcheachzonereceiver

FUT40 Power Repeater

User Guide

Din rail Mounted

4 Channel RF Controller and Power Repeater

The LED controller V4-D / C4-D is a constant voltage or constant current RF receiver with numeric digital display, 4 channel output, which can be compatible with a variety of RF remotes to switch and dim RGBW, RGB, dual color or single color LEDs. Smooth dimming from 0.1% to 100% without any flickering can be very comfortable for human's eyes. Built-in 10 dynamic mode can create fancy lighting effects.

Feature

● Din rail mounted constant voltage or constant current controller, four channel output.

● Digital numeric display and easy key operation.

● RF controller can work under stand-alone mode or RF mode.

● Under stand-alone mode(no need remote), can set as 1ch dimmer, 4ch dimmer, dual color controller or RGB/RGBW controller

● Under RF mode, full compatibility with a variety of single color dimming, dual color and RGB/RGBW remote.

● Smooth dimming and switch without any flickering.

● When control RGB/RGBW lamp, built in 10 mode, include jump or gradual change style, adjustable speed.

● Adopt 2.4GHz wireless technology, remote distance up to 30m.

● One receiver can accept up to 10 remote control.

● Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller

● High or low PWM frequency optional.

● Log or linear dimming curve optional.

● Work with power repeater to expand output unlimitedly

● Din rail or screw mounted optional.

Technical parameter

Dimension

FUT41 Power Repeater

● 3 channel constant voltage power repeater.

● 3 channel PWM signal input, 3 channel constant voltage output.

● Output current up to 10A per channel.

● Used with various LED PWM constant voltage controller, expand output power to control more lamps.

● A controller can connect unlimited number of LED power repeaters in series or in parallel, and achieve the synchronous control effects

Technical parameter

● : - Inputvoltage 5 24VDC

● : PWM constant voltage Output type

● : 3CH, 10A/CH Output current

● : 3 x (50-240)W Output power

● Working temperature: -30℃~55℃

● : L110×W74.5×H24.5mm Product size

● Net weight: 215g

Dimension

FUT50 Touch Panel Controller

User Guide

Wall Mounted Touch Panel

Single Color / Dual Color / RGB / RGBW LED

Constant Voltage Controller

Wall mounted single color/dual color/RGB/RGBW LED controllerT1-1/T2-1/T3-1/T4-1 is a full touch controller with 4 channel constant voltage output, and offers fast and accurate color adjustment with unique design touch color slide.

Feature

● Touch panel single color, dual color, RGB or RGBW PWM constant voltage controller

● Ultra sensitive high strength glass touch panel with touch color slide in the middle and backlighting.

● Smooth and accurate color adjustment by touching the color slide.

● Adopt 24GHz wireless technology, remote distance up to 30m.

● Touch keys with chord tones and LED indicator

Technical parameter

Match guide

Panel controller can match with RF remote by using power-up optionally

1. Match: Switch off the power, then switch on power again, short press on/off key or zone key 3 times on the RF remote quickly within 5s after power on, the link is done once the light blinks 3 times.

2. Delete: Switch off the power, then switch on power again, short press on/off key or zone key 5 times on the RF remote quickly within 5s after power on, the unlink is done once the light blinks 5 times.

3. Multiple zone remote only use zone key to match each zone receiver

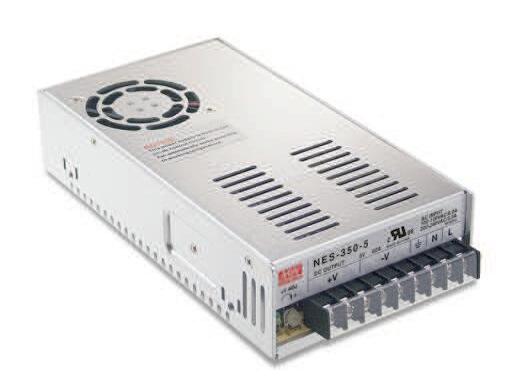

POWERSUPPLY

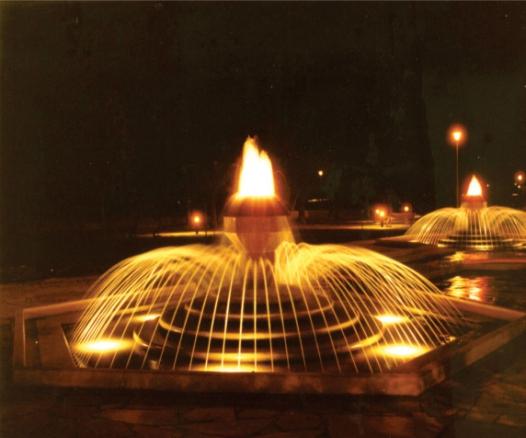

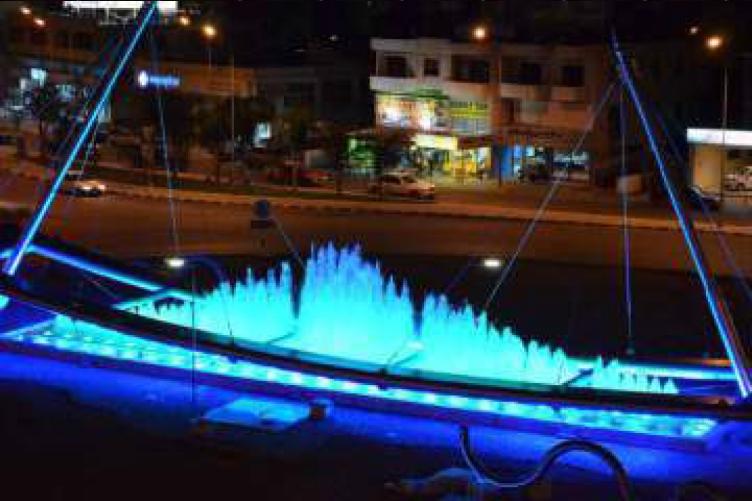

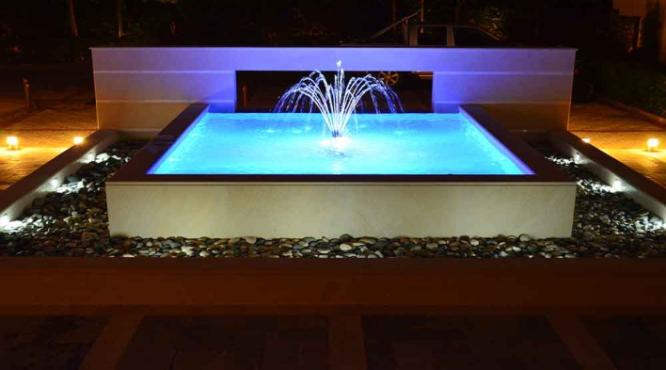

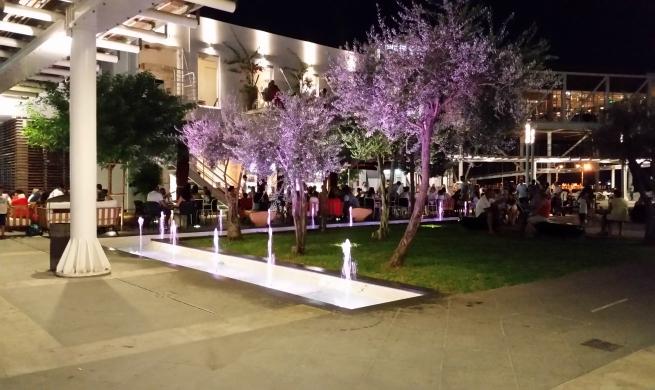

Fountain lights

Fountain Lights, nowadays, apart from their Outboard Material, which must be entirely ST / ST, must go hand in hand withAdvanced ElectronicsTechnology

It is not enough to be called just LEDs, but to be LEDs with Preferences such as.

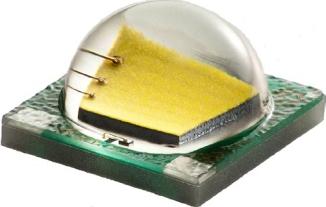

• Cree or Edison Chips RGBW which Guarantee Brilliance and Long Lifespan.

• DMX Connection - Common Controller orAuto Change.

• Diming

• Underwater or Outdoor Used.

• CE - RoHS - IP68 - ISO 9001 Certified.

• No Flicker

• Circuit Protection

• OperatingTemperature - 40C ~ 50C.

• HighTemperatureToughened Glass

• Fast Response toAchieve Over-Current

LEDLIGHTS LIGHTS

IP 68

CE APPROVED

Aselection of lighting that can accommodate any in ground purposes both in and out of water. Fountains, water displays, Water Falls Garden paths around Swimming pools and almost anywhere.

These Lights can be used both Underwater and out of water.

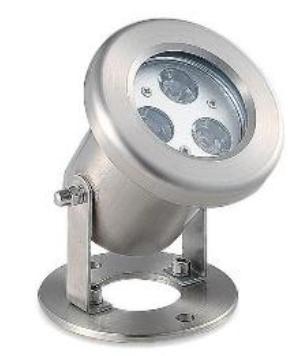

LED power:3*3W White 3*3W RGB

Luminous fluc:540lm

IP68

Material: Full 316# stainless steel, toughened

Cable:

5m rubber cable HO5RN-F 2*1 White

5m rubber cable HO5RN-F 4*1 RGB(Controller)

These Lights can be connected to the RF Touch Controller allowing you to choose color and program from a distance of 20 meters.

LIGHTS

These Lights can be connected to the RF Touch Controller allowing you to choose color and program from a distance of 20 meters.

CE APPROVED IP 68

RoHS

A selection of Heavy Duty lighting to accommodate any underwater and out of water lighting you have mind. Fountains, Water Display, Water Falls, Gardens and almost anywhere. Maintaining a green environment by using low consumption LED’s.

These Lights can be used both Underwater and out of water.

LED power:3*3W White 3*3W RGB

Luminous fluc:109.8lm

IP68

Material: Full 304# stainless steel, toughened Glass

Cable:

5m rubber cable HO5RN-F 2*1 RGB(Auto change)

5m rubber cable HO5RN-F 4*1 RGB(Controller)

LED

LIGHTS LIGHTS

CE APPROVED IP 68 RoHS

DAZ- 8001C Completely new design with ultra - powerful - efficient - durable underwater light with Aluminium plate cover.

Can illuminate Large Fountain, reaching heights of more than 20 meters.

LED power:9*3W

Luminous flux out: 361.1lm

IP68

Material: Full 316 Stainless Steel, Toughened Glass

Cable: 5m or 10m Rubber cable HO7RN-F 4*1.0

These lights can be used out of water as well.

These Lights can be connected to the RF Touch Controller allowing you to choose color and program from a distance of 20 meters.

LED

LIGHTS LIGHTS

CE APPROVED IP 68 RoHS

DAZ- 8002 Completely new design with ultra - powerful - efficient - durable underwater light with Aluminium plate cover.

Can illuminate Large Fountain, reaching heights of more than 20 meters.

LED power:18*3W

Luminous flux out: 787 3 lm

IP68

Material: Full 316 Stainless Steel, Toughened Glass

Cable: 5m Rubber Cable HO7RN-F 4*1.0

These lights can be used out of water as well.

These Lights can be connected to the RF Touch Controller allowing you to choose color and program from a distance of 20 meters.

LED

LIGHTS

CE APPROVED IP 68 RoHS

DAZ- 8005C. Completely new design with ultra - powerful - efficient - durable underwater light. Can illuminate Small to Medium Fountains. These Lights can be used out of water as well. Meet and Exceed every need.

LED power:1W*12 pieces

Luminous flux out: 44.54lm

IP68

Material: Full 304# stainless steel and toughened Glass

Cable: 5m rubber cable HO7RN-F 2*1.5 Auto Color Change Lights, has it’s own program every 10 seconds.

These Lights are pre programed, they make various color changes every 10 seconds. This means you do not need a controller.

LED

LIGHTS LIGHTS

CE APPROVED IP 68 RoHS

DAZ- 8007C. Completely new design with ultra - powerful - efficient - durable underwater High Power LED light With Aluminiun plate cover Can illuminate Medium to Large Fountains. These Lights can be used out of water as well. Meet and Exceed every need.

LED power: 9pcs HP3W 3 in1LED RGB

Voltage: 24VDC

Luminous flux out: 361.1lm

IP68

Material: AISI 304 stainless steel and toughened Glass

Cable: 5m rubber cable HO7RN-F 4*1.0mm

Special order can be madeAISI 316

These Lights can be connected to the RF Touch Controller allowing you to choose color and program from a distance of 20 meters.

LEDLIGHTS LIGHTS

CE APPROVED IP 68 RoHS

DAZ-80022. Completely new design with ultra - powerful - efficient - durable underwater High Power LED light. Can illuminate Medium to Large Fountains.

These Lights can be used out of water as well. Meet and Exceed every need.

Input Voltage: DC24V

Material: 304 stainless steel and tempered glass

Output Power: 3*6W

Colour: RGBW-DMX

Control way:Auto color change or DMX512 controllable

Body Size: 150*185mm

Beam angle:10°,25°,30°,45°,60°,90° optional

Lens:Transparent or Frosted

LEDLIGHTS LIGHTS

CE APPROVED IP 68 RoHS

DAZ-80011 Completely new design with ultra - powerful - efficient - durable underwater High Power LED light. Can illuminate Medium to Large Fountains. These Lights can be used out of water as well. Meet and Exceed every need.

Input Voltage: DC24V

Material: 304 stainless steel and tempered glass

Output Power: 6*6W

Colour: RGBW-DMX

Control way:Auto colour change or DMX512 controllable

Body Size: 215*160mm

Beam angle:10°,25°,30°,45°,60°,90° optional

VisionAdvisory

WARNING: Do not look at exposed lamp in operation. Eye injury can result.

LEDLIGHTS LIGHTS

CE APPROVED IP 68 RoHS

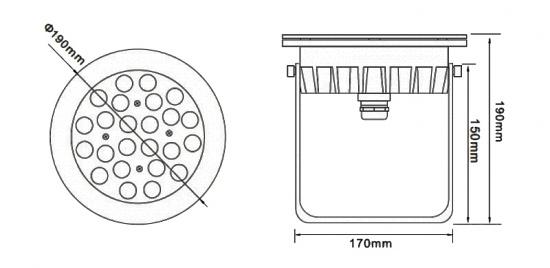

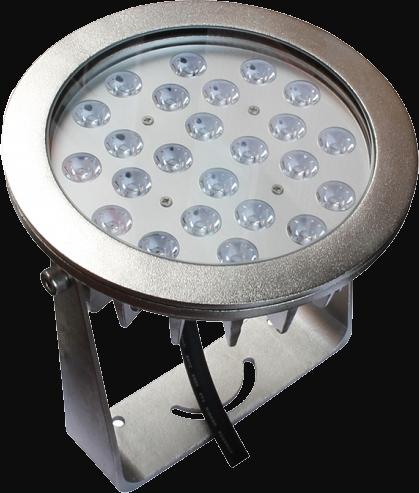

RMC-72C. Completely new design with ultra - powerful - efficient - durable underwater High Power LED light. Can illuminate Medium to Large Fountains. These Lights can be used out of water as well. Meet and Exceed every need.

Input Voltage: DC24V orAC/DC12V

Material: 316stainless steel and tempered glass

Output Power: 24*3W (3in 1 LED)

Colour: Single colour / RGBW-DMX

Control way:Auto colour change or DMX512

controllable

Body Size: 190*190mm

Beam angle:10°,25°,30°,45°,60°,90° optional

Lens:Transparent or Frosted

Led Source: High power 3W/4W Cree/Edison chip

Cable Wire: 5meter cable HO7RN-F4*1.5

VisionAdvisory

WARNING: Do not look at exposed lamp in operation. Eye injury can result.

LEDLIGHTS LIGHTS

CE APPROVED IP 68 RoHS

RMC-27C. Completely new design with ultra - powerful - efficient - durable underwater High Power LED light. Can illuminate Medium to Large Fountains. These Lights can be used out of water as well. Meet and Exceed every need.

Input Voltage: DC24V orAC/DC12V

Material: 316stainless steel and tempered glass

Output Power: 24*4W/ (4in1LED)

Colour: Single colour / RGB-DMX

Control way:Auto colour change or DMX512

controllable

Body Size: 190*250mm

Beam angle:10°,25°,30°,45°,60°,90° optional

Lens:Transparent or Frosted

Led Source: High power 3W/4W Cree/Edison chip

VisionAdvisory

WARNING: Do not look at exposed lamp in operation. Eye injury can result.

LED

CE APPROVED IP 68 RoHS LIGHTS LIGHTS

Pool Wall Mount Lights Completely new design with ultra - powerful - efficient - durable underwater light with Stainless Steel plate cover.

Can illuminate Large Pool and Fountain.

LED power:18*3W

Luminous flux out: 361.1lm

IP68

Material: Full 316 Stainless Steel, Toughened Glass

Cable: 5m Rubber cable HO7RN-F 4*1.0

LED

LIGHTS

CE APPROVED IP 68 RoHS

Pool Lights 1.5'’ Fitting new design with ultra - powerful - efficient - durable underwater light with Full Plastic plate cover.

Can illuminate Pool and Fountain. These light can be Auto Change or Single Colour by simply switching On - Off and On

LED power:72 SMD

Luminous flux out: 700 lm

IP68

Material: Full Plastic,Toughened Glass

Cable: 5m Rubber cable HO7RN-F 2*1.0

The slim Design of this light and 180° angle adjustment ensures the best illumination range - Rain Curtain Fountains -Water Falls - Water Walls - Walls etc.... It is a durable Projector light and can be used in and out of water.

Voltage: 24V-DC

Beam angle:

30°standard-(optional15°-60°-90°)

Protection Ratings:IP68

Material: St/St 304 - High temperature toughened Glass

Cable: 5m rubber cable HO7RN-F

Housing:Abs Embedded (optional)

Colour: White or RGB

ControlWAY:DMXConnection-CommonControllerorAutochange

Led Source: High Power 3in1

Wall Mounted Pool Skimmer ST/ST FLT-100

Surface Skimmer is used to remove leaves and debris from the fountain’s water surface. These can be made to measure for any pool. These are used for pools with narrow walls.

An internal coating wire insures a good suction force at the water’s surface to move debris, which collects in the front-removable basket.

MATERIAL: St/St 304AISI(Also available in 316AISI)

30cm

2cm 113

15

WALL MOUNTED MECHANICAL FLOAT VALVE - FLT-101

For the function of maintaining a specific water level , has several functions.To drain off excess rain water or replace water lost due to evaporation or splashing. It is usually in the wall of fountain or pool to offer a nice finnish while protecting the mechanical float valve.

MATERIAL: St/St 304AISI(Also available in 316AISI) Valve is made of Brass.

OPTIONAL: Overflow connection pipe.

WaterLevel

WALL MOUNTED FLOAT VALVE - FLT - 102

Acombination of three functions to fill replenish and discharge with the option of mini float sensor to control the water level to plus- minus 3cm It is usually in the wall of fountain or pool to offer a nice Finnish while protecting the mini float sensor.

MATERIAL: St/St 304AISI (Also available in 316AISI) When installing make sure that the water level is below the filling pipe at least 2cm.

ELECTRICAL DUAL WALL MOUNTED

FLOAT VALVE - FLT -103

FLT - 103 is a Dual Stainless Steel AISI 304 as well as both sensors. The top sensor operates on a 4cm water level differential for water make up, this sensor when connected to a control panel will operate a solenoid fill valve for water make up. The lower sensor also operates on a 4cm water level differential when connected to control panel it is used as a safety shut off for electrical equipments in the pool. This product guarantees long term reliable function due to the St/St sensors in comparison to plastic sensors usually jam.

12V-24VAC

Low Voltage for safety

Connects to electrical control Panel. Also available in St/St AISI 316.

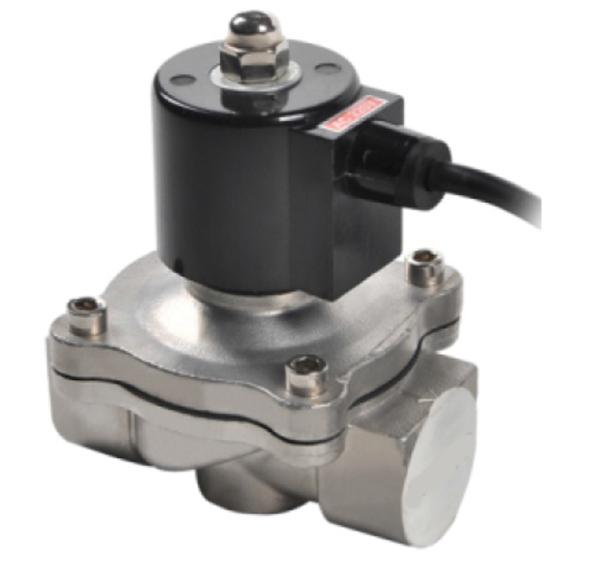

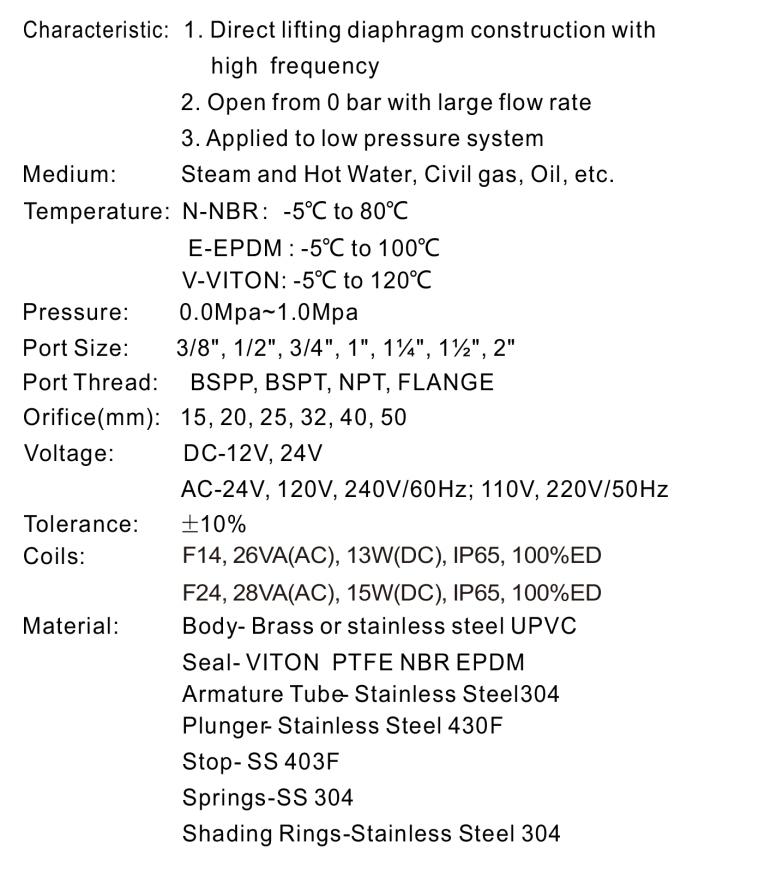

SOLENOID VALVE

24V/AC

ELECTRICAL DUAL WALL MOUNTED

FLOAT VALVE - FLT -103

WindControlPanelWind Sensor

Detailed Product Description

MC 179 Anemometer panel accurately senses wind velocity and adjusts the fountain controls to enable the system to operate in less than perfect wind conditions. Includes a display panel with adjustable wind - speed set points. By turning 8 stage regulator the preset speed indicator automatically tunes in with the wind speed indicator. No irritated passers - by and easy to install. Weather-dependant harmonious water pattern. Saves water and power costs

Product characteristics.

Supply Voltage: 12V/DC +/-10%

Max. Power Consumption:2.2W or 185mA

Relay 1 - With delay time to reset from 1-9 min.

Relay 2 - Direct wind speed to reset Wind dependant switch-off in 8 stages.

Material: Plastic sensing head and aluminum stem and the controller is made of sturdy plastic with clear indications.

C 179

SandFilters

Laminated KRIPSOL filters, manufactured in glass-fibre reinforced polyester resin, with a greenish blue finish. 300 mm. diameter black injection moulded polypropylene cover with manual purge valve. Attached by 8 threaded studs inserted in the filter body, stainless steel nuts with black ABS caps.

1” total pass sand drain with a plug to drain out water. Includes pressure gauge, 6-ways 1 1/2” selector valve for 520 mm. and 640 mm. diameters connectors, and 2” selector valve for 760 mm. and 900 mm. diameters connectors.

Filtration speed: 50 m3/ h / m2.

Maximum pressure: 1,6 Kg/cm2.

Working pressure: 0,8 - 1,3 Kg/cm2.

Testing pressure: 2,5 Kg/cm2.

Operating temperature: 1º C ÷ 40 º C. Sand grading: 0,4 ÷ 0,8 mm.

Cartridge FILTERS

These car tridge filters represent the latest technology

They provide crystal clear water and have extra cleaning capacity to accommodate pools and spas ofall types and sizes. Its outer cover is made of reenf orced plastics and the car tridge element is made of drinkling poly ester material. For replacement or new pool installations. . These Cartridge filters are suitable for in-ground pools,public pools,fountains , water amusement parks,seawater,freshwater breed aquatics, industrial.

FEATURES

Single locking knob securely fastens head to filter tank eliminating bolts. Attractive, durable filter head may be rotated to conveniently position gauge and manual air relief.

Fine filtering ,top-mount with pressure indication and automatic exhaust equipment, easy to install.

Injection-molded filter tank for dependable, corrosion-free performance. Elevated, filtered water collector and debris sump prevents accidental by-pass of heavy debris to Pools ,Fountains or Spas when cartridge is removed for cleaning.

Simply control, various specifications for customers, cartridge element can be reused after cleaning.

PreFilter

StainlessSteel

These Pre filters with removable basket to prevent foreign bodies from entering the pump and plant room. For water circulation pump in filtration plants in pools and fountains.

Its outer cover is made of reenforced plastics and the strainer is made of Stainless Steel 304,with 3mm holes. For replacement or new pool installations.These Pre filters are suitable for in-ground pools, public pools, water amusement parks and freshwater breed aquatics.

FEATURES

Screw on lid securely fastens head to filter tank eliminating bolts. Attractive, durable filter head. Top-mount with easy access.

Injection-molded filter tank for dependable, corrosion-free performance. Elevated, filtered water collector and debris sump prevents accidental by-pass of heavy debris to pool or spa when St/St basket is removed for cleaning.

Simply controlled, St/St basket can be reused after cleaning.

solenoid valve Fountain

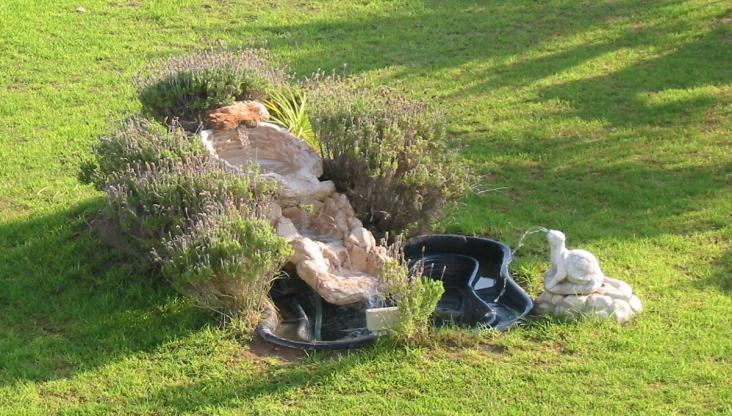

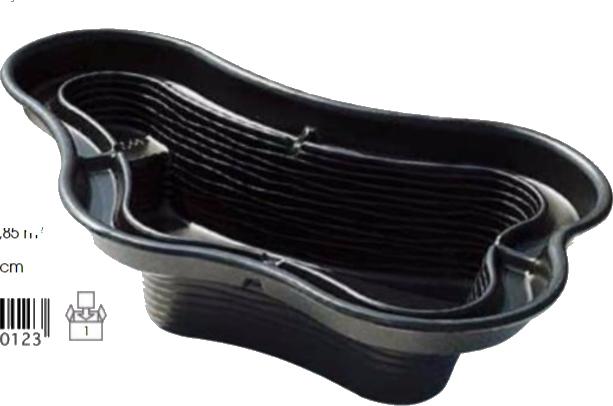

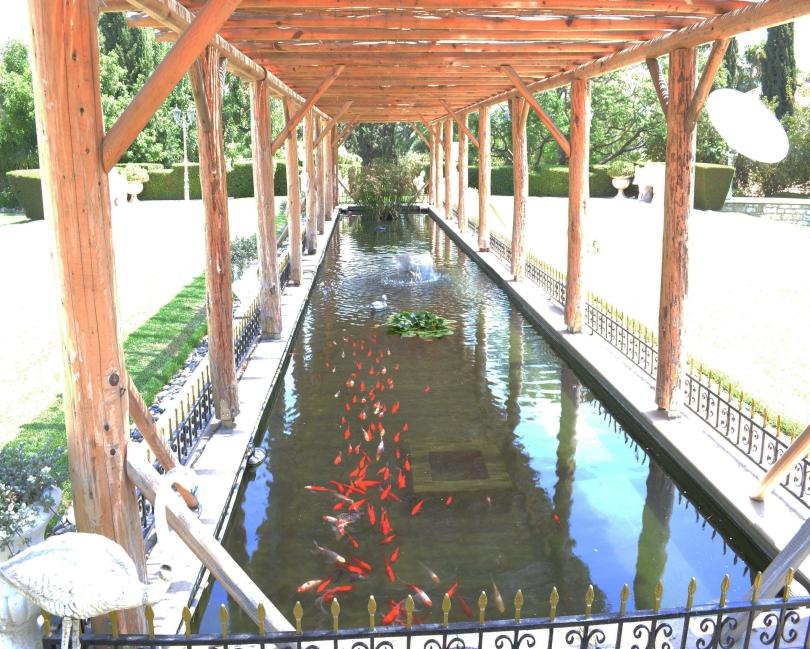

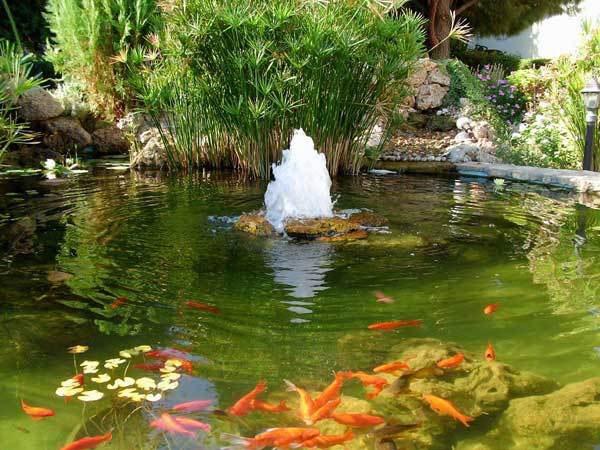

FISH POND PRODUCT

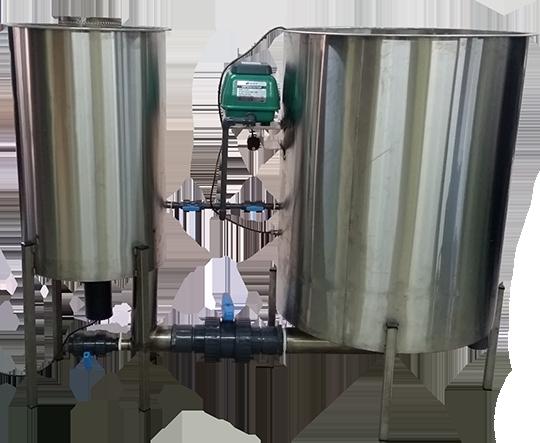

HIGH PRESSURE BIO FILTER POND STERILIZER

FACTS:

1.Simple and convenient cleaning .

2.Large capacity for mechanical

and biological filtering system.

3.Larger power UVC light forsafe elimination of suspended algae and pathogens.

4.Safe and durable ,suitable forgarden pools and koi pond filtrating system.

IMPORTANT NOTE UV lamp must be replaced every 5000Hrs of use Approximately 6months use

UBF - 18000 - 25000

BIO FILTER - POND STERILIZER

Outstanding biological Flter and ultra violet claryfier combination. Produces clean and clear water for healthy Fish and plants to thrive.

Destroys green water algae for a clearer pond.

1.Simple and convenient cleaning .

2.Large capacity for mechanical

and biological filtering system.

3.Larger power UVC light forsafe elimination of suspended algae and pathogens.

4.Safe and durable ,suitable forgarden pools and koi pond filtrating system.

IMPORTANT NOTE

UV lamp must be replaced every 9000Hrs of use

Approximately 6 months use

AIRPUMPS

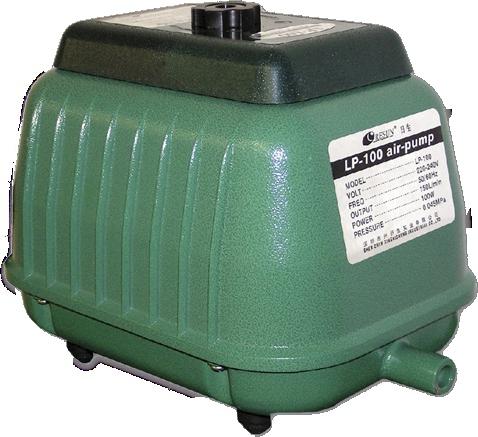

LP 100

FEATURES

1.Impact -resistance rubber diaphragm and valve ensure long life.

2.Unique structure with good heat dispersion and low noise.

3.Widely used in Fish Ponds,Aquariums and Fish Farms for oxygenation purposes.

4.PlasticAir dividers included and metal dividers available on request

MBF - 30000-30002 POND FILTER For Large Ponds

Our MBF -30000-30002LateralSandFilterisdesignedforheavysolidwasteFiltering.

Sand filters when coupled with UV Sterilizer offer an exclusive “dual lateral design”.This dual Lateral design increases filtering and back - washing efficiency. During the backwash cycle, the dual lateral system promotes better fluidisation creating a better cleaning of the filter bed. These filters externally may look like an ordinary sand filter but it is designed to remove extremely dense amounts of debris effectively, in combination with the media used in this Filter.

MBF - 20000 POND FILTER For Large Ponds

FACTS:

1.Simple and convenientcleaning .

2.Large capacity for mechanical

3.Safe and durable ,suitable forlarge Koi ponds. and biological filtering system.

This St/St Heavy Duty Pond Filer MBF-20000 is built by Maranco for large ponds, offering lifetime endurance and built specifically for the harsh climates . Keeping a clear garden pond in the warm or hot summer months involves these key ingredients:

Proper filtration (especially biological) and circulation, cleaning and maintenance, proper chemistry and feeding. It is also noteworthy that a well built pond that is in harmony with nature needs much less maintenance.

MBF-20000

ATLANTIC UVSterilizer MUV-58

IMPORTANT:DO NOTLOOK DIRECTLYATAUV LAMP WHEN IT IS ON! It can be harmful to your eyes.... Replacement of the UV lamp

The lamp of this UV Sterilizer is used 24 hours a day, seven days a week. Once this time limit has been reached,9000hrs the lamp will still glow or light up. It still needs to be replaced because it is too weak to perform at optimum levels. It is usually considered 60% efficient when it is time to replace it.

How a UV Light works

Only the water that passes through the UV chamber will be treated. Inside the chamber is a quartz sleeve that contains and protects a UV lamp from shorting out because of the power cord connected to the UV lamp. When water passes over the quartz sleeve, the UV light transmits a specific light spectrum that damages the Algae and possible protozoan's within the water . Protozoan sterilization requires a slower flow rate then Algae. If the Algae receives enough damage from the UV light, it fails to be able to reproduce or live. Dead algae may be trapped in filters and/or consumed by beneficial bacteria.The key to successfully killing either Algae or Protozoan's is flow rates.

ATLANTIC UVSterilizer

IMPORTANT:DO NOTLOOK DIRECTLYATAUV LAMP WHEN IT IS ON! It can be harmful to your eyes.... Replacement of the UV lamp

The lamp of this UV Sterilizer is used 24 hours a day, seven days a week. Once this time limit has been reached,9000hrs the lamp will still glow or light up. It still needs to be replaced because it is too weak to perform at optimum levels. It is usually considered 60% efficient when it is time to replace it.

How a UV Light works

Only the water that passes through the UV chamber will be treated. Inside the chamber is a quartz sleeve that contains and protects a UV lamp from shorting out because of the power cord connected to the UV lamp. When water passes over the quartz sleeve, the UV light transmits a specific light spectrum that damages the Algae and possible protozoan's within the water . Protozoan sterilization requires a slower flow rate then Algae. If the Algae receives enough damage from the UV light, it fails to be able to reproduce or live. Dead algae may be trapped in filters and/or consumed by beneficial bacteria.The key to successfully killing either Algae or Protozoan's is flow rates.

ATLANTIC UVSterilizer For Large Fish Ponds

IMPORTANT:DO NOT LOOK DIRECTLYATAUV LAMP WHEN IT IS ON! It can be harmful to your eyes and skin.... Replacement of the UV lamp

The lamp of this UV Sterilizer is used 24 hours a day, seven days a week. Once this time limit has been reached,9000hrs the lamp will still glow or light up. It still needs to be replaced because it is too weak to perform at optimum levels. It is usually considered 60% efficient when it is time to replace it.

Lamp Indicator shows if lamp is working

How a UV Light works

Only the water that passes through the UV chamber will be treated. Inside the chamber is a quartz sleeve that contains and protects a UV lamp from shorting out because of the power cord connected to the UV lamp. When water passes over the quartz sleeve, the UV light transmits a specific light spectrum that damages the Algae and possible protozoan's within the water . Protozoan sterilization requires a slower flow rate then Algae. If the Algae receives enough damage from the UV light, it fails to be able to reproduce or live. Dead algae may be trapped in filters and/or consumed by beneficial bacteria.The key to successfully killing either Algae or Protozoan's is flow rates.

With a powerful 6000 litre per hour pump Jebao PC-1 can remove sludge, leaves stones and blanket weed.

Features：

● 6 meter Hose, Smooth Bore spiral reinforced 1.5"

● Remove debris up to 25mm, Max Submerged depth:5M

● Economical 250W motor

● Remote control switch

● Safe to use with all healthy adult pond fish

● Adjustable telescopic handle(1M-2M)

Energy-saving75% better than pond vacuum

PlasticPrefabricatedPonds

Capacity:145 ltr

Max.depth:50cm

Surface

Max.depth:50cm
