Hinkley Fan Supplement January 2026

THIS SUPPLEMENT INCLUDES NEW PRODUCTS AND LINE ADDITIONS FOR FANS. FOR INTERIOR, BATH , OUTDOOR, AND LANDSCAPE LIGHTING, SEE HINKLEY.COM.

HI THERE, WE'RE

Welcome to the family

We're here to make your research process a snap with our newest designs, featured collections, in-depth product details, curated styles, and endless inspiration throughout these pages and at hinkley.com.

Our easy-to-use website will guide you through every ceiling fan and lighting decision. We deliver the most helpful product features, specs and tips at-a-glance for every project, as well as a quick connection to our elite network of retailers.

Once you’ve welcomed Hinkley into your home, stay connected with us. We know that sometimes things happen, and we want to answer any questions as quickly as possible.

Just head to hinkley.com/register - we’re always here if you have a question, need some help, or want to chat about our products.

Discover designs to deck out your space

INSPIRATION AWAITS

Just like you, we've reconnected with our homes and appreciate more than ever how important these interior and exterior spaces are to our health, happiness and well-being.

We love seeing how you live and sharing ideas and inspiration with each other. Stay in the loop on all Hinkley happenings, from your favorite styles, the best (seriously) giveaways, helpful tips, our latest collabs, Team Hinkley hilarity, and brand new design drops @hinkleylighting

TAKE A SPIN THROUGH THE

HINKLEY HOME AUTOMATION APP

PRESENTING THE EFFICIENT WAY TO MAKE YOUR SPACE SMARTER

Enjoy complete control of your home by pairing your Hinkley ceiling fan with the Hinkley Home Automation App. Every Hinkley fan can be a smart fan – Hinkley 6-speed DC fans are ready to connect right out of the box. Hinkley 3-speed and 4-speed fans are WiFi adaptable with the additional purchase of optional control accessories.

HPAIR YOUR CEILING FAN WITH THE HINKLEY APP

Download from the Apple App Store or Google Play

EASY-TO-USE CUSTOMIZATION:

Turn the light on & off, switch the fan direction, and change the wind speed and light brightness on a slidable scale.

GROUP FANS TOGETHER:

Pair multiple smart fans together and control them all at once – no need to mess with multiple device settings.

SET IT + FORGET IT:

Make life seamless by setting schedules and preferences.

SMART DEVICE ENABLED:

Go hands-free with the option to manage your fan settings with smart home voice-controlled devices.

ACTIVATE BREEZE MODES:

Toggle between normal airflow speeds and varying airflow speeds with breeze mode.

EASILY SHARE ACCESS:

Easily share access to fan controls with family members or house guests.

For detailed setup guides and more information, see Hinkley.com or scan the QR code.

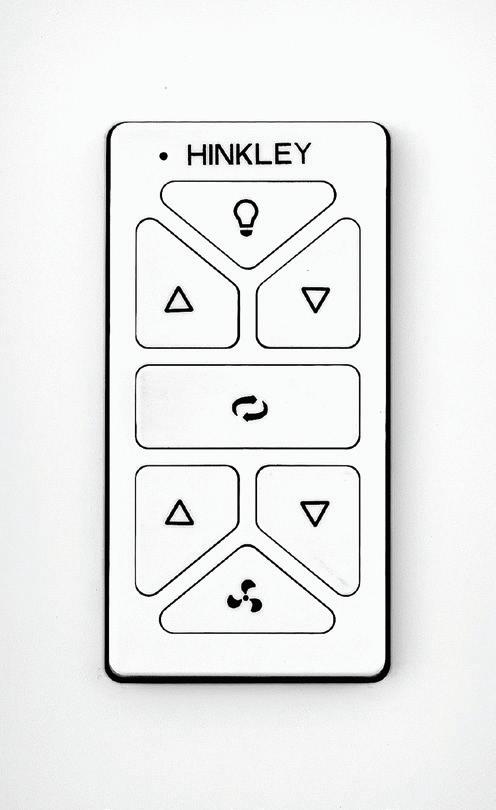

INNOVATIVE FAN REMOTE + WALL CONTROL SYSTEM

WALL CRADLE BRIGHTER

REVERSE FAN DIRECTION FASTER

THE POWER OF HIRO

DESIGN

HIGHLY INTELLIGENT, ALL-IN-ONE, WIRELESS DESIGN.

AVAILABLE IN 3 COLORS (WHITE, LIGHT ALMOND, AND BLACK).

FLEXIBILITY

SECURES TO A FLAT WALL OR SWITCH BOX.

CAN BE MOUNTED WITHIN A DECORATIVE FACE PLATE OR USED WITH AN OPTIONAL HANDHELD SILICONE HOLDER.

FUNCTIONALITY

DECORATIVE FACE PLATE

LIGHT ON/OFF

DARKER SLOWER FAN ON/OFF

COMPATIBLE WITH NEW AND EXISTING HINKLEY FANS.

UP TO 3 CONTROLS CAN BE CONNECTED TO EACH FAN.

TECHNOLOGY

INTEGRATES WITH OTHER SMART HOME DEVICES.

USES WIFI AND RF COMMUNICATION FOR SEAMLESS OPERATION.

Every Hinkley product is thoughtfully designed and carefully crafted with important features, so we have created useful icons to help you with your fan selections.

Below is a key describing each of these icons in detail for easy reference.

ICONS + DESCRIPTIONS

COASTAL ELEMENTS COLLECTION

Versatile designs offering maximum durability in harsh climates.

DAMP

Suitable for use in damp (interior moist and outdoor no direct rain or sunlight) locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards.

DC MOTOR

Fan comes equipped with a DC motor which uses up to 70% less energy than an AC motor and runs cooler and quieter for a longer life.

ETL LISTED

Fan has been tested by Intertek and found in compliance with accepted national safety standards.

HIRO

HIRO CONTROL

All-in-one wireless remote and wall control combines flexible operation for fan speed and light control with ease of installation for multiple configurations.

LED

Fan supplied with fully integrated LEDs and drivers or specifically matched LED bulbs based on performance and application.

WET

Suitable for use in wet (interior direct splash and outdoor direct rain or sunlight) locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards.

WiFi

Fan is WiFi compatible.

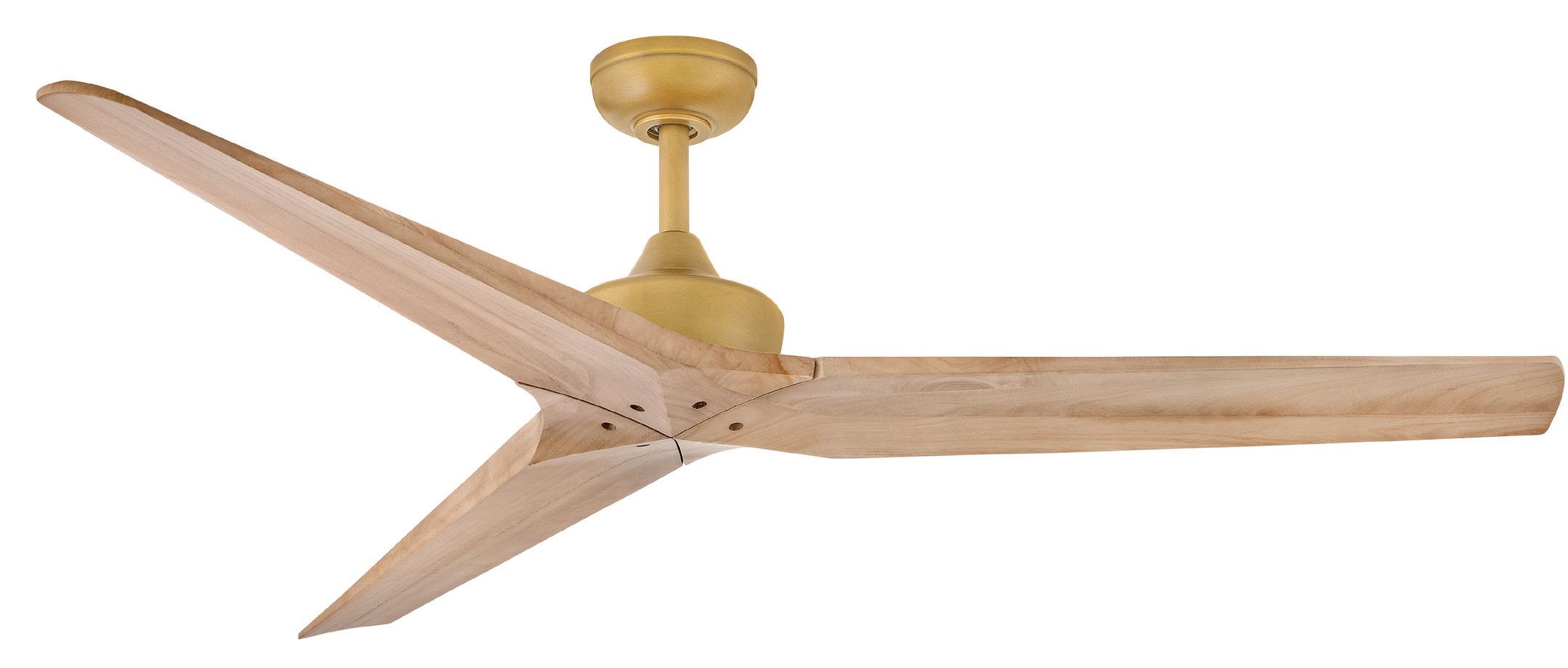

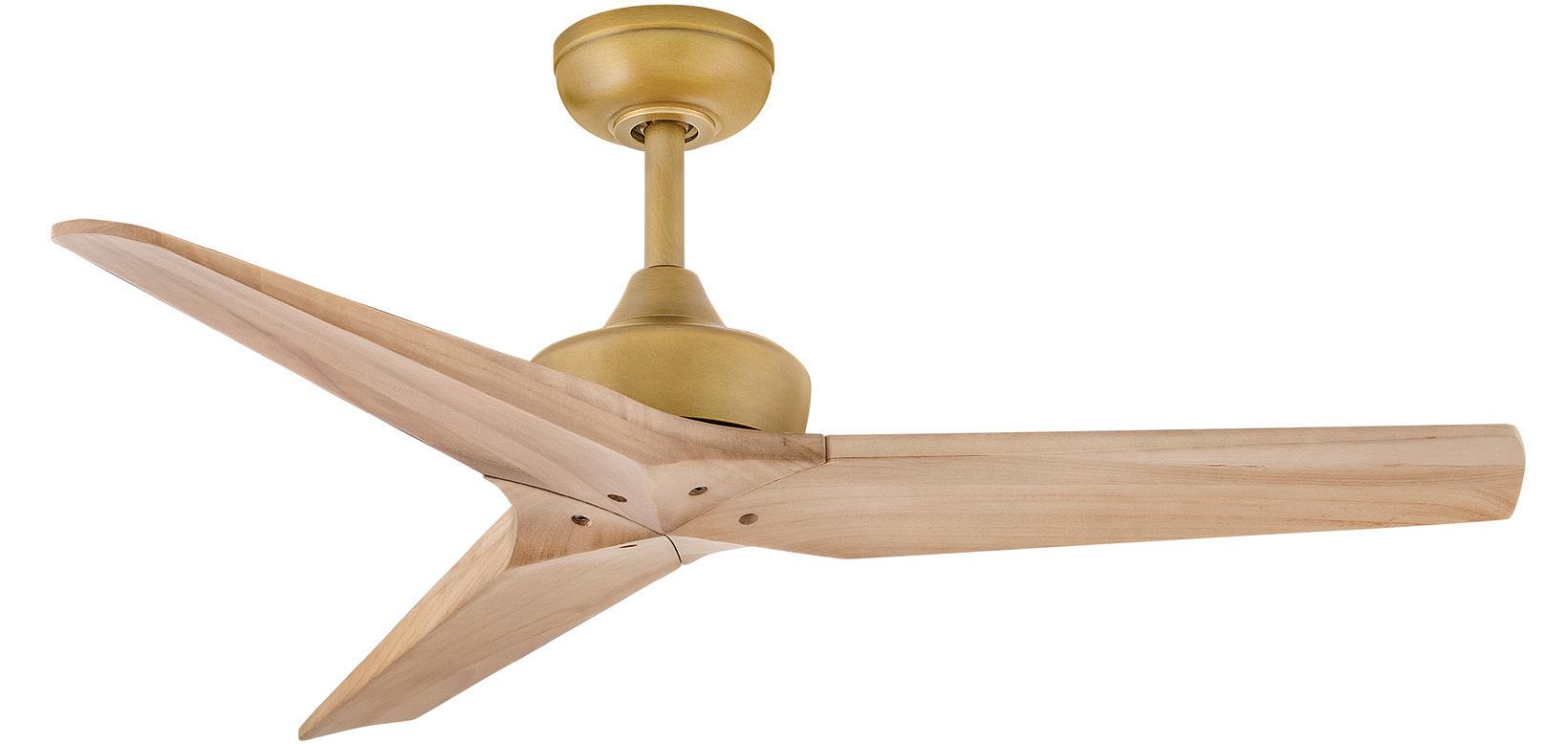

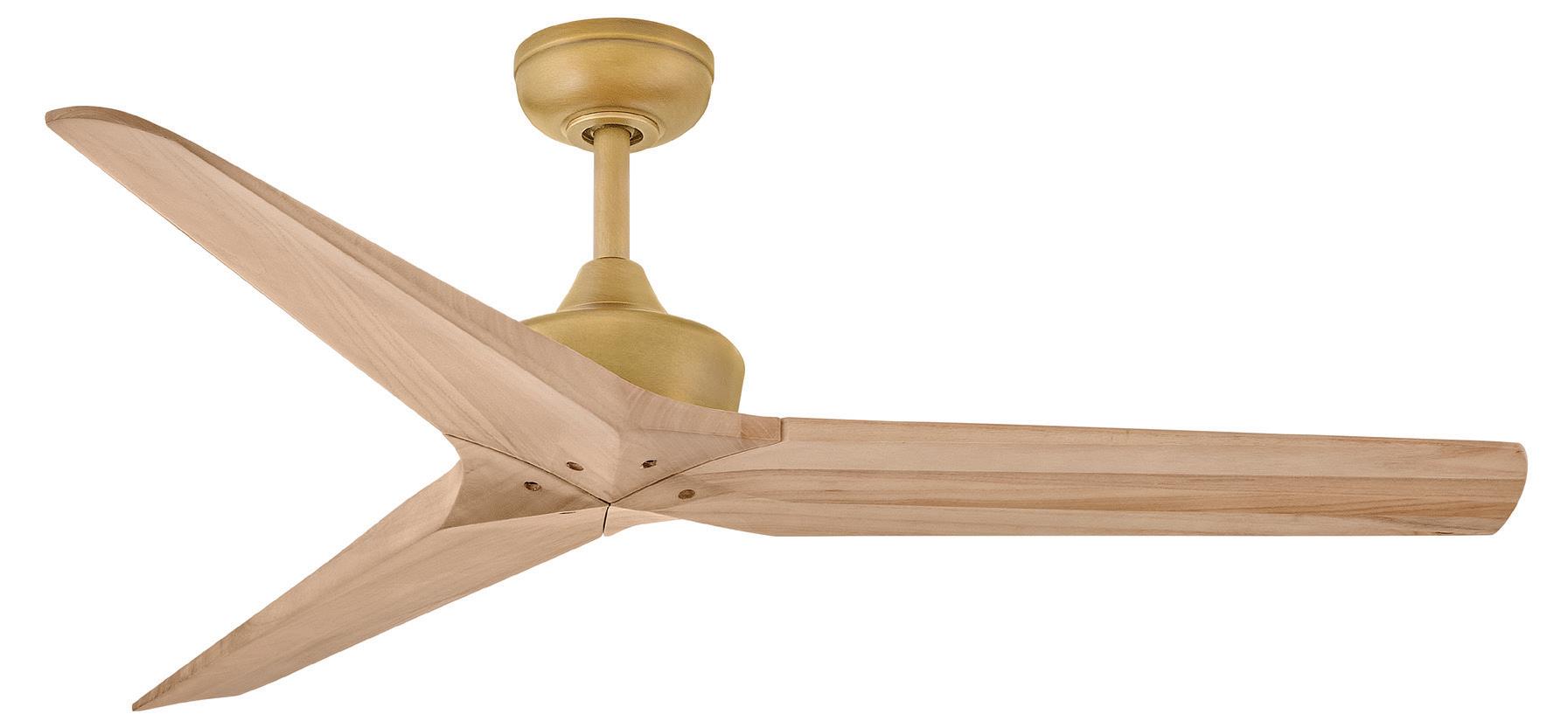

44 " CHISEL™

Built with a sleek, carefully crafted design, Chisel redefines dramatic style. Sturdy wood blades are available in a variety of sophisticated finishes to complement modern interiors and outdoor settings. Damp rated. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App.

PERFORMANCE SPECIFICATIONS

903744 FHB-NDD HERITAGE BRASS WITH NATURAL BLADES

DESCRIPTION

FEATURED:

903744 FHB-NDD - HERITAGE BRASS WITH NATURAL BLADES

ADDITIONAL FINISHES AVAILABLE:

903744 FMB-NDD - MATTE BLACK WITH WALNUT BLADES

903744 FMW-NDD - MATTE WHITE WITH WEATHERED WOOD BLADES

BLADES:

• 3 Wood Blades Included

• 18° Blade Pitch

• 44" Blade Sweep

MOUNTING:

• 6" Downrod Included

• 76" Lead Wire

• 22 lbs. Hanging Weight

• Mounts to Sloped Ceilings

- Up to 20° Pitch

Slope ceiling kit required for ceiling pitch greater than 20°, 992001 FXX, see hinkley.com.

INCLUDED CONTROLS:

980014 FWH-R 6 Speed HIRO Reversing

Includes WiFi-Enabled Control

52 " CHISEL™

Built with a sleek, carefully crafted design, Chisel redefines dramatic style. Sturdy wood blades are available in a variety of sophisticated finishes to complement modern interiors and outdoor settings.

Damp rated. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App.

PERFORMANCE SPECIFICATIONS

903752 FHB-NDD HERITAGE BRASS WITH NATURAL BLADES

DESCRIPTION

FEATURED:

903752 FHB-NDD - HERITAGE BRASS WITH NATURAL WOOD BLADES

ADDITIONAL FINISHES AVAILABLE:

903752 FBB-NDD - MATTE BLACK WITH MATTE BLACK BLADES

903752 FDB-NDD - MATTE BLACK WITH DRIFTWOOD BLADES

903752 FMB-NDD - MATTE BLACK WITH WALNUT BLADES

903752 FMW-NDD - MATTE WHITE WITH WEATHERED WOOD BLADES

903752 FWW-NDD - MATTE WHITE WITH MATTE WHITE BLADES

BLADES:

• 3 Wood Blades Included

• 18° Blade Pitch

• 52" Blade Sweep

MOUNTING:

• 6" Downrod Included

• 76" Lead Wire

• 23.1 lbs. Hanging Weight

• Mounts to Sloped Ceilings

- Up to 20° Pitch

Slope ceiling kit required for ceiling pitch greater than 20°, 992001 FXX, see hinkley.com.

INCLUDED CONTROLS:

980014 FWH-R

6 Speed HIRO Reversing

Includes WiFi-Enabled Control

60" CHISEL™

Built with a sleek, carefully crafted design, Chisel redefines dramatic style. Sturdy wood blades are available in a variety of sophisticated finishes to complement modern interiors and outdoor settings. Damp rated. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App.

903760 FHB-NDD HERITAGE BRASS WITH NATURAL BLADES

DESCRIPTION

FEATURED:

903760 FHB-NDD - HERITAGE BRASS WITH NATURAL BLADES

ADDITIONAL FINISHES AVAILABLE:

903760 FBB-NDD - MATTE BLACK WITH MATTE BLACK BLADES

903760 FMB-NDD - MATTE BLACK WITH WALNUT BLADES

903760 FMW-NDD - MATTE WHITE WITH WEATHERED WOOD BLADES

903760 FWW-NDD - MATTE WHITE WITH MATTE WHITE BLADES

BLADES:

• 3 Wood Blades Included

• 18° Blade Pitch

• 60" Blade Sweep

MOUNTING:

• 6" Downrod Included

• 76" Lead Wire

• 24.20 lbs. Hanging Weight

• Mounts to Sloped Ceilings

- Up to 20° Pitch

Slope ceiling kit required for ceiling pitch greater than 20°, 992001 FXX, see hinkley.com.

INCLUDED CONTROLS:

980014 FWH-R 6 Speed HIRO Reversing

Includes WiFi-Enabled Control

PERFORMANCE SPECIFICATIONS

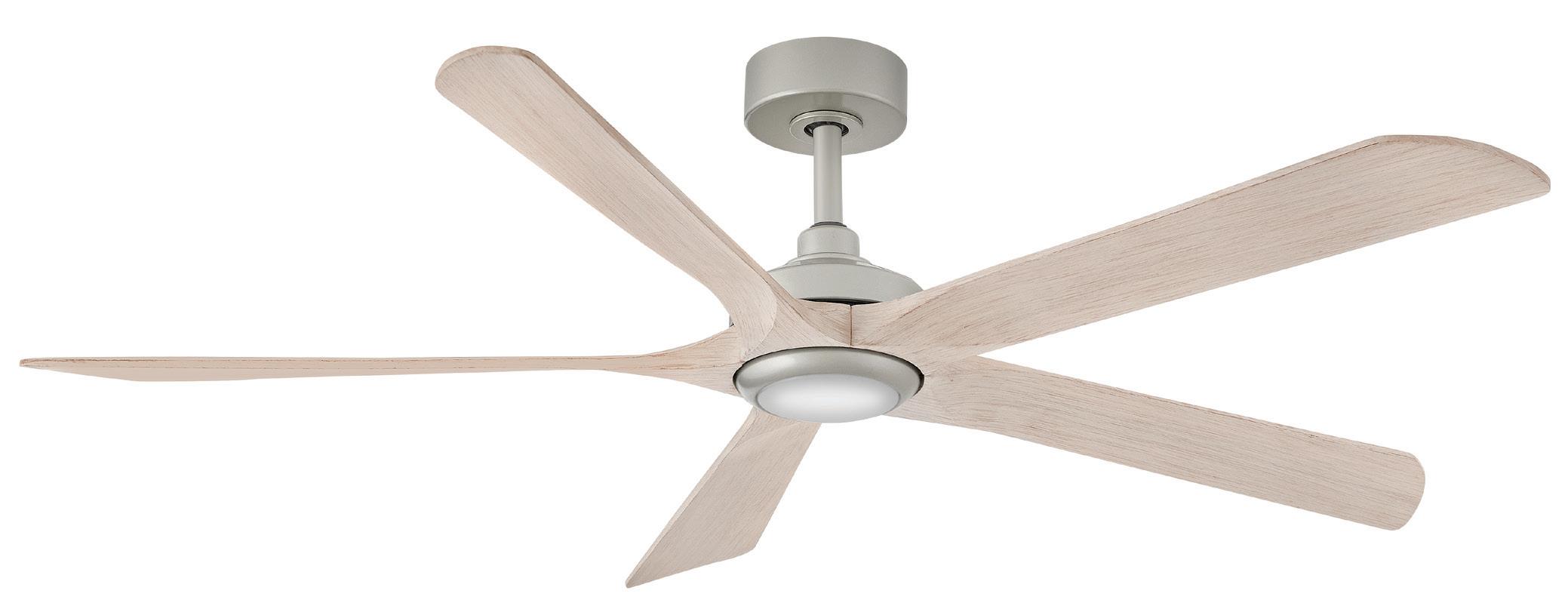

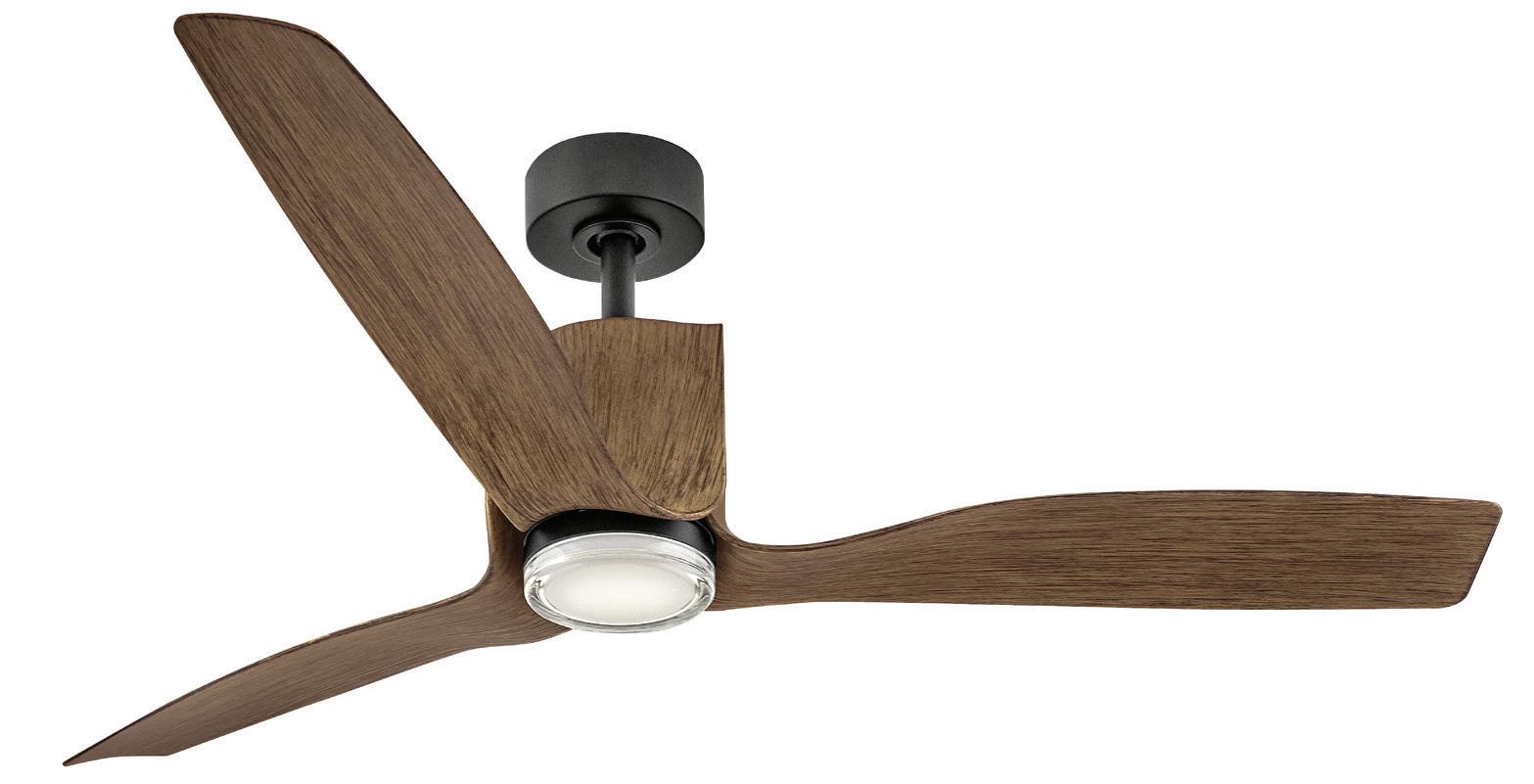

58" LAYTON ™

Layton’s versatile, transitional design features subtly curved wood blades, available in a variety of finish combinations to complement any interior living space. Integrated LEDs cast warm, dimmable illumination that fills your space with a comfortable atmosphere. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App.

907358 FBN-LDD BRUSHED NICKEL WITH DARK OAK BLADES

DESCRIPTION

FEATURED:

907358 FBB-LDD - BRUSHED NICKEL WITH BLEACHED ASHWOOD BLADES

907358 FBN-LDD - BRUSHED NICKEL WITH DARK OAK BLADES

ADDITIONAL FINISHES AVAILABLE:

907358 FDB-LDD - MATTE BLACK WITH DRIFTWOOD BLADES

907358 FMB-LDD - MATTE BLACK WITH WALNUT BLADES

907358 FMW-LDD - MATTE WHITE WITH MATTE WHITE BLADES

BLADES:

• 5 Wood Blades Included

• 12.5° Blade Pitch

• 58" Blade Sweep

MOUNTING:

• 6" Downrod Included

• 76" Lead Wire

• 13.5 lbs. Hanging Weight

• Mounts to Sloped Ceilings

- Up to 20° Pitch

Slope ceiling kit required for ceiling pitch greater than 20°, 992001 FXX, see hinkley.com.

LAMPING/GLASS:

• 16w LED Included

• 1320 Lumens | 90 CRI | 3000K

• Dimmable - Warm Dim

• White Polycarbonate Lens

INCLUDED CONTROLS:

980014 FWH-R 6 Speed HIRO Reversing

Includes WiFi Enabled Control

PERFORMANCE SPECIFICATIONS

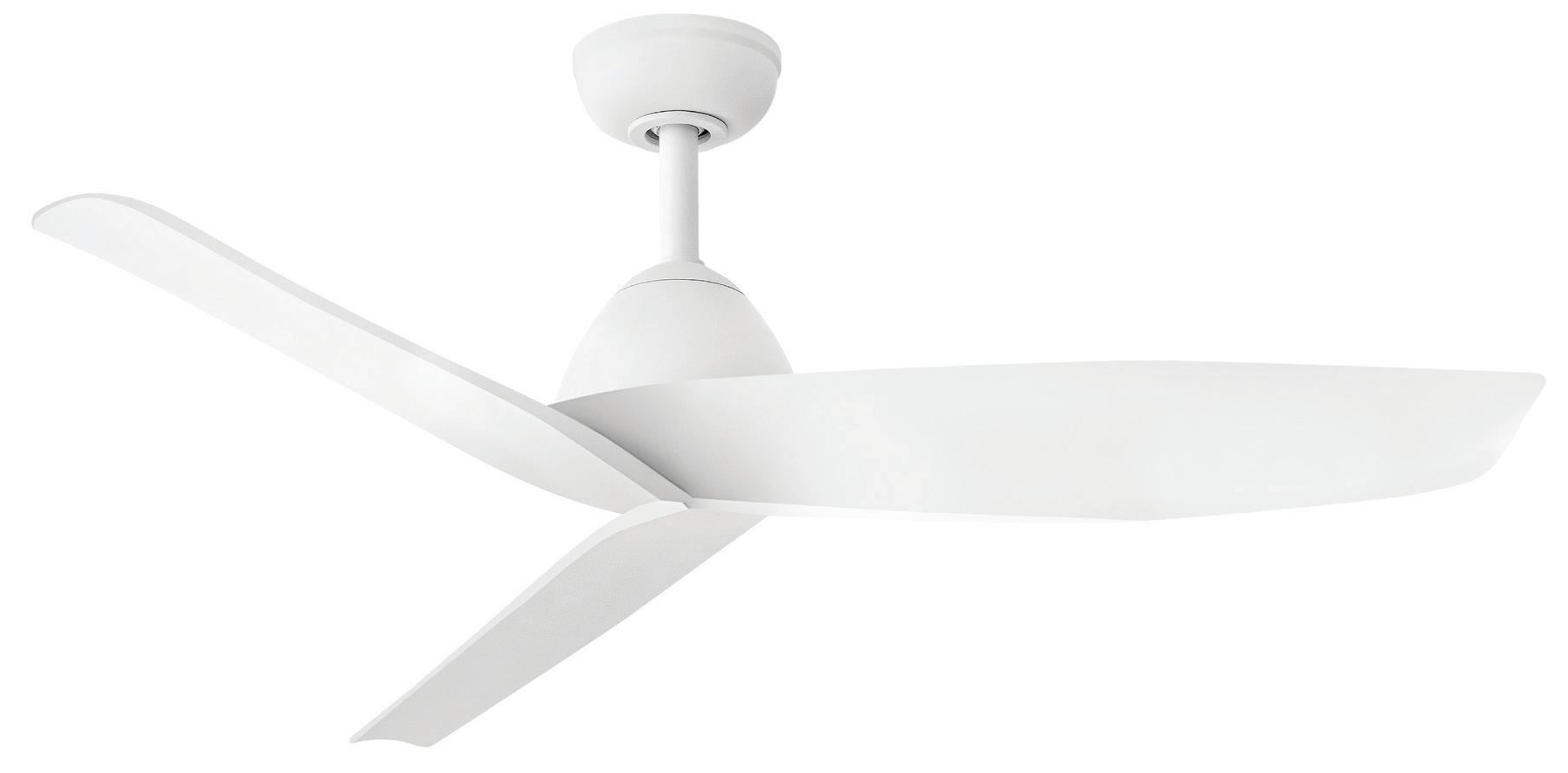

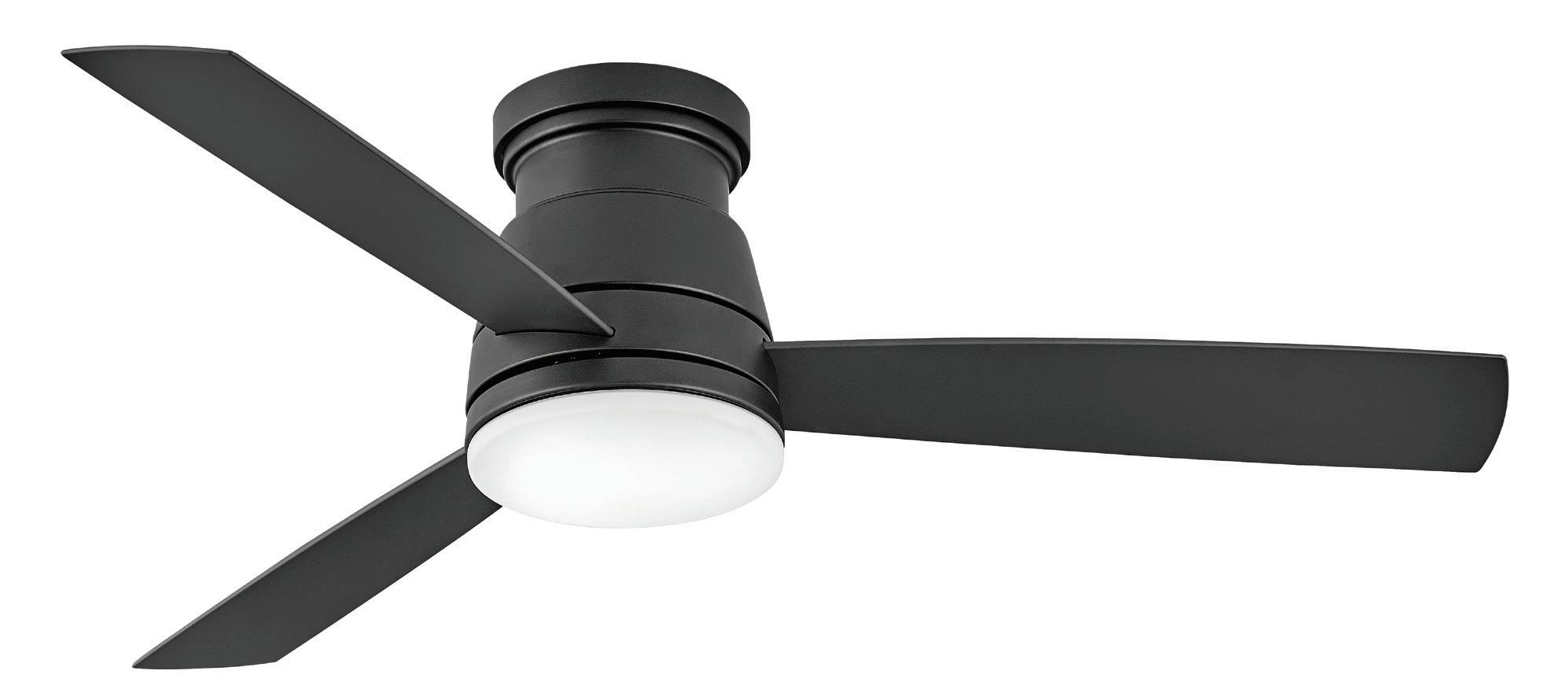

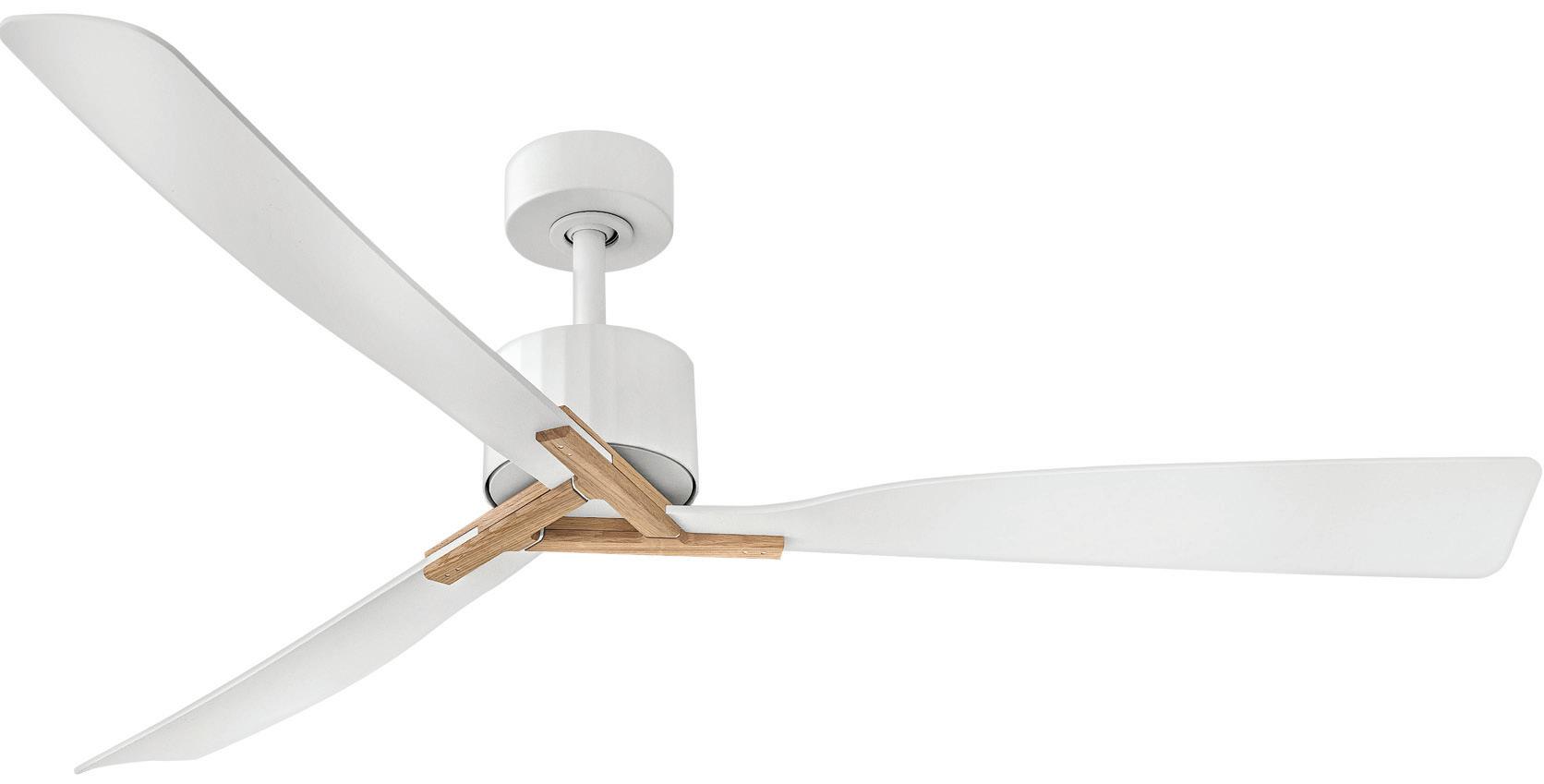

48" LIV

Liv’s sleek, wet-rated design accentuates modern interior or outdoor spaces with its artfully arranged blades. Part of the Coastal Elements Collection, this resilient fan is crafted with composite materials that are coated with an anti-fading finish for maximum durability. Liv is equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App.

906648 FBB-NWD MATTE BLACK WITH MATTE BLACK BLADES

DESCRIPTION

906648 FBB-NWD - MATTE BLACK WITH MATTE BLACK BLADES

906648 FBD-NWD - MATTE BLACK WITH DRIFTWOOD BLADES

906648 FMW-NWD - MATTE WHITE WITH MATTE WHITE BLADES

BLADES:

• 3 Composite Blades Included

• 14° Blade Pitch

• 48" Blade Sweep MOUNTING:

• 6" Downrod Included

• 76" Lead Wire

• 10.25 lbs. Hanging Weight

• Mounts to Sloped Ceilings

- Up to 20° Pitch

Slope ceiling kit required for ceiling pitch greater than 20°, 992001 FXX, see hinkley.com.

Part of the Coastal Elements Collection, Liv is a versatile design offering maximum durability in harsh climates. COASTAL ELEMENTS

48"

INCLUDED CONTROLS:

980014 FWH-R 6 Speed HIRO Reversing

Includes WiFi-Enabled Control

PERFORMANCE SPECIFICATIONS

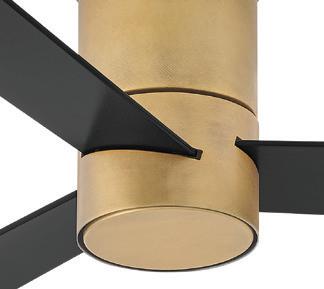

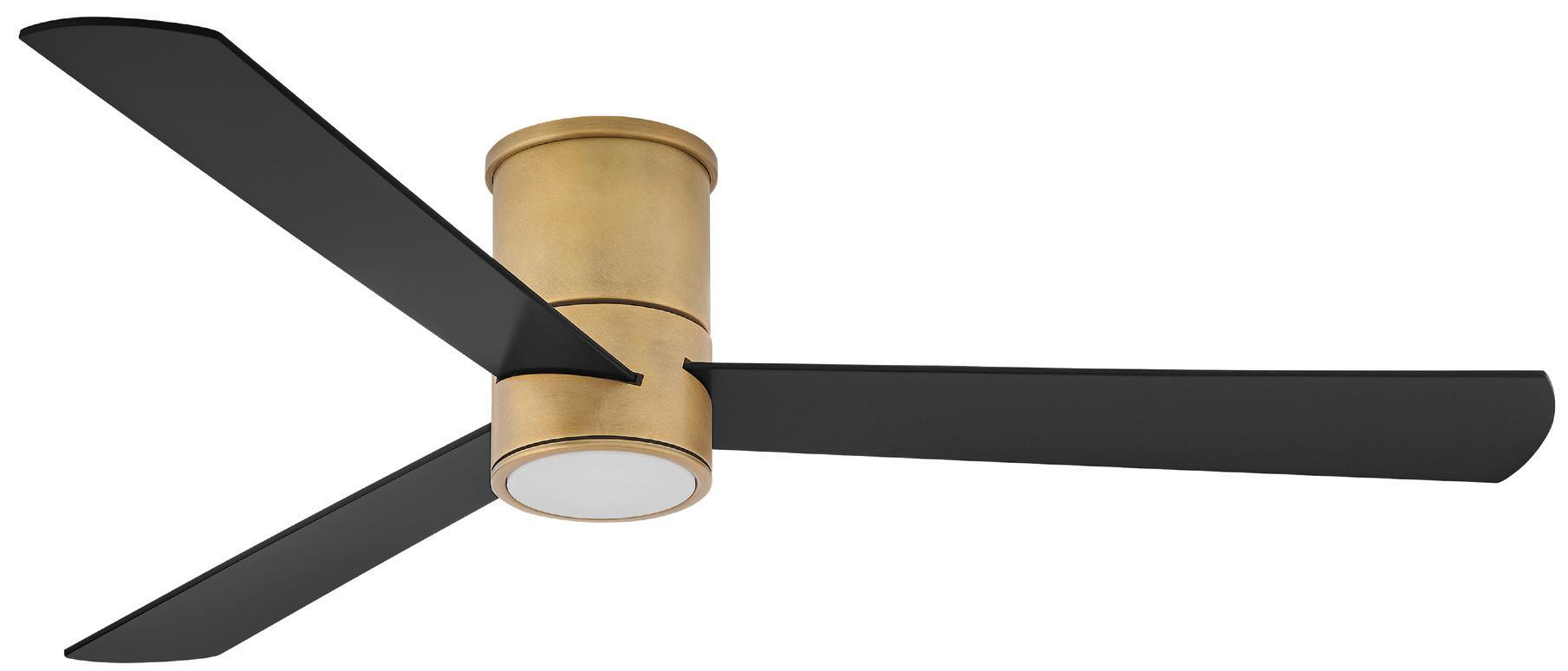

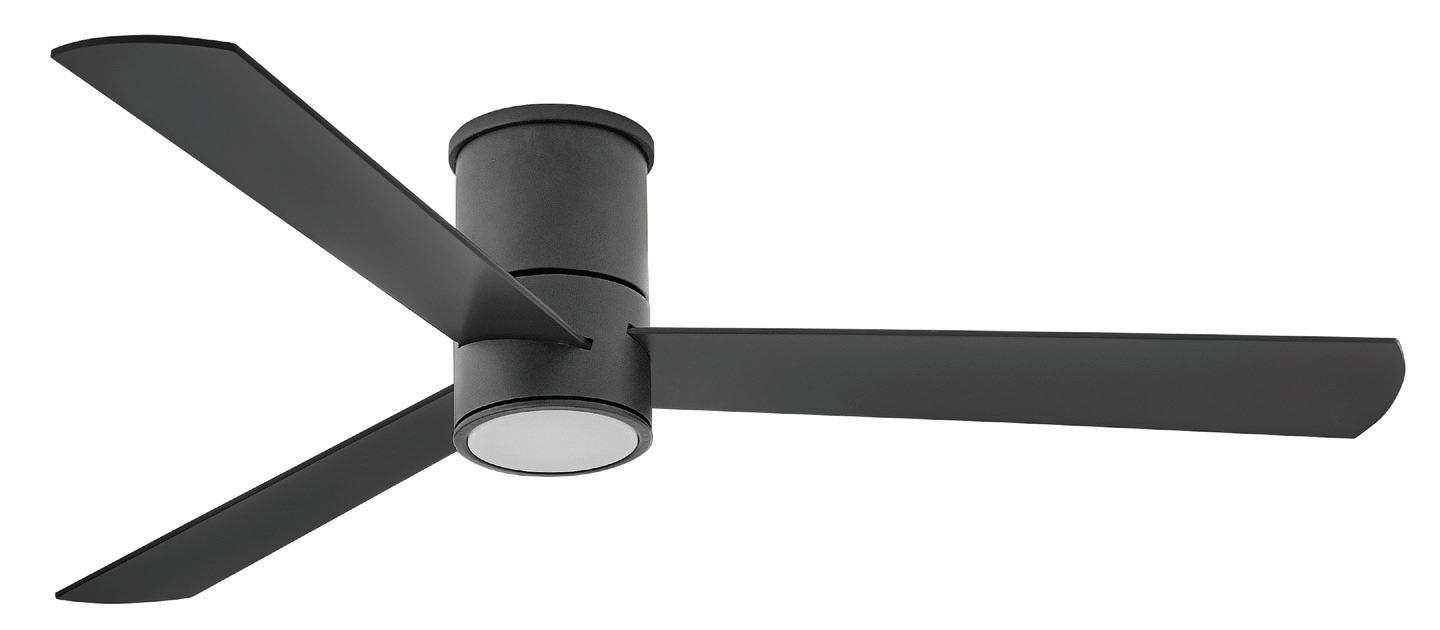

52" SPECK™ FLUSH

Speck’s sleek design features three wood blades in classic finishes to complement both modern and traditional settings. Its versatile damp-rated construction can enhance interior or covered outdoor living spaces. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App.

907552 FHB-LDD

HERITAGE BRASS WITH REVERSIBLE MATTE BLACK / NATURAL BLADES

DESCRIPTION

907552 FHB-LDD - HERITAGE BRASS WITH MATTE BLACK / NATURAL BLADES

907552 FMB-LDD - MATTE BLACK WITH MATTE BLACK / DRIFTWOOD BLADES

907552 FMW-LDD - MATTE WHITE WITH MATTE WHITE / BLEACHED ASHWOOD BLADES

BLADES:

• 3 Wood Blades Included

• 11° Blade Pitch

• 52" Blade Sweep

MOUNTING:

• 12" Lead Wire

• 17.6 lbs. Hanging Weight

LAMPING/GLASS:

• 16w LED Included

• 1320 Lumens | 90 CRI | 3000K

• Dimmable - Warm Dim

• White Polycarbonate Lens

INCLUDED CONTROLS:

980014 FWH-R 6 Speed HIRO Reversing

Includes WiFi Enabled Control

907552 FMB-LDD

MATTE BLACK WITH REVERSIBLE MATTE BLACK / DRIFTWOOD BLADES

907552 FMW-LDD

MATTE WHITE WITH REVERSIBLE MATTE WHITE / BLEACHED ASHWOOD BLADES

PERFORMANCE SPECIFICATIONS

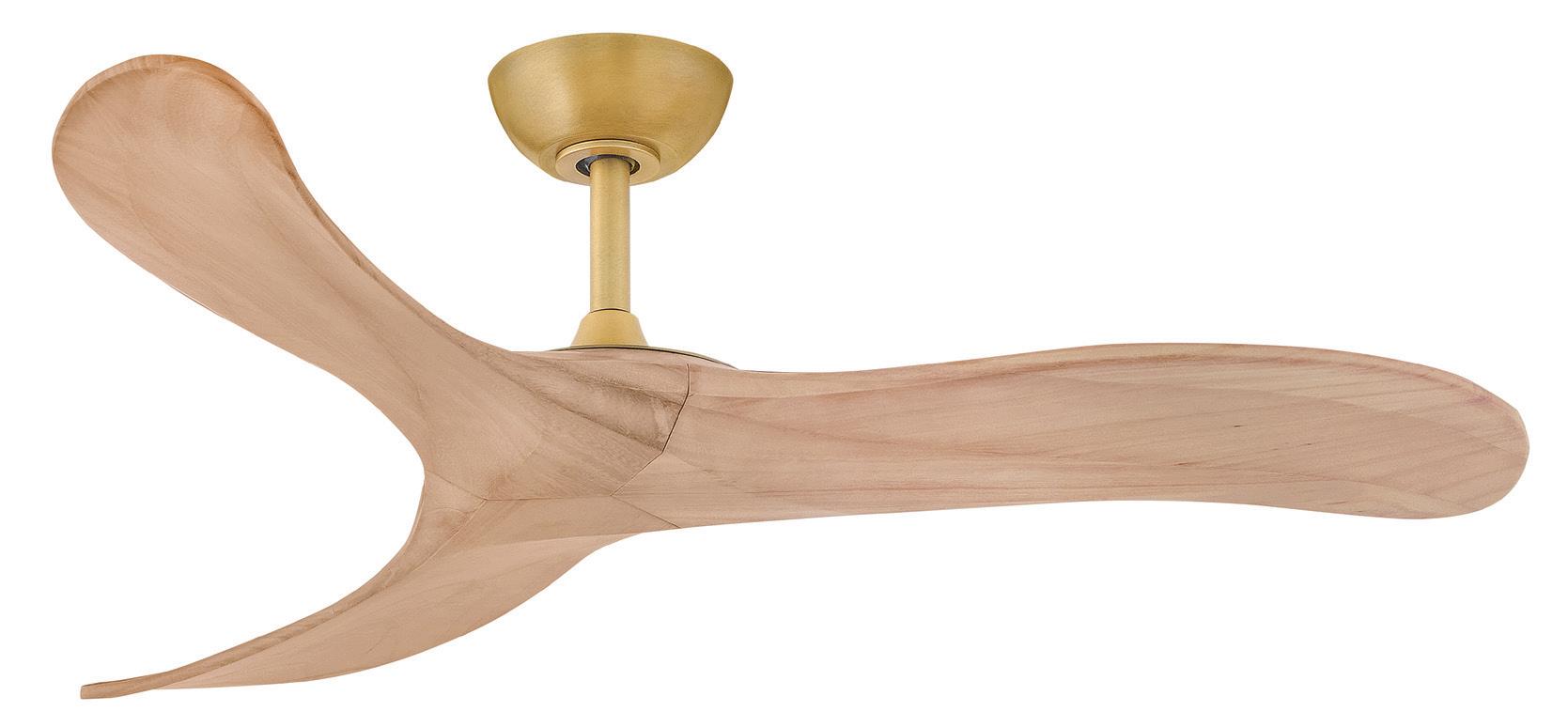

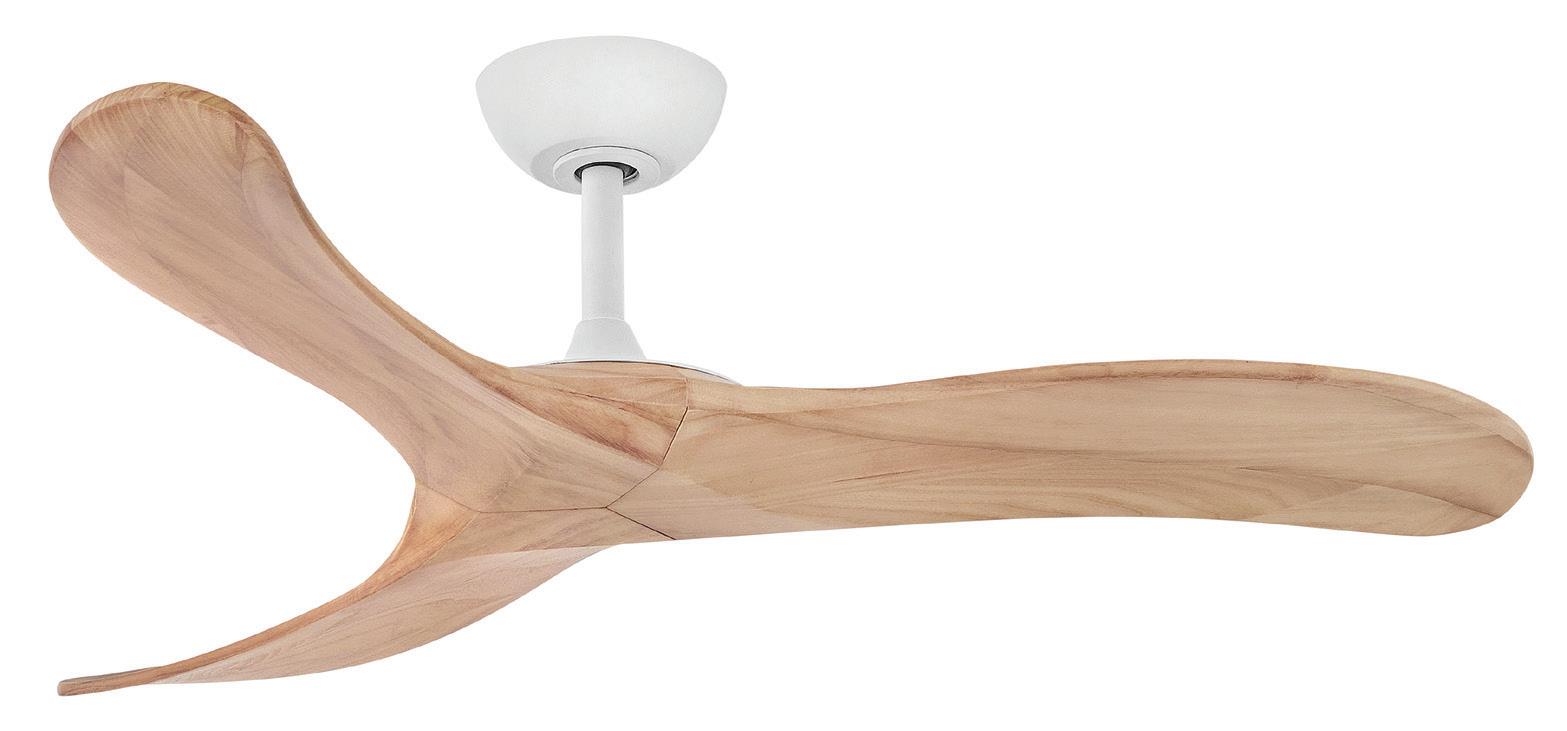

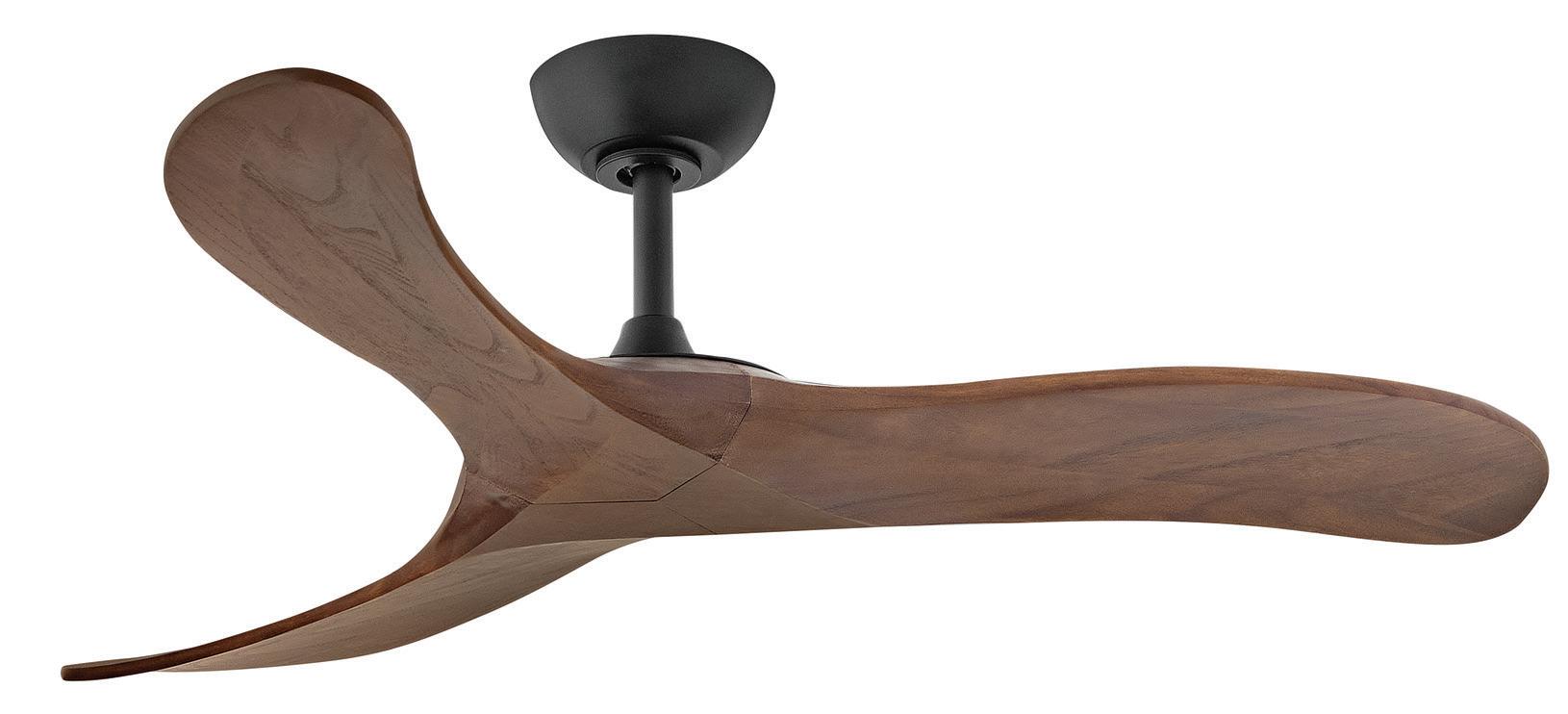

48 " SWELL™

Swell is sophisticated and distinct in design without sacrificing its purpose. Available in a variety of finish colors and combinations, Swell sets the tone for all contemporary spaces. Swell is damp rated, making it perfect for both interior and outdoor settings. Operated by the HIRO control or WiFi compatible with the Hinkley app.

903848 FHB-NDD HERITAGE BRASS WITH NATURAL BLADES

DESCRIPTION

903848 FHB-NDD - HERITAGE BRASS WITH NATURAL BLADES

903848 FMB-NDD - MATTE BLACK WITH WALNUT WOOD BLADES

903848 FMW-NDD - MATTE WHITE WITH NATURAL BLADES

BLADES:

• 3 Wood Blades Included

• 17° Blade Pitch

• 48" Blade Sweep

MOUNTING:

• 6" Downrod Included

• 76" Lead Wire

• 24.2 lbs. Hanging Weight

INCLUDED CONTROLS:

980014 FWH-R 6 Speed HIRO Reversing

Includes WiFi-Enabled Control

PERFORMANCE SPECIFICATIONS

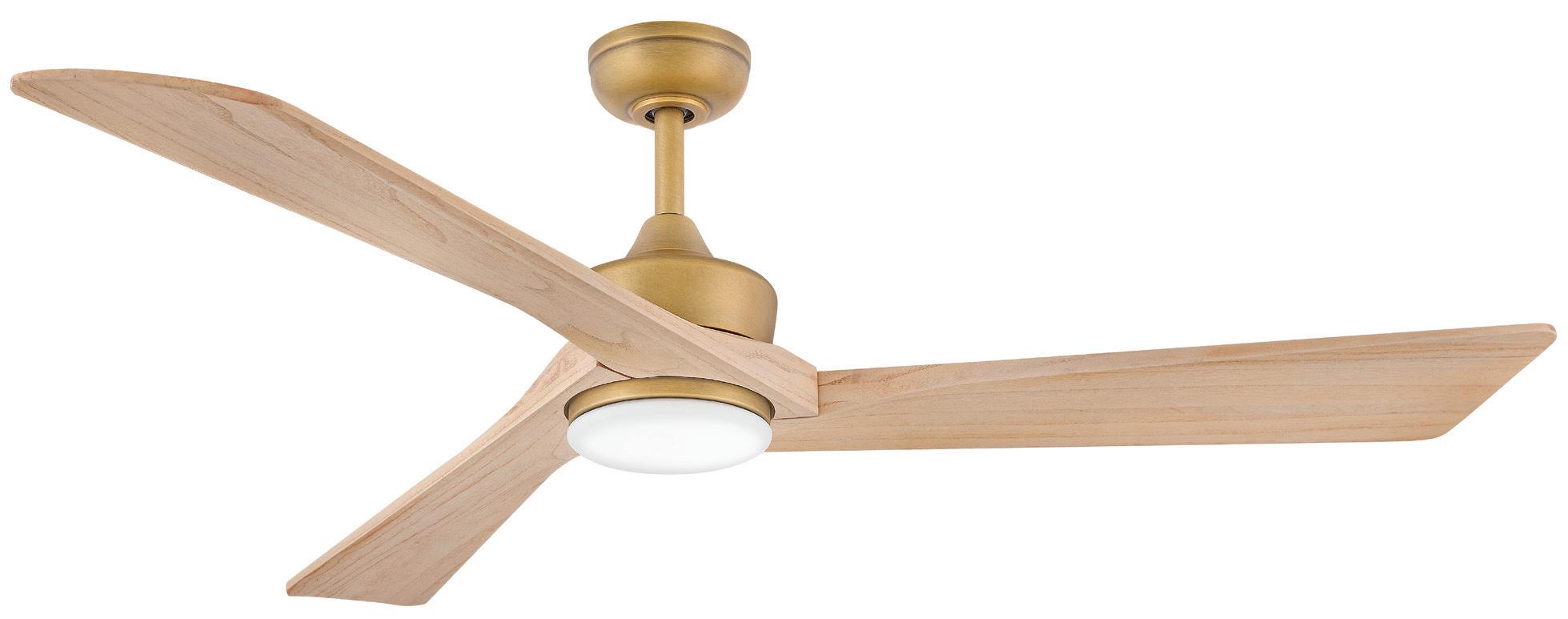

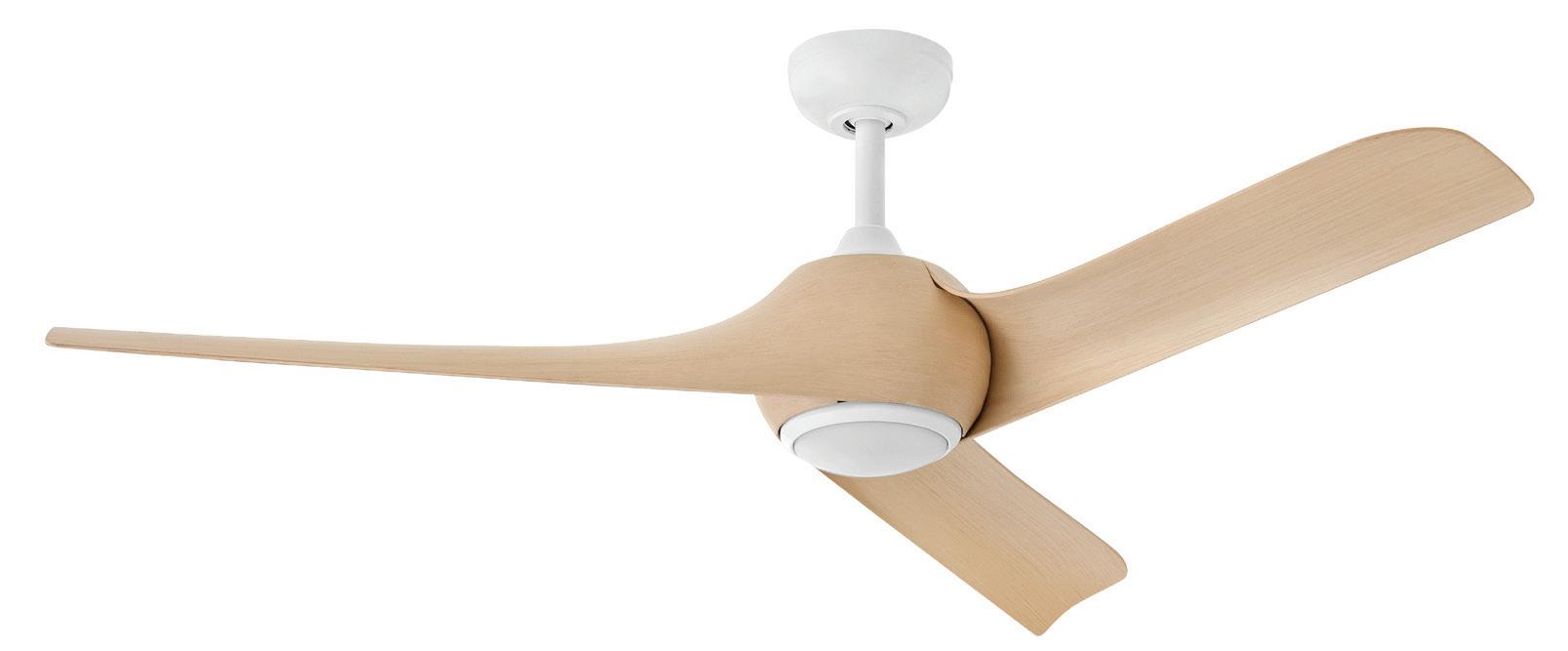

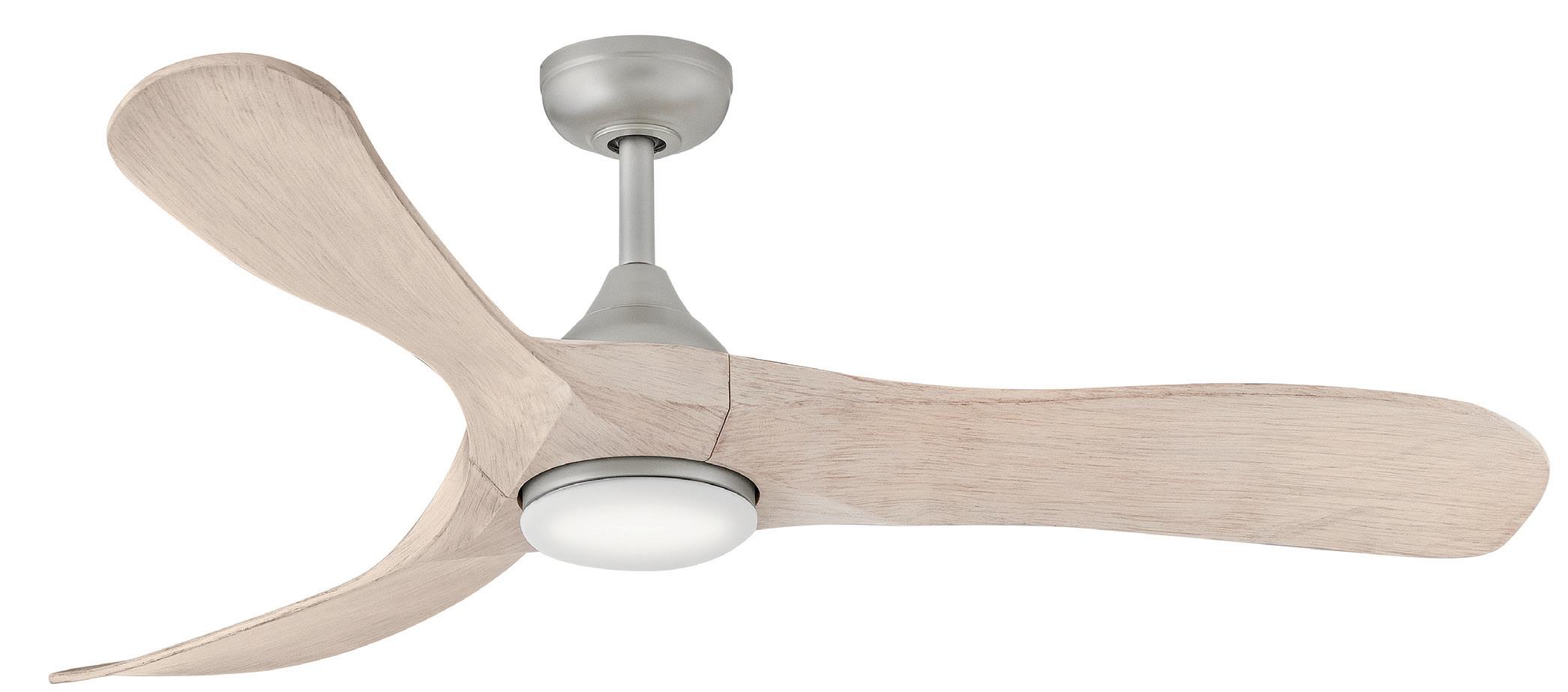

56" SWELL™ ILLUMINATED

Sophisticated and distinct, Swell Illuminated delivers chic style and plenty of functional light – featuring integrated LEDs complemented by a variety of classic finish combinations. A versatile, damp-rated design makes Swell Illuminated perfect for both interior and outdoor settings. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley app.

903856 FBN-LDD BRUSHED NICKEL WITH BLEACHED ASHWOOD BLADES

DESCRIPTION

FEATURED:

903856 FBN-LDD - BRUSHED NICKEL WITH BLEACHED ASHWOOD BLADES

903856 FHB-LDD - HERITAGE BRASS WITH NATURAL BLADES

ADDITIONAL FINISHES AVAILABLE:

903856 FBB-LDD - MATTE BLACK WITH MATTE BLACK BLADES

903856 FDB-LDD - MATTE BLACK WITH DRIFTWOOD BLADES

903856 FWB-LDD - MATTE BLACK WITH WALNUT BLADES

903856 FWW-LDD - MATTE WHITE WITH MATTE WHITE BLADES

BLADES:

• 3 Wood Blades Included

• 14° Blade Pitch

• 56" Blade Sweep

MOUNTING:

• 6" Downrod Included

• 76" Lead Wire

• 28.6 lbs. Hanging Weight

• Mounts to Sloped Ceilings

- Up to 20° Pitch

LAMPING/GLASS:

• 16w LED Included

• 1320 Lumens | 90 CRI | 3000K

• Dimmable – Warm Dim

• Etched Opal Glass 6"

INCLUDED CONTROLS:

980014 FWH-R 6-Speed HIRO Reversing

Includes WiFi-Enabled Control Slope ceiling kit required for ceiling pitch greater than 20°, 992001 FXX, see hinkley.com.

PERFORMANCE SPECIFICATIONS

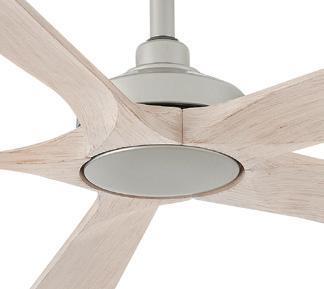

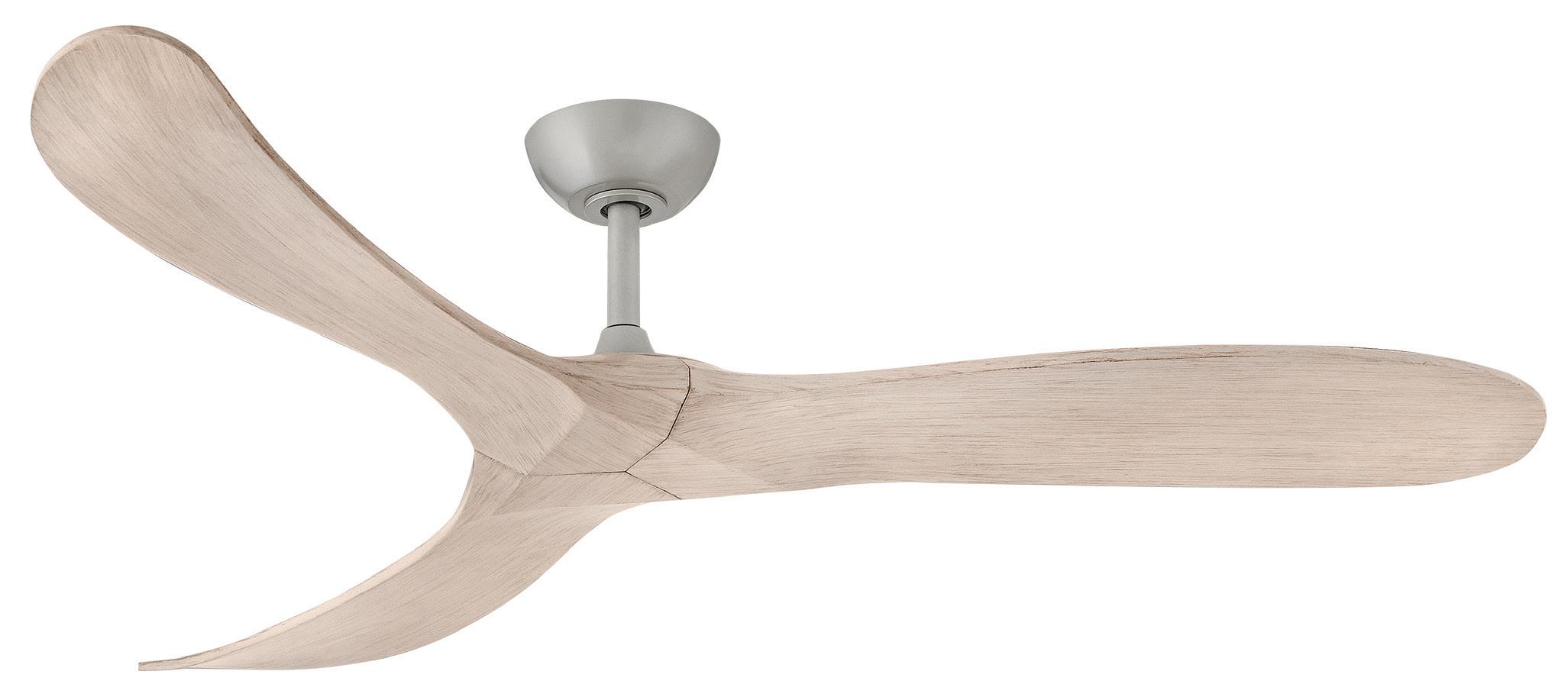

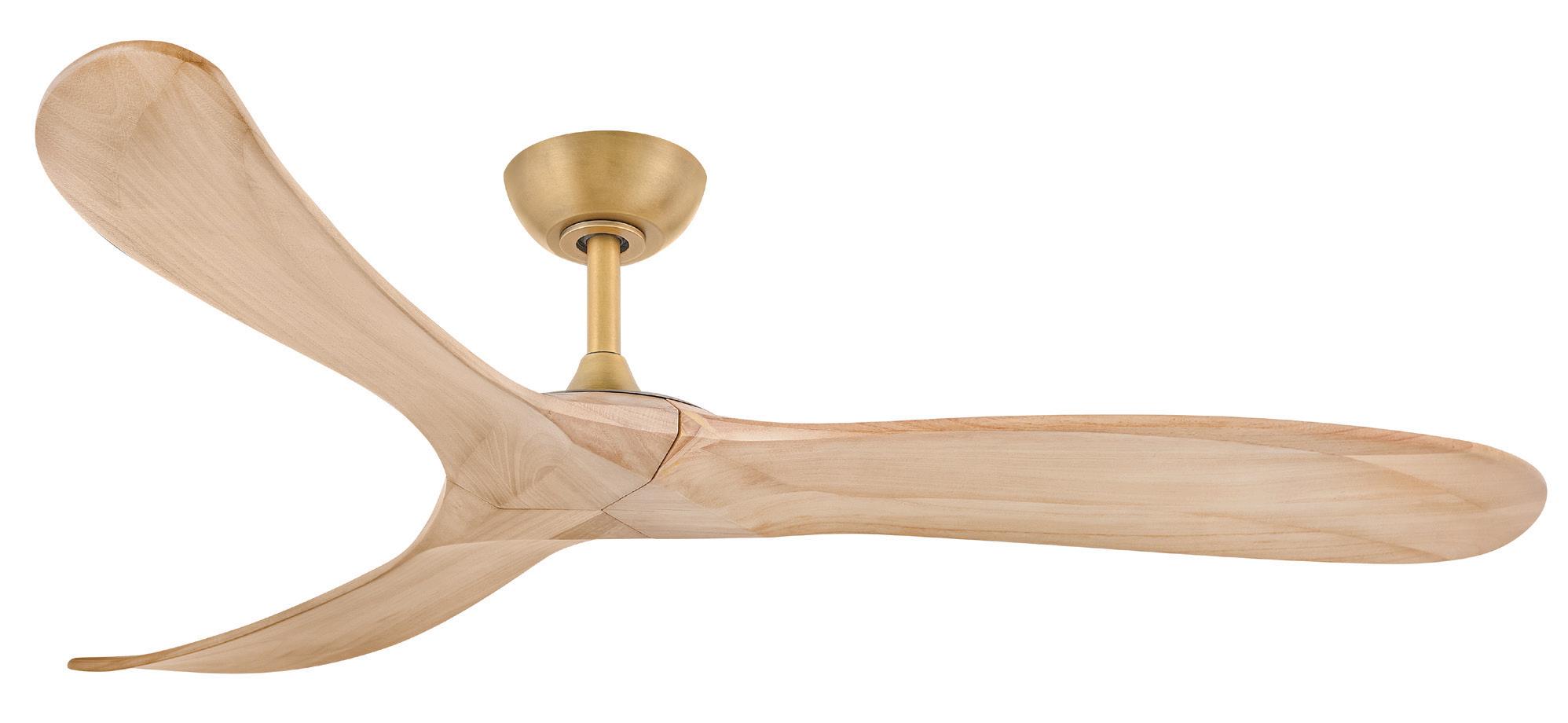

SWELL™

Swell perfectly sets the scene in contemporary spaces. Wood blades with chic contours feature a variety of classic finish combinations to complement your décor. A versatile, damp-rated design makes Swell perfect for both interior and outdoor settings. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley app.

903860 FBN-NDD BRUSHED NICKEL WITH BLEACHED ASHWOOD BLADES

DESCRIPTION

FEATURED:

903860 FBN-NDD - BRUSHED NICKEL WITH BLEACHED ASHWOOD BLADES

903860 FHB-NDD - HERITAGE BRASS WITH NATURAL BLADES

ADDITIONAL FINISHES AVAILABLE:

903860 FMB-NDD - MATTE BLACK WITH WALNUT BLADES

903860 FMW-NDD - MATTE WHITE WITH NATURAL WOOD BLADES

BLADES:

• 3 Wood Blades Included

• 14° Blade Pitch

• 60" Blade Sweep MOUNTING:

• 6" Downrod Included

• 76" Lead Wire

• 13.64 lbs. Hanging Weight

• Mounts to Sloped Ceilings

- Up to 20° Pitch

INCLUDED CONTROLS:

980014 FWH-R 6 Speed HIRO Reversing

Includes WiFi-Enabled Control

PERFORMANCE SPECIFICATIONS

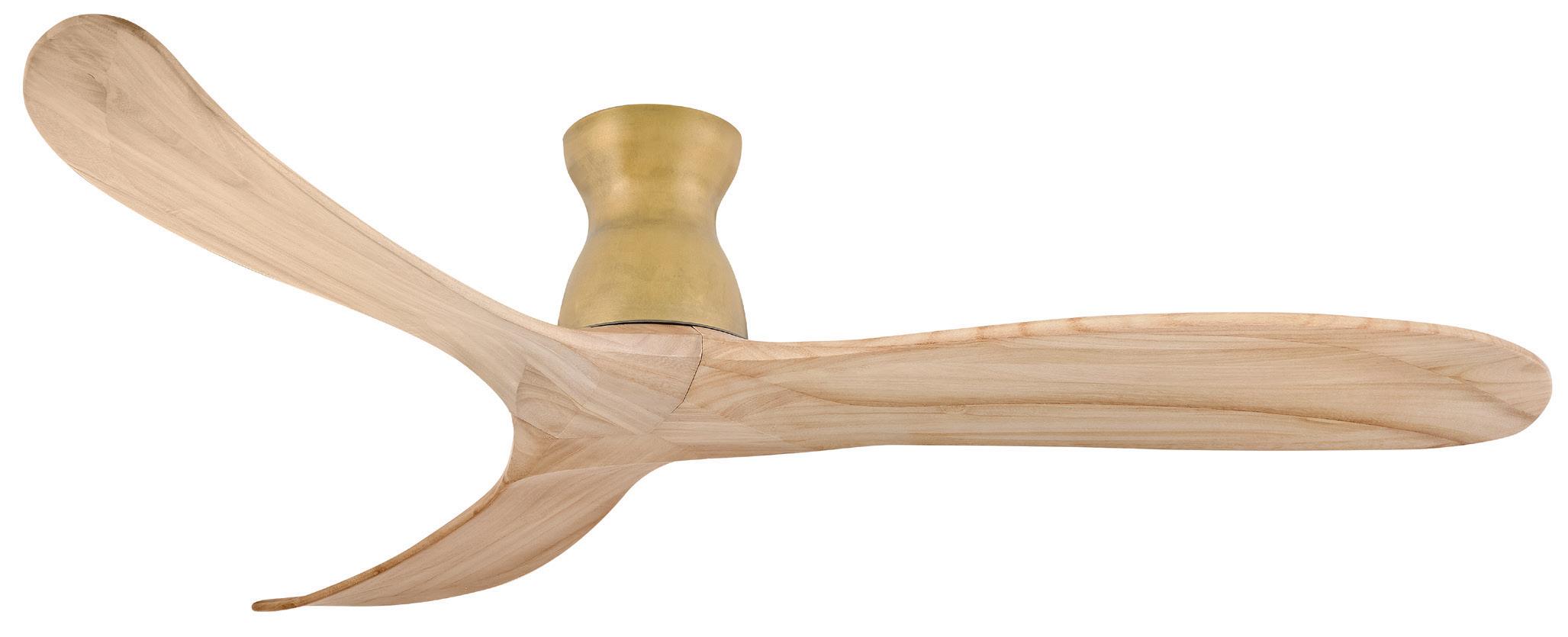

60" SWELL™ FLUSH

Swell Flush is sophisticated and distinct in design without sacrificing on its purpose. Available in a variety of finish colors and combinations, Swell Flush sets the tone for all contemporary spaces. Swell Flush is damp rated, making it perfect for both interior and outdoor settings.

903460 FHB-NDD HERITAGE BRASS WITH NATURAL BLADES

DESCRIPTION

FEATURED:

903460 FHB-NDD - HERITAGE BRASS WITH NATURAL BLADES

ADDITIONAL FINISHES AVAILABLE:

903460 FMM-NDD - METALLIC MATTE BRONZE WITH WALNUT BLADES

903460 FMW-NDD - MATTE WHITE WITH MATTE WHITE BLADES

BLADES:

• 3 Wood Blades Included

• 14° Blade Pitch

• 60" Blade Sweep

MOUNTING:

• 12" Lead Wire

• 14.3 lbs. Hanging Weight

INCLUDED CONTROLS:

980014 FWH-R 6 Speed HIRO Reversing

Includes WiFi-Enabled Control

PERFORMANCE SPECIFICATIONS

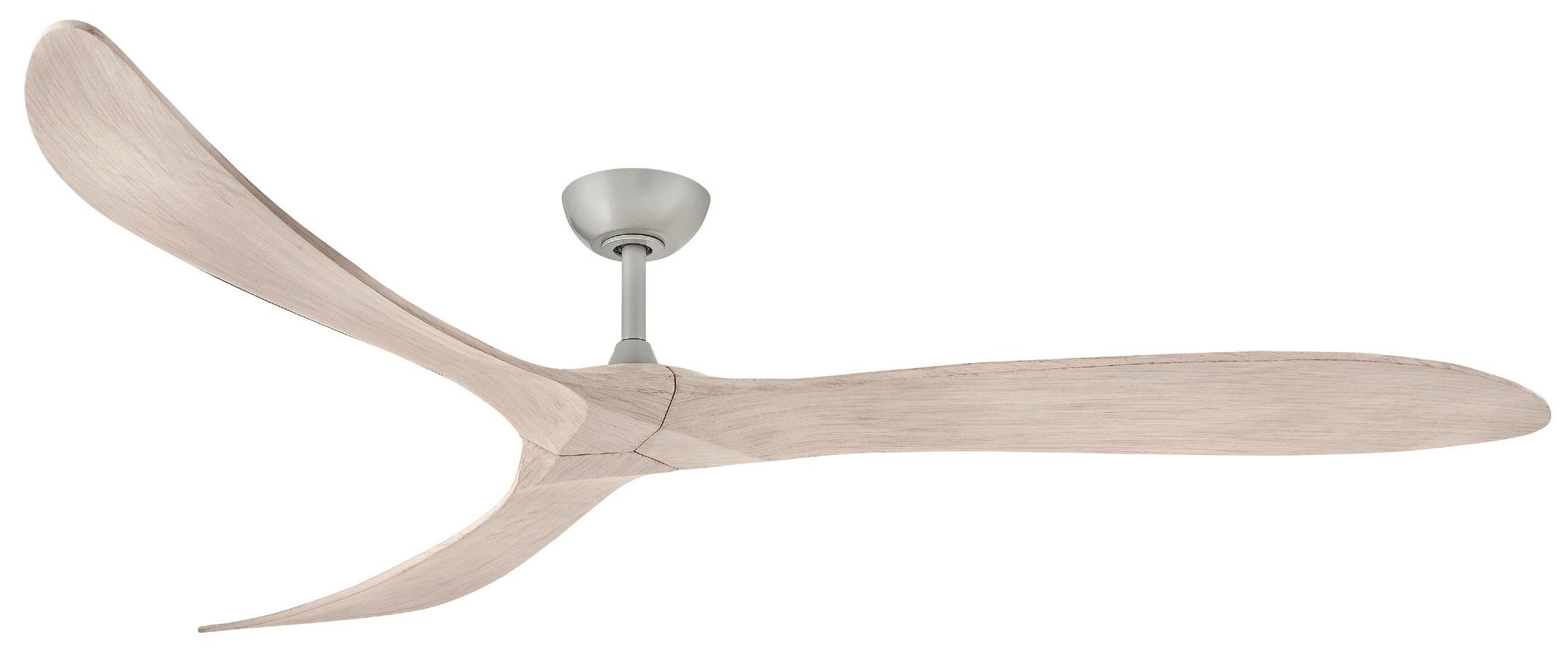

80 " SWELL™

Sophisticated and distinct, Swell perfectly sets the scene in contemporary spaces without sacrificing functionality. Wood blades with chic contours feature a variety of classic finish combinations to complement your décor. A versatile, damp-rated design makes Swell perfect for both interior and outdoor settings. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley app.

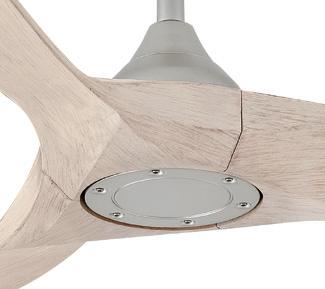

903880 FBN-NDD BRUSHED NICKEL WITH BLEACHED ASHWOOD BLADES

DESCRIPTION

FEATURED:

903880 FBN-NDD - BRUSHED NICKEL WITH BLEACHED ASHWOOD BLADES

903880 FHB-NDD - HERITAGE BRASS WITH NATURAL BLADES

ADDITIONAL FINISHES AVAILABLE:

903880 FMB-NDD - MATTE BLACK WITH WALNUT BLADES

903880 FMW-NDD - MATTE WHITE WITH NATURAL WOOD BLADES

BLADES:

• 3 Wood Blades Included

• 14° Blade Pitch

• 80" Blade Sweep

MOUNTING:

• 6" Downrod Included

• 76" Lead Wire

• 14.74 lbs. Hanging Weight

• Mounts to Sloped Ceilings

- Up to 20° Pitch

INCLUDED CONTROLS:

980014 FWH-R 6 Speed HIRO Reversing

Includes WiFi-Enabled Control

PERFORMANCE SPECIFICATIONS

56" TIBURON ™

Combining streamlined style with efficient functionality, Tiburon’s modern damp-rated design houses integrated, dimmable LED uplighting to comfortably cast a warm glow onto your ceiling and illuminate your living space. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App.

LED Uplight included

Light Kit Cover Included with Fan

907256 FMN-LDD

MATTE WHITE WITH NATURAL WOOD BLADES

DESCRIPTION

FEATURED:

907256 FMN-LDD - MATTE WHITE WITH NATURAL WOOD BLADES

ADDITIONAL FINISHES AVAILABLE:

907256 FBD-LDD - MATTE BLACK WITH DRIFTWOOD BLADES

907256 FMB-LDD - MATTE BLACK WITH MATTE BLACK BLADES

907256 FMW-LDD - MATTE WHITE WITH MATTE WHITE BLADES

BLADES:

• 3 Composite Blades Included

• 18° Blade Pitch

• 56" Blade Sweep

MOUNTING:

• 6" Downrod Included

• 76" Lead Wire

• 13.2 lbs. Hanging Weight

• Mounts to Sloped Ceilings

- Up to 20° Pitch

Slope ceiling kit required for ceiling pitch greater than 20°, 992001 FXX, see hinkley.com.

LAMPING/GLASS:

• 16w LED Downlight included

• 1320 Lumens | 90 CRI | 3000K

• 15w LED Uplight Included

• 930 Lumens | 90 CRI | 3000K

• Dimmable - Warm Dim

• White Polycarbonate Lens

INCLUDED CONTROLS:

980014 FWH-R 6-Speed HIRO Reversing

Includes WiFi-Enabled Control

PERFORMANCE SPECIFICATIONS

Trey features a sleek flush mount design that packs a powerful punch. Its transitional style comes equipped with robust blades that seamlessly pair performance and precision. Trey is offered in versatile finish options, and its integrated LED and DC motor technology deliver excellent energy efficiency. Timeless etched opal glass completes the look for a refined appearance. Trey is so versatile; it can be used for both indoor and outdoor spaces.

PERFORMANCE SPECIFICATIONS

MATTE BLACK WITH MATTE BLACK BLADES

OPTIONAL ACCESSORY

See HInkley.com for additional accessories and specifications.

DESCRIPTION

FEATURED:

902744 FMB-LWD - MATTE BLACK WITH MATTE BLACK BLADES

ADDITIONAL FINISHES AVAILABLE:

902744 FMM-LWD - METALLIC MATTE BRONZE WITH METALLIC MATTE BRONZE BLADES

902744 FMW-LWD - MATTE WHITE WITH MATTE WHITE BLADES

BLADES:

• 3 Composite Blades Included

• 14° Blade Pitch

• 44" Blade Sweep MOUNTING:

• 12" Lead Wire

• 14.82 lbs. Hanging Weight

LAMPING/GLASS:

• 16w LED Included

• 1320 Lumens | 90 CRI | 3000K

• Dimmable – Warm Dim

• Etched Opal Glass

INCLUDED CONTROLS: 980014 FWH-R 6 Speed HIRO Reversing

Includes WiFi-Enabled Control

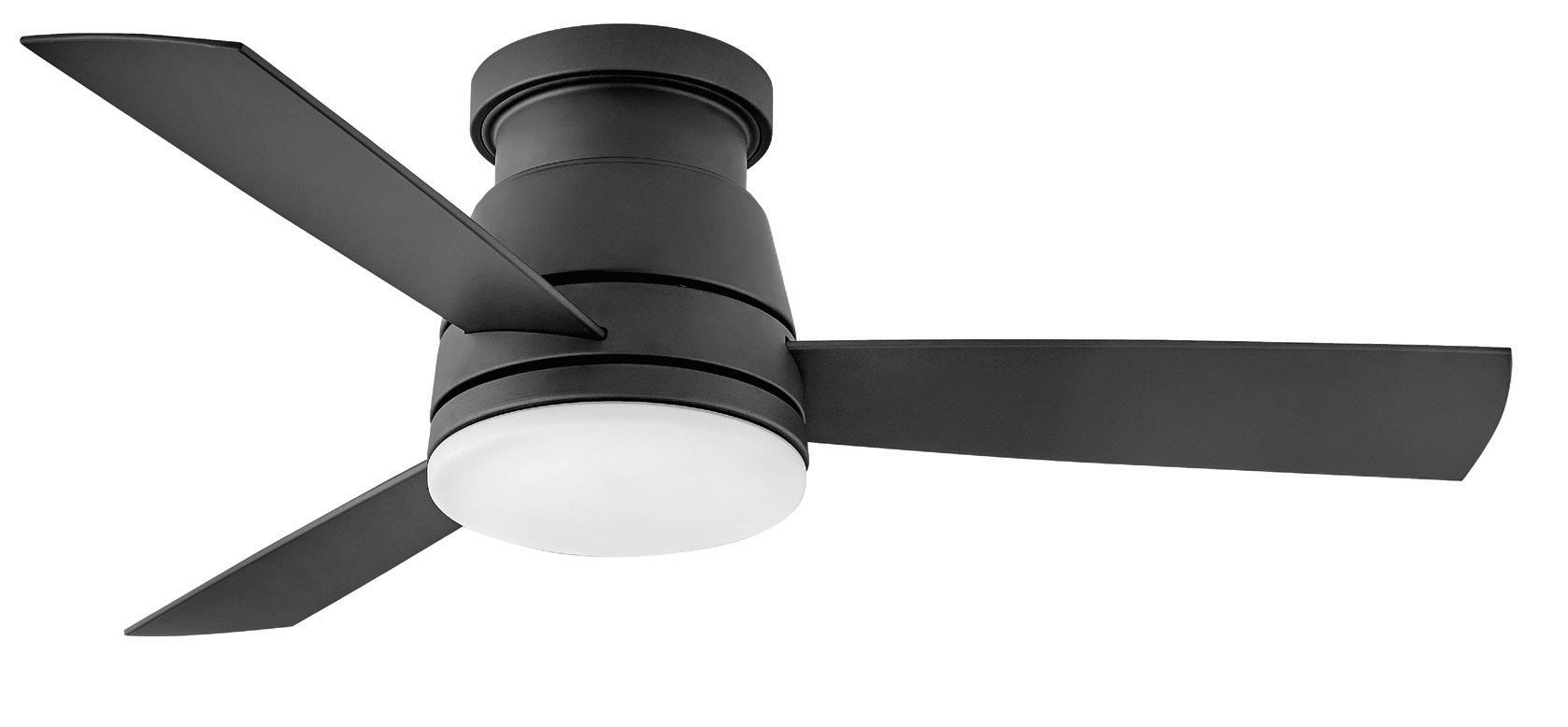

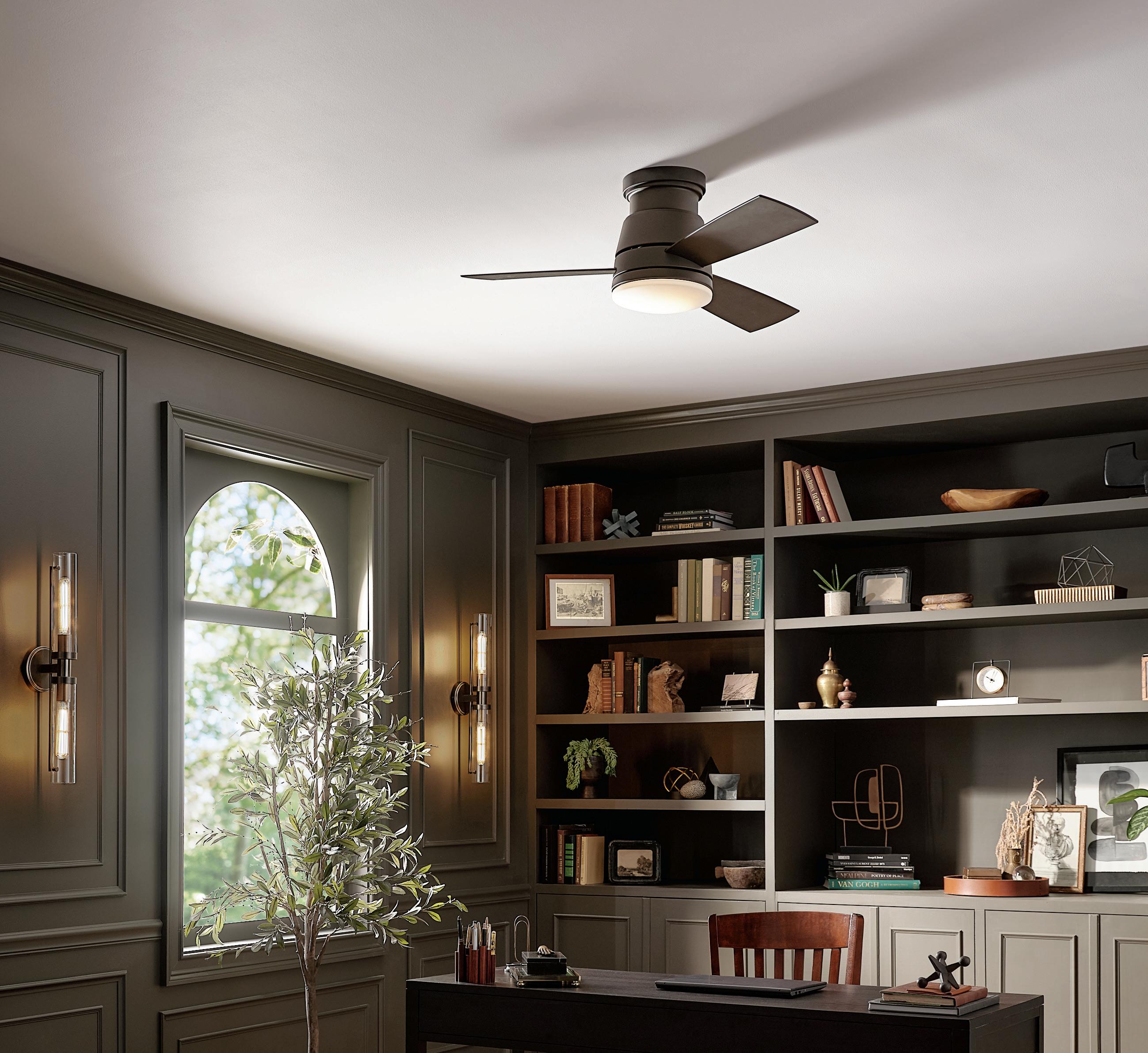

52" TREY ™

Trey features a sleek flush mount design that packs a powerful punch. Its transitional style comes equipped with robust blades that seamlessly pair performance and precision. Trey is offered in versatile finish options, and its integrated LED and DC motor technology deliver excellent energy efficiency. Timeless etched opal glass completes the look for a refined appearance. Trey is so versatile; it can be used for both indoor and outdoor spaces.

PERFORMANCE SPECIFICATIONS

ACCESSORY See HInkley.com for additional accessories and specifications.

902752 FMB-LWD MATTE BLACK WITH MATTE BLACK BLADES

DESCRIPTION

FEATURED

902752 FMB-LWD - MATTE BLACK WITH MATTE BLACK BLADES

ADDITIONAL FINISHES AVAILABLE:

902752 FMM-LWD - METALLIC MATTE BRONZE WITH METALLIC MATTE BRONZE BLADES

902752 FMW-LWD - MATTE WHITE WITH MATTE WHITE BLADES

BLADES:

• 3 Composite Blades Included

• 14° Blade Pitch

• 52" Blade Sweep MOUNTING:

• 12" Lead Wire

• 24.5 lbs. Hanging Weight

• Dimmable – Warm Dim • Etched Opal Glass

CONTROLS: 980014 FWH-R 6 Speed HIRO Reversing 932027 FXX Light Kit Cover Accessory

Vail offers a transitional style with gently curved blades and an array of versatile finish options, while its integrated LED and DC motor technology deliver excellent energy efficiency. Wet-rated can be used for both indoor and outdoor spaces.

PERFORMANCE SPECIFICATIONS

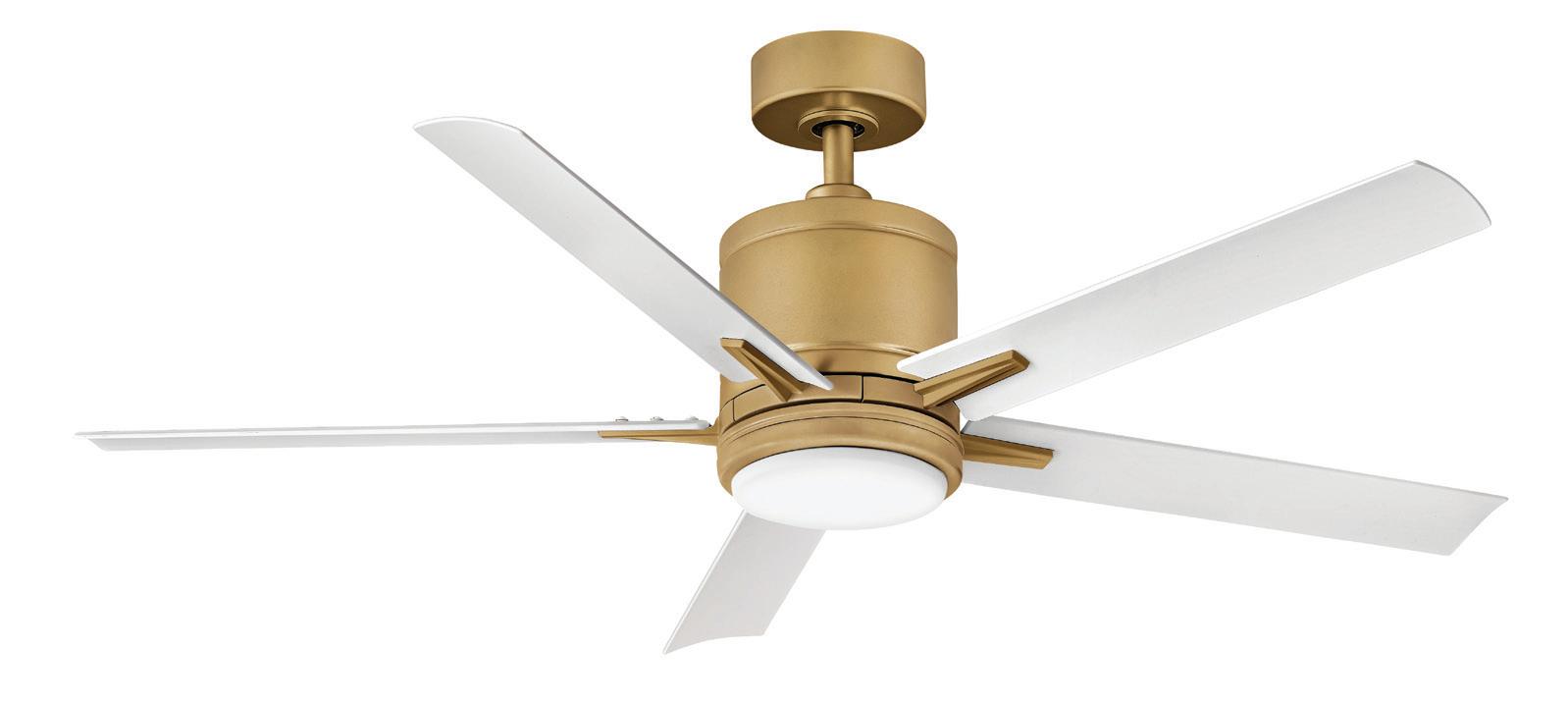

907052 FHB-LWD HERITAGE BRASS WITH MATTE WHITE BLADES

DESCRIPTION

FEATURED:

907052 FHB-LWD - HERITAGE BRASS WITH MATTE WHITE BLADES

ADDITIONAL FINISHES AVAILABLE:

907052 FBN-LWD - BRUSHED NICKEL WITH SILVER BLADES

907052 FMB-LWD - MATTE BLACK WITH MATTE BLACK BLADES

907052 FMM-LWD - METALLIC MATTE BRONZE WITH METALLIC MATTE BRONZE BLADES

907052 FMW-LWD - MATTE WHITE WITH MATTE WHITE LADES

BLADES:

• 5 Composite Blades Included

• 14° Blade Pitch

• 52" Blade Sweep

MOUNTING:

• 6" Downrod Included

• 76" Lead Wire

• 16.5 lbs. Hanging Weight

• Mounts to Sloped Ceilings

- Up to 20° Pitch

Slope ceiling kit required for ceiling pitch greater than 20°, 992001 FXX, see hinkley.com.

LAMPING / GLASS:

• 16w LED Included

• 1320 Lumens | 90 CRI | 3000K

• Dimmable - Warm Dim

• Etched Opal Glass

INCLUDED CONTROLS:

980014 FWH-R 6 Speed HIRO Reversing

Includes WiFi-Enabled Control

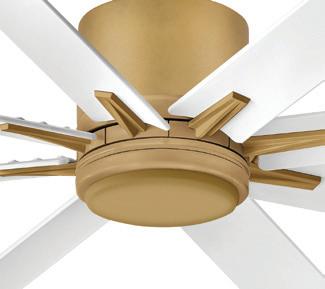

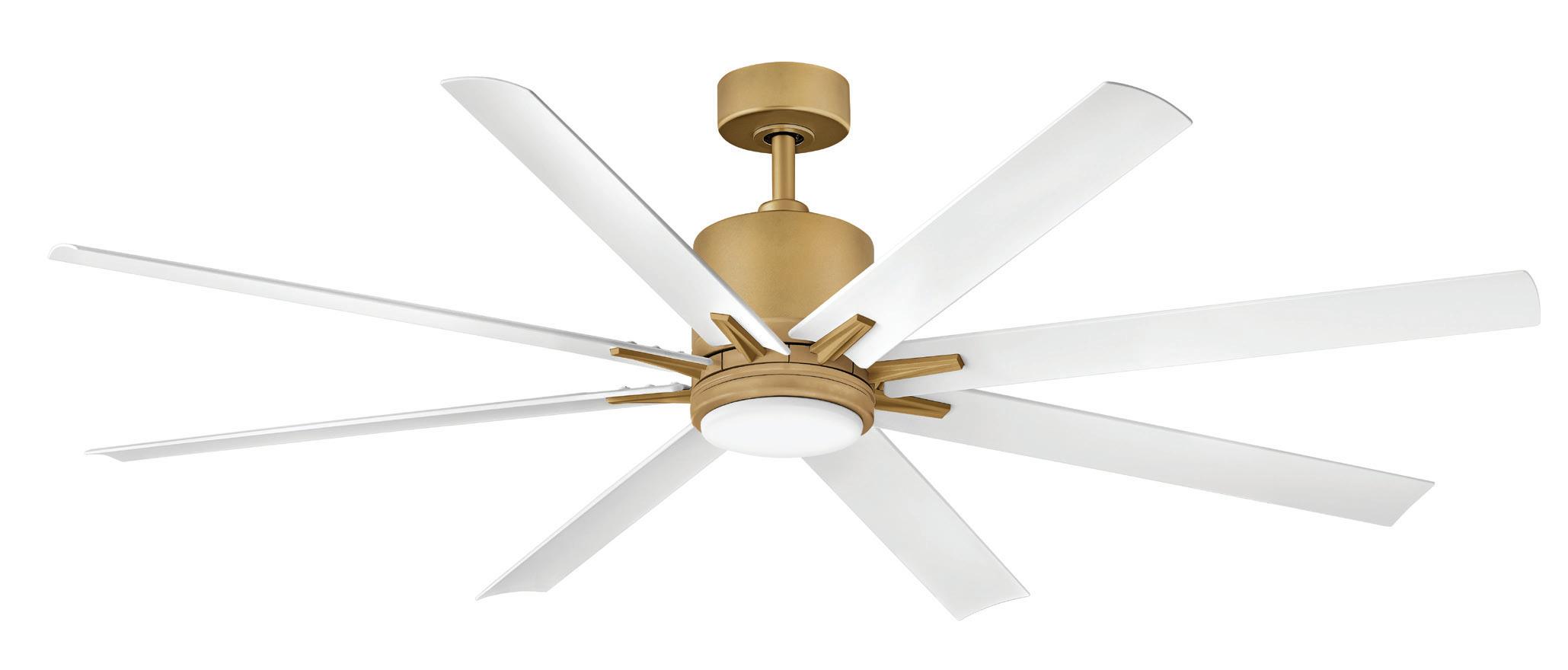

66" VANTAGE™

Create a major aesthetic statement with Vantage's modern industrial design featuring gently curved blades. Available in a variety of versatile finish options, Vantage can be applied to a range of indoor and outdoor spaces. Equipped with integrated LED and DC motor technology to deliver excellent energy efficiency.

PERFORMANCE SPECIFICATIONS

907166 FHB-LWD HERITAGE BRASS WITH MATTE WHITE BLADES

DESCRIPTION

FEATURED:

907166 FHB-LWD - HERITAGE BRASS WITH MATTE WHITE BLADES

ADDITIONAL FINISHES AVAILABLE:

907166 FBN-LWD - BRUSHED NICKEL WITH SILVER BLADES

907166 FMB-LWD - MATTE BLACK WITH MATTE BLACK BLADES

907166 FMM-LWD - METALLIC MATTE BRONZE WITH METALLIC MATTE BRONZE BLADES

907166 FMW-LWD - MATTE WHITE WITH MATTE WHITE BLADES

BLADES:

• 8 Composite Blades Included

• 12.5° Blade Pitch

• 66" Blade Sweep

MOUNTING:

• 6" Downrod Included

• 76" Lead Wire

• 24.2 lbs. Hanging Weight

• Mounts to Sloped Ceilings

- Up to 20° Pitch

Slope ceiling kit required for ceiling pitch greater than 20°, 992001 FXX, see hinkley.com.

LAMPING / GLASS:

• 16w LED Included

• 1320 Lumens | 90 CRI | 3000K

• Dimmable - Warm Dim

• Etched Opal Glass

INCLUDED CONTROLS:

980014 FWH-R

6 Speed HIRO Reversing

Includes WiFi-Enabled Control

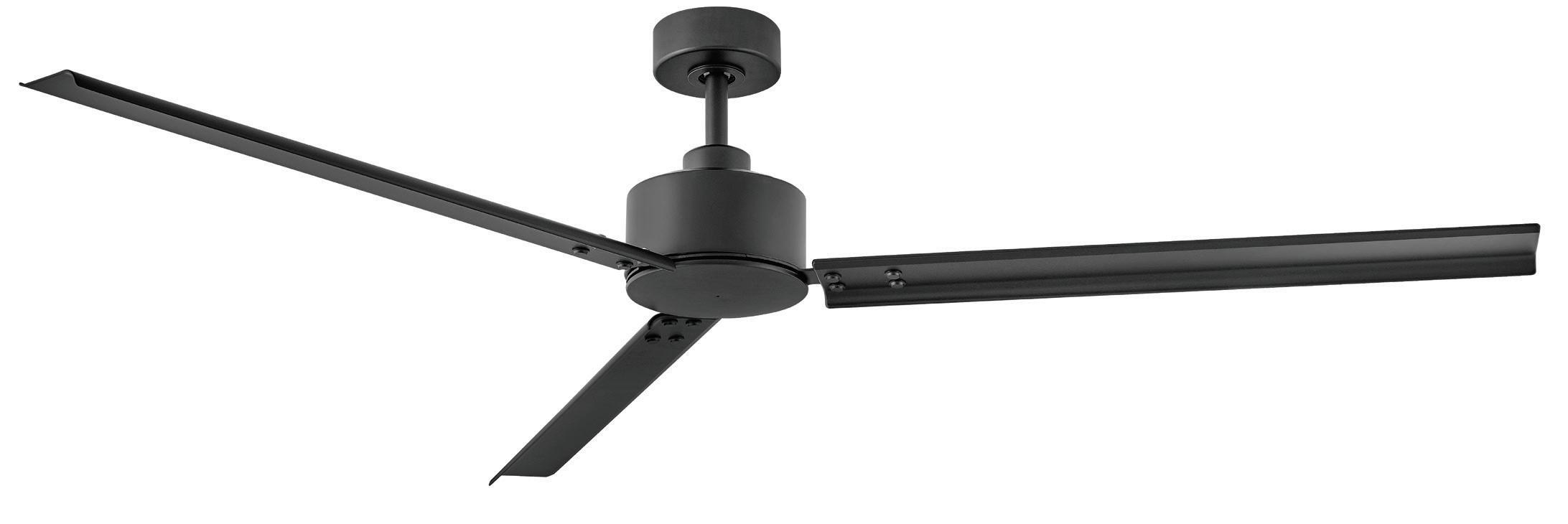

The raw, edgy style of Indy is the perfect complement for all modern industrial design-inspired rooms. Available in classic finishes with sleek coordinating blades, Indy is so versatile; it can be used for both indoor and outdoor spaces. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control and WiFi compatible with the Hinkley App.

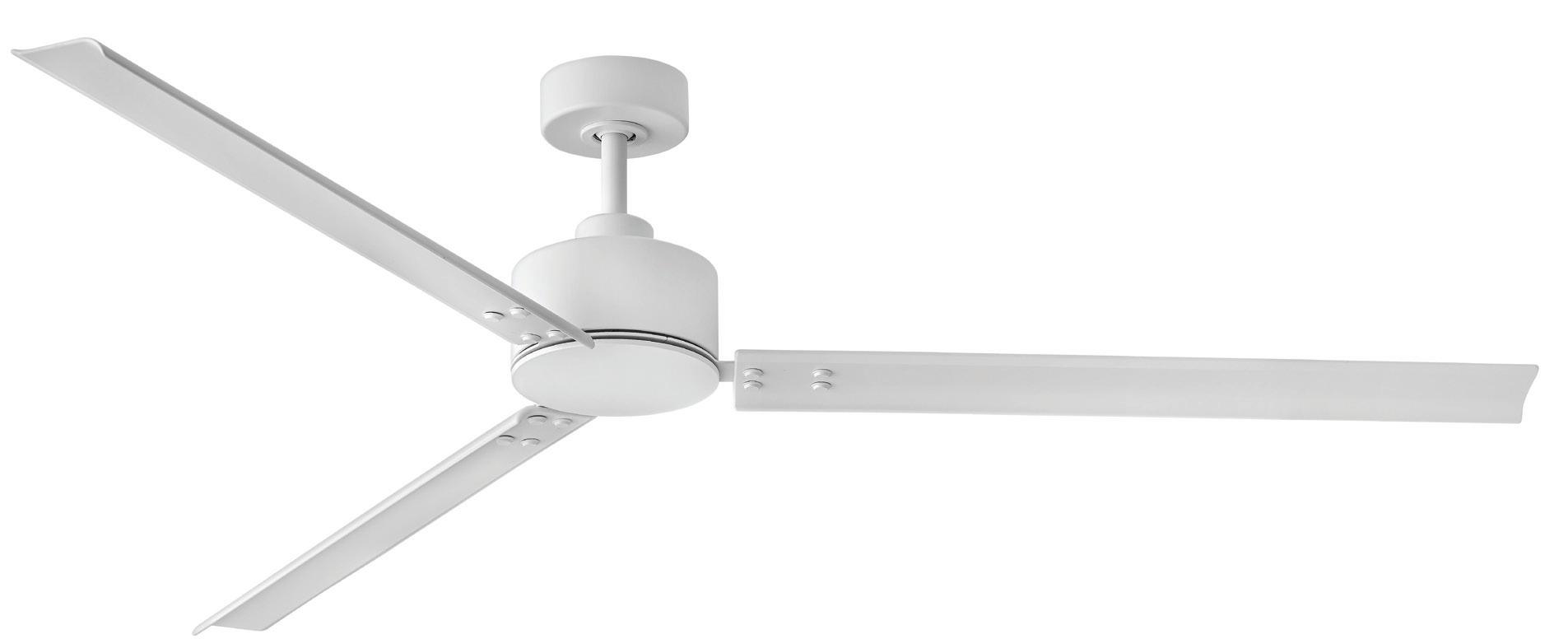

907972 FMW-NWD MATTE WHITE WITH MATTE WHITE BLADES

DESCRIPTION

907972

BLADES:

• 3 Composite Blades Included

• 20° Blade Pitch

• 72" Blade Sweep

MOUNTING:

• 6" Downrod Included

• 76" Lead Wire

• 15.62 lbs. Hanging Weight

• Mounts to Sloped Ceilings

- Up to 20° Pitch

Slope ceiling kit required for ceiling pitch greater than 20°, 992001 FXX, see hinkley.com.

INCLUDED CONTROLS:

980014 FWH-R 6 Speed HIRO Reversing

Includes WiFi-Enabled Control

PERFORMANCE SPECIFICATIONS

Oris elevates any indoor or outdoor living space with its striking, transitional design. Modern Heritage Brass ribbed details add a touch of sophistication, beautifully complemented by timeless finishes. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control and WiFi compatible with the Hinkley App.

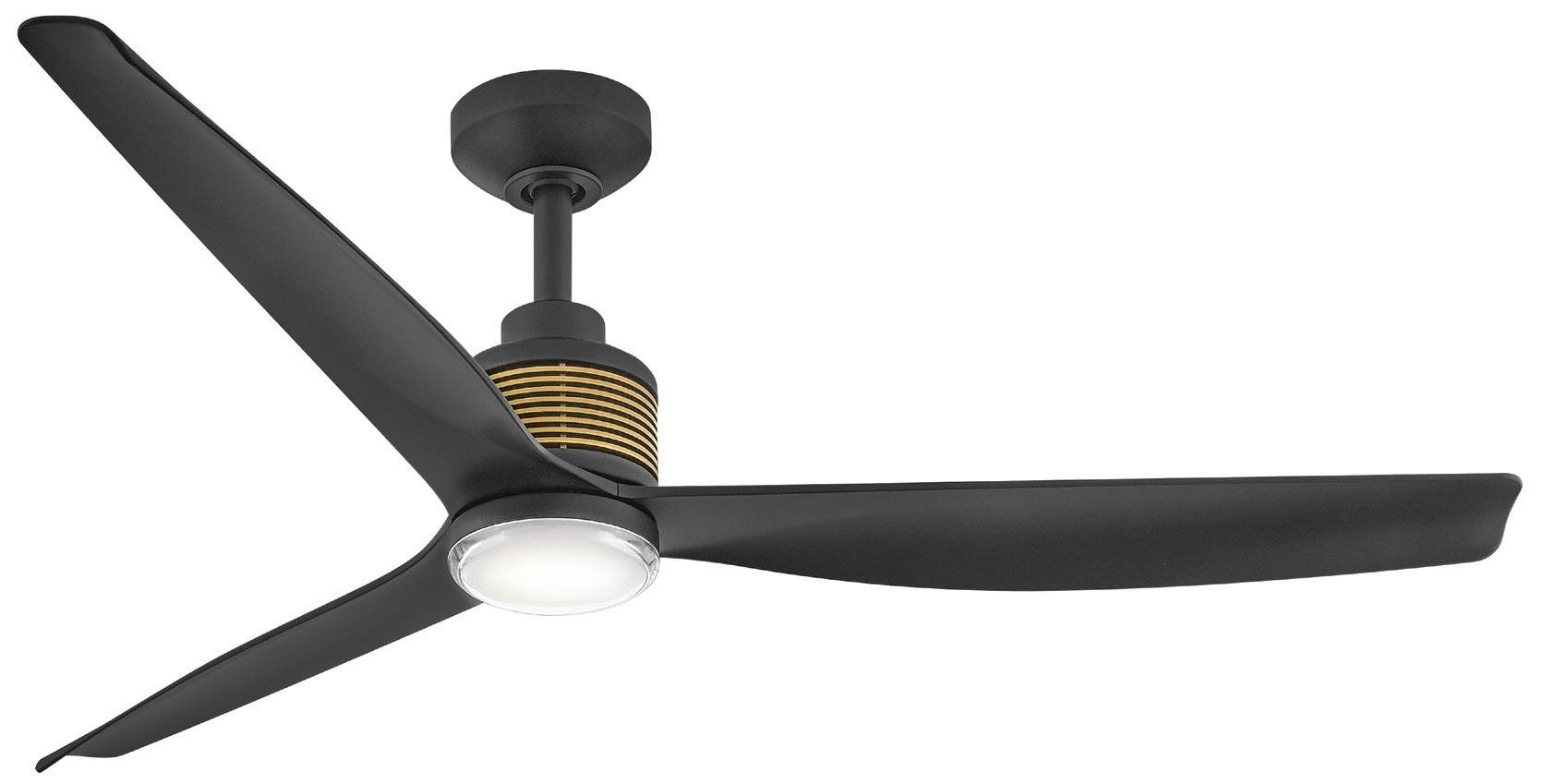

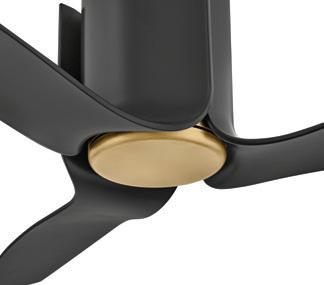

MATTE BLACK WITH HERITAGE BRASS ACCENTS AND MATTE BLACK BLADES

DESCRIPTION

908052 FMB-LDD - MATTE BLACK WITH HERITAGE BRASS ACCENTS AND MATTE BLACK BLADES

908052 FMW-LDD - MATTE WHITE WITH HERITAGE BRASS ACCENTS AND MATTE WHITE BLADES

BLADES:

• 3 Composite Blades Included

• 16° Blade Pitch

• 52" Blade Sweep

MOUNTING:

• 6" Downrod Included

• 76" Lead Wire

• 11.53 lbs. Hanging Weight

• Mounts to Sloped Ceilings

- Up to 20° Pitch

Slope ceiling kit required for ceiling pitch greater than 20°, 992001 FXX, see hinkley.com.

LAMPING/GLASS:

• 16w LED Included

• 1320 Lumens | 90 CRI | 3000K

• Dimmable - Warm Dim

• Clear Acrylic with White Polycarbonate Diffuser

980014 FWH-R

6 Speed HIRO Reversing

Includes WiFi-Enabled Control

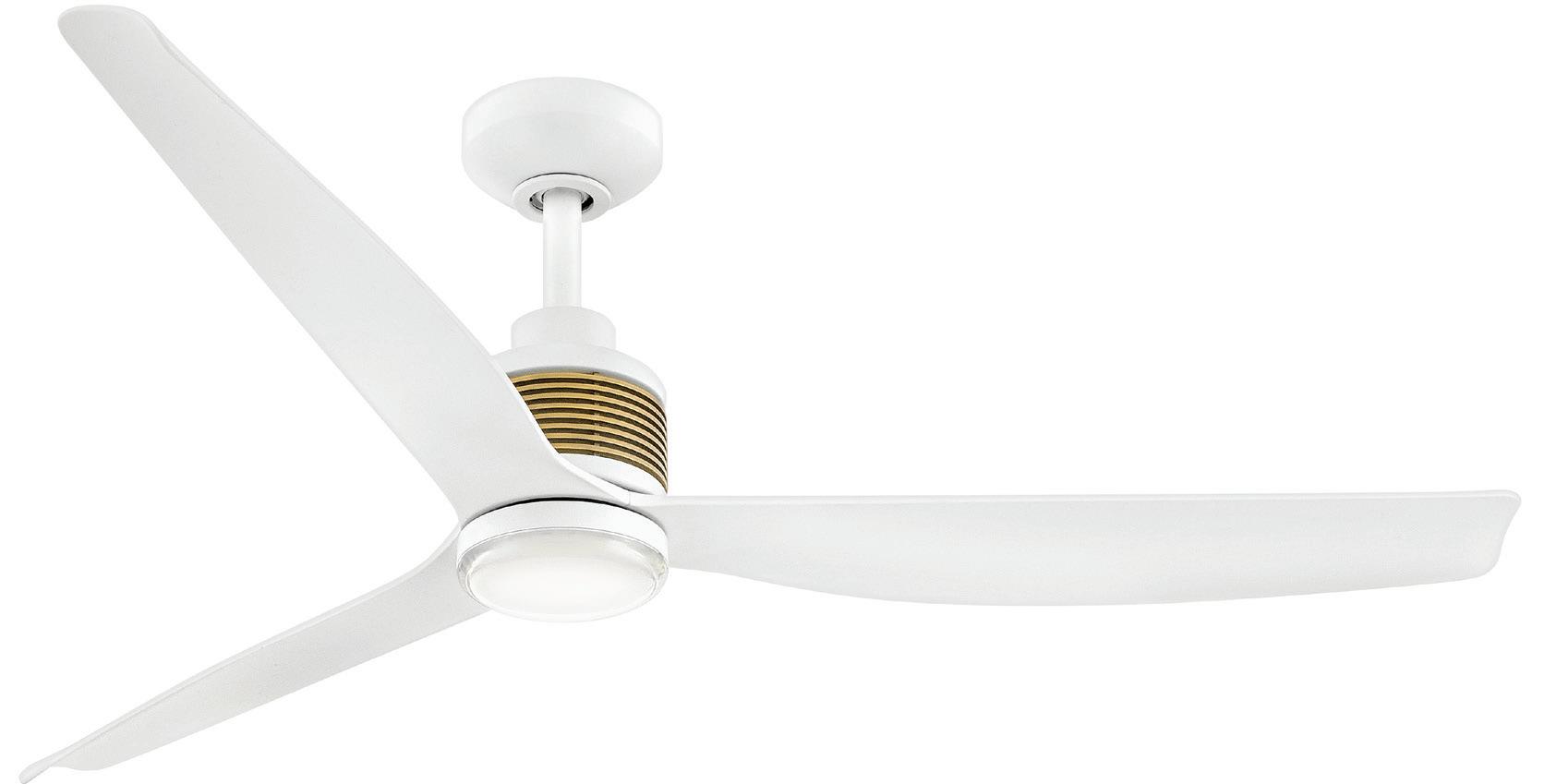

908052 FMW-LDD

MATTE WHITE WITH HERITAGE BRASS ACCENTS AND MATTE WHITE BLADES

PERFORMANCE SPECIFICATIONS

Inspired by the organic minimalism of modern Scandinavian styles, Rafter’s streamlined design adds warmth to your living space with wooden accents at the base of stylishly contoured blades. Indirect LED uplighting casts an inviting glow throughout the surrounding area. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control and WiFi compatible with the Hinkley App.

MATTE WHITE WITH NATURAL ACCENTS AND MATTE WHITE BLADES

DESCRIPTION

908260 FMB-LDD - MATTE BLACK WITH WALNUT ACCENTS AND MATTE BLACK BLADES

908260 FMW-LDD - MATTE WHITE WITH NATURAL ACCENTS AND MATTE WHITE BLADES

BLADES:

• 3 Composite Blades Included

• 14° Blade Pitch

• 60" Blade Sweep

MOUNTING:

• 6" Downrod Included

• 76" Lead Wire

• 12.57 lbs. Hanging Weight

• Mounts to Sloped Ceilings

- Up to 20° Pitch

Slope ceiling kit required for ceiling pitch greater than 20°, 992001 FXX, see hinkley.com.

LAMPING/GLASS:

• 15w LED Uplight Included

• 1000 Lumens | 90 CRI | 3000K

• Dimmable - Warm Dim

• White Polycarbonate Lens

INCLUDED CONTROLS:

980014 FWH-R 6 Speed HIRO Reversing

Includes WiFi-Enabled Control

PERFORMANCE SPECIFICATIONS

Sculpt seamlessly adds contemporary character to any setting with solid wood blades and clean etched opal glass complemented by a variety of elegant, modern finishes. Its damp-rated design is perfect for both interior and covered outdoor spaces. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App.

903660 FHB-LDD HERITAGE BRASS WITH NATURA WOOD BLADES

DESCRIPTION

FEATURED:

903660 FHB-LDD - HERITAGE BRASS WITH NATURAL WOOD BLADES

ADDITIONAL FINISHES AVAILABLE:

903660 FBB-LDD - MATTE BLACK WITH MATTE BLACK BLADES

903660 FMB-LDD - MATTE BLACK WITH WALNUT BLADES

903660 FWW-LDD - MATTE WHITE WITH MATTE WHITE BLADES

BLADES:

• 3 Wood Blades Included

• 9° Blade Pitch

• 60" Blade Sweep

MOUNTING:

• 6" Downrod Included

• 76" Lead Wire

• 16.09 lbs. Hanging Weight

• Mounts to Sloped Ceilings

- Up to 20° Pitch

Slope ceiling kit required for ceiling pitch greater than 20°, 992001 FXX, see hinkley.com.

LAMPING/GLASS:

• 16w LED Included

• 1320 Lumens | 90 CRI | 3000K

• Dimmable - Warm Dim

• Etched Opal Glass

INCLUDED CONTROLS:

980014 FWH-R 6 Speed HIRO Reversing

Includes WiFi-Enabled Control

PERFORMANCE SPECIFICATIONS

Embracing the tranquil minimalism of Scandinavian interior design aesthetics, Sven’s clean, uniquely folded blades create a chic, modern silhouette to complement interior or covered outdoor living areas. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control and WiFi compatible with the Hinkley App.

LED Uplight included

DESCRIPTION

908154 FHB-LDD - HERITAGE BRASS WITH MATTE BLACK BLADES

908154 FMB-LDD - MATTE BLACK WITH DRIFTWOOD BLADES

908154 FMW-LDD - MATTE WHITE WITH NATURAL WOOD BLADES

BLADES:

• 3 Composite Blades Included

• 16° Blade Pitch

• 54" Blade Sweep

MOUNTING:

• 6" Downrod Included

• 76" Lead Wire

• 14.77 lbs. Hanging Weight

• Mounts to Sloped Ceilings

- Up to 20° Pitch

Slope ceiling kit required for ceiling pitch greater than 20°, 992001 FXX, see hinkley.com.

LAMPING/GLASS:

• 16w LED Downlight Included

• 1320 Lumens | 90 CRI | 3000K

• 15w LED Uplight Included

• 1000 Lumens | 90 CRI | 3000K

• Dimmable - Warm Dim

• Clear Acrylic with White Polycarbonate Diffuser

INCLUDED CONTROLS:

980014 FWH-R

6 Speed HIRO Reversing

Includes WiFi-Enabled Control

PERFORMANCE SPECIFICATIONS

EVERY SOMEWHAT USEFUL FACT YOU EVER WANTED TO KNOW ABOUT

HINKLEY FANS

CLEVELAND'S TERMINAL TOWER IS WHICH EQUALS 155 MERRICKS STACKED BLADE-TIP TO BLADE-TIP OF HINKLEY

FANS

ARE RATED FOR OUTDOOR SETTINGS BUT CAN EASILY ENHANCE ANY INDOOR SPACE AS WELL

HINKLEY'S LARGEST FAN, THE IS AS LARGE AS THE AVERAGE 477 80% FANS + ACCESSORIES

Part fan, part chandelier Perfect for mudrooms, bathrooms, and more!

INCLUDING LIGHT KITS, CONTROLS, AND INSTALLATION ACCESSORIES TO JAZZ UP THE LOOK AND USABILITY OF YOUR HINKLEY FAN 4 ˚ WARMER WHEN USED WITH A HINKLEY FAN, AIR CONDITIONERS CAN BE SET UP TO SEPT. 15 IS NATIONAL CEILING FAN DAY WORD OF THE DAY Fan·de·lier

771 FT. TALL

99" INDY MAXX BULL SHARK

INDEX

902744 FMB-LWD 30

902752 FMB-LWD 31

903460 FHB-NDD 24

903660 FHB-LDD 40

903744 FHB-NDD 08

903752 FHB-NDD 09

903760 FHB-NDD 10

903848 FHB-NDD 18

903848 FMB-NDD 19

903848 FMW-NDD 19

903856 FBN-LDD 20

903856 FHB-LDD 21 903860 FBN-NDD 22 903860 FHB-NDD 23

903880 FBN-NDD 26

903880 FHB-NDD 27

906648 FBB-NWD 14

906648 FBD-NWD 15

906648 FMW-NWD

We want you to enjoy your experience with Hinkley.

We're proud to be a 4th generation family company, and we love what we do. We've been designing and creating products with the same level of style and quality we put in our own homes since 1922. So whether you are flipping through our catalog, surfing our site, getting inspired through social media, chatting with a member of our team or checking out our designs with one of our retailers, we're always looking for your experience with Hinkley to be a positive one. Here’s all you need to know:

CATALOG COLLECTIONS

Hinkley catalogs feature our current and complete product line along with important product specs and detailed photography. A must for the print-loving researcher who likes to tab their favorites. Stop by your local showroom for your own copy.

HINKLEY.COM

Dive in! Our easy-to-use site makes your product research process a snap, with the added benefit of tips, trends, installation guidelines and a quick connection to our retail partners.

#HINKLEYSTYLE

We love seeing how you live and sharing ideas and inspiration with each other. Stay in the loop on all Hinkley happenings, from your favorite styles, the best (seriously) giveaways, helpful tips, our latest collabs, Team Hinkley shenanigans, and brand new design drops. @hinkleylighting

TEAM HINKLEY

Want to chat? Contact us at customercare@hinkley.com or 1.800.HINKLEY.

Hinkley stands behind the quality of our lighting fixtures and ceiling fans with product warranties that are among the strongest in the industry. For details of warranty coverage on specific products, please refer to hinkley.com or consult a qualified Hinkley retail distributor.

Several Hinkley products are protected under U.S. Patent and foreign patent, or patent pending.

WELCOME TO THE FAMILY

We stand by every fixture we make but we know that sometimes things happen. Simply register your fixture so we can answer any questions as quickly as possible. Just head over to hinkley.com/register. We're always here if you have a question, need some help, or want to chat about our products.

©2026 Hinkley, Inc. All rights reserved in all copyrightable works.

Hinkley is a proud partner of the American Lighting Association.

33000 Pin Oak Parkway | Avon Lake, Ohio 44012

T 440 653 5500 | F 440 653 5555 | hinkley.com SHOWROOMS

Dallas Trade Mart 3210 | Dallas, Texas 75207

High Point Market MS143 | High Point, North Carolina 27260 ON THE COVER: SCULPT 903660 FHB-LDD
