CUSTOMISATION MADE EASY

Timber drawer systems

Runner systems for wooden drawers

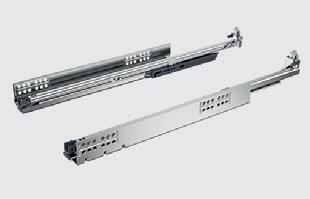

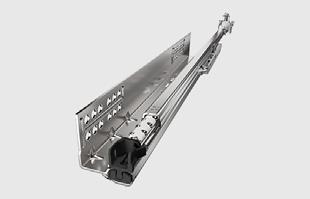

Actro 5D drawer runners

Precision that gets things moving

The Actro 5D drawer runner is simply the perfect choice for unique furniture design, narrow reveals and large front panels. Adjusting in 5 directions, front panel reveal

alignment meets the most exacting demands. Excellent running performance and incredible stability provide supreme quality you can feel and hear.

Fascinate with smoothly running drawers:

Actro 5D, smooth running and synchronised.

Fascinate with narrow reveals: 5-way adjustment for extremely narrow reveals.

Impress with stability: Load capacity up to 70 kg.

hettich.com/short/ba9fb5

Find out more: You can get inspiration and further product details on our website.

ba9fb5

Runner systems for wooden drawers

 Actro 5D drawer runners

 Summary

Actro 5D drawer runners Range summary / Technical Comparison

Actro 5D full extension runners with Silent System and Push to open Range summary / technical comparison

Actro 5D full extension runners with Silent System, bottom panel installation

Push to open Silent for Actro 5D

Hettich Technical Assistant

 Installation  Settings  Service

hettich.com/short/cb3246

Actro YOU

Runner systems for wooden drawers

 Actro 5D drawer runners

 Range summary / technical comparison

Actro 5D with Silent System Page

Actro 5D Push to Open

8 - 9

10 - 11

Actro 5D bottom panel installation

12 - 13

Description

User friendly features

Installation

Full extension runner with integrated Silent System

Silent System

On cabinet body side

Slide on installation

Adjustment

Side

Tilt

Radial

Load class

Full extension runner with integrated Silent System

Push to open

 On cabinet body side

 Slide on installation

Full extension runner with integrated Silent System

Silent System

 On cabinet body bottom panel

Drawer lengths

Minimum cabinet depth

Installed width (side profile thickness)

Accessories

L (40 kg)

XL (70 kg)  Height

 L: 270 - 600 mm

 XL: 500 - 750 mm

+ 3 mm

EB21 (≤ 16 mm drawer side profile thickness)

 Catches

 Depth adjustment

 Push to open Silent

 Pull-out shelf support

 Pull-out shelf locating catch

 Illumination

 Height  Side

 Tilt

 Depth

 Radial

 L (40 kg)

 XL (70 kg)

(Drawer length = NL - 10 mm) NL + 3 mm

Slide on installation  Height

Side

Tilt

Radial

L (40 kg)

L: 350 - 500 mm

+ 3 mm

EB21 (≤ 16 mm drawer side profile thickness)

 Catches

 Synchronisation

 Multi synchronisation

 Pull-out shelf support

 Pull-out shelf locating catch

 Click Stop drawer locating catch

 Illumination

EB21 (≤ 16 mm drawer side profile thickness)

 Catches

 Depth adjustment

 Push to open Silent

 Pull-out shelf support

 Pull-out shelf locating catch

 Illumination

Runner systems for wooden drawers

 Actro 5D drawer runners

 Range summary / technical comparison

Push to open Silent

Opening system for optionally upgrading

Actro YOU

 Can be clipped on without tools

 8 - 20 kg

 10 - 40 kg

 20 - 70 kg

 For all nominal lengths

270 - 750 mm

 Synchronisation

 Multi synchronisation

Full extension runner with integrated Silent System

Silent System

 On cabinet body side

 Slide on installation

 Height

 L (40 kg)

 XL (70 kg)

 L: 270 - 600 mm

 XL: 450 - 650 mm

NL + 3 mm

EB21 (≤ 16 mm drawer side profile thickness)

 Catches

 Depth adjustment

 Push to open Silent

 Pull-out shelf support

 Pull-out shelf locating catch

 Illumination 18 - 19

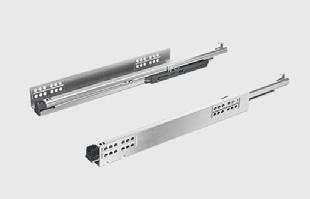

Runner systems for wooden drawers

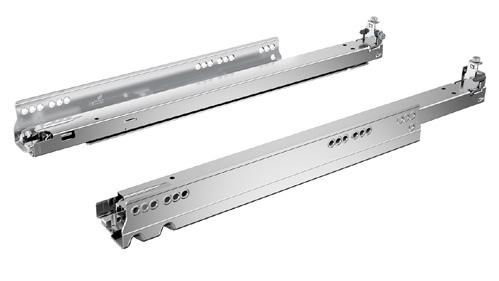

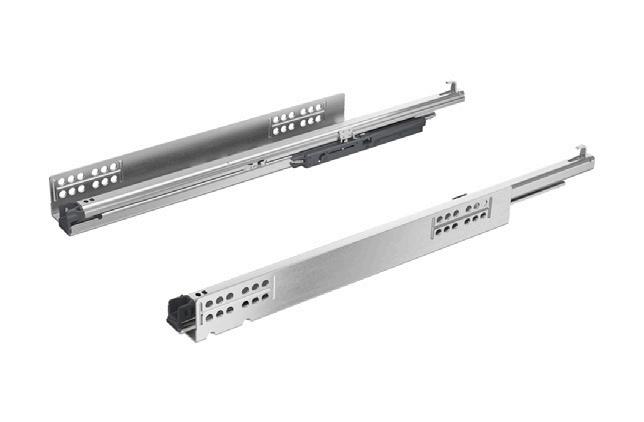

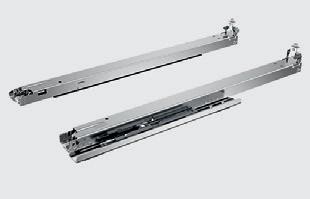

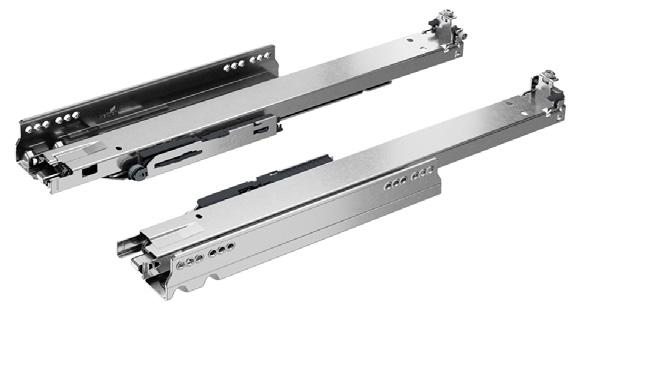

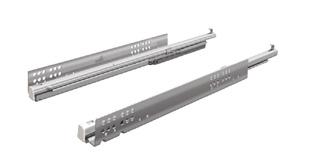

 Actro 5D full extension runner with Silent System, optionally with Push to open Silent

 Load classes L (40 kg) / XL (70 kg)

 Push to open Silent

 Slide on installation with catches

 Catch must be ordered separately

 Integrated Silent System

 Tool-less height adjustment up to + 3 mm, side adjustment up to +/- 1.5 mm, tilt adjustment up to + 4 mm and radial adjustment up to +/- 1.5 mm

 Optional: depth adjustment up to +/- 2 mm

 Optional: Push to open Silent opening system

 Optional: plug for pull-out shelves

 Optional: pull-out shelf locating catch

 Load capacity to EN 15338, Level 3

 Galvanised steel

Runner systems for wooden drawers

 Actro 5D full extension runner with Silent System, optionally with Push to open Silent

 Load classes L (40 kg) / XL (70 kg)

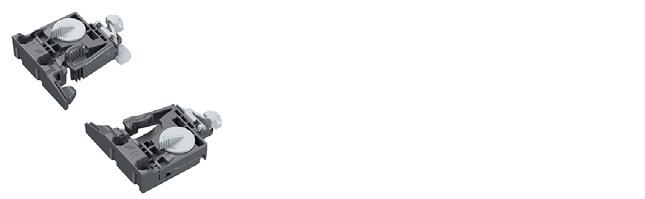

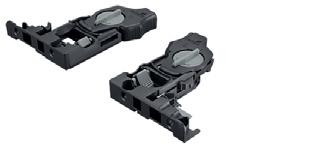

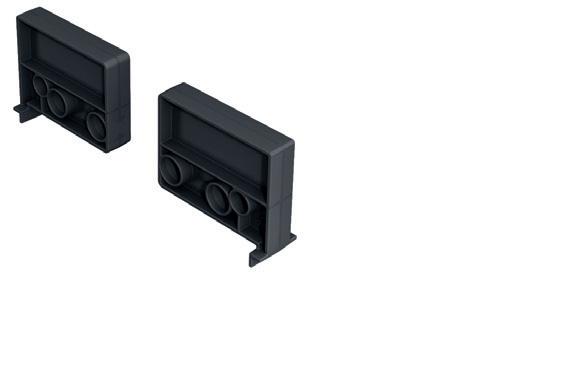

Catches

Mounting side

left and right

left

right

Front cross section

 Tool-less, intuitive side adjustment up to +/- 1.5 mm

 Height adjustment up to + 3 mm

 Plastic anthracite

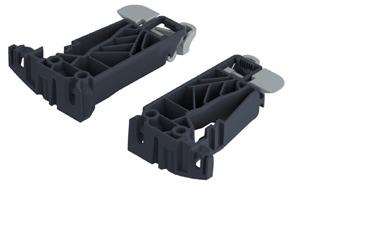

Depth adjustment

 Tool-less installation and adjustment up to +/- 2 mm

 For optional use with inset front panels

 Steel, grey plastic

Set comprises:

 2 depth adjusters

 2 activators

Order no. PU

9 320 333 1/5 pair

9 320 334 100 ea.

9 320 335 100 ea.

Runner systems for wooden drawers

 Slide on installation with catches

 Catch must be ordered separately

 Integrated opening system Push to open

 Tool-less height adjustment up to + 3 mm, side adjustment up to +/- 1.5 mm, tilt adjustment up to + 4 mm, radial adjustment up to +/- 1.5 mm and integrated depth adjustment up to + 2 / - 1 mm

 Optional: synchronisation for Push to open

 Optional: plug for pull-out shelves

 Optional: pull-out shelf locating catch

 Load capacity to EN 15338, Level 3

 Galvanised steel

Runner systems for wooden drawers

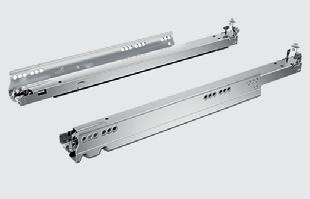

 Actro 5D full extension runner with Push to open

 Load classes L (40 kg) / XL (70 kg)

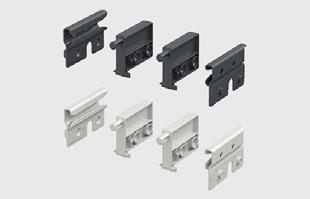

Catches

 Tool-less, intuitive side adjustment up to +/- 1.5 mm

 Height adjustment up to + 3 mm

 Plastic anthracite

Mounting side Order no. PU

left and right 9 320 333 1/5 pair

Front cross section

Runner systems for wooden drawers

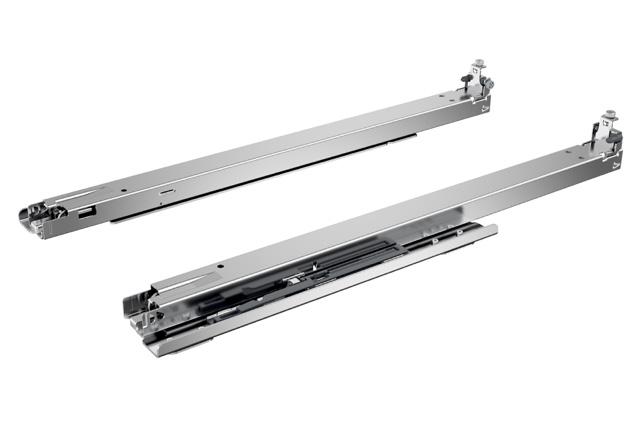

 Actro 5D full extension runner bottom panel installation with Silent System, with optional Push to open Silent

 Load class L (40 kg)

 Slide on installation with catches

 Catch must be ordered separately

 Integrated Silent System

 Tool-less height adjustment up to + 3 mm, side adjustment up to +/- 1.5 mm, tilt adjustment up to +/- 2 mm and radial adjustment up to +/- 1.5 mm

 Optional: depth adjustment up to + 4 mm

 Optional: Push to open Silent opening system

 Optional: pull-out shelf support

 Optional: pull-out shelf locating catch

 Load capacity to EN 15338, Level 3

 Galvanised steel

Runner systems for wooden drawers

 Actro 5D full extension runner bottom panel installation with Silent System, with optional Push to open Silent

 Load class L (40 kg)

Catches

Mounting side

left and right

left

right

Front cross section

 Tool-less, intuitive side adjustment up to +/- 1.5 mm

 Height adjustment up to + 3 mm

 Plastic anthracite

Depth adjustment

 Tool-less installation and adjustment up to +/- 2 mm

 For optional use with inset front panels

 Steel, grey plastic

Set comprises:

 2 depth adjusters

 2 activators

Order no. PU

9 320 333 1/5 pair

9 320 334 100 ea.

9 320 335 100 ea.

Runner systems for wooden drawers

 Actro 5D accessories

 Push to open Silent for Actro 5D

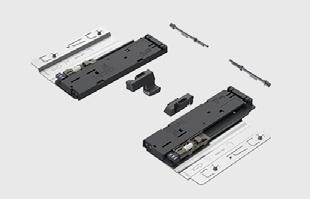

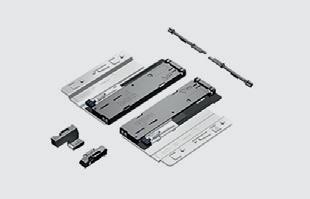

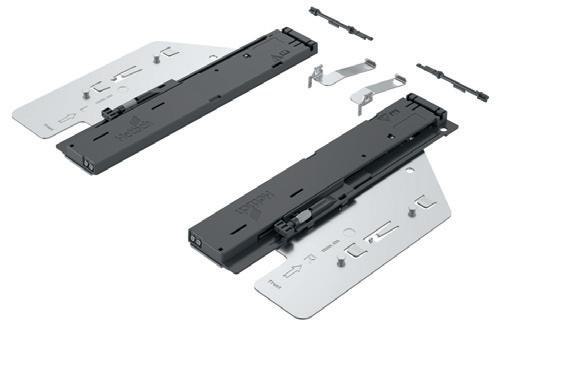

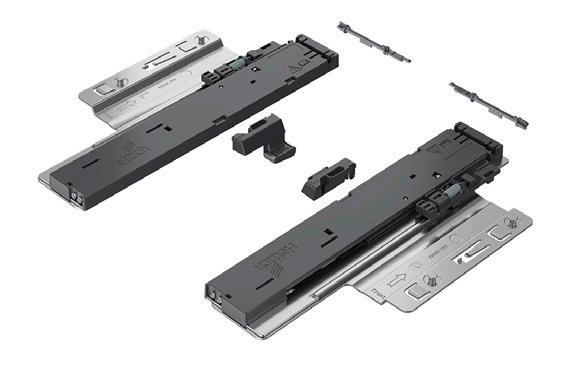

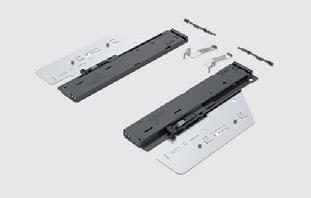

Push to open Silent opening system for Actro 5D

 For optimum performance and activation, we recommend fitting an optional synchronisation function

Set comprises:

 1 Push to open Silent unit, left and right

 1 activator, left and right

 2 adapters for synchronisation

Recommendation

Order no. Push to open Silent:

* Recommendations for applications (front panel 18 mm chipboard, normal household loading), please refer to our online configurator to get more exact recommendations for customer chosen front panel dimensions and materials.

Runner systems for wooden drawers

 Actro 5D accessories

 Push to open Silent for Actro 5D

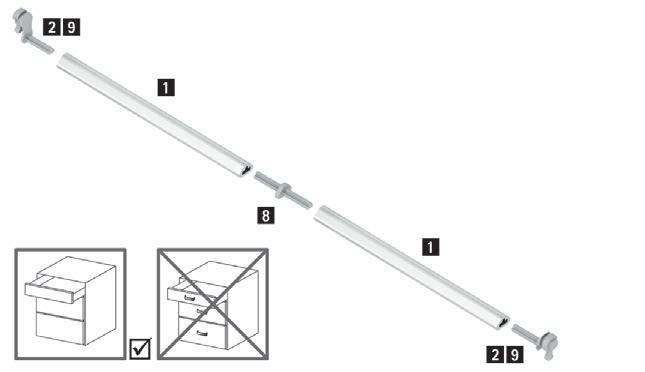

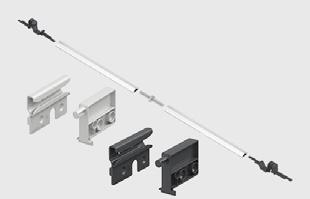

Optional synchronisation for Push to open Silent

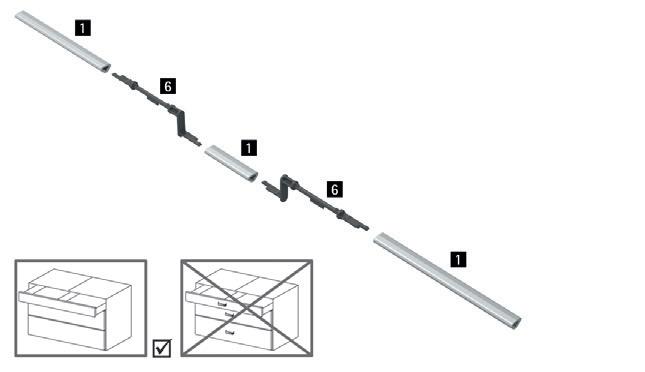

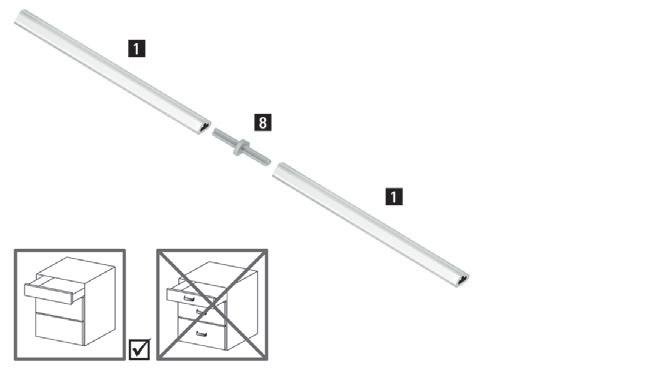

Optional multisynchronisation for Push to open Silent

Flexible adapter for Push to open Silent synchronisation

Synchronisation bar:

 For cutting to length, 2000 mm

 Aluminium, anodised

Connector:

 For extending synchronisation bar / optimising synchronisation bar offcut waste

 Grey plastic Article

1 Synchronisation bar

8 Connector

 For two drawers connected by one front panel

 Aluminium, anodised, grey plastic

1 Synchronisation bar

6 Push to open Silent multi synchronisation adapter

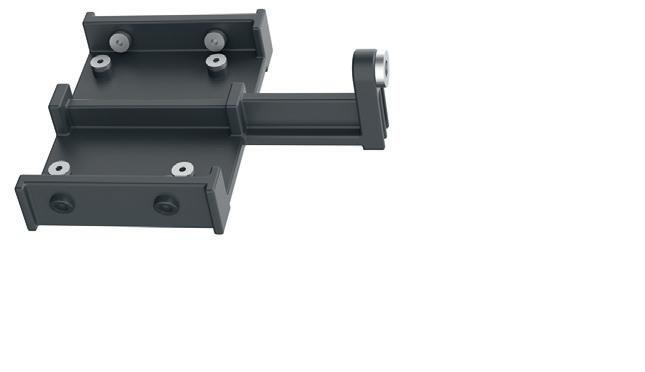

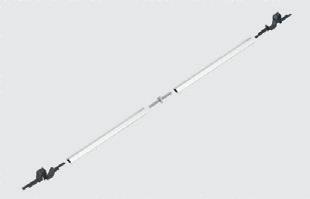

Deflector for Push to open Silent synchronisation

 For use in conjunction with lowered drawer runners with angled or curved fronts

 Depth offset max. 150 mm

 Angle at synchronisation bar max. 25 °

 Replaces the adapter for synchronisation in the Push to open Silent set

 For use, e.g. with U-bend applications

 Permits synchronisation in 3 different depth positions

Set comprises:

 2 housings with premounted deflection bar

 2 adapters for Push to open unit

 2 adapters for synchronisation bar Order no. PU

9 278 453 1 set

Runner systems for wooden drawers

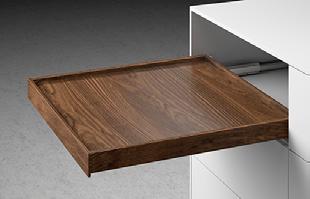

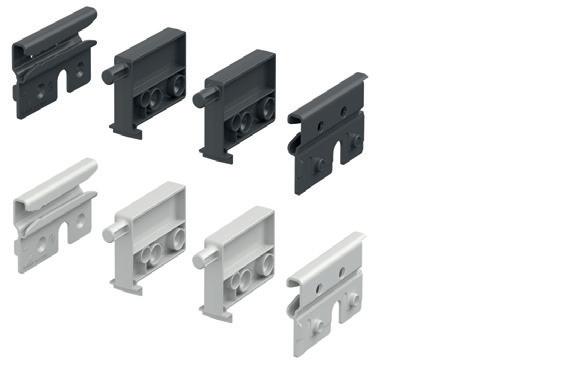

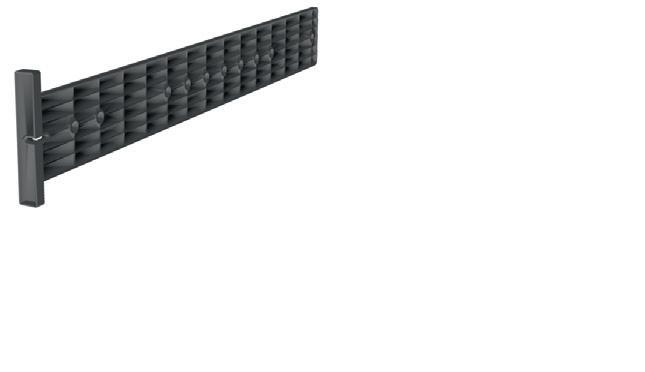

Pull-out shelf support

Pull-out shelf locating catch, set

 For pull-out shelves / drawers with flush bottom panel

 Nominal length (NL) is reduced by 20 mm

 Plastic, anthracite

Advice:

 Suitable for Actro 5D, Actro YOU, Quadro V6 YOU

 Easy to add locating catch for pull-out shelves

 Automatically engages on pulling shelf out all the way

 Unlocks automatically in response to defined closing force

 Used instead of the standard fitted plug

 1 mount, left and right, and 2 studs are required per pull-out shelf

Set comprises:

 1 mount, left and right

 2 studs

Advice:

 Suitable for Actro YOU, Actro 5D, Quadro V6 YOU and Quadro V6 EB 20

 Drawer runners, catches and plugs must be ordered separately

Runner systems for wooden drawers

 Actro YOU drawer runner with Silent System, optionally available with Push to open Silent

 Load classes L (40 kg) / XL (70 kg)

Actro YOU drawer runner with Silent System

Load class XL (70

Depth adjustment

Advice



 Full extension runner for combining with AvanTech YOU system drawer or wooden drawer with catches

 Integrated Silent System

 Optional: Push to open Silent

 Load classes L (40 kg) / XL (70 kg)

 Load capacity to EN 15338, Level 3

 Galvanised steel

 Tool-less installation and adjustment up to +/- 2 mm

 For optional use with inset front panels

 Steel, grey plastic

Set comprises:

 2 depth adjusters

 2 activators

Runner systems for wooden drawers

 Actro YOU drawer runner with Silent System, optionally available with Push to open Silent

 Load classes L (40 kg) / XL (70 kg)

AvanTech YOU internal drawer / internal pot-and-pan drawer AvanTech YOU drawer / pot-and-pan drawer

catch  For using Actro YOU with wooden drawers

Height adjustment up to + 3 mm

Plastic anthracite

side

Runner systems for wooden drawers

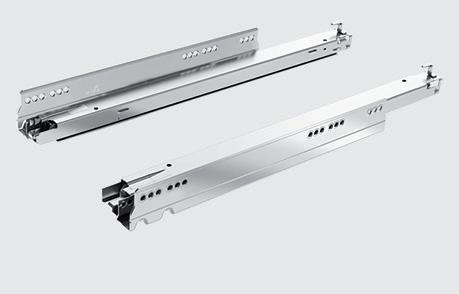

 Quadro drawer runners

Quadro - better than the original We have optimised our classic runner in every respect. Our new multidimensional adjustment system lets you build furniture with perfectly aligned doors and drawers showing minimal reveals. The platform concept allows you to choose whichever functionality you want. It's so easy, cost efficient and leaves plenty of scope to address different price levels.

Identical dimensions for wooden drawers and cabinet panel drilling – a standard for the new Quadro platform. Whichever runner you choose – Quadro is and will always be best in class. Made in Germany accompanied by short supply chains and top reliability in every respect. The original is now even better.

The larger the drawer, the stronger the Quadro - perfect reveal alignment every time with the Quadro V6 5D full extension runner.

Concealed precision working components for added convenience with every day that passes.

hettich.com/short/008376

Runner systems for wooden drawers

 Quadro drawer runners

 Summary

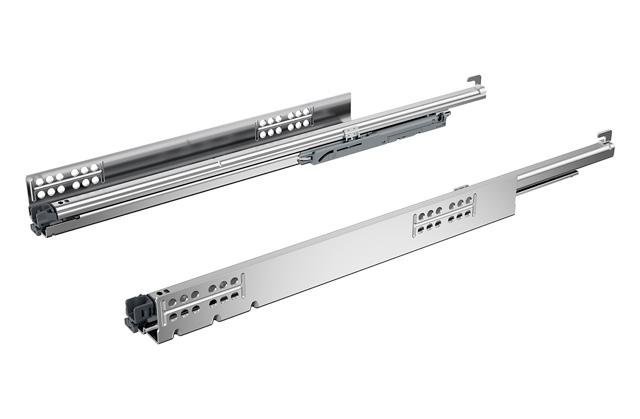

Quadro drawer runners

Range summary / technical comparison

Quadro full extension runners

 Quadro V6 5D

 Quadro V6 YOU

Push to open Silent

 For Quadro V6 5D

 For Quadro V6 YOU

Accessories

 Synchronisation / multi synchronisation

 Pull-out shelf support

 Pull-out shelf locating catch

Add on products

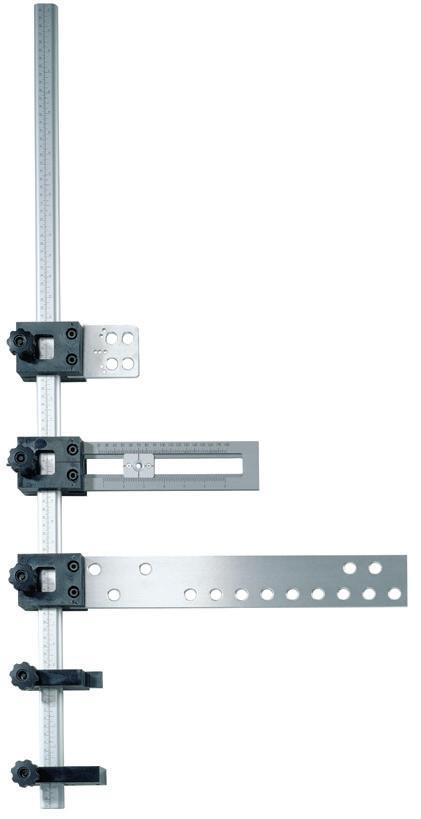

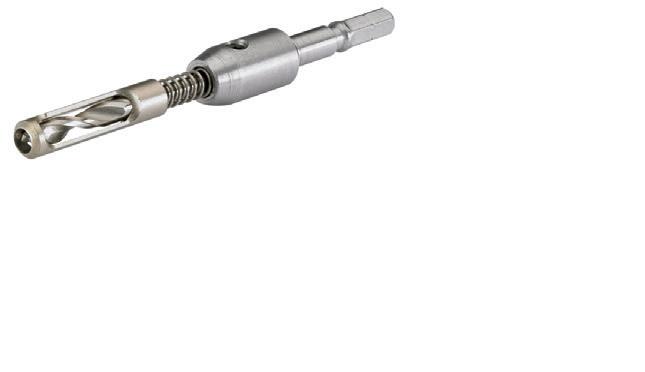

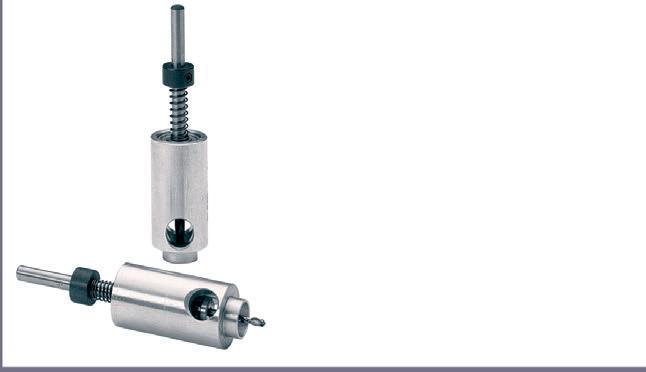

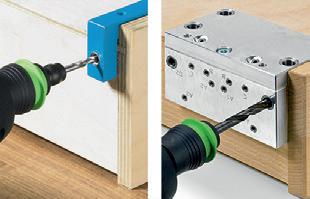

 Drilling jigs

Hettich Technical Assistant

 Installation / settings

 Service

Quality criteria

hettich.com/short/e33065

Runner systems for wooden drawers

 Quadro drawer runners

 Range summary / technical comparison

Quadro V6 5D with Silent System

Page

Description

User friendly features

Installation

Adjustment

24 - 25

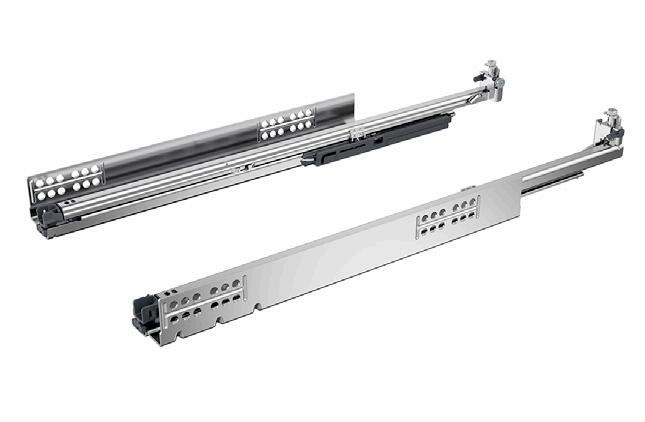

Quadro V6 5D with Push to open

26 - 27

Full extension runner with integrated Silent System

Full extension runner with integrated opening system

Quadro V6 YOU with Silent System

28 - 29

Load class

Silent System

 On cabinet body side

 Slide on installation

 Height

 Side

 Depth

 Tilt

 Radial

 XS (10 kg)

 M (30 kg)

Nominal length (NL)

270 - 600 mm

Push to open

 On cabinet body side

 Slide on installation

 Height

 Side

 Depth

 Tilt

 Radial

 M (30 kg)

Full extension runner with integrated Silent System

Silent System

 On cabinet body side

 Slide on installation

 Height

 XS (10 kg)

 M (30 kg)

270 - 600 mm

Drawer length (SKL)

Minimum cabinet depth

Installed width (side profile thickness)

Accessories

260 - 590 mm

(SKL = NL - 10 mm)

Nominal length + 3 mm

EB21 (≤ 16 mm drawer side profile thickness)

 2D catch

 Push to open Silent

 Synchronisation / Multi synchronisation

 Pull-out shelf support / Pull-out shelf locating catch

 Illumination

260 - 590 mm (SKL = NL - 10 mm)

Nominal length + 3 mm

EB21 (≤ 16 mm drawer side profile thickness)

 2D catch

 Synchronisation / Multi synchronisation

 Pull-out shelf support / Pull-out shelf locating catch

 Illumination

260 - 590 mm

(SKL = NL - 10 mm)

Nominal length + 3 mm

EB21 (≤ 16 mm drawer side profile thickness)

 YOU catch

 Push to open Silent

 Synchronisation / Multi synchronisation

 Pull-out shelf support / Pull-out shelf locating catch

 Illumination

Runner systems for wooden drawers

 Quadro drawer runners

 Range summary / technical comparison

Quadro V6 YOU with Push to open

30 - 31

Push to open Silent

Synchronisation / multi synchronisation

Push to open Silent Synchronisation / multi synchronisation

Full extension runner with integrated opening system

Push to open

 On cabinet body side

 Slide on installation

 Height  M (30 kg)

270 - 600 mm

260 - 590 mm (SKL = NL - 10 mm)

Nominal length + 3 mm

EB21 (≤ 16 mm drawer side profile thickness)

 YOU catch

 Synchronisation / Multi synchronisation

 Pull-out shelf support / Pull-out shelf locating catch

Optional for:

 Quadro V6 5D with Silent System

 Quadro V6 YOU with Silent System

Push to open Silent

 Tool-less clip on

33 - 35

Pull-out shelf locating catch

Depending on runner system and drawer load

 Synchronisation / multi synchronisation

 Flexible adapter

 Synchronisation / multi synchronisation

 Deflection

 Flexible adapter

 Deflection

Optional for:

Optional for:  Push to open

 Push to open

Push to open Silent

 Push to open Silent

Tool-less clip on

Optional for:

36 Optional for:

Quadro V6 5D

Quadro V6 YOU

 On runner and on pull-out shelf

On runner and on pull-out shelf

Runner systems for wooden drawers

 Quadro V6 5D full extension runner with Silent System (drawer side profile thickness ≤ 16 mm)

 Load classes XS (10 kg) / M (30 kg)

 Slide on installation with 2D catches for height and side adjustment, integrated depth adjustment, integrated tilt adjustment, integrated radial adjustment

 Integrated Silent System

 2D catch must be ordered separately

 Adjustments all tool-lees: height adjustment up to + 3 mm, side adjustment up to +/- 1.5 mm, depth adjustment up to + 2/- 1 mm, tilt adjustment up to + 4 mm and radial adjustment up to +/- 1.5 mm

 Optional: Push to open Silent opening system (upgradable when combined with Silent System)

 Optional: synchronisation / multi synchronisation (upgradable when combined with Push to open / Push to open Silent)

 Optional: pull-out shelf support / pull-out shelf locating catch

 10 kg and 30 kg load classes for different applications (see ordering table)

 Platform concept: identical cabinet body, drawer and front panel dimension for Quadro partial and full extension runners for slide on installation

 Suitable for drawers with a side profile thickness of up to 16 mm

 Load capacity to EN 15338, Level 3

 Galvanised steel

 For using Quadro V6 5D and Quadro 25 2D with wooden drawers

 Tool-less height adjustment up to + 3 mm and side adjustment up to +/- 1.5 mm

 Optional: pull-out shelf support

 Plastic anthracite

Set of 2D catches, left and right

pair 2D catch, left

catch, right

 Push to open Silent

 Push to open synchronisation / multi synchronisation

 Accessories

 Quality criteria

2D catch

Runner systems for wooden drawers

 Quadro V6 5D full extension runner with Silent System (drawer side profile thickness ≤ 16 mm)

 Load classes XS (10 kg) / M (30 kg)

Front cross section

Side cross section

Advice

 Push to open Silent

 Push to open synchronisation / multi synchronisation

 Accessories

 Quality criteria

Runner systems for wooden drawers

 Quadro V6 5D full extension runner with Push to open (drawer side profile thickness ≤ 16 mm)

 Load class M (30 kg)

Load class M (30 kg)

 Slide on installation with 2D catches for height and side adjustment, integrated depth adjustment, integrated tilt adjustment, integrated radial adjustment

 Integrated Push to open

 2D catch must be ordered separately

 Adjustments all tool-lees: height adjustment up to + 3 mm, side adjustment up to +/- 1.5 mm, depth adjustment up to + 2/- 1 mm, tilt adjustment up to + 4 mm and radial adjustment up to +/- 1.5 mm

 Optional: Push to open Silent opening system (upgradable when combined with Silent System)

 Optional: synchronisation / multi synchronisation (upgradable when combined with Push to open / Push to open Silent)

 Optional: pull-out shelf support / pull-out shelf locating catch

 30 kg load class for different applications (see ordering table)

 Platform concept: identical cabinet body, drawer and front panel dimension for Quadro partial and full extension runners for slide on installation

 Suitable for drawers with a side profile thickness of up to 16 mm

 Load capacity to EN 15338, Level 3

 Galvanised steel

 For using Quadro V6 5D and Quadro 25 2D with wooden drawers

 Tool-less height adjustment up to + 3 mm and side adjustment up to +/- 1.5 mm

 Optional: pull-out shelf support

 Plastic anthracite

Set of 2D catches, left and right

1/5 pair 2D catch, left

catch, right

 Push to open Silent

 Push to open synchronisation / multi synchronisation  Accessories

 Quality criteria

2D catch

Runner systems for wooden drawers

 Quadro V6 5D full extension runner with Push to open (drawer side profile thickness ≤ 16 mm)

 Load class M (30 kg)

Front cross section

Side cross section

Advice

 Push to open Silent

 Push to open synchronisation / multi synchronisation

 Accessories

 Quality criteria

Runner systems for wooden drawers

 Quadro V6 YOU full extension runner with Silent System (drawer side profile thickness ≤ 16 mm)

 Load classes XS (10 kg) / M (30 kg)

 Slide on installation with YOU catches for height adjustment

 Integrated Silent System

 YOU catch must be ordered separately

 Tool-less height adjustment up to + 3 mm

 Optional: Push to open Silent opening system (upgradable when combined with Silent System)

 Optional: synchronisation / multi synchronisation (upgradable when combined with Push to open / Push to open Silent)

 Optional: pull-out shelf support / pull-out shelf locating catch

 10 kg and 30 kg load classes for different applications (see ordering table)

 Platform concept: identical cabinet body, drawer and front panel dimension for Quadro partial and full extension runners for slide on installation

 Suitable for drawers with a side profile thickness of up to 16 mm

 Load capacity to EN 15338, Level 3

 Galvanised steel Load class XS (10 kg)

YOU Catch

 For using Quadro V6 YOU with wooden drawers

 Suitable for pull-out shelf applications, plug must be ordered separately

 Height adjustment up to + 3 mm

 Plastic anthracite

Set of YOU catches, left and right

catch, left

right

Runner systems for wooden drawers

 Quadro V6 YOU full extension runner with Silent System (drawer side profile thickness ≤ 16 mm)

 Load classes XS (10 kg) / M (30 kg)

Front cross section Side cross section

Advice

 Push to open Silent  Synchronisation / multi synchronisation  Accessories  Quality criteria

Runner systems for wooden drawers

 Quadro V6 YOU full extension runner with Push to open (drawer side profile thickness ≤ 16 mm)

 Load class M (30 kg)

 Slide on installation with YOU catches for height adjustment

 Integrated Push to open

 YOU catch must be ordered separately

 Tool-less height adjustment up to + 3 mm

 Optional: Push to open Silent opening system (upgradable when combined with Silent System)

 Optional: synchronisation / multi synchronisation (upgradable when combined with Push to open / Push to open Silent)

 Optional: pull-out shelf support / pull-out shelf locating catch

 30 kg load class for different applications (see ordering table)

 Platform concept: identical cabinet body, drawer and front panel dimension for Quadro partial and full extension runners for slide on installation

 Suitable for drawers with a side profile thickness of up to 16 mm

 Load capacity to EN 15338, Level 3

 Galvanised steel

YOU

Catch

 For using Quadro V6 YOU with wooden drawers

 Suitable for pull-out shelf applications, plug must be ordered separately

 Height adjustment up to + 3 mm

 Plastic anthracite

of YOU catches, left and right

catch, left

1/5 pair

Runner systems for wooden drawers

 Quadro V6 YOU full extension runner with Push to open (drawer side profile thickness ≤ 16 mm)

 Load classes XS (10 kg) / M (30 kg)

Front cross section

Side cross section

Advice

 Push to open Silent  Synchronisation / multi synchronisation  Accessories

 Quality criteria

Runner systems for wooden drawers

 Quadro accessories

 Push to open Silent for Quadro V6 5D and Quadro V6 YOU

Push to open Silent opening system

Recommendation

 For optimum performance and activation, fitting an optional synchronisation function is recommended

Set comprises:

 1 Push to open Silent unit, left and right

 1 activator, left and right

 2 adapters for synchronisation

Recommendation

* Recommendations for standard applications (front panel 18 mm chipboard, normal household loading), please refer to our online configurator to get more exact recommendations for customer chosen front panel dimensions and materials.

Order no. Push to open Silent:

Runner systems for wooden drawers

 Quadro accessories

 Push to open Silent for Quadro

Optional synchronisation for Push to open Silent

Optional multi synchronisation for Push to open Silent

Flexible adapter for Push to open Silent synchronisation

Synchronisation bar:

 For cutting to length, length 2000 mm

 Aluminium, anodised

Connector:

 For extending synchronisation bar / optimising synchronisation bar offcut waste

 Plastic, grey

Connector

 For two drawers connected by one front panel

 Aluminium, anodised, grey plastic

Push to open Silent multi synchronisation adapter

Deflection for Push to open Silent synchronisation

 For offset drawer runners with angled or curved fronts

 Depth offset max. 150 mm

 Angle at synchronisation bar max. 25°

 Replaces the adapter for synchronisation in the Push to open Silent set

 For use with e.g. U-bend applications

 Makes it possible to move synchronisation by 50, 90 or 140 mm

Set comprises:

 2 housings with premounted deflection bar

 2 adapters for Push to open unit

 2 adapters for synchronisation bar

Runner systems for wooden drawers

 Quadro accessories

 Synchronisation and multi synchronisation

Synchronisation for Quadro V6 5D / YOU and Quadro 25 2D / YOU with Push to open

Multi synchronisation for

Quadro

Synchronisation bar:

 For cutting to length, length 2000 mm

 Aluminium, anodised

Connector:

 For extending synchronisation bar / optimising synchronisation bar offcut waste

 Plastic, grey

Adapter:

 Type A for Quadro V6 5D / YOU

 Plastic, grey

V6 5D / YOU and Quadro 25 2D / YOU with Push to open

 For two drawers connected by one front panel

 Adapter, type A, for Quadro V6 5D / YOU

 Aluminium, anodised, grey plastic

Push to open with optional synchronisation Quadro V6 YOU type A Quadro V6 5D type A

Quadro 25 YOU type C Quadro 25 2D type C

c379e1

Runner systems for wooden drawers

 Quadro accessories

 Synchronisation and

Cut to length dimensions for synchronisation / multi synchronisation

Lengthwise cross section, multi synchronisation

Runner systems for wooden drawers

Pull-out shelf support

Pull-out shelf locating catch, set

 For pull-out shelves / drawers with flush bottom panel

 Nominal length (NL) is reduced by 20 mm

 Plastic, anthracite

 Easy to add locating catch for pull-out shelves

 Automatically engages on pulling shelf out all the way

 Unlocks automatically in response to defined closing force

 Used instead of the standard fitted plug

 1 mount, left and right, and 2 studs are required per pull-out shelf

Set comprises:

 1 mount, left and right

 2 studs

Drilling jigs

 Accura

 For hinges, mounting plates, runners and handles

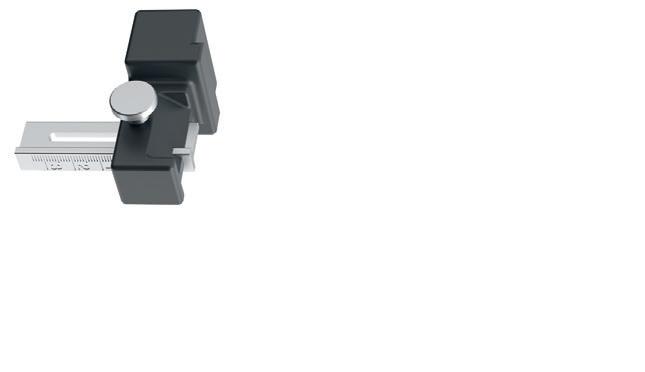

Drilling jig Accura

Drilling jigs

 Accura

 For hinges, mounting plates, runners and handles

 Modular system drilling jig

 Providing versatility, a variety of drilling templates are available for mounting all sorts of fittings

 Efficient, economical and professional

 Stops can be used on the left and right

 Easy adjustment of drill bodies and stops via clamping screws

 Rail with measurement scale

 Dimension easy to find through viewing window in the drill body

 Drill body and rail in aluminium

 Using sleeve drill bits - minimum drill wear as the drill bit does not come into contact with the jig

 Please order sleeve drill accessories separately

The various Accura drilling templates can be used for mounting the following fittings:

 Actro YOU / Quadro YOU for AvanTech YOU

 Actro 5D / Quadro for wooden drawers

 Actro runners for ArciTech

 Quadro runners for InnoTech / InnoTech Atira

 Quadro runners with slide on assembly, partial and full extension runner

 Quadro runners with plug on assembly, partial and over extension runner

 Quadro runner systems and ball bearing runners from the Systema Top 2000 range

 FR roller runner systems (302 / 402 / 602 / 6142 …)

 Ball bearing runners KA

 For Sensys, Intermat and SlideOn hinges and mounting plates

 System 32, hole line drillings

 Handles with 2 or 3 plinths for a drill hole spacing of 64 mm or more

 Furniture knobs

Page reference:

 For accessory sleeve drill, see below

 Minimal drill wear as the drill bit does not come into contact with the jig

 Precision drill bit guidance through sleeve

 Adjustable drill depth stop

 Can be used with Accura and Practica drilling jigs

Accura

Sleeve drill

Cabinet body drilling jig for runners

Centring drill bit

 Can be used for:

- Runner system, Actro YOU / Quadro YOU for AvanTech YOU

- Actro 5D runner system for wooden drawers

- Actro runner system for ArciTech

- Runner system, Quadro for InnoTech / InnoTech Atira

- Quadro for wooden drawers (slide on and plug on installation, partial and full extension runners)

- Quadro for Systema Top 2000

- Ball bearing runners KA

- FR roller runner systems

 Plastic

Page reference:

 For accessory center drill, see below

 Diameter 2.5 mm

 HS drill bit

 Nickel plated

 Hexagonal shaft

 Overall length 112 mm

Drilling jigs

 BlueJig Actro YOU, Push to open

 For fitting Actro YOU to wooden drawers, adjusting Push to open

BlueJig Actro YOU

BlueJig Quadro YOU

BlueJig Push to open

 For drilling the holes for the C hook and catch for Actro 5D / Actro YOU runners on wooden drawers

 Plastic with hardened drilling bushes in steel

 Please order twist drill accessories separately

 For drilling the hole for the C hook on Quadro YOU runners and wooden drawers

 For drilling the holes for the catches on wooden drawers

 Plastic with hardened drilling bushes in steel

 Please order twist drill accessories separately

 For adjusting the drawer front gap with Push to open Silent opening system on drawer runners:

- Actro 5D

- Actro YOU - Quadro YOU

Plastic

Never before has it been possible to create emotive lighting features on furniture!

The AvanTech YOU drawer system provides so much design flexibility in terms of light, colour, shape and material, giving you the key to successfully turning your own furniture design ideas into reality. Feature your drawers with the new LED signature lighting to give them that 'wow' effect. Homogeneous LED light illuminates either the inside of the drawer when it's open or makes a stunning feature statement on the outside. Colour

Design diversity and creative flexibility:

Printing your logo on the DesignProfile completes your design.

Many different options for individualisation:

With a simple click, design profiles conjure a visual transformation.

temperature to suit any preference: 2,700 K or 4,000 K. Eye catching too are the illuminated glass inlays, either with polished or ground edges - for distinctive lighting effects. DesignProfiles or DesignCapes conjure an accentuated, visual transformation. With this versatile system, you can let your own imagination run free. With the option of using any chosen materials, your ideas become distinctive furniture design that stands apart.

hettich.com/short/a07bc8 hettich.com/short/ba9fb5

Find out more: You can get inspiration and further product details on our website.

Unique furniture design: The DesignCape gives your drawer that 'wow' effect.

AvanTech YOU double walled drawer system

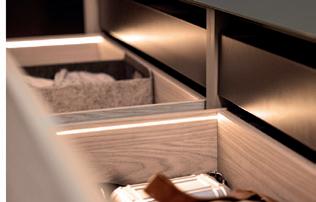

Illumination for wooden drawer 14

Planning / installation dimensions

 Flexible LED strip for slot mounting in wooden drawer side profile (groove depth 6 mm / groove width 4 mm)

 Light, diffuse, 2 colour temperatures: 2700 K or 4000 K

 Can be cut to any length, intermediate lengths can be generated from nominal lengths

Advice:

 1 rechargeable battery pack, 9 393 653, must be ordered separately for each drawer

Set comprises:

Set comprises:  2 LED lighting profiles

 2 LED lighting profiles

Illumination rechargeable battery pack  Rechargeable lithium-ion battery

 Rechargeable lithium-ion battery

Voltage 7.5 V DC

Capacity 3000 mAh

Capacity 3000 mAh  Power 8.51 Wh  Rechargeable via USB C

Power 8.51 Wh

Rechargeable via USB C

 Quick charge function

 Can be positioned anywhere on drawer or shelf pull-out

 Switch for changing colour temperature

Quick charge function  Can be positioned anywhere on drawer or shelf pull-out  Switch for changing colour temperature

Advice:

 Further extension cables on request

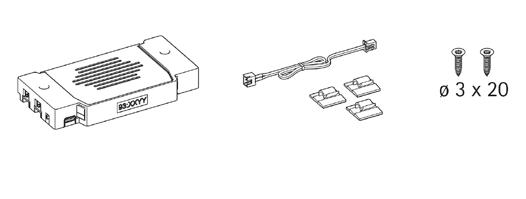

Set comprises:

 1 rechargeable battery

1 rechargeable battery  1 rechargeable battery holder, self adhesive

 1 rechargeable battery holder, self adhesive  3 cable holders, self adhesive  1 extension cable

3 cable holders, self adhesive

1 extension cable

Fixing material

Illumination battery pack 9 393 653 1 pair

Illumination battery pack

Publisher's imprint:

Hettich Australia

6 Entolasia Close Kemps Creek NSW 2178

Phone: 1800 687 789 Fax: 1800 687 789 support-au@hettich.com Web: www.hettich.com/en-au/home

We reserve all rights to this catalogue under copyright law. It shall not be permissible to duplicate this catalogue in any form either in whole or in part without our written consent. Subject to technical alterations. Errors and omissions excepted. Subject to colour variations.

February 2026

IT‘S ALL IN HETTICH
