Summary of ranges
Flap fittings
10 - 14
Technical information
Calculating flap weights 15 - 16
Flap fittings

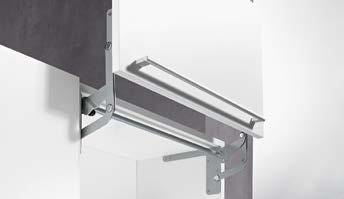

Flap lift fitting
HLB
For wooden front panels or framed wooden front panels
For 16 carcase side
Inside carcase width 567 mm
Maximum flap weight 3.5 kg
Fitted with 1 gas spring
Two-dimensional front panel adjustment: vertical ± 3 mm, horizontal ± 3 mm
Powder coated steel white
Flap fittings
For wooden front panels or framed wooden front panels
Hole line application for fast, easy installation in system 32
Flap dimensions: height 200 - 500 mm / width 300 - 1000 mm
Steel, nickel plated
Flap

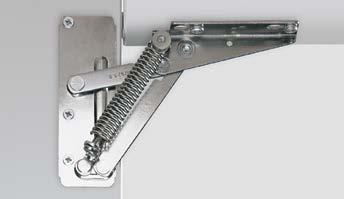

KLS 10
For wooden front panels or framed wooden front panels
Flap weight including handle max. 6 kg
The flap is held open by a catch which is released when the flap is lifted slightly.
Flap dimensions: height max. 500 mm / width max. 600 mm
Suitable for use on the right
Concealed hinges must be fitted at the top of the flap, please order separately
Steel, nickel plated / plastic, white
Page reference:
For concealed hinges please see our latest hinge catalogue Intermat and Sensys
Flap and opening dimensions
Carcase drilling pattern
Flap drilling pattern
Flap fittings

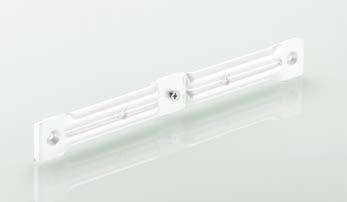

Flap support
KLS 30
KLS 30
For wooden front panels or framed wooden front panels
Flap weight including handle max. 4 kg (when using 2 fittings)
Adjustable opening force
Flap dimensions: height max. 500 mm / width max. 600 mm
Can be used on one or both sides
Can be used on right or left
Concealed hinges must be fitted at the top of the flap, please order separately
Steel, nickel plated
Page reference:
For concealed hinges please see our latest hinge catalogue Intermat and Sensys
Number of fittings to be used depends on flap dimensions Based on 19 mm chipboard, 700 kg/m³
Flap and opening dimensions
Flap fittings

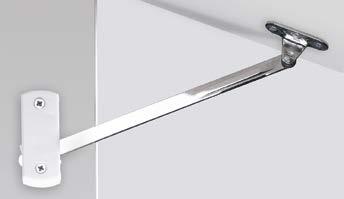

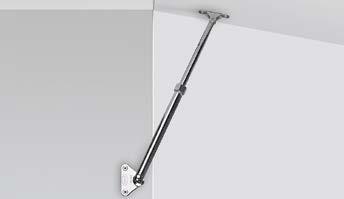

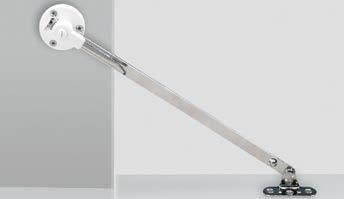

Flap stay
Centra S 250
Centra S 250
For wooden front panels or framed wooden front panels
Braking effect adjustable via clamping screw
For right side
Flap hinges must be fitted at the bottom of the flap, please order separately
Steel, nickel plated / plastic white
Page reference:
For concealed hinges please see our latest hinge catalogue Intermat and Sensys
Dimension C depends on hinge used. Please carry out trial installation.
Flap and opening dimensions
Carcase drilling pattern
Flap fittings
Technical information
Calculating flap weights
Weight table for chipboard
Weight table for MDF board
Flap weight in kg (MDF: 19 mm thick, density = 900 kg/m³)
Flap fittings
Technical information
Calculating flap weights
Adjustment to different material thicknesses
The values in the tables above refer to 19 mm thick material. The table value must be multiplied by a factor in order to adjust to material of a different thickness.
Formula for conversion
Flap weight = weight of 19 mm thick flap according to table above x factor
Conversion factors

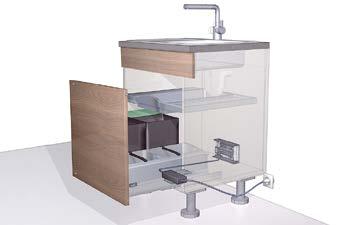

Easys electromechanical opening system
Ideal for purist, handleless designe.g. for large, heavy pull-outs.
Unobtrusive and space saving, Easys is located behind the drawer rear panel to make full use of storage space.
A cable can optionally be fitted to avoid collisions in face angle applications.
Gently opened and extremely convenient: with the Easys electromechanical opening system, drawers open all by themselves in response to a light press on the front panel. And thanks to Silent System, they can be closed again at any time just as smoothly.
The Easys electromechanical opening system can be used in a variety of applications: ArciTech, InnoTech, InnoTech Atira, wooden drawers and pull-outs for sink units.

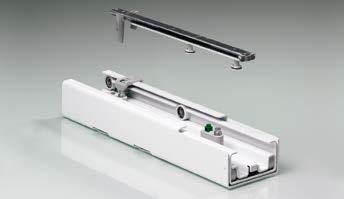

Easys
Easys electromechanical opening system
For ArciTech, InnoTech Atira and Quadro with wooden drawers
Single unit application
Example application
Ideal for use with waste bins
Can be added at any time
Easy installation as few components: Connection directly to power supply unit (no more than one drive unit per power supply unit)
No addressing necessary
No synchronisation possible
Not compatible with electrical system components 22 - 29
Set comprises:
1 drive unit
1 mounting bracket
1 power supply unit
1 power supply unit holder
4 drill in buffers for fitting into the drawer front
1 drilling jig for drawer front
1 drilling depth limiter
1 hole marking template
Fixing material
1 rear panel bracket 11 mm (only for ArciTech with steel rear panel)
For ArciTech, InnoTech Atira and Quadro with wooden drawers
Single unit application
Drilling pattern
Installation
Connection
Easys electromechanical opening system
For ArciTech, InnoTech Atira and Quadro with wooden drawers

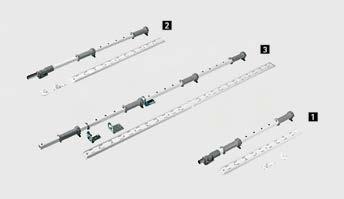

System components

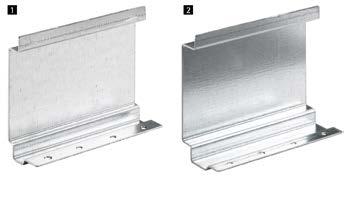

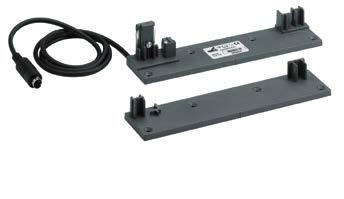

Set of profile mounts
For attaching the profiles to top and bottom panel
Set comprises:
1 bottom profile mount, including 800 mm connection cable
1 top profile mount
Set of profiles
For up to 6 drive units
Can be shortened as required
Aluminium
Set comprises:
1 mounting profile with integrated power and data cables (left)
1 mounting profile without cables (right)
mm
For extending the connection cable on the profile mount set or mounting bracket - only one extension lead may be used per connection cable
Length 2000 mm
Advice:
Please note: observe max. cable length for each power supply unit, see page 25
Easys electromechanical opening system
For ArciTech, InnoTech Atira and Quadro with wooden drawers
System components

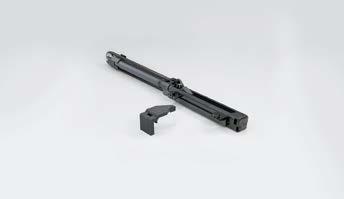

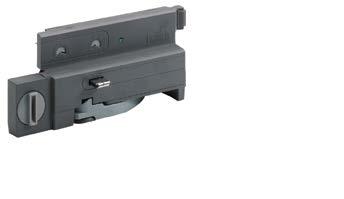

Drive unit
For opening the drawer / pot-and-pan drawer
Tool-less assembly on profiles with automatic power supply
Driving force infinitely adjustable
For use in the following countries: Australia, Austria, Belgium, Bulgaria, Belarus, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, India, Ireland, Italy, Japan, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, The Netherlands, New Zealand, Norway, Poland, Portugal, Romania, Russia, Singapore, Slovakia, Slovenia, Sweden, Switzerland, Spain, Ukraine, United Arab Emirates, United Kingdom – other countries on request

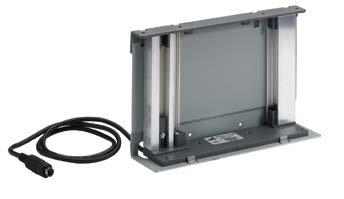

Mounting bracket
Used for special fitting situations, instead of the set of profiles and profile mounts
For one drive unit
With 800 mm connection cable
Easys electromechanical opening system
For ArciTech, InnoTech Atira and Quadro with wooden drawers
System components

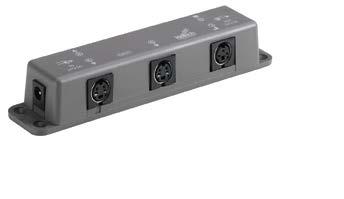

Distribution block
One distribution block is required per carcase

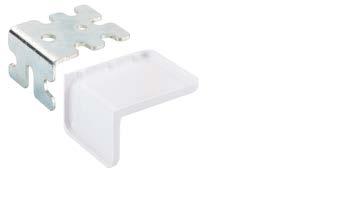

block bracket
For mounting on the wall or bottom of the carcase For simplifying distribution block installation / removal
For connecting distribution block to distribution block
Advice: Please note: observe max. cable length for each power supply unit, see page 25
Easys electromechanical opening system
For ArciTech, InnoTech Atira and Quadro with wooden drawers
System components

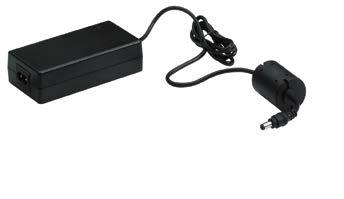

Power supply unit
100 - 240 V, 50 - 60 Hz
For connecting up to 6 distribution blocks
Protection Class II
1200 mm secondary cable to the first distribution block
Mains power cable must be ordered separately
Including front panel drilling jig
Page reference:
Mains power cable must be ordered separately, see below
For mounting on the wall or bottom of the carcase
Length 1800 mm

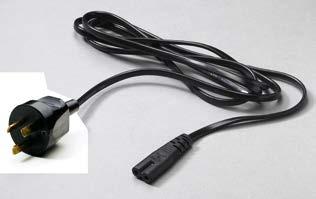

Mains power cable
Easys
electromechanical opening system
Drawer
Aluminium rear panel Wooden rear panel
Easys electromechanical opening system
For ArciTech, InnoTech Atira and Quadro with wooden drawers
System components

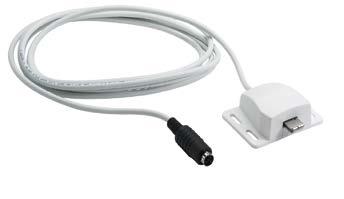

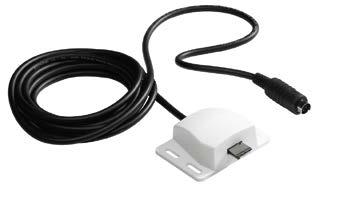

Sensor
For fitting into the front panel
4 each must be mounted per front panel for front panel heights of more than 300 mm
For reliable activation with very high front panels
Can be retrofitted
Always activates the drive unit addressed to 1
Easys electromechanical opening system
For ArciTech, InnoTech Atira and Quadro with wooden drawers
System components
Y-cable for sensor
Cable for corner solution
Button for collision guard
Required when using two sensors
Prevents drawers or pot-and-pan drawers from being opened at the same time in diagonally opposite units
Collision guard: prevents drawers or pot-and-pan drawers from opening when positioned next to or diagonally opposite units with hinged doors, larder units or similar cabinets
Easys electromechanical opening system
For ArciTech, InnoTech Atira and Quadro with wooden drawers
System components

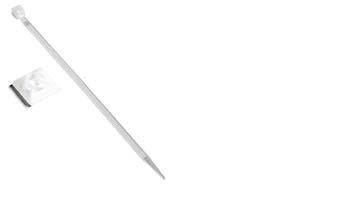

Set of cable ties
Set comprises:
50 self adhesive base plates
50 cable ties

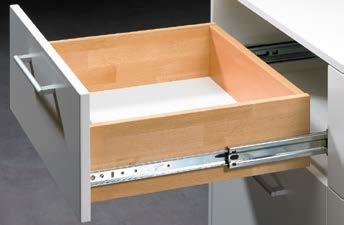

Drawer runners for wooden drawers

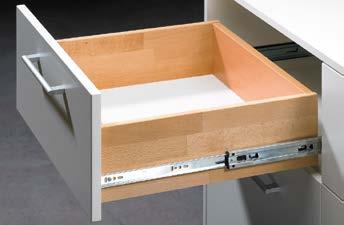

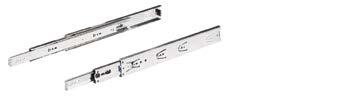

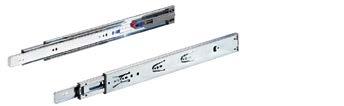

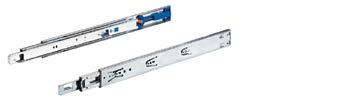

KA ball bearing runners
Intelligent technology - robust quality:

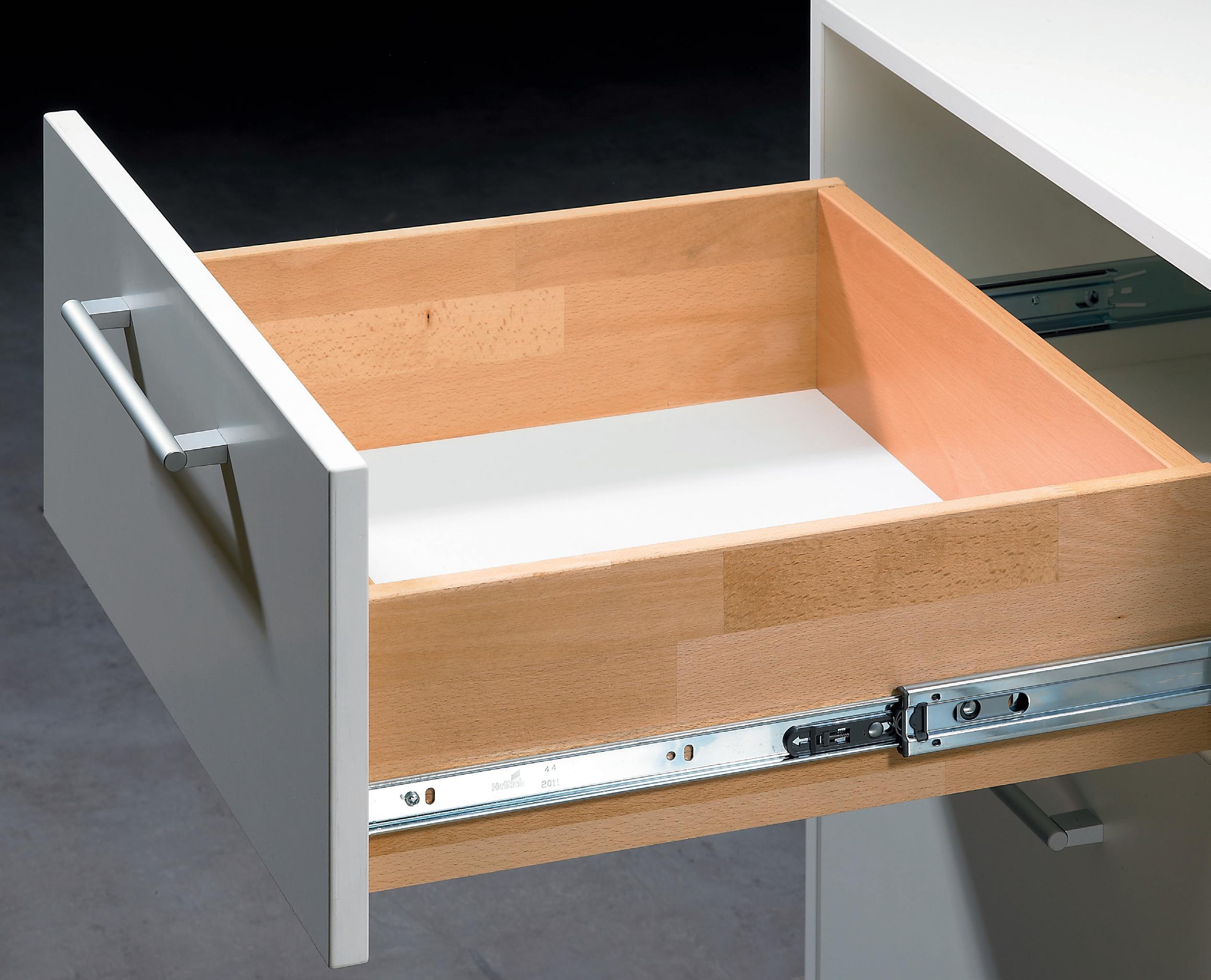

The ball bearing runners from Hettich guarantee smooth running action and high lateral stability. Hardened steel ball bearings, enclosed in noise absorbing plastic, provide many years of reliable, maintenance free service in any
application. Available as partial, full or over extension runners, they are the ideal choice when it come to meeting exacting demands in the office, living room or bedroom.
Full extension runner: with smooth gliding action and ergonomic access to drawer contents, load capacity up to 45 kg.
Over extension runner: whole storage space at a glance, with a load capacity up to 90 kg.
Drawer runners for wooden drawers

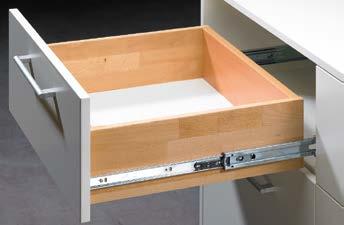

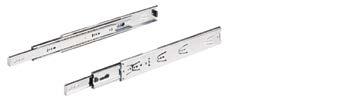

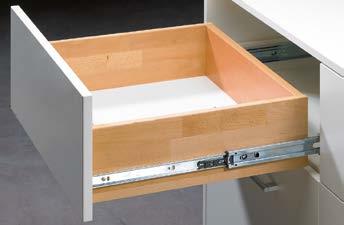

KA 4532 full extension runner with Silent System for side installation
Load capacity 35 kg
Silent System - the integrated Silent System closes the drawer quietly and gently
A release lever makes the drawer easy to remove and reinstall
Precision control for moving smoothly and freely and high lateral stability
For drawers with grooved, rebated or loosely fitted drawer bottom panel
Load capacity to EN 15338, Level 2
Galvanised steel, blue passivated
Ball bearing runner KA 4532 Silent System, 12.7 mm installed width
Advice
For technical information, see page 39
For accessories, see page 46 - 48
Drawer runners for wooden drawers

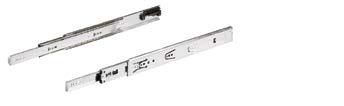

KA 4532 full extension runner with Push to open for side installation
Load capacity 35 kg
Push to open - the precision activating mechanism opens the drawer automatically and in virtual silence - a light press is all it takes!
A release lever makes the drawer easy to remove and reinstall
Precision control for moving smoothly and freely and high lateral stability
For drawers with grooved, rebated or loosely fitted drawer bottom panel
Load capacity to EN 15338, Level 2
Galvanised steel, blue passivated
Ball bearing runner KA 4532 Push to open, 12.7 mm installed width
Advice
For technical information, see page 39
For accessories, see page 46 - 48
Drawer runners for wooden drawers

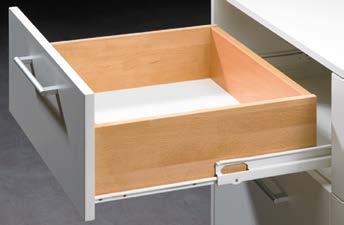

KA 5632 SC full extension runner with Stop Control for side installation
Load capacity 40 kg
Stop Control – integrated self closing reliably and automatically closes the drawer
A release lever makes the drawer easy to remove and reinstall
Precision control for moving smoothly and freely and high lateral stability
For drawers with grooved, rebated or loosely fitted drawer bottom panel
Load capacity to EN 15338, Level 1
Galvanised steel, blue passivated
KA 5632 ball bearing runner SC with self closing mechanism, 12.7 mm installed width
Advice
For technical information, see page 39
For accessories, see page 46 - 48
Drawer runners for wooden drawers

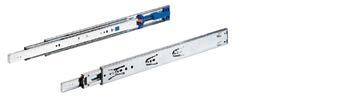

KA 5632 full extension runner for side installation
Load capacity 45 kg
KA 5632 ball bearing runner, 12.7 mm installed width
Precision full extension runner with pull-out stop and roll-out prevention
A release lever makes the drawer easy to remove and reinstall
Precision control for moving smoothly and freely and high lateral stability
For drawers with grooved, rebated or loosely fitted drawer bottom panel
Load capacity to EN 15338, Level 1
Galvanised steel, blue passivated
Advice
For technical information, see page 39
For accessories, see page 46 - 48
Drawer runners for wooden drawers
KA 4932 over extension runner for side installation
Load capacity 60 kg
KA 4932 ball bearing runner, 12.7 mm installed width
Over extension runner with pull-out stop and roll-out prevention
A release lever makes the drawer easy to remove and reinstall
Precision control for moving smoothly and freely and high lateral stability
For drawers with grooved, rebated or loosely fitted drawer bottom panel
Load capacity to EN 15338, Level 1
Galvanised steel, blue passivated
Advice
For technical information, see page 39
For accessories, see page 46 - 48

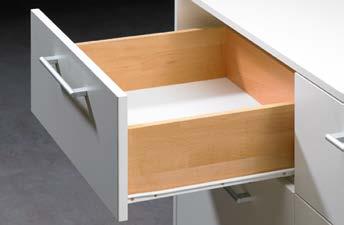

Drawer runners for wooden drawers
KA 4620 over extension runner for side installation
Load capacity 90 kg
KA 4620 ball bearing runner, 19 mm installed width
Over extension runner with pull-out stop and roll-out prevention
A release lever makes the drawer easy to remove and reinstall
Precision control for moving smoothly and freely and high lateral stability
For drawers with grooved, rebated or loosely fitted drawer bottom panel
Load capacity to EN 15338, Level 1
Galvanised steel, blue passivated
Advice
For technical information, see page 39
For accessories, see page 46 - 48
Drawer runners for wooden drawers
KA 4532 AM full extension runner with Silent System for overlay installation
Load capacity 35 kg
Silent System - the integrated Silent System closes the drawer quietly and gently
A release lever makes the drawer easy to remove and reinstall
Precision control for moving smoothly and freely and high lateral stability
For wooden drawers and pull-out shelves
Load capacity to EN 15338, Level 2
Galvanised steel, blue passivated
KA 4532 AM ball bearing runner Silent System, 12.7 mm installed width
Advice
For technical information, see page 39
For accessories, see page 46 - 48

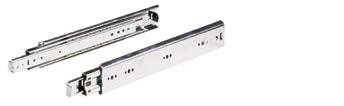

KA ball bearing runner
Technical information
KA 4532
KA 5632 SC, 5632, 4932
4620
KA 4532 Silent System AM
KA
Drawer runners for wooden drawers
Noticeable convenience opening and closing drawers: roller runners with integrated self closing function and roll-out prevention. A further benefit: the drawers are easy to remove, e.g. for thorough cleaning or for quickly taking
their contents somewhere else. The system is simple and secure, sturdy and durable, open to tolerances and production-friendly.
Partial extension runner: load capacity of up to 30 kg. Suitable for many applications.
Over extension runner: with a load capacity up to 50 kg. Unobstructed view of everything inside.
Drawer runners for wooden drawers

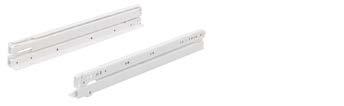

FR 402 partial extension runner with Stop Control
Load capacity 25 kg
Stop Control - integrated self closing mechanism for automatic closure
With double stop and roll-out prevention
With captive guide rail on one side
Automatic tolerance compensation ± 1 mm
Load capacity to EN 15338, Level 1
powder coated steel, white
Planning dimensions
For technical information, see page 45
For accessories, see pages 46 - 48

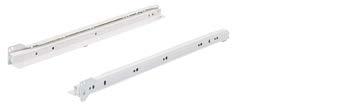

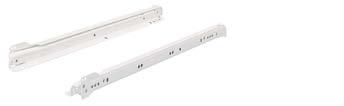

FR 402 roller runner
Drawer runners for wooden drawers
Partial extension runner FR 602 with Stop Control
Load capacity 30 kg
FR 602 roller runner
Nominal
Planning dimensions
Advice
For technical information, see page 45
For accessories, see pages 46 - 48
Stop Control - integrated self closing mechanism for automatic closure
With double stop and roll-out prevention
With captive guide rail on one side
Automatic tolerance compensation + 2 mm
Load capacity to EN 15338, Level 2
powder coated steel, white
Drawer runners for wooden drawers
FR 6142 over extension runner with Stop Control
Load capacity 50 kg
FR 6142 roller runner
Planning dimensions
Advice
For technical information, see page 45
For accessories, see pages 46 - 48
Stop Control - integrated self closing mechanism for automatic closure
With captive guide rails on both side
With lift off guard and lockable centre runner
Automatic tolerance compensation + 2 mm
powder coated steel, white
Drawer runners for wooden drawers
FR roller runners
Technical Information
FR 402, 602
FR 6142
Centre runner
Press lift off guard into centre runner
Single-walled drawer system MultiTech / MultiTech LS
OrgaTray 650
Partitioning
Dimensions for cutting to size
Variable in width
For nominal lengths of 450 and 500 mm White plastic
Single-walled drawer system MultiTech / MultiTech LS
Internal organisation for drawers

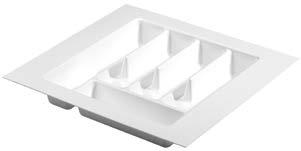

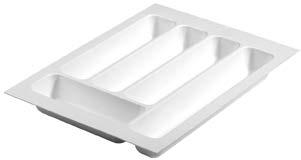

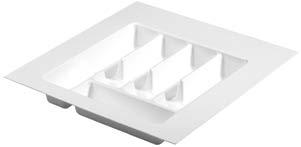

Cutlery trays for drawers with timber backs
Cutlery trays cut to size to suit individual drawer depth / width
Cutlery trays cut to size to suit individual drawer depth / width
Door damper / spacer profile
Door damper for sticking on
Spacer profile
Self adhesive
Plastic, transparent
Suitable for Quadro drawer runners as well as FR roller runners
For bridging the hinge protrusion when using internal pot-and-pan drawers
To span greater spaces, several profiles can be clipped on top of one another
The spacer profiles can also be used for tolerance compensation
White plastic
Load capacity 60 kg max.
x depth x height mm
x 484 x 49

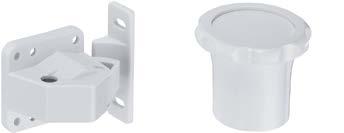

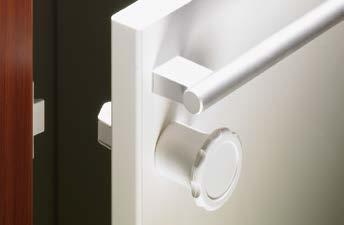

Children's safety
SafeFix child safeguard
Child safeguard for added safety in the home
Prevents direct access
Suitable for use as left-hand, right-hand or drawer lock
Plastic, white
Please note:
SafeFix contains very powerful magnets. For this reason, please keep credit cards, etc. well away from SafeFix.
Set comprises:
1 magnetic knob
1 stop bracket
1 lock
Cylinder lock Economy
Cylinder drawer lock Economy
Cylinder push lock Economy
Cylinder cam lock Economy
For exangeable F18 barrels
Barrels F18 not included, to be ordered separately see page 52
Complete with resette
Nickel plated
For exangeable F18 barrels
Barrels F18 not included, to be ordered separately see page 52
Complete with resette
Nickel plated
For exangeable F18 barrels
Barrels F18 not included, to be ordered separately see page 52
Complete with resette
Nickel plated
Cylinder lock Economy
Exchangeable F18 barrels for Economy cylinder locks
F18 master key for lock system 8000
Lock System 8000, master key capability, nickel plated
With 2 double-profile keys, nickel plated
Complete with resette
Nickel plated
Selected key operations from: 8110 - 8200, keyed to differ
Front panel locking set Economy
Front panel locking set Economy
Set contains:
1 cylinder lever lock for exancheable F18 barrels
1 rosette
1 locking bar 600 mm
4 adjustable pins with grub-screw
2 bar guides
Connecting technology
Summary of ranges
Connecting fittings for carcases
Summary 768 - 769
Shelf supports / rails and brackets
Shelf supports / rails and brackets
67 - 69
Summary 852 - 853 56 - 57
Shelf supports / rails and brackets
Summary 852 - 853
Height adjustable legs 70 - 71
Screws

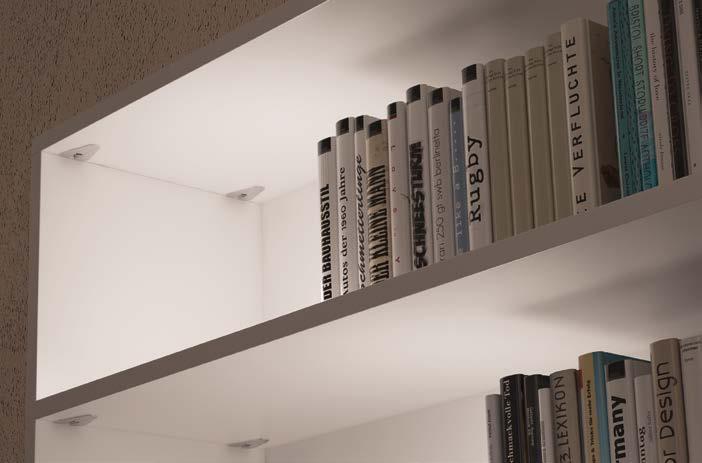

Connecting fittings for carcases
Hettich keeps a firm hold. What fittings from Hettich join together just doesn't come apart. Hettich also supplies reliable and easy to use solutions for more difficult connections in furniture construction.
Solutions that open up numerous design options using classic or lightweight materials. Convenient on-site assembly. Hettich fittings keep what you promise your customers.
Small components, big performers: Hettich connecting technology is brimming with expertise. For perfect results.

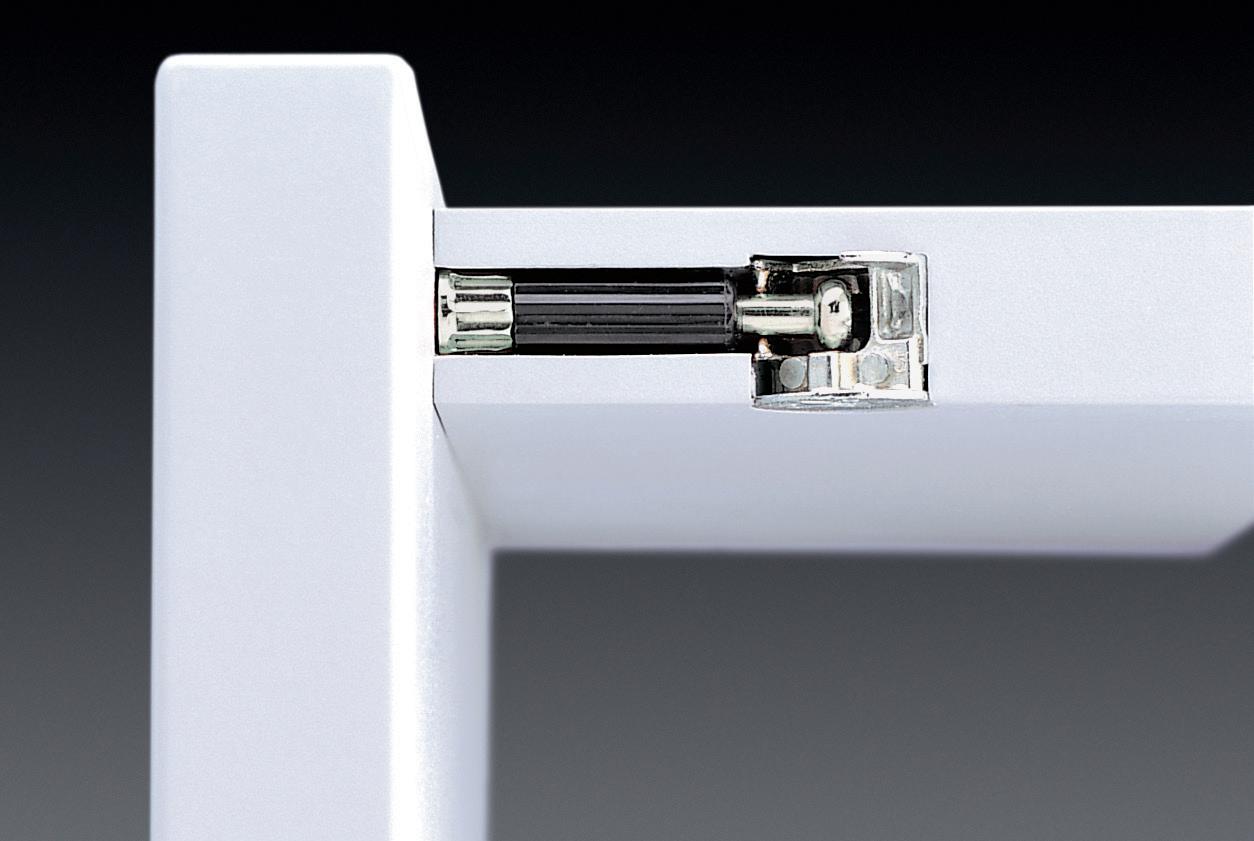

Spherical eccentric cam: For a better hold in the drill hole. The screwdriver can be held at an angle for greater convenience.
Providing a firm hold: Strong connections between shelves and side panels. High load capacity.
Connecting fittings for carcases
Eccentric cam connecting fitting
Rastex 15
15 without rim
Rapid S dowel for Rastex 15, Twister dowel for Rastex 15 Rapid S fast installation dowel DU 324 / DU
screw in dowel
With torque support – allows furniture side panels to be pulled into place from space up to 4 mm from the panel end
Twice as secure thanks to interior and exterior indentations –the dowel is always pulled in to the centred position, ruling out any displacement of furniture components!
Eccentric cam can be tightened with flat-blade screwdriver, Pozidrive screwdriver PZ 3 or Allen key AF 4
With or without rim, the rim covers any jagged drillings, making an additional cover cap unnecessary
zinc die-cast
Expanding socket for 8 mm
Dowel length 20 mm / 30 mm
Steel, galvanised / blue plastic
S DU 324 20
S DU 325 30
With direct fixing thread for drilling diameter of 5 mm
Insert shelf from above. Installation aid for hooking in the shelves
VB 35 M / 16 for 16 mm shelves
Insert shelf from above or from the front
Drilling pattern for shelves Dowel
Small connecting fittings for sturdy, positive fitting and friction locked connections between shelves and side panels using the tried and proven eccentric cam latching principle
The fitting is pressed into the cropped 20 mm diameter drilling
The fitting has a spherical eccentric cam
Zinc die-cast / plastic
Can be used in System 32
VB 35 / 16 for 16 mm shelves
Drilling pattern for shelves
Small connecting fittings for sturdy, positive fitting and friction locked connections between shelves and side panels using the tried and proven eccentric cam latching principle
The fitting is pressed into the cropped 20 mm diameter drilling
The fitting has a spherical eccentric cam
Zinc die-cast / plastic
Can be used in System 32
Dowel centre from underside of shelf
/ colour
~ 5°
~ 5°
Eccentric cam connecting fitting
VB 36 M
With rib
Insert shelf from above. Installation aid for hooking in the shelves
Drilling pattern for shelves
Small connecting fittings for sturdy, positive fitting and friction locked connections between shelves and side panels using the tried and proven eccentric cam latching principle
The fitting is pressed into a double hole drilled 32 mm apart. Insertion holes in a diameter of 20 and 10 mm
The fitting has a spherical eccentric cam
Zinc die-cast / plastic
Can be used in System 32
Dowel centre from underside of shelf

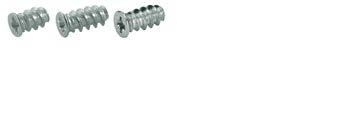

Screw in dowel
VB 35, 35 M, 36 M
Dowels for VB 35, 35 M, 36 M
Screw in dowel DU 321
Screw in dowel DU 322
With direct fixing thread for drilling diameter of 5 mm
Dowel length 6.7 mm
Steel, galvanised Can be used in System 32 Order no. PU 9 021 847 1/5000
With direct fixing thread for drilling diameter of 5 mm
Dowel length 6.7 mm
Steel, galvanised
Can be used in System 32

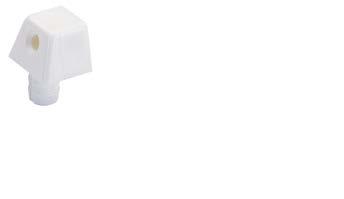

Block connecting fitting
For pressing in
Socket length 10 mm
Attached by ø 4 mm countersunk screw, with the capability of holding screwdriver at an angle
Plastic, white Order

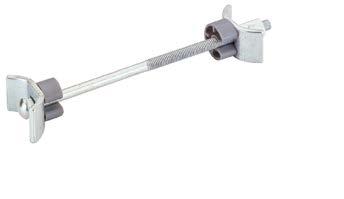

Worktop connectors
For sturdy, positive fitting and friction locked worktop connections
With two curved clamping plates
Two premounted clips ensure easy installation: They hold the clamping plates and connectors in position or groove, permitting easy insertion into drilling or routed recess – while leaving both hands free for bracing
Housing hole diameter 35 mm
Drilling depth at least 20 mm
Steel, galvanised
Connecting angles
Euro angle for 32 mm hole line
Can be used as a multi-purpose connecting fitting for carcases, shelves, rear panels and drawer fronts
Direct fixing screws, ø 6.3 mm
Can be used in System 32
Steel galvanised
Connecting screws / expanding socket
Connecting screw VHS 32
Expanding socket
With drilled head and Pozidrive screw
Steel, galvanised Length mm
x 50
Unobtrusive carcase connectors for a particularly firm hold
For drilling diameter of 5 mm
The connecting sleeves are 27 or 35 mm long
The threaded sleeve is set back, making it easier to screw the connecting screw in
Screw M4 x 15 mm / connecting sleeve: nickel plated steel
Article version Panel thickness mm
VHS 32 / 35 28 - 36
For M6 thread
Drilling diameter 8 mm
With nylon ball, length 12 mm
Suitable for use with Rastex 15 and VB 35 / 36
Brass, bright
Shelf supports
Push in shelf supports with shoulder
Steel pin with plastic support surface
Can be used in System 32 Load group L 50 (50 kg/m²)
Pin diameter 5 mm
Can be used in System 32
Load group L 75 (75 kg/m²)
Zinc die-cast nickel-plated
Pin diameter 5 mm
Can be used in System 32
Load group L 75 (75 kg/m²)
Zinc die-cast nickel-plated
Can be used in System 32
Load group L 50 (50 kg/m²)
Steel, galvanised
Pin diameter 5 mm on both sides
Steel nickel plated
Can be used in System 32
Load group L 50 (50 kg / m²)
Sekura 2
Duplo
Sekura 8
Glass shelf supports in plastic
Flattened shelf supports
Grooved shelf supports
Glass shelf supports
Pin diameter 5 mm
Can be used in System 32
Load group L 75 (75 kg/m²)
Zinc die-cast nickel plated / clear plastic
With tilt prevention
Pin diameter 5 mm
Can be used in System 32
Load group L 25 (25 kg/m²)
Plastic translucent
Drilling diameter 5 mm
Can be used in System 32
Load group L 25 (25 kg/m²)
Steel, galvanised
For grooved bottom panels
Pin diameter 5 mm
Can be used in System 32
Load group L 25 (25 kg/m²)
Zinc die-cast, bright
0 074 805 1/500 ea.
Pin diameter 5 mm
Can be used in System 32
Plastic translucent
Standard length: 3500 mm
Load group L 50 (50 kg/m²)
Steel

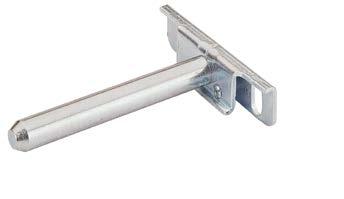

Concealed installation behind the shelf
Bolt: 12 mm ø
Max. load capacity is 50 kg/m² for shelves measuring 1000 x 300 mm, 100 kg/m² for shelves measuring 1000 x 250 mm and 160 kg/m² for shelves measuring 1000 x 200 mm
Height adjustment: ± 4 mm
Minimum shelf thickness: 24 mm
Adjustment of shelf tilt
Steel, galvanised
Titan 2
Height adjustable legs
Heigt adjustable leg pre-set
Planning dimensions
A perfect combination of block, leg and plinth fixing
Strong, robust and reliable construction
Adjustable legs are preset at 150 mm
Minimum height 110 mm, maximum height 170 mm
Vanity / laundry leg preset at 87 mm
Maximum height 130 mm
Fixing blocks available in 2 / 4 dowel and screw-on
Universal clip available with screw-on and knock-in attachment
Robust when moving or mounting the cabinet
Express leg revolution "one turn" = 8 mm of adjustment
Easy height adjustment either manually or by screwdriver
Load bearing capacity 650 kg/each
Please order fixing blocks, plinth clips and adapter separately, see below and page 71
White plastic
Height adjustable legs
Fixing blocks an plinth clips
Fixing block, screw-on version
Fixing block with 4 knock-in sockets
Fixing block with2 knock-in sockets
Plinth clip for height adjustable leg With screw-on and knock-in attackment
Black plastic

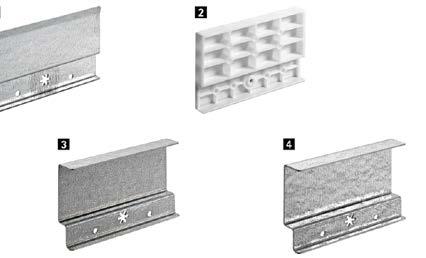

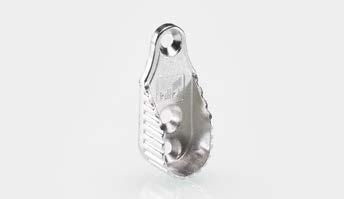

Cabinet suspension brackets
Cabinet suspension bracket SAH 116 S
Screw-on version
Load capacity 65 kg
Adjustment possibilities:
Height: + 7 mm / - 7 mm
Depth: 15 mm
Lateral adjustment on suspension rail
Rear panel: rear wall set back resp. groove depth min. 16 mm
Can be used with suspension rail, see page 73
Steel white
Adjustment possibilities
Mounting
Cabinet suspension brackets

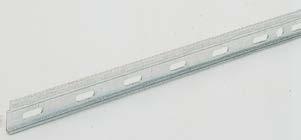

Suspension rail
Suspension rail type B
Load-bearing capacity 150 kg/cabinet
Mounting with 2 special scres dia. 5,5 x 50 mm per cabinet, for total cabinet shelf areas measuring 1 sqm and more, with 4 special screws dia. 5.5 x 50 mm per cabinet
Length 3000 or 4800 mm with oblong holes, spacing 50,8 mm
Custom length by request
Zinc-plated steel
Suspension rail cover
White plastic
Planning dimensions
Information on loading capacity of cabinet suspension brackets and on accessories
The following basic loading principles must be observed when using cabinet suspension brackets and accessories:
Both the furniture design and the quality of the furniture's material and production are beyond our control.
The quality and condition of wall materials are also beyond our control.
The suspension hooks we supply must be used with wall plugs and are intended for attachment to solid brick, solid sand lime brick, concrete or engineering brick. An 8 mm hole must be drilled into the wall, with the plastic wall plug being knocked in to leave it flush with the surface. The hook must be screwed into a depth that leaves at least 10 mm of its length projecting from the wall.
Commercial type special mounting elements must be used for attachment to other wall materials.
Dowels and screws must be matched to one another. Ordinary chipboard screws must not be used instead of wall plug screws.
Mounting suspension rails:
- with 2 special screws, ø 5.5 x 50 mm, at the level of each cabinet suspension bracket
- from a carcase width of 900 mm, an additional special screw, ø 5.5 x 50 mm, must be fitted at the centre on the back of each carcase (type A, type B and type H).
Add on elements, such as end shelves, must not be fitted without separate cabinet suspension bracket.
Screws
Euro screw countersunk ø 6.3 mm
Euro screw countersunk ø 6.3 mm
screw ø 8 G
Countersunk
EN-Pozidrive screw
For hole diameter 5 mm
Nickel plated
mm
Oval head
EN-Pozidrive screw
For hole diameter 5 mm
Nickel plated
Countersunk with nibs
EN-Pozidrive screw
Yellow passivated
Countersunk with nibs
EN-Pozidrive screw
Yellow passivated
Profix
Cover cap for profix screw
Chipboard screw
Screws
Chipboard screw ø 4.5 x 16 mm
One piece connector Direkta 3
Countersunk
EN-Pozidrive screw
Nickel plated
With Pozidrive head
Diameter 5 x 50 mm
Chromated steel
1 Direkta 3
2 Stepped drill 3 mm / 5 mm
Summary of ranges
Fitting systems for kitchens
Summary 78 - 79

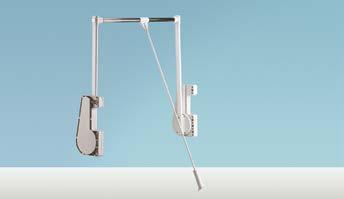

Fitting systems for wardrobe interiors
Summary 115
Fitting systems for kitchens
Neat on the outside, clever inside.
That's the motto of modern kitchens. Intelligent fitting systems from Hettich let you include innovative functions behind attractive front panels. Also make efficient use of narrow cabinets and inaccessible corner to the benefit of
Making full use of corner storage space: with the LeMans II swivel pull-out. Shelves swivel independently of each other and are height adjustable.

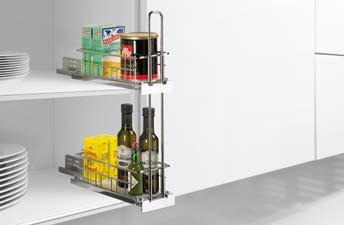

Internal pot-and-pan drawer for wall units: ideal for narrow and tall elements. For kitchen and bathroom. Variable, can be retrofitted, smooth running action.
your customers: provide unobstructed, easy access to storage space. High quality materials and attractive design define the look of first class quality.
Base unit interior fittings
90° pot-and-pan drawers
With full extension runner and Silent System

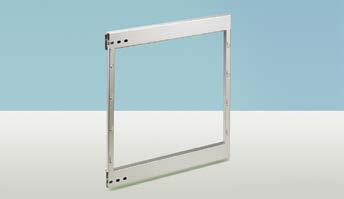

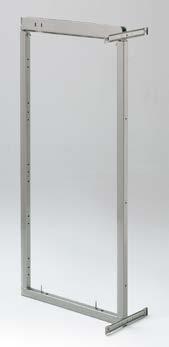

Pull-out frame
Base unit pot-and-pan drawers permit a large variety of possibilities for combination
Optimal use of the available space with compensating and diagonal base units
Frame with full extension ball bearing runner complete with Silent System
Attached to the carcase side
Suitable shelves / baskets are simply hooked in
Inside carcase depth / width depend on the front bracket used
Front brackets and shelves / baskets must be ordered separately
Right and left-hand version
Load capacity 24 kg
Powder coated steel brilliant white
Page reference:
For front brackets, see below
For Arena STYLE shelves, see page 81
For robust connection and 3-dimensional adjustment of the front on the pull-out frame
Powder coated steel brilliant white
Set comprises: 2 front brackets
Front bracket
Base unit interior fittings
45°, 55° and 90° pot-and-pan drawers
With full extension runner and Silent System
Pull-out frame
Planning dimensions

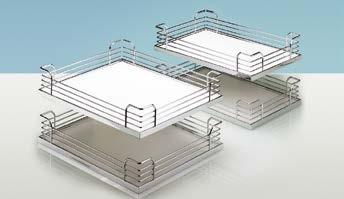

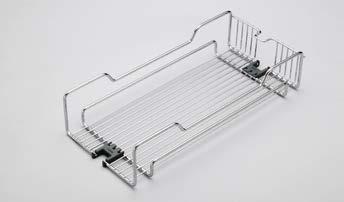

Arena STYLE non-slip clip on shelves 90°
For for hook in assembly in the pull-out frame
Wooden shelf, melamine resin coated, white, with non-slip special coating
Railing chrome plated steel

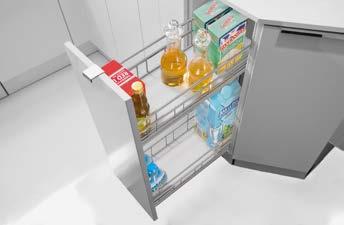

Base unit interior fittings
Cargo IQ plus 150, 90° pot-and-pan drawer, 2-tier
For cabinet width 150 mm
Cargo IQ plus 150
Quadro V6 full extension runner with Silent System
Nominal length 470 mm
Galvanised steel
Page reference:
For cabinet width 150 mm
Load capacity 15 kg
Minimum inside carcase dimensions:
Width 112 mm
Depth 495 mm
Height 590 mm
Please order Quadro V6 full extension runner with Silent System and shelves separately, see below
Can be mounted on the right or left or diagonally
Pot-and-pan drawer powder coated steel, silver
Shelf translucent plastic
Can optionally also be used with Quadro V6 full extension runner with Push to open, see InnoTech Atira catalogue
Base unit interior fittings
Cargo IQ plus 200, 90° pot-and-pan drawer, 2-tier
For cabinet width 200 mm
IQ plus 200
Quadro V6 full extension runner with Silent System
Nominal length 470 mm
Galvanised steel
Page reference:
For cabinet width 200 mm
Load capacity 17.5 kg
Minimum inside carcase dimensions:
Width 162 mm
Depth 495 mm
Height 590 mm
Please order Quadro V6 full extension runner with Silent System and shelves separately, see below
Can be mounted on the right or left or diagonally
Can optionally also be used with Quadro V6 full extension runner with Push to open, see InnoTech Atira catalogue
Base unit interior fittings
Cargo IQ plus 300 90° pot-and-pan drawer, 2-tier
For cabinet width 300 mm
Cargo IQ plus 300
Quadro V6 full extension runner with Silent System
Nominal length 470 mm
Galvanised steel
Page reference:
For cabinet width 300 mm
Load capacity 20 kg
Minimum inside carcase dimensions:
Width 262 mm
Depth 495 mm
Height 590 mm
Please order Quadro V6 full extension runner with Silent System and shelves separately, see below
Mounting is required on the left and right, mounted diagonally
Pot-and-pan drawer powder coated steel, silver
Shelf translucent plastic
Can optionally also be used with Quadro V6 full extension runner with Push to open, see InnoTech Atira catalogue
Interior fittings for base units

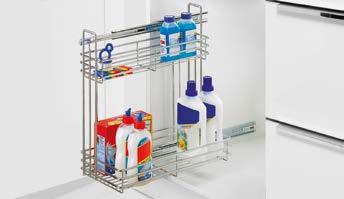

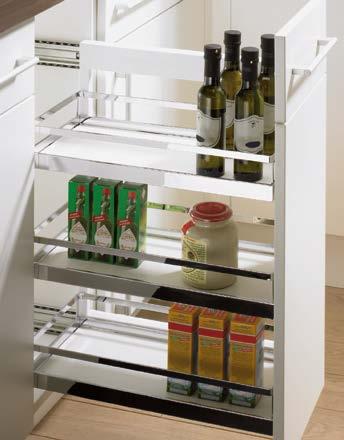

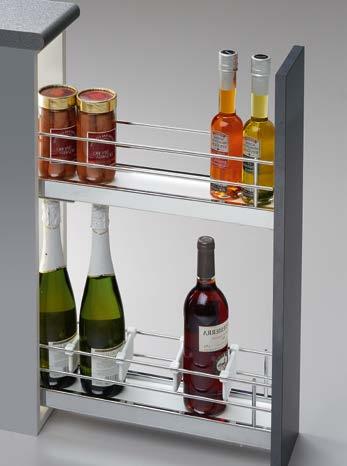

Front pull-out, 2-tier non slip
For cabinet width
Front pull-out 90°
Planning dimensions
For cabinet width 150 mm
Including Quadro full-extension runners with integrated Silent System
Loading capacity max. 15 kg
Minimum inside carcase dimensions:
Width 108 mm
Depth 485 mm
Height 545 mm
Wooden shelf: melamine coated white with non-slip coating
Railing: chrome-plated steel
Set comprises:
1 pull-out frame with:
2 wooden shelves with non-slip coating
2 front connectors
2 full-extension runners
Interior fittings for base units

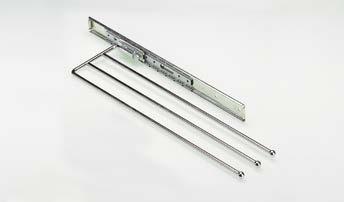

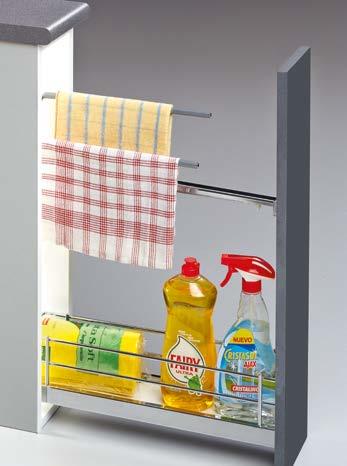

Front pull-out with towel rail
For cabinet width 150 mm
Pull-out towel holder
For cabinet width 150 mm
Including Quadro full-extension runners with integrated Silent System
Loading capacity 15 kg
Minimum inside carcase dimensions:
Width 108 mm
Depth 485 mm
Height 563 mm
Wooden shelf: melamine coated white with non-slip coating
Railing and towel holder: chrome-plated steel
Set comprises:
1 pull-out frame with:
2 towel holders, 1 wooden shelf with non-slip coating 2 front connectors
2 full-extension runners

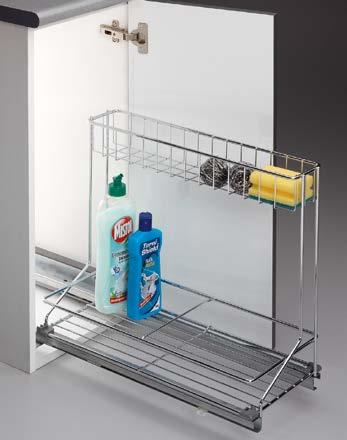

Interior fittings for base units
Complete with ball-bearing runners
Bottom fixing
Load capacity 45 kg
Width 216 mm
Depth 400 mm
Height 470 mm
Chrome-plated steel
Base unit interior fittings
Internal pot-and-pan drawer with non-slip coating
Internal pot-and-pan drawer with non-slip coating
With cut-away handle
Suitable for installing behind hinged doors or pot-and-pan drawers
For carcase sides 16 - 19 mm thick
Minimum carcase depth inside 495 mm
Please order Quadro drawer runners separately
Including 2 spacer profiles each 10 mm wide, white plastic
Wooden shelf, melamine resin coated white with non-slip coating
Railing chrome plated steel
Set comprises:
1 internal pot-and-pan drawer
2 spacer profiles
Page reference:
For Quadro drawer runners see page 89
Base unit interior fittings
Internal pot-and-pan drawer with non-slip coating
Accessories
Quadro V6 drawer runner with Silent System, load capacity 30 kg
Nominal length 470 mm
Page reference:
For other possible Quadro runners see InnoTech Atira catalogue
E.g. Quadro V6 full extension runner with Push to open
Corner unit equipment
Description
Features
Loading capacity
For corner cabinet widths

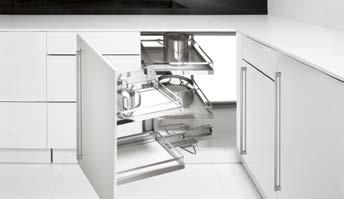

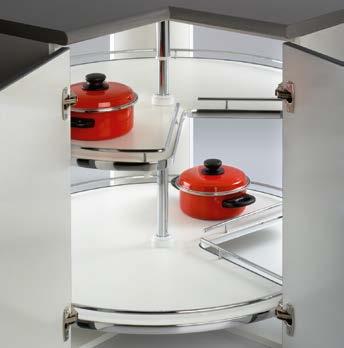

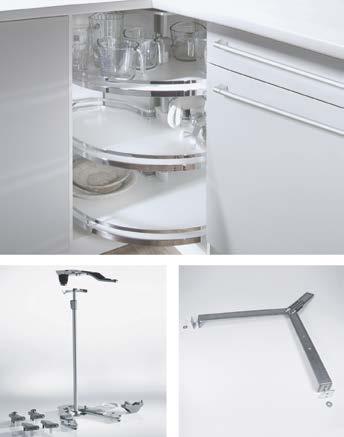

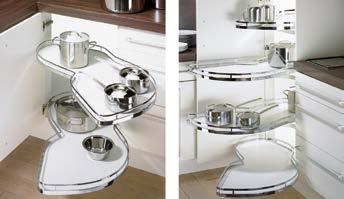

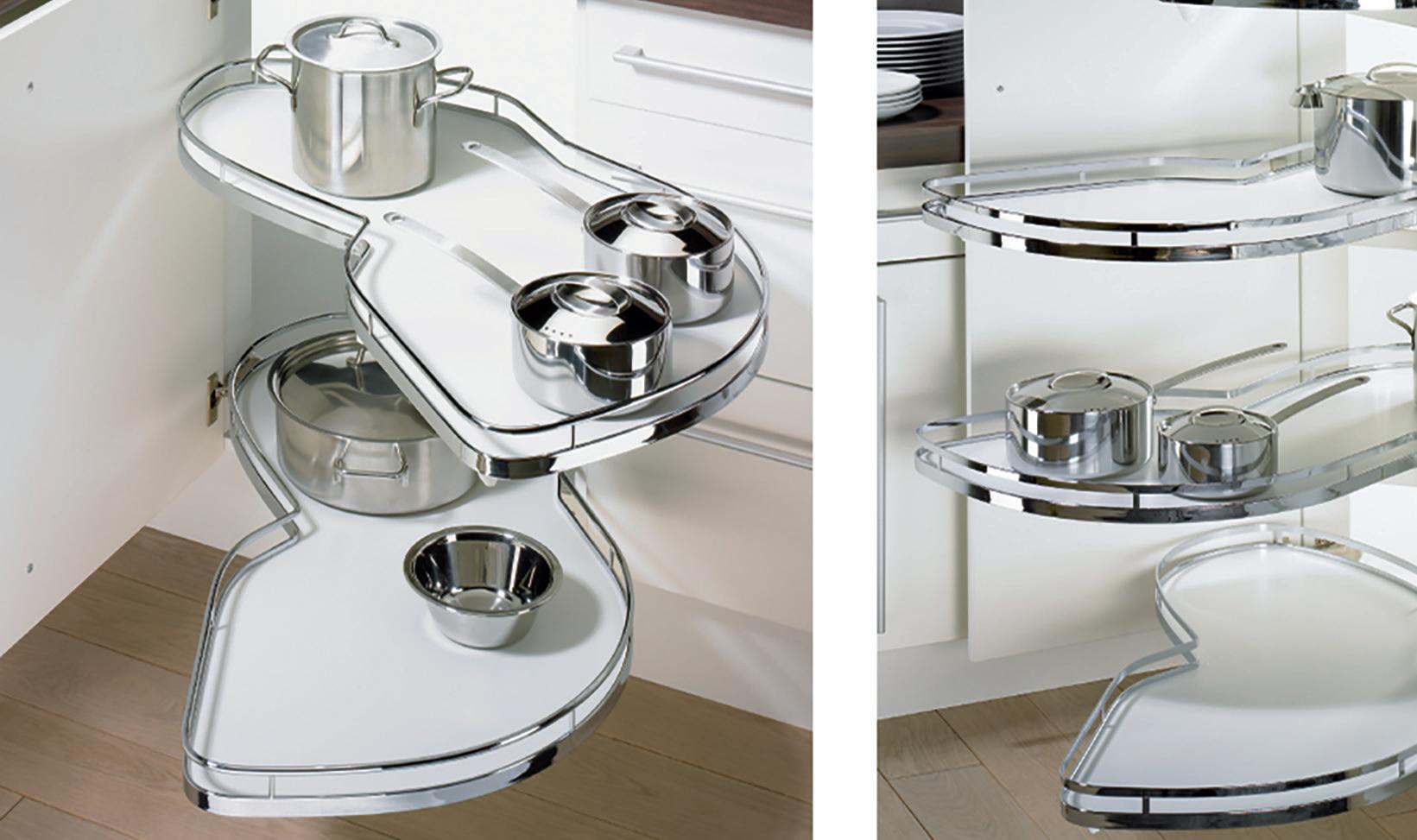

Moving Corner
91 - 92
LeMans II
93 - 95
For inside carcase height
Fitting / centre column colour
Corner unit pull-out for installing with pot-and-pan drawer
With ClickFixx fast installation system
Pull-out with integrated Silent System
7 kg per shelf / basket, front
9 kg per shelf / basket, rear
For corner units with 450 to 600 mm front width
525 mm min.
Silver
Brilliant white
Corner unit swivel pull-out for installing behind hinged door
With ClickFixx fast installation system
Silent System can be fitted as an optional upgrade
25 kg per shelf
For corner units with 450, 500 or 600 mm front width
600 - 750 mm, 720 - 900 mm or 1265 mm min.
White

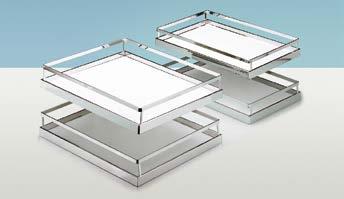

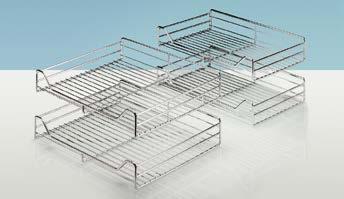

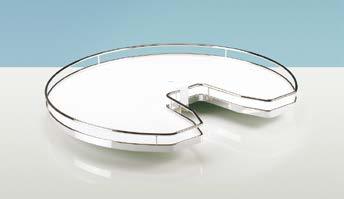

Clip on baskets / carousel shelves
Arena STYLE, chrome plated
Arena CLASSIC, chrome plated
Arena STYLE, chrome plated, champagne
Arena CLASSIC, chrome plated, silver
Clip on baskets / carousel baskets
Steel, chrome plated
Specifics
The rear shelves / baskets are moved to the cabinet opening on pulling out the pot-and-pan drawer
Shelves individually swing out all the way, leaving them in front of the carcase
Revo 90° 96 - 98
Folding door corner unit carousel fitting for entrained front panels
With ClickFixx fast installation system
With integrated Silent System
25 kg per shelf / basket
For corner dimensions of 800 x 800 mm and 900 x 900 mm
660 - 860 mm
Center column, chrome plated steel
Fitting, powder coated steel, silver
STYLE chrome plated
CLASSIC, chrome plated, silver
Steel, chrome plated
Powder coated steel, silver
Closing speed can be adjusted without the need for tools
Shelves infinitely height adjustable
Base unit interior fittings
Corner unit pull-out system
Moving Corner
Moving Corner
Optimum use of space for corner cabinets 900 and 1000 mm wide
Integrated Silent System
With ClickFixx fast installation system
Please order matching clip on shelves and baskets separately
Powder coated steel
Set comprises:
Complete fitting including Silent System
Page reference:
For clip on shelves and baskets, see below and page 92
Operating principle (illustration shows a left-hand version):
Arena STYLE non-slip clip on shelves
Wooden shelf, melamine resin coated, white, with non-slip special coating
Load capacity 7 kg per front shelf, 9 kg per rear shelf
Railing chrome plated steel
Set comprises:
4 Arena STYLE clip on shelves
Base unit interior fittings
Corner unit pull-out system
Moving Corner
Arena CLASSIC non-slip clip on shelves

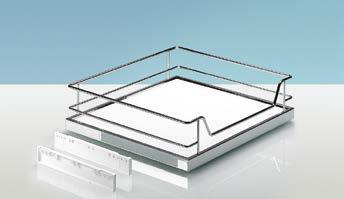

Clip on baskets
Wooden shelf, melamine resin coated, white, with non-slip special coating
Load capacity 7 kg per front shelf, 9 kg per rear shelf
Railing chrome plated steel
Set comprises:
4 Arena CLASSIC clip on shelves
* Illustration is showing a right-hand version
Load capacity 7 kg per front basket, 9 kg per rear basket
Steel, chrome plated
Set comprises: 4 clip on baskets
Base unit and highboard equipment

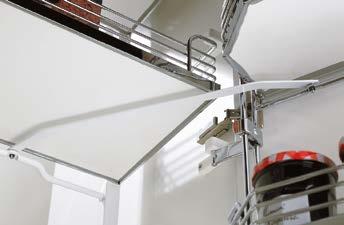

Corner unit swivel pull-out
LeMans II
Shelf sets
Front panel width mm
For complete and unrestricted access to the corner cabinet
The shelves can be swivelled out individually and completely
Minimum carcase depth inside 500 mm
Load capacity 25 kg / bottom panel
With ClickFixx fast installation system
Pivot arm and optional Silent System must be ordered separately
Arena shelves, melamine resin coated wooden shelves white with non-slip special coating
Railing, steel, chrome plated
Note: Two shelf sets are needed for the LeMans II highboard.
Set comprises:
2 Arena STYLE/CLASSIC non-slip shelves
2 swivel mechanisms
1 drilling template
Page reference:
For pivot arm and optional Silent System, see page 94
Sequence of movements (illustration shows a right-hand version):
Base unit and highboard equipment
Pivot arms for LeMans II
Silent System for LeMans II
Pivot arm for LeMans II corner unit swivel pull-out
Powder coated steel white
Set comprises:
1 center column
1 assembly rail (2 for pivot arm 1265 mm)
Accessories

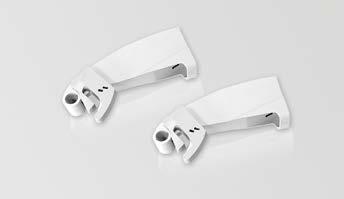

Optional Silent System for LeMans II shelves
Simply clips onto the swivel arm
One soft closing element is needed per shelf
Plastic, white
Set comprises:
2 soft closing elements for a LeMans II shelf set, left and right
LeMans II - set codes including one pivot arm (600 - 750 mm) and two shelves STYLE or CLASSIC
Set comprises:
2 shelves 1 pivot arm
- 750 mm
Base unit and highboard equipment
Corner unit swivel pull-out
LeMans II
* Illustration is showing a right-hand version
Base unit interior fittings

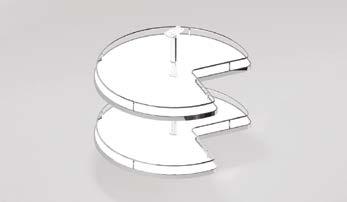

Revo 90° corner unit carousel fitting
Basic fitting for carcase dimensions 800 x 800 and 900 x 900 mm
The Revo 90° mechanism lets the front panel of the cabinet disappear in the carcase when the unit is opened, thus ensuring unhindered access to the storage space
With integrated Silent System, the closing speed can be adjusted without the need for tools
For inside heights of 660 - 860 mm
The mounting cross makes an additional top panel unnecessary
With ClickFixx fast installation system
Load capacity 25 kg / bottom panel
Carousel fittings infinitely height adjustable
The basic fitting is designed to accommodate two bottom panels
Powder coated steel, silver
Set comprises:
1 mounting frame including spacers
1 telescopic center column with folding door mechanism and drawer front connectors
1 carousel shelf support for the second shelf Details
Base unit interior fittings
Folding door corner unit carousel fitting
Revo 90°

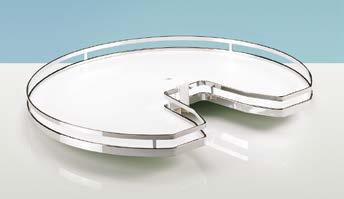

Arena STYLE non-slip shelf for Revo 90°
Arena CLASSIC non-slip shelf for Revo 90°
810 mm ø (for 900 x 900 carcase)
Wooden shelf, melamine resin coated, white, with non-slip special coating
Railing chrome plated steel Order
810 mm ø (for 900 x 900 carcase)
Wooden shelf, melamine resin coated, white, with non-slip special coating
Railing chrome plated steel
Base unit interior fittings
Interior fittings for base units

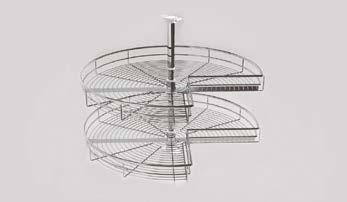

Corner unit carousel fittings
With three-quarter circle revolving shelves
For corner base units, carcase dimensions 800 x 800 or 900 x 900 mm
Variable installation height: the centre column can be adjusted by 630 - 730 mm
Quick and simple adjustment of the carousel shelf height thanks to adjustable bearings
Load capacity 20 kg / shelf
White wooden shelves with non-slip coating with railing chrome-plated steel
Set comprises:
2 three-quarter circle revolving shelves
1 height-adjustable revolving column
1 set of fittings
Three-quarter circle revolving shelves
Installation
Base unit interior fittings
Sink unit equipment
Portero cleaning utensil pull-out
Portero 2 cleaning utensil pull-out
Set comprises:
1 system carrier
1 clip on basket with handle and plastic tray
1 clip on basket with plastic tray, 8 divider bars
Width x depth x height mm
x 468 x
Portero 3 cleaning utensil pull-out
Planning dimensions
Set comprises:
1 system carrier
1 clip on basket with handle and plastic tray
1 clip on basket with plastic tray, 8 divider bars
1 swivel basket with plastic shelf
x depth x height mm
x 468 x 510
Base unit interior fittings
Sink unit equipment

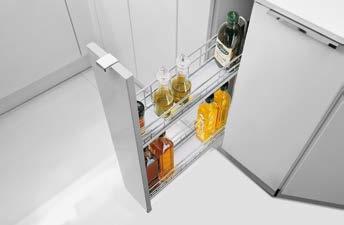

Cleaning Agent pull-out, towel rail
Cleaning utensil pull-out
Complete with full extension ball bearing runner
Suitable for use on left or right
Steel, chrome plated
Telescopic and pivotable towel rails
Can be pivoted infinitely
Mounted on the right / left of the carcase and on the top panel
Overall length 495 mm, pull-out length 395 mm
Steel, chrome plated
of bars
With 2 sliding bars
Width 93 mm
Length 445 mm
Matt aluminium
Side mounted towel rail
Waste collecting systems
Waste collecting systems behind hinged doors
Bin.it Classic
For minimum cabinet width 400 mm
Capacity 11 / 13 litres
Can be installed on the left or right
Insert, plastic
Set comprises:
1 round bin with lid
1 swivel mechanism
1 Silver lacquered / black plastic 11 litre bin
2 White lacquered / white plastic 13 litre bin
* lid in open position
Waste collecting systems
Built-in waste bins

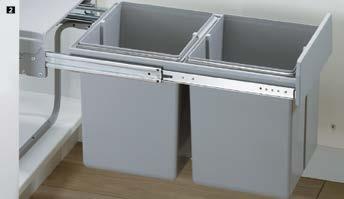

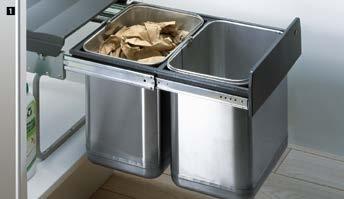

Bin.it Duo II 400
Bin.it Duo II - 400
1
2
For minimum cabinet width 400 mm
Quick and simple bottom panel installation
Pull-out system with full extension runner
Frame and pull-out, steel
Lid, plastic
Set comprises:
2 bins
Complete fitting with full extension runner and lid

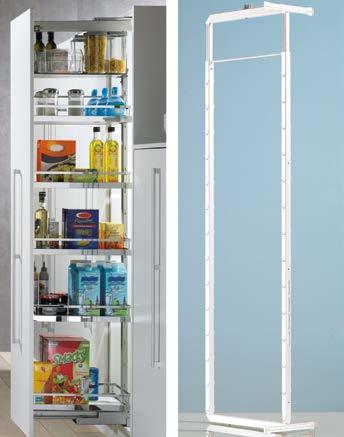

Interior fittings for larder units
Larder unit with integrated Silent System
With ClickFixx fast installation system
Contents can be accessed from both sides
Full or partial extension runner
Contents are clearly arranged and compactly stored
As option for combining with the eTouch electromechanical opening system

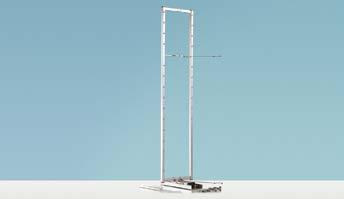

Center upright
Complete with Silent System
400 mm height adjustable
Suitable for cabinet widths 300 and 400 mm
Minimum carcase depth inside 500 mm
Pull-out and shelves / baskets must be ordered separately
Powder coated steel brilliant white
Set comprises:
1 height adjustable center upright
2 height adjustable front members
2 front holders
Page reference:
For pull-out fittings and soft opening, see page 105
For Arena STYLE shelves and other accessories, see pages 107
Height adjustable center upright
Interior fittings for larder units
Full
extension runner
Soft opening for full extension runner
Complete with Silent System
With ClickFixx fast installation system
For center-mounted Dispensa 90° center upright
Load capacity 100 kg
Drawer movement 470 mm
Powder coated steel brilliant white
Optional soft opening
Simply clips onto the bottom runner
Can be used in Dispensa full extension runners, order no. 9 117 222
Interior fittings for larder units
Interior fittings for larder units
Dispensa 90°
Accessories
Stabiliser for frame fronts
Stabiliser
Basket holder for height adjustable center upright
Arena STYLE non-slip clip on shelves
Required when using frame fronts
Powder coated steel brilliant white
carcase width mm
For use in any position
For optional use
Powder coated steel brilliant white
Optimum use of the space available in the adjusting range of the center upright
Height 125 mm
Powder coated steel brilliant white
Set comprises:
2 basket holders
For hook in assembly in the center upright
Wooden shelf, melamine resin coated, white, with non-slip special coating
Railing chrome plated steel
Interior fittings for larder units

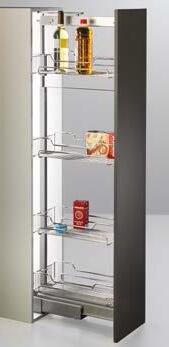

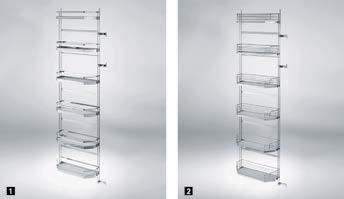

Pull-out pantry set
Pull-out pantry with integrated Silent System
Contents can be accessed from both sides
Full extension runner
Contents are clearly arranged and compactly stored
Load capacity 120 kg
Height adjustable center upright with front brackets / rails
Complete with Silent System soft closure
Height adjustable
Suitable for cabinet widths 300, 400, 500 and 600 mm
Minimum inside carcase depth 500 mm
Steel, powder-coated silver
Set comprises:
2 full extension runners, silver
1 height adjustable centre upright
2 front brackets
Baskets and supports
Additional basket
Chrome-plated steel
Interior fittings for larder units
Pull-out pantry set
Assembly
Planning dimensions
114,5
164,5
189,5
500 189,5
600 189,5
Interior fittings for larder units

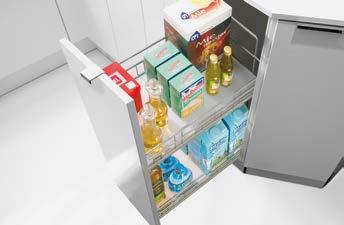

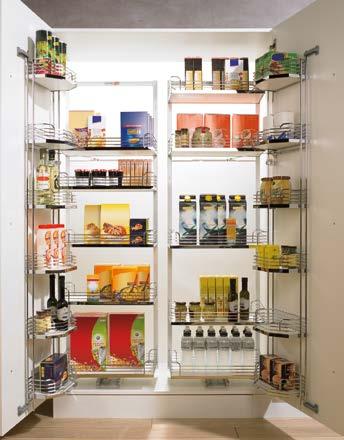

Swivelling pull-out for larder units, complete with Silent System
Door and pull-out shelf ensure full use of the space available
The pull-out shelf is pulled forwards when the door is opened
Creates enormous storage space and well arranged storage unit
Direct access to everything in the cupboard
Can also be used for 2-door larder units (900, 1000 and 1200 mm) without centre panel
Complete with top and bottom guide and pull-out mechanism
Complete with Silent System
For use in left-hand and right-hand units
Cabinet width 450, 500 and 600 mm
Load capacity 50 kg
Minimum carcase depth inside 500 mm
Door shelf and matching shelves / baskets must be ordered separately
Powder coated steel brilliant white
Set comprises:
1 pull-out frame
1 pull-out mechanism incl. guides
Page reference:
For door shelf and shelves, see page 111
Pull-out frame
Interior fittings for larder units
Arena STYLE door shelf
For use on left or right door
Cabinet width 450, 500 and 600 mm
Load capacity 20 kg (cabinet width 450 / 500 mm) or 25 kg (cabinet width 600 mm)
Steel
Set comprises:
1 door shelf
Fixing material
Arena STYLE non-slip clip on shelves
For for hook in assembly in the pull-out frame
Wooden shelf, melamine resin coated, white, with non-slip special coating
Railing chrome plated steel
Interior fittings for larder units
Planning instructions
Wall unit interior fittings
Suitable for use on left or right
Load capacity 10 kg
Minimum inside carcase dimensions:
Width 148 mm
Depth 290 mm
Height 548 mm
Top basket height adjustable
Please order Quadro V6 full extension runner with Silent System and shelf separately, see below
Steel Cargo
IQ Plus 90°
Quadro V6 full extension runner with Silent System
Interior fittings for wardrobes
Garment lifts
Single Lift 12, Duo Lift 10

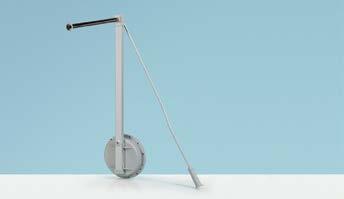

Single Lift 12
Connection on one side
Load capacity 12 kg
Telescopic width adjustment 100 mm
Detent engages when swivelled out into position
Garment rail, chrome plated steel
Housing, pivot arm and spacer Plastic / steel, aluminium look

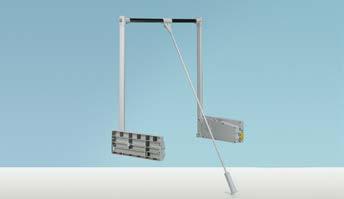

Connection on both sides
Load capacity 10 kg
Telescopic width adjustment for inside carcase widths of 750 - 1170 mm
Additional telescopic garment rail integrated in right-hand housing
Installation in System 32
Garment rail, chrome plated steel
Housing, pivot arm and spacer Plastic / steel, aluminium look
Duo Lift 10
Interior fittings for wardrobes
Garment lifts
Duo Lift 15, Duo Lift 18
Duo Lift 15
Connection on both sides
Load capacity 15 kg
Telescopic width adjustment for inside carcase widths of 750 - 1150 mm
Installation in System 32
Special spacing in the housing also permits installation in the area of existing door hinges
Garment rail, chrome plated steel
Housing, pivot arm and spacer
Plastic / steel, aluminium look
Connection on both sides
Load capacity 12 - 18 kg
Telescopic width adjustment for inside carcase widths of
Installation in System 32
Spring force adjustment in 4 stages
Garment rail, chrome plated steel
Housing, pivot arm and spacer
Plastic / steel, aluminium look
- 1150 mm
Duo Lift 18
Interior fittings for wardrobes
Oval wardrobe rails / wardrobe rail supports
Oval wardrobe rail, nickel plated
Length 3000 mm
Material 0.6 mm thick
Matt nickel plated steel

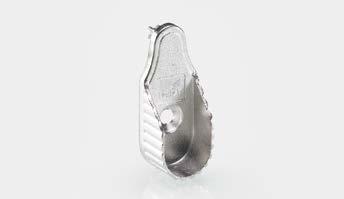

SL 322 wardrobe rail supports
For screwing on with 3 screw holes
Hole spacing 32 mm
Zinc die-cast nickel plated
SL 323 wardrobe rail supports
For pressing in with 2 pins for drilling diameter of 5 mm
Distance between pins 32 mm
1 additional screw hole
Zinc die-cast nickel plated
Interior fittings for wardrobes

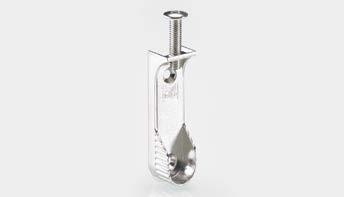

SL 786 wardrobe rail supports
Screw in below the shelf
With special screw M6 x 25 mm for a maximum shelf thickness of 19 mm
2 additional screw holes for attachment at the side
Zinc die-cast nickel plated

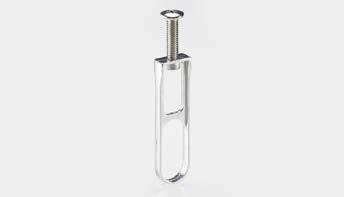

SL 781 wardrobe rail center bearing
Screw in below the shelf
With special screw M6 x 25 mm for a maximum shelf thickness of 19 mm
Zinc die-cast nickel plated
Interior fittings for wardrobes
Wardrobe rails

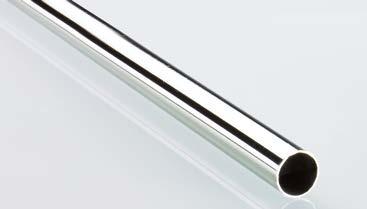

Round wardrobe rail, polished chrome

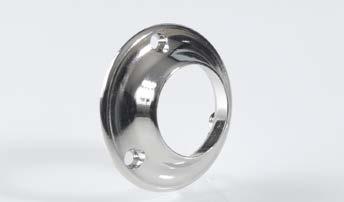

End flange round for round tube
Oval profile 30 x 16 mm
Length 3600 mm Aluminium clear anodized
Round profile, diameter 25 mm
Length 3600 mm
Polished chrome
With 3 holes for screw fixing
2/pk polished chrome
Interior fittings for wardrobes
Telescopic trouser holders / tie and belt rack

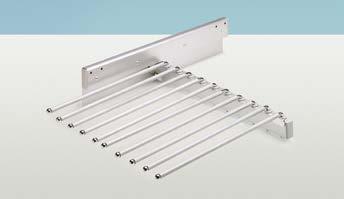

Telescopic trouser holder

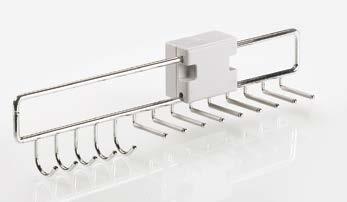

Telescopic tie and belt rack
For installation on carcase side
Fitting usable right or left
With 10 swivelling holders with non-slip coating
Width 465 mm
Depth 505 mm
Height 100 mm
Steel, chrome plated / powder coated silver
For installation on carcase side
Fitting usable right or left
Including fixing material and spacer to compensate for door protrusion
Chrome plated steel / grey plastic Article
With 9 non-slip holders and 5 brackets
0 010 921
0 010 921
0 013 129
0 013 223
0 013 239
0 013 890
0 013 952
0 013 962
0 016 179
0 016 180
0 016 181
0 020 157
0 020 782
0 022 737
0 024 832
0 025 084
0 025 090
0 025 100
0 040 145
0 040 721
0 041 358
0 041 361
0 041 362
0 041 363
0 041 364
0 041 365
0 041 393
0 041 394
0 041 395
0 041 396
0 041 397
0 041 398
0 041 669
0 010 921
0 048 986
0 048 987
0 048 988
0 049 235
0 065 517
0 070 660
0 070 664
0 070 666
0 070 670
0 070 671
0 070 676
0 072 053
0 073 549
Order number index
0 010 921
9 068 965
9 068 966
9 077 588
9 077 601
9 077 616
9 078 139
9 079 682
9 079 714
9 079 755
9 079 803
9 079 804
9 079 864
9 079 868
9 079 872
9 079 874
9 079 878
9 079 882
9 079 892
9 079 944
9 080 006
9 080 007
9 080 011
9 080 040
9 080 043
9 080 055
9 080 059
9 080 064
9 080 073
9 080 080
9 080 084
9 080 089
9 080 106
9 080 122
9 080 150
9 080 154
9 080 157
9 080 172
9 082 353
9 082 356
0 010 921
9 154 066
9 154 067
9 154 090 94
9 154 091 94
9 154 092 94
9 154 093 94
9 154 094 94
9 154 095
9 154 096
9 154 097
9 162 130
9 162 184
9 162 188
9 162 189
9 162 201
9 162 202
General technical conditions
The fitting information, screw fixing points and load capacity information contained in this catalogue assume proper attachment using screws specified by Hettich to a chipboard panel providing a screw pull out resistance of at least 1,000 N in accordance with EN 320.
Hettich accepts no responsibility for the load capacity of furniture and its components if materials or fastening methods are used other than those stated; the furniture manufacturer must verify load capacity.
The fitting situations shown in this catalogue are only intended to illustrate the possible options. The furniture manufacturer is responsible for ensuring that furniture is designed in compliance with standards, in particular with regard to meeting the requirements on safety.
We will be pleased to provide any further information you may require.
General Terms of Sale and Delivery
All products and services will be provided exclusively on the basis of our General Terms of Sale and Delivery published on our website at www.hettich-agb.com.
We reserve all rights to this catalogue under copyright law. It shall not be permissible to duplicate this catalogue in any form either in whole or in part without our written consent. Subject to technical alterations. Errors and omissions excepted. Subject to colour variations.
