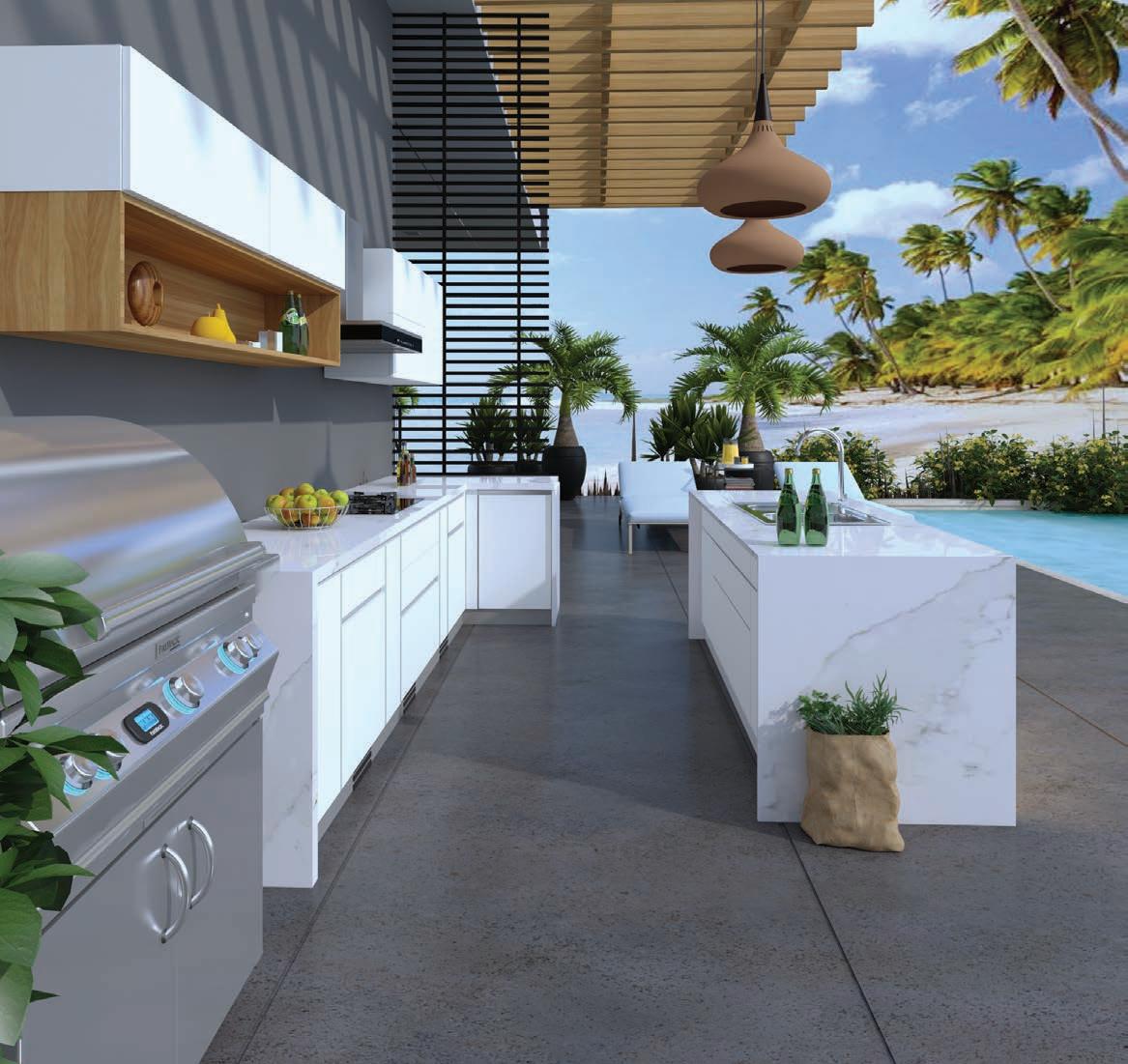

There’s so much more to outdoor living than simply lighting up a barbecue.
By bringing the style, comfort, and conveniences of an indoor kitchen into your outside space, you’ll be able to prepare and cook all kinds of delicious food while entertaining friends and family under the glow of sunlight, surrounded by natural beauty.
With potentially limitless functions, from sinks and fridges to innovative storage space, outdoor kitchens can come in all shapes and sizes to suit your space and design taste – giving you everything on hand to host a meal without moving inside.
Using Hettich’s sophisticated and durable fittings, you’ll enjoy peace of mind that your outdoor kitchen will function exactly as you need for years to come, withstanding the harsh Australian sun, wind, and rain.
Outdoor living in style.
Top trends in outdoor kitchens
Functional zones. The best outdoor kitchens offer ease of navigation and flow between work zones, such as placing storage cabinets near cooking areas and your fridge and sink near the preparation area and worktop.
Cooking versatility. Having an outdoor kitchen is your opportunity to explore new and exciting ways of cooking that you can’t do inside. Smokers, pizza ovens, and open flame cooking are popular inclusions in outdoor kitchens.
Bringing indoor style, outdoors. High quality modern materials and fittings allow you to invite the same warmth and functionality of your home interior into your garden, from deep pull-out drawers with natural tone facades to sleek handles and ambient lighting – anything is possible.
Integrated social areas. If you’re outside preparing a meal, you’ll need a comfortable space for your family and guests to relax nearby. An open plan layout is a popular choice, designing functional areas around a dining table or cosy seating space –you could even incorporate an outdoor fireplace.

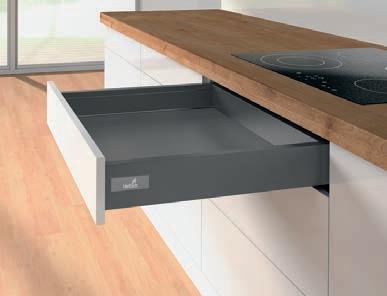

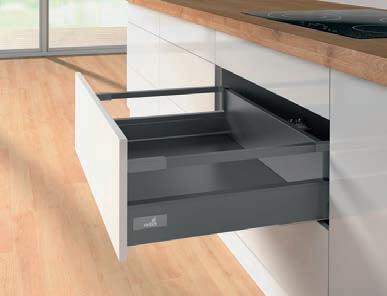

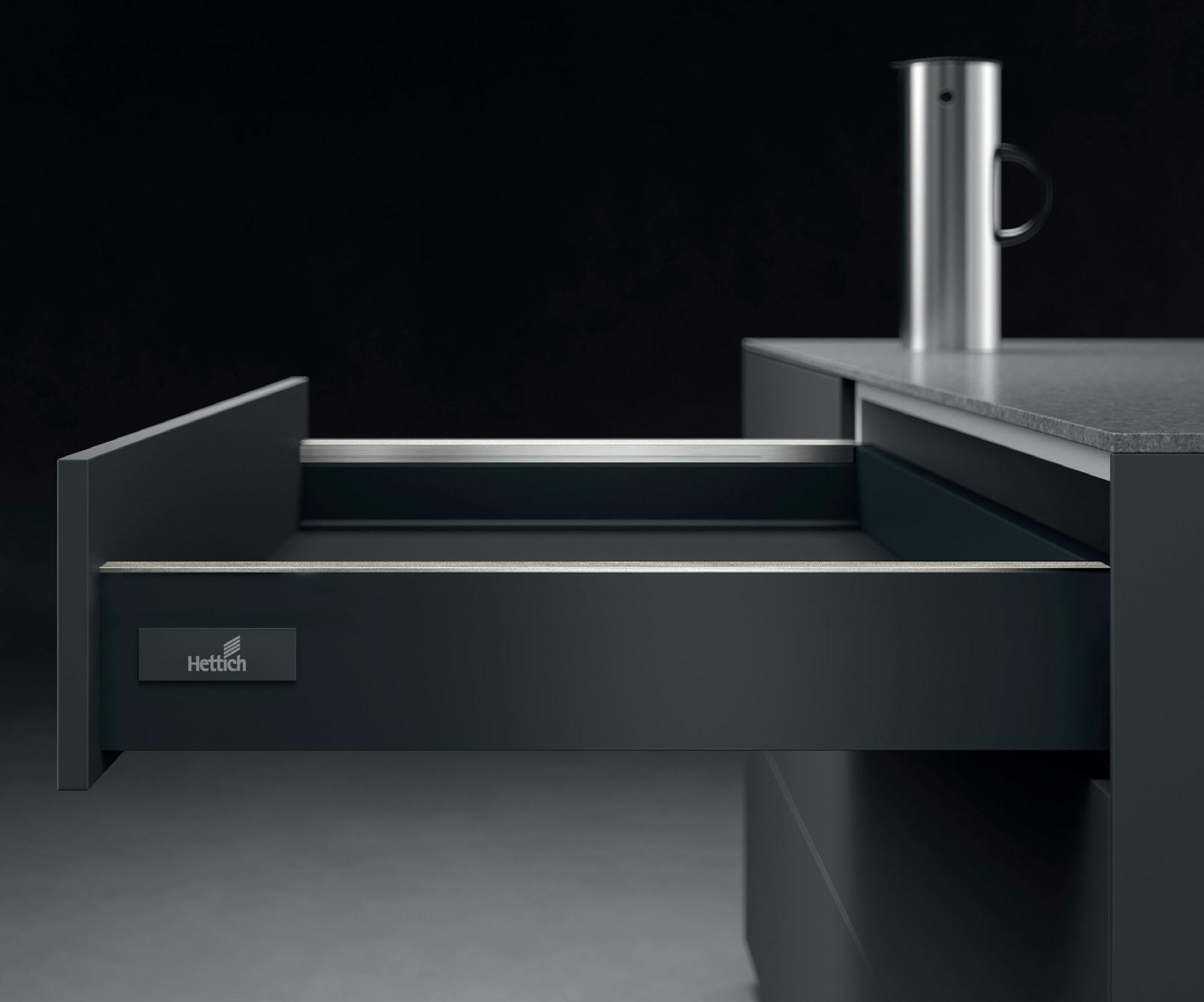

InnoTech Atira double walled drawer system –The adaptive
and flexible system for all market segments.
The InnoTech Atira drawer system by Hettich is designed with the potential for individual creativity in mind. With a focus on the systems sharp contours. The system features Anthracite in the Outdoor Alfresco Kitchen Collection with a range of side element heights of 70mm, 144mm & 176mm. The full extension Quadro Compact runners have a loading capacity of 40 kg and is available in soft closing.
Note: The InnoTech Atira Drawer System is not made from stainless steel and therefore subject to rust or discoloration if exposed to salt air and water.

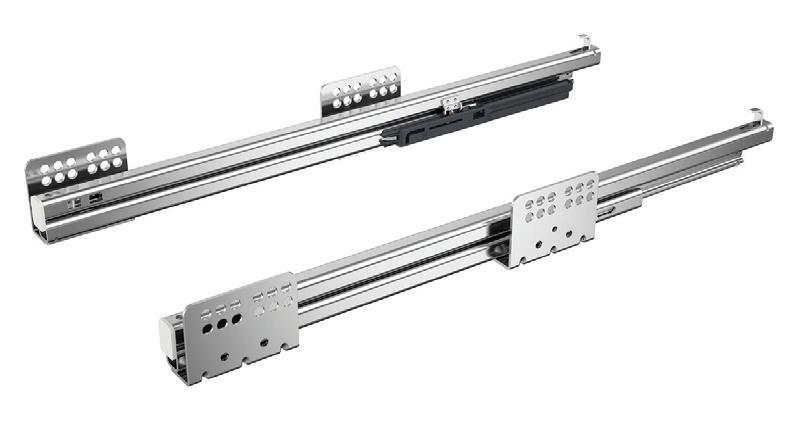

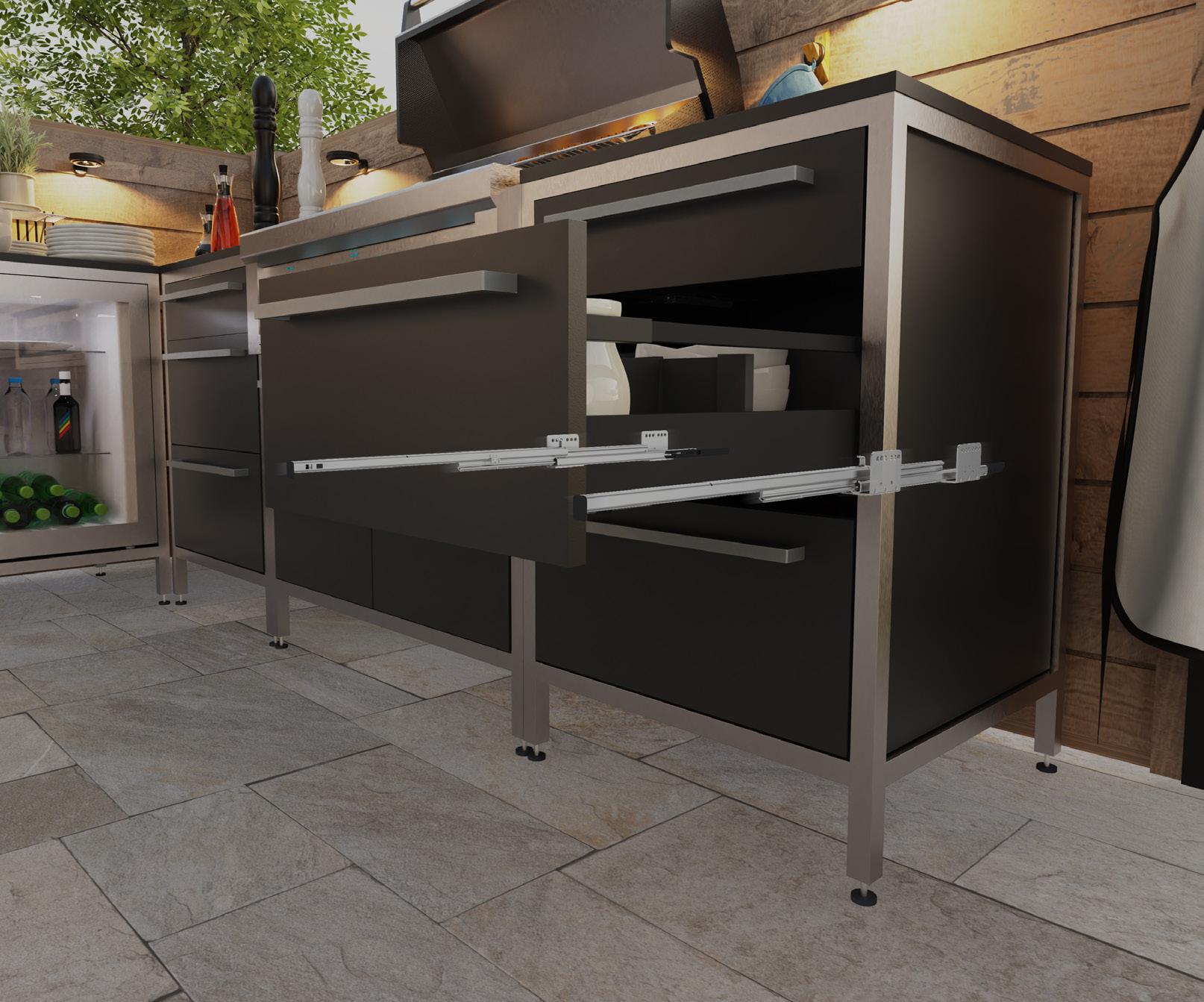

Running true to form –Quadro Compact ball bearing runner system
Ball bearings are one the world’s success stories. High-performance and precision machines would be unthinkable without them. Ball bearings are precision components that deliver the smoothest possible action and enjoy an extremely long life. And they are virtually indestructible, coping with big temperature fluctuations and tremendous loads.
Runner elements in Alfresco Outdoor Kitchens work hard, often in the most difficult conditions. If you are looking for a tough runner system capable of delivering peak performance and of coping with a heavy workload, there is nothing to beat a system based on the ball bearing idea – the Quadro runner system. The Quadro Compact runner includes all the benefits and features Hettich’s Quadro system has to offer and more. It has been specifically modified to be used with InnoTech Atira and features the same drilling positions as compared to the standard Quadro runner. The Compact runner derives from the White goods family of runners used in refrigerators and built in ovens hence the perfect option for use in outdoor kitchens - a lot more protected against corrosion.
Double-walled drawer system InnoTech Atira Kits
Powder-coated steel, anthracite
Drawer set, height 70mm
Drawer set, height 144mm
Drawer set, height 176mm
Drawer set includes runner:
Quadro Compact full extension runner, loading capacity 40 kg, left and right
Drawer side profile, left and right

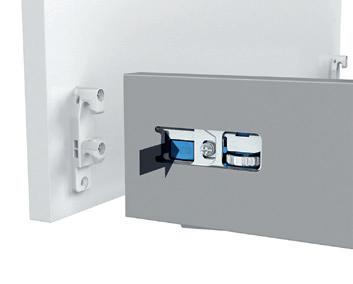

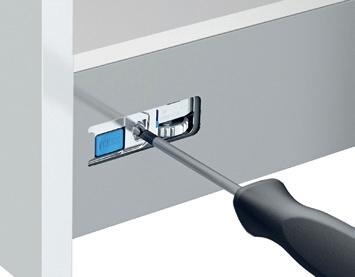

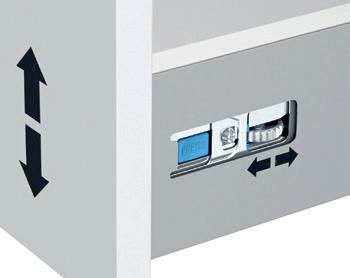

Drawer front connection for side profile, 2 each
Cover cap, 2 each
Rear panel connector, left and right
Pot-and-pan drawer set with railing, includes runner:
Quadro Compact full extension runner, loading capacity 40 kg, left and right
Drawer side profile, left and right
Drawer front connection for lengthwise railing, 2 each
Lengthwise railing, 2 each
Cover cap, 2 each
Rear panel connector, left and right
Pot-and-pan drawer set with railing, includes runner:
Quadro Compact full extension runner, loading capacity 40 kg, left and right
Drawer side profile, left and right
Drawer front connection for lengthwise railing, 2 each
Lengthwise railing, 2 each
Cover cap, 2 each
Rear panel connector, left and right
InnoTech Atira double walled drawer system

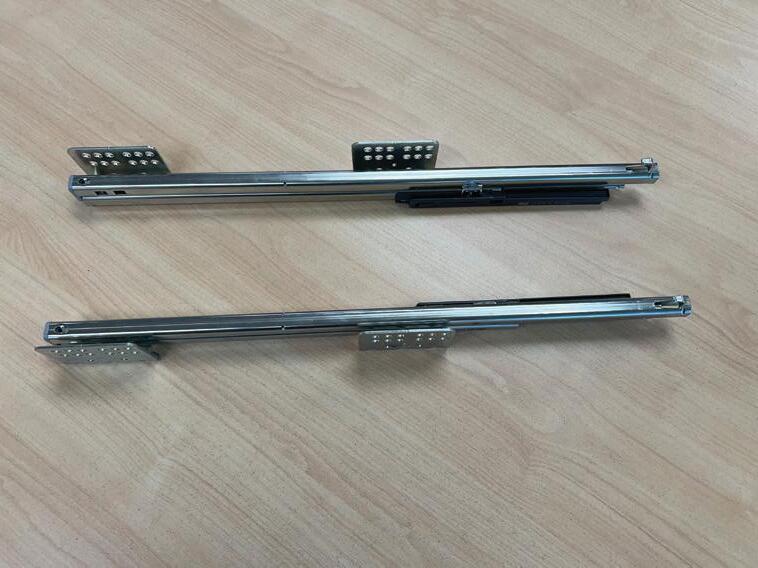

Drawer runner, Quadro Compact, for outdoors
Full extension runner, load capacity 40 kg
InnoTech Atira double walled drawer system
With integrated Silent System Slide on installation Suitable for outdoor use in line with DIN EN 1670, class 3
Load capacity to EN 15338, Level 3
Custom finish
InnoTech Atira double walled drawer system
490 InnoTech Atira drawer systems

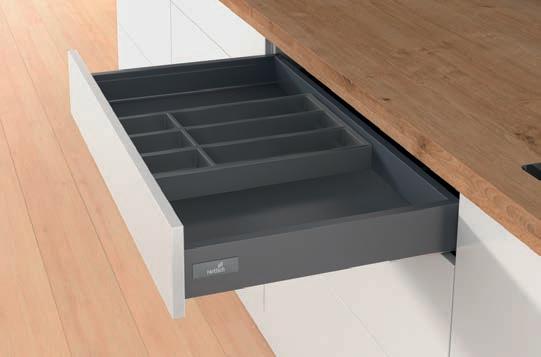

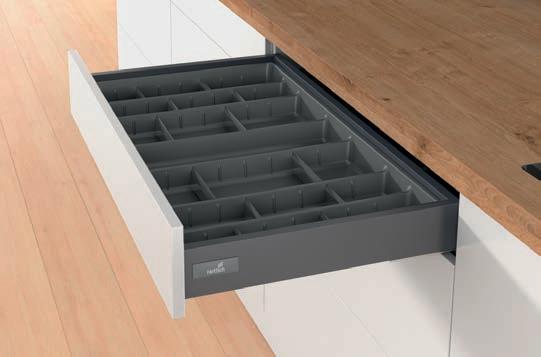

OrgaTray 490 for InnoTech Atira
OrgaTray 490 for InnoTech Atira
Can be used from cabinet width of 450 mm
Two trays can be fitted in a cabinet width starting from 800 mm
Height 49 mm
Plastic
It is recommended to fit an anti-slip mat
InnoTech Atira drawer systems

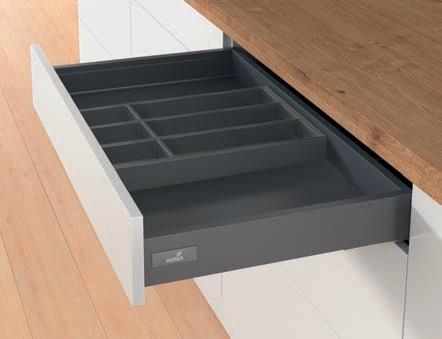

OrgaTray 590 for InnoTech Atira
OrgaTray 590 for InnoTech Atira
Nominal length 470 mm Suitable for standard cabinet width Plastic Height 55 mm
Partitioning
InnoTech Atira double walled drawer system

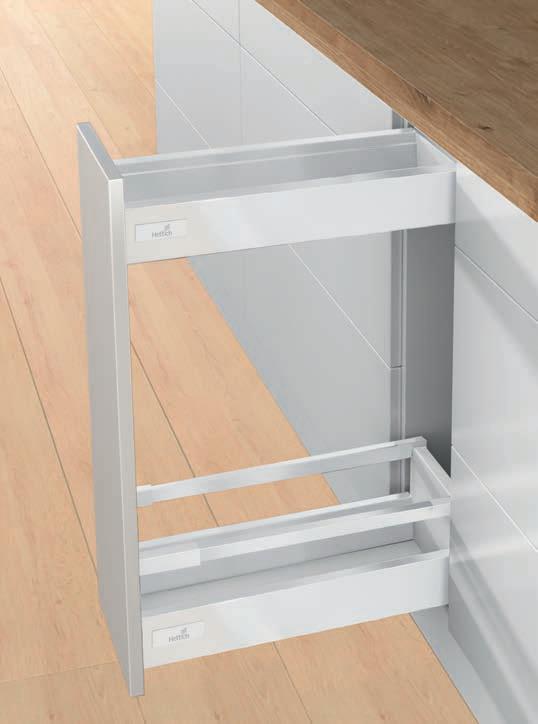

Narrow base unit
Double-walled drawer system InnoTech Atira
Narrow base unit
Powder coated steel, white
InnoTech Atira double walled drawer system
InnoTech Atira double walled drawer system
Suitable for cabinet width min. 150 and max. 300 mm
Stability through diagonally mounted runners (left / right)
Other configurations are possible e.g. use of TopSide metal or glass
Load capacity up to 20kg
Compact with Silent System, left and right
Fast assembly concealed hinge

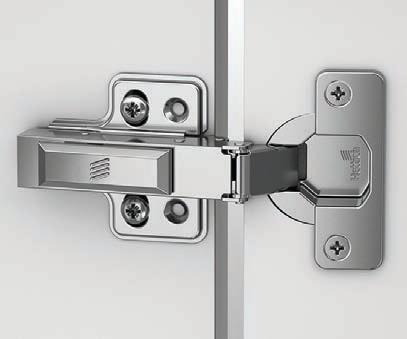

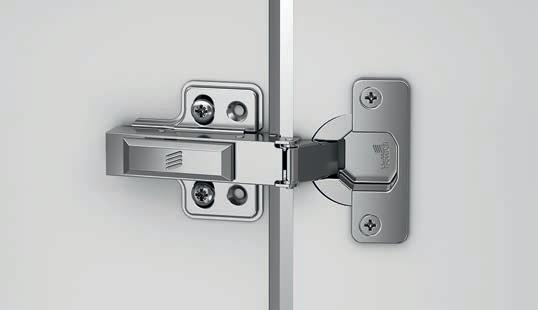

Veosys 105° Stainless steel hinge
Fast assembly concealed hinge
105° opening angle, drilling pattern TH 52 x 5.5 mm
Veosys 105° Stainless steel hinge
105° opening angle, drilling pattern TH 52 x 5.5 mm
Veosys 105º Stainless steel hinge
Concealed hinge with clip on installation and integrated Silent System
Quality classification under EN 15570, Level 2
With integrated Silent System, with self closing feature
With integrated Silent System, with self closing feature
Corrosion proof, 120h NSS (neutral salt spray test) to DIN EN ISO 9227
Concealed hinge with clip on installation and integrated Silent System
For door thickness of 14 - 22 mm
Quality classification under EN 15570, Level 2
Cup diameter 35 mm
Corrosion proof, 120h NSS (neutral salt spray test) to DIN EN ISO 9227
Cup depth 11.5 mm
For door thickness of 14 - 22 mm
Integrated overlay adjustment + 2.5 mm / - 2.5 mm
Cup diameter 35 mm
Integrated depth adjustment + 2 mm / - 1.5 mm
Cup depth 11.5 mm
Height adjustment at mounting plate
Integrated overlay adjustment + 2.5 mm / - 2.5 mm
Stainless steel
Integrated depth adjustment + 2 mm / - 1.5 mm
Height adjustment at mounting plate
Stainless steel
Fast assembly concealed hinge
Stainless steel mounting plates with oblong hole height adjustment
For Veosys
Cross mounting plate for screwing on
Veosys cup spacer
Fixing screw for Veosys hinge cup
For 4.5 mm ø x 16 mm countersunk screws
Quality classification under EN 15570, Level 2
Hole spacing 32 mm
Oblong hole height adjustment ± 3 mm
Stainless steel
To reduce the required depth of the cup drilling for thin door materials
Thickness of cup spacer 1.8 mm
Plastic, transparent
6G x 5/8 stainless steel fixing screw for Veosys hinge cup
Fast assembly concealed hinge
Accessories
For Veosys
Cover cap for Veosys hinge arm
Suitable for use with Veosys
Stainless steel
with Hettich logo
Fast assembly concealed hinge
Minimum reveal per door
Door thickness mm
Cup distance C mm
3.04.05.06.07.0
140.30.30.20.20.2
150.50.50.40.40.4
160.70.70.60.60.5
170.90.90.90.80.8
181.21.11.11.11.0
191.51.41.41.31.3
201.81.81.71.61.6
21 2.22.12.02.01.9
222.62.52.42.42.3
Note:
The values in the table refer to doors with an edge radius of 1 mm.
On doors with other radii, the minimum reveal changes as follows:
Radius 0 mm:
Values in table + 0.4 mm
Radius 3 mm: Values in table - 0.6 mm
Protrusions / installed depth
OverlayCup
mm3.04.05.06.07.0
10 4.55.56.57.58.5
11 3.54.55.56.57.5
122.53.54.55.56.5
mm3.04.05.06.07.0
For mounting plates and accessories, see page 4 - 5
For mounting options, assembly information, installation instructions and quality criteria, see page 6 - 8

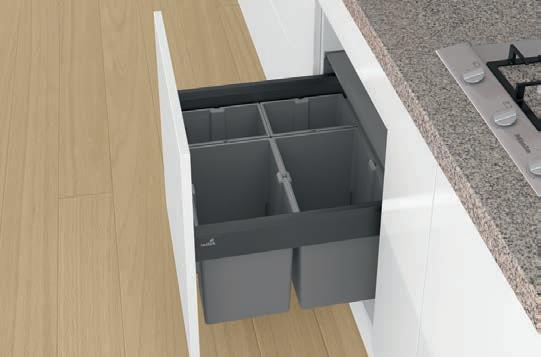

Waste Collecting Systems
Top running waste collecting system for InnoTech Atira drawer, 70 mm high
The InnoTech Pull frame is used instead of the drawer bottom panel
Frame can be equipped as required with various bins and accessories
Please order bin separately
Please order InnoTech Atira drawer components separately
Powder coated steel, anthracite
Set comprises:
1 fitted frame including front stay and lid
Fixing material
NL = Nominal length CW = Cabinet width

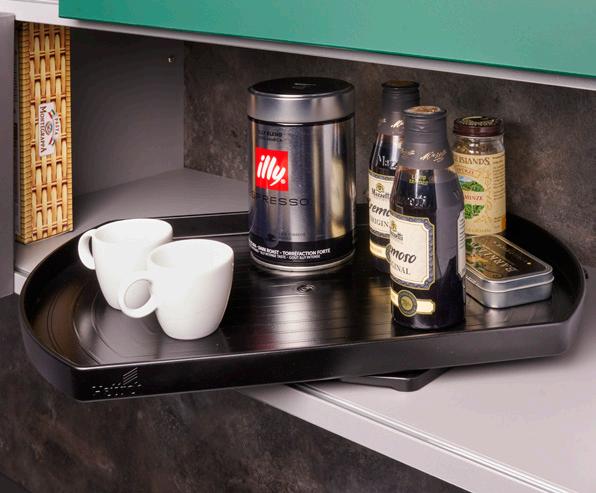

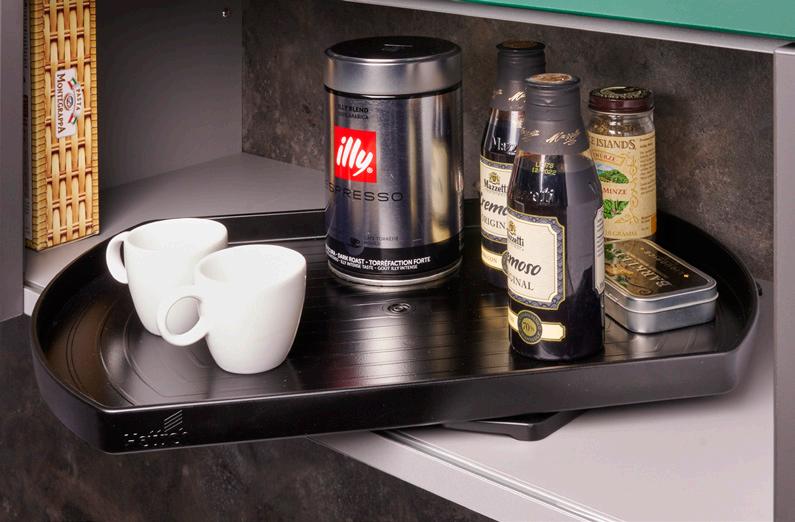

ComfortSpin
Revolving tray, Plastic, transparent

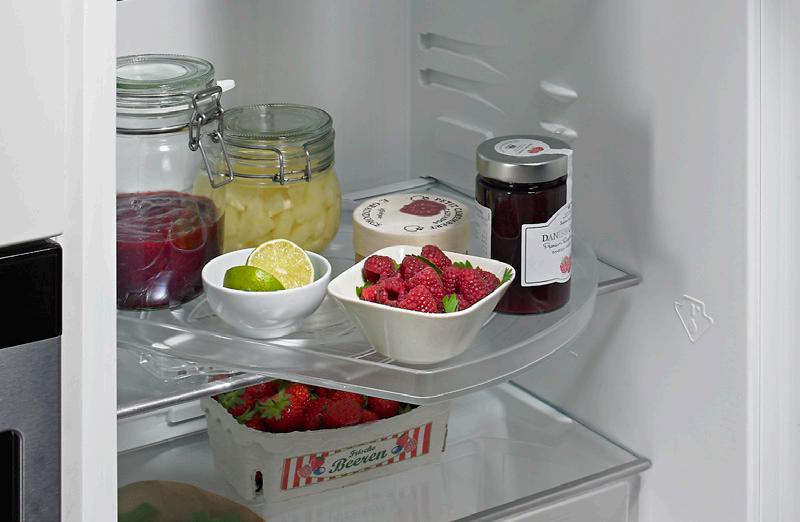

ComfortSpin
Turntable for filling and optimising use of storage space
For use in refrigerators or furniture
Including Fixing material
Plastic, transparent or anthracite finish

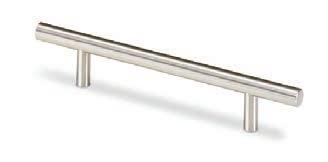

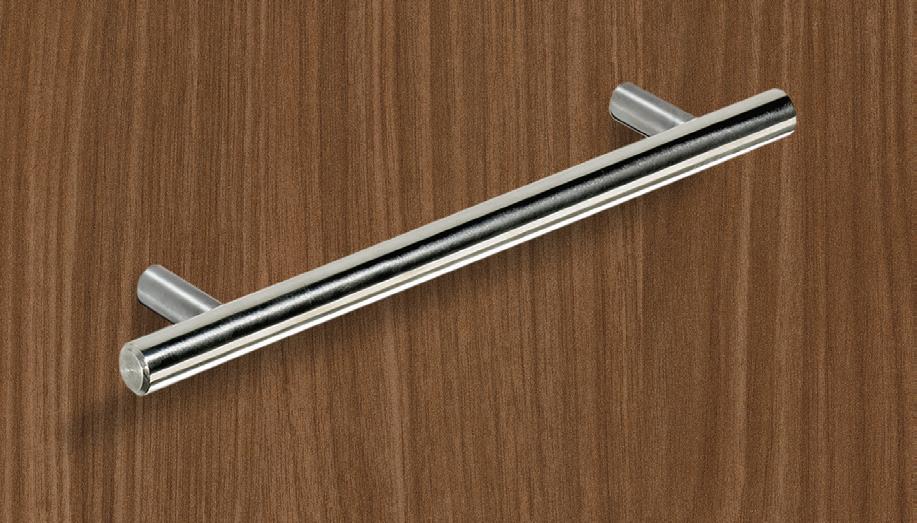

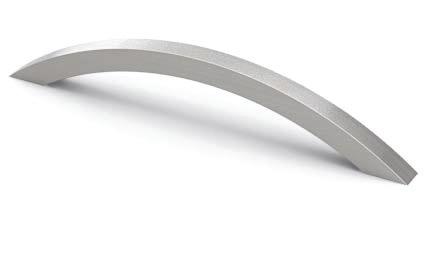

ProDecor Handles
Note: The listed ProDecor handles are a S 304 grade stainless steel. 96
Brushed stainless steel
Brushed stainless steel
Salvia Guarani

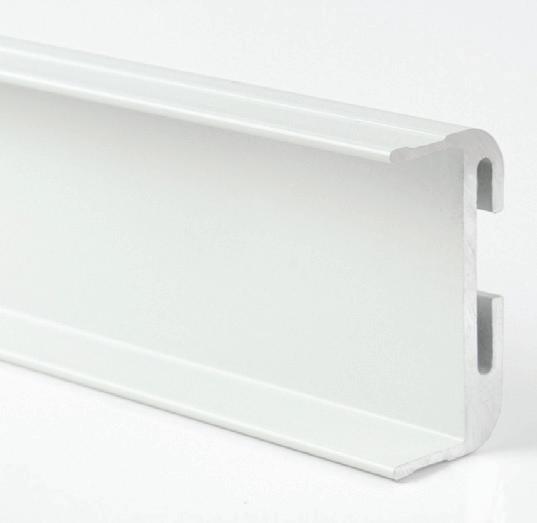

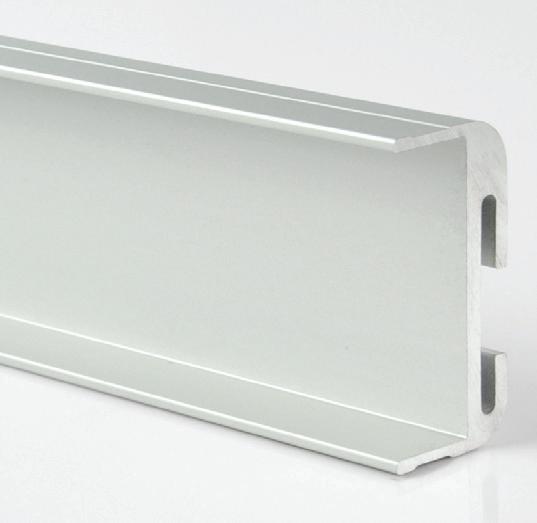

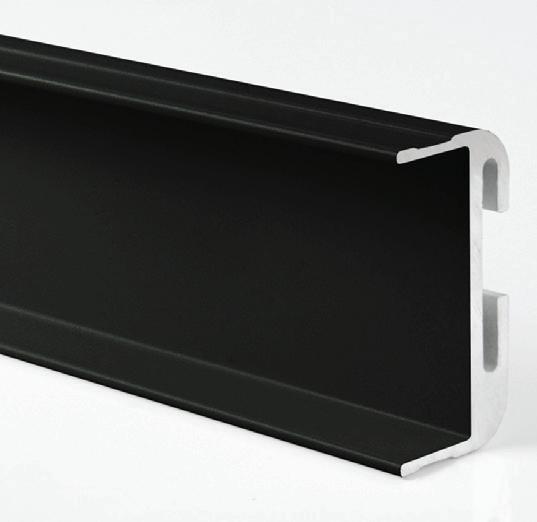

1 52mm Shadowline Handle clear anodised
2 52mm Shadowline Handle black brushed
1
2
3
3 52mm Shadowline Handle white powder coated

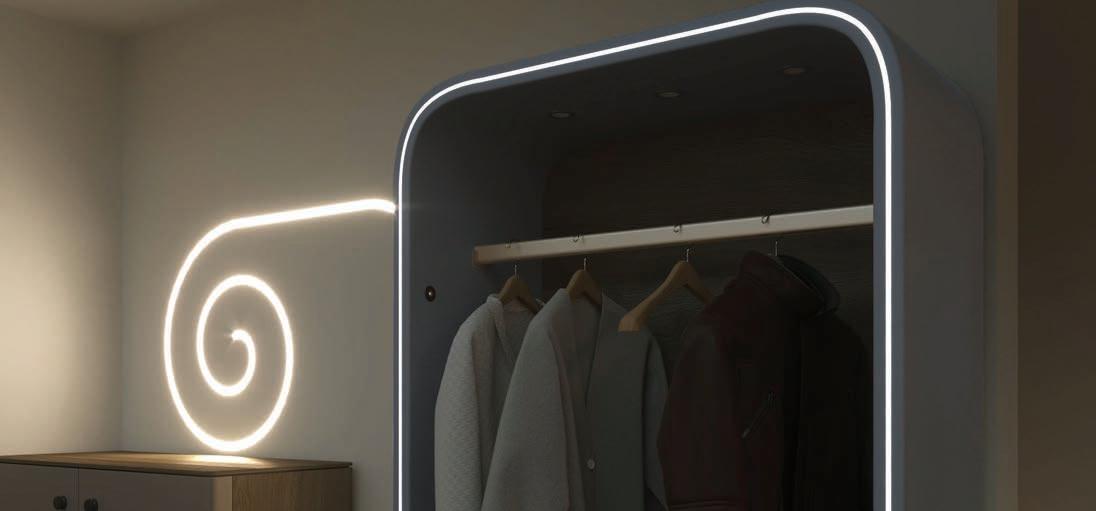

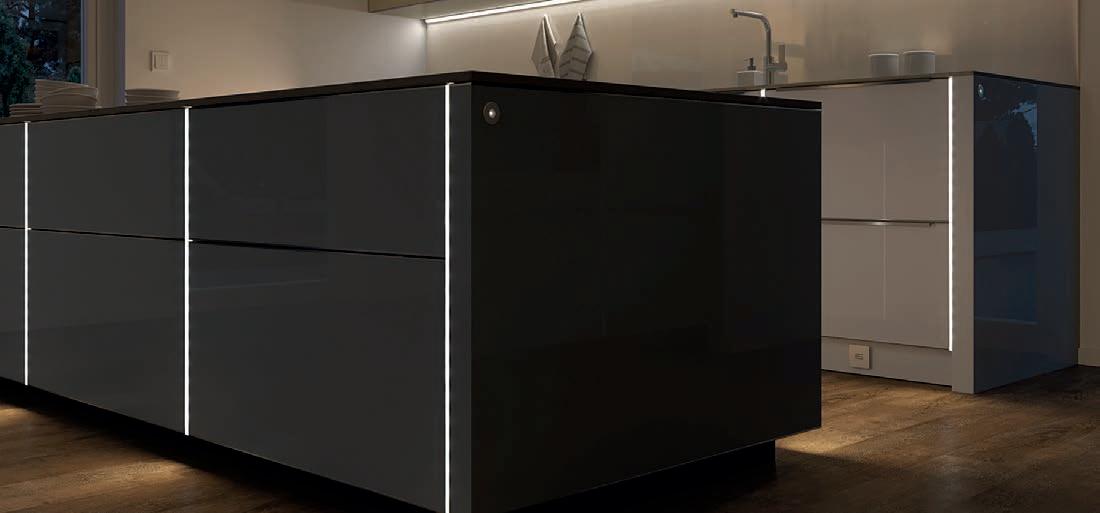

Magic Lighting
Linear lights

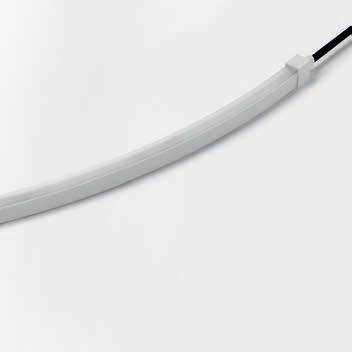

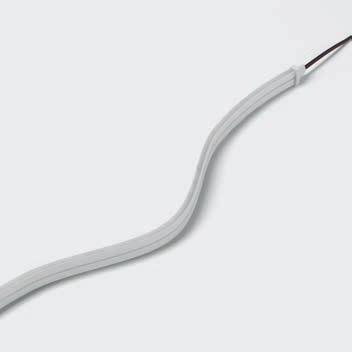

Versa SuperPlus
Advantages
Evenly illuminated area
Lateral bending direction (see drawing)
Flush mounting possible
Can be individually cut to size
Features
Protection against water jets from all directions (IP 65)
Suitable for damp locations
Supply lead on both sides (one cut, two lights), see drawing
Versa Super Plus
Examples of use
Round counters
Decorative surfaces with visible curves
Particularly narrow cabinet interior lighting
Order information
Packaging unit consists of 1 piece Versa, 2 end caps and a silicone tube for sealing in wet room applications
WarmWhite
2500 mm (max. 18.8 W) 55 815 11
Technical details
Luminaire type:
Type of lighting:
Operating voltage: Light colours:
Colour rendering:
Luminous flux:
Accessories*
Surface-mounted light
lighting
lm/m
Light source efficiency: 53 lm/W
Life span: 40,000 h (L70)
Power consumption: 7.5 W/m
LED ballast with Euro flat plug (75 W)
LED ballast 15 W with Australia plug
LED ballast with Euro flat plug (150 W)
31 017 01
30 017 11
LED ballast 30 W with Australia plug 31 026 01 30 221 01
MP2 2-way distributor 39 422 51
MP2 6-way distributor 36 996 01
Max. length at a stretch: 5 m
Dimmable: Yes/PWM/Smart.home
Beam angle: 120°
Half value angle: 70°
Test marks and symbols: c X 3 M
Protection rating: IP 65 (Only in the gated area)
Supply lead: 2 x 1800 mm
Plug connector: LED MultiPlug MP2 (max. 192 W)
Connection to: LED ballast
Magic Lighting
Linear lights
Light distribution diagram 70°
Dimensional drawing / installation
box Can be individually cut to size
Versa SuperPlus Mini
Advantages
Evenly illuminated area
Lateral bending direction (see drawing)
Flush mounting possible
Can be individually cut to size
Features
Protection against water jets from all directions
Suitable for damp locations (IP 44)
Supply lead on both sides (one cut, two lights), see drawing
Versa Super Plus Mini
Examples of use
Round counters
Decorative surfaces with visible curves
Particularly narrow cabinet interior lighting
Accessories*
Technical
Luminaire type: LED surface-mounted/ recessed light
Type of lighting: Accent lighting
Operating voltage: 12 V DC
Light colours: WarmWhite/ NeutralWhite
Colour rendering: RA >80
Luminous flux: 150 lm/m
Luminaire efficiency: 25 lm/W
Light source efficiency: 115 lm/W
ballast 15 W with Australia plug
LED ballast 30 W with Australia plug
LED ballast 15 W with Australia plug LED ballast 30 W with Australia plug
