SERIES
50M ALUMINIUM FAST
SPECS
GENERAL
METRE ALUMINIUM
HEESEN SERIES
Yacht number 21150
Hull type Twin propeller, semi-displacement, hard chine
Naval architect Heesen Yachts
Exterior design Omega Architects
Interior design Cristiano Gatto Design
Classification ABS A1 Commercial Yachting Service AMS, Large commercial yacht code reg-yc
Hull Aluminium
Superstructure Aluminium
Delivery Q2-2026
PROPULSION DETAILS
Main engines 2 x MTU 16V 4000 M65L (IMO TIER III)
Maximum power 2 x 2,560kW
Gearbox: 2 x ZF 9050
Engine control MTU Blue Vision (New Generation)
Propellers 2 x five blade fixed pitch
Main generators 2 x Zenoro, each 118kW
Bowthruster ZF-Marine 90kW, electrically driven
Stabilisers Naiad Dynamics, 2 fins, type 720, zero speed
DIMENSIONS
Length over all 49.98 metres / 164 feet
Beam over all 9.00 metres / 29 feet 6 inches
Draft 2.15 metres / 7 feet (half load)
Displacement 333 tons (half load)
Tonnage 499 gross tons
ACCOMMODATIONS
Crew 9
Guests 12
Suites Full-beam owner’s stateroom, two double guest suites and two twin suites
TECHNICAL DETAILS
Maximum speed 23 knots
Range at 11 knots 3,100 Nautical Miles
Fuel capacity 51,000 litres / 13,470 US Gallons
Fresh water 16,000 litres / 4,225 US Gallons

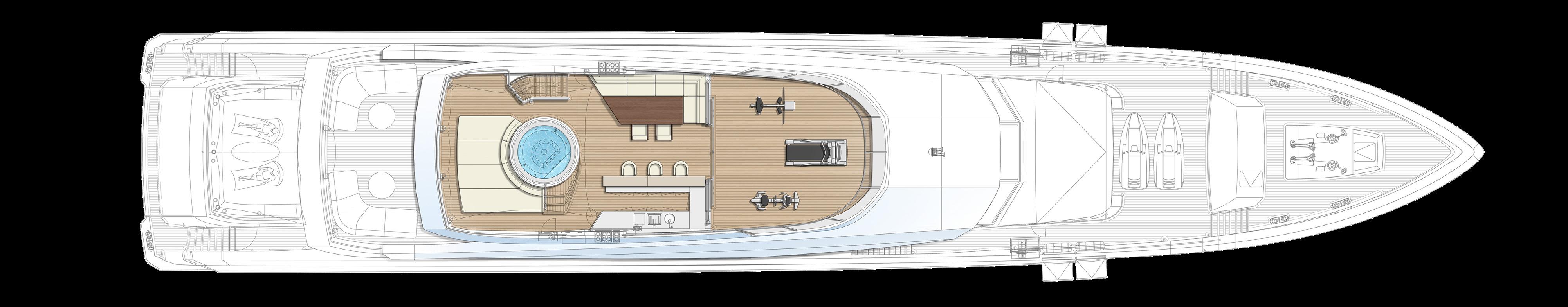

GENERAL ARRANGEMENT
SUN DECK

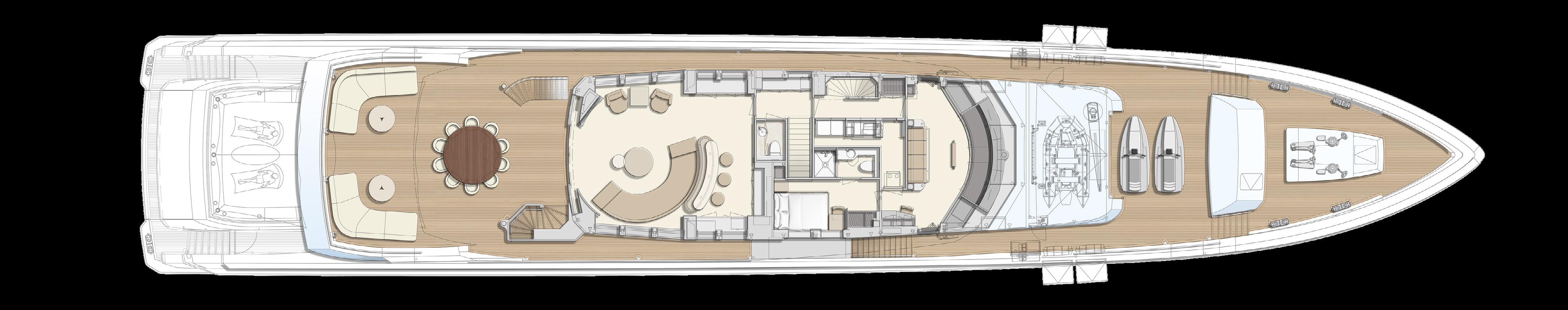

GENERAL ARRANGEMENT
WHEELHOUSE DECK

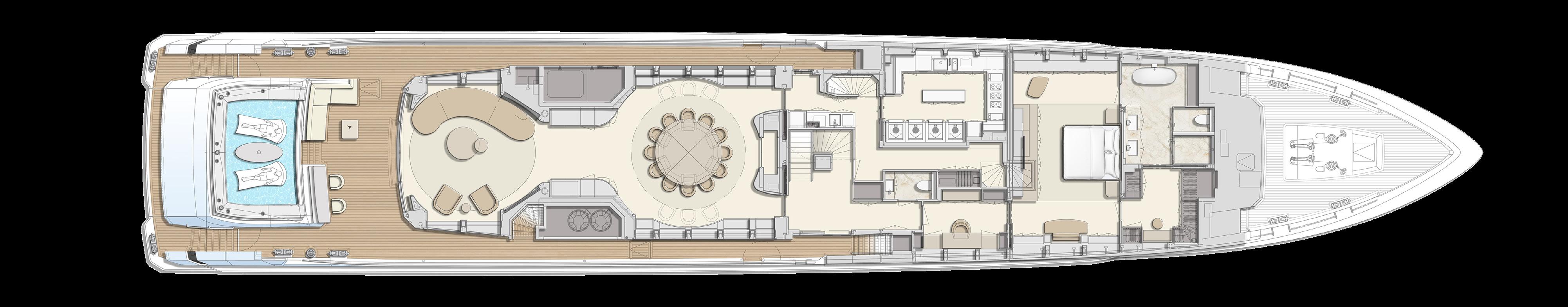

GENERAL ARRANGEMENT MAIN DECK

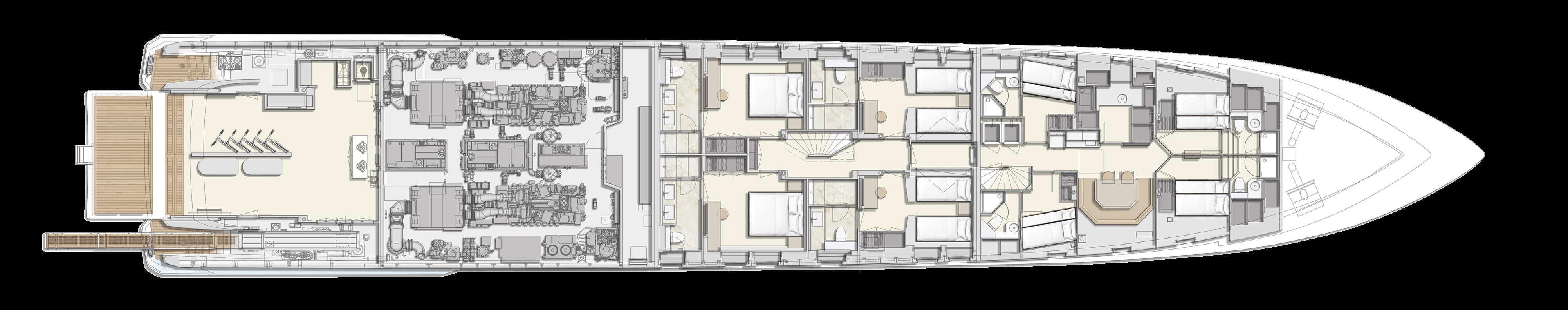

GENERAL ARRANGEMENT LOWER DECK
