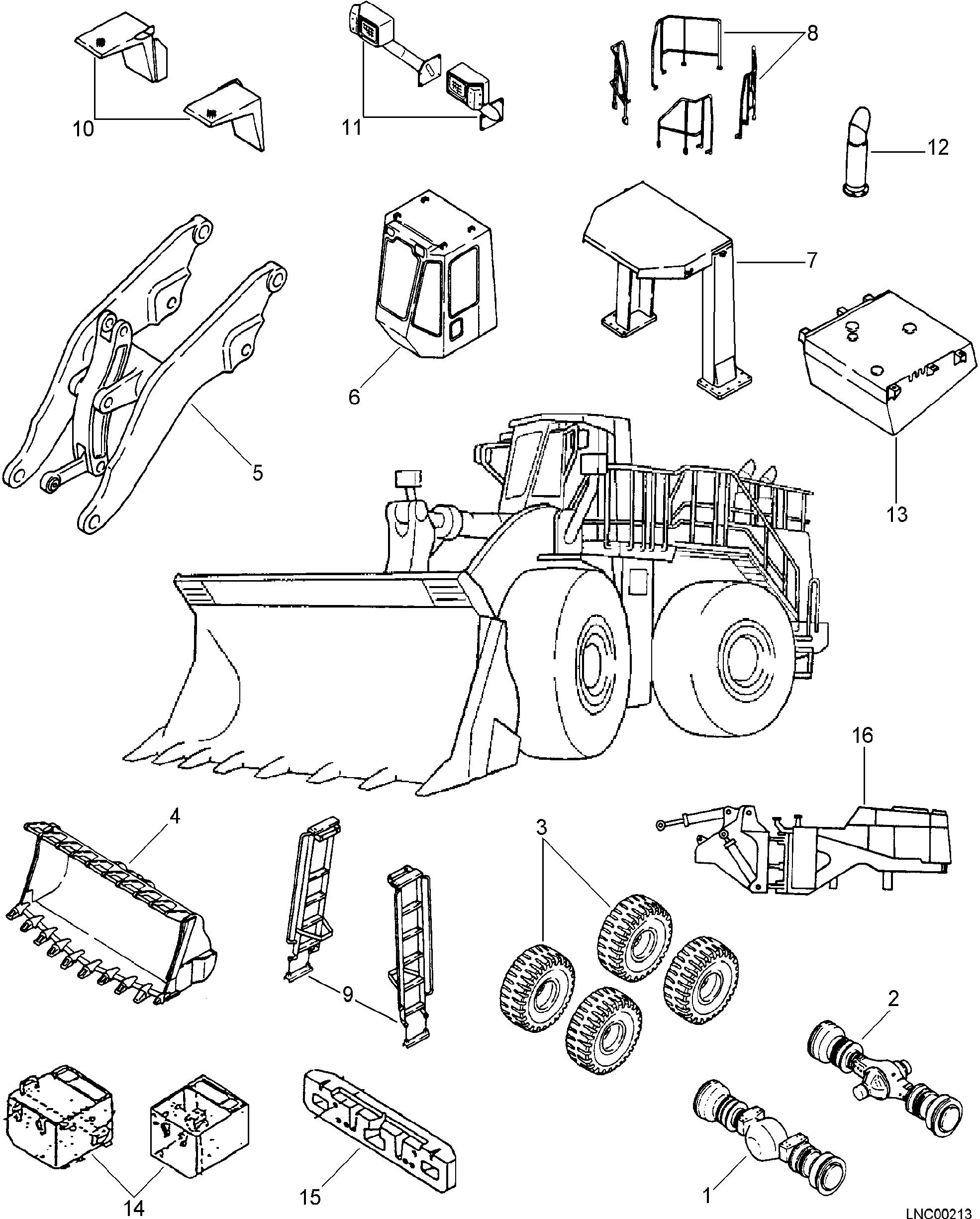

DIMENSIONSANDWEIGHTSOFSEPARATEDUNITS
No.UnitDimensions
1FrontAxleAssembly8,200(18,078)
2RearAxleAssembly (axlesupport)
7,990(17,615) 300(662)
3WheelandTireAssembly (each) 14,260(31,438) 3,565(7,860)
4BucketAssembly11,690(25,772)
5BoomAssembly11,106(24,485)
6FloorandCabAssembly760(1,676)
7ROPSCanopyAssembly1,350(2,976)
8FloorHandRailAssembly andrearaccessstep 650(1,433)
9LadderAssembly60(132)
10FrontFender(each)170(375)
11FrontLampAssembly (each) 65(143)
12MufflerStack50(110)
13FuelTankAssembly790(1,742)
14BatteryBoxAssembly580(1,279)
15Counterweight Counterweight,additional 2,900(6,394) 2,600(5,732) 1,600(3,528)
16BareMachine38,435(84,735)10435(411)3260(128)3180(125)
Total107,121(236,161)
TRANSPORTATIONBYLAND
SPECIFICATIONS
SpecificationsRelatedvalues
Weight OveralllengthOverallwidthOverallheight
Whentraveling underownpower
Transportation by trailer(seenote1 and2)
Travelingunder ownpower
102,880kg(226,810lbs) (Operatingweight) 14,065mm(462")4,815mm(1510") (Bucketwidth) 5,275mm(174") (TopofROPS)
(Baremachine)9.900mm(325")3,200mm(105")3,300mm(109")
Lessthan20tonsMorethan12m (394")
Travelingby trailer MaximumpayloadMachinelengthx 1.1

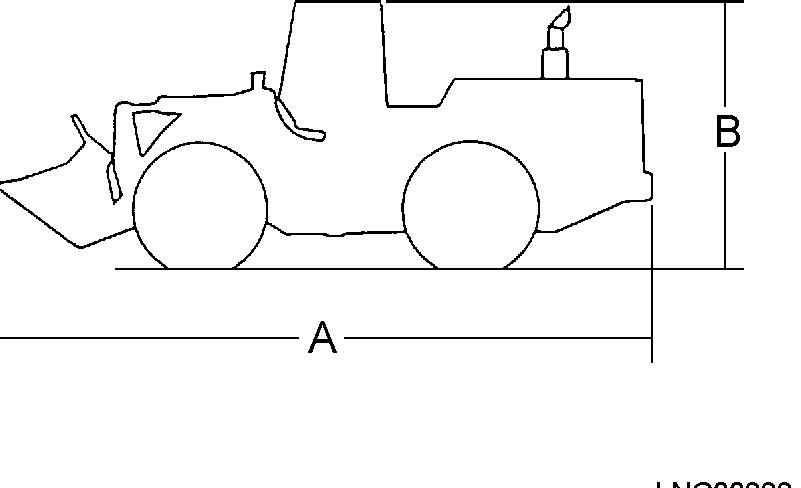

WHENTRAVELINGUNDEROWNPOWER

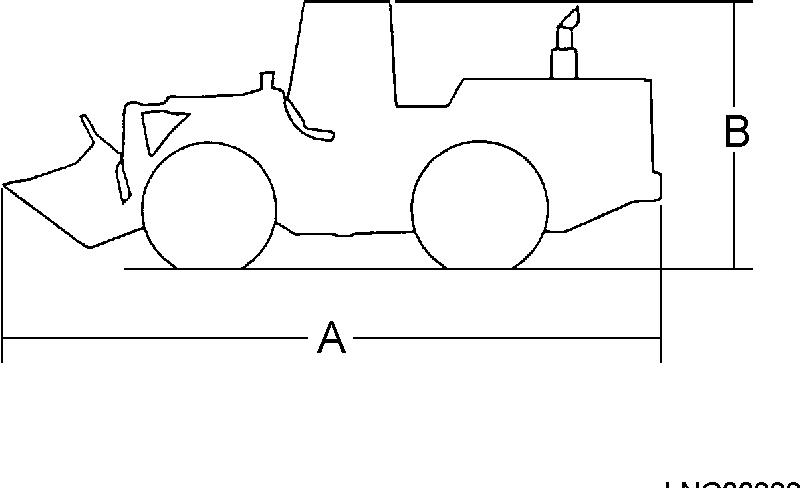

JISposturefortravelingunderownpower(withteeth).
AOveralllength(Standardboom) Overalllength(Hi-liftboom)
14,065mm(462") 14,780mm(486")
BOverallheight(withROPS)5,275mm(174")
TRANSPORTATIONBYTRAILER

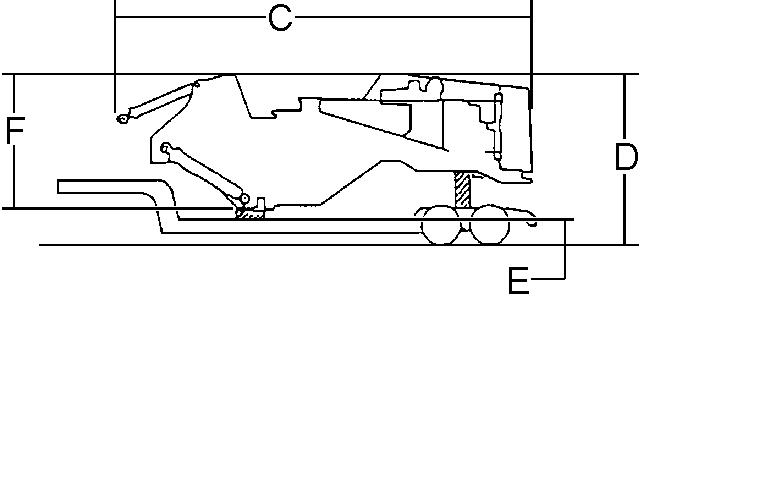

Postureofloadwhentransportingbytrailer.
CLengthofbaremachine.10,450mm(343")
DHeightfromgroundtotopof machine. 4,000mm(132")
EHeightfromgroundtotopof platform. 500mm(17")
FHeightfrombottomoffront frametotopoffrontframe.
3,180mm(104")
Lessthan2.5m (82")
Lessthan3.8m (125")
TrailerwidthLessthan3.8m (125")

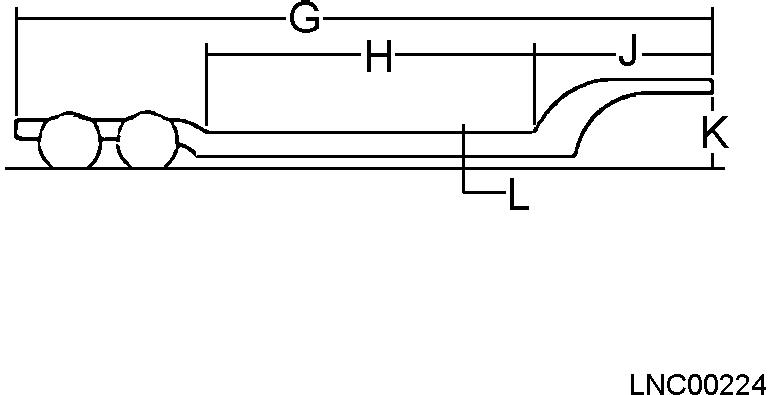

Trailerdimensions(36ton,lowplatformtype).
GOveralllength11,900mm(391")
HLengthofplatform6,300mm(207")
JLengthofgooseneck2,500mm(82")
KHeightfromgroundtotopof gooseneck 1,500mm(49")
LHeightfromgroundtotopof platform. 500mm(17")
-Widthofplatform.3,200mm(105")
-Maximumpayload.36ton
TRAILERSREQUIREDTOMOVEMACHINE
TrailerSizeQty.Remarks
36ton1Formachinebodyexcludingremovedparts.
15ton4Forbucket,loaderlink,frontaxle,rearaxle(includingswivelsupport),tireandwheel assemblies,cabandoperatorscompartment,bodywork(hood,grille,fender,ladder, platforms,handrails,lightsupports),counterweight,fueltank(includingfuel), exhaustpipe.
TOOLSANDEQUIPMENTREQUIRED
TOOLSREQUIRED
1SetofcommonstandardtoolsSpanners,two-endedring wrench,boxwrench,coldchisel, screwdrivers,hammer, adjustablewrench,hexagon wrench,etc. 2
2Powerwrench16times1Front,rearaxlemounts, ROPScanopymount
3Powerwrench4times1Fueltank
4Socket60(insertionangle;38.1)xL:841Frontandrearaxlemount
5Socket36(insertionangle;25.4)xL:681Rearaxlesupportcover, tires,counterweight (lower)
6Socket46(insertionangle;25.4)xL:721Fueltank,counterweight
7Socket55(insertionangle;38.1)xL:821ROPSmount
8Socket55(insertionangle;25.4)xL:821ROPSmount
9ExtensionbarIntersectionangle:12.7xL: 150 1Fueltank
10AdapterIntersectionangle:19x12.7x L:55 1Fueltank
11ExtensionbarIntersectionangle:25.4xL:1601Tires,counterweight, ROPScanopy
12Presettorquewrench(box type)
13Interchangeableheadtype presettorquewrench
14Interchangeableheadtype presettorquewrench
15Interchangeableheadtype presettorquewrench
16Heads(spannertype)for interchangeableheadtype preset
4-28kgfm(29-203lbfft) {39-275Nm}
6-14kgfm(43-101lbfft) {20-44Nm}
2-4.5kgfm(14-33lbfft) {20-40Nm}
3-7kgfm(21-51lbfft) {29-69Nm}
Widthacrossflats: 27(intersectionhole:15)
Widthacrossflats: 19(intersectionhole:12)
Widthacrossflats: 22(intersectionhole:12)
Widthacrossflats: 24(intersectionhole:12)
1Powerwrench
1Connectinghosesand tubes
1Connectinghosesand tubes
1Connectinghosesand tubes
One each Connectinghosesand tubes
17Presettorquewrench(box type)
20-140kgfm(144-1013lbfft) {196-1373Nm}
1Rearaxlesupportcover, counterweight
18Presettorquewrench(box type)
50-210kgfm(362-1519lbfft) {490-2060Nm} 1Counterweight
19Presettorquewrench(box type) 6-42kgfm(43-304lbfft){59 -412Nm}
1Rearaxlesupportcover
20ImpactwrenchCapacity:1.5-7.5kgfm(1155lbfft){15-74Nm} 1
21ImpactwrenchCapacity:5.5-31.5kgfm(40228lbfft){54-309Nm} 1
22ImpactwrenchCapacity:20.5-84.5kgfm(148 -611lbfft){201-829Nm}
23AdapterIntersectionangle: 19x25.4xL:71
24AdapterIntersectionangle: 12.7x9.5xL:41
1Tires,ROPScanopy
1Powerwrench,torque wrench
1Powerwrench,torque wrench
25Largehammer10pounds1 26Airgrinder1
27BarsLarge,medium,smallTwo each Holeadjustment,moving heavythings
28Bar2Holeadjustment
29Greasegun(handpumptype)Capacity:300cc(10floz.)1Oilingtopin
30OilcontainerCapacity:1000-2000cc (34-68floz.)
31VinylhoseI.D.6.5-7.0xL:1000-1500 (I.D.1/4"x1/4"x39-60")
32Interchangeableheadtype presettorquewrench
33Interchangeableheadtype presettorquewrench
15-25kgfm(108-181lbfft) {147-245Nm}
13-23kgfm(94-167lbfft) {128-226Nm}
1Bleedingairfrombrake line
1Bleedingairfrombrake line
1Connectinghosesand tubes
1Connectinghosesand tubes
1Truckcrane45ton1
2Truckcrane30ton1
3Forklifttruck2ton1Unloadingcomparatively lightcomponentsand parts,assemblingfueltank
4CompressorCapacity:8.5gal(32liter)1Impactwrench,bleeding airfrombrake
5Roller(formovingrearaxle toside) 1
6Leverblock1ton3Supportingcylinders, driveshafts
7Stand(forworker)4steps(approx.1.5m)3Useduringoperation
8Steelsheet(t)9x1219x2438 (3/8"x48"x96")
4Positioningbaremachine
9Steelsheet(t)25x250600(1"x10"x24")4Positioningbaremachine
10Woodenblocks400x400x900 (16"x16"x36")
200x400x800(8"x16"x32")
14 4 Positioningbaremachine
11AirtypegreasegunCapacity:18liter(5gal)1
12AircompressorgaschargerChargemanifold,leakdetector1Ifanothergaschargeris used,followinstructions suppliedwithit
13Tester1
LIFTINGTOOLSREQUIRED

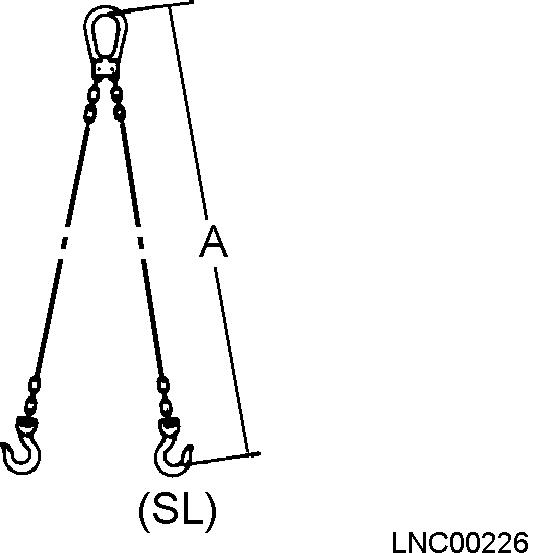

1Frontframeliftingtool2-pointsuspension(L=2250 chaindiameter=20,slinghook =(SL) 1(Seepage-15)
2RearframeliftingtoolBalanced2-pointsuspension (L=2250chaindiameter=20, slinghook=(SL) 1(Seepage-15)
3Rearaxleliftingtool2-pointsuspension(L=5500 chaindiameter=16,grabhook= (G) 1(Seepage-15)
4Nylonsling50x2000mm(2"x7)2Axlesupport,cylinder sling
5Front,rearaxleliftingtoolBalanced2-pointsuspension (chaindiameter=16,slinghook =(SL) (diameter=12.5,grabhook= (G)
1(Seepage-15)
6Nylonslingfordriveshaft50x5000mm(2"x16.5)1
7Fueltankliftingtool2-pointsuspension(L=5000 chaindiameter=6.3,slinghook =(SL)
8Floorandcabliftingtool2-pointsuspension(L=2000 chaindiameter=6.3,slinghook =(SL)
2(Seepage-16)
2(Seepage-16)
9Nylonsling150x10000mm(6"x33)1Liftingtoolfortires
10WireslingCapacity:15tonL=8(2500 mm)
Capacity:11tonL=7(2000 mm)
2 1 Liftingtoolforboom (liftingfront)when removingblocksunder chassis
11Shackle2,5,10,and15tonTwo each

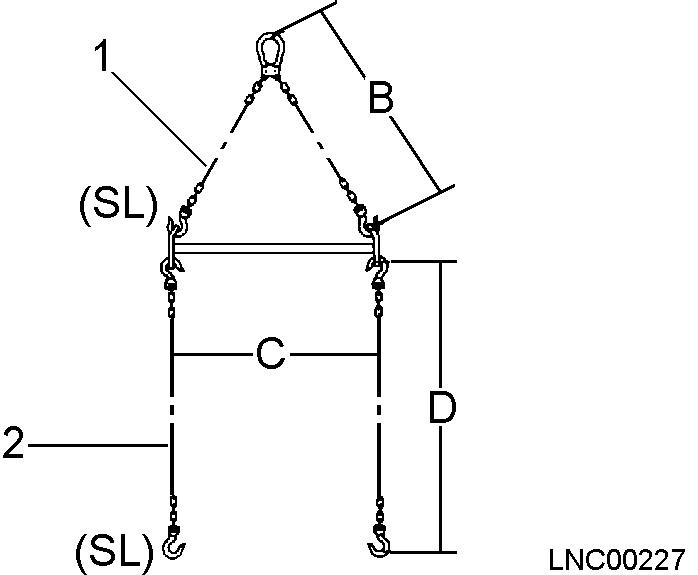

FrontFrameLiftingTool
RearFrameLiftingTool
DimensionB
DimensionC
DimensionD
3900mm(13) 2850mm(9.5) 2500mm(8)
Chaindiameter1)20mm(7/8") 2)20mm(7/8")
HooktypeSL(slinghook)

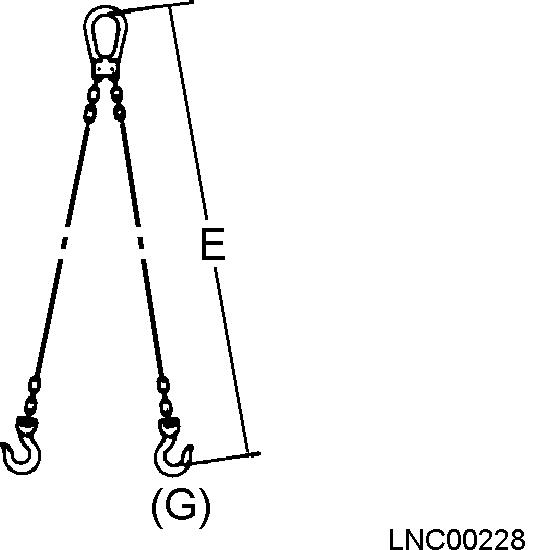

RearAxleLiftingTool
DimensionE5500mm(18)
Chaindiameter16mm(5/8")
HooktypeG(grabhook)

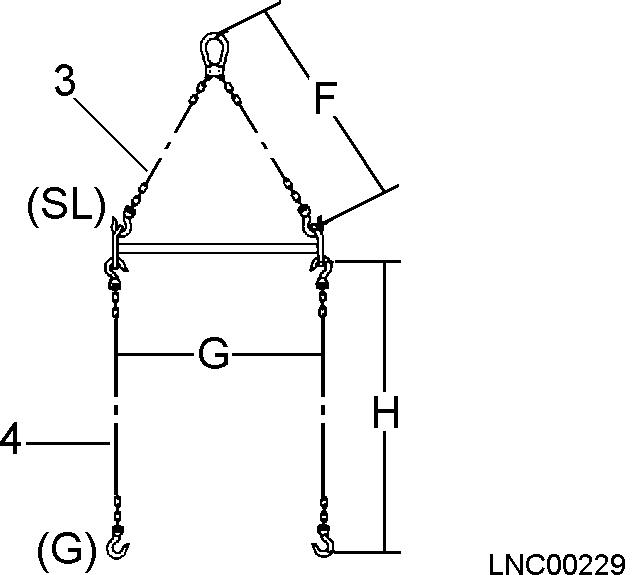

Front,RearAxleLiftingTool
DimensionF DimensionG
DimensionH
2000mm(7) 2000mm(7) 5500mm(18)
Chaindiameter3)16mm(5/8") 4)12.5mm(1/2")
HooktypeSL(slinghook) G(grabhook)
