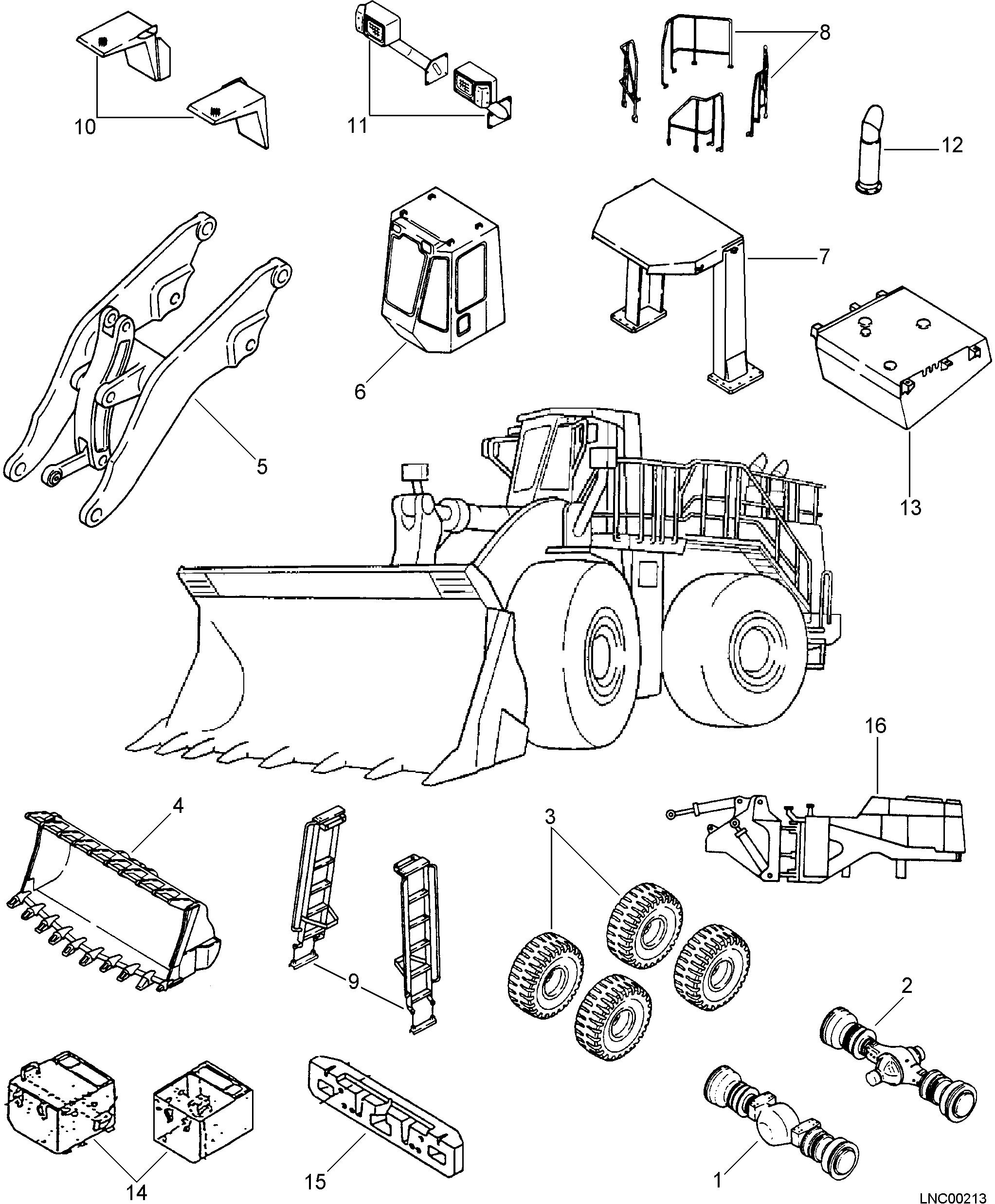

DIMENSIONSANDWEIGHTSOFSEPARATEDUNITS
No.UnitDimensions
1FrontAxleAssembly8200(18,078)
2RearAxleAssembly (axlesupport) 7990(17,615) 300(662)
3WheelandTireAssembly (each) 13920(30,688) 3480(7,672)
4BucketAssembly10,970(24,184)
5BoomAssembly9470(20,878)
6FloorandCabAssembly760(1,676)
7ROPSCanopyAssembly1350(2,976)
8FloorHandRailAssembly andrearaccessstep 650(1,433)
9LadderAssembly60(132)
10FrontFender(each)170(375)
11FrontLampAssembly (each) 65(143)
12MufflerStack50(110)
13FuelTankAssembly790(1,742)
14BatteryBoxAssembly580(1,279)
15Counterweight2900(6,394)
16BareMachine38435(84,735)10435(411)3260(128)3180(125)
Total99480(219,316)
TRANSPORTATIONBYLAND
SPECIFICATIONS
SpecificationsRelatedvalues
Whentraveling underownpower 101,130kg(222,955lbs) (Operatingweight) 14,325mm(470")4,815mm(1510") (Bucketwidth) 5,275mm(174") (TopofROPS)
Transportationby trailer(seenote1 and2) (Baremachine)9.900mm(325")3,200mm(105")3,300mm(109")
Travelingunder ownpower
Lessthan20tonsMorethan12m(39 4")
Lessthan2.5m(8 2")
Lessthan3.8m(12 5")
Travelingby trailer MaximumpayloadMachinelengthx1.1TrailerwidthLessthan3.8m(12 5")
WHENTRAVELINGUNDEROWNPOWER

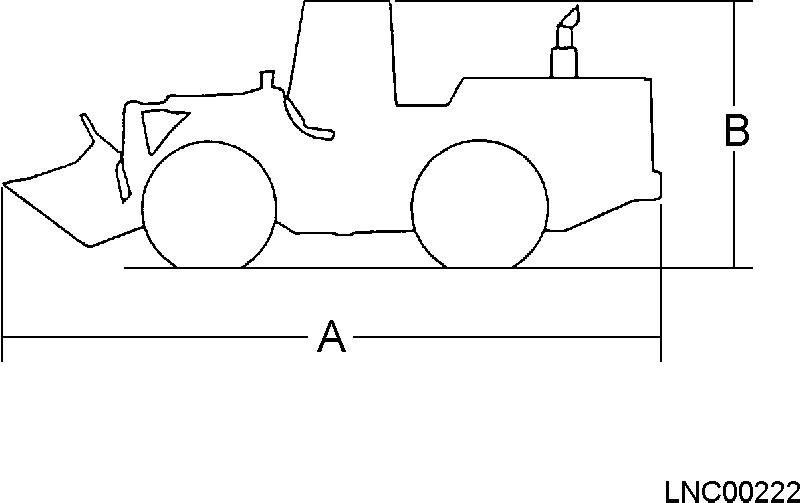

1.JISposturefortravelingunderownpower(withteeth).
AOveralllength14,085mm(463")
BOverallheight(withROPS)5,275mm(174")
TRANSPORTATIONBYTRAILER

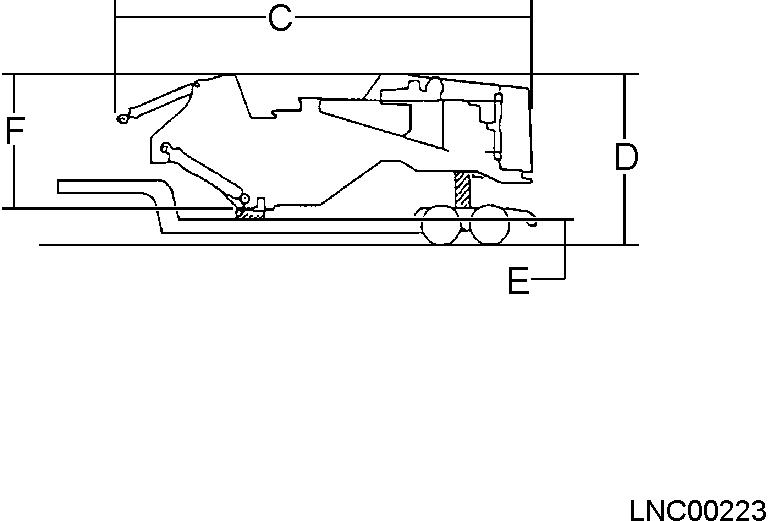

1.Postureofloadwhentransportingbytrailer.
CLengthofbaremachine.10,450mm(343")
DHeightfromgroundtotopof machine. 4,000mm(132")
EHeightfromgroundtotopof platform. 500mm(17")
FHeightfrombottomoffrontframeto topoffrontframe. 3,180mm(104")

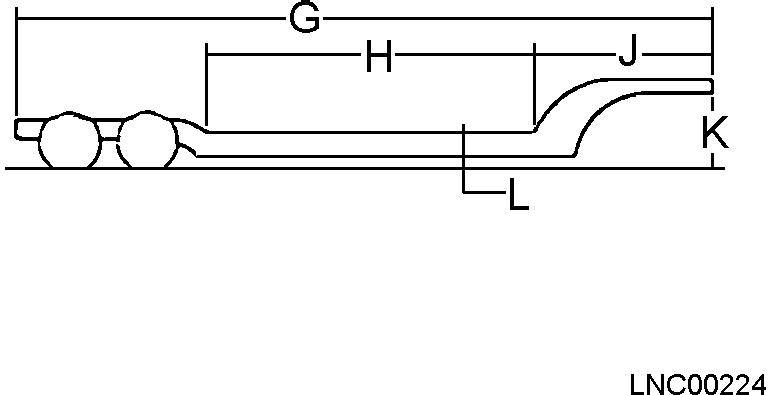

2.Trailerdimensions(36ton,lowplatformtype).
GOveralllength11,900mm(391")
HLengthofplatform6,300mm(207")
JLengthofgooseneck2,500mm(82")
KHeightfromgroundtotopof gooseneck 1,500mm(49")
LHeightfromgroundtotopof platform. 500mm(17")
-Widthofplatform.3,200mm(105")
-Maximumpayload.36ton
TRAILERSREQUIREDTOMOVEMACHINE
TrailerSizeQty.Remarks
36ton1Formachinebodyexcludingremovedparts.
15ton4Forbucket,loaderlink,frontaxle,rearaxle(includingswivelsupport),tireandwheel assemblies,cabandoperatorscompartment,bodywork(hood,grille,fender,ladder, platforms,handrails,lightsupports),counterweight,fueltank(includingfuel),exhaustpipe.
SERVICEREFILLCAPACITIES
Coolingsystem319liters(79.5U.S.gal)
FuelTank1,425liters(376.5U.S.gal)
EngineOil132liters(34.9U.S.gal)
Hydraulicsystem725liters(191.5U.S.gal)
Axle(eachfrontandrear)360liters(95.1U.S.gal)
TorqueConverterandTransmission140liters(37.0U.S.gal)
BrakeOil31liters(8.2U.S.gal)
TOOLSANDEQUIPMENTREQUIRED
TOOLSREQUIRED
1SetofcommonstandardtoolsSpanners,two-endedringwrench, boxwrench,coldchisel, screwdrivers,hammer,adjustable wrench,hexagonwrench,etc. 2
2Powerwrench16times1Front,rearaxlemounts, ROPScanopymount
3Powerwrench4times1Fueltank
4Socket60(insertionangle;38.1)xL:841Frontandrearaxlemount
5Socket36(insertionangle;25.4)xL:681Rearaxlesupportcover,tires, counterweight(lower)
6Socket46(insertionangle;25.4)xL:721Fueltank,counterweight
7Socket55(insertionangle;38.1)xL:821ROPSmount
8Socket55(insertionangle;25.4)xL:821ROPSmount
9ExtensionbarIntersectionangle:12.7xL:1501Fueltank
10AdapterIntersectionangle:19x12.7xL:551Fueltank
11ExtensionbarIntersectionangle:25.4xL:1601Tires,counterweight,ROPS canopy
12Presettorquewrench(boxtype)4-28kgfm(29-203lbfft){39275Nm} 1Powerwrench
13Interchangeableheadtypepreset torquewrench
14Interchangeableheadtypepreset torquewrench
15Interchangeableheadtypepreset torquewrench
16Heads(spannertype)for interchangeableheadtypepreset
6-14kgfm(43-101lbfft){2044Nm}
2-4.5kgfm(14-33lbfft){20-40 Nm}
1Connectinghosesandtubes
1Connectinghosesandtubes
3-7kgfm(21-51lbfft){29-69 Nm} 1Connectinghosesandtubes
Widthacrossflats:27(intersection hole:15)
Widthacrossflats:19(intersection hole:12)
Widthacrossflats:22(intersection hole:12)
Widthacrossflats:24(intersection hole:12)
One each Connectinghosesandtubes
17Presettorquewrench(boxtype)20-140kgfm(144-1013lbfft) {196-1373Nm} 1Rearaxlesupportcover, counterweight
18Presettorquewrench(boxtype)50-210kgfm(362-1519lbfft) {490-2060Nm} 1Counterweight
19Presettorquewrench(boxtype)6-42kgfm(43-304lbfft){59412Nm} 1Rearaxlesupportcover
20ImpactwrenchCapacity:1.5-7.5kgfm(11-55 lbfft){15-74Nm} 1
21ImpactwrenchCapacity:5.5-31.5kgfm(40-228 lbfft){54-309Nm} 1
22ImpactwrenchCapacity:20.5-84.5kgfm(148611lbfft){201-829Nm}
1Tires,ROPScanopy
23AdapterIntersectionangle:19x25.4xL:711Powerwrench,torque wrench
24AdapterIntersectionangle:12.7x9.5xL: 41 1Powerwrench,torque wrench
25Largehammer10pounds1
26Airgrinder1
27BarsLarge,medium,smallTwo each Holeadjustment,moving heavythings
28Bar2Holeadjustment
29Greasegun(handpumptype)Capacity:300cc(10floz.)1Oilingtopin
30OilcontainerCapacity:1000-2000cc(34-68fl oz.)
31VinylhoseI.D.6.5-7.0xL:1000-1500 (I.D.1/4"x1/4"x39-60")
32Interchangeableheadtypepreset torquewrench 15-25kgfm(108-181lbfft){147 -245Nm}
33Interchangeableheadtypepreset torquewrench 13-23kgfm(94-167lbfft){128226Nm}
EQUIPMENTREQUIRED
1Bleedingairfrombrakeline
1Bleedingairfrombrakeline
1Connectinghosesandtubes
1Connectinghosesandtubes
1Truckcrane45ton1
2Truckcrane30ton1
3Forklifttruck2ton1Unloadingcomparatively lightcomponentsandparts, assemblingfueltank
4CompressorCapacity:8.5gal(32liter)1Impactwrench,bleedingair frombrake
5Roller(formovingrearaxleto side) 1
6Leverblock1ton3Supportingcylinders,drive shafts
7Stand(forworker)4steps(approx.1.5m)3Useduringoperation
8Steelsheet(t)9x1219x2438(3/8"x48"x 96")
4Positioningbaremachine
9Steelsheet(t)25x250600(1"x10"x24")4Positioningbaremachine
10Woodenblocks400x400x900(16"x16"x36")
200x400x800(8"x16"x32")
14 4 Positioningbaremachine
11AirtypegreasegunCapacity:18liter(5gal)1
12AircompressorgaschargerChargemanifold,leakdetector1Ifanothergaschargerisused, followinstructionssupplied withit
LIFTINGTOOLSREQUIRED
1Frontframeliftingtool2-pointsuspension(L=2250chain diameter=20,slinghook=(SL)
2RearframeliftingtoolBalanced2-pointsuspension (L=2250chaindiameter=20,sling hook=(SL)
3Rearaxleliftingtool2-pointsuspension(L=5500chain diameter=16,grabhook=(G)
1Seediagram
1Seediagram
1Seediagram
4Nylonsling50x2000mm(2"x7)2Axlesupport,cylindersling
5Front,rearaxleliftingtoolBalanced2-pointsuspension (chaindiameter=16,slinghook= (SL) (diameter=12.5,grabhook=(G)
1Seediagram
6Nylonslingfordriveshaft50x5000mm(2"x16.5)1
7Fueltankliftingtool2-pointsuspension(L=5000chain diameter=6.3,slinghook=(SL)
8Floorandcabliftingtool2-pointsuspension(L=2000chain diameter=6.3,slinghook=(SL)
2Seediagram
2Seediagram
9Nylonsling150x10000mm(6"x33)1Liftingtoolfortires
10WireslingCapacity:15tonL=8(2500mm) Capacity:11tonL=7(2000mm)
2 1
11Shackle2,5,10,and15tonTwo each
Liftingtoolforboom(lifting front)whenremovingblocks underchassis

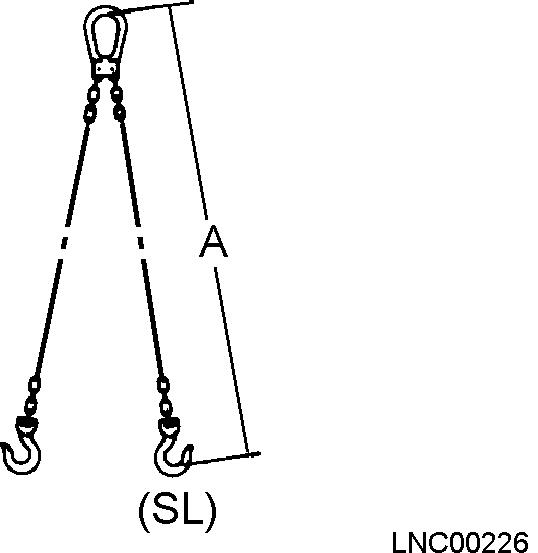

1.FrontFrameLiftingTool
DimensionA2250mm(73/8")
Chaindiameter20mm(7/8")
HooktypeSL(slingtype)

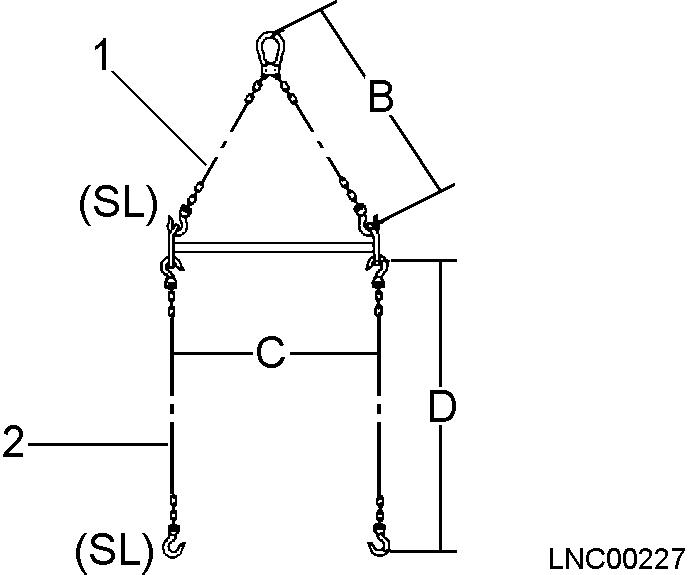

2.RearFrameLiftingTool
DimensionB
DimensionC
DimensionD
3900mm(13) 2850mm(9.5) 2500mm(8)
Chaindiameter1)20mm(7/8") 2)20mm(7/8")
HooktypeSL(slinghook)

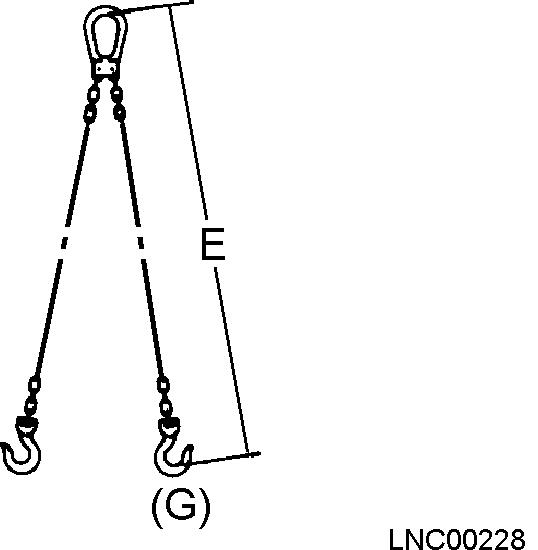

3.RearAxleLiftingTool
DimensionE5500mm(18)
Chaindiameter16mm(5/8")
HooktypeG(grabhook)

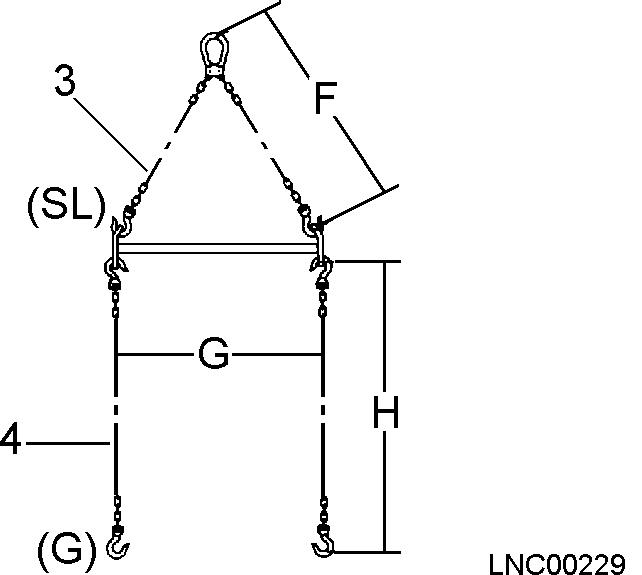

4.Front,RearAxleLiftingTool
DimensionF DimensionG
DimensionH
2000mm(7) 2000mm(7) 5500mm(18)
Chaindiameter3)16mm(5/8") 4)12.5mm(1/2")
HooktypeSL(slinghook) G(grabhook)
5.FuelTankLiftingTool
DimensionJ5000mm(16.5)
Chaindiameter6.3mm(1/4")
HooktypeSL(slingtype)

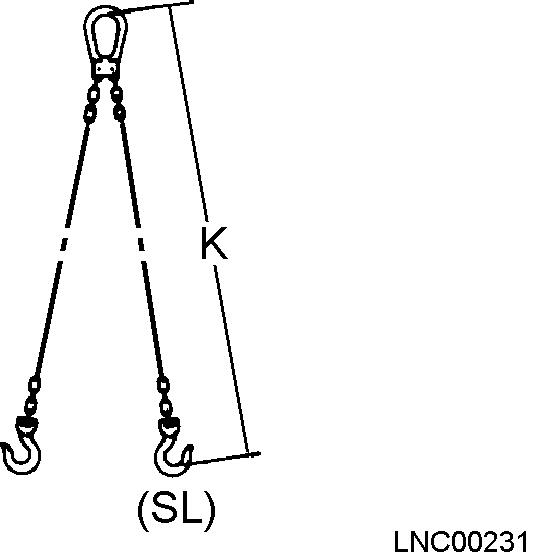

6.FloorandCabLiftingTool
DimensionK2000mm(7)
Chaindiameter6.3mm(1/4")
HooktypeSL(slingtype)
OIL,GREASE,FUEL,PAINT,ETC
1.Molybdenumdisulfidegreasewithhighpressureadditive: KESLM-P,SAEJ310aNLGI:No.1orequivalent)500mL(17floz.)
2.Molybdenumdisulfidegreasewithhighpressureadditive: KESLM-G,SAEJ310aNLGI:No.2(No.1)orequivalent)10liters(3gal).
3.Fuel: Dieselfuelasrequired-fueltank:1425liters(376.5U.S.gal)
4.Paintfortouchup:naturalyellowandcloudgray.
5.Airconditionergas: R134-aFreon-One400g(14oz.)can.
6.Windowwasher: 2liters(2quarts)

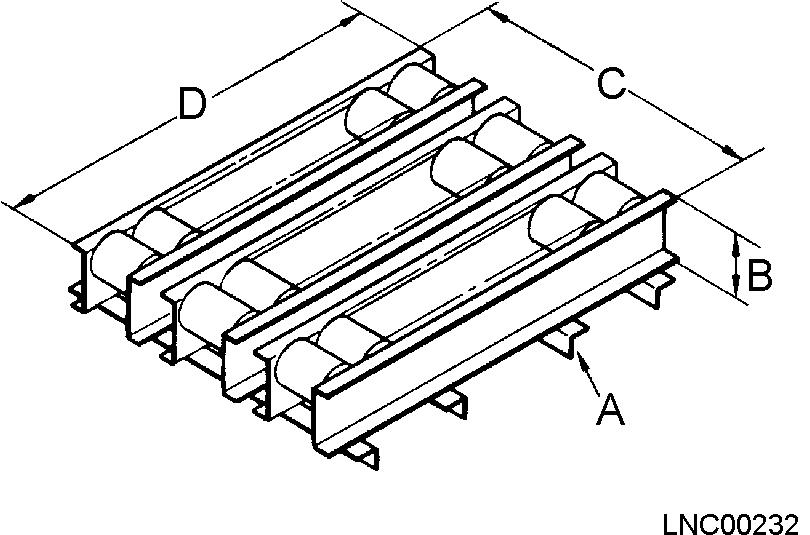

7.Others: Rollerformovingrearaxletoside.
AFourangleiron50x50x850mm(2"x2"x 33.5")
BHeight90mm(3.5")
CWidth770mm(30")
DLength1000mm(39")
