KEEPSTEPRAILS CLEANANDINGOOD CONDITION
USEGRIPBARS ANDSTEPRAILS
This is the sample of the manual if you need complete manual Click Here to download
Checkclearencebetweenbucketand cabbeforeoperation.Slowlycycle bucket,checkforinterferencewith armandcab,particularlyifalifting eyeisweldedonbucket bottom.Exercisecarewhen operatingthebucketnear thecab.
DANGER
KEEPCLEAROF SWINGAREA
TRAVELMOTOR
4.STOPENGINE–WARNING Locatedontopofenginefanshroud. PartNumber–YN20T01009P1

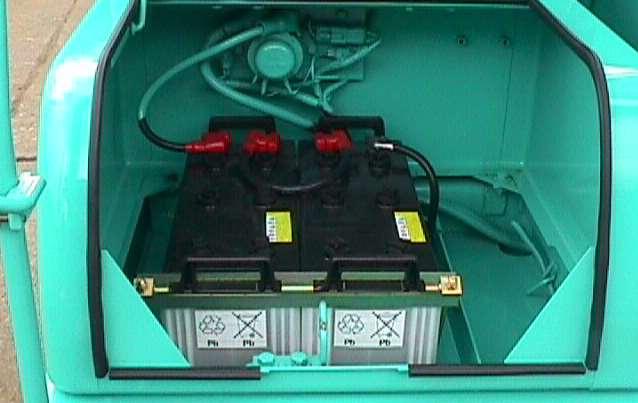

5.BOOSTERCABLE–WARNING Locatedonbatteryboxcompartment. PartNumber–YN20T01015P2 WARNING
Rotatingpartscancausepersonalinjury. Keepawayfromfanandbeltwhenengineis running.Stopenginebeforeservicing.
YN20T01009P1
3.BATTERY–DANGER/POISON LocatedonBattery.
6.CALIFORNIAPROPOSITION65–WARNING PartNumber–YN20T01495P1
CALIFORNIAProposition65
Batteryposts,terminals,andrelatedaccessoriescontain leadcompounds,chemicalsknowntotheStateofCaliforniatocausecancerandreproductiveharm.Washhands afterhandling.
YN20T01495P1
7.ACCUMULATORCONTAINSPRESSURIZED GAS–WARNING
Locatedonsideofnitrogenaccumulator PartNumber–YN20T01216P1
9.POWERBOOSTSWITCH–WARNING
LocatedinsidecabonR.H.Window. PartNumber–YN20T01004P1
WARNING
Releasingpowerboostswitchwhile liftingaloadcancauseunexpected loweringofload,resultinginsevere injuryordeath.
Neverusepowerboostswitchfor liftingaload.
YN20T01004P1
10.HEAVYLIFTSWITCH–WARNING
LocatedinsidecabonR.H.Window. PartNumber–YN20T01340P1
11.ELECTRICALPOWERLINES–WARNING
LocatedinsidecabonR.H.Panel. PartNumber–YN20T01006P1
WARNING
Contactwithelectricalpowerlineswillresult insevereinjuryordeath.
Keepmachineandattachmentasafedistance fromelectricalpowerlinesasperfollowing instruction.
VOLTAGE(Volts)SAFETYDISTANCE
50KORLESS
50KTO200K
200KTO350K
350KTO500K
500KTO750K
750KOROVER
YN20T01006P1
12.DONOTLIFTMACHINETHROUGH COUNTERWEIGHTLIFTINGEYES-DANGER
Locatedontopofcounterweight.(2Required) PartNumber–YN20T01221P1
13.DONOTSTEPON–WARNING
Locatedontopofenginecover. PartNumber–2432P3055
14.HOTCOOLANT–WARNING
Locatedontopofenginefanshroud. PartNumber–YN20T01010P1
15.HOTPARTS–CAUTION
Locatedontopofenginecover. PartNumber–YN20T01220P1
16.ROTATINGPARTS-CAUTION
Locatedontopofenginecover PartNumber–YN20T01012P1
17.USEDIESELFUEL
Locatedonsideoffueltankopening. PartNumber–YN20T01213P1
18.GREASESWINGBEARING
Locatedonupperframelowerrightcorner-Below cab.PartNumber–2432P2689
19.ANTIFREEZESOLUTION
Locatedonbacksideofradiatorcompartmentdoor. PartNumber–YN20T01097P1
20.HYDRAULICOILCHECKPOSITION
Locatedonbacksideofpumpcompartmentdoor. PartNumber–2432P3379
21.HYDRAULICOILUSED
Locatedonthebacksideofhydraulictank. PartNumber–2432T6573
22.SERIALNUMBERPLATE
Locatedonupperframelowerrightcorner-Below cab.PartNumber–2432T5613

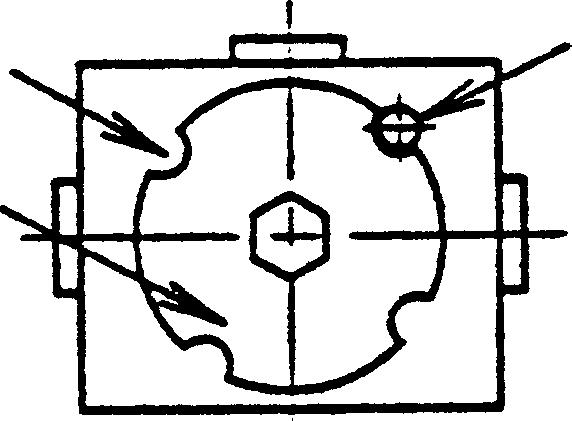

Proceduretochangeselectorvalve:
MARKSELECTION
NNibbler
BBreaker
EExtra
Pleaseadjustsuitablenotch tocapscrew.(Somemark maynotbeindicated)
MARKSCAPSCREW
MAINTENANCE
(Whenusingnibblerorbreaker)
Contaminationanddeterioration ofhydraulicoilmaydevelop malfunctioningofcontrolvalves, earlywear,andseizureofhydraulicpumps,andconsequentialdamageofentirehydraulic circuit.
Replacefiltersandhydraulicoil, referingtothefollowingtable: 1.-Hydraulicoilchange: every600hours.
2.-Hydraulicreturnfilterchange:
First:50hours
Second:250hours Regular:Every250hours
