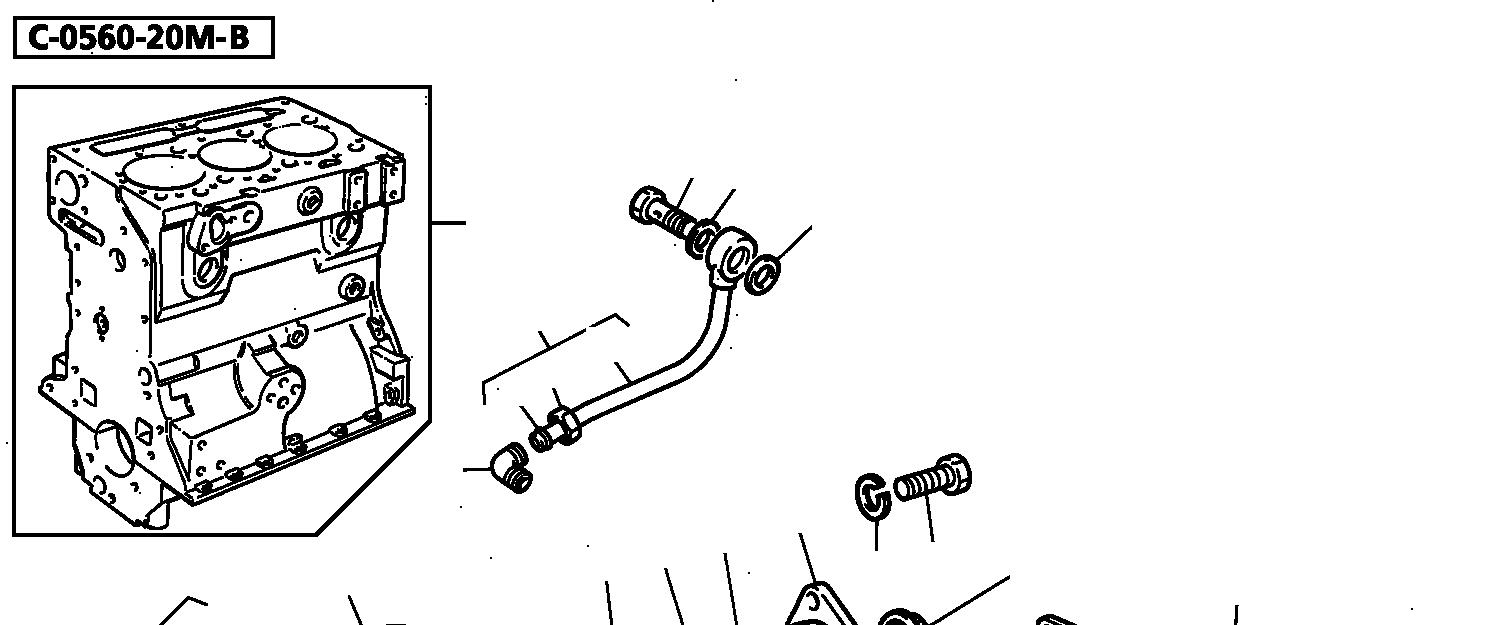

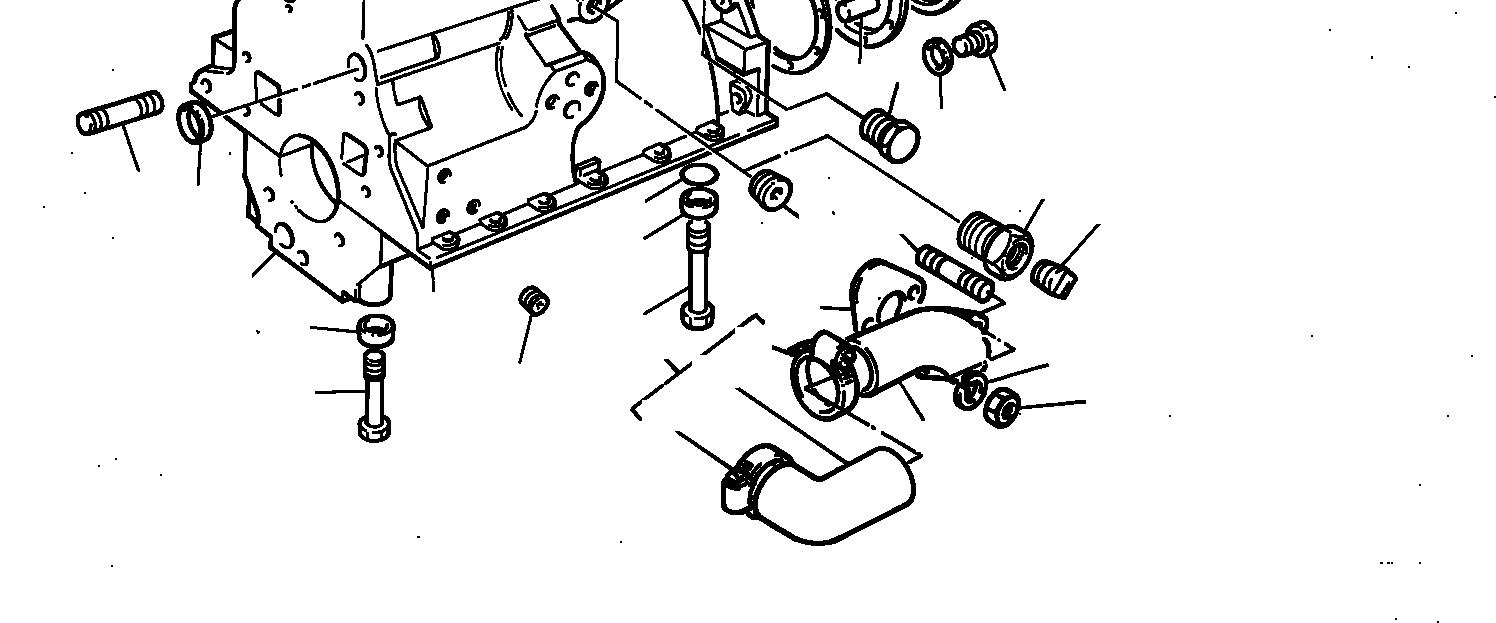

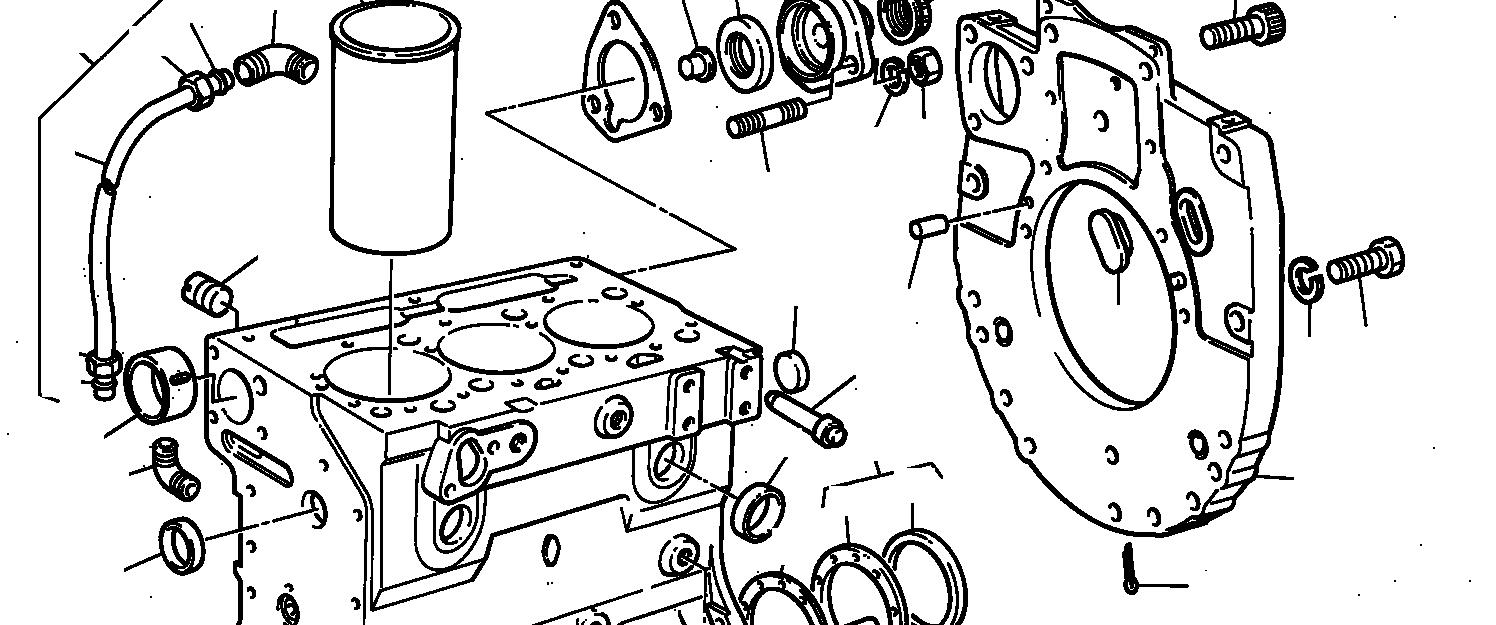

CYLINDER BLOCK - AD3.152 ENGINE
Item Part Number Qty Description Comments
70 3638534M1 1 Nut (68)
71 827276M1 1 Olive (68)
72 731294M1 1 Bolt
73 375731X1 1 Washer
74 375731X1 1 Washer
75 731250M1 1 Connection
79 735889M1 1 Connection (F)
80 731208M1 1 Housing (F) 745392M1 1 Plate (G)
81 731209M1 1 Joint
82 731647M1 3 Stud (F)
83 353916X1 3 Nut Unf (F) 5/16"-24
84 1650484M1 3 Washer (F)
85 636762M1 1 Seal (F)
86 736091M1 1 Cap Nut (F)
87 1476319X1 3 Screw (G)
88 1650484M1 3 Washer (G)
90 3637497M1 1 Connection
91 731210M1 1 Joint
92 1476324X1 2 Stud Repairs and replaces 731651M1
93 353916X1 2 Nut Unf 5/16"-24
94 1650484M1 2 Washer
95 747939M91 1 Kit, Hose
96 1 Hose (95)
Not serviced, order REF.95
97 3638597M1 1 Clip (95)
Repairs and replaces 364125X1
98 3638597M1 1 Clip (95)
Repairs and replaces 364125X1 (A) PRESS FIT (B) SLIP FIT (C)
REMOVE AND FIT 731996M1 (D)
USED ONLY WITH EARLIER CYLINDER BLOCKS WITH OIL PR ESSURE RAIL DRILLED AND TAPPED 1/4 - 18 (E) FITTED IN PLACE OF OIL PRESSURE RAIL PLUG SUPPLIED WITH CYLINDER BLOCK ASSEMBLY (F) FOR ENGINES BUILT TO BUILD LIST CE22488,CE31166 AN D CE31215 (G) FOR ENGINES BUILT TO BUILD LIST CE31244

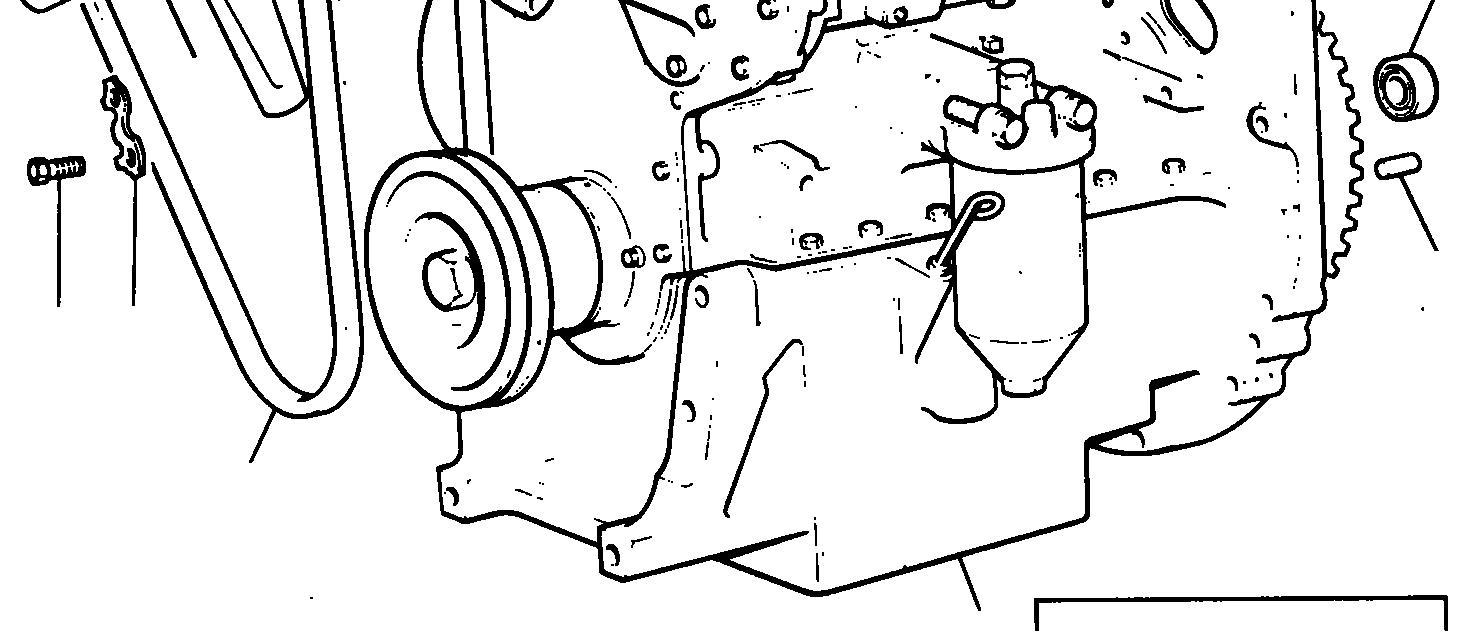

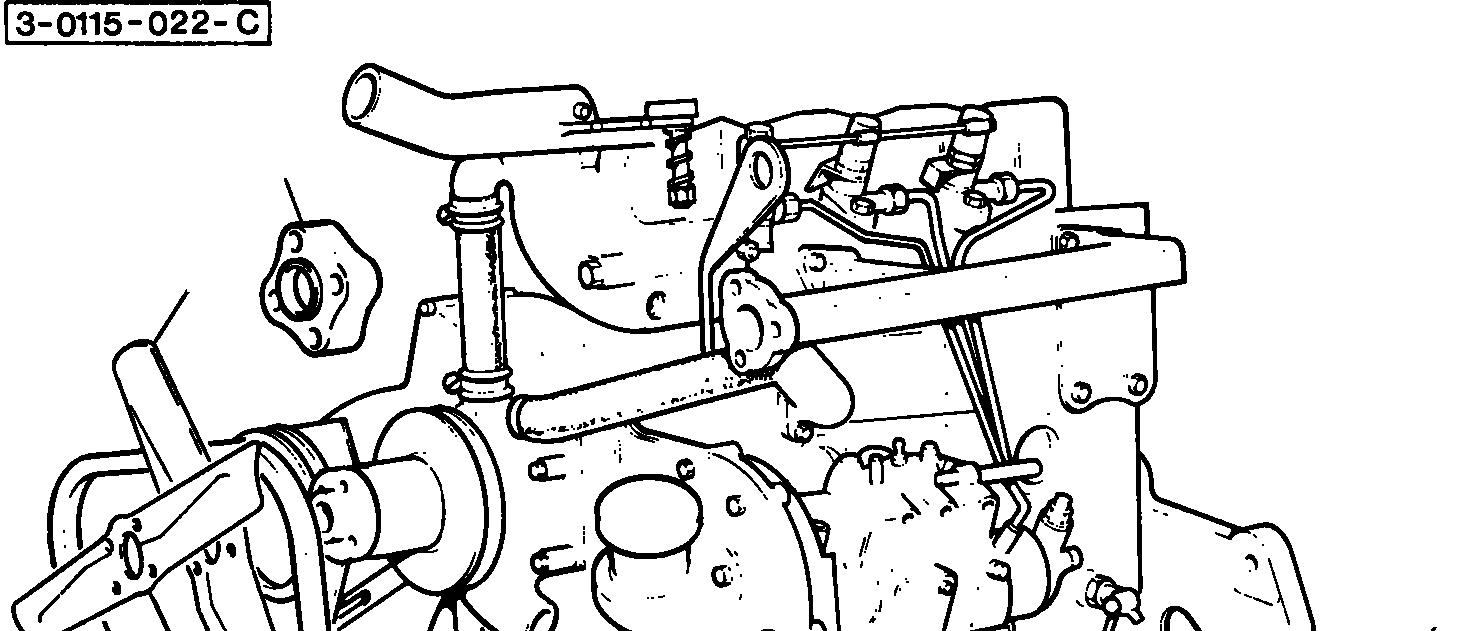

ENGINE INSTALLATION
Item Part Number Qty Description Comments
1 1872139M91 1 Engine PEL - 22488
Up to Serial or Engine Number 564971. 1 1688552M91 1 Engine (A)
PEL NO.CE31166
From Serial or Engine Number U27001. 1 1688996M91 1 Engine (A)
PEL NO.CE31215
1 3697166M91 1 Engine (C,A) PEL - CE31244
2 353701X1 1 Screw Unc 7/16"-14 X 35 3 353707X1 1 Screw Unc 7/16"-14 X 54
4 353707X1 1 Screw Unc 7/16"-14 X 54
5 353707X1 1 Screw Unc 7/16"-14 X 54
6 353711X1 8 Bolt Unc 7/16"-14X67/28
7 825302M1 2 Dowel
8 1687531M1 1 V Belt 13X11 1688988M1 1 Belt 13X8
9 828123M2 1 Bearing Assy 15 1884738M1 1 Fan 16 1884777M1 1 Fan 17 353518X1 4 Screw Unf 5/16"-24 X 22 378805X1 4 Bolt Unf 5/16"-24X70/25 18 885476M2 2 Tab Washer 19 736679M1 2 Extension 24 1674971M91 1 Fan For France only or any text in French only 1674971M91 1 Fan (B)
4 Bolt Unf 5/16"-24X18/15
4 Bolt Unf (B) 5/16"-24X70/25
353446X1 4 Lock Washer
736679M1 2 Extension (B)
For France only or any text in French only
35 3019857X1 1 Bolt Metric (A) M12 X 90/30
36 339369X1 1 Lock Washer (A) 37 3019862X1 1 Nut Metric (A) M12
38 3019855X1 1 Bolt Metric (A)
M12 X 70/30 39 3019852X1 2 Bolt Metric (A)
M12 X 55/30 40 3019855X1 8 Bolt Metric (A)
M12 X 70/30 41 3009794X1 1 Bolt Metric (A)
M12 X 70/30
42 339369X1 1 Lock Washer (A) 43 3019858X1 1 Bolt Metric (A)
M12 X 35/30 44 3019852X1 1 Bolt Metric (A)
M12 X 55/30 (A) WITH METRIC BOLTING ARRANGEMENT (B) WITH HYDROSTATIC STEERING (C) ERGONOMIC PEDALS TRACTOR
