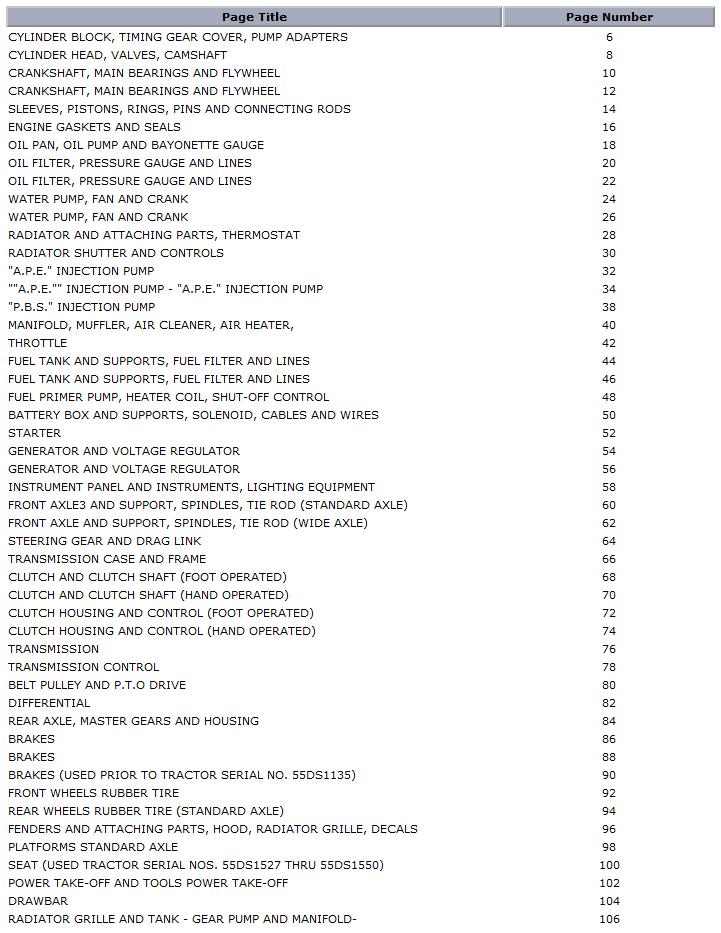

55 (PRIOR TO S/N 10001) DIESEL

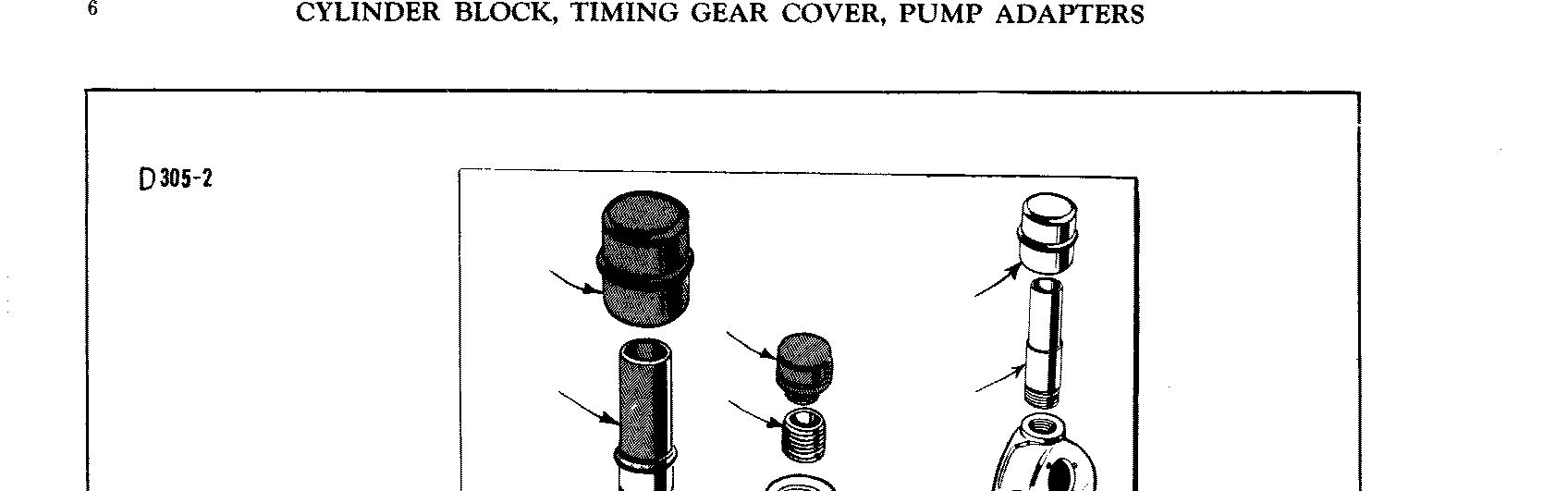

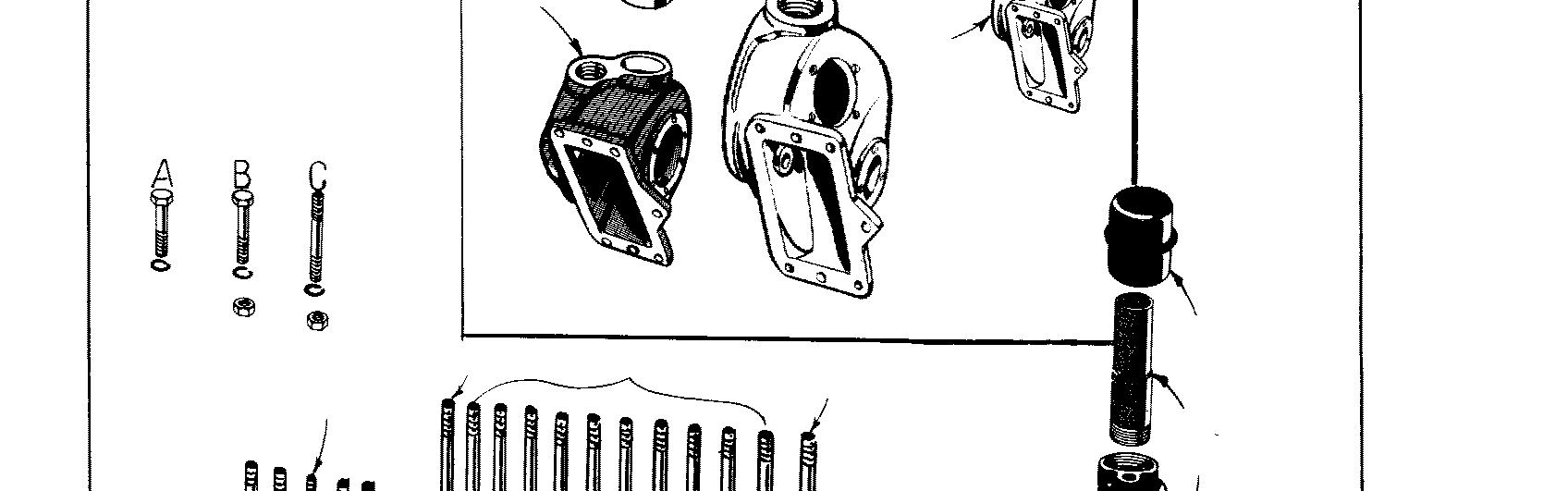

CYLINDER BLOCK, TIMING GEAR COVER, PUMP ADAPTERS
Item Part Number Qty Description
1
1001080M91 1 (A) Block Assembly, Cylinder (Inc. All Studs, Plugs and Main Bearing Caps)
1002343M91 1 (B) Block Assembly, Cylinder (Inc. All Studs, Plugs And Main Bearing Caps)
2 14708X 3 Plug, Core Holes (2" Expansion)
3 11338X 1 Plug, Rear Camshaft Hole (2-1/4" Expansion)
4 1000148M1 2 Plug (1/4" P.T. Sckt. Hd.)
5 760401M1 10 Stud, Cylinder Head Attaching (9/16" NC-NF x 7-1/8")
6 1004941M1 5 (C) Stud, Cylinder Head Attaching (9/16" NC-NF x 3")
1002071M1 5 (D) Stud, Cylinder Head Attaching (9/16" NC-NF x 2-5/8")
7 760507M1 2 Stud, Cylinder Head Attaching (9/16" NC-NF x 6-11/16")
8 15247A 2 Stud, Cylinder Head Attaching (3/8" NC x 1-11/16") 1000806M1 1 Plug, Distributor Hole
10 760166M1 1 Pointer, Flywheel Timing
11 15354A 1 Cover, Flywheel Timing Hole
12 17058A 1 Felt, Flywheel Timing Hole Cover
16 1001086M91 1 (A) Cover Assembly, Timing Gear (Inc. Items 17 And 18) 1002347M91 1 (B) Cover Assembly, Timing Gear (Inc. Items 17 And 18)
17 17627A 1 Seal, Oil
18 12263A 1 Plug, Drive, Governor Hole (3/4" Expansion)
19 1001883M1 1 Gasket, Timing Gear Cover
20 760028M1 2 Dowel, Timing Gear Cover (3/8 x 1")
25 1005071M1 1 Adapter, Injection Pump 2410X 1 Plug, Adapter (1/4" Pipe, Sq. Hd.)
27 1004892M91 1 (F) Cap, Oil Filler And Breather
28 1004893M91 1 (F) Pipe Assembly, Oil Filler
29 760017M1 1 Gasket, Adapter To Block
30 760028M1 2 Dowel, Adapter (3/8 x 1")
31 760520M1 1 Washer, Dust Seal (2-3/8 x 3-3/8 x 1/4" Felt)
35 1000238M1 1 (G) Adapter, Fuel Injection Pump
36 1001848M1 1 (B) Adapter, Fuel Injection Pump
40 1002495M91 1 (H) Cap Assembly, Oil Filler And Breather (Order 1-1004892M91 Cap Assembly And 1-1004893M91 Pipe Assembly)
41 1002496M91 1 (K) Pipe Assembly, Oil Filler (Order 1-1001893M91 Pipe Assembly)
42 1002497M91 1 (B) Pipe Assembly , Oil Filler
43 33230A 1 (L) Pipe, Oil Filler
44 15345A 1 (L) Cap Assembly, Oil Filler
48 2426X AR Bolt (3/8 x 1" NC, Hex.) (D)
49 21207A AR Stud (3/8" NC x 1-1/2")
50 2762X AR Washer (3/8" Lock)
51 11923X AR Nut (3/8" NC, Hex.) ****************************************
(A) - Used W/A.P.E. Injection Pump
W/Engine Serial Nos. 1001 To 2000, 2500 And Up.
(B) - Used W/ P.S.B. Injection Pump W/ Engine Serial Nos. 2000 To 2500..
(C) - Used W/1004609M91 Cylinder Head W/ Engine Serial Nos. 3598 Thru 3644, 3705 And Up.
(D) - Used W/1003117M91 Cylinder Head
W/Engine Serial Nos. Prior To 3598; Also 3645 Thru 3704.
(E) - Used W/A.P.E. Injection Pump
W/Engine Serial No. 5000 And Up.
(F) - Used W/A.P.E. Injection Pump
W/Engine Serial Nos. 3620 Thru 3644, 3799 And Up.
(G) -Used W/A.P.E. Injection Pump
W/Engine Serial Nos. 1001 to 2000 And 2500 To 5000.
(H) - Used Engine Serial Nos. 3644 To 3799; Also Used Prior To 3620.
(K) - Used W/A.P.E. Injection Pump
W/Engine Serial Nos. 3645 To 3799, 2500 To 3620 And 1001 To 2000.
(L) -Used On Some Early Tractors W/1000238M1 Adapter. Check Illustration
Massey Ferguson 55 (PRIOR TO S/N 10001) DIESEL
CYLINDER BLOCK, TIMING GEAR COVER, PUMP ADAPTERS
Item Part Number
Qty Description
To Determine Type Of Filler Pipe And Cap Before Ordering.
Massey Ferguson

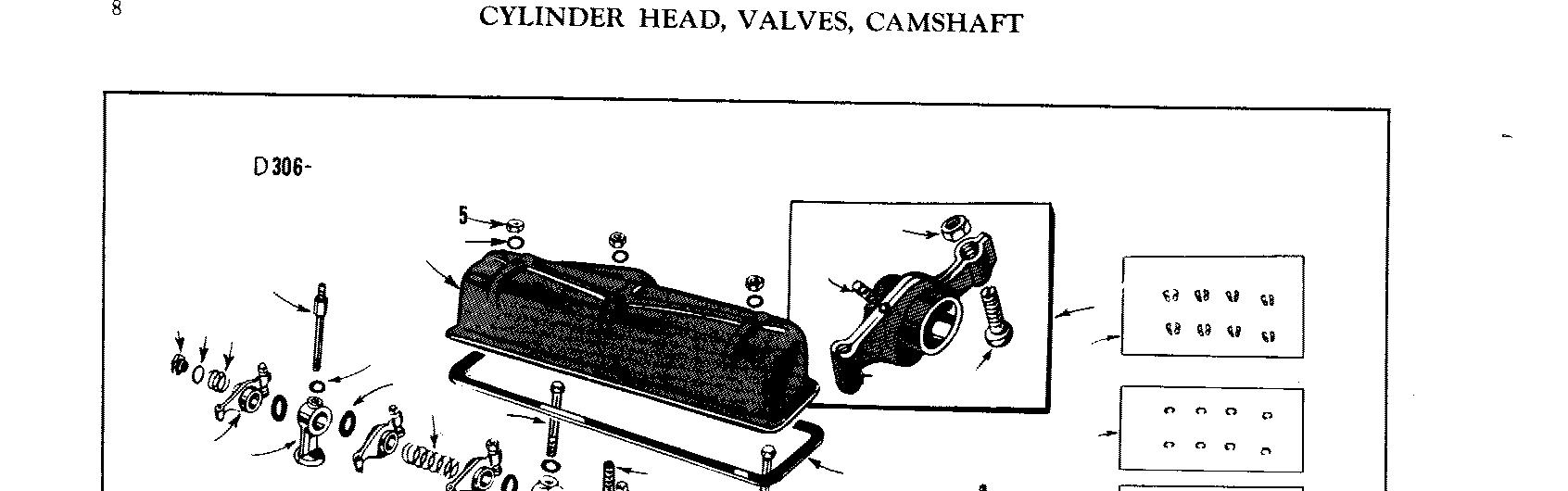

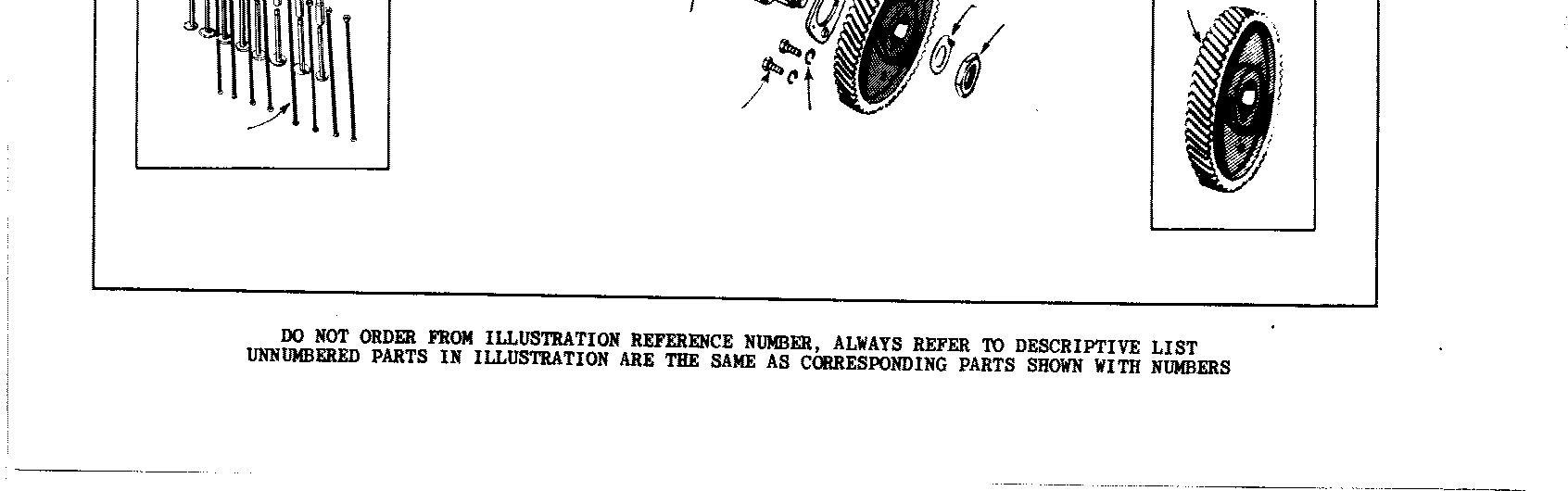

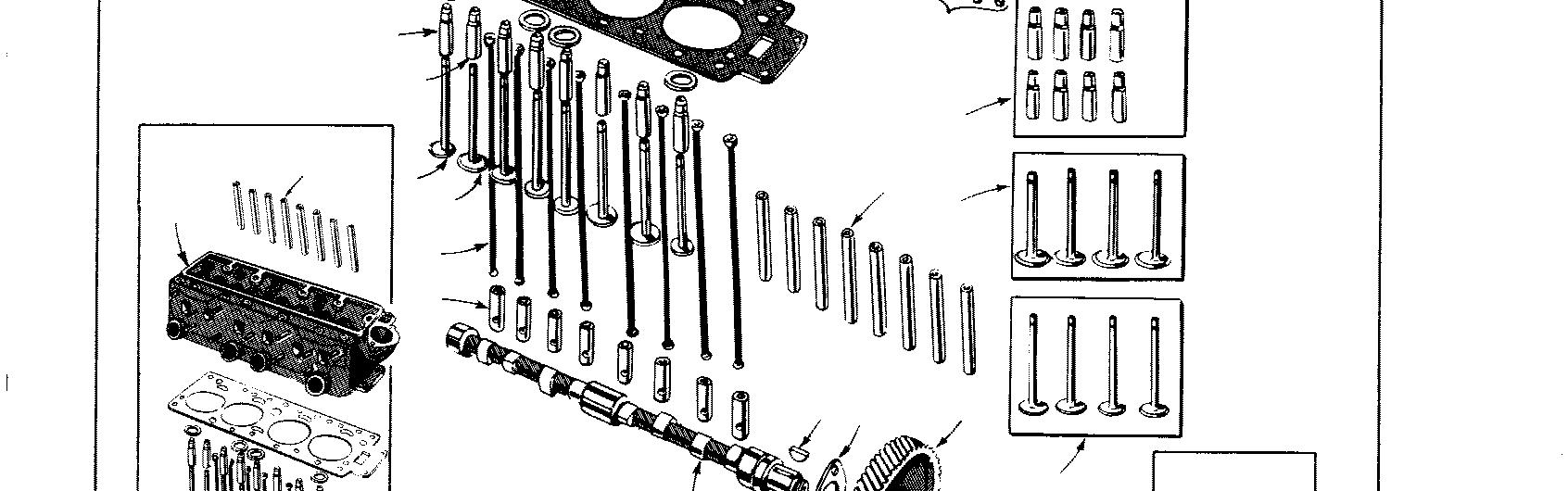

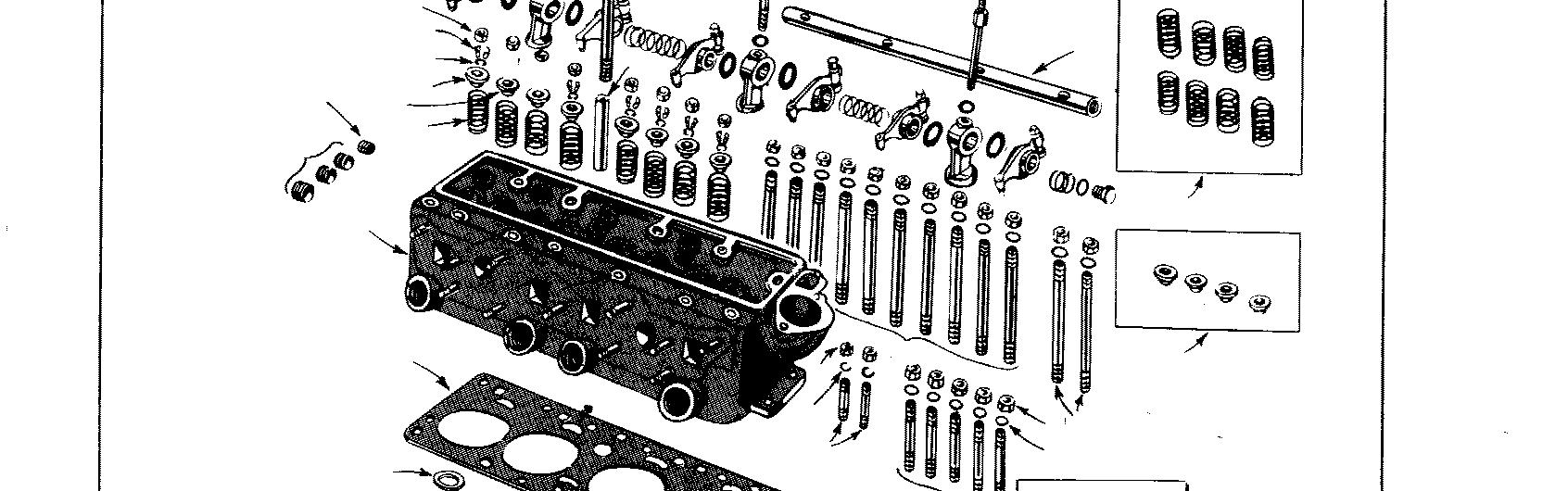

CYLINDER HEAD, VALVES, CAMSHAFT
Description
1004609M91 1 (A) Head Assembly, Cylinder 2 760734M1 4 Ring, Insert, Exhaust Valve (+.010") 3 840528M91 1 Guide Set, Valve
760181M1 4 Guide, Intake Valve 5 760024M1 4 Guide, Exhaust Valve 6 1004599M1 8 (A) Tube, Push Rod 7 2820X 1 Plug, Oil Drilling (1/8" Sq. Hd.) 8 16231X 3 Plug, Cleanout Hole (3/4" Ctsk. Hd.) 9 760408M1 1 Stud, Cylinder Head To Cover (3/8" NC x 5-1/2") 10 840586M91 1 Valve Kit, Intake 11 1001047M1 4 Valve, Intake
840587M91 1 Valve Kit, Exhaust
1001048M1 4 Valve, Exhaust
840757M91 1 Ring Kit, Valve Stem Snap
760004M1 8 Ring, Snap, Valve Stem 16 840758M91 1 Spring Kit, Valve 17 33855A 8 Spring, Valve 18 840803M91 1 (B) Retainer Kit, Roto (Exhaust Valve)
19 1004533M91 4 Retainer Assembly, Roto (Exhaust Valve)
20 760105M1 4 (C) Retainer (Intake Valve)
21 840759M91 1 Lock Kit, Valve Spring Retainer
22 760039M1 16 Lock, Valve Spring Retainer
23 1001049M2 1 Gasket, Cylinder Head (Order 840585M92) (See Page 15)
24 760401M1 10 Stud, Cylinder Head To Block (9/16" NC-NF x 7-1/8")
25 760507M1 2 Stud, Cylinder Head Attaching (9/16" NC-NF x 6-11/16")
26 1004941M1 3 (A) Stud, Cylinder Head Attaching (9/16" NC-NF x 3")
1002071M1 5 (D) Stud, Cylinder Head Attaching (9/16" NC-NF x 2-5/8")
27 1000317M1 17 Nut (9/16" NF, Hex.- Special)
28 1001252M1 17 Washer (9/16" Flat- Special)
29 15247A 2 Stud (3/8" NC x 1-11/16")
30 11923X 2 Nut (3/8" NC, Hex.)
31 2762X 2 Washer (3/8" Lock)
35 1000800M91 8 Arm Assembly, Rocker
36 1004577M1 1 Screw, Valve Adjusting
37 12871X 1 Nut, Adjusting Screw Lock (3/8" NF, Half Hex.)
38 1000596M1 1 Wick, Oil, Rocker Arm
39 760152M1 8 Socket, Ball
40 760011M1 1 Shaft, Rocker Arm
41 1001050M1 8 Spacer, Rocker Arm (1-1/64 x 1-1/2 x 1/16")
42 761534M1 3 Spring, Rocker Arm Shaft (Long)
43 760154M1 2 Spring, Rocker Arm Shaft (Short)
44 760037M1 2 Plug, Oil, Rocker Arm Shaft
45 18485A 2 Gasket, Plug (5/8 x 7/8 x 1/16" Copper Asbestos)
46 760026M1 4 Support, Rocker Arm Shaft
47 760106M1 2 Stud, Support To Head, Outer (7/16" NC - 3/8" NC x 5-17/32")
48 16312X 2 Bolt, Support To Head, Inner (7/16 x 4" NC, Hex.)
49 2565X 4 Washer (7/16" Small Flat)
52 760057M91 1 Cover Assembly, Cylinder Head
53 760054M1 1 Gasket, Cylinder Head Cover
54 760008M1 1 Spacer, Cylinder Head Cover (3/8" Pipe x 5-1/16")
55 11923X 3 Nut (3/8" NC, Hex.)
56 11277X 3 Washer (3/8" Copper Asbestos)
60 761674M1 1 Camshaft
61 17633A 1 Plate, Thrust, Camshaft
62 760425M1 2 Bolt, Thrust Plate (3/8 x 7/8" NC, Hex.)
63 15200X 2 Washer (3/8" Int. Shakeproof)
64 1002325M1 1 Gear, Camshaft Timing (72 Teeth)
65 2196X 1 Key (# A Woodruff)
66 17647A 1 Nut (1" - 16 Special Hex.)
67 17646A 1 Washer (1-1/64" Special Lock)
68 760038M1 8 Tappet, Valve
69 1004610M1 8 (A) Rod, Valve Push
70 1003117M91 1 (D) Head Assembly, Cylinder (Order 1004609M91)
71 760218M1 8 (D) Tube, Push Rod
72 1001051M1 8 Rod, Valve Push
73 1004199M1 AR (E) Gear, Camshaft Timing (-.001")
Massey Ferguson
CYLINDER HEAD, VALVES, CAMSHAFT
Item Part Number
Qty Description
1004200M1 AR (E) Gear, Camshaft Timing (-.002")
1004201M1 AR (E) Gear, Camshaft Timing (-.003")
1004202M1 AR (E) Gear, Camshaft Timing (-.004")
1004203M1 AR (E) Gear, Camshaft Timing (-.005")
1004204M1 AR (E) Gear, Camshaft Timing (-.006")
1004205M1 AR (E) Gear, Camshaft Timing (+.001")
1004206M1 AR (E) Gear, Camshaft Timing (+.002")
1004207M1 AR (E) Gear, Camshaft Timing (+.003")
1004208M1 AR (E) Gear, Camshaft Timing (+.004")
1004209M1 AR (E) Gear, Camshaft Timing (+.005")
1004210M1 AR (E) Gear, Camshaft Timing (+.006")
(A) - Used Engine Serial No. 3598 Thru 3644, 3705 And Up.
(B) - Engine w/Roto Retaining Caps, Will Be Designated By Engine Serial No. JD382E.
(C) - Engine w/Serial No. JD382 Used 760105M1 Retainers For Exhaust And Intake Valves. Order 840803M91 Roto Retaining Kit, When Replacing Exhaust Valve Spring Retainers.
(D) - Used Engine Serial No. 3645 Thru 3704; Also Used Prior To Engine Serial Nos. 3598.
(E) - Undersize And Oversize Gears Are Furnished On Special Order When Needed To Obtain Quiet Gear Operation.
