Massey Ferguson
Ferguson
(EFF. S/N 10001 AND UP) DIESEL TRACTOR
Massey Ferguson
55 (EFF. S/N 10001 AND UP) DIESEL

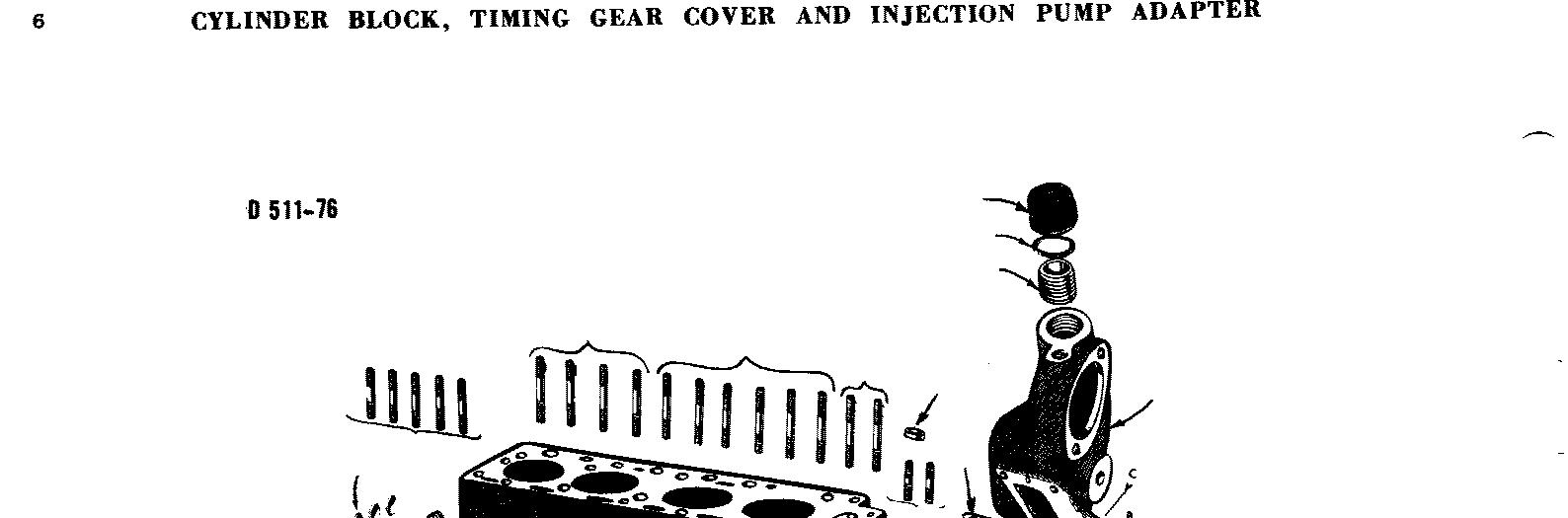

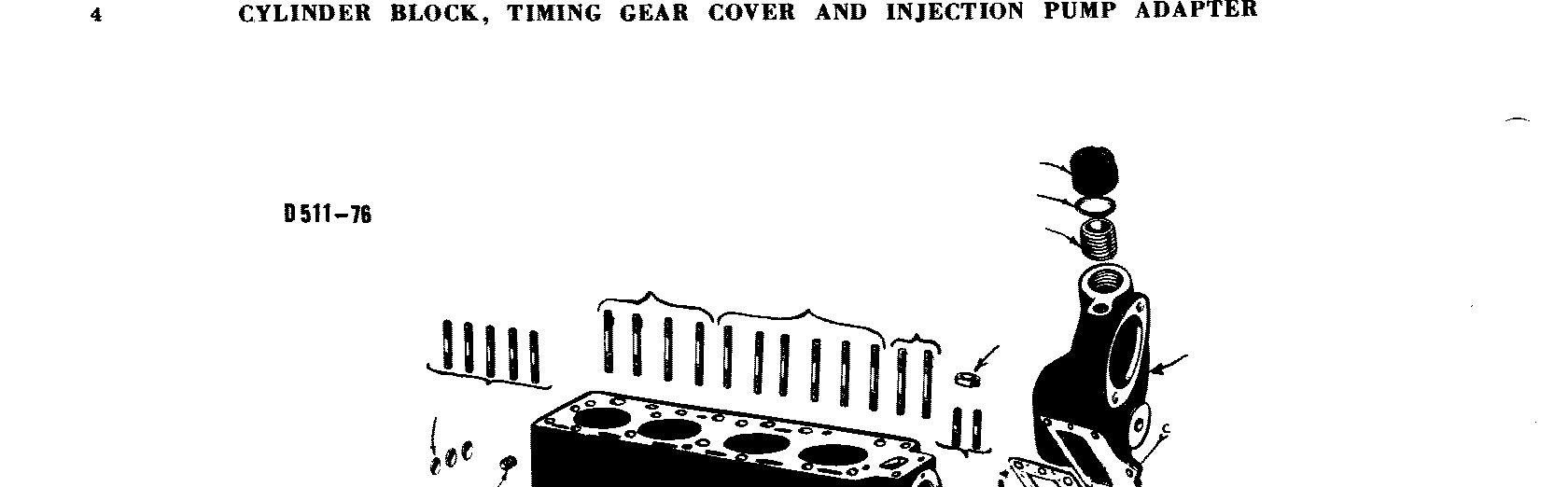

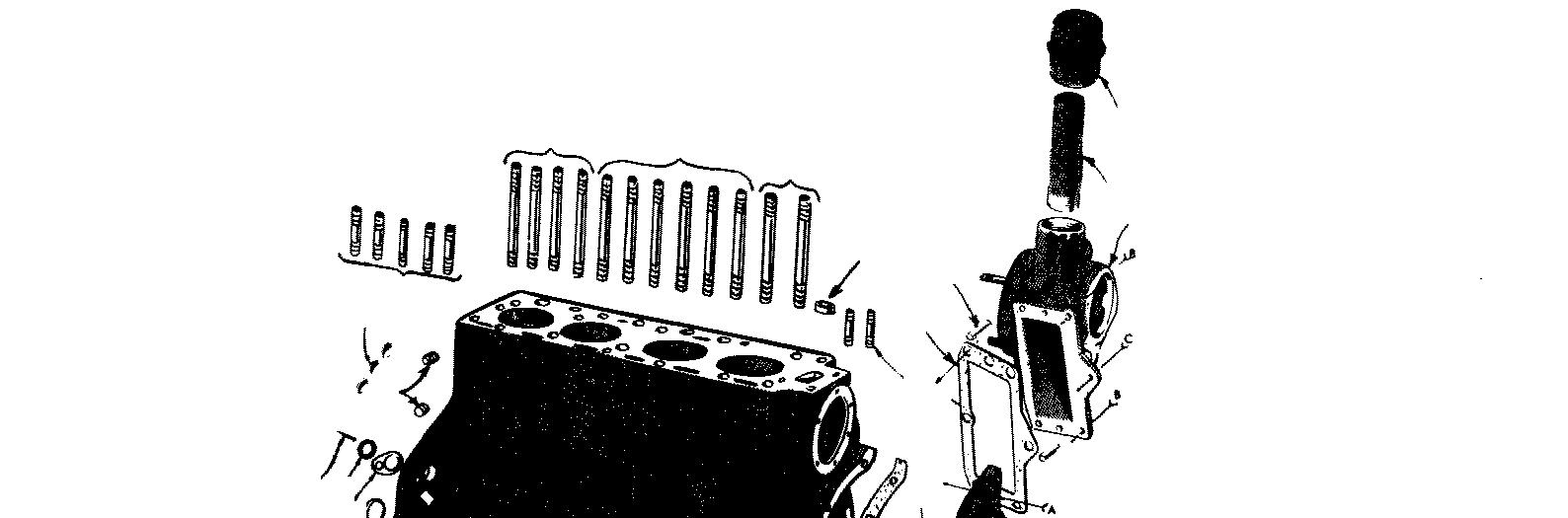

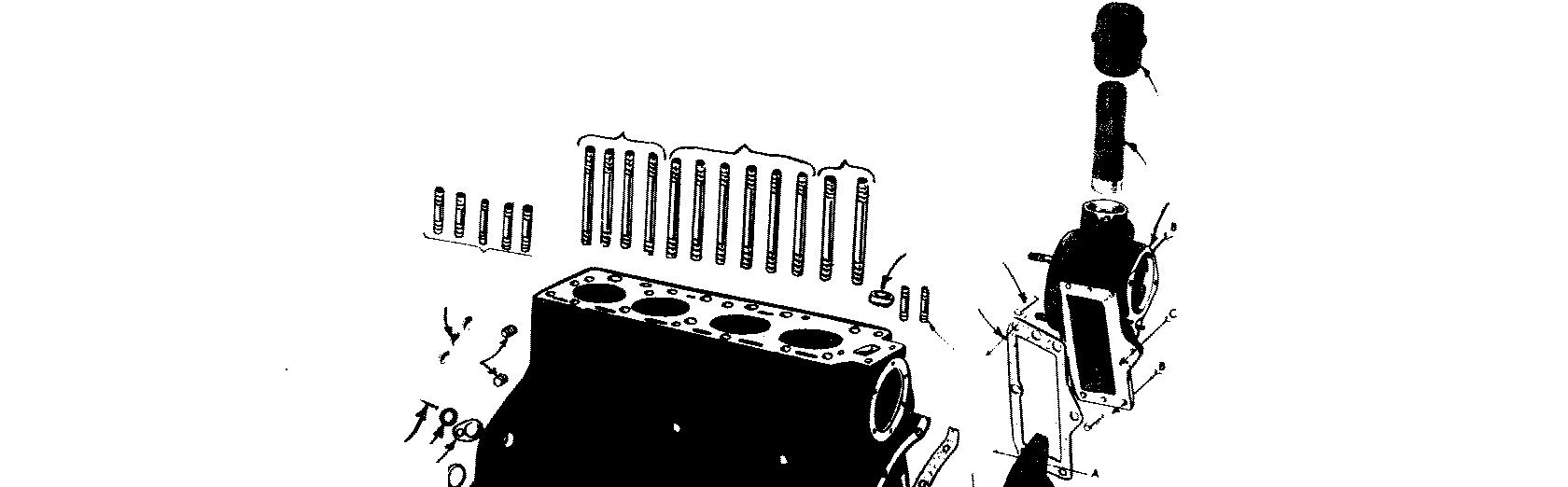

CYLINDER BLOCK, TIMING GEAR COVER
Item Part Number Qty Description (AND INJECTION PUMP ADAPTER) (PRIOR TO ENGINE SERIAL NO. 10001) (USED W/P.S.B. FUEL INJECTION PUMP)
1 1006601M92 1 Block Assembly, Cylinder (Includes Sleeves, Pistons, Rings, Pins, Connecting Rods, Crankshaft, Main Bearings, Camshaft And Timing Gears)
1006603M92 1 Block Assembly, Cylinder (Includes All Studs, Plugs And Main Bearing Caps)
2 14708X 3 Plug, Core Holes (2" Expansion)
3 11338X 1 Plug, Rear Camshaft Hole (2-1/4" Expansion)
4 1003010M1 2 Plug, Heater Hole (2" Cup Type)
5 1000148M1 2 Plug (1/4" P.T. Sckt. Hd.)
6 1006805M1 4 Stud, Cylinder Head Attaching (9/16" NC-NF x 7-1/8" W/Nylok Insert)
7 760401M1 6 Stud, Cylinder Head Attaching (9/16" NC-NF x 7-1/8")
8 1004941M1 5 Stud, Cylinder Head Attaching (9/16" NC-NF x 3")
9 760507M1 2 Stud, Cylinder Head Attaching (9/16" NC-NF x 6-11/16")
10 15247A 2 Stud, Cylinder Head Attaching (3/8" NC x 1-11/16")
11 1000806M1 1 Plug, Distributor Hole
12 760166M1 1 Pointer, Flywheel Timing
13 15354A 1 Cover, Timing Hole
14 17058A 1 Felt, Timing Hole Cover
16 1002347M91 1 Cover Assembly, Timing Gear
17 17627A 1 Seal, Oil (2-3/8 x 3-23/64 x 15/32")
18 12263X 1 Plug, Governor Cross Shaft Hole (3/4" Expansion)
19 1001883M1 1 Gasket, Timing Gear Cover
20 760028M1 2 Pin, Dowel, Timing Gear Cover (3/8 x 3/4")
21 760520M1 1 Washer, Dust Seal (2-3/8 x 3-3/8 x 1/4" Felt) 26 1005618M1 1 Adapter, Injection Pump
1006041M1 1 Pipe, Oil Filler
1005067M1 1 Cap, Oil Filler
29 1005068M1 1 Gasket, Oil Filler Cap
30 760017M1 1 Gasket, Adapter To Block
31 760028M1 2 Pin, Dowel, Adapter TO Block (3/8 x 3/4")
32 2426X AR Bolt (3/8 x 1" NC, Hex.)
33 21207A AR Stud (3/8" NC x 1-1/2")
34 2762X AR Washer (3/8" Lock)
35 11923X AR Nut (3/8" NC, Hex.)
(USED W/A.P.E. FUEL INJECTION PUMP)
51 1006600M92 1 (A) Block Assembly, Cylinder (Includes Sleeves, Pistons, Rings, Pins, Connecting Rods, Crankshaft, Main Bearings, Camshaft And Timing Gears)
1006602M92 1 (A) Block Assembly, Cylinder (Includes All Studs, Plugs And Main Bearing Caps) 1001080M91 1 (B) Block Assembly, Cylinder (Includes All Studs, Plugs, And Main Bearing Caps) (Order 1 - 1006602M92 And 1 - 1007164M91 Or 1 - 1006600M92 And 1 - 1007164M91)
52 14708X 3 Plug, Core Hole (2" Expansion)
53 11338X 1 Plug, Rear Camshaft Hole (2-1/4" Expansion)
54 1003010M1 2 Plug, Heater Hole (2" Cup Type)
55 1000148M1 2 Plug (1/4" P.T. Sckt. Hd.)
56 1006805M1 4 Stud, Cylinder Head Attaching (9/16" NC-NF x 7-1/8" W/Nylok Insert)
57 760401M1 6 Stud, Cylinder Head Attaching (9/16" NC-NF x 7-1/8")
58 1004941M1 5 Stud, Cylinder Head Attaching (9/16" NC-NF x 3")
59 760507M1 2 Stud, Cylinder Head Attaching (9/16" NC-NF x 6-11/16")
60 15247A 2 Stud, Cylinder Head Attaching (3/8" NC x 1-11/16")
61 1000806M1 1 Plug, Distributor Hole
62 760166M1 1 Pointer, Flywheel Timing
63 15354A 1 Cover, Timing Hole
64 17058A 1 Felt, Timing Hole Cover
66 1001086M91 1 Cover Assembly, Timing Gear
67 17627A 1 Seal, Oil (2-3/8 x 3-23/64 x 15/32")
68 12263X 1 Plug, Governor Cross Shaft (3/4" Expansion)
69 1001883M1 1 Gasket, Timing Gear Cover
70 760028M1 2 Pin, Dowel, Timing Gear Cover (3/8 x 3/4")
71 760520M1 1 Washer, Dust Seal (2-3/8 x 3-3/8 x 1/4" Felt)
76 1005071M1 1 Adapter, Injection Pump
77 1004893M91 1 Pipe Assembly, Oil Filler
78 1004892M91 1 Cap, Oil Filler
79 760017M1 1 Gasket, Adapter To Block
Massey Ferguson
55 (EFF. S/N 10001 AND UP) DIESEL TRACTOR
CYLINDER BLOCK, TIMING GEAR COVER
Item Part Number Qty Description
80 760028M1 2 Pin, Dowel, Adapter To Block (3/8 x 3/4")
81 2426X AR Bolt (3/8 x 1" NC, Hex.)
82 21207A AR Stud (3/8" NC x 1-1/2")
83 2762X AR Washer (3/8" Lock)
84 11923X AR Nut (3/8" NC, Hex.)
(A) - Used Engine Serial No. 6299 And Up. (B) - Used Prior To Engine Serial No. 6299.
Massey Ferguson
55 (EFF. S/N 10001 AND UP) DIESEL
CYLINDER BLOCK, TIMING GEAR COVER
Item Part Number
Qty Description (AND INJECTION PUMP ADAPTER) (ENGINE SERIAL NO. 10001 AND UP) (USED W/P.S.B. FUEL INJECTION PUMP)
1 1007538M91 1 Block Assembly, Cylinder (Includes Sleeves, Pistons, Rings, Pins, Connecting Rods, Crankshaft, Main Bearings, Camshaft And Timing Gears)
1007540M91 1 Block Assembly, Cylinder (Includes All Studs, Plugs And Main Bearing Caps)
2 14708X 3 Plug, Core Holes (2" Expansion)
3 11338X 1 Plug, Rear Camshaft Hole (2-1/4" Expansion)
4 1003010M1 2 Plug, Heater Hole (2" Cup Type)
5 1000148M1 2 Plug, Oil Drilling (1/4" Pipe, Ctsk. Hd.)
6 1006805M1 4 Stud, Cylinder Head Attaching (9/16" NC-NF x 7-1/8" W/Nylok Insert)
7 760401M1 6 Stud, Cylinder Head Attaching (9/16" NC-NF x 7-1/8")
8 1004941M1 5 Stud, Cylinder Head Attaching (9/16" NC-NF x 3")
9 760507M1 2 Stud, Cylinder Head Attaching (9/16" NC-NF x 6-11/16")
10 15247A 2 Stud, Cylinder Head Attaching (3/8" NC x 1-11/16")
11 1000806M1 1 Plug, Distributor Hole
12 760166M1 1 Pointer, Flywheel Timing 13 15354A 1 Cover, Timing Hole 14 17058A 1 Felt, Timing Hole Cover 16 1002347M91 1 Cover Assembly, Timing Gear 17 17627A 1 Seal, Oil (2-3/8 x 3-23/64 x 15/32")
18 12263X 1 Plug, Governor Cross Shaft Hole (3/4" Expansion)
19 1001883M1 1 Gasket, Timing Gear Cover
20 760028M1 2 Pin, Dowel, Timing Gear Cover (3/8 x 3/4")
21 760520M1 1 Washer, Dust Seal (2-3/8 x 3-3/8 x 1/4" Felt)
1005618M1 1 Adapter, Injection Pump
1006041M1 1 Pipe, Oil Filler
1005067M1 1 Cap, Oil Filler
29 1005068M1 1 Gasket, Oil Filler Cap
30 760017M1 1 Gasket, Adapter To Block
31 760028M1 2 Pin, Dowel, Adapter To Block (3/8 x 3/4")
32 2426X AR Bolt (3/8 x 1" NC, Hex.)
33 21207A AR Stud (3/8" NC x 1-1/2")
34 2762X AR Washer (3/8" Lock)
35 11923X AR Nut (3/8" NC, Hex.) ****************************************
(USED W/A.P.E. FUEL INJECTION PUMP)
51 1007537M91 1 Block Assembly, Cylinder (Includes Sleeves, Pistons, Rings, Pins, Connecting Rods, Crankshaft, Main Bearing, Camshaft And Timing Gears)
1007539M91 1 Block Assembly, Cylinder (Includes All Studs, Plugs, And Main Bearing Caps)
52 14708X 3 Plug, Core Hole (2" Expansion)
53 11338X 1 Plug, Rear Camshaft Hole (2-1/4" Expansion)
54 1003010M1 2 Plug, Heater Hole (2" Cup Type)
55 1000148M1 2 Plug, Oil Drilling (1/4" Pipe, Ctsk. Hd.)
56 1006805M1 4 Stud, Cylinder Head Attaching (9/16" NC-NF x 7-1/8" W/Nylok Insert)
57 760401M1 6 Stud, Cylinder Head Attaching (9/16" NC-NF x 7-1/8")
58 1004941M1 5 Stud, Cylinder Head Attaching (9/16" NC-NF x 3")
59 760507M1 2 Stud, Cylinder Head Attaching (9/16" NC-NF x 6-11/16")
60 15247A 2 Stud, Cylinder Head Attaching (3/8" NC x 1-11/16")
61 1000806M1 1 Plug, Distributor Hole
62 760166M1 1 Pointer, Flywheel Timing
63 15354A 1 Cover, Timing Hole
64 17058A 1 Felt, Timing Hole Cover
66 1001086M91 1 Cover Assembly, Timing Gear
67 17627A 1 Seal, Oil (2-3/8 x 3-23/64 x 15/32")
68 12263X 1 Plug, Governor Cross Shaft (3/4" Expansion)
69 1001883M1 1 Gasket, Timing Gear Cover
70 760028M1 2 Pin, Dowel, Timing Gear Cover (3/8 x 3/4")
71 760520M1 1 Washer, Dust Seal (2-3/8 x 3-3/8 x 1/4" Felt)
76 1005071M1 1 Adapter, Injection Pump
77 1004893M91 1 Pipe Assembly, Oil Filler
78 1004892M91 1 Cap, Oil Filler
79 760017M1 1 Gasket, Adapter To Block
80 760028M1 2 Pin, Dowel, Adapter To Block (3/8 x 3/4")
Ferguson 55 (EFF. S/N 10001 AND UP) DIESEL
CYLINDER BLOCK, TIMING GEAR COVER
Item Part Number Qty Description
81 2426X AR Bolt (3/8 x 1" NC, Hex.)
82 21207A AR Stud (3/8" NC x 1-1/2")
83 2762X AR Washer (3/8" Lock)
84 11923X AR Nut (3/8" NC, Hex.)
