44 (PRIOR TO S/N

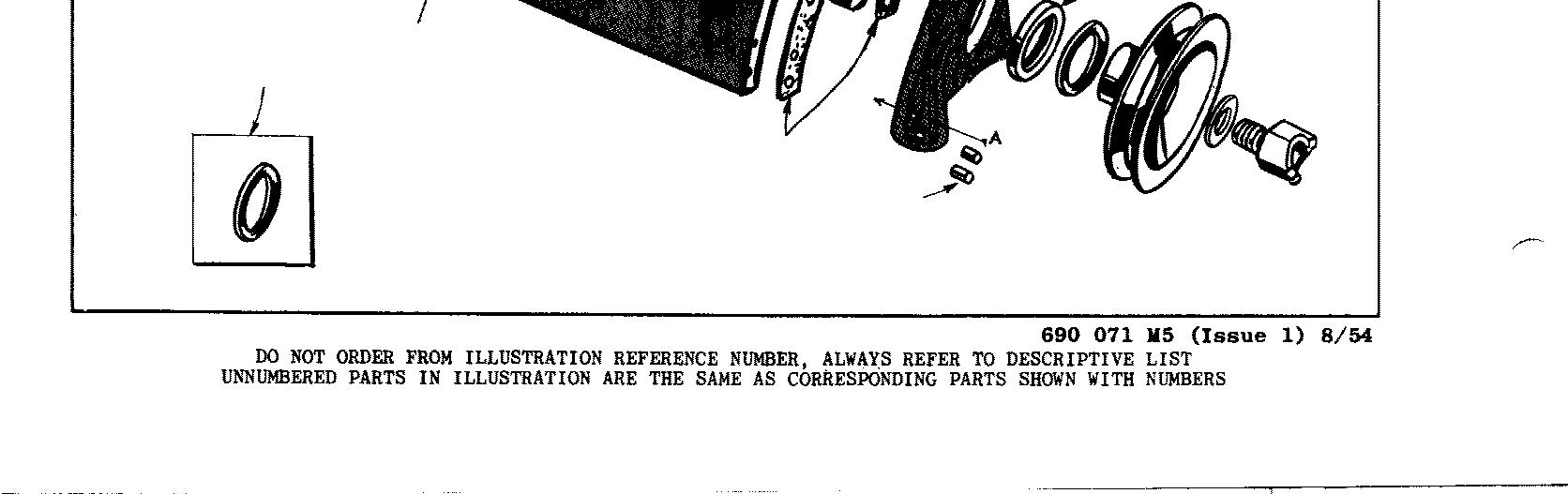

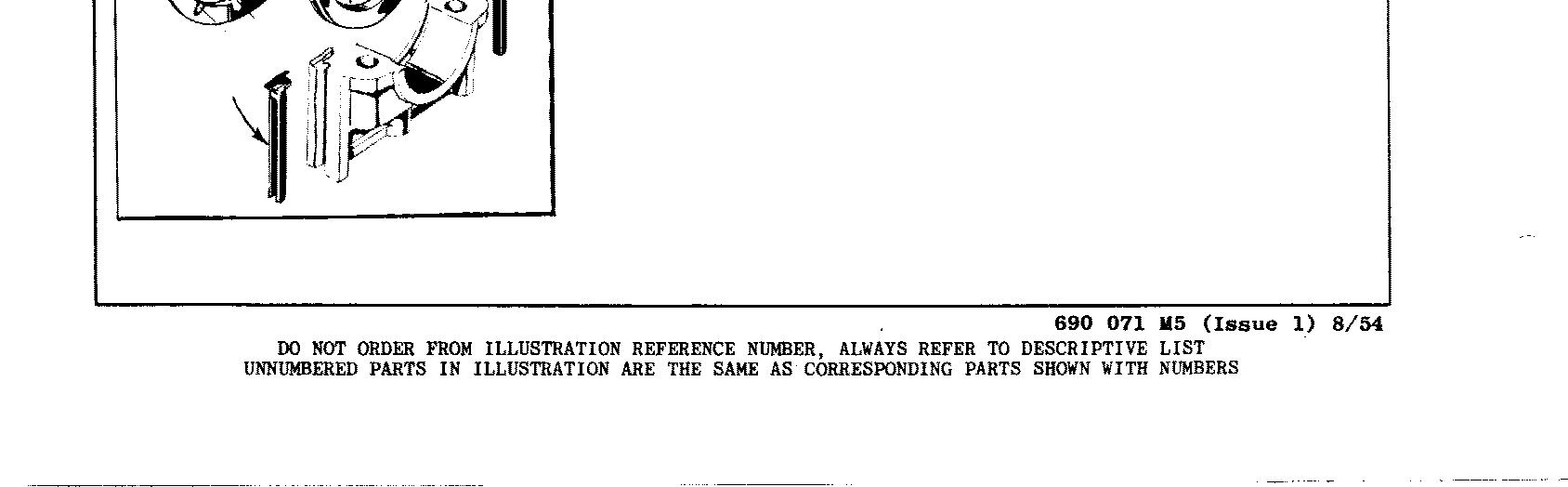

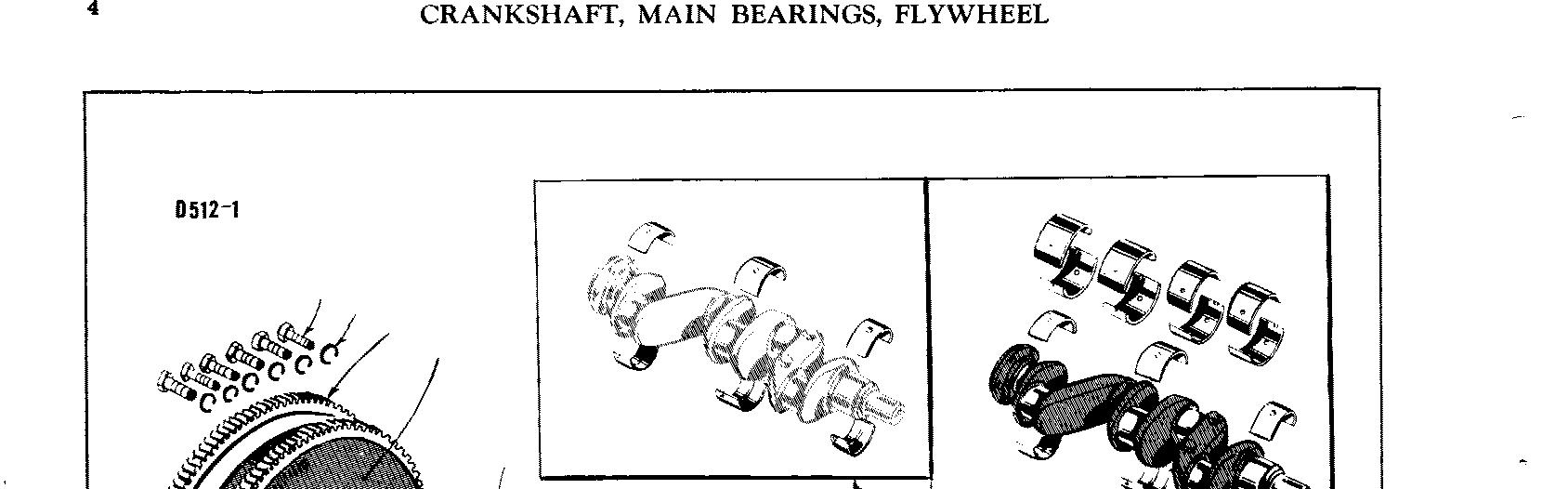

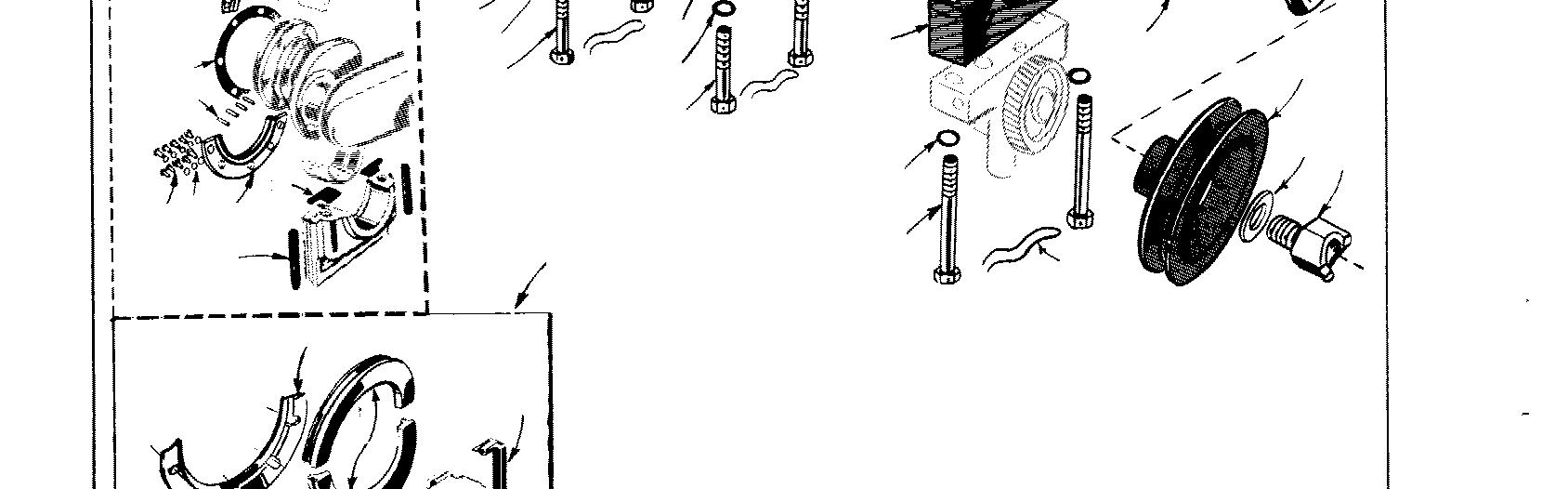

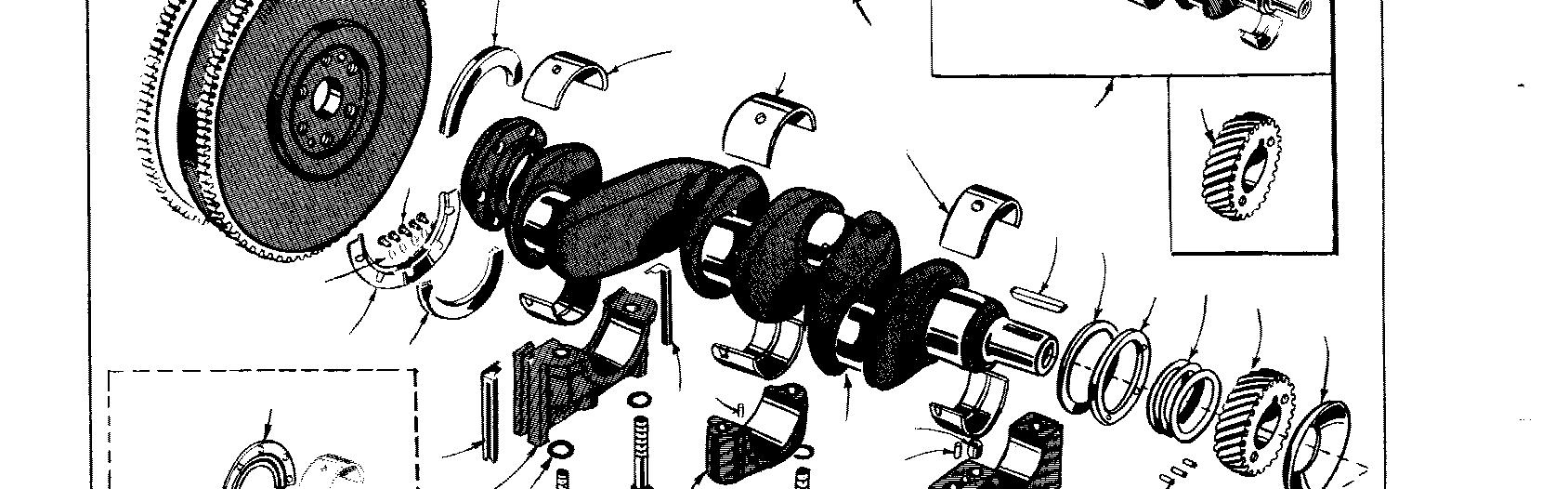

CRANKSHAFT, MAIN BEARINGS, FLYWHEEL
Item Part Number Qty Description (USED ENGINE SERIAL NO. 14588 AND UP) (STD., RC) ****************************************
1 841106M91 1 Crankshaft Kit, w/Inserts (Includes 1-1006752M1 Crankshaft, 1-840544M91 Main Bearing Insert Set And 1-840540M91 Connecting Rod Insert Set.)
2 1006752M1 1 Crankshaft (Order 841106M91)
3 760239M1 1 Washer, Thrust, Outer (2-29/32 x 3-5/8 x 3/16")
4 15240A 3 Pin, Thrust Washer Retaining (5/32 x 1/2")
5 1001145M2 1 Washer, Thrust, Inner (2-61/64 x 4 x 3/32" Fiber)
6 760185M1 1 Gear, Crankshaft Timing, Std. (See Item No. 55)
7 760426M1 1 Key, Crankshaft
8 17605A AR Shim, Timing Gear (.002") 17606A AR Shim, Timing Gear (.008")
9 760198M1 1 Washer, Oil Throwoff
10 760115M1 1 Pulley, Fan And Water Pump Drive
11 760412M1 1 Jaw, Crankshaft Starting
12 760413M1 1 Washer, Starting Jaw
13 1006613M1 2 (A) Seal, Oil, Crankshaft, Rear
14 1006614M1 1 (A) Retainer, Rear Oil Seal
15 760147M1 2 (B) Seal, Oil, Crankshaft, Rear (Order 841050M91)
16 761535M1 2 (B) Gasket, Rear Oil Seal
17 760405M1 4 (B) Pin, Oil Seal Locating (5/32 x 7/16"
18 14275X AR Screw (1/4 x 3/8" NC, Rd. Hd.)
19 1002044M1 AR Washer (17/64 x 3/8 x 1/32" Copper)
24 1000204M91 1 Insert Assembly, Front (See Item No. 50)
25 1000205M91 1 Insert Assembly, Center See Item No. 50
26 1000206M91 1 Insert Assembly, Rear (See Item No. 50)
27 1005643M1 1 Cap, Main Bearing, Front
28 1005642M1 1 Cap, Main Bearing, Center
29 1005641M1 1 Cap, Main Bearing, Rear
30 1006611M1 1 (C) Seal, Bearing Cap, Left Hand
31 1006610M1 1 (C) Seal, Bearing Cap, Right Hand
32 1004877M1 2 (D) Gasket, Rear Bearing Cap (Top) (Order 841050M91)
33 1004878M1 2 (D) Seal, Rear Bearing Cap (Sides) (Order 841050M91)
34 760402M1 4 Pin, Bearing Cap Locating (1/4 x 15/32")
35 17170A 1 Dowel, Ring, Front Bearing Cap
36 1005640M1 2 Bolt, Front Bearing Cap (5/8 x 4-1/2" NC, Hex., Drilled)
37 1005639M1 4 Bolt, Center And Rear Bearing Caps (5/8 x 3" NC, Hex., Drilled)
38 1005638M1 2 Washer, Rear Bearing Cap (21/32 x 1 x 1/8")
39 1005637M1 4 Washer, Center And Front Bearing Caps (21/32 x 1-1/8 x 1/8")
40 17862A 3 Wire, Lock, Bearing Cap Bolts
42 1000215M91 1 Flywheel Assembly
43 1000804M1 1 Gear, Ring, Flywheel Starting
44 761633M1 6 Bolt, Flywheel Attaching (1/2 x 1-1/2" NF, Hex., Special)
45 2764X 6 Washer (1/2" Lock)
50 840544M91 AR Insert Set, Main Bearing (Std.)
1000204M91 1 Insert Assembly, Front (Std.)
1000205M91 1 Insert Assembly, Center (Std.)
1000206M91 1 Insert Assembly, Rear (Std.)
50 840545M91 AR Insert Set, Main Bearing (-.002")
1000729M91 1 Insert Assembly, Front (-.002")
1000732M91 1 Insert Assembly, Center (-.002")
1000735M91 AR Insert Assembly, Rear (-.002")
50 840604M91 AR Insert Assembly, Main Bearing (-.010")
1001200M91 1 Insert Assembly, Front (-.010")
1001203M91 1 Insert Assembly, Center (-.010")
1001206M91 1 Insert Assembly, Rear (-.010")
50 840546M91 AR Insert Assembly, Main Bearing (-.020")
1000738M91 1 Insert Assembly, Front (-.020")
1000741M91 1 Insert Assembly, Center (-.020")
1000744M91 1 Insert Assembly, Rear (-.020")
55 1004139M1 AR (E) Gear, Crankshaft Timing, (-.001") (Marked 1)
1004140M1 AR (E) Gear, Crankshaft Timing, (-.002") (Marked 2)
1004141M1 AR (E) Gear, Cranshaft Timing, (-.003") (Marked 3)
1004142M1 AR (E) Gear, Crankshaft Timing (-.004") (Marked 4)
1004143M1 AR (E) Gear, Crankshaft Timing (-.005") (Marked 5)
Massey Ferguson
CRANKSHAFT, MAIN BEARINGS, FLYWHEEL
Item Part Number
Qty Description
1004144M1 AR (E) Gear, Crankshaft Timing (-.006") (Marked 6)
1004145M1 AR (E) Gear, Crankshaft Timing, (+.001") (Marked 1)
1004146M1 AR (E) Gear, Crankshaft Timing, (+.002") (Marked 2)
1004147M1 AR (E) Gear, Crankshaft Timing, (+.003") (Marked 3)
1004148M1 AR (E) Gear, Crankshaft Timing, (+.004") (Marked 4)
1004149M1 AR (E) Gear, Crankshaft Timing, (+.005) (Marked 5)
1004150M1 AR (A) Gear, Crankshaft Timing, (+.006") (Marked 6) 60 841050M91 1 Seal Kit, Crankshaft (Includes 2-1006613M1, 1-1006614M1, 1-1006610M1 And 1-1006611M1)
(A) - Used Engine Serial No. 15482 And Up.
(B) - Used Prior To Engine Serial No. 15482.
(C) - Used Engine Serial No. 15412 And Up.
(D) - Used Prior To Engine Serial No. 15412.
(E) - Undersize And Oversize Gears Are Furnished On Special Order When Needed To Obtain Quiet Gear Operation.
Massey Ferguson
44 (PRIOR TO S/N 50001) DIESEL TRACTOR

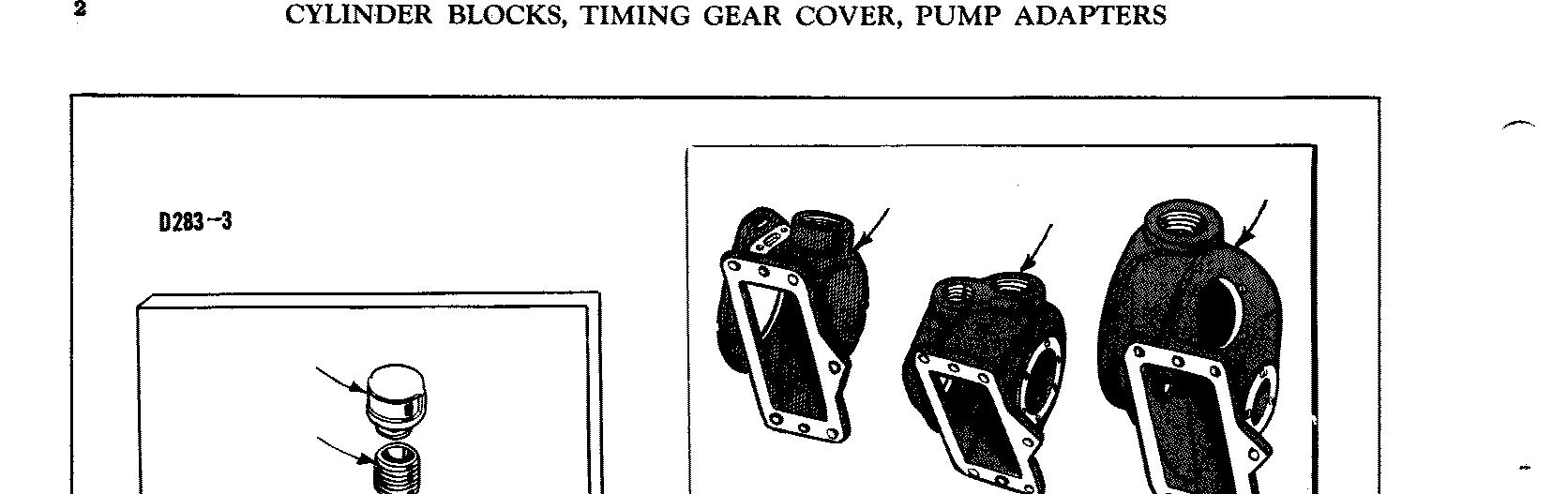

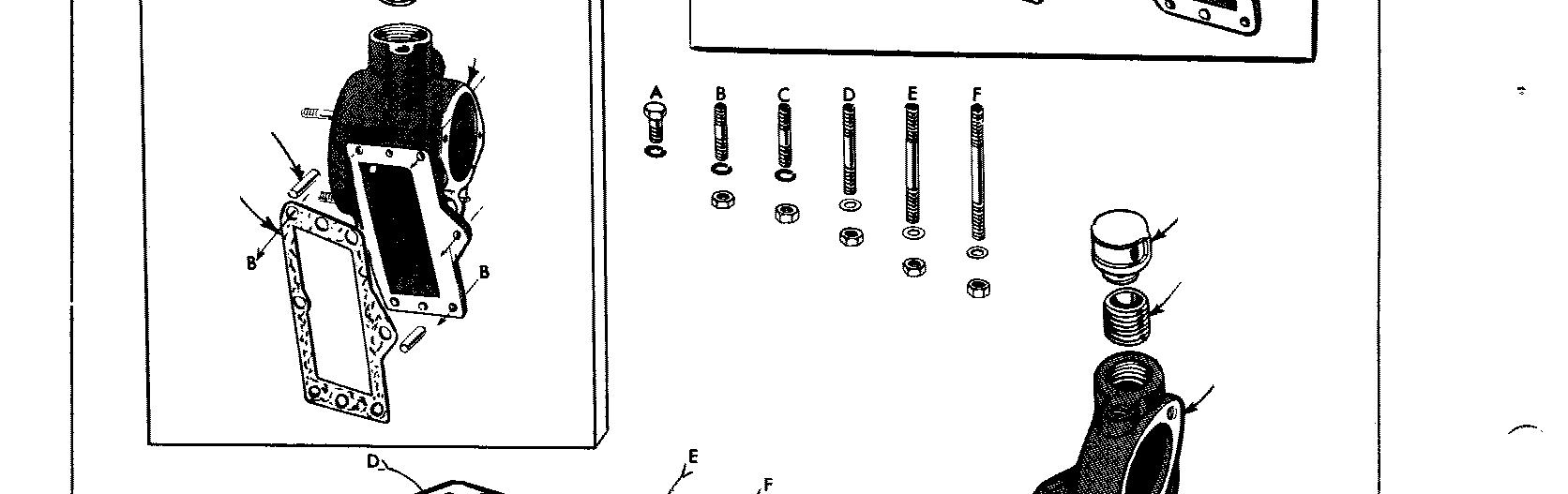

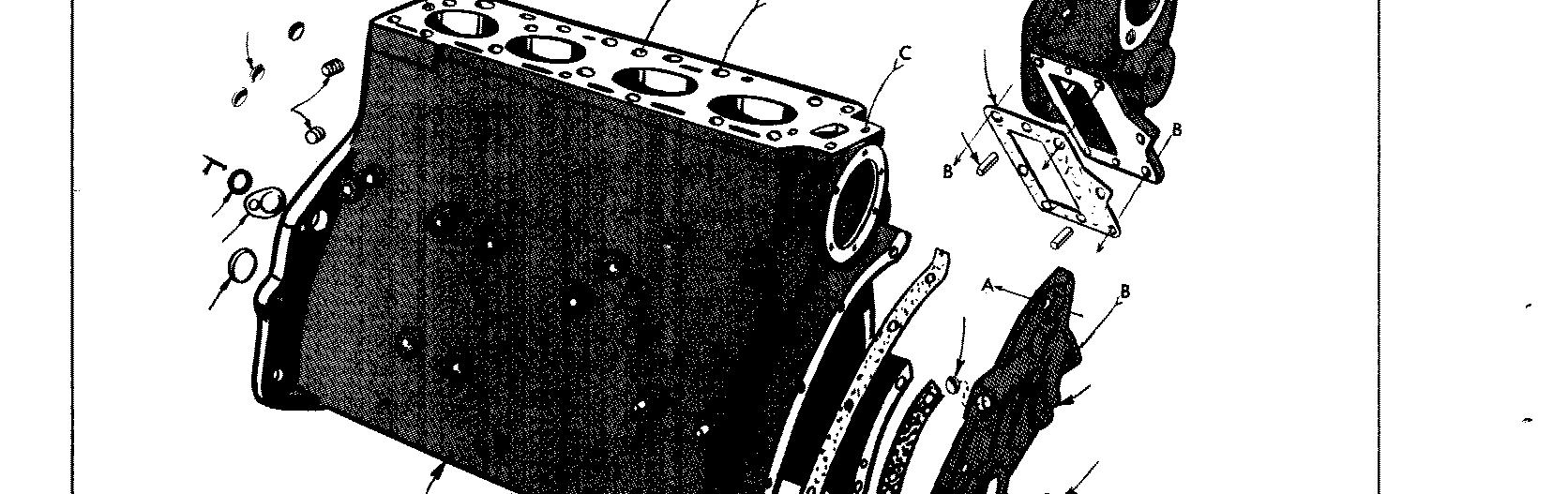

CYLINDER BLOCKS, TIMING GEAR COVER, PUMP ADAPTERS (STD., RC)
Item Part Number Qty Description
1005802M91 1 Block Assembly, Cylinder (Includes All Studs, Plugs, Main Bearing Caps, Main And Connecting Rod Inserts, Connecting Rods, Pistons, Camshaft, Crankshaft And Timing Gears)
1
1005650M91 1 (C) Block Assembly, Cylinder
1001199M91 1 (D) Block Assembly, Cylinder
1000791M91 1 (E) Block Assembly, Cylinder
2 14708X 5 Plug, Cylinder Block (2" Expansion) 11338X 1 Plug, Cylinder Block (2-1/4" Expansion) (Used On Early Tractors In Rear Camshaft Hole)
3 1000148M1 2 Plug, Cylinder Block (1/4" Pipe, Ctsk. Hd.)
5 760507M1 10 Stud, Cylinder Head To Block (9/16" NC-NF x 6-11/16")
6 1000334M1 2 Stud, Cylinder Head To Block (9/16" NC-NF x 6-1/4")
7 1004941M1 5 (F) Stud, Cylinder Head To Block (9/16" NC-NF x 3")
761051M1 5 (G) Stud, Cylinder Head To Block (9/16" NC-NF x 2-1/2")
8 15247A 2 Stud, Cylinder Head To Block (3/8" NC x 1-11/16")
9 1000317M1 17 Nut (9/16" NF, Hex.- Special)
10 1001252M1 17 Washer (19/32 x 1 x 1/8")
11 11923X 2 Nut (3/8" NC, Hex.)
12 2762X 2 Washer (3/8" Lock)
13 15354A 1 Cover, Timing Hole
14 17058A 1 Felt, Timing Hole Cover
15 1001143M1 1 Pointer, Flywheel Timing
16 1000796M91 1 Cover Assembly, Timing Gear
17 17627A 1 Seal, Oil, Crankshaft, Front (2-3/8 x 3-3/8 x 15/32")
18 12263X 1 Plug, Governor Shaft Hole (3/4" Expansion) 16863X 2 Rivet, Governor Bumper Spring Holes (1/8 x 7/16" Rd. Hd.) 21207A 3 Stud, Cover To Pump Adapter (3/8" NC x 1-1/2") 20 760233M1 1 Gasket, Timing Gear Cover 21 760028M1 2 Dowel, Timing Gear Cover To Block (3/8 x 3/4") ****************************************
(USED W/"P.S.B." PUMP)
25 763239M1 1 (H) Adapter, Injection Pump (Order 998573M91) (See Page 46)
26 1001848M1 1 (K) Adapter, Injection Pump (Std.) 27 1000239M1 1 (L) Adapter, Injection Pump (Std.)
28 760017M1 AR Gasket, Pump Adapter
29 760028M1 2 Dowel, Pump Adapter To Block (3/8 x 3/4")
30 33230A 1 Tube, Oil Filler (1-1/4" Pipe x 1-1/4") 31 15345A 1 Cap Assembly, Filler Tube ****************************************
(USED W/"A.P.E." PUMP) ****************************************
35 1006673M1 1 Adapter, Injection Pump
36 1000238M1 1 (M) Adapter, Injection Pump (Order 998627M91) (See Page 46)
37 760017M1 1 Gasket, Pump Adapter
38 760028M1 2 Dowel, Pump Adapter To Block (3/8 x 3/4")
39 33230A 1 Tube, Oil Filler (1-1/4" Pipe x 1-1/4")
40 15345A 1 Cap Assembly, Filler Tube
43 1001354M1 1 (N) Washer, Thrust, Special, Front Main Bearing (2-61/64 x 4 x 5/32) (Std.)
45 2426X AR Bolt (3/8 x 1" NC, Hex.)
46 21207A AR Stud (3/8" NC x 1-1/2")
47 2762X AR Washer (3/8" Lock)
48 11923X AR Nut (3/8" NC, Hex.) ****************************************
(C) - Used Engine Serial No. 14588 And Up.
(D) - Used Engine Serial No. 1335 Thru 14587.
(E) - Used Prior To Engine Serial No. 1335.
(F) - Used Engine Serial No. 11514 And Up.
(G) - Used Prior To Engine Serial No. 11514.
(H) - Used All Row Crop Tractors; Used Standard Tractors w/Engine Serial No. 5190 And Up.
(K) - Used Standard Tractor w/Engine
Massey Ferguson
44 (PRIOR TO S/N 50001) DIESEL TRACTOR
CYLINDER BLOCKS, TIMING GEAR COVER, PUMP ADAPTERS (STD., RC)
Item Part Number
Qty Description
Serial No. Prior To 5190.
(L) - Used w/"P.S.A." Injection Pump.
(M) - Used w/"A.P.E." Pump On Tractors Not Equipped For Hydraulic Lift.
(N) - Thrust Washer No. 1001354M1 Must Be Used w/Any Block Used To Service Tractors w/Engine Serial No. Prior To 1335, w/Original Crankshaft Made From Forging No. HD260C-202.
