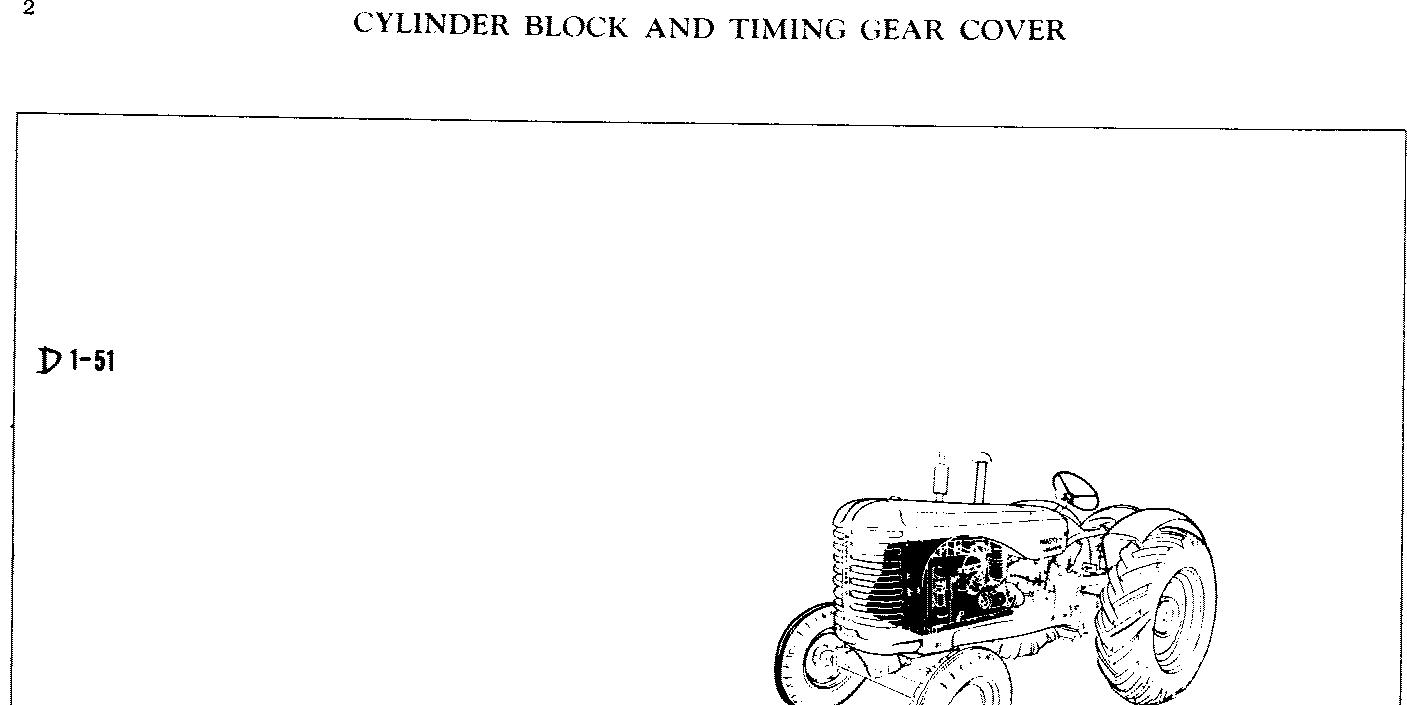

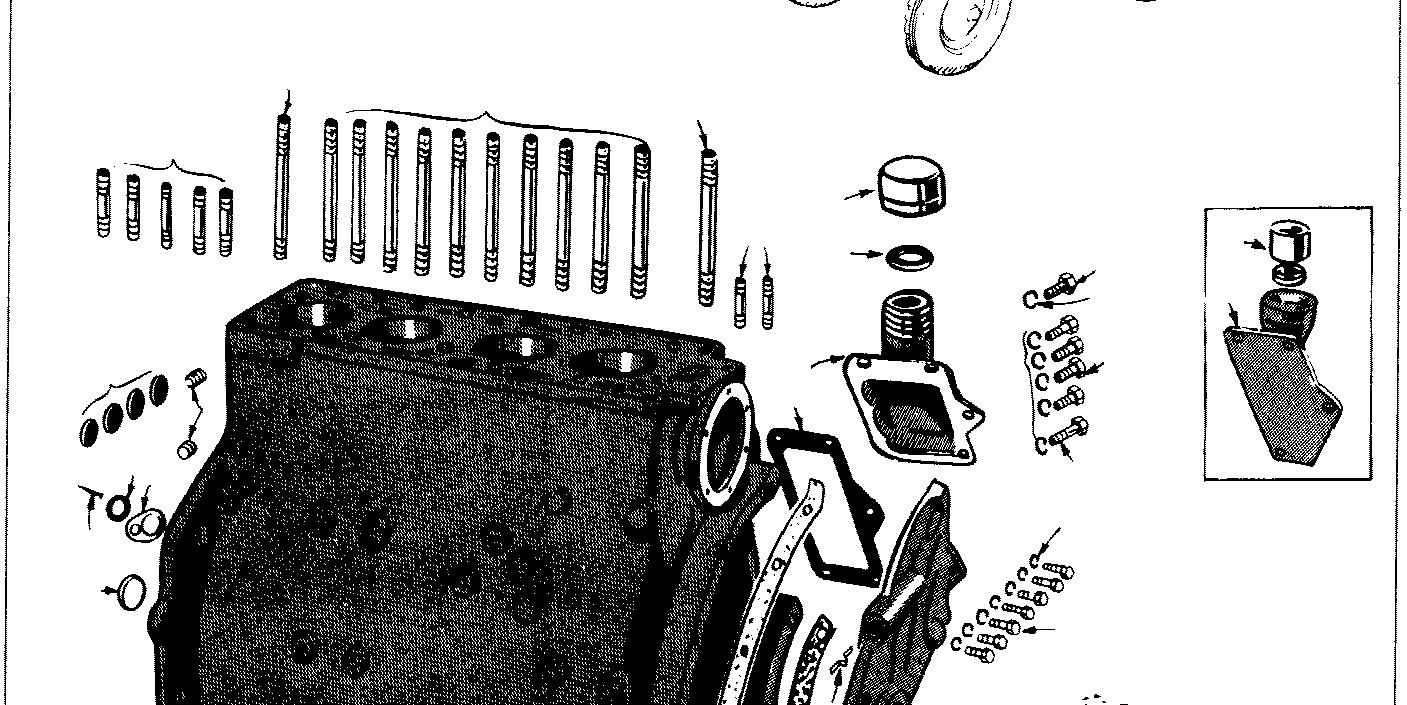

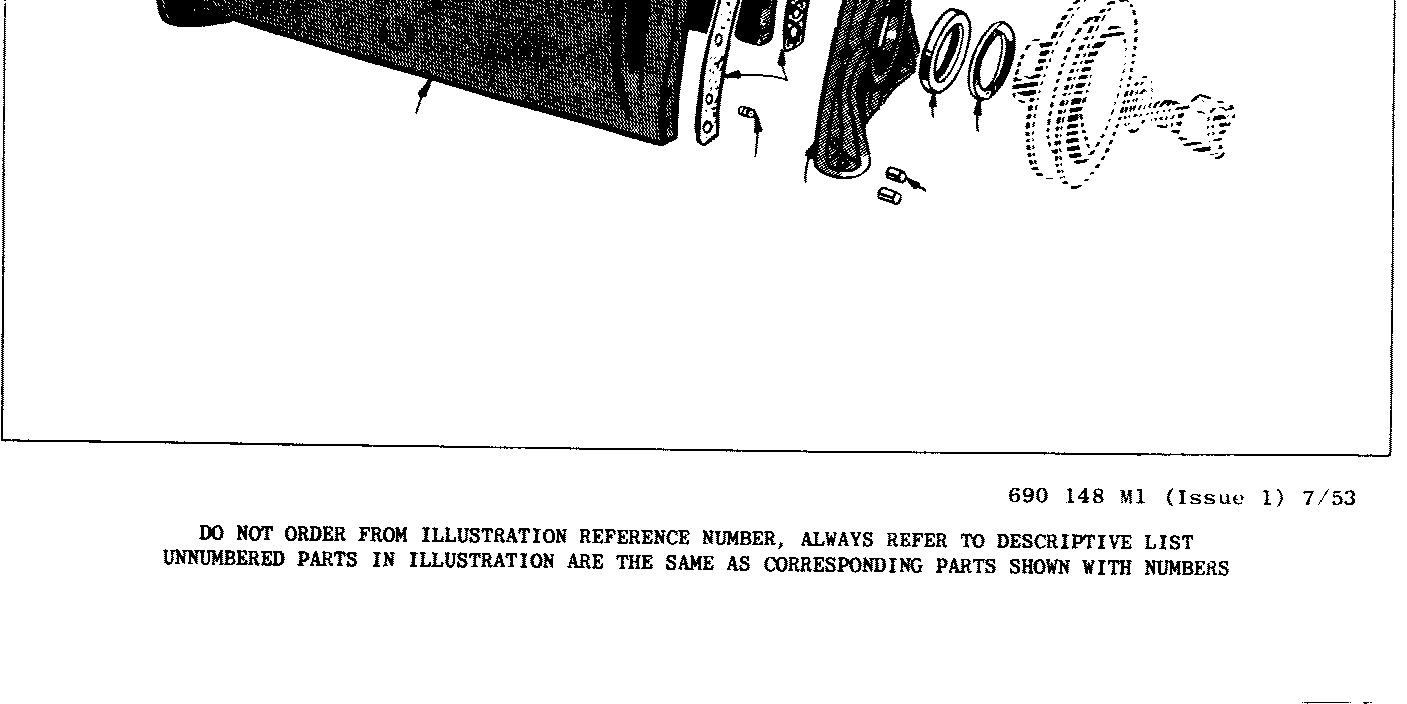

CYLINDER BLOCK AND TIMING GEAR COVER
Item Part Number Qty Description
1
1005626M91 1 (A) Block Assembly, Cylinder (Includes All Studs, Plugs And Main Bearing Caps Less Sleeves And Main Bearings)
1001150M91 1 (B) Block Assembly, Cylinder (Includes All Studs, Plugs And Main Bearing Caps, Less Sleeves And Main Bearings) (Order 1 - 1005626M91 Block Assembly And 1 - 1005644M91 Oil Pump Assembly)
2 11338X 1 Plug, Rear Camshaft Hole (2-1/4" Exp.)
3 14708X 4 Plug, Cylinder Core Hole (2" Exp.)
4 1000148M1 3 Plug (1/4" P.T. Sckt. Hd.)
5 760401M1 10 Stud, Cylinder Head To Block (9/16" NC-NF x 7-1/8")
6 760507M1 2 Stud, Cylinder Head To Block (9/16" NC-NF x 6-11/16")
7 761051M1 5 Stud, Cylinder Head To Block (9/16" NC-NF x 2-5/16")
8 15247A 2 Stud, Cylinder Head To Block (3/8" NC x 1-11/16")
13 17058A 1 Felt , Timing Hole Cover
14 15354A 1 Cover, Timing Hole
15 760166M1 1 Pointer, Flywheel
18 761634M91 1 Cover Assembly, Timing Gear
19 17627A 1 Seal, Oil (2-3/8 x 3-3/8 x 15/32")
20 760137M1 1 Spring, Governor Bumper 16863X 2 Rivet, Bumper Spring (1/8 x 7/16" Rd. Hd.)
22 760233M1 1 Gasket, Timing Gear Cover To Block
23 760028M1 2 Dowel, Timing Gear Cover To Block (3/8 x 3/4")
25 1005065M91 1 (C) Cover Assembly, Oil Filter 26 1005067M1 1 (C) Cap, Oil Filler
27 1005068M1 1 (C) Gasket, Oil Filler Cap (Rubber) 28 760432M2 1 Gasket, Oil Filler Cover To Cylinder Block 31 760520M1 1 Washer, Felt, Dust Seal (On Fan Drive Pulley) (2-3/8 x 3-3/8 x 1/4") 34 761706M91 1 (D) Cover Assembly, Oil Filler
35 15345A 1 (D) Cap, Oil Filler Cover 41 12782X AR Bolt (3/8 x 5/8" NC, Hex.)
42 2426X AR Bolt (3/8 x 1" NC, Hex.)
43 2762X AR Washer (3/8" Lock)
44 15227X AR Bolt (1/4 x 5/8" NC, Hex.)
45 2760X AR Washer (1/4" Lock)

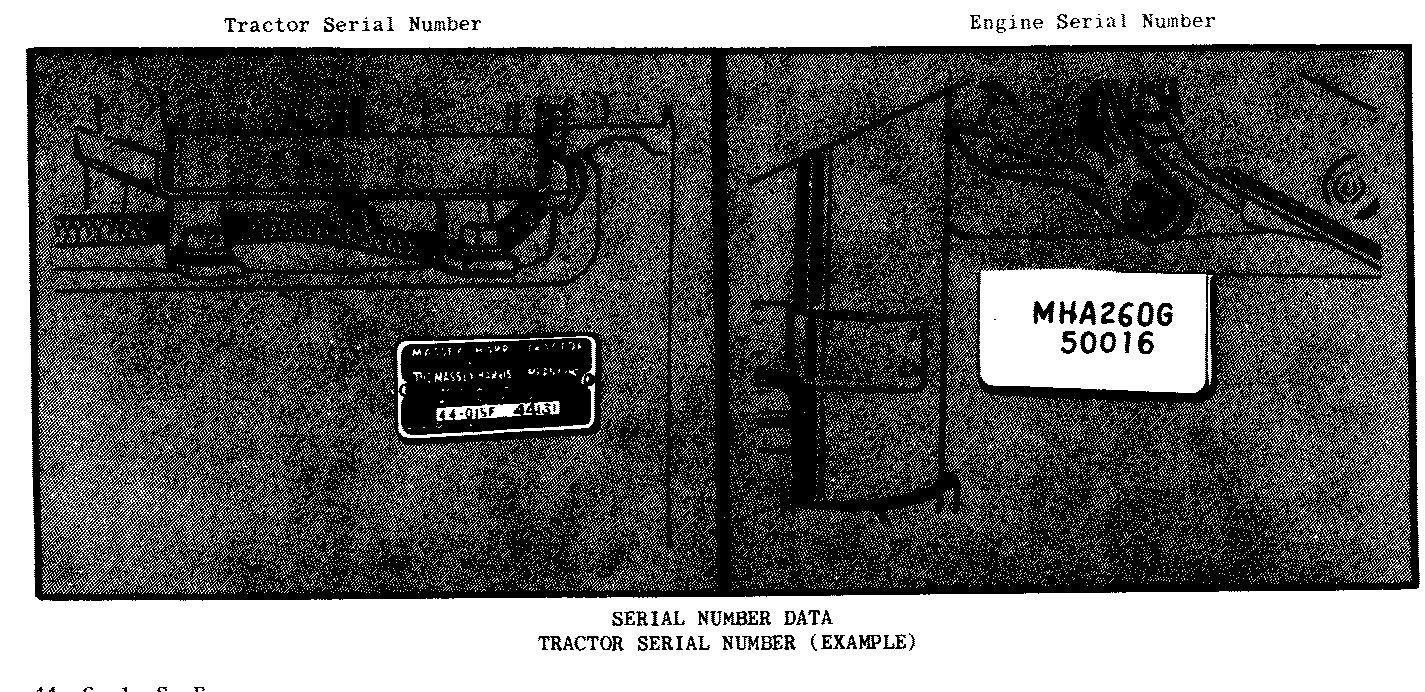

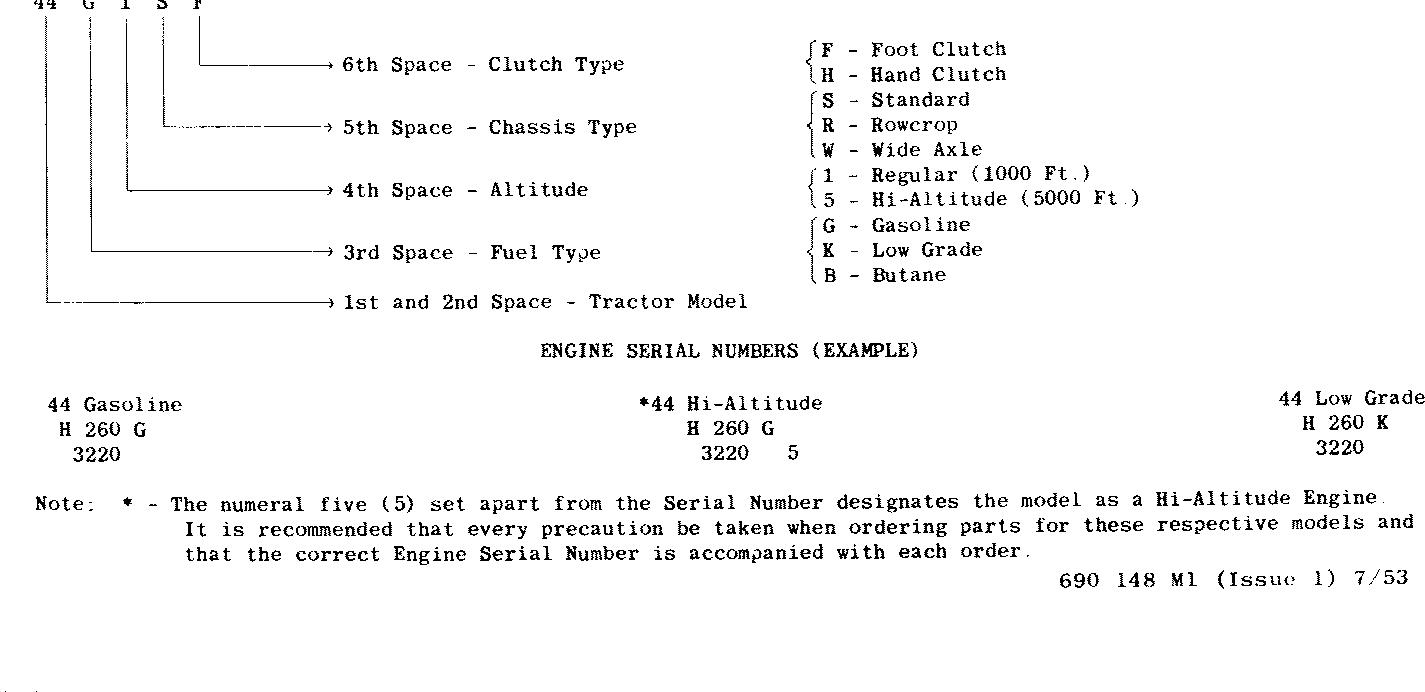

(A) - Used Engine Serial No. 67096 And Up.
(B) - Used Prior To Engine Serial No. 67096.
(C) - Used Engine Serial No. 69401 And Up.
(D) - Used Prior To Engine Serial No. 69401.
Massey Ferguson
44 / 44K / 44LP (EFF. S/N 40001 AND UP)
ENGINE (KEROSENE, GASOLINE, L.P.)
Part Number Qty Description
9236A 1 Engine Assembly (Regular Low Grade) (Kerosene)
9235A 1 Engine Assembly (Regular Gasoline) (Gasoline)
764032M91 1 Engine Assembly (Hi-Altitude Gasoline) (5000 Ft.) (Gasoline)
764478M91 1 Engine Assembly (Regular Butane) (L.P.)
