Ferguson

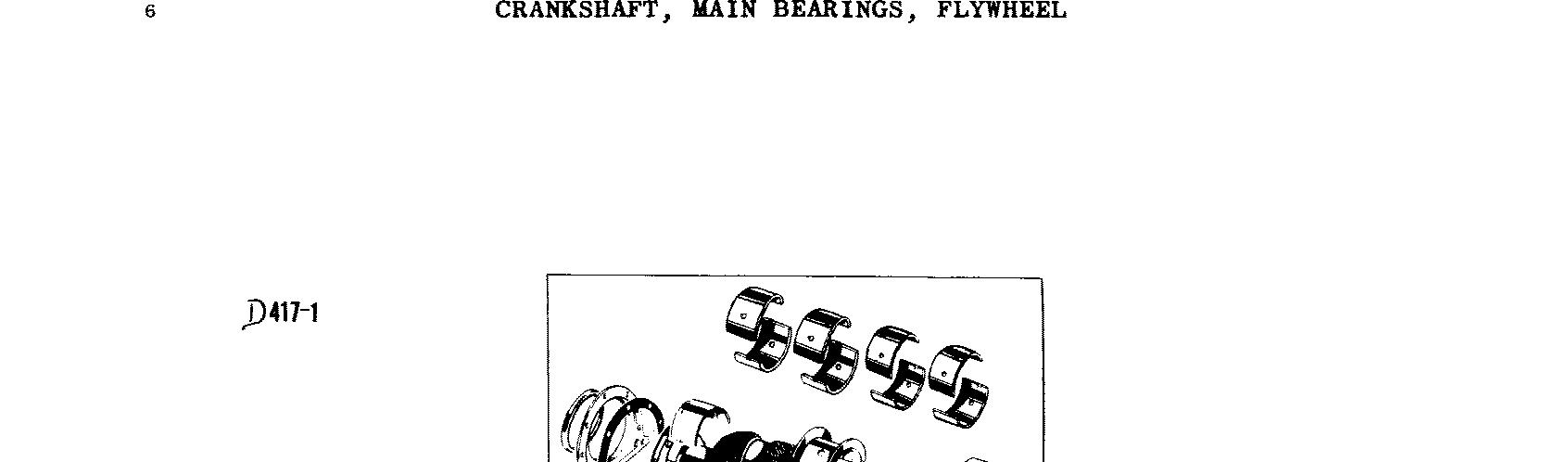

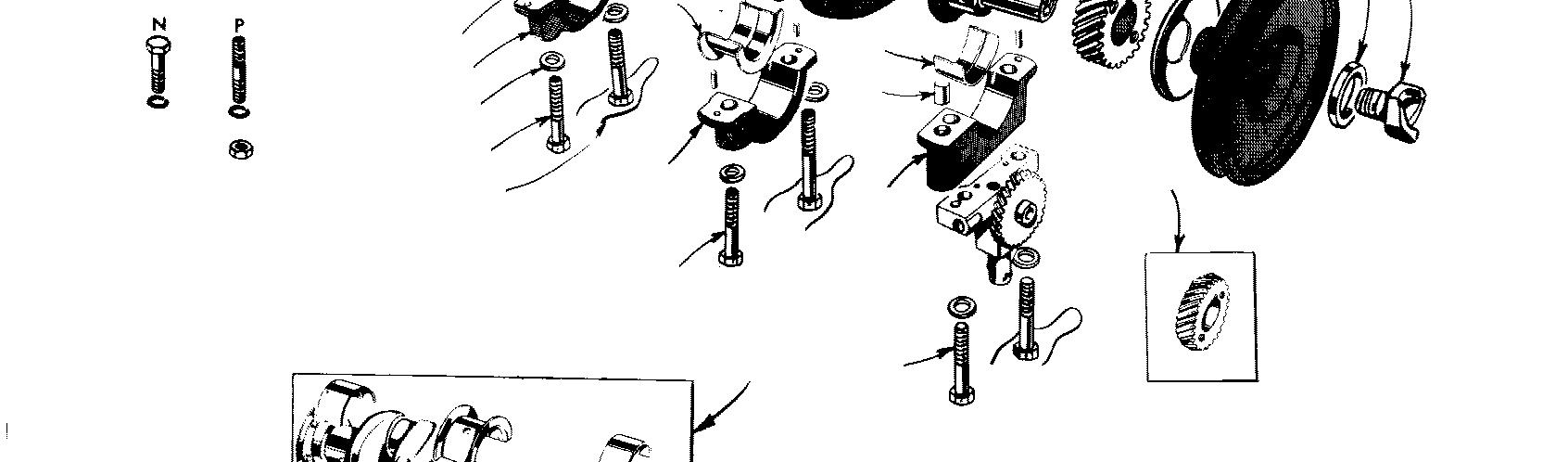

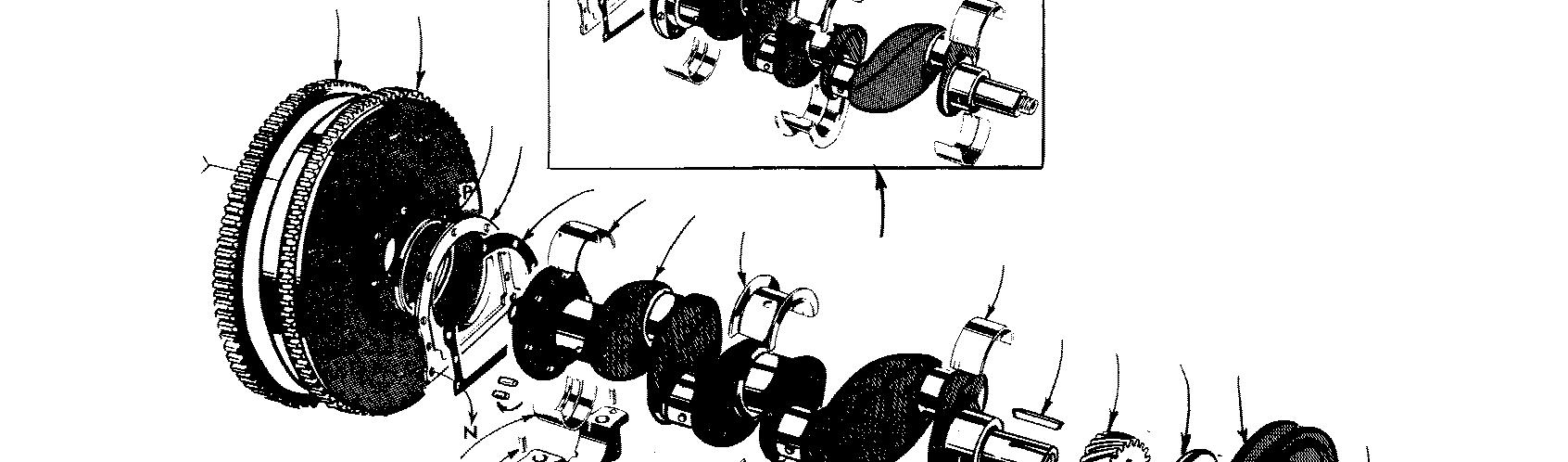

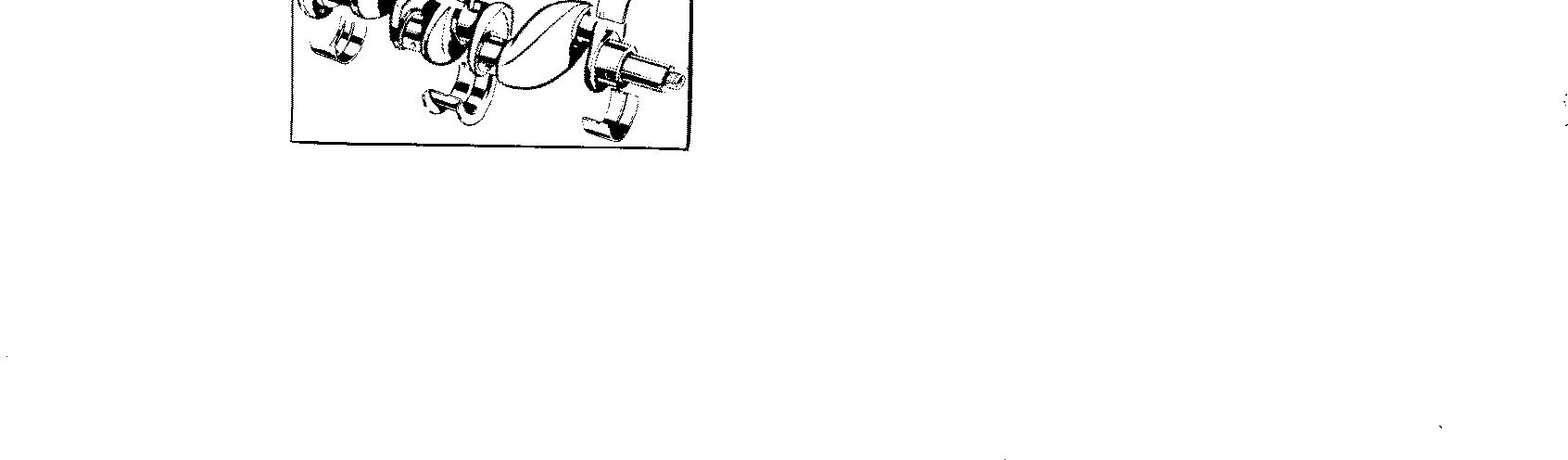

CRANKSHAFT, MAIN BEARINGS, FLYWHEEL
Item Part Number Qty Description
1 841172M91 1 Crankshaaft And Insert Kit (Inc. 1 - 1007505M1, 1 - 841173M91, 1 - 841168M91, 1 - 17627A, 11-8938M1 And 1 - 1005883M1)
2 1007505M1 1 Crankshaft (Order 841172M91)
3 1005881M1 1 Washer, Oil Throw-Off
4 1005885M1 1 Gear, Crankshaft Timing, (Std.) (See Item #50)
5 760426M1 1 Key, Timing Gear
6 1005943M1 1 Pulley, Fan Drive
7 760412M1 1 Jaw, Crankshaft Starting 8 760413M1 1 Washer, Starting Jaw
9 1008938M1 1 Seal, Oil, Rear (4-7/16 x 5-17/64 x 7/16")
10 1005884M1 1 Retainer, Oil Seal
11 1005883M1 1 Gasket, Retainer
12 21216A 7 Bolt Assembly W/Washer (516 x 3/4" NC, Hex.)
13 760402M1 2 Dowel (1/4 x 15/32")
18 1007506M91 1 Insert Assembly, Front Crankshaft Bearing (See Item #42)
19 1007509M91 1 Insert Assembly, Center Crankshaft Bearing (See Item #42)
20 1007511M91 1 Insert Assembly, Rear Crankshaft Bearing (See Item #42)
21 1005847M1 1 Cap, Front Main Bearing
22 1005848M1 1 Cap, Center Main Bearing
23 1005849M1 1 Cap, Rear Main Bearing
24 17170A 1 Dowel, Ring, Front Bearing Cap
25 760402M1 3 Dowel (1/4 x 15/32")
26 761533M1 2 Bolt, Front Bearing Cap (Also Holds Oil Pump) (9/16 x 4/-1/2" NC, Hex., Dld. Hd.)
27 760398M1 4 Bolt, Center And Rear Bearing Cap (9/16 x 3" NC, Hex., Dld. Hd.)
28 1007519M1 6 Washer, Bearing Cap Bolts (19/32 X 1 x 3/16")
29 17862A 3 Wire, Lock Bearing Cap Bolts
34 1007530M91 1 Flywheel Assembly
35 1000804M1 1 Gear, Ring, Flywheel Starting
36 1007710M1 6 Stud, Flywheel (3/8" NF x 2-1/8")
37 2762X 6 Washer (3/8" Lock)
38 12177X 6 Nut, (3/8" NF, Hex.)
42 841173M91 AR Insert Kit, Crankshaft Bearing, Std.
1007506M91 1 Insert Assembly, Crankshaft Bearing, Front
1007509M91 1 Insert Assembly, Crankshaft Bearing, Center 1007511M91 1 Insert Assembly, Crankshaft Bearing, Rear
42 841174M91 AR Insert Kit, Crankshaft Bearing, -.002"
1007737M91 1 Insert Assembly, Crankshaft Bearing, Front
1007740M91 1 Insert Assembly, Crankshaft Bearing, Center
1007742M1 1 Insert Assembly, Crankshaft Bearing, Rear
42 841260M91 AR Insert Kit, Crankshaft Bearing, -.010"
1008569M91 1 Insert Assembly, Crankshaft Bearing, Front 1008572M91 1 Insert Assembly, Crankshaft Bearing, Center 1008574M91 1 Insert Assembly, Crankshaft Bearing, Rear
42 841175M91 AR Insert Kit, Crankshaft Bearing, -.020"
1007745M91 1 Insert Assembly, Crankshaft Bearing, Front 1007748M91 1 Insert Assembly, Crankshaft Bearing, Center
1007750M91 1 Insert Assembly, Crankshaft Bearing, Rear
50 1005886M1 AR (A) Gear, Crankshaft Timing, -.001", Marked 1 1005887M1 AR (A) Gear, Crankshaft Timing, -.002", Marked 2 1005888M1 AR (A) Gear, Crankshaft Timing, -.003", Marked 3
1005890M1 AR (A) Gear, Crankshaft Timing, -.004", Marked 4 1005890M1 AR (A) Gear, Crankshaft Timing, -.004", Marked 5 1005891M1 AR (A) Gear, Crankshaft Timing, -.006", Makred 6
1005892M1 AR (A) Gear, Crankshaft Timing, +.001", Marked 1 1005893M1 AR (A) Gear, Crankshaft Timing, +.002", Marked 2 1005894M1 AR (A) Gear, Crankshaft Timing, +.003, Marked 3 1005895M1 AR (A) Gear, Crankshaft Timing, +.004", Marked 4 1005896M1 AR (A) Gear, Crankshaft Timing, +.005", Marked 5
1005897M1 AR (A) Gear, Crankshaft Timing, +.006", Marked 6
(A) - Undersize And Oversize Gears Are Furnished On Special Order To Obtain Quiet Gear Operation.

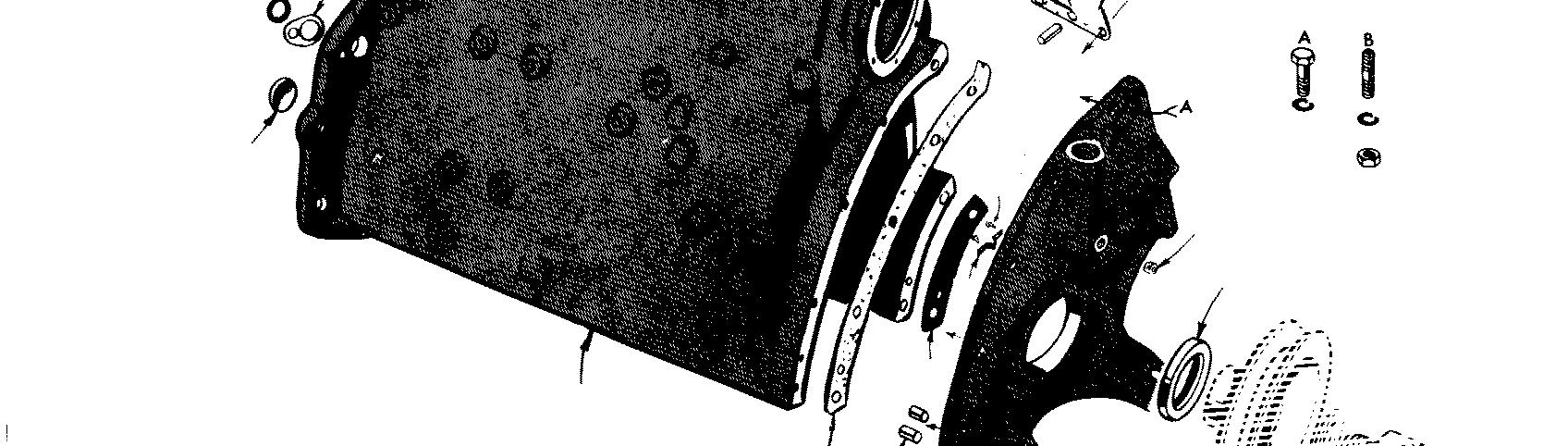

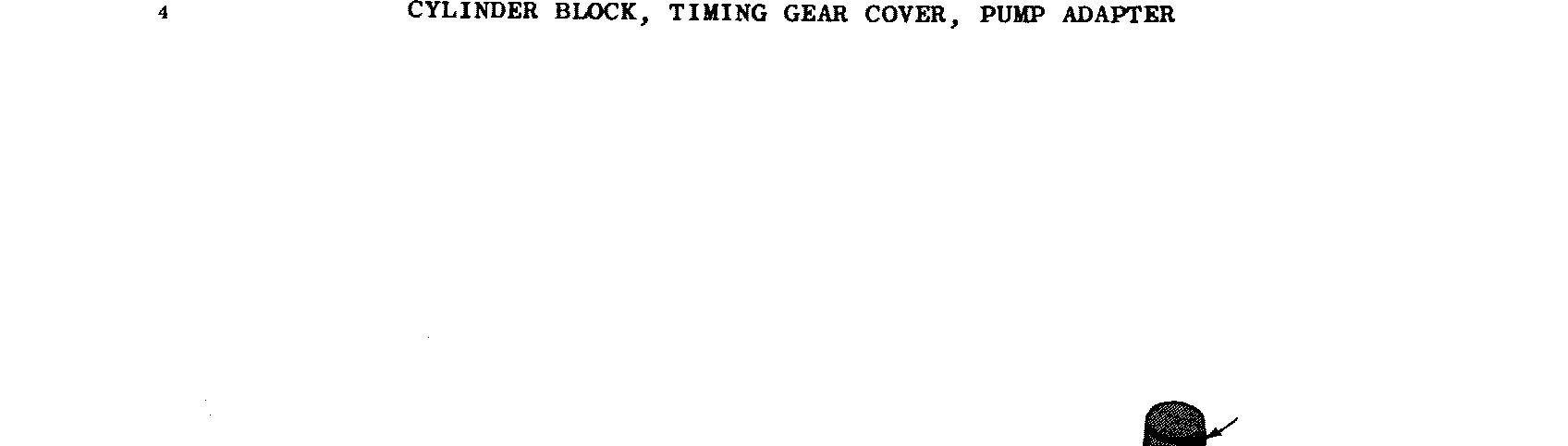

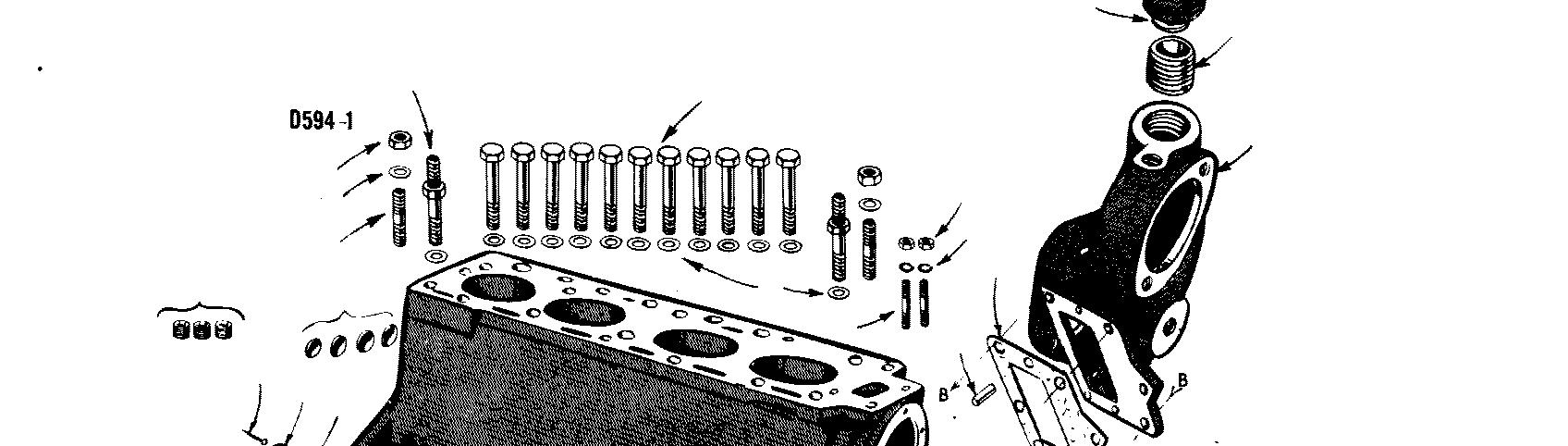

CYLINDER BLOCK, TIMING GEAR COVER, PUMP ADAPTER
Item Part Number Qty Description
1007762M91 1 Block Assembly, Cylinder (Inc. All Studs, Plugs, Main Bearing And Caps, Piston Assembly, Connecting Rod Assembly, Crankshaft, Camshaft And Timing Gears)
1
1007722M91 1 Block Assembly, Cylinder (Inc. All Studs, Plugs And Main Bearing Caps)
1003010M1 2 Plug, Heater Hole (1-5/8" Cup Type)
3 14708X 5 Plug, Block (2" Expansion)
4 1000148M1 3 Plug (1/4" P.T. Sckt. Hd.)
5 15247A 2 Stud (3/8" NC x 1-11/16")
6 1007667M1 2 Stud (1/2" NC x 2-1/2")
7 1007520M1 2 Stud (1/2" NC-9/16" NF x 7-1/8")
8 1007526M1 11 Bolt (1/2" x 5-3/4" NC)
9 2762X 2 Washer (3/8" Lock)
10 11923X 2 Nut (3/8" NC, Hex.)
11 1005923M1 15 Washer (17/32 x 15/16 x 1/8")
12 2638X 2 Nut (1/2" NC, Hex.)
16 15354A 1 Cover, Timing Hole
17 17058A 1 Felt, Timing Hole Cover
18 1005946M1 1 Pointer, Flywheel Timing
19 1005906M91 1 Cover Assembly, Timing Gears
20 17627A 1 Seal, Oil, Crankshaft, Front (2-3/8 x 3-3/8 x 15/32")
21 760137M1 1 Spring, Governor Bumper
22 16863X 2 Rivet, Bumper Spring (1/8 x 7/16 Rd. Hd.)
23 22596X 1 Plug, Governor Lever Boss (1/8" Pipe, Socket Hd.)
24 1005908M1 1 Gasket, Timing Gear Cover (Long)
25 1005909M1 1 Gasket, Timing Gear Cover (Short)
26 760028M1 2 Dowel, Timing Gear Cover (3/8 x 3/4")
27 1007688M1 1 Adapter, Injection Pump
28 760017M1 1 Gasket, Adapter To Block
29 760028M1 2 Pin, Adapter To Block (3/8 x 3/4")
30 1006041M1 1 Pipe, Oil Filler (1-1/4" Pipe x 2-1/2")
31 1005067M1 1 Cap Assemby, Oil Filler, W/Seal
32 1005068M1 1 Gasket, Filler Cap
37 22727X AR Bolt Assembly W/Washer (3/8 x 1" NC, Hex.)
38 21207A AR Stud (3/8" NC x 1-1/2")
39 2762X AR Washer (3/8" Lock)
40 11923X AR Nut (3/8" NC, Hex.)
