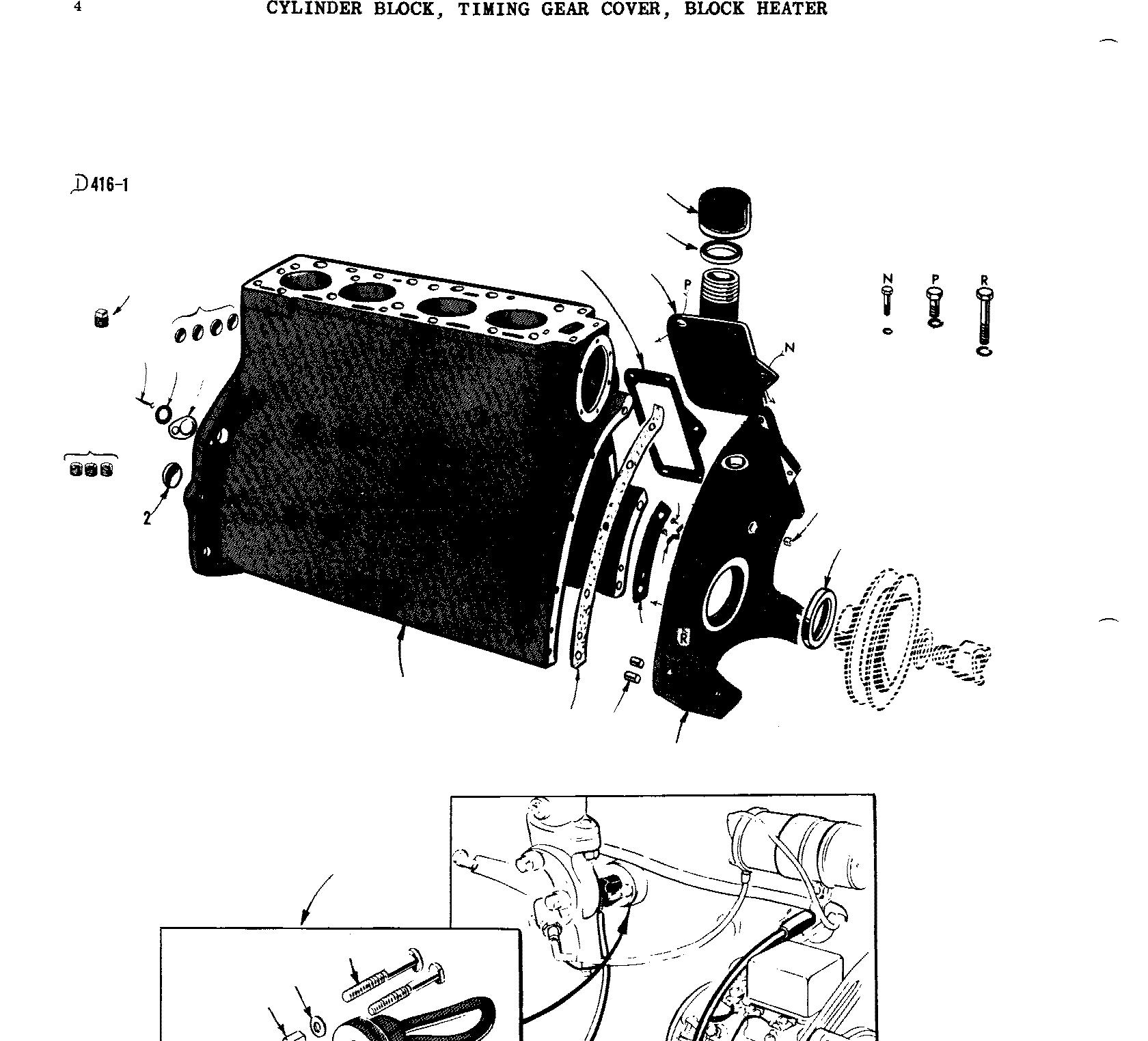

CYLINDERBLOCK,TIMINGGEARCOVER,BLOCKHEATERPage4 ItemPartNumberQtyDescription (GAS,KEROSENE) **************************************** 11005844M911BlockAssembly,Clylinder(Incl.AllStuds,PlugsAndMainBearingsCaps,LessMainBearingsAnd Sleeves)
214708X5Plug,Cylinder(2"Expansion) 1003010M12Plug,HeaterHole(1-5/8"CupType) 42410X1Plug,Cylinder(1/4"Pipe,Ext.Hd.) 51000148M13Plug(1/4"P.T.Sckt.Hd.) 615354A1Cover,FlywheelPointer 717058A1Felt,PointerCover 81005846M11Pointer,Flywheel 922596X1Plug,GovernorLessBoss(1/8"Sq.Hd.) 131005906M911CoverAssembly,TimingGear 1417627A1Seal,Oil(2-3/8x3-3/8x15/32") 15760137M11Spring,GovernorBumper 1616863X2Rivet,BumperSpring(1/8x7/16"Rd.Hd.) 171005908M11Gasket,TimingGearCover,Long 181005909M11Gasket,TimingGearCover,Short 19760028M12Dowel,TimingGearCover 251005065M911CoverAssembly,OilFiller 26760432M21Gasket,OilFillerCover 271005067M11Cap,OilFiller 281005068M11Gasket,OilFillerCap 3515227XARBolt(1/4x5/8"NC,Hex.) 362760XARWasher(1/4"Lock) 3722726XARBoltAssembly(3/8x5/8"NC,Hex.) 3822727XARBoltAssembly(3/8x1"NC,Hex.) ****************************************

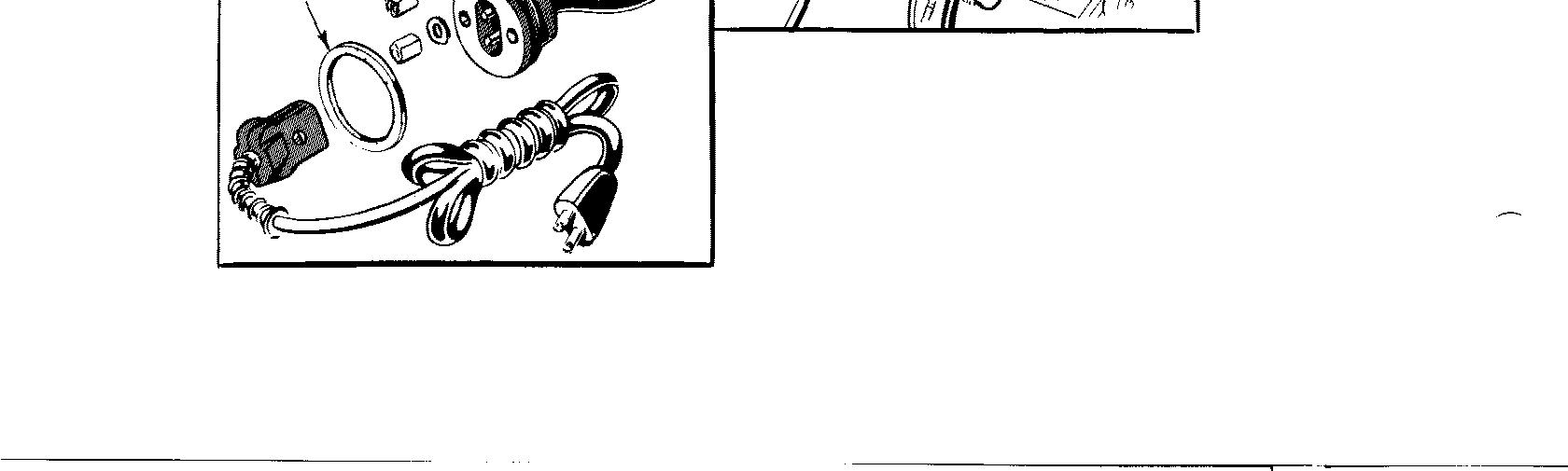

456802481HeaterAssembly 46766734M11Gasket,Heater 47766736M12Bolt(1/4"NF,Special) 48766733M12Washer(9/32x3/8x1/16"CopperAsbestos) 49766735M12Nut(1/4"NF,Special)
Massey Ferguson 33 / 33K TRACTOR

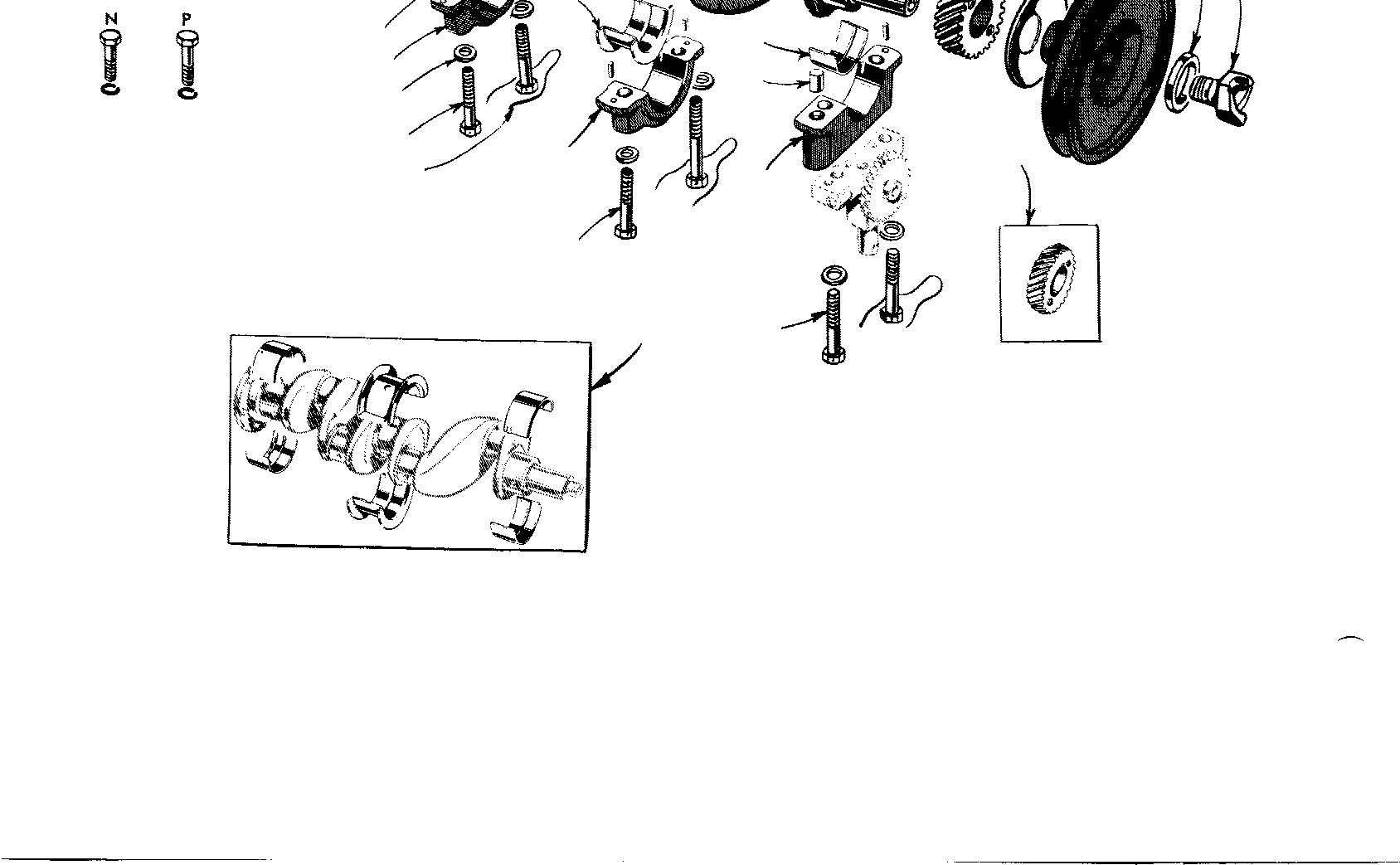

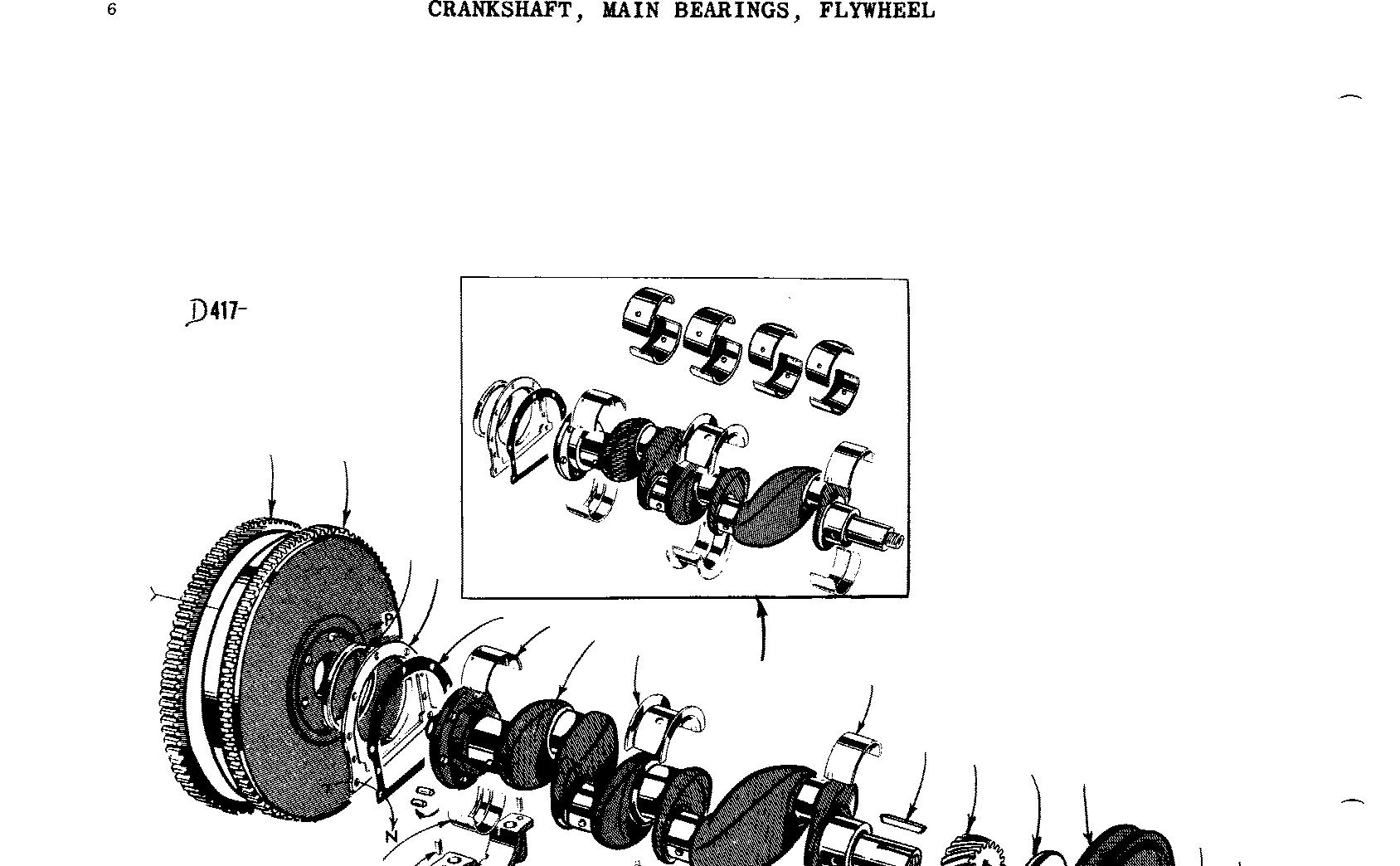

CRANKSHAFT,MAINBEARINGS,FLYWHEEL(GAS,KEROSENE)Page6
ItemPartNumberQtyDescription
1841028M911CrankshaftAndInsertKit(Incl.1-1005880M1Crankshaft,1-17627AFrontOilSeal,1-1005882M1Rear OilSeal,1-1005883M1RearGasket,1-841029M91MainInsertKitAnd1-841024M91ConnectingRod InsertKit)
21005880M11Crankshaft(Order841028M91) 31005881M11Washer,OilThrow-off 41005885M11Gear,CrankshaftTiming(SeeItem#50) 5760426M11Key,TimingGear 61005943M11Pulley,FanDrive 7760412M11Jaw,CrankshaftStarting 8760413M11Washer,StartingJaw 91008938M11Seal,Oil,Rear(4-1/2x5-1/4x7/16") 101005884M11Retainer,RearOilSeal 111005883M11Gasket,Retainer 1221216A7ScrewAssembly,OilSeal(5/16x3/4"NC,Hex.) 13760402M12Dowel(1/4x15/32") 181005898M911InsertAssembly,FrontCrankshaftBearing(SeeItem#42) 191005901M911InsertAssembly,CenterCrankshaftBearing(SeeItem#42) 201005903M911InsertAssembly,RearCrankshaftBearing(SeeItem#42) 211005847M11Cap,FrontMainBearing 221005848M11Cap,CenterMainBearing 231005849M11Cap,RearMainBaring 2417170A1Dowel,Ring,FrontBearingCap 25760402M13Dowel(1/4x15/32") 26761533M12Bolt,FrontBrg.Cap(AlsoHoldsOilPump)(9/16x4-1/2"NC,Hex.) 27760398M14Bolt,CenterAndRearBearingCaps(9/16x3"NC,Hex.) 281007519M16Washer,BearingCapBolts(19/32x1x3/16") 2917862A3Wire,Lock,BearingCapBolts 341005944M911FlywheelAssembly 35760020M11Gear,FlywheelStarterRing 371005946M16Bolt,Flywheel(3/8x1-3/4"NF,Hex.) 382762X6Washer(3/8"Lock) 42841029M91ARInsertKit,CrankshaftBearing(Std.) 1005898M911InsertAssembly,Front 1005901M911InsertAssembly,Center 1005903M911InsertAssembly,Rear 42841030M91ARInsertKit,CrankshaftBearing(-.002") 1005997M911InsertAssembly,Front 1006000M911InsertAssembly,Center 1006002M911InsertAssembly,Rear 42841031M91ARInsertKit,CrankshaftBearing(-.020") 1006005M911InsertAssembly,Front 1006008M911InsertAssembly,Center 1006010M911InsertAssembly,Rear 42841032M91ARInsertKit,CrankshaftBearing(-.040") 1006013M911InsertAssembly,Front 1006016M911InsertAssembly,Center 1006018M911InsertAssembly,Rear 501005886M1AR(A)Gear,CrankshaftTiming,-.001",Marked1 1005887M1AR(A)Gear,CrankshaftTiming,-.002",Marked2 1005888M1AR(A)Gear,CrankshaftTiming,-.003",Marked3 1005889M1AR(A)Gear,CrankshaftTiming,-.004",Marked4 1005890M1AR(A)Gear,CrankshaftTiming,-.005",Marked5 1005891M1AR(A)Gear,CrankshaftTiming,-.006"Marked6 1005892M1AR(A)Gear,CrankshaftTiming,+.001",Marked1 1005893M1AR(A)Gear,CrankshaftTiming,+.002",Marked2 1005894M1AR(A)Gear,CrankshaftTiming,+.003",Marked3 1005895M1AR(A)Gear,CrankshaftTiming,+.004",Marked4 1005896M1AR(A)Gear,CrankshaftTiming,+.005",Marked5 1005897M1AR(A)Gear,CrankshaftTiming,+.006",Marked6 **************************************** (A)-UndersizeAndOversizeAre FurnishedOnSpecialOrderWhenNeeded ToObtainQuietGearOperation.
