Ferguson
Ferguson
353570X1 4 Bolt (7/16 x 2-3/8" NF, Hex.)
(Special)

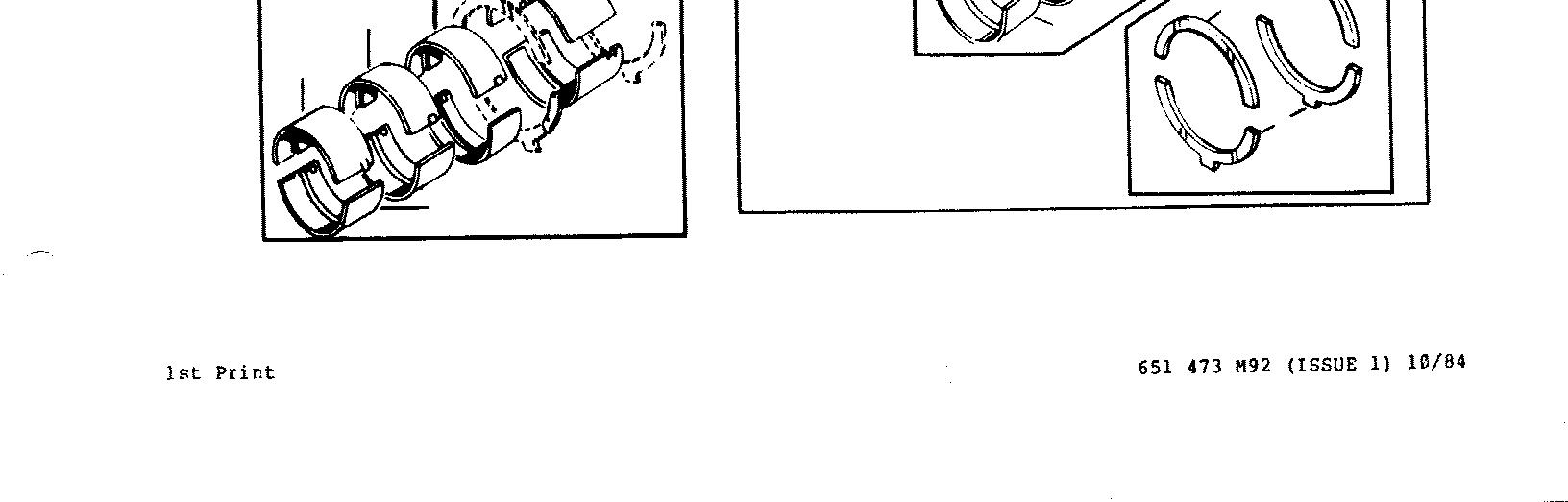

Crankshaft
Thrower
Crankshaft (4 Holes)
(Lower)(+.007")
68084C
1
68084A)
68084B)
(Order 68084B)
(Order 68084B)
Insert Set ( - .030")
(Order 68084C)
1 Insert (Order 68084C)
4 Insert (Order 68084C)
2 Insert (Order 68084C)
(A) - Used Engine Serial Number Prefixed With CE22488U Or CE31089U.
Massey Ferguson
250 TRACTOR

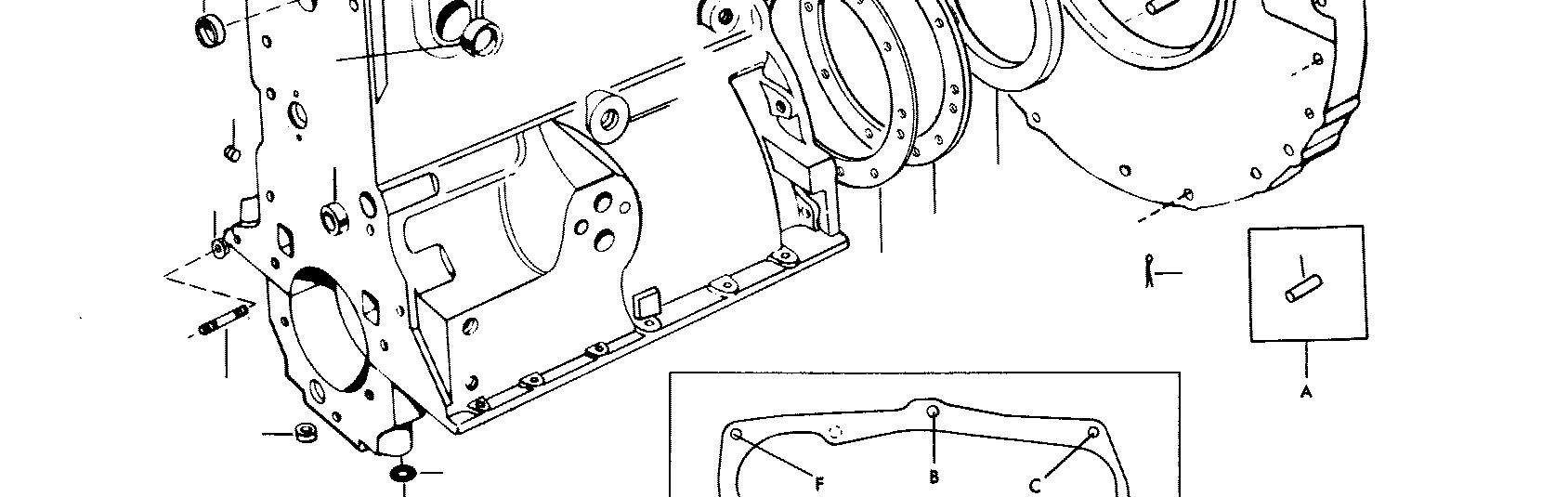

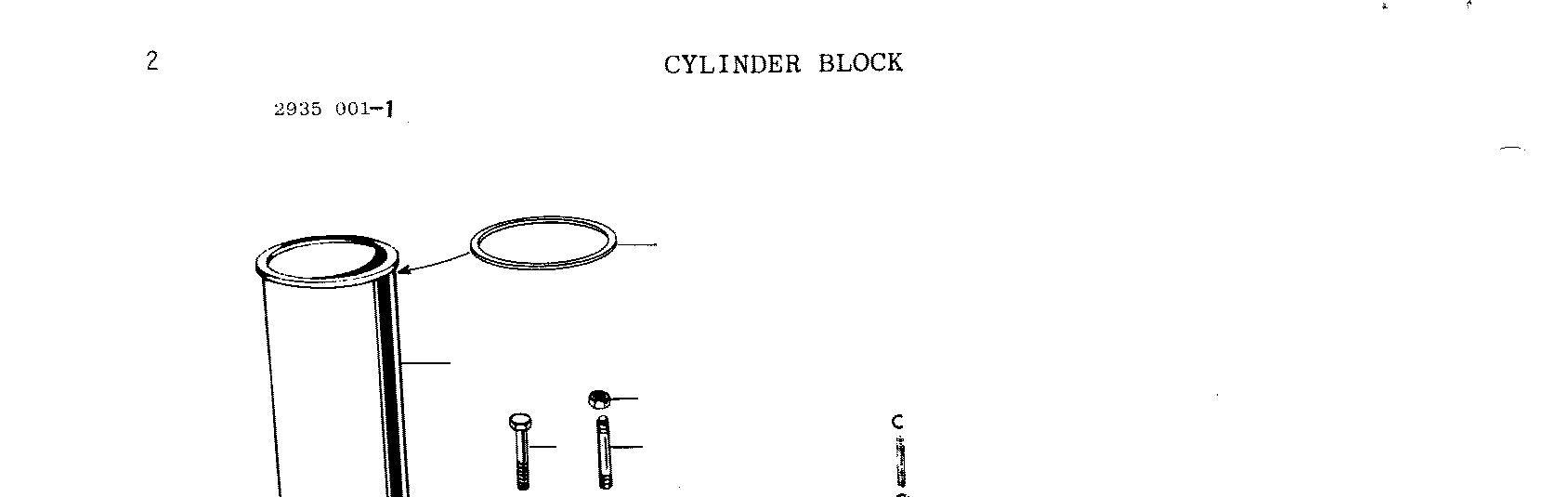

CYLINDER BLOCK
Item Part Number Qty Description
CE022488 1 (A) Engine Assembly, Complete CE031089 1 (B, C) Engine Assembly, Complete
1 64573 1 (A) Block Assembly, Cylinder (Stripped)
2 31358345 3 Liner (Cast Iron)
3 33137408 8 Thimble
4
32181441 6 Bolt (9/16 x 3-19/32" NF, Hex.)
32181442 2 Bolt (9/l6 x 4-19/32" NF, Hex.)
5 650710 5 Plug (1-1/4" Cup Type)
6 731999M1 1 Plug (57/64" Cup Type)
7 1447053M1 2 "O" Ring (3/4" I.D. x .070" Thk., Spl.)
8 32417115 2 Plug (13/32" Cup Type)
9 33141124 1 Plug (13/16" Dia. W/1/8" Dia. Hole)
1 41423506 1 (B) Block Assembly, Cylinder (Stripped)
2 31358345 3 Liner (Cast Iron)
3 33137408 8 Thimble
4 32181441 6 Bolt (9/16 x 3-19/32" NF, Hex.)
32181442 2 Bolt (9/16 x 4-19/32" NF, Hex.)
5 650710 5 Plug (1-1/4" Cup Type)
6 650692 1 Plug (57/64" Cup Type)
8 32417115 2 Plug (13/32" Cup Type)
9 33141124 1 Plug (13/16" Dia. W/1/8" Dia. Hole)
10 650566 2 Plug (11/16" Cup Type)
1 ZZ050045 1 (D) Block Assembly, Cylinder
2 31358345 3 Liner (Cast Iron)
3 33137408 8 Thimble 4 32181441 6 Bolt (9/16 x 3-19/32" NF, Hex.) 32181442 2 Bolt (9/16 x 4-19/32" NF, Hex.)
5 650710 4 Plug (1-1/4" Cup Type) 2485A204 1 Plug, Cylinder Block
7 1447053M1 2 "O" Ring (3/4" I.D. x .070" Thk., Spl.)
11 33127107 AR Shim, Cylinder Liner (.005")
12 32114471 1 Plug (1/2" NF, Phillips Head)
16 32181447 4 Bolt (7/16 x 3-1/4" NF, Hex.)
17 32181446 9 Bolt (7/16 x 3-7/8" NF, Hex.)
18 32524132 2 Stud (7/16 x 3-5/8") 365333X1 1 Plug (1/4" P.T. Hex. Sckt. Hd.)
20 3681E006 1 Gasket, Cylinder Head
21 31419 1 Drain, Cylinder Block
22 33221315 2 Nut (7/16" NF, Hex.)
23 350015 5 Dowel (3/8 x 9/16")
24 4142V002 1 Housing Assembly, Rear Oil Seal
25 2418F475 1 Seal, Rear Housing
26 33826111 1 Gasket, Oil Seal Housing
27 353518X1 9 Bolt (5/16 x 7/8" NF, Hex.)
28 353770X1 9 Washer (11/32 x 11/16 x 3/32" Flat)
29 37416751 1 Housing, Tractormeter Drive
30 36862511 1 Gasket, Housing
31 636762M1 1 Seal, Housing To Block (7/8 x 1-3/8 x 1/4")
32 33473106 1 Connection, Tractormeter Drive
33 32813106 1 Washer Seal
34 32811104 1 Washer, Seal
35 37147974 1 Plate, Flywheel Housing Adapter
36 37813113 1 Grommet, Rubber
37 354074X1 1 Pin (3/16 x 3/4" Cotter)
47 32526512 1 Stud (5/8 x 5-7/8" NC - NF Special)
48 33121417 2 Shim (21/32 x 1-1/4 x .036") 33121416 3 Shim (21/32 x 1-1/4 x .010") 760050 1 Shim (21/32 x 1-1/4 x .005") 33121415 4 Shim (21/32 x 1-1/4 x .002")
49 826201 3 Stud (5/16 NF x 1-1/4")
50 353446X1 3 Washer (5/16" Lock)
51 353916X1 3 Nut (5/16" NF, Hex.)
52 353538X1 AR Bolt (3/8 x 1" NF, Hex.)
53 720798 AR Bolt (3/8 x 1" NF, Sckt. Hd.)
54 353434X1 AR Washer (3/8" Lock)
61 1260A AR Pin, Dowel
Ferguson

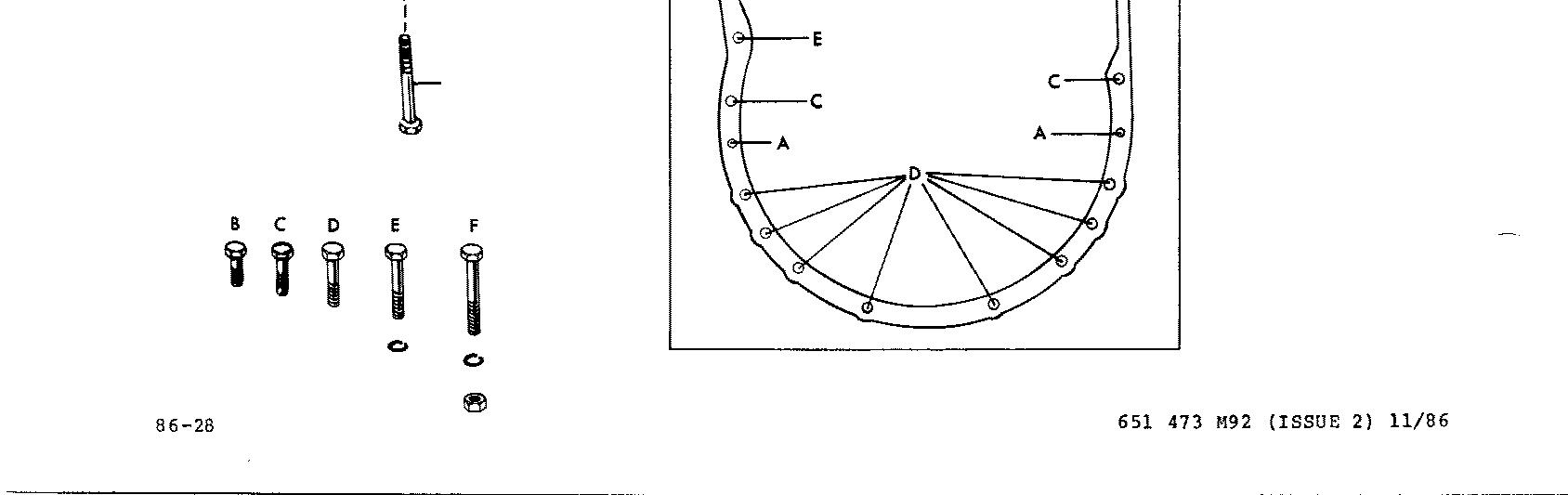

CYLINDER BLOCK
Item Part Number Qty Description
62 353699X1 AR Bolt (7/16 x 1-1/8" NC, Hex.)
63 353707X1 AR Bolt (7/16 x 2-1/8" NC, Hex.)
64 353711X1 AR Bolt (7/16 x 2-5/8" NC, Hex.)
65 353712X1 AR Bolt (7/16 x 2-3/4" NC, Hex.)
66 353579X1 AR Bolt (7/16 x 3-1/2" NF, Hex.)
67 353432X1 AR Washer (7/16" Lock)
68 353426X1 AR Nut (7/16" NF, Hex.)
(A) - Used Engine Serial Number Prefixed With CE22488U.
(B) - Used Engine Serial Number Prefixed With CE31089U.
(C) - For Repair Order CE22488 Engine.
(D) - Service Replacement Stripped Cylinder Block For Part Number 64573.
