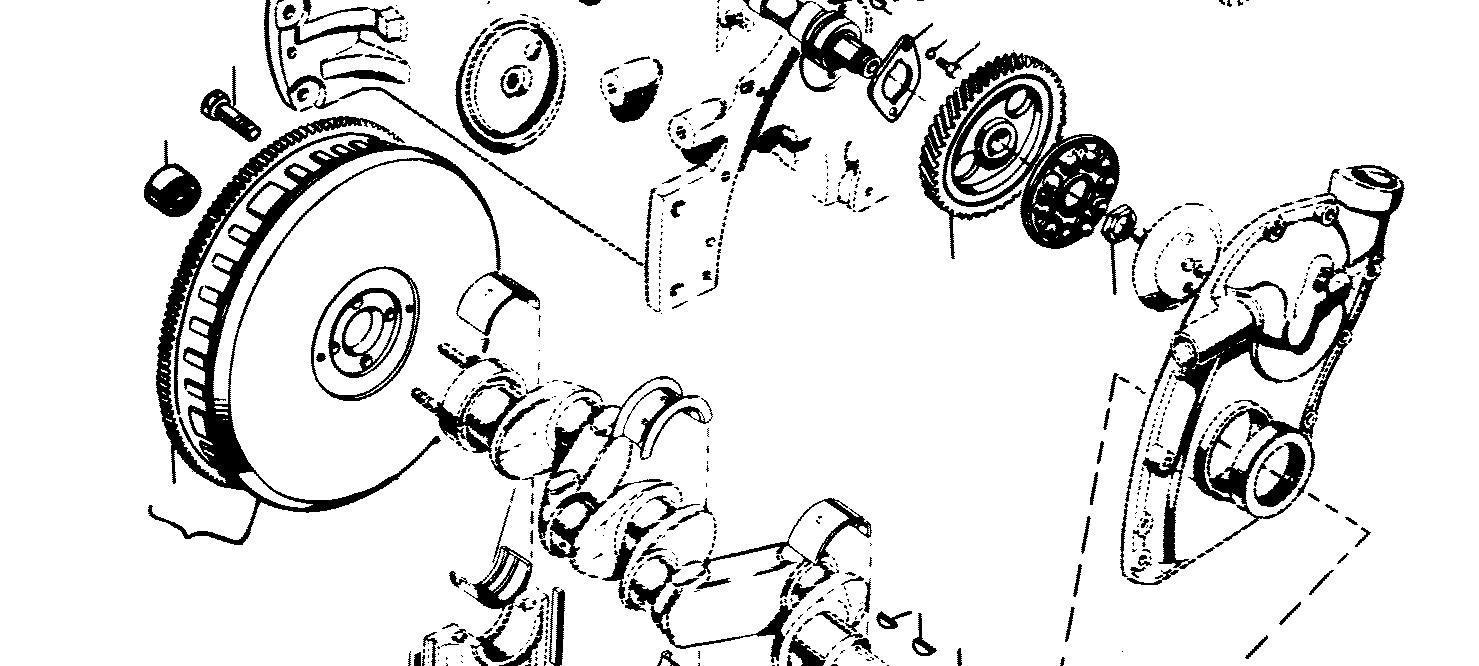

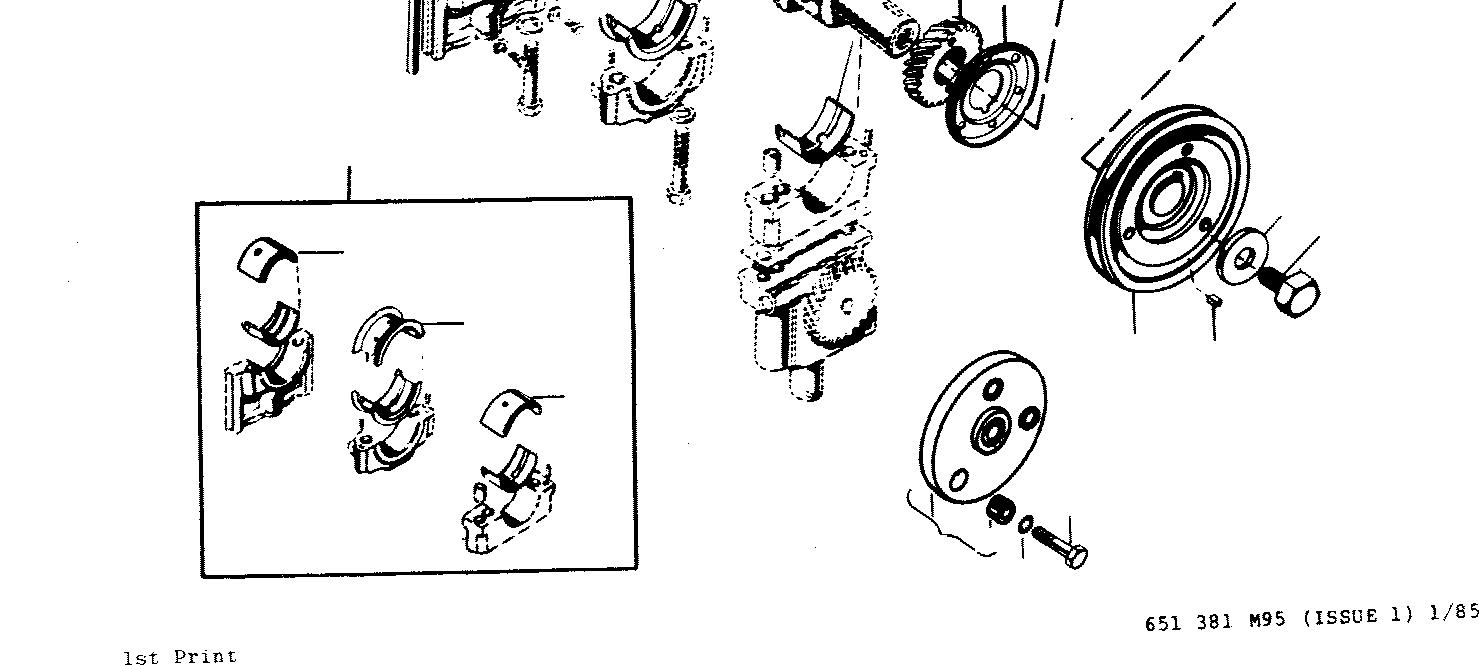

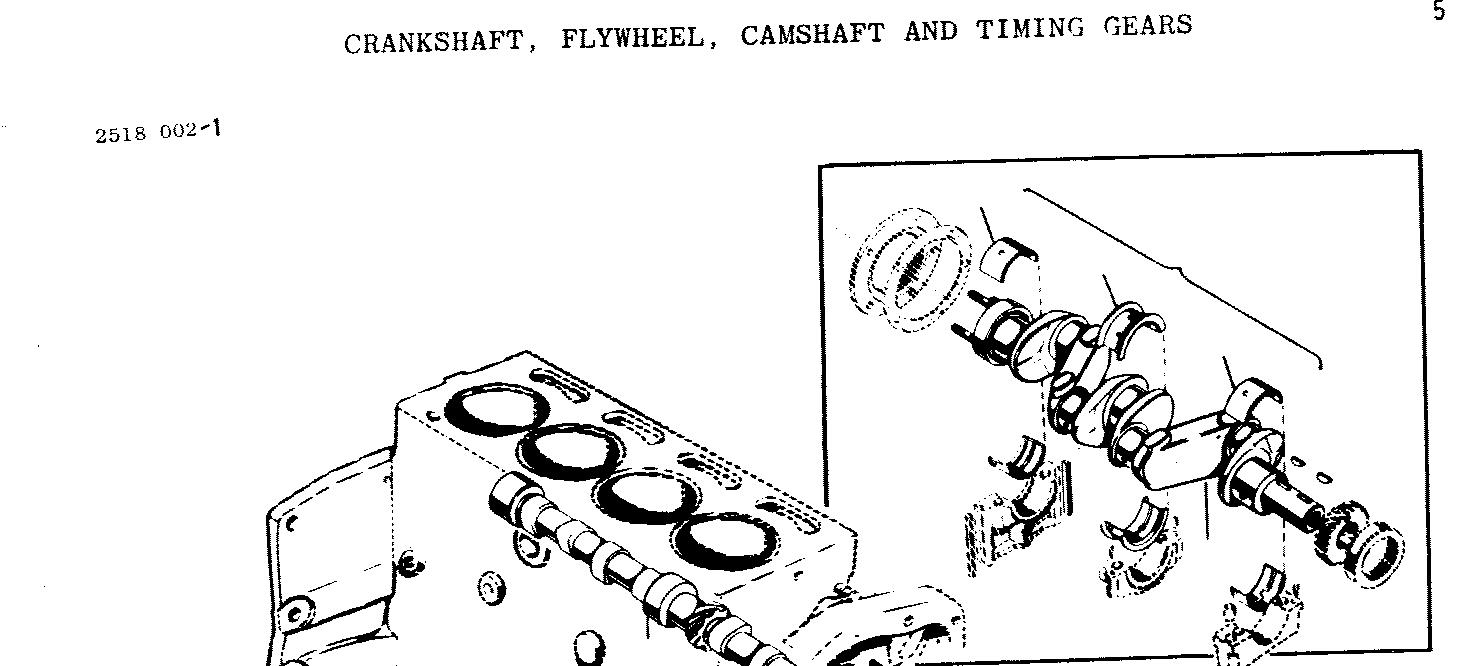

1 1047539M1 1 Crankshaft 2 1 Insert Set (Standard) (Order Components) 3 1047525M91 1 Insert Assembly (Front) 4 1047529M91 1 Insert Assembly (Center) 5 1047532M91 1 Insert Assembly (Rear)
9 1750054M1 1 Gear, Crankshaft Timing (24 Teeth)
1750203M1 AR (A) Gear (-.001")
1750205M1 AR (A) Gear (-.002")
1750202M1 AR (A) Gear (+.001") 1750204M1 AR (A) Gear (+.002") 10 15286A 1 Washer, Oil Thrower 11 182735M1 1 Pulley, Crankshaft
12 15356A 2 Key (1/4 x 1")
13 353609X1 1 Bolt (5/8 x 1-1/4" NF, Hex.)
14 1500104M1 1 Washer, Crankshaft Pulley
15 15291A 1 Plug (Cork)
20 1754020M91 1 (B) Flywheel Assembly (Incl. #21) 513572M91 1 (C) Flywheel Assembly
21 1750034M1 1 Gear, Ring (145 Teeth)
22 832960M3 1 Bearing, Ball
23 832573M1 4 Bolt (7/16 x 1-3/8" NF, Special)
31 1027656M1 1 Camshaft
32 1046676M1 1 Gear, Camshaft (48 Teeth)
33 1691X 1 Key (5/32 x 5/8" Woodruff)
34 370393X1 1 Nut (7/8" - 18 Special)
35 1500056M2 1 Plate, Camshaft Thrust
36 1750127M1 2 Bolt (5/16 x 1/2" NC, Special)
37 022428X 2 Washer (5/16" Ext. Tooth Lock)
41 837156M91 AR Insert Kit (-.010")
42 1047527M91 1 Insert Assembly (Front) 43 1047530M91 1 Insert Assembly (Center) 44 1047533M91 1 Insert Assembly (Rear) 41 837157M91 AR Insert Kit (-.020") 42 1047528M91 1 Insert Assembly (Front) 43 1047531M91 1 Insert Assembly (Center) 44 1047534M91 1 Insert Assembly (Rear)
51 704812M93 1 Adapter Assembly, Pump
52 1400022M91 3 Bushing Assembly
53 353693X1 3 Bolt (3/8 x 1-1/4" NC, Hex.)
54 22764X 3 Washer (3/8" Int. Skpf.)
(A) - Undersize And Oversize Gears Are Furnished On Special Order When To Obtain Quiet Gear Operation. (B) - Used With Live P.T.O. (C) - Used With Independent P.T.O.

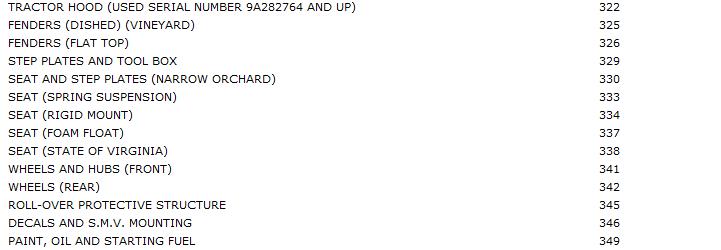

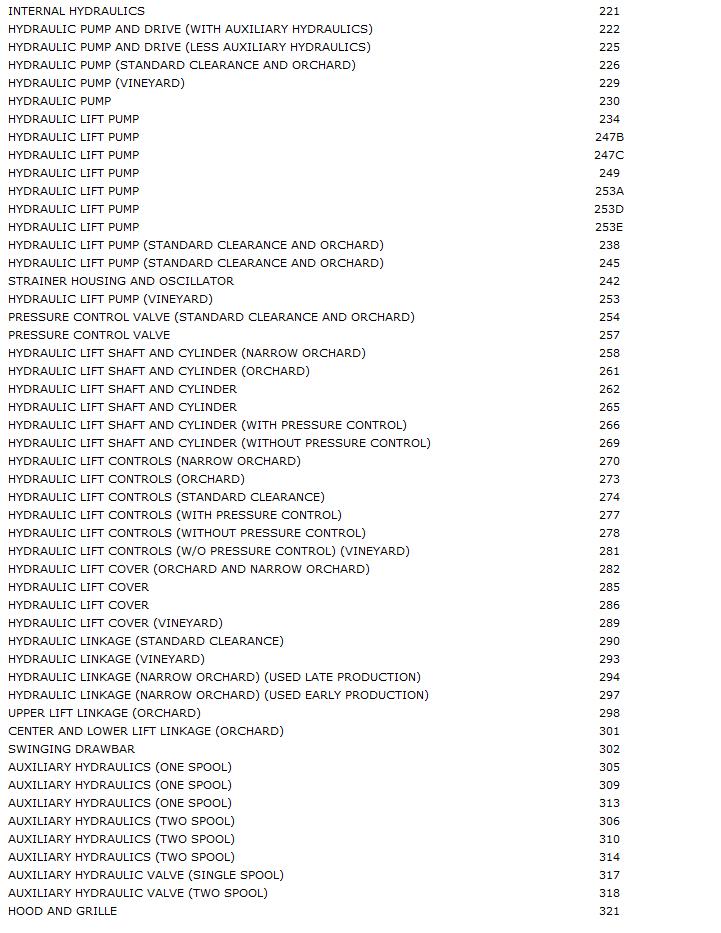

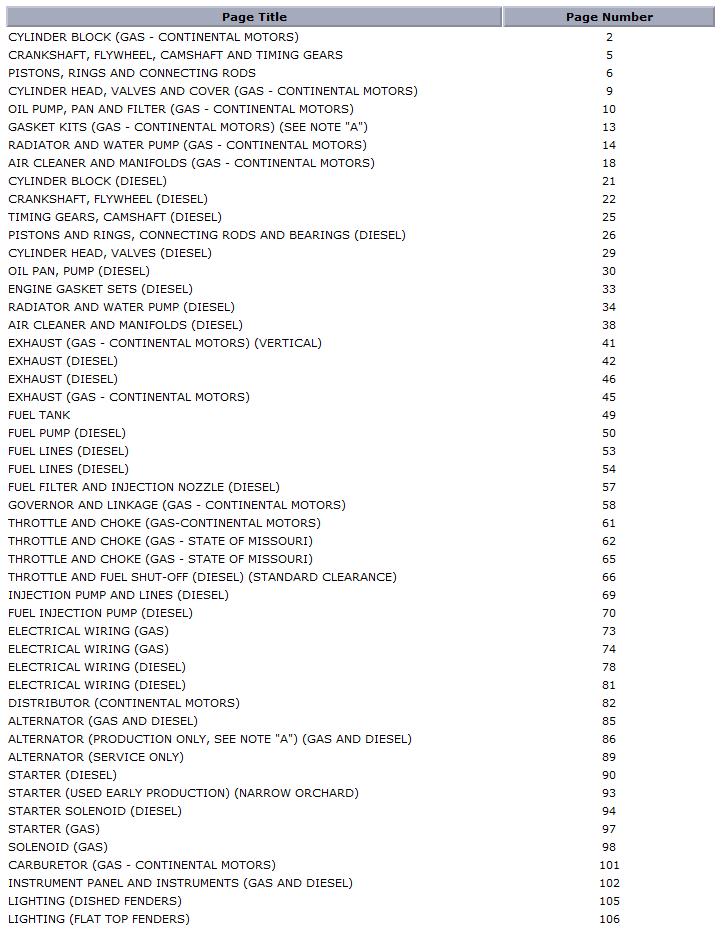

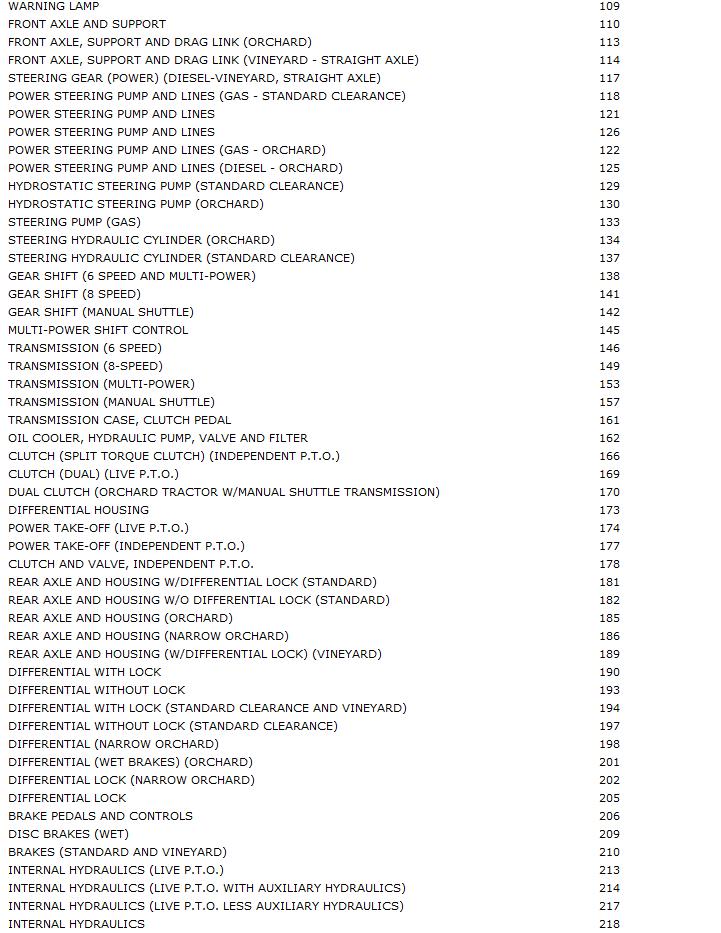

Massey Ferguson
245 (PRIOR TO 9A349239) TRACTOR

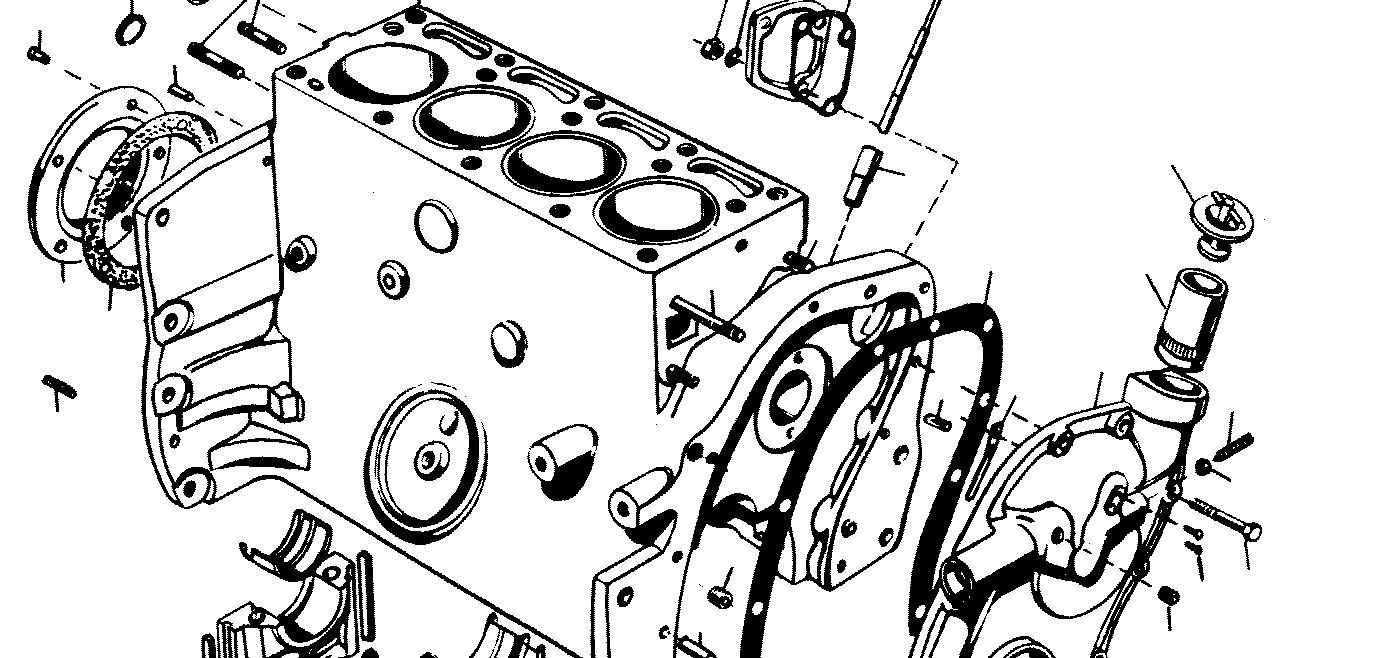

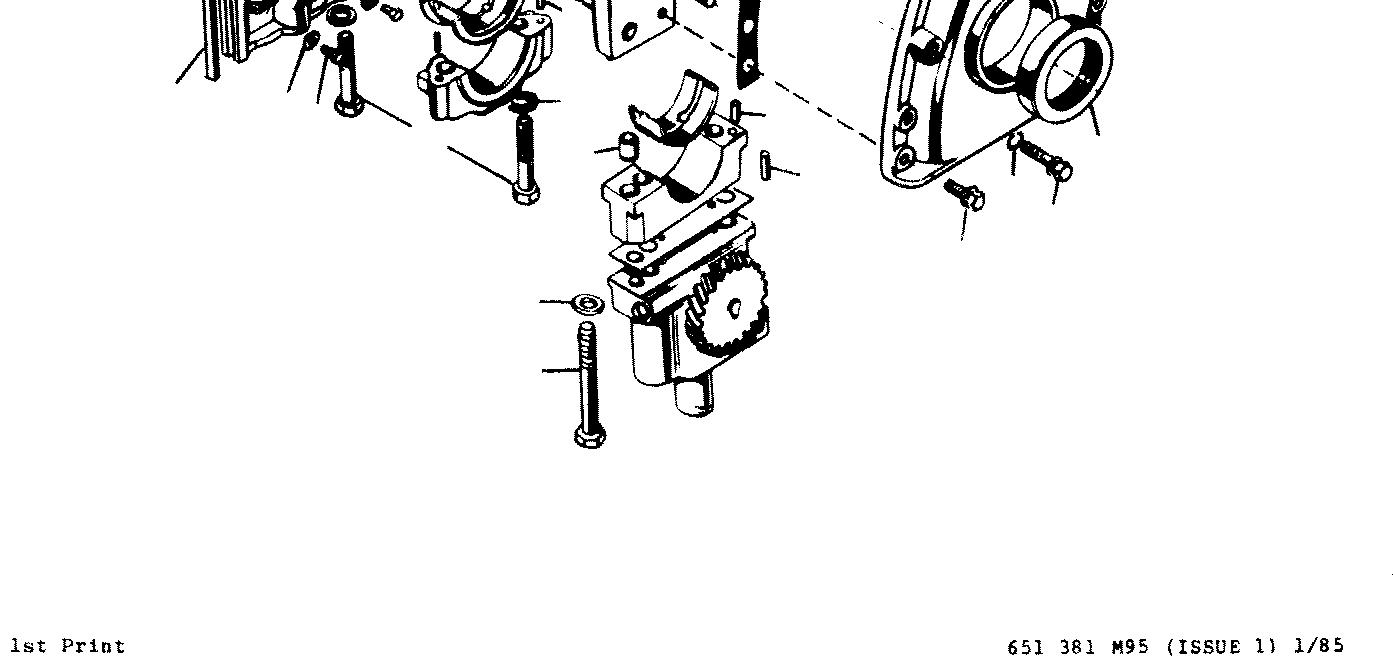

CYLINDER BLOCK (GAS - CONTINENTAL MOTORS)
Item Part Number Qty Description
535748M91 1 Engine Assembly (Complete)(CMCZ145-24) (Not A Repair Item. Part No. Shown For Ref. Only)
535749M91 1 Engine Assembly (Complete) (CMCZ145-25) (Not A Repair Item. Part No. Shown For Ref. Only)
1050016M91 1 Block Assembly (Short)(Incl. Head, Pistons, Crankshaft And Bearings, Camshaft, Connecting Rods And Bearings, Oil Pump, Oil Pan And Timing Gears)
2 1047920M91 1 Block Assembly (Stripped)
3 19259X 1 Plug, (2-1/8" Expansion)
4 1000148M1 2 Plug (1/4" P.T. Sckt. Hd.)
5 17595A 1 Support, Dipstick
6 17608A 1 Dowel, Bearing Cap
7 1005960M1 2 Pin (3/16 x 3/8" Dowel)
8 760402M1 3 Dowel (1/4 x 15/32") 11 1006690M1 2 Stud (3/8 NC, x 1-1/2") 12 1040711M1 1 Stud (3/8 NC x 3-1/2") 13 1030056M1 2 Stud (7/16" NC x 1") 14 370392X1 2 Bolt (1/2 x 6-3/8" NC, Special) 15 370391X1 4 Bolt (1/2 x 2-3/8" NC, Hex., Lock) 16 1754683M1 6 Washer (1/2" Special) 21 1750661M91 1 Cover Assembly, Timing Gear
22 1500071M1 1 Spring 23 2 Rivet (1/8 x 7/16" Rd. Hd.) (Order 480791M91, 1/4 LB Box) 24 1750151M1 1 Pin (1/8 x 1/4" Groove)
25 1750032M1 1 Gasket, Timing Gear Cover 26 1027657M1 1 Tube, Oil Filler 27 1031128M91 1 Cap Assembly, Oil Filler 28 22769X 1 Plug (1/4" P.T. Sq. Hd.) 29 191314M1 2 Dowel (3/8 x 25/32")
843893M1 1 Seal, Oil
1750216M92 1 Seal Assembly, Crankshaft Rear
1750112M1 1 Gasket, Rear Oil Seal 38 760405M1 2 Pin (5/32 x 7/16") 39 1006635M1 2 Packing (10" Long)
40 1751846M1 1 Cover, Hydraulic Pump Opening
41 191469M1 1 Gasket
46 353666X1 3 Bolt (1/4 x 5/8" NC, Hex.)
47 1018224M1 2 Bolt (1/4 x 5/8" NC, Hex. Nyloc)
48 1002044M1 2 Washer (17/64 x 1/2 x 1/16")
49 11191X 5 Bolt (3/8 x 1-1/8" NC, Hex.)
50 354264X1 1 Bolt (3/8 x 1-3/4" NC, Hex.)
51 354267X1 3 Bolt (3/8 x 2-1/4" NC, Hex.)
52 353434X1 9 Washer (3/8" Lock)
53 355566X1 3 Nut (3/8" NC, Hex.)
59 1016199M1 1 Drain
60 195546M1 1 Plug (7/8" Button Type)
61 760138M1 1 Screw (1/4 x 2-11/16" NC, Spec.)
62 355564X1 1 Nut (1/4" NC, Hex.)
63 1750095M1 1 Gauge Assembly (Dipstick)
64 191314M1 2 Dowel (3/8 x 25/32") ****************************************
(ENGINE TO TRANSMISSION HARDWARE) ****************************************
353698X1 1 Bolt (7/16 x 1" NC, Hex.)
353700X1 6 Bolt (7/16 x 1-1/4" NC, Hex.)
353701X1 6 Bolt (7/16 x 1-3/8" NC, Hex.)
353704X1 1 Bolt (7/16 x 1-3/4" NC, Hex.)
353432X1 2 Washer (7/16" Lock)
355645X1 2 Nut (7/16" NC, Hex.)
354285X1 3 Bolt (5/8 x 2-1/4" NC, Hex.)
354290X1 1 Bolt (5/8 x 3-1/4" NC, Hex.)
357046X1 2 Bolt (5/8 x 6-1/2" NC, Hex.)
375099X1 3 Nut (5/8" NC, Hex.)
