Massey Ferguson
Massey Ferguson
Ferguson
Description
742827M91 1 Crankshaft Kit 2 746156M91 1 Insert Set (Standard) 3 1 Insert (Front, Upper) (Standard) 4 1 Insert (Front, Lower) (Standard) 5 4 Insert (Intermediate) (Standard) 6 2 Insert (Rear) (Standard) 7 737070M91 1 Insert Set (Standard) (See Page 9) 9 735113M1 2 Washer (Thrust) (Lower) (Standard) (Crankshaft Thrust) 10 735112M1 2 Washer (Thrust) (Standard) (Crankshaft) 11 745483M1 1 Weight, Balance (Pair) 12 353570X1 4 Bolt (7/16 x 2-3/8" NF, Hex.) (Weight To Crankshaft) 13 733644M1 2 Washer (Special) (Right Hand, Top) (Weight To Crankshaft) 14 733645M1 2 Washer (Special) (Left Hand, Top) (Weight To Crankshaft) 15 731227M1 1 Spacer, Timing Gear
16 731228M1 1 Gear, Crankshaft
17 745057M1 1 Washer, Oil Thrower
18 745773M1 1 Pulley, Crankshaft (4 Holes) (Ind. P.T.O.)
734628M1 1 Pulley, Crankshaft (Live P.T.O.)
19 731076M1 1 Key, Crankshaft Gear And Pulley
20 1476107X1 1 Bolt, Crankshaft Pulley
21 731376M1 1 Washer, Crankshaft Pulley
22 735800M1 AR Washer (Upper)(+.007") (Crankshaft Thrust)
23 735801M1 AR Washer (Lower)(+.007") (Crankshaft Thrust)
24 704812M93 1 (A) Adapter Assembly, Pump
25 1400022M91 3 Bushing Assembly
26 353693X1 3 (A) Bolt (3/8 x 1-1/4" NC, Hex.)
27 353434X1 3 (A) Washer (3/8" Lock)
30 734861M91 1 Flywheel Assembly (Live P.T.O.) (Incl. Item 31) 513570M91 1 Flywheel Assembly (Independent P.T.O.)
31 731008M1 1 Gear, Ring 32 353593X1 6 Bolt (1/2 x 1-1/4" NF, Hex.)
33 731192M1 3 Lock Strap 34 832953M3 1 Bearing, Ball 40 746157M91 AR Insert Set (-.010") 41 1 Insert Set (-.010") (Front, Upper) 42 1 Insert Set (-.010") (Front, Lower) 43 4 Insert Set (-.010") (Intermediate)
2 Insert Set (-.010") (Rear)
746158M91 AR Insert Set (-.020")
1 Insert Set (-.020") (Front, Upper) 42 1 Insert Set (-.020") (Front, Lower) 43 4 Insert Set (-.020") (Intermediate) 44 2 Insert Set (-.020") (Rear) 40 746159M91 AR Insert Set (-.030") 41 1 Insert Set (-.030") (Front, Upper)
42 1 Insert Set (-.030") (Front, Lower)
43 4 Insert Set (-.030") (Intermediate) 44 2 Insert Set (-.030") (Rear)
(A) - Used Orchard Tractors Only.
Massey Ferguson 245 (9A349239 AND UP)
Item Part Number Qty Description
534173M92 1 (A) Engine Assembly (Ind. P.T.O.) (Not A Repair Item) (Part Number Shown For Reference Only)
534174M92 1 (A) Engine Assembly (Complete)(3 Hole Pulley) (Live P.T.O.) (Not A Repair Item, Part Number Shown For Reference Only)

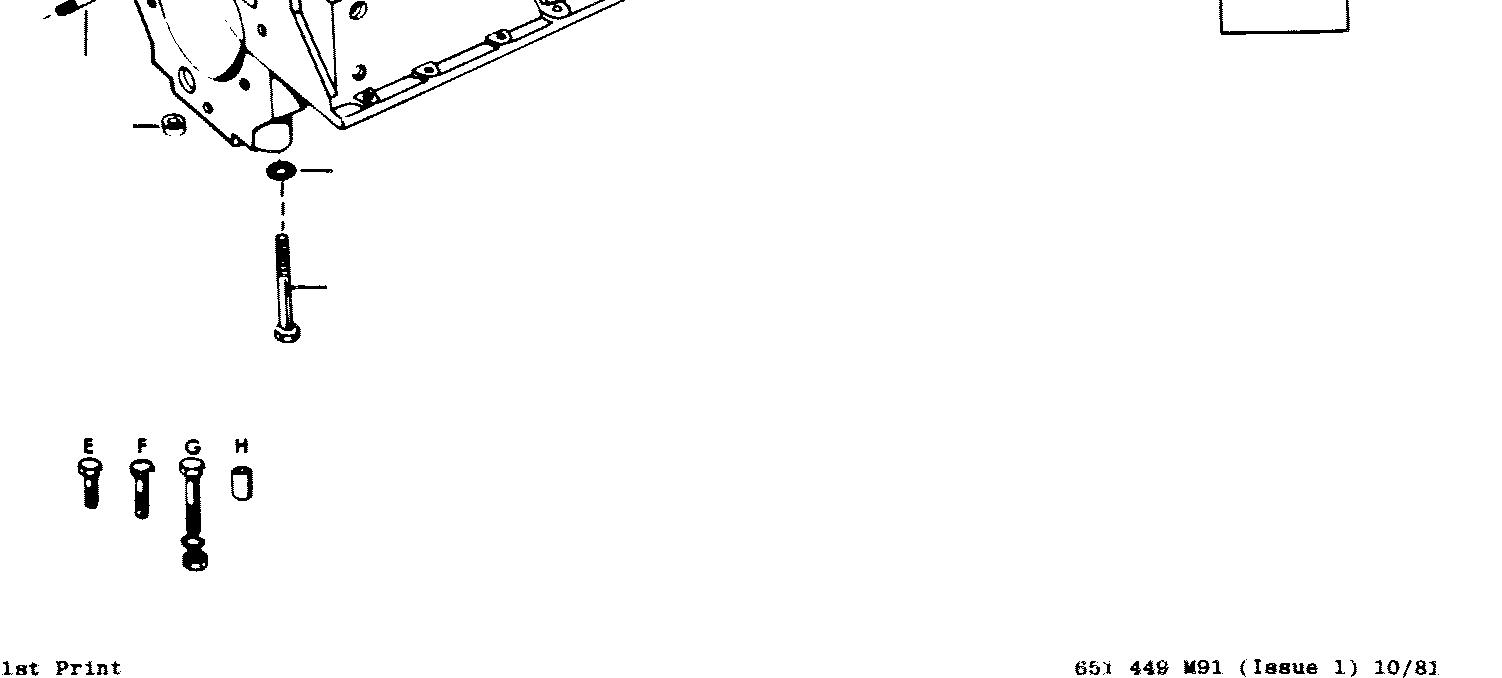

1896371M91 1 Block Assembly (Short) (Incl. Pistons, Crankshaft And Bearings, Connecting Rods And Bearings) 1 742783M91 1 Block Assembly (Stripped) 2 739043M1 1 Liner (Cast Iron) 3 745241M1 8 Thimble, Bearing Caps To Block 4 1476051X1 6 Bolt (17/32 x 3-19/32" Hex.) 1476049X1 2 Bolt (17/32 x 4-19/32" Hex.) 5 731354M1 5 Plug (1-1/4" Cup Type) 6 731999M1 1 Plug (57/64" Cup Type) 7 1447053M1 2 "O" Ring (3/4" I.D. x .070" Thk., Spl.) 8 733855M1 2 Plug (13/32" Cup Type)
738808M1 1 Plug (13/16" Dia. W/1/8" Dia. Hole)
735227M1 AR Shim, Cylinder Liner (.005") (Service Only) 11 731356M1 2 Plug (11/16" Cup Type) (Pressure Rail)
736613M1 1 Plug (1/2" NF, Phillips Head)
738820M1 2 Plug (7/8" Cup Type W/1/8" Dia. Hole) 14 738821M1 2 Plug (7/8" Cup Type W/3/8" Dia. Hole)
15 1260A 2 Dowel
16 1476087X1 4 Bolt (7/16 x 3-1/4" NF, Hex.)
17 1476086X1 9 Bolt (7/16 x 3-7/8" NF, Hex.) 18 734308M1 2 Plug, Cylinder Block Drain 365333X1 1 Plug (1/4" P.T. Hex. Sckt. Hd.) 20 735018M2 1 Gasket, Cylinder Head
21 1851764M1 1 Drain, Cylinder Block
22 376506X1 2 Nut (7/16" NF, Hex.)
23 731312M1 5 Dowel (3/8 x 9/16")
24 741969M1 1 Housing, Rear Oil Seal
25 1447049M1 1 Seal, Rear Oil
26 741378M1 1 Gasket, Oil Seal Housing
27 353518X1 9 Bolt (5/16 x 7/8" NF, Hex.)
28 353770X1 9 Washer (11/32 x 11/16 x 3/32" Flat)
29 731208M1 1 Housing, Tractormeter Drive
30 731209M1 1 Gasket, Tractormeter Drive Housing
31 636762M1 1 Seal, Housing to Block (7/8 x 1-3/8 x 1/4")
32 735889M1 1 Connector, Tractormeter Drive
33 736091M1 1 Cap, Tractormeter Drive
34 890309M1 1 Washer, Tractormeter Drive
35 741401M1 1 Plate, Flywheel Housing Adapter
36 732902M1 1 Grommet, Rubber
37 354074X1 1 Pin (3/16 x 3/4" Cotter)
46 366270X1 1 Spacer (21/32 x 1-1/4 x 3-1/8")
47 740732M1 1 Stud (5/8 x 5-7/8" NC - NF Special)
48 377127X1 2 Shim (21/32 x 1-1/4 x .036") 365691X1 3 Shim (21/32 x 1-1/4 x .010") 365690X1 1 Shim (21/32 x 1-1/4 x .005")
377126X1 4 Shim (21/32 x 1-1/4 x .002")
49 731647M1 3 Stud (5/16 NF x 1-1/4")
50 353446X1 3 Washer (5/16" Lock)
51 353916X1 3 Nut (5/16" NF, Hex.)
52 353538X1 AR Bolt (3/8 x 1" NF, Hex.)
53 358005X1 AR Bolt (3/8 x 1" NF, Sckt. Hd.)
54 353434X1 AR Washer (3/8" Lock)
56 515155M1 1 Spacer, Battery Platform
61 191314M1 AR Dowel (3/8 x 25/32")
62 353708X1 AR Bolt (7/16 x 2-1/4" NC, Hex.)
63 353712X1 AR Bolt (7/16 x 2-3/4" NC, Hex.)
64 353576X1 AR Bolt (7/16 x 3-1/8" NF, Hex.)
65 353432X1 AR Washer (7/16" Lock)
66 353426X1 AR Nut (7/16" NF, Hex.)
