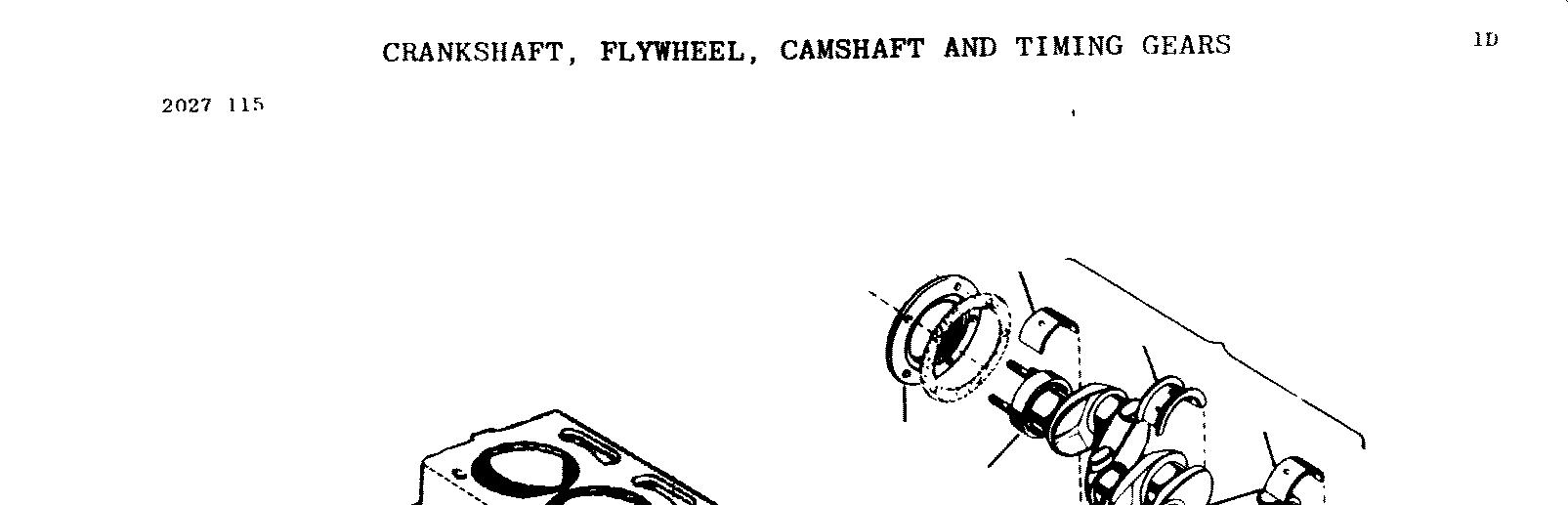

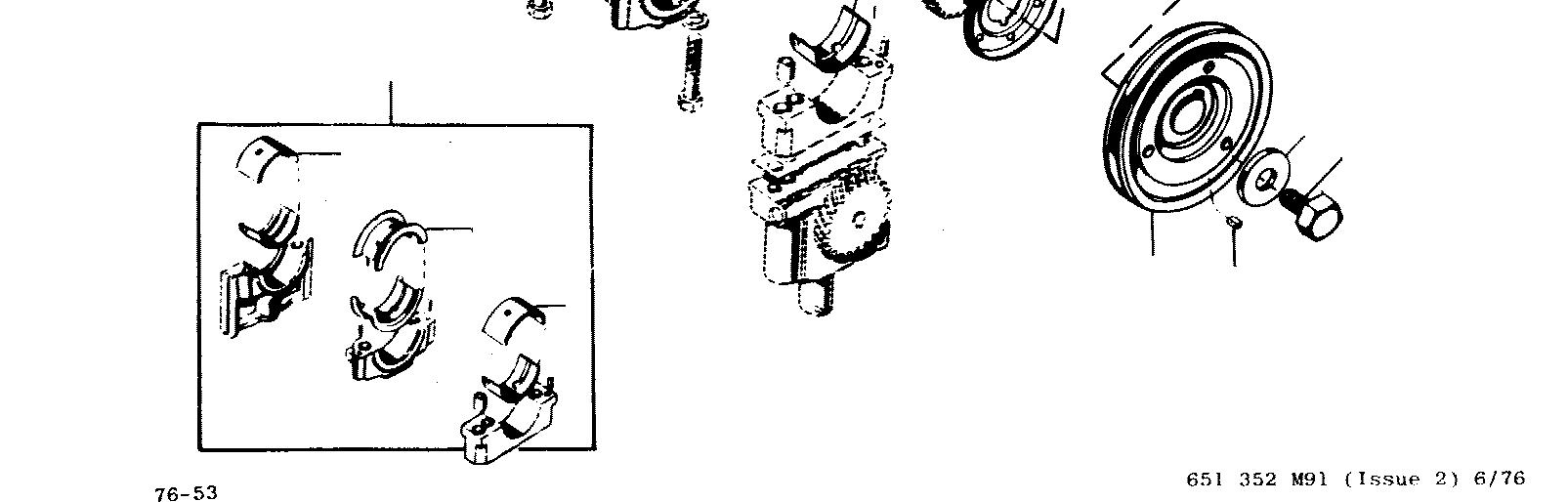

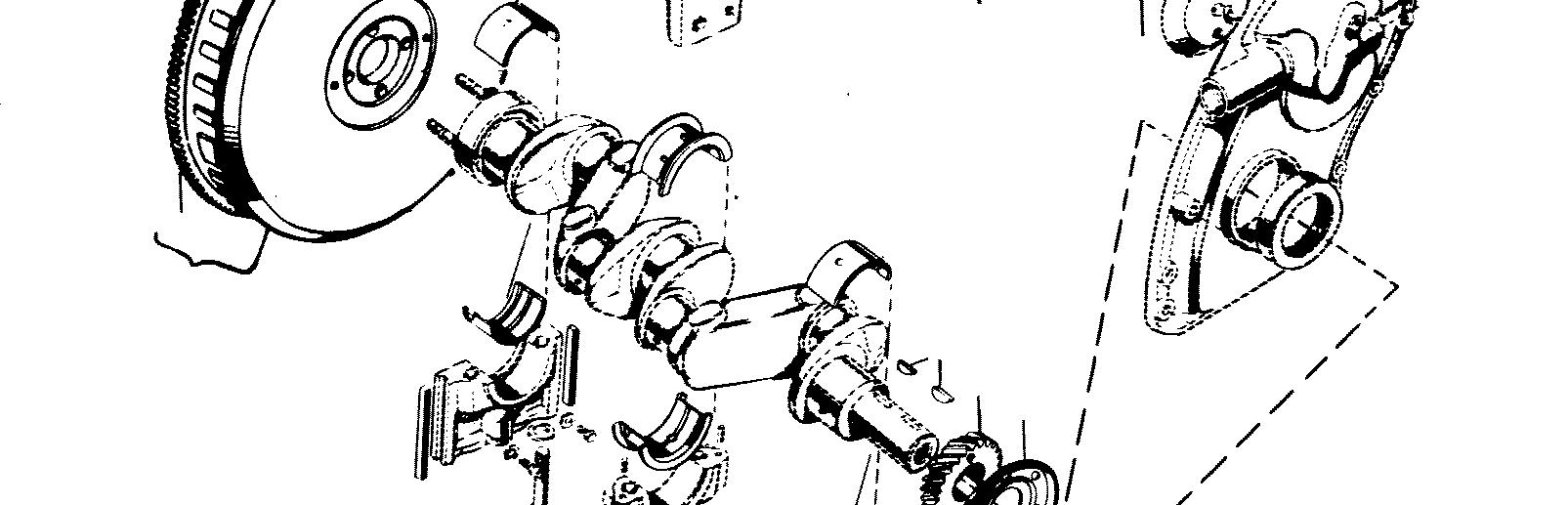

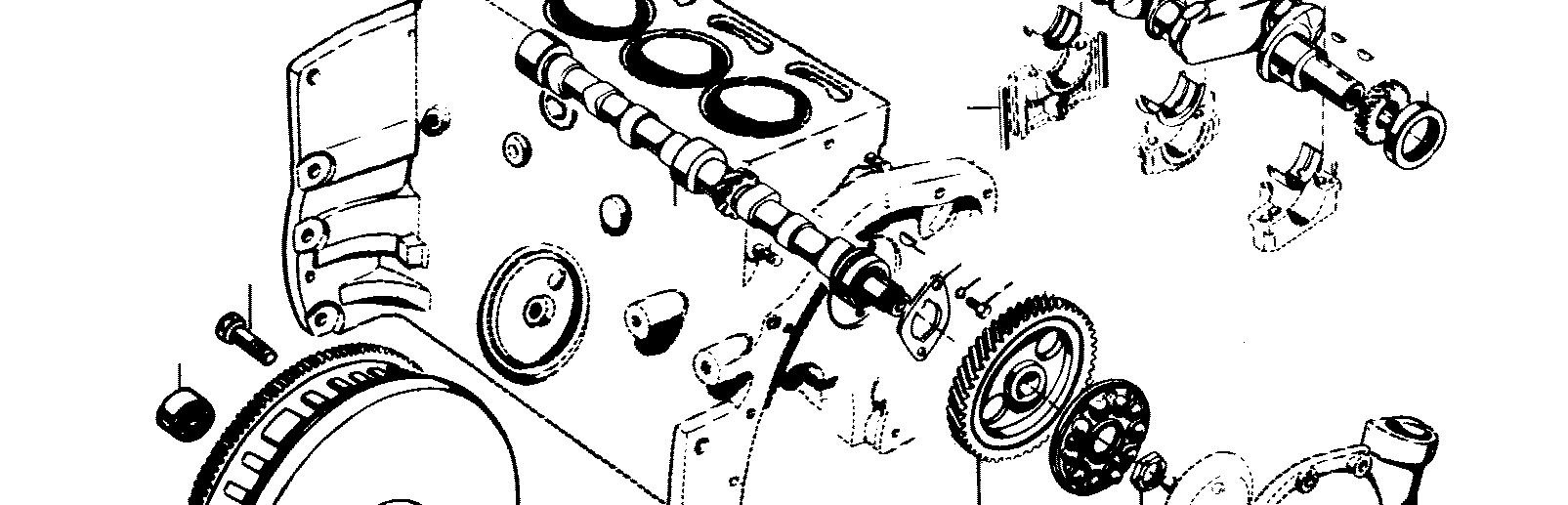

1 1047539M1 1 Crankshaft 2 837155M91 1 Insert Set (Standard) (See Item 45) 3 1047525M91 1 Insert Assembly (Front) 4 1047529M91 1 Insert Assembly (Center) 5 1047532M91 1 Insert Assembly (Rear) 6 1006635M1 2 Packing (10" Long) 7 1008597M1 1 Seal (Front)
8 1750216M92 1 Seal Assembly, Crankshaft Rear 9 1750054M1 1 Gear, Camshaft Timing (24 Teeth) 10 10286A 1 Washer, Oil Slinger 11 182735M1 1 Pulley, Crankshaft
12 15356A 2 Key, (1/4 x 1" Hi-Pro)
13 353609X1 1 Bolt (5/8 x 1-1/4" NF, Hex.)
14 1500104M1 1 Washer, Crankshaft Pulley 15 15291A 1 Plug (Cork) 20 1754020M91 1 Flywheel Assembly 21 1750034M1 1 Gear, Ring (145 Teeth)
22 832960M3 1 Bearing, Ball
23 832573M1 4 Bolt (7/16 x 1-3/8" NF, Special)
34 1027656M1 1 Camshaft
35 1046676M1 1 Gear, Camshaft (48 Teeth)
36 1691X 1 Key (5/32 x 5/8" Woodruff)
37 370393X1 1 Nut (7/8" - 18 Special)
38 1500056M1 1 Plate, Thrust, 39 1750127M1 2 Bolt (5/16 x 1/2" NC, Special)
40 022428X 2 Washer (5/16" Lock)
45 837156M91 AR Insert Set (-.010")
46 1047527M91 1 Insert Assembly (Front)
47 1047530M91 1 Insert Assembly (Center)
48 1047533M91 1 Insert Assembly (Rear)
45 837157M91 AR Insert Kit (-.020")
46 1047528M91 1 Insert Assembly (Front)
47 1047531M91 1 Insert Assembly (Center)
48 1047534M91 1 Insert Assembly (Rear)
Massey Ferguson

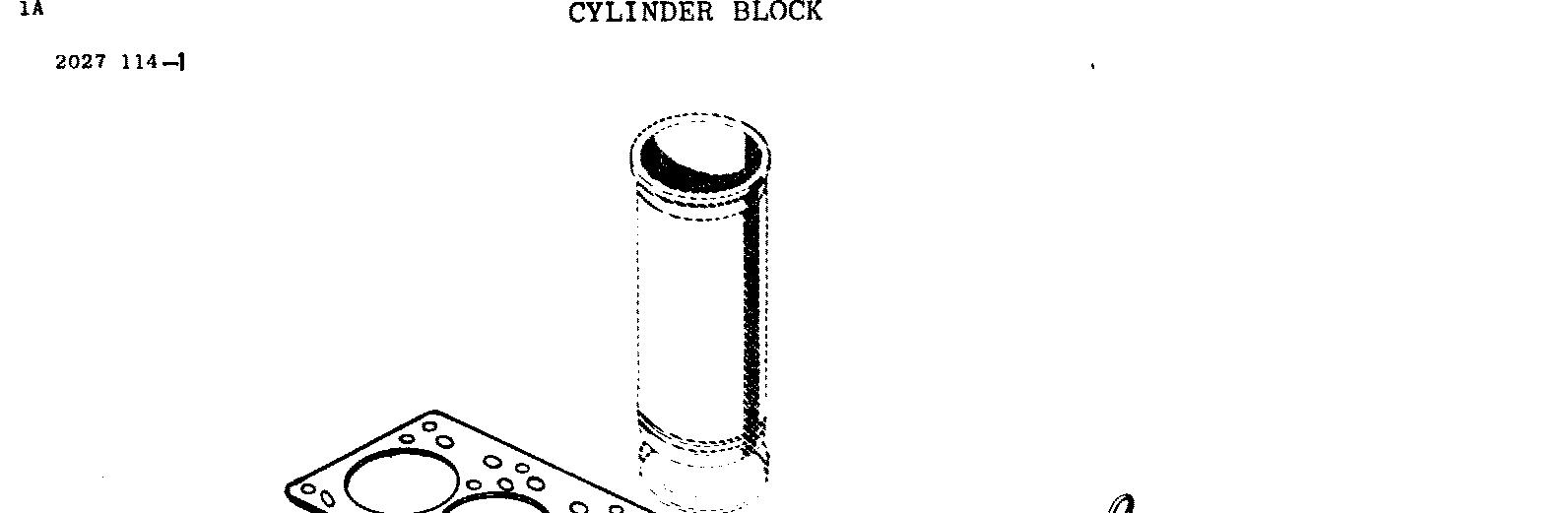

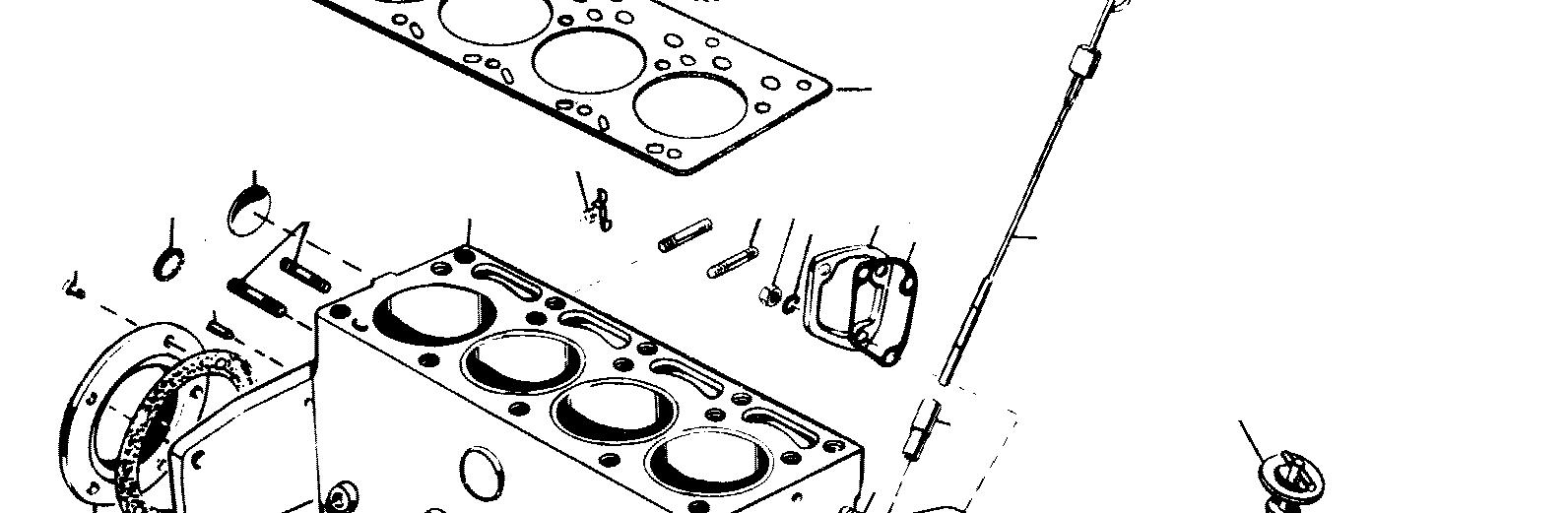

CYLINDER BLOCK (GAS - CONTINENTAL MOTORS)
Item Part Number Qty Description 535748M91 1 Engine Assembly (Complete)(Cmc Z145-24) 1046673M91 1 Block Assembly (Short) (Incl. Pistons, Crankshaft & Bearings, Camshaft Connecting Rods & Bearings, Oil Pump, Oil Pan & Timing Gears)
2 1047920M91 1 Block Assembly (Stripped)
3 19259X 1 Plug, Camshaft Hole (2-1/8" Expansion)
4 1000148M1 2 Plug (1/4" P.T. Sckt. Hd.)
5 17595A 1 Support, Dip Stick
6 17608A 1 Dowel, Front Bearing Cap To Block 7 1005960M1 2 Pin (3/16 x 3/8"Dowel)
8 760402M1 3 Dowel (1/4 x 15/32")
9 16807A 2 Stud (1/4" NC x 7/8") 10 15245A 1 Stud (3/8" NC x 1-3/8") 11 1006690M1 1 Stud (3/8 NC, x 1-1/2") 12 1040711M1 1 Stud (3/8 NC x 3-1/2") 13 1030056M1 2 Stud (7/16" NC x 1") 15 1750131M1 2 Bolt (1/2 x 6-1/2" NC, Hex.) 16 370391X1 4 Bolt (1/2 x 2-3/8" NC, Hex., Lock) 17 1754683M1 6 Washer (1/2" Special) 21 1750661M91 1 Cover Assembly, Timing Gear 22 1500071M1 1 Spring 23 16863X 2 Rivet, (1/8 x 7/16" Rd. Hd.) (Order 480791M91, 1 Lb. Box)
1750151M1 1 Pin (1/8 x 1/4" Groove)
1750032M1 1 Gasket, Timing Gear Cover
1027657M1 1 Tube, Oil Filler
33 1031128M91 1 Cap Assembly, Oil Filler
34 22769X 1 Plug (1/4" P.T.)
35 191314M1 2 Dowel (3/8 x 25/32")
36 1008597M1 1 Seal (Front)
42 1750216M92 1 Seal Assembly, Crankshaft Rear
43 1750112M1 1 Gasket, Rear Oil Seal
44 760405M1 2 Pin (5/32 x 7/16")
45 2 (A) Packing, Rear Main Bearing Sides
46 1751846M1 1 Cover, Hydraulic Pump Opening
47 191469M1 1 Gasket
48 353666X1 3 Bolt (1/4 x 5/8" NC, Hex.)
49 1018224M1 2 Bolt (1/4 x 5/8" NC, Hex. Nyloc)
50 1002044M1 2 Washer (17/64 x 1/2 x 1/16")
51 11191X 5 Bolt (3/8 x 1-1/8" NC, Hex.)
52 354264X1 1 Bolt (3/8 x 1-3/4" NC, Hex.)
53 354267X1 3 Bolt (3/8 x 2-1/4" NC, Hex.)
54 353434X1 4 Washer (3/8" Lock)
55 355566X1 3 Nut (3/8" NC, Hex.)
56 1750017M1 1 Gasket, Cylinder Head
59 763716M1 1 Drain, Cock
60 195546M1 1 Plug (7/8" Button Type)
61 760138M1 1 Screw (1/4 x 2-11/16" NC, Spec.)
62 355564X1 1 Nut (1/4" NC, Hex.)
63 1750095M1 1 Dipstick Assembly, Oil
64 191314M1 2 Dowel (3/8 x 25/32")
65 182377M1 1 Spacer, Front Support, Right
66 182378M1 1 Spacer, Front Support, Left
353698X1 1 Bolt (7/16 x 1" NC, Hex.)
353700X1 6 Bolt (7/16 x 1-1/4" NC, Hex.)
353701X1 6 Bolt (7/16 x 1-3/8" NC, Hex.)
353704X1 1 Bolt (7/16 x 1-3/4" NC, Hex.)
353432X1 2 Washer (7/16" Lock)
355645X1 2 Nut (7/16" NC, Hex.)
354285X1 3 Bolt (5/8 x 2-1/4" NC, Hex.)
354290X1 1 Bolt (5/8 x 3-1/4" NC, Hex.)
357046X1 2 Bolt (5/8 x 6-1/2" NC, Hex.)
375099X1 3 Nut (5/8" NC, Hex.)
(A) - For Repairs Order 1006635M1, Packing 10' Long.
