Massey Ferguson 230 (PRIOR TO 9A349239) TRACTOR
Ferguson
Massey Ferguson

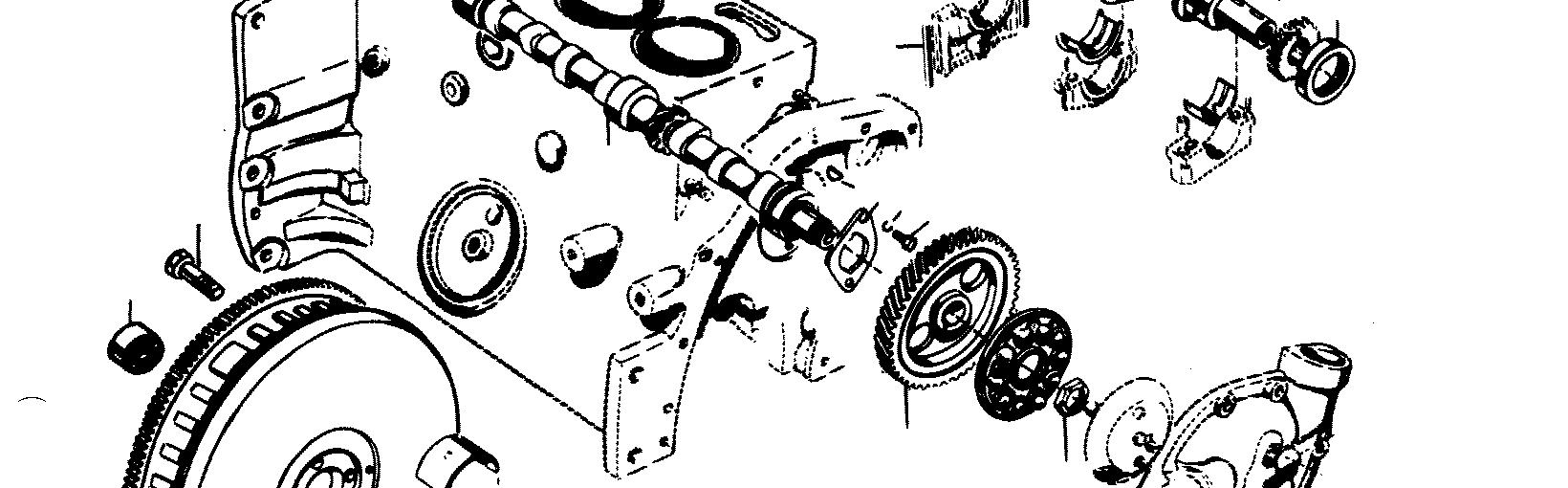

Item Part

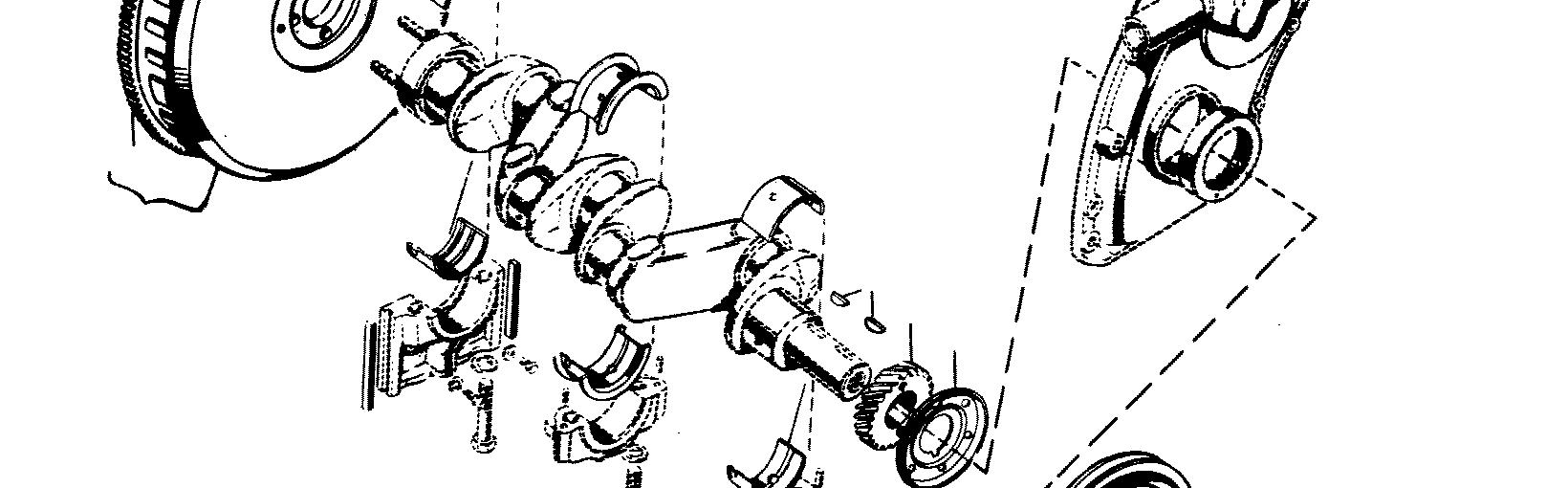

Qty Description 1 1047539M1 1 Crankshaft 2 837155M91 1 Insert Set (Std.)(See Item 45) 3 1047525M91 1 Insert Assembly (Front) 4 1047529M91 1 Insert Assembly (Center)
5 1047532M91 1 Insert Assembly (Rear)
6 1006635M1 2 Packing
7 843893M1 1 Seal, Oil (Front)
8 1750216M92 1 Retainer Assembly, W/Oil Seal (Rear)
9 1750054M1 1 Gear, Crankshaft Timing
1750203M1 AR (A) Gear (-.001")
1750205M1 AR (A) Gear (-.002")
1750202M1 AR (A) Gear (+.001") 1750204M1 AR (A) Gear (+.002")
10 15286A 1 Washer, Oil Thrower
11 182735M1 1 Pulley, Crankshaft
12 15356A 2 Key (1/4 x 1" Hi-Pro)
13 353609X1 1 Bolt (5/8 x 1-1/4" NF, Hex.)
14 1500104M1 1 Washer, Crankshaft Pulley
15 15291A 1 Plug (Cork)
20 1754020M91 1 Flywheel Assembly
21 1750034M1 1 Gear, Ring
22 832960M3 1 Bearing, Clutch Pilot
33 832573M1 4 Bolt (7/16 x 1-3/8" NF, Special)
34 1027656M1 1 Camshaft
35 1046676M1 1 Gear, Camshaft
1750207M1 AR (A) Gear (-.001")
1750209M1 AR (A) Gear (-.002")
1750206M1 AR (A) Gear (-.001")
1750208M1 AR (A) Gear (+.002")
36 1691X 1 Key (5/43 x 5/8" Woodruff)
37 370393X1 1 Nut, Gear To Cam
38 1500056M2 1 Plate, Camshaft Thrust
39 1750127M1 2 Bolt (5/16 x 1/2" NC, Special)
40 022428X 2 Washer (5/16" Lock)
45 837156M91 AR Insert Kit (-.010")
46 1047527M91 1 Insert Assembly (Front)
47 1047530M91 1 Insert Assembly (Center)
48 1047533M91 1 Insert Assembly (Rear)
45 837157M91 AR Insert Kit (-.020")
46 1047528M91 1 Insert Assembly (Front)
47 1047531M91 1 Insert Assembly (Center)
48 1047534M91 1 Insert Assembly (Rear)
(A) - Undersize And Oversize Gears Are Furnished On Special Order When Needed To Obtain Quiet Gear Operation.
Massey Ferguson
230 (PRIOR TO 9A349239) TRACTOR

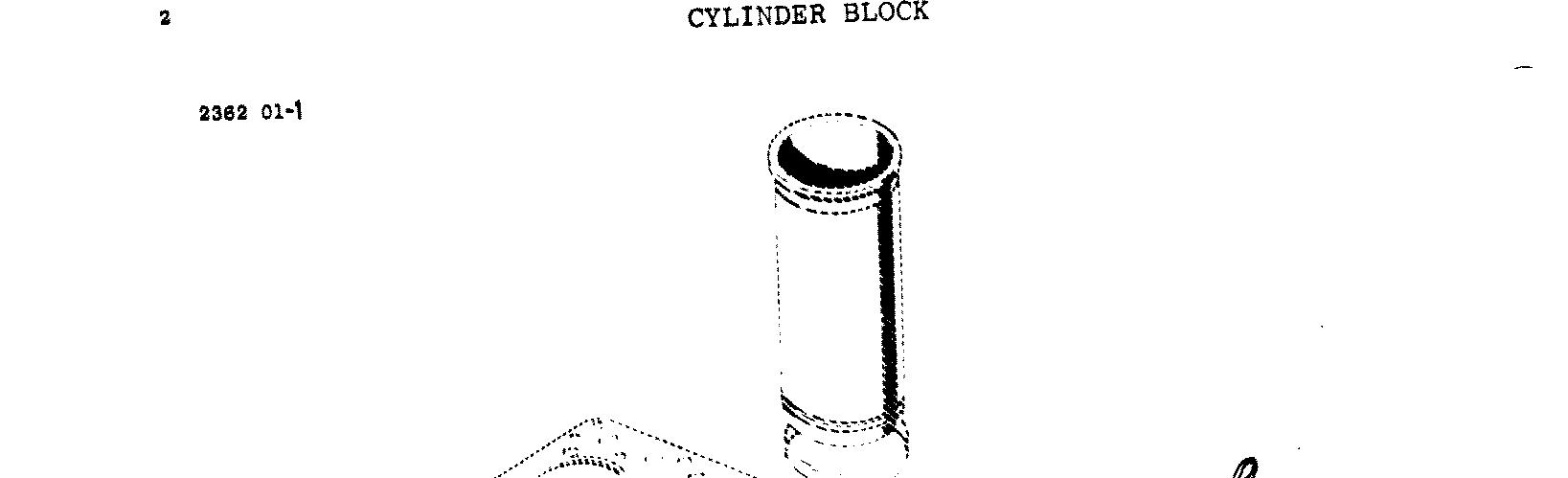

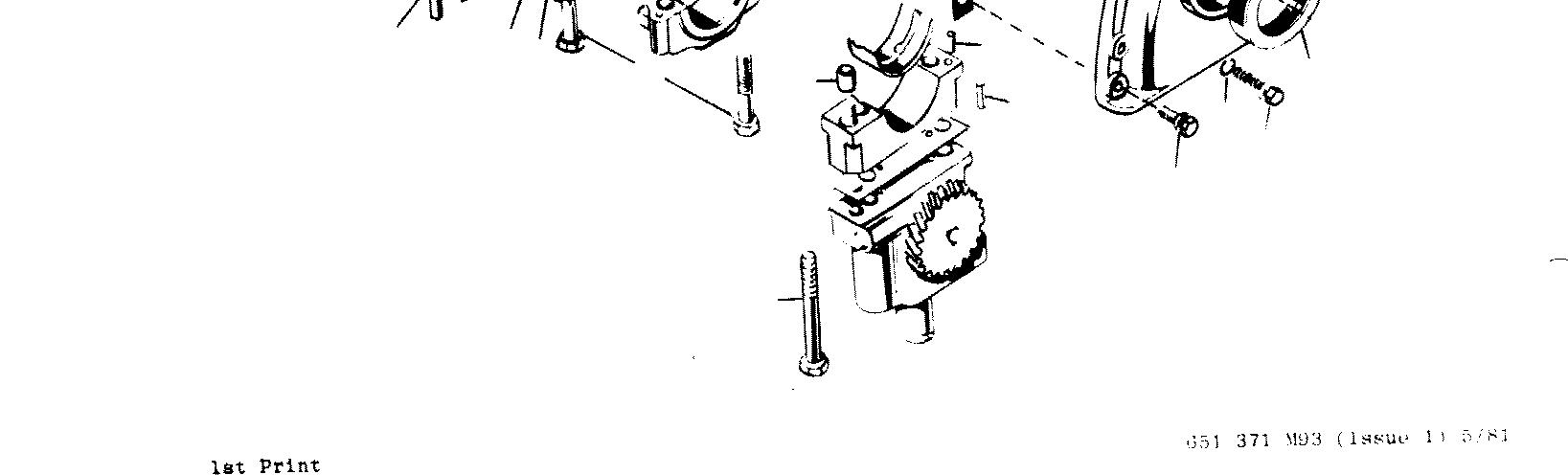

CYLINDER BLOCK (GAS)

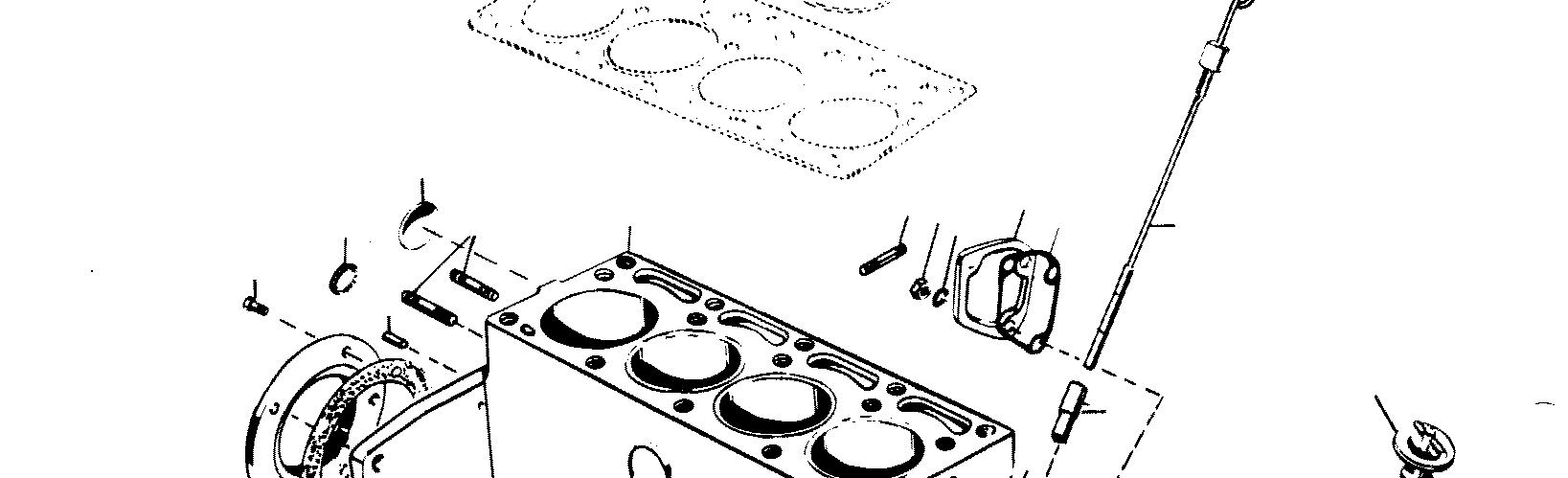

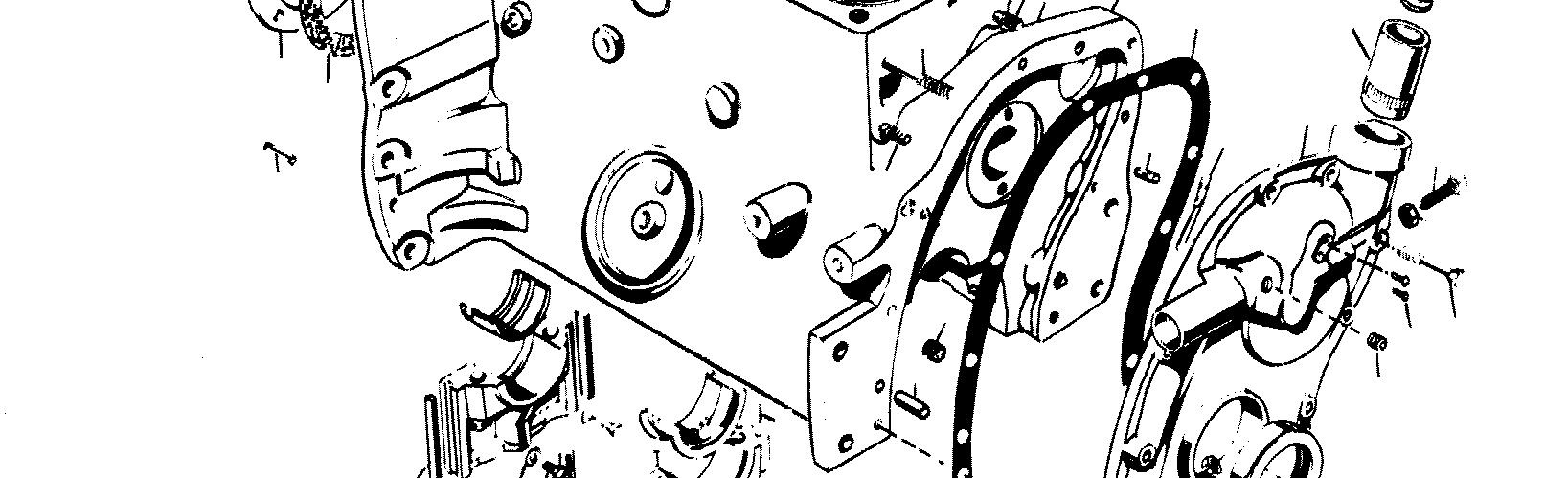

Item Part Number Qty Description
535748M91 1 Engine Assembly (Complete) (CMC Z145-24) (Not A Repair Item)(Part Number Shown For Reference Only)
1050016M91 1 Block Assembly (Short) (Incl. Pistons, Crankshaft And Bearings, Camshaft, Connecting Rods And Bearings, Oil Pump, Oil Pan, Timing Gears, Cylinder Head And Cover, Valves, Rocker Arms And Push Rods)
1046673M91 1 Block Assembly (Short) (Incl. Pistons, Crankshaft And Bearings, Camshaft, Connecting Rods And Bearings, Oil Pump, Oil Pan And Timing Gears)
2 1047920M91 1 Block Assembly (Stripped) 3 19259X 1 Plug, Camshaft Bearing (2-1/8" Expansion)
4 1000148M1 2 Plug, Oil Gallery (1/4" P.T. Ctsk. Hd.)
5 17595A 1 Support, Dipstick
6 17608A 1 Dowel, Bearing Cap 7 1005960M1 2 Dowel, Oil Pump 8 760402M1 3 Dowel (1/4 x 15/32") 9 1958X 2 Stud (1/4" NC x 7/8") 10 1006690M1 1 Stud (3/8" NC x 1-3/8") 11 1006690M1 1 Stud (3/8" NC x 1-1/2")
370392X1 2 Bolt (1/2 x 6-1/2" NC, Hex., Lock)
16863X 2 Rivet (1/8 x 7/16" Rd. Hd.)(Order 480791M, 1 Lb. Box)
1027657M1 1 Tube, Oil Filler
1031128M91 1 Cap Assembly, Oil Filler 28 22769X 1 Plug (1/4" P.T.) 29 191314M1 2 Dowel, Gear Cover 30 843893M1 1 Seal, Crankshaft Front 42 1750216M92 1 Seal Assembly, Crankshaft Rear
43 1750112M1 1 Gasket, Seal Retainer
44 760405M1 2 Pin (5/32 x 7/16")
45 1006635M1 2 Packing, Rear Bearing
46 1751846M1 1 Cover, Pump Hole
47 191469M1 1 Gasket, Cover
48 353666X1 3 Bolt (1/4 x 5/8" NC, Hex)
49 1018224M1 2 Bolt (1/4 x 5/8" NC, Nylok)
50 1002044M1 2 Washer, Seal Retainer
51 11191X 5 Bolt (3/8 x 1-1/8" NC, Hex.)
52 354264X1 1 Bolt (3/8 x 1-3/4" NC, Hex.)
53 354267X1 3 Bolt (3.8 x 2-1/4" NC, Hex.)
54 353434X1 4 Washer (3/8" Lock)
55 355566X1 3 Nut (3/8" NC, Hex.)
60 195546M1 1 Plug (7/8" Button Type)
61 760138M1 1 Screw, Governor Bumper
62 355564X1 1 Nut (1/4" NC, Hex.)
63 1750095M1 1 Gauge Assembly (Dipstick)
64 191314M1 2 Dowel, Engine To Transmission 353698X1 1 Bolt, Engine To Transmission (7/16" x 1" NC, Hex.) 353700X1 6 Bolt, Engine To Transmission (7/16 x 1-1/4" NC, Hex.)
353701X1 6 Bolt, Engine To Transmission (7/16 x 1-3/8" NC, Hex.)
353704X1 1 Bolt, Engine To Transmision (7/16 x 1-3/4" NC, Hex.)
353432X1 2 Washer, Engine To Transmission (7/16" Lock)
355645X1 2 Nut, Engine To Transmission (7/16" NC, Hex.)
