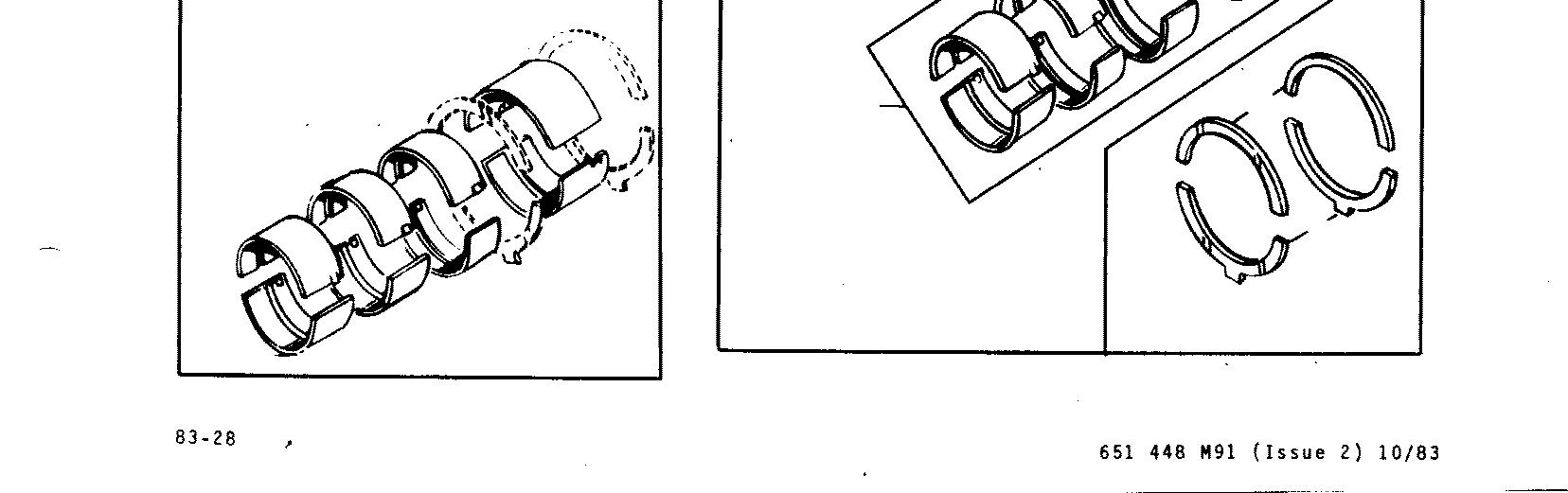

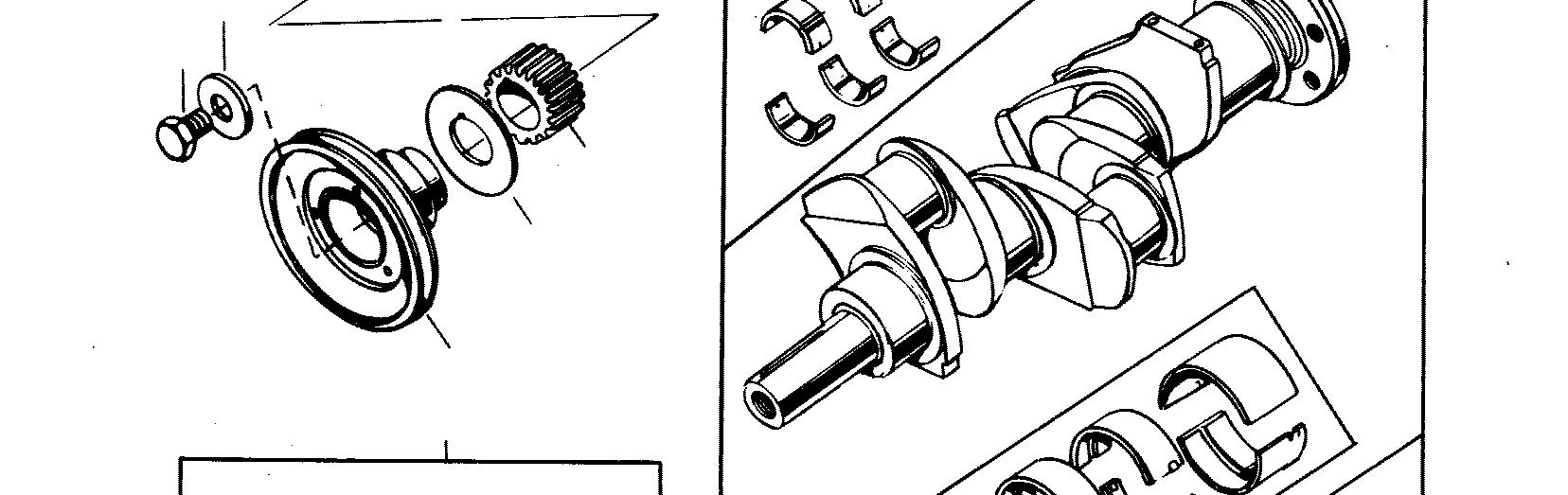

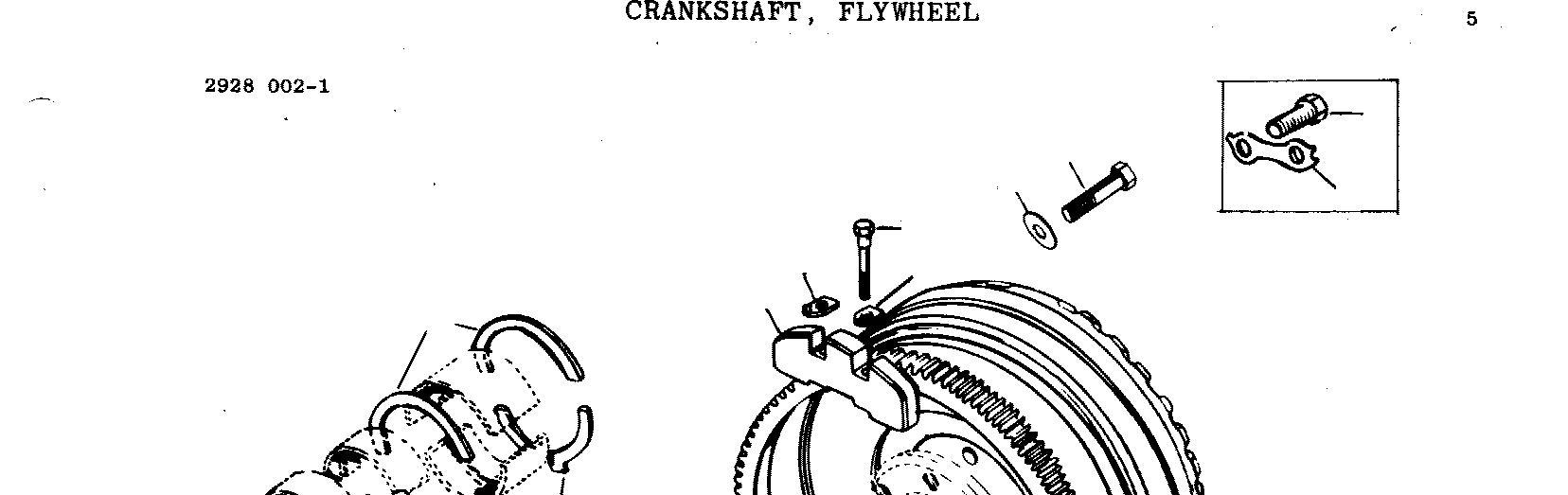

742827M91 1 Crankshaft Kit 2 746156M91 1 Insert Set (Standard) 3 737070M91 1 Insert Set (Standard) (See Page 9) 4
735113M1 2 Washer (Thrust)
5 735112M1 2 Washer (Thrust) 6 745483M1 1 Weight (Pair) (Balance) 11 353570X1 4 Bolt (7/16 x 2-3/8" NF, Hex.) 12 733644M1 2 Washer (Special) 13 733645M1 2 Washer (Special) 14 731227M1 1 Spacer
15 731228M1 1 Gear, Crankshaft
16 745057M1 1 (A) Washer, Oil Thrower
18 734628M1 1 Pulley, Crankshaft
19 731076M1 1 Key, Pulley
20 1476107X1 1 Bolt, Crankshaft Pulley
21 731376M1 1 Washer
22 735800M1 AR Washer (Upper) (+.007")
23 735801M1 AR Washer (Lower) (+.007")

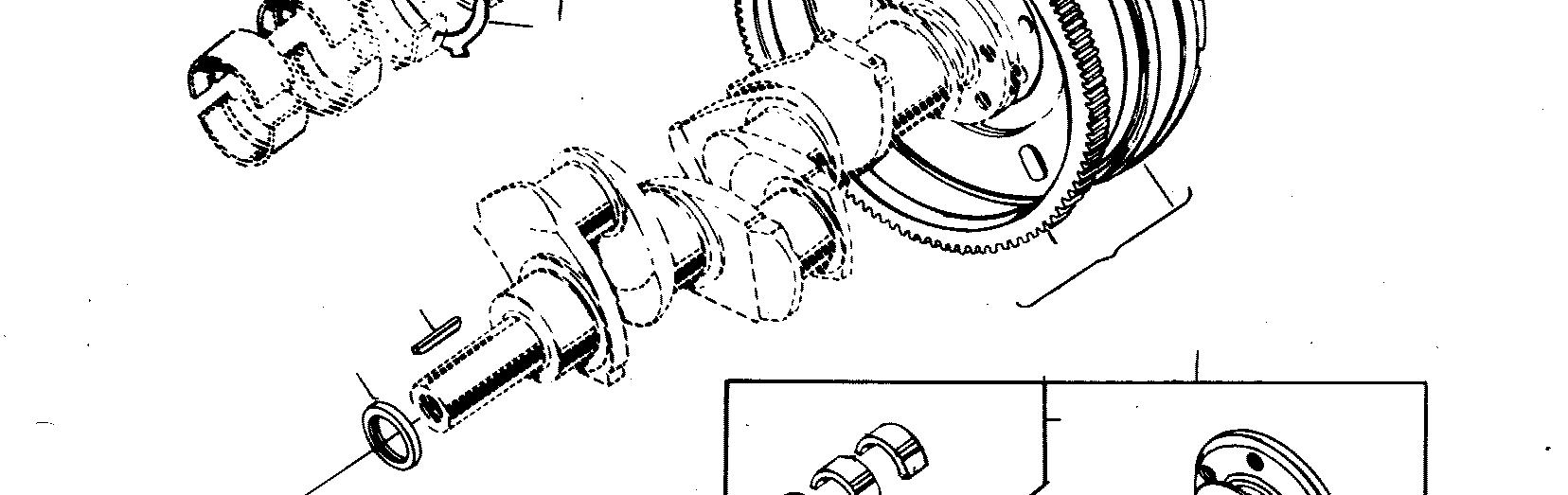

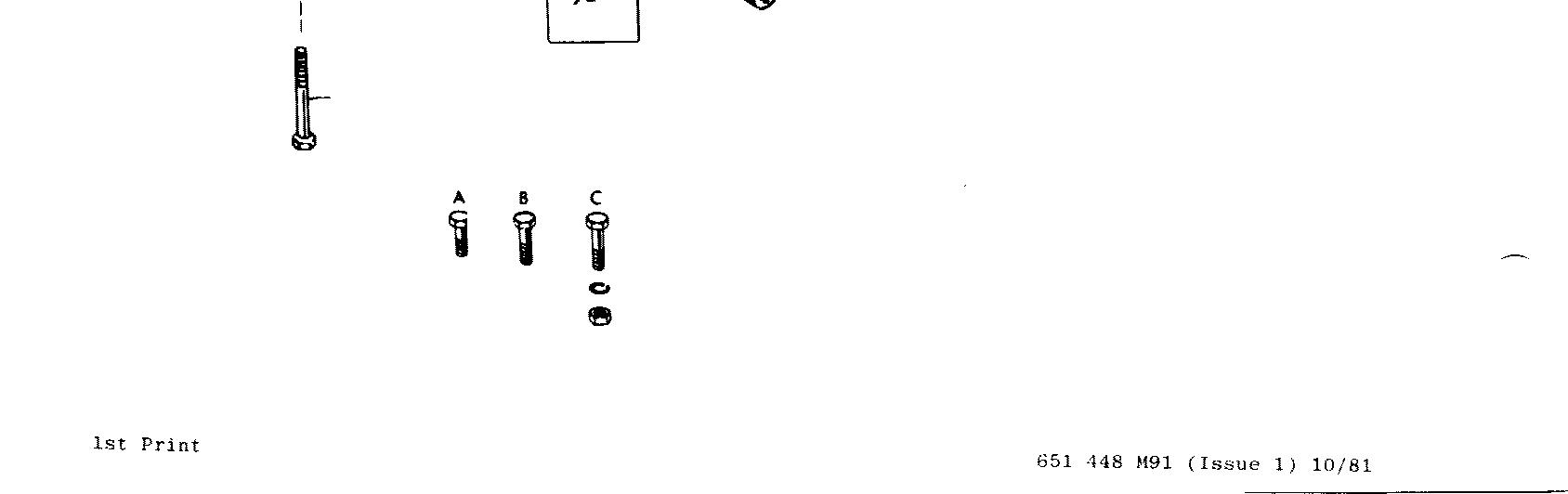

30 734861M91 1 Flywheel Assembly (W/Live P.T.O.) 31 731008M1 1 Gear, Ring
32 353595X1 6 (B) Bolt (1/2 x 1-1/2" NF, Hex.)
353593X1 6 (C) Bolt (1/2 x 1-1/4" NF, Hex.)
33 737514M1 6 (B) Washer, Flat (33/64 x 15/16 x 7/64")
731192M1 3 (C) Tab Washer
40 746157M91 AR Insert Set (-.010")
746158M91 AR Insert Set (-.020")
746159M91 AR Insert Set (-.030")
(A) - Used With 1447689M1, Seal (See Page 6). (B) - Used Late Production. (C) - Used Early Production.

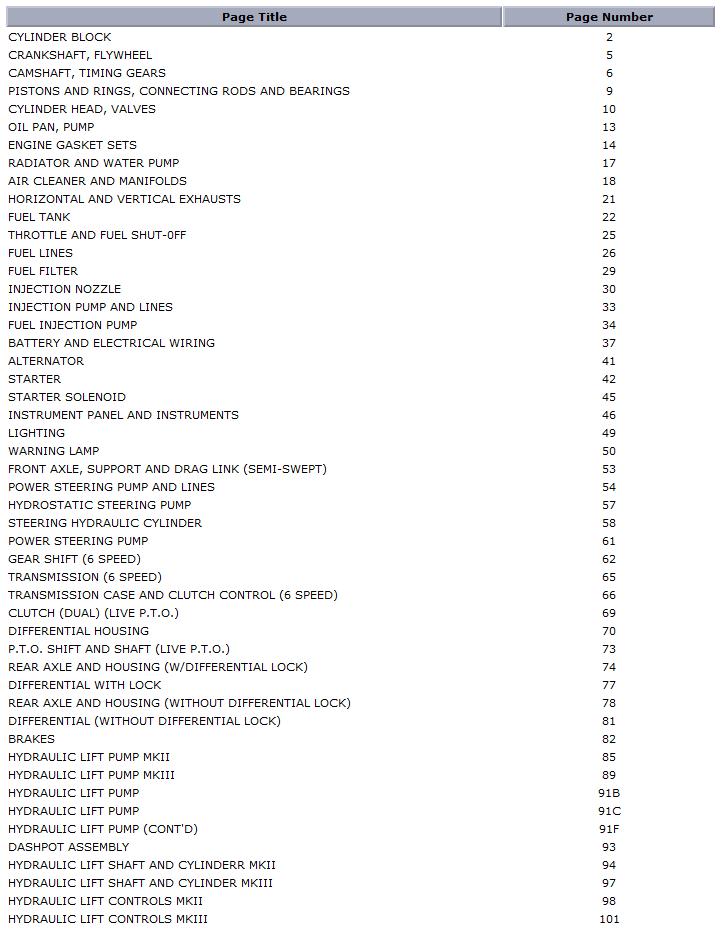

Massey Ferguson
230 (9A349239 AND UP) TRACTOR
Item Part Number Qty Description
539714M92 1 Engine Assembly (Complete)
1896318M92 1 (A) Engine Assembly (Short)

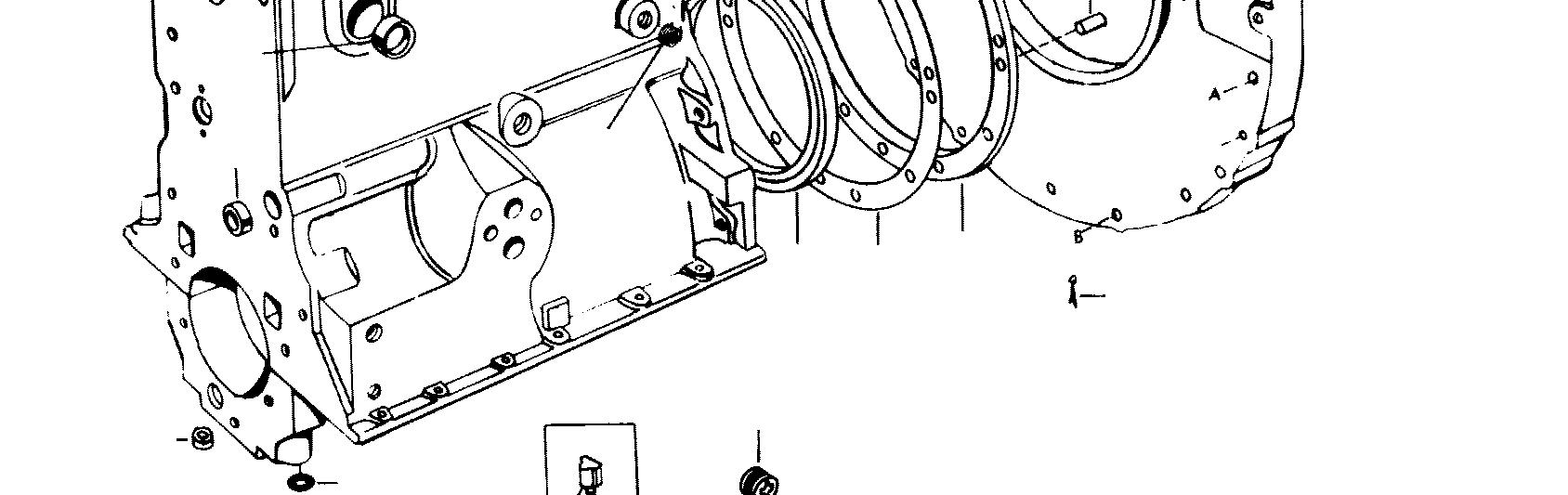

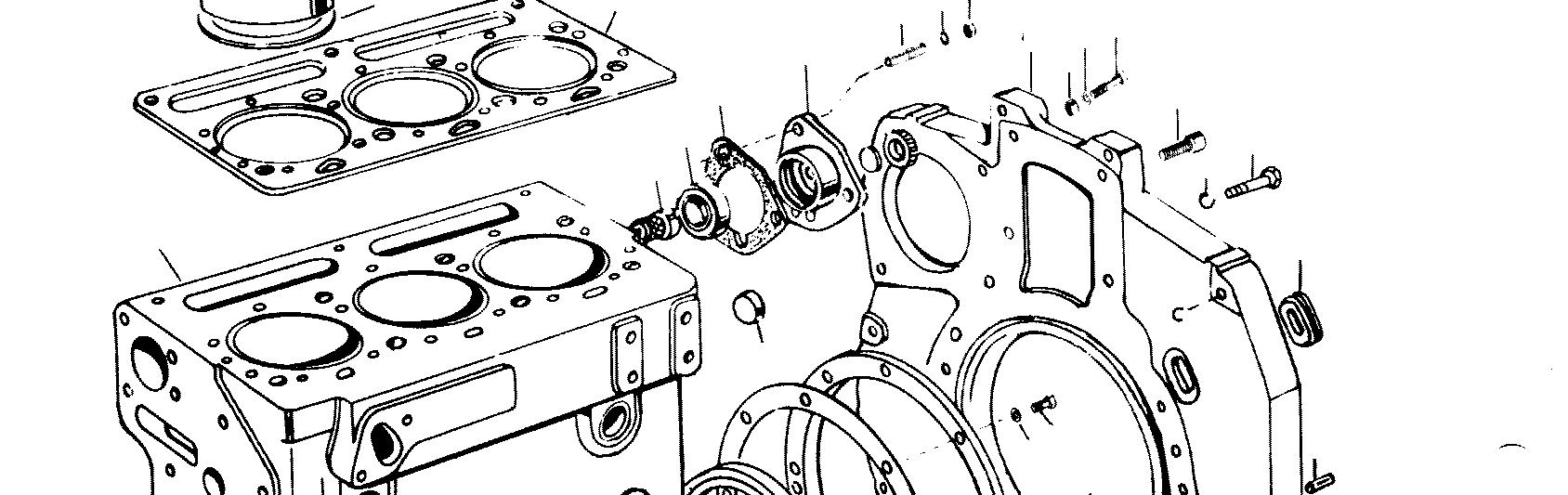

1 747298M91 1 (B) Block Assembly, Cylinder (Stripped) (Incl. Items 2 Thru 9)
2
3
742781M92 1 (C) Block Assembly (Stripped) (Part No. For Reference Only) (Order 747298M91)
739043M1 3 Liner (Cast Iron)
745241M1 8 Thimble
4 1476051X1 6 Bolt (9/16 x 3-19/32" NF, Hex.)
1476049X1 2 Bolt (9/16 x 4-19/32" NF, Hex.)
5 731354M1 5 Plug (1-1/4" Cup Type)
6 731355M1 1 (B) Plug (57/64" Cup Type)
731999M1 1 (C) Plug (57/64" Cup Type)
9 1447053M1 2 "O" Ring, Bearing Cap
353514X1 1 Bolt (5/16 x 3/8" NF, Hex.)
10 731356M1 2 Plug (11/16" Cup Type)
375731X1 2 Washer (21/64 x 5/8 x 1/16")
736976M1 1 Stud (7/16" NF x 4-1/2")
13
14
736613M1 1 Plug (1/2" NF, Phillips Head)
735227M1 AR Shim, Cylinder Liner (.005")
740732M1 1 Stud (5/8 NC-NF x 5-7/8")
18 734308M1 2 Stud (7/16 x 3-5/8")
19 1440275X1 1 Washer (7/16 x 7/8 x 3/32")
20 735018M2 1 Gasket, Cylinder Head 21 365333X1 1 Plug (1/4" P.T. Hex., Sckt. Hd.)
22 376506X1 2 Nut (7/16" NF, Hex.)
23 731312M1 1 Dowel (3/8 x 9/16")
24 747383M91 1 (B) Housing Assembly, Rear Oil Seal
741969M1 1 (C) Housing, Rear Oil Seal
25 1447691M1 1 (B) Seal, Rear Housing 1447049M1 1 (C) Seal, Rear Oil
26 741378M1 1 Gasket, Oil Seal Housing 27 353518X1 9 Bolt (5/16 x 7/8" NF, Hex.)
28 353770X1 AR Washer (11/32 x 11/16 x 3/32" Flat)
30 733821M1 1 Elbow, Oil Line
36 731208M1 1 Housing, Tractormeter Drive
37 731209M1 1 Gasket, Housing
38 636762M1 1 Seal, Housing To Block (7/8 x 1-3/8 x 1/4")
39 735889M1 1 Connector, Drive
40 741401M1 1 Plate, Flywheel Housing Adapter
41 732902M1 1 Grommet, Rubber
42 354074X1 1 Pin (3/16 x 3/4" Cotter)
45 733912M1 1 Stud (5/16 NF x 5/8") 375732X1 2 Bolt (5/16 x 3/4" NF, Hex.)
46 353446X1 3 Washer (5/16" Lock)
47 353917X1 1 Nut (5/16" NF, Half Hex.)
48 353538X1 AR Bolt (3/8 x 1" NF, Hex.)
49 358005X1 AR Bolt (3/8 x 1" NF, Sckt. Hd.)
50 353693X1 2 Bolt (3/8 x 1-1/4" NC, Hex.)
51 353434X1 AR Washer (3/8" Lock) 1260A 2 Dowel
66 191314M1 AR Dowel (3/8 x 25/32")
67 353708X1 AR Bolt (7/16 x 2-1/4" NC, Hex.)
68 353712X1 AR Bolt (7/16 x 2-3/4" NC, Hex.)
69 353576X1 AR Bolt (7/16 x 3-1/8" NF, Hex.)
70 353432X1 AR Washer (7/16" Lock)
71 353426X1 AR Nut (7/16" NF, Hex.)
72 515155M1 1 Spacer, Battery Platform
(A) - Includes Stripped Block, Crankshaft Kit, Piston Assembly (Stripped), Rings, Rods And Bearings. (B) - Used Late Production. (C) - Used Early Production.
