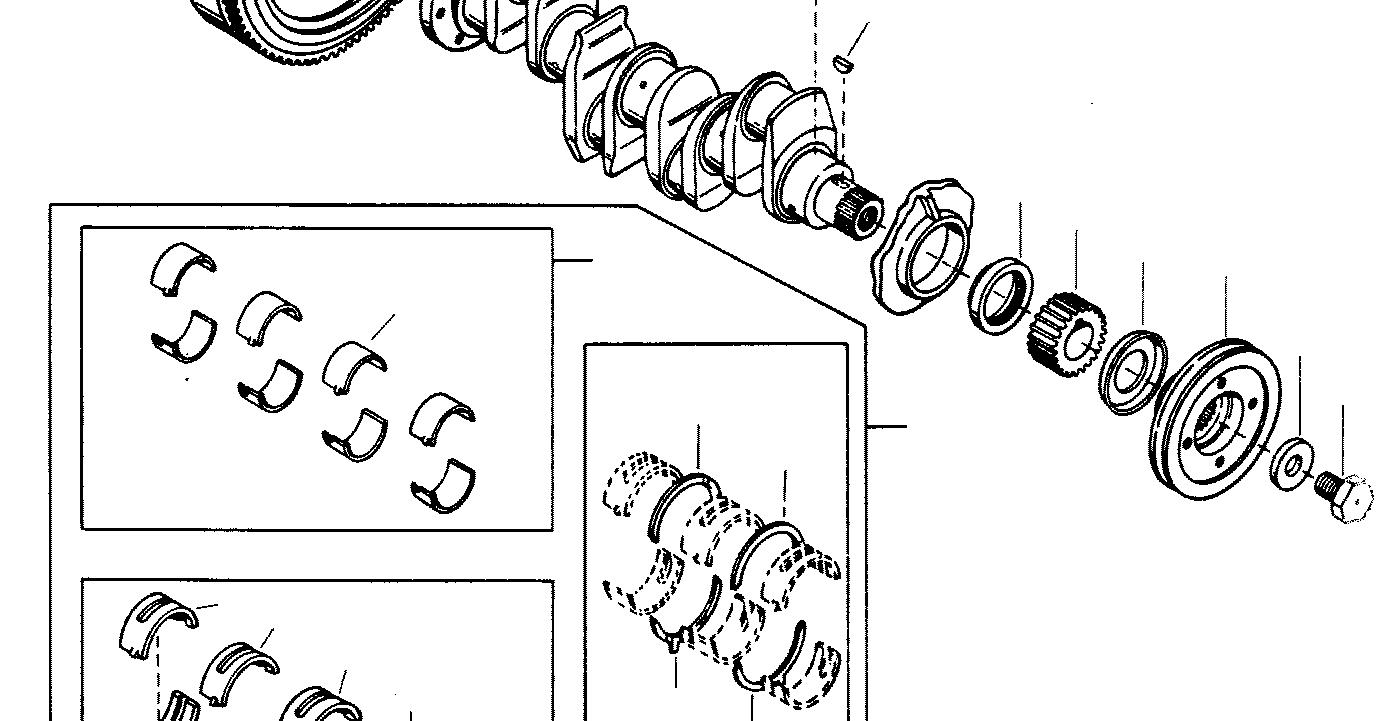

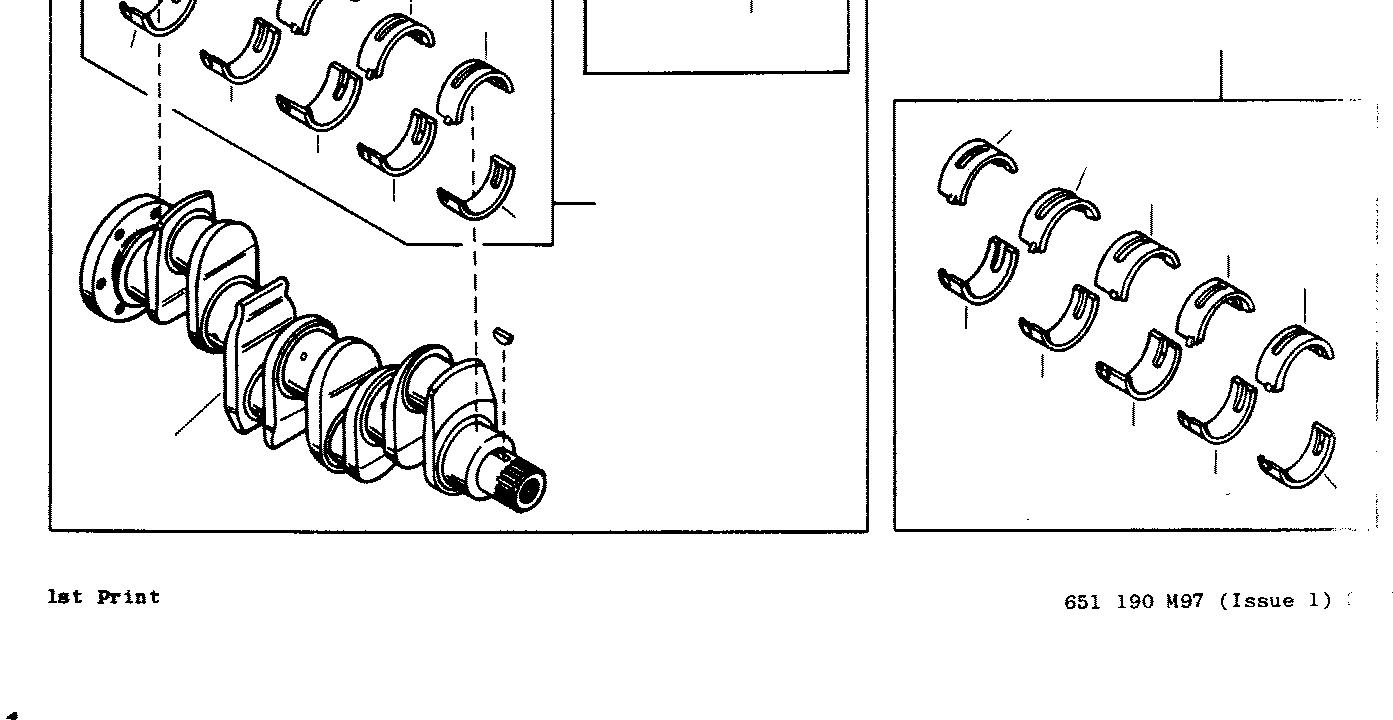

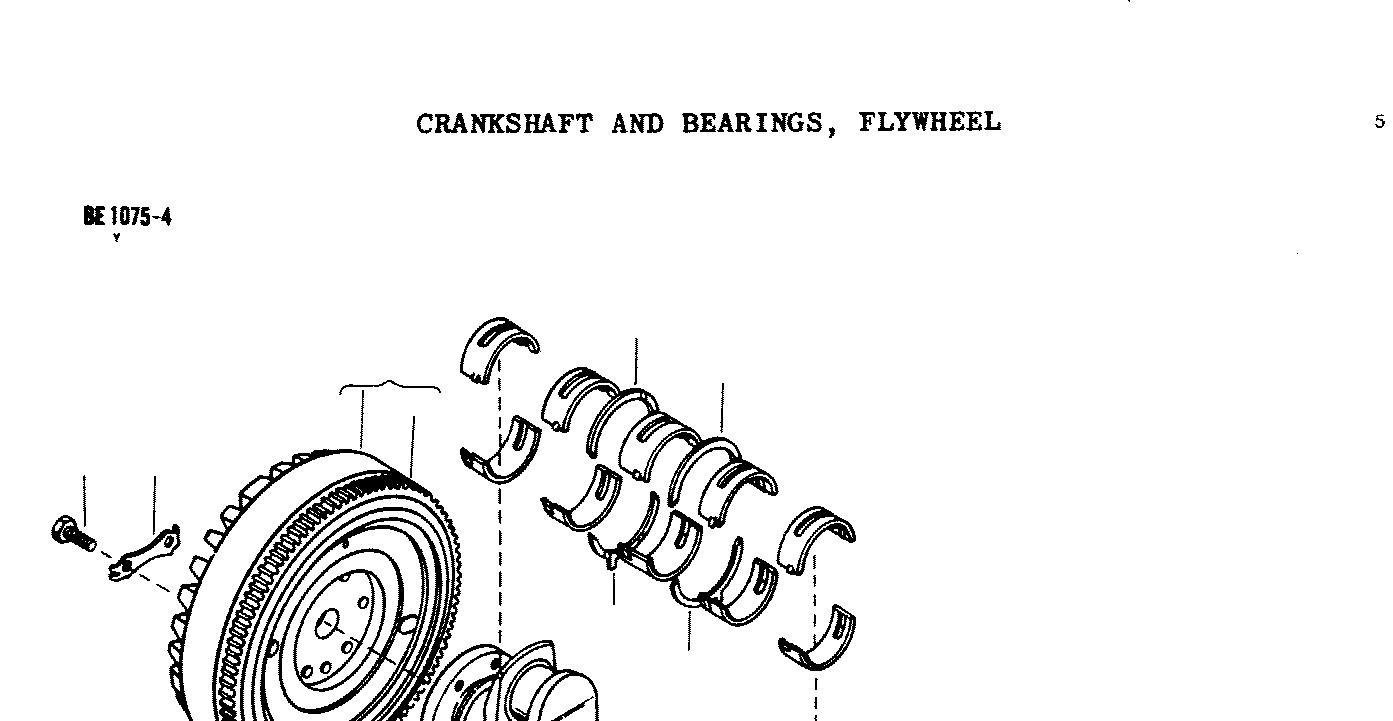

CRANKSHAFT AND BEARINGS, FLYWHEEL (PERKINS GAS)
1
736946M91 1 Kit, Crankshaft (Perkins No. 85721)
2 1 Crankshaft (Order 736946M91)
3
4
5
6
735168M91 1 Insert Set, Main Bearing (Std.) (Perkins No. 81558)
735103M1 4 Insert (Perkins No. 31126391)
735104M1 4 Insert (Perkins No. 31126381)
735105M1 1 Insert (Perkins No. 31126371)
7 735106M1 1 Insert (Perkins No. 31126361)
8
9
10
11
12
13
736950M91 1 Insert Set, Connecting Rod Bearing (Std.) (Perkins No. 85042)
733766M1 8 Insert, Connecting Rod (Perkins No. 31126311)
735337M1 2 Washer, Thrust, Upper (Std.) (Perkins No. 31137311)
735338M1 2 Washer, Thrust, Lower (Std.) (Perkins No. 31137321)
735742M1 AR Washer, Thrust, Upper (+.007") (Perkins No. 31337312)
735743M1 AR Washer, Thrust, Lower (+.007") (Perkins No. 31137322)
18 734749M1 1 Gear, Crankshaft (28 Teeth) (Perkins No. 31171671)
19 2196X 1 Key, Crankshaft Gear (1/4 x 7/8" Woodruff) (Perkins No. 0500012)
20 736041M1 1 Flange, Oil Slinger (Perkins No. 331575230
21 736967M1 1 Pulley, Crankshaft (Perkins No. 31148931)
22 1446853M1 1 Seal, Oil (Perkins No. 2415361)
23 376184X1 1 Bolt (7/8 X 1-1/2" NF, Hex. Special) (Perkins No. 32162318)
24 376177X1 1 Washer, Flat, Special (Perkins No. 33125124)
30 734947M91 1 Flywheel Assembly (Live P.T.O.) (Perkins No. 0999965) 513564M91 1 Flywheel Assembly (Independent P.T.O.) (Perkins No. 41112354)
31 731008M1 1 Gear, Ring (Perkins No. 0410236)
32 353593X1 6 Bolt (1/2 X 1-1/4" NF, Hex.)
33 731192M1 3 Tab Washer (Perkins No. 0921062)
40 735169M91 1 Insert Set, Main Bearing (-.010") (Perkins No. 81558a)
41 735448M1 4 Insert, Top (Front, Intermediate And Rear) (Perkins No. 31126392)
42 735445M1 4 Insert, Bottom (Front, Intermediate And Rear) (Perkins No. 31126382)
43 735442M1 1 Insert, Top (Center) (Perkins No. 311263720
44 735439M1 1 Insert, Bottom (Center) (Perkins No. 31126362)
40 735170M91 1 Insert Set, Main Bearing (-.020") (Perkins No. 81558B)
41 735449M1 4 Insert, Top (Front, Intermediate And Rear) (Perkins No. 311263930
42 735446M1 4 Insert, Bottom (Front, Intermediate And Rear) (Perkins No. 31126383)
43
44
735443M1 1 Insert, Top (Center) (Perkins No. 31126373)
735440M1 1 Insert, Bottom (Center) (Perkins No. 31126363)
40 735171M91 1 Insert Set, Main Bearing (-.030") (Perkins No. 81558C)
41 735450M1 4 Insert, Top (Front, Intermediate And Rear) (Perkins No. 31226394)
42 735447M1 4 Insert, Bottom (Front, Intermediate And Rear) (Perkins No. 31126384)
43 735444M1 1 Insert, Top (Center) (Perkins No. 31126374)
44 735441M1 1 Insert, Bottom (Center) (Perkins No. 31126364)
Massey Ferguson

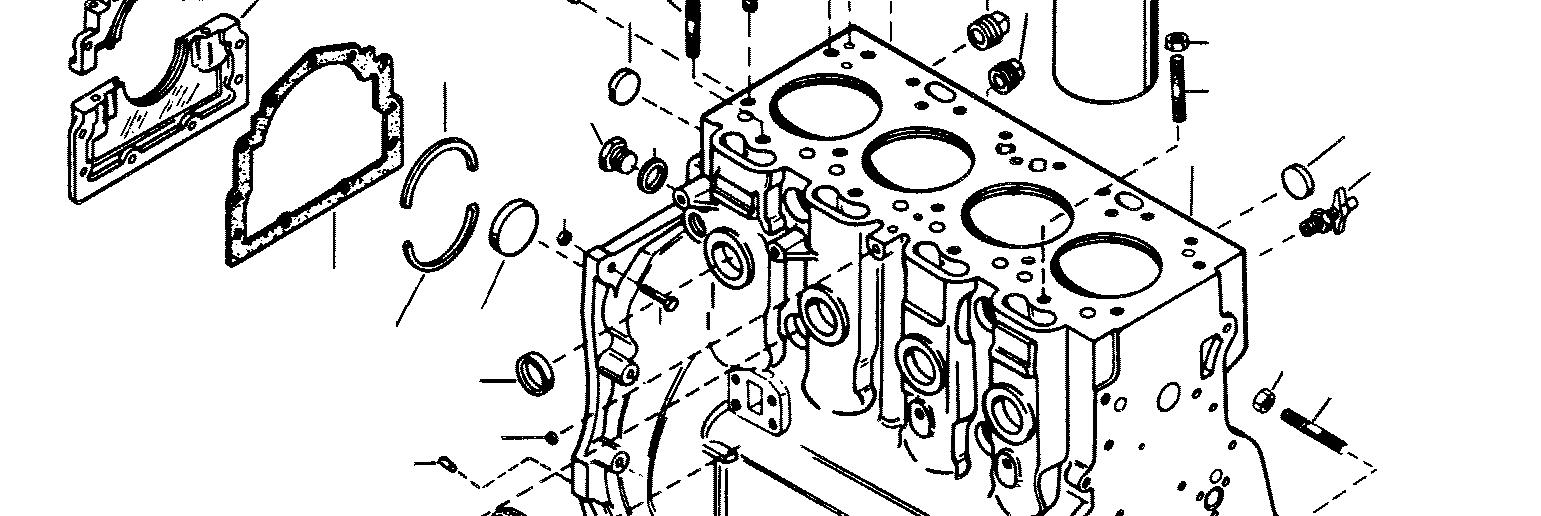

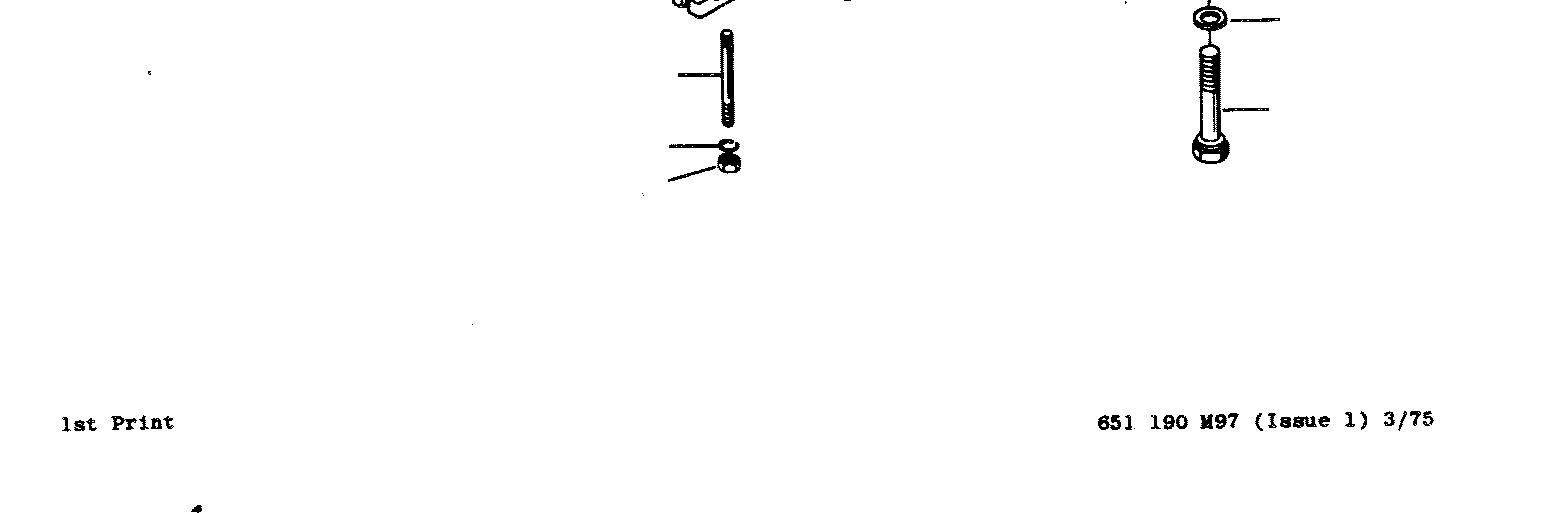

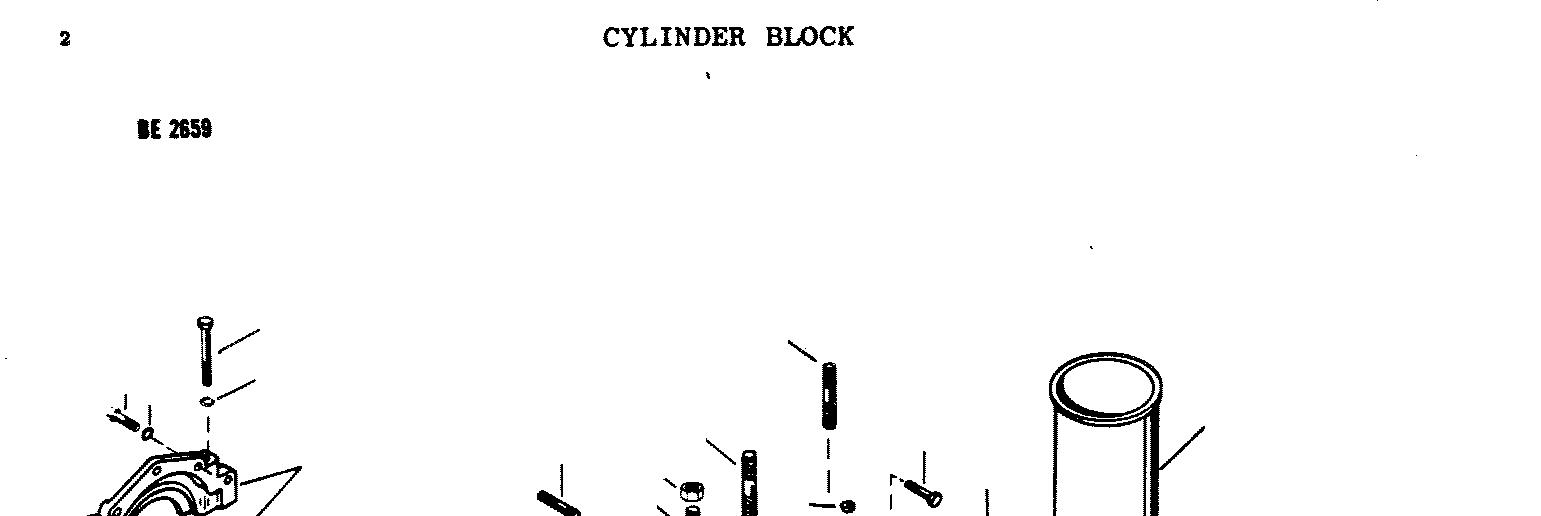

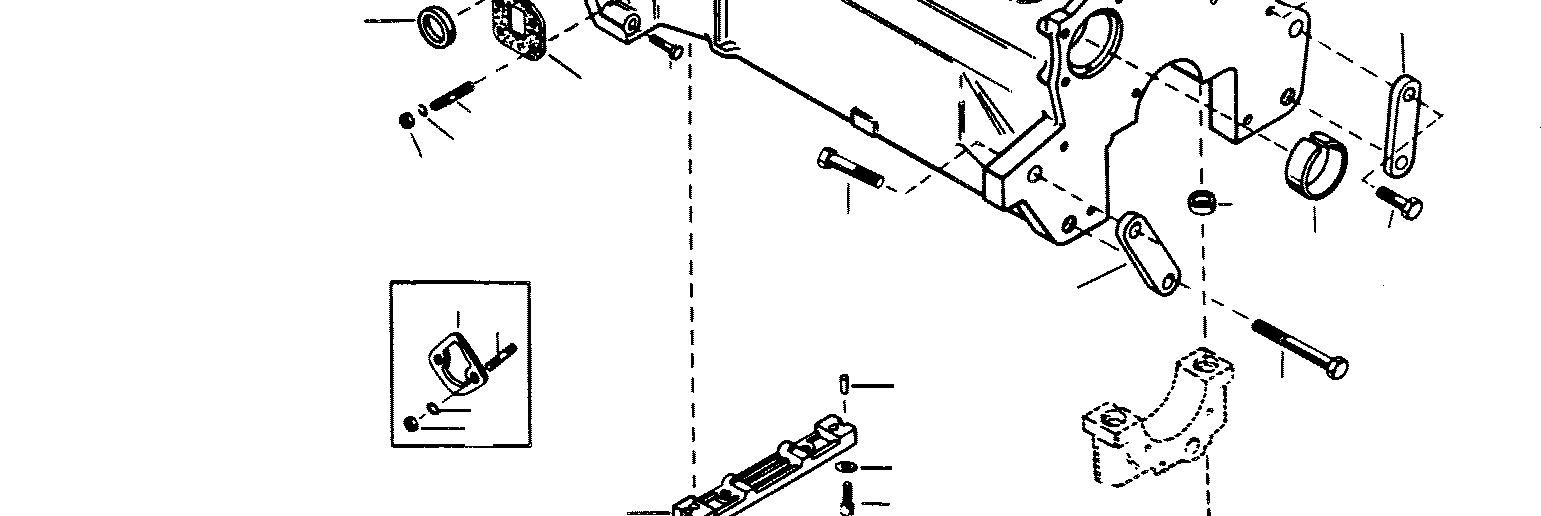

CYLINDER BLOCK (PERKINS GAS)
Item Part Number Qty Description
515276M92 1 Engine Assembly (Complete) (Live P.T.O.) (Perkins No. AG4-236-20721)
515277M92 1 Engine Assembly (Complete) (Independent P.T.O.) (Perkins No. AG4-236-20722)
1896315M91 1 (A) Block Assembly (Short) (Perkins No. 22234)
886342M91 1 (B) Block Assembly (Short) (Perkins No. 20427)
1 741730M91 1 (B) Block Assembly, Stripped (Perkins No. 92877)
739805M91 1 (B, H) Block Assembly (Stripped) (Perkins No. 90066)
2 736507M2 4 Liner, Cylinder (Perkins No. 31358341)
3 733072M1 10 Thimble, Main Bearing Cap (Perkins No. 33142111)
4 376074X1 10 Bolt, Bearing Cap (5/8 x 3-3/4" NF, Hex.) (Perkins No. 32166314)
5 735865M1 8 Plug (1-1/4" Cup Type) (Perkins No. 0650563)
6 376190X1 4 Plug (1-3/8" Cup Type) (Perkins No. 0650618)
7 363819X1 2 Plug (3/4" P.T. Sq. Hd.)
8 735869M1 4 Plug (1-1/2" Cup Type) (Perkins No. 0650577)
9 733705M1 1 Plug, Camshaft Hole (2" Cup Type) (Perkins No. 32416105)
10
11
736867M1 1 Plug (1/4" Expansion) (Perkins No. 32417133)
736868M1 1 Plug (5/16" Cup Type) (Perkins No. 32417134)
12 376180X1 1 Plug (7/8" NF, Hex., Sckt.) (Perkins No. 0650582)
13
376196X1 1 Washer (29/32 X 1-1/8 X 3/32" Copper) (Perkins No. 0920130)
14 363819X1 1 Plug (3/4" P.T. Sq. Hd.)
365333X1 1 Plug (1/4" P.T. Hex. Sckt. Hd.)
20 731141M1 10 Shim (43/64" I.D. X 1" O.D. X .020" Thk.) (Perkins No. 0760001)
22 734883M1 1 Bushing, Camshaft (2 X 2-3/16 X 1-1/4") (Perkins No. 31134132)
24 1851764M1 1 Drain, Cylinder Block (Perkins No. 31419)
30 734975M92 1 Housing Assembly (Perkins No. 59537)
31 735942M1 2 Seal, Housing (Perkins No. 36883108)
32 353531X1 2 Bolt (5/16 X 2-1/2" NF, Hex.) (Perkins No. 0096238)
33 353446X1 2 Washer (5/16" Lock)
34 735110M1 1 Gasket, Housing (Perkins No. 36817136)
35 353519X1 11 Bolt (5/16 x 1" NF, Hex.) (Perkins No. 0746211)
36 353446X1 11 Washer (5/16" Lock)
37 734841M1 1 Bridge Piece, Block (Perkins No. 36277831)
38 733721M1 2 Gasket, Bridge Piece (Perkins No. 32811408)
39 376572X1 2 Screw (1/4 X 3/4" Special) (Perkins No. 376572x1)
40 735898M1 2 Washer (17/64 X 7/16 X 1/32") (Perkins No. 0920521)
45 507760M2 1 Spacer, Front Support (Right)
46 507761M1 1 Spacer, Front Support (Left)
47 354289X1 1 Bolt (5/8 X 3" NC, Hex.)
48 354689X1 1 Bolt (5/8 X 5-1/4" NC, Hex.)
49 354687X1 1 Bolt (5/8 X 5" NC, Hex.)
50 833749M1 1 Stud (5/8" X 3-5/8" NC-NF)
51 353427X1 1 Nut (5/8" NF, Hex.)
739504M1 6 (C) Bolt (1/2 X 3-1/2" NF, Hex.) (Perkins No. 32181424)
55 735245M1 2 (C) Stud (1/2" NF X 4-1/8") (Perkins No. 32526312)
735245M1 8 (D) Stud (1/2" NF X 4-1/8") (Perkins No. 32526312)
739505M1 12 (C) Bolt (1/2 X 4-1/8" NF, Hex.) (Perkins No. 32181425)
56 735244M1 12 (D) Stud (1/2" NF X 5-1/2") (Perkins No. 32526311)
739506M1 2 (C) Bolt (1/2 X 4-15/16" NF, Hex.) (Perkins No. 32181426)
57 735346M1 2 (D) Stud (1/2" NF x 5-9/16") (Perkins No. 32526313)
58 376672X1 2 (C) Nut (1/2" NF, Special)
376672X1 22 (D) Nut (1/2" NF, Special)
59 353963X1 2 Stud (7/16" NC, X 1-5/8") (Perkins No. 0828014)
60 740861M1 1 (A) Gasket, Lift Pump (4 Hole) (Perkins No. 36851113)
61 737080M1 1 (B) Gasket, Fuel Pump (2 Hole) (Perkins No. 36862166)
62 731311M1 4 (E) Stud (5/16" NF X 1-1/16") (Perkins No. 0826203)
63 353446X1 4 (E) Washer (5/16" Lock)
64 353916X1 4 (E) Nut (5/16" NF, Hex.) (Perkins No. 0576002)
66 734882M1 2 Stud (5/16" NF X 3-15/16") (Perkins No. 32517128)
67 353446X1 2 Washer (5/16" Lock)
68 353916X1 2 Nut (5/16" NF, Hex.) (Perkins No. 0576002)
76 191314M1 2 Dowel (3/8 X 25/32")
77 353704X1 1 (C) Bolt (7/16 X 1-3/4" NC, Hex.)
353702X1 1 (D) Bolt (7/16 X 1-1/2" NC, Hex.)
78 355645X1 1 Nut (7/16" NC, Hex.)
79 353706X1 1 (F) Bolt (7/16" X 2" NC, Hex.)
353711X1 1 (G) Bolt (7/16 X 2-5/8" NC, Hex.)
81 353708X1 5 Bolt (7/16 X 2-1/4" NC, Hex.)
CYLINDER BLOCK (PERKINS GAS)
Item Part Number Qty Description
(A) - Used Engine Serial Number 236 UA and up.
(B) - Used prior to Engine Serial Number 236 UA 1618A.
(C) - Used Late Production Tractors.
(D) - Used Early Production Tractors.
(E) - Prior to Engine Serial Number 236 UA 1618A quantity was 2.
(F) - Used Engine Serial Number 236 UA 835A and up.
(G) - Userd prior to Engine Serial Number 236 UA 835A.
(H) - For Repairs order (1) 741 730 M1, 740 861 M1, 742 258 M1, 1447 017 M91; (2) 375 750 X1, 375 751 X1, 376 525 X1, 736 864 M1, 741 388 M1, 742 259 M1; (4) 353 916 X1 and 731 305 M1.
