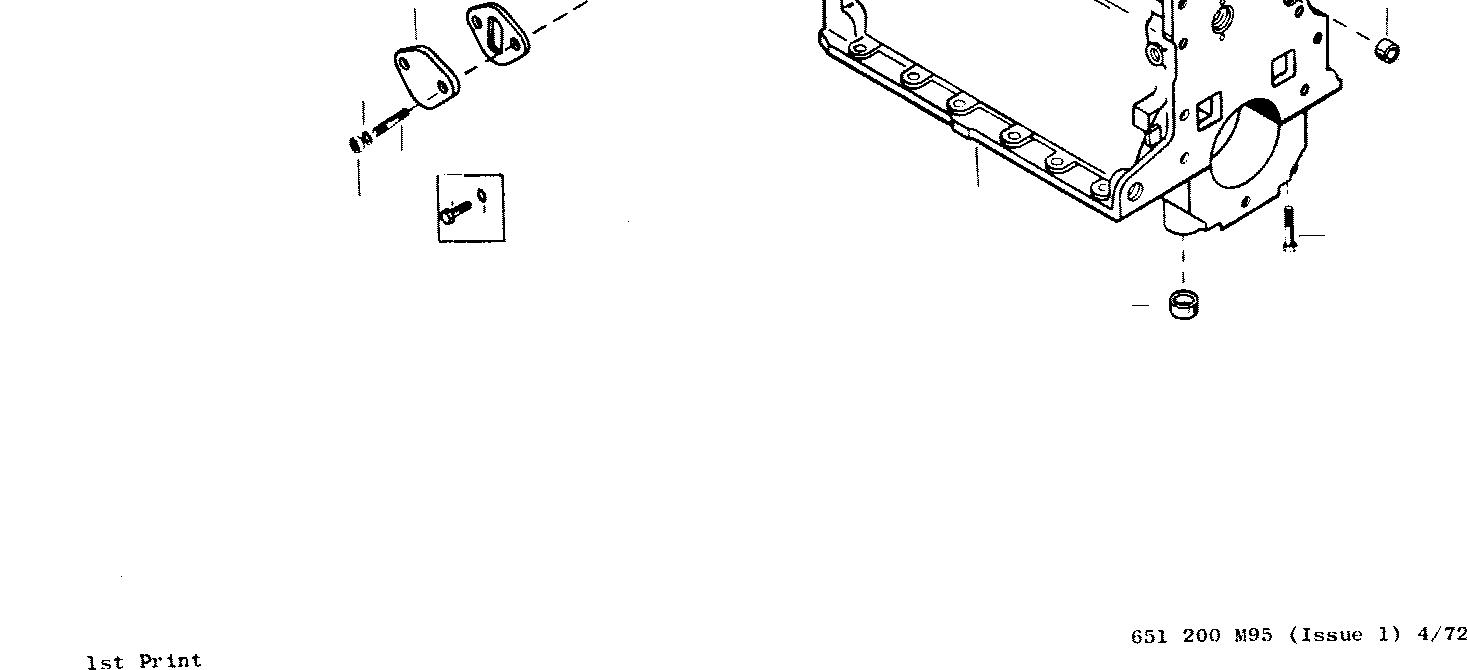

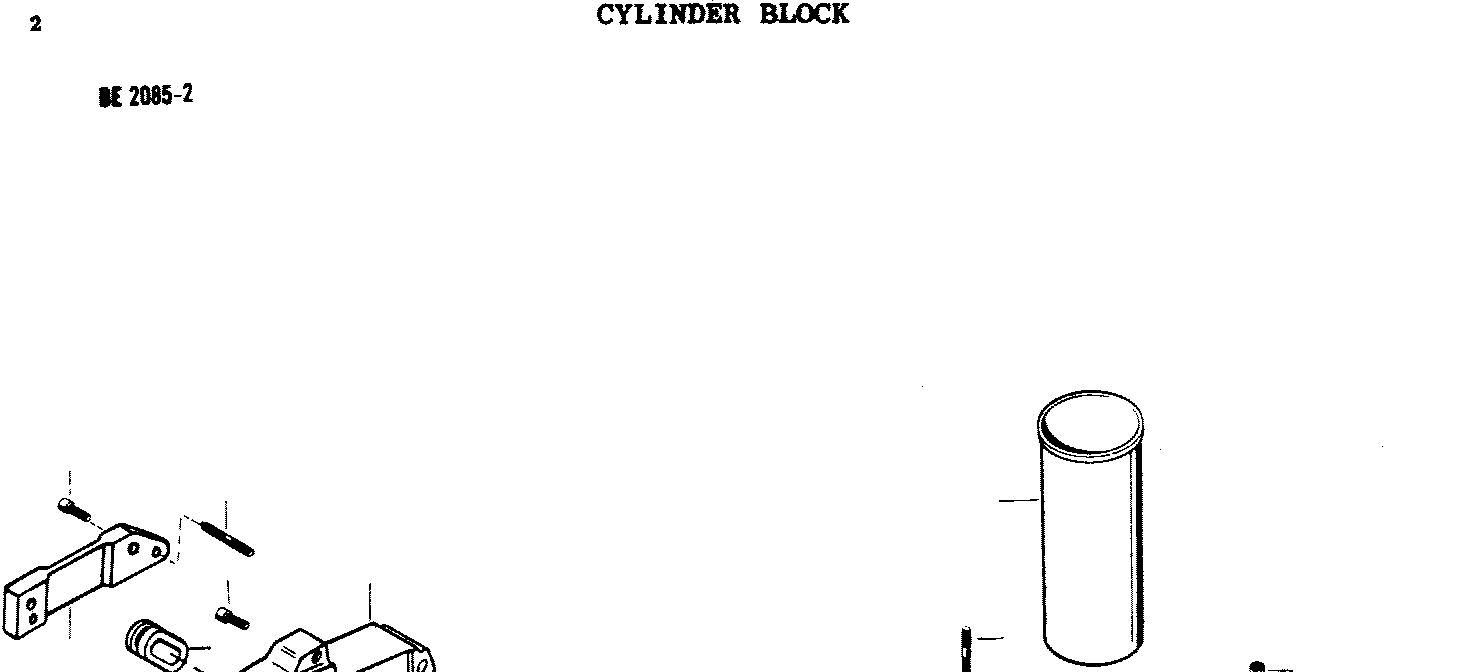

CYLINDER BLOCK (PERKINS GAS)
Item Part Number Qty Description
520634M91 1 Engine Assembly (Complete) (Live P.T.O.)
520633M91 1 Engine Assembly (Complete) (Independent P.T.O.)
1896083M91 1 Block Assembly, Short (Incl. Connecting Rods & Bearings, Crankshaft & Bearings & Pistons) 1
737422M91 1 Block Assembly, Stripped 2 734175M1 3 Liner, Cylinder Block
3 731022M1 8 Pin (19/32 X 3/4 X 3/8" Dowel) 4 375722X1 8 Bolt, Bearing Cap (9/16 x 3-7/8" NF, Hex.)
5 735865M1 5 Plug (1-1/4" Cup Type)
6 731999M1 1 Plug (57/64" Cup Type)
7 353514X1 2 Plug, Fuel Filter
8 732575M1 2 Washer (5/16 X 9/16 X 1/16" Aluminum) 10 731356M1 2 Plug (11/16" Cup Type) 11 1851764M1 1 Drain, Cylinder Block 22 740235M91 1 Housing Assembly
23 735866M1 2 Seal
24 354499X1 2 Bolt (5/16 X 3-3/4" NF, Hex.)
25 195454M1 2 Nut (5/16" NF, Hex., Lock)
26 734664M1 1 Gasket, Housing
27 375733X1 6 Bolt, Housing (5/16 x 11/16" NF, Hex)
28 22756X 6 Washer (5/16" Int. Skpf.)
29 734638M1 6 Shim, Housing Bolt
30 731208M1 1 Housing, Tractormeter Drive
31 731209M1 1 Gasket, Housing
32 636762M1 1 Seal, Housing To Block (7/8 X 1-3/8 X 1/4")
33 353517X1 3 Bolt (5/16 X 3/4" NF, Hex.)
34 22756X 3 Washer (5/16" Int. Skpf.)
35 735889M1 1 (A) Connector, Drive 736273M1 1 (B) Connector, Tractormeter Drive
37 733594M1 1 Plate, Transmission Housing Adapter
38 353538X1 6 Bolt (3/8 X 1" NF, Hex.)
39 353434X1 6 Washer (3/8" Lock)
40 358005X1 2 Bolt (3/8 X 1" NF, Sckt. Hd.)
41 1260A 2 Dowel, Adapter Plate to Cylinder block (3/8 x 3/4")
42 732902M1 1 Grommet, Rubber
43 354074X1 1 Pin (3/16 X 3/4" Cotter)
45 737181M1 1 Bracket, Steering Gear
46 353963X1 2 Stud (7/16" NC, X 1-5/8")
47 195326M1 2 Screw (3/8 X 1" NC, Hex., Sckt. Hd.)
50 739408M1 1 Plate, Cover, Fuel Pump Hole
51 737079M1 1 Gasket, Fuel Pump To Block
52 731311M1 2 (C) Stud (5/16" NF X 1-1/16")
53 353446X1 2 (C) Washer (5/16" Lock)
54 353916X1 2 (C) Nut (5/16" NF, Hex.)
55 353516X1 2 (D) Bolt (5/16 X 5/8" NF, Hex.)
56 732575M1 2 (D Washer (5/16 X 9/16 X 1/16" Aluminum)
60 734266M1 3 Stud (7/16 NF X 4-1/8")
61 734309M1 14 Stud (7/16 NF X 4-5/16")
62 736976M1 1 Stud Cylinder Head to Block
63 1440275X1 1 Washer (7/16 X 7/8 X 3/32")
64 735018M2 1 Gasket, Cylinder Head
65 353426X1 18 Nut, Cylinder Stud (7/16" NF, Hex)
66 736091M1 1 Cap, Drive Connection
67 890309M1 1 Washer, Seal
(A) - Used Late Production Engine.
(B) - Used Early Production Engine.
(C) - Used Engine Serial Number 152 UA 2227 And Up.
(D) - Used Prior To Engine Serial Number 152 UA 2227.
Massey Ferguson 150

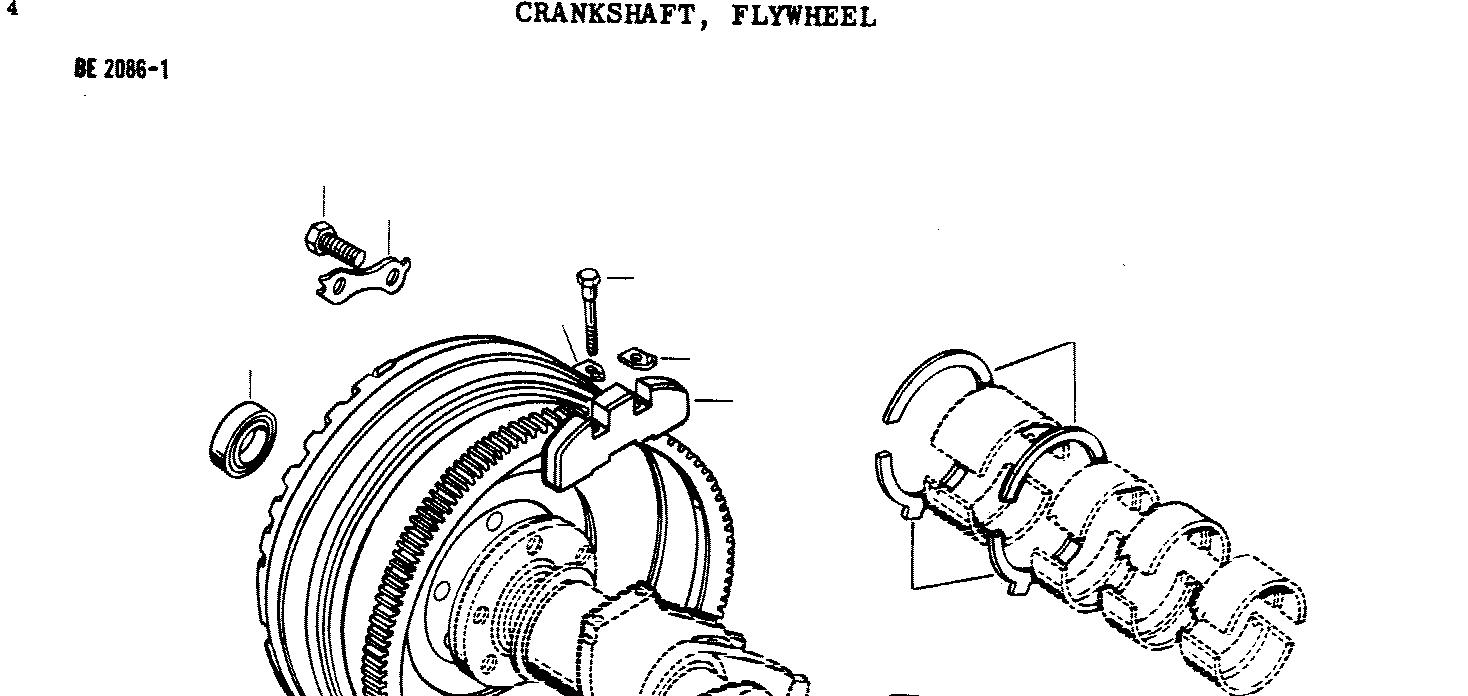

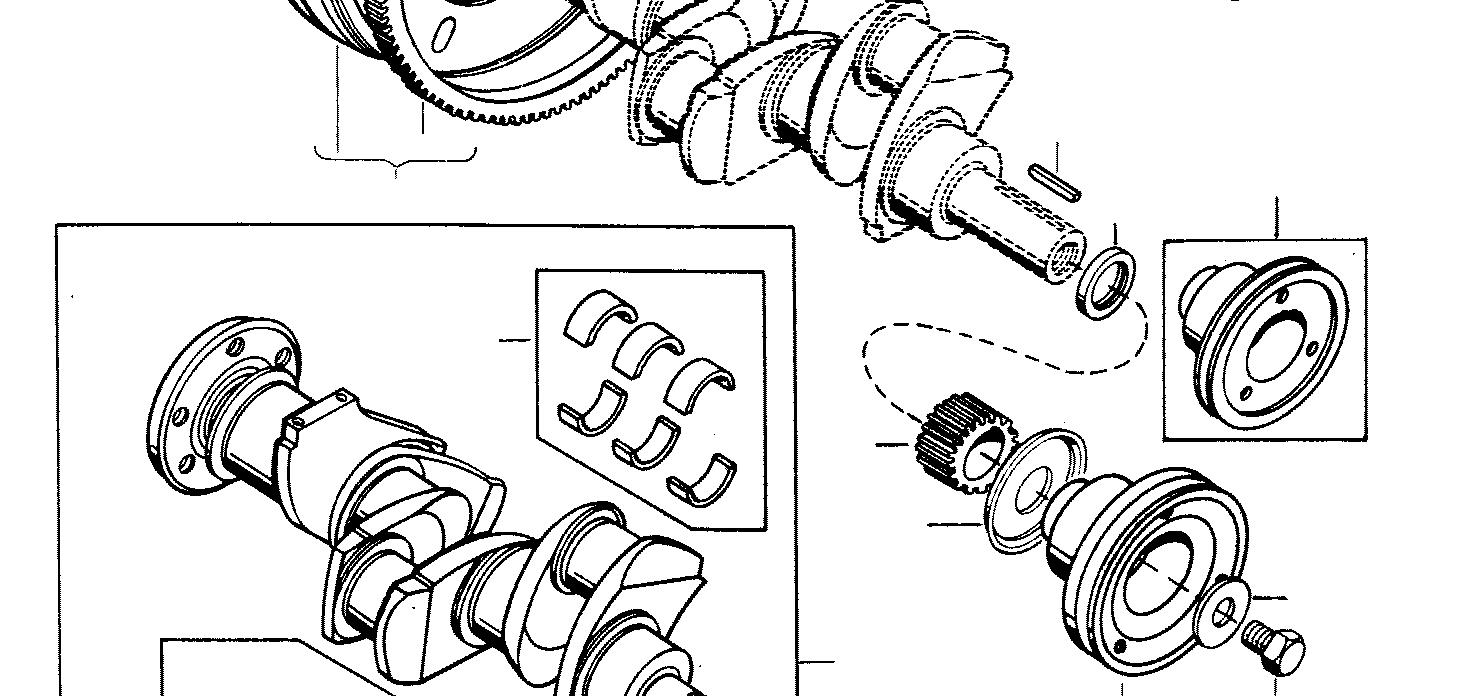

CRANKSHAFT, FLYWHEEL (PERKINS GAS)
736532M91 1 Crankshaft Kit 2 732630M91 1 Insert Set, Main Bearing (Standard) 3 732432M1 1 Insert, Main Bearing, Front Top (Std.) 4
732431M1 1 Insert, Main Bearing, Front Bottom (Std.) 5
732430M1 4 Insert, Main Bearing, Intermediate (Std.) 6
733040M1 2 Insert, Main Bearing, Rear Top And Bottom (Standard) 7
737070M91 1 Insert Set (Standard) 8 734616M1 2 Washer, Thrust, Rear Main Top (Std.) 9 734615M1 2 Washer, Thrust, Rear Main Bottom (Standard) 10
731225M1 1 Weight (Balance) 11
353570X1 4 Bolt (7/16 X 2-3/8" NF, Hex.) 12
733644M1 2 Washer (Special) 13
733645M1 2 Washer (Special) 14 731227M1 1 Spacer 15
731228M1 1 Gear, Crankshaft 16
733505M1 1 Flange, Oil Thrower 17 734628M1 1 (D) Pulley, Crankshaft
18
738730M1 1 (E) Pulley, Crankshaft
19 731076M1 1 Key, Pulley
20 375835X1 1 Bolt, Crankshaft Pulley
375835X1 1 Bolt, Crankshaft Pulley
21 731376M1 1 Washer
25 734830M1 AR (A) Washer, Thrust, Rear Main Bearing (.007" Oversize)
26 734829M1 AR (A) Washer, Thrust, Rear Main Bearing (.007" Oversize)
30 737126M91 1 Flywheel Assembly (Incl. #31)(Used Independent P.T.O.)
734861M91 1 (B) Flywheel Assembly
737262M91 1 (C) Flywheel Assembly (Incl. #31)(Used Live P.T.O.)
31 731008M1 1 Gear, Flywheel Ring
32 353593X1 6 Bolt (1/2 X 1-1/4" NF, Hex.)
33 731192M1 3 Tab Washer
34 832960M3 1 Bearing, Ball
40 732631M91 AR Insert Set, Main Bearing (-.101")
41 732619M1 1 Insert, Main Bearing, Front Top (-.101")
42 732615M1 1 Insert, Main Bearing, Front Bottom (-.010")
43 732611M1 4 Insert, Main Bearing, Center (-.010")
44 733566M1 2 Insert, Main Bearing, Rear (-.101")
40 732632M91 AR Insert Set, Main Bearing (-.020")
41 732620M1 1 Insert, Main Bearing, Front Top (-.020")
42 732616M1 1 Insert, Main Bearing, Front Bottom (-.020")
43 732612M1 4 Insert, Main Bearing, Center (-.020")
44 733568M1 2 Insert, Main Bearing, Rear (-.202")
40 732633M91 AR Insert Set, Main Bearing (-.030")
41 732621M1 1 Insert, Main Bearing, Front Top (-.030")
42 732617M1 1 Insert, Main Bearing, Front Bottom (-.030")
43 732613M1 4 Insert, Main Bearing, Center (-.030")
44 733587M1 2 Insert, Main Bearing, Rear (-.030")
(A) - To Be Used Only When Needed To Take Up Excessive End Play In Crankshaft
(B) - Used Engine Serial Number 152 UA 25587A
(C) - Used Prior To Engine Serial Number 152 UA 25587A
(D) - Used All Independent P.T.O. and Prior To Engine Serial Number 152 UA 25587A
(E) - Used Engine Serial Number 152 UA 25587A And Up; Live P.T.O.
