Massey Ferguson

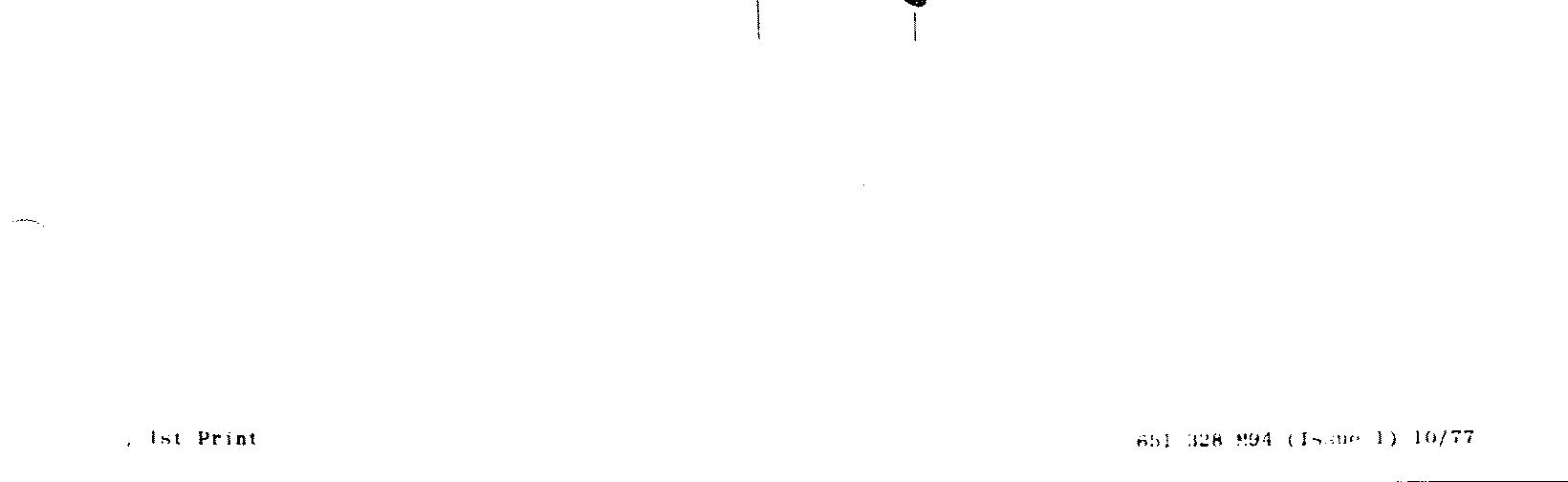

CYLINDER BLOCK (SEE NOTE ""A"" FOR SERIAL NUMBER INFORMATION) - CYLINDER BLOCK (SEE NOTE "A" FOR SERIAL NUMBER INFORMATION)
Item Part Number Qty Description
527911M91 1 Engine Assembly (Perkins No. AV854021723)
1896270M91 1 Block Assembly (Short) (Perkins No. 21848)
3
742172M91 1 Block Assembly (Stripped) (Perkins No. 94062)
4 739693M1 8 Liner (Perkins No. 31358901)
5 1476053X1 8 (B) Bolt (5/8 x 5-1/2" NF, Hex.) (Perkins No. 32181443)
1446047M1 8 (C) Bolt (Perkins No. 32181439)
376623X1 2 Bolt (5/8 x 5" NF, Hex.) (Perkins No. 32166323)
6 1446987X1 2 (B) Bolt (1/2 x 2-11/16" NF, Hex.) (Perkins No. 32181435) 1447002X1 2 (C) Bolt (1/2 x 3-9/16" NF, Hex.) (Order 1446987X1) (Perkins No. 32181437)
7 1446986X1 8 (B) Bolt (1/2 x 2-11/16" NF, Hex.) (Perkins No. 32181436)
1447003X1 8 (C) Bolt (1/2 x 2-11/16" NF, Hex.) (Order 1446986X1) (Perkins No. 32181438)
8 1476046X1 10 Washer (41/64 x 1-5/16 x 7/64") (Perkins No. 33121418)
9 1446988X1 10 Washer (33/64 x 15/16 x 7/64") (Perkins No. 33117431)
10 735865M1 6 Plug (1-17/64" Cup Type) (Perkins No. 0650563)
11 731856M1 2 Plug (1" Cup Type) (Perkins No. 0650576)
12 740613M1 10 (B) Plug (9/16" Cup Type) (Perkins No. 32412137)
731995M1 10 (C) Plug (9/16" Cup Type) (Perkins No. 0650717)
739482M1 5 Plug (3/4" Cup Type) (Perkins No. 32417144)
13 355544X1 2 Plug (1" P.T. Sq. Sckt.)
363819X1 2 Plug (3/4" - 14 P.T. Sq. Hd.)
14 356039X1 1 Plug (1/8" P.T. Sq. Hd.)
15 376621X1 1 Plug (2-3/8" Expansion) (Perkins No. 2485742)
16 731999M1 1 Plug (57/64" Cup Type) (Perkins No. 0650664)
17 376180X1 1 Plug (7/8" NF, Hex., Sckt.) (Perkins No. 0650582)
18 376196X1 1 Washer (Perkins No. 0920130)
19 731330M1 1 Plug (13/32" Cup Type) (Perkins No. 0650507)
20 365333X1 1 Plug (1/4" P.T. Hex., Sckt.)
21 353883X1 1 Plug (3/8" NF, Hex.) (Perkins No. 07464514)
22 1650338M1 1 Washer, Drain Plug (Perkins No. 0920155)
23 737465M1 1 Bushing, #1 Camshaft (Perkins No. 2511620)
24 737562M1 2 Gasket, Cylinder Head (Perkins No. 36812529)
25 738323M1 16 Stud (9/16" NF x 3-9/16") (Perkins No. 32526509)
26 737629M1 1 Connection, Water Inlet Right Bank (Perkins No. 37748521)
27 737570M1 1 Gasket (Perkins No. 36834127)
28 354505X1 2 Bolt (3/8 x 3-1/2" NF, Hex.) (Perkins No. 0096443)
29 353434X1 2 Washer (3/8" Lock)
35 737599M1 1 Plate, Cylinder Block Top Cover (Perkins No. 37564519)
36 738152M1 1 Gasket (Perkins No. 36851413)
38 731647M1 6 Stud (5/16" NF x 1-1/4") (Perkins No. 0826201) 731311M1 10 Stud (5/16 x 1-1/16") (Perkins No. 0826203)
41 732044M1 12 Washer (Perkins No. 36151505)
42 353770X1 2 Washer (5/16" Flat)
43 353446X1 16 Washer (5/16" Lock)
44 353916X1 16 Nut (5/16" NF, Hex.) (Perkins No. 0576002)
45 740552M91 1 Bridge Assembly (Perkins No. 41474016)
46 738100M1 2 Gasket (Perkins No. 32811411)
50 741694M91 1 (B) Housing Assembly, Rear Oil Seal (Perkins No. 41422036)
51 1447049M1 1 Seal (Perkins No. 2415391)
50 740057M91 1 (C) Housing Assembly (Order 741694M91) (Perkins No. 41422033)
51 1446952M1 1 Seal (Order 1447049M1) (Perkins No. 2415390)
55 740990M1 1 Gasket, Rear Seal Housing to Block
56 353520X1 10 Bolt (5/16 x 1-3/8" NF, Hex.) (Perkins No. 0096201)
58 353446X1 11 Washer (5/16" Lock)
60 376573X1 2 Dowel
(A) - Used Prior To Engine Serial Number 540UA1939, Except 540UA1876 To 540UA1908. (B) - Used Late Production Engines. (C) - Used Early Production Engines.
Massey Ferguson
CYLINDER BLOCK (SEE NOTE "A" FOR SERIAL NUMBER INFORMATION)
Item Part Number Qty Description
533635M91 1 Engine Assembly (Perkins No. AV8-540-22191)
1896324M91 1 Block Assembly, Short (Perkins No. 22315)
3 742294M91 1 Block Assembly (Stripped) (Perkins No. 94370)
4
739693M1 8 Liner (Perkins No. 31358901)
5 1476053X1 8 Bolt (5/8 x 5-1/2" NF, Hex.) (Perkins No. 32181443)
376623X1 2 Bolt, Rear Cap (5/8 x 5" NF, Hex.) (Perkins No. 32166323)
6 1446987X1 2 Bolt (1/2 x 2-11/16" NF, Hex.) (Perkins No. 32181435)
7 1446986X1 8 Bolt (1/2 x 2-11/16" NF, Hex) (Perkins No. 32181436)
8 1476046X1 10 Washer (41/64 x 1-5/16 x 7/64") (Perkins No. 33121418)
9 1446988X1 10 Washer (33/64 x 15/16 x 7/64") (Perkins No. 33117431)
10 735865M1 6 Plug (1-17/64" Cup Type) (Perkins No. 0650563)
11 731856M1 2 Plug (1" Cup Type) (Perkins No. 0650576)
12 740613M1 10 Plug (9/16" Cup Type) (Perkins No. 32412137)
739482M1 5 Plug (3/4" Cup Type) (Perkins No. 32417144)
13 355544X1 2 Plug (1" P.T. Sq. Sckt.)
363819X1 2 Plug (3/4" - 14 P.T. Sq. Hd.)
14 356039X1 1 Plug (1/8" P.T. Sq. Hd.)
15 376621X1 1 Plug (2-3/8" Expansion) (Perkins No. 3485742)
16 731999M1 1 Plug (57/64" Cup Type) (Perkins No. 0650664)
17 376180X1 1 Plug (7/8" NF, Hex., Sckt.) (Perkins No. 0650582)
18 376196X1 1 Washer (29/32 x 1-1/8 x 3/32") (Perkins No. 0920130)
19 731330M1 1 Plug (13/32" Cup Type) (Perkins No. 0650507)
20 1851764M1 2 Tap (Perkins No. 31419)
21 365333X1 2 Plug (1/4" P.T. Hex., Sckt.)
22 353883X1 1 Plug (3/8" NF, Hex.) (Perkins No. 0746451)
23 1650338M1 1 Washer (13/32 x 19/32 x 41/64") (Perkins No. 0920155)
24 737465M1 1 Bushing, #1 Camshaft (Perkins No. 2511620)
25 737562M1 2 Gasket, Cylinder Head (Perkins No. 36812529)
26 738323M1 4 Stud (9/16" NF x 3-9/16") (Perkins No. 32526509)
27 737629M1 1 Connection, Water Inlet Right Bank (Perkins No. 37748521)
28 737570M1 1 Gasket (Perkins No. 36834127)
29 354505X1 2 Bolt (3/8 x 3-1/2" NF, Hex.) (Perkins No. 0096443)
30 353434X1 2 Washer (3/8" Lock)
35 742148M1 1 Plate, Cylinder Block Top Cover (Perkins No. 37533108)
36 742147M1 1 Gasket (Perkins No. 36851413)
38 733741M1 6 Stud (5/16 x 1-5/16" NF) (Perkins No. 0826241) 732404M1 11 Stud (5/16 x 15/16" NF) (Perkins No. 0826249)
42 353770X1 2 Washer (5/16" Flat)
43 353446X1 17 Washer (5/16" Lock)
44 353916X1 17 Nut (5/16" NF, Hex.) (Perkins No. 0576002)
45 740552M91 1 Bridge Assembly (Perkins No. 41474016)
46 738100M1 2 Gasket (Perkins No. 32811411)
50 741694M91 1 Housing Assembly, Rear Oil Seal (Perkins No. 41422036)
51 1447049M1 1 Seal (Perkins No. 2415391)
55 740990M1 1 Gasket, Rear Seal Housing To Block (Perkins No. 36817156)
56 353520X1 11 Bolt (5/16 x 1-1/8" NF, Hex.) (Perkins No. 0096201)
58 353446X1 11 Washer (5/16" Lock)
60 376573X1 2 Dowel
(A) - Used Engine Serial Number 540UA1876 To 540UA1908 And 540UA1939 And Up.
