Massey Ferguson 1150 TRACTOR

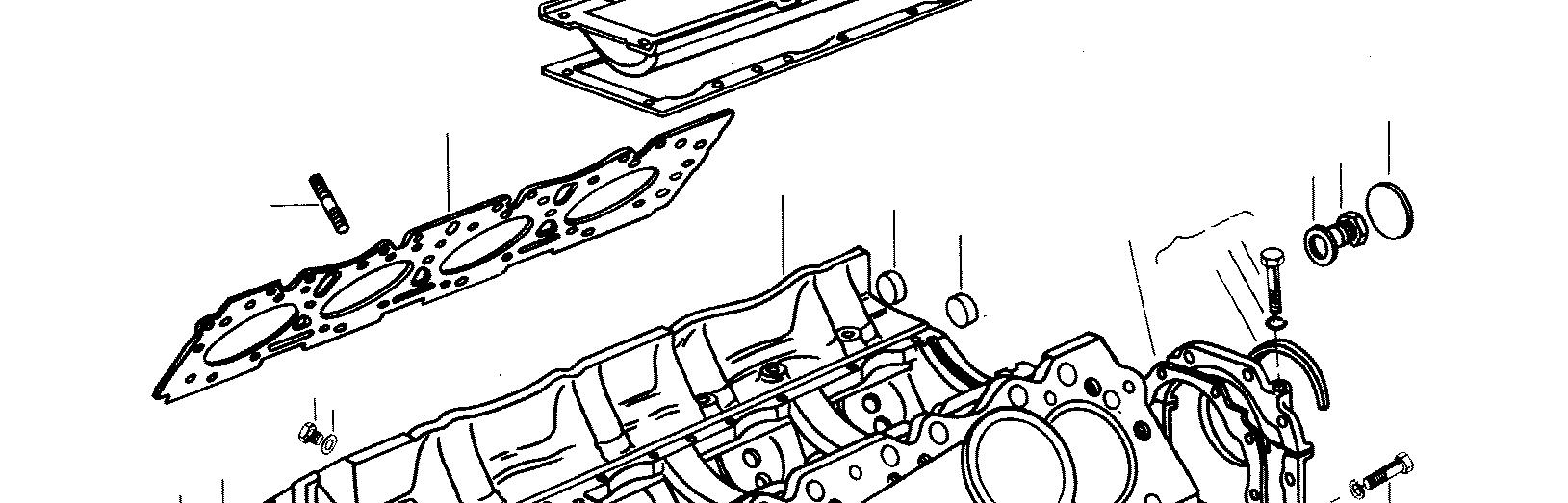

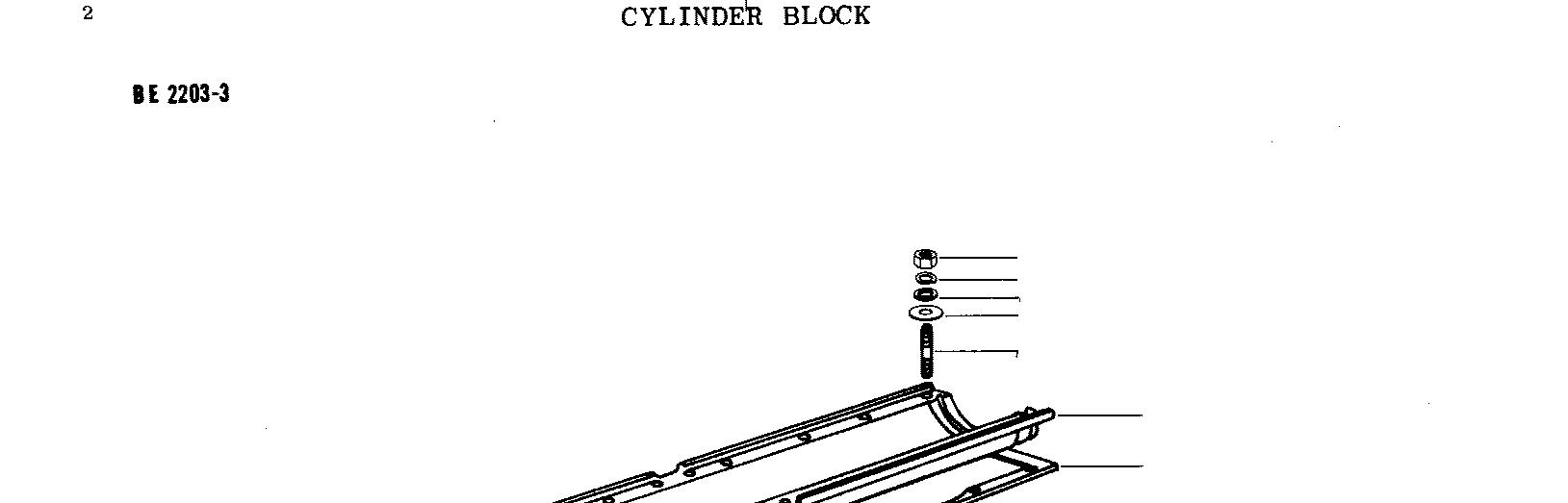

CYLINDER BLOCK
Item Part Number Qty Description
520143M93 1 (A) Engine Assembly (Perkins No. AV8-510-21236)
520143M92 1 (B) Engine Assembly (Perkins No. AV8-510-21063)
520143M91 1 (C) Engine Assembly (Perkins No. AV8-510-20964)
1896232M91 1 Block Assembly (Short) M93 (Perkins No. 21669)
1896183M91 1 Block Assembly (Short) M92,M93 (Perkins No. 21145)
2 740785M91 1 Block Assembly (Stripped) M93, M92, M91 (Perkins No. 91571)
3 739693M1 8 Liner M93, M92 (Perkins No. 31358901)
737491M1 8 (D) Liner M91 (Perkins No. 31358517)
4 376623X1 10 Bolt (5/8 X 5" NF, Hex.) M93, M92, M91 (Perkins No. 32166323)
5 353579X1 2 Bolt (7/16 X 3-1/2" NF, Hex.) M93, M92, M91 (Perkins No. 0096640)
6 353572X1 8 Bolt (7/16 X 2-5/8" NF, Hex.) M93, M92, M91
7 1440275X1 10 Washer (7/16 X 7/8 X 3/32") M93, M92 M91
8 735865X1 6 Plug (1-17/64" Cup Type) M93, M92 (Perkins No. 0650563)
9 733363M1 2 Plug (23/64 X 1") M93, M92, M91 (Perkins No. 0650576)
10 731995M1 10 Plug (9/16" Cup Type) (Perkins No. 0650717) M93, M92, M91
11 739482M1 4 Plug (3/8" Cup Type) M93, M92, M91 (Perkins No. 32417144)
12 355544X1 2 Plug (1" P.T. Sq. Sckt.) M93, M92, M91 363819X1 2 Plug (3/4" P.T. Sq. Hd.) M93, M92, M91
13 356039X1 1 Plug (1/8 P.T. Hex. Sckt. Hd.) M93, M92 M91
14 376621X1 1 Plug (2-3/8" Expansion) M93, M92, M91 (Perkins No. 2485742)
15 731999M1 1 Plug (57/64" Cup Type) M93, M92, M91 (Perkins No. 0650664)
16 376180X1 1 Plug (7/8" NF, Hex., Sckt.) M93, M92, M91 (Perkins No. 0650582)
17 376196X1 1 Washer (29/32 X 1-1/8 X 3/32" Copper) M93,M92,M91 (Perkins No. 0920130)
18 731330M1 1 Plug (13/32" Cup Type) M93, M92, M91 (Perkins No. 0650507)
19 365333X1 2 Plug (1/4" P.T. Hex. Sckt. Hd.) M93, M92, M91
20 353883X1 1 Bolt (3/8 X 5/8" NF, Hex.) M93, M92, M91 (Perkins No. 0746451)
21 1650338M1 1 Washer (13/32 X 19/32 X 1/16") M93, M92, M91 (Perkins No. 0920155)
22 1851764M1 2 Drain, Cylinder Block M93, M92, M91 (Perkins No. 31419)
23 737465M1 1 Bushing (2-3/8" I.D. X 2-1/2" O.D. X 1-5/32" Lg.) M93, M92, M91 (Perkins No. 2511620)
24 737562M1 2 Gasket, Cylinder Head M93, M92, M91 (Perkins No. 36812529)
25 738323M1 16 Stud (9/16" NF X 3-9/16") M93, M92, M91 (Perkins No. 32526509)
26 737629M1 1 Connection, Water Inlet Right Bank M93, M92, M91 (Perkins No. 37748521)
27 737570M1 2 Gasket, Water Connection M93, M92, M91 (Perkins No. 36834127)
28 354505X1 2 Bolt (3/8 X 3-1/2" NF, Hex.) M93, M92, M91 (Perkins No. 0096443)
29 353434X1 2 Washer (3/8" Lock) M93, M92, M91
30 737681M1 1 Connection M93, M92, M91 (Perkins No. 37735711)
31 353539X1 2 Bolt (3/8 X 1-1/8" NF, Hex.) M93, M92, M91
32 353434X1 2 Washer (3/8" Lock) M93, M92, M91
35 737599M1 1 Plate M93, M92, M91 (Perkins No. 37564519)
36 738152M1 1 Gasket, Cylinder Block Plate M93, M92, M91 (Perkins No. 36851413)
38 731647M1 6 Stud (5/16 NF X 1-1/4") M93, M92, M91 (Perkins No. 0826201)
731311M1 10 Stud (5/16" NF X 1-1/16") M93, M92, M91 (Perkins No. 0826203)
41 732044M1 12 Washer, Elongated M93, M92, M91 (Perkins No. 36151505)
42 353770X1 2 Washer (11/32 X 11/16 X 3/32" Flat) M93, M92, M91
43 353446X1 16 Washer (5/16" Lock) M93, M92, M91
44 353916X1 16 Nut (5/16" NF, Hex.) M93, M92, M91 (Perkins No. 0576002)
45 738999M1 1 Bridge M93, M92 (Perkins No. 36277842)
46 738100M1 2 Gasket Bridge Piece M93, M92 (Perkins No. 32711411)
45 737628M91 1 Bridge (Order 738 100 M1 and 738 999 M1) M91 (Perkins No. 37814128)
46 734333M1 2 Gasket M91 (Perkins No. 36843122)
50 739849M91 1 Housing Assembly M93 (Perkins No. 90206)
51 1 Seal M93 (Perkins No. 2415509) 1 Gasket (See item 57) M93
737725M1 2 Dowel, Locating M93 (Perkins No. 0350010)
50 739422M91 1 Housing Assembly M92, M91 (Perkins No. 89438)
51 739204M1 1 Seal (Order 739 422 M91) M92, M91 (Perkins No. 36883113)
53 353531X1 2 Bolt (5/16 X 2-1/2" NF, Hex.) M92, M91 (Perkins No. 00962387)
54 353446X1 2 Washer (5/16" Lock) M92, M91
55 353519X1 11 Bolt (5/16 X 1" NF, Hex.) M93, M92, M91 (Perkins No. 0746211)
56 353446X1 11 Washer (5/16" Lock) M93, M92, M91
57 739464M1 1 Gasket M93 (Perkins No. 36817155)
737566M1 1 Gasket M92, M91 (Perkins No. 36817142)
(A) - Used Tractor Serial Number 9B28822 And Up.
(B) - Used Tractor Serial Number
Massey Ferguson
CYLINDER BLOCK
Item Part Number
Qty Description To 9B28821. For Repairs 520143M93.
(C) - Used Prior To Tractor Serial Number 9B23680. For Repairs Order 520143M93.
(D) - "Unfinished" Liner - Refer To Technical Manual For Finished Specifications. For Repairs Order 739693M1.
Massey Ferguson

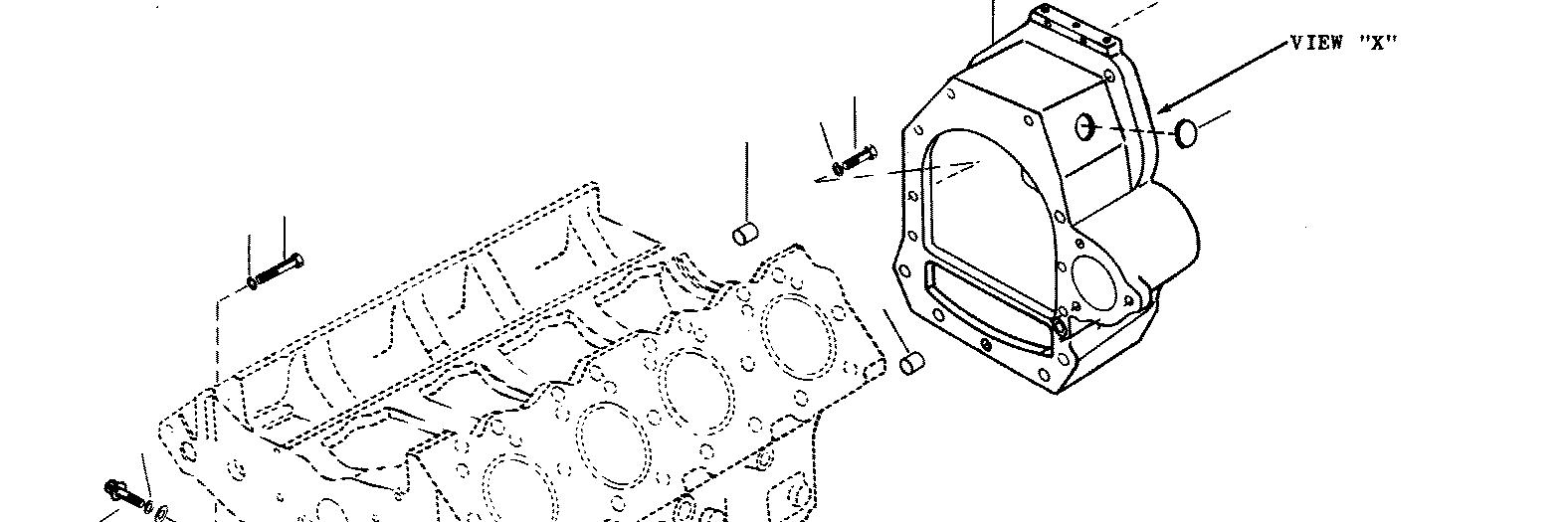

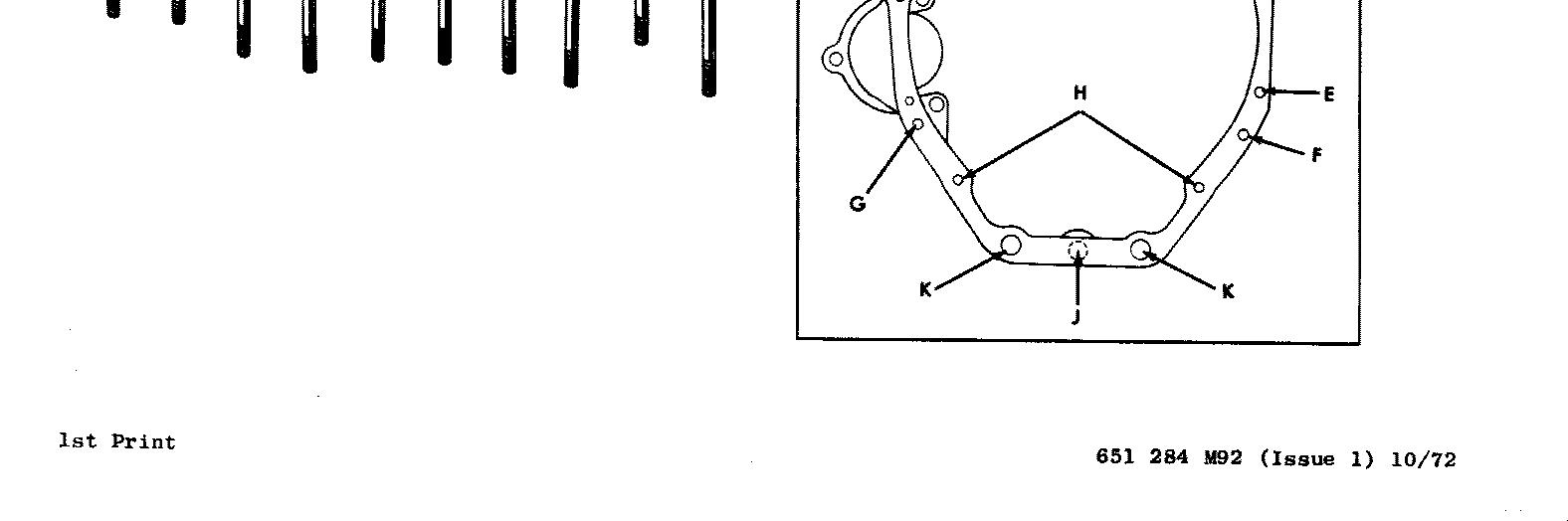

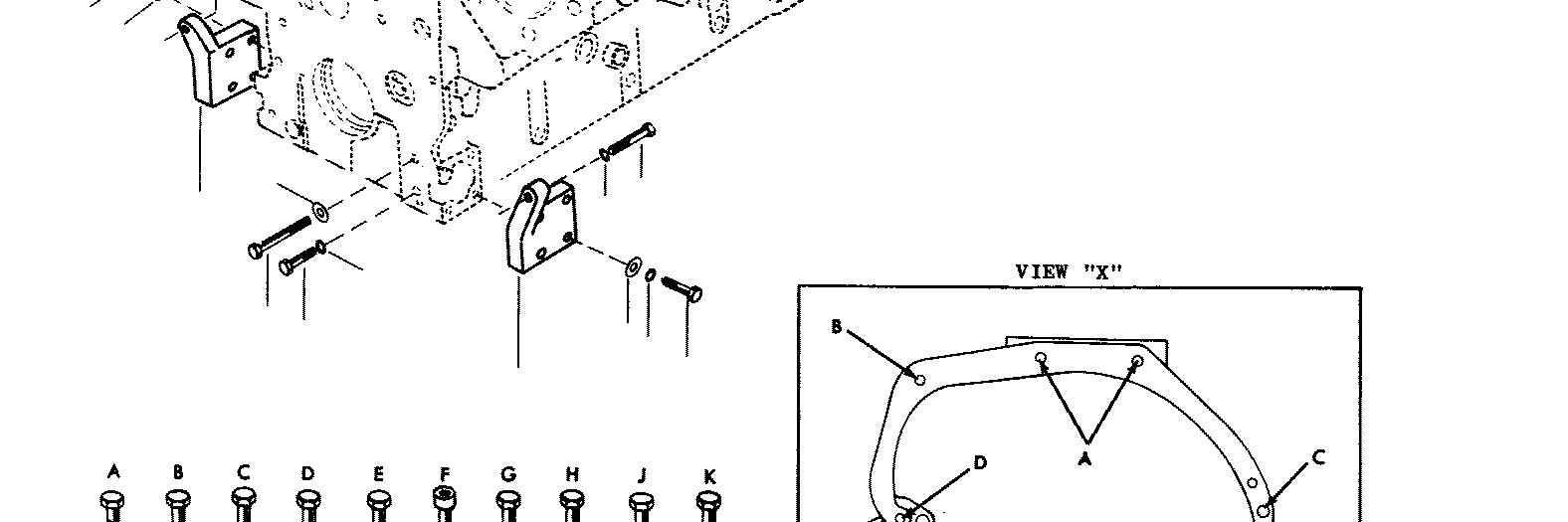

FLYWHEEL HOUSING AND ENGINE MOUNTS
Item Part Number Qty Description
1
740050M1 1 (A) Housing M93 (Perkins No. 37133382)
738447M1 1 (B) Housing M93, M92, M91 (Perkins No. 37133381)
2 737463M1 2 Dowel (1/2 X 1-9/32") M93, M92, M91 (Perkins No. 0350024)
3 191314M1 2 Dowel (3/8 X 25/32") M93, M92, M91
6 353563X1 8 Bolt (7/16 X 1-1/2" NF, Hex.) M93, M92, M91
7 1440275X1 8 Washer (7/16 X 7/8 X 3/32") M93, M92, M91
8 353705X1 2 Bolt (7/16 X 1-7/8" NC, Hex.) M93, M92 M91
9 353707X1 1 Bolt (7/16 X 2-1/8" NC, Hex.) M93, M92, M91
10 357032X1 1 Bolt (7/16 x 5-7/8" NC, Hex.) M93, M92, M91
11 357249X1 1 Bolt (7/16 x 6-3/8" NC, Hex.) M93, M92, M91
12 354678X1 1 Bolt (1/2 x 5-7/8" NC, Hex.) M93, M92, M91
13 367031X1 1 Bolt (1/2 x 5-7/8" NC, Hex., Sckt.) M93, M92, M91
14 357039X1 1 Bolt (1/2 X 6-1/2" NC, Hex.) M93, M92, M91
15 357272X1 2 Bolt (5/8 X 8-1/2" NC, Hex.) M93, M92, M91
16 356992X1 1 Bolt (7/8 X 3" NC, Hex.) M93, M92, M91
17 357304X1 2 Bolt (7/8 X 9" NC, Hex.) M93, M92, M91
18 195546M1 1 Plug (7/8" Button Type) M93, M92, M91
20 522994M1 1 (C) Support M93, M92, M91
21 522993M1 1 (C) Support M93, M92, M91
22 353597X1 6 (C) Bolt (1/2 x 1-3/4" NF, Hex.) M93, M92, M91
23 367472X1 2 (C) Screw (1/2 x 1-3/4" NF, 12 Pt. Hd.) M93, M92, M91
24 353439X1 8 (C) Washer (1/2" Lock) M93, M92, M91
20 518045M2 1 (D) Support M93, M92, M91
21 518044M2 1 (D) Support M93, M92, M91
22 353727X1 6 (D) Bolt (5/8 X 1-3/4" NC, Hex.)
23 522796M1 2 (D) Bolt (5/8 X 2" NC, 12 PT.) M93, M92, M91
24 353433X1 8 (D) Washer (5/8" Lock) M93, M92, M91
25 353760X1 8 (D) Washer (21/32 X 1-5/16 X 7/16" Flat) M93, M92, M91
26 354712X1 2 Bolt (3/4 X 2-1/4" NC, Hex.) M93, M92, M91
27 354714X1 2 Bolt (3/4 X 2-1/2" NC, Hex.) M93, M92, M91
28 353440X1 4 Washer (3/4" Lock) M93, M92, M91
29 354737X1 2 Bolt (3/4 X 5-1/2" NC, Hex.) M93, M92, M91
30 353775X1 2 Washer (13/16 X 1-1/2 X 3/16" Flat) M93, M92, M91
(A) - Used Tractor Serial Number 510UA6409 And Up.
(B) - Used Prior To Tractor Serial Number 510UA6409.
(C) - Used Tractor Serial Number 9B26361, 9B26484, 9B26487, 9B26490, 9B26492 And Up.
(D) - Used Prior To Tractor Serial Number 9B26492, Except The Following Serial Numbers: 9B26361, 9B26459, 9B26484, 9B26487, 9B26490.
