Massey Ferguson
1105 / 1135 TRACTOR

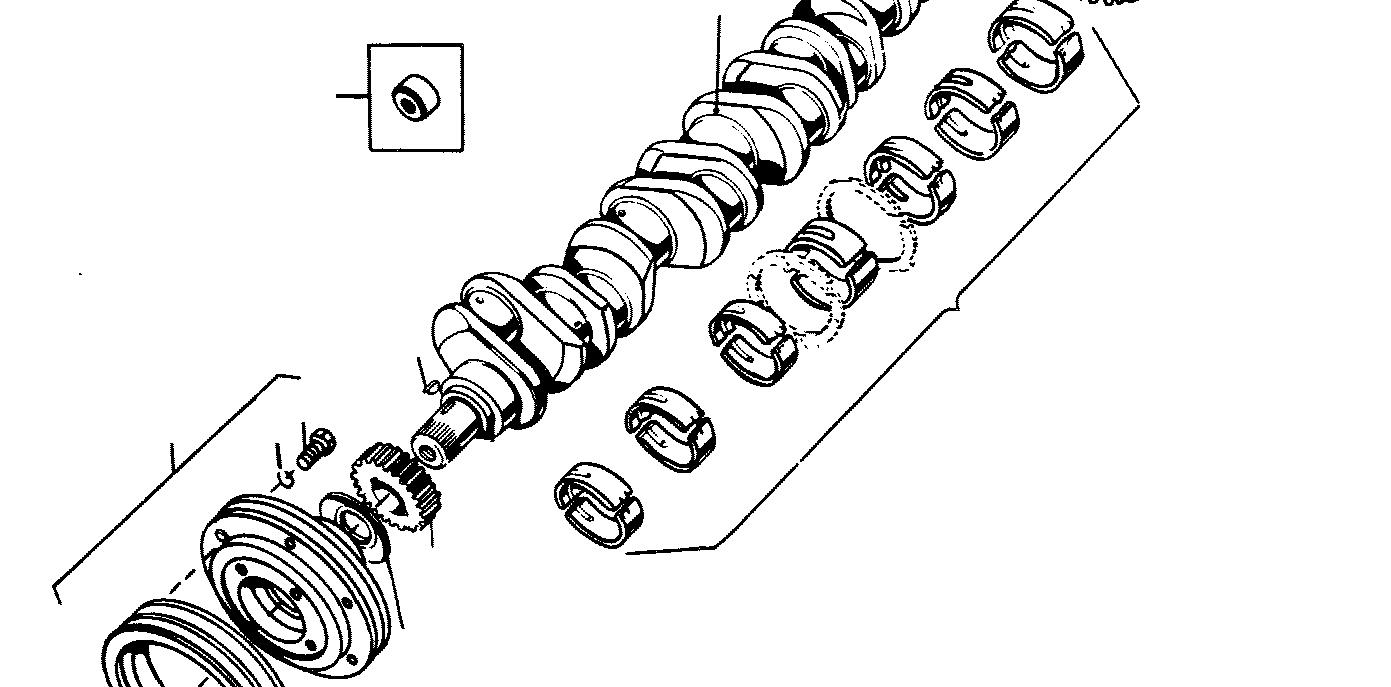

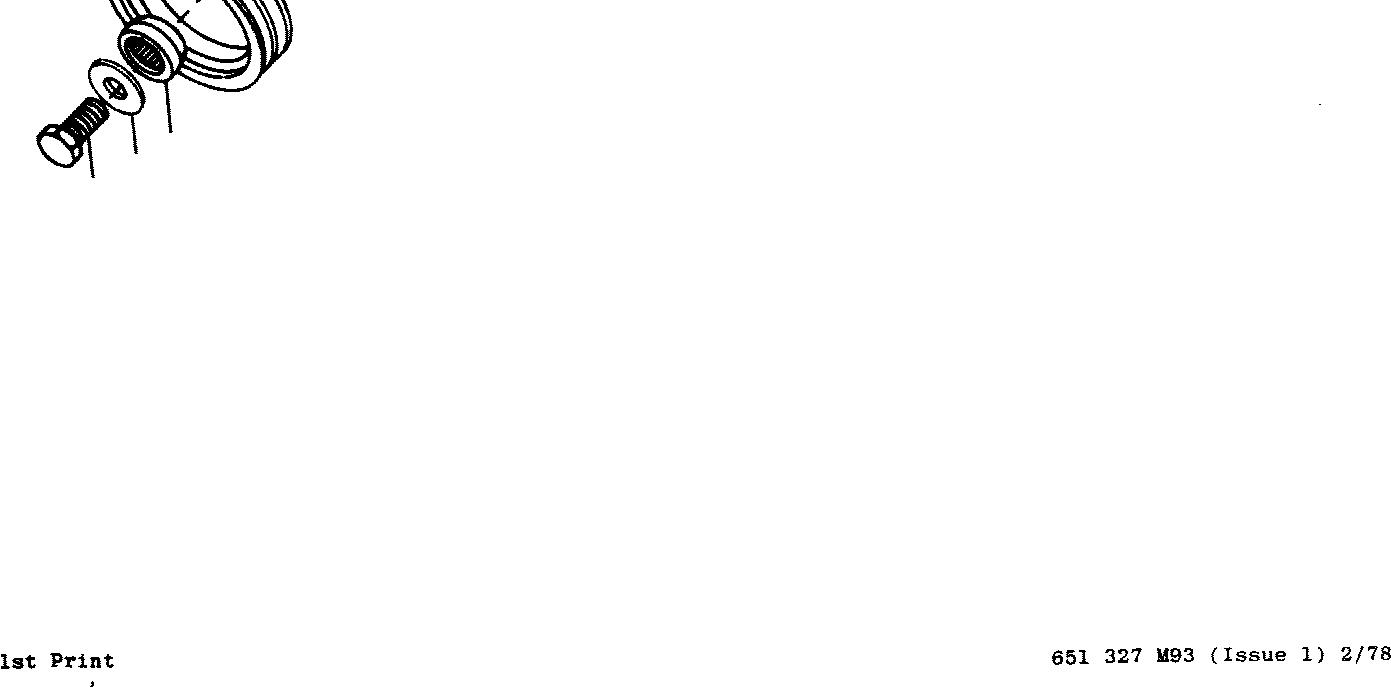

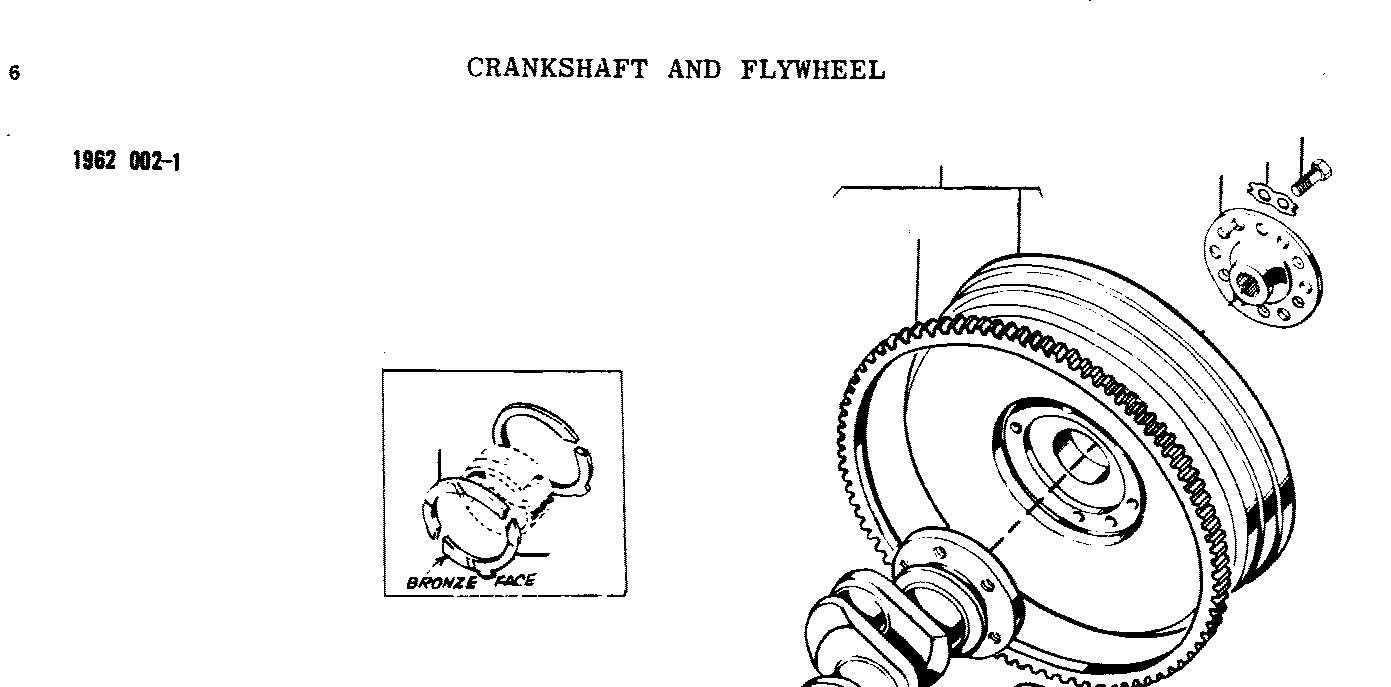

CRANKSHAFT AND FLYWHEEL (DIESEL)
1
742161M1 1 Crankshaft (Perkins No. 31323262)
2 733757M1 1 Gear (Perkins No. 31171211)
3 2196X 1 Key (1/4 x 7/8" Woodruff) (Perkins No. 0500012)
4
733758M1 1 Flange, Oil Thrower (Perkins No. 33415311)
5 1446062M91 1 Pulley Assembly (Perkins No. 2635723)
6 353522X1 6 Bolt (5/16 x 1-3/8" NF, Hex.) (Perkins No. 0096232)
7 353446X1 6 Washer (5/16" Lock)
8 740013M1 1 Ring, Pulley (Perkins No. 33171116)
9 376183X1 1 Bolt, Pulley (Perkins No. 32162317)
10
735559M1 1 Washer, Pulley (Perkins No. 33125129)
15 744001M91 1 Insert Set, Main Bearing (Std.) (Perkins No. 68078)
742590M91 1 Insert Set, Main Bearing (+.010") (Order 744210M91) (Perkins No. 89066A)
742591M91 1 Insert Set, Main Bearing (+.020") (Perkins No. 89066B)
736933M91 1 Insert Set, Main Bearing (+.030") (Perkins No. 85010C)
21 735337M1 2 Washer, Thrust (Upper) (Std.) (Perkins No. 31137311)
735742M1 AR Washer, Thrust (Upper) (+.007") (Perkins No. 31137312)
22 735338M1 2 Washer, Thrust (Lower) (Std.) (Perkins No. 31137321)
735743M1 AR Washer, Thrust (Lower) (+.007") (Perkins No. 31137322)
30 740853M91 1 Flywheel Assembly (Perkins No. 41112803)
31 731988M1 1 Gear, Ring (Perkins No. 0410264)
32 740635M1 1 Adapter (Perkins No. 33472561)
33 376513X1 6 Bolt (Perkins No. 0096837)
34 731192M1 3 Tabwasher (Perkins No. 0921062)
35 741077M1 1 Plug, Crankshaft (Perkins No. 33211123)
Massey Ferguson
1105 / 1135 TRACTOR

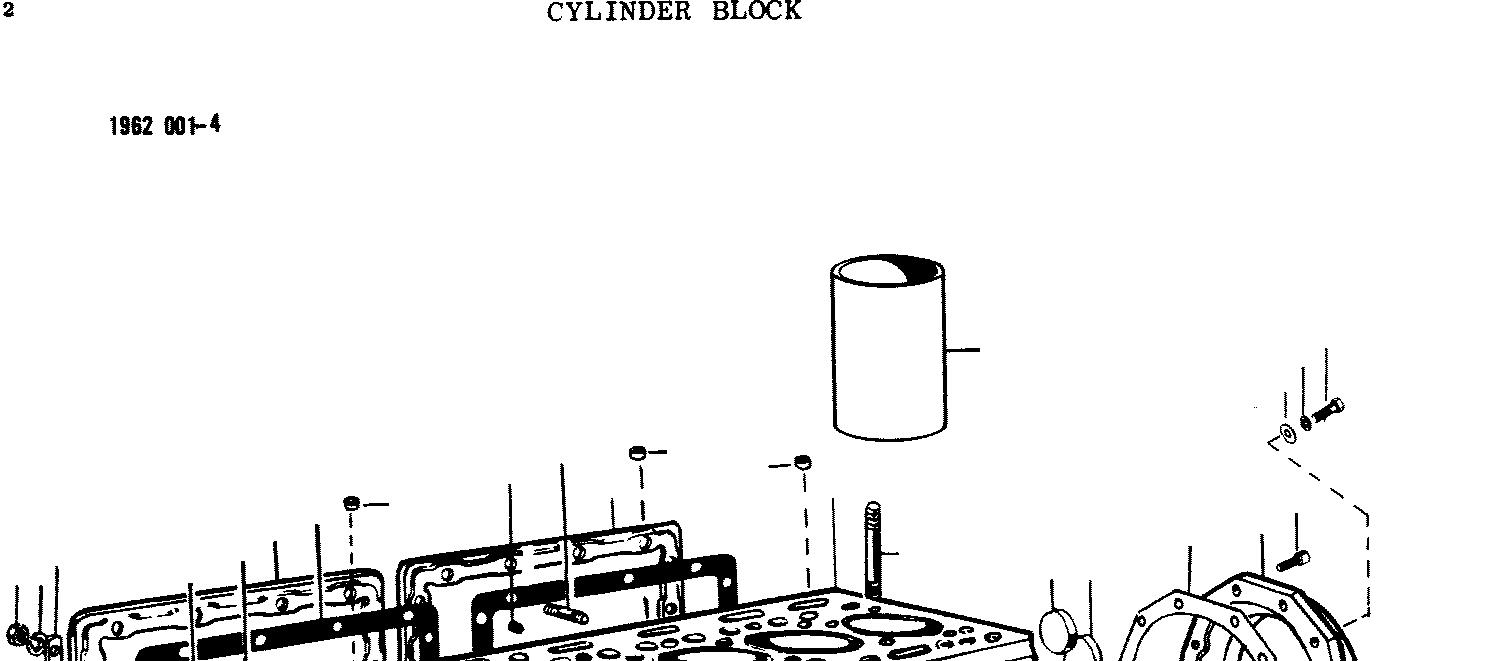

CYLINDER BLOCK (DIESEL)
Item Part Number Qty Description
539339M91 1 (A) Engine Assembly (Complete) (Used w/Airesearch Turbocharger) (Perkins No. AT6-354-22431) (1135)
528192M91 1 (B) Engine Assembly (Complete) (Used w/Holset Turbocharger) (Perkins No. AT6-354-21722) (1135)
528191M91 1 Engine Assembly (Complete) (Perkins No. ATC6-354-21724) (1105)
1896320M91 1 (C, D) Block Assembly (Short) (Perkins No. 22160) (1135)
1896269M91 1 (C, E) Block Assembly (Short) (Order 1896320M91) (Perkins No. 21850) (1135)
1896271M91 1 (C) Block Assembly (Short) (Perkins No. 21844) (1105)
2 741315M91 1 Block Assembly (Stripped) (Perkins No. 92200) (1135)
742808M91 1 (F) Block Assembly (Stripped) (Perkins No. 94981) (1105)
741260M91 1 (G) Block Assembly (Stripped) (Order 742808M91) (Perkins No. 92036) (1105)
3 736507M2 6 Liner Cylinder (Perkins No. 31358341)
4 733072M1 14 Thimble, Main Bearing Cap (Perkins No. 33142111)
5 1476108X1 14 Bolt, Bearing Cap (5/8 x 3-3/4" NF, Hex)
6 735865M1 6 Plug (1-1/4" Cup Type) (Order 731354M1) (Perkins No. 0650563)
735869M1 1 Plug (1-1/2" Cup Type)
7 363819X1 3 Plug (3/4" P.T. Sq. Hd.)
8 737785M1 1 Plug, Cylinder Block Top Face (Perkins No. 31157133)
9 365333X1 1 Plug (1/4" P.T. Hex., Sckt.)
10 737787M1 6 Plug (53/64" Cup Type) (1/2" Dia. Hole) (Perkins No. 33157135)
11 737786M1 2 Plug (53/64" Cup Type) (3/8" Dia. Hole) (Perkins No. 33157134)
12 732961M1 2 Plug (41/64" Cup Type) (Perkins No. 32417117)
17 731141M1 14 Shim (.020") (Perkins No. 0760001)
18 375186X1 2 Plug, Oil Return
19 736867M1 1 Plug, Intake Manifold Side (Perkins No. 32417133) 365333X1 1 Plug (1/4" P.T. Hex., Sckt.)
20 731356M1 2 Plug (11/16" Cup Type) (Perkins No. 0650566)
21 356039X1 1 Plug (1/8" P.T. Hex., Sckt.)
22
23
733705M1 1 Plug, Camshaft Chamber, Rear (Perkins No. 32416105)
736557M1 3 Plug (7/16" Cup Type) (Perkins No. 32417127)
24 733855M1 1 Plug (13/32" Cup Type) (Perkins No. 32417115)
25 736868M1 2 Plug, Cylinder Block Top Face (Perkins No. 32417134)
26 733707M1 3 Plug (5/16" NF, Sltd.) (Perkins No. 32114116)
735870M1 1 Plug (53/64" Cup Type) (Not Used On 539339M91, Eng.) (Perkins No. 32417122)
27 733515M1 1 Adapter, Water Heater (Perkins No. 33534117)
28 733514M1 1 Washer, Adapter (Perkins No. 2411170)
29 363819X1 1 Plug
30 735245M1 2 Stud (1/2" NF x 4-1/8") (Perkins No. 32526312)
31 741718M1 1 (H) Housing, Assembly (Perkins No. 37513851)
32 1447049M1 1 (H) Seal (Perkins No. 2415391)
31 741258M91 1 (J) Housing Assembly, Ord. (1) 1447049M1 & (1) 741718M1 (Perkins No. 92038)
32 1447049M1 1 Seal (Perkins No. 2415391)
35 740828M1 1 Gasket (Perkins No. 36817157)
36 353519X1 10 (K) Bolt (5/16 x 1" NF, Hex) (Perkins No. 0746211)
37 353770X1 10 (H) Washer (5/16" Heavy Flat)
38 353446X1 8 (J) Washer (5/16" Flat)
39 357987X1 2 (H) Screw (5/16 x 1" NF, Sckt. Hd.)
375852X1 2 (J) Screw (5/16 x 1-1/4" NC, Sckt. Hd.)
41 376573X1 2 Dowel, Housing To Block (Perkins No. 2116078)
42 734841M1 2 (D) Bridge (Perkins No. 36277831)
43 742318M1 2 (D) Insert (Self Locking Helecoil) (Perkins No. 21374467)
44 736126M91 1 (E) Bridge Assembly (Rear) (Perkins No. 41474004)
45 376553X1 2 Insert (Helecoil) (Perkins No. 2137485)
46 736473M1 2 (E) Washer (Tab Locking) (Perkins No. 31731517)
47 732575M1 2 Washer, Tab (Perkins No. 2411152)
48 734841M1 1 Bridge (Front) (Perkins No. 36277831)
49 376514X1 2 Bolt (5/16 x 7-5/8" NC, Hex) (Perkins No. 32146306)
50 733721M1 4 Gasket, Bridge Piece Sides (Perkins No. 32811408)
51 376572X1 4 Screw (1/4 x 3/4" NF, Phillips) (Perkins No. 2176369)
52 735898M1 4 Washer, Bridge Piece (Perkins No. 0920521)
53 733745M1 1 Cover, Tappet Inspection (Perkins No. 37554114)
54 736099M91 1 Cover Assembly, Front (Perkins No. 37554554)
55 733744M1 2 Gasket, Cover (Perkins No. 36846408)
56 731378M1 23 Stud (5/16" NF x 1") (Perkins No. 0826220)
733741M1 1 Stud, Cover To Block (Perkins No. 0826241)
57 732044M1 24 Washer, Elongated (Perkins No. 36151505)
58 353446X1 24 Washer (5/16" Lock)
59 353916X1 24 Nut (5/16" NF, Hex.) (Perkins No. 0576002)
Massey Ferguson
1105 / 1135 TRACTOR

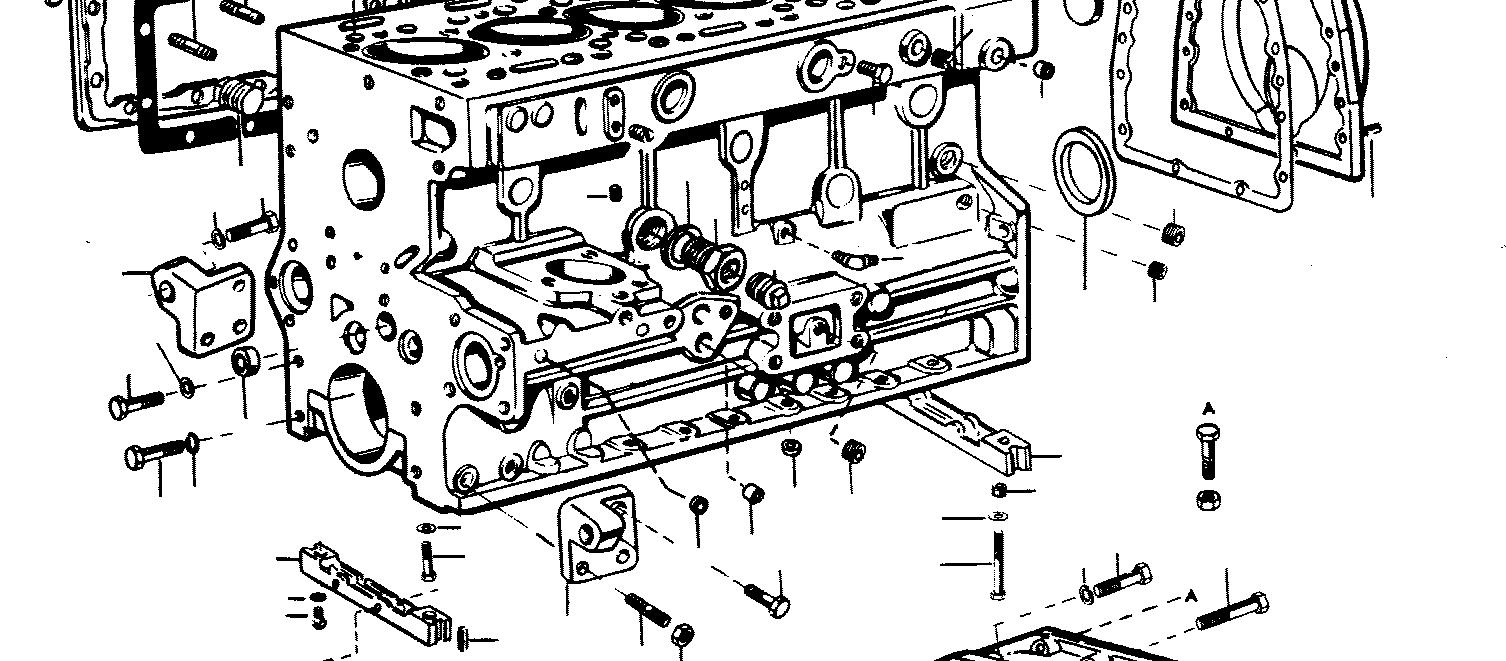

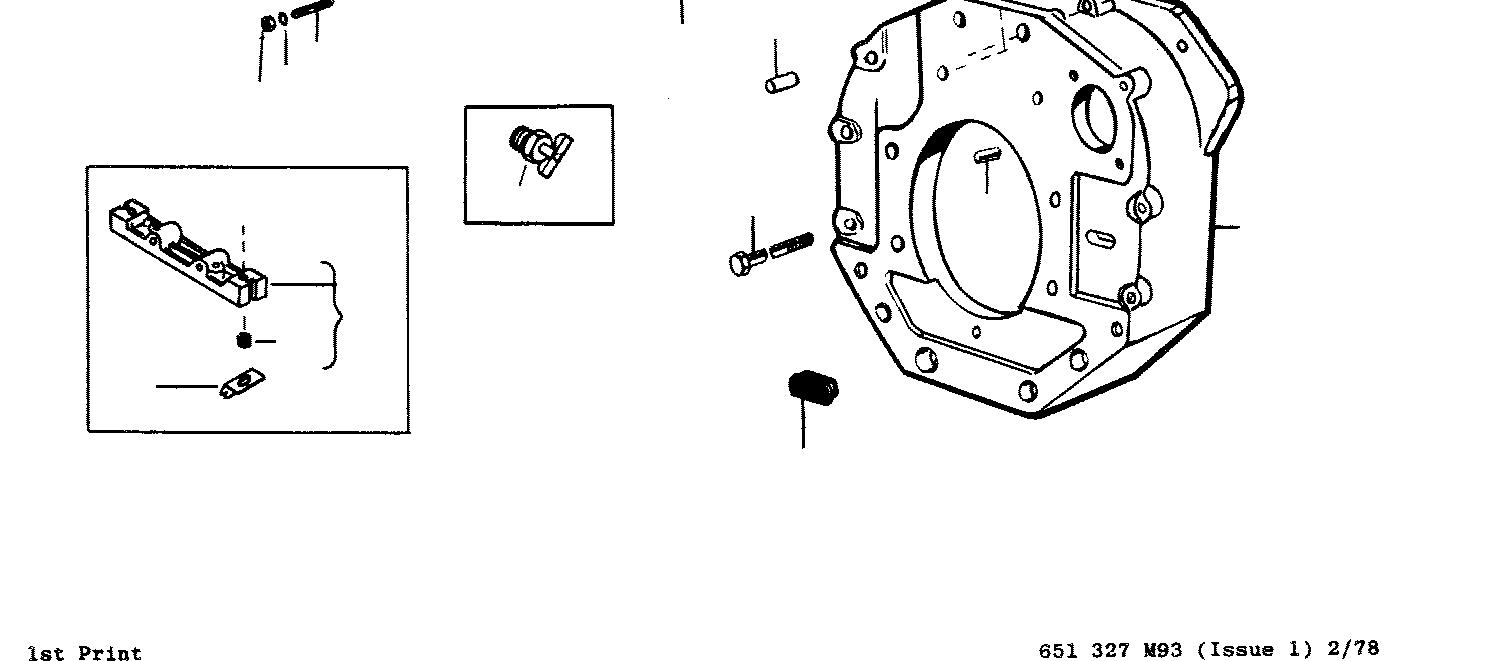

CYLINDER BLOCK (DIESEL)
Item Part Number Qty Description
61 740651M1 1 Housing (Perkins No. 37133441)
62 1028450M1 2 Dowel, Housing To Block
63 353542X1 6 Bolt (3/8 x 1-1/2" NF, Hex.)
64 1440274X1 6 Washer (3/8" Flat)
65 504557M1 1 Support (Right)
66 504558M1 1 Support (Left)
67 731866M1 4 Stud, Support To Block (Perkins No. 0826403)
68 353427X1 Nut (5/8" NF, Hex.)
69 833315M1 2 Bolt (5/8 x 1-1/4" NC, Hex., Lock)
74 354714X1 2 Bolt (3/4 x 2-1/2" NC, Hex.)
75 354712X1 2 Bolt (3/4 x 2-1/4" NC, Hex.)
76 353440X1 4 Washer (3/4" Lock)
77 354737X1 2 Bolt (3/4 x 5-1/2" NC, Hex.)
78 353775X1 2 Washer (3/4" Flat)
191314M1 2 Dowel, Engine To Transmission
80 366088X1 2 (L) Bolt (7/16 x 1-1/4" NC, Hex., Grade 8)
81 370869X1 3 (L) Bolt (7/16 x 2-3/4" NC, Hex., Grade 8)
82 370873X1 3 (L) Nut (7/16" NC, Hex.)
83 370871X1 3 (L) Bolt (7/16 x 7-1/2" NC, Hex., Grade 8)
83 369455X1 2 (L) Bolt (1/2 x 8" NC, Hex., Grade 8)
80 353704X1 2 (M) Bolt (7/16 x 1-3/4" NC, Hex.)
81 353712X1 3 (M) Bolt (7/16 x 2-5/8" NC, Hex.)
82 355645X1 3 (M) Nut (7/16" NC, Hex.)
83 357258X1 3 (M) Bolt (7/16 x 7-1/2" NC Hex.) 368410X1 2 (M) Bolt (1/2 x 8" NC, Hex.)
84 731647M1 2 Stud (5/16" NF x 1-5/16") (Perkins No. 0826201)
85 353446X1 2 Washer (5/16" Lock)
86 353916X1 2 Nut (5/16" NF, Hex.) (Perkins No. 0576002)
87 732902M1 1 Plug, Flywheel Housing (Perkins No. 37813113)
88 836411M91 1 Elbow, Lube Oil Pressure Gauge (Perkins No. 0201568)
90 1851764M1 1 Plug, Cylinder Block, Drain (Perkins No. 31419) ****************************************
(A) - Used MF 1135 Tractor Engine Serial Number 354UA16470T And Up.
(B) - Used Prior To MF1135 Tractor Engine Serial Number 354UA16470T Also Used As Alternate To 539339M91 Engine After Engine Serial Number 354UA16470T.
(C) - Included Pistons, Connecting Rods, Crankshaft And Camshaft.
(D) - Used Late Production Engines.
(E) - Used Early Production Engines.
(F) - Used MF 1105 Tractor Engine Serial Number 354UA2004TSL And Up.
(G) - Used Prior To MF 1105 Tractor Engine Serial Number 354UA2004TSL.
(H) - Used MF 1135 Tractor Engine Serial Number 354UA489OL And Up And All MF 1105 Tractor Engine.
(J) - Used MF 1135 Tractor Prior To Engine Serial Number 354UA48970L.
(K) - Quantity Of 8 Used Prior To MF 1135 Tractor Engine Serial Number 354UA48970L.
(L) - Used Tractor Serial Number 9B67392 And Up.
(M) - Used Prior To Tractor Serial Number 9B67392.
