Massey Ferguson
1100 / 1130 TRACTOR

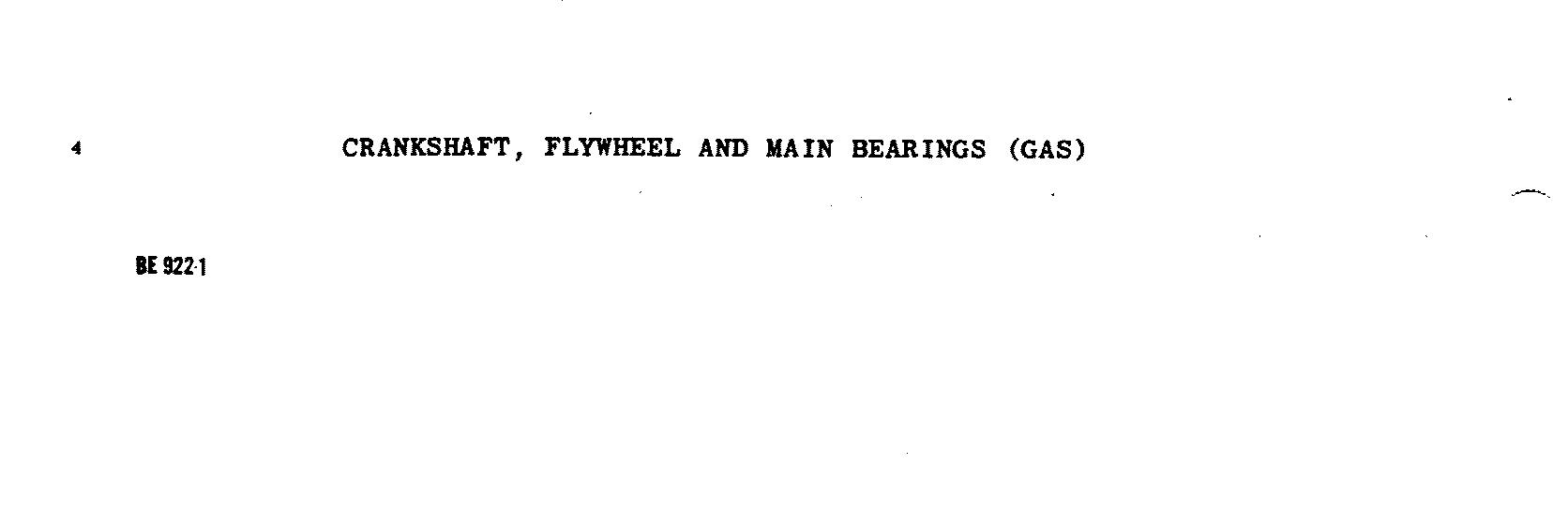

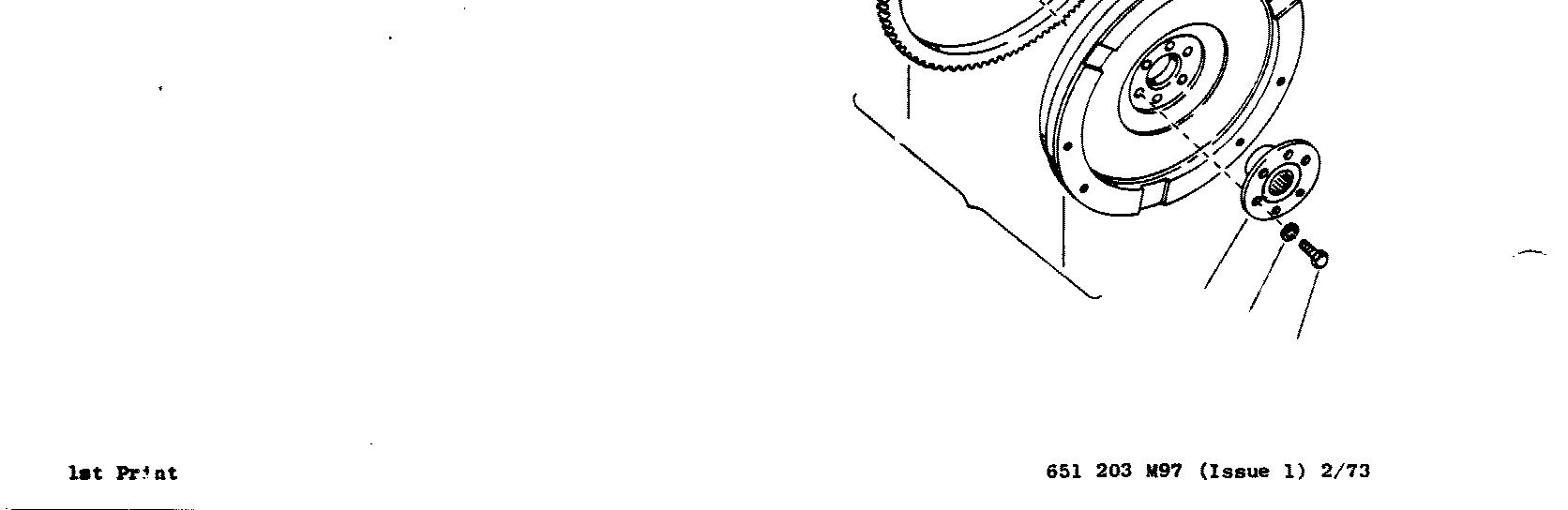

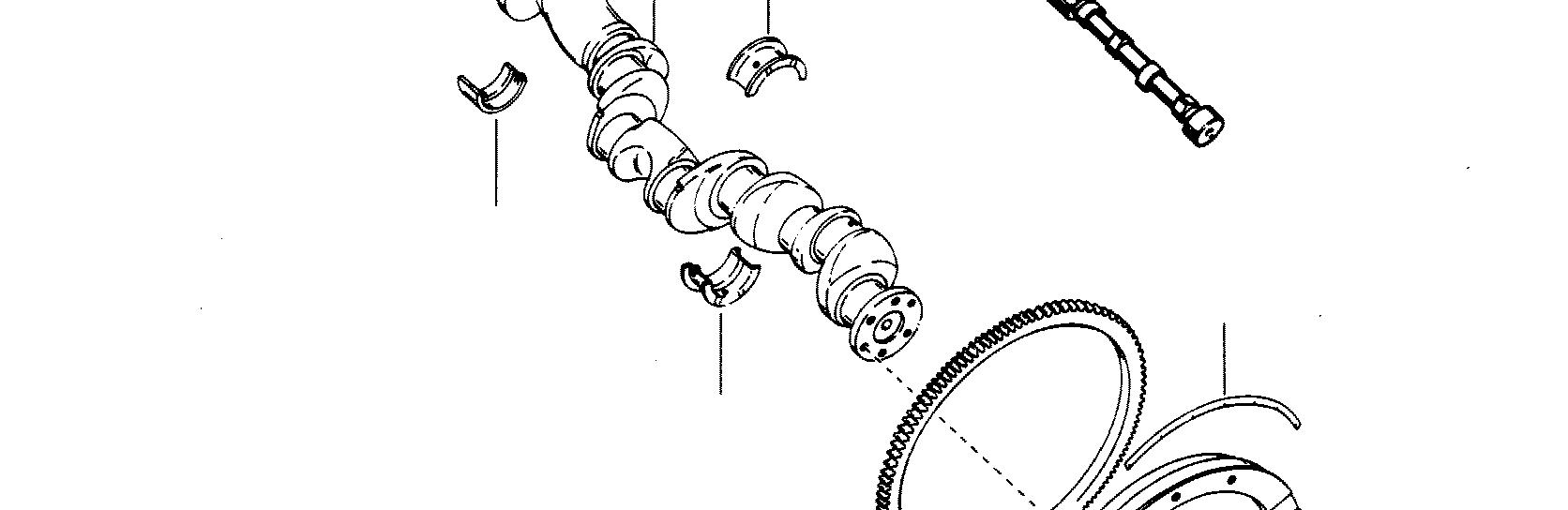

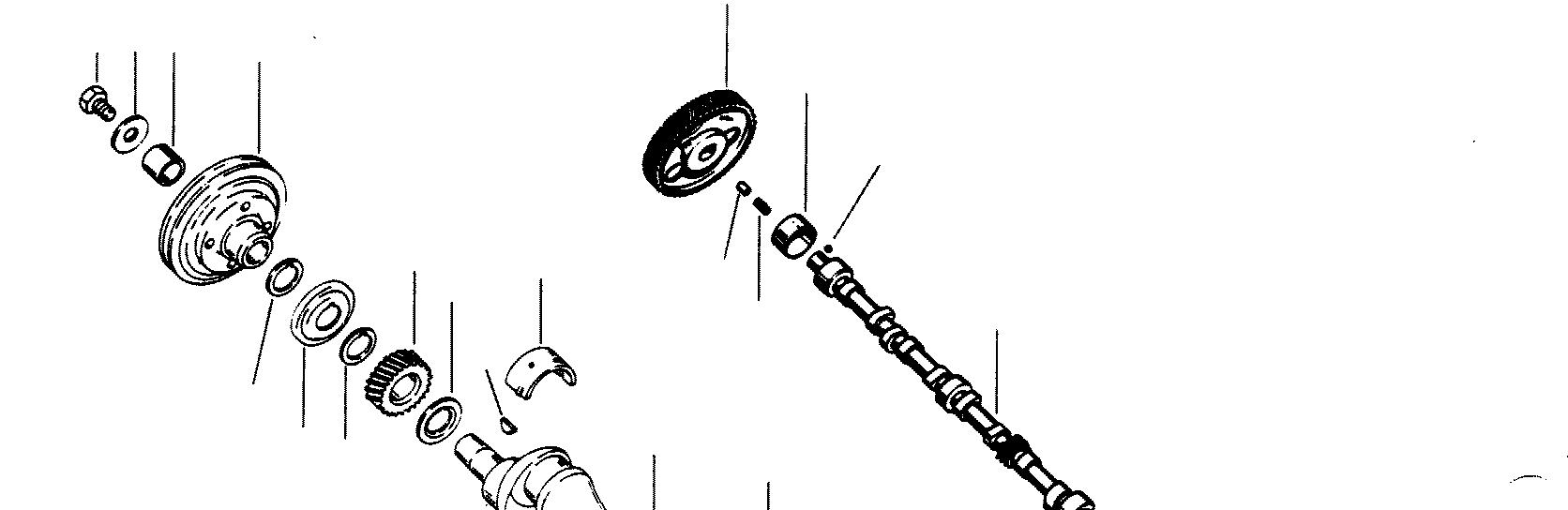

CRANKSHAFT, FLYWHEEL AND MAIN BEARINGS (GAS) MF1100
Item Part Number Qty Description
1 1034393M1 1 (A) Crankshaft
1032581M1 1 (B) Crankshaft (Order 1034393M1 And 1034394M1)
2 22134X 1 Key (#708 Hi-Pro)
3 1032588M1 1 Spacer, Crankshaft Gear
4 1032587M1 1 Gear, Crankshaft
5 1032603M1 2 Gasket, Oil Thrower
6 1032590M1 1 Thrower, Oil
7 1032557M91 1 Pulley Assembly
8 1032589M1 1 Taper, Crankshaft Pulley
9 1032658M1 1 Washer, Pulley (11/16 x 2 x 3/16")
10 353607X1 1 Bolt (5/8 x 1" NF, Hex.) 836033M91 1 Insert Kit (Std.)
16 1032598M1 3 Insert (Top) (Front, 1st Intermediate, Rear)
17 1032597M1 3 Insert (Lower) (Front, 1st Inter., Rear)
18 1032599M1 1 Insert (Top) (2nd Intermediate)
19 1032600M1 1 Insert (Lower) (2nd Intermediate) 836034M91 1 Insert Kit (-.020")
16 1032614M1 3 Insert (Top) (Front, 1st, Intermediate, Rear)
17 1032612M1 3 Insert (Lower) (Front, 1st Intermediated, Rear)
18 1032616M1 1 Insert (Top) (2nd Intermediate)
19 1032618M1 1 Insert (Lower) (2nd Intermediate) 836035M91 1 Insert Kit (-.040")
16 1032615M1 3 Insert (Top) (Front, 1st Intermedaite, Rear)
17 1032613M1 3 Insert (Lower) (Front, 1st Intermediate, Rear)
18 1032617M1 1 Insert (Top) (2nd Intermediate)
19 1032619M1 1 Insert (lower) (2nd Intermediate)
26 1032767M91 1 (C) Flywheel Assembly (Incl. Item 27)
1034081M91 1 (D) Flywheel Assembly (Incl. Item 27)
1032591M91 1 (E) Flywheel Assembly (Incl. Item 27)
27 1032592M1 1 Gear, Flywheel Ring
28 1032648M1 6 Bolt (7/16 x 1-1/4" NF, Hex., Special)
29 359404X1 6 Washer (7/16" Int. Tooth Lock)
30 1034394M1 1 (A) Adapter, Flywheel 1032594M1 1 (B) Adapter, Flywheel (Order 1034394M1)
31 1032593M1 1 Strip, Flywheel Timing **************************************** CAMSHAFT
37 1032523M1 1 Camshaft
38 13611X 1 Key (#13 Woodruff)
39 1032602M1 1 Bushing, Camshaft, Front
40 1032637M1 1 Spring, Camshaft Thrust Button
41 1032524M1 1 Button, Camshaft Thrust
42 1032525M1 1 Gear, Camshaft ****************************************
(A) - Used Engine Serial Number 125771, 125787, 127197, 127212, 127228 And 130327 And Up.
(B) - Used Prior To Engine Serial Number 130327 Except For 125771, 125787, 127197, 127212 And 127228.
(C) - Used Engine Serial Number 120027 And Up.
(D)- Used Engine Serial Number 115752 To 120027.
(E) - Used Prior To Engine Serial Number 115752. For Repairs Order 1034081M91, Flywheel; 1033648M1 Adapter, Plate And 1033649M1 Timing Hole Cover.
Massey Ferguson
1100 / 1130 TRACTOR

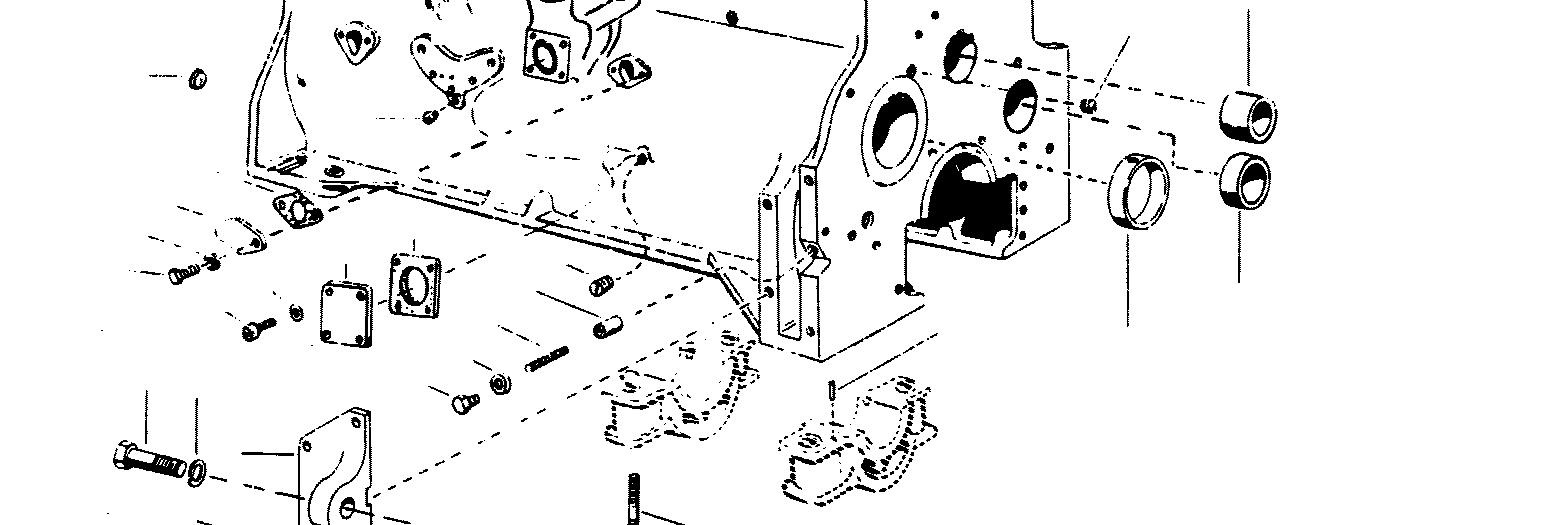

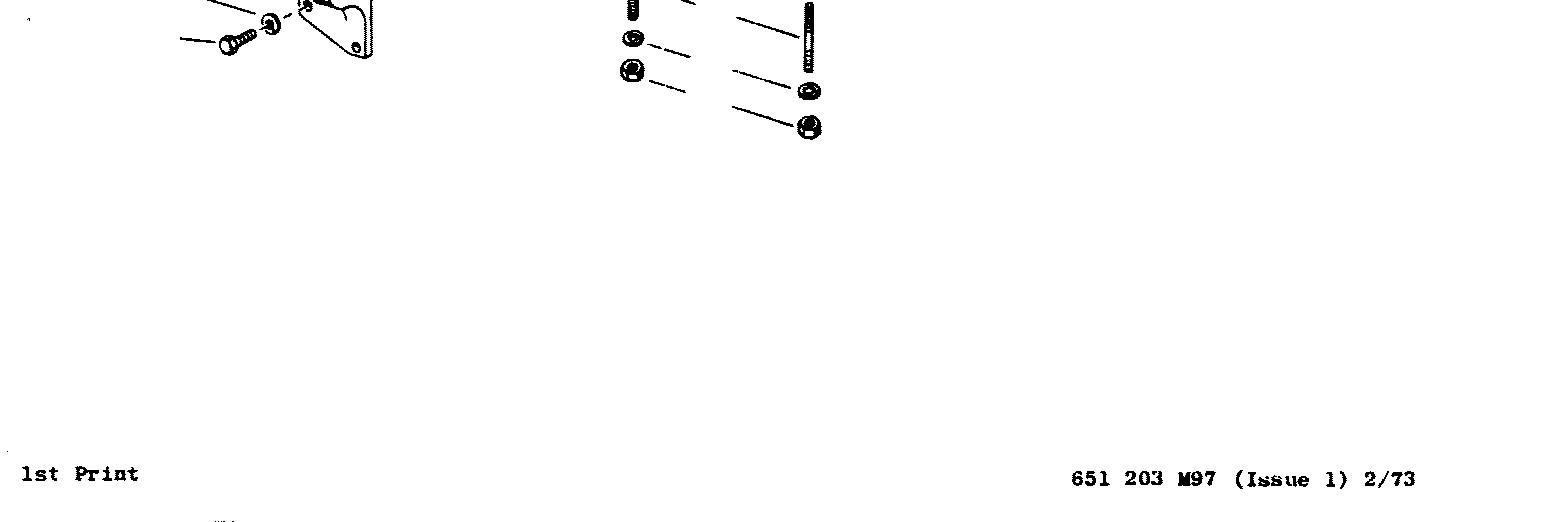

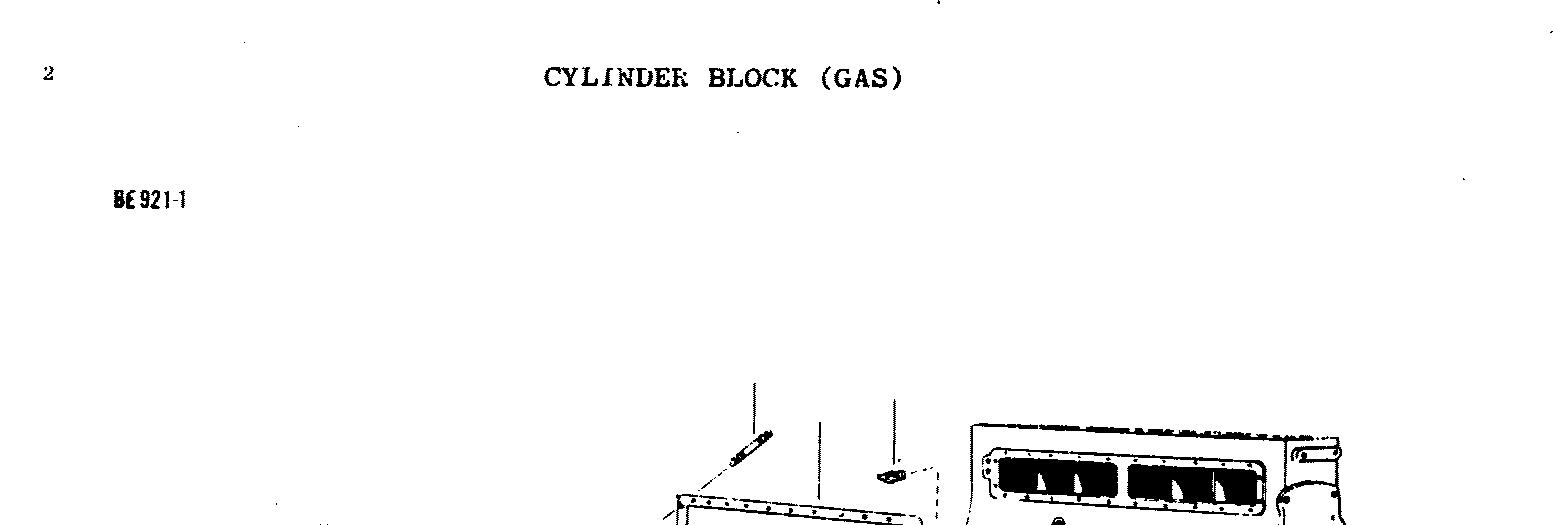

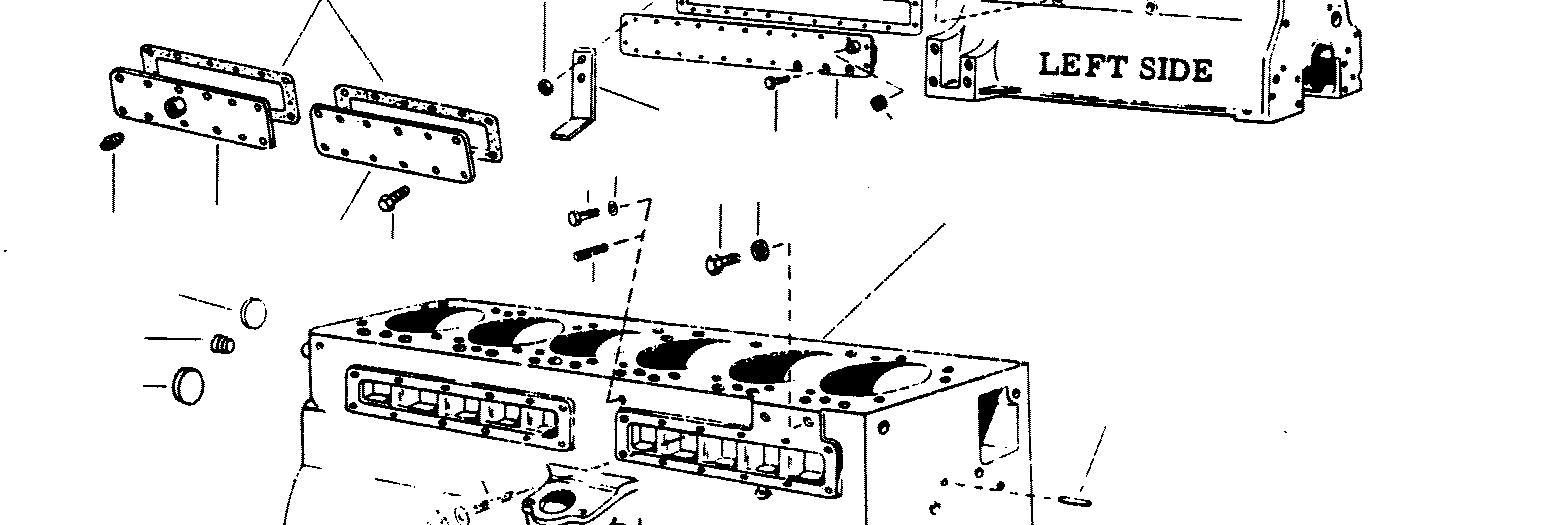

CYLINDER BLOCK (GAS) MF1100
Item Part Number Qty Description 514522M92 1 Engine Assembly (Complete) 1032757M91 1 Block Assembly, Short (Incl. Crankshaft And Brgs. Conn. Rod., Pistons & Camshaft)
1 1032578M91 1 Block Assembly (Stripped)
2 1032602M1 1 Bushing, Camshaft, Front
3 363838X1 8 Pin, Dowel, Main Bearing Cap
4 1032656M1 8 Stud (9/16" NC-NF x 4-1/16")
5 353447X1 8 Washer (9/16" Lock)
6 365673X1 8 Nut (9/16" NF., Hex.)
7 1032664M1 1 Plug (1" Expansion, Brass)
8 17186X 8 Washer (3/8" Flat)
9 356039X1 1 Plug (1/8 P.T. Hex. Sckt. Hd.)
10 1032647M1 1 Plug (21/32" Cup Type)
11 1032663M1 1 Plug (2" Expansion, Brass)
12 22728X 3 Plug (1/4" P.T. Sq. Sckt.)
13 353664X1 1 (A) Bolt (1/4 x 3/8" NC, Hex.) 14 1002044M1 1 (A) Washer (17/64 x 1/2 x 1/16") 15 834020M1 1 (B) Stud (1/4" NC-NF x 3/4")
16 195591M1 4 Plug (1/8" P.T. Sltd.)
17 1032604M1 1 Plunger, Oil Relief Vavle
18 1032636M1 1 Spring, Plunger
19 22239X 1 Gasket (9/16 x 13/16 x 3/32") 20 1032628M1 1 Screw, Relief Valve 21 1032559M1 2 Support, Engine Front 22 353724X1 8 Bolt (1/2 x 1-1/2" NC, Hex.)
23 353439X1 8 Washer (1/2" Lock)
24 354714X1 2 Bolt (3/4 x 2-1/2" NC, Hex.)
25 353440X1 2 Washer (3/4" Lock)
28 1032632M1 1 Cover
29 1032560M2 1 Gasket, Cover
30 357445X1 4 Screw (#10 - 24 x 5/8" Sltd. Hd.)
31 1032659M1 4 Washer (3/16 x 11/32 x 1/32" Copper)
32 1032627M1 1 Plate, Cover
33 1032518M2 1 Gasket, Cover Plate
34 353679X1 2 Bolt (5/16 x 1" NC, Hex.)
35 1032661M1 2 Washer (21/64 x 1/2 x 1/32" Copper)
36 1032606M1 1 Plate, Cover, Right Front
37 1032607M91 1 Plate Assembly, Cover, Right Rear
38 1032605M1 2 Gasket, Cover Plate
39 353665X1 22 Bolt (1/4 x 1/2" NC, Hex.)
40 375182X1 2 Plug (1/2" P.T. Sq. Hd.)
41 1032582M91 1 Cover Assembly, Left
42 1032519M1 1 Gasket, Cover
43 353665X1 22 Bolt (1/4 x 1/2" NC, Hex.)
44 763716M1 1 Drain, Cock
45 353896X1 3 Bolt (3/8 x 1/2" NC, Hex.)
47 1032596M1 1 Tube, Timing Gear Oil (1/4 x 1")
48 355554X1 2 Plug (1/4" P.T., Sltd.)
49 1032601M1 1 Bushing, Governor Gear
50 1032626M1 1 Plug, Idler Hole
51 1033595M1 1 Stop, Governor Lever
52 834114M1 2 Stud (1/4" NC-NF x 1-1/8")
53 353918X1 2 Nut (1/4" NF, Hex.)
54 731374M1 2 Stud
55 353754X1 2 Washer (9/32 x 5/8 x 1/16" Flat)
56 353441X1 2 Washer (1/4" Lock)
57 353918X1 2 Nut (1/4" NF, Hex.)
58 353543X1 1 Bolt (3/8 x 1-5/8" NF, Hex.)
(A) - Used Late Production Engines. (B) - Used Early Production Engines. Order 353664X1 Bolt.
